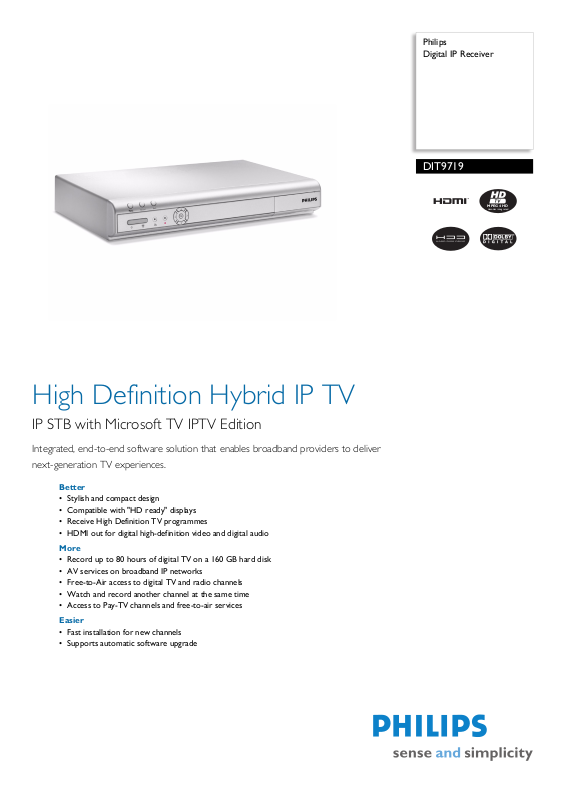

Philips Digital IP Receiver

DIT9719

MPEG 4 HD

decoder integrated

High Definition Hybrid IP TV

IP STB with Microsoft TV IPTV Edition

Integrated, end-to-end software solution that enables broadband providers to deliver next-generation TV experiences.

Better

• Stylish and compact design

• Compatible with "HD ready" displays

• Receive High Definition TV programmes

• HDMI out for digital high-definition video and digital audio

• Record up to 80 hours of digital TV on a 160 GB hard disk

• AV services on broadband IP networks

• Free-to-Air access to digital TV and radio channels

• Watch and record another channel at the same time

• Access to Pay-TV channels and free-to-air services

Easier

• Fast installation for new channels

• Supports automatic software upgrade

Digital IP Receiver

DIT9719/05

Specifications Product highlights

Tuner/Reception/Transmission

• DVB: IPTV, Terrestrial, MHEG

• Broadband Interface: Ethernet 100Mb/s

Storage Media

• Hard Disk Capacity: 160 GB

Connectivity

• Terrestrial antenna interface: RF in, I EC 169 -2, RF out, (bypass) IEC 169-2

• Video Output - Digital: HDMI

• TV scart out: Audio L/R, CVBS, RGB, PAL, Fast blanking

• VCR scart out: Audio L/R, CVBS, Fast blanking, RGB, Slow blanking, Y/C

• VCR scart in: Audio L/R, CVBS, Fast blanking, RGB, Slow blanking

• Video Output - Analogue: S-Video (on Hosiden)

• Audio Output - Analogue: 2x Audio L/R (red/ white cinch)

• Audio Output - Digital: AC3 over S/PDIF (Optical), Optical (TOSLINK)

• USB: 2 x USB 2.0, 1 x USB 2.0, USB 2.0 Master

• Network connections: RJ45

Convenience

• Guide: Microsoft EPG

• Operating System: WinCE

• Remote Control: TV

Sound

• Sound: Dolby Digital (AC-3)

Display

• Aspect ratio: 16, 4:3

Video Decoding

• Compression Format: MPEG-4 (HD), MPEG-4

(SD), MPEG-2 MP@HL (high definition), MPEG-2 MP@ML (std definition)

• CA: Nagravision

• Resolution: up to 1920 x 1080 interlaced

• Aspect Ratio: 16:9, 4:3

• Copy/content protection: HDCP on HDMI, Macrovision on EXT1 / EXT 2

Audio Decoding

• Compression format: MPEG-I layer I/II, MPEG4 HE-AAC, MPEG4 LC-AAC, MP3

• Sound system: AC3 downmixed to stereo

System Specifications

• CPU speed: 266 MHz

• Video graphics: 64 MB SDRAM

• Flash memory size: 64 MB, 16 MB

• Ram size: 64 MB

Power

• Power: 25 W

• Power supply: 220-240V

Technical specifications

• Operating temperature range: 5°C to 45°C °C

• Storage temperature range: -20°C to +60°C °C

Dimensions

• Product dimensions (W x H x D): 360

x 55 x 220 mm

• Weight: 1,9 kg

• Weight incl. Packaging: 2,5 kg

Accessories

• Included Accessories: SCART cable, Ethernet cable, RF antenna cable, Mains cord, Telephone cord, Universal Remote Control, User Manual

•

IP services

With IP network, you c an ac ce ss high quality services like interactive TV, broadcast and multicast TV, and audio and video on demand. These services are dependent on the provider.

Free-to-Air access

Channels can be received without paying a subscription or fee.

Access to Pay TV services

More and more top quality content are being broadcasted these days, but the only way to access these pr emi um cha nne ls i s to sub scribe to the ser vic es f rom the local Pay-TV operators. Insert the operator's smart card into t he set top b ox, and it w ill descramble the encrypted signals that are being broadcasted by the Pay-TV operators.

Automatic installation

A very sensitive tuner is searching the band overnight for new channels with great sensitivity and speed, thanks to unique Philips technology.

MPEG4 HD TV

Enjoy the exceptional picture quality of a true High De fi nitio n T V sig na l bro ug ht to y ou r HD T V s et. H D r eady is a protect ed l abe l th at off ers pic tur e qual ity bey ond th at of progressive scan. It conforms to strict standards laid out by EICTA to offer a HD screen that displays the benefits of resolution and picture quality of a High Definition TV signal. It has a universal connection for both analogue YPbPr and uncompressed Digital connection of DVI or HDMI, supporting HDCP. It can generate 720p, and/or 1080i signals at 50 and 60Hz.

High Definition programmes

As TV programmes are starting to be broadcasted in High Definition standard, only a HD receiver is capable of receiving these signals. Compared to the standard definition programs, which are at 576 pixels, High Definition programmes have a picture quality of 1080 pixels, bringing a much sharper and more vibrant image onto the screen.

HDMI output

HDMI is a direct digital connection that can carry digital HD video as well as digital multichannel audio. By eliminating the conversion to analogue signals it delivers perfect picture and sound quality, completely free from noise. HDMI is fully backward-compatible with DVI.

Issue date 2007-11-14

Version: 1.0

12 NC: 8622 512 00747 EAN: 87 10895 95589 8

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.
