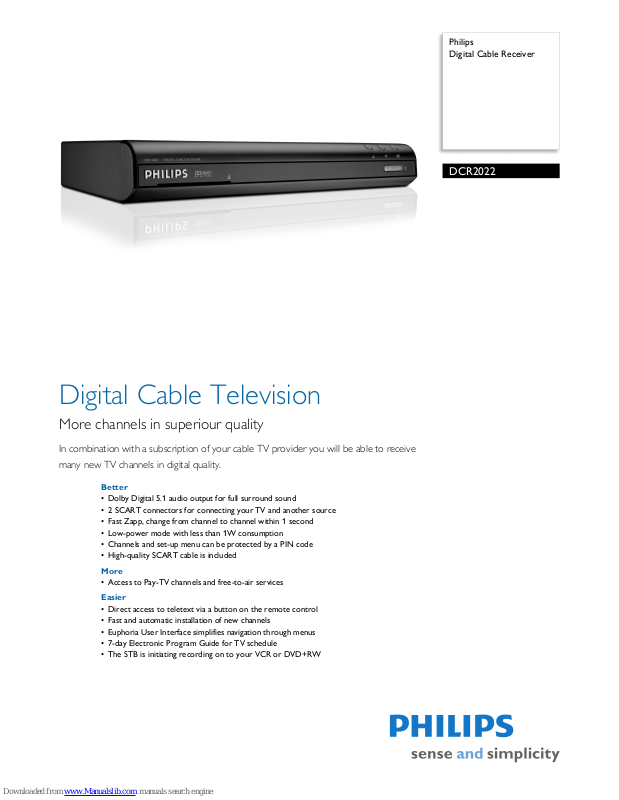

Philips Digital Cable Receiver

DCR2022

Digital Cable Television

More channels in superiour quality

In combination with a subscription of your cable TV provider you will be able to receive many new TV channels in digital quality.

Better

• Dolby Digital 5.1 audio output for full surround sound

• 2 SCART connectors for connecting your TV and another source

• Fast Zapp, change from channel to channel within 1 second

• Low-power mode with less than 1W consumption

• Channels and set-up menu can be protected by a PIN code

• High-quality SCART cable is included

• Access to Pay-TV channels and free-to-air services

Easier

• Direct access to teletext via a button on the remote control

• Fast and automatic installation of new channels

• Euphoria User Interface simplifies navigation through menus

• 7-day Electronic Program Guide for TV schedule

• The STB is initiating recording on to your VCR or DVD+RW

Page 2

Issue date 2011-06-02

Version: 1.0.4

12 NC: 8670 000 30864 EAN: 87 12581 34109 1

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

www.philips.com

Highlights

DCR2022/03

Digital Cable Receiver

Specifications

Dolby Digital 5.1 surround

Because Dolby Digital, the world's leading digital multi-channel audio standards, make use of the way the human ear naturally processes sound, you experience superb quality surround sound audio with realistic spatial cues.

Direct teletext via the remote

A button which you can also find on your TV remote to have direct access to teletext

2 SCART connectors

2 SCART sockets allow you to connect to 2 devices simultaneously. One connection for the TV and the other, either to a DVD recorder or VCR for recording TV content, or to a video playback device, such as a DVD or Blu-ray player. Simply connect the SCART sockets on the product to the desired device by a SCART cable, to enable transmission of the video signals.

Fast Zapp

Time it takes to go one channel up/down

Access to Pay TV services

There is more and more choice for top quality TV content these days, but the only way to access the premium channels is to subscribe to the services from the local Pay-TV operators. This digital receiver enables you to get the best of both worlds by enabling access to certain pay-TV broadcasts in addition to the standard free-to-air channels. Simply insert the operator's smart card into the receiver's dedicated pay-TV slot, and it will descramble the encrypted signals that are being broadcasted by the Pay-TV operators.

Automatic install & update

With the launch of digital terrestrial TV, additional broadcast channels are made available. Also, the channel numbering can often be temorarily reshuffled during digital switchover. To ensure that you always have the access to all available channels,

it is important that the product is able to scan and install new channels automatically. A very sensitive tuner in this product scans through the broadcasting network for new channels whenever the product is switched off. Whenever a new service is detected, it will be automatically updated and saved onto the channel list.

Euphoria User Interface

Easy navigation through the menu structure.

Low power mode

Low-power mode with less than 1W consumption

Parental lock

Do you want to limit access to certain programs or channels to protect your children from objectionable content? This receiver allows you to automatically block access to specified channels or programs either according to maturity ratings or your own preferences. This content can only be viewed after entering the PIN code.

Free SCART cable

high quality SCART cable

7-Day Electronic Program Guide

Would you like to know w hat the TV s ch edul e i s for today and even for the whole week? This way, you can be sure to not miss any of your favorite shows by planning your evenings or making pre-scheduled recordings. The EPG information is part of the broadcast data and, when available, this receiver compiles the programming details for the upcoming 7 days and lists it in an easy-to-read format for your reference. The EPG can be accessed via the menu, or by simply pressing the EPG button on the remote control.

VCR management

Having a second SCART connector in the box enables you to connect a VCR/DVD+RW and manage the recordings you want to make in the STB..

DAYS

EPG

Tuner/Reception/Transmission

• Digital TV: Cable

• Demodulation type: MPEG-2 DVB compliant, QAM

• Input frequency range: 950 to 2150 MHz, 51 to 858 MHz

• Symbol rate: 3-6.9Ms/s

Connectivity

• Cable antenna interface: RF in - IEC 169-2, RF out

- IEC 169-2

• TV scart out: Audio L/R, CVBS, RGB, S-Video (for LC

D projector)

• VCR scart in: Audio L/R, CVBS, RGB

• Audio Output - Analog: Audio L/R (cinch)

• Audio Output - Digital: Coaxial (cinch)

Convenience

• Child Protection: Child Lock+Parental Control

• Ease of Installation: Autoinstall

• Events timer/reminder: 10

• Favorite list radio programs: 3

• Favorite list TV programs: 3

• Parental control: Lock with PIN code, Child timer

• Programmable Events: 1

•Recording: Record failure alarm, Record h

eader

message

• Signal strength indication

• User Interface: 7 day Electronic program Guide, Aut

omatic program list update, Multiple subtitles supported, Now & Next ESG, On Screen Display on TV, TV and Radio mode

Video Decoding

• Compression Format: MPEG-2 MP@ML (std definition)

• Conditional access system: Irdeto (card not supp

lied), Subscription needed for pay-TV

• De-scrambling: Smart Card reader

• Resolution: up to 720 x 576 interlaced

• Aspect Ratio: 16:9, 4:3 Letterbox, 4:3 Pan Scan

Audio Decoding

• Compression format: MPEG layer I/II

• Sound system: Dolby Digital, AC3 downmixed to ster

eo, Stereo, Mono

System Specifications

• CPU speed: 60 MHz

• Flash memory size: 2 MB

•Ram size: 8 MB SDRAM

Power

• Low power mode (ECO): <1 W

• Power consumption: 10 W

• Power supply: 220-240V

• Standby power consumption: <7 W

Technical specifications

• Operating temperature range: 0 to +40 °C

• Storage temperature range: -20 to +60 °C

Dimensions

• Product dimensions (W x H x D): 238 x 42 x 145 mm

• Carton dimensions (WxDxH): 320x85x295 mm

• Weight: 0.98 kg

• Weight incl. Packaging: 1,780 kg

Accessories

• Included accessories: High quality SCART cable, Mains cord, Remote Control, User Manual, Quick install guide, Safety & warranty booklet

•Batteries: 2 x AA

•
