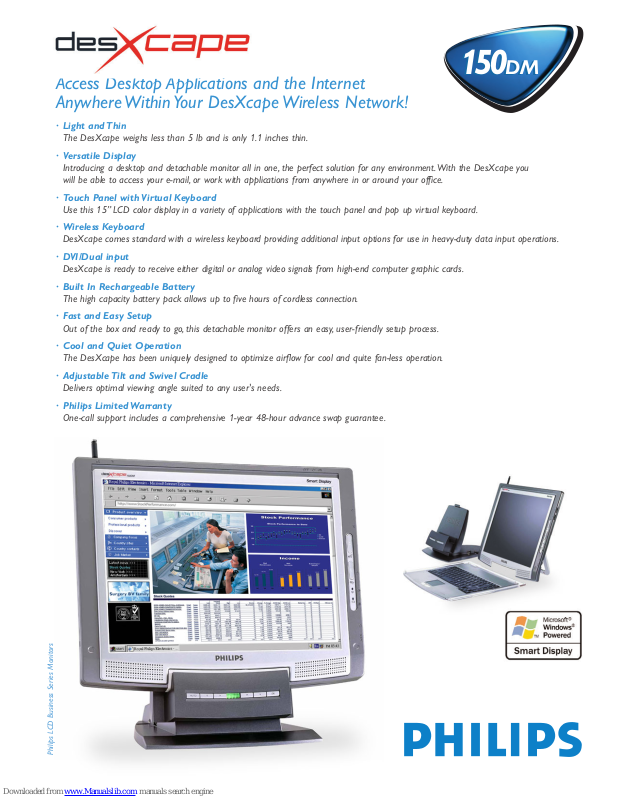

Page 1
Philips LCD Business Series Monitors
150D M
150D M
· Light and Thin
The DesXcape weighs less than 5 lb and is only 1.1 inches thin.
·Versatile Display
Introducing a desktop and detachable monitor all in one, the perfect solution for any environment.With the DesXcape you
will be able to access your e-mail, or work with applications from anywhere in or around your office.
·Touch Panel with Virtual Keyboard
Use this 15” LCD color display in a variety of applications with the touch panel and pop up virtual keyboard.
· Wireless Keyboard
DesXcape comes standard with a wireless keyboard providing additional input options for use in heavy-duty data input operations.
·DVI/Dual input
DesXcape is ready to receive either digital or analog video signals from high-end computer graphic cards.
· Built In Rechargeable Battery
The high capacity battery pack allows up to five hours of cordless connection.
·Fast and Easy Setup
Out of the box and ready to go, this detachable monitor offers an easy, user-friendly setup process.
· Cool and Quiet Operation
The DesXcape has been uniquely designed to optimize airflow for cool and quite fan-less operation.
· Adjustable Tilt and Swivel Cradle
Delivers optimal viewing angle suited to any user's needs.
· Philips Limited Warranty
One-call support includes a comprehensive 1-year 48-hour advance swap guarantee.
Access Desktop Applications and the Internet
Anywhere Within Your DesXcape Wireless Network!
Page 2
Product Number 150DM10P
Embedded System
• CPU Intel® Xscale™ Application Processor; 400MHz
• Memory 64MB SDRAM (on board)
• Flash ROM 32MB
Operating System
• Microsoft® Windows® CE for Smart Displays
Wireless Communications
• 802.11b wireless LAN (built in)
LCD
•Panel TFT LCD
• Screen Size (inch/cm) 15.0 inch / 38.1 cm
• Pixel Pitch 0.297 x 0.297 mm
• Display Format 1024 x 768 pixels
Touch Panel
• 12-bit A/D converter ; 100 samples per second
Video
• Dual input interface Both Analog (D-Sub) and DVI-D are
available and user selectable
Panel Optical Characteristics
• Contrast Ratio 250:1 (typ.)
•Brightness 170 cd/m2 (typ.)
• Viewing Angle V=90° Upper ≥ 30°(typ.)
(C/R >5) Lower ≥ 60°(typ.)
H=100° Left ≥ 50°(typ.)
Right ≥ 50°(typ.)
Power Management
Complies with EPA Energy Star
Buttons and Controls
• On Display Power On/Off -slide switch
Brightness - VR dial
Volume - VR dial
Dashboard - launch button
Input Panel - launch button
Hardware Reset - push button
Software Reset - push button
R/F keyboard Reset - push button
• OSD OK - Tact Switch
Auto - Tact Switch
Up / Down - Tact Switch
Left / Right - Tact Switch
I/O
• On display VGA (mini jack) out
USB; type A (*2 ;for keyboard and mouse)
Headphone jack
DC-in jack
Base station connector
Dual integral stereo 16 bit
AC 97 2.0 compliant speaker*2
• On Base station DC-in jack DVI-D (digital)
15-pin Dsub (analog)
USB type B
USB; type A (*2 ;for keyboard and mouse)
Audio-in jack
Audio-out jack
Audio
• Stereo Speakers 1.5 W x2 RMS
Included Accessories
• Battery Internal removable smart Li-ion battery pack, up to 5
hours battery life.
•AC-Adapter AC 90V~ 265V, 47~63Hz input, 19V DC, 3.16A
output, 60W
• Stylus x 2
• Base station
• USB B to A cable
• VGA cable
• Mini VGA cable
• Audio cable
• USB Wireless network adaptor
• RF Key board (88 Keys) with Touch Pad
Optional Accessories
• Extra AC adapter SG3AP174
• Stylus 3-pack SG3ST174
• Extra battery Pack SG3BA74
Regulatory Approvals
• TÜV
• FCC-B, UL, CSA
• SEMKO
• CE Mark
• Energy Star
• USB Logo
• Microsof® Windows® XP Pro LOGO
• Microsoft® Windows® CE for Smart Displays LOGO
Others
• Security Port Kensington Lock Port Cable door Lock Port
• Wall mounting Standard VESA mounting (options) Pedestal hook easy mounting
* Resolution 1028 x 768, standard size, contrast max., brightness 50%,9300°K. Full white pattern, without Audio.
Physical Specifications
• UPC Code 150DM10 0 37849 93407 4
• Display Dimensions (WxHxD) 14.7" x 12.1" x 1.1 "
375 x 309 x 28.5 mm (min height)
• Base Station Dimensions (WxHxD) 7.8" x 8.0" x 8.9"
200 x 205 x 227 mm (min height)
• Display Weight 5.2 lbs/2.4 kg
• Base Station Weight 4.8 lbs/2.2 kg
• Carton Dimensions (WxHxD) 22.2" x 14.7" x 11.1"
563 x 373 x 281 mm
• Carton Weight 20 lbs/ 9 kg
• Tilt -3°~25°
•Temperature (operating) +5°C to +35°C/ 9°F to 104°F
•Temperature (storage) -20°C to +60°C/ -4°F to 140°F
• Relative Humidity 20% to 80%
We recommend using 1024 x 768 at 60Hz non-interlaced mode for the best picture quality
Carton Contains: Two Stylius, Adjustable Docking Station, USB Wireless Network Adaptor,
Li-ion Battery Pack, 88-Key Wireless Keyboard, AC Power Adaptor, USB B to A Cable,VGA Cable,
DVI-D cable, Mini-VGA Adapter,Audio Cable and Quick Start Guide.
INTERNET ADDRESS: http://www.philipsusa.com
TECHNICAL SUPPORT: (877) 835-1838 (USA)
(402) 536-4171 (outside USA)
Specifications subject to change without notice.
Printed in the U.S.A., ©2003 Philips Consumer Electronics Co.A Division of Philips Electronics North America
Corp. We recommend using 1024 x 768 at 60 Hz noninterlaced mode for the best picture quality As an
Energy Star partner, Philips has determined that this product meets the Energy Star guidelines for energy efficiency. Microsoft and Windows are registered trademarks of Microsoft Corporation "DCDi" is a trademark of
Faroudja, a division of Genesis Microchip Inc.
CCM-141-4/03
Literature Order Number: 150DM10P
150
D M
150D M
