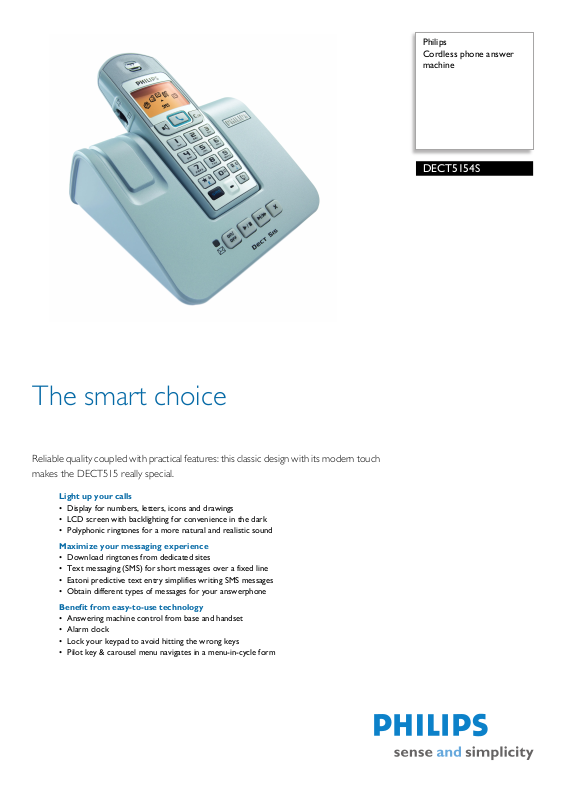

Philips DECT5154S User Manual

Philips
Cordless phone answer
machine

DECT5154S

The smart choice

Reliable quality coupled with practical features: this classic design with its modern touch
makes the DECT515 really special.

Light up your calls

• Display for numbers, letters, icons and drawings

• LCD screen with backlighting for convenience in the dark

• Polyphonic ringtones for a more natural and realistic sound

Maximize your messaging experience

• Download ringtones from dedicated sites

• Text messaging (SMS) for short messages over a fixed line

• Eatoni predictive text entry simplifies writing SMS messages

• Obtain different types of messages for your answerphone

Benefit from easy-to-use technology

• Answering machine control from base and handset

•Alarm clock

• Lock your keypad to avoid hitting the wrong keys

• Pilot key & carousel menu navigates in a menu-in-cycle form

Cordless phone answer machine

DECT5154S/07

Specifications Product highlights

Picture/Display

• Backlight

• Backlight color: Orange

• Diagonal screen size - tele: 4.0 cm

• Effective viewing area: 31.5x21

• Lines of text: 4

Sound

• Base station ringers: Polyphonic

• Handset ringers: Polyphonic

• Volume Control: digital

Convenience

• Auto out of range warning

• Base Station keys: Answering machine keys,
Paging key

• Battery charging indication

• Battery full indication

• Battery low indication

• Call Management: Call Counters, Call
Forwarding, Call on Hold, Call Time, Call
Waiting, Caller ID, Conference Call, Explicit Call
Transfer, Microphone mute, Missed Calls,
Received Calls

• Caroussel Icons: Phonebook, Answerphone,
SMS, Intercom, Network, Extra, Base, Handset,
Call log

• Drop proof: 120 cm

• Ease of Use: Hands free mode, Hot Keys,
Keypad Lock

• Function: Do not disturb ringer mute, Call cost,
A la rm cl oc k, Ba by si t f un ct io n, Mi cro ph on e m ute ,
Conference call, Chain dialling, Direct to Do
Not Disturb mode, Short cut keys, Keypad lock,
Free handset to handset call, Melodies download

• Handset Keys: Line, Pilot key, Cancel / Recall,
Dialling keypad, Loudspeaker, Call log,
Phonebook

• Lines of text: 4

• Multi handset capability: Up to 6 handsets

• Text input: Eatoni

• VIP group with own melody: Yes, 3 groups

•Volume control

Accessories

•AC/DC Adaptor

• Batteries: 8 x AAA

• Cables: RJ 11 cable

• Charger: yes, 3 chargers

•User Manual

Related Products

• Package contents: Handset, Base, 2 AAA NiMh
Batteries, Telecom Line Cord, Power adapter,
User Manual, Warranty leaflet, Sticker

Green Specifications

• Chemical composition: Nickel-Metal Hydride

•Eco Designed

•Halogen-free housing

• Packaging material: Carton

• Packaging type: Giftbox

• PVC-free product and cables

• User manual recycled paper

Dimensions

• Antenna: Integrated

• Base dimensions: 118x130x60

• Base weight: 180g

• Form Factor: Semi lying on base station

• Handset color: silver shadow

• Handset dimensions: 120mm

• Handset weight: 100g

• Packaging dimensions (W x H x D):
262

x 90 x 217 mm

• Relative humidity (operation): up to 95% at 40° C

• Relative humidity (storage): up to 95% at 40°C

• Temperature range (operation): 0°C to 40°C

• Temperature range (storage): -25°C to 70°C

Power

• Ambient temperature: 5 °C to 40 °C

• Battery Type: NiMH

• Charging time: 14 hours hr

• Kind of Battery: Rechargeable

• Number of batteries: 2

• Power supply base station: 230V

• Radio RF power: <250mW

• Standby time: 200 hours

• Talk time: up to 15 hours

Network Features

• Antenna: Fast Selection Technology, Integrated
on base, Integrated on handset

• Compatible: GAP, PABX

• Dialing: Tone, Pulse

• Messaging: Quick SMS

Operator Requirements

•SMS

• Name and Caller ID

• Caller ID on call waiting

• Operators services phonebook

Answering Machine

• Plug & Play Answering machine

• Recording time capacity: 60 min

• VIP outgoing message

• Call screening

• Answerphone remote access

Memory Capacity

• Name & number shared phonebook: 65

• Melody download capacity: 3

• SMS storage capacity: 25

• Call log entries: 40

•

Full graphic display

This type of displays makes it easier to use your phone,
thanks to the good quality and legibility of the
characters. It also gives you more freedom in
communication from your home. Now you can combine
text with i mag es or n umbers, w hen sendi ng an S MS f or
example.

Backlight on screen

Backlighting is a feature that illuminates the LCD screen
or keypad for use in the dark. The two most common
types of backlighting include LED and
electroluminescent (EL). Remotes backlit with LEDs are
typically bright but uneven with a yellow or green color,
while EL panels are smooth with blue, white or green
shades.

Polyphonic ringtones

A polyphonic ringtone means that the phone can play
many tones simultaneously, so that an accurate musical
performance is possible, and when played through the
phone's speaker these polyphonic ringtones sound like
real music.

Ringtone download

This function offers the possibility to personalize your
phone by downloading ringtones. Simply call the
dedicated service provider and select your favourite
song. An SMS is sent to you, together with the attached
melody. You can select this melody as any other
ringtones (country and network dependent).

Text messaging (SMS)

The Short Message Service (SMS) is a mechanism for
delivery of short messages which can have up to 160
characters of text. These 160 characters are plain text
in nature and can be comprised of words, numbers or
an alphanumeric combination. The Eatoni®LetterWise
predictive text editor helps you to write text messages
more quickly. With its unique SMS system you can
receive up to 200 messages in 10 different mailboxes.
Greeting to a loved one, a quick reminder about an
important meeting, …all this can now be put in a SMS
and sent over the fixed network.

Eatoni text editor

Eatoni's LetterWise is an easy-to-use text-entry solution
requiring just 1.16 taps per correct letter. It makes
typing on phone keypads as comfortable, fast, and
accurate as using a typewriter keyboard. It is unique
among predictive text entry solutions in its ability to
easily handle the entry of abbreviations, names,
addresses, and URLs.

Downloadable outgoing messages

This function gives the user the possibility to download
specific outgoing messages for their answering machine.
Simply call the dedicated service provider and select
your favourite outgoing message. This message will be
recorded on the answering machine by the service
provider (country and network dependent).

Base and handset TAM control

Just look at the base station to know instanttly whether
you received messages. Listening or deleting messages
then becom e as si mple as pr essin g on e key o n the b ase
station - for those who never remember where they left
their handset.

Date of issue 2007-02-20

Version: 2.0

12 NC: 9961 400 03634
EAN: 87 10895 86209 7

© 2007 Koninklijke Philips Electronics N.V.
All Rights reserved.

Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.

www.philips.com

Alarm clock

Keypad lock

How convenient it is to take your DECT phone with you
whilst gardening. But in your pocket it can be so jolted
that a key might be accidently pressed. To prevent
inadvertently calling your cousin in the US, the keypad
lock is a safe way to avoid bad surprises on your next
phone bill!
