Philips DCM377/12, DCM377 User Manual

Download

Page 1

www.philips.com/welcome

EN User manual

DE Benutzerhandbuch

ES Manual del usuario

FR Mode d’emploi

IT Manuale utente

NL Gebruiksaanwijzing

PT Manual do utilizador

SV Användarhandbok

DCM377

Page 2

English

Contents

1 Important 4

Safety 4 Notice 5

2 Your Docking Entertainment System 6

Introduction 6 What’s in the box 6 Overview of the main unit 7 Overview of the remote control 8

3 Get started 9

Connect speakers 9 Connect FM antenna 9 Connect power 9 Prepare the remote control 10 Set clock 10 Turn on 10 Store radio stations automatically 10

4 Play 11

Basic play operations 11 Play from disc 11 Play from USB 11 Adjust sound 11

5 Play iPhone/iPod 12

Compatible iPhone/iPod 12 Listen to the iPhone/iPod 12 Charge the iPhone/iPod 12 Remove the iPhone/iPod 12

6 Listen to FM radio 13

Tune to FM radio stations 13 Program radio stations automatically 13 Program radio stations manually 13 Tune to a preset radio station 13 Show RDS information 13

7 Other features 14

Set alarm timer 14 Set sleep timer 14 Listen to external audio device 14 Listen through headphone 14

8 Product information 14

Speciﬁcations 14 USB playability information 15 Supported MP3 disc formats 15

9 Troubleshooting 16

Page 3

Refer • all servicing to qualiﬁed service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. Battery usage CAUTION – To prevent battery • leakage which may result in bodily injury, property damage, or damage to the unit: Install all batteries correctly, + and - as marked • on the unit. Do not mix batteries (old and new or carbon • and alkaline, etc.). Remove batteries when the unit is not used • for a long time. Apparatus shall not be exposed to dripping or • splashing. Do not place any sources of danger on the • apparatus (e.g. liquid ﬁlled objects, lighted candles).

Caution

Use of controls or adjustments or per formance of • procedures other than herein may result in hazardous radiation exposure or other unsafe operation.

Warning

Where the MAINS plug or an appliance coupler is used • as the disconnect device, the disconnect device shall remain readily operable.

Hearing Safety

Danger

To avoid hearing damage, limit the time you use the • headphones at high volume and set the volume to a safe level. The louder the volume, the shorter is the safe listening time.

Be sure to observe the following guidelines when using your headphones.

Listen at reasonable volumes for reasonable • periods of time. Be careful not to adjust the volume • continuously upwards as your hearing adapts. Do not turn up the volume so high that you • can’t hear what’s around you. You should use caution or temporarily • discontinue use in potentially hazardous situations. Excessive sound pressure from earphones and • headphones can cause hearing loss.

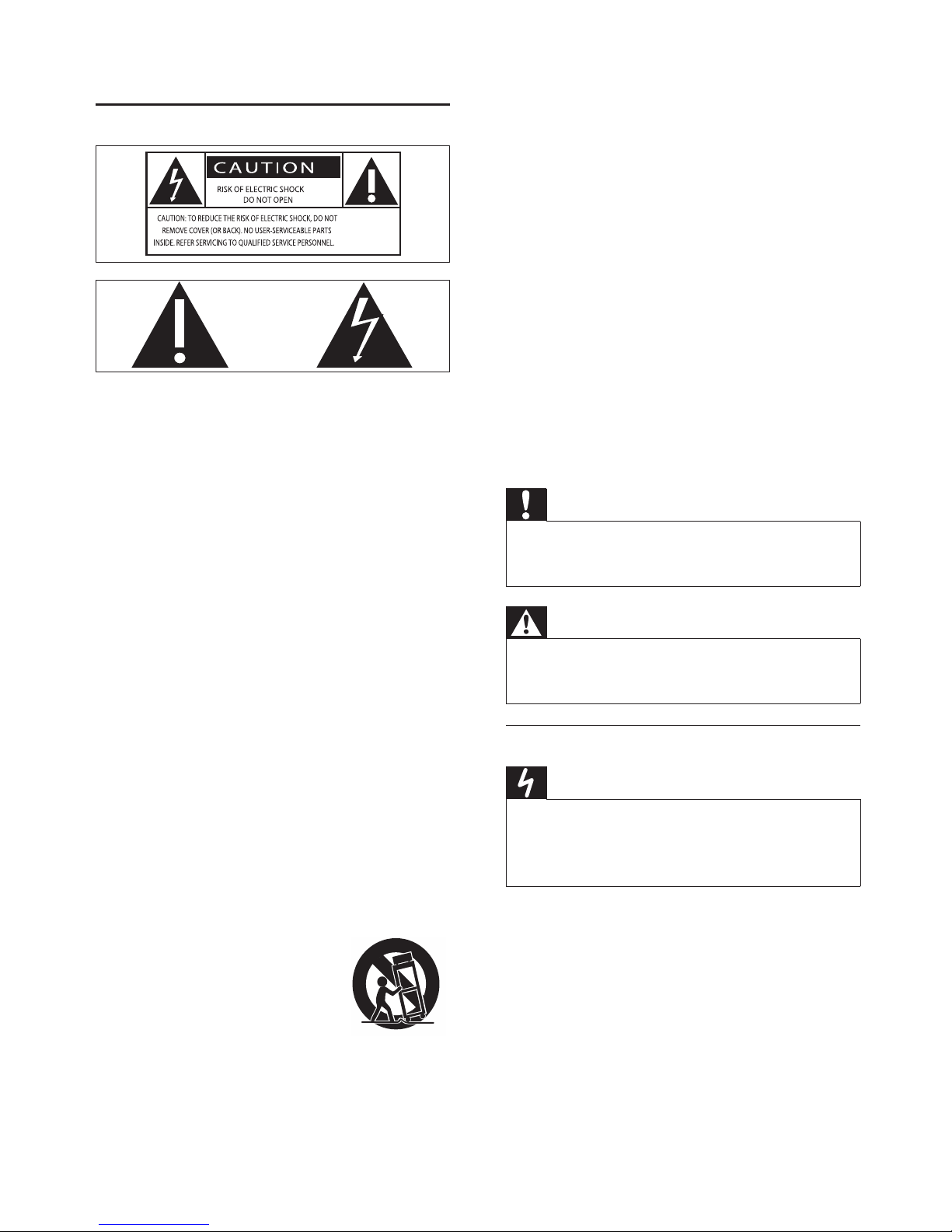

1 Important

Safety

This ‘bolt of lightning’ indicates uninsulated material within your unit may cause an electrical shock. For the safety of everyone in your household, please do not remove product covering. The ‘exclamation point’ calls attention to features for which you should read the enclosed literature closely to prevent operating and maintenance problems. WARNING: To reduce the risk of ﬁre or electric shock, this apparatus should not be exposed to rain or moisture and objects ﬁlled with liquids, such as vases, should not be placed on this apparatus. CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert.

• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such • as radiators, heat registers, stoves, or other apparatus (including ampliﬁers) that produce heat. Protect the power cord from being walked on • or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. Only use attachments/accessories speciﬁed by • the manufacturer. Use only with the cart, stand, • tripod, bracket, or table speciﬁed by the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over. Unplug this apparatus during lightning storms • or when unused for long periods of time.

Page 4

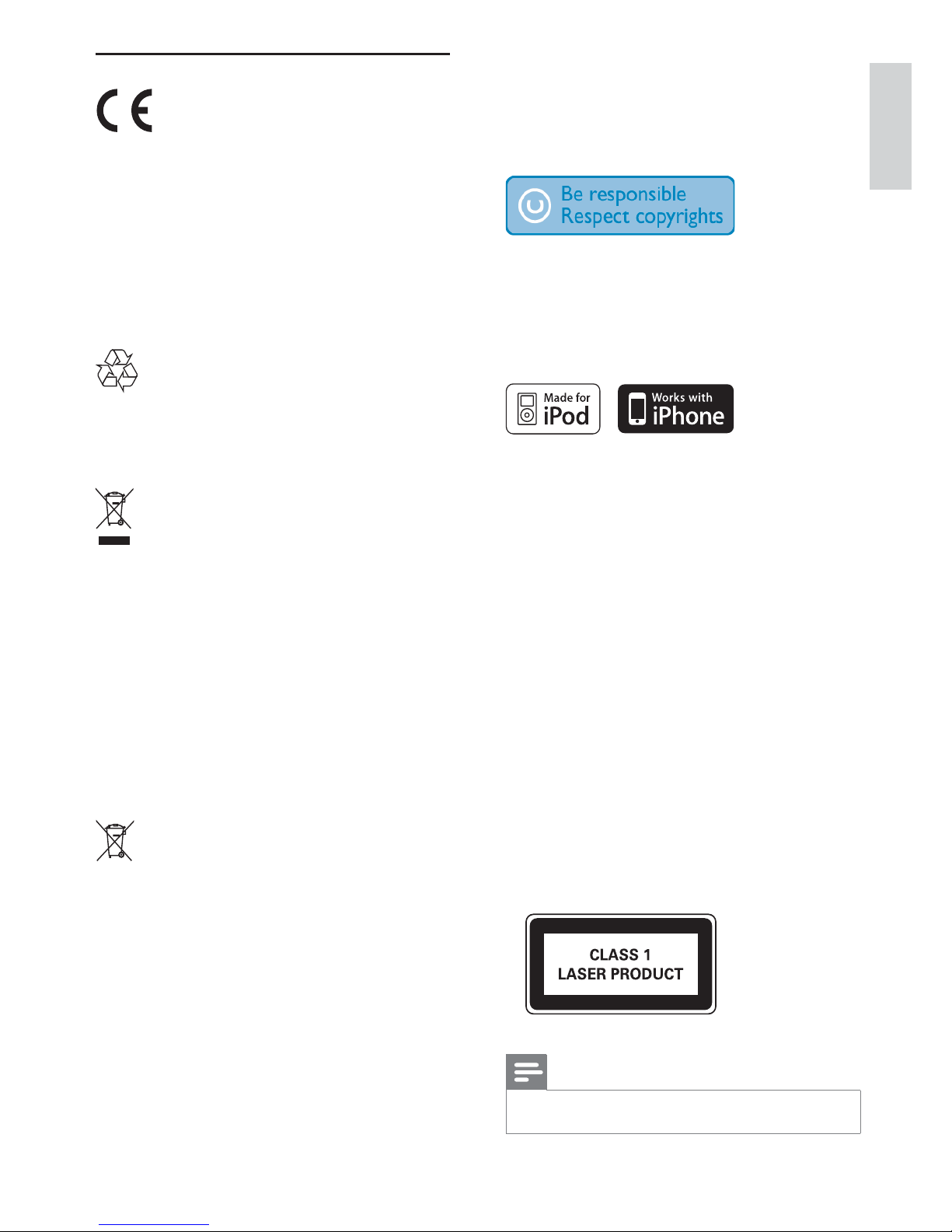

Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

The making of unauthorized copies of copyprotected material, including computer programs, ﬁles, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offence. This equipment should not be used for such purposes.

“Made for iPod” means that an electronic accessory has been designed to connect speciﬁcally to iPod and has been certiﬁed by the developer to meet Apple performance standards. “Works with iPhone” means that an electronic accessory has been designed to connect speciﬁcally to iPhone and has been certiﬁed by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. iPod is a trademark of Apple Inc., registered in the U.S. and other countries.

Norge

Typeskilt ﬁnnes på apparatens underside. Observer: Nettbryteren er sekundert innkoplet. Den innebygde netdelen er derfor ikke frakoplet nettet så lenge apparatet er tilsluttet nettkontakten. For å redusere faren for brann eller elektrisk støt, skal apparatet ikke utsettes for regn eller fuktighet.

This apparatus includes this label:

Note

The type plate is located on the bottom of the apparatus. •

Notice

This product complies with the radio interference requirements of the European Community. This product complies with the requirements of the following directives and guidelines: 2004/108/EC + 2006/95/EC Any changes or modiﬁcations made to this device that are not expressly approved by Philips Consumer Lifestyle may void the user’s authority to operate the equipment.

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/EC. Please inform yourself about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed with normal household waste.Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environmental and human health.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.)

English

Page 5

2 Your Docking

Entertainment System

Congratulations on your purchase, and welcome to Philips! To fully beneﬁt from the support that Philips offers, register your product at www.philips.com/ welcome.

Introduction

With this unit, you can:

enjoy audio from discs, USB devices, iPod, • iPhone and other external devices listen to radio stations•

You can enrich sound output with these sound effects:

Digital Sound Control (DSC) • Dynamic Bass Boost (DBB) • Loudness Control•

The unit supports these media formats:

What’s in the box

Check and identify the contents of your package:

Main unit• Remote control with battery• Speaker boxes (×2)• FM antenna• Power cable• MP3 link cable (60cm)• User manual•

Page 6

h OPEN/CLOSE

Open or close the disc tray.•

i SOURCE

Select a source.•

j ALBUM/PRESET

Skip to previous/next album.• Select a preset radio station.• Navigate through iPod/iPhone menu.•

Skip to previous/next track.• Search within a track/disc.• Tune to a radio station.•

Stop play.• Erase a program.•

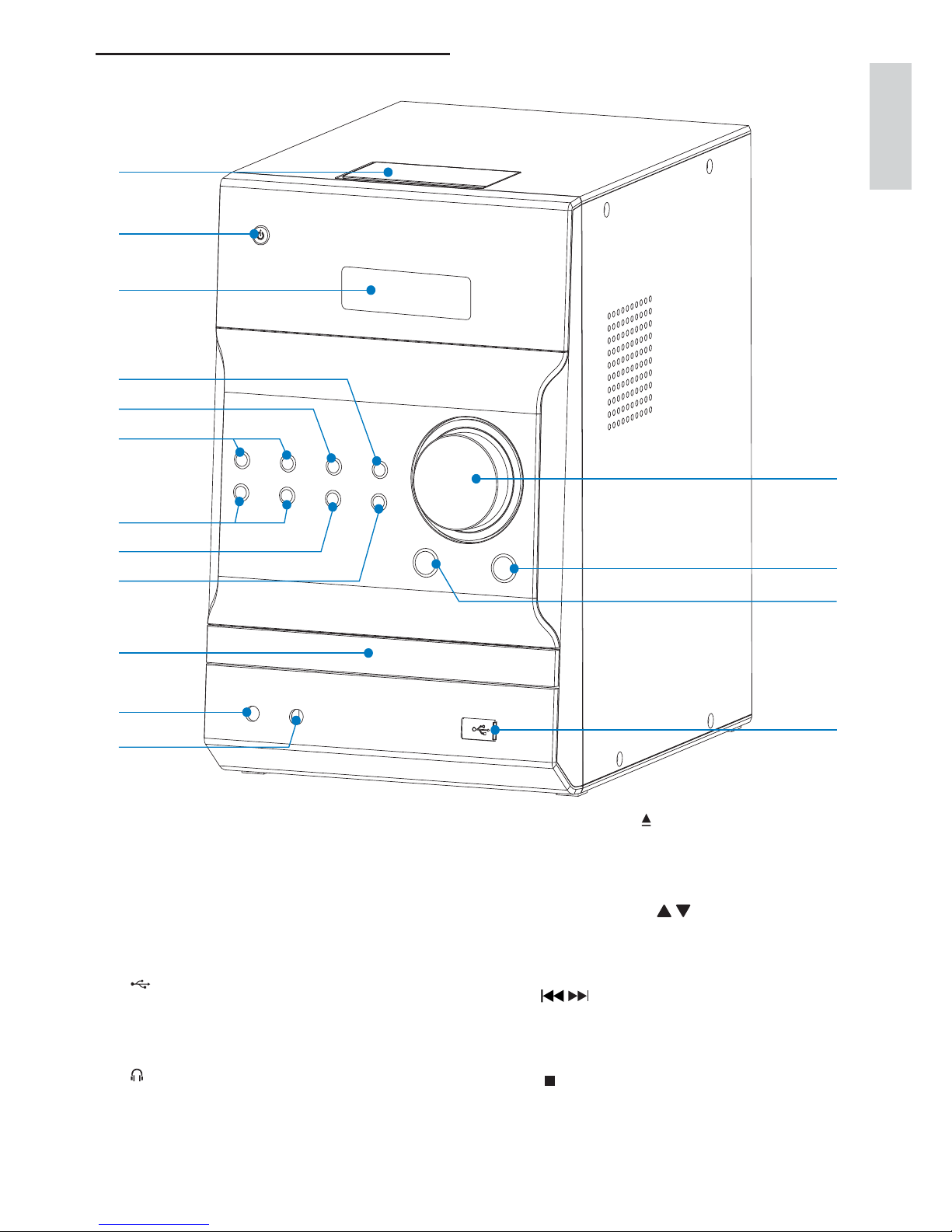

Overview of the main unit

a VOLUME

Adjust volume.•

b DSC

Select a preset sound setting.•

c DBB

Turn on or off dynamic bass • enhancement.

USB socket.•

e MP3 LINK

Connect external audio device.•

Headphone socket.•

g Disc tray

English

Page 7

Turn on the unit.• Switch to standby or Eco Power standby • mode.

b Source selection keys (CD, USB, FM, iPhone,

iPod, AUX, MP3 LINK)

Select a source. •

c RDS

For selected FM radio stations: display • RDS information. Synchronize clock with RDS station.•

d DISPLAY

Display play information.•

e SHUFFLE

Play tracks randomly.•

Skip to previous/next track.• Search within a track/disc.• Tune to a radio station.•

g ALBUM/PRESET

Skip to previous/next album.• Select a preset radio station.• Navigate through iPod/iPhone menu.•

h MENU

Access iPod/iPhone menu.•

i VOL +/-

Adjust volume.•

j MUTE

Mute volume.•

k DIM

Adjust brightness of display panel.•

l CLOCK

Set clock.•

m SLEEP/TIMER

Set sleep timer.• Set alarm timer.•

n SHIFT

Enter a two or three-digit number (used • with the numeric keypad).

o PROG

Program tracks.• Program radio stations.•

p Numeric keypad

Select a track directly.•

Stop play.• Erase a program. •

Start or pause play.•

n Display panel

Show current status.•

Turn on the apparatus, switch to standby • mode, or Eco Power standby mode.

p Dock for iPhone / iPod

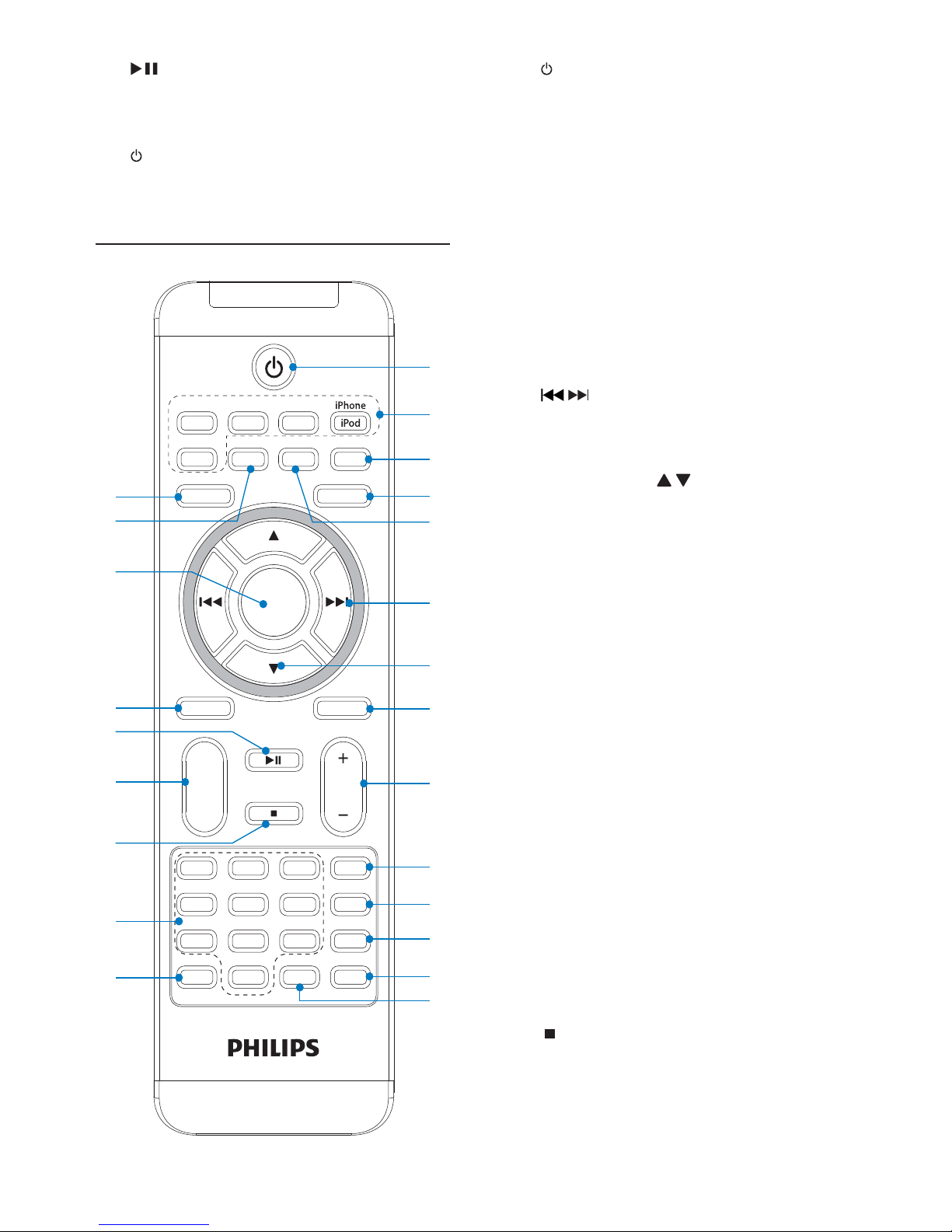

Overview of the remote control

VOL

LOUDNESS

RDS

SHIFT

DIM

SLEEP

PROG

CLOCK

MUTE

SHUFFLE

REPEAT

USB

MP3 LINK

TIMER

CD FM

OPEN/CLOSE

DISPLAY

ALBUM/PRESET

DSC

DBB

AUX

m n

t s

Page 8

Connect FM antenna

Tip

For optimal reception, fully extend and adjust the • position of the antenna. For better FM stereo reception, connect an outdoor FM

•

antenna to the FM ANTENNA socket. The unit does not support MW radio reception.

•

1 Connect the supplied FM antenna to the FM

ANTENNA socket on the main unit.

Connect power

Caution

Risk of product damage! Ensure that the power supply • voltage corresponds to the voltage printed on the back or the underside of the unit. Risk of electric shock! When you unplug the AC power

•

cord, always pull the plug from the socket. Never pull the cord. Before you connect the AC power cord, ensure that you

•

have completed all other connections.

r DSC/DBB

Select a preset sound setting.• Turn on or off dynamic bass • enhancement.

Start or pause play.•

t LOUDNESS

Enable or disable automatic loudness • adjustment.

u OK

Conﬁrm a selection.•

v REPEAT

Select a repeat play mode.•

w OPEN/CLOSE

Open or close the disc tray.•

3 Get started

Caution

Use of controls or adjustments or per formance of • procedures other than herein may result in hazardous radiation exposure or other unsafe operation.

Always follow the instructions in this chapter in sequence. If you contact Philips, you will be asked for the model and serial number of this apparatus. The model number and serial number are on the bottom of the apparatus. Write the numbers here: Model No. __________________________ Serial No. ___________________________

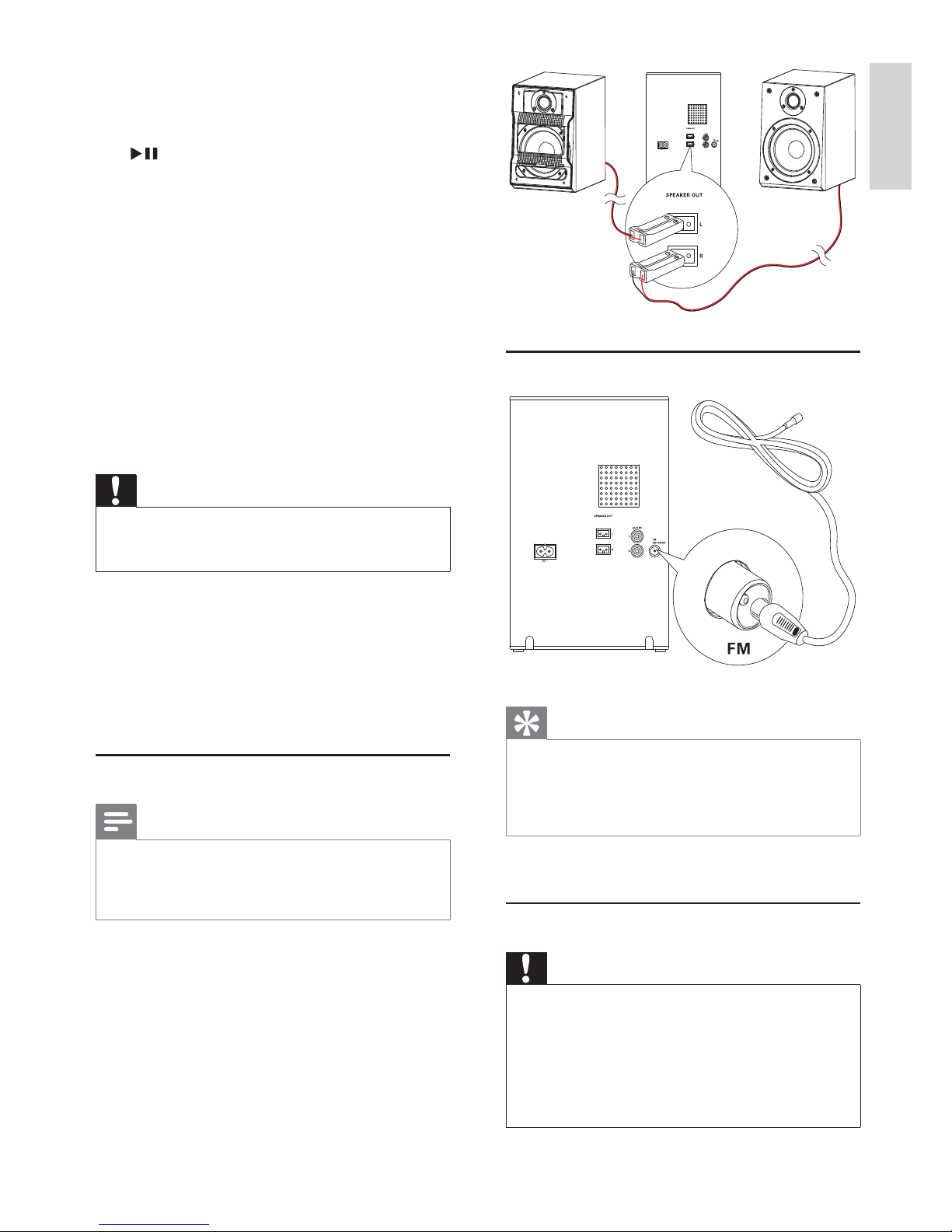

Connect speakers

Note

For optimal sound, use the supplied speakers only. • Connect only speakers with impedance that is the • same or higher than the supplied speakers. Refer to the Speciﬁcations section of this manual.

1 Insert the speaker wires completely into the

speaker input sockets on the back of the unit.

English

Page 9

Note

If you are not going to use the remote control for a long • time, remove the batter y.

Set clock

1 In standby mode, press CLOCK for 3 seconds

to activate clock setting mode.

» [SET CLOCK] scrolls on the display, then

the time format [24H] and [12H] appears.

2 Press ALBUM/PRESET to select 24H or 12H,

then press CLOCK to conﬁrm.

The hour digits begin to blink. »

3 Press ALBUM/PRESET to set hour, then press

CLOCK again.

The minute digits begin to blink. »

4 Press ALBUM/PRESET to set minute. 5 Press CLOCK to conﬁrm the clock setting.

Note

If no button is pressed in 30 seconds, the system exits • clock setting mode automatically.

Turn on

1 Press .

The unit switches to the last selected » source.

Switch to standby mode

1 Press for over 3 seconds to switch the unit

to Eco Power Standby mode.

The backlight on the display panel turns off. » The blue Eco Power indicator turns on. »

To switch the unit to standby mode:

1 In Eco Power Standby mode, press for over

3 seconds.

The clock (if set) appears on the display » panel.

The blue Eco Power indicator turns off. »

Store radio stations automatically

When the unit is connected to power and no radio stations are stored, the unit begins to store radio stations automatically.

1 Connect the unit to power supply.

» [AUTO INSTALL PRESS--PLAY KEY](auto

install press - play key) is displayed.

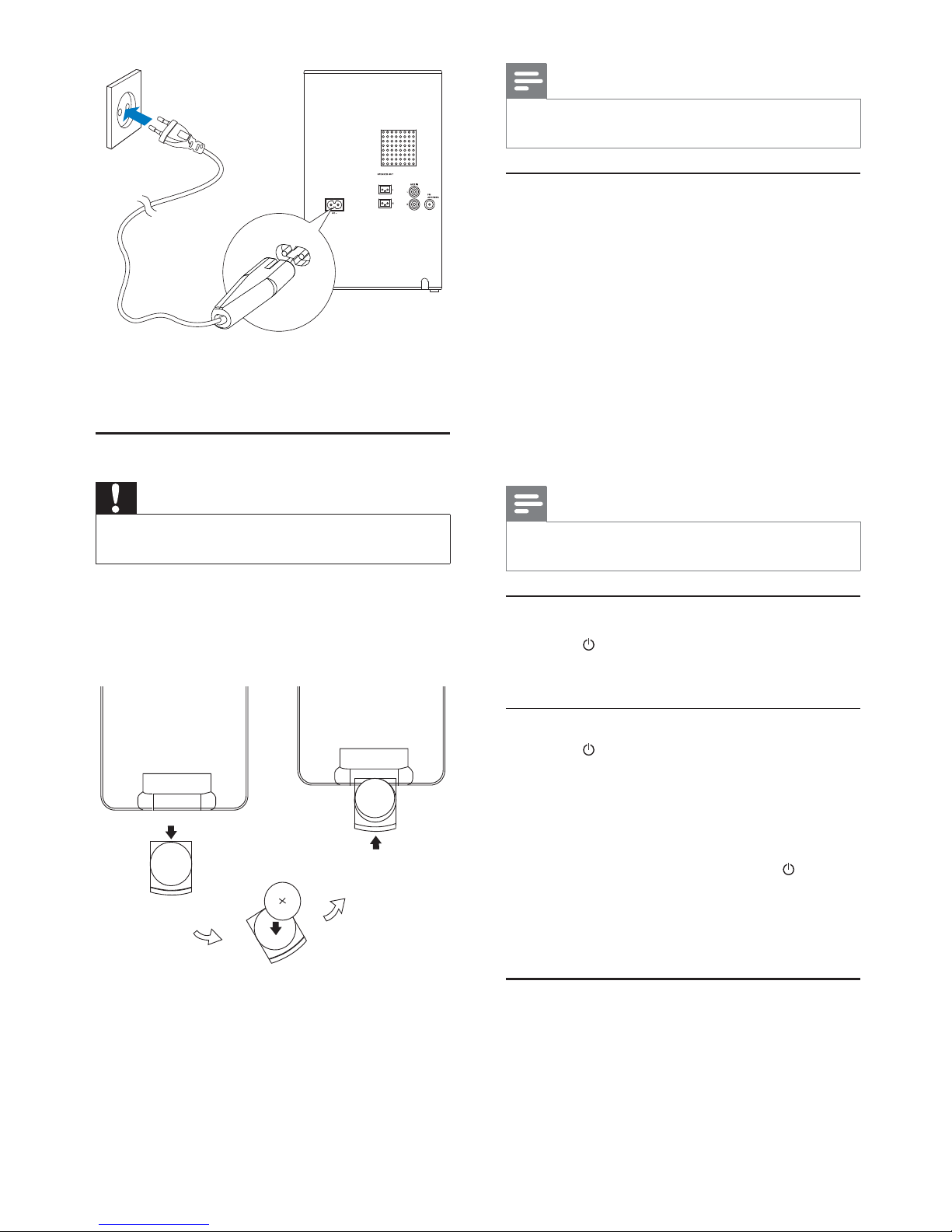

1 Connect the power cable to:

the • AC~ jack on the main unit. the wall socket.•

Prepare the remote control

Caution

Risk of explosion! Keep batteries away from heat, • sunshine or ﬁre. Never discard batteries in ﬁre.

For ﬁrst-time use:

1 Remove the protective tab to activate the

remote control battery.

To replace the remote control batteries:

1 Open the battery compartment. 2 Insert one lithium CR2025 battery with

correct polarity (+/-) as indicated.

3 Close the battery compartment.

Page 10

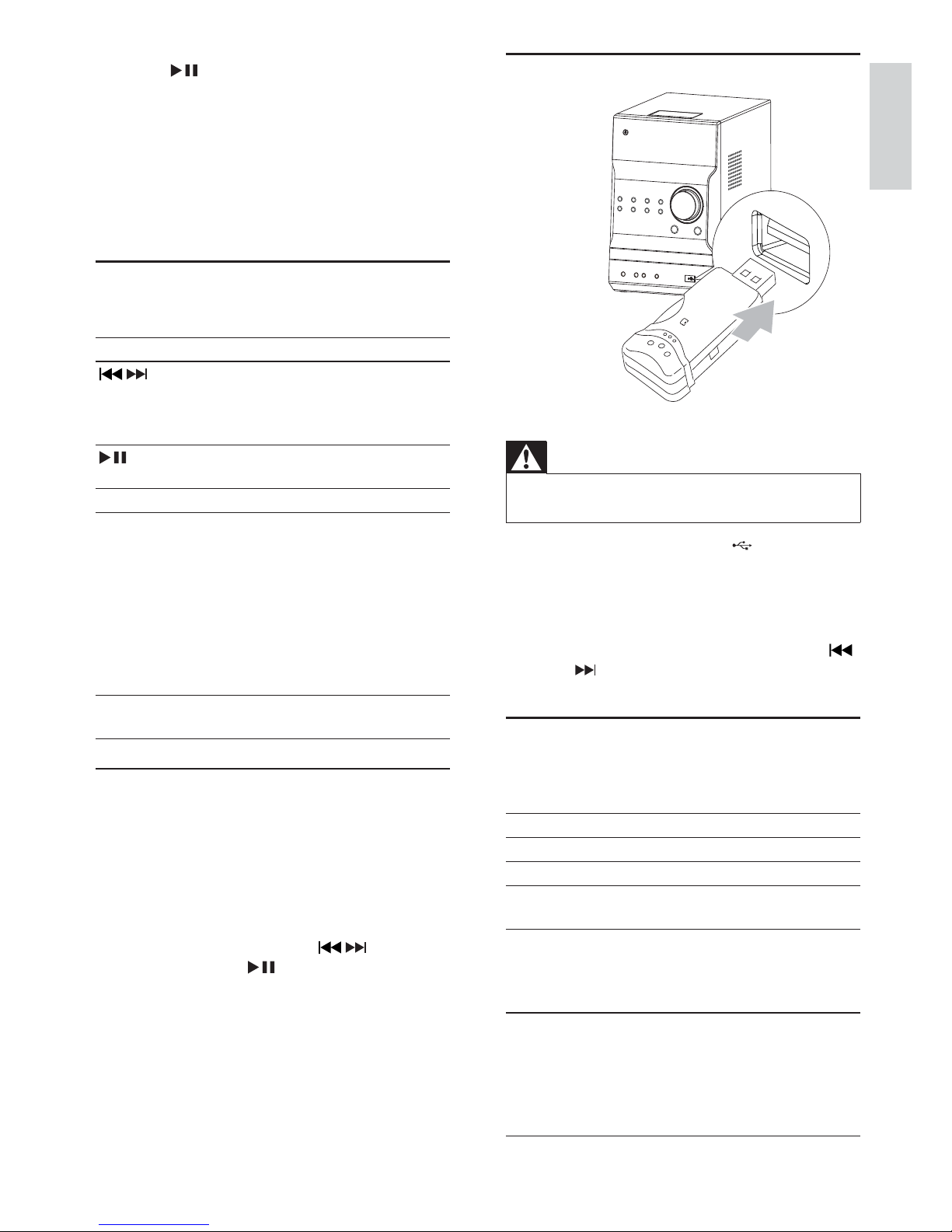

Play from USB

Warning

Ensure that the USB device contains playable audio • contents for suppor ted formats.

1 Flip open the cover marked on the front

panel.

2 Insert the USB device into the USB socket. 3 Press USB to select the USB source.

Play starts automatically. If not, press » ALBUM/PRESET to select a folder and / to select a ﬁle. Then press OK to start play.

Adjust sound

During play, you can adjust volume through following operations.

Key Function

VOL +/- To increase/decrease the volume. MUTE To mute/restore sound. LOUDNESS To turn on/off automatic loudness

control.

DBB To turn on or off dynamic bass

enhancement. If DBB is activated, [DBB] is displayed.

DSC To select your desired sound effect:

[POP] (pop) [JAZZ] (jazz) [ROCK] (rock) [FLAT] (ﬂat) [CLASSIC] (classic)

2 Press to start storing.

The unit automatically stores radio stations » with sufﬁcient signal strength.

When all the available radio stations are » stored, the ﬁrst preset radio station is broadcast automatically.

4 Play

Basic play operations

You can control play through following operations.

Key Function

To select a track or ﬁle. Press and hold to fast-forward/fastreverse the track during playback, then release to resume play.

To pause/resume play during playback.

DISPLAY To select different play information. REPEAT To select a repeat play mode:

[REP] (repeat): play current track

repeatedly. [REP ALL] (repeat all): play all tracks repeatedly. [REP] (repeat) and [ALB] (album) (for MP3 and USB only): play the current album repeatedly. Press again to return to normal play.

SHUFFLE To play tracks randomly.

Press again to return to normal play.

Play from disc

1 Press CD to select the CD source. 2 Press OPEN/CLOSE.

The disc compartment opens. »

3 Place a disc with the printed side facing up,

then press OPEN/CLOSE.

4 Play starts automatically.

If play does not start, press • / to select a track, then press .

English

Page 11

To pause/resume play, press • . To skip to a track, press • / . To search during play: press and hold • / , then release to resume normal play. To navigate the menu: press • MENU and

/ to select, then press OK to conﬁrm.

Note

When iPod/iPhone source is selected, you cannot enjoy • audio through the headphone socket.

Charge the iPhone/iPod

When the unit is connected to power, the docked iPhone/iPod begins to charge.

Remove the iPhone/iPod

1 Pull the iPhone/iPod out of the dock. 2 Press down to hide the dock.

5 Play iPhone/iPod

You can enjoy audio from iPhone/iPod through this unit.

Compatible iPhone/iPod

The unit supports the following iPod and iPhone models: Made for.

iPod classic• iPod with color display• iPod with video • iPod nano (1st/2nd/3rd/4th/5th generation)• iPod Touch (1st/2nd/3rd generation)•

Works with.

iPhone• iPhone 3G• iPhone 3GS•

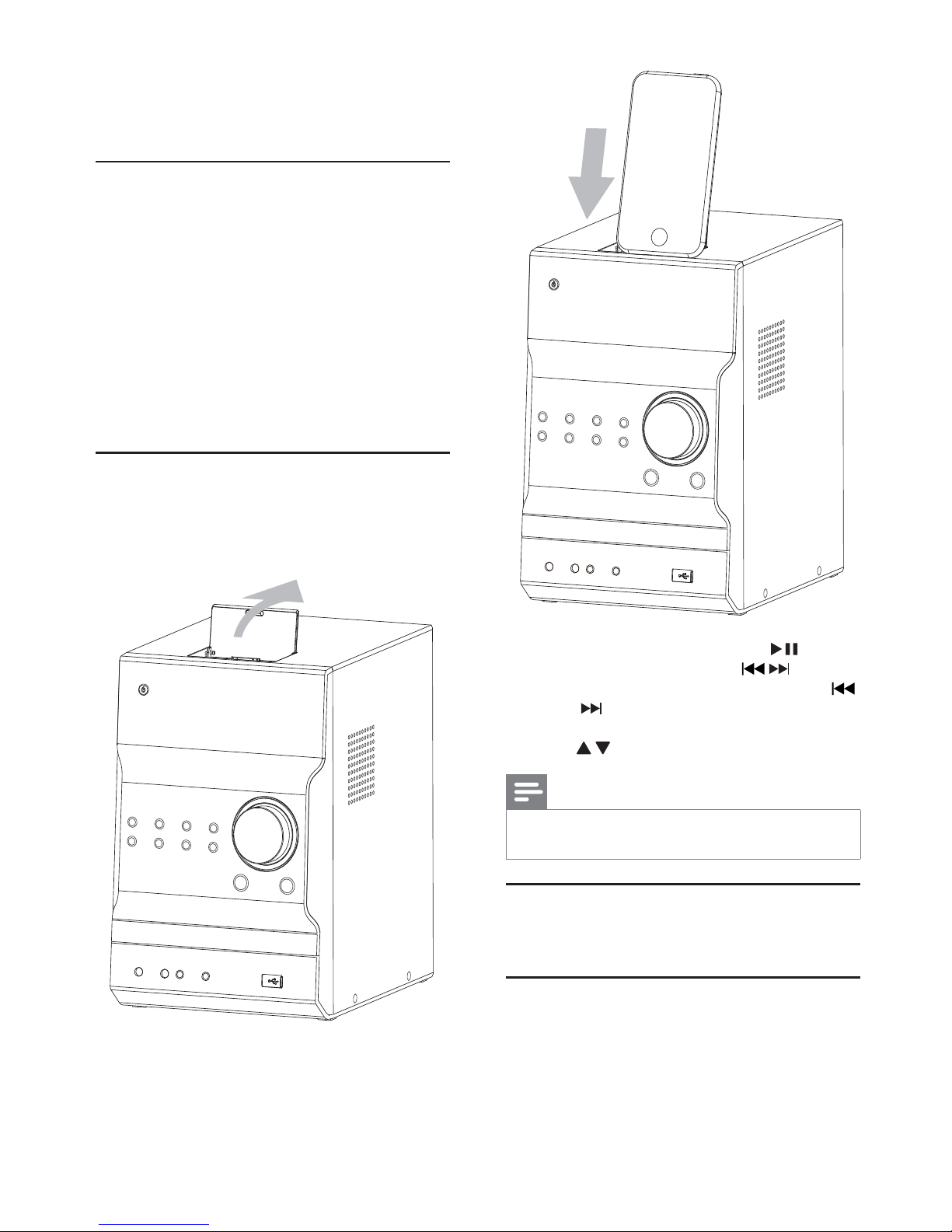

Listen to the iPhone/iPod

1 Press iPhone/iPod to select the iPhone/iPod

source.

2 Open the iPhone/iPod dock on the top panel.

3 Place the iPhone/iPod in the dock.

Page 12

4 Repeat steps 2-3 to program other stations.

Note

To overwrite a programmed station, store another • station in its place.

Tune to a preset radio station

1 Press / to select a preset number.

Show RDS information

RDS (Radio Data System) is a service that allows FM stations to show additional information. If you tune to a RDS station, a RDS icon and the station name are displayed.

1 Tune to a RDS station. 2 Press RDS repeatedly to scroll through the

following information (if available):

Station name » Program type such as » [NEWS] (news),

[SPORT] (sport), [POP M] (pop music)... RDS clock » Frequency »

Synchronize clock with RDS

You can synchronize time shown on the unit with that on the RDS station.

1 Tune to a RDS radio station that transmits

time signals.

2 Press RDS for over 2 seconds.

» [CT SYNC] is displayed and the unit reads

RDS time automatically. If no time signal is received, » [NO CT] is

displayed.

Note

The accuracy of the transmitted time depends on the • RDS station that transmits the time signal.

6 Listen to FM radio

Tune to FM radio stations

Warning

Ensure that you have connected and fully extended the • supplied FM antenna.

1 Press FM. 2 Press and hold / to tune to a radio

station.

3 When the frequency starts to change, release

the button.

The FM tuner tunes to a station with strong » reception automatically.

4 Repeat steps 2-3 to tune to more stations.

To tune to a weak station:

Press

/ repeatedly until you ﬁnd optimal

reception.

Program radio stations automatically

Note

You can program a maximum of 20 preset radio stations. •

1 In FM tuner mode, press PROG for 3 seconds

to activate automatic programming.

» [AUTO] (auto) is displayed.

The unit automatically stores radio stations » with sufﬁcient signal strength.

When all the available radio stations are » stored, the ﬁrst preset radio station is broadcast automatically.

Program radio stations manually

Note

You can program a maximum of 20 preset radio stations. •

1 Tune to a radio station. 2 Press PROG to activate programming mode. 3 Press / to select a number from 1–20

for this radio station, then press PROG to conﬁrm.

The preset number and the frequency of » the preset station are displayed.

English

Page 13

Set sleep timer

1 When the unit is turned on, press SLEEP

repeatedly to select a time period (in minutes).

When sleep timer is activated, » is displayed.

To deactivate sleep timer, press » SLEEP again until

disappears.

Listen to external audio device

You can listen to an external audio device such as MP3 player through this unit.

1 Connect the audio device.

For audio device with red/white audio • output sockets: Connect a red/white audio cable (not supplied) to the AUX IN sockets and to the audio output sockets on the audio device. For audio device with headphone • sockets: Connect the supplied MP3 Link cable to the MP3 LINK socket and to the headphone socket on the audio device.

2 Select MP3 LINK/AUX source. 3 Play the device.

Listen through headphone

1 Plug a headphone into the socket on the

unit.

8 Product information

Note

Product information is subject to change without prior • notice.

Speciﬁcations

Ampliﬁer

Rated Output Power 2X50W RMS Frequency Response 30Hz-20kHZ Signal to Noise Ratio ≥75dB Aux Input 1V RMS 20kohm

7 Other features

Set alarm timer

This unit can be used as an alarm clock. You can select CD, iPod/iPhone, iPod/iPhone playlist, FM or USB as alarm source.

Note

Make sure that you have set the clock correctly. •

1 In standby mode, press and hold TIMER until

[SET TIMER] (set timer) scrolls on the display.

» [SELECT SOURCE] (select source) scrolls

on the screen.

2 Press SOURCE repeatedly to select a source:

CD, FM, USB, iPod/iPhone or iPod/iPhone playlist.

If iPod/iPhone playlist is selected as alarm • source, you need create a playlist called “PHILIPS” in your iPod/iPhone. If no playlist called “PHILIPS” is created • in the iPod/iPhone or no track is stored in the playlist, the unit switches to iPod/ iPhone alarm source.

3 Press TIMER to conﬁrm.

The hour digits are displayed and begin to » blink.

4 Press / repeatedly to set hour, then press

TIMER again to conﬁrm.

The minute digits are displayed and begin » to blink.

5 Press / to set minute, then press TIMER to

conﬁrm.

» VOL (volume) is displayed and begins to

blink.

6 Press / to adjust volume, then press

TIMER to conﬁrm.

A clock icon is displayed. »

Activate/deactivate alarm timer

1 In standby mode, press TIMER repeatedly to

activate or deactivate timer.

If timer is activated, » is displayed.

Tip

Alarm timer is not available in MP3 LINK mode. • If CD/USB/iPod/iPhone source is selected, yet no disc is • placed or no USB/iPod/iPhone connected, the system switches to the tuner source automatically.

Page 14

USB playability information

Compatible USB devices:

USB ﬂash memory (USB 2.0 or USB1.1) • USB ﬂash players (USB 2.0 or USB1.1) • memory cards (requires an additional card • reader to work with this unit)

Supported formats:

USB or memory ﬁle format FAT12, FAT16, • FAT32 (sector size: 512 bytes) MP3 bit rate (data rate): 32-320 Kbps and • variable bit rate WMA v9 or earlier • Directory nesting up to a maximum of 8 levels • Number of albums/ folders: maximum 99 • Number of tracks/titles: maximum 999 • ID3 tag v2.0 or later • File name in Unicode UTF8 (maximum length: • 64 bytes)

Unsupported formats:

Empty albums: an empty album is an album • that does not contain MP3/WMA ﬁles, and is not be shown in the display. Unsupported ﬁle formats are skipped. For • example, Word documents (.doc) or MP3 ﬁles with extension .dlf are ignored and not played. AAC, WAV, PCM audio ﬁles • DRM protected WMA ﬁles (.wav, .m4a, .m4p, • .mp4, .aac) WMA ﬁles in Lossless format •

Supported MP3 disc formats

ISO9660, Joliet• Maximum title number: 512 (depending on ﬁle • name length) Maximum album number: 255• Supported sampling frequencies: 32 kHz, •

44.1kHz, 48 kHz Supported Bit-rates: 32~320 (kbps), variable • bit rates

Disc

Laser Type Semiconductor Disc Diameter 12cm/8cm Support Disc CD-DA, CD-R, CD-RW,

MP3-CD, WMA-CD Audio DAC 16Bits / 44.1kHz Total Harmonic

Distortion

<1% (1 kHz)

Frequency Response 4Hz - 20kHz (44.1kHz) S/N Ratio >75dBA

Tuner (FM)

Tuning Range 87.5 - 108MHz Tuning grid 50 KHz Sensitivity

- Mono, 26dB S/N Ratio

- Stereo, 46dB S/N Ratio

<22 dBf

>43 dBf Search Selectivity >28 dBf Total Harmonic Distortion <3% Signal to Noise Ratio >55 dB

Speakers

Speaker Impedance 6 ohm Speaker Driver 5” woofer + 1” tweeter Sensitivity >85dB/m/W

General information

AC power 220-240V~, 50/60Hz Operation Power

Consumption

35W

Eco Standby Power Consumption

≤1W

Audio Output 1Vpp ± 0.1Vpp

3.5kohm Headphone Output 2x15mW 32ohm USB Direct Version 2.0 FS Dimensions

- Main Unit (W x H x D)

- Speaker Box (W x H x D)

160 x 242 x 237mm 160 x 242 x 222mm

Weight

- With Packing

- Main Unit

- Speaker Box

10 kg 2 kg

2.85 x 2 kg

English

Page 15

Wait until the moisture condensation at the • lens has cleared. Replace or clean the disc. • Use a ﬁnalized CD or correct format disc. •

Cannot display some ﬁles in USB device

The number of folders or ﬁles in the USB • device has exceeded a certain limit. This phenomenon is not a malfunction. The formats of these ﬁles are not supported. •

USB device not supported

The USB device is incompatible with the unit. • Try another one.

Poor radio reception

Increase the distance between the unit and • your TV or VCR. Fully extend the FM antenna. • Connect an outdoor FM antenna instead. •

Timer does not work

Set the clock correctly. • Switch on the timer. •

Clock/timer setting erased

Power has been interrupted or the power • cord has been disconnected. Reset the clock/timer. •

9 Troubleshooting

Warning

Never remove the casing of this apparatus. •

To keep the warranty valid, never try to repair the system yourself. If you encounter problems when using this apparatus, check the following points before requesting service. If the problem remains unsolved, go to the Philips web site (www.philips.com/welcome). When you contact Philips, ensure that the apparatus is nearby and the model number and serial number are available.

No power

Ensure that the AC power cord of the unit is • connected properly. Ensure that there is power at the AC outlet. • As a power-saving feature, the system • switches off automatically 15 minutes after track play reaches the end and no control is operated.

No sound or poor sound

Adjust the volume. • Disconnect the headphones. • Check that the speakers are connected • correctly. Check if the stripped speaker wires are • clamped.

No response from the unit

Disconnect and reconnect the AC power plug, • then turn on the unit again. As a power-saving feature, the system • switches off automatically 15 minutes after track play reaches the end and no control is operated.

Remote control does not work

Before you press any function button, ﬁrst • select the correct source with the remote control instead of the main unit. Reduce the distance between the remote • control and the unit. Insert the battery with its polarities (+/– signs) • aligned as indicated. Replace the battery. • Aim the remote control directly at the sensor • on the front of the unit.

No disc detected

Insert a disc. • Check if the disc is inserted upside down. •

Page 16
