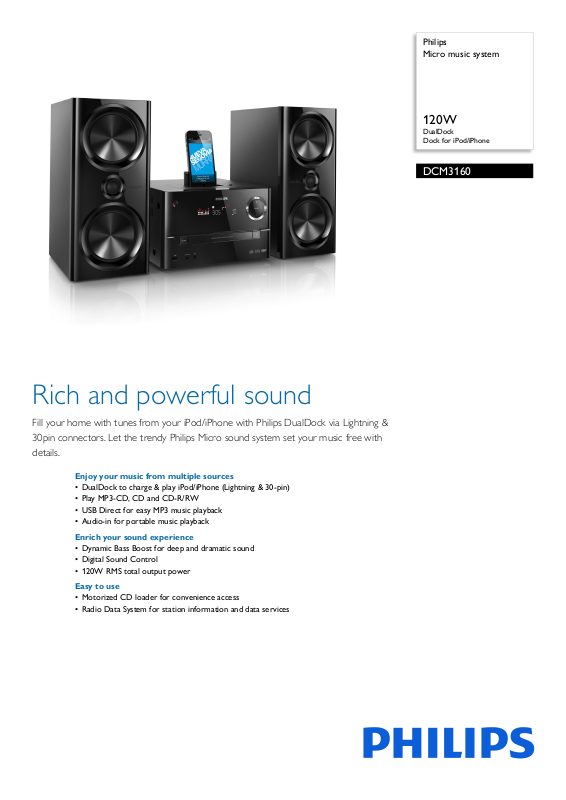

Page 1
Philips
Micro music system
120W
DualDock
Dock for iPod/iPhone
DCM3160
Rich and powerful sound
Fill your home with tunes from your iPod/iPhone with Philips DualDock via Lightning &
30pin connectors. Let the trendy Philips Micro sound system set your music free with
details.
Enjoy your music from multiple sources
• DualDock to charge & play iPod/iPhone (Lightning & 30-pin)
• Play MP3-CD, CD and CD-R/RW
• USB Direct for easy MP3 music playback
• Audio-in for portable music playback
Enrich your sound experience
• Dynamic Bass Boost for deep and dramatic sound
• Digital Sound Control
• 120W RMS total output power
Easy to use
• Motorized CD loader for convenience access
• Radio Data System for station information and data services
Page 2
DCM3160/79
Micro music system
120W DualDock, Dock for iPod/iPhone
Highlights
120W RMS
This system has 120W RMS total output
power. RMS refers to Root Mean Square
which is a typical measurement of audio
power, or rather, the electrical power
transferred from an audio amplifier to a
loudspeaker, which is measured in watts. The
amount of electrical power delivered to the
loudspeaker and its sensitivity determines the
sound power that is generated. The higher the
wattage, the better the sound power emitted
by the speaker.
Audio-in
quality delivered by the audio system, the
Audio in is also extremely convenient as all you
have to do is to plug your portable MP3 player
to the audio system.
Digital Sound Control
Digital Sound Control offers you a choice of
pre-se
t balanced, clear, powerful, warm and
bright controls you can use to optimise the
frequency ranges for different musical styles.
Each mode uses graphic equalizing technology
to automatically adjust the sound balance and
enhance the most important sound
frequencies in your chosen music style.
Ultimately, Digital Sound Control makes it
easy for you get the most out of your music by
precisely adjusting the sound balance to match
the type of music you are playing.
DualDock to charge & play
Play MP3-CD, CD and CD-R/RW
MP3 stands for "MPEG 1 Audio layer-7.6 cm
(3") .MP3 is a revolutionary compression
technology by which large digital music files can
be made up to 10 times smaller without
radically degrading their audio quality. MP3 has
become the standard audio compression
format used on the world wide web, allowing
quick and easy audio file transfer.
USB Direct for easy MP3 music
The Audio in connectivity allows direct
playback of Audio in content from portable
media players. Besides the benefit of enjoying
your favorite music in the superior sound
DualDock to charge & play iPod/iPhone
(Lightning & 30-pin)
Thanks to the complete file transferability, you
can easily enjoy the convenience and fun of
accessing more digital music via the built-in
USB Direct.
Page 3
DCM3160/79
Micro music system
120W DualDock, Dock for iPod/iPhone
Specifications
Sound
• Sound Enhancement: Digital Sound Control,
Dynamic Bass Boost
• Maximum output power (RMS): 120W
Loudspeakers
• Loudspeaker types: Dome tweeter
• Main Speaker: 2 way, wOOx Bass Radiator
Audio Playback
• Playback Media: CD, CD-R, CD-RW, MP3-CD,
USB flash drive
• Disc Playback Modes: Rep
Shuffle Play, 20-Track Programmable, Fast
Forward/Backward, Next/Previous Track Search
•Loader Type: Motorised
• USB Direct Modes: Fast Backward/Fast Forward,
Play/Pause, Previou
Shuffle, Stop
• Cradle playback mode: Charging iPod, Charging
ne, Fast forward and backward, Next and
iPho
Previous track, Play and Pause, Menu, Up and
Down
eat/one/all/program,
s/Next, Program Play, Repeat,
Tuner/Reception/Transmission
• Tuner Bands: FM Stereo
• Auto digital tuning
• Tuner Enhancements: Auto Store
• RDS: Program Type, Station Name, Radio Text
• Station presets: 20
• Antenna: FM antenna (75 ohm)
Connectivity
• USB: USB host
• Headphone: 3.5 mm
• 3.5mm stereo line in: Audio in
• Rear Connections: AUX in, FM Antenna
• Other connections: FM Antenna
Convenience
• Alarms: CD Alarm, Radio Alarm, USB alarm, Sleep
timer
• Clock: On main display, sleep timer
• Display Type: VFD display
• Charging device: iPhone, iPod
Accessories
• Included accessories: AC Power Cord, FM antenna
• User Manual: 16 languages
• Quick start guide: English, German, Dut
Spanish, Italian
•Remote control
ch, French,
Dimensions
• Main speaker dimensions (W x H x D):
140 x 304 x 215 mm
• Set dimensions (W x H x D): 230 x 235 x 196 mm
• Packaging dimensions (W x H x D):
4 x 360 x 290 mm
51
•Gross weight: 8.8 kg
• Net weight: 7.6 kg
Power
• Power supply: 220-240V, 50Hz
iPhone compatibility
• Compatible with: iPhone 5
iPod compatibility
• Compatible with: iPod nano 1st generation, iPod
nano 2nd generation, iPod nano 3rd generation,
iPod nano 4th generation, iPod nano 5th
generation, iPod nano 6th generation, iPod touch,
iPod touch 2nd Generation, iPod touch 3rd
generation, iPod touch 4th generation, iPod 5th
generation, iPod 6th Generation
•
Issue date 2015-09-04
Version: 1.0.2
12 NC: 8670 001 22342
EAN: 48 95185 60573 9
© 2015 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
