User manual

Contents

1 Important 4

Safety 4 Notice 5

2 Your product 7

Introduction 7 What's in the box 7 Overview of the main unit 8 Overview of the remote control 9

3 Get started 10

Placement 10 Prepare the remote control 10 Connect FM antenna 11 Connect power 11 Auto install radio stations 11 Set clock 11 Turn on 12

4 Play 12

Play disc 12 Play from USB 12 Pause/resume play 12 Skip to a track 13 Search within a track 13 Display play information 13

Repeat and shufe play 13

Program tracks 13

6 Listen to radio 14

Tune to a radio station 14 Program radio stations automatically 14 Program radio stations manually 15 Select a preset radio station 15 FM stations with RDS 15

7 Play iPod/iPhone/iPad 15

Compatible iPod/iPhone/iPad 15 Load the iPod/iPhone/iPad 15 Listen to the iPod/iPhone/iPad 16 Charge the iPod/iPhone/iPad 16

8 Other features 16

Set the alarm timer 16 Set the sleep timer 17 Play from an external device 17 Headphone 17

9 Product information 17

Specications 17

USB playability information 18 Supported MP3 disc formats 18 Maintenance 18

10 Troubleshooting 19

English

5 Adjust sound 14

Adjust volume 14 Select a preset sound effect 14 Enhance bass 14 Mute sound 14

1 Important

Safety

This 'bolt of lightning' indicates uninsulated material within your unit may cause an electrical shock. For the safety of everyone in your household, please do not remove product covering. The 'exclamation point' calls attention to features for which you should read the enclosed literature closely to prevent operating and maintenance problems.

WARNING: To reduce the risk of re or electric

shock, this apparatus should not be exposed to

rain or moisture and objects lled with liquids,

such as vases, should not be placed on this apparatus. CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully inser t.

Important Safety Instructions

a Read these instructions. b Keep these instructions. c Heed all warnings. d Follow all instructions. e Do not use this apparatus near water. f Clean only with dry cloth.

g Do not block any ventilation openings.

Install in accordance with the manufacturer's instructions.

h Do not install near any heat sources such

as radiators, heat registers, stoves, or

other apparatus (including ampliers) that

produce heat.

i Protect the power cord from being

walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

j Only use attachments/accessories

specied by the manufacturer.

k Use only with the cart, stand, tripod,

bracket, or table specied by the

manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

l Unplug this apparatus during lightning

storms or when unused for long periods of time.

m Refer all servicing to qualied service

personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

n Battery usage CAUTION – To prevent

battery leakage which may result in bodily injury, property damage, or damage to the unit:

• Install all batteries correctly, + and - as marked on the unit.

4 EN

• Do not mix batteries (old and new or carbon and alkaline, etc.).

• Remove batteries when the unit is not used for a long time.

• Batteries (battery pack or batteries installed) shall not be exposed to

excessive heat such as sunshine, re or

the like.

o Apparatus shall not be exposed to

dripping or splashing.

p Do not place any sources of danger on

the apparatus (e.g. liquid lled objects, lighted candles).

q Where the MAINS plug or an appliance

coupler is used as the disconnect device, the disconnect device shall remain readily operable.

Warning

•

Never remove the casing of this apparatus.

• Never lubricate any part of this apparatus.

• Never place this apparatus on other electrical

equipment.

• Keep this apparatus away from direct sunlight, naked

ames or heat.

• Never look into the laser beam inside this apparatus.

• Ensure that you always have easy access to the power

cord, plug or adaptor to disconnect this apparatus from the power.

Note

The type plate is located at the rear of the apparatus.

•

Hearing safety

Listen at a moderate volume.

• Using headphones at a high volume can impair your hearing. This product can produce sounds in decibel ranges that may cause hearing loss for a normal person, even for exposure less than a minute. The higher decibel ranges are offered for those

that may have already experienced some hearing loss.

• Sound can be deceiving. Over time your hearing 'comfort level' adapts to higher volumes of sound. So after prolonged listening, what sounds 'normal' can actually be loud and harmful to your hearing. To guard against this, set your volume to a safe level before your hearing adapts and leave it there.

To establish a safe volume level:

• Set your volume control at a low setting.

• Slowly increase the sound until you can

hear it comfortably and clearly, without distortion.

Listen for reasonable periods of time:

• Prolonged exposure to sound, even at normally 'safe' levels, can also cause hearing loss.

• Be sure to use your equipment reasonably

and take appropriate breaks.

Be sure to observe the following guidelines when using your headphones.

• Listen at reasonable volumes for reasonable periods of time.

• Be careful not to adjust the volume as your hearing adapts.

• Do not turn up the volume so high that you can't hear what's around you.

• You should use caution or temporarily discontinue use in potentially hazardous situations. Do not use headphones while operating a motorized vehicle, cycling,

skateboarding, etc.; it may create a trafc

hazard and is illegal in many areas.

Notice

Any changes or modications made to this

device that are not expressly approved by WOOX Innovations may void the user’s

authority to operate the equipment.

English

This product complies with the radio

interference requirements of the European

Community.

Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old

equipment.

Your product is designed and manufactured

with high quality materials and components,

which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/EC. Please inform yourself about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential

negative consequences for the environment and

human health.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed with normal household waste.Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent

negative consequences for the environmental

and human health.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.)

The making of unauthorized copies of copyprotected material, including computer programs,

les, broadcasts and sound recordings, may be

an infringement of copyrights and constitute a

criminal offence. This equipment should not be

used for such purposes.

“Made for iPod,” “Made for iPhone,” and “Made for iPad” mean that an electronic accessory

has been designed to connect specically to

iPod, iPhone, or iPad, respectively, and has

been certied by the developer to meet

Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, iPhone, or iPad may affect wireless performance. iPad, iPhone, iPod, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.

Windows Media and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other countries.

This apparatus includes this label:

6 EN

2 Your product

Congratulations on your purchase, and

welcome to Philips! To fully benet from the

support that Philips offers, register your product at www.philips.com/welcome.

Introduction

With this unit, you can enjoy audio from discs, iPod/iPhone/iPad, USB devices, and other external devices, or listen to radio stations. The unit offers Digital Sound Control (DSC) and Dynamic Bass Boost (DBB) to enrich sound. The unit supports the following media formats:

English

What's in the box

Check and identify the contents of your package:

• Main unit

• Remote control and 2 batteries

• FM antenna

• 1 x MP3 link cable

• Quick start guide

• User manual

• Wall mounting instructions

• Mounting kit (2 dowels and 2 screws)

Overview of the main unit

FM ANT

lmn

LINK

• Turn on the unit, or switch to standby mode, or switch to Eco Power standby.

b SOURCE

• Select a source: CD, FM radio, iPod/ iPhone/iPad, USB, or MP3 link.

• Skip to the previous/next track.

• Search within a track.

• Tune to a radio station.

/OK

• Start or pause play.

• Conrm a selection.

/MENU

• Stop play.

• Access the iPod/iPhone/iPad menu.

f VOLUME + / -

• Adjust volume.

• Open/close the disc compartment.

h Display panel

• Show current status.

i Disc compartment door j Dock for iPod/iPhone/iPad k Remote sensor

• Detect signal from the remote control.

• Connector for a headphone.

• Connector for a USB mass storage device.

n MP3 LINK

• Connector (3.5mm ) for an external audio device.

o FM ANT

• Connect an FM antenna for reception improvement.

8 EN

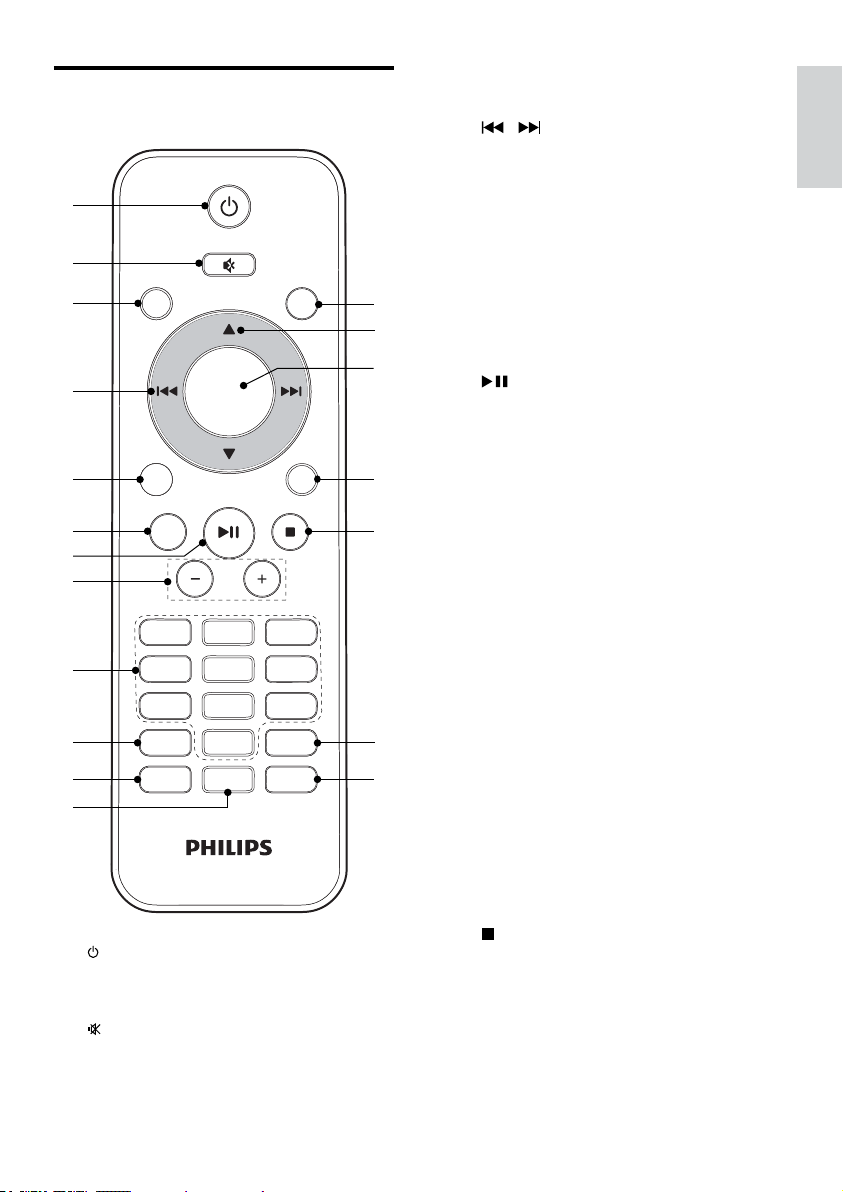

Overview of the remote control

f g h

k l

PRESET/ALBUM

LINK

USB

DISPLAY

RDS

VOL

456

789

PROG/

CLOCK SET

SLEEP/ TIMER

DSCDBB

DOCK

REPEAT/

SHUFFLE

• Turn on the unit, or switch to standby mode, or switch to Eco Power standby.

• Mute or restore volume.

s r

c CD

• Select disc source.

• Skip to the previous/next track.

• Search within a track.

• Tune to a radio station.

e USB/MP3 LINK

• Select USB device source.

• Select external audio device source.

f RDS/DISPLAY

• Select RDS broadcast information.

• Select display information during play.

• Start or pause play.

h VOL +/-

• Adjust volume.

i Numeric keypad

• Select a track from a disc directly.

j PROG/CLOCK SET

• Program tracks.

• Program radio stations.

• Set the clock.

k SLEEP/TIMER

• Set the sleep timer.

• Set the alarm timer.

l DSC

• Select a preset sound setting.

m DBB

• Turn on or off dynamic bass enhancement.

n REPEAT/SHUFFLE

• Play a track or all tracks repeatedly.

• Play tracks randomly.

/MENU

• Stop play.

• Access the iPod/iPhone/iPad menu.

p DOCK

• Select iPod/iPhone/iPad source.

English

q OK

• Conrm a selection.

r PRESET/ALBUM

• Skip to the previous/next album.

• Select a preset radio station.

• Navigate the iPod/iPhone/iPad menu.

s FM

• Select FM radio source.

3 Get started

Caution

Use of controls or adjustments or performance of

•

procedures other than herein may result in hazardous radiation exposure or other unsafe operation.

Always follow the instructions in this chapter in

sequence.

If you contact Philips, you will be asked for the model and serial number of this apparatus. The model number and serial number are on the rear of the apparatus. Write the numbers here: Model No. __________________________ Serial No. ___________________________

Placement

You can place the unit on a at surface or

mount the unit on a wall.

Mount on a wall

To wall mount the unit, see the included separate sheet of wall mounting instructions.

10 EN

Prepare the remote control

Caution

Risk of explosion! Keep batteries away from heat,

•

sunshine, or re. Never discard batteries in re.

To insert the remote control battery:

1 Open the battery compartment. 2 Insert 2 AAA batteries with correct

polarity (+/-) as indicated.

3 Close the battery compartment.

Auto install radio stations

Note

If you are not going to use the remote control for a

•

long time, remove the batteries.

• Do not use old and new or different types of batteries

in combination.

• Batteries contain chemical substances, so they should

be disposed of properly.

Connect FM antenna

Connect the supplied FM antenna to the

FM connector on the back of the main unit.

Connect power

Caution

Risk of product damage! Make sure that the power

•

supply voltage corresponds to the voltage printed on the rear of the main unit.

• Before connecting the AC cord, make sure that you

have completed all other connections.

Note

The type plate is located on the rear of the main unit.

•

1 Connect the AC power cable to the AC

outlet.

When you connect power and no radio stations are stored, the unit automatically begins to store radio stations.

1 Connect the unit to the power supply.

» [AUTO INSTALL - PRESS PLAY

KEY](auto install - press play key) is

displayed.

2 Press on the main unit to star t

installation.

» The unit automatically stores radio

stations with sufcient signal strength.

» When all the available radio stations

are stored, the rst preset radio station

is broadcast automatically.

Set clock

Note

You can set the clock in standby mode only.

•

1 Press to switch the unit to standby.

• Make sure that --:-- (or clock) is displayed (see "Turn on" > "Switch to standby").

2 Press and hold PROG/CLOCK SET to

activate the clock setting mode.

» SET CLOCK is displayed. » The 12 hour or 24 hour format is

displayed.

3 Press / to select 12 hour or 24

hour format.

4 Press PROG/CLOCK SET.

» The hour digits begin to blink.

5 Press / to set the hour. 6 Press PROG/CLOCK SET.

» The minute digits begin to blink.

7 Press / to set the minute.

English

8 Press PROG/CLOCK SET to conrm.

Turn on

4 Play

Press .

» The unit switches to the last selected

source.

Switch to standby

1 When the unit is turned on, press to

switch the unit to standby.

• In standby, press and hold from normal standby to Eco power standby or vice versa.

» In normal standby, the clock (if set)

appears on the display panel.

» In Eco power standby, the backlight on

the display panel turns off.

to switch

Play disc

Press CD to select the disc source.

2 Press on the unit to open the disc

compartment.

3 Insert a disc with the printed side facing

outward, and then press compartment.

to close the disc

4 If the disc doesn't play, press .

• To stop play, press

Play from USB

Note

Make sure that the USB storage device contains

•

playable audio content.

1 Connect the USB storage device into the

connector on the back panel of this

unit.

2 Press USB to select the USB source.

» Play star ts automatically.

• To select a folder, press

• To select an audio le, press

• To start play, press

• To stop play, press

/ .

12 EN

Pause/resume play

During play, press to pause/resume play.

Skip to a track

For CD:

1 Press / to select another track.

• To select a track directly, you can also press a key on the numerical keypad.

For MP3 disc and USB:

1 Press to select an album or folder. 2 Press / to select previous/next track

or le.

Search within a track

During play, press and hold / .

2 Release to resume normal play.

Display play information

During play, press DISPLAY repeatedly to select different play information.

Repeat and shufe play

Tip

Shufe play is not available when programmed tracks

•

are played.

Program tracks

You can program a maximum of 20 tracks.

1 In CD/USB mode, in the stop position,

press PROG/CLOCK SET to activate the program mode.

» [PROG] (program) and track number

begin to blink.

2 For MP3 tracks, press to select an

album.

3 Press / to select a track number,

then press PROG/CLOCK SET to conrm.

4 Repeat steps 2 to 3 to program more

tracks.

5 Press to play the programmed tracks.

» During play, [PROG] (program) is

displayed.

• To erase the program, in the stop position, press

» [PROG] disappears on the display.

English

During play, press REPEAT/SHUFFLE repeatedly to select a play option.

•

: the current track is played

repeatedly.

•

: all the tracks are played

repeatedly.

: all tracks are played in a random

order.

2 To return to normal play, press REPEAT/

SHUFFLE repeatedly until no repeat/

shufe option is displayed.

• You may also press shufe play.

to cancel repeat/

5 Adjust sound

6 Listen to radio

Adjust volume

During play, press VOL +/- to increase/ decrease the volume.

Select a preset sound effect

During play, press DSC repeatedly to select a preset sound setting.

Enhance bass

During play, press DBB to turn dynamic bass enhancement on or off.

» If DBB is activated, DBB is displayed.

Mute sound

During play, press to mute/restore the speakers.

Tune to a radio station

Press FM.

2 Press and hold / for more than 2

seconds.

» [SEARCH] (search) is displayed. » The radio tunes to a station with

strong reception automatically.

3 Repeat step 2 to tune to more stations.

• To tune to a weak station, press repeatedly until you nd optimal

reception.

Tip

Position the antenna as far as possible from TV, VCR, or

•

other radiation source.

• For optimal reception, fully extend and adjust the

position of the antenna.

Program radio stations automatically

You can program a maximum of 20 preset radio stations (FM).

1 In FM mode, press and hold PROG/

CLOCK SET for more than 2 seconds to

activate automatic program mode.

» [AUTO] (auto) is displayed. » All available stations are programmed. » The rst programmed radio station is

broadcast automatically.

14 EN

Program radio stations manually

Note

You can program a maximum of 20 preset radio

•

stations.

1 Tune to a radio station. 2 Press PROG/CLOCK SET to activate

program mode.

» [PROG] (program) begins to blink.

3 Press to allocate a number (1 to 20)

to this radio station, and then press PROG/ CLOCK SET to conrm.

4 Repeat the previous steps to program

other stations.

Note

To overwrite a programmed station, store another

•

station in its place.

7 Play iPod/

iPhone/iPad

You can enjoy audio from iPod/iPhone/iPad through this unit.

Compatible iPod/iPhone/iPad

The unit supports the following iPod, iPhone and iPad models. Made for: iPod touch (1st, 2nd, 3rd, and 4th generation) iPod nano (1st, 2nd, 3rd, 4th, 5th, and 6th generation) iPhone 4 iPhone 3GS iPhone 3G iPhone iPad 2 iPad

English

Select a preset radio station

In FM mode, press to select a preset number.

FM stations with RDS

Radio Data System (RDS) is a service that sends additional broadcast information along with FM stations. If you listen to a FM station with RDS signal, "RDS" is displayed.

Display RDS information

1 For a FM station with RDS, press RDS

repeatedly to display various broadcast information.

Load the iPod/iPhone/iPad

1 Push the dock compartment to open it. 2 Place the iPod/iPhone/iPad in the dock.

Install the rubber pad

If necessary, install the supplied rubber pad to keep the iPad/iPad 2 stable before you place the iPad/iPad 2.

Listen to the iPod/iPhone/ iPad

Make sure that the iPod/iPhone/iPad is correctly placed.

2 Press DOCK to select the iPod/iPhone/

iPad source.

3 Play music on the iPod/iPhone/iPad.

• To pause/resume play, press

• To skip to a track, press

• To search during play, press and hold

/ , and then release to resume

normal play.

• To navigate the menu, press MENU, and press then press OK to conrm.

to select an option, and

Charge the iPod/iPhone/iPad

When the unit is connected to power, the docked iPod/iPhone/iPad begins to charge.

Note

The following iPod models cannot be charged: iPod

•

classic, iPod with video, and iPod with color display.

• In Eco power standby mode, charge is not available.

/ .

8 Other features

Set the alarm timer

This unit can be used as an alarm clock. The disc/radio/USB/docked product is activated to play at a preset time.

1 Make sure that you have set the clock

correctly.

2 Press to switch the unit to standby.

• Make sure that the clock is displayed (see "Turn on" > "Switch to standby").

3 Press and hold SLEEP/TIMER.

» A prompt to select the source is

displayed.

4 Press CD, FM, USB or DOCK to select a

source.

5 Press SLEEP/TIMER to conrm.

» The clock digits are displayed and

begin to blink.

6 Press / to set the hour. 7 Press SLEEP/TIMER to conrm. 8 Press / to set the minute.

» The timer is set and activated.

To deactivate or re-activate an alarm timer

1 Press to switch to standby mode. 2 Press SLEEP/TIMER repeatedly to activate

or deactivate timer.

» If timer is activated, the display shows

» If timer is deactivated,

the display.

Note

In MP3 link mode, the alarm timer cannot be set.

•

• If disc/USB/dock source is selected and the audio

cannot be played, tuner is activated automatically.

disappears on

16 EN

Set the sleep timer

9 Product

This unit can switch to standby automatically after a set period of time.

1 When the unit is turned on, press SLEEP/

TIMER repeatedly to select a set period of

time (in minutes).

» When sleep timer is activated,

displayed.

To deactivate sleep timer

1 Press SLEEP/TIMER repeatedly until [OFF]

(off) is displayed.

» When sleep timer is deactivated,

disappears on the display.

Play from an external device

You can also listen to an external audio device through this unit.

1 Press MP3 LINK to select the MP3 link

source.

2 Connect the supplied MP3 link cable to:

• the MP3 LINK connector (3.5mm) on the unit.

• the headphone connector on an external device.

3 Start to play the device (see the device's

user manual).

Headphone

information

Note

Product information is subject to change without prior

•

notice.

Specications

Amplier

Maximum Output Power 58W RMS Frequency Response 60 Hz - 16 kHz,

±3 dB Signal to Noise Ratio >65dBA MP3 link input 500mv, 20kohm

Tuner

Tuning Range FM: 87.5 - 108 MHz Tuning grid 50 KHz FM sensitivity

- Mono Total Harmonic

Distortion Signal to Noise Ratio >55 dB Number of presets 20 (FM)

26 dB

<2%

English

Plug headphones (not supplied) into the connector on the unit to listen through the headphones.

Speakers

Speaker Impedance 8 ohm Speaker Driver 2 X 2.5" full range Sensitivity >82 dB/m/W

General information

AC power AC 100-240V~, 50/60 Hz Operation Power

Consumption Eco Standby Power

Consumption USB Direct Version 2.0/1.1 Dimensions

- Main Unit (W x H x D)

Weight

- Main Unit 2.614 kg

32 W

<1 W

500 x 217 x 98 mm

USB playability information

Compatible USB storage devices:

• USB ash memory (USB 2.0 or USB1.1)

• USB ash players (USB 2.0 or USB1.1)

• memory cards (requires an additional card

reader to work with this system)

Supported formats:

• USB or memory le format FAT12, FAT16,

FAT32 (sector size: 512 bytes)

• MP3 bitrate (data rate): 32-320 Kbps and variable bitrate

• Directory nesting up to a maximum of 8 levels

• Number of albums/ folders: maximum 99

• Number of tracks/titles: maximum 999

• ID3 tag v2.0 or later

• File name in Unicode UTF8 (maximum

length: 128 bytes)

Unsupported formats:

• Empty albums: an empty album is an album that does not contain MP3 les, and is not

shown in the display.

• Unsupported le formats are skipped. For

example, Word documents (.doc) or MP3

les with extension .dlf are ignored and

not played.

• AAC, WAV, PCM audio les

• DRM protected WMA les (*.wav, *.m4a, *.m4p, *.mp4, *.aac)

• WMA les in Lossless format

Supported MP3 disc formats

• ISO9660, Joliet

• Maximum title number: 999 (depending on le name length)

• Maximum album number: 99

• Supported sampling frequencies: 32 kHz,

44.1kHz, 48 kHz

• Supported Bit-rates: 32~256 (kbps), variable bit rates

Maintenance

Clean the cabinet

• Use a soft cloth slightly moistened with a mild detergent solution. Do not use a solution containing alcohol, spirits, ammonia or abrasives.

Clean discs

• When a disc becomes dirty, clean it with a cleaning cloth. Wipe the disc from the centre out.

• Do not use solvents such as benzene, thinner, commercially available cleaners, or antistatic spray intended for analogue records.

Clean the disc lens

• After prolonged use, dirt or dust may accumulate at the disc lens. To ensure good

play quality, clean the disc lens with Philips

CD lens cleaner or any commercially available cleaner. Follow the instructions supplied with cleaner.

18 EN

10 Troubleshooting

Warning

•

Never remove the casing of this apparatus.

To keep the warranty valid, never try to repair the system yourself. If you encounter problems when using this apparatus, check the following points before

requesting service. If the problem remains

unsolved, go to the Philips web site (www.philips.com/support). When you contact Philips, ensure that the apparatus is nearby and the model number and serial number are available.

English

Specifications are subject to change without notice. 2013 © WOOX Innovations Limited. All rights reserved. This product was brought to the market by WOOX Innovations Limited or one of its affiliates, further referred to in this document as WOOX Innovations, and is the manufacturer of the product. WOOX Innovations is the warrantor in relation to the product with which this booklet was packaged. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V.

DCM3065_51_UM_V2.0

Philips DCM3065/51 User guide

Specifications and Main Features

Frequently Asked Questions

User Manual

1 Important

Safety

Notice

2 Your product

Introduction

What's in the box

Overview of the main unit

Overview of the remote control

3 Get started

Placement

Prepare the remote control

Auto install radio stations

Connect FM antenna

Connect power

Set clock

Turn on

4 Play

Play disc

Play from USB

Pause/resume play

Skip to a track

Search within a track

Display play information

Program tracks

5 Adjust sound

6 Listen to radio

Adjust volume

Select a preset sound effect

Enhance bass

Mute sound

Tune to a radio station

Program radio stations automatically

Program radio stations manually

Compatible iPod/iPhone/iPad

Select a preset radio station

FM stations with RDS

Load the iPod/iPhone/iPad

Listen to the iPod/iPhone/ iPad

Charge the iPod/iPhone/iPad

8 Other features

Set the alarm timer

Set the sleep timer

Play from an external device

Headphone

USB playability information

Supported MP3 disc formats

Maintenance

10 Troubleshooting
