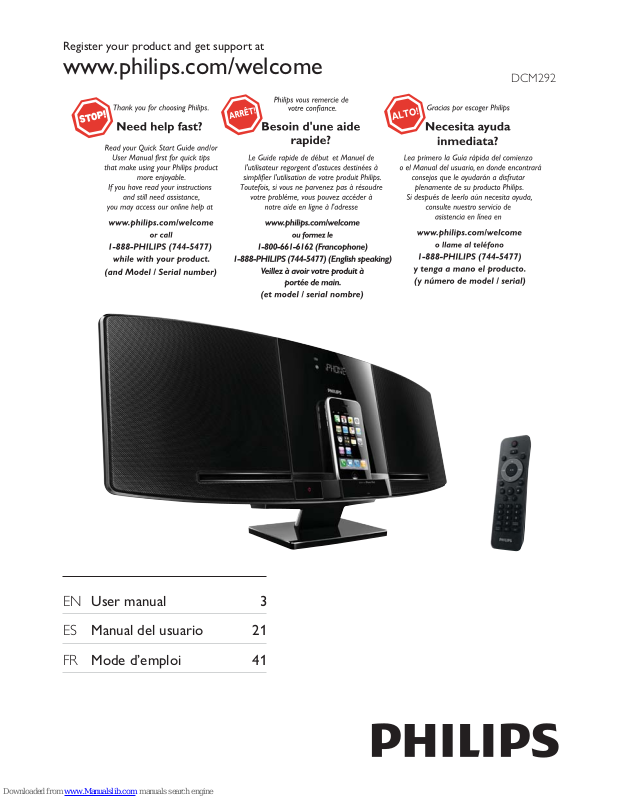

Page 1
DCM292
Register your product and get support at
www.philips.com/welcome
EN User manual 3
ES Manual del usuario 21
FR Mode d’emploi 41
Page 2
3
English
EN
7 Other features 17
Set the alarm timer 17
Set the sleep timer 18
Play from an external device 18
8 Product information 18
Specifications 18
USB playability information 19
Supported MP3 disc formats 19
Maintenance 19
9 Troubleshooting 20
Contents
1 Important 6
Safety 6
Notice 7
2 Your Micro Hi-Fi System 8
Introduction 8
What’s in the box 8
Overview of the main unit 9
Overview of the remote control 10
3 Get started 11
Placement 11
Prepare the remote control 11
Connect power 12
Auto install radio stations 12
Set clock 12
Turn on 13
4 Play 13
Play a disc 13
Play from USB 13
Play iPod/iPhone 14
5 Listen to radio 15
Tune to a radio station 15
Program radio stations automatically 15
Program radio stations manually 15
Select a preset radio station 15
6 Play options 16
Pause/resume play 16
Skip to a track 16
Search within a track 16
Select repeat/shuffle play options 16
Program tracks 16
Display time 16
Adjust volume level 16
Mute sound 16
Select a preset sound effect 17
Enhance bass 17
Page 3
4 EN
Register online at www.philips.com/welcome today to
get the very most from your purchase.
Visit our World Wide Web Site at http://www.philips.com/welcome
Registering your model with PHILIPS makes you eligible for all of the valuable benefits listed below,so don't miss out.
Register online at www.philips.com/welcome to ensure:
*Product Safety Notification *Additional Benefits
By registering your product, you'll receive notification - directly
from the manufacturer.
Registering your product guarantees that you'll receive all of
the privileges to which you’re entitled, including special moneysaving offers.
For Customer Use
Enter below the Serial No. which is located on the rear of the cabinet. Retain this
information for future reference.
Model No.__________________________
Serial No. ________________________
Know these
safetysymbols
This “bolt of lightning” indicates unin-
sulated material within your unit may
cause an electrical shock. For the safety of
everyone in your household, please do not
remove product covering.
The “exclamation point” calls atten-
tion to features for which you should
read the enclosed literature closely to prevent operating and maintenance problems.
WARNING: To reduce the risk of fire or
electric shock, this apparatus should not be
exposed to rain or moisture and objects
filled with liquids, such as vases, should not
be placed on this apparatus.
CAUTION: To prevent electric shock,
match wide blade of plug to wide slot, fully
insert.
ATTENTION: Pour éviter les choc électriques, introduire la lame la plus large de la
fiche dans la borne correspondante de la
prise et pousser jusqu’au fond.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
Congratulations on your purchase,
and welcome to the “family!”
Dear PHILIPS product owner:
Thank you for your confidence in PHILIPS.You’ve selected one of
the best-built, best-backed products available today.We’ll do everything in our power to keep you happy with your purchase for many
years to come.
As a member of the PHILIPS “family,” you’re entitled to protection
by one of the most comprehensive warranties in the industry.
What’s more, your purchase guar antees you’ll receive all the
information and special offers for which you qualify, plus easy access
to accessories from our convenient home shopping network.
Most importantly, you can count on our uncompromising commitment to your total satisfaction.
All of this is our way of saying welcome - and thanks for investing
in a PHILIPS product.
P.S. To get the most from your PHILIPS purchase, be
sure to register online at:
www.philips.com/welcome
Page 4
5EN
PHILIPS LIMITED WARRANTY
ONE (1) YEAR
WARRANTY COVERAGE:
PHILIPS warranty obligation is limited to the terms set forth
below.
WHO IS COVERED:
Philips warrants the product to the original purchaser or the person receiving the product as a gift against defects in materials and
workmanship as based on the date of original purchase
(“Warranty Period”) from an Authorized Dealer. The original
sales receipt showing the product name and the purchase date
from an authorized retailer is considered such proof.
WHAT IS COVERED:
The Philips warranty covers new products if a defect in material
or workmanship occurs and a valid claim is received by Philips
within the Warranty Period. At its option, Philips will either (1)
repair the product at no charge, using new or refurbished
replacement parts, or (2) exchange the product with a product
that is new or which has been manufactured from new, or serviceable used parts and is at least functionally equivalent or most
comparable to the original product in Philips current inventory,
or (3) refund the original purchase price of the product.
Philips warrants replacement products or parts provided under
this warranty against defects in materials and workmanship from
the date of the replacement or repair for ninety (90) days or for
the remaining portion of the original product’s warranty,
whichever provides longer coverage for you. When a product or
part is exchanged, any replacement item becomes your property
and the replaced item becomes Philips’ property. When a refund
is given, your product becomes Philips’ property.
Note: Any product sold and identified as refurbished or
renewed carries a ninety (90) day limited warranty.
Replacement product can only be sent if all warranty
requirements are met. Failure to follow all requirements
can result in delay.
WHAT IS NOT COVERED - EXCLUSIONS AND LIMITATIONS:
This Limited Warranty applies only to the new products manufactured by or for Philips that can be identified by the trademark,
trade name, or logo affixed to it. This Limited Warranty does not
apply to any non-Philips hardware product or any software, even
if packaged or sold with the product. Non-Philips manufacturers,
suppliers, or publishers may provide a separate warranty for their
own products packaged with the bundled product.
Philips is not liable for any damage to or loss of any programs,
data, or
other information stored on any media contained within
the product, or any non-Philips product or part not covered by
this warranty. Recovery or reinstallation of programs, data or
other information is not covered under this Limited Warranty.
This warranty does not apply (a) to damage caused by accident,
abuse, misuse, neglect, misapplication, or non-Philips product, (b)
to damage caused by service performed by anyone other than
Philips or Philips Authorized Service Location, (c) to a product or
a part that has been modified without the written permission of
Philips, or (d) if any Philips serial number has been removed or
defaced, or (e) product, accessories or consumables sold “AS IS”
without warranty of any kind by including refurbished Philips
product sold “AS IS” by some retailers.
This Limited Warranty does not cover:
F Shipping charges to return defective product to Philips.
Fabor charges for installation or setup of the product, adjust-
ment of customer controls on the product, and installation or
repair of antenna/signal source systems outside of the product.
F!roduct repair and/or part replacement because of improper
installation or maintenance, connections to improper voltage
supply, power line surge, lightning damage, retained images or
screen markings resulting from viewing fixed stationary content for extended periods, product cosmetic appearance items
due to normal wear and tear, unauthorized repair or other
cause not within the control of Philips.
Famage or claims for products not being available for use, or
for lost data or lost software.
Famage from mishandled shipments or transit accidents when
returning product to Philips.
F product that requires modification or adaptation to enable
it to operate in any country other than the country for which
it was designed, manufactured, approved and/or authorized, or
repair of products damaged by these modifications.
F product used for commercial or institutional purposes
(including but not limited to rental purposes).
F!roduct lost in shipment and no signature verification receipt
can be provided.
Failure to operate per Owner’s Manual.
TO OBTAIN ASSISTANCE IN THE U.S.A., PUERTO
RICO, OR U.S. VIRGIN ISLANDS…
Contact Philips Customer Care Center at:
1-888-PHILIPS (1-888-744-5477)
TO OBTAIN ASSISTANCE IN CANADA…
1-800-661-6162 </8-2Speaking)
1-888-PHILIPS (1-888-744-5477) - (English or Spanish
Speaking)
REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS
WARRANTY IS THE EXCLUSIVE REMEDY
#THE
CONSUMER. PHILIPS SHALL NOT BE LIABLE #ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES #BREACH
ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE
LAW, ANY IMPLIED WARRANTY MERCHANTABILITY OR
%$$ #A PARTICULAR PURPOSE ON THIS PRODUCT
IS LIMITED IN DURATION TO THE DURATION THIS
WARRANTY.
Some states do not allow the exclusions or limitation of incidental or consequential damages, or allow limitations on how long an
implied warranty lasts, so the above limitations or exclusions may
not apply to you.
This warranty gives you specific legal rights. You may have other rights which vary from state/province to state/province.
3140 035 50201
Philips, P.O. Box 10313 Stamford, CT 06904
Page 5
6
l Use only with the cart,
stand, tripod, bracket,
or table specified by
the manufacturer or
sold with the apparatus.
When a cart is used, use
caution when moving the cart/apparatus
combination to avoid injury from tipover.
m Unplug this apparatus during lightning
storms or when unused for long periods
of time.
n Refer all servicing to qualified service
personnel. Servicing is required when
the apparatus has been damaged in any
way, such as power-supply cord or plug
is damaged, liquid has been spilled or
objects have fallen into the apparatus,
the apparatus has been exposed to rain
or moisture, does not operate normally,
or has been dropped.
Warning
Never remove the casing of this apparatus. •
Never lubricate any part of this apparatus. •
Never place this apparatus on other electrical •
equipment.
Keep this apparatus away from direct sunlight,
•
naked flames or heat.
Never look into the laser beam inside this
•
apparatus.
Ensure that you always have easy access to the
•
power cord, plug or adaptor to disconnect this
apparatus from the power.
Hearing safety
Listen at a moderate volume.
Using headphones at a high volume can •
impair your hearing. This product can
produce sounds in decibel ranges that
may cause hearing loss for a normal
person, even for exposure less than a
minute. The higher decibel ranges are
offered for those that may have already
experienced some hearing loss.
1 Important
Safety
Important Safety Instructions
a Read these instructions.
b Keep these instructions.
c Heed all warnings.
d Follow all instructions.
e Do not use this apparatus near water.
f Clean only with dry cloth.
g Do not block any ventilation openings.
Install in accordance with the
manufacturer’s instructions.
h Do not install near any heat sources
such as radiators, heat registers, stoves,
or other apparatus (including amplifiers)
that produce heat.
i Do not defeat the
safety purpose of
the polarized or
grounding-type
plug. A polarized
plug has two blades with one wider than
the other. A grounding type plug has
two blades and a third grounding prong.
The wide blade or the third prong are
provided for your safety. If the provided
plug does not fit into your outlet,
consult an electrician for replacement of
the obsolete outlet.
j Protect the power cord from being
walked on or pinched, particularly at
plugs, convenience receptacles, and
the point where they exit from the
apparatus.
k Only use attachments/accessories
specified by the manufacturer.
EN
Page 6
7
digital apparatus as set out in the Radio
Interference Regulations of the Canadian
Department of Communications. This Class
B digital apparatus complies with Canadian
ICES-003.
Français:
Cet appareil numérique n’émet pas de
bruits radioélectriques dépassant les limites
applicables aux appareils numériques de
Classe B prescrites dans le Règlement sur
le Brouillage Radioélectrique édicté par le
Ministère des Communications du Canada.
Cet appareil numérique de la classe B est
conforme à la norme NMB-003 du Canada.
Any changes or modifications made to this
device that are not expressly approved by
Philips Consumer Lifestyle may void the user’s
authority to operate the equipment.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and
old equipment.
Disposal of your old product and
batteries
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
Never dispose of your product with other
household waste. Please inform yourself about
the local rules on the separate collection
of electrical and electronic products and
batteries. The correct disposal of these
products helps prevent potentially negative
consequences on the environment and human
health.
Sound can be deceiving. Over time your •
hearing ‘comfort level’ adapts to higher
volumes of sound. So after prolonged
listening, what sounds ‘normal’ can
actually be loud and harmful to your
hearing. To guard against this, set your
volume to a safe level before your hearing
adapts and leave it there.
Set your volume control at a low setting. •
Slowly increase the sound until you can •
hear it comfortably and clearly, without
distortion.
Prolonged exposure to sound, even •
at normally ‘safe’ levels, can also cause
hearing loss.
Be sure to use your equipment •
reasonably and take appropriate breaks.
Listen at reasonable volumes for •
reasonable periods of time.
Be careful not to adjust the volume as •
your hearing adapts.
Do not turn up the volume so high that •
you can’t hear what’s around you.
You should use caution or temporarily •
discontinue use in potentially hazardous
situations. Do not use headphones while
operating a motorized vehicle, cycling,
skateboarding, etc.; it may create a traffic
hazard and is illegal in many areas.
Notice
Notice of compliance
The set complies with the FCC-Rules, Part
15 and with 21 CFR 1040.10. Operation is
subject to the following two conditions:
1.This device may not cause harmful
interference, and
2.This device must accept any interference
received, including interference that may cause
undesired operation.
Canada
English:
This digital apparatus does not exceed the
Class B limits for radio noise emissions from
English
EN
Page 7
8
2 Your Micro Hi-
Fi System
Congratulations on your purchase, and
welcome to Philips! To fully benefit from the
support that Philips offers, register your product
at www.philips.com/welcome.
Introduction
With this unit, you can enjoy audio from discs,
USB devices, iPod players, iPhone and other
external devices, or listen to radio stations.
The unit offers Digital Sound Control (DSC)
and Dynamic Bass Boost (DBB) to enrich
sound.
The unit supports the following media formats:
What’s in the box
Check and identify the contents of your
package:
Main unit•
Remote control•
Power adaptor•
1 x MP3 link cable•
Mounting kit (2 dowels and 2 screws)•
Quick start guide•
User manual •
Wall mounting instructions•
Your product contains batteries, which cannot
be disposed of with normal household waste.
Please inform yourself about the local rules on
separate collection of batteries. The correct
disposal of batteries helps prevent potentially
negative consequences on the environment
and human health.
Please visit
www.recycle.philips.com for
additional information on a recycling center in
your area.
This apparatus includes this label:
Class II equipment symbol
This symbol indicates that the unit has a
double insulation system.
Windows Media and the Windows logo are
trademarks, or registered trademarks of
Microsoft Corporation in the United States
and/or other countries.
EN
Page 8
9
c
Open/close the disc compartment.•
d Disc compartment
e Display panel
Show current status.•
Overview of the main unit
a
Turn on the unit, or switch to •
standby mode, or switch to Eco
Power standby.
b Dock for iPod/iPhone
a cb d e
English
EN
f SOURCE
Select a source: CD, FM tuner, USB, •
iPod, or MP3 link.
m l k
f h ig j
Page 9
10
Overview of the remote
control
PRESET/ALBUM
DISPLAY
RDS
VOL
SLEEP/
TIMER
REPEAT/
SHUFFLE
DSC DBB
PROG/
CLOCK SET
a
b
c
e
f
g
q
p
n
m
o
d
h
i
j
k
l
OPEN/CLOSE
CD
MP3 LINK
USB
TUNER
iPhone
MENU
iPod
a
Turn on the unit, or switch to •
standby mode, or switch to Eco
Power standby.
b OPEN/CLOSE
Open or close the disc compartment.•
c CD
Select disc source.•
g
/
Skip to the previous/next track.•
Search within a track.•
Tune to a radio station.•
Adjust hour/minute digits. •
Select 12 hour or 24 hour format.•
h
Start or pause play.•
i
Stop play or erase a program.•
j VOLUME + / -
Adjust volume.•
k
Jack for the headphone.•
l
Jack for a USB mass storage device. •
m MP3 LINK
Audio input jack (3.5mm) for an •
external audio device.
EN
Page 10
11
3 Get started
Caution
Use of controls or adjustments or •
performance of procedures other than herein
may result in hazardous radiation exposure or
other unsafe operation.
Always follow the instructions in this chapter in
sequence.
If you contact Philips, you will be asked for the
model and serial number of this apparatus. The
model number and serial number are on the
rear of the apparatus. Write the numbers here:
Model No. __________________________
Serial No. ___________________________
Placement
You can place the unit on a flat surface or
mount the unit on a wall.
Mount on a wall
To wall mount the unit, see the included
separate sheet of wall mounting instructions.
Prepare the remote control
Caution
Risk of explosion! Keep batteries away from •
heat, sunshine or fire. Never discard batteries
in fire.
To insert the remote control battery:
1 Open the battery compartment.
2 Insert 2 AAA batteries (not supplied)
with correct polarity (+/-) as indicated.
3 Close the battery compartment.
d
/ / /
Navigate in the iPod menu.•
Skip to the previous/next album.•
/
Skip to the previous/next track.•
Search within a track. •
Tune to a radio station.•
Adjust hour/minute digits.•
Select 12 hour or 24 hour format.•
Start or pause play.•
e USB/MP3 LINK
Select USB device source.•
Select external audio device source.•
f RDS/DISPLAY (RDS not available)
Select display information during play.•
g
Mute or restore volume.•
h VOL +/-
Adjust volume.•
i Numeric keypad
Select a track from a disc directly.•
Select a preset radio station. •
j PROG/CLOCK SET
Program tracks.•
Program radio stations.•
Scan for radio stations automatically. •
Set the clock.•
k SLEEP/TIMER
Set the sleep timer.•
Set the alarm timer.•
l DSC
Select a preset sound setting.•
m DBB
Turn on or off dynamic bass •
enhancement.
n REPEAT/SHUFFLE
Play a track or all tracks repeatedly.•
Play tracks randomly.•
o
/MENU
Stop play or erase a program.•
Access the iPod menu.•
p iPod/iPhone
Select iPod/iPhone source.•
q TUNER
Select tuner source.•
English
EN
Page 11
12
1 Connect the power adaptor to:
the • DC IN jack on the main unit.
the wall outlet.•
Auto install radio stations
When you connect power and no radio
stations are stored, the unit automatically begins
to store radio stations.
1 Connect the unit to the power supply.
[ » AUTO INSTALL PRESS -- PLAY
KEY](auto install press -- play key) is
displayed.
2 Press on the main unit to start
installation.
The unit automatically stores radio »
stations with sufficient signal strength.
When all the available radio stations »
are stored, the first preset radio station
is broadcast automatically.
Set clock
Note
You can set the clock in the standby mode only. •
1 Press and hold PROG/CLOCK SET to
enter the clock setting mode.
[ » SET CLOCK](set clock) scrolls on the
screen.
3
1
2
Note
If you are not going to use the remote control •
for a long time, remove the batteries.
Do not use old and new or different types of
•
batteries in combination.
Batteries contain chemical substances, so they
•
should be disposed of properly.
Connect power
Caution
Risk of product damage! Ensure that the power •
voltage corresponds to the voltage printed on
the back or underside of the apparatus.
Warning
Risk of electric shock! When you unplug the •
AC adaptor, always pull the plug from the
socket. Never pull the cord.
Caution
Before connecting the AC adaptor, ensure you •
have completed all other connections.
EN
Page 12
13
4 Play
Play a disc
1
Press CD to select the disc source.
2 Press to open the disc compartment.
3 Insert a disc with the printed side facing
outward.
4 Press to close the disc compartment.
Play starts automatically. If not, press »
.
Play from USB
Note
Ensure that the USB device contains playable •
audio content.
1 Insert the USB device into the socket.
2 Press USB to select the USB source.
Play starts automatically. If not, press »
.
To select a folder, press •
/ .
To select an audio file, press •
/ .
2 Press / repeatedly to select 12 hour
or 24 hour format.
3 Press PROG/CLOCK SET to confirm.
The hour digits are displayed and begin »
to blink.
4 Press / to set the hour.
5 Press PROG/CLOCK SET to confirm.
The minute digits are displayed and »
begin to blink.
6 Press / to set the minute.
7 Press PROG/CLOCK SET to confirm the
clock setting.
Turn on
1
Press .
The unit switches to the last selected »
source.
Switch to standby
1 Press again to switch the unit to
standby mode.
The clock (if set) appears on the »
display panel.
To switch the unit to Eco Power Standby
mode:
1 Press and hold for more than 2
seconds.
The backlight on the display panel »
turns off.
Tip
The unit switches to Eco Power Standby mode •
after 15 minutes in standby mode.
To switch between standby mode and Eco
Standby Mode:
1 Press and hold for more than 2
seconds.
English
EN
Page 13
14
2 Place the iPod/iPhone player in the dock.
3 Press iPod to select iPod source.
The connected iPod/iPhone plays »
automatically.
To pause/resume play, press •
.
To skip to a track, press •
/ .
To search during play, press and •
hold
/ , then release to resume
normal play.
Charge the iPod/iPhone
When the unit is connected to power, the
docked iPod/iPhone begins to charge.
Play iPod/iPhone
You can enjoy audio from iPod/iPhone through
this Micro Hi-Fi system.
Compatible iPod/iPhone
Apple iPod and iPhone models with a 30-pin
dock connector:
iPod classic, iPod touch, iPod nano, iPod •
5th generation (video), iPod with color
display, iPod mini
iPhone, iPhone 3G, iPhone 3GS•
Play an iPod/iPhone player
Note
When an iPod/iPhone player is loaded, the unit •
switches to iPod source automatically.
1 Push to open the dock compartment.
EN
Page 14
15
Program radio stations
manually
You can program a maximum of 20 preset
radio stations (FM).
1 Tune to a radio station.
2 Press PROG/CLOCK SET to activate
program mode.
[ » PROG] (program) is displayed.
3 Press / to allocate a number to this
radio station, then press PROG/CLOCK
SET to confirm.
4 Repeat the above steps to program other
stations.
Tip
To overwrite a programmed station, store •
another station in its place.
Select a preset radio station
1
In tuner mode, press / to select a
preset number.
You can also press the numeric buttons •
to select a preset number directly.
Tip
Position the antenna as far as possible from •
TV, VCR or other radiation source.
For optimal reception, fully extend and adjust
•
the position of the antenna.
5 Listen to radio
Tune to a radio station
1
Press TUNER to select FM.
2 Press and hold / for more than 2
seconds.
[ » SEARCH] (search) is displayed.
The radio tunes to a station with »
strong reception automatically.
3 Repeat step 2 to tune to more stations.
To tune to a weak station, press •
/ repeatedly until you find optimal
reception.
Program radio stations
automatically
You can program a maximum of 20 preset
radio stations (FM).
1 In the tuner mode, press and hold
PROG/CLOCK SET for more than 2
seconds to activate automatic program
mode.
[ » AUTO] (auto) is displayed.
All available stations are programmed »
in the order of waveband reception
strength.
The first programmed radio station is »
broadcast automatically.
English
EN
Page 15
16
Program tracks
Note
You can program tracks only when the play •
stops.
You can program a maximum of 40 tracks.
1 Press PROG/CLOCK SET to activate the
program mode.
[ » PROG] (program) is displayed.
2 For MP3/WMA tracks, press / to
select an album.
3 Press / to select a track, then press
PROG/CLOCK SET to confirm.
4 Repeat steps 2 to 3 to program more
tracks.
5 Press to play the programmed tracks.
During play, [ » PROG] (program) is
displayed.
To erase the program, in the stop •
position, press
.
Display time
1
Press DISPLAY to display time.
Tip
In Eco Standby mode, time is displayed for 90 •
seconds.
Adjust volume level
1
During play, press VOL +/- to increase/
decrease the volume level.
Mute sound
1
During play, press to mute/unmute
sound.
6 Play options
Pause/resume play
1
During play, press to pause/resume
play.
Skip to a track
For CD:
1 Press / to select another track.
To select a track directly, you can •
also press a key on the numerical
keypad.
2 Press to select an album or a folder.
3 Press / to select a track or a file.
Search within a track
1
During play, press and hold / .
2 Release to resume normal play.
Select repeat/shuffle play
options
1
During play, press REPEAT/SHUFFLE
repeatedly to select a repeat option or
the shuffle play mode.
[•
]: the current track is played
repeatedly.
[•
]: all tracks are played
repeatedly.
[•
]: all tracks in this album are
played repeatedly.
[•
]: all tracks are played randomly.
2 To resume normal play, press
REPEAT/SHUFFLE repeatedly until no
option is displayed.
EN
Page 16
17
7 Other features
Set the alarm timer
This unit can be used as an alarm clock. The
disc/radio/USB/iPod is activated to play at a
preset time.
Note
Ensure that you have set the clock correctly. •
1 Press to switch to standby mode.
2 Press and hold SLEEP/TIMER for more
than two seconds.
A prompt to select the source is »
displayed.
3 Press CD, TUNER, USB or iPod to select
a source.
4 Press SLEEP/TIMER to confirm.
The clock digits are displayed. »
The hour digits begin to blink. »
5 Press / to set the hour.
6 Press SLEEP/TIMER to confirm.
The minute digits begin to blink. »
7 Press / to set the minute.
The timer is set and activated. »
»
is displayed.
Select a preset sound effect
1
During play, press DSC repeatedly to
select:
[• POP] (pop)
[• JAZZ] (jazz)
[• ROCK] (rock)
[• CLASSIC] (classic)
[• FLAT] (flat)
Enhance bass
1
During play, press DBB to turn on or off
dynamic bass enhancement.
If DBB is activated, [DBB] is displayed. »
English
EN
Page 17
18
8 Product
information
Note
Product information is subject to change •
without prior notice.
Specifications
Amplifier
Total output power 2 x 10 W RMS
Frequency
response 80 Hz - 16 kHz, ± 3 dB
Signal to noise ratio > 60 dB
MP3 link input 0.5 V RMS 20 k
Disc
Laser type Semiconductor
Disc diameter 12 cm /8 cm
Support disc CD-DA, CD-R,
CD-RW, MP3-CD,
WMA-CD
Audio DAC 24 Bits / 44.1 kHz
Total harmonic
distortion < 1.5%
Frequency
response 60 Hz -16 kHz (44.1 kHz)
Signal to noise ratio > 55 dBA
Tuner
Tuning range FM: 87.5 - 108 MHz
Tuning grid 100 KHz
Number of presets 20
Set the sleep timer
This unit can switch to standby automatically
after a set period of time.
1 When the unit is turned on, press
SLEEP/TIMER repeatedly to select a set
period of time (in minutes).
When sleep timer is activated, »
is
displayed.
2 Press SLEEP/TIMER repeatedly until
[OFF] (off) is displayed.
When sleep timer is deactivated, »
disappears on the display.
Play from an external device
You can also listen to an external audio device
through this unit.
1 Press USB/MP3 LINK to select the MP3
link source.
2 Connect the supplied MP3 link cable to:
the • MP3 LINK jack (3.5mm) on the
unit.
the headphone jack on an external •
device.
3 Start to play the device (see the device
user manual).
EN
Page 18
19
Supported MP3 disc formats
ISO9660, Joliet•
Maximum title number: 999 (depending •
on file name length)
Maximum album number: 99•
Supported sampling frequencies: 32 kHz, •
44.1kHz, 48 kHz
Supported Bit-rates: 32-320 (kbps), •
variable bit rates
ID3 tag v2.0 to v2.3•
Directory nesting up to a maximum of 8 •
levels
Maintenance
Clean the cabinet
Use a soft cloth slightly moistened with •
a mild detergent solution. Do not use
a solution containing alcohol, spirits,
ammonia or abrasives.
Clean discs
When a disc becomes •
dirty, clean it with a
cleaning cloth. Wipe the
disc from the centre out.
Do not use solvents •
such as benzene, thinner,
commercially available cleaners, or
antistatic spray intended for analogue
records.
Clean the disc lens
After prolonged use, dirt or dust may •
accumulate at the disc lens. To ensure
good play quality, clean the disc lens
with Philips CD lens cleaner or any
commercially available cleaner. Follow the
instructions supplied with cleaner.
Speakers
Speaker impedance 2 x 10 W, 4
General information
AC power 100 - 240V~, 50/60Hz
Model: AS300-120AA250
Operation Power
Consumption 15 W
Standby Power
Consumption < 2 W
Eco Power Standby
Power Consumption < 1 W
USB Direct Version 2.0/1.1
Dimensions
- Main Unit
(W x H x D)
565 x 245 x 104 mm
Weight
- Main Unit 2.7 kg
USB playability information
Compatible USB devices:
USB flash memory (USB 2.0 or USB 1.1)•
USB flash players (USB 2.0 or USB 1.1)•
memory cards (requires an additional •
card reader to work with this unit)
Supported formats:
USB or memory file format FAT12, •
FAT16, FAT32 (sector size: 512 bytes)
MP3 bit rate (data rate): 32-320 Kbps and •
variable bit rate
WMA v9 or earlier•
Directory nesting up to a maximum of 8 •
levels
Number of albums/ folders: maximum 99•
Number of tracks/titles: maximum 999•
ID3 tag v2.0 to v2.3•
File name in Unicode UTF8 (maximum •
length: 128 bytes)
English
EN
Page 19
20
Insert the battery with its polarities (+/– •
signs) aligned as indicated.
Replace the battery. •
Aim the remote control directly at the •
sensor on the front of the unit.
Cannot display some files in USB device
The number of folders or files in the USB •
device has exceeded a certain limit. This
phenomenon is not a malfunction.
The formats of these files are not •
supported.
USB device not supported
The USB device is incompatible with the •
unit. Try another one.
Poor radio reception
Increase the distance between the unit •
and your TV or VCR.
Fully extend and adjust the FM antenna. •
Clock/timer setting erased
Power has been interrupted or the power •
cord has been disconnected.
Reset the clock/timer. •
Timer does not work
Set the clock correctly. •
Switch on the timer. •
9 Troubleshooting
Warning
Never remove the casing of this apparatus. •
To keep the warranty valid, never try to repair
the system yourself.
If you encounter problems when using this
apparatus, check the following points before
requesting service. If the problem remains
unsolved, go to the Philips web site (www.
philips.com/welcome). When you contact
Philips, ensure that the apparatus is nearby
and the model number and serial number are
available.
No power
Ensure that the AC power plug of the •
unit is connected properly.
Ensure that there is power at the AC •
outlet.
To save power, the unit switches to Eco •
Standby mode automatically after 15
minutes in standby mode.
No sound
Adjust the volume. •
No response from the unit
Disconnect and reconnect the AC power •
plug, then turn on the unit again.
No disc detected
Insert a disc. •
Check if the disc is inserted with the print •
side facing inward.
Wait until the moisture condensation at •
the lens has cleared.
Replace or clean the disc. •
Use a finalized CD or correct format disc. •
Remote control does not work
Before pressing any function button, first •
select the correct source with the remote
control instead of the main unit.
Reduce the distance between the remote •
control and the unit.
EN
Page 20
Philips Consumer Lifestyle
A division of Philips Electronics North America Corporation
P.O. Box 10313
Stamford, CT 06904
Phone: 1-888-PHILIPS (744-5477)
Meet Philips at the Internet
http://www.philips.com/welcome
© 2010 Koninklijke Philips Electronics N.V.
All rights reserved.
DCM292_37_UM_V3.0
Loading...
