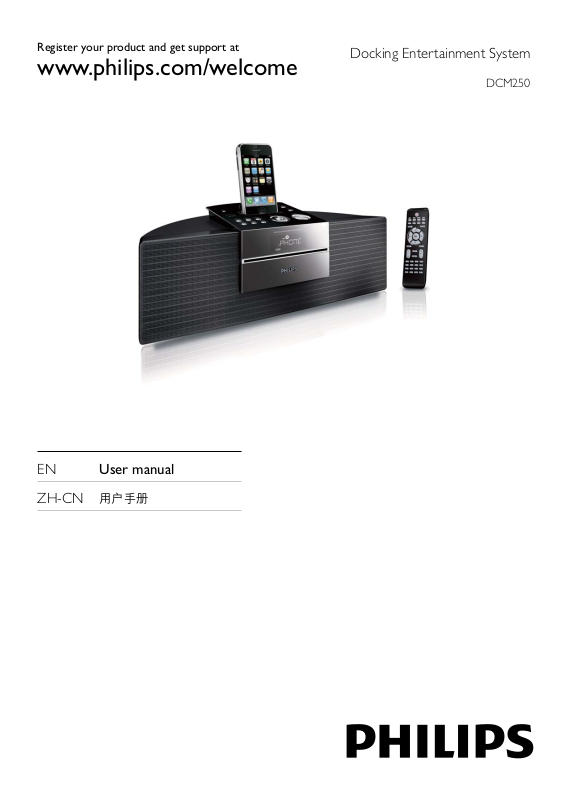

Philips DCM250 93 User Manual

Register your product and get support at

www.philips.com/welcome

Docking Entertainment System

DCM250

EN User manual

ZH-CN

Ⴌ߀൱Ҭ

Contents

1 Important 4

Safety 4
Notice 5

2 Your Docking Entertainment System 7

Introduction 7
What’s in the box 7
Overview of the main unit 8
Overview of the remote control 9

3 Get started 11

Connect FM antenna 11
Connect MW antenna 11
Connect power 12
Prepare the remote control 12
Auto install radio stations 13
Set clock 13
Turn on 13

8 Listen to the radio 19

Tune to a radio station 19
Program radio stations automatically 19
Program radio stations manually 19
Select a preset radio station 19

9 Adjust sound 20

Adjust volume 20
Select a preset sound effect 20
Enhance bass 20
Mute sound 20

10 Other features 21

Set the sleep timer 21
Set the alarm timer 21
Listen to an external device 21
Listen through headphone 21

11 Product information 22

Specifi cations 22
USB playability information 23
Supported MP3 disc formats 23

English

4 Play disc 14

5 Play from USB 15

6 Play options 16

Skip to a track 16
Pause/resume play 16
Search within a track 16
Display play information 16
Repeat play 16
Random play 16
Program tracks 16

7 Play iPod/iPhone 17

Compatible iPod/iPhone 17
Load the iPod/iPhone 17
Listen to the iPod/iPhone 17
Play video from iPod/iPhone 18
Charge the iPod/iPhone 18
Remove the iPod/iPhone 18

12 Troubleshooting 24

EN

3

1 Important

g Do not block any ventilation openings.

Install in accordance with the
manufacturer’s instructions.

Safety

This ‘bolt of lightning’ indicates uninsulated
material within your unit may cause an
electrical shock. For the safety of everyone
in your household, please do not remove
product covering.
The ‘exclamation point’ calls attention to
features for which you should read the
enclosed literature closely to prevent
operating and maintenance problems.
WARNING: To reduce the risk of fi re or
electric shock, this apparatus should not be
exposed to rain or moisture and objects fi lled
with liquids, such as vases, should not be
placed on this apparatus.
CAUTION: To prevent electric shock, match
wide blade of plug to wide slot, fully insert.

Important Safety Instructions

a Read these instructions.
b Keep these instructions.
c Heed all warnings.
d Follow all instructions.

h Do not install near any heat sources

such as radiators, heat registers, stoves,
or other apparatus (including amplifi ers)
that produce heat.

i Protect the power cord from being

walked on or pinched, particularly at
plugs, convenience receptacles, and
the point where they exit from the
apparatus.

j Only use attachments/accessories

specifi ed by the manufacturer.

k Use only with the cart, stand, tripod,

bracket, or table specifi ed by the
manufacturer or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination
to avoid injury from tip-over.

l Unplug this apparatus during lightning

storms or when unused for long periods
of time.

m Refer all servicing to qualifi ed service

personnel. Servicing is required when
the apparatus has been damaged in any
way, such as power-supply cord or plug
is damaged, liquid has been spilled or
objects have fallen into the apparatus,
the apparatus has been exposed to rain
or moisture, does not operate normally,
or has been dropped.

e Do not use this apparatus near water.
f Clean only with dry cloth.

4

EN

n Battery usage CAUTION – To prevent

battery leakage which may result in
bodily injury, property damage, or
damage to the unit:

Install all batteries correctly, + and - •
as marked on the unit.
Do not mix batteries (old and new •
or carbon and alkaline, etc.).
Remove batteries when the unit is •
not used for a long time.

o Apparatus shall not be exposed to

dripping or splashing.

p Do not place any sources of danger on

the apparatus (e.g. liquid fi lled objects,
lighted candles).

q This product may contain lead and

mercury. Disposal of these materials
may be regulated due to environmental
considerations. For disposal or recycling
information, please contact your local
authorities or the Electronic Industries
Alliance: www.eiae.org.

Where the MAINS plug or an appliance •
coupler is used as the disconnect device,
the disconnect device shall remain readily
operable.

Slowly increase the sound until you can •
hear it comfortably and clearly, without
distortion.
Prolonged exposure to sound, even •
at normally ‘safe’ levels, can also cause
hearing loss.
Be sure to use your equipment •
reasonably and take appropriate breaks.
Listen at reasonable volumes for •
reasonable periods of time.
Be careful not to adjust the volume as •
your hearing adapts.
Do not turn up the volume so high that •
you can’t hear what’s around you.
You should use caution or temporarily •
discontinue use in potentially hazardous
situations. Do not use headphones while
operating a motorized vehicle, cycling,
skateboarding, etc.; it may create a traffi c
hazard and is illegal in many areas.

Notice

English

Hearing safety

Listen at a moderate volume.

Using headphones at a high volume can •
impair your hearing. This product can
produce sounds in decibel ranges that
may cause hearing loss for a normal
person, even for exposure less than a
minute. The higher decibel ranges are
offered for those that may have already
experienced some hearing loss.
Sound can be deceiving. Over time your •
hearing ‘comfort level’ adapts to higher
volumes of sound. So after prolonged
listening, what sounds ‘normal’ can
actually be loud and harmful to your
hearing. To guard against this, set your
volume to a safe level before your hearing
adapts and leave it there.
Set your volume control at a low setting. •

This product complies with the radio
interference requirements of the European
Community.
This product complies with the requirements
of the following directives and guidelines:
2004/108/EC + 2006/95/EC
Any changes or modifi cations made to this
device that are not expressly approved by
Philips Consumer Lifestyle may void the user’s
authority to operate the equipment.

EN

5

Recycling

Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When you see the crossed-out wheel bin
symbol attached to a product, it means the
product is covered by the European Directive
2002/96/EC:

Never dispose of your product with other
household waste. Please inform yourself about
the local rules on the separate collection of
electrical and electronic products. The correct
disposal of your old product helps prevent
potentially negative consequences on the
environment and human health.
Your product contains batteries covered by
the European Directive 2006/66/EC, which
cannot be disposed of with normal household
waste.
When you see the crossed-out wheel bin
symbol with the chemical symbol ‘Pb’, it
means that the batteries comply with the
requirement set by the directive for lead:

Environmental information

All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and
old equipment.

This apparatus includes this label:

Windows Media and the Windows logo are
trademarks, or registered trademarks of
Microsoft Corporation in the United States
and/or other countries.

Please inform yourself about the local rules on
separate collection of batteries. The correct
disposal of batteries helps prevent potentially
negative consequences on the environment
and human health.

6

EN

2 Your Docking

What’s in the box

Entertainment
System

Congratulations on your purchase, and
welcome to Philips! To fully benefi t from the
support that Philips offers, register your product
at www.philips.com/welcome.

Introduction

With this apparatus, you can enjoy audio from
audio discs, USB devices, iPod players, iPhone
and other external devices, or listen to radio
stations.
The apparatus offers you multiple sound effect
settings that enrich sound with Digital Sound
Control (DSC) and Dynamic Bass Boost (DBB).
The apparatus supports the following media
formats:

Check and identify the contents of your
package:

Main unit•
Remote control with battery•
FM antenna•
MW antenna•
Video cable•
Back plate•
AC adaptor•
Power cord•
MP3 link cable•
User manual•
Quick start guide•

English

EN

7

Overview of the main unit

a

b
c

d
e
f
g

h

i

j
k

l
m

n
o

p

a

Jack for a USB mass storage device. •

b SOURCE

Select a source: DISC, USB, iPod, •
TUNER, or MP3 LINK.

c TIMER

Set the alarm timer.•

d PLAY·MODE

Select repeat/shuffl e mode. •

e STOP

Stop play or erase a program.•

f IR sensor

g ALBUM·PRESET +/-

Select a preset radio station.
Skip to the previous/next album.
Adjust time.

•

•

h Disc compartment
i MP3-LINK

j PROG

/
Skip to the previous/next track.
Search within a track/ disc/USB.
Tune to a radio station.

Start or pause play.

Jack for an external audio device.•

Program tracks.•
Program radio stations.•
Set the clock.•

8

EN

k DISPLAY

During play, select display •
information.

Overview of the remote
control

l Dock for iPod/iPhone
m STANDBY-ON

Turn on the apparatus, switch to •
standby mode.

n EJECT

Eject the disc.•

o VOLUME +/-

Adjust volume.•

p Display panel

Show current status.•

a

b
c
d

e

f

g

h

i

TIMER

English

k

l
m
n

e

n
o

p
q

r
s
t

u

j

a

Turn on the apparatus, switch to •
standby mode.

b PROG

Program tracks.•
Program radio stations.•
Set the clock.•

c MENU

Access the iPod/iPhone menu.•

d REPEAT

Select a repeat play mode.•

v
w

EN

9

b

/

Skip to the previous/next track.•
Navigate through the iPod/iPhone •
menu.

f OK

Confi rm a selection.•

g SLEEP

Set the sleep timer.•

h

/

Search within a track/disc/USB/iPod/•
iPhone.
Tune to a radio station.•

i Numeric keypad

Select a track from a disc directly.•

j BAND

Select a waveband: FM or MW.•

t TIMER

Set the alarm timer.•

u DSC

Select a preset sound setting.•

v DBB

Turns on or off dynamic bass •
enhancement.

w RDS

Only available in European version•

k Source selection keys ( CD , USB ,

TUNER ,iPod ,AUX )

Select a source: CD, USB, TUNER, •
iPod/iPhone or AUX(MP3 LINK).

l SHUFFLE

Play tracks randomly.•

m EJECT

Eject the disc.•

n

Skip to the previous/next album.•
Navigate through the iPod/iPhone •
menu.

o MUTE

Mute volume.•

p

Start or pause play.•

q VOL +/-

Adjust volume.•

r

Stop play or erase a program.•

s DISPLAY

During play, select display •
information.

10

EN

3 Get started

Caution

Use of controls or adjustments or •
performance of procedures other than herein
may result in hazardous radiation exposure or
other unsafe operation.

Always follow the instructions in this chapter in
sequence.
If you contact Philips, you will be asked for the
model and serial number of this apparatus. The
model number and serial number are on the
bottom of the apparatus. Write the numbers
here:
Model No. __________________________
Serial No. ___________________________

Connect MW antenna

1 Assemble the MW loop antenna.

English

2 Connect the MW loop antenna to the

MW aerial jack on the rear of the main

unit.

Connect FM antenna

Tip

For optimal reception, fully extend and adjust •
the position of the antenna.

1 Connect the supplied FM antenna to the

FM aerial jack on the main unit.

MW AERIAL

Note

Position the antenna as far as possible from a •
TV, VCR or other radiation source.

FM AERIAL

EN

11

Connect power

Caution

Risk of product damage! Ensure that the •
power supply voltage corresponds to the
voltage printed on the back or the underside
of the unit.
Risk of electric shock! When you unplug the

•

AC power cord, always pull the plug from the
socket. Never pull the cord.
Before connecting the AC power cord, ensure

•

you have completed all other connections.

Note

The type plate is located on the bottom of the •
main unit.

1 Connect the power cord to the AC

adaptor.

2 Connect one end to the DC socket on

the main unit.

Prepare the remote control

Caution

Risk of explosion! Keep batteries away from •
heat, sunshine or fi re. Never discard batteries
in fi re.

For fi rst-time use:

1 Remove the protective tab to activate the

remote control battery.

2 Open the battery compartment.
3 Insert 1 CR2025 battery with correct

polarity (+/-) as indicated.

4 Close the battery compar tment.

3 Connect the other end to the wall socket.

12

EN

Note

Before pressing any function button on the •
remote control, fi rst select the correct source
with the remote control instead of the main
unit.

Auto install radio stations

When you connect power and no radio
stations are stored, the apparatus automatically
begins to store radio stations.

1 Connect the apparatus to the power

supply.

[AUTO INSTALL - PRESS PLAY] (auto »
install - press the PLAY button) is
displayed.

2 Press on the main unit to start

installation.

The apparatus automatically stores »
radio stations with suffi cient signal
strength.

6 Press / to set the minute.
7 Press PROG to confi rm.

English

Turn on

1 Press .

The apparatus switches to the last »
selected source.

Switch to standby

1 Press to switch the apparatus to

standby mode.

The backlight on the display panel is »
reduced.

The clock (if set) appears on the »
display panel.

When all the available radio stations »
are stored, the fi rst preset radio station
is broadcast automatically.

Set clock

1 In standby mode, press PROG to activate

the clock setting mode.

The 12 hour or 24 hour format is »
displayed.

2 Press / to select 12 hour or 24 hour

format.

3 Press PROG.

The hour digits are displayed and begin »
to blink.

4 Press / to set the hour.
5 Press PROG.

The minute digits are displayed and »
begin to blink.

EN

13

4 Play disc

1 Press CD to select the disc source.
2 Insert a disc into the disc compartment

with the printed side facing up.

s

l

i

d

e

e

b

a

L

3 Press to start play.

14

EN

5 Play from USB

English

Note

Ensure that the USB device contains playable •
audio content .

1 Connect the USB device into the

socket.

2 Press USB to select the USB source.

The total number of tracks is displayed.»

3 Press to select a folder.
4 Press / to select a fi le.
5 Press to start play.

EN

15

6 Play options

Skip to a track

2 To return to normal play, press REPEAT

repeatedly until the repeat mode is no
longer displayed.

For CD:

1 Press / to select another track.

To select a track directly, you can •
also press a key on the numerical
keypad.

2 Press to select an album or folder.
3 Press / to select select a track or fi le.

Pause/resume play

1 During play, press to pause/resume

play.

Search within a track

1 During play, press and hold / .
2 Release to resume normal play.

Random play

1 Press SHUFFLE.

»

is displayed. All tracks are played in

a random sequence.

2 To return to normal play, press SHUFFLE

again.

Tip

The repeat and shuffl e functions cannot be •
activated at the same time.

Program tracks

You can program a maximum of 40 tracks.

1 At CD/USB mode, at the stop position,

press PROG to activate the program
mode.

[PROG] (program) blinks on the »
display.

Display play information

1 During play, press DISPLAY repeatedly to

select different play information.

Repeat play

1 During play, press REPEAT repeatedly to

select:

•

•

: The current track is played

repeatedly.

: All tracks are played
repeatedly.
For MP3/WMA and USB: •
[ALB]. The current album is played
repeatedly.

and

2 For MP3/WMA tracks, press to select

an album.

3 Press / to select a track number, then

press PROG to confi rm.

4 Repeat steps 2 to 3 to program more

tracks.

5 Press to play the programmed tracks.

During play, [PROG] (program) is »
displayed.

To erase the program, in the stop •
position, press

.

16

EN

7 Play iPod/iPhone

5 Adjust the position of the back plate to fi t

the iPod/iPhone securely.

You can enjoy audio/video from iPod/iPhone
through this apparatus.

Compatible iPod/iPhone

Apple iPod and iPhone models with a 30-pin
dock connector:

iPod classic, iPod touch, iPod nano, iPod •
5th generation (video), iPod with color
display, iPod mini.
iPhone, iPhone 3G.•

Load the iPod/iPhone

1 Remove the screw on the dock.

English

6 When the back plate is in the correct

position, tighten the screw.

When the apparatus is connected to »
power, the docked iPod/iPhone begins
to charge.

Listen to the iPod/iPhone

2 Place the back plate upright.
3 Place the screw in its original position.

Note: Do not tighten the screw.•

1 Ensure that the iPod/iPhone is loaded

correctly.

2 Press iPod to select iPod/iPhone source.

The connected iPod/iPhone plays »
automatically.

To pause/resume play, press •
To skip to a track, press •
To search during play: press and •
hold
normal play.
To navigate the menu: press • MENU,
press
OK to confi rm.

/ , then release to resume

to select, then press

.

/ .

4 Place the iPod/iPhone in the dock.

EN

17

Play video from iPod/iPhone

You can connect the unit to a TV to enjoy video
from the iPod/iPhone.

1 Connect the supplied video cable to:

the • COMPONENT VIDEO OUT
jack on the unit.
the video input jacks on the TV.•

PbPr Y

2 Ensure that the iPod/iPhone is loaded

correctly.

3 Press iPod to select the iPod/iPhone

source.

4 Press MENU to enter the iPod/iPhone

menu.

5 Press to select a video fi le.
6 Press OK to confi rm.

Charge the iPod/iPhone

When the apparatus is connected to power, the
docked iPod/iPhone begins to charge.

Remove the iPod/iPhone

1 Pull the iPod/iPhone out of the dock.

18

EN

8 Listen to the

Program radio stations
manually

radio

Tune to a radio station

Tip

For optimal FM reception, fully extend and •
adjust the position of the FM antenna.

•

For optimal MW reception, adjust the position
of the MW loop antenna.

1 Press TUNER to select the tuner source.
2 Press BAND to select FM or MW.
3 Press and hold / for more than 2

seconds.

[SEARCH] (search) is displayed.»
The radio tunes to a station with »

strong reception automatically.

4 Repeat step 2 to tune to more stations.

To tune to a weak station, press •
/ repeatedly until you fi nd optimal
reception.

English

Note

You can program a maximum of 40 preset •
radio stations.

1 Tune to a radio station.
2 Press PROG to activate program mode.

[PROG] (program) blinks on the »
display.

3 Press / to allocate a number (1 to 40)

to this radio station, then press PROG to
confi rm.

The preset number and the frequency »
of the preset station are displayed.

4 Repeat the above steps to program other

stations.

Note

To overwrite a programmed station, store •
another station in its place.

Program radio stations
automatically

Note

You can program a maximum of 40 preset •
radio stations.

1 In tuner mode, press and hold PROG for

2 seconds to activate automatic program
mode.

[AUTO] (auto) is displayed.»
All available stations are programmed »

in the order of waveband reception
strength.

The fi rst programmed radio station is »
broadcast automatically.

Select a preset radio station

1 In tuner mode, press / to select a

preset number.

EN

19

9 Adjust sound

Adjust volume

1 During play, press VOL +/- to increase/

decrease the volume.

Select a preset sound effect

1 During play, press DSC repeatedly to

select:

[POP] (pop)•
[JAZZ] (jazz)•
[CLASSIC] (classic)•
[ROCK] (rock)•

Enhance bass

1 During play, press DBB to turn on or off

dynamic bass enhancement.

If DBB is activated, DBB is displayed.»

Mute sound

1 During play, press MUTE to mute/unmute

sound.

20

EN

10 Other features

Activate and deactivate the alarm
timer

Set the sleep timer

This apparatus can switch to standby
automatically after a set period of time.

1 When the apparatus is turned on, press

SLEEP repeatedly to select a set period of

time (in minutes).

When sleep timer is activated, the »
display shows [SLEEP](sleep)

To deactivate sleep timer

.

2 Press SLEEP repeatedly until “OFF” is

displayed.

When sleep timer is deactivated, »
[SLEEP](sleep)
display.

disappears on the

1 Press TIMER repeatedly to activate or

deactivate the timer.

If the timer is activated, the display »
shows

If the timer is deactivated, »
disappears on the display.

Note

If DISC/USB/iPod source is selected and the •
track cannot be played, tuner is activated
automatically.

.

Listen to an external device

You can also listen to an external audio device
through this unit.

English

Set the alarm timer

This apparatus can be used as an alarm clock.
The DISC, TUNER, USB or iPod is activated to
play at a preset time.

1 Ensure that you have set the clock

correctly.

2 Press and hold TIMER.
3 Press CD, USB, TUNER or iPod to select

a source.

4 Press TIMER to confi rm.

The hour digits are displayed and begin »
to blink.

5 Press / to set the hour.
6 Press TIMER to confi rm.

The minute digits are displayed and »
begin to blink.

1 Press AUX to select MP3 link source.
2 Connect the supplied MP3 link cable to:

the • MP3 LINK jack on this unit
the headphone jack on the device•

3 Start to play the device. (See the device

user manual)

Listen through headphone

1 Plug a headphone into the socket on

the unit.

7 Press / to set the minute.
8 Press TIMER to confi rm.

The timer is set and activated.»

EN

21

11 Product

information

Note

Product information is subject to change •
without prior notice.

Sensitivity

- Mono, 26dB S/N Ratio

- Stereo, 46dB S/N Ratio
Search Selectivity <28 dBu
Total Harmonic Distortion <3%
Signal to Noise Ratio >45 dB

<22 dBu
<45 dBu

Speakers

Specifi cations

Amplifi er

Rated Output Power 2X15W RMS
Frequency Response 100 Hz - 16 kHz,

±3dB
Signal to Noise Ratio >70dB
Aux Input 0.5 V RMS 20kohm

Disc

Laser Type Semiconductor
Disc Diameter 12cm/8cm
Support Disc CD-DA, CD-R, CD-

RW, MP3-CD, WMA-

CD
Audio DAC 24Bits / 44.1kHz
Total Harmonic

Distortion
Frequency

Response
S/N Ratio >65dBA

<1%

60Hz -16kHz (44.1kHz)

Speaker
Impedance

Speaker Driver 3.5”woofer+0.8” tweeter
Sensitivity >82 dB/m/W

4 ohm

General information

AC power
(power adaptor)

Operation Power
Consumption

Standby Power
Consumption

Eco Standby Power
Consumption

USB Direct Version 2.0/1.1
Dimensions

- Main Unit
(W x H x D)

Weight

- With Packing

- Main Unit

Input: 100-240V~,
50/60Hz 1.5A MAX;
Output: 15V
(Brand name: Philips;
Model No.: OH­1048A1503000U-u)

16W

<4W

<1W

390 x140.5 x 200.5mm

4 kg

3.32 kg

3A;

Tuner

Tuning Range FM:87.5 - 108

MHz
MW: 531 - 1602
kHz

Tunin g grid FM: 50 KHz

MW: 9KHz

22

EN

USB playability information

Supported MP3 disc formats

Compatible USB devices:

USB fl ash memory (USB 2.0 or •
USB1.1)
USB fl ash players (USB 2.0 or •
USB1.1)
memory cards (requires an additional •
card reader to work with this
apparatus)

Supported formats:

USB or memory fi le format FAT12, •
FAT16, FAT32 (sector size: 512 bytes)
MP3 bit rate (data rate): 32-320 Kbps •
and variable bit rate
WMA v9 or earlier•
Directory nesting up to a maximum •
of 8 levels
Number of albums/ folders: •
maximum 99
Number of tracks/titles: maximum •
999
ID3 tag v2.0 or later•
File name in Unicode UTF8 •
(maximum length: 128 bytes)

ISO9660, Joliet•
Maximum title number: 512 (depending •
on fi le name length)
Maximum album number: 255•
Supported sampling frequencies: 32 kHz, •

44.1kHz, 48 kHz
Supported Bit-rates: 32~256 (kbps), •
variable bit rates

English

Unsupported formats:

Empty albums: an empty album is an •
album that does not contain MP3/
WMA fi les, and is not be shown in
the display.
Unsupported fi le formats are •
skipped. For example, Word
documents (.doc) or MP3 fi les with
extension .dlf are ignored and not
played.
AAC, WAV, PCM audio fi les•
DRM protected WMA fi les (.wav, •
.m4a, .m4p, .mp4, .aac)
WMA fi les in Lossless format•

EN

23

12 Troubleshooting

Warning

Never remove the casing of this apparatus. •

No disc detected

Insert a disc.•
Check if the disc is inserted upside down.•
Wait until the moisture condensation at •
the lens has cleared.
Replace or clean the disc.•
Use a fi nalized CD or correct format disc.•

To keep the warranty valid, never try to repair
the system yourself.
If you encounter problems when using this
apparatus, check the following points before
requesting service. If the problem remains
unsolved, go to the Philips web site (www.
philips.com/welcome). When you contact
Philips, ensure that the apparatus is nearby
and the model number and serial number are
available.

No power

Ensure that the AC power plug of the •
unit is connected properly.
Ensure that there is power at the AC •
outlet.
To save power, the system switches •
off automatically 15 minutes after track
play reaches the end and no control is
operated.

No sound or poor sound

Adjust the volume.•
Disconnect the headphones.•

Cannot display some fi les in USB device

The number of folders or fi les in the USB •
device has exceeded a certain limit. This
phenomenon is not a malfunction.
The formats of these fi les are not •
supported.

USB device not supported

The USB device is incompatible with the •
apparatus. Try another one.

Poor radio reception

Increase the distance between the •
apparatus and your TV or VCR.
Fully extend the FM antenna.•

Timer does not work

Set the clock correctly.•
Switch on the timer.•

Clock/timer setting erased

Power has been interrupted or the power •
cord has been disconnected.
Reset the clock/timer.•

No response from the appratus

Disconnect and reconnect the AC power •
plug, then turn on the system again.

Remote control does not work

Before pressing any function button, fi rst •
select the correct source with the remote
control instead of the main unit.
Reduce the distance between the remote •
control and the apparatus.
Insert the battery with its polarities (+/– •
signs) aligned as indicated.
Replace the battery.•
Aim the remote control directly at the •
sensor on the front of the apparatus.

24

EN

© 2009 Koninklijke Philips Electronics N.V.

All rights reserved.

Document order number: DCM250_93_IFU_V1.0
