Register your product and get support at |
|
www.philips.com/welcome |
DCM2020 |
|
EN |
User manual |
3 |
|
|
|
DE |
Benutzerhandbuch |
23 |
|
|
|
ES |
Manual del usuario |
43 |
|
|
|
FR |
Mode d’emploi |
63 |
|
|
|
IT |
Manuale utente |
83 |
|
|
|
NL |
Gebruiksaanwijzing |
103 |
|
|
|
PT |
Manual do utilizador |
123 |
|
|
|
SV |
Användarhandbok |
145 |
|
|
|
Contents
1 |
Important |
4 |
|
Safety |
4 |
|
Notice |
4 |
|
|
|
2 Your Micro Music System |
6 |
|
|
Introduction |
6 |
|
What’s in the box |
6 |
|
Overview of the main unit |
7 |
|
Overview of the remote control |
8 |
|
|
|
3 |

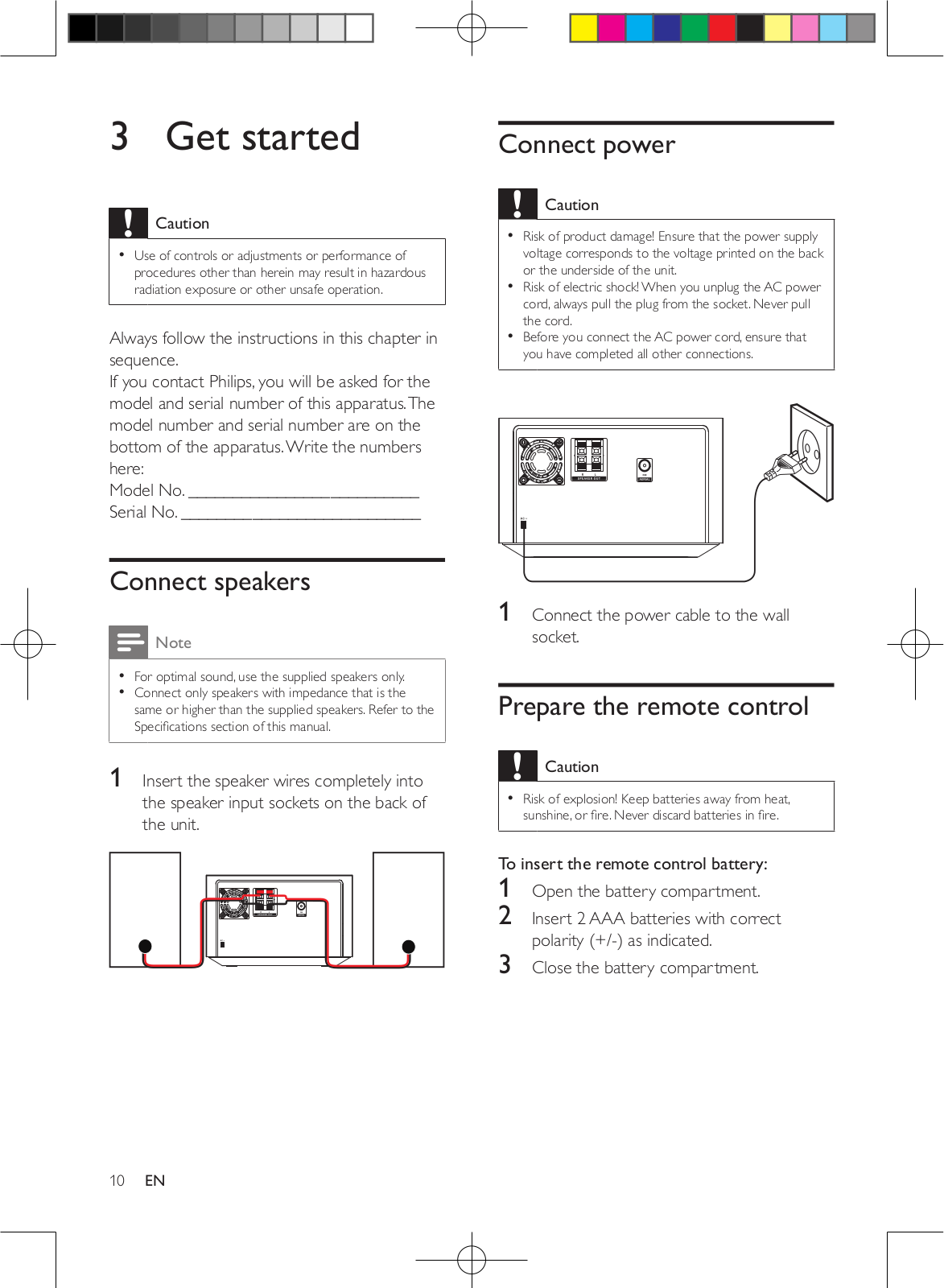

Get started |
10 |
|
Connect speakers |
10 |
|
Connect power |
10 |
|

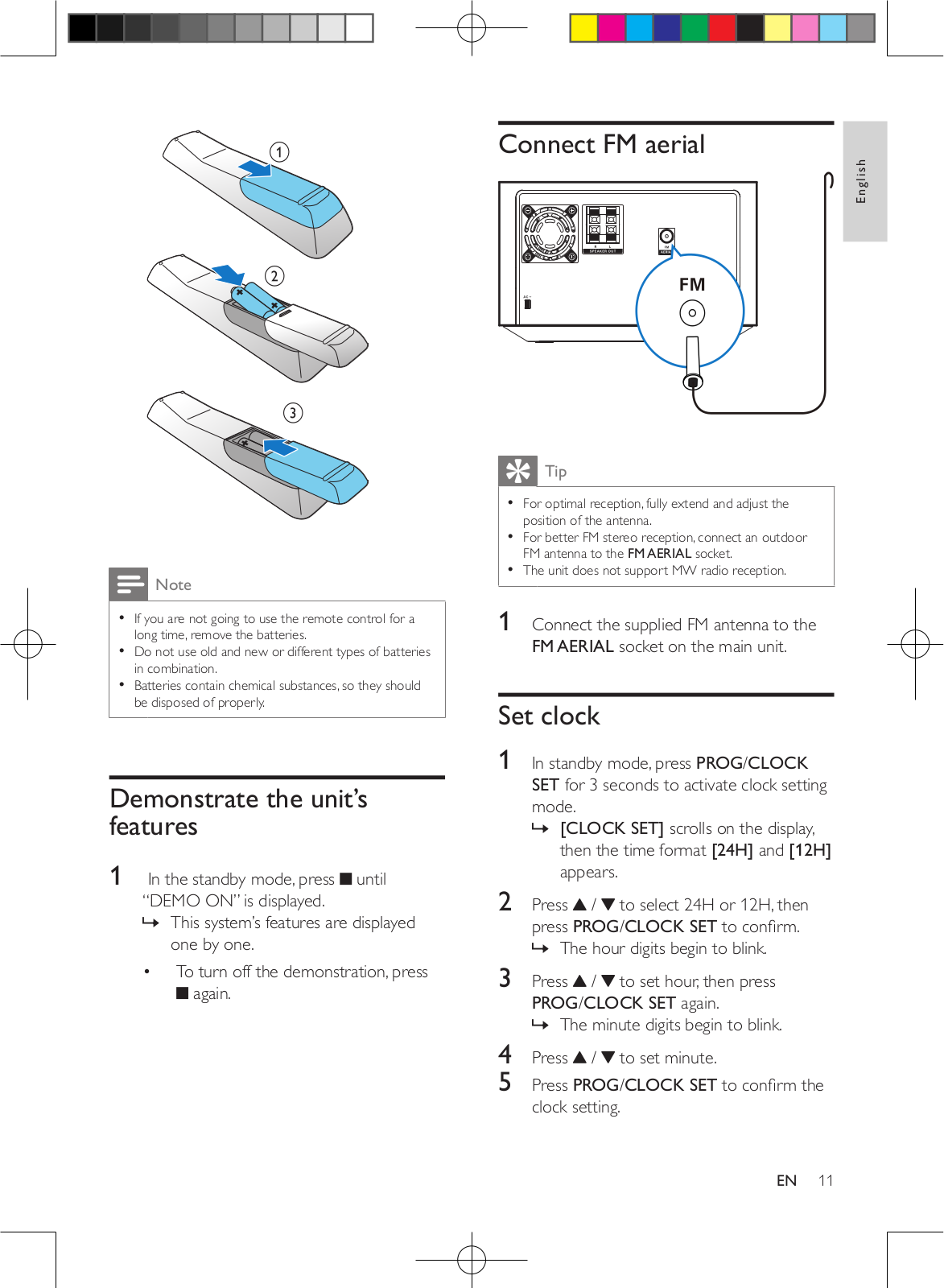

Prepare the remote control |
10 |
|
Demonstrate the unit’s features |
11 |
|
Connect FM aerial |
11 |
|
Set clock |
11 |
|

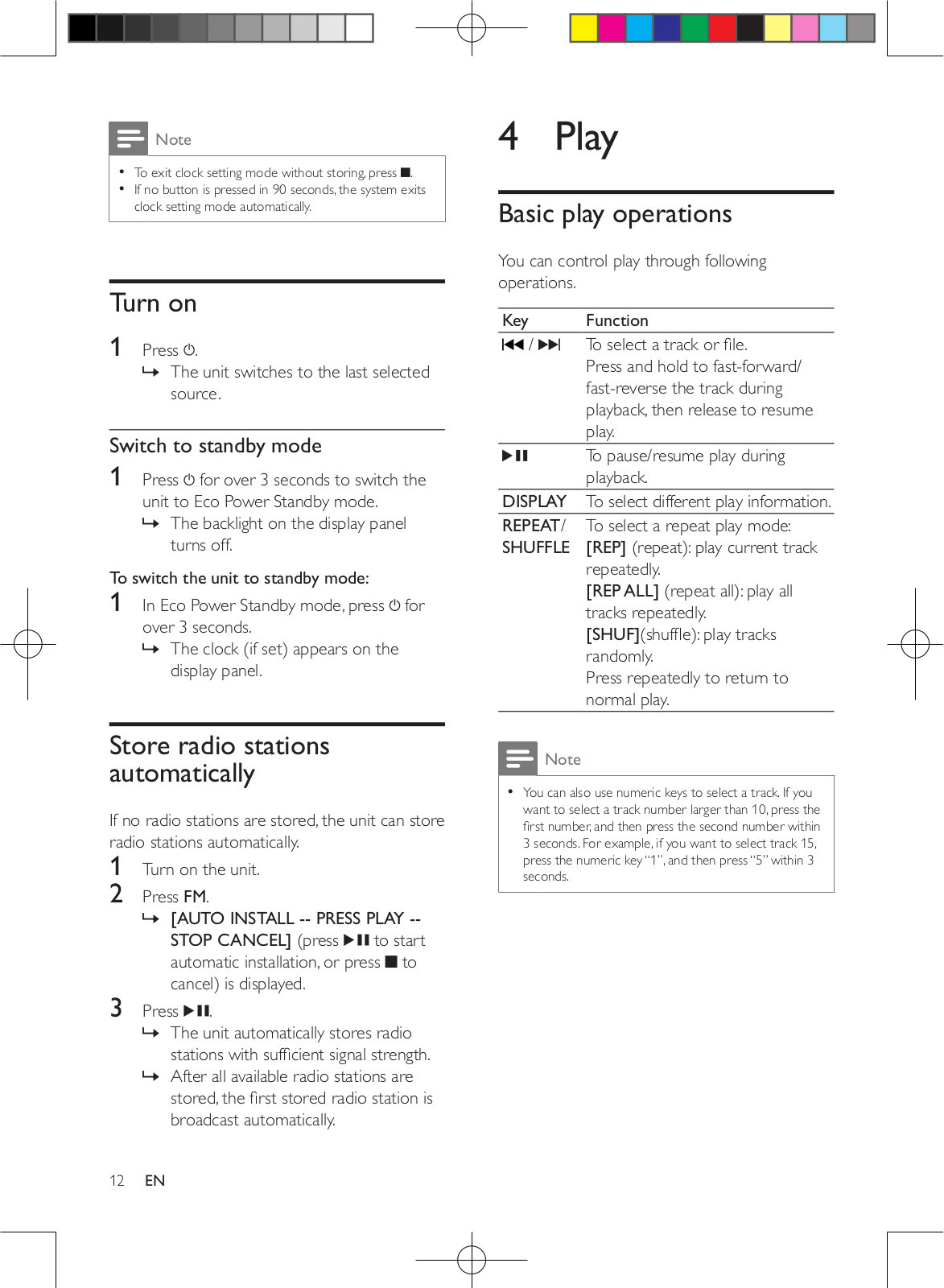

Turn on |
12 |
|
Store radio stations automatically |
12 |
|
|
|
4 |
Play |
12 |
|
Basic play operations |
12 |
|

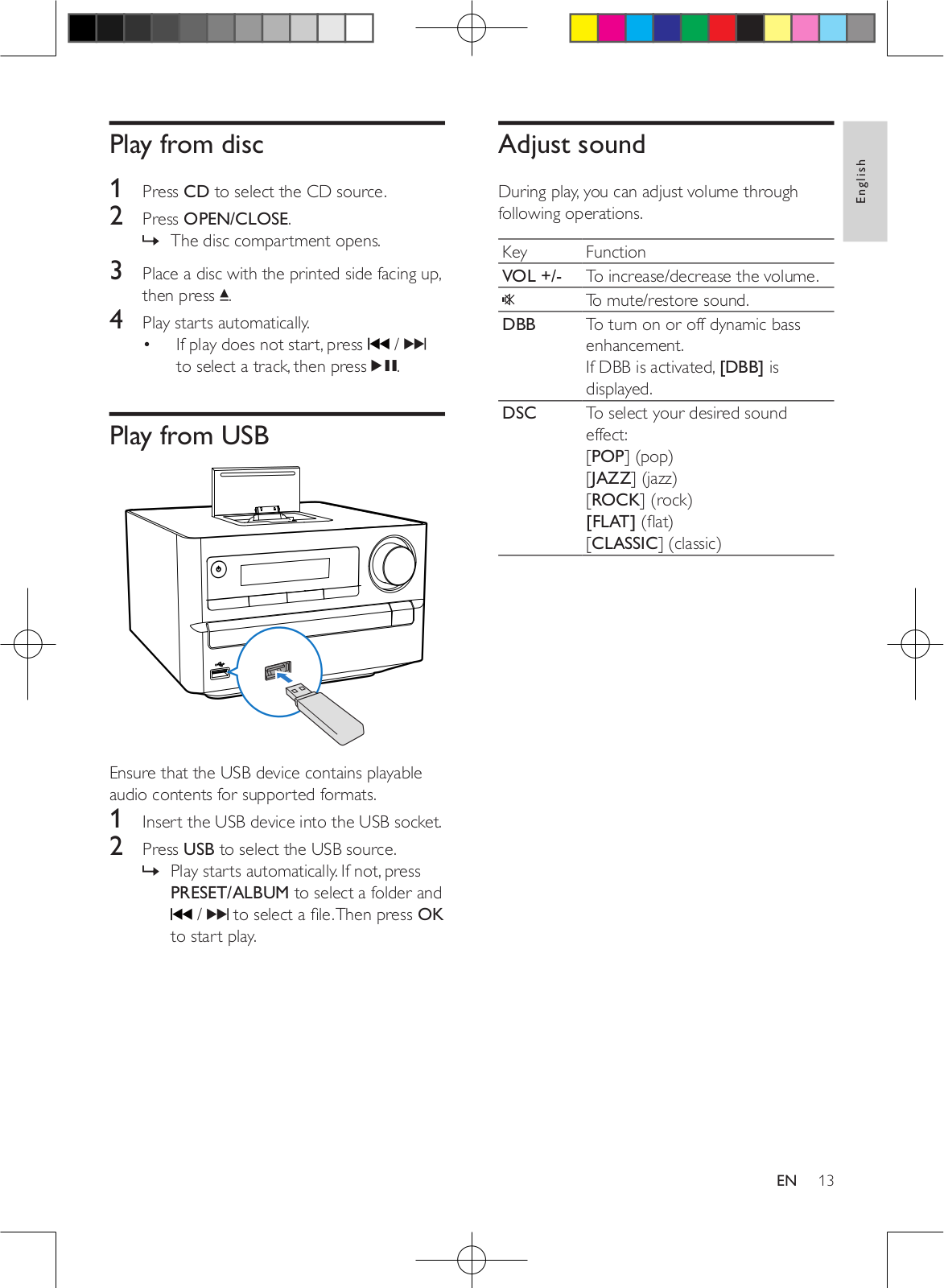

Play from disc |
13 |
|
Play from USB |
13 |
|
Adjust sound |
13 |
|
|
|
5 |

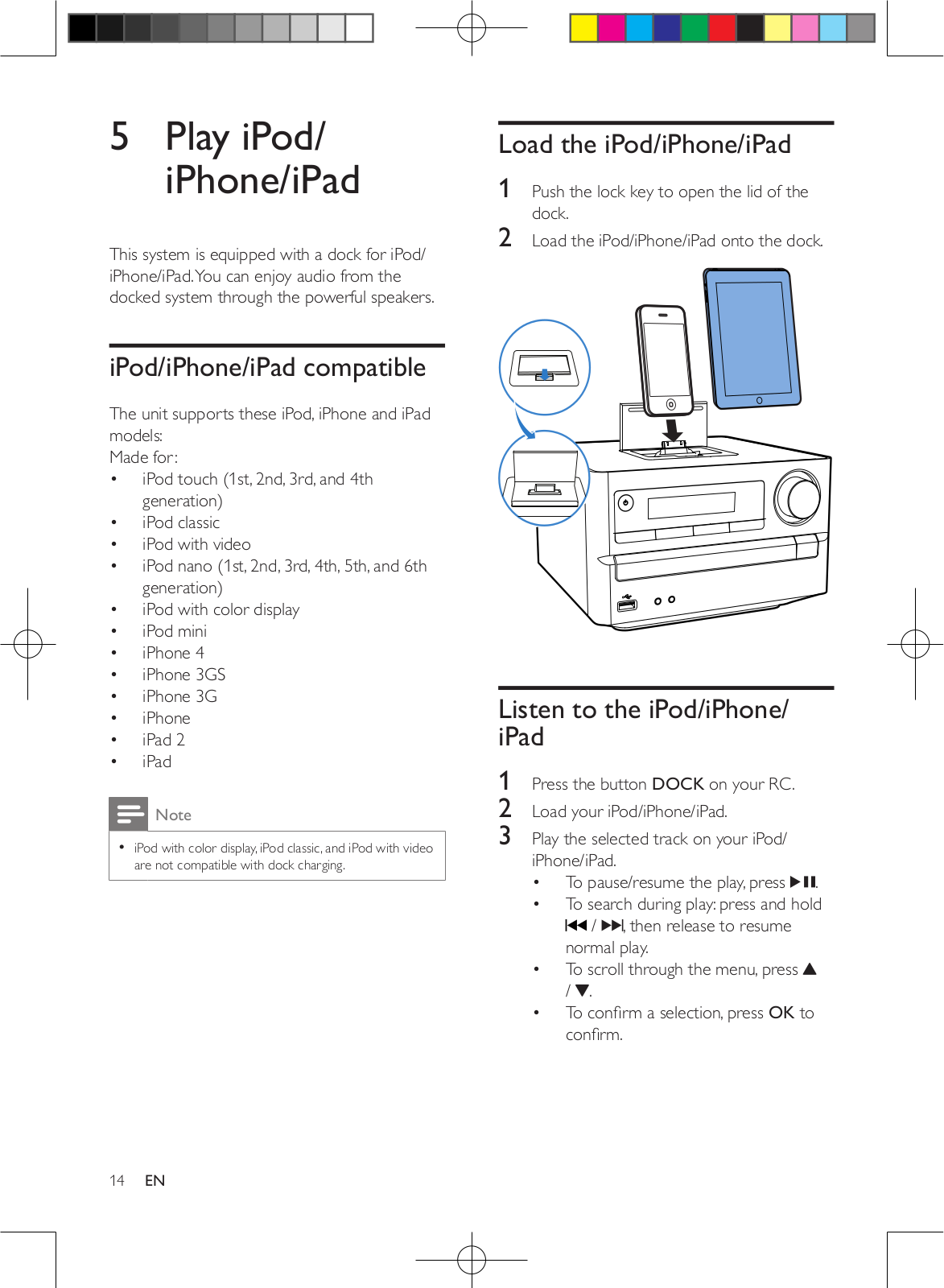

Play iPod/iPhone/iPad |
14 |
|
iPod/iPhone/iPad compatible |
14 |
|
Load the iPod/iPhone/iPad |
14 |
|
Listen to the iPod/iPhone/iPad |
14 |
|

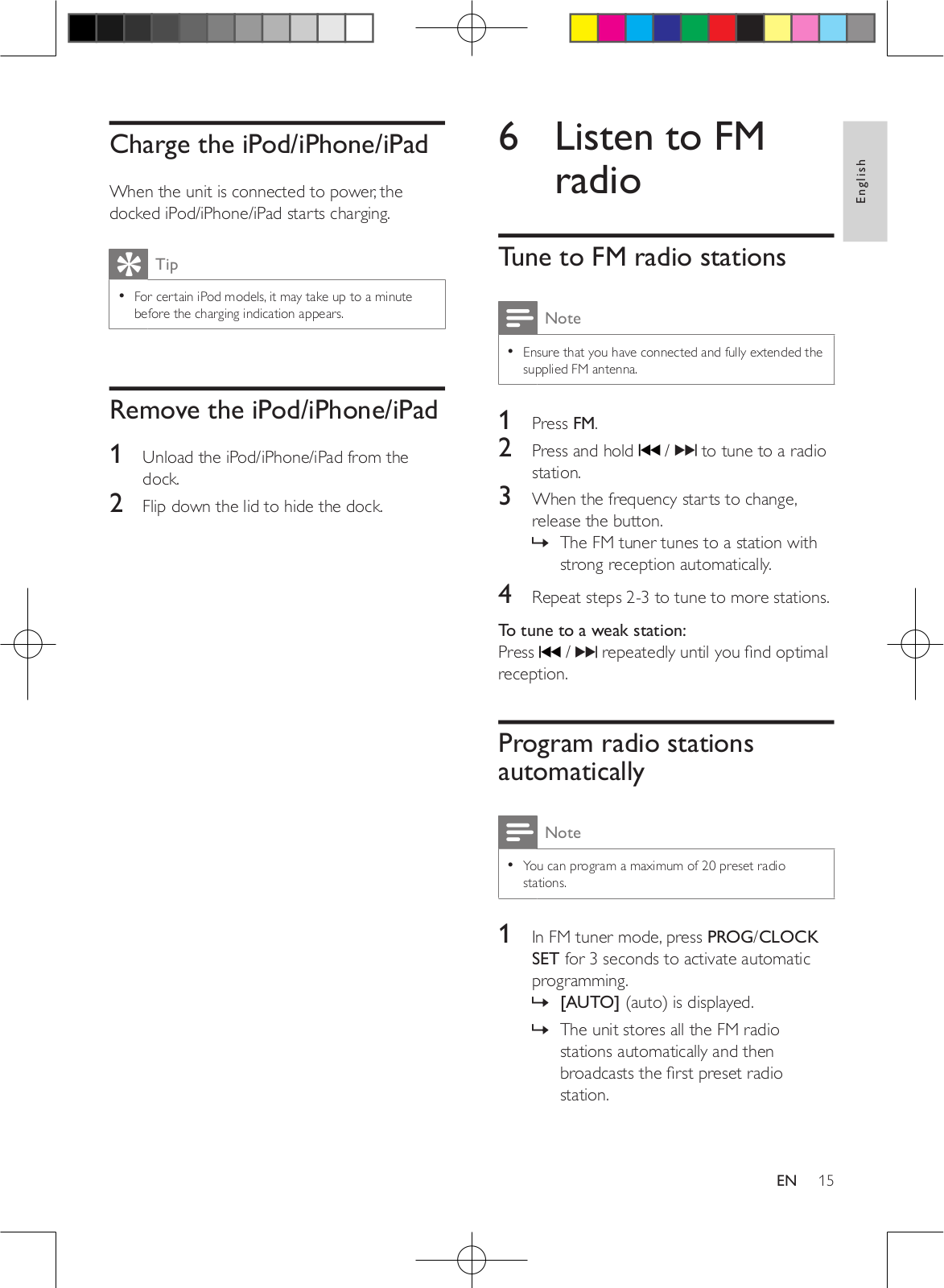

Charge the iPod/iPhone/iPad |
15 |
|
Remove the iPod/iPhone/iPad |
15 |
|
|
|
6 Listen to FM radio |
15 |
|
|
Tune to FM radio stations |
15 |
|
Program radio stations automatically |
15 |
|

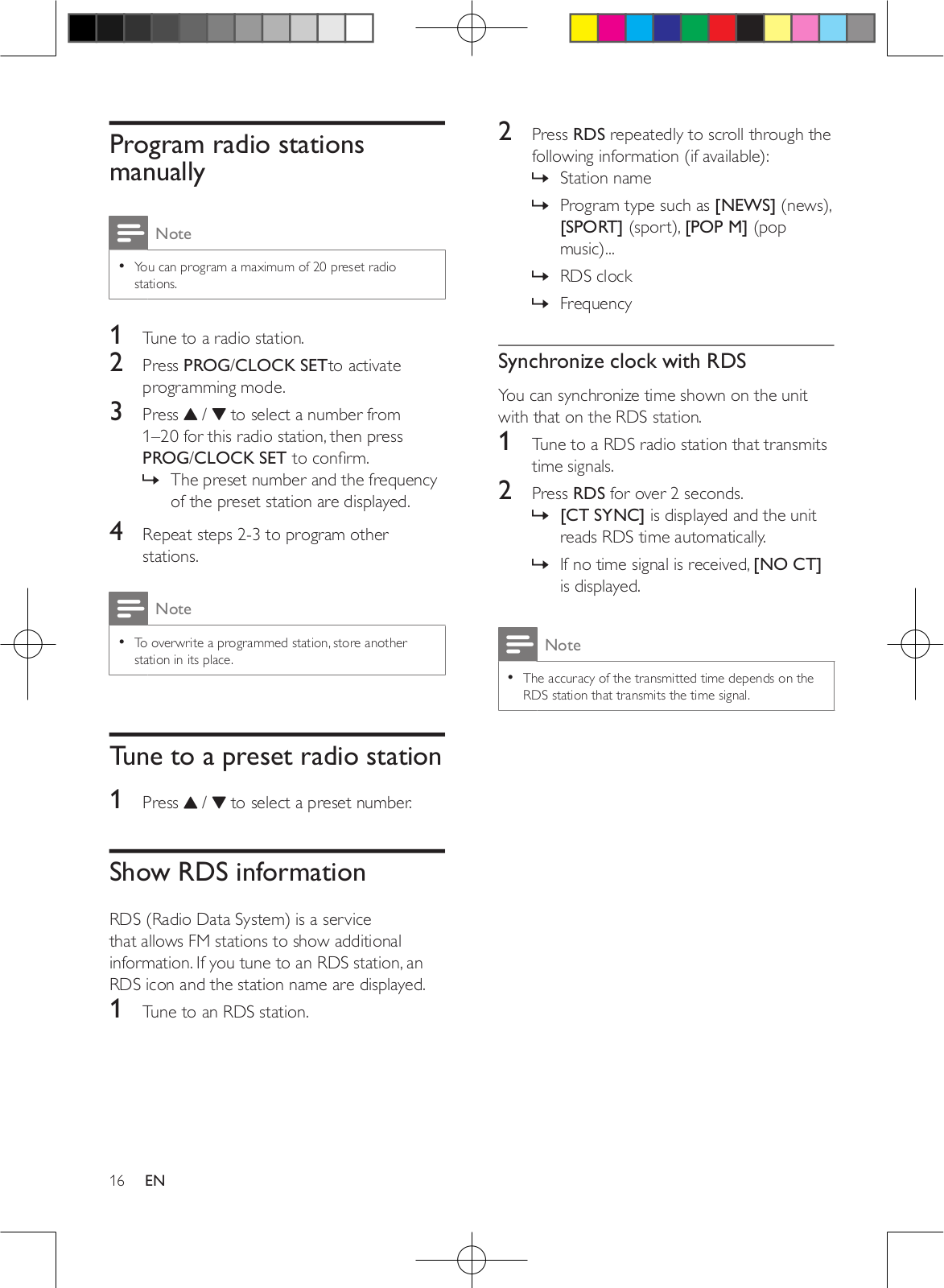

Program radio stations manually |
16 |
|
Tune to a preset radio station |
16 |
|
Show RDS information |
16 |

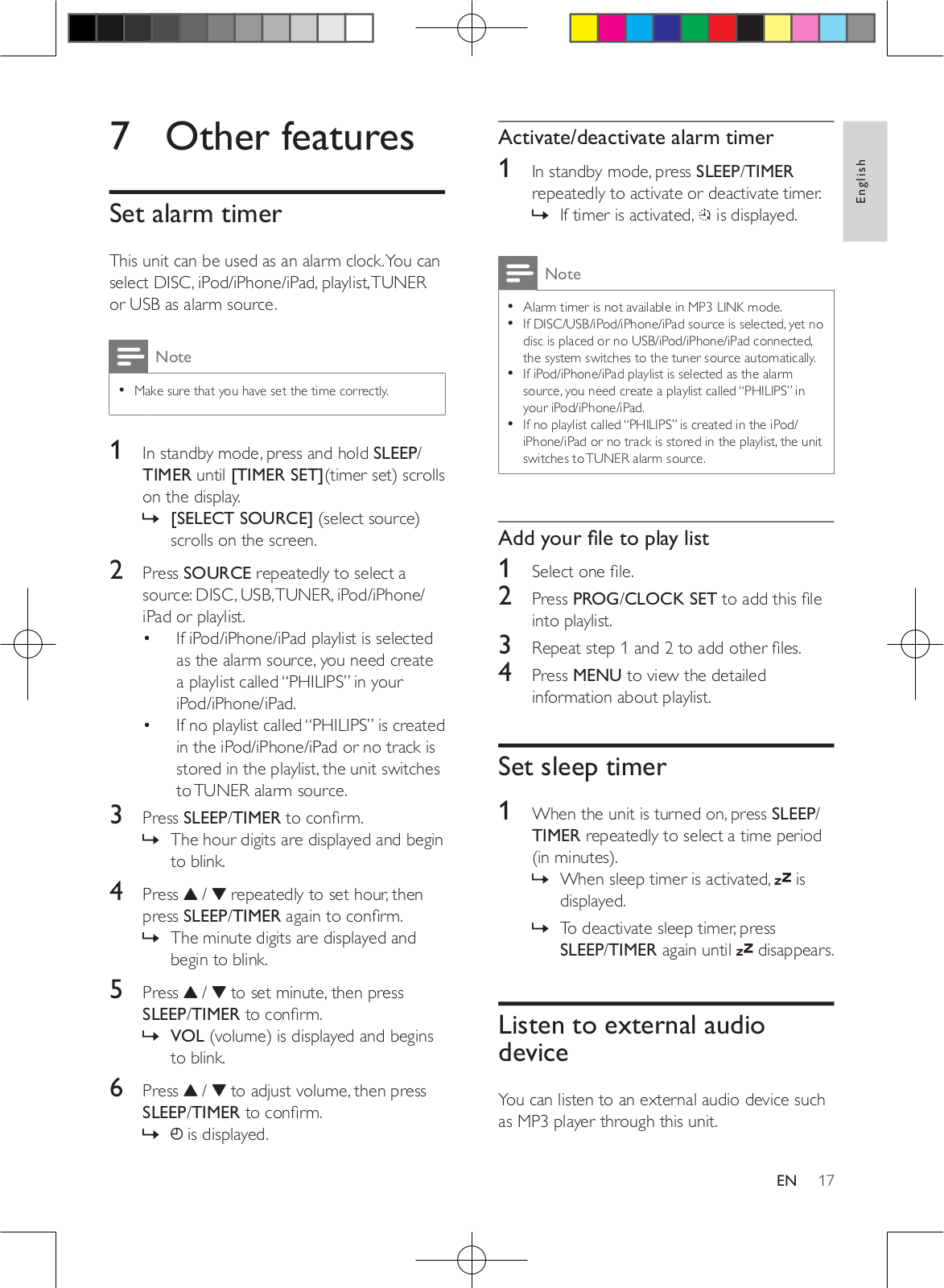

7Other features
Set alarm timer Set sleep timer
Listen to external audio device Listen through headphone

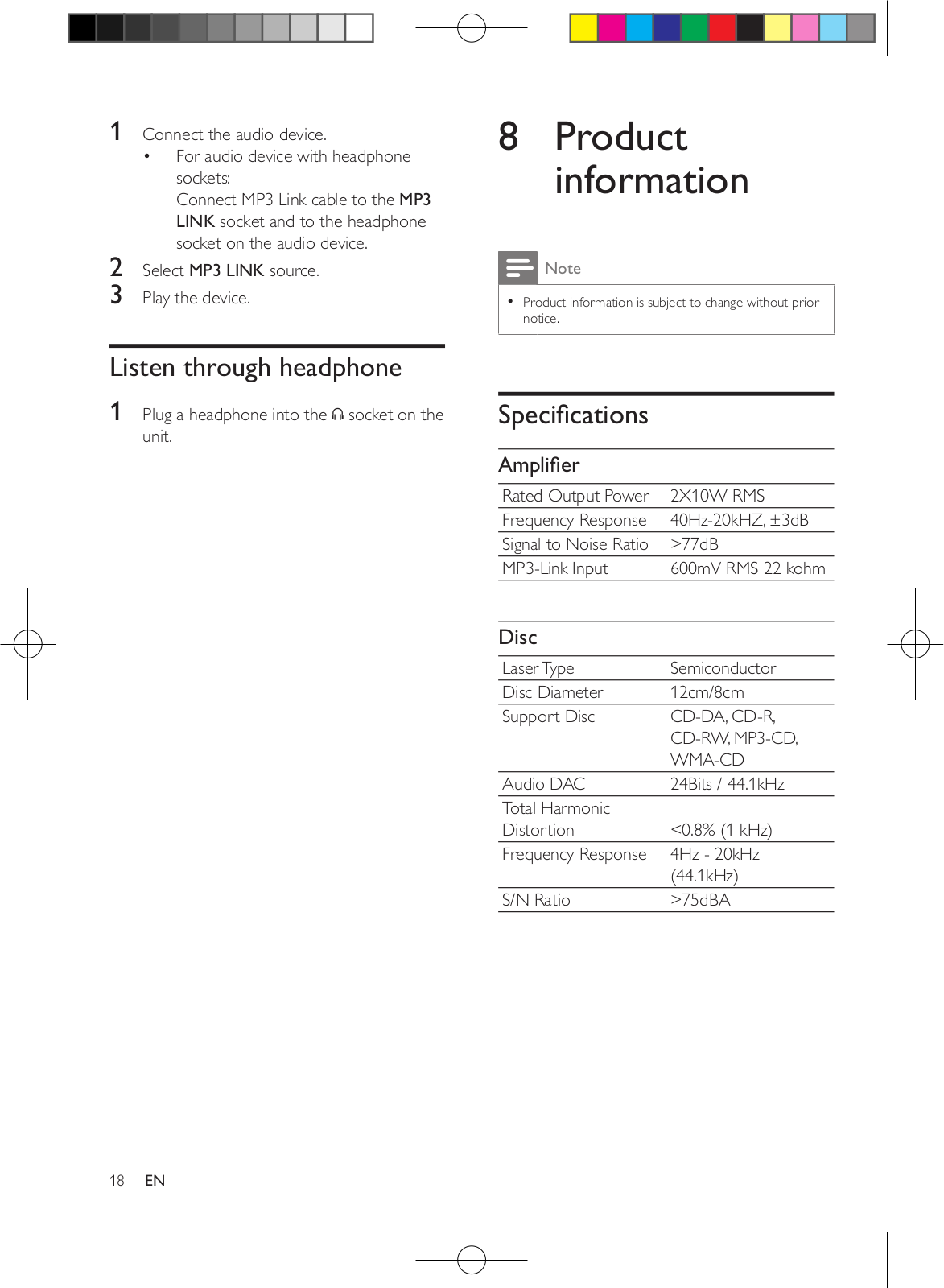

8Product information

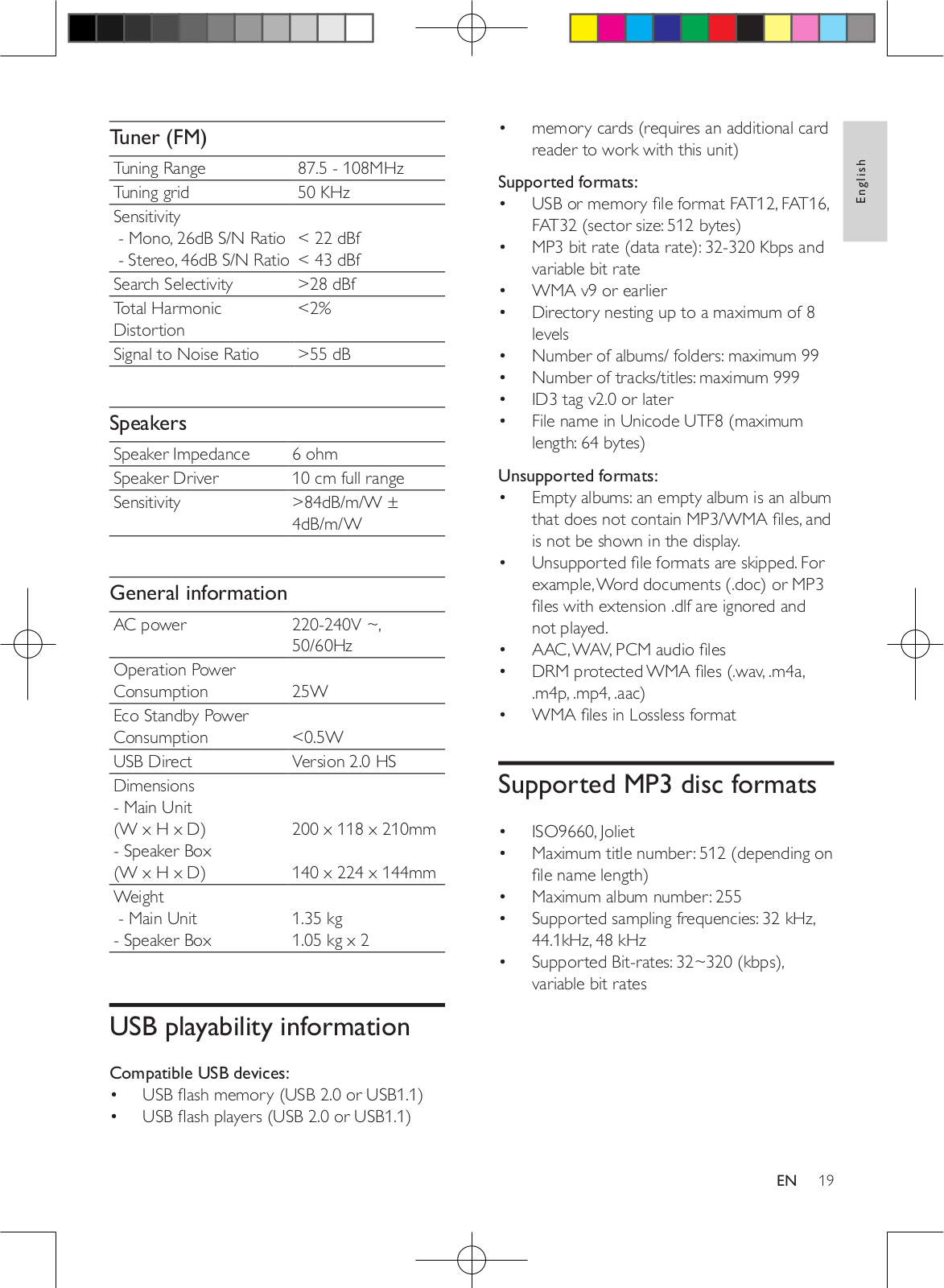

Specifications
USB playability information Supported MP3 disc formats

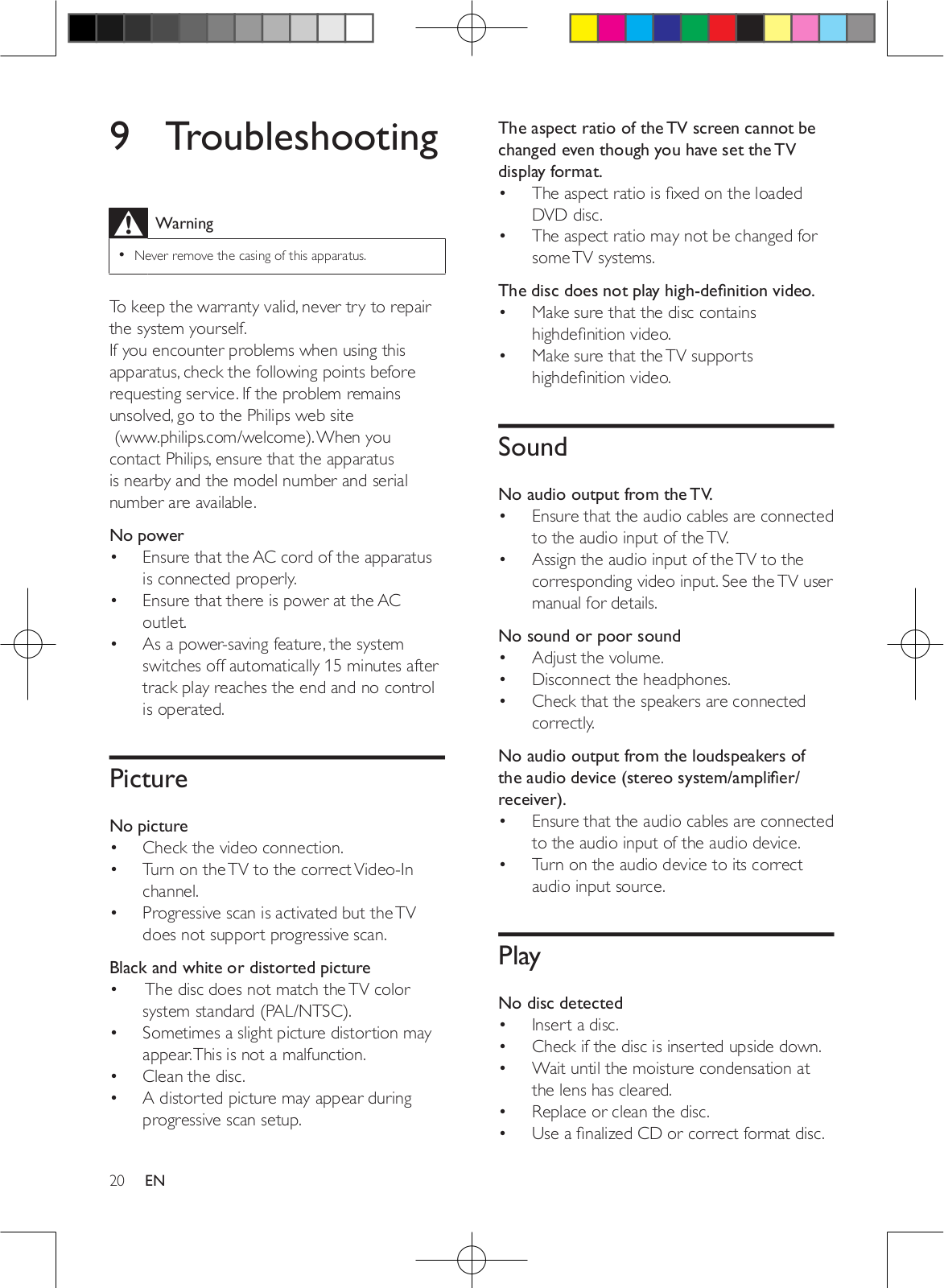

9Troubleshooting
Picture Sound Play Others
17
17
17
17
18
18
18
19
19
20
20
20
20
21
English
EN 3
1 Important
Safety
This ‘bolt of lightning’ indicates uninsulated material within your unit may cause an electrical shock. For the safety of everyone in your household, please do not remove product covering.
The ‘exclamation point’ calls attention to features for which you should read the enclosed literature closely to prevent operating and maintenance problems.
WARNING:To reduce the risk of fire or electric shock, this apparatus should not be exposed to rain or moisture and objects filled with liquids, such as vases, should not be placed on this apparatus.
CAUTION:To prevent electric shock, match wide blade of plug to wide slot, fully insert.
Warning
•• Never remove the casing of this apparatus.
•• Never lubricate any part of this apparatus.
•• Never place this apparatus on other electrical equipment.
•• Keep this apparatus away from direct sunlight, naked flames or heat.
•• Ensure that you always have easy access to the power cord, plug or adaptor to disconnect the apparatus from the power.
•The device shall not exposed to dripping or splashing.
•Do no place any source of danger on the device (e.g. liquid filled objects. lit candles).
•Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.
Hearing Safety
Caution
•• To avoid hearing damage, limit the time you use the headphones at high volume and set the volume to a safe level.The louder the volume, the shorter is the safe listening time.
Be sure to observe the following guidelines when using your headphones.
•Listen at reasonable volumes for reasonable periods of time.
•Be careful not to adjust the volume continuously upwards as your hearing adapts.
•Do not turn up the volume so high that you can’t hear what’s around you.
•You should use caution or temporarily discontinue use in potentially hazardous situations.
•Excessive sound pressure from earphones and headphones can cause hearing loss.
Notice
This product complies with the radio interference requirements of the European Community.
This product complies with the requirements of the following directives and guidelines: 2004/108/EC + 2006/95/EC
Any changes or modifications made to this device that are not expressly approved by Philips Consumer Lifestyle may void the user’s authority to operate the equipment.
4 EN
Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.
When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/ EC.
Please inform yourself about the local separate collection system for electrical and electronic products.
Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential
negative consequences for the environment and human health.
Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed with normal household waste.Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environmental and human health.
Environmental information
All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.)
Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of
packaging materials, exhausted batteries and old equipment.
The making of unauthorized copies of copyprotected material, including computer programs, files, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offence. This equipment should not be used for such purposes.
“Made for iPod,”“Made for iPhone,” and “Made for iPad” mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet
Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, iPhone, or iPad may affect wireless performance.
iPod and iPhone are trademarks of Apple Inc., registered in the U.S. and other countries. iPad is a trademark of Apple Inc.
This apparatus includes this label:
Note
•• The type plate is located on the bottom of the apparatus.
Norge
Typeskilt finnes på apparatens underside.
Observer: Nettbryteren er sekundert innkoplet. Den innebygde netdelen er derfor ikke frakoplet nettet så lenge apparatet er tilsluttet nettkontakten.
For å redusere faren for brann eller elektrisk støt, skal apparatet ikke utsettes for regn eller fuktighet.
EN 5
English
2Your Micro Music System
Congratulations on your purchase, and welcome to Philips!To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.
Introduction
With this unit, you can:
•enjoy audio from discs, USB devices, iPod, iPhone, iPad, and other external devices
•listen to radio stations
You can enrich sound output with these sound effects:
•Digital Sound Control (DSC)
•Dynamic Bass Boost (DBB)
The unit supports these media formats:
What’s in the box
Check and identify the contents of your package:
•Main unit
•Remote control
•Speaker boxes (×2)
•FM antenna
•User manual
•Quick start guide
6 EN
Overview of the main unit
English
a |
|
|
|
|
o |
b |
|
n |
c |
|
|
d |
|
|
e |
|
|
f |
|
m |
g |
|
|
|
|
|
h |
|
l |
i |
j |
k |
ADock for iPod/iPhone/iPad
BDisc compartment
•Hold the disc.
C
•USB socket.
DMP3 LINK
•Connect external audio device.
E
•Headphone socket.
F
•Turn on the apparatus, switch to standby mode, or Eco Power standby mode.
GIR sensor
•Detect signals from the remote control. Always point the remote control at the IR sensor.
HSOURCE
•Select a source.
I /
•Skip to previous/next track.
•Search within a track/disc.
•Tune to a radio station.
J
•Start or pause play.
K
•Stop play.
•Erase a program.
EN 7
L- PRESET/ALBUM+
•Skip to previous/next album.
•Select a preset radio station.
•Navigate through iPod/iPhone/iPad menu.
MDisplay panel
•Show current status.
N
•Open or close the disc tray.
OVOLUME
•Adjust volume.
•Adjust time.
8 EN
Overview of the remote control
a |
|
|
|
|
b |
|
|
|
|
c |
CD |
PRESET/ALBUM |
FM |
s |
|
|
|
|
r |
|
|
|
|
q |
d |
|
OK |
|
|
|
MP3 LINK |
|
|
|
e |
USB |
|
DOC |
p |
|
DISPLAY |
|
MENU |
|
f |
RDS |
|
|
o |
g |
|
|
|
|
h |
|
VOL |
|
|
|
1 |
2 |
3 |
|
i |
4 |
5 |
6 |
|
|
7 |
8 |
9 |
|
j |
PROG/ |
0 |
REPEAT |
n |
OCK SET |
SHUFFL |
|||
k |
SLEEP/ |
DSC |
DBB |
m |
|
TIMER |
|
|
|
l
