DCM105
EN User manual
KO# ▖⮓ ☎Ὧ☆#
Page 2
Contents
1 Important 4
Safety 4
Notice 6
8 Adjust volume level and sound effect
16
Adjust volume level 16
Select a preset sound effect 16
Enhance bass 16
Mute sound 16
English
2 Your Docking Entertainment System 7
Introduction 7
What’s in the box 7
Overview of the main unit 8
Overview of the remote control 9
3 Connect 10
Connect speakers 10
Connect power 10
4 Get started 11
Prepare the remote control 11
Auto install radio stations 11
Turn on 11
Set clock 12
5 Play a disc 13
6 Play options 14
Skip to a track 14
Pause/resume play 14
Search within a track 14
Display play information 14
Repeat play 14
Random play 14
Program tracks 14
9 Listen to radio 17
Tune to a radio station 17
Program radio stations automatically 17
Program radio stations manually 17
Select a preset radio station 17
10 Other features 18
Set the sleep timer 18
Set the alarm timer 18
Listen to an audio player 18
11 Product information 19
Specifications 19
12 Troubleshooting 20
7 Play iPod 15
Compatible iPod 15
Listen to an iPod through this unit 15
Charge the iPod 15
Remove the iPod 15
EN
3
Page 3

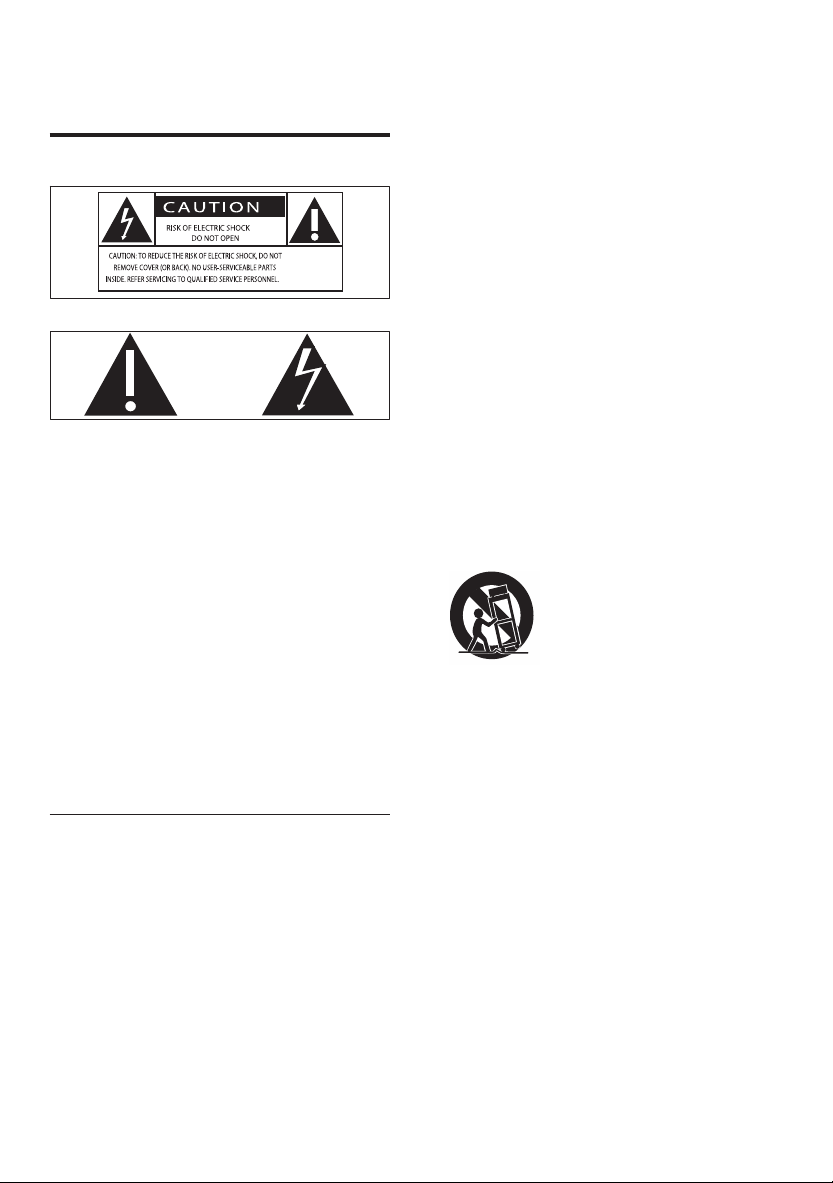

1 Important
Safety
This ‘bolt of lightning’ indicates uninsulated
material within your unit may cause an
electrical shock. For the safety of everyone
in your household, please do not remove
product covering.
The ‘exclamation point’ calls attention to
features for which you should read the
enclosed literature closely to prevent
operating and maintenance problems.
WARNING: To reduce the risk of fire or
electric shock, this apparatus should not be
exposed to rain or moisture and objects filled
with liquids, such as vases, should not be
placed on this apparatus.
CAUTION: To prevent electric shock, match
wide blade of plug to wide slot, fully insert.
Important Safety Instructions
a Read these instructions.
b Keep these instructions.
c Heed all warnings.
d Follow all instructions.
e Do not use this apparatus near water.
f Clean only with dry cloth.
g Do not block any ventilation openings.
Install in accordance with the
manufacturer’s instructions.
h Do not install near any heat sources
such as radiators, heat registers, stoves,
or other apparatus (including amplifiers)
that produce heat.
i Protect the power cord from being
walked on or pinched, particularly at
plugs, convenience receptacles, and
the point where they exit from the
apparatus.
j Only use attachments/accessories
specified by the manufacturer.
k Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination
to avoid injury from tip-over.
l Unplug this apparatus during lightning
storms or when unused for long periods
of time.
m Refer all servicing to qualified service
personnel. Servicing is required when
the apparatus has been damaged in any
way, such as power-supply cord or plug
is damaged, liquid has been spilled or
objects have fallen into the apparatus,
the apparatus has been exposed to rain
or moisture, does not operate normally,
or has been dropped.
n Battery usage CAUTION – To prevent
battery leakage which may result in
bodily injury, property damage, or
damage to the unit:
4
EN
Page 4
Install all batteries correctly, + and - •
as marked on the unit.
Do not mix batteries (old and new •
or carbon and alkaline, etc.).
Remove batteries when the unit is •
not used for a long time.
The batteries shall not be exposed •
to excessive heat such as sunshine,
fire or the like.
o Apparatus shall not be exposed to
dripping or splashing.
p Do not place any sources of danger on
the apparatus (e.g. liquid filled objects,
lighted candles).
Warning
Where the MAINS plug or an appliance •
coupler is used as the disconnect device,
the disconnect device shall remain readily
operable.
Caution
Use of controls or adjustments or •
performance of procedures other than herein
may result in hazardous radiation exposure or
other unsafe operation.
Warning
Never remove the casing of this unit. •
Never lubricate any part of this unit. •
Place this unit on a flat, hard and stable •
surface.
Never place this unit on other electr ical •
equipment.
Only use this unit indoors. Keep this unit away •
from water, moisture and liquid-filled objects.
Keep this unit away from direct sunlight, naked •
flames or heat.
Never look into the laser beam inside the unit. •
Hearing safety
Listen at a moderate volume.
Using headphones at a high volume can •
impair your hearing. This product can
produce sounds in decibel ranges that
may cause hearing loss for a normal
person, even for exposure less than a
minute. The higher decibel ranges are
offered for those that may have already
experienced some hearing loss.
Sound can be deceiving. Over time your •
hearing ‘comfor t level’ adapts to higher
volumes of sound. So after prolonged
listening, what sounds ‘normal’ can
actually be loud and harmful to your
hearing. To guard against this, set your
volume to a safe level before your hearing
adapts and leave it there.
To establish a safe volume level:
Set your volume control at a low setting. •
Slowly increase the sound until you can •
hear it comfortably and clearly, without
distortion.
Listen for reasonable periods of time:
Prolonged exposure to sound, even •
at normally ‘safe’ levels, can also cause
hearing loss.
Be sure to use your equipment •
reasonably and take appropriate breaks.
Be sure to observe the following guidelines
when using your headphones.
Listen at reasonable volumes for •
reasonable periods of time.
Be careful not to adjust the volume as •
your hearing adapts.
Do not turn up the volume so high that •
you can’t hear what’s around you.
You should use caution or temporarily •
discontinue use in potentially hazardous
situations. Do not use headphones while
operating a motorized vehicle, cycling,
skateboarding, etc.; it may create a traffic
hazard and is illegal in many areas.
English
EN
5
Page 5
Notice
Any changes or modifications made to this
device that are not expressly approved by
Philips Consumer Lifestyle may void the user’s
authority to operate the equipment.
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When this crossed-out wheeled bin symbol
is attached to a product it means that the
product is covered by the European Directive
2002/96/EC.
Please inform yourself about the local separate
collection system for electrical and electronic
products.
Please act according to your local rules and
do not dispose of your old products with your
normal household waste. Correct disposal of
your old product helps to prevent potential
negative consequences for the environment
and human health.
Your product contains batteries covered by
the European Directive 2006/66/EC, which
cannot be disposed with normal household
waste.Please inform yourself about the local
rules on separate collection of batteries
because correct disposal helps to prevent
negative consequences for the environmental
and human health.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and
old equipment.
Made for
iPod
“Made for iPod” means that an electronic
accessory has been designed to connect
specifically to iPod and has been cer tified by
the developer to meet Apple performance
standards. Apple is not responsible for the
operation of this device or its compliance with
safety and regulatory standards. Please note
that the use of this accessory with iPod may
affect wireless performance.
iPod is a trademark of Apple Inc., registered in
the U.S. and other countries.
The making of unauthorized copies of
copy-protected material, including computer
programs, files, broadcasts and sound
recordings, may be an infringement of
copyrights and constitute a criminal offence.
This equipment should not be used for such
purposes.
This apparatus includes this label:
6
EN
Page 6
2 Your Docking
Entertainment
System
Congratulations on your purchase, and
welcome to Philips! To fully benefit from the
support that Philips offers, register your product
at www.philips.com/welcome.
Introduction
With this unit, you can:
enjoy audio from audio CDs, iPod players, •
and other external devices
listen to FM radio stations•
You can enrich sound output with these sound
effects:
Digital Sound Control (DSC)•
Dynamic Bass Boost (DBB)•
The unit supports the following media format:
English
What’s in the box
Check and identify the contents of your
package:
Main unit•
Loudspeaker boxes x 2•
MP3 link cable x 1•
Remote control•
Quick star t guide•
User manual•
EN
7
Page 7

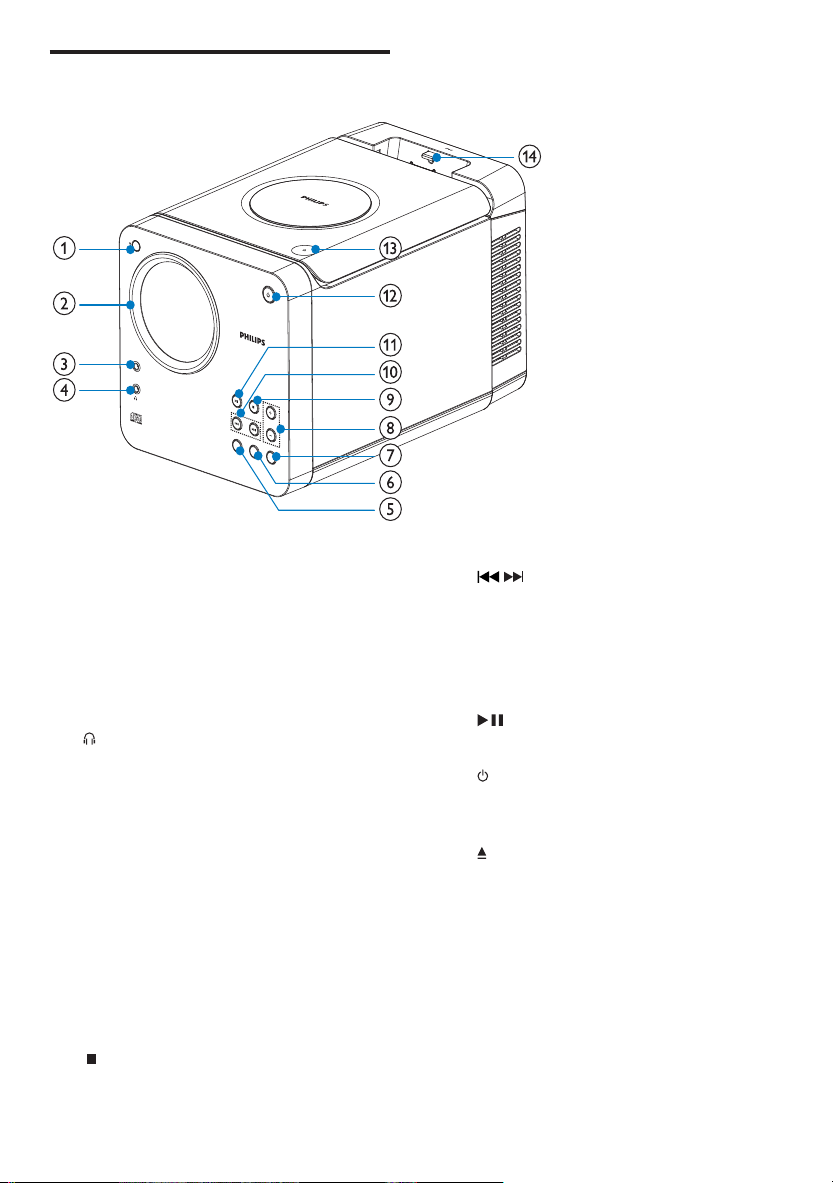

Overview of the main unit
DOCK
IN
G EN
TE
RT
AIN
MEN
T
SYSTEM
DC
M1
05
MP
3
LINK
V
O
L
U
M
E
SOUR
C
E
MO
DE
DBB
DO
C
K
f
o
r
a IR
Remote control sensor.•
b Display panel
Show current status.•
c MP3 LINK
Jack for an external audio device.•
d
Headphone jack.•
e SOURCE
Select a source.•
f MODE
Select repeat play modes.•
Select shuffle play modes.•
g DBB
Turn on or off dynamic bass •
enhancement.
h VOLUME+/-
Adjust volume.•
i
Stop play or erase a program.•
8
EN
j /
Skip to the previous/next track.•
Fast reverse or fast forward within a •
track or disc.
Tune to a radio station.•
Adjust time.•
k
Star t or pause play.•
l
Turn on the unit or switch to the •
standby mode.
m
Open/close the disc compartment.•
n Dock for iPod
Page 8

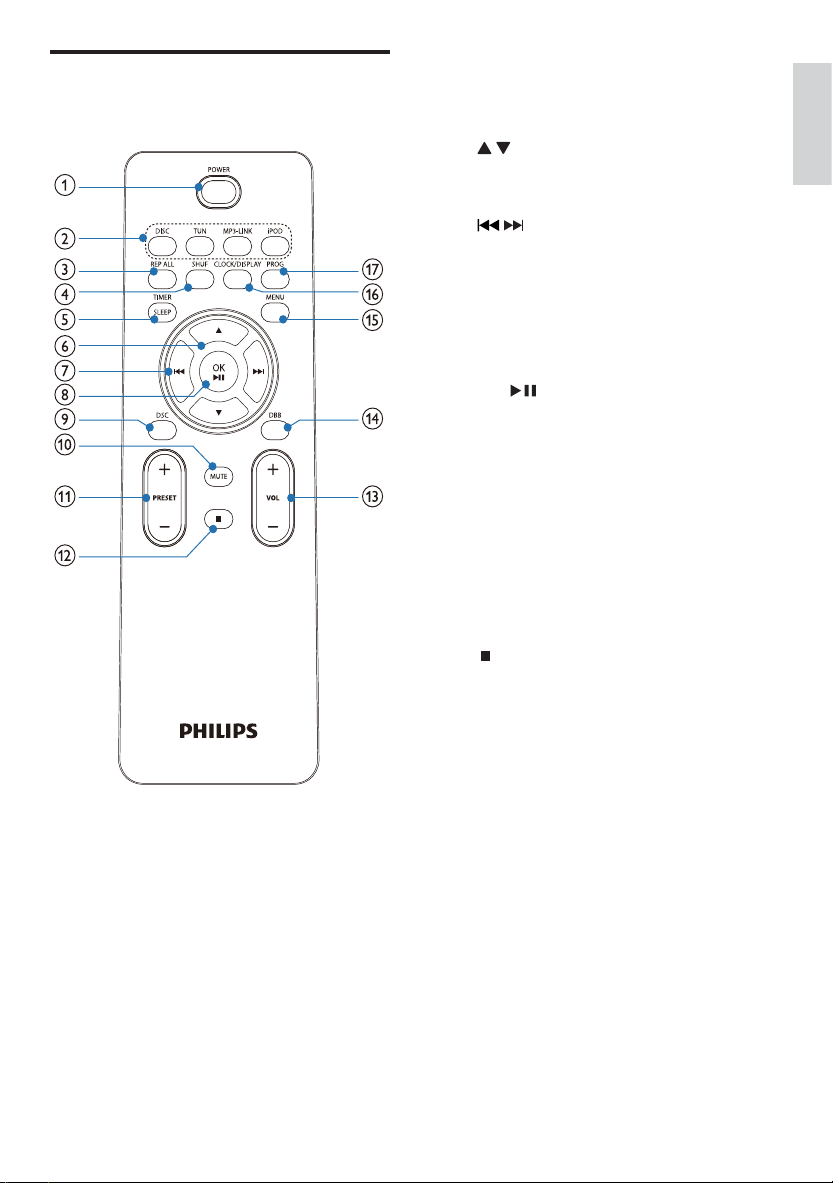

Overview of the remote
control
a POWER
Turn on the unit or switch to the •
standby mode.
b Source selection keys
Select a source.•
c REP ALL
Play all tracks repeatedly.•
d SHUF
Play tracks randomly.•
e SLEEP/TIMER
Set the sleep timer.•
Set the alarm timer.•
f
/
Skip to the previous/next album.•
Navigate through the iPod menu.•
g
/
Fast reverse or fast forward within a •
track or disc.
Skip to the previous/next track.•
Tune to a radio station.•
Adjust time.•
Navigate through the iPod menu.•
h OK/
Star t or pause play.•
Confirm a selection.•
i DSC
Select a preset sound setting: POP, •
JAZZ, ROCK or CLASSIC.
j MUTE
Mute volume.•
k PRESET +/-
Select a preset radio station.•
l
Stop play or erase a program.•
m VOL +/-
Adjust volume.•
n DBB
Turns on or off dynamic bass •
enhancement.
o MENU
Access the iPod menu.•
p CLOCK/DISPLAY
Set the clock.•
View the clock.•
During play, select display •
information.
q PROG
Program tracks.•
Program radio stations.•
Select 12 hour or 24 hour format.•
English
EN
9
Page 9

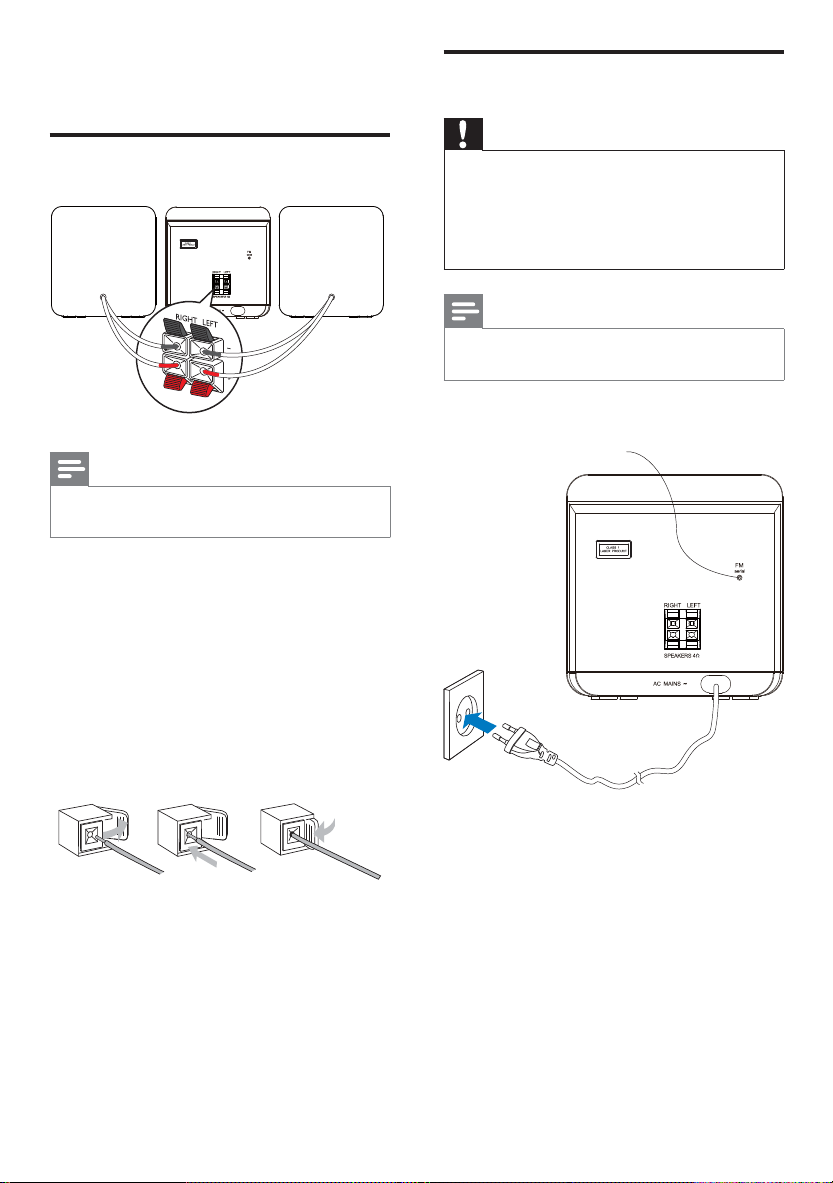

3 Connect
Connect speakers
Connect power
Caution
Risk of produc t damage! Ensure that the •
power supply voltage corresponds to the
voltage printed on the back or the underside
of the unit.
Before connecting the AC power cord, ensure •
you have completed all other connections.
Note
The type plate is located on the rear of the •
main unit.
Note
Ensure that the colors of the speaker wires and •
terminals are matched.
1 Hold down the socket flap.
2 Inser t the stripped part of the wire
completely.
Inser t the right speaker wires to •
“RIGHT”, left speaker wires to
“LEFT”.
Inser t the red wires to “• +”, black
wires to “-”.
3 Release the socket flap.
abc
1 Connect the AC power cord to the wall
socket.
10
EN
Page 10
4 Get started
Caution
Use of controls or adjustments or •
performance of procedures other than herein
may result in hazardous radiation exposure or
other unsafe operation.
Note
If you are not going to use the remote control •
for a long time, remove the batteries.
Do not use old and new or different types of •
batteries in combination.
Batteries contain chemical substances, so they •
should be disposed of properly.
English
Always follow the instructions in this chapter in
sequence.
If you contact Philips, you will be asked for the
model and serial number of this apparatus. The
model number and serial number are on the
rear of the apparatus. Write the numbers here:
Model No. __________________________
Serial No. ___________________________

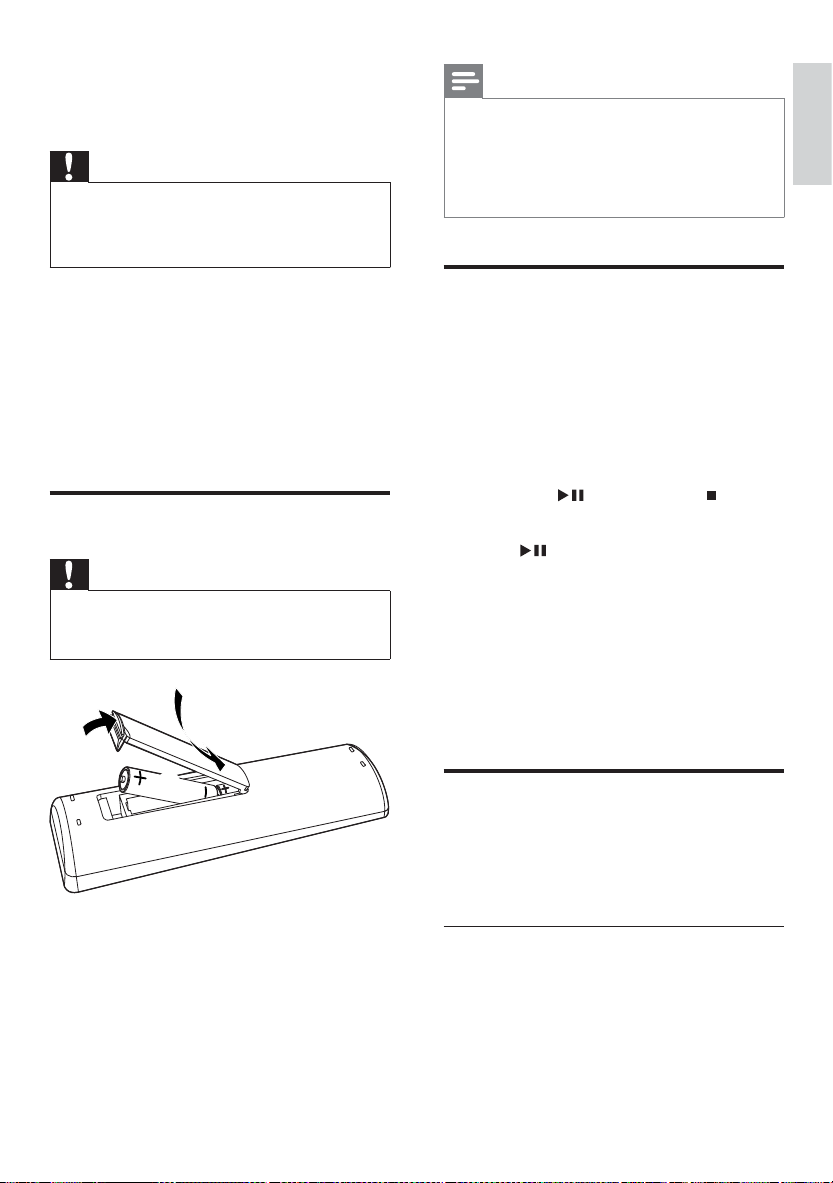

Prepare the remote control
Caution
Risk of explosion! Keep batteries away from •
heat, sunshine or fire. Never discard batteries
in fire.
3
1
2
Auto install radio stations
When you connect the unit to the power
supply for the first time, or no radio station is
stored in this unit, Plug and Play is activated to
store all available radio stations automatically.
1 Connect the unit to the power supply.
[AUTO INSTALL - PLEASE PRESS »
PLAY, STOP CANCEL] (auto install
- press
displayed.
; to cancel, press ) is
2 Press on the main unit to star t
installation.
[AUTO] (auto) is displayed. »
The unit automatically stores radio »
stations with sufficient signal strength.
When all the available radio stations »
are stored, the first preset radio station
is broadcast automatically.
Turn on
1 Press POWER.
The unit switches to the last selected »
source.
1 Open the battery compartment.
2 Inser t 2 AAA batteries (not supplied)
with correct polarity (+/-) as indicated.
3 Close the battery compar tment.
Switch to standby
1 Press POWER to switch the unit to
standby mode.
The backlight on the display panel is »
reduced.
EN
11
Page 11
The clock (if set) appears on the »
display panel.
Tip
If the system remains in the standby mode for •
more than 15 minutes, it switches to the Eco
Power mode automatically.
Set clock
1 In the standby mode, press and hold
CLOCK/DISPLAY to activate the clock
setting mode.
The 12 hour or 24 hour format is »
displayed.
2 Press PROG repeatedly to select 12 hour
or 24 hour format.
3 Press CLOCK/DISPLAY to confirm.
The hour digits are displayed and begin »
to blink.
4 Press / to set the hour.
5 Press CLOCK/DISPLAY to confirm.
The minute digits are displayed and »
begin to blink.
6 Press / to set the minute.
7 Press CLOCK/DISPLAY to confirm.
Tip
To view the clock during play, press • CLOCK/
DISPLAY repeatedly until the clock is
displayed.
12
EN
Page 12
5 Play a disc
1 Press DISC to select the disc source.
2 Press on the top panel of the unit.
The disc door opens. »
3 Place a disc onto the tray and press
again.
Ensure that the label side faces »
upwards.
4 Play starts automatically.
If play does not start, press •
select a track and then press OK/
/ to
English
.
EN
13
Page 13
6 Play options
Skip to a track
1 Press / to select another track.
Pause/resume play
[SHUF] (shuffle) is displayed: all tracks »
are played randomly.
2 To return to normal play, press SHUF
again.
Tip
The repeat and shuffle functions cannot be •
activated at the same time.
1 During play, press OK/ to pause/
resume play.
Search within a track
1 During play, press and hold / .
2 Release to resume normal play.
Display play information
1 During play, press CLOCK/DISPLAY
repeatedly to select different play
information.
Repeat play
1 During play, press REP ALL repeatedly to
select:
[REP] (repeat): the current track is •
played repeatedly.
[REP ALL] (repeat all): all tracks are •
played repeatedly.
2 To return to normal play, press REP ALL
repeatedly until the repeat mode is no
longer displayed.
Program tracks
You can program a maximum of 20 tracks.
1 In CD mode, at the stop position, press
PROG to activate the program mode.
[PROG] (program) blinks on the »
display panel.
2 Press / to select a track number,
then press PROG to confirm.
3 Repeat steps 2 to select and store all
tracks to program.
4 Press OK/ to play the programmed
tracks.
During play, [PROG] (program) is »
displayed.
To erase the program, in the stop •
position, press
.
Random play
1 Press SHUF.
14
EN
Page 14
7 Play iPod
You can enjoy audio from iPod through this unit.
Note
In iPod menu mode, if no key is pressed for •
more than 10 seconds, OK/ will return to
its play/pause function.
English
Compatible iPod
Apple iPod models with a 30-pin dock
connector:
iPod classic•
iPod touch•
iPod nano 1G/2G/3G•
iPod 5th generation•
Listen to an iPod through this
unit

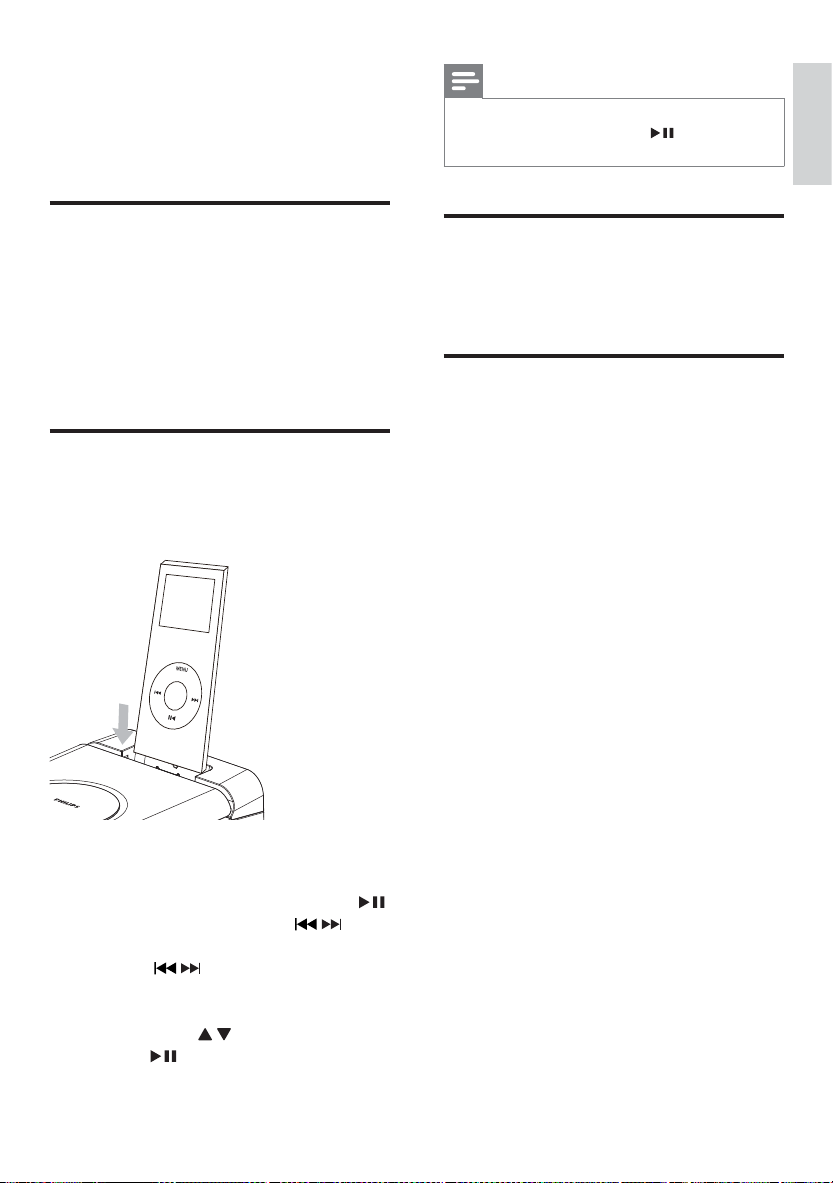

1 Place the iPod in the dock.
DO
C
K
f
o
r
Charge the iPod
The docked iPod begins to charge as soon as
the unit is connected to AC power.
Remove the iPod
1 Pull the iPod out of the dock.
2 Press iPod to select the iPod source.
The connected iPod plays automatically. »
To pause/resume play, press • OK/
To skip to a track, press •
To search during play: press and •
hold
/ , then release to resume
normal play.
To navigate the menu: press • MENU,
then press
OK/
/ to select, and press
to confirm.
/ .
.
15
EN
Page 15
8 Adjust volume
level and sound
effect
Adjust volume level
1 During play, press VOL +/- to increase/
decrease the volume level.
Select a preset sound effect
1 During play, press DSC repeatedly to
select:
• [POP] (pop)
• [JAZZ] (jazz)
• [ROCK] (rock)
• [CLASSIC] (classic)
Enhance bass
1 During play, press DBB to turn on or off
dynamic bass enhancement.
If DBB is activated, DBB is displayed. »
Mute sound
1 During play, press MUTE to mute/unmute
sound.
16
EN
Page 16
9 Listen to radio
Program radio stations
manually
Tune to a radio station
1 Press TUN to select FM.
2 Press and hold / for more than 2
seconds.
[SEARCH] (search) is displayed. »
The radio tunes to a station with »
strong reception automatically.
3 Repeat step 2 to tune to more stations.
To tune to a weak station, press •
/ repeatedly until you find optimal
reception.
Program radio stations
automatically
Note
You can program a maximum of 40 preset •
radio stations.
1 In the tuner mode, press and hold PROG
for 2 seconds to activate automatic
program mode.
[AUTO] (auto) is displayed. »
All available stations are programmed »
in the order of waveband reception
strength.
The first programmed radio station is »
broadcast automatically.
English
Note
You can program a maximum of 40 preset •
radio stations.
1 Tune to a radio station.
2 Press PROG to activate program mode.
[PROG] (program) blinks on the »
display.
3 Press PRESET +/- to allocate a number
(1 to 20) to this radio station, then press
PROG to confirm.
The preset number and the frequency »
of the preset station are displayed.
4 Repeat the above steps to program other
stations.
Note
To overwrite a programmed station, store •
another station in its place.
Select a preset radio station
1 Press PRESET +/- to select a preset
number.
Tip
FM antenna is fixed to the main unit. •
Position the antenna as far as possible from •
TV, VCR or other radiation source.
For optimal reception, fully extend and adjust •
the position of the antenna.
EN
17
Page 17
10 Other features
Set the sleep timer
Note
If the iPod source is selec ted but no iPod is •
connected, the system will switch to the tuner
source automatically.
This unit can switch to standby automatically
after a set period of time.
1 When the unit is turned on, press SLEEP/
TIMER repeatedly to select a set period
of time (in minutes).
When sleep timer is activated, the »
display shows
To deactivate sleep timer
.
1 Press SLEEP/TIMER repeatedly until
[OFF] is displayed.
When sleep timer is deactivated, »
disappears on the display.
Set the alarm timer
This unit can be used as an alarm clock. The
DISC, TUNER or iPod source is activated to
play at a preset time.
1 Ensure that you have set the clock
correctly.
2 In the standby mode, press and hold
SLEEP/TIMER.
3 Press DISC , TUN or iPod to select a
source.
4 Press SLEEP/TIMER to confirm.
The hour digits are displayed and begin »
to blink.
5 Press / to set the hour.
6 Press SLEEP/TIMER to confirm.
The minute digits are displayed and »
begin to blink.
7 Press / to set the minute.
8 Press SLEEP/TIMER to confirm.
The timer is set and activated. »
Activate and deactivate alarm timer
1 In the standby mode, press SLEEP/TIMER
repeatedly to activate or deactivate timer.
If timer is activated, the display shows »
.
If timer is deactivated, »
the display.
Note
Alarm timer is not available in MP3 LINK •
mode.
If the DISC source is selected and the •
track cannot be played, tuner is activated
automatically.
disappears on
Listen to an audio player
You can listen to an MP3 player through this
unit.
1 Press MP3 LINK to select MP3 LINK
source.
2 Connect the supplied MP3 link cable to:
• MP3 LINK jack (3.5 mm) on the unit
the headphone jack on an external •
device
3 Star t to play the device (see the device
user manual).
18
EN
Page 18
11 Product
information
Speakers
Speaker Impedance 4ohm
Speaker Driver 3.5”
Sensitivity >82dB/m/W
English
Note
Product information is subject to change •
without prior notice.
Specifications
Amplifier
Rated Output Power 2X5W RMS
Frequency Response 60 - 16kHz, ±3dB
Signal to Noise Ratio >65dB
Aux Input 0.5 V RMS 20kohm
Disc
Laser Type Semiconductor
Disc Diameter 12cm/8cm
Support Disc CD-DA, CD-R, CD-
RW
Audio DAC 24Bits / 44.1kHz
Total Harmonic
Distortion
Frequency Response 60Hz -16kHz (44.1kHz)
S/N Ratio >65dBA
<1%
General information
AC power input 220V, 60Hz
Operation Power
Consumption
Eco Standby Power
Consumption
Dimensions
- Main Unit
(W x H x D)
- Speaker Box
(W x H x D)
Weight
- With Packing
- Main Unit
- Speaker Box
20 W
< 1 W
150 x 152 x 250 mm
150 x 152 x 197 mm
5.07 kg
2.02 kg
2 x 0.895 kg
Tuner
Tuning Range FM: 87.5 - 108
MHz
Tuning Grid 50 KHz
Sensitivity
- Mono, 26 dB S/N Ratio < 22 dBf
Search Selectivity < 36 dBu
Total Harmonic Distortion < 3%
Signal to Noise Ratio > 45 dBu
EN
19
Page 19
12 Troubleshooting
Warning
Never remove the casing of this apparatus. •
To keep the warranty valid, never try to repair
the system yourself.
If you encounter problems when using this
apparatus, check the following points before
requesting service. If the problem remains
unsolved, go to the Philips web site (www.
philips.com/welcome). When you contact
Philips, ensure that the apparatus is nearby
and the model number and serial number are
available.
No power
Ensure that the AC power plug of the •
unit is connected properly.
Ensure that there is power at the AC •
outlet.
As a power-saving feature, the unit •
switches off automatically 15 minutes
after track play reaches the end and no
control is operated.
Remote control does not work
Before you press any function button, •
first select the correct source with the
remote control instead of the main unit.
Reduce the distance between the remote •
control and the unit.
Inser t the battery with its polarities (+/– •
signs) aligned as indicated.
Replace the battery. •
Aim the remote control directly at the •
sensor on the front of the unit.
No disc detected
Insert a disc. •
Check if the disc is inserted upside down. •
Wait until the moisture condensation at •
the lens has cleared.
Replace or clean the disc. •
Use a finalized CD or correct format disc. •
Poor radio reception
Increase the distance between the unit •
and your TV or VCR.
Fully ex tend the FM antenna. •
Timer does not work
Set the clock correctly. •
Switch on the timer. •
No sound or poor sound
Adjust the volume. •
Disconnect the headphones. •
Check that the speakers are connected •
correctly.
Check if the stripped speaker wires are •
clamped.
Left and right sound outputs reversed
Check the speaker connections and •
location.
No response from the apparatus
Disconnect and reconnect the AC power •
plug, then turn on the system again.
As a power-saving feature, the system •
switches off automatically 15 minutes
after track play reaches the end and no
control is operated.
20
EN
Clock/timer setting erased
Power has been interrupted or the power •
cord has been disconnected.
Reset the clock/timer. •
Page 20
© 2010 Koninklijke Philips Electronics N.V.
All rights reserved.
DCM105_61_UM_V1.0
Loading...
