Philips DCB3270, DCB2272 User Manual

www.philips.com/welcome

User manual

Always there to help you

Register your product and get support at

DCB3270

Question?

Contact

Philips

1EN

Contents

1 Safety 2

Know these safety symbols 2
Important safety instructions 2
Hearing safety 3

2 Your micro music system 4

Introduction 4
What's in the box 4
Overview of the main unit 4
Overview of the remote control 5

3 Before use 7

Connect the radio antenna 7
Connect power 7
Install the remote control battery 8

4 Get started 8

Turn on 8
Set the clock 9
Select a source 9
Adjust the brightness of LCD display 9

5 Play from hard media 10

Play a disc 10
Play from a USB storage device 10
Control play 10
Program tracks 11

6 Use the dock 11

Compatible iPod/iPhone/iPad models 11
Enjoy audio through the dock 12
Charge your iPod/iPhone/iPad 13
Unload your iPod/iPhone/iPad 13

7 Listen to FM radio 13

Tune to an FM radio station 13
Program radio stations automatically 14
Program radio stations manually 14
Tune to a preset radio station 14
Display RDS information 14
Adjust FM settings 14

8 Listen to DAB radio stations 15

Use for the rst time 15

Tune to a stored station 15
Program radio stations 15
Display DAB information 16
Use DAB menus 16

9 Adjust sound 17

Select a preset sound effect 17
Adjust volume level 17
Mute sound 17

10 Other features 17

Use the alarm timer 17
Use the sleep timer 18
Listen to an external device 18
Listen through headphone 18
Charge your USB device 19

11 Use system menus 19

Check the current software version 19
Reset the product 19
Upgrade the software 20

12 Product information 20

Specications 20

USB playability information 21
Supported MP3 disc formats 21
Maintenance 22

13 Troubleshooting 22

14 Notice 24

Compliance 24
Care of the environment 24
Trademark notice 25
Copyright 25

2 EN

1 Safety

Read and understand all instructions before
you use this micro music system. If damage is
caused by failure to follow the instructions, the
warranty does not apply.

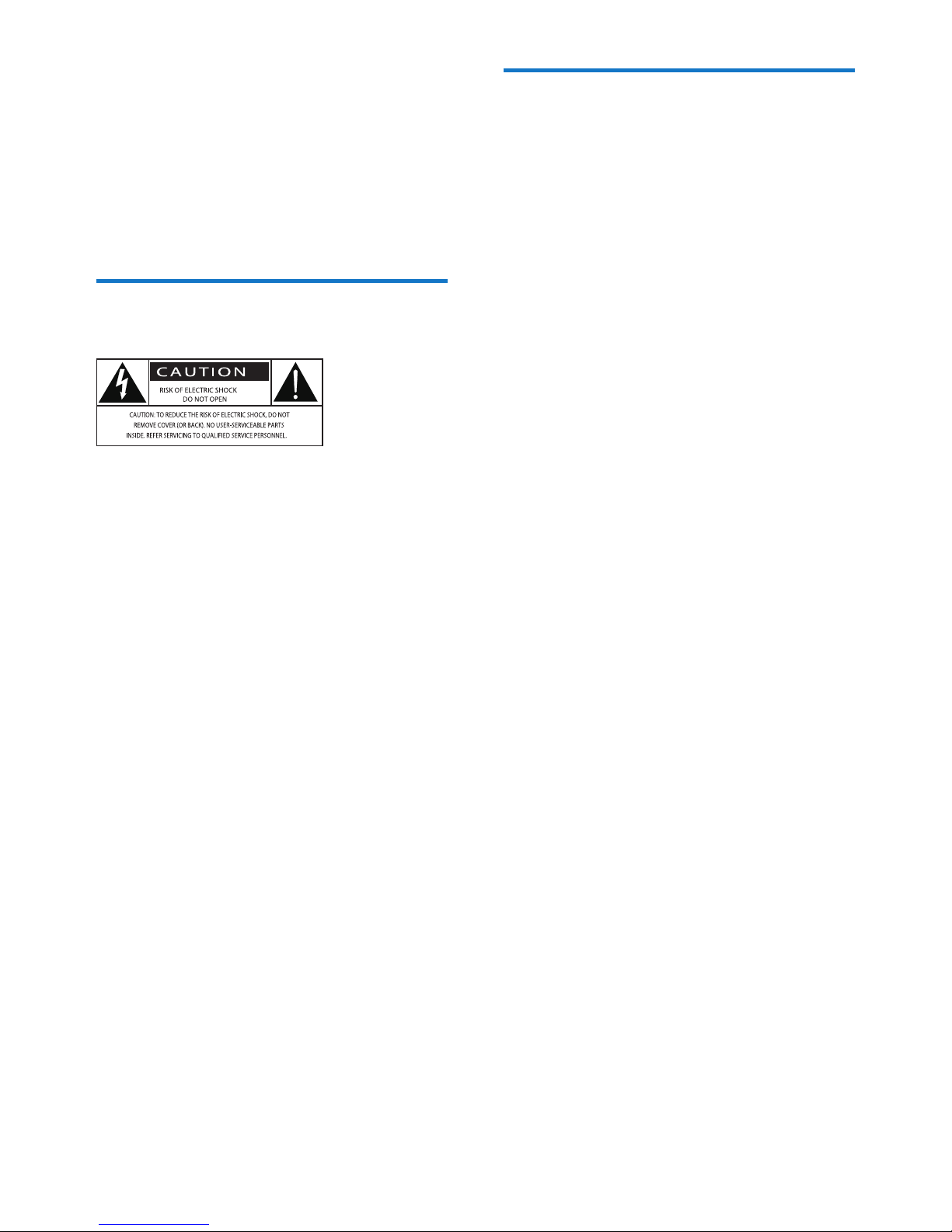

Know these safety symbols

This 'bolt of lightning' indicates uninsulated
material within your unit may cause an electric
shock. For the safety of everyone in your
household, please do not remove product
covering.
The 'exclamation mark' calls attention to
features for which you should read the enclosed
literature closely to prevent operating and
maintenance problems.

WARNING: To reduce the risk of re or electric

shock, this apparatus should not be exposed to

rain or moisture and objects lled with liquids,

such as vases, should not be placed on this
apparatus.
CAUTION: To prevent electric shock, fully
insert the plug. (For regions with polarized
plugs: To prevent electric shock, match wide
blade to wide slot.)

Important safety instructions

Risk of electric shock or re!

• Never expose the product and accessories
to rain or water. Never place liquid

containers, such as vases, near the product.

If liquids are spilt on or into the product,

disconnect it from the power outlet
immediately. Contact the Consumer Care
to have the product checked before use.

• Never place the product and accessories
near naked ames or other heat sources,

including direct sunlight.

• Never insert objects into the ventilation
slots or other openings on the product.

• Where the mains plug or an appliance
coupler is used as the disconnect device,
the disconnect device shall remain readily
operable.

• Disconnect the product from the power
outlet before lightning storms.

• When you disconnect the power cord,
always pull the plug, never the cable.

Risk of short circuit or re!

• Before you connect the product to the
power outlet, make sure that the power
voltage matches the value printed on the
back of the product. Never connect the
product to the power outlet if the voltage
is different.

• Never expose the remote control or
batteries to rain, water, sunshine, or
excessive heat.

• Avoid force coming onto power plugs.
Loose power plugs can cause arcing or re.

Risk of injury or damage to the product!

• Use only power supplies listed in the user
manual.

• Visible and invisible laser radiation when
open. Avoid exposure to beam.

• Do not touch the disc optical lens inside
the disc compartment.

• Never place the product or any objects
on power cords or on other electrical

equipment.

3EN

• If the product is transported in
temperatures below 5°C, unpack the
product and wait until its temperature
matches room temperature before
connecting it to the power outlet.

Risk of overheating!

• Never install this product in a conned

space. Always leave a space of at least four
inches around the product for ventilation.

• Make sure that curtains or other objects
never cover the ventilation slots on the
product.

Risk of contamination!

• Remove the battery if it is exhausted or if
the remote control is not to be used for
an extended period of time.

• Batteries contain chemical substances, they
should be disposed of properly.

Warning

• Never remove the casing of this apparatus.

• Never lubricate any part of this apparatus.

• Never place this apparatus on other electrical

equipment.

• Keep this apparatus away from direct sunlight, naked

ames or heat.

• Never look into the laser beam inside this apparatus.

• Ensure that you always have easy access to the power

cord, plug or adaptor to disconnect this apparatus from
the power.

Hearing safety

Listen at a moderate volume.

• Using headphones at a high volume can
impair your hearing. This product can
produce sounds in decibel ranges that may
cause hearing loss for a normal person,
even for exposure less than a minute. The
higher decibel ranges are offered for those

that may have already experienced some
hearing loss.

• Sound can be deceiving. Over time your
hearing 'comfort level' adapts to higher
volumes of sound. So after prolonged
listening, what sounds 'normal' can actually
be loud and harmful to your hearing. To
guard against this, set your volume to a safe
level before your hearing adapts and leave
it there.

To establish a safe volume level:

• Set your volume control at a low setting.

• Slowly increase the sound until you can

hear it comfortably and clearly, without
distortion.

Listen for reasonable periods of time:

• Prolonged exposure to sound, even
at normally 'safe' levels, can also cause
hearing loss.

• Be sure to use your equipment reasonably

and take appropriate breaks.

Be sure to observe the following guidelines
when using your headphones.

• Listen at reasonable volumes for
reasonable periods of time.

• Be careful not to adjust the volume as your
hearing adapts.

• Do not turn up the volume so high that
you can't hear what's around you.

• You should use caution or temporarily
discontinue use in potentially hazardous
situations.

Note

• The type plate is located on the back of the product.

4 EN

2 Your micro

music system

Congratulations on your purchase, and

welcome to Philips! To fully benet from the

support that Philips offers, register your product
at www.philips.com/welcome.
If you contact the Consumer Care, you will
be asked for the model and serial number of
this apparatus. The model number and serial
number are on the rear of the apparatus. Write
the numbers here:
Model No. __________________________
Serial No. ___________________________

Introduction

With this product, you can:

• enjoy audio from discs, USB storage
devices, iPod/iPhone/iPad, and other
external devices, and

• listen to FM and DAB radio stations.

What's in the box

Check and identify the contents of the package:

• Micro music system

• Remote control (with one AAA battery)

• AC power adaptor (with 2 plug

converters)

• Wall mounting kit (2 dowels and 2 screws)

• FM antenna

• Safety sheet

• Short user manual

• Wall mounting instructions

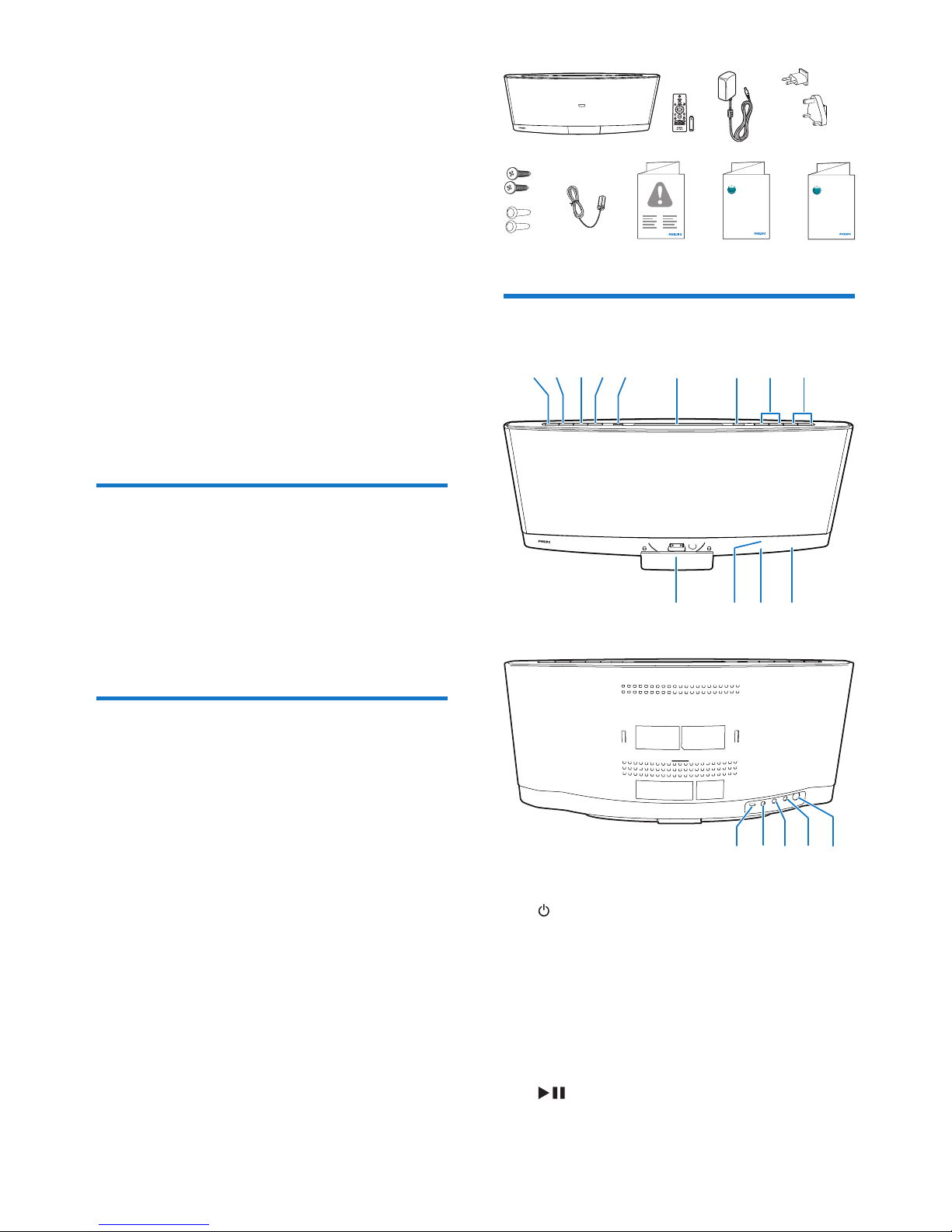

Overview of the main unit

a

• Turn on the product.

• Switch the product to eco power

standby mode or normal standby
mode.

b SOURCE

• Press repeatedly to select a source.

c

• Start, pause, or resume play.

Short User Manual

www.philips.com/welcome

Always there to help you

Register your product and get support at

Question?

Contact
Philips

Wall Mounting
Instructions

www.philips.com/welcome

Always there to help you

Register your product and get support at

Question?

Contact
Philips

j ml

k

ghi

abcde

f

onpqr

5EN

d

• Stop the play of music.

• Access the playlist of a docked iPod/

iPhone.

e

• Connect a compatible USB storage

device for music play.

• Connect a compatible USB device for

charging.

f Disc compartment
g

• Press to eject the disc from the disc

compartment.

h /

• Skip to the previous or next track.

• Press and hold to search within a track.

• Tune to a radio station.

i VOL+/VOL-

• Increase or decrease the volume level.

j Dock for iPod/iPhone/iPad

• Connect to a compatible iPod/iPhone/

iPad.

k IR sensor

• Receive infrared signals from the

remote control.

l Indicator

• It lights red when the product is in the

eco power standby mode.

m LCD screen
n Micro USB socket

• This socket is for rmware upgrade

only.

o DC IN

• Connect to the AC power adaptor.

p

• Connect to a headphone with 3.5-mm

connector.

q AUDIO IN

• Connect to the audio output socket

(usually the headphone socket) of an
external device.

r FM ANT

• Connect to the FM antenna.

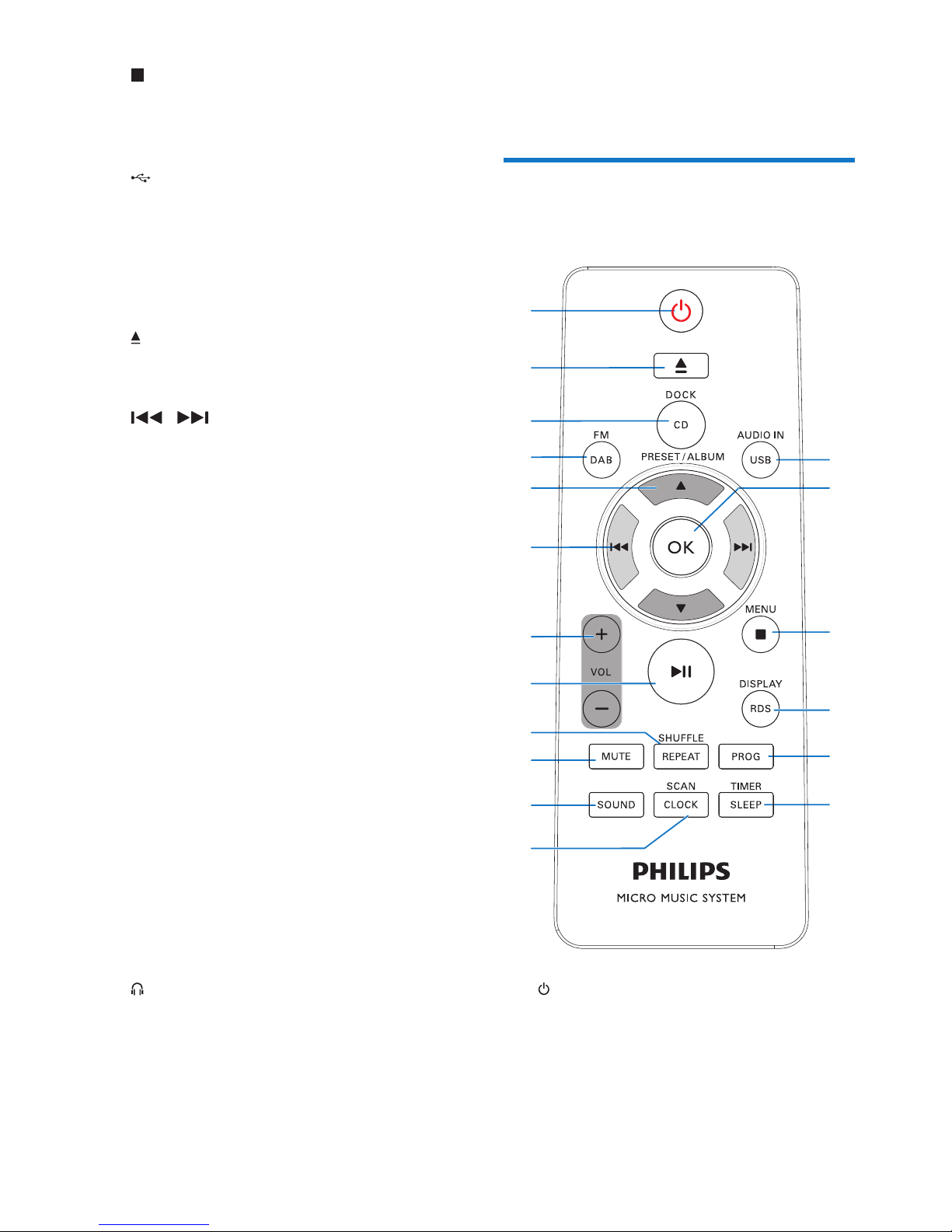

Overview of the remote
control

a

• Turn on the product.

• Switch the product to eco power

standby mode or normal standby
mode.

a

b

c

d
e

f

h

g

i
j

k

l

r
q

p

o

n

m

6 EN

b

• Eject the disc.

c DOCK/ CD

• Switch the source to the connected

iPod/iPhone/iPad or the disc in the disc
compartment.

d FM/DAB

• Switch the source to FM tuner or DAB

tuner.

e PRESET/ALBUM /

• Skip to the previous or next album.

• Select a preset radio station.

• Navigate through iPod/iPhone playlist.

f /

• Skip to the previous or next track.

• Press and hold to search within a track.

• Tune to a radio station.

• Select a menu option.

g + VOL -

• Increase or decrease the volume level.

h

• Start, pause, or resume play.

• In FM mode, press to switch the

sound setting between stereo and
monophonic.

i REPEAT/SHUFFLE

• Select a play mode.

j MUTE

• Mute or restore volume.

k SOUND

• Select a preset sound effect.

l SCAN/CLOCK

• In normal standby mode, press and

hold to start setting the clock.

• In working mode, press to display the

clock.

• In FM or DAB mode, press and hold to

start scanning for FM stations.

m TIMER/SLEEP

• Set the alarm timer.

• Set the sleep timer.

n PROG

• Program radio stations.

• Program tracks that are stored on a

disc or USB storage device.

o DISPLAY/RDS

• In working mode, press to toggle
through available information.

• In normal standby mode, press and
hold to adjust the brightness of LCD
display.

p /MENU

• Stop the play of music.

• Access the playlist of iPod/iPhone.

• In FM or DAB mode, access the menus.

q OK

• Conrm the current option.

• In FM mode, press to switch the

sound setting between stereo and
monophonic.

r USB/AUDIO IN

• Switch the source to USB storage
device or the audio input that is
transferred through the AUDIO IN
socket.

7EN

3 Before use

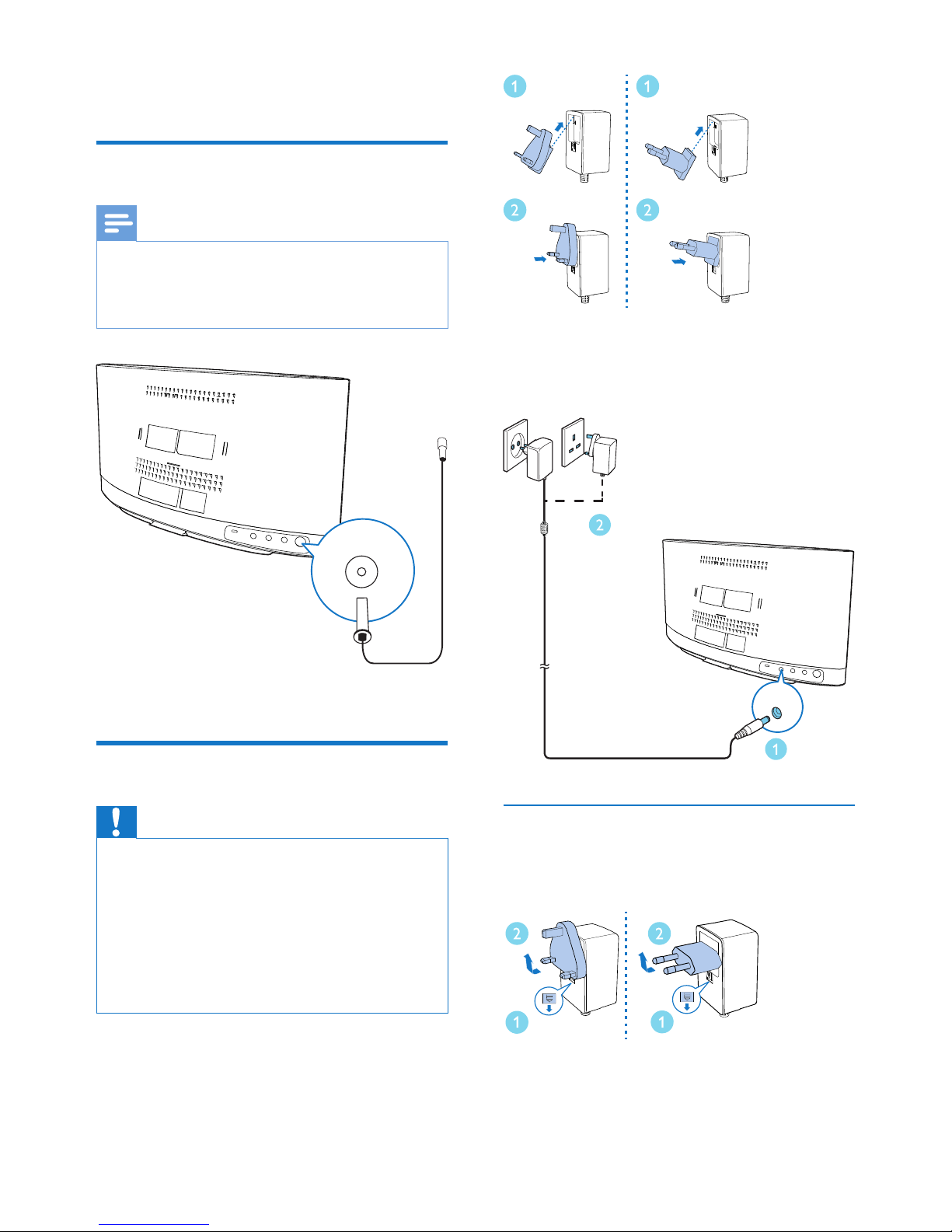

Connect the radio antenna

Note

• For optimal reception, fully extend the antenna and

adjust its position, or connect an outdoor antenna.

• This product does not support AM (amplitude

modulation) radio reception.

Connect the radio antenna to the product.

Connect power

Caution

• Risk of product damage! Make sure that the power

supply voltage matches the voltage printed on the back
of the main unit.

• Risk of electric shock! Before you plug the AC power

adaptor, make sure that the adaptor plug converter is

xed securely. When you unplug the AC power adaptor,

always pull the plug, never the cord.

• Before you connect the AC power adaptor, make sure

that you have completed all the other connections.

1 Select an adaptor plug converter and x it

to the adaptor.

2 Connect the AC power adaptor to

• the DC IN socket on the back panel, and

• the wall outlet.

Remove the plug converter

To replace a plug converter, remove it rst as

illustrated below.

DC IN

8 EN

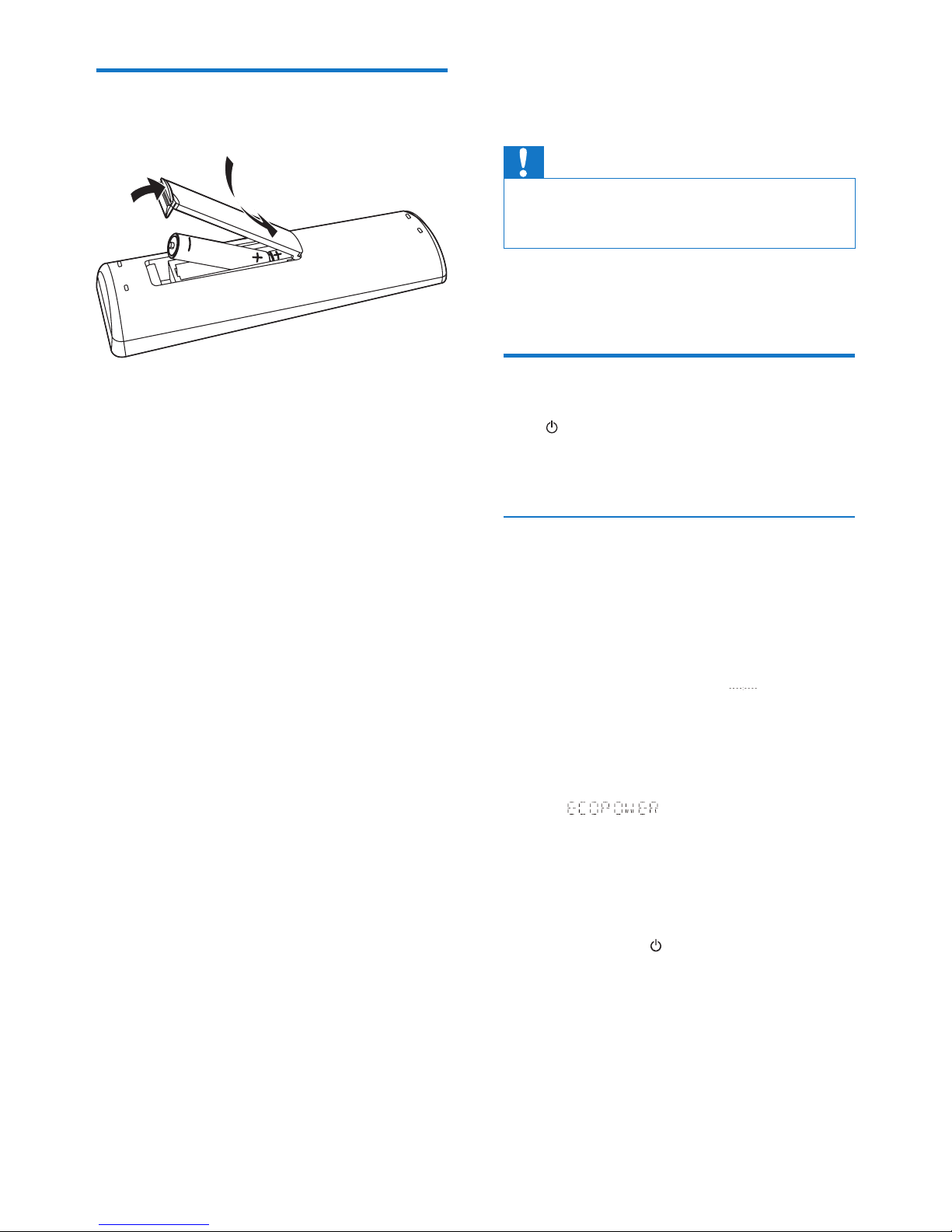

Install the remote control
battery

1 Open the battery compartment.
2 Insert one AAA battery with correct

polarity (+/-) as indicated.

3 Close the battery compartment.

a

b

c

4 Get started

Caution

• Use of controls or adjustments or performance of

procedures other than herein may result in hazardous
radiation exposure or other unsafe operation.

Always follow the instructions in this chapter in

sequence.

Turn on

Press .

» This product switches to the last selected

source.

Switch modes

Automatically switch the modes:

• After this product stays inactive for 15
minutes, it automatically switches to the
normal standby mode.

» The clock is displayed.
» If the clock is not set, blinks.

• After this product stays in the normal
standby mode for 15 minutes, it
automatically switches to the eco power
standby mode.

» scrolls, and then the LCD

screen lights off.

» The LED indicator beside the LCD

screen lights in red.

Manually switch the modes:

• Press and hold to switch this product

• from the working mode or normal

standby mode to the eco power
standby mode, or

• from the eco power standby mode to

the normal standby mode.

9EN

• Press to switch this product

• between the working mode and the

normal standby mode, or

• from the eco power standby mode to
the working mode.

Set the clock

Note

• During setting, if no action is made within 90 seconds,

the product exits clock setting without saving earlier
operations.

1 In standby mode, press and hold CLOCK

to enter the clock setting mode.

» or is displayed.

2 Press + VOL - or / to select

or , and then press CLOCK.

• : 24-hour time format

• : 12-hour time format

» The hour digits begin to blink.

3 Press + VOL -or / to set the hour,

and then press CLOCK.

» The minute digits begin to blink.

4 Press + VOL - or / to set the

minute, and then press CLOCK.

5 Press + VOL - or / to select

or , and then press

CLOCK.

• : When you tune to an RDS
station that transmits time signals, the
product automatically synchronizes its
clock with the RDS station.

• : Not synchronize the
clock automatically.

» The set clock is displayed.

Tip

• This product will synchronize its clock with the current

DAB station or the connected iPod/iPhone/iPad.

Select a source

On the product, press SOURCE repeatedly to
select a source.

• : the playlist on the
connected iPhone/iPod/iPad

• : the audio input through the
AUDIO IN socket

• : the disc in the disc compartment

• : .mp3 les stored on the connected

USB storage device

• : the DAB tuner

• : the FM tuner

You can also press source buttons on the
remote control to select a source.

• FM/DAB: the FM tuner or DAB tuner

• DOCK/CD: the playlist on the connected

iPhone/iPod/iPad or the disc in the disc
compartment

• AUDIO IN/USB: the audio input through
the AUDIO IN socket, or the .mp3 les
stored on the connected USB storage
device

Adjust the brightness of LCD
display

1 In normal standby mode, press and hold

DISPLAY until , , or is

displayed.

2 Press VOL +/- or / to select ,

, or .

10 EN

5 Play from hard

media

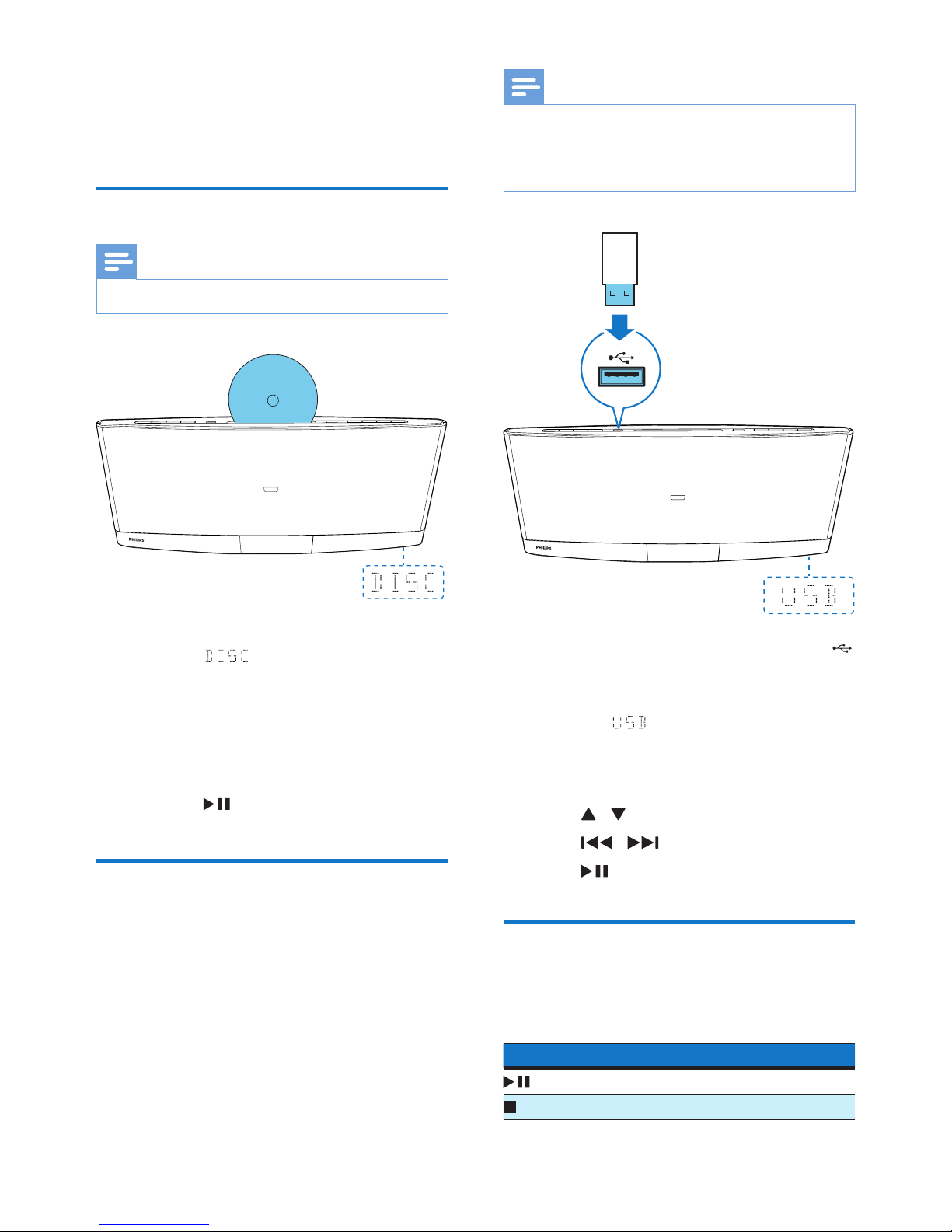

Play a disc

Note

• Make sure that the disc contains playable audio content.

1 Press CD or SOURCE to switch the

source to .

2 Insert a disc into the disc compar tment

with the printed side facing you.

» Play starts automatically after a few

seconds.

» If play does not start automatically,

press to start play.

Play from a USB storage
device

This product can play .mp3 les that are copied

onto a compatible USB storage device.

• Flash drive

• Memory card reader

• HDD: hard disc drive (This product

can detect only a portable HDD with
USB power peak current no more than
500 mA.)

Note

• WOOX Innovations does not guarantee compatibility

with all USB storage devices.

• FAT16 and FAT 32 le systems are supported, and

NTFS (New Technology File System) not.

1 Connect the USB storage device to the

socket.

2 Press USB or SOURCE to switch the

source to .

» Play starts automatically.

If play does not start automatically,

1 Press / to select a folder.
2 Press / to select a le.
3 Press to star t play.

Control play

During play, follow the instructions below to
control play.

Buttons Functions

Pause or resume play.
Stop play.

11EN

Buttons Functions

/ Skip to the previous or

next track.

/ Press and hold to rewind

a track or search forward
fast.

/ Skip to the previous or

next album when one or
more albums exist.

REPEAT/SHUFFLE Select an available play

mode.

• : repeat the
current track

• : repeat all
tracks

• : repeat the
current folder

• : play tracks
randomly

• To play tracks in

sequence, press

repeatedly until
REP and SHUF
disappear.

Program tracks

You can program a maximum of 20 tracks.

1 When no track is played, press PROG.

» The current track number blinks on

the display panel.

2 Press / to select a track number.
3 Press PROG to conrm.
4 Repeat steps 2 and 3 to program more

tracks.

5 Press to play the programmed tracks.

• To erase the program, press twice.

6 Use the dock

You can enjoy audio from iPod/iPhone/iPad
through this product.

Note

• There is no audio output from the headphone socket

of the connected iPod/iPhone/iPad.

Compatible iPod/iPhone/iPad
models

This product supports the following iPod,
iPhone, and iPad models.

• iPod nano (2nd, 3rd, 4th, 5th, 6th, and 7th
generation)

• iPod touch (1st, 2nd, 3rd, 4th, and 5th
generation)

• iPod classic

• iPhone 5

• iPhone 4S

• iPhone 4

• iPhone 3GS

• iPhone 3G

• iPhone

• iPad mini

• iPad 4th generation

• iPad 3rd generation

• iPad 2

• iPad

12 EN

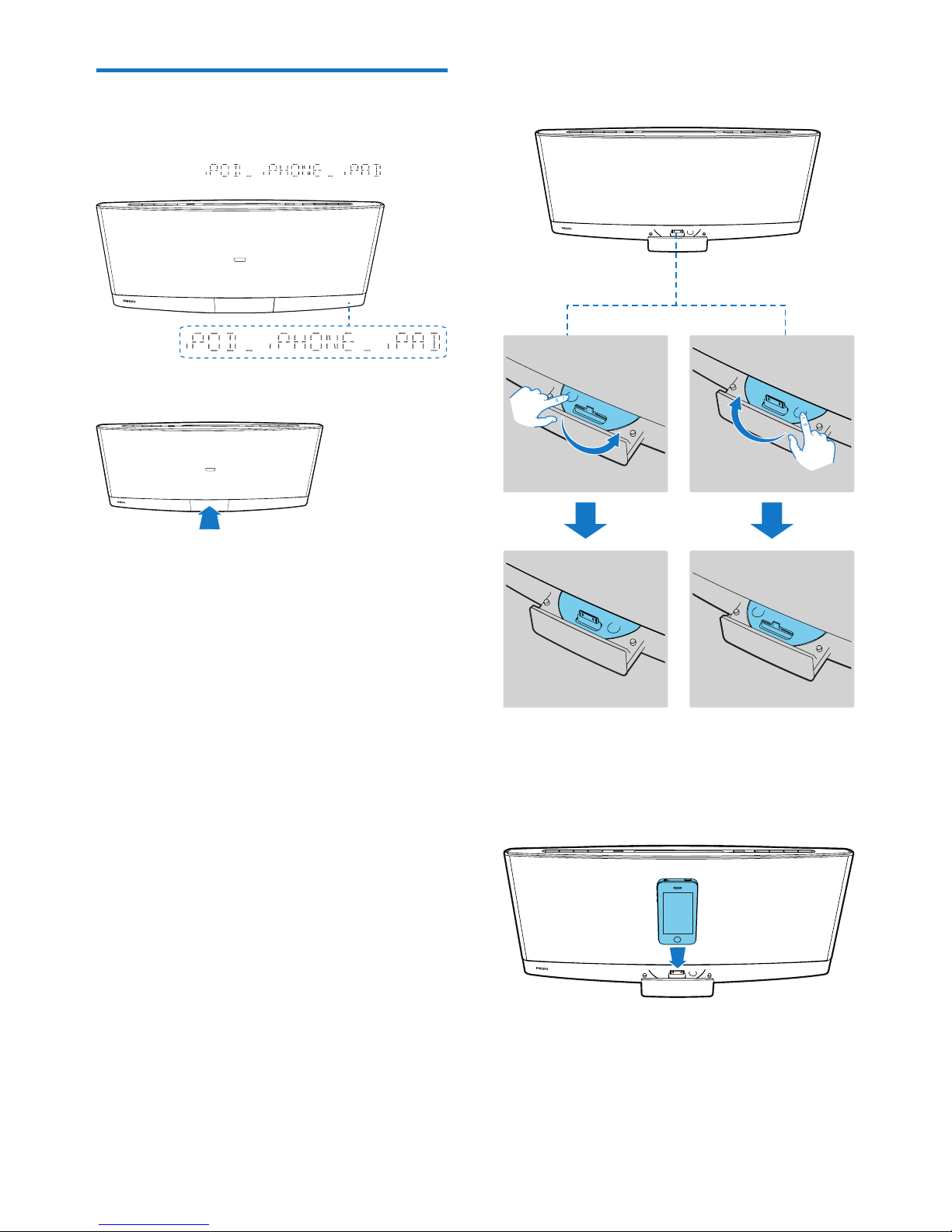

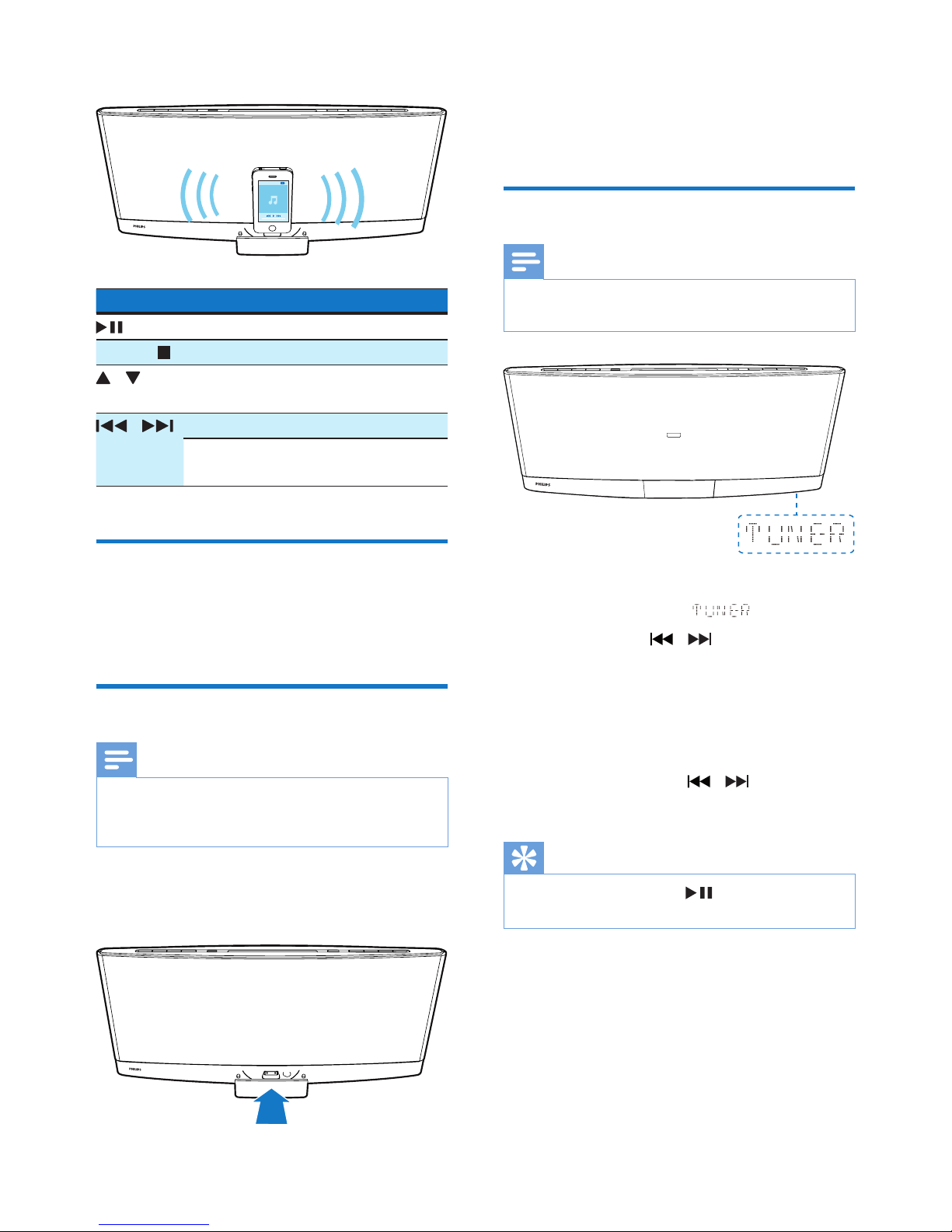

Enjoy audio through the dock

1 Press DOCK or SOURCE to switch the

source to .

2 Eject the dock.

3 Turn the dock tray to select a connector

that matches your iPod/iPhone/iPad.

4 Connect your iPod/iPhone/iPad to the

dock.

» Once the iPod/iPhone/iPad is

recognized, the charging starts.

13EN

5 Play a track on your iPod/iPhone/iPad.

Buttons Functions

Start, pause, or resume play.

MENU/ Access the playlist of iPod/iPhone.

/ Navigate through the playlist of

iPod/iPhone.

/ Skip to the previous/next track.

Press and hold to rewind a track
or search forward fast.

Charge your iPod/iPhone/iPad

Once the iPod/iPhone/iPad is docked and
recognized, the charging starts.

Unload your iPod/iPhone/iPad

Note

• Risk of damage to the dock or your iPod/iPhone/iPad:

Do not twist or shake your iPod/iPhone/iPad during
unloading.

1 Pull the iPod/iPhone/iPad out of the dock.
2 Press inside to hide the dock.

7 Listen to FM

radio

Tune to an FM radio station

Note

• Make sure that you have connected and fully extended

the FM antenna.

1 Press FM or SOURCE repeatedly to

switch the source to .

2 Press and hold / until the frequency

starts to change.

» The product automatically tunes to the

previous or next station with strong
reception.

• To tune to a station at a specic

frequency, press / repeatedly
until its frequency is displayed.

Tip

• In FM mode, you can press or OK to switch the

sound setting between stereo and monophonic.

14 EN

Program radio stations
automatically

Note

• You can program a maximum of 20 preset radio

stations.

Press and hold SCAN/CLOCK until the

frequency starts to change.

» All available stations are programmed in the

order of waveband reception strength.

» The rst programed radio station is

broadcast automatically.

Program radio stations
manually

Note

• You can program a maximum of 20 preset radio

stations.

• To overwrite a programmed radio station, store

another one with its sequence number.

1 Tune to a radio station.
2 Press PROG to activate programming.

» The sequence number blinks.

3 Press / to allocate a sequence

number from 1 to 20 to this radio station,
and then press PROG to conrm.

» The preset sequence number and

the frequency of this radio station are

displayed.

4 Repeat steps 1-3 to program more

stations.

Tune to a preset radio station

Press / to select the sequence number of
the preset radio station.

Display RDS information

RDS (Radio Data System) is a service that
allows FM stations to transfer additional
information. If you tune to an RDS station, an
RDS icon is displayed.

1 Tune to an RDS station.
2 Press RDS repeatedly to scroll through the

following information (if available):

» Program service
» Program type such as [NEWS] (news),

[SPORT] (sport), [POP M] (pop
music)...

» Radio text message
» Mono/Stereo
» Time

Adjust FM settings

1 In FM mode, press MENU to access the

menu.

2 Press OK to access sub-menus.
3 Press / to select an option.

• : Search for strong stations

only.

• : Search for all stations no matter

whether the signal strength of a station
is strong or weak.

4 Press OK to conrm the option.

15EN

8 Listen to DAB

radio stations

Note

• For optimal reception, fully extend the antenna and

adjust its position.

• You can program a maximum of 20 DAB radio stations.

• Check with local retailer or go to www.WorldDAB.org

for applicable DAB radio frequencies in your area.

Use for the rst time

1 Press DAB or SOURCE to switch the

source to .

2 Press / until the

menu is displayed.

3 Press OK to activate the automatic search.

» This product automatically stores radio

stations with sufcient signal strength.

» After the search is complete, the

rst stored radio station is broadcast

automatically.

4 Press / to select a station, and

then press OK to start listening.

• To re-scan for DAB stations, press and
hold SCAN/CLOCK for 2 seconds when
listening to a DAB station.

Tip

• You can re-scan to update the list of stored stations

(see "Use DAB menus" > "Re-scan for stations").

• You can tune to a station manually (see "Use DAB

menus" > "Tune to a station manually").

Tune to a stored station

1 Switch the source to .

» The last listened station is broadcast.

2 Press / to select a station, and

then press OK to start listening.

Note

• If ? is displayed before the name of current station, the

station is unavailable or inactive.

Program radio stations

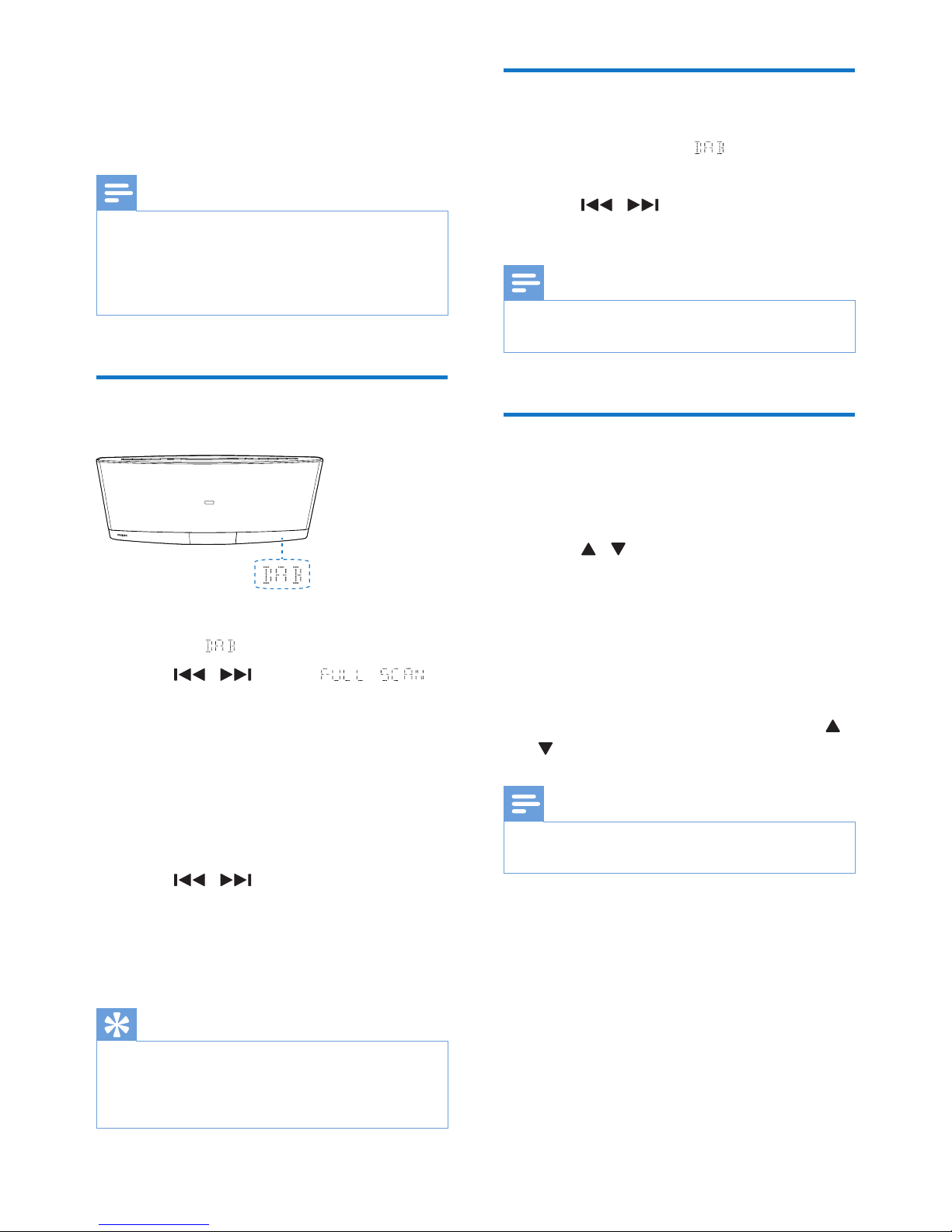

1 Tune to a DAB radio station.
2 Press PROG to activate the programming.
3 Press / to select a preset sequence

number.

4 Press PROG to conrm.

» The radio station is stored with the

selected sequence number.

5 Repeat steps 1-4 to program more radio

stations.

• To tune to a preset radio station, press /
until its name is displayed.

Note

• If you store a radio station with the sequence number

of another one, the earlier one is overwritten.

16 EN

Display DAB information

Press DISPLAY repeatedly to cycle through the
following information (if available).

• Dynamic label segment (DLS)

• Signal strength

• Program type (PTY)

• Ensemble name

• Frequency

• Signal error rate

• Bitrate codec

• DAB/DAB+

• Time

• Date

Use DAB menus

1 In DAB mode, press MENU to access the

DAB menus.

2 Press / to toggle through the

menus.

Re-scan for stations

Full scan is used to perform a wide range
search for DAB radio stations.

Press OK to start scanning for available DAB
stations.

» After the scanning is complete, the rst

detected station is broadcast.

Tune to a station manually

With this feature, you can tune to a specic
channel/frequency manually. In addition to

antenna orientation for better radio reception,
the optimal reception can also be obtained with
this feature.

1 Press OK to access the station list.
2 Press / to select a station from

5A to 13F.

3 Press OK to conrm the option.

Remove invalid stations

This option lists active stations and removes any
stations that are in the list but have no service
in your area. In front of the station name of an

invalid station, a question mark (?) is displayed.

1 Press OK to access the sub-menus.
2 Press / to select an option.

• : Return to the previous menu.

• : Remove invalid stations from the

station list.

3 Press OK to conrm the option.

System menus

1 Press OK to access system menus.
2 Press / to select a sub-menu.

• For details, refer to the section 'Use

system menus'.

17EN

9 Adjust sound

The following operations are applicable to all
supported media.

Select a preset sound effect

• Press SOUND repeatedly to select a
preset sound effect.

• , , ,

, and

Adjust volume level

• On the remote control, press VOL +/-
repeatedly.

• On the main unit, press VOL+/VOL-
repeatedly.

Mute sound

• Press MUTE to mute or restore the sound.

10 Other features

Use the alarm timer

This product can be used as an alarm clock.
You can select the disc, iPod/iPhone/iPad library,
FM radio station, DAB radio station, or .mp3

les stored on a USB storage device as alarm

source.

Note

• Make sure that you have set the clock correctly.

• If the selected alarm source is unavailable, this product

switches to FM mode automatically.

1 In normal standby mode, press and hold

SLEEP/TIMER.

» The alarm time is displayed with the

hour digits blinking.

» TIMER is displayed.

2 Press + VOL - or / repeatedly to

set the hour, and then press SLEEP/TIMER

to conrm.

» The minute digits blink.

3 Press + VOL - or / to set the

minute, and then press SLEEP/TIMER to

conrm.

» The alarm source name blinks.

4 Press + VOL - or / to select an

alarm source.

5 Press SLEEP/TIMER to conrm.

» XX (XX indicates the volume

level of alarm) blinks.

6 Press + VOL - to set the alarm volume, and

then press SLEEP/TIMER to conrm.

18 EN

Deactivate/Re-activate the alarm
timer

In standby mode, press SLEEP/TIMER.

» If TIMER disappears, the alarm timer is

deactivated.

» If TIMER is displayed, the alarm timer is

activated.

Stop an alarm

When an alarm rings, press or SLEEP/TIMER
to stop it.

Note

• If you do not stop an alarm, it keeps ringing for 30

minutes, and then the product automatically switches to
normal standby mode.

Use the sleep timer

You can set a period of time after which the
product automatically switches to normal
standby mode.
In working mode, press SLEEP/TIMER
repeatedly to select a preset period (120, 90,
60, 45, 30, or 15 minutes).

» When the sleep timer is activated, is

displayed.

• To deactivate the sleep timer, press

SLEEP/TIMER repeatedly until
is displayed.

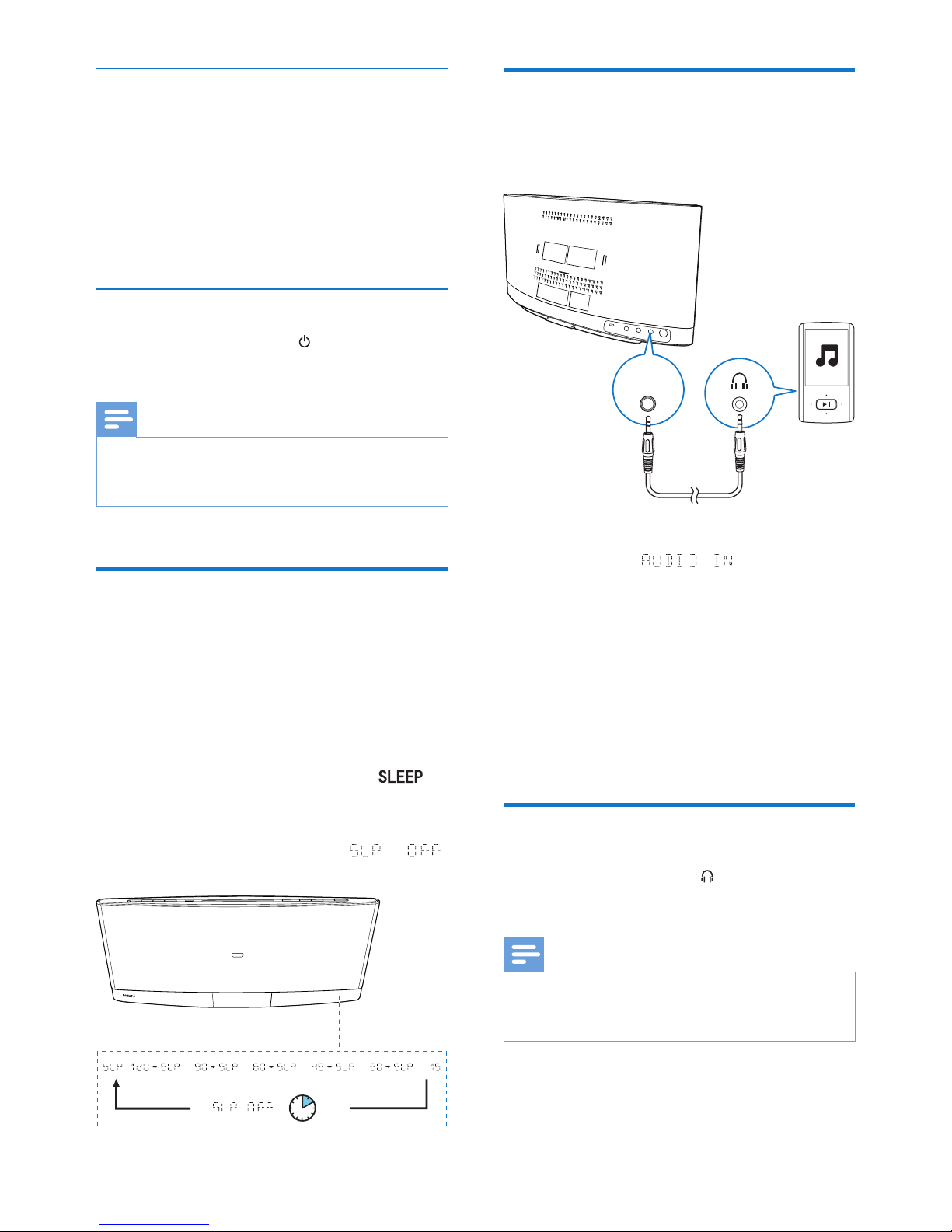

Listen to an external device

You can also listen to an external audio device,
for example, MP3 player, through this product.

1 Press AUDIO IN or SOURCE to switch

the source to .

2 Connect an audio input cable with 3.5 mm

plug on both ends between

• the AUDIO IN socket on the back
panel of this product, and

• the headphone socket on the external
device.

3 Play audio on the external device (refer to

its user manual).

Listen through headphone

Plug a headphone into the socket on the
front panel of main unit.

Note

• No audio output from the headphone socket when

you listen to the docked iPod/iPhone/iPad. Listen
through the speakers instead.

AUDIO
IN

19EN

Charge your USB device

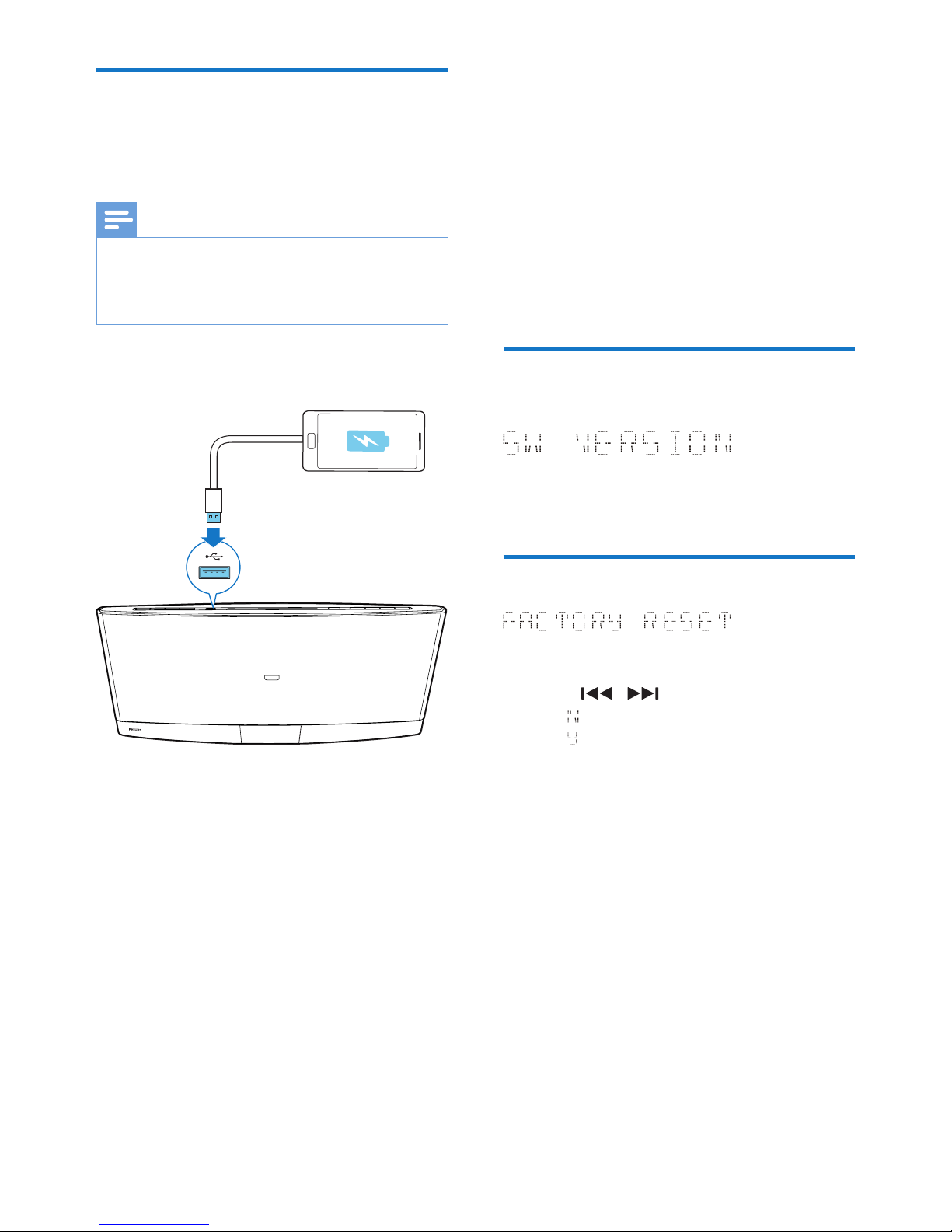

You can charge your USB device, for example,
smart phone, with this product.

Note

• The output voltage through the USB socket is 5 V with

output currency 0.5 A.

• WOOX Innovations does not guarantee the

compatibility with all USB devices.

Connect your USB device to this product with
USB cable.

11 Use system

menus

Use the system menus to

• check the version of current software of
this product,

• upgrade the software, and

• reset the product to factory default status.

Check the current software
version

Press OK to display the version of current
software.

Reset the product

1 Press OK to display the options.
2 Press / to select an option.

• : Return to the previous menu.

• : Reset the product to factory default

status.

3 Press OK to conrm the option.

20 EN

Upgrade the software

1 Go to www.philips.com/support.
2 Search for support information about

this product with "DCB3270/10" as the
keyword.

» When an upgrade packet is available,

the link of "Installation instructions"
under "Software & drivers" is
accessible. The exact wording of link
names may vary in different languages.

3 Click the link of "Installation instructions".
4 Read and understand the instructions on

software upgrade.

5 Follow the instructions to complete the

upgrade.

12 Product

information

Note

• Product information is subject to change without prior

notice.

Specications

General information

AC power adaptor Model: AS600-150-

AD300 (Philips)
Input: 100 - 240 V ~,
50/60 Hz, 1.5 A
Output: 15 V 3.0 A
Safety standard:
EN60065

Operation power
consumption

25 W

Eco standby power
consumption

≤ 0.5 W

USB Direct Version 1.1, 2.0
Max. loading of USB

output

5 V 500 mA

Dimensions: Main unit
(W x H x D)

520 x 223 x 101 mm

Weight

- With packing

- Main unit

4.1 kg

2.7 kg

Amplier

Maximum output
power

2 X 20 W

Frequency response 60 Hz - 16 kHz
Signal-to-noise ratio ≥ 55 dBA
AUDIO INPUT 650 mV RMS

20 kOhm

21EN

Disc

Laser type Semiconductor
Disc diameter 12 cm
Support discs CD-DA, CD-R,

CD-RW, MP3-CD
Audio DAC 24 Bits, 44.1 kHz
Total harmonic

distortion

< 1.5% (1 kHz)

Frequency response 60 Hz - 16 kHz

(44.1 kHz)
S/N Ratio > 55 dB

Tuner

Tuning range FM: 87.50 -

108.00 MHz;

DAB: 174.928-

239.200 MHz
Tuning grid 50 kHz (FM)
Sensitivity

- Mono, 26dB S/N

Ratio

- Stereo, 46dB S/N

Ratio

< 22 dBf

< 43 dBf

Search selectivity > 28 dBf
Total harmonic

distortion

< 3%

Signal-to-noise ratio > 55 dB
Number of preset

radio stations

FM (20), DAB (20)

Speakers

Speaker impedance 6 Ohm
Speaker driver 2.5'' full range X 2
Sensitivity > 82 dB/m/W

USB playability information

Compatible USB devices:

• USB ash memory (USB 2.0 or USB1.1)

• USB ash players (USB 2.0 or USB1.1)

• Memory cards (requires an additional card

reader to work with this unit)

Supported formats:

• USB or memory le formats: FAT16, FAT32

(sector size: 512 bytes)

• MP3 bit rate (data rate): 32 - 320 kbps and
variable bit rate

• Directory nesting up to a maximum of 8
levels

• Number of albums/ folders: maximum 999

• Number of tracks/titles: maximum 999

• ID3 tag v2.0 or later

• File name in Unicode UTF8 (maximum

length: 128 bytes)

Unsupported formats:

• Empty albums: an empty album is an album
that does not contain .mp3 les, and will

not be shown in the display.

• Unsupported le formats are skipped. For

example, Word documents (.doc) or MP3

les with extension .dlf are ignored and

not played.

• AAC, WAV, PCM audio les

Supported MP3 disc formats

• ISO9660, Joliet

• Maximum track/le number: 999
(depending on le name length)

• Maximum album number: 99

• Supported sampling frequencies: 32 kHz,

44.1 kHz, 48 kHz

• Supported bitrates: 32-320 kbps, variable
bitrates

22 EN

Maintenance

Clean the cabinet

• Use a soft cloth slightly moistened with
a mild detergent solution. Do not use a
solution containing alcohol, spirits, ammonia
or abrasives.

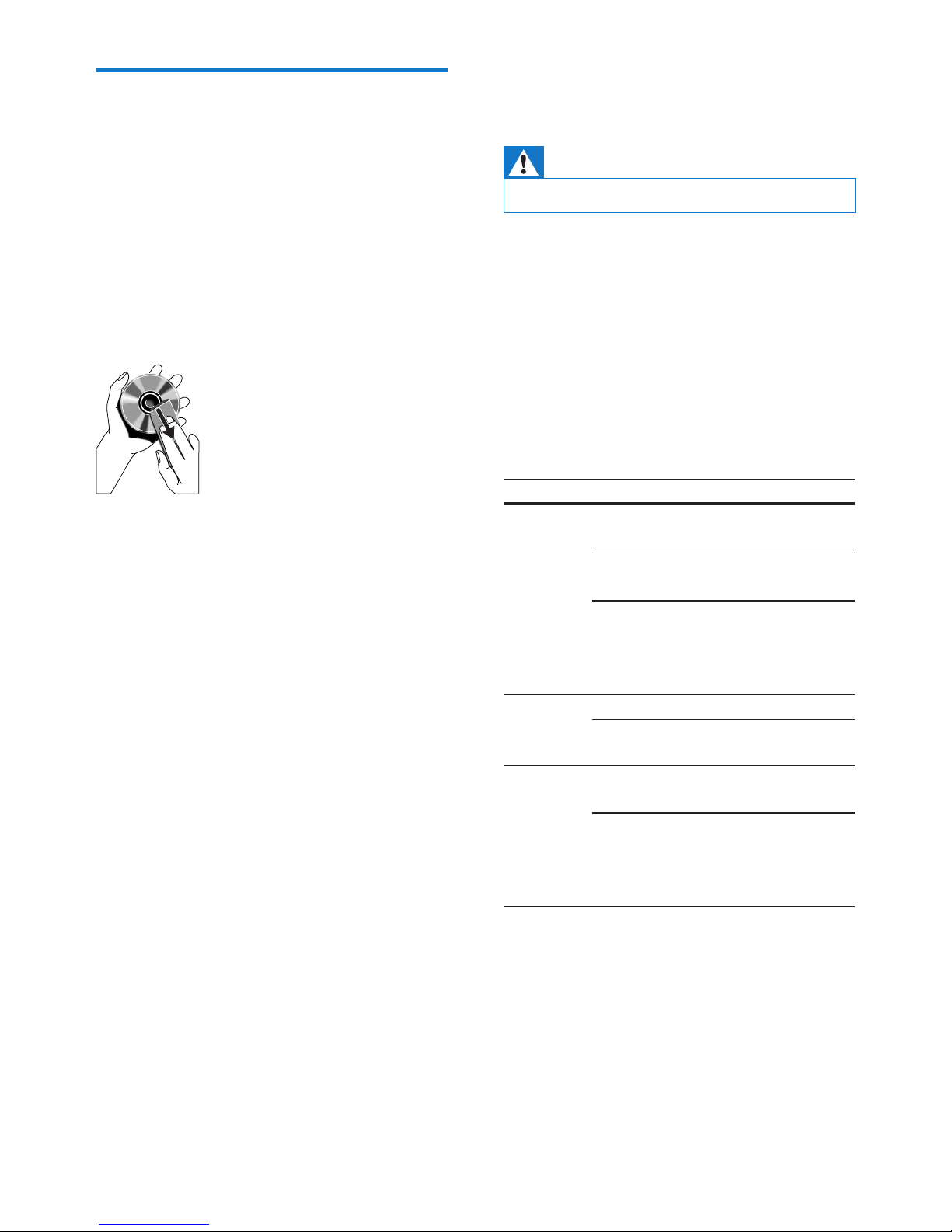

Clean discs

• When a disc becomes dirty, clean it with
a cleaning cloth. Wipe the disc from the
centre out.

• Do not use solvents such as benzene,
thinner, commercially available cleaners,
or antistatic spray intended for analogue
records.

Clean the disc lens

• After prolonged use, dirt or dust may
accumulate at the disc lens. To ensure good

play quality, clean the disc lens with Philips

CD lens cleaner or any commercially
available cleaner. Follow the instructions
supplied with cleaner.

13 Troubleshooting

Warning

• Never remove the casing of this product.

To keep the warranty valid, never try to repair
the product yourself.
If you encounter problems when using this
device, check the following points before

requesting service. If the problem remains

unsolved, go to the Philips Web page
(www.philips.com/support). When you contact
the Consumer Care, make sure that the
product is nearby and the model number and
serial number are available.

Problem Solution

No power. Make sure that the AC power

adaptor is connected properly.
Make sure that there is power at

the AC outlet.
With a power-saving feature, the

product switches off automatically
15 minutes after the product stays
inactivity.

No sound
or poor
sound.

Adjust the volume.
Disconnect the headphones.

No
response
from the
product.

Reconnect the AC power adaptor,
and then turn on the product again.

With a power-saving feature, the
product switches off automatically
15 minutes after the product stays
inactivity.

23EN

Problem Solution

Remote
control
does not
work.

Before you press any function
button, select the correct source
with the remote control instead of
the main unit.

Reduce the distance between the
remote control and the main unit.

Insert the battery with its polarity
(+/– signs) aligned as indicated.

Replace the battery.
Aim the remote control directly at

the sensor on the front panel of the
main unit.

No disc is
detected.

Insert a disc.
Make sure that you place the disc

with its label facing upwards.
Wait until the moisture

condensation at the lens has
cleared.

Replace or clean the disc.
Make sure that the recordable

disc is nalized and the format

supported.

USB
storage
device
is not
supported.

Make sure that the USB storage
device is compatible with the
product.

Tr y another one.

Cannot
play some

les on

the USB
storage
device.

Make sure that the le format is

supported.

Make sure that the le quantity

does not exceed the maximum.

Radio
reception
is poor.

Increase the distance between
the product and other electrical
appliances.

Fully extend the antenna.
Connect an outdoor FM antenna

instead.

Timer
does not
work.

Set the clock correctly.
Activate the timer.

Problem Solution

Clock/
timer
setting is
erased.

Power has been interrupted or
the AC power adaptor has been
disconnected.

Reset the clock/timer.

24 EN

14 Notice

Any changes or modications made to this

device that are not expressly approved by
WOOX Innovations may void the user’s

authority to operate the equipment.

Compliance

This product complies with the radio

interference requirements of the European

Community.

This apparatus includes this label:

Class II equipment symbol:

CLASS II apparatus with double insulation, and
no protective earth provided.

Care of the environment

Your product is designed and manufactured

with high quality materials and components,

which can be recycled and reused.

When this crossed-out wheeled bin symbol is
attached to a product it means that the product
is covered by the European Directive 2002/96/
EC.
Please inform yourself about the local separate
collection system for electrical and electronic
products.
Please act according to your local rules and
do not dispose of your old products with your
normal household waste. Correct disposal of
your old product helps to prevent potential

negative consequences for the environment and

human health.

Your product contains batteries covered by
the European Directive 2006/66/EC, which
cannot be disposed with normal household
waste.Please inform yourself about the local
rules on separate collection of batteries
because correct disposal helps to prevent

negative consequences for the environmental

and human health.

Environmental information

All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and old

equipment.

25EN

Trademark notice

“Made for iPod,” “Made for iPhone,” and “Made
for iPad” mean that an electronic accessory

has been designed to connect specically to

iPod, iPhone, or iPad, respectively, and has

been certied by the developer to meet

Apple performance standards. Apple is not
responsible for the operation of this device
or its compliance with safety and regulatory
standards. Please note that the use of this
accessory with iPod, iPhone, or iPad may affect
wireless performance.
iPod and iPhone are trademarks of Apple Inc.,
registered in the U.S. and other countries. iPad
is a trademark of Apple Inc.

Copyright

2013 © WOOX Innovations Limited. All rights
reserved.
Philips and the Philips’ Shield Emblem are
registered trademarks of Koninklijke Philips N.V.
and are used by WOOX Innovations Limited
under license from Koninklijke Philips N.V.”

Specications are subject to change without

notice. WOOX reserves the right to change
products at any time without being obliged to
adjust earlier supplies accordingly.

Specifications are subject to change without notice
2013 © WOOX Innovations Limited. All rights reserved.
This product was brought to the market by WOOX Innovations Limited or one of its affiliates, further referred to in
this document as WOOX Innovations, and is the manufacturer of the product. WOOX Innovations is the warrantor
in relation to the product with which this booklet was packaged. Philips and the Philips Shield Emblem are registered
trademarks of Koninklijke Philips N.V.

DCB3270_10_UM_V1.0
