Page 1

www.philips.com/welcome

DCB291

EN User manual

Page 2

Contents

1 Important 4

Safety 4

2 Your Docking Entertainment System 5

Introduction 5 What’s in the box 5 Overview of the main unit 6 Overview of the remote control 7

3 Get started 8

Install batteries to the main unit 8 Prepare the remote control 9 Prepare FM/DAB+ antenna 9 Connect power 9 Set time and date 10 Turn on 10

4 Play 11

Play from iPod/iPhone/iPad 11 Play from an external device 11 Adjust sound 12

5 Listen to radio 12

Listen to DAB+ radio 12 Listen to FM radio 14

6 Other features 15

Set the alarm timer 15 Set the sleep timer 15 Adjust display brightness 15

7 Product information 16

Speciﬁcations 16

8 Troubleshooting 17

9 Notice 17

3EN

Page 3

1 Important

Safety

This ‘bolt of lightning’ indicates uninsulated material within your unit may cause an electrical shock. For the safety of everyone in your household, please do not remove product covering. The ‘exclamation point’ calls attention to features for which you should read the enclosed literature closely to prevent operating and maintenance problems. WARNING: To reduce the risk of ﬁre or electric shock, this apparatus should not be exposed to rain or moisture and objects ﬁlled with liquids, such as vases, should not be placed on this apparatus. CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert.

g Do not block any ventilation openings.

Install in accordance with the manufacturer’s instructions.

h Do not install near any heat sources

such as radiators, heat registers, stoves, or other apparatus (including ampliﬁers) that produce heat.

i Protect the power cord from being

walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

j Only use attachments/accessories

speciﬁed by the manufacturer.

l Unplug this apparatus during lightning

storms or when unused for long periods of time.

m Refer all servicing to qualiﬁed service

personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Important Safety instructions

a Read these instructions. b Keep these instructions. c Heed all warnings. d Follow all instructions. e Do not use this apparatus near water. f Clean only with dry cloth.

Page 4

n Battery usage CAUTION – To prevent

battery leakage which may result in bodily injury, property damage, or damage to the unit:

Install all batteries correctly, + and - • as marked on the unit. Do not mix batteries (old and new • or carbon and alkaline, etc.). Remove batteries when the unit is • not used for a long time. Batteries (battery pack or batteries • installed) shall not be exposed to excessive heat such as sunshine, ﬁre or the like.

o Apparatus shall not be exposed to

dripping or splashing.

p Do not place any sources of danger on

the apparatus (e.g. liquid ﬁlled objects, lighted candles).

q Where the plug of the Direct Plug-

in Adapter is used as the disconnect device, the disconnect device shall remain readily operable.

2 Your Docking

Entertainment System

Congratulations on your purchase, and welcome to Philips! To fully beneﬁt from the support that Philips offers, register your product at www.philips.com/welcome.

Introduction

With this unit, you can:

listen to FM/DAB+ radio;• enjoy audio from iPod/iPhone/iPad or • other audio devices; set two alarm timers; and• wake up by buzzer alarm, radio, or audio • in iPod/iPhone/ipad.

Warning

Never remove the casing of this apparatus. • Never lubricate any par t of this apparatus. • Never place this apparatus on other electrical • equipment. Keep this apparatus away from direct sunlight,

•

naked ﬂames or heat. Ensure that you always have easy access to the

•

power cord, plug or adaptor to disconnect the appar atus from the power.

What’s in the box

Check and identify the contents of your package:

Main unit• Remote control (with battery)• Power adapter• MP3 link cable x 1• User manual•

Quick start guide• If you contact Philips, you will be asked for the model and serial number of this apparatus. The model number and serial number are on the rear of the apparatus. Write the numbers here: Model No. __________________________ Serial No. ___________________________

Page 5

Overview of the main unit

p o

ANTENNA

n m

l k

j i

SET TIME

AUTO SCAN

VOL

SLEEP

VOL

ALARM 1

DC IN

REPEAT ALARM

BRIGHTNESS CONTROL

1.9A

d e

f g

ALARM 2

SOURCE

TUNING

PRESET

TUNING

PRESET

a DC IN

Connect power.•

b DOCK for iPod/iPhone/iPad

Load an iPod/iPhone/iPad.•

c PRESET +/-

Select a preset radio station.• Navigate through iPod/iPhone/iPad • menu. Adjust time.•

d TUNING +/-

Tune to a radio station.• Skip to the previous/next audio ﬁle.• Search within an audio ﬁle.• Adjust time.•

e OK/

Start/pause play.• Conﬁrm a selection.•

f SOURCE

Select a source: iPod/iPhone/iPad, • DAB+/FM tuner, or MP3 link.

g REPEAT ALARM/BRIGHTNESS

CONTROL

Repeat alarm.• Adjust display brightness.•

h Display panel

Show current status.•

Page 6

i ALARM 1/ALARM 2

Set alarm timer.• View alarm settings.• Activate/deactivate alarm timer.•

Turn on the unit or switch to • standby mode. Deactivate sleep timer.•

k SET TIME/AUTO SCAN/

Set time and date.• Store radio stations automatically/• manually.

l SLEEP

Set sleep timer.•

m VOL +

n MENU/

o FM antenna

p MP3-LINK

/VOL -

Adjust volume.•

Access iPod/iPhone/iPad/DAB+ • menu.

Improve FM/DAB+ reception.•

Connect an external audio device.•

Overview of the remote control

a b

f g

h i

a POWER

Turn on the unit or switch to • standby mode. Deactivate sleep timer.•

b MENU

Access iPod/iPhone/iPad/DAB+ • menu.

c PRESET +/-

Select a preset radio station.• Navigate through iPod/iPhone/iPad • menu. Adjust time.•

Page 7

d TUNING +/- /

Skip to previous/next audio ﬁle.• Search within an audio ﬁle.• Tune to a radio station.• Adjust time.•

e OK/

Start/pause play.• Conﬁrm a selection.•

f Source selection keys: (FM/DAB, MP3

LINK, and DOCK)

Select a source: FM/DAB+ tuner, • MP3 link, or iPod/iPhone/iPad.

SET TIME/AUTO SCAN

Set the time and date.• Store radio stations automatically/• manually.

h REP AL/BRIGHTNESS

Adjust display brightness.• Repeat alarm.•

i DBB

Turn on or off dynamic bass • enhancement.

j DSC

Select a preset sound setting.•

k AL 1/AL 2

View alarm settings.• Set alarm timer.• Activate/deactivate alarm timer.•

l VOL+/-

Adjust time.•

INFO

Show DAB+/RDS information.•

n SLEEP

Set sleep timer.•

3 Get started

Caution

Use of controls or adjustments or • performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation.

Always follow the instructions in this chapter in sequence.

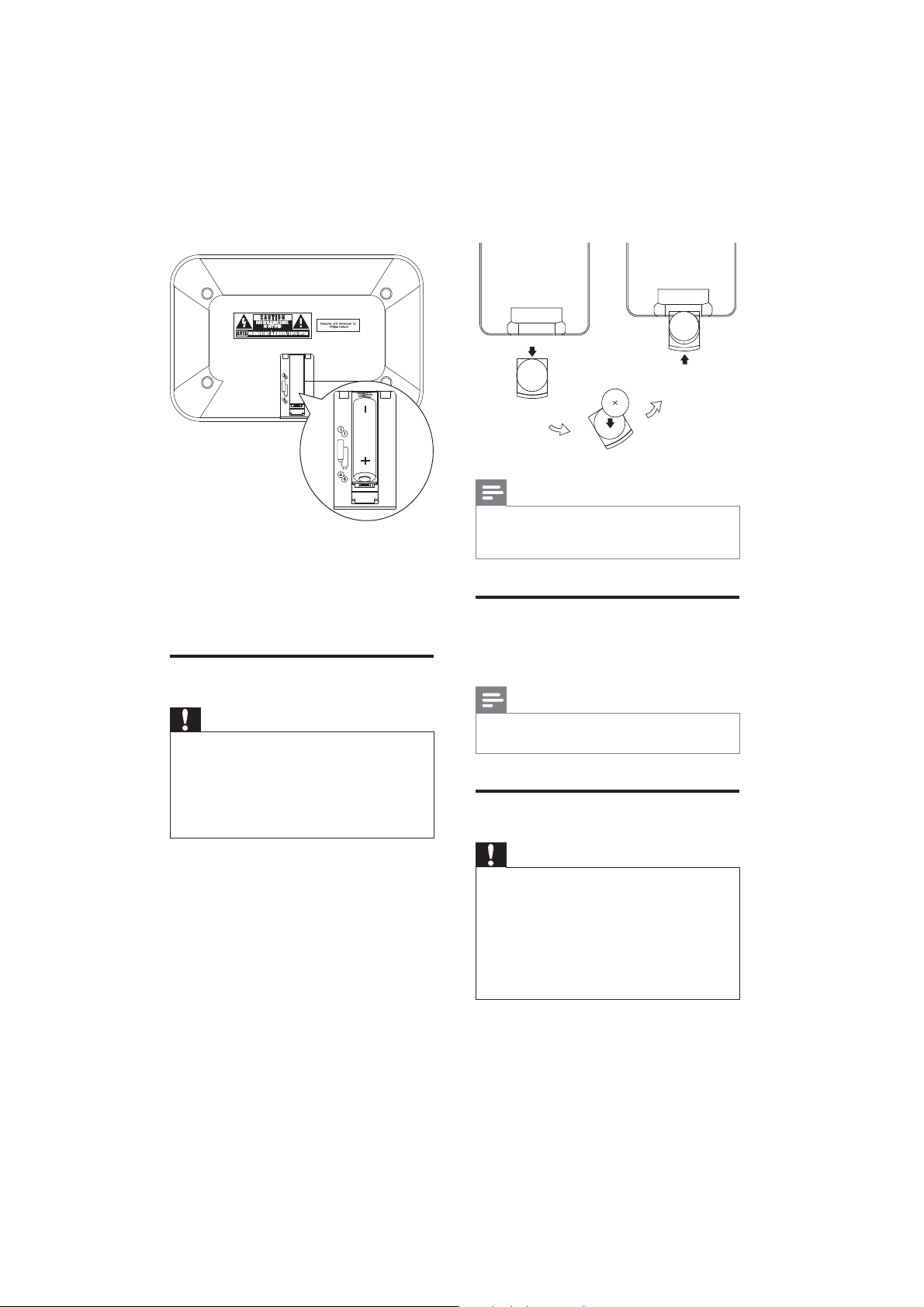

Install batteries to the main unit

Caution

Risk of explosion! Keep batteries away from • heat, sunshine or ﬁre. Never discard bat teries in ﬁre. Remove battery if it is exhausted or will not be

•

used for a long time. Batteries contain chemical substances, so they

•

should be disposed of properly.

Note

You can only use AC power as power supply. • Batteries (not supplied) are for backup purpose.

Page 8

x AA

Note

1 Open the battery compartment. 2 Inser t 2 x AA batteries with correct

polarity (+/-) as indicated.

3 Close the battery compartment.

Prepare the remote control

Caution

Risk of explosion! Keep batteries away from • heat, sunshine or ﬁre. Never discard bat teries in ﬁre. Danger of explosion if battery is incorrectly

•

replaced. Replace only with the same or equivalent type. Keep children away from the battery.

•

For ﬁrst-time use:

Remove the protective tab to activate the remote control battery.

To replace the remote control battery:

1 Open the battery tray. 2 Inser t one lithium CR2025 battery with

correct polarity (+/-) as indicated.

3 Close the battery tray.

Before you press any function button on the • remote control, ﬁr st selec t the correct source with the remote control instead of the main unit.

Prepare FM/DAB+ antenna

For better reception, fully extend and adjust the position of the FM/DAB+ antenna.

Note

Position the antenna as far as possible from TV, • VCR, or other radiation source.

Connect power

Caution

Risk of product damage! Ensure that the • power voltage corresponds to the voltage printed on the back or underside of the unit. Risk of electric shock! When you unplug the

•

power adapter, always pull the plug from the socket. Never pull the cord. Before connecting the power adapter, ensure

•

that you have completed all other connections. Use the supplied power adapter only.

•

Page 9

Note

The type plate is located on the bottom of the • main unit.

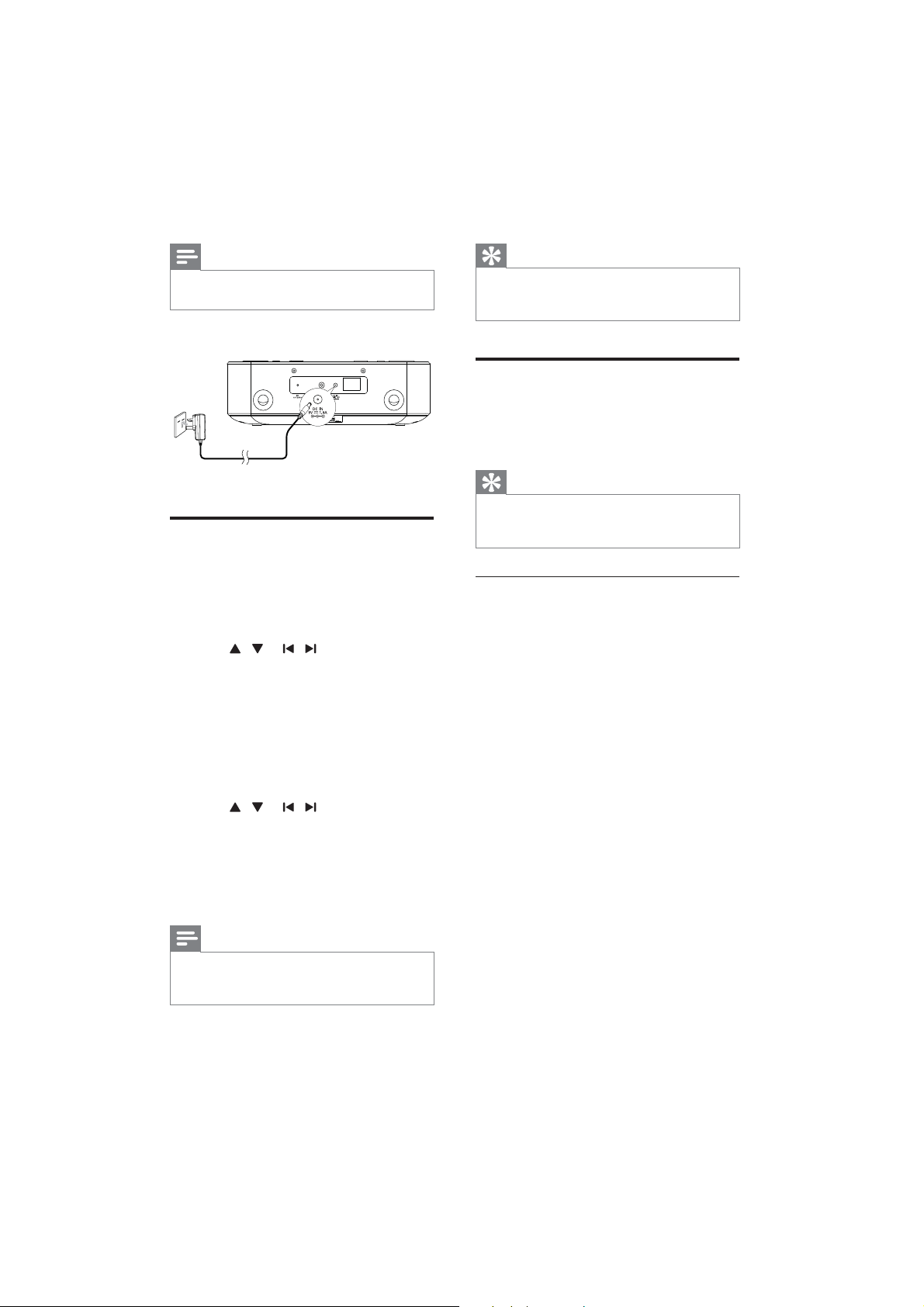

Connect the power adapter to the wall outlet.

Set time and date

In standby mode, press and hold SET

TIME for 2 seconds.

» [SYNC ON] is displayed and [ON]

begins to blink.

2 Press / or / repeatedly to select

ON or OFF.

» [ON]: The unit synchronizes time from

the DAB+ station.

» [OFF]: The time synchronization with

DAB+ station is deactivated.

3 Press SET TIME to conﬁrm.

» [24H] or [12H] begins to blink.

4 Press / or / to select the 12/24

hour format.

5 Press SET TIME to conﬁrm.

The hour digits begin to blink. »

6 Repeat steps 4-5 to set the hour, minute,

year, month, and day.

Tip

The accuracy of the transmit ted time depends • on the DAB+ s tation or the docked iPod/ iPhone/iPad that transmits the time signal.

Turn on

Press POWER.

The unit switches to the last selected » source.

Tip

To select a source, press • SOURCE repeatedly or the source selection buttons on the remote control.

Switch to standby mode

Press POWER again to switch the unit to standby mode.

The time and date (if set) appear on » the display panel.

Note

If clock is not manually set, when iPod/iPhone/ • iPad is connected, the unit synchronizes time from the iPod/iPhone/iPad automatically.

Page 10

4 Play

Play from iPod/iPhone/iPad

You can enjoy audio from iPod/iPhone/iPad through this unit.

Compatible iPod/iPhone/iPad

The unit supports the following iPod, iPhone and iPad models: Made for.

iPod touch (1st, 2nd, 3rd, and 4th • generation) iPod nano (1st, 2nd, 3rd, 4th, 5th, and 6th • generation) iPod mini• iPhone 4• iPhone 3GS• iPhone 3G• iPhone• iPad•

Listen to the iPod/iPhone/iPad

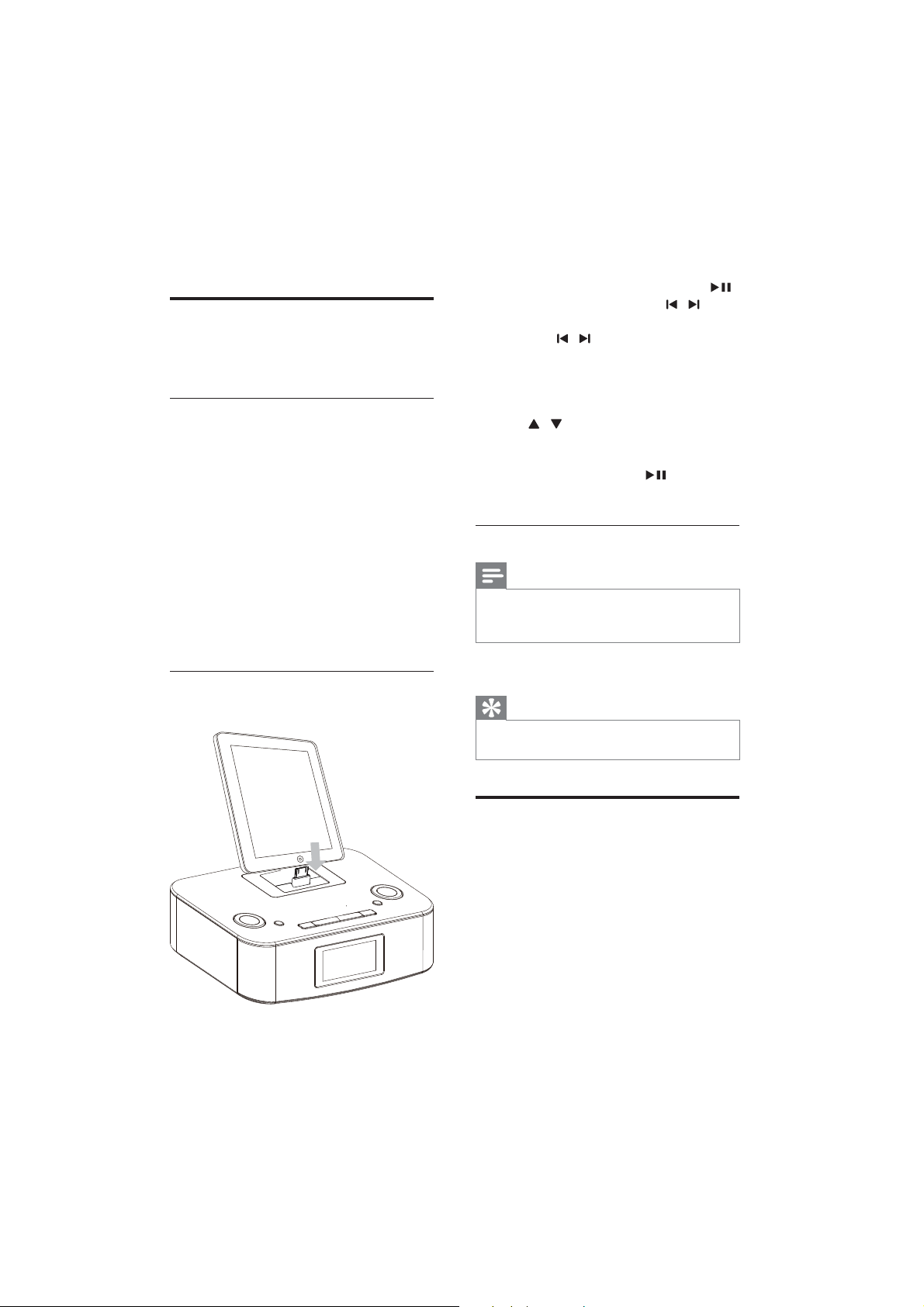

1 Place the iPod/iPhone/iPad into the dock.

2 Press DOCK on the remote control to

select iPod/iPhone/iPad source.

To pause/resume play, press • OK/ To skip to a track, press • To search during play, press and • hold

/ , then release to resume normal play. To go back to the previous iPod/• iPhone/iPad menu, press MENU. To scroll through the menu, press •

/ .

To conﬁrm a selection, press • OK.

If no key is pressed for more than » 10 seconds, OK/ the play/pause key.

Charge the iPod/iPhone/iPad

Note

iPod with color display, iPod classic, and iPod • with video are not compatible with dock charging.

When the unit is connected to power, the docked iPod/iPhone/iPad begins to charge.

Tip

For cer tain iPod models, it may take up to a • minute before the charging indication appears.

/ .

acts back as

Play from an external device

You can also listen to an external audio device through this unit.

1 Press MP3 LINK to select the MP3 link

source.

2 Connect the supplied MP3 link cable to:

the • MP3 LINK socket (3.5mm) on the back of this unit. the headphone socket on an • external device.

3 Start to play the device (see the user

manual of the device).

Page 11

Adjust sound

During play, you can adjust volume and select sound effects:

Function Action To increase/decrease volume Press VOL

+/-.

To turn on/off dynamic bass enhancement

To select a preset sound effect ([FLAT], [ROCK], [JAZZ], [CLASSIC], or [POP])

Press DBB.

Press DSC repeatedly.

5 Listen to radio

Note

Keep the unit away from other elec tronic • devices to avoid radio inter ference. For bet ter reception, do not place iPod/

•

iPhone/iPad into the dock when you listen to the radio. Fully ex tend and adjust the position of the antenna.

Listen to DAB+ radio

DAB+ (Digital Audio Broadcasting) is a way of broadcasting radio digitally through a network of transmitters. It provides you with more choice, better sound quality, and more information. Press FM/DAB repeatedly to select DAB+ mode.

The unit automatically stores all the » available DAB+ radio stations and then broadcasts the ﬁrst available station.

If no DAB service is available, » [NO

SERV] is displayed.

Store DAB+ radio stations automatically

In DAB+ mode, press and hold AUTO SCAN for 3 seconds.

The unit stores all the available DAB+ » radio stations automatically and then broadcasts the ﬁrst available station.

Store DAB+ radio stations manually

1 Tune to a DAB+ radio station. 2 Press AUTO SCAN to activate the

storing mode.

3 Press PRESET +/- to select a number. 4 Press AUTO SCAN to conﬁrm.

Page 12

5 Repeat the above steps to store other

DAB+ stations.

Note

To remove a pre-stored DAB+ radio station, • store another station in its place.

Listen to a preset DAB+ radio station

1 In DAB+ mode, press / repeatedly

to select a DAB+ radio station.

2 Press OK to conﬁrm.

Note

If no DAB+ radio station is available, the steps • mentioned above are invalid.

Use DAB+ menu

1 In DAB+ mode, press and hold MENU to

enter the DAB+ menu.

2 Press / repeatedly to navigate

through the options:

• [MANUAL]: Tune to a speciﬁc channel manually.

• [SCAN]: Perform a wide range of DAB+ radio search.

• [DRC]: Add or remove a degree of compensation for the differences in the dynamic range between radio stations.

• [TUNERRST]: Reset the tuner.

• [VERSION]: Display software version.

3 To select an option, press OK. 4 Repeat steps 2-3 if sub-option is available

under one option.

[MANUAL]

1 In DAB+ mode, press MENU repeatedly

until [MANUAL] is displayed.

2 Press OK to conﬁrm.

A channel and its frequency appear on » the display.

3 Press / repeatedly to tune to a

DAB+ radio station.

4 Press OK to conﬁrm.

[DRC] (Dynamic Range Control)

• [DRC 0]: No compensation applied.

• [DRC 1/2]: Medium compensation applied.

• [DRC 1]: Maximum compensation applied (the default option recommended for noisy environment).

[TUNERRST]

• [YES]: Reset the tuner.

• [NO]: Cancel.

Tip

If no button is pressed within 10 seconds, the • menu exits.

Show DAB+ information

While listening to DAB+ radio, press INFO repeatedly to scroll through the following information (if available):

Dynamic Label Segment (DLS) » Signal strength » Program type (PTY) » Ensemble Name » Channel and frequency » Signal error rate » Bit rate and audio status » Date »

Page 13

Listen to FM radio

Tune to FM radio stations

1 Press FM/DAB to select FM tuner. 2 Press and hold TUNING +/- for 2

seconds.

The unit tunes to an FM radio station

with strong reception automatically.

3 Repeat step 2 to tune to more FM

stations.

To tune to a weak station, press • TUNING +/- repeatedly until you ﬁnd optimal reception.

Listen to a preset FM radio station

In FM tuner mode, press PRESET +/- repeatedly to select a preset number.

Select stereo/mono broadcast

Note

Stereo broadcast is the default setting for FM • tuner mode. For stations with weak signals, to improve the

•

reception, change to monaural sound.

In FM tuner mode, press OK repeatedly to switch between mono and stereo broadcast.

Store FM radio stations automatically

You can store a maximum of 20 FM radio stations. In FM tuner mode, press and hold AUTO SCAN for 2 seconds.

The unit stores all the available FM » radio stations automatically and then broadcasts the ﬁrst available station.

Store FM radio stations manually

1 Tune to an FM radio station. 2 Press AUTO SCAN to activate the

storing mode.

3 Press PRESET +/- to select a number. 4 Press AUTO SCAN to conﬁrm. 5 Repeat the above steps to store other

stations.

Tip

To remove a pre-stored station, store another • station in its place.

Show RDS information

RDS (Radio Data System) is a service that allows FM stations to show additional information. If you tune to an RDS station, the station name is displayed.

1 Tune to an FM station with RDS signal. 2 Press INFO repeatedly to scroll through

the following information (if available):

Station name » Radio text messages » Program type such as » [NEWS] (news),

[SPORT] (sport), [POP M] (pop music)...

Page 14

6 Other features

Set the alarm timer

You can set two alarms to ring at different time.

Note

Ensure that you have set the clock correctly. • (See “Get star ted - Set time and date”.)

1 Press and hold ALARM 1 or ALARM 2

for 2 seconds.

[AL1]/ [AL2] and the hour digits

begin to blink.

2 Press / or / repeatedly to set

the hour.

3 Press ALARM 1 or ALARM 2 to conﬁrm.

[AL1] / [AL2] and the minute

digits begin to blink.

4 Repeat steps 2-3 to set the minute. 5 Repeat steps 2-3 to select whether

to ring alarm for the whole week, on weekdays, or at weekend.

6 Repeat steps 2-3 to select an alarm sound

source: Buzzer, iPhone, FM, or DAB+.

7 Repeat steps 2-3 to set the alarm volume.

Repeat alarm

When alarm rings, press REPEAT ALARM.

The alarm repeats ringing minutes later. »

Tip

You can press • REPEAT ALARM repeatedly to adjust the inter val (5-30 minutes) to repeat alarm.

Stop alarm ring

When the alarm rings, press the corresponding ALARM 1 or ALARM 2.

The alarm stops but the alarm settings » remain.

Set the sleep timer

This unit can switch to standby mode automatically after a preset time period. Press SLEEP repeatedly to select the sleep timer period (in minutes).

When the sleep timer is activated, » appears.

To deactivate the sleep timer:

Press SLEEP repeatedly until [OFF] (off) is displayed.

Activate/deactivate the alarm timer

Note

Ensure that you have already set the alarms • successfully.

1 Press ALARM 1/ALARM 2 to view the

alarm settings.

2 Press ALARM 1/ALARM 2 repeatedly to

activate or deactivate the alarm timer.

The alarm icon appears if the alarm » timer is on and disappears if it is off.

Adjust display brightness

Press BRIGHTNESS CONTROL repeatedly to select different brightness levels.

Page 15

7 Product

information

Note

Product information is subject to change • without prior notice.

Speciﬁcations

Ampliﬁer

Rated Output Power 2 x 5 W RMS Frequency Response 20 -20000 Hz, -3dB Signal to Noise Ratio >67 dB Total Harmonic

Distortion Aux Input (MP3 link) 0.5 V RMS 20kohm

Tuner (FM)

Tuning range 87.5 - 108 MHz Tuning grid 50 KHz Sensitivity

- Mono, 26dB S/N Ratio

- Stereo, 46dB S/N Ratio Search Selectivity >28 dBf Total Harmonic Distortion <2% Signal to Noise Ratio >55 dB

<1%

<22 dBu <43 dBu

General information

AC power (Power adapter)

Operation Power Consumption

Standby Power Consumption

Dimensions

- Main Unit (W x H x D)

Weight

- With Packing

- Main Unit

Input: 100-240V~, 50/60Hz, 0.7A; Output: 9.0V

1.9A; Brand name: Philips; Model No.: AS190-090-BI190

15 W

<1 W

263x 114 x 165 mm

2.1 kg

1.4 kg

Tuner (DA B+)

DAB+ tuning range 174.92 - 239.20MHz

Speakers

Speaker Impedance 4 ohm Sensitivity >82dB/m/W

Page 16

8 Troubleshooting

9 Notice

Warning

Never remove the casing of this apparatus. •

To keep the warranty valid, never try to repair the system yourself. If you encounter problems when using this apparatus, check the following points before requesting service. If the problem remains unsolved, go to the Philips web site (www. philips.com/welcome). When you contact Philips, ensure that the apparatus is nearby and the model number and serial number are available.

No power

Ensure that the AC power plug of the • unit is connected properly. Ensure that there is power at the AC • outlet. Ensure that the batteries are inser ted • correctly.

No sound

Adjust the volume. •

No response from the unit

Disconnect and reconnect the AC power • plug, then turn on the unit again.

Poor radio reception

Increase the distance between the unit • and your TV or VCR . Fully ex tend the FM/DAB+ antenna. •

Alarm does not work

Set the clock/alarm correctly. •

Clock/alarm setting erased

Power has been interrupted or the power • plug has been disconnected. Reset the clock/alarm. •

This product complies with the radio interference requirements of the European Community. Any changes or modiﬁcations made to this device that are not expressly approved by Philips Consumer Lifestyle may void the user’s authority to operate the equipment.

“Made for iPod,” “Made for iPhone,” and “Made for iPad” mean that an electronic accessory has been designed to connect speciﬁcally to iPod, iPhone, or iPad, respectively, and has been certiﬁed by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, iPhone, or iPad may affect wireless performance. iPod and iPhone are trademarks of Apple Inc., registered in the U.S. and other countries. iPad is a trademark of Apple Inc.

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/EC.

Page 17

Please inform yourself about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed with normal household waste.Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environmental and human health.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.) Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment. 2011 © Koninklijke Philips Electronics N.V. All rights reserved. Speciﬁcations are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners. Philips reserves the right to change products at any time without being obliged to adjust earlier supplies accordingly.

Page 18

19EN

Page 19

DCB291_05_UM_V3.0

ASDA Electrical Helpline

0800 952 0101
