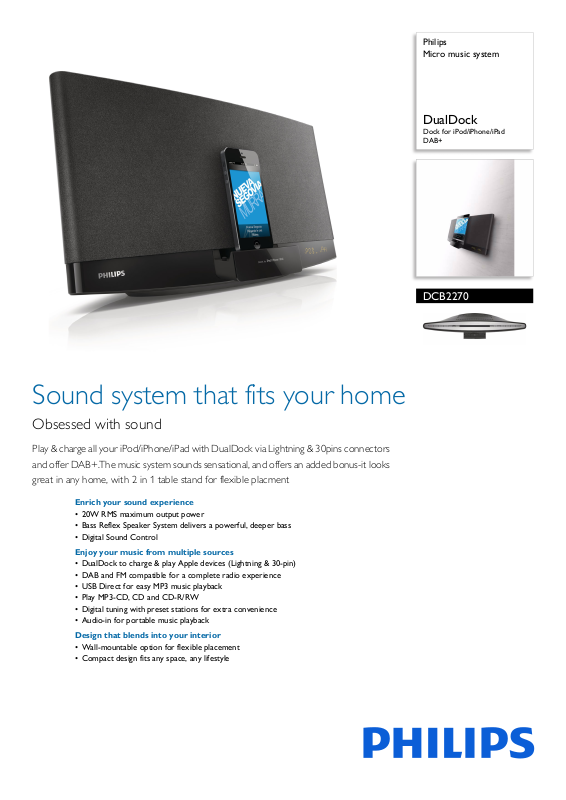

Page 1
Philips
Micro music system
DualDock
Dock for iPod/iPhone/iPad
DAB+
DCB2270
Sound system that fits your home
Obsessed with sound
Play & charge all your iPod/iPhone/iPad with DualDock via Lightning & 30pins connectors
and offer DAB+.The music system sounds sensational, and offers an added bonus-it looks
great in any home, with 2 in 1 table stand for flexible placment
Enrich your sound experience
• 20W RMS maximum output power
• Bass Reflex Speaker System delivers a powerful, deeper bass
• Digital Sound Control
Enjoy your music from multiple sources
• DualDock to charge & play Apple devices (Lightning & 30-pin)
• DAB and FM compatible for a complete radio experience
• USB Direct for easy MP3 music playback
• Play MP3-CD, CD and CD-R/RW
• Digital tuning with preset stations for extra convenience
• Audio-in for portable music playback
Design that blends into your interior
• Wall-mountable option for flexible placement
• Compact design fits any space, any lifestyle
Page 2
Micro music system
DualDock Dock for iPod/iPhone/iPad, DAB+
Highlights
DCB2270/10
DualDock to charge & play
DualDock to charge & play Apple devices
(Lightning & 30-pin)
Bass Reflex Speaker System
Bass Reflex Speaker System delivers a deep
bass experience from a compact loudspeaker
box system. It differs from a conventional
loudspeaker box system in the addition of a
bass pipe that is acoustically aligned to the
woofer to optimize the low frequency roll-off
of the system. The result is deeper controlled
bass and lower distortion. The system works
by resonating the air mass in the bass pipe to
vibrate like a conventional woofer. Combined
with the response of the woofer, the system
extends the overall low frequency sounds to
create a whole new dimension of deep bass.
Wall-mountable
The perfect combination of a slim and versatile
design, your Philips audio system is cleverly
designed to blend into your living space. The
base of the audio system is a stand so the
system can sit securely and nicely on any shelf
or cabinet. When wall mounted you have all
the same flexibility of the freestanding stand.
USB Direct for easy MP3 music
Thanks to the complete file transferability, you
can easily enjoy the convenience and fun of
accessing more digital music via the built-in
USB Direct.
Digital Sound Control
Digital Sound Control offers you a choice of
p
re-set balanced, clear, powerful, warm and
bright controls you can use to optimise the
frequency ranges for different musical styles.
Each mode uses graphic equalizing technology
to automatically adjust the sound balance and
enhance the most important sound
frequencies in your chosen music style.
Ultimately, Digital Sound Control makes it
easy for you get the most out of your music by
precisely adjusting the sound balance to match
the type of music you are playing.
DAB and FM compatible
DAB (Digital Audio Broadcasting) digital radio
is, on top of FM analog transmission, a new way
of broadcasting radio via a network of
terrestrial transmitters. It provides listeners
with more choices and information delivered
in clear, crackle-free sound quality. The
technology allows the receiver to lock on to
the strongest signal it can be find. With DAB
digital stations there are no frequencies to
remember, and sets are tuned by station name,
so there is no returning on the move.
Wall-mountable
Page 3
Micro music system
DualDock Dock for iPod/iPhone/iPad, DAB+
Specifications
DCB2270/10
Sound
• Volume control: up/down
• Maximum output power (RMS): 20W
• Sound Enhancement: Digital Sound Control
Loudspeakers
• No. of built-in speakers: 2
• Speaker drivers: 2.75" woofer
• Speaker types: bass reflex speaker system
Audio playback
• Disc playback modes: fast forward/backward, next/
previous track search, repeat/shuffle/program
• Playback media: CD, CD-R/RW, MP3-CD, USB
ash drive
fl
• USB Direct playback modes: fast backward/fast
d, play/pause, previous/next, repeat, shuffle,
forwar
stop
• Docking playback modes: fast forward and
kward, menu, up and down, next and previous
bac
track, play and pause
Tuner/Reception/Transmission
• Tuner bands: FM mono, FM stereo
• Station presets: 20
• Antenna: FM antenna (75 ohm)
• Tuner enhancement: auto digital tuning, auto scan,
y set (plug & play)
Eas
• DAB/DAB+: Info display, Menu, Smart scan
• RDS: program type, radio text, RDS clock set,
ation name
st
Connectivity
• Headphone: 3.5 mm
• USB: USB host
• Audio in (3.5mm)
Convenience
• Alarms: CD Alarm, Radio Alarm, USB alarm
• Clock: On main display, sleep timer
• Charging device: iPad, iPho
• Display type: LED display
• Loader type: slot
ne, iPod
Accessories
• Included accessories: AC-DC Adapter, FM antenna
• Remote control: 21-key remote
• User Manual: Multi languages
Dimensions
•Set dimensions (W x D): 420 x 99 mm
• Set height (with stand): 223 mm
• Packaging width: 460 mm
• Packaging height: 142 mm
• Packaging depth: 265 mm
•Gross weight: 4.2 kg
• Net weight: 3.3 kg
Power
• Power supply: 110-240V, 50/60 Hz
iPod compatibility
• Compatible with: iPod nano 7th generation, iPod
touch 5th generation, iPod 5th generation, iPod
5th Generation, iPod 6th Generation, iPod nano
4th generation, iPod nano 5th generation, iPod
nano 5th Generation, iPod nano 6th generation,
iPod touch 2nd Gen 8/16/32GB, iPod touch 3rd
generation, iPod touch 4th generation
iPhone compatibility
• Compatible with: iPhone 5, iPhone, iPhone 3G,
iPhone 3GS, iPhone 4, iPhone 4S
iPad compatibility
• Compatible with: iPad mini, iPad with Retina
display, iPad, iPad 2, The new iPad
•
Issue date 2013-09-26
Version: 1.0.6
12 NC: 8670 001 05531
EAN: 87 12581 69446 3
© 2013 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
