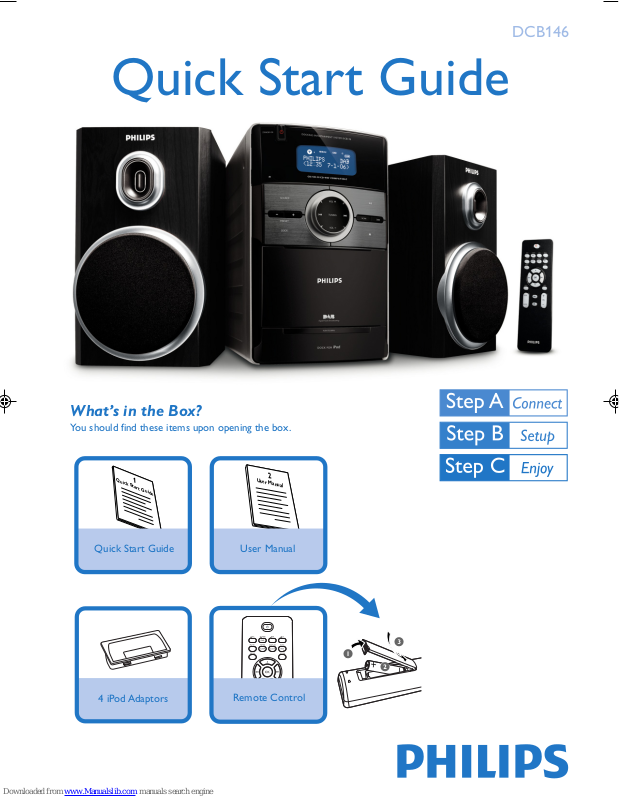

Quick Start Guide
DCB146
What’s in the Box?
You should find these items upon opening the box.
Quick Start Guide
1
Quick Start Guide
4 iPod Adaptors
Remote Control
2
User Manual
User Manual
3
1
2
Page 2
Connection
1
Connect the speaker wires to the SPEAKERS terminals.
Connect the power cord of the system to the AC power outlet.
2
DAB/FM wire antenna
speaker
(right)
1
2
Tip:
It is unnecessary to connect the DAB/ FM antenna since it
is fixed to the main unit.
speaker
(left)
AC power cord
Page 3
Setting the clock
1
In standby mode, press and hold
DISPLAY/CLOCK on the remote control
set for 2 seconds.
2
Press PROG to select 12-hour or 24-hour display.
3
Press DISPLAY/CLOCK to confirm.
➜ The clock digits for the hours flash.
4
Press TUNING 4 ¢ (or 4 ¢ on the remote
control) to set the hours.
Press DISPLAY/CLOCK again.
5
➜ The clock digits for the minutes flash.
6
Press TUNING 4 ¢ (or 4 ¢ on the remote control) to set
the minutes.
7
Press DISPLAY/CLOCK to confirm the time.
Playing a disc
1
Select CD source.
Lift the CD door on the top of the system to open the CD compartment.
2
Insert a disc with the printed side facing up and press down
3
on PULL TO OPEN to close the CD door.
4
PressÉÅto start playback.
5
Press 9 to stop playback.
Page 4
Tuning to DAB stations
1
Press SOURCE (or DAB on the remote control)
to select DAB to start an automatic search of available DAB
stations.
2
Press 4 / ¢ to change the DAB stations.
Press OK to confirm a selection.
3
To perform a local scan (in UK ), press briefly SCAN.
4
To perform a full scan (outside UK ), press and hold SCAN.
5
To access setup options, press MENU then use the navigation
control buttons to select.
Programming and tuning to FM
stations
1
Select FM TUNER source.
2
Press SCAN for more than two seconds to program all
available stations (FM only).
Press PRESET +/- ( or 3 / 4 on the remote control ) until the
3
desired preset station is displayed.
Page 5
Playing iPod using the dock
MIC
PUSH TO OPEN
DOCK FOR iPOD
RO SYSTEM DCB146
SOURCE
DOCK
STANDBY-ON
CD/CD-R/CD-RW COMPATIBLE
PRESET
iR
VOL
VOL
TUNING
1
Press PUSH TO OPEN to open the dock.
2
Select the dock adaptor of the correct type and size, and snap it into the
dock.
➜ Each iPod adaptor has its indication to fit a specific iPod.
Correctly place your iPod in the dock.
3
4
Press SOURCE repeatedly or DOCK on the set (or iPOD
on the remote control) to select iPod source.
➜ The connected player will play automatically.
➜ The iPod battery will be charged in either normal standby mode or power-on mode.
Tip:
Detailed playback features and
additional functions are described in
the accompanied user manual.
Notes for the remote control:
– First, select the source you wish to
control by pressing one of the source select
keys on the remote control (DISC or AUX,
for example).
– Then select the desired function ( 2;,
4, ¢ for example).
© Royal Philips Electronics N.V. 2010
All rights reserved.
http://www.philips.com
DCB146_05_QSG_V2.0
