Page 1

www.philips.com/welcome

DC5070

EN User manual 3

DA Brugervejledning 19

DE Benutzerhandbuch 35

EL Εγχειρίδιο χρήσης 53

FI Käyttöopas 73

FR Mode d’emploi 89

IT Manuale utente 107

NL Gebruiksaanwijzing 125

Page 2

Page 3

English

8 Other features 16

Set the sleep timer 16 Set the alarm timer 16 Listen to an external device 16

9 Product information 17

Speciﬁcations 17 USB playability information 17

10 Troubleshooting 18

Contents

1 Important 4

Safety 4 Notice 5

2 Your Docking Entertainment System

Introduction 6 What’s in the box 6 Overview of the main unit 7 Overview of the remote control 8

3 Get started 9

Connect FM antenna 9 Connect power 10 Prepare the remote control 10 Set clock 10 Turn on 11

4 Play 11

Play iPod/iPhone/iPad 11 Play from USB 13

5 Play options 13

Pause/resume play 13 Stop play 13 Skip to a track 13 Search within a track 13 Repeat play 13 Shufﬂe play 14 Program tracks 14

6 Listen to the radio 14

Tune to a radio station 14 Program radio stations 14 Select a preset radio station 15

7 Adjust sound 15

Adjust volume 15 Select a preset sound effect 15 Enhance bass 15 Mute sound 15

Page 4

Protect the power cord from being • walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the device.

Only use attachments/accessories • speciﬁed by the manufacturer.

Unplug this device during lightning storms • or when unused for long periods of time.

Refer all servicing to qualiﬁed service • personnel. Servicing is required when the device has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the device, the device has been exposed to rain or moisture, does not operate normally, or has been dropped.

Battery usage CAUTION – To prevent • battery leakage which may result in bodily injury, property damage, or damage to the unit:

Install all batteries correctly, + and - • as marked on the unit.

Do not mix batteries (old and new • or carbon and alkaline, etc.).

Remove batteries when the unit is • not used for a long time.

Batteries (battery pack or batteries • installed) shall not be exposed to excessive heat such as sunshine, ﬁre or the like.

Devices shall not be exposed to dripping • or splashing.

Do not place any sources of danger on • the device (e.g. liquid ﬁlled objects, lighted candles).

Where the MAINS plug or an appliance • coupler is used as the disconnect device, the disconnect device shall remain readily operable.

1 Important

Safety

This ‘bolt of lightning’ indicates uninsulated material within your unit may cause an electrical shock. For the safety of everyone in your household, please do not remove product covering.

The ‘exclamation mark’ draws attention to features for which you should read the enclosed literature closely to prevent operational and maintenance problems.

WARNING: To reduce the risk of ﬁre or electric shock, this device should not be exposed to rain or humidity and objects ﬁlled with liquids, such as vases, should not be placed on this device.

CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert.

Important Safety Instructions

Read these instructions.• Heed all warnings.• Follow all instructions.• Do not use this device near water.• Clean only with dry cloth.• Do not block any ventilation openings. •

Install in accordance with the manufacturer’s instructions.

Do not install near any heat sources such • as radiators, heat registers, stoves, or other devices (including ampliﬁers) that produce heat.

Page 5

English

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/EC.

Please inform yourself about the local separate collection system for electrical and electronic products.

Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed with normal household waste. Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for environmental and human health.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.)

Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

The making of unauthorized copies of copyprotected material, including computer programs, ﬁles, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offence. This equipment should not be used for such purposes.

Warning

Never remove the casing of this device. • Never lubricate any part of this device. • Never place this device on other electrical •

equipment. Keep this device away from direct sunlight, •

naked ﬂames or heat. Never look into the laser beam inside this device.

•

Ensure that you always have easy access to the • power cord, plug or adapter to disconnect this device from the power.

Mains fuse

This information applies only to products with a UK mains plug.

This product is ﬁtted with an approved molded plug. If you replace the fuse, use one with:

the ratings shown on the plug,• a BS 1362 approval, and• the ASTA approval mark.•

Contact your dealer if you are not sure about what type of fuse to use.

Caution: To conform with the EMC directive (2004/108/EC), do not detach the plug from the power cord.

Notice

Any changes or modiﬁcations made to this device that are not expressly approved by Philips Consumer Lifestyle may void the user’s authority to operate the equipment.

This product complies with the radio interference requirements of the European Community.

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

Page 6

2 Your Docking

Entertainment System

Congratulations on your purchase, and welcome to Philips! To fully beneﬁt from the support that Philips offers, register your product at www.philips.com/welcome.

Introduction

With this unit, you can:

enjoy audio from iPod/iPhone/iPad, USB • devices, and other external devices

listen to radio stations•

You can enrich sound output with these sound effects:

Dynamic Bass Boost (DBB)• Digital Sound Control (DSC)•

The unit supports the following media formats:

What’s in the box

Check and identify the contents of your package:

Main unit• Remote control with two AAA batteries• 2 x power cords (for EU and UK)• MP3 link cable• FM antenna• User manual• Quick start guide•

Windows Media and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other countries.

“Made for iPod,” “Made for iPhone,” and “Made for iPad” mean that an electronic accessory has been designed to connect speciﬁcally to iPod, iPhone, or iPad, respectively, and has been certiﬁed by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, iPhone, or iPad may affect wireless performance.

iPod and iPhone are trademarks of Apple Inc., registered in the U.S. and other countries. iPad is a trademark of Apple Inc.

Note

The type plate is located on the back of the • unit.

Norge

Typeskilt ﬁnnes på apparatens underside. Observer: Nettbryteren er sekundert

innkoplet. Den innebygde netdelen er derfor ikke frakoplet nettet så lenge apparatet er tilsluttet nettkontakten.

For å redusere faren for brann eller elektrisk støt, skal apparatet ikke utsettes for regn eller fuktighet.

Page 7

English

DBB

Turn the Dynamic Bass Boost (DBB) • on/off.

DSC

Select a preset sound setting.•

Turn the unit on.• Switch to standby mode or Eco •

power standby mode.

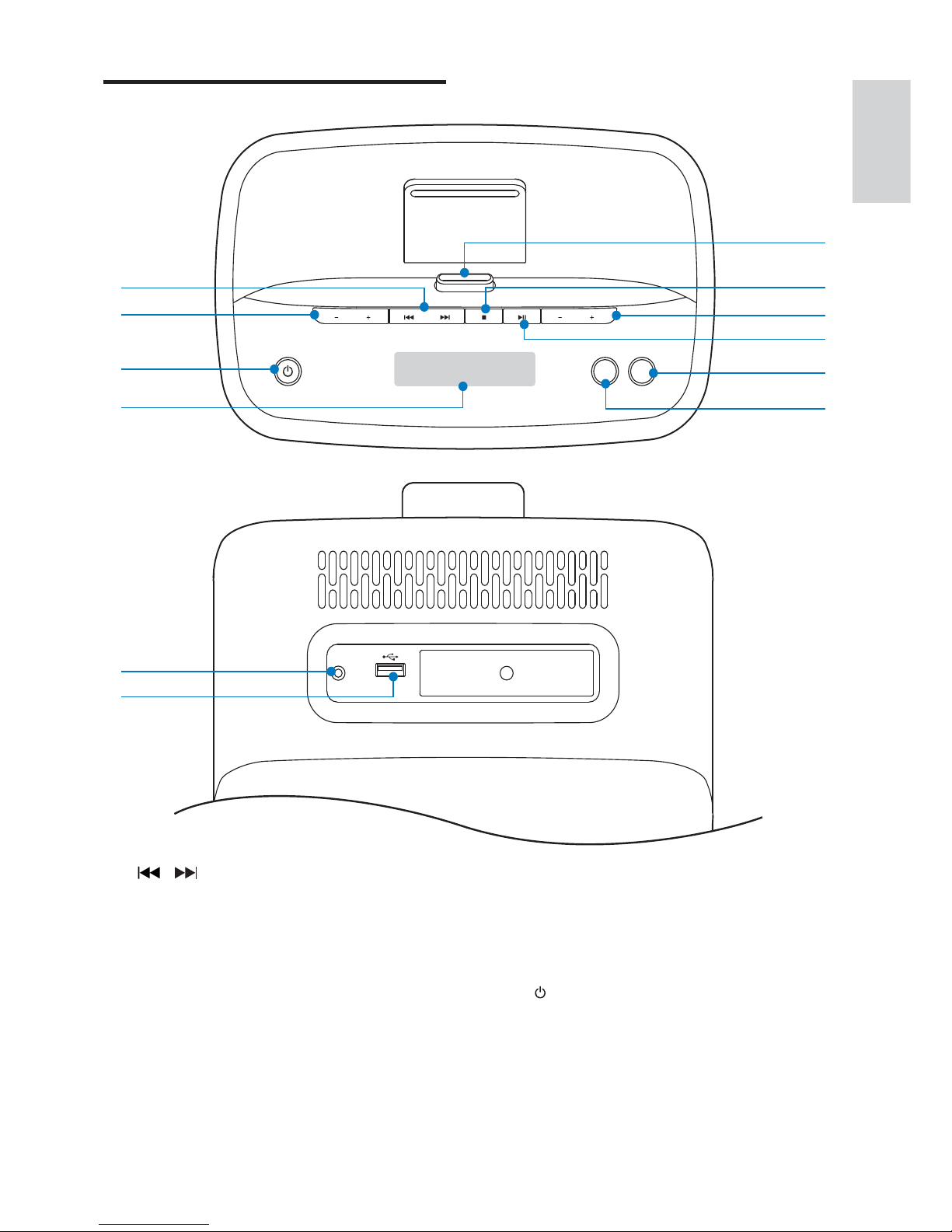

Overview of the main unit

a /

Skip to the previous/next track.• Search within a track.• Tune to a radio station.• Set clock and timer.•

b -PRESET+

Select a preset radio station.• Skip to the previous/next album.•

VOLUME

DBB DSC

PROG SRC

PRESET

DOCK for iPod/iPhone/iPad

DOCKING SYSTEM DC5070

AUX

h g

Page 8

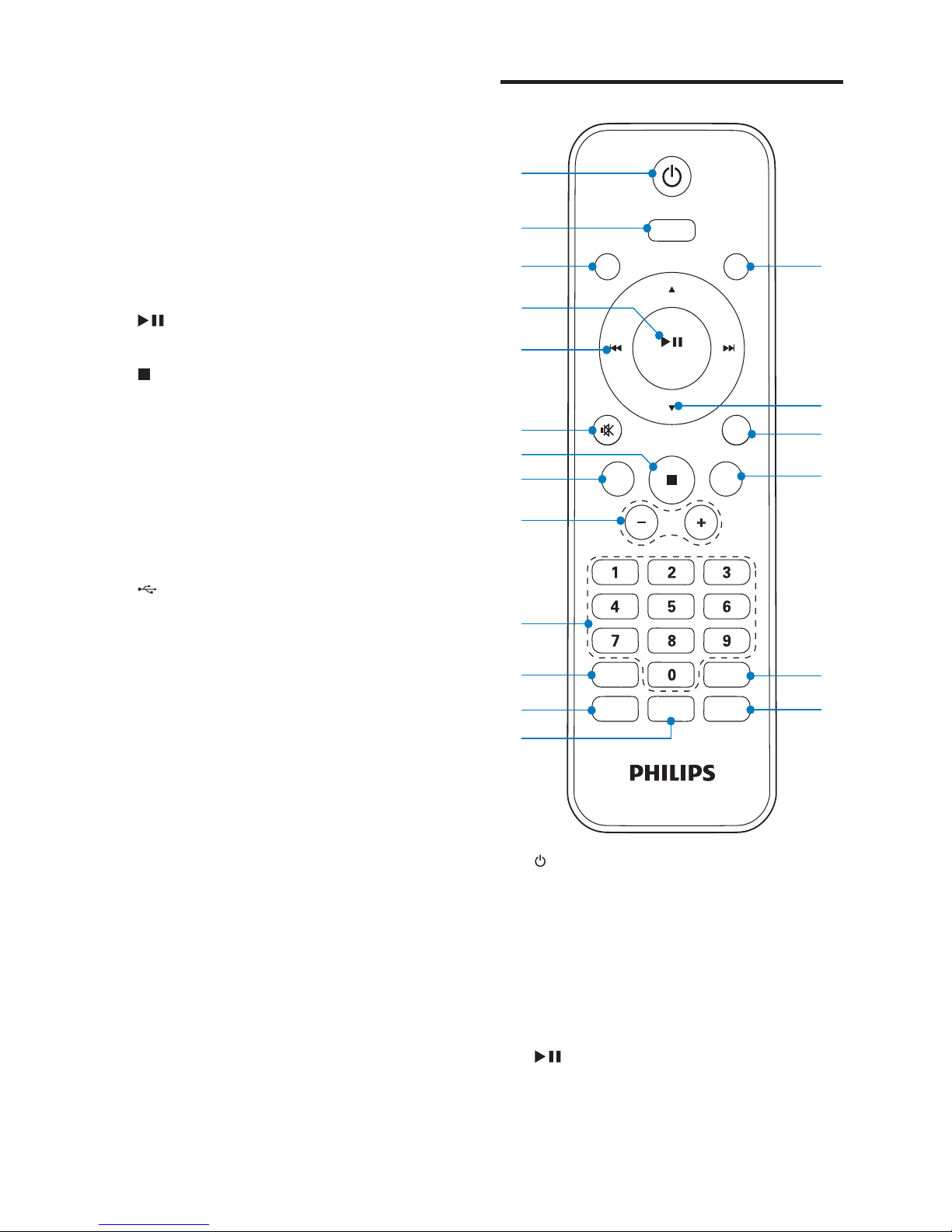

Overview of the remote control

Turn the unit on.• Switch to standby mode or Eco •

power standby mode.

b DOCK

Select iPod/iPhone/iPad source.•

c USB

Select USB source.•

/OK

Start or pause play.• Conﬁrm a selection.•

PRESET/ALBUM

DOCK

USB TUNER

AUX

DBBDSC

REPEAT

SHUFFLEPROG

SLEEP/ TIMER

CLOCK

VOL

r q

o n

k l

d Display panel

Show current status.•

e PROG

Program tracks.• Program radio stations.• Set the clock.•

f SRC

Select a source: FM TUNER, iPod/• iPhone/iPad, USB, or AUX.

Start or pause play.•

Stop play or erase a program.•

i VOL +/-

Adjust volume.•

j DOCK

Dock for iPod/iPhone/iPad.•

k AUX

Connect an external audio device.•

USB socket.•

Page 9

English

3 Get started

Caution

Use of controls, or adjustments or • performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation.

Always follow the instructions in this chapter in sequence.

If you contact Philips, you will be asked for the model and serial number of this device. The model number and serial number are on the back of the device. Write the numbers here:

Model No. __________________________ Serial No. ___________________________

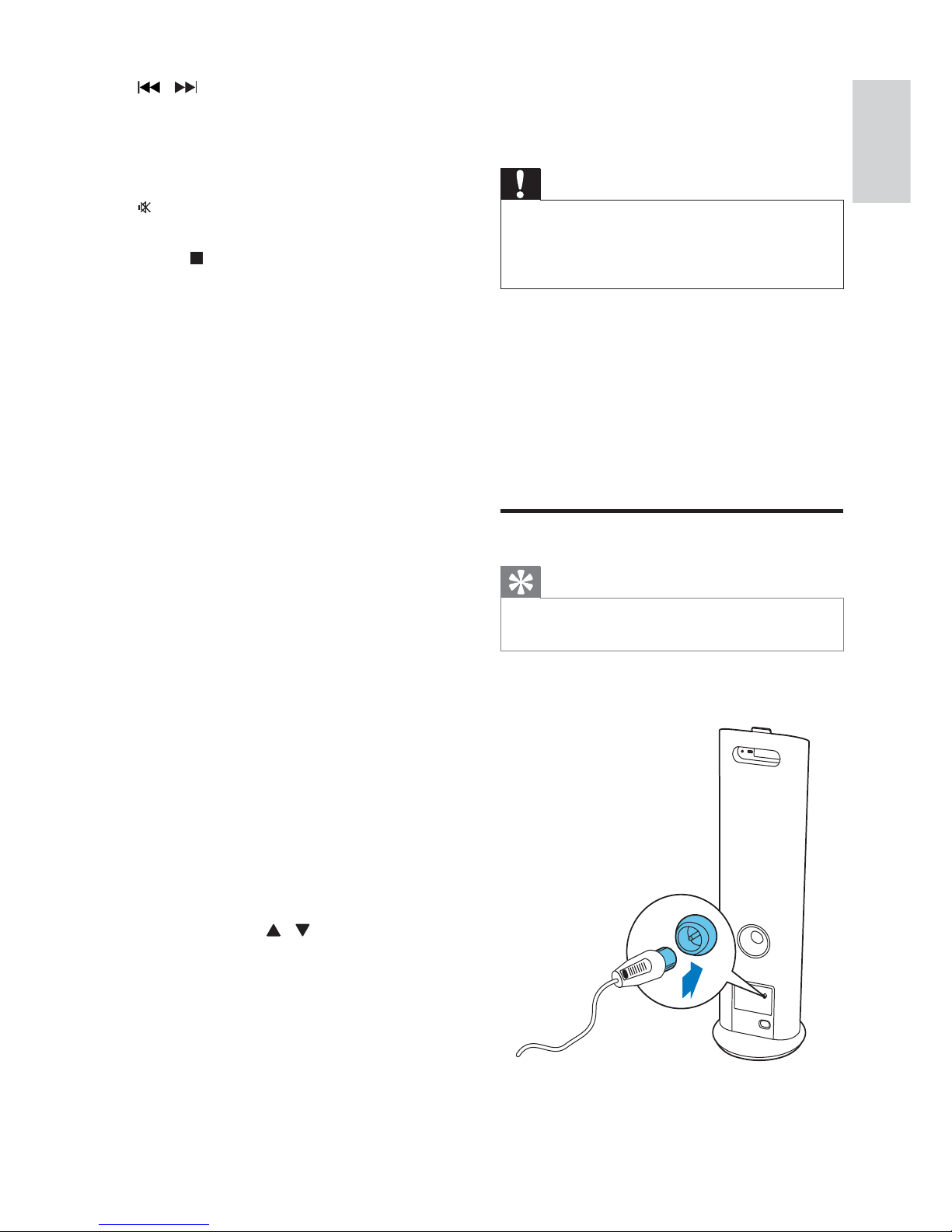

Connect FM antenna

Tip

For optimal reception, fully extend and adjust • the position of the antenna.

Connect the supplied FM antenna to the FM AERIAL jack on the back of the main unit.

e /

Skip to the previous/next track.• Search within a track.• Tune to a radio station.• Set clock and timer.•

Mute or restore sound.•

g Menu/

Access the iPod/iPhone/iPad menu.• Stop play or erase a program.•

h DSC

Select a preset sound setting.•

i VOL +/-

Adjust volume.•

j Numeric keypad

Select a track.• Select a preset radio station.•

k CLOCK

Set the clock.•

l SLEEP/TIMER

Set the sleep timer.• Set the alarm timer.•

m PROG

Program tracks.• Program radio stations.•

n SHUFFLE

Select shufﬂe play mode.•

o REPEAT

Select repeat play mode.•

p DBB

Turn the Dynamic Bass Boost (DBB) • on/off.

q AUX

Select AUX source.•

r PRESET/ALBUM

Select a preset radio station.• Skip to previous/next album.• Navigate through the iPod/iPhone/•

iPad menu.

s TUNER

Select FM source.•

Page 10

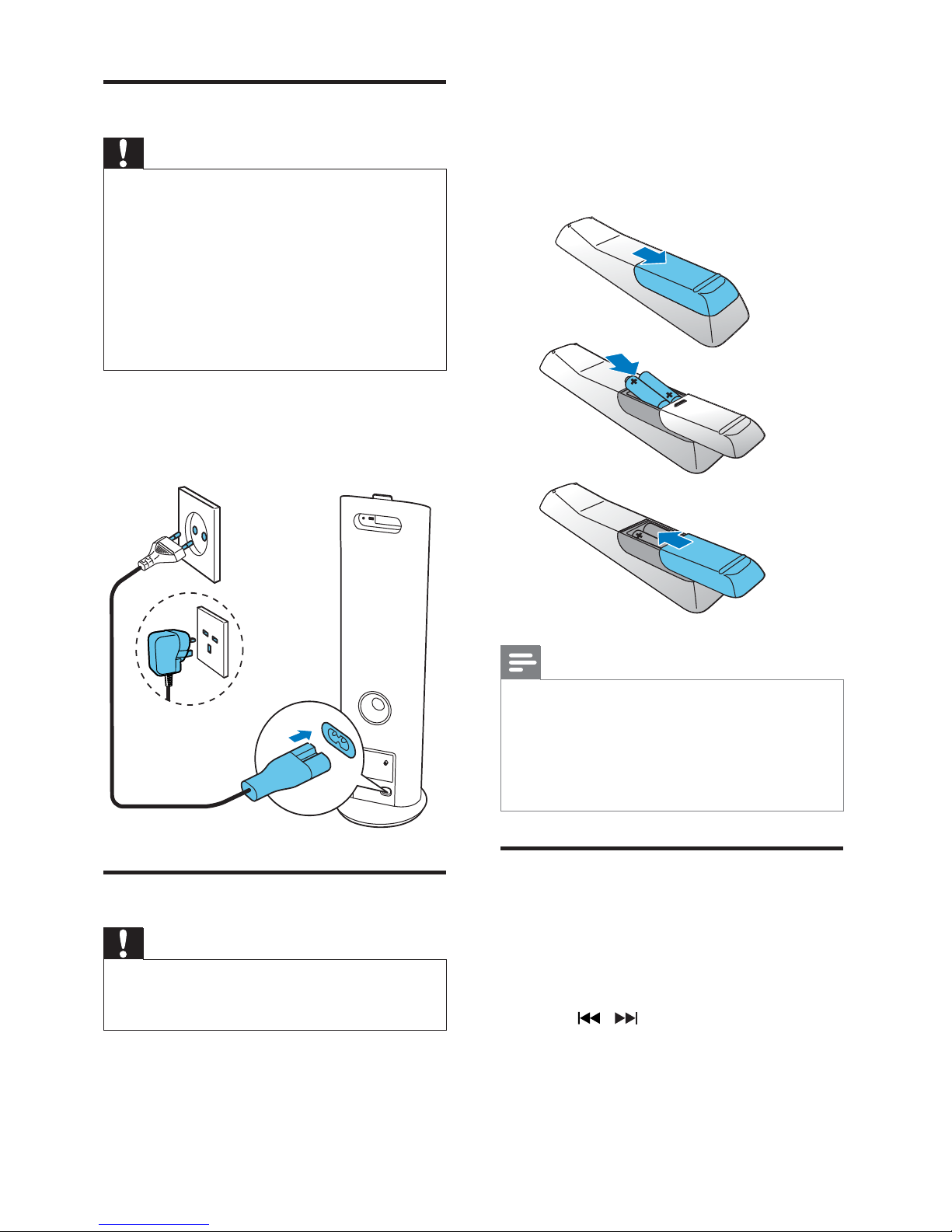

To insert the remote control battery:

1 Open the battery compartment. 2 Insert 2 AAA batteries with correct

polarity (+/-) as indicated.

3 Close the battery compartment.

Note

If you are not going to use the remote control • for a long time, remove the batteries.

Do not use old and new or different types of

•

batteries in combination. Batteries contain chemical substances, so they

•

should be disposed of properly.

Set clock

1 In standby mode, press and hold CLOCK

for more than two seconds to activate the clock setting mode.

The 12 hour or 24 hour format is » displayed.

2 Press / to select 12 hour or 24

hour format, and then press CLOCK.

The hour digits are displayed and begin » to blink.

Connect power

Caution

Risk of product damage! Ensure that the • power supply voltage corresponds to the voltage printed on the back or the underside of the unit.

Risk of electric shock! When you unplug the

•

AC power cord, always pull the plug from the socket. Never pull the cord.

Before connecting the AC power cord, ensure

•

you have completed all other connections.

Connect the power cord to:

the • AC~MAINS jack on the back of the main unit.

the wall outlet.•

Prepare the remote control

Caution

Risk of explosion! Keep batteries away from • heat, sunshine or ﬁre. Never discard batteries in ﬁre.

Page 11

English

4 Play

Play iPod/iPhone/iPad

You can enjoy audio from iPod/iPhone/iPad through this docking system.

Compatible iPod/iPhone/iPad

The unit supports the following iPod/iPhone/ iPad models.

Made for

iPad 2• iPad• iPhone 4• iPhone 3GS• iPhone 3G• iPhone• iPod classic• iPod with video• iPod nano (1st, 2nd, 3rd, 4th, 5th, and 6th •

generation) iPod touch (1st, 2nd, 3rd, and 4th •

generation)

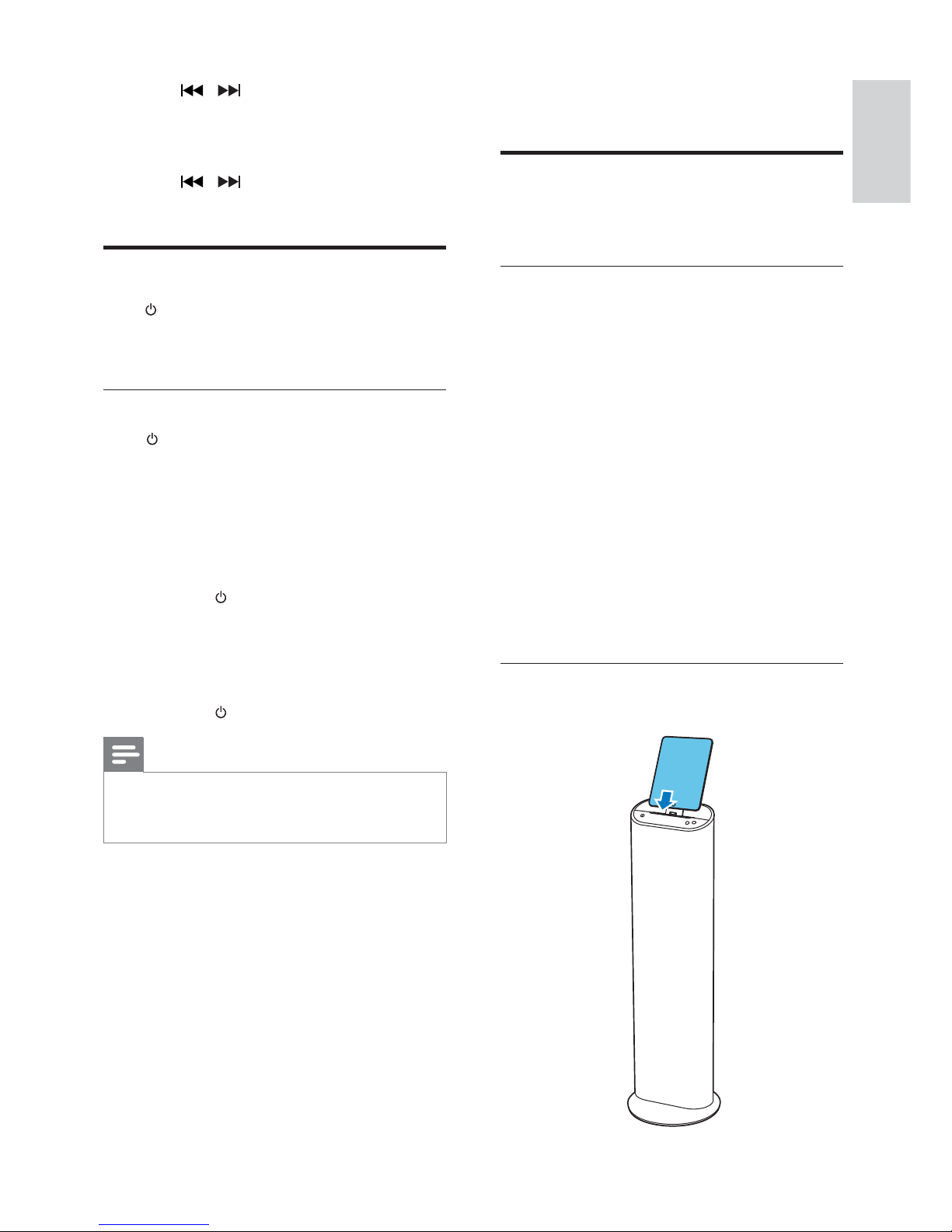

Load the iPod/iPhone/iPad

Place the iPod/iPhone/iPad in the dock.

3 Press / to set the hour, and then

press CLOCK.

The minute digits are displayed and » begin to blink.

4 Press / to set the minute. 5 Press CLOCK to conﬁrm.

Turn on

Press .

The unit switches to the last selected » source.

Switch to standby

Press again to switch the unit to standby mode.

The backlight on the display panel is » reduced.

The clock (if set) appears on the » display panel.

To switch to Eco power standby mode:

Press and hold

for more than two seconds.

The backlight on the display panel » turns off.

To switch between normal standby mode and Eco power standby mode:

Press and hold

for more than two seconds.

Note

If no button is pressed over 15 minutes in • standby mode, this device goes to Eco Power Standby mode automatically.

Page 12

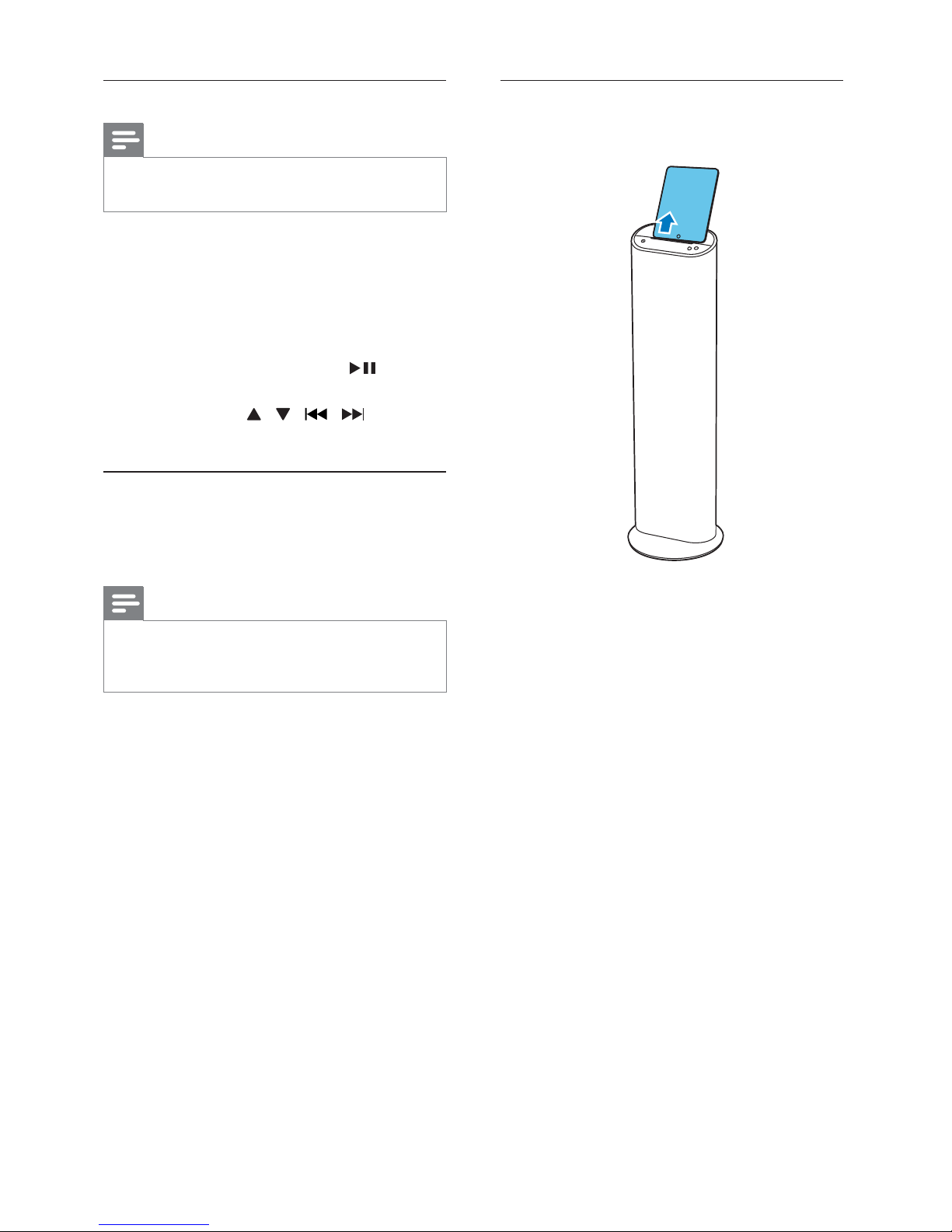

Remove the iPod/iPhone/iPad

Pull the iPod/iPhone/iPad out of the dock.

Listen to the iPod/iPhone/iPad

Note

Make sure that your iPod/iPhone/iPad has • been loaded securely.

1 Press DOCK on the remote control or

press SRC repeatedly on the main to select iPod/iPhone/iPad source.

2 Play audio on your iPod/iPhone/iPad.

The audio in connected iPod/iPhone/ » iPad streams from this docking system automatically. If not, press

To navigate the menu: press • MENU, and press

/ / / to select,

and then press OK to conﬁrm.

Charge the iPod/iPhone/iPad

When the unit is connected to power, the docked iPod/iPhone/iPad begins to charge automatically.

Note

iPod with color display, iPod classic, and iPod • with video are not compatible with dock charging.

Page 13

English

5 Play options

Pause/resume play

During play, press to pause/resume play.

Stop play

During play, press to stop play.

Skip to a track

For USB:

1 Press / to select an album or folder. 2 Press / to select a track or ﬁle.

Search within a track

1 During play, press and hold / to

search within a track.

2 Release to resume normal play.

Repeat play

1 During play, press REPEAT repeatedly to

select:

[• r1] (repeat one): The current track is played repeatedly.

[• rA] (repeat all): All tracks are played repeatedly.

(repeat) is displayed.

2 To return to normal play, press REPEAT

repeatedly until repeat mode is no longer displayed.

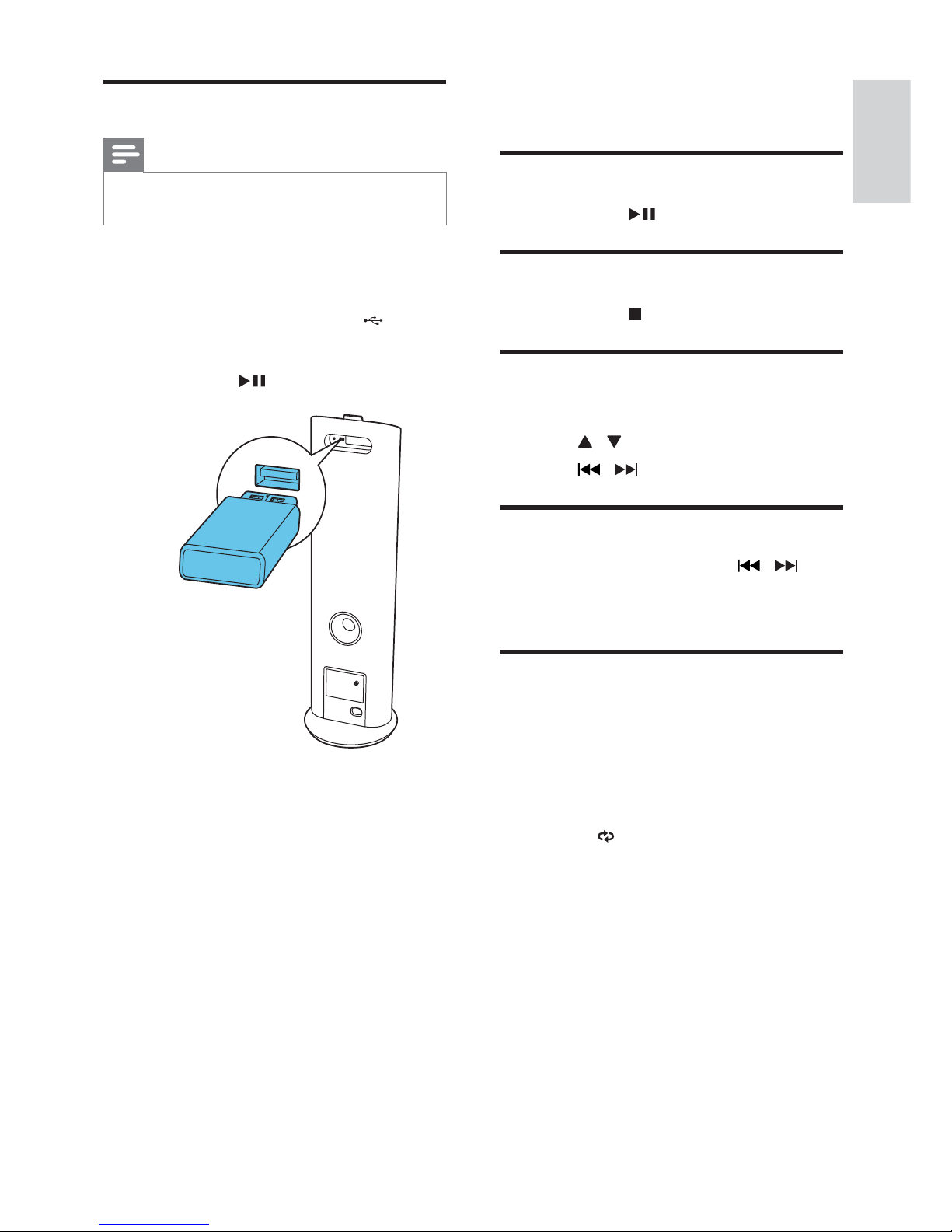

Play from USB

Note

Ensure that the USB device contains playable • audio content.

1 Press USB on the remote control or

press SRC repeatedly on the main to select the USB source.

2 Insert the USB device into the (USB)

socket on the back of the unit.

The ﬁle starts playing automatically. If » not, press

Page 14

6 Listen to the

radio

Tune to a radio station

Tip

For optimal FM reception, fully extend and • adjust the position of the FM antenna.

1 Press TUNER on the remote control

or press SRC repeatedly on the main to select the tuner source.

2 Press and hold / for more than

two seconds.

» [SEARCH] (search) is displayed.

The radio tunes to a station with » strong reception automatically.

3 Repeat step 2 to tune to more stations.

To tune to a weak station, press •

repeatedly until you ﬁnd optimal

reception.

Program radio stations

Tip

You can program a maximum of 20 preset • radio stations.

Program radio stations automatically

In tuner mode, press and hold PROG for more than two seconds to activate automatic program mode.

[ » AUTO SRCH](auto search) is displayed.

All available stations are programmed » in the order of waveband reception strength.

The ﬁrst programmed radio station is » broadcast automatically.

Shufﬂe play

1 During play, press SHUFFLE.

(shufﬂe) is displayed. All tracks are

played in a random sequence.

2 To return to normal play, press SHUFFLE

again.

Note

The repeat and shufﬂe play cannot be • activated at the same time.

Shufﬂe play cannot be selected when you play

•

programmed tracks.

Program tracks

You can program a maximum of 20 tracks.

1 In USB mode, at the stop position, press

PROG to activate the program mode.

» [PROG] (program) blinks on the

display.

2 For MP3/WMA tracks, press / to

select an album.

3 Press / to select a track number,

and then press PROG to conﬁrm.

4 Repeat steps 2 to 3 to program more

tracks.

5 Press to play the programmed tracks.

During play, » [PROG] (program) is displayed.

To erase the program, in the stop • position, press

Page 15

English

7 Adjust sound

Adjust volume

During play, press VOL +/- to increase/decrease the volume.

Select a preset sound effect

During play, press DSC repeatedly to select:

[• dSC1] (ﬂat) [• dSC2] (rock) [• dSC3] (classic) [• dSC4] (jazz) [• dSC5] (pop)

Enhance bass

During play, press DBB to turn on or off dynamic bass enhancement.

If DBB is activated, » DBB is displayed.

Mute sound

During play, press to mute or restore sound.

Program radio stations manually

1 Tune to a radio station. 2 Press PROG to activate program mode.

» [PROG] (program) blinks on the

display.

3 Press / to allocate a number (1 to

20) to this radio station, and then press PROG to conﬁrm.

The preset number and the frequency » of the preset station are displayed.

4 Repeat the above steps to program other

stations.

Note

To overwrite a programmed station, store • another station in its place.

Select a preset radio station

In tuner mode, press / to select a preset number.

You can also press the numeric key • to select a preset number directly.

Page 16

Activate and deactivate the alarm timer

In standby mode, press SLEEP/TIMER repeatedly to activate or deactivate the alarm timer.

If the alarm timer is activated, »

displayed If the alarm timer is deactivated, »

disappears.

Note

If USB/iPod/iPhone/iPad source is selected, but • no USB/iPod/iPhone/iPad is connected, the FM TUNER is selected automatically.

Listen to an external device

You can also listen to an external audio device through this docking system.

1 Press AUX to select AUX source. 2 Connect the supplied MP3 link cable to:

the • AUX jack on the back of the unit the headphone jack on the device•

3 Start to play the device. (See the device

user manual).

8 Other features

Set the sleep timer

This docking system can switch to standby automatically after a set period of time.

1 When the unit is turned on, press SLEEP/

TIMER repeatedly to select a set period

of time (in minutes).

When sleep timer is activated, »

displayed.

To deactivate sleep timer

1 Press SLEEP/TIMER repeatedly until

[SLEEP OFF] (sleep off ) is displayed.

When sleep timer is deactivated, » disappears.

Set the alarm timer

This docking system can be used as an alarm clock. You can select iPod/iPhone/iPad, FM TUNER, or USB as alarm source.

Note

Ensure that you have set the clock correctly. •

1 In standby mode, press and hold SLEEP/

TIMER until [SET TIMER] (set timer)

scrolls on the display.

2 Press USB, DOCK, or TUNER to select

a source.

3 Press SLEEP/TIMER to conﬁrm.

The hour digits are displayed and begin » to blink.

4 Press / to set the hour, and then

press SLEEP/TIMER again.

The minute digits are displayed and » begin to blink.

5 Press / to set the minute. 6 Press SLEEP/TIMER to conﬁrm.

The alarm timer is set and activated. »

Page 17

English

Standby Power Consumption

< 1 W

USB Direct Version 2.0/1.1 Load of USB ≤500 mA Dimensions

- Main Unit (W x H x D)

350 x 999 x 350 mm

Weight

- With Packing

- Main Unit

13.5 kg

10.7 kg

USB playability information

Compatible USB devices:

USB ﬂash memory (USB 2.0 or USB1.1)• USB ﬂash players (USB 2.0 or USB1.1)• memory cards (requires an additional •

card reader to work with this unit)

Supported formats:

USB or memory ﬁle format FAT12, • FAT16, FAT32 (sector size: 512 bytes)

MP3 bit rate (data rate): 32-320 Kbps • and variable bit rate

WMA v9 or earlier• Directory nesting up to a maximum •

of 8 levels Number of albums/ folders: •

maximum 99 Number of tracks/titles: maximum 999• ID3 tag v2.0 or later• File name in Unicode UTF8 •

(maximum length: 128 bytes)

Unsupported formats:

Empty albums: an empty album is an • album that does not contain MP3/ WMA ﬁles, and will not be shown in the display.

Unsupported ﬁle formats are skipped. • For example, Word documents (.doc) or MP3 ﬁles with extension .dlf are ignored and not played.

AAC, WAV, PCM audio ﬁles• DRM protected WMA ﬁles (.wav, •

.m4a, .m4p, .mp4, .aac) WMA ﬁles in Lossless format•

9 Product

information

Note

Product information is subject to change • without prior notice.

Speciﬁcations

Ampliﬁer

Rated Output Power

120 W

Frequency Response

100 Hz - 16 kHz, ±3 dB

Signal to Noise Ratio

> 70 dB

Aux Input <600 mV RMS

Tuner

Tuning Range FM: 87.5 - 108

MHz Tuning grid 50 KHz Sensitivity

- Mono, 26dB S/N Ratio

- Stereo, 46dB S/N Ratio

<22 dBu

<45 dBu Search Selectivity <30 dBu Total Harmonic Distortion <3% Signal to Noise Ratio >45 dB

Speakers

Speaker Impedance

6 ohm + 2 x 4 ohm

Speaker Driver 5.25” woofer + 2 x 2.75”

full range

Sensitivity >82 dB/m/W

General information

AC power 220 - 240 V, 50/60

Page 18

Cannot display some ﬁles in USB device

The number of folders or ﬁles in the USB • device has exceeded a certain limit. This phenomenon is not a malfunction.

The formats of these ﬁles are not • supported.

USB device not supported

The USB device is incompatible with the • unit. Try another one.

Poor radio reception

Increase the distance between the unit • and your TV or VCR.

If the signal is too weak, adjust the • antenna or connect an external antenna for better reception.

Timer does not work

Set the clock correctly. • Switch on the timer. •

Clock/timer setting erased

Power has been interrupted or the power • cord has been disconnected.

Reset the clock/timer. •

10 Troubleshooting

Warning

Never remove the casing of this device. •

To keep the warranty valid, never try to repair the system yourself.

If you encounter problems when using this device, check the following points before requesting service. If the problem remains unsolved, go to the Philips web site (www. philips.com/welcome). When you contact Philips, ensure that the device is nearby and the model number and serial number are available.

No power

Ensure that the AC power plug of the • unit is connected properly.

Ensure that there is power at the AC • outlet.

To save power, the system switches • off automatically 15 minutes after track play reaches the end and no control is operated.

No sound or poor sound

Adjust the volume. •

No response from the unit

Disconnect and reconnect the AC power • plug, and then turn on the unit again.

Remote control does not work

Before pressing any function button, ﬁrst • select the correct source with the remote control instead of the main unit.

Reduce the distance between the remote • control and the unit.

Insert the battery with its polarities (+/– • signs) aligned as indicated.

Replace the battery. • Aim the remote control directly at the •

sensor on the front of the unit.

Page 19
