Philips CSS9211 User Manual

Download

www.philips.com/welcome

CSS9211

User manual

Benutzerhandbuch

Mode d'emploi

Brukerhåndbok

Manual del usuario

Användarhandbok

Εγχειρίδιο χρήσης

Felhasználói kézikönyv

Manual de utilizare

Brugervejledning

Gebruiksaanwijzing

Manuale utente

Manual do utilizador

Käyttöopas

Kullanım kılavuzu

Příručka pro uživatele

Instrukcja obsługi

Príručka užívateľa

Contents

9 Troubleshooting 13

1 Help and support 2

FAQs 2 Contact Philips 2

2 Notice 2

Compliance 2 Mains fuse 2 Trademarks 3

3 Important 3

Safety 3 Care for your product 4 Care of the environment 4

4 Your SoundHub 5

Main unit 5 Subwoofer 5 Remote control 5

5 Connect your SoundHub 6

Speakers 6 Connectors 7 Connect audio from TV and other devices 8 Listen to a connected device 9

English

10 Index 13

6 Use your SoundHub 9

Choose your sound 9 MP3 player 10

7 Change settings 11

Setup menu options and settings 11 Apply factory settings 11

8 Product specications 12

1 Help and

support

FAQs

2 Notice

This section contains the legal and trademark notices.

If you have a problem, refer to the frequently asked questions (FAQs) for this SoundBar at www.philips.com/support. If you still need help, contact Philips Consumer Care in your country.

Warning

•

Do not attempt to repair your SoundBar yourself. This may cause severe injury, irreparable damage to your SoundBar, or void your warranty.

Contact Philips

If you contact Philips, you will be asked for the model and serial number of your product. The model number and serial number are on the back or bottom of your product. Note the numbers before you call Philips: Model No. __________________________ Serial No. ___________________________

Compliance

This product is in compliance with the essential requirements and other relevant provisions of Directives 2006/95/EC (Low Voltage), 2004/108/EC (EMC).

Mains fuse

This information applies only to products with a UK mains plug.

This product is tted with an approved molded

plug. If you replace the fuse, use one with:

• the ratings shown on the plug,

• a BS 1362 approval, and

• the ASTA approval mark.

Contact your dealer if you are not sure about what type of fuse to use. Caution: To conform with the EMC directive (2004/108/EC), do not detach the plug from the power cord.

2 EN

Trademarks

3 Important

Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS, the Symbol, & DTS and the Symbol together are registered trademarks & DTS Digital Surround and the DTS logos are trademarks of DTS, Inc. Product includes software.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Read and understand all instructions before you use your SoundHub. If damage is caused by failure to follow instructions, the warranty does not apply.

Safety

Risk of electric shock or re!

• Never expose the product and accessories to rain or water. Never place liquid containers, such as vases, near the product. If liquids are spilt on or into the product, disconnect it from the power outlet immediately. Contact Philips Consumer Care to have the product checked before use.

• Never place the product and accessories near naked ames or other heat sources,

including direct sunlight.

• Never insert objects into the ventilation slots or other openings on the product.

• Where the mains plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

• Disconnect the product from the power outlet before lightning storms.

• When you disconnect the power cord, always pull the plug, never the cable.

Risk of short circuit or re!

• Before you connect the product to the power outlet, ensure that the power voltage matches the value printed on the back or bottom of the product. Never connect the product to the power outlet if the voltage is different.

English

Risk of injury or damage to the SoundHub!

• For wall-mountable products, use only the supplied wall mount bracket. Secure the wall mount to a wall that can support the combined weight of the product and the wall mount. Koninklijke Philips Electronics N.V. bears no responsibility for improper wall mounting that results in accident, injury or damage.

• Never place the product or any objects on power cords or on other electrical equipment.

• If the product is transported in temperatures below 5°C, unpack the product and wait until its temperature matches room temperature before connecting it to the power outlet.

• Parts of this product can be made of glass. Handle with care to avoid injury and damage.

Risk of overheating!

• Never install this product in a conned space. Always leave a space of at least four inches around the product for ventilation. Ensure curtains or other objects never cover the ventilation slots on the product.

Risk of contamination!

• Do not mix batteries (old and new or carbon and alkaline, etc.).

• Remove batteries if they are exhausted or if the remote control is not to be used for a long time.

• Batteries contain chemical substances, they should be disposed of properly.

Risk of swallowing batteries!

• The product/remote control may contain a coin type battery, which can be swallowed. Keep the battery out of reach of children at all times!

Care for your product

Use only microber cloth to clean the product.

Care of the environment

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/ EC. Please inform yourself about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed with normal household waste. Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environmental and human health.

4 EN

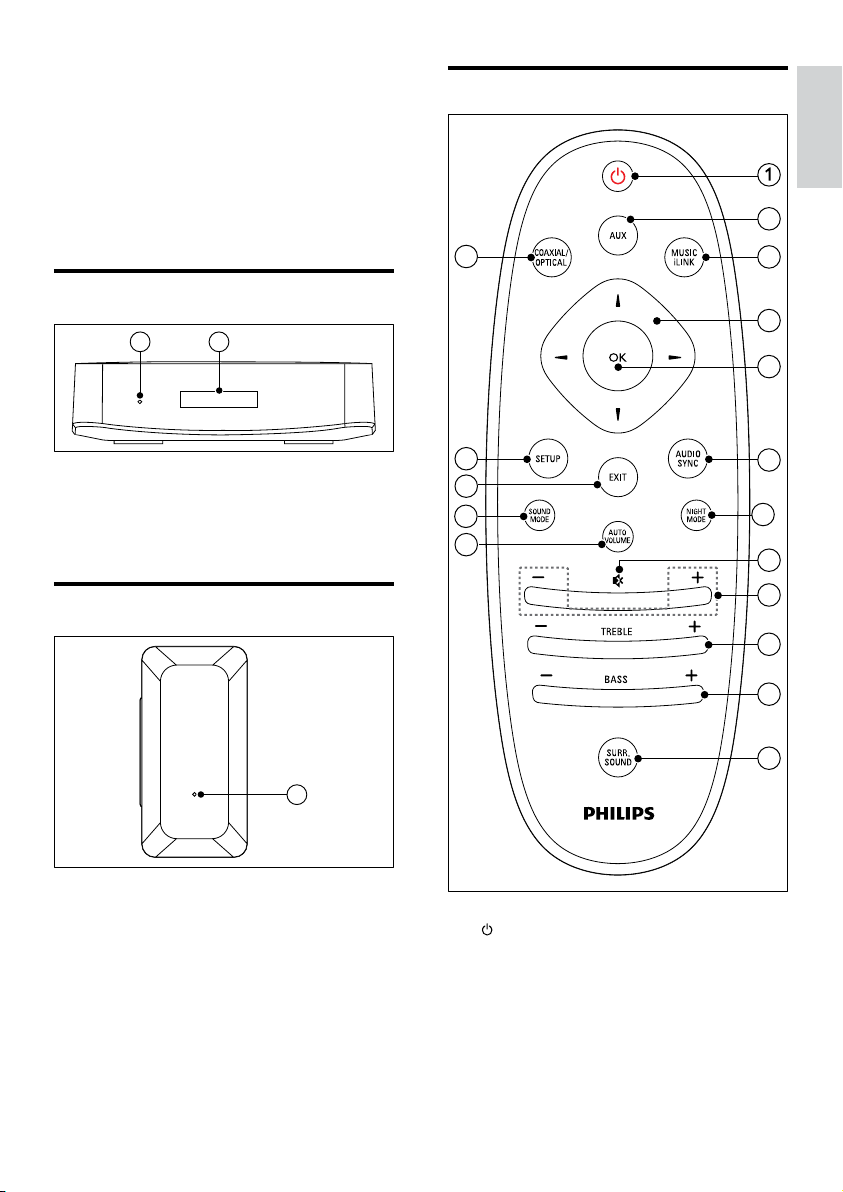

4 Your SoundHub

Remote control

Congratulations on your purchase, and

welcome to Philips! To fully benet from

the support that Philips offers, register your SoundHub at www.philips.com/welcome.

Main unit

a Standby indicator b Display panel

Subwoofer

16 15

14 13

English

a LED indicator

• When the SoundHub is on standby,

the LED indicator is red.

• When the SoundHub is on, the LED

indicator is white.

a (Standby-On)

Switch the SoundHub on or to standby.

b AUX

Switch your audio source to the AUX connection.

c MUSIC iLINK

Switch your audio source to the MUSIC iLINK connection.

d Navigation buttons ( / / / )

Navigate menus.

e OK

Conrm an entry or selection.

f AUDIO SYNC

Change the audio delay.

g NIGHT MODE

Turn night mode on or off.

(Mute)

Mute or restore volume.

i +/- (Volume)

Increase or decrease volume.

j TREBLE +/-

Increase or decrease treble.

k BASS +/-

Increase or decrease bass.

l SURR. SOUND

Switch to auto, stereo, or 360 surround sound.

m AUTO VOLUME

Turn auto volume on or off.

n SOUND MODE

Select a sound mode.

o EXIT

Exit a menu.

p SETUP

Access the setup menu.

q COAXIAL/OPTICAL

Switch your audio source to the coaxial or optical connection.

5 Connect your

SoundHub

This section helps you connect your SoundHub to a TV and other devices. For information about the basic connections of your SoundHub and accessories, see the quick start guide. For a comprehensive interactive guide, see www.connectivityguide.philips.com.

Note

For identication and supply ratings, see the type plate

•

at the back or bottom of the product.

• Before you make or change any connections, make sure

that all devices are disconnected from the power outlet.

Speakers

Position, connect, and set up your speakers for best surround sound.

Position

Speaker position plays a critical role in setting up a surround sound effect. For best results, place your speakers and the subwoofer as shown below.

6 EN

Note

Surround sound depends on various factors such as

•

room shape and size, type of wall and ceiling, windows

and reective surfaces, and speaker acoustics.

Connectors

Connect other devices to your SoundHub.

English

Follow these general guidelines, and then set up your subwoofer.

1 Seating position:

This is the center of your listening area.

2 SPEAKER LEFT (speaker left) and

SPEAKER RIGHT (speaker right) speakers:

Place the left and right speakers in the front, and equidistant from the main unit in an arc, so that the two speakers are at same distance from your seating position. For best effect, point the speakers towards the seating position and place the speakers close to the ear level (when seated).

3 SUBWOOFER (subwoofer):

Place the subwoofer at least one meter to the left or right of the TV. Leave about ten centimeter clearance from the wall.

Connect

Connect your speakers and the subwoofer to your SoundHub as described in the quick start guide.

Setup

Set up your subwoofer through the setup menu.

1 Press SETUP repeatedly to select SUBW

VOL on the display panel (see 'Setup

menu options and settings' on page 11).

2 Press OK. 3 Press the Navigation buttons ( / ) to

change the volume.

4 Press OK to conrm. 5 Press EXIT to exit the menu.

Side right

a MUSIC iLINK

Audio input from an MP3 player.

Main unit's rear connectors

(DC IN)

AUDIO IN

RLRL

AUX 1SUBWOOFER

AUX 2

3 4

DIGITAL IN

COAXIAL

OPTICAL

a SUBWOOFER

Connect to the supplied subwoofer.

b AUDIO IN-AUX 1/AUX 2

Connect to an analog audio output on the TV or an analog device.

c DIGITAL IN-COAXIAL

Connect to a coaxial audio output on the TV or a digital device.

d DIGITAL IN-OPTICAL

Connect to an optical audio output on the TV or a digital device.

Subwoofer's rear connectors

SPEAKERS

RIGHTLEFT

AC MAINS~

TO MAIN UNIT

a SPEAKERS-RIGHT/LEFT

Connect to the supplied speakers.

b TO MAIN UNIT

Connect to the main unit.

c AC MAINS~

Connect to the power supply.

Connect audio from TV and

other devices

Play audio from TV or other devices through your SoundHub. Use the best quality connection available on other devices.

Option 1: Connect audio through a digital optical cable

Best quality audio

Using an optical cable, connect the OPTICAL connector on your SoundHub to the OPTICAL OUT connector on the device. The digital optical connector might be labeled SPDIF, SPDIF OUT, or OPTICAL.

Option 2: Connect audio through a digital coaxial cable

Good quality audio

Using a coaxial cable, connect the COAXIAL connector on your SoundHub to the COAXIAL/DIGITAL OUT connector on the device. The digital coaxial connector might be labeled

DIGITAL AUDIO OUT.

Note

The audio connections in this user manual are only

•

recommendations. You can use other connections too.

8 EN

Option 3: Connect audio through analog audio cables

Basic quality audio

Using an analog cable, connect the AUX connectors on your SoundHub to the audio connectors on the device.

VCR

6 Use your

SoundHub

This section helps you use the SoundHub to play audio from connected devices.

Before you start

• Make the necessary connections described in the quick start guide and the user manual.

• Switch the SoundHub to the correct source for other devices.

Choose your sound

English

Listen to a connected device

Before you can listen to a connected device, select the source for the device. Press AUX, COAXIAL/OPTICAL, or MUSIC iLINK on the remote control to cycle through and select an audio source, as shown in the following table.

Source button Display

text

AUX AUX1 or

AUX2

COAXIAL/OPTICAL COAX IN

OPTI IN

MUSIC iLINK I-LINK MP3

Audio source

AUX input

Coaxial or Optical input

input

This section helps you choose the ideal sound for your video or music.

Sound mode

Select predened sound modes to suit your

video or music. Press SOUND MODE repeatedly to select a sound setting within three seconds on the display panel:

• AUTO: Automatically select MOVIE or MUSIC based on the sound stream.

• MOVIE: Enjoy a cinematic audio experience, specially enhanced for movies.

• MUSIC: Recreate the original recording environment of your music, in the studio or at a concert.

• NEWS: Hear every word with optimized speech and clear vocals.

• GAMING: Enjoy thrilling arcade sounds, ideal for action-packed video games or loud parties.

• ORIGINAL: Experience the original sound of your movies and music, without added sound effects.

Auto volume

Turn the auto volume on to keep the volume constant when you switch to a different source. Press AUTO VOLUME repeatedly to select a setting within three seconds on the display panel:

• ON: Turn on auto volume.

• OFF: Turn off auto volume.

Night mode

For quiet listening, decrease the volume of loud sounds when you play discs. Night mode is only available for Dolby encoded DVD and Blu-ray discs. Press NIGHT MODE repeatedly to select a setting within three seconds on the display panel:

• ON: Turn on night mode.

• OFF: Turn off night mode.

Note

If auto volume is set to ON, you cannot enable the

•

night mode.

Synchronize picture and sound

If the audio and video are not synchronized, delay the audio to match the video.

1 Press AUDIO SYNC. 2 Within two seconds, press the Navigation

buttons (

shown on the display panel.

/ ) to change the delay

3 Press AUDIO SYNC again to exit.

Surround sound mode

Experience an immersive audio experience with surround sound modes. Press SURR. SOUND repeatedly to select a setting within three seconds on the display panel:

• AUTO: Surround sound based on the audio stream.

• STEREO: Two-channel stereo sound. Ideal for listening to music.

• 360SOUND: Surround sound for best cinematic experience.

Note

If you play a source with DTS, DTS is displayed on the

•

display panel for two seconds.

• If you play a source with Dolby, DOLBY D is displayed

on the display panel for two seconds.

Equalizer

Change the high frequency (treble) and low frequency (bass) settings of your SoundHub. Press TREBLE +/- or BASS +/- within three seconds to change the frequency shown on the display panel.

MP3 player

Connect your MP3 player to play your audio

les or music.

What you need

• An MP3 player.

• A 3.5mm stereo audio cable.

Play music

1 Connect the MP3 player to the SoundHub

as described in the Quick start guide.

2 Press MUSIC iLINK.

» I-LINK is displayed on the display

panel.

3 Press the buttons on the MP3 player to

select and play audio les or music.

10 EN

7 Change settings

This section helps you to change the settings of your SoundHub.

Caution

The settings are already congured for optimal

•

performance. Unless you have a reason to change a setting, we recommend that you keep the default setting.

Setup menu options and

settings

Setup menu option Setting for the option

SUBW VOL +5, +4, +3, ..., 0, ..., -3,

-4, -5

DISPLAY BRIGHT

DIM 1 DIM 2

SLEEP OFF, 15 MIN, 30 MIN, 45

MIN, 60 MIN VERSION RESET DEFAULT

SETTINGS

Display panel

Change the brightness of the SoundHub display panel.

1 Press SETUP repeatedly to select DISPLAY

on the display panel (see 'Setup menu options and settings' on page 11).

2 Press OK. 3 Press the Navigation buttons ( / ) to

select BRIGHT, DIM 1, or DIM 2, and then press OK.

Sleep timer

Set timers to switch the SoundHub to standby

after a specied time.

1 Press SETUP repeatedly to select SLEEP

on the display panel (see 'Setup menu options and settings' on page 11).

2 Press OK. 3 Press Navigation buttons ( / ) to set

a sleep time on the display panel.

» The sleep timer can be set up to 60

minutes. If the sleep timer is set to

OFF, it switches off.

Note

If you switch the SoundHub to standby, the sleep time

•

that you have set is canceled.

English

Setup menu options

1 Press SETUP repeatedly to cycle through

the options on the display panel (see 'Setup menu options and settings' on page 11).

2 Select an option, and then press OK. 3 Press the Navigation buttons ( / )

to select a setting for the option, and then press OK.

Note

If you do not press a button within ten seconds, the

•

setup menu exits.

• To exit the menu, press EXIT.

• RESET DEFAULT SETTINGS is available about forty

seconds after the SoundHub is switched to on.

Apply factory settings

You can reset your SoundHub to the default settings programmed at the factory.

1 Press SETUP repeatedly to select RESET

DEFAULT SETTINGS on the display panel.

2 Press OK.

» TO RESET PRESS OK is displayed on

the display panel.

3 Press OK again.

» When the default settings are restored,

RESET OK is displayed on the display panel, and the SoundHub automatically switches off and restarts.

8 Product

specifications

Note

Specications and design are subject to change without

•

notice.

Amplier

• Total output power:

• Europe and Asia: 400W RMS (30%

THD)

• Latin America: 320W RMS (10% THD)

• Frequency response: 20 Hz-20 kHz / ±3

• Signal-to-noise ratio: > 65 dB (CCIR) /

(A-weighted)

• Input sensitivity:

• AUX1, AUX2: 450 mV

• Music iLink: 170 mV

Audio

• S/PDIF Digital audio input:

• Coaxial: IEC 60958-3

• Optical: TOSLINK

Subwoofer

• Output power: 100W RMS (30% THD)

• Power supply: 220-240 V~, 50 Hz

• Power consumption: 55 W

• Standby power consumption: ≤ 0.5 W

• Impedance: 4 ohm

• Speaker drivers: 165 mm (6.5") woofer

• Frequency response: 20 Hz-150 Hz

• Dimensions (WxHxD): 196 x 397 x 357

• Weight: 7.6 kg

• Cable length: 3 m

Speakers

• Output power: 2 x 150W RMS (30% THD)

• Speaker impedance: 6 ohm

• Drivers per speaker : 2 x 64 mm (2.5") full

range woofer + 1 x 64 mm (2.5") woofer + 1 x 25.4 mm (1") soft-dome tweeter

• Frequency response: 150 Hz-20 kHz

• Dimensions (WxHxD): 99 x 247 x 117

• Weight: 1.4 kg/each

• Cable length: 5 m

Remote control batteries

• 2 x AAA-R03-1.5 V

Main unit

• Dimensions (WxHxD): 150 x 41 x 126 mm

• Weight: 0.4 kg

12 EN

9 Troubleshooting

Warning

•

Risk of electric shock. Never remove the casing of the product.

To keep the warranty valid, never try to repair the product yourself. If you have problems using this product, check the following sections before you request service. If you still have a problem, register your product and get support at www.philips.com/welcome.

10 Index

English

amplier 12

audio

auto volume 10 night mode 10 sound mode 9

specications 12

surround sound mode 10

audio source

remote control 9

Sound

No sound from SoundHub.

• Make sure that the SoundHub is not muted. Press the display panel.

• Connect the audio cable from your SoundHub to your TV or other devices.

• Reset your SoundHub to its factory settings, and then switch it off and switch on again.

• On your remote control, press AUX, COAXIAL/OPTICAL, or MUSIC iLINK

repeatedly to select the correct audio input on the display panel (see 'Listen to a connected device' on page 9).

Distorted sound or echo.

• If you play audio from the TV through the SoundHub, make sure that the TV is muted.

Audio and video are not synchronized.

• 1) Press AUDIO SYNC. 2) Within two seconds, press the Navigation buttons (

/ ) to change the delay shown on the display panel. 3) Press AUDIO SYNC again to exit.

to select MUTE OFF on

care

environment 4

product 4 compliance 2 connect

audio (analog cable) 9

audio (coaxial cable - digital) 8

audio (optical cable - digital) 8

audio from TV and other devices 8

speakers 6 connectors

back connectors - main unit 7

back connectors - subwoofer 8

side connector 7

disable

auto volume 10

night mode 10

display panel 5

enable

auto volume 10

night mode 10

factory settings 11 FAQs 2

legal notices 2

main unit

overview 5

specications 12

mains fuse (UK only) 2

MP3

play 10

night mode 10

safety

disposal 4

use of the product 3 setup menu sound

predened sound mode 9

surround sound mode 10

synchronize picture and sound 10

troubleshooting 13

speakers 6 subwoofer

connect 7

synchronize picture and sound 10

trademarks 3

troubleshooting

sound 13

overview

connectors 7 main unit 5 remote control 5

play

MP3 10

position

connectors 7 position 6

recycling 4

remote control

batteries 12 overview 5

14 EN

video

synchronize picture and sound 10

sgptt_1139/12_v2

Philips CSS9211 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
