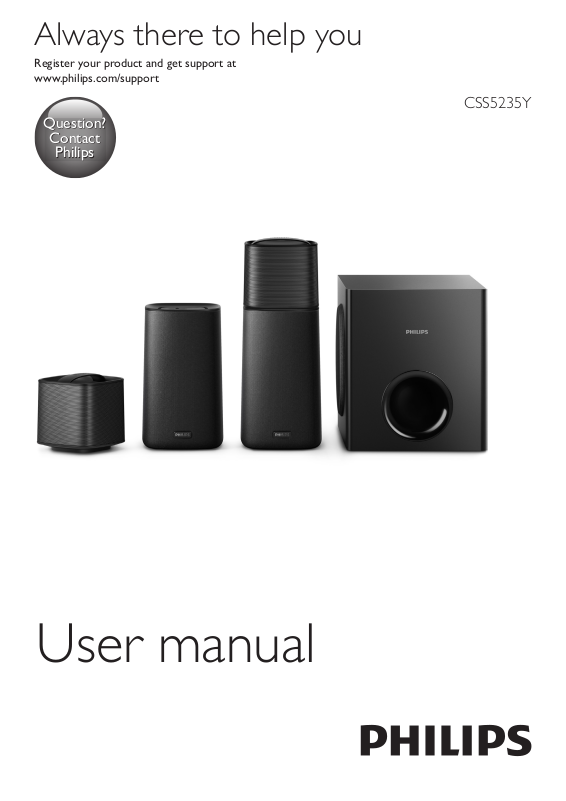

Philips CSS5235Y/93 user manual

Always there to help you
Question?
Contact
Register your product and get support at www.philips.com/support
CSS5235Y
User manual
Contents
1 Important 2
Safety Care for your product 3 Care of the environment 3 Help and support 3
2 Your product 4
Main unit Remote control 5 Connectors 6 Wireless speakers 6 Wireless subwoofer 7
3 Connect and set up 8
Connect the main unit Charge speakers 8 Pair up with speakers/subwoofer 8 Place speakers 9 Connect to TV 10 Connect audio from TV and
other devices
4 Use your product 12
Adjust the volume Choose your sound 12 Play music via Bluetooth 13 Play music via NFC 13 MP3 player 14 USB storage devices 14 Auto standby 15 Apply factory settings 15
11
12
6 Productspecications 17
2
7 Troubleshooting 18
English
4
8
5 Update software 15
Check software version Update software via USB 15
15
EN
1

1 Important

Read and understand all instructions before you use your product. If damage is caused by failure to follow instructions, the warranty does not apply.

Safety

Riskofelectricshockorre!
Before you make or change any
connections, make sure that all devices are disconnected from the power outlet.
Never expose the product and
accessories to rain or water. Never place liquid containers, such as vases, near the product. If liquids are spilt on or into the product, disconnect it from the power outlet immediately. Contact Consumer Care to have the product checked before use.
Never place the product and
accessories near naked ames or
other heat sources, including direct sunlight.
Never insert objects into the
ventilation slots or other openings on the product.
Where the mains plug or an appliance
coupler is used as the disconnect device, the disconnect device shall remain readily operable.
Batteries (battery pack or batteries
installed) shall not be exposed to
excessive heat such as sunshine, re or
the like.
Disconnect the product from the
power outlet before lightning storms.
When you disconnect the power cord,
always pull the plug, never the cable.
Riskofshortcircuitorre!
For identication and supply ratings,
see the type plate at the back or bottom of the product.
Before you connect the product to the
power outlet, ensure that the power voltage matches the value printed on the back or bottom of the product. Never connect the product to the power outlet if the voltage is different.
Riskofinjuryordamagetothisproduct!
Never place the product or any
objects on power cords or on other electrical equipment.
If the product is transported in
temperatures below 5°C, unpack the product and wait until its temperature matches room temperature before connecting it to the power outlet.
Parts of this product can be made of
glass. Handle with care to avoid injury and damage.
Riskofoverheating!
Never install this product in a conned
space. Always leave a space of at least four inches around the product for ventilation. Ensure curtains or other objects never cover the ventilation slots on the product.
Riskofcontamination!
Do not mix batteries (old and new or
carbon and alkaline, etc.).
Danger of explosion if batteries are
incorrectly replaced. Replace only with the same or equivalent type.
Remove batteries if they are
exhausted or if the remote control is not to be used for a long time.
2
EN
Batteries contain chemical substances,
they should be disposed of properly.

Care of the environment

Riskofswallowingbatteries!
The product/remote control may
contain a coin/button type battery, which can be swallowed. Keep the battery out of reach of children at all times! If swallowed, the battery can cause serious injury or death. Severe internal burns can occur within two hours of ingestion.
If you suspect that a battery has been
swallowed or placed inside any part of the body, seek immediate medical attention.
When you change the batteries, always
keep all new and used batteries out of reach of children. Ensure that the battery compartment is completely secure after you replace the battery.
If the battery compartment cannot be
completely secured, discontinue use of the product. Keep out of reach of children and contact the manufacturer.
This is CLASS II apparatus with double insulation, and no protective earth provided.

Care for your product

Use only microber cloth to clean the
product.
Disposal of your old product
Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. Do not throw away the product with the normal household waste at the end of its
life, but hand it in at an ofcial collection
point or recycling. By doing this, you help to preserve the environment.

Help and support

For extensive online support, visit www. philips.com/support to:
download the user manual and the
quick start guide
watch video tutorials (available only for
selected models)
nd answers to frequently answered
questions (FAQs)
email us a question
chat with our support representative.
Follow the instructions on the website to select your language, and then enter your product model number. Alternatively, you can contact Consumer Care in your country. Before you contact, note down the model number and serial
number of your product. You can nd this
information on the back or bottom of your product.
English
EN
3

2 Your product

Congratulations on your purchase, and
welcome to Philips! To fully benet from
the support that Philips offers, register your product at www.philips.com/welcome.

Main unit

The main unit of this product is comprised of left and right base speakers.
a
b c
d e
f
Blinks three times when DTS audio
is input.
Blinks continuously when no
audio from the selected HDMI ARC source is detected, or when an unsupported audio format is detected.
Blue LED
Lights up when you switch to
Bluetooth mode and Bluetooth devices are paired.
Blinks when you switch to
Bluetooth mode and Bluetooth devices are not paired.
b NFC tag
Tap the NFC-enabled device on the tag for Bluetooth connection.
c (Standby-On)
Switch the main unit on or to standby.
d
Switch to Bluetooth mode.
e
Toggle through all sources.
f Volume +/-
Increase or decrease volume.
a LED indication
Red LED
Lights up when the main unit is
switched to standby.
White LED
Lights up when the main unit is
switched on.
Blinks once each time you press a
button on the remote control.
Blinks twice when Dolby Digital
audio is input.
4
EN

Remote control

b
a
c d
f
h i
e
g
j
This section includes an overview of the remote control.
USB: Switch to USB mode.
Bluetooth: Switch to Bluetooth
mode; Press and hold three seconds to break the current Bluetooth connection. HDMI ARC: Switch your source to HDMI ARC connection.
c /
Skip to the previous or next track in USB mode and Bluetooth mode (only for AVRCP-supported Bluetooth devices).
d
Start, pause or resume play in USB mode and Bluetooth mode ( only for AVRCP-supported Bluetooth devices).
e BASS +/-
Increase or decrease bass.
f Volume control
+/-: Increase or decrease volume.
: Mute or restore volume.
English
a (Standby-On)
Switch the main unit on or to
standby.
b Source buttons
COAX: Switch your audio source to the coaxial connection. OPTICAL: Switch your audio source to the optical connection. AUX: Switch your audio source to the connection of an external device with
3.5mm jack or with red/white audio jacks.
g Sound mode control
VOICE: Select voice clarity sound mode.
MUSIC: Select stereo sound mode. MOVIE: Select surround sound mode.
h AUDIO SYNC +/-
Increase or decrease audio delay.
i NIGHT ON/OFF
Turn night mode on or off.
j TREBLE +/-
Increase or decrease treble.
EN
5

Connectors

h
This section includes an overview of the connectors available on this product.
a cb d ef g
a TO R SPEAKER
Connect to the right base speaker.
b DC IN
Connect to the power supply.
c TO L SPEAKER
Connect to the left base speaker.
d COAXIAL
Connect to a coaxial audio output on the TV or a digital device.
e
Connect to a USB storage device
for audio media play.
Upgrade software of this product.
Charge a USB device.
f OPTICAL
Connect to an optical audio output on the TV or a digital device.
g AUDIO IN
Audio input from, for example, an MP3 player (3.5mm jack).
h TO TV - HDMI OUT (ARC)
Connect to the HDMI (ARC) input on the TV.

Wireless speakers

This product comes with a pair of wireless surround speakers.
* The illustration above is for either of
wireless surround speakers.
a LED indicaton
a b
Red LED
Lights up when the battery
capacity is less than 30% remaining (undocked from the main unit).
Blinks when the battery capacity is
less than 10% remaining (undocked from the main unit).
If the speaker is not wirelessly
connected to the main unit, the LED blinks red and orange alternatively.
White LED
Lights up when the battery capacity
is full or more than 30% remaining (undocked from the main unit).
Lights up when the speaker is
wirelessly connected to the main unit (undocked from the main unit).
6
EN
Orange LED
Lights up when the surround
speaker is being charged (only for the wireless speaker docked onto the main unit).
If the speaker is not wirelessly
connected to the main unit, the LED blinks red and orange alternatively.
b
Switch the surround speaker on.
The surround speaker
automatically turns off after 4 minutes of being wirelessly disconnected from the main unit.

Wireless subwoofer

This product comes with a wireless subwoofer.
During wireless pairing between
the subwoofer and the main unit, the indicator blinks white quickly.
When the pairing succeeds, the
indicator lights up white.
When the pairing fails, the indicator
blinks white slowly.
When wireless connection is
disconnected for 4 minutes, the indicator turns off.
c AC MAINS~
Connect to the power supply.
English
a CONNECT (connect)
Press to to enter the pairing mode for the subwoofer.
b Subwoofer indicator
When the power is turned on, the
indicator lights up.
a b
c
EN
7
3 Connect and set
up
This section helps you connect this product to a TV and other devices, and then set it up. For information about the basic connections of this product and accessories, see the quick start guide.
Blink red: near empty, less than 10%
remaining
Note
For identication and supply ratings,
see the type plate at the back or bottom of the product.
Before you make or change any
connections, make sure that all devices are disconnected from the power outlet.

Connect the main unit

With the supplied DIN cable, connect the left base speaker to the right base speaker as main unit. See the quick start guide for details.

Charge speakers

If the wireless surround speaker is undocked from the main unit, its battery level is indicated by the LED on the wireless speaker.
Light up white: full battery or more
than 30% capacity remaining
Light up red: low battery level, less
than 30% remaining
1 Dock the left and right wireless
speakers onto the main unit (the left and right base speakers) to charge the speakers.
2 Turn on the main unit.
» During charging, the orange LED
on the wireless speaker lights up.
» When fully charged, the orange
LED on the wireless speaker turns off.
Note
It may take around 3 hours to fully
charge the speakers.

Pair up with speakers/ subwoofer

The wireless speakers and subwoofer automatically pair up with the main unit (left and right base speakers) for wireless connection when you turn on the main unit, the speakers and the subwoofer. If no audio from the wireless speakers and subwoofer can be heard, do the following for pairing.
8
EN
Pair up with the speakers
1 Turn on the main unit and the
surround wireless speakers.
» If the connection to the main unit
is lost, the red and orange LEDs on the wireless speaker blink alternatively.
2 Dock the left and right wireless
speakers onto the main unit (the left and right base speakers) to pair up automatically.
» If the pairing is successful, the
orange LED on the wireless
speaker lights up for ve seconds.
» If the pairing fails, the red and
orange LEDs on the wireless speaker blinks alternatively.
4 If the pairing fails, repeat the steps
above.
Note
After the subwoofer is manually
connected to the main unit, pair the surround speakers with the main unit again for re-connection.
English

Place speakers

For best sound effect, position all the speakers towards the seating position and place them close to your ear level (seated).
3 If the paring fails, re-dock the wireless
speakers onto the main unit.
Pair up with the subwoofer
1 Turn on the main unit, and the
subwoofer.
» If the connection to the main
unit is lost, the white LED on the subwoofer blinks slowly.
2 Press the CONNECT (connect)
button on the subwoofer to enter the pairing mode.
» The white LED on the subwoofer
blinks quickly.
3 In OPTICAL mode (press OPTICAL)
, within six seconds, on the remote control, press twice then Volume + once, and then hold down BASS +.
» If the pairing succeeds, the white
LED on the subwoofer lights up.
» If the pairing fails, the white LED
on the subwoofer blinks slowly.
SUB
WOOFER
Note
Surround sound depends on factors
such as room shape and size, type of
wall and ceiling, windows and reective
surfaces, and speaker acoustics. Experiment with the speaker positions
to nd the optimum setting for you.
RL
EN
9

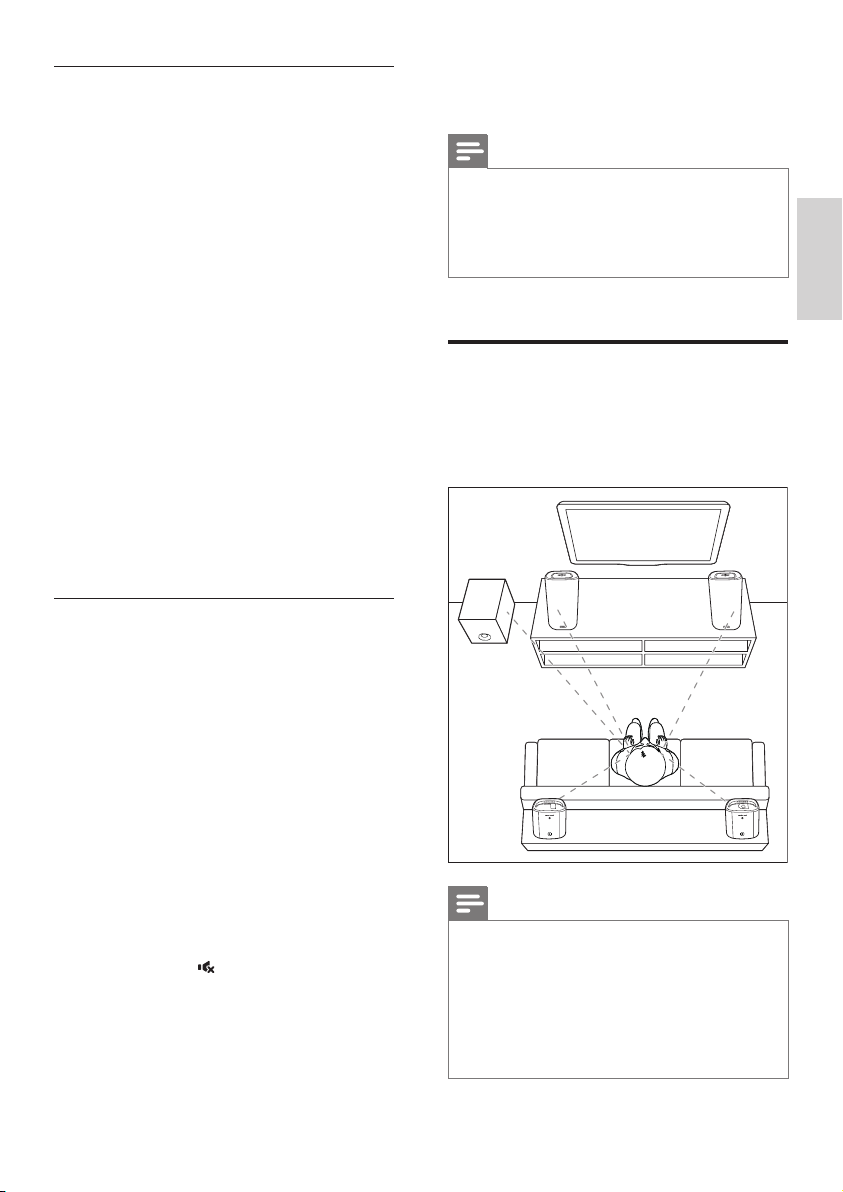

Follow these general guidelines for speakers placement.
1 Seating position:
This is the center of your listening area.
2 Place the main unit (left and right
base speakers) in front of the seating position.
3 L/ R surround speakers (left/right):
Place the rear surround speakers to the left and right side of your seating position, either in line with it or slightly behind it.
4 SUBWOOFER (subwoofer):
Place the subwoofer at least one meter to the left or right of the TV. Leave about 10-centimeter clearance from the wall.

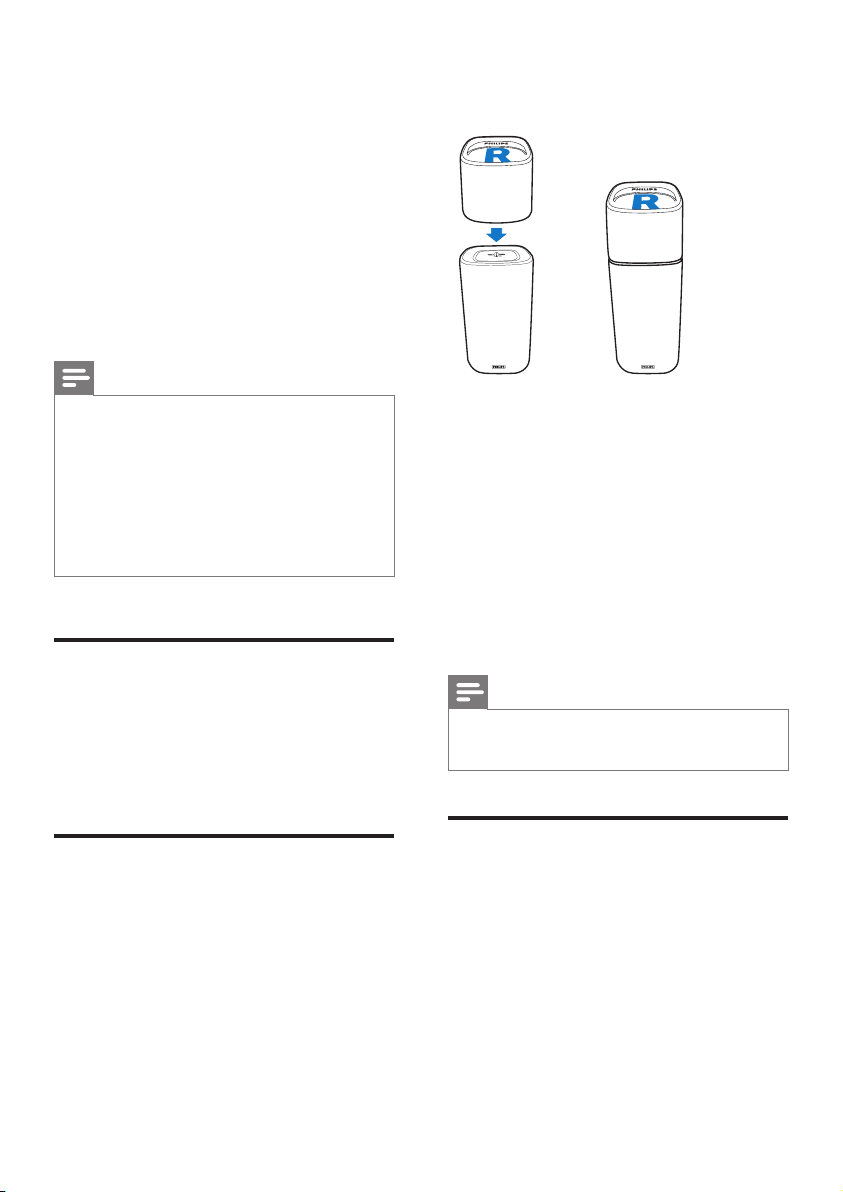

Dock the surround speakers
You can also dock your surround speakers onto the main unit to listen to audio, for example, watching TV shows and news.

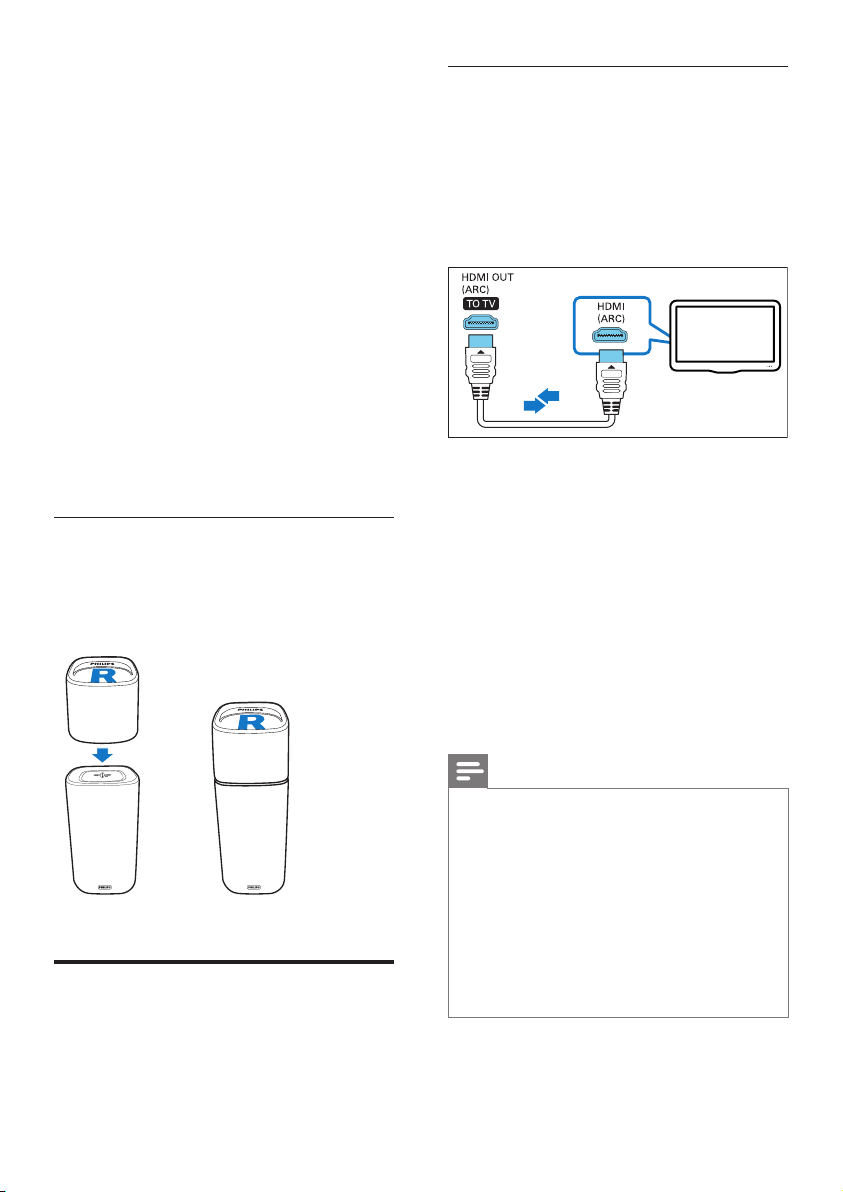

Connect to TV through HDMI (ARC)
Best quality audio
This product supports HDMI with Audio Return Channel (ARC). If your TV is HDMI ARC compliant, you can hear the TV audio through the speakers of this product by using a single HDMI cable.
TV
1 Using a High Speed HDMI cable,
connect the HDMI OUT (ARC) connector on the right base speaker to the HDMI ARC connector on the TV.
The HDMI ARC connector on the
TV might be labeled differently. For details, see the TV user manual.
2 On your TV, turn on HDMI-CEC
operations. For details, see the TV user manual.

Connect to TV

Connect this product to a TV. You can listen to audio from TV programs through the speakers of this product.
10
EN
Note
If your TV is not HDMI ARC compliant,
connect an audio cable to hear the TV audio through the speakers of this product (see 'Connect audio from TV and other devices' on page 11).
If your TV has a DVI connector, you
can use an HDMI/DVI adapter to connect to TV. However, some of the features may not be available.

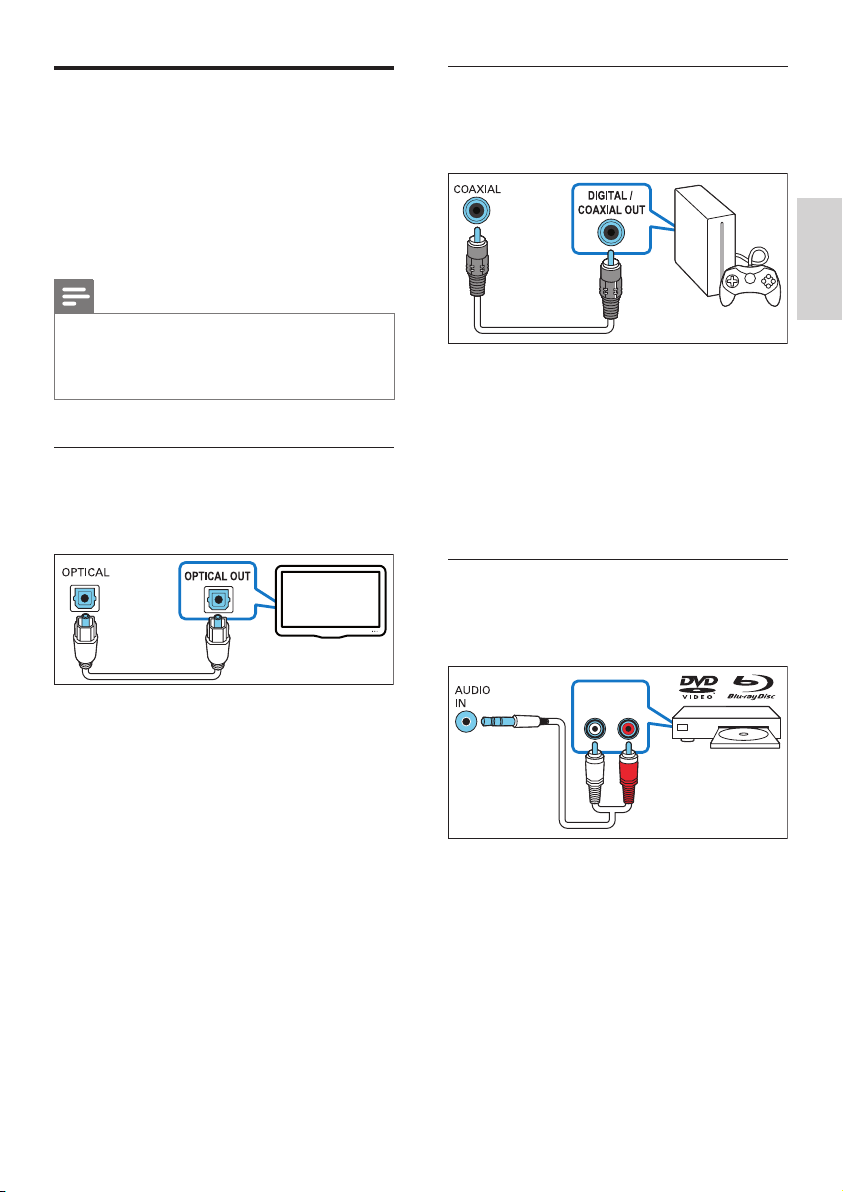

Connect audio from TV and other devices

Play audio from TV or other devices through the speakers of this product. Use the best quality connection available on this product, TV, and other devices.
Option 2: Connect audio through a digital coaxial cable
Best quality audio
Note
When this product and TV are
connected through HDMI ARC, an audio connection is not required.
Option 1: Connect audio through a digital optical cable
Best quality audio
TV
1 Using an optical cable, connect the
OPTICAL connector on the right
base speaker of this product to the OPTICAL OUT connector on the TV or other device.
The digital optical connector might
be labeled SPDIF or SPDIF OUT.
1 Using a coaxial cable, connect the
COAXIAL connector on the right
base speaker of this product to the COAXIAL/DIGITAL OUT connector on the TV or other device.
The digital coaxial connector might
be labeled DIGITAL AUDIO OUT.
Option 3: Connect audio through analog audio cables
Basic quality audio
AUDIO OUT
RL
1 Using an analog cable, connect the
AUDIO IN (3.5mm jack) on the right
base speaker of this product to the AUDIO OUT connectors (red and white) on the TV or other device.
2 Press once or two times AUX on the
remote control until higher volume is heard.
English
EN
11
4 Use your
product
This section helps you use this product to play audio from connected devices.
Before you start
Make the necessary connections
described in the quick start guide and the user manual.
Switch this product to the correct
source for other devices.
Press VOICE to create sound effect
which makes human voice more clear and outstanding for listening.
Equalizer
Change the high frequency (treble) and low frequency (bass) settings of this product.
1 Press TREBLE +/- or BASS +/- to
change the frequency.
» If the treble or bass is set to the
maximum or minimum, the white LED on the right base speaker blinks two times.

Adjust the volume

Press Volume +/- to increase or
1
decrease a volume level.
To mute sound, press .
To restore the sound, press
again or press Volume +/-.
» If volume is set to the maximum
or minimum, the white LED on the right base speaker blinks two times.

Choose your sound

This section helps you choose the ideal sound for your video or music.
Sound mode
Select predened sound modes to suit
your video or music.
Press MOVIE to create a surround
listening experience. Ideal for watching movie.
Press MUSIC to create stereo sound.
Ideal for listening to music.
Synchronize video and sound
If the audio and video are not synchronized, delay the audio to match the video.
1 Press AUDIO SYNC +/- to
synchronize the audio with the video.
AUDIO SYNC + increases the
sound delay, and AUDIO SYNC - decreases the sound delay.
» If the value of sound delay is set
to the maximum or minimum, the white LED on the right base speaker blinks two times.
Night mode
For quiet listening, night mode decreases the volume of loud sounds when audio is played. Night mode is only available for Dolby Digital soundtracks.
1 Press NIGHT ON/OFF to turn night
mode on or off.
12
EN

Play music via Bluetooth

Through Bluetooth, connect your product with a Bluetooth device (such as an iPad, iPhone, iPod touch, Android phone, or laptop), and then you can listen to the
audio les stored on the device through
the speakers of this product.
What you need
A Bluetooth device which supports
Bluetooth prole A2DP, and with
Bluetooth version as 4.1.
The operational range between the
main unit (left and right speakers) and a Bluetooth device is approximately 10 meters (30 feet).
1 Press Bluetooth on the remote
control to switch this product to Bluetooth mode.
» The blue LED on the right base
speaker blinks.
2 On the Bluetooth device, switch on
Bluetooth, search for and select Philips CSS5235Y to start connection (see
the user manual of the Bluetooth device on how to enable Bluetooth).
» During connection, the blue LED
on the right base speaker blinks.
3 Wait until you hear a beep sound
from this product.
» The blue LED on the right base
speaker lights up.
» If the connection fails, the blue LED
on the right base speaker blinks continually.
4 Select and play audio les or music on
your Bluetooth device.
During play, if a call is coming,
music play is paused.
If your Bluetooth device supports
AVRCP prole, on the remote
control you can press / to skip to a track, or press to pause/resume play.
5 To exit Bluetooth, select other source.
When your switch back to
Bluetooth mode, Bluetooth connection remains active.
Note
The music streaming may be
interrupted by obstacles between the device and this product, such as wall, metallic casing that covers the device, or other devices nearby that operate in the same frequency.
If you want to connect this product
with another Bluetooth device, press and hold on the remote control to break the current Bluetooth connection.

Play music via NFC

NFC (Near Field Communication) is a technology that enables short-range wireless communication between NFC­enabled devices, such as mobile phones.
What you need
A Bluetooth device with NFC function.
For pairing, tap the NFC device on the
NFC tag of this product.
The operational range between the
main unit (left and right speakers) and a NFC device is approximately 10 meters (30 feet).
English
EN
13
1 Enable NFC on the Bluetooth device
(see the device' s user manual for details).
2 Tap the NFC device on the NFC tag
of this product until you hear a beep sound from this product.
» The blue LED on the right base
speaker lights up, and the NFC device is connected to this product via Bluetooth.
» If the connection fails, the blue LED
on the right base speaker blinks continually.

USB storage devices

Enjoy audio on a USB storage device, such
as an MP3 player and USB ash memory,
etc.
What you need
A USB storage device that is
formatted for FAT or NTFS le
systems, and complies with the Mass Storage Class.
An MP3 or WMA le on a USB
storage device
3 Select and play audio les or music on
your NFC device.
To break the connection, tap again
the NFC device with the NFC tag on this product.

MP3 player

Connect your MP3 player to play your
audio les or music.
What you need
An MP3 player.
A 3.5mm stereo audio cable.
1 Using the 3.5mm stereo audio cable,
connect the MP3 player to the AUDIO IN connector on the right base speaker.
2 Press the buttons on the MP3 player
to select and play audio les or music.
3 Press once or two times AUX on the
remote control until higher volume is heard.
On the MP3 player, it is
recommended to set the volume in the range of 80% maximum volume.
1 Connect a USB storage device to this
product.
2 Press USB on the remote control. 3 Use the remote control to control
play.
Button Action
Start, pause or resume play.
/ Skip to the previous or next track.
USB During play, press to toggle: repeat
all tracks and repeat off.
Repeat play indicator
If repeat mode is turned on,
the white LED indicator on the main unit blinks once.
If repeat mode is turned off,
the white LED indicator on the main unit blinks twice.
14
EN
Note
This product supports WMA les which
are converted via Windows Media
Player (WMA les converted via other le format converters may not work).
If a USB storage device has a large
media library, it takes some time to load those contents.
This product may not be compatible with certain types of USB storage device.
If you use a USB extension cable, USB
HUB, or USB multi-reader, the USB storage device may not be recognized.
Digital camera PTP and MTP protocols
are not supported.
Do not remove the USB storage
device while it is being read.
DRM-protected music les (MP3,
WMA) are not supported.
Support a USB port: 5V 1A.

Auto standby

When playing media from a connected device, this product automatically switches to standby after 15 minutes of button inactivity and no audio/video play from a connected device.

5 Update software

To get the best features and support, update your product with the latest software.
What you need
Connect this product to your TV
through HDMI.
Note
Dock the surround speakers onto
the main unit (the left and right base speakers), so that the surround speakers can be upgraded.

Check software version

Switch to HDMI ARC mode (press
1
HDMI ARC).
2 On the remote control, press
TREBLE -, BASS - and Volume - in
sequence within three seconds.
» The current software information
is displayed on the TV screen.
English

Apply factory settings

You can reset this product to the default settings programmed at the factory.
1 In AUX mode, on the remote control
press Volume -, BASS -, and TREBLE - in sequence within three seconds.
» When the factory settings restore is
complete, the product automatically switches off and restarts.

Update software via USB

Check the latest software version on
1
www.philips.com/support.
Search for your model and click on
"Software and drivers".
2 Download the software into a USB
storage device.
EN
15
a Unzip the download if zipped, and
makesurethattheunzippedle containsthefollowingtwoles.
"CSS5235.bin" (for the software of the main unit) "MCU5235.bin" (for the software of the surround speakers)
b Put the "CSS5235.bin" and
"MCU5235.bin" in the root directory of the USB device.
3 Connect the USB storage device to
the connector on this product.
4 Switch this product to the HDMI ARC
source, and switch your TV to the HDMI source.
5 On the remote control, within 6
seconds press twice, and Volume + once, then hold down MOVIE until upgrade information appears on the TV screen.
» If an upgrade media is detected, on
the TV screen you are prompted to start the update.
» If an upgrade media is not
detected, an error message is displayed on the TV screen. Make sure that the latest software of this product is put in the USB storage device.
Caution
Do not turn off the power or remove
the USB storage device when the software update is in progress because you might damage this player.
6 Press to start the update. 7 Wait until the update is completed.
» If the update is complete, this
product automatically turns off and on again.
16
EN
6 Product
specifications
Note
Specications and design are subject to
change without notice.
Amplier
Total output power:
200W RMS (+/- 0.5 dB, 10% THD)
Frequency response:
20 Hz-20 kHz / ±3 dB
Signal-to-noise ratio:
> 65 dB (CCIR) / (A-weighted)
AUX Input sensitivity:
400mV +/- 100mV (connection
to an external device with 3.5mm jack)
800mV +/- 100mV (connection
to an external device with red and white audio jacks)
Audio
Main unit (left and right base speakers)
Power supply:
Model (Philips branded AC power
adapter): DYS602-210309W; AS650-210­AA309
Input: 100-240 V~, 50/60 Hz 1.5 A
Output: 21V , 3.09A
Standby power consumption: ≤ 0.5 W
Dimensions (W x H x D): 128 x 221 x 128 mm
Weight
Left base speaker: 1.11 kg
Right base speaker: 1.29 kg
Built-in speakers
2 x woofer (76.2mm/3", 8 ohm)
2 x tweeter (25.4mm/1", 8 ohm)
Surround speakers
Speaker impedance: 8 ohm
Speaker drivers: 2 x 63.5 mm (2.5") full
range
Dimensions (W x H x D):
120 x 117 x 120 mm
Weight: 0.66 kg/each
English
S/PDIF Digital audio input:
Coaxial: IEC 60958-3
Optical: TOSLINK
Bluetooth
Bluetooth proles: A2DP
Bluetooth version: 4.1
Subwoofer
Power supply: 110-240 V~, 50-60 Hz
Power consumption: 35 W
Standby power consumption: ≤ 0.5 W
Impedance: 3 ohm
Speaker drivers: 1 x 133 mm (5.25")
woofer
Dimensions (W x H x D):
226 x 251 x 306 mm
Weight: 4.0 kg
Remote control batteries
1 x AAA-R03-1.5 V
17
EN
Standby power management
When the product remains inactive for
15 minutes, it automatically switches to standby or networked standby.
The power consumption in standby or
networked standby is less than 0.5W.
To deactivate Bluetooth connection,
press and hold the Bluetooth button on the remote control.
To activate Bluetooth connection,
enable Bluetooth connection on your Bluetooth device, or enable Bluetooth connection via the NFC tag (if available).

7 Troubleshooting

Warning
Risk of electric shock. Never remove
the casing of the product.
To keep the warranty valid, never try to repair the product yourself. If you have problems using this product, check the following points before you request service. If you still have a problem, get support at www.philips.com/support.
Main unit
The buttons on this product do not work.
Disconnect this product from the
power supply for a few minutes, then reconnect.
Sound
No sound from the speakers of this product.
Connect the audio cable from this
product to your TV or other devices. However, you do not need a separate audio connection when this product and TV are connected through HDMI ARC connection.
Reset this product to its factory
settings.
On the remote control, select the
correct audio input.
Make sure that this product is not
muted.
18
No sound from the wireless surround speakers.
Wirelessly connect the speakers to the
main unit.
EN
Dock the wireless surround speakers
into the main unit to charge the battery.
No sound from the wireless subwoofer.
Wirelessly connect the subwoofer to
the main unit.
Distorted sound or echo.
If you play audio from the TV through
this product, make sure that the TV is muted.
Audio and video are not synchronized.
Press AUDIO SYNC +/- to
synchronize the audio with the video.
Bluetooth
A device cannot connect with this product.
The device does not support the
compatible proles required for this
product.
You have not enabled the Bluetooth
function of the device. See the user manual of the device on how to enable the function.
The device is not correctly connected.
Connect the device correctly.
This product is already connected with
another Bluetooth device. Disconnect the connected device, then try again.
remove any obstacle between the device and this product.
Turn off Wi-Fi function on the
Bluetooth device to avoid interference.
For some Bluetooth, the Bluetooth
connection can be deactivated automatically to save power. This does not indicate any malfunction of this product.
English
NFC
A device cannot connect with this product via NFC.
Make sure that the device is
supported by NFC.
Make sure that NFC is enabled on the
device (see the device' s user manual for details).
For pairing, tap the NFC device on the
NFC tag of this product.
Quality of audio play from a connected Bluetooth device is poor.
The Bluetooth reception is poor. Move
the device closer to this product, or remove any obstacle between the device and this product.
The connected Bluetooth device connects and disconnects constantly.
The Bluetooth reception is poor. Move
the device closer to this product, or
EN
19
For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS Digital Surround is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.
Manufactured under license from Dolby Laboratories. Dolby, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.
The terms HDMI and HDMI High-
Denition Multimedia Interface, and the
HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Gibson is under license. Other trademarks and trade names are those of their respective owners.
The N Mark is a trademark or registered trademark of NFC Forum, Inc. in the United States and in other countries.
20
部件名称
Name of the parts
Housing
外壳
Subwoofer
超重低音箱
Loudspeakers
喇叭单元
PWBs
电路板组件
Accessories (Remote control & cables)
附件(遥控器, 电源线,连接线)
Batteries in Remote Control (ZnC)
遥控器电池
产品中有害物质的名称及含量
Names and Contents of Hazardous Substances
有害物质
Hazardous Substance
(Pb)
O O O O O O
X O O O O O
O O O O O O
X O O O O O
X O O O O O
X O O O O O
(Hg)
(Cd)
六价铬
(Cr (VI))
多溴联苯
(PBB)
多溴二苯醚
(PBDE)
本表格依据
SJ/T 11364
的规定编制。
The table is formulated according to SJ/T 11364.
: 表示该有害物质在该部件所有均质材料中的含量均在
O
GB/T 26572
规定的限量要求以下。
O: Indicates that this hazardous substance contained in all of the homogeneous materials
for this part is below the limit requirement in GB/T 26572.
× 表示该有害物质至少在该部件的某一均质材料中的含量超出 ×
Indicates that this hazardous substance contained in at least one of the homogeneous
GB/T 26572
规定的限量要求。
materials used for this part is above the limit requirement in GB/T 26572.
10
环保使用期限
此标识指期限(十年),电子电气产品中的有害物质在正常使用的条件下不会发生外泄或突变, 用户使用该电子电气产品不会对环境造成严重污染或对其人身、财产造成严重损害的期限。
This logo refers to the period (10 years) during which the hazardous substances in electronic and electrical products will not leak or mutate so that the use of these [substances] will not result in any severe environmental pollution, any bodily injury or damage to any asset
Environmental Protection Use Period
s.
21
Specicationsaresubjecttochangewithoutnotice
2015 © Gibson Innovations Limited. All rights reserved. This product has been manufactured by, and is sold under the responsibility of WOOX Innovations (Shanghai) Commercial Company Ltd., and WOOX Innovations (Shanghai) Commercial Company Ltd., is the warrantor in relation to this product. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license from Koninklijke Philips N.V.
CSS5235Y_93_UM_V1.0
Loading...
