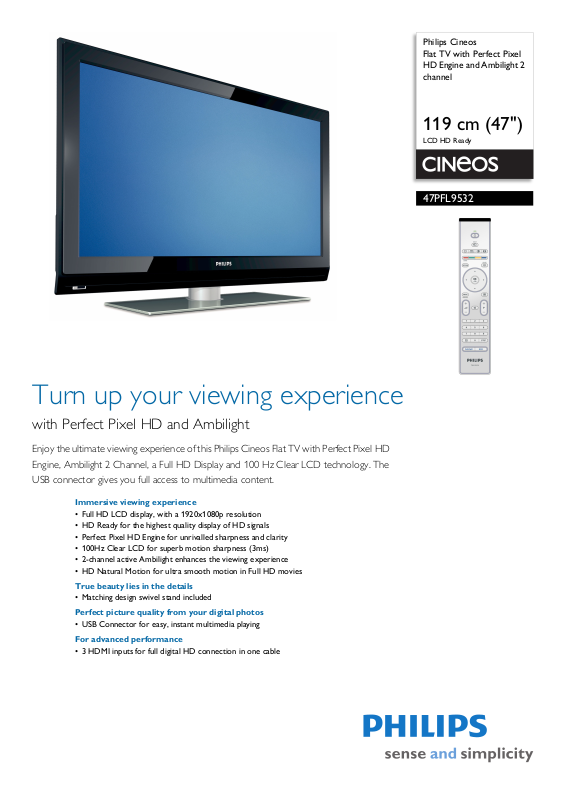

Philips Cineos 47PFL9532, Cineos 47PFL9532/98 Specification Sheet

Philips Cineos
Flat TV with Perfect Pixel
HD Engine and Ambilight 2
channel

119 cm (47")

LCD HD Ready

47PFL9532

Turn up your viewing experience

with Perfect Pixel HD and Ambilight

Enjoy the ultimate viewing experience of this Philips Cineos Flat TV with Perfect Pixel HD
Engine, Ambilight 2 Channel, a Full HD Display and 100 Hz Clear LCD technology. The
USB connector gives you full access to multimedia content.

Immersive viewing experience

• Full HD LCD display, with a 1920x1080p resolution

• HD Ready for the highest quality display of HD signals

• Perfect Pixel HD Engine for unrivalled sharpness and clarity

• 100Hz Clear LCD for superb motion sharpness (3ms)

• 2-channel active Ambilight enhances the viewing experience

• HD Natural Motion for ultra smooth motion in Full HD movies

True beauty lies in the details

• Matching design swivel stand included

Perfect picture quality from your digital photos

• USB Connector for easy, instant multimedia playing

For advanced performance

• 3 HDMI inputs for full digital HD connection in one cable

Flat TV with Perfect Pixel HD Engine and Ambilight 2 channel

119 cm (47") LCD HD Ready

Highlights

47PFL9532/98

Full HD LCD display 1920x1080p

The Full HD screen has the widescreen
resolutio
resolution of HD sources for the best possible
picture quality. It is fully future proof as it
supports 1080p signals from all sources,
including the most recent like Blu-ray and
advanced HD game consoles. The signal
processing is extensively upgraded to support
this much higher signal quality and resolution.
It produces brilliant flicker-free progressive
scan pictures with superb brightness and
colors.

HD Ready

Enjoy the exceptional picture quality of High
Definiti
HD sources like HDTV settop box or Blu-ray
disc. HD Ready is a protected label that offers
picture quality beyond that of progressive scan.
It conforms to strict standards laid out by
EICTA to offer a HD screen that displays the
benefits of resolution and picture quality of a
High Definition signal. It has a universal
connection for both analog YPbPr and
uncompressed Digital connection of DVI or
HDMI, supporting HDCP. It can display 720p,
and 1080i signals at 50 and 60Hz.

Perfect Pixel HD Engine

Experience unrivalled sharpness and clarity
w
picture is enhanced to better match the
surrounding pixels, resulting in a more natural
picture. The result is a unique combination of
sharpness, natural detail, vivid colors superior
contrast and smooth natural motion whatever

n of 1920 x 1080p. This is the highest

on pictures and be fully prepared for

ith Perfect Pixel HD Engine. Each pixel of the

you are watching. Clean and razor sharp
images result from artifact and noise detection
and reduction in all content sources - from
multimedia to standard TV.

100Hz Clear LCD

100Hz Clear LCD creates extreme motion
sharpness for cle
with fast on-screen motion. The Double Frame
Rate Insertion works with a high 100Hz
refresh rate. It increases the sharpness of
motion reproduction to more than twice that
of conventional LCD, resulting in a response
time of 3 milliseconds (measured in Perceived
Blur-Edge-Width; BEW). This unique Philips
technology brings motion sharpness of LCD
displays to an unprecedented level.

Ambilight 2 channel

Ambilight makes an impressive contribution to
th

e overall viewing experience by producing
ambient light to complement the colors and
light intensity of the on-screen image. It adds a
new dimension to the viewing experience,
completely immersing you into the content
you are watching. It creates ambiance,
stimulates more relaxed viewing, and improves
perceived picture detail, contrast and color.
Ambilight automatically and independently
adapts its colors according to the changing
content on the screen.

HD Natural Motion

Philips invented HD Natural Motion to
minimize
movie based picture content. The award

ar and vibrant images even

juddering effects that are visible with

winning algorithm estimates motion in the
picture and corrects juddering movements in
both broadcast and recorded movie material
(such as DVD and Blu-ray Disc). The resulting
smooth motion reproduction and excellent
sharpness take the viewing experience to a
higher level.

USB Multimedia Connector

The USB connector allows access to
m

ultimedia jpg, mp3 and alb files of most USB­sticks and most digital cameras (USB 1.1
memory-class device). Plug the USB into the
slot at the side of the TV and access your
photos or music files. This makes you easily
viewing and sharing your photos and music.

3 HDMI inputs

HDMI makes an uncompressed digital RGB
c

onnection from the source to the screen. By
eliminating conversion to an analog signal, it
delivers an unblemished image. The non­degraded signal reduces flicker and leads to a
clearer picture. HDMI intelligently
communicates the highest output resolution
with the source device. The HDMI input is fully
backward compatible with DVI sources but
includes digital audio. HDMI uses HDCP copy
protection. With 3 HDMI inputs you can
connect multiple HD sources, for instance an
HD settop box, and a Blu-ray player. Your TV
is fully prepared for the HD future.

Flat TV with Perfect Pixel HD Engine and Ambilight 2 channel

119 cm (47") LCD HD Ready

Specifications

47PFL9532/98

Picture/Display

• Color cabinet: High Gloss Black

• Aspect ratio: 16:9

• Brightness: 550 cd/m²

• Contrast ratio (typical): 1200:1

• Dynamic screen contrast: 8000:1

• Response time (typical): 3 (BEW equiv.) ms

• Viewing angle: 176º (H) / 176º (V)

• Diagonal screen size: 47 inch / 119 cm

• Display screen type: LCD Full HD W-UXGA Act.
ix

r

mat

• Panel resolution: 1920x1080p

• Color processing: 4 trillion colors (14bit RGB)

• Picture enhancement: Perfect Pixel HD Engine, HD

ral Mot

Natu

ion, Dynamic contrast enhancement,
1080p 50/60Hz processing, 1080p 24/25/30Hz
processing, 3/2 - 2/2 motion pull down, 3D
Combfilter, Active Control + Light sensor, Jagged
Line Suppression, Progressive scan, Pulse Killer
Chip, Widescreen Plus, 100Hz Clear LCD, Double
frame rate

• Screen enhancement: Anti-Reflection coated
en

re

sc

Ambilight

• Ambilight Features: Ambilight 2 Channel, Auto

adaptive to video content, Full operation in stand­by, Efficient low energy lamp

• Ambilight light system: LED wide color

• Dimming Function: Manual and via Light Sensor

Supported Display Resolution

• Computer formats

olution Refresh rate

Res
640 x 480 60Hz
800 x 600 60Hz
1024 x 768 60Hz
1280 x 768 60Hz
1360 x 768 60Hz
1920 x 1080i 60Hz
1920 x 1080p 60Hz

deo formats

• Vi

Res

olution Refresh rate
480i 60Hz
480p 60Hz
576i 50Hz
576p 50Hz
720p 50, 60Hz
1080i 50, 60Hz

1080p 24, 25, 30Hz
1080p 24, 50, 60Hz

Sound

• Output power (RMS): 2x8W

• Sound Enhancement: Digital Signal Processing,
Equaliser, Dynamic Bass Enhancement

Graphic

• Sound System: Virtual Dolby Digital, BBE

Loudspeakers

• Built-in speakers: 2

• Loudspeaker types: Front Speakers, Dome

tweeter

Convenience

• Child Protection: Child Lock+Parental Control

• Clock: Smart Clock

• Ease of Installation: Auto Program Naming,

ic Channel Install(ACI), Automatic Tuning

Automat
System (ATS), Autostore, PLL Digital Tuning, Plug
& Play

• Ease of Use: 4 favorite lists, Auto Volume Leveller

), Delt

(AVL

a Volume per preset, Graphical User
Interface, On Screen Display, Program List,
Settings assistant Wizard, Side Control

• Remote Control: TV

• Remote control type: RC4450

• Screen Format Adjustments: unscaled (1080p dot
), 4:3, 6 Widescreen Modes, Auto Format,

dot

by
Movie expand 14:9, Movie expand 16:9, Subtitle
and Heading Shift, Super Zoom, Widescreen

• Picture in Picture: Text dual screen

• Teletext: 1200 page Hypertext

• Teletext enhancements: Habit Watch, Program

ion Line

rmat

info

• Firmware upgradeable: Firmware auto upgrade
, Firmware upgradeable via USB

wizard

• Multimedia: Digital media reader (browser), USB
eak-in

autobr

Multimedia Applications

• Multimedia connections: USB

• Playback Formats: MP3, Slideshow files (.alb), JPEG

ures

Still pict

Tuner/Reception/Transmission

• Aerial Input: 75 ohm coaxial (IEC75)

• TV system: PAL I, PAL B/G, SECAM B/G, SECAM

D/K

Video Playback: NTSC, SECAM, PAL

•

• Tuner bands: Hyperband, S-Channel, UHF, VHF

Connectivity

• AV 1: (1, 2, 3Fh autoranging), Audio L/R in, CVBS
in, S-Video, YPbPr

• AV 2: Audio L/R in, CVBS

• AV 3: (1, 2, 3Fh autoranging), Audio L/R in, YPbPr

• AV 4: HDMI, Audio L/R in

•AV 5: HDMI

•AV 6: HDMI

• Front / Side connections: Audio L/R in, CVBS in,

e Out, S-video in, USB

n

Headpho

• Other connections: Analog audio Left/Right out, S/

t (coaxial)

PDIF ou

Power

• Ambient temperature: 5 °C to 35 °C

• Mains power: AC 200 - 240 V

• Power consumption: 275 W

• Standby power consumption: 0.8 W

Accessories

• Included accessories: Tabletop swivel stand, Wall
mounting bracket, RF antenna cable

Dimensions

•Set dimensions (W x H x D):
1157 x 752 x 117 mm

• Set dimensions with stand (H x

• Product weight: 32 kg

• Product weight (+stand): 41 kg

•Box dimensions (W x H x D):

24

x 941 x 331 mm

13

• Weight incl. Packaging: 49 kg

• VESA wall mount compatible: 600 x 400 mm

•

D): 820 x 305 mm

Rear connectors

ANALOG AUDIO IN

MONITOR

DIGITAL AUDIO

OUT

DISPLAY SYNCHRONIZED

VGA / HDMI 1 / HDMI 2

R

IN

AUDIOVIDEO

DISPLAY
SYNC.

L

OUTRL

Issue date 2012-01-20

Version: 8.0.16

12 NC: 8670 000 25097
EAN: 87 12581 30077 7

SERVICE

AV 3

UART

L

AUDIO

R

S VIDEO

AV 1

YPbPr

VIDEO L RAUDIO

AV 2

VIDEO

Y

AUDIOLR

Pb Pr

Side

© 2012 Koninklijke Philips Electronics N.V.
All Rights reserved.

Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.

www.philips.com
