Philips _chassis_l12m3.1l_la_sm Datasheet

Color Television Chassis

L12M3.1L

LA

Contents Page

1. Revision List 2

2. Technical Specifications and Connections 2

3. Precautions, Notes, and Abbreviation List 6

4. Mechanical Instructions 10

5. Service Modes, Error Codes, and Fault Finding 21

6. Alignments 29

7. Circuit Descriptions 32

8. IC Data Sheets 34

9. Block Diagrams Wiring Diagram 39" (4500 series) 42 Wiring Diagram 42" (3500 series) 43 Wiring Diagram 42"/46" (5000/5500 series) 45 Wiring Diagram 46" (4500 series) 46 Wiring Diagram 47" (7000 series) 47 Wiring Diagram 47" (8000 series) 48 Wiring Diagram 55" (7000 series) 49 Wiring Diagram 55" (8000 series) 50 Block Diagram 3139 123 65451 51 Block Diagram 3139 123 65441 52

10. Circuit Diagrams and PWB Layouts A 715G5778 PSU 53 55-56 A 715G5792 PSU 57 62-67 A 715G5793 PSU 64 66-67 ALC 715G6001 68 69-69 313912365441 SSB 70 83-84 313912365451 SSB 85 98-99 272217190763, 272217190764, 272217190766 Keyboard Control Module 100 100-100 E 715G5771 101 102-102 J 715G5783 103 104-104 J 715G5820 105 106-106 272217190759, 272217190761 Sensor Module 107 107-107 310431366033 AmbiLight 108 108-109 310431366053 AmbiLight 110 110-111 310431366063 AmbiLight 112 112-113 310431366292 AmbiLight 114 114-115

310431366302 AmbiLight 116 116-117

11. Styling Sheets 4500 series 39" 121 3500 series 42" 122 4500 series 42" 123 5000/5500 series 42"/46" 124 4500 series 46" 125 7000 series 47"/55" 126 8000 series 47" 127 8000 series 55" 128

Published by ER/JY 1366 Quality Printed in the Netherlands Subject to modification EN 3122 785 19511

2013-Jun-21

2013 ©

TP Vision Netherlands B.V.

All rights reserved. Specifications are su bject to change without notice. Trademarks ar e the property of Koninklijke Philips Electroni cs N.V. or their respective owners. TP Vision Netherlands B.V. reserves the right to change pr oducts at any time without being obliged to adjust earlier supplies accordingly. PHILIPS and the PHILIPS’ Shield Emblem are used under license from Koninklijke Philips Electronics N.V.

EN 2 L12M3.1L LA1.

Revision List

1. Revision List

Manual xxxx xxx xxxx.0

• First release.

Manual xxxx xxx xxxx.1

• Chapter 2: Table 2-1

updated (added CTNs).

• Chapter 5: added Ambilight parameters setting instructions; see section 5.7

.

• Chapter 5: Remote Control Unit (un-)pairing instructions; see section 5.8

• Chapter 6: added white tone values; see section 6.3.2

.

• Chapter 6: added display code overview; see section

6.4.3

.

2. Technical Specifications and Connections

Index of this chapter:

2.1

Technical Specifications

2.2 Directions for Use

2.3 Connections

Notes:

• Figures can deviate due to the different set executions.

• Specifications are indicative (subject to change).

2.1 Technical Specifications

For on-line product support please use the links in Table 2-1. Here is product information available, as well as getting started, user manuals, frequently asked questions and software & drivers.

Table 2-1 Described Model Numbers and Diversity

24 79 10 11

CTN

32PFL3508G/78 2.3 4-1 4.3 7.1 9-1 9-13 10.3 10.6 - 10.10 10.8 - 11.1

32PFL3518G/77 2.3 4-1 4.3 7.1 9-1 9-13 10.3 10.6 - 10.10 10.8 - 11.1

32PFL3518G/78 2.3 4-1 4.3 7.1 9-1 9-13 10.3 10.6 - 10.10 10.8 - 11.1

32PFL4508G/77 2.3 4-2 4.3 7.1 9-2 9-13 10.3 10.6 - 10.9 10.8 - 11.2

39PFL3508G/78 2.3 4-3 4.3 7.1 9-3 9-13 10.2 10.6 10.4 10.10 10.8 - 11.3

39PFL4508G/78 2.3 4-4 4.3 7.1 9-4 9-13 10.2 10.6 10.4 10.9 10.8 - 11.4

42PFL3508G/77 2.3 4-5 4.3 7.1 9-5 9-13 10.1 10.6 - 10.10 10.8 - 11.5

42PFL3508G/78 2.3 4-5 4.3 7.1 9-5 9-13 10.1 10.6 - 10.10 10.8 - 11.5

42PFL4508G/77 2.3 4-6 4.3 7.1 9-6 9-13 10.1 10.6 - 10.9 10.8 - 11.6

42PFL4508G/78 2.3 4-6 4.3 7.1 9-6 9-13 10.1 10.6 - 10.9 10.8 - 11.6

42PFL5008G/78 2.3 4-7 4.3 7.1 9-7 9-13 10.1 10.6 - 10.9 10.8 10.12 11.7

42PFL5508G/78 2.3 4-7 4.3 7.1 9-7 9-13 10.1 10.6 - 10.9 10.8 10.12 11.7

46PFL4508G/77 2.3 4-8 4.3 7.1 9-8 9-13 10.1 10.6 - 10.9 10.8 - 11.8

46PFL4508G/78 2.3 4-8 4.3 7.1 9-8 9-13 10.1 10.6 - 10.9 10.8 - 11.8

46PFL5508G/78 2.3 4-9 4.3 7.1 9-7 9-13 10.1 10.6 - 10.9 10.7 - 11.7

47PFL7008G/77 2.3 4-10 4.3 7.1 9-9 9-14 - 10.5 - - 10.7 10.15 11.9

47PFL7008G/78 2.3 4-10 4.3 7.1 9-9 9-14 - 10.5 - - 10.7 10.15 11.9

47PFL8008G/78 2.3 4-11 4.3 7.1 9-10 9-14 - 10.5 - - 10.7 10.13

55PFL7008G/78 2.3 4-12 4.3 7.1 9-11 9-14 - 10.5 - - 10.7 10.16 11.9

55PFL8008G/77 2.3 4-13 4.3 7.1 9-12 9-14 - 10.5 - - 10.7 10.14

55PFL8008G/78 2.3 4-13 4.3 7.1 9-12 9-14 - 10.5 - - 10.7 10.14

Mechanics Descr. Block Diagrams Schematics Styling

Connection Overview

Wire Dressing

Dressing

Assembly Removal

Introduction

Wiring Diagram

Block Diagram

Power Supply

SSB

ALC (Option Board)

J (Sensor Board)

E (Keyboard/Leading Edge)

10.14

10.12

AL (AmbiLight)

11.10

11.11

Sheet

2.2 Directions for Use

You can download this information from the following websites:

http://www.philips.com/support http://www.p4c.philips.com

2013-Jun-21

2.3 Connections

Rear

HDMI 1

HDMI 2ARC

ANTENNA

AUDIO IN

DVI/VGA

SPDIF

OUT

CVBS/Y Pb Pr - L R

SERV.U

VGA

Side

HDMI

USB 1 USB 2

NETWORK

19510_001_130424.eps

130424

3 3 9 11 1210

1 2 4 5 7 86

Rear

HDMI 1 HDMI 2 HDMI 3

AUDIO IN

DVI/VGA

CVI

AUDIO

CVI

VIDEO

SERV.U

ANTENNA

Side

HDMI SIDE

USB 2 USB 3

USB 1

NETWORK

Rear

VGA AV IN

DIGITAL

AUDIO OUT

OPTICAL

19511_006_130617.eps

130617

3 3 11 9 8 3 6 1210

2 7 7 10 5 5 5

10000_017_090121.eps

090428

19

1

18 2

Technical Specifications and Connections

EN 3L12M3.1L LA 2.

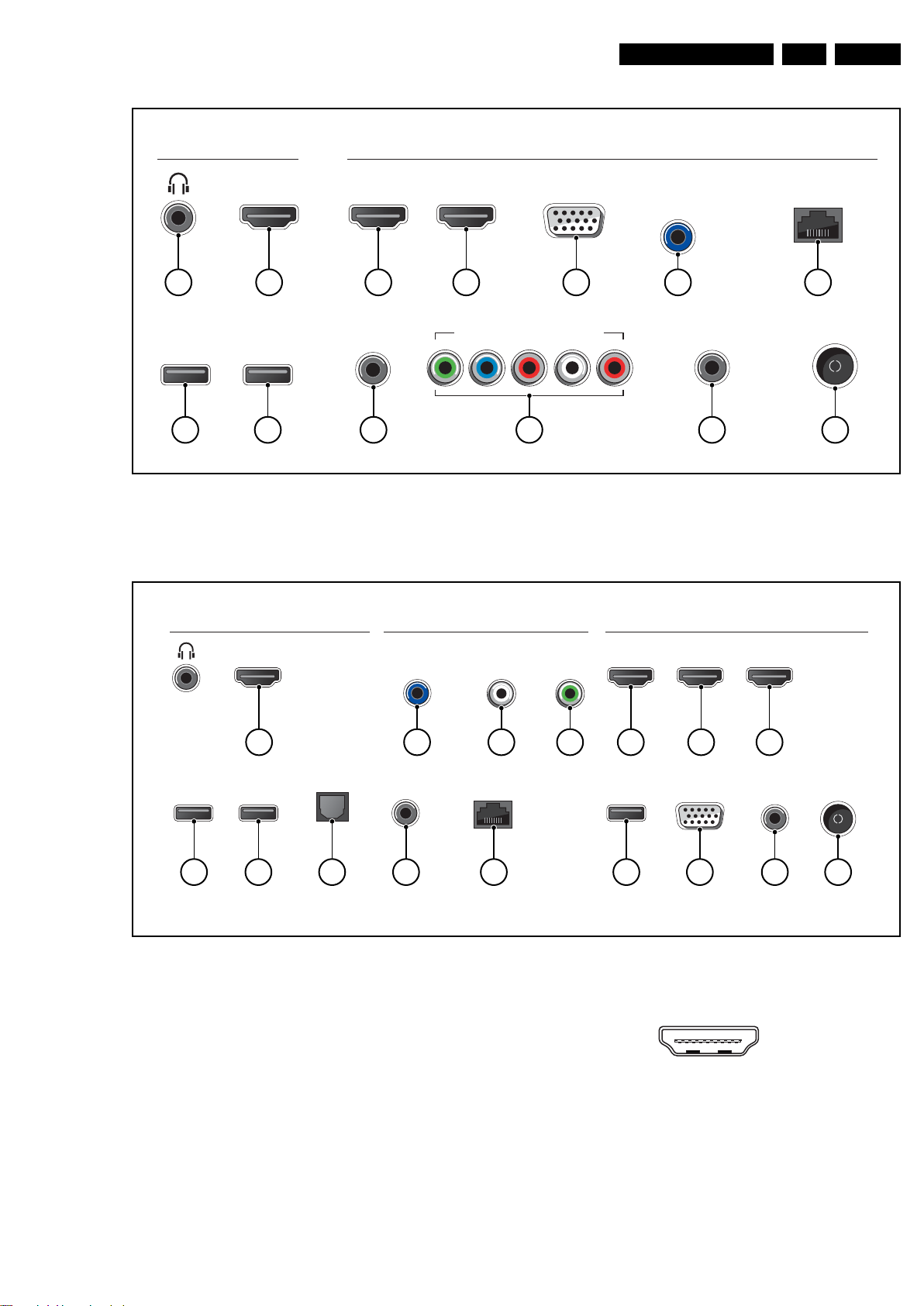

Figure 2-1 Connection overview 3xxx, 4xxx, 5xxx series

Note: The following connector color abbrevisation are used

(according to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green, Gy= Grey, Rd= Red, Wh= White, Ye= Yellow.

Figure 2-2 Connection overview 7xxx, 8xxx series

2 - HDMI: Digital Video, Digital Audio - In

2.3.1 Side Connections

1 - Head phone (Output)

Bk - Head phone 32 - 600 ohm / 10 mW ot

Figure 2-3 HDMI (type A) connector

1 -D2+ Data channel j 2 -Shield Gnd H 3 -D2- Data channel j 4 -D1+ Data channel j 5 -Shield Gnd H 6 -D1- Data channel j 7 -D0+ Data channel j

2013-Jun-21

EN 4 L12M3.1L LA2.

1 2 3 4

10000_022_090121.eps

090121

10000_017_090121.eps

090428

19

1

18 2

10000_017_090121.eps

090428

19

1

18 2

1

6

10

11

5

15

10000_002_090121.eps

090127

Technical Specifications and Connections

8-Shield Gnd H 9 - D0- Data channel j 10 - CLK+ Data channel j 11 - Shield Gnd H 12 - CLK- Data channel j 13 - Easylink Control channel/CEC jk 14 - n.c. 15 - DDC_SCL DDC clock j 16 - DDC_SDA DDC data jk 17 - Ground Gnd H 18 - +5V j 19 - HPD Hot Plug Detect j 20 - Ground Gnd H

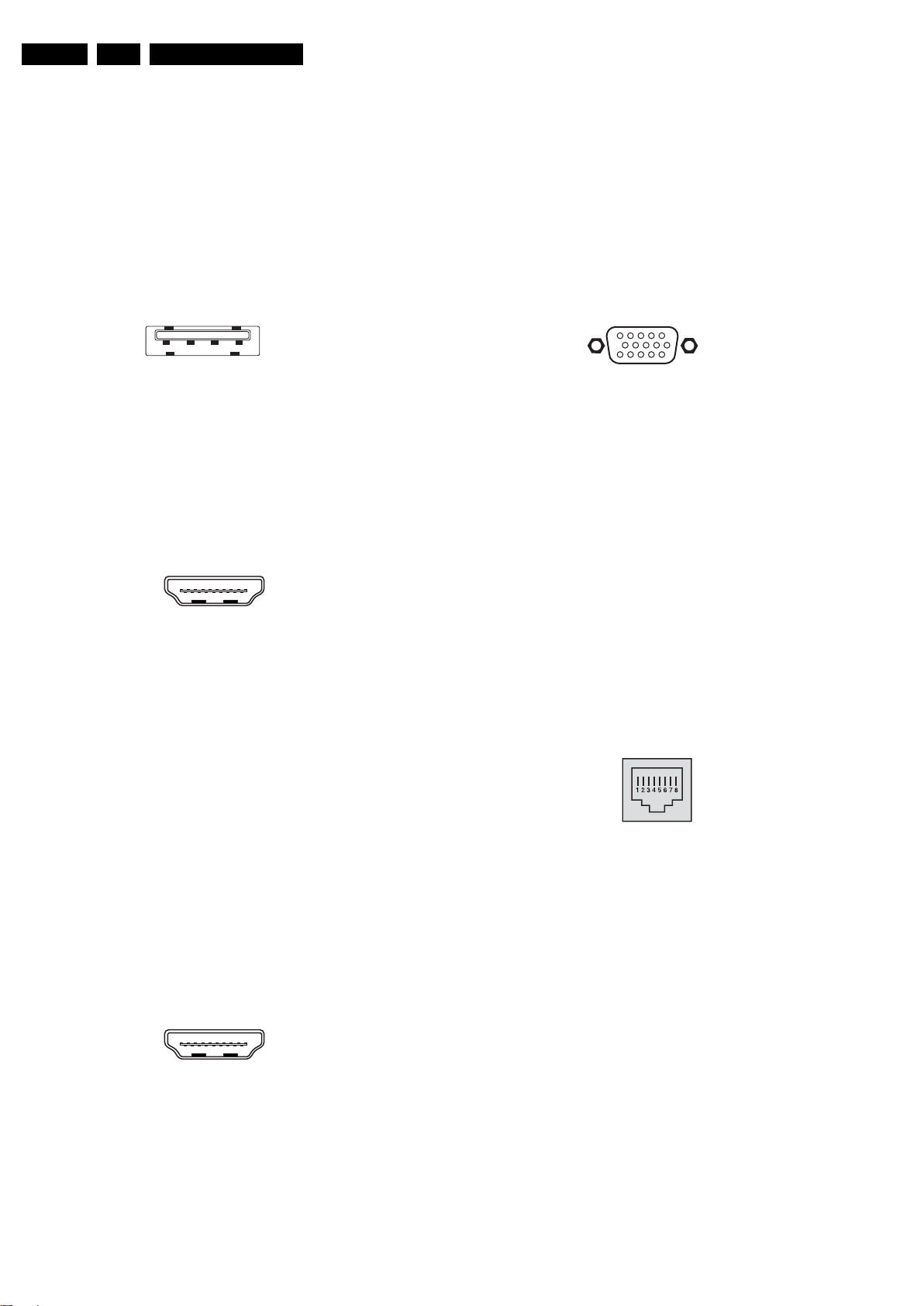

3 - USB1, -2

1-+5V k 2 - Data (-) jk 3 - Data (+) jk 4 - Ground Gnd H

2.3.2 Rear Connections

4 - HDMI1: Digital Video, Digital Audio - In - Audio Return Channel

Figure 2-5 HDMI (type A) connector

1 - D2+ Data channel j 2-Shield Gnd H 3 - D2- Data channel j 4 - D1+ Data channel j 5-Shield Gnd H 6 - D1- Data channel j 7 - D0+ Data channel j 8-Shield Gnd H 9 - D0- Data channel j 10 - CLK+ Data channel j 11 - Shield Gnd H 12 - CLK- Data channel j 13 - Easylink Control channel/CEC jk 14 - ARC Audio Return Channel j 15 - DDC_SCL DDC clock j 16 - DDC_SDA DDC data jk 17 - Ground Gnd H 18 - +5V j 19 - HPD Hot Plug Detect j 20 - Ground Gnd H

5 - HDMI2: Digital Video, Digital Audio - In (optional)

Figure 2-6 HDMI (type A) connector

1 - D2+ Data channel j 2-Shield Gnd H 3 - D2- Data channel j 4 - D1+ Data channel j 5-Shield Gnd H 6 - D1- Data channel j 7 - D0+ Data channel j

2013-Jun-21

Figure 2-4 USB (type A)

8 - Shield Gnd H 9 - D0- Data channel j 10 - CLK+ Data channel j 11 - Shield Gnd H 12 - CLK- Data channel j 13 - Easylink Control channel/CEC jk 14 - n.c. 15 - DDC_SCL DDC clock j 16 - DDC_SDA DDC data jk 17 - Ground Gnd H 18 - +5V j 19 - HPD Hot Plug Detect j 20 - Ground Gnd H

6 - VGA: Video RGB - In

Figure 2-7 VGA Connector

1 - Video Red 0.7 V 2 - Video Green 0.7 V 3 - Video Blue 0.7 V

/ 75  j

PP

/ 75  j

PP

/ 75  j

PP

4-n.c. 5 - Ground Gnd H 6 - Ground Red Gnd H 7 - Ground Green Gnd H 8 - Ground Blue Gnd H 9-+5V

+5 V j

DC

10 - Ground Sync Gnd H 11 - n.c. 12 - DDC_SDA DDC data j 13 - H-sync 0 - 5 V j 14 - V-sync 0 - 5 V j 15 - DDC_SCL DDC clock j

7 - Mini Jack: Audio - In DVI/VGA/CVI

Bk - Audio 0.5 V

/ 10 k jo

RMS

8 - RJ45: Ethernet

10000_025_090121.eps

120320

Figure 2-8 Ethernet connector

1 - TD+ Transmit signal k 2 - TD- Transmit signal k 3 - RD+ Receive signal j 4 - CT Centre Tap: DC level fixation 5 - CT Centre Tap: DC level fixation 6 - RD- Receive signal j 7 - GND Gnd H 8 - GND Gnd H

9 - Service Connector (UART)

1 - Ground Gnd H 2 - UART_TX Transmit k 3 - UART_RX Receive j

10 - AV IN: Cinch/Break-out cable: Video CVBS/YPbPr - In, Audio - In

Wh - Audio - L 0.5 V Rd - Audio - R 0.5 V Rd - Video Pr 0.7 V Bu - Video Pb 0.7 V Gn - Video Y/CVBS 1 V

/ 10 k jq

RMS

/ 10 k jq

RMS

/ 75  jq

PP

/ 75  jq

PP

/ 75  jq

PP

Technical Specifications and Connections

11 - Cinch: S/PDIF - Out

Bk - Coaxial 0.4 - 0.6V

12 - Aerial - In

- - F-type Coax, 75  D

/ 75 ohm kq

PP

EN 5L12M3.1L LA 2.

2013-Jun-21

EN 6 L12M3.1L LA3.

Precautions, Notes, and Abbreviation List

3. Precautions, Notes, and Abbreviation List

Index of this chapter:

3.1

Safety Instructions

3.2 Warnings

3.3 Notes

3.4 Abbreviation List

3.1 Safety Instructions

Safety regulations require the following during a repair:

• Connect the set to the Mains/AC Power via an isolation transformer (> 800 VA).

• Replace safety components, indicated by the symbol h, only by components identical to the original ones. Any other component substitution (other than original type) may increase risk of fire or electrical shock hazard.

Safety regulations require that after a repair, the set must be returned in its original condition. Pay in particular attention to the following points:

• Route the wire trees correctly and fix them with the mounted cable clamps.

• Check the insulation of the Mains/AC Power lead for external damage.

• Check the strain relief of the Mains/AC Power cord for proper function.

• Check the electrical DC resistance between the Mains/AC Power plug and the secondary side (only for sets that have a Mains/AC Power isolated power supply):

1. Unplug the Mains/AC Power cord and connect a wire

between the two pins of the Mains/AC Power plug.

2. Set the Mains/AC Power switch to the “on” position

(keep the Mains/AC Power cord unplugged!).

3. Measure the resistance value between the pins of the

Mains/AC Power plug and the metal shielding of the tuner or the aerial connection on the set. The reading should be between 4.5 M and 12 M.

4. Switch “off” the set, and remove the wire between the

two pins of the Mains/AC Power plug.

• Check the cabinet for defects, to prevent touching of any inner parts by the customer.

3.2 Warnings

• All ICs and many other semiconductors are susceptible to electrostatic discharges (ESD w). Careless handling during repair can reduce life drastically. Make sure that, during repair, you are connected with the same potential as the mass of the set by a wristband with resistance. Keep components and tools also at this same potential.

• Be careful during measurements in the high voltage section.

• Never replace modules or other components while the unit is switched “on”.

• When you align the set, use plastic rather than metal tools. This will prevent any short circuits and the danger of a circuit becoming unstable.

3.3 Notes

3.3.1 General

• Measure the voltages and waveforms with regard to the chassis (= tuner) ground (H), or hot ground (I), depending on the tested area of circuitry. The voltages and waveforms shown in the diagrams are indicative. Measure them in the Service Default Mode with a colour bar signal and stereo sound (L: 3 kHz, R: 1 kHz unless stated otherwise) and picture carrier at 475.25 MHz for PAL, or 61.25 MHz for NTSC (channel 3).

• Where necessary, measure the waveforms and voltages with (D) and without (E) aerial signal. Measure the voltages in the power supply section both in normal operation (G) and in stand-by (F). These values are indicated by means of the appropriate symbols.

3.3.2 Schematic Notes

• All resistor values are in ohms, and the value multiplier is often used to indicate the decimal point location (e.g. 2K2 indicates 2.2 k).

• Resistor values with no multiplier may be indicated with either an “E” or an “R” (e.g. 220E or 220R indicates 220 ).

• All capacitor values are given in micro-farads (10 nano-farads (n 10

• Capacitor values may also use the value multiplier as the decimal point indication (e.g. 2p2 indicates 2.2 pF).

• An “asterisk” (*) indicates component usage varies. Refer to the diversity tables for the correct values.

• The correct component values are listed on the Philips Spare Parts Web Portal.

3.3.3 Spare Parts

For the latest spare part overview, consult your Philips Spare Part web portal.

3.3.4 BGA (Ball Grid Array) ICs

Introduction

For more information on how to handle BGA devices, visit this URL: http://www.atyourservice-magazine.com “Magazine”, then go to “Repair downloads”. Here you will find Information on how to deal with BGA-ICs.

BGA Temperature Profiles

For BGA-ICs, you must use the correct temperature-profile. Where applicable and available, this profile is added to the IC Data Sheet information section in this manual.

3.3.5 Lead-free Soldering

Due to lead-free technology some rules have to be respected by the workshop during a repair:

• Use only lead-free soldering tin. If lead-free solder paste is required, please contact the manufacturer of your soldering equipment. In general, use of solder paste within workshops should be avoided because paste is not easy to store and to handle.

• Use only adequate solder tools applicable for lead-free soldering tin. The solder tool must be able: – To reach a solder-tip temperature of at least 400°C. – To stabilize the adjusted temperature at the solder-tip. – To exchange solder-tips for different applications.

• Adjust your solder tool so that a temperature of around 360°C - 380°C is reached and stabilized at the solder joint. Heating time of the solder-joint should not exceed ~ 4 sec. Avoid temperatures above 400°C, otherwise wear-out of tips will increase drastically and flux-fluid will be destroyed. To avoid wear-out of tips, switch “off” unused equipment or reduce heat.

• Mix of lead-free soldering tin/parts with leaded soldering tin/parts is possible but PHILIPS recommends strongly to avoid mixed regimes. If this cannot be avoided, carefully clear the solder-joint from old tin and re-solder with new tin.

3.3.6 Alternative BOM identification

It should be noted that on the European Service website, “Alternative BOM” is referred to as “Design variant”.

The third digit in the serial number (example: AG2B0335000001) indicates the number of the alternative B.O.M. (Bill Of Materials) that has been used for producing the specific TV set. In general, it is possible that the same TV model on the market is produced with e.g. two different types of displays, coming from two different suppliers. This will then

-9

), or pico-farads (p 10

. Select

-12

-6

),

).

2013-Jun-21

Precautions, Notes, and Abbreviation List

10000_053_110228.eps

110228

EN 7L12M3.1L LA 3.

result in sets which have the same CTN (Commercial Type Number; e.g. 28PW9515/12) but which have a different B.O.M. number. By looking at the third digit of the serial number, one can identify which B.O.M. is used for the TV set he is working with. If the third digit of the serial number contains the number “1” (example: AG1B033500001), then the TV set has been manufactured according to B.O.M. number 1. If the third digit is a “2” (example: AG2B0335000001), then the set has been produced according to B.O.M. no. 2. This is important for ordering the correct spare parts! For the third digit, the numbers 1...9 and the characters A...Z can be used, so in total: 9 plus 26= 35 different B.O.M.s can be indicated by the third digit of the serial number.

Identification: The bottom line of a type plate gives a 14-digit serial number. Digits 1 and 2 refer to the production centre (e.g. SN is Lysomice, RJ is Kobierzyce), digit 3 refers to the B.O.M. code, digit 4 refers to the Service version change code, digits 5 and 6 refer to the production year, and digits 7 and 8 refer to production week (in example below it is 2010 week 10 / 2010 week 17). The 6 last digits contain the serial number.

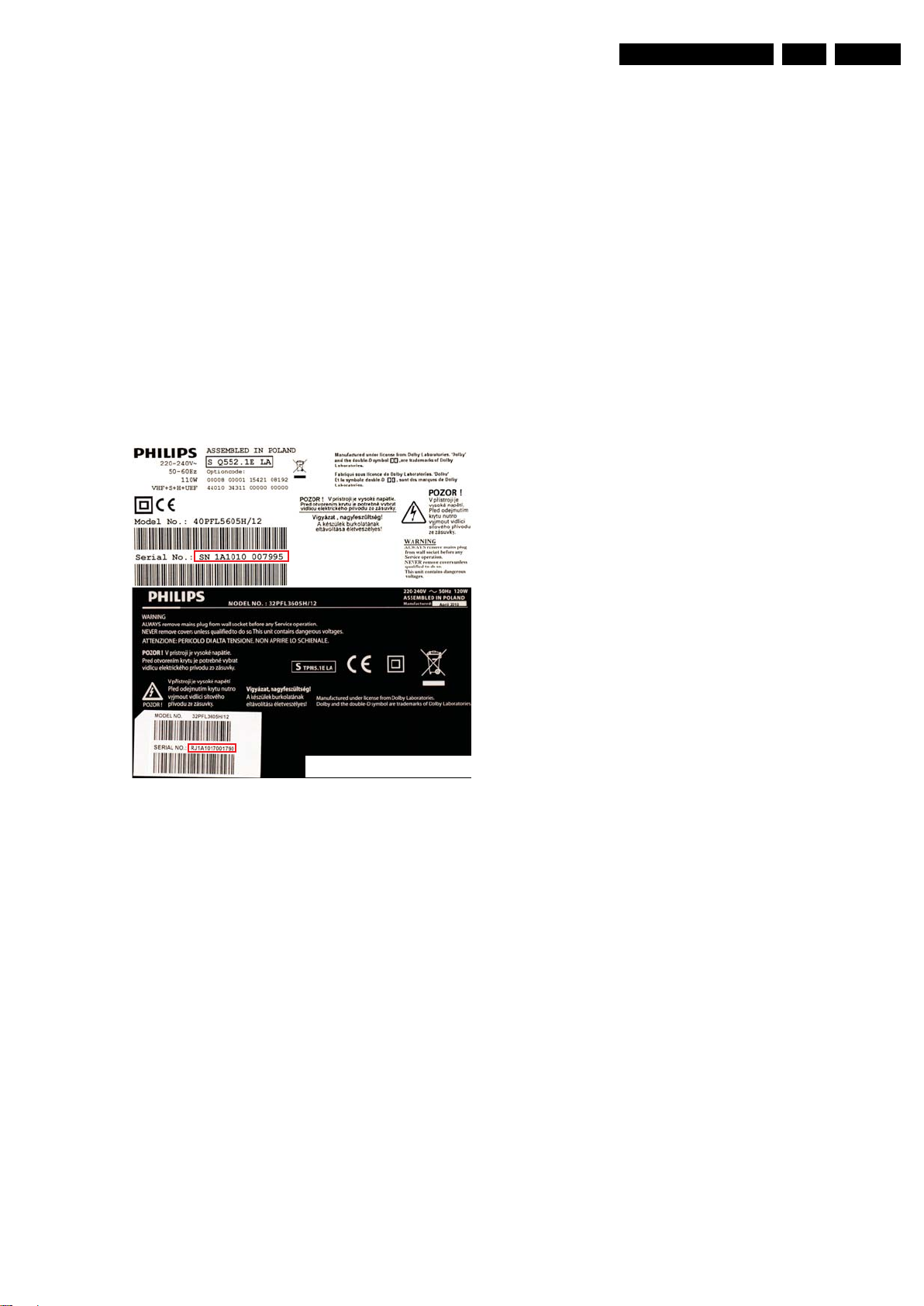

Figure 3-1 Serial number (example)

3.3.7 Board Level Repair (BLR) or Component Level Repair (CLR)

If a board is defective, consult your repair procedure to decide if the board has to be exchanged or if it should be repaired on component level. If your repair procedure says the board should be exchanged completely, do not solder on the defective board. Otherwise, it cannot be returned to the O.E.M. supplier for back charging!

3.3.8 Practical Service Precautions

• It makes sense to avoid exposure to electrical shock.

While some sources are expected to have a possible dangerous impact, others of quite high potential are of limited current and are sometimes held in less regard.

• Always respect voltages. While some may not be

dangerous in themselves, they can cause unexpected reactions that are best avoided. Before reaching into a powered TV set, it is best to test the high voltage insulation. It is easy to do, and is a good service precaution.

3.4 Abbreviation List

0/6/12 SCART switch control signal on A/V

board. 0 = loop through (AUX to TV),

6 = play 16 : 9 format, 12 = play 4 : 3 format

AARA Automatic Aspect Ratio Adaptation:

algorithm that adapts aspect ratio to remove horizontal black bars; keeps the original aspect ratio

ACI Automatic Channel Installation:

algorithm that installs TV channels directly from a cable network by

means of a predefined TXT page ADC Analogue to Digital Converter AFC Automatic Frequency Control: control

signal used to tune to the correct

frequency AGC Automatic Gain Control: algorithm that

controls the video input of the feature

box AM Amplitude Modulation AP Asia Pacific AR Aspect Ratio: 4 by 3 or 16 by 9 ASF Auto Screen Fit: algorithm that adapts

aspect ratio to remove horizontal black

bars without discarding video

information ATSC Advanced Television Systems

Committee, the digital TV standard in

the USA ATV See Auto TV Auto TV A hardware and software control

system that measures picture content,

and adapts image parameters in a

dynamic way AV External Audio Video AVC Audio Video Controller AVIP Audio Video Input Processor B/G Monochrome TV system. Sound

carrier distance is 5.5 MHz BDS Business Display Solutions (iTV) BLR Board-Level Repair BTSC Broadcast Television Standard

Committee. Multiplex FM stereo sound

system, originating from the USA and

used e.g. in LATAM and AP-NTSC

countries B-TXT Blue TeleteXT C Centre channel (audio) CEC Consumer Electronics Control bus:

remote control bus on HDMI

connections CL Constant Level: audio output to

connect with an external amplifier CLR Component Level Repair ComPair Computer aided rePair CP Connected Planet / Copy Protection CSM Customer Service Mode CTI Color Transient Improvement:

manipulates steepness of chroma

transients CVBS Composite Video Blanking and

Synchronization DAC Digital to Analogue Converter DBE Dynamic Bass Enhancement: extra

low frequency amplification DCM Data Communication Module. Also

referred to as System Card or

Smartcard (for iTV). DDC See “E-DDC” D/K Monochrome TV system. Sound

carrier distance is 6.5 MHz DFI Dynamic Frame Insertion DFU Directions For Use: owner's manual DMR Digital Media Reader: card reader DMSD Digital Multi Standard Decoding DNM Digital Natural Motion

2013-Jun-21

EN 8 L12M3.1L LA3.

Precautions, Notes, and Abbreviation List

DNR Digital Noise Reduction: noise

reduction feature of the set DRAM Dynamic RAM DRM Digital Rights Management DSP Digital Signal Processing DST Dealer Service Tool: special remote

control designed for service

technicians DTCP Digital Transmission Content

Protection; A protocol for protecting

digital audio/video content that is

traversing a high speed serial bus,

such as IEEE-1394 DVB-C Digital Video Broadcast - Cable DVB-T Digital Video Broadcast - Terrestrial DVD Digital Versatile Disc DVI(-d) Digital Visual Interface (d= digital only) E-DDC Enhanced Display Data Channel

(VESA standard for communication

channel and display). Using E-DDC,

the video source can read the EDID

information form the display. EDID Extended Display Identification Data

(VESA standard) EEPROM Electrically Erasable and

Programmable Read Only Memory EMI Electro Magnetic Interference EPG Electronic Program Guide EPLD Erasable Programmable Logic Device EU Europe EXT EXTernal (source), entering the set by

SCART or by cinches (jacks) FDS Full Dual Screen (same as FDW) FDW Full Dual Window (same as FDS) FLASH FLASH memory FM Field Memory or Frequency

Modulation FPGA Field-Programmable Gate Array FTV Flat TeleVision Gb/s Giga bits per second G-TXT Green TeleteXT H H_sync to the module HD High Definition HDD Hard Disk Drive HDCP High-bandwidth Digital Content

Protection: A “key” encoded into the

HDMI/DVI signal that prevents video

data piracy. If a source is HDCP coded

and connected via HDMI/DVI without

the proper HDCP decoding, the

picture is put into a “snow vision” mode

or changed to a low resolution. For

normal content distribution the source

and the display device must be

enabled for HDCP “software key”

decoding. HDMI High Definition Multimedia Interface HP HeadPhone I Monochrome TV system. Sound

2

I

C Inter IC bus

2

I

D Inter IC Data bus

2

I

S Inter IC Sound bus

carrier distance is 6.0 MHz

IF Intermediate Frequency IR Infra Red IRQ Interrupt Request ITU-656 The ITU Radio communication Sector

(ITU-R) is a standards body

subcommittee of the International

Telecommunication Union relating to

radio communication. ITU-656 (a.k.a.

SDI), is a digitized video format used

for broadcast grade video.

Uncompressed digital component or

digital composite signals can be used.

The SDI signal is self-synchronizing, uses 8 bit or 10 bit data words, and has a maximum data rate of 270 Mbit/s, with a minimum bandwidth of 135 MHz.

iTV Institutional TeleVision; TV sets for

hotels, hospitals etc.

LS Last Status; The settings last chosen

by the customer and read and stored in RAM or in the NVM. They are called at start-up of the set to configure it according to the customer's

preferences LATAM Latin America LCD Liquid Crystal Display LED Light Emitting Diode L/L' Monochrome TV system. Sound

carrier distance is 6.5 MHz. L' is Band

I, L is all bands except for Band I LPL LG.Philips LCD (supplier) LS Loudspeaker LVDS Low Voltage Differential Signalling Mbps Mega bits per second M/N Monochrome TV system. Sound

carrier distance is 4.5 MHz MHEG Part of a set of international standards

4. Mechanical Instructions

Index of this chapter:

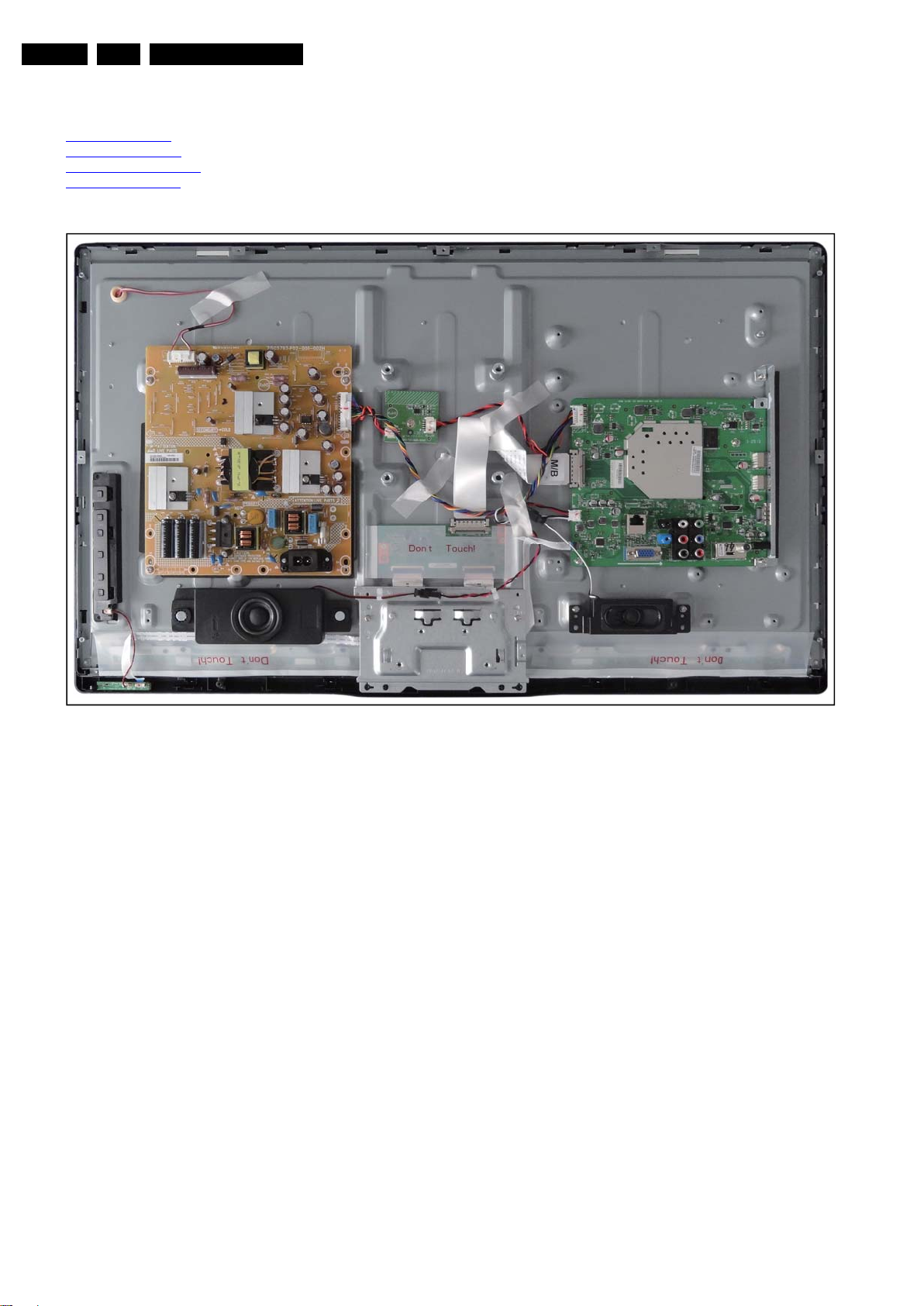

4.1

Cable Dressing

4.2 Service Positions

4.3 Assy/Panel Removal

4.4 Set Re-assembly

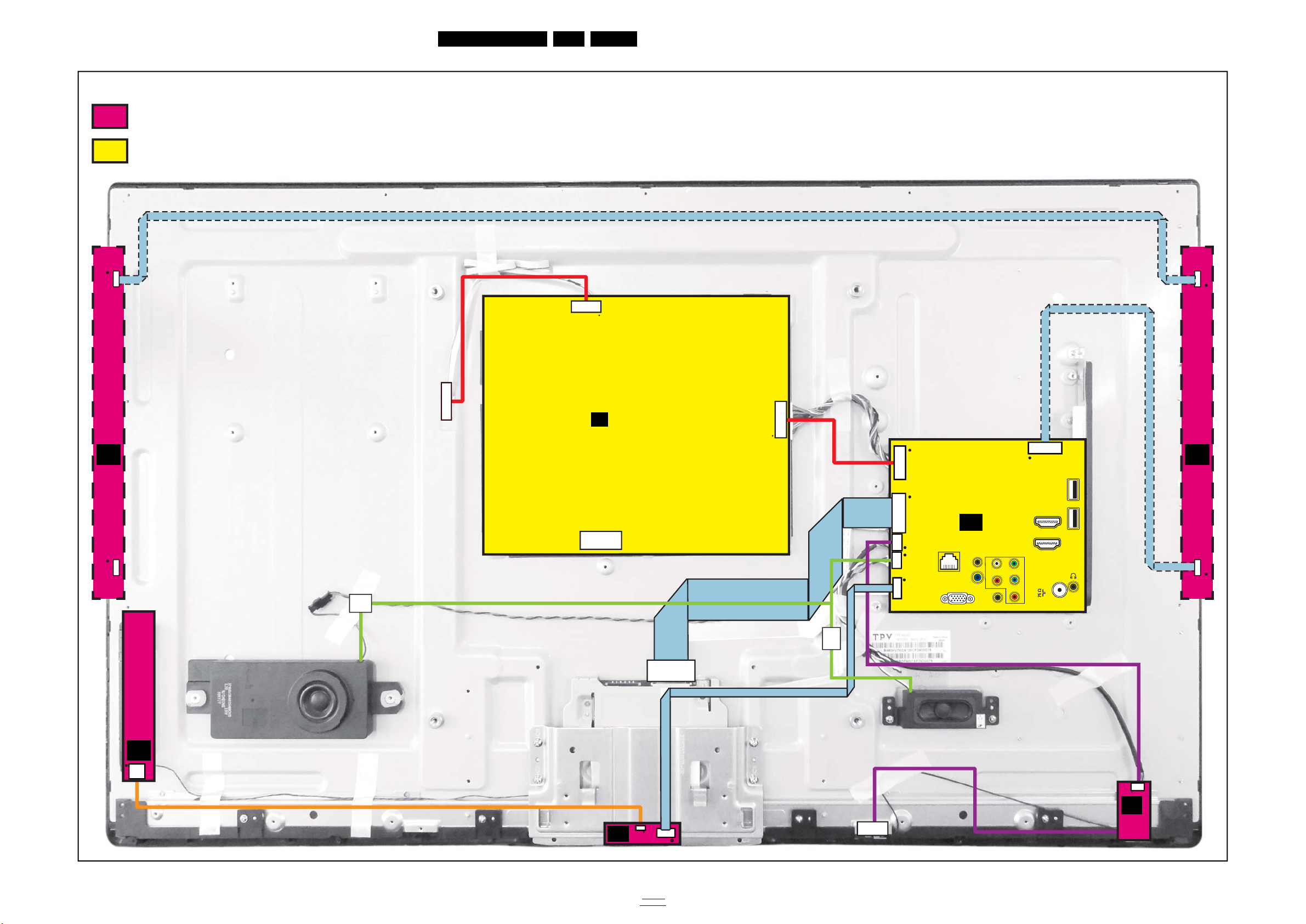

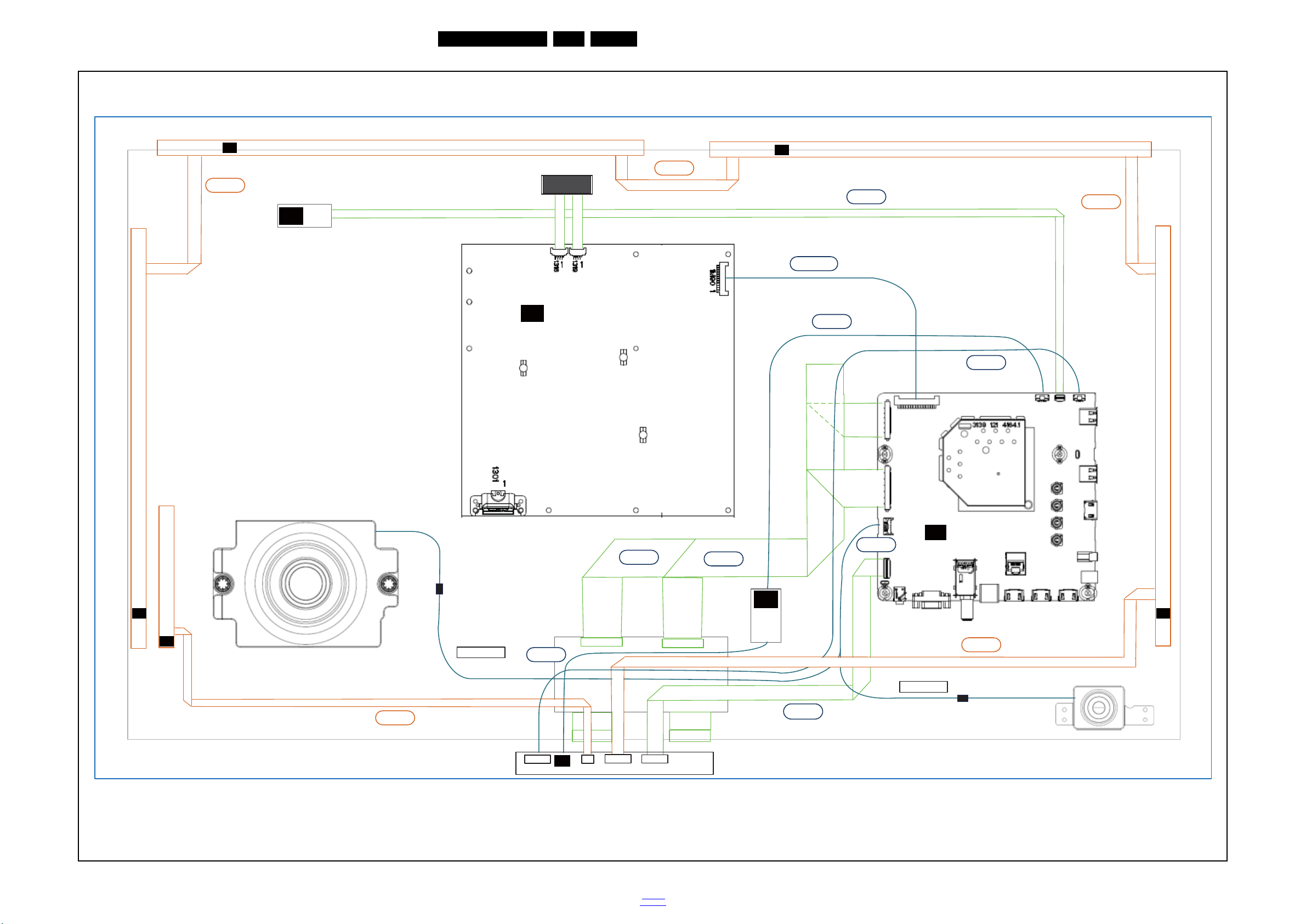

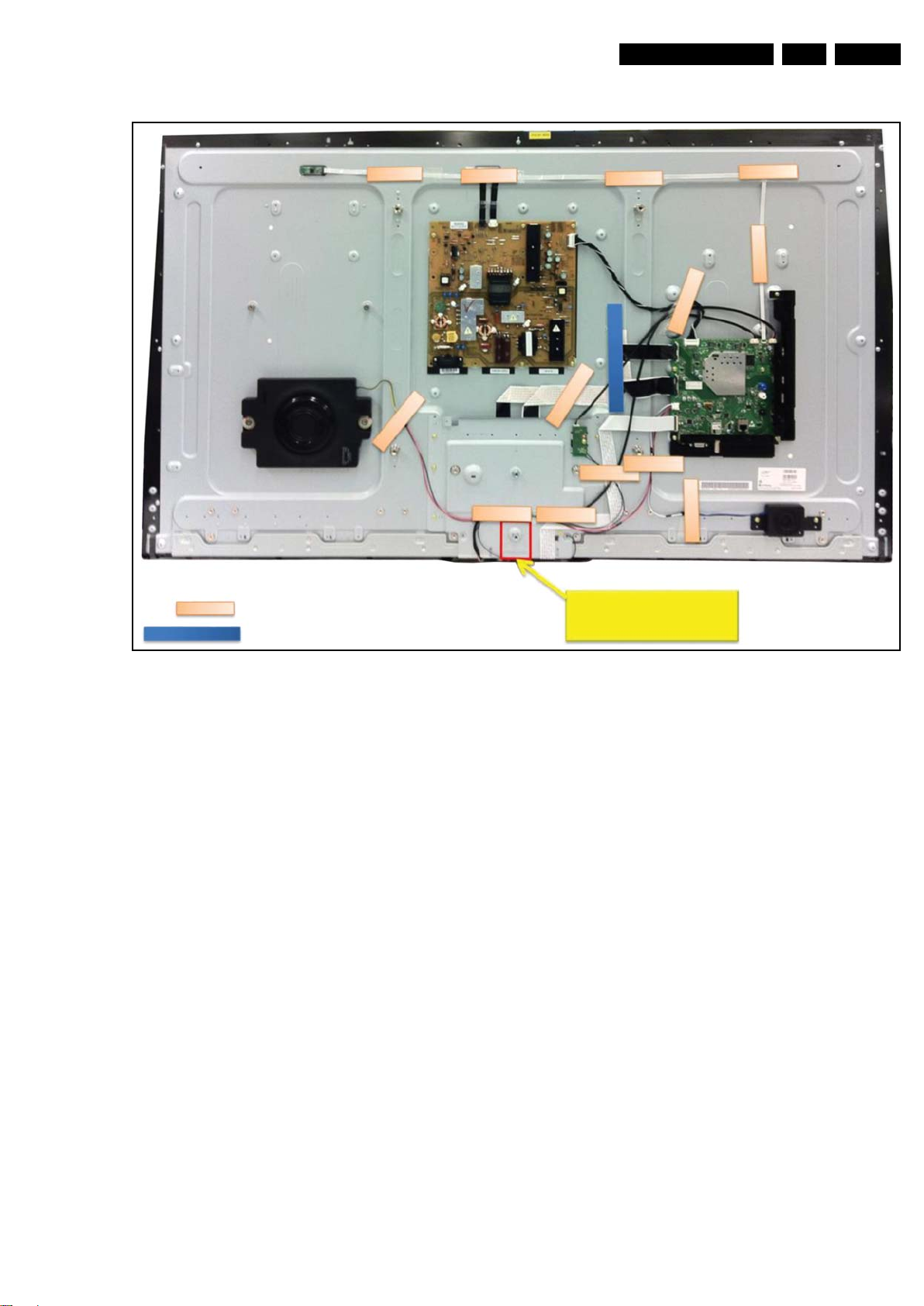

4.1 Cable Dressing

Notes:

• Figures below can deviate slightly from the actual situation, due to the different set executions.

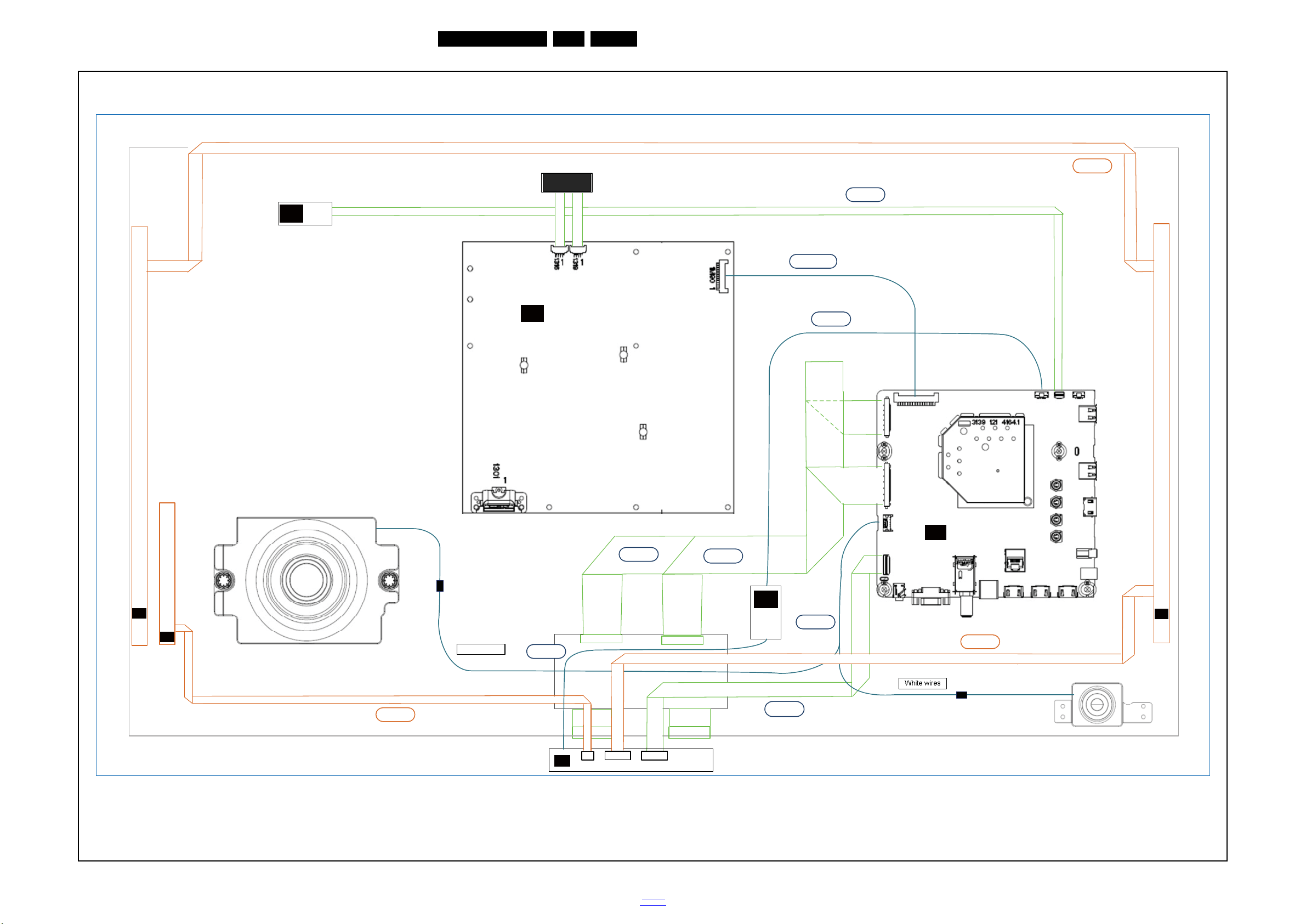

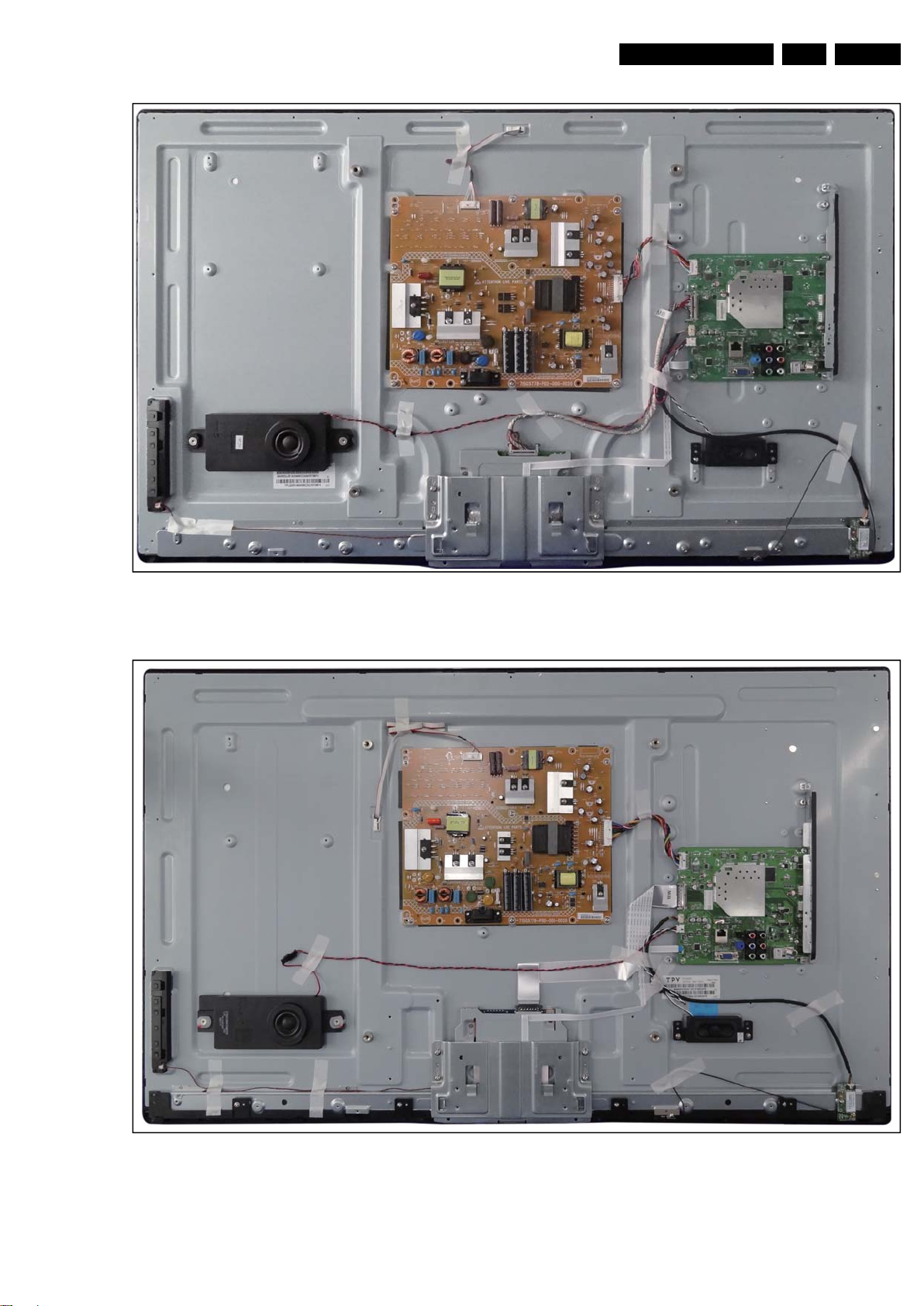

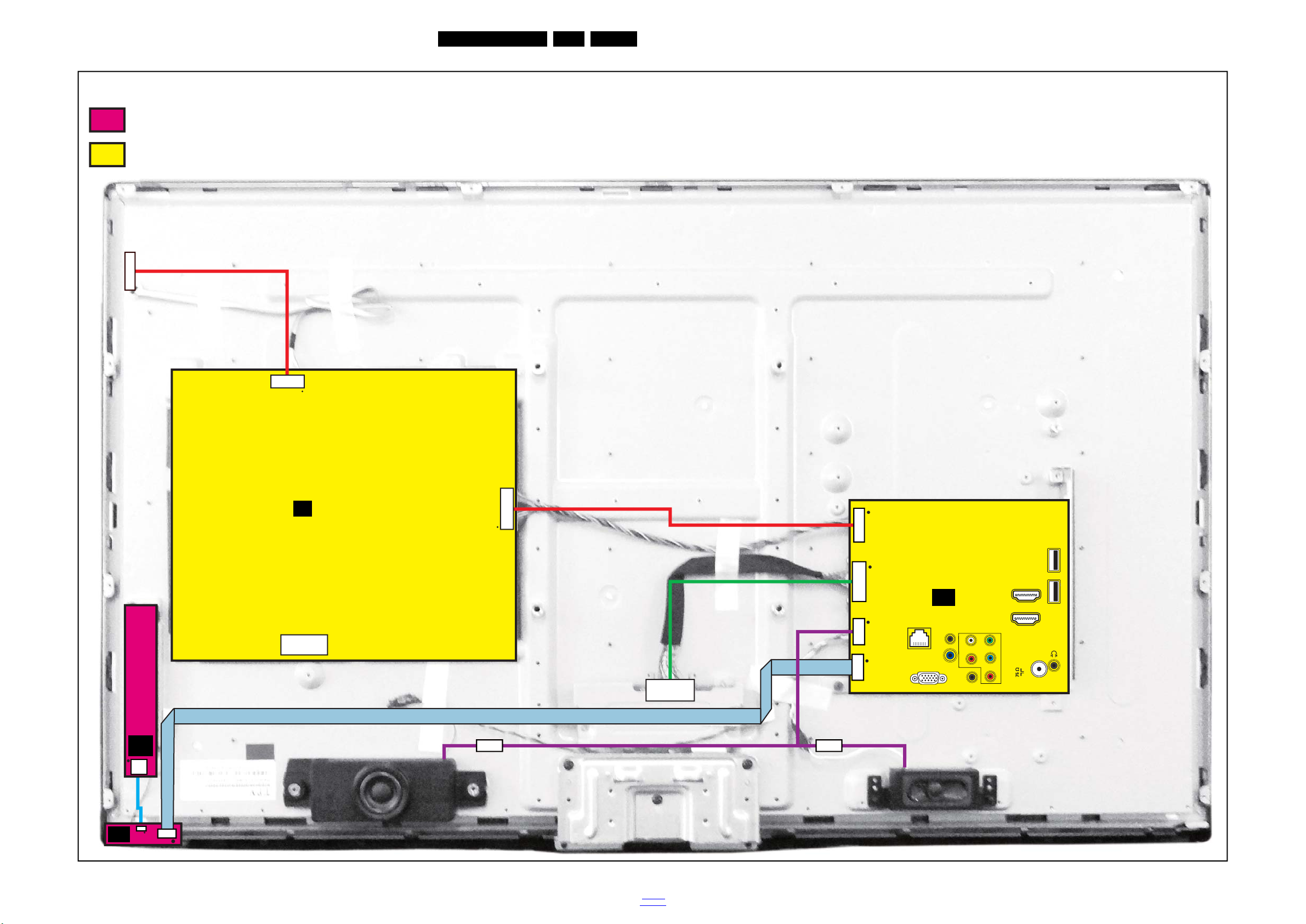

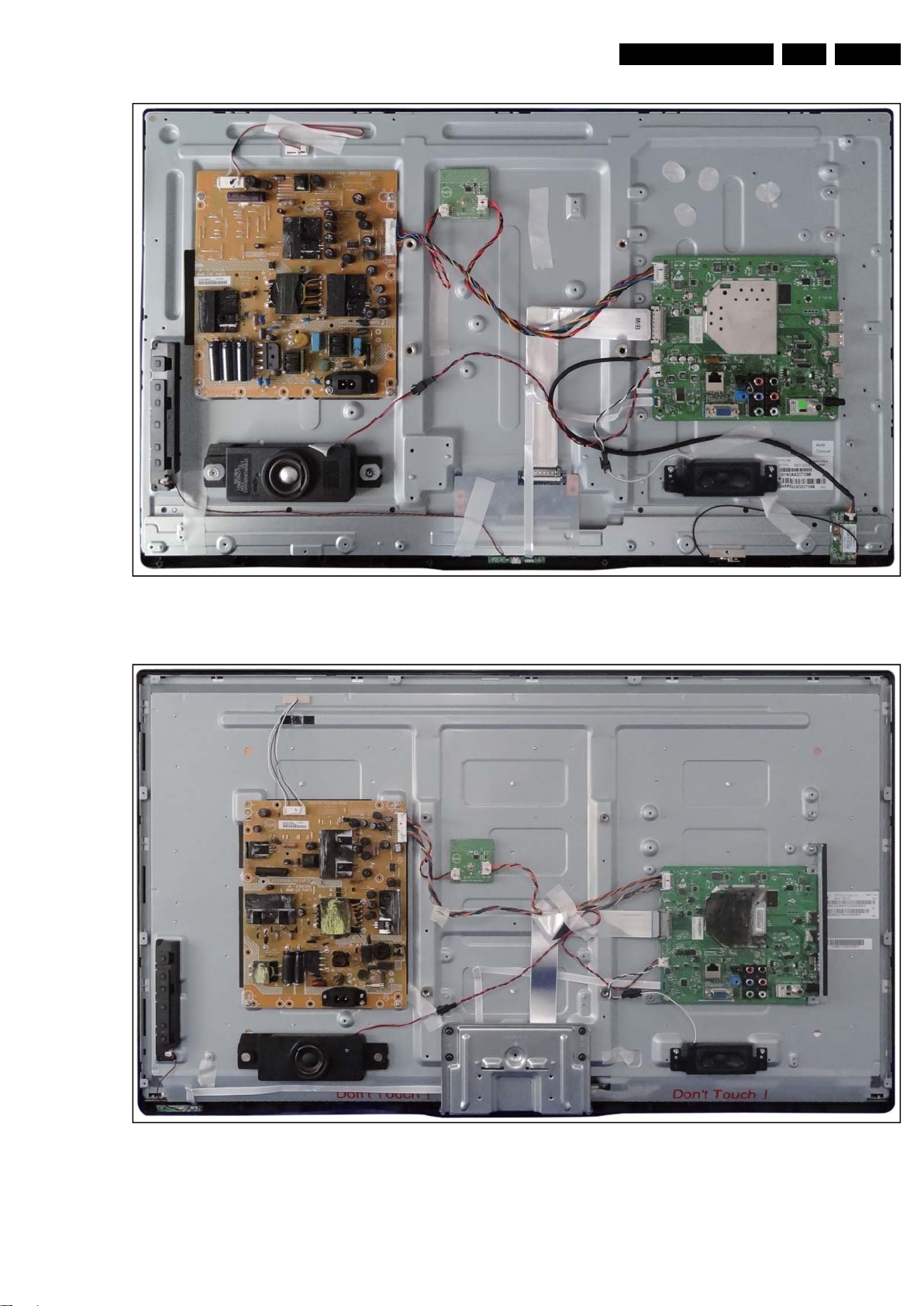

Figure 4-1 Cable dressing 32" 35xx series

2013-Jun-21

Mechanical Instructions

19511_005_130614.eps

130614

19511_007_1

30617.eps 130617

EN 11L12M3.1L LA 4.

Figure 4-2 Cable dressing 32" 45xx series

Figure 4-3 Cable dressing 39" 35xx series

2013-Jun-21

EN 12 L12M3.1L LA4.

19510_100_130424.eps

130424

19510_101_130424.eps

130424

Mechanical Instructions

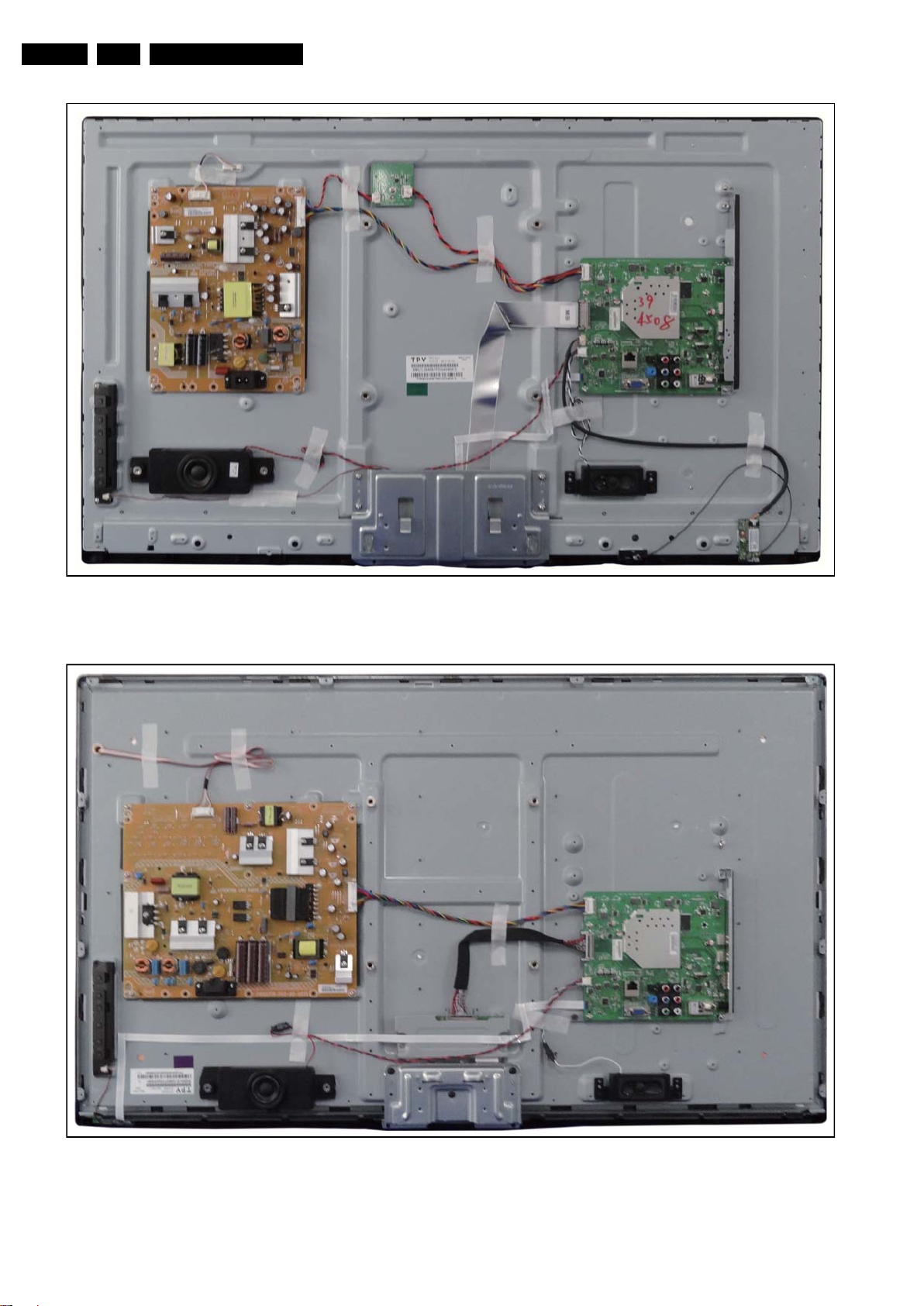

Figure 4-4 Cable dressing 39" 45xx series

2013-Jun-21

Figure 4-5 Cable dressing 42" 35xx series

Mechanical Instructions

19511_008_130617.eps

130617

19510_102_1

30424.eps 130424

EN 13L12M3.1L LA 4.

Figure 4-6 Cable dressing 42" 45xx series

Figure 4-7 Cable dressing 42" 5xxx series

2013-Jun-21

EN 14 L12M3.1L LA4.

19510_103_130424.eps

130425

10000_0

35_090121.eps

100416

Not yet available

Mechanical Instructions

Figure 4-8 Cable dressing 46" 45xx series

2013-Jun-21

Figure 4-9 Cable dressing 46" 55xx series

Mechanical Instructions

19511_009_130617.eps

130617

100 m.m. (11 ×) 150 m.m. (1 ×)

Note: keep out area, ensure no cable dressings are allowed within the red marked area.

EN 15L12M3.1L LA 4.

Figure 4-10 Cable dressing 47" 70xx series

2013-Jun-21

EN 16 L12M3.1L LA4.

19511_010_130617.eps

130617

100 m.m. (11 ×) 150 m.m. (1 ×)

Note: keep out area, ensure no cable dressings are allowed within the red marked area.

19511_011_130617.eps

130617

100 m.m. (13 ×) 150 m.m. (1 ×)

Note: keep out area, ensure no cable dressings are allowed within the red marked area.

Mechanical Instructions

Figure 4-11 Cable dressing 47" 80xx series

2013-Jun-21

Figure 4-12 Cable dressing 55" 70xx series

Mechanical Instructions

19511_012_130617.eps

130617

100 m.m. (13 ×) 150 m.m. (1 ×)

Note: keep out area, ensure no cable dressings are allowed within the red marked area.

EN 17L12M3.1L LA 4.

Figure 4-13 Cable dressing 55" 80xx series

2013-Jun-21

EN 18 L12M3.1L LA4.

19510_104_130424.eps

130424

2

3

1

19510_105_130424.eps

130424

4.2 Service Positions

For easy servicing of a TV set, the set should be put face down on a soft flat surface, foam buffers or other specific workshop tools. Ensure that a stable situation is created to perform measurements and alignments. When using foam bars take care that these always support the cabinet and never only the display. Caution: Failure to follow these guidelines can seriously damage the display! Ensure that ESD safe measures are taken.

4.3 Assy/Panel Removal

4.3.1 Rear Cover

Warning: Disconnect the mains power cord before removing

the rear cover.

Attention: Sets in the 7000 & 8000 range are equipped with a hatch to disconnect the keyboard control panel and/or Ambilight units. Ambilight sets in the 5x00 range are equipped with a hatch to disconnect the Ambilight units.

These hatches are indicated on the rear cover with

SERVICE h. It is mandatory to open the hatches and disconnect the cables prior to removal of the rear cover!

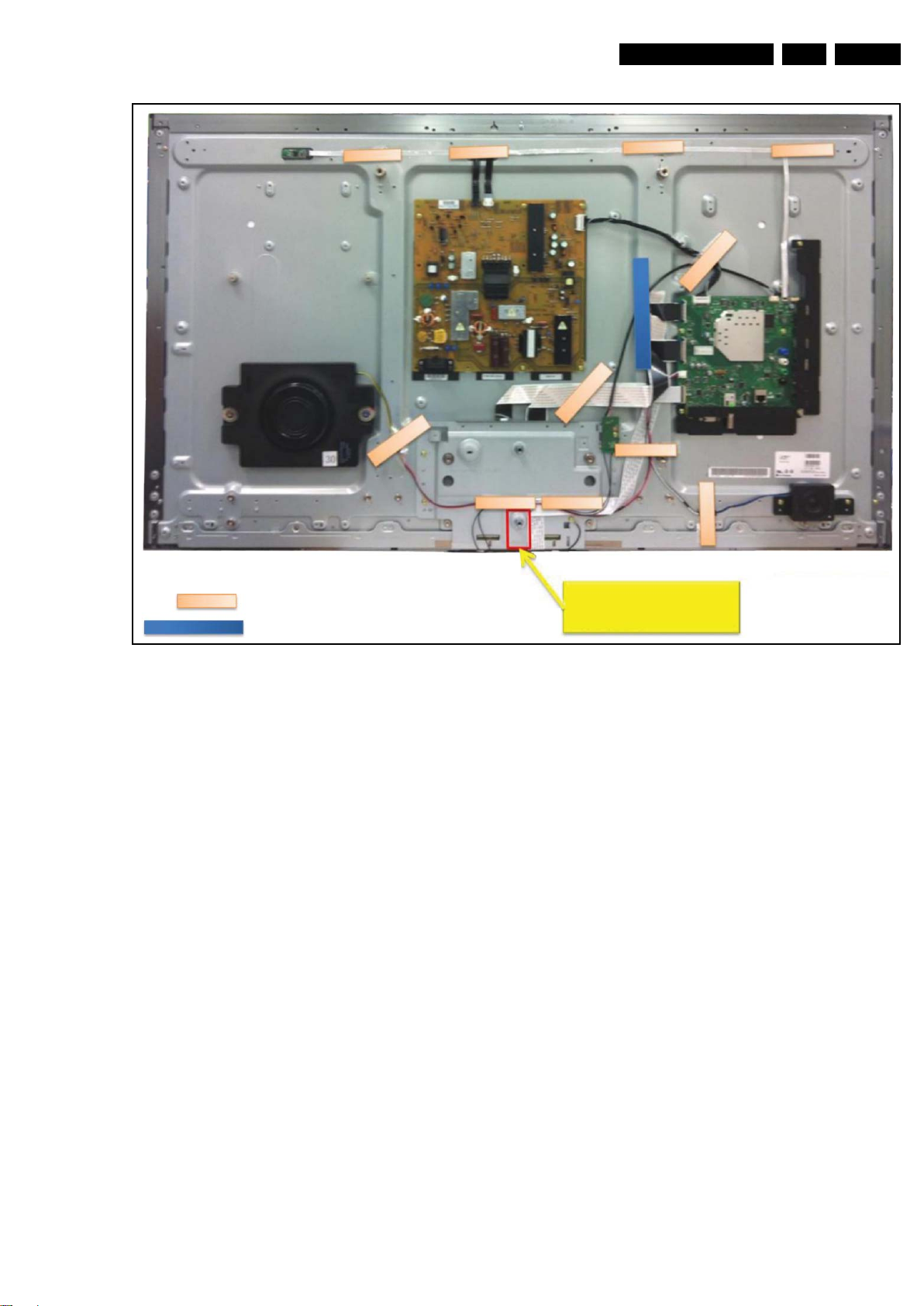

1. For sets in the 5x000 range equipped with Ambilight: open the hatch that covers the Ambilight connector and unplug the connector; see Figure 4-14 the connector [2] and slide the cable upwards [3].

2. For sets in the 7000 & 8000 range: open the hatch that covers the leading edge and unplug the connectors; see

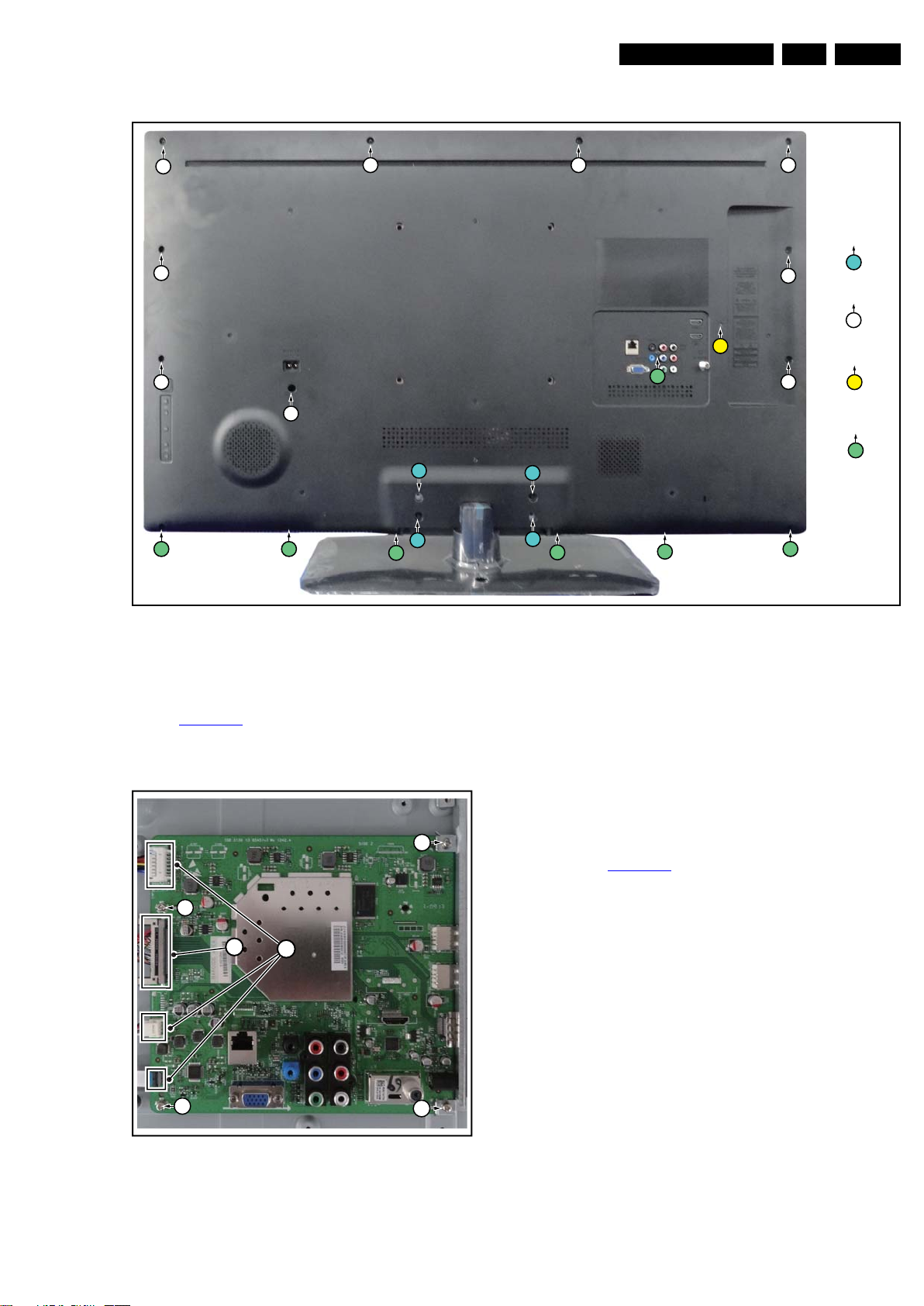

Figure 4-15

3. Lift the rear cover from the TV. Make sure that wires and flat foils are not damaged while lifting the rear cover from the set.

.

. Remove the screw [1], lift

Mechanical Instructions

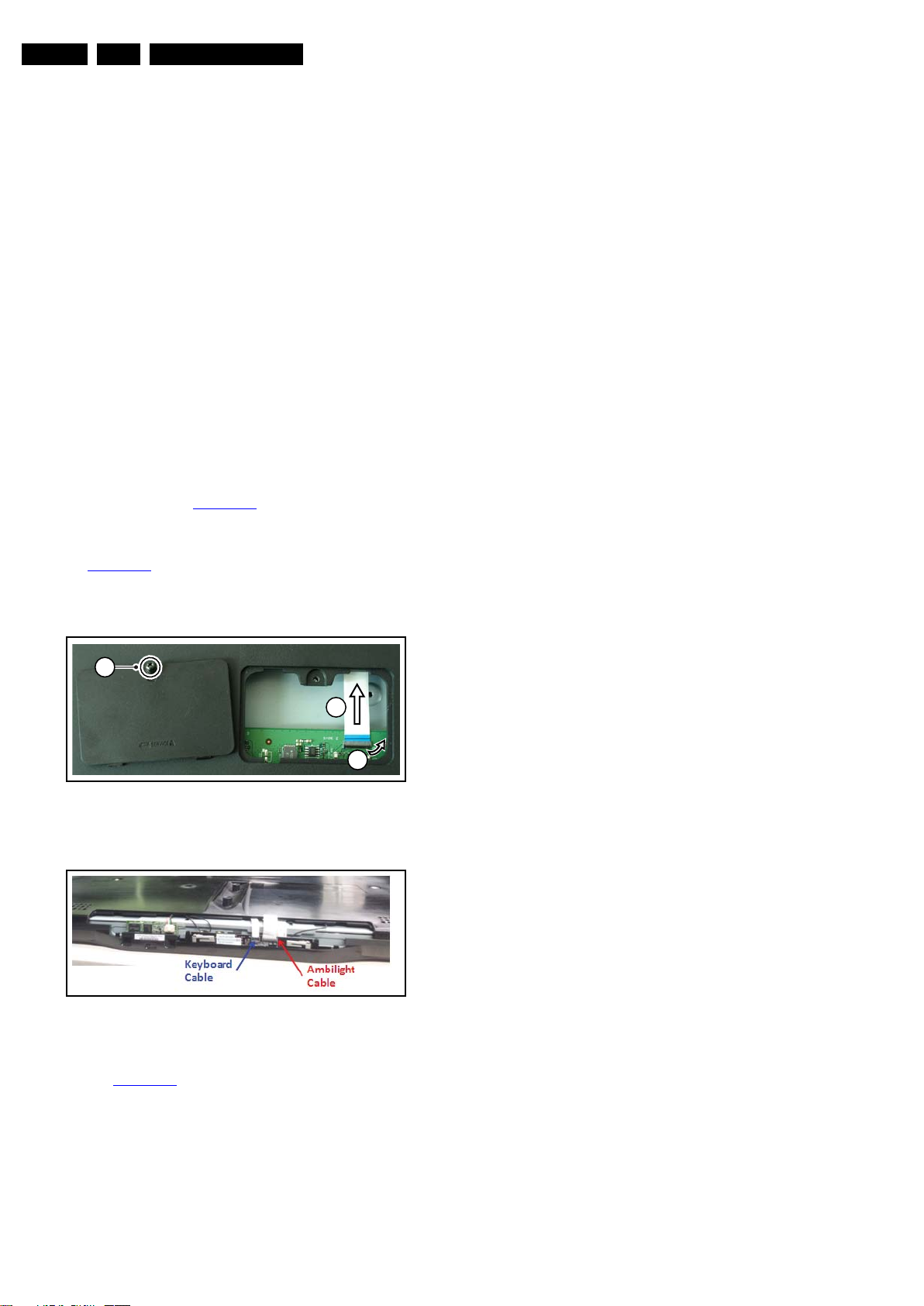

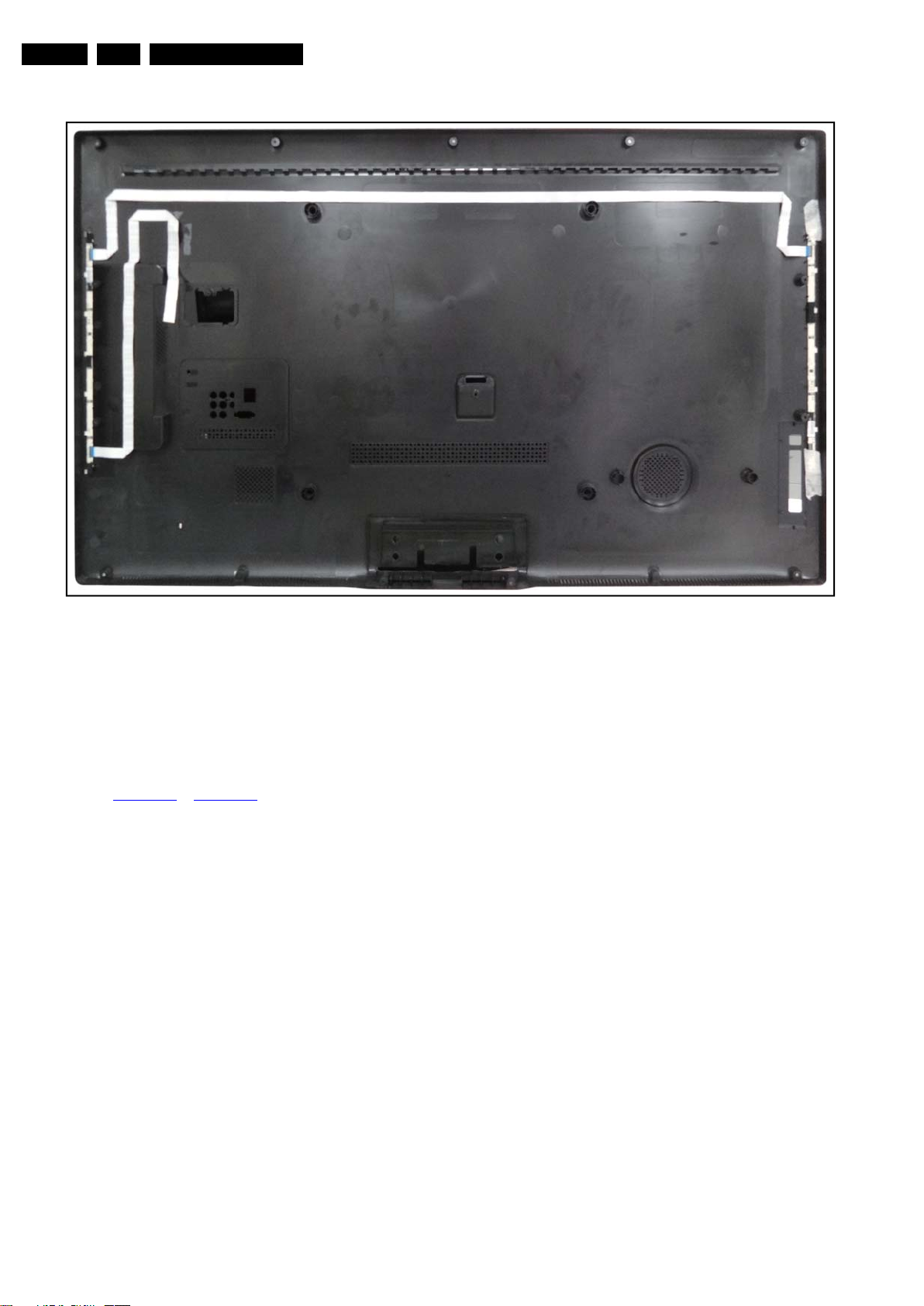

Figure 4-14 Rear cover removal - back cover hatch

Figure 4-15 Rear cover removal - leading edge hatch

Refer to Figure 4-16

for screw positions.

2013-Jun-21

Mechanical Instructions

19510_106_130424.eps

130424

1

M4 × 10

M3 × 8

1

2

22

2

M3 × 5

3

Q3 × 10

4

44

4

19510_108_130424.eps

130424

2

1

3

EN 19L12M3.1L LA 4.

Figure 4-16 Back cover screw positions

4.3.2 Small Signal Board

Refer to Figure 4-14

1. Unplug the LVDS connector [1].

2. Unplug the remaining connectors [2].

3. Remove the screws [3].

for details.

4.3.3 Ambilight units in Rear Cover

The Ambilight units are affixed in the rear cover and will selfdestruct upon removal.

Attention: it is of the utmost importance to remove all remains of any adhesive that might be left on the inside of the rear cover, prior to affixing the new Ambilight units.

The new units come with double-sided adhesive tape. Ensure a correct mounting to avoid uneven light emission of the units. Refer to Figure 4-18

for the wiring position.

Figure 4-17 SSB

2013-Jun-21

EN 20 L12M3.1L LA4.

19510_107_130424.eps

130424

Mechanical Instructions

4.4 Set Re-assembly

To re-assemble the whole set, execute all processes in reverse order.

h For sets in the 7000- and 8000 range, it is of the utmost importance to keep cables out of the swivel range when reassembling the set, to avoid future cable cut.

Refer to Figure 4-10

Notes:

• While re-assembling, make sure that all cables are placed and connected in their original position.

• Pay special attention not to damage the EMC foams in the set. Ensure that EMC foams are mounted correctly.

to Figure 4-13.

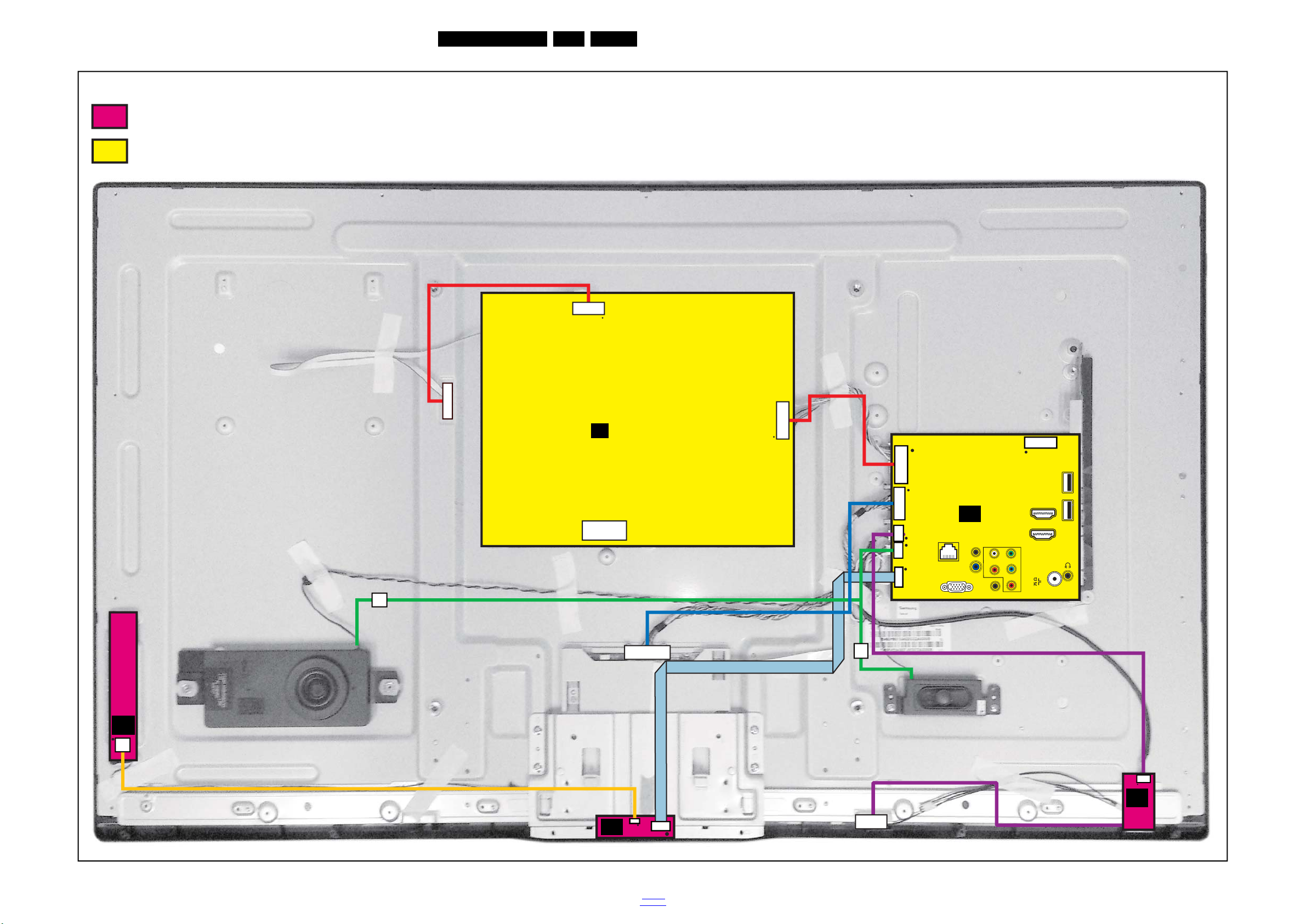

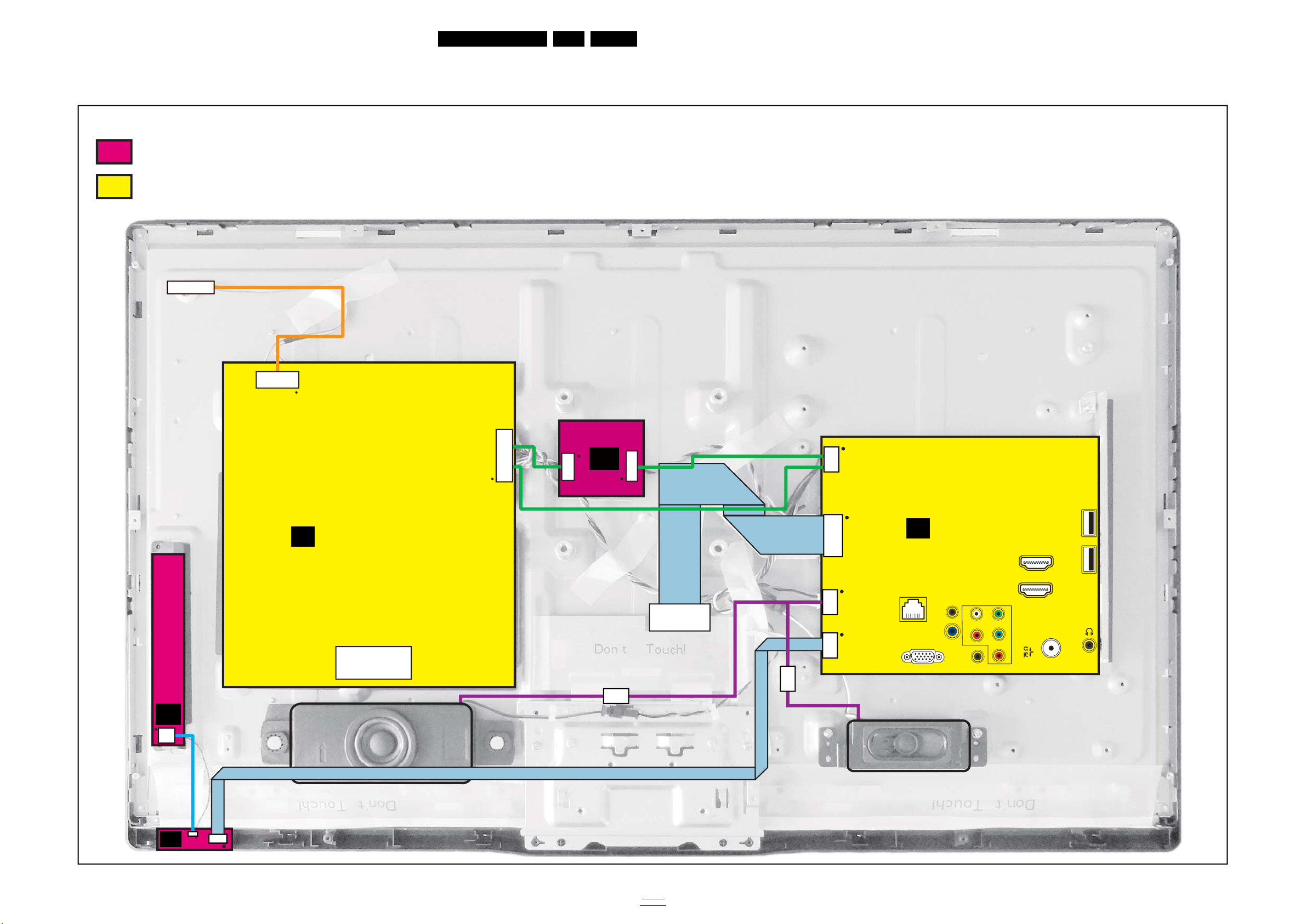

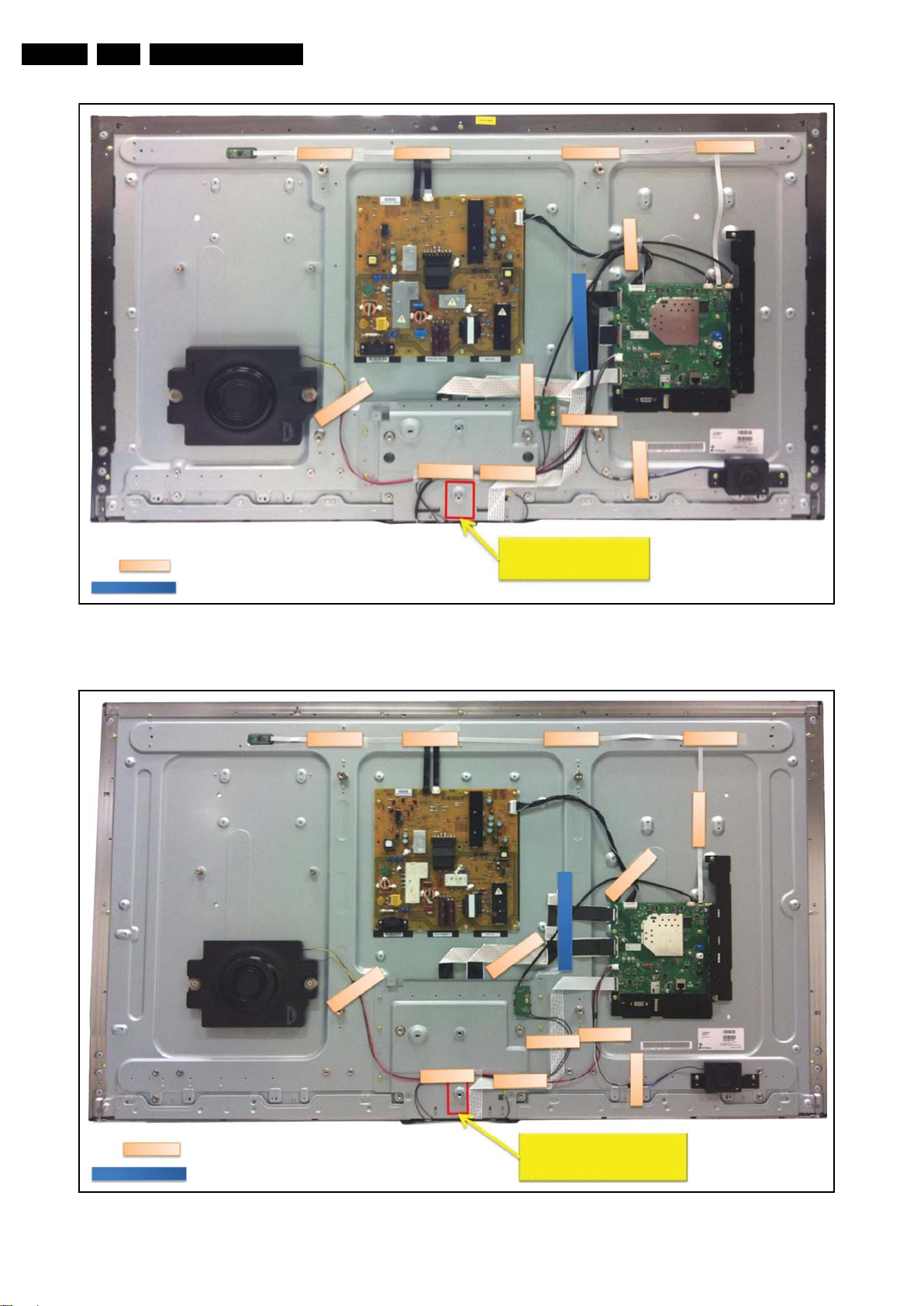

Figure 4-18 Back cover Ambilight wiring

2013-Jun-21

Service Modes, Error Codes, and Fault Finding

10000_038_090121.eps

090819

PHILIPS

MODEL:

32PF9968/10

PROD.SERIAL NO:

AG 1A0620 000001

040

39mm

27mm

(CTN Sticker)

Display Option

Code

5. Service Modes, Error Codes, and Fault Finding

Index of this chapter:

5.1

Test Points

5.2 Service Modes

5.3 Service Tools

5.4 Error Codes

5.5 The Blinking LED Procedure

5.6 Fault Finding and Repair Tips

5.7 Ambilight Parameters in NVM

5.8 Pairing/Unpairing the Remote Control unit

5.9 Software Upgrading

5.2.1 General

Next items are applicable to all Service Modes or are general.

Life Timer

During the life time cycle of the TV set, a timer is kept (called “Op. Hour”). It counts the normal operation hours (not the Stand-by hours). The actual value of the timer is displayed in SDM and SAM in a decimal value. Every two soft-resets increase the hour by +1. Stand-by hours are not counted.

EN 21L12M3.1L LA 5.

5.1 Test Points

In the chassis schematics and layout overviews, the test points are mentioned. In the schematics and layouts, test points are indicated with “Fxxx” or “Ixxx”. As most signals are digital, it will be difficult to measure waveforms with a standard oscilloscope. Several key ICs are capable of generating test patterns, which can be controlled via ComPair. In this way it is possible to determine which part is defective.

Perform measurements under the following conditions:

• Service Default Mode.

• Video: Color bar signal.

• Audio: 3 kHz left, 1 kHz right.

5.2 Service Modes

The Service Mode feature is split into four parts:

• Service Default Mode (SDM).

• Service Alignment Mode (SAM).

• Customer Service Mode (CSM).

• Computer Aided Repair Mode (ComPair).

SDM and SAM offer features, which can be used by the Service engineer to repair/align a TV set. Some features are:

• A pre-defined situation to ensure measurements can be made under uniform conditions (SDM).

• Activates the blinking LED procedure for error identification when no picture is available (SDM).

• The possibility to overrule software protections when SDM is entered via the Service pins.

• Make alignments (e.g. White Tone), (de)select options, enter options codes, reset the error buffer (SAM).

• Display information (“SDM” or “SAM” indication in upper right corner of screen, error buffer, software version, operating hours, options and option codes, sub menus).

The CSM is a Service Mode that can be enabled by the consumer. The CSM displays diagnosis information, which the customer can forward to the dealer or call centre. In CSM mode, “CSM”, is displayed in the top right corner of the screen. The information provided in CSM and the purpose of CSM is to:

• Increase the home repair hit rate.

• Decrease the number of nuisance calls.

• Solved customers' problem without home visit.

ComPair Mode is used for communication between a computer and a TV on I2C /UART level and can be used by a Service engineer to quickly diagnose the TV set by reading out error codes, read and write in NVMs, communicate with ICs and the uP (PWM, registers, etc.), and by making use of a fault finding database. It will also be possible to up and download the software of the TV set via I2C with help of ComPair. To do this, ComPair has to be connected to the TV set via the ComPair connector, which will be accessible through the rear of the set (without removing the rear cover).

In this chassis, the set has to be put in Service Mode (SDM, SDA) before you can use ComPair.

In case a call centre or consumer reads “See Type Plate” in CSM mode, he needs to look to the side/bottom sticker to

Software Identification, Version, and Cluster

The software ID, version, and cluster will be shown in the main menu display of SDM, SAM, and CSM. The screen will show: “AAAAAAB-XXX.YYY.MMM.TTT”, where:

• AAAAAA is the chassis name: L12M31L.

• B is the region indication: E= Europe, A= AP/China, U= NAFTA, L= LATAM.

• XXX is the main version number: this is updated with a major change of specification (incompatible with the previous software version). Numbering will go from 0 - 255. YYY is the sub version number: this is updated with a minor change of specification (incompatible with the previous software version). Numbering will go from 0 - 255. MMM is the number of the mandatory (upgrade) release in association with the area of the mandatory (upgrade) release. Numbering will go from 0 - 255. TTT bit 7 to 1 is the area of the mandatory (upgrade) release where 0 - none, 1 - Netflix, rest reserved. TTT bit 0 : 0 = development release, 1 = production release. – If any version number changes, the new version

number is written in the NVM.

– If any version number changes, the default settings are

loaded.

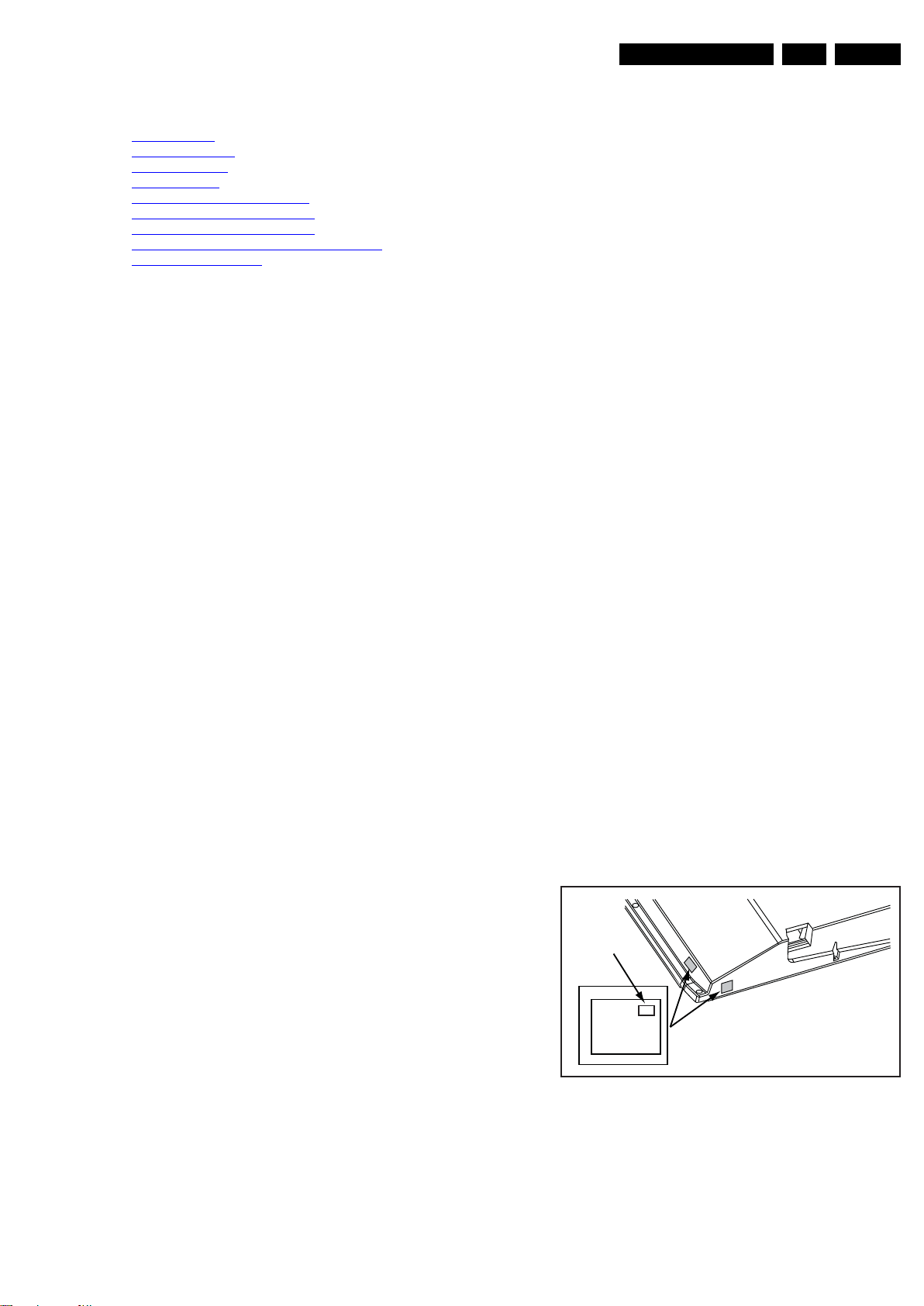

Display Option Code Selection

When after an SSB or display exchange, the display option code is not set properly, it will result in a TV with “no display”. Therefore, it is required to set this display option code after such a repair. To do so, press the following key sequence on a standard RC transmitter: “062598” directly followed by MENU/HOME and “xxx”, where “xxx” is a 3 digit decimal value of the panel type, see sticker on the side/bottom of the cabinet. When the value is accepted and stored in NVM, the set will switch to Stand-by, to indicate that the process has been completed.

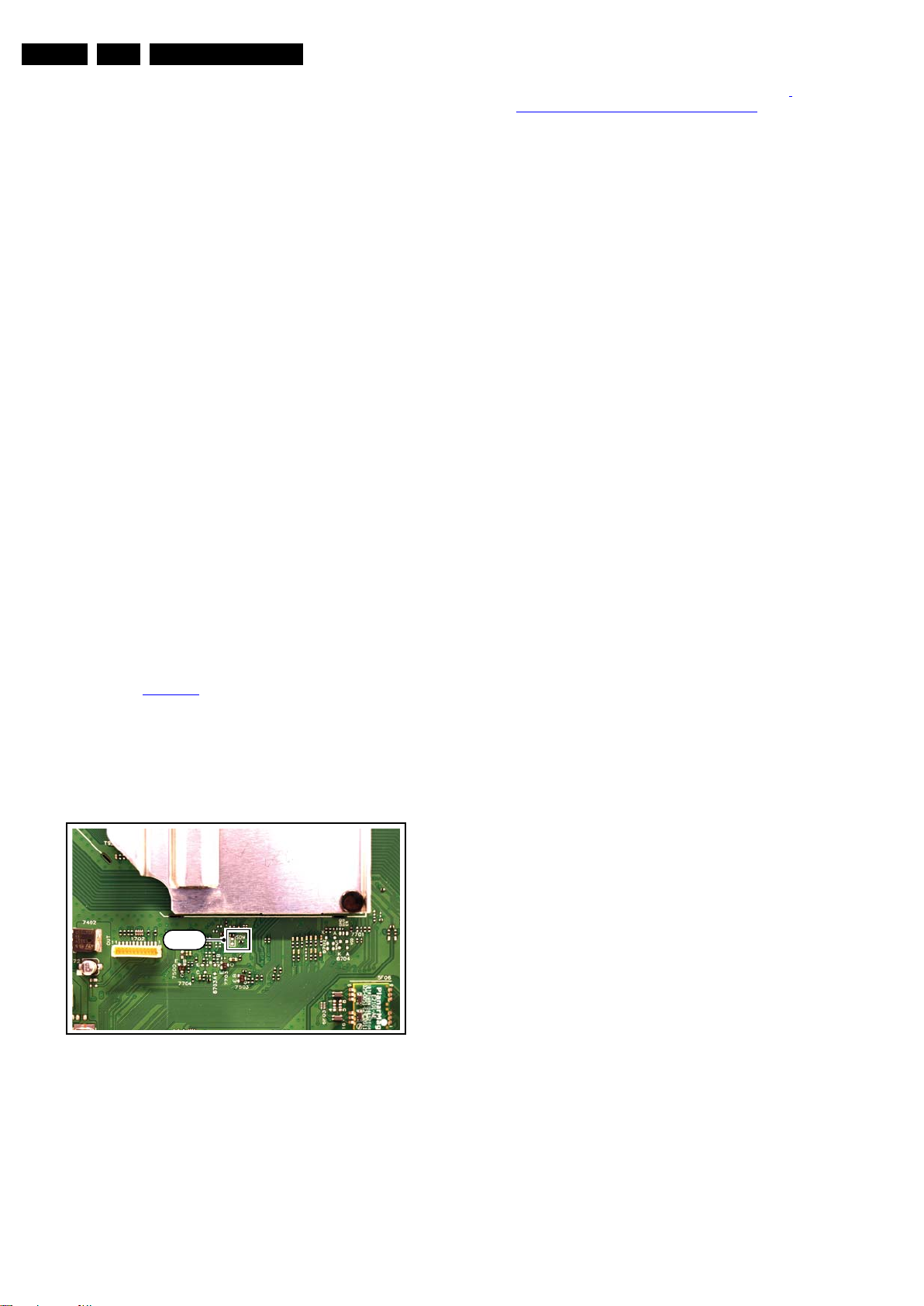

Figure 5-1 Location of Display Option Code sticker

During this algorithm, the NVM-content must be filtered, because several items in the NVM are TV-related and not SSBrelated (e.g. Model and Prod. S/N). Therefore, “Model” and “Prod. S/N” data is changed into “See Type Plate”. identify the set, for further actions.

2013-Jun-21

EN 22 L12M3.1L LA5.

Service Modes, Error Codes, and Fault Finding

5.2.2 Service Default Mode (SDM)

Purpose

Set the TV in SDM mode in order to be able to create a predefined setting for measurements to be made. In this platform, a simplified SDM is introduced (without protection override and without tuning to a predefined frequency).

Specifications

• Set linear video and audio settings to 50%, but volume to 25%. Stored user settings are not affected.

• Set Smart Picture to “Game”.

• Set Smart Sound to “Standard”.

• Tune channel to:

- for analogue SDM: channel 3 (61.25 MHz)

- for digital SDM: channel 26 (545.143 MHz).

• For digital SDM: set PID default from the stream.

• All service-unfriendly modes (if present) are disabled, since they interfere with diagnosing/repairing a set. These service unfriendly modes are: – (Sleep) timer. – Blue mute/Wall paper. – Auto switch “off” (when there is no “ident” signal). – Hotel or hospital mode. – Child lock or parental lock (manual or via V-chip). – Skipping, blanking of “Not favorite”, “Skipped” or

“Locked” presets/channels.

– Automatic storing of Personal Preset or Last Status

settings.

– Automatic user menu time-out (menu switches back/

OFF automatically.

– Auto Volume levelling (AVL).

How to Activate

To activate analogue SDM, use one of the following methods:

• Press the following key sequence on the RC transmitter: “062596” directly followed by the MENU button.

• Short one of the “Service” pads on the TV board during cold start (see Figure 5-2 (remove the short after start-up). Caution: When doing this, the service-technician must know exactly what he is doing, as it could damage the television set.

To activate digital SDM:

• Press the following sequence on the RC transmitter: “062593” directly followed by the MENU button.

). Then press the mains button

• AAAAAAB-XXX.YYY.MMM.TTT: See paragraph

Software Identification, Version, and Cluster for the SW

name definition.

• ERR: Shows all errors detected since the last time the buffer was erased in format <xxx> <xxx> <xxx> <xxx> <xxx> (five errors possible).

• OP: Used to read-out the option bytes. Ten codes (in two rows) are possible.

How to Navigate

As this mode is read only, there is not much to navigate. To switch to other modes, use one of the following methods:

• Command MENU from the user remote will enter the normal user menu (brightness, contrast, color, etc...) with “SDM” OSD remaining, and pressing MENU key again will return to the last status of SDM again.

• To prevent the OSD from interfering with measurements in SDM, command “OSD” or “i+” (“STATUS” or “INFO” for NAFTA and LATAM) from the user remote will toggle the OSD “on/off” with “SDM” OSD remaining always “on”.

• Press the following key sequence on the remote control transmitter: “062596” directly followed by the INFO[i+]/OK button to switch to SAM (do not allow the display to time out between entries while keying the sequence).

How to Exit

Switch the set to Stand-by.

• pressing the standby button on the remote control transmitter or on the television set, or

• via a standard RC-transmitter by keying the “00” sequence.

If you switch the television set “off” by removing the mains (i.e., unplugging the television), the television set will remain in SDM when mains is re-applied, and the error buffer is not cleared. The error buffer will only be cleared when the “clear” command is used in the SAM menu.

Note:

• If the TV is switched “off” by a power interrupt while in SDM, the TV will show up in the last status of SDM menu as soon as the power is supplied again. The error buffer will not be cleared.

• In case the set is accidentally in Factory mode (with an “F” displayed on the screen), pressing and holding “VOL-“ button for 5 seconds and then followed by pressing and holding the “CH-” button for another 5 seconds should exit the Factory mode.

SDM

19300_068_120419.eps

Figure 5-2 Service pad

On Screen Menu

After activating SDM, the following items are displayed, with “SDM” in the upper right corner of the screen to indicate that the television is in Service Default Mode. Menu items and explanation:

• xxxxx: Operating hours (in decimal).

2013-Jun-21

120419

5.2.3 Service Alignment Mode (SAM)

Purpose

• To change option settings.

• To display / clear the error code buffer.

• To perform alignments.

Specifications

• Operation hours counter (maximum five digits displayed).

• Software version, error codes, and option settings display.

• Error buffer clearing.

• Option settings.

• Software alignments (White Tone).

• NVM Editor.

• Set screen mode to full screen (all content is visible).

• Set Smart Picture to “Game”.

How to Activate

To activate SAM, use one of the following methods:

• Press the following key sequence on the remote control transmitter: “062596” directly followed by the INFO[i+] /OK button. Do not allow the display to time out between entries while keying the sequence.

• Or via ComPair.

Service Modes, Error Codes, and Fault Finding

EN 23L12M3.1L LA 5.

After entering SAM, the following items are displayed, with “SAM” in the upper right corner of the screen to indicate that the television is in Service Alignment Mode.

Menu items and explanation:

1. System Information.

• Op Hour: This represents the life timer. The timer counts normal operation hours, but does not count Stand-by hours.

• MAIN SW ID: See paragraph

Version, and Cluster for the SW name definition.

• ERR: Shows all errors detected since the last time the buffer was erased. Five errors possible.

• OP1/OP2: Used to read-out the option bytes. See paragraph 6.4 section for a detailed description. Ten codes are possible.

2. Clear. Erases the contents of the error buffer. Select this menu item and press the MENU RIGHT key on the remote control. The content of the error buffer is cleared.

3. Options. To set the option bits. See paragraph 6.4

Settings in the “Alignments” chapter for a detailed

description.

4. Alignments.

• RGB Align. To align the White Tone. See

Alignment: for a detailed description.

• Ambilight. To align the Ambilight Units.

5. NVM editor.

• NVM Editor. To change the NVM data in the television

set. See also paragraph 5.6

Tips.

• Service Data. 12 nc data.

6. Upload to USB.

7. Download from USB.

8. Initialise NVM. To initialize a (corrupted) NVM. Be careful, this will erase all settings!

9. Dealer Options.

10. Event Count.

• Hardware Events. To Display and Clear the hardware

events.

• Software Events. To Display and Clear the software

events.

11. RF4CE Pairing Tables. To Clear the paired remote immediately.

How to Navigate

• In the SAM menu, select menu items with the UP/DOWN keys on the remote control transmitter. The selected item will be indicated. When not all menu items fit on the screen, use the UP/DOWN keys to display the next / previous menu items.

• With the LEFT/RIGHT keys, it is possible to: – Activate the selected menu item. – Change the value of the selected menu item. – Activate the selected sub menu.

• When you press the MENU button twice while in top level SAM, the set will switch to the normal user menu (with the SAM mode still active in the background). To return to the SAM menu press the MENU button.

• The “INFO[i+]/OK” key from the user remote will toggle the OSD “on/off” with “SAM” OSD remaining always “on”.

• Press the following key sequence on the remote control transmitter: “062596” directly followed by the MENU button to switch to SDM (do not allow the display to time out between entries while keying the sequence).

Option Settings in the Alignments

Software Identification,

Option

White Tone

Fault Finding and Repair

How to Exit

Switch the set to STANDBY by pressing the mains button on the remote control transmitter or the television set, or by keying-in the “00” sequence on a standard RC-transmitter.

Note:

• When the TV is switched “off” by a power interrupt while in SAM, the TV will show up in “normal operation mode” as soon as the power is supplied again. The error buffer will not be cleared.

• In case the set is in Factory mode by accident (with “F” displayed on screen), pressing and holding “VOL-“ button for 5 seconds and then followed by pressing and holding the “CH-” button for another 5 seconds should exit the Factory mode.

5.2.4 Customer Service Mode (CSM)

Purpose

The Customer Service Mode shows error codes and information on the TV’s operation settings. A call centre can instruct the customer (by telephone) to enter CSM in order to identify the status of the set. This helps them to diagnose problems and failures in the TV before making a service call. The CSM is a read-only mode; therefore, modifications are not possible in this mode.

Specifications

• Ignore “Service unfriendly modes”.

• Set volume to 25%.

• Set Smart Picture to “Game”.

• Set Smart Sound to “Standard”.

• Line number for every line (to make CSM language independent).

• Set the screen mode to full screen (all contents on screen is visible).

• After leaving the Customer Service Mode, the original settings are restored.

• Possibility to use “CH+” or “CH-” for channel surfing, or enter the specific channel number on the RC.

How to Activate

To activate CSM, press the following key sequence on a standard remote control transmitter: “123654” (do not allow the display to time out between entries while keying the sequence).

After entering the Customer Service Mode, the following items are displayed:

Menu Explanation CSM1

1. Set Type. Type number, e.g. 39PFL4508G/78. (*)

2. Production code. Product serial no., e.g. BZ1A1008123456 (*). BZ= Production centre, 1= BOM code, A= Service version change code, 10= Production year, 08= Production week, 123456= Serial number.

3. Installation date. Indicates the date of the first initialization of the TV. This date is acquired via time extraction.

4. a - Option Code 1. Option code information (group 1). b - Option Code 2. Option code information (group 2).

5. SSB. Indication of the SSB factory ID (= 12nc). (*)

6. Display. Indication of the display ID (=12 nc). (*)

7. PSU. Indication of the PSU factory ID (= 12nc).

8. RF4CE. Indication of the RF4CE software version (= 12nc).

How to Store SAM Settings

To store the settings changed in SAM mode (except the OPTIONS and RGB ALIGN settings), leave the top level SAM menu by using the POWER button on the remote control transmitter or the television set. The mentioned exceptions must be stored separately via the STORE button.

(*) If an NVM IC is replaced or initialized, these items must be re-written to it. ComPair will foresee in a possibility to do this. Also the NVM editor in the SAM menu can be used.

Menu Explanation CSM2

1. Current Main SW. Shows the main software version.

2. Standby SW. Shows the Stand-by software version.

3. Panel Code. Shows the current display code.

2013-Jun-21

EN 24 L12M3.1L LA5.

10000_036_090121.eps

091118

TO

UART SERVICE

CONNECTOR

TO

UART SERVICE

CONNECTOR

TO

I2C SERVICE

CONNECTOR

TO TV

PC

HDMI I

2

C only

Optional power

5V DC

ComPair II Developed by Philips Brugge

RC out

RC in

Optional

Switch

Power ModeLink/

Activity

I

2

C

ComPair II

Multi

function

RS232 /UART

Service Modes, Error Codes, and Fault Finding

4. Bootloader ID. Shows the Bootloader software ID.

5. NVM Version. The NVM software version no.

6. Flash ID. Shows the flash ID.

7. e_UM version. To display eUM version.

8. Channel_table_struct_version. Channel structure version.

9. RF4CE software. Shows the RF4CE software version.

Menu Explanation CSM3

1. Signal Quality. Shows the signal quality for RF signals and other sources (No Tuned/Poor/Average/Good).

2. Child lock. This is a combined item for locks. If any lock (Preset lock, child lock, lock after, or Parental lock) is active, this item indicates “active”.

3. HDCP Keys. not used (HDCP key is embedded in the SiL9187 mux IC).

4. To display ethernet MAC address.

5. To display wireless MAC address.

6. not used.

7. not used.

8. not used.

9. not used.

10. Event Counter. Display event and Clear event.

Create a CSM dump on an USB stick

There will be CSM dump to a plugged in USB-stick upon entering CSM-mode. An extended CSM dump will be created when the “OK” button on RC is pressed in CSM while a USB stick is plugged in. A direct CSM flash dump will be created when the buttons “red + 2679” on the remote control are pressed in CSM while a USB stick is plugged in.

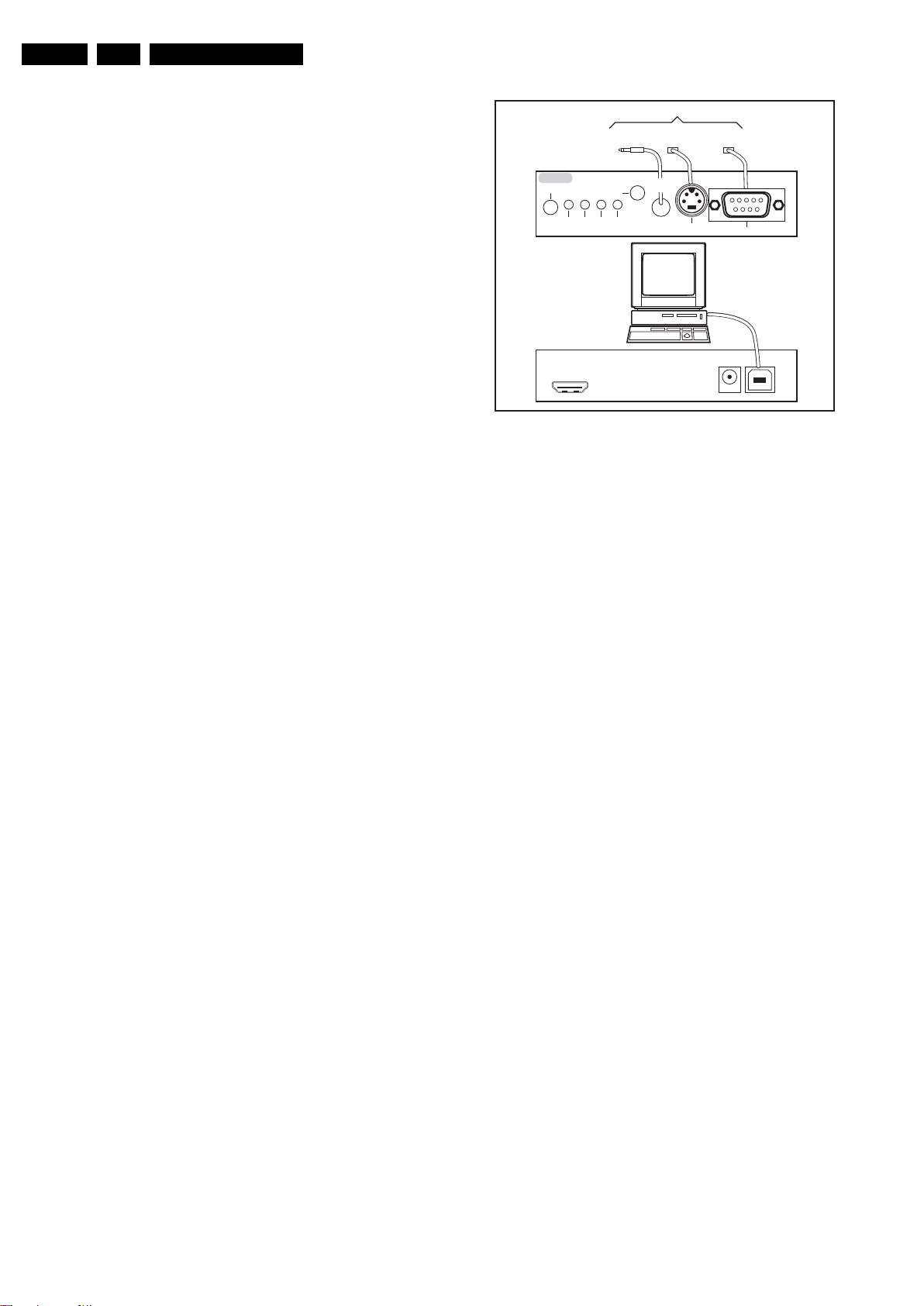

Figure 5-3 ComPair II interface connection

Caution: It is compulsory to connect the TV to the PC as

shown in the picture above (with the ComPair interface in between), as the ComPair interface acts as a level shifter. If one connects the TV directly to the PC (via UART), ICs will be blown!

How to Exit

To exit CSM, use one of the following methods:

• Press the MENU/HOME button on the remote control transmitter.

• Press the POWER button on the remote control transmitter.

• Press the POWER button on the television set.

5.3 Service Tools

5.3.1 ComPair

Prerequisite

In this chassis, ComPair can only be used in one of the Service Modes (SAM, SDM).

Introduction

ComPair (Computer Aided Repair) is a Service tool for Philips Consumer Electronics products. and offers the following:

1. ComPair helps you to quickly get an understanding on how to repair the chassis in a short and effective way.

2. ComPair allows very detailed diagnostics and is therefore capable of accurately indicating problem areas. You do not have to know anything about I2C or UART commands yourself, because ComPair takes care of this.

3. ComPair speeds up the repair time since it can automatically communicate with the chassis (when the uP is working) and all repair information is directly available.

4. ComPair features TV software up possibilities.

Specifications

ComPair consists of a Windows based fault finding program and an interface box between PC and the (defective) product. The (new) ComPair II interface box is connected to the PC via an USB cable. For the TV chassis, the ComPair interface box and the TV communicate via a bi-directional cable via the service connector(s).

How to Connect

This is described in the ComPair chassis fault finding database.

2013-Jun-21

How to Order

ComPair II order codes:

• ComPair II interface: 3122 785 91020.

• ComPair UART interface cable: 3138 188 75051.

• Program software can be downloaded from the Philips Service web portal.

Note: For this chassis, no new database is made as ComPair will be phased out. In addition, you can use the ComPair box as level shifter for UART logging.

Additional cables for VCOM Alignment

•ComPair/I

2

C interface cable: 3122 785 90004.

• ComPair/VGA adapter cable: 9965 100 09269.

5.4 Error Codes

5.4.1 Introduction

Error codes are required to indicate failures in the TV set. In principle a unique error code is available for every:

• Activated (SW) protection.

•Failing I

• General I

The last five errors, stored in the NVM, are shown in the Service menu’s. This is called the error buffer. The error code buffer contains all errors detected since the last time the buffer was erased. The buffer is written from left to right. When an error occurs that is not yet in the error code buffer, it is displayed at the left side and all other errors shift one position to the right. An error will be added to the buffer if this error differs from any error in the buffer. The last found error is displayed on the left. An error with a designated error code never leads to a deadlock situation. It must always be diagnosable (e.g. error buffer via OSD or blinking LED or via ComPair). In case a failure identified by an error code automatically results in other error codes (cause and effect), only the error code of the MAIN failure is displayed.

2

C device.

2

C error.

Service Modes, Error Codes, and Fault Finding

EN 25L12M3.1L LA 5.

5.4.2 How to Read the Error Buffer

You can read the error buffer in three ways:

• On screen via the SAM/SDM/CSM (if you have a picture). Example: – ERROR: 0 0 0 0 0 : No errors detected – ERROR: 6 0 0 0 0 : Error code 6 is the last and only

detected error

– ERROR: 9 6 0 0 0 : Error code 6 was detected first and

error code 9 is the last detected (newest) error

• Via the blinking LED procedure (when you have no picture). See paragraph 5.5

The Blinking LED Procedure.

•Via ComPair.

5.4.3 Error codes

The “layer 1” error codes are pointing to the defective board. They are triggered by LED blinking when CSM is activated. In the LC10 platform, only two boards are present: the SSB and the PSU/IPB, meaning only the following layer 1 errors are defined:

•2: SSB

• 3: IPB/PSU

•4: Display

Table 5-1 Error code table

Layer-1 error code

3 IPB/PSU 16 +12 V missing/low, PSU defective

3 IPB/PSU 17 POK line defective (only 7000/8000 range)

2 SSB 13 general I2C bus error on SSB

2 SSB 35 EEPROM I2C error on SSB, 24MC64-W

2 SSB 34 tuner I2C error on SSB

2 SSB 27 channel decoder on SSB

6Light

6 RF4CE 46 RF4CE board error/defective

Defective board

sensor

Layer-2 error code Defective device

43 light sensor board error/defective

Example (2): the content of the error buffer is “12 9 6 0 0” After entering SDM, the following occurs:

• 1 long blink of 5 seconds to start the sequence,

• 12 short blinks followed by a pause of 1.5 seconds,

• 9 short blinks followed by a pause of 1.5 seconds,

• 6 short blinks followed by a pause of 1.5 seconds,

• 1 long blink of 1.5 seconds to finish the sequence,

• The sequence starts again with 12 short blinks.

5.5.2 Displaying the Entire Error Buffer

Additionally, the entire error buffer is displayed when Service Mode “SDM” is entered.

5.6 Fault Finding and Repair Tips

Notes:

• It is assumed that the components are mounted correctly with correct values and no bad solder joints.

• Before any fault finding actions, check if the correct options are set.

5.6.1 NVM Editor

In some cases, it can be convenient if one directly can change the NVM contents. This can be done with the “NVM Editor” in SAM mode. With this option, single bytes can be changed.

Caution:

• Do not change these, without understanding the function of each setting, because incorrect NVM settings may seriously hamper the correct functioning of the TV set!

• Always write down the existing NVM settings, before changing the settings. This will enable you to return to the original settings, if the new settings turn out to be incorrect.

5.6.2 Load Default NVM Values

5.4.4 How to Clear the Error Buffer

The error code buffer is cleared in the following cases:

• By using the CLEAR command in the SAM menu:

• By using the following key sequence on the remote control transmitter: “062599” directly followed by the OK button.

• If the contents of the error buffer have not changed for 50 hours, the error buffer resets automatically.

Note: If you exit SAM by disconnecting the mains from the television set, the error buffer is not reset.

5.5 The Blinking LED Procedure

5.5.1 Introduction

The software is capable of identifying different kinds of errors. Because it is possible that more than one error can occur over time, an error buffer is available, which is capable of storing the last five errors that occurred. This is useful if the OSD is not working properly.

Errors can also be displayed by the blinking LED procedure. The method is to repeatedly let the front LED pulse with as many pulses as the error code number, followed by a period of

1.5 seconds in which the LED is “off”. Then this sequence is

repeated.

Example (1): error code 4 will result in four times the sequence LED “on” for 0.25 seconds / LED “off” for 0.25 seconds. After this sequence, the LED will be “off” for 1.5 seconds. Any RC command terminates the sequence. Error code LED blinking is in red color.

It is possible to download default values automatically into the NVM in case a blank NVM is placed or when the NVM first 20 address contents are “FF”. After the default values are downloaded, it is possible to start-up and to start aligning the TV set. To initiate a forced default download the following action has to be performed:

1. Switch “off” the TV set with the mains cord disconnected from the wall outlet (it does not matter if this is from “Standby” or “Off” situation).

2. Short-circuit the SDM pads on the SSB (keep short circuited, see Figure 5-2

).

3. Press “P+” or “CH+” on the local keyboard (and keep it pressed).

4. Reconnect the mains supply to the wall outlet.

5. Release the “P+” or “CH+” when the set is started up and has entered SDM.

When the downloading has completed successfully, the set will perform a restart. After this, put the set to Stand-by and remove the short-circuit on the SDM pads.

Alternative method:

It is also possible to upload the default values to the NVM with ComPair in case the SW is changed, the NVM is replaced with a new (empty) one, or when the NVM content is corrupted. After replacing an EEPROM (or with a defective/no EEPROM), default settings should be used to enable the set to start-up and allow the Service Default Mode and Service Alignment Mode to be accessed. Refer also to section 5.7

Ambilight Parameters in NVM for checking/setting the correct parameters for the

Ambilight units.

2013-Jun-21

EN 26 L12M3.1L LA5.

Service Modes, Error Codes, and Fault Finding

5.6.3 No Picture

When you have no picture, first make sure you have entered the correct display code. See

Display Option Code Selection for the instructions.

5.6.4 Unstable Picture via HDMI input

Check (via ComPair) if HDMI EDID data is properly programmed.

5.6.5 No Picture via HDMI input

Check if HDCP key is valid. This can be done in CSM.

5.6.6 HDMI CEC Not Functioning

Go to Home/Menu ->Setup -> Installation -> Preference and set the Easylink option to “on”. Also check if the connected device is CEC enabled.

5.6.7 TV Will Not Start-up from Stand-by.

Possible Stand-by Controller failure. Reflash the SW.

5.6.8 Cannot measure 1 kHz signal at tweeter 1D01 connector

This is normal behavior. Sound system is active 2.1 system with separate tweeter and subwoofer paths. Use 8 kHz test signal for tweeter measurement.

5.6.9 Low output measured at tweeter 1D01 connector

This is normal behavior. Tweeter only covers higher frequency for rated power (4 W each), whereas the subwoofer output (1D02 connector) is full range coverage for output power of 12 W.

• Manually store a known channel and check if there is IF output at tuner pins 2& 3; if not, tuner may be faulty

• Supply voltage (1V2, 2V5, 3V3) presence available to digital demodulator 7210

• Correct functioning of crystal 1205 (41 MHz)

• Pin DEMOD_RST is HIGH in normal operation

• Transport stream output from 7210 is available; if yes, check Video section.

5.6.13 USB troubleshooting

• USB hub does not work when it is plugged in to USB2 and

-3.

-> Connect USB hub to USB1 (only this port supports hub)

• TV cannot detect the presence of USB devices.

-> USB device maybe faulty, replace with another USB device.

• TV cannot detect the presence of USB devices.

-> Ensure USB device connected to the TV USB input ports comply with USB standard (USB certified).

• TV sometimes can/cannot detect USB devices.

-> If connected to a passive USB hub, remove the passive USB hub.

-> Devices connected to a passive USB hub may have drawn current exceeding 500 mA (= limit from TV USB port).

5.6.14 Ethernet troubleshooting

• Ethernet cannot establish link.

-> Check the ethernet magnetic that it is stuffed with the correct orientation.

• When connected to computer, the speed indicated on the computer screen is 10 Mbps instead of 100 Mbps.

-> Check the computer network properties setting and ensure that it is set to “Auto”.

• Unable to login to NetTV website.

-> Make sure all of the keys are loaded in e.g. MAC address, ECD key, etc.

5.6.10 No sound output at class D amplifier

Check following points:

• Presence of both supply +V

2

•I

S input signal: pins 15, 20, 21, 22

(12 V) & 3V3D (3.3 V)

SND

- pin 15: MCLK = 12.288 MHz

- pin 20: LRCLK = 48 kHz

- pin 21: SCLK = 3.072 MHz

- pin 22: SDIN = audio data.

• Check I

2

C communication: pins 23 and 24

• Check startup GPIO: pins 19 and 25; for normal operation, both should be HIGH

• Check outputs: pins 1, 36, 39 and 46; all should have a 12 V PWM signal with a switching frequency of 384 kHz.

5.6.11 Front-end: no picture in analog RF mode

Check following points:

• Tuner supply voltage (3V3) presence available at pin 2/4 7216 and F203

2

•I

C lines are working correctly (3V3)

• Manually store a known channel and check if there is IF output at tuner pins 7 & 8; if not, tuner may be faulty

• Check whether picture is present in CVBS; in not, check Video section.

5.6.12 Front-end: no picture in digital RF mode

Check following points:

• Tuner supply voltage (3V3) presence available at pin 2/4 7216 and F203

2

•I

C lines are working correctly (3V3)

5.6.15 HDMI troubleshooting

• TV cannot detect the presence of HDMI source.

-> Check if there is +5 V at pin 18 of HDMI connector.

• No picture on TV screen.

-> Make sure HDCP is valid.

• In PC mode, TV is unable to display picture for certain output resolutions.

-> Check TV specification if the TV can support the selected resolution.

• CEC not functioning.

-> Turn on “Easyliok” feature from the TV menu.

2013-Jun-21

Service Modes, Error Codes, and Fault Finding

EN 27L12M3.1L LA 5.

5.7 Ambilight Parameters in NVM

In following events, the Ambilight parameters should be checked and adapted (if needed) via SAM using the NVM editor:

• NVM upgrade

• SSB exchange.

The information only applies to sets equipped with Ambilight (5000/5500/7000- and 8000 series). Refer also to section 5.2.3

Service Alignment Mode (SAM).

Table 5-2 Ambilight configuration settings

NVM address Value (in dec)

Hex Dec 5000/5500/7000 series 8000 series

D2E 3374 196 64

D3F 3391 196 64

D50 3408 196 64

D61 3425 196 64

D72 3442 196 64

Refer to Table 5-2

Ambilight configuration settings.

1. go via SAM to the NVM editor

2. in the NVM editor, go to all decimal addresses as specified for the applicable set type

3. check the decimal values and edit if needed.

5.8 Pairing/Unpairing the Remote Control unit

Upon changing the remote control unit, one should (re-)pair the unit by following the following instructions.

5.8.1 Pairing procedure

1. Check if unit is already paired by pressing the <Home> button. a. if TV responds by showing the HOME menu, unit is already paired. Press again the <Home> button to leave the HOME menu and do not execute the pairing action. b. if TV does not respond, goto step 2.

2. Press the <red> and <blue> button simultaneously for more than 2 seconds while pointing the remote control unit to the TV.

3. An OSD message should appear indicating the correct pairing of the unit.

4. Press <Home> on the remote control unit to check if the unit is paired correctly to the TV.

stand alone set. A description on how to upgrade the main software can be found in the DFU or on the Philips website.

5.9.2 Main Software Upgrade

Automatic Software Upgrade

In “normal” conditions, so when there is no major problem with the TV, the main software and the default software upgrade application can be upgraded with the “autorun.upg” (FUS part in the one-zip file). This can also be done by the consumers themselves, but they will have to get their software from the commercial Philips website or via the Software Update Assistant in the user menu (see DFU). The “Autorun.upg” file must be placed in the root of your USB stick.

How to upgrade:

1. Copy the “autorun.upg” file to the root of an USB stick.

2. Insert the USB stick in the side I/O while the set is “on”. The TV will prompt an upgrade message. Press “Update” to continue, after which the upgrading process will start. As soon as the programming is finished, the set must be restarted.

In the “Setup” menu you can check if the latest software is running.

5.9.3 How to Copy NVM Data to/from USB

Write NVM Data to USB

1. Insert the USB stick into the USB slot while in SAM mode.

2. Execute the command "NVM Copy" > "NVM Copy to USB", to copy the NVM data to the USB stick. The NVM filename on the USB stick will be named "L12M31L_NVM_T2U.BIN" (this takes a couple of seconds).

Write NVM Data to TV

1. First, ensure (via a PC) that the filename on the USB stick has the correct format: "L12M31L_NVM_U2T.BIN".

2. Insert the USB stick into the USB slot while in SAM mode.

3. Execute the command "NVM Copy" > "NVM Copy from USB" to copy the USB data to NVM (this takes about a minute to complete).

To write an NVM mask to the TV, ensure that the mask has the correct format: "L12M31L_NVM_U2T.MAK" (0x00 to write protect, 0xFF to overwrite). Important: The file must be located in the "/Repair" directory of the USB stick.

5.8.2 Unpairing procedure

1. Check if unit is already paired to any TV by pressing the <Home> button. a. if no TV responds, the unit is already unpaired. You may pair it now to any TV by following the steps mentioned in section 5.8.1

Pairing procedure.

b. if any TV responds, goto step 2.

2. Press the <TV> and <Mute> and <0> button simultaneously for more than 2 seconds while pointing the remote control unit to the TV.

3. Press the <Home> button to check if the TV is unpaired correctly. The TV should not respond.

- Don’t press the OK button as in some conditions the unit might re-pair with the TV.

- Don’t press the <red> and <blue> button as the unit will re-pair with the TV.

4. Remove the batteries from the unit.

5.9 Software Upgrading

5.9.1 Introduction

It is possible for the user to upgrade the main software via the USB port. This allows replacement of a software image in a

5.9.4 How to Copy EDID Data to/from USB

Write EDID Data to USB

1. Insert the USB stick into the USB slot while in SAM mode.

2. Execute the command "NVM Copy" > "EDID Copy to USB", to copy the EDID data to the USB stick. The filename on the USB stick will be named "L12M31L_EDID_T2U.BIN" (this takes a couple of seconds).

Write EDID Data to TV

1. First, ensure (via a PC) that the filename on the USB stick has the correct format: "L12M31L_EDID_U2T.BIN".

2. Insert the USB stick into the USB slot while in SAM mode.

3. Execute the command "NVM Copy" > "EDID Copy from USB" to copy the USB data to EDID (this takes about a minute to complete).

Important: The file must be located in the "/Repair" directory of the USB stick.

5.9.5 How to Copy the Channel List to/from USB

Write Channel List Data to USB

1. Insert the USB stick into the USB slot while in SAM mode.

2013-Jun-21

EN 28 L12M3.1L LA5.

2. Execute the command "Channel list Copy to USB", to copy the channel list data to the USB stick. The filename on the USB stick will be named "L12M31L_CHTB_T2U.BIN" (this takes a couple of seconds).

Write Channel List Data to TV

1. First, ensure (via a PC) that the filename on the USB stick has the correct format: "L12M31L_CHTB_U2T.BIN".

2. Insert the USB stick into the USB slot while in SAM mode.

3. Execute the command "Channel list Copy from USB" to copy the USB data to the TV (this takes about a minute to complete).

Important: The file must be located in the "/Repair" directory of the USB stick.

Service Modes, Error Codes, and Fault Finding

2013-Jun-21

6. Alignments

Index of this chapter:

6.1

General Alignment Conditions

6.2 Hardware Alignments

6.3 Software Alignments

6.4 Option Settings

6.5 Cable Position Numbers

Note: Figures below can deviate slightly from the actual situation, due to the different set executions.

General: The Service Default Mode (SDM) and Service Alignment Mode (SAM) are described in chapter 5. Menu navigation is done with the CURSOR UP, DOWN, LEFT or RIGHT keys of the remote control transmitter.

6.1 General Alignment Conditions

Perform all electrical adjustments under the following conditions:

• Power supply voltage (depends on region): – AP-NTSC: 120 V – AP-PAL-multi: 120 - 230 V – EU: 230 V

AC

– LATAM-NTSC: 120 - 230 V – US: 120 V

AC

• Connect the set to the mains via an isolation transformer with low internal resistance.

• Allow the set to warm up for approximately 15 minutes.

• Measure voltages and waveforms in relation to correct ground (e.g. measure audio signals in relation to AUDIO_GND). Caution: It is not allowed to use heatsinks as ground.

• Test probe: Ri > 10 Mohm, Ci < 20 pF.

• Use an isolated trimmer/screwdriver to perform alignments.

or 230 VAC / 50 Hz ( 10%).

AC

/ 50 Hz ( 10%).

AC

/ 50 Hz ( 10%).

AC

/ 60 Hz ( 10%).

Alignments

– All “White point” values initial to “127”.

In case you have a color analyzer:

• Measure with a calibrated (phosphor- independent) color analyzer (e.g. Minolta CA-210) in the centre of the screen. Consequently, the measurement needs to be done in a dark environment.

• Adjust the correct x,y coordinates (while holding one of the White point registers R, G or B on max. value) by means of decreasing the value of one or two other white points to the correct x,y coordinates (see Table 6-1

values LC320EUE-SEM1 (panel ID 402) to 6-7 White D alignment values LC420EUE-SEF2 (panel ID 411)).

Tolerance: dx:  0.002, dy:  0.002.

• Repeat this step for the other color Temperatures that need to be aligned.

• When finished return to the SAM root menu and press STANDBY on the RC to store the aligned values to the NVM.

Table 6-1 White D alignment values LC320EUE-SEM1

(panel ID 402)

Value Cool (9480 K) Normal (8050 K) Warm (6100 K)

x 0.280 0.292 0.319

y 0.299 0.314 0.347

Table 6-2 White D alignment values LC420EUE-SEM2

(panel ID 403)

Value Cool (9710 K) Normal (8170 K) Warm (6150 K)

x 0.280 0.291 0.318

y 0.296 0.311 0.345

White D alignment

EN 29L12M3.1L LA 6.

6.2 Hardware Alignments

There are no hardware alignments foreseen for this chassis.

6.3 Software Alignments

With the software alignments of the Service Alignment Mode (SAM) the RGB settings can be aligned.

6.3.1 Tuner Adjustment (RF AGC Take Over Point)

Purpose: To keep the tuner output signal constant as the input

signal amplitude varies.

No alignment is necessary, as the AGC alignment is done automatically.

6.3.2 RGB Alignment

Before alignment, set the picture as follows:

Picture Setting

Dynamic backlight Off

Dynamic Contrast Off

Colour Enhancement Off

Picture Format Unscaled

Light Sensor Off

Brightness 50

Colour 0

Contrast 100

White Tone Alignment:

• Activate SAM.

• Select “RGB Align.“ and choose a color temperature.

• Use a 100% white screen as input signal and set the following values: – “Red BL Offset” and “Green BL Offset” to “7” (if

present).

Table 6-3 White D alignment values LC470EUE-SEM2

(panel ID 404)

Value Cool (9490 K) Normal (8060 K) Warm (6080 K)

x 0.281 0.292 0.319

y 0.297 0.311 0.345

Table 6-4 White D alignment values LC420EUE-FEP1

(panel ID 406)

Value Cool (9540 K) Normal (8060 K) Warm (6130 K)

x 0.280 0.291 0.318

y 0.300 0.314 0.347

Table 6-5 White D alignment values LC470EUF-FEP1

(panel ID 407)

Value Cool (10100 K) Normal (8450 K) Warm (6310 K)

x 0.277 0.288 0.315

y 0.295 0.310 0.343

Table 6-6 White D alignment values LC550EUF-FEP1

(panel ID 410)

Value Cool (t.b.d. K) Normal (t.b.d. K) Warm (t.b.d. K)

x t.b.d. t.b.d. t.b.d.

y t.b.d. t.b.d. t.b.d.

2013-Jun-21

EN 30 L12M3.1L LA6.

Alignments

Table 6-7 White D alignment values LC420EUE-SEF2

(panel ID 411)

Value Cool (t.b.d. K) Normal (t.b.d . K) Warm (t.b.d. K)

x t.b.d. t.b.d. t.b.d.

y t.b.d. t.b.d. t.b.d.

If you do not have a color analyzer, you can use the default values. This is the next best solution. The default values are average values coming from production (statistics).

• Set the RED, GREEN and BLUE default values per temperature according to the values in the “Tint settings” table.

• When finished return to the SAM root menu and press STANDBY on the RC to store the aligned values to the NVM.

Table 6-8 Tint settings 32" 3508 series

Colour Temp. R G B

Cool 219 238 255

Normal 253 253 247

Warm 255 226 171

Table 6-9 Tint settings 32" 3518 series

Colour Temp. R G B

Cool 249 228 250

Normal 255 224 220

Warm 255 188 135

Table 6-15 Tint settings 42" 5008 series

Colour Temp. R G B

Cool 215 223 255

Normal 250 244 251

Warm 255 219 176

Table 6-16 Tint settings 42" 5508 series

Colour Temp. R G B

Cool 219 226 255

Normal 252 246 250

Warm 255 218 172

Table 6-17 Tint settings 46" 4508 series

Colour Temp. R G B

Cool 233 222 253

Normal 255 233 237

Warm 255 202 163

Table 6-18 Tint settings 46" 5508 series

Colour Temp. R G B

Cool 255 210 222

Normal 255 198 187

Warm 255 170 114

Table 6-19 Tint settings 47" 7008 series

Table 6-10 Tint settings 32" 4508 series

Colour Temp. R G B

Cool t.b.d. t.b.d. t.b.d.

Normal t.b.d. t.b.d. t.b.d.

Warm t.b.d. t.b.d. t.b.d.

Table 6-11 Tint settings 39" 3508 series

Colour Temp. R G B

Cool t.b.d. t.b.d. t.b.d.

Normal t.b.d. t.b.d. t.b.d.

Warm t.b.d. t.b.d. t.b.d.

Table 6-12 Tint settings 39" 4508 series

Colour Temp. R G B

Cool t.b.d. t.b.d. t.b.d.

Normal t.b.d. t.b.d. t.b.d.

Warm t.b.d. t.b.d. t.b.d.

Table 6-13 Tint settings 42" 3508 series

Colour Temp. R G B

Cool 238 237 253

Normal 255 232 232

Warm 255 206 145

Colour Temp. R G B

Cool 219 227 255

Normal 250 242 241

Warm 255 215 151

Table 6-20 Tint settings 47" 8008 series

Colour Temp. R G B

Cool 193 216 255

Normal 241 246 254

Warm 255 228 165

Table 6-21 Tint settings 55" 7008 series

Colour Temp. R G B

Cool 233 218 255

Normal 255 235 236

Warm 255 205 144

Table 6-22 Tint settings 55" 8008 series

Colour Temp. R G B

Cool 240 217 255

Normal 255 227 230

Warm 255 195 137

6.4 Option Settings

Table 6-14 Tint settings 42" 4508 series

Colour Temp. R G B

Cool t.b.d. t.b.d. t.b.d.

Normal t.b.d. t.b.d. t.b.d.

Warm t.b.d. t.b.d. t.b.d.

2013-Jun-21

6.4.1 Introduction

The microprocessor communicates with a large number of I ICs in the set. To ensure good communication and to make digital diagnosis possible, the microprocessor has to know which ICs to address. The presence/absence of these specific ICs (or functions) is made known by the option codes.

Notes:

• After changing the option(s), save them with the STORE command.

2

C

• The new option setting becomes active after the TV is switched “off” and “on” again with the mains switch (the EAROM is then read again).

6.4.2 How To Set Option Codes

When the NVM is replaced, all options will require resetting. To be certain that the factory settings are reproduced exactly, you must set all option numbers. You can find the correct option numbers see sticker on the inside the cabinet.

How to Change Options Codes

An option code (or “option byte”) represents eight different options (bits). All options are controlled via ten option bytes (OP#1... OP#10). Activate SAM and select “Options”. Now you can select the option byte (OP#1... OP#10) with the CURSOR UP/ DOWN keys, and enter the new 3 digit (decimal) value. For the correct factory default settings, see the sticker inside the set.

6.4.3 Display Code Overview

Table 6-23 Display code overview

Alignments

EN 31L12M3.1L LA 6.

CTN Panel Type Disp.

32PFL3508G/xx LCO3151A051AD5010X 440

32PFL3518G/xx LCA315HVN01ADA010X 441

32PFL4508G/xx LCA315HVN01A12010X 444

39PFL3508G/xx LCA390HVN01AD6080T 453

39PFL4508G/xx LCA390HVN01A03010X 445

42PFL3508G/xx LCA420HVN04AD8030X 442

42PFL4508G/xx LCA420HVN04A11010X 454

42PFL5x08G/xx LCA420HVD02A22030X 447

46PFL4508G/xx LCA460HVD02A12010X 446

46PFL5508G/xx LCA460HVD02A12010X 448

47PFL7008G/xx LC470EUF-PFF1 430

47PFL8008G/xx LC470EUF-PFF1 430

55PFL7008G/xx LC550EUF-PFF1 431

55PFL8008G/xx LC550EUF-PFF1 431

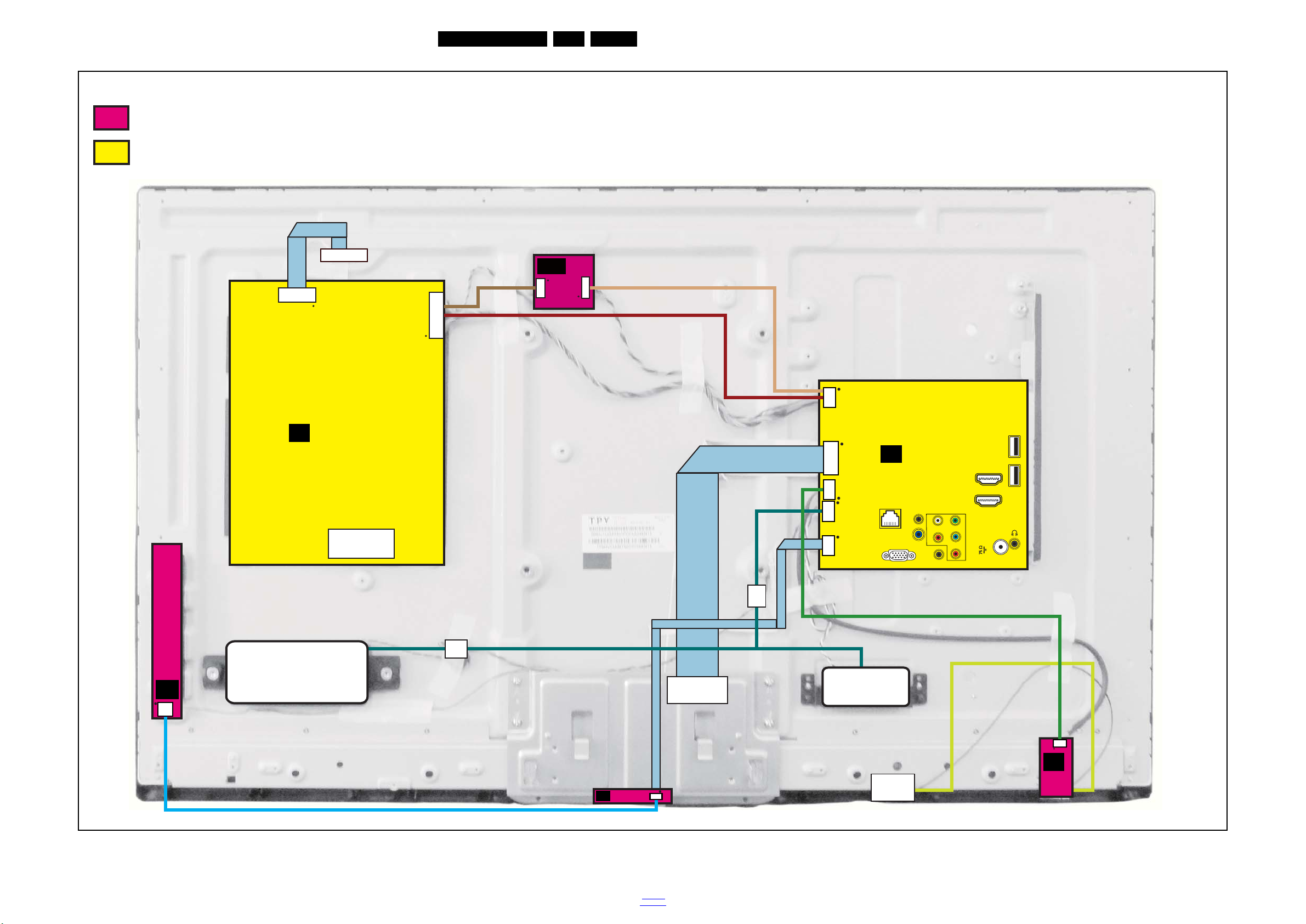

6.5 Cable Position Numbers

In this chassis, the cable position numbers can be defined via the rule that the number is always starting with an “E” followed by the connector number of the current sourcing board. The order is always seen from where the power initiates from. So from PSU to SSB, from SSB to IR/LED panel, from IR/LED panel to keyboard control panel. For example, a cable from the PSU connector CN902 to the SSB connector CN701, will have the position number ECN902.

code

2013-Jun-21

EN 32 L12M3.1L LA7.

19510_200_130424.eps

130424

7. Circuit Descriptions

Index of this chapter:

7.1

Introduction

Notes:

•Only new circuits (circuits that are not published recently) are described.

• Figures can deviate slightly from the actual situation, due to different set executions.

• For a good understanding of the following circuit descriptions, please use chapter 9.

10.

Circuit Diagrams and PWB Layouts. Where necessary,

you will find a separate drawing for clarification.

Block Diagrams and

Circuit Descriptions

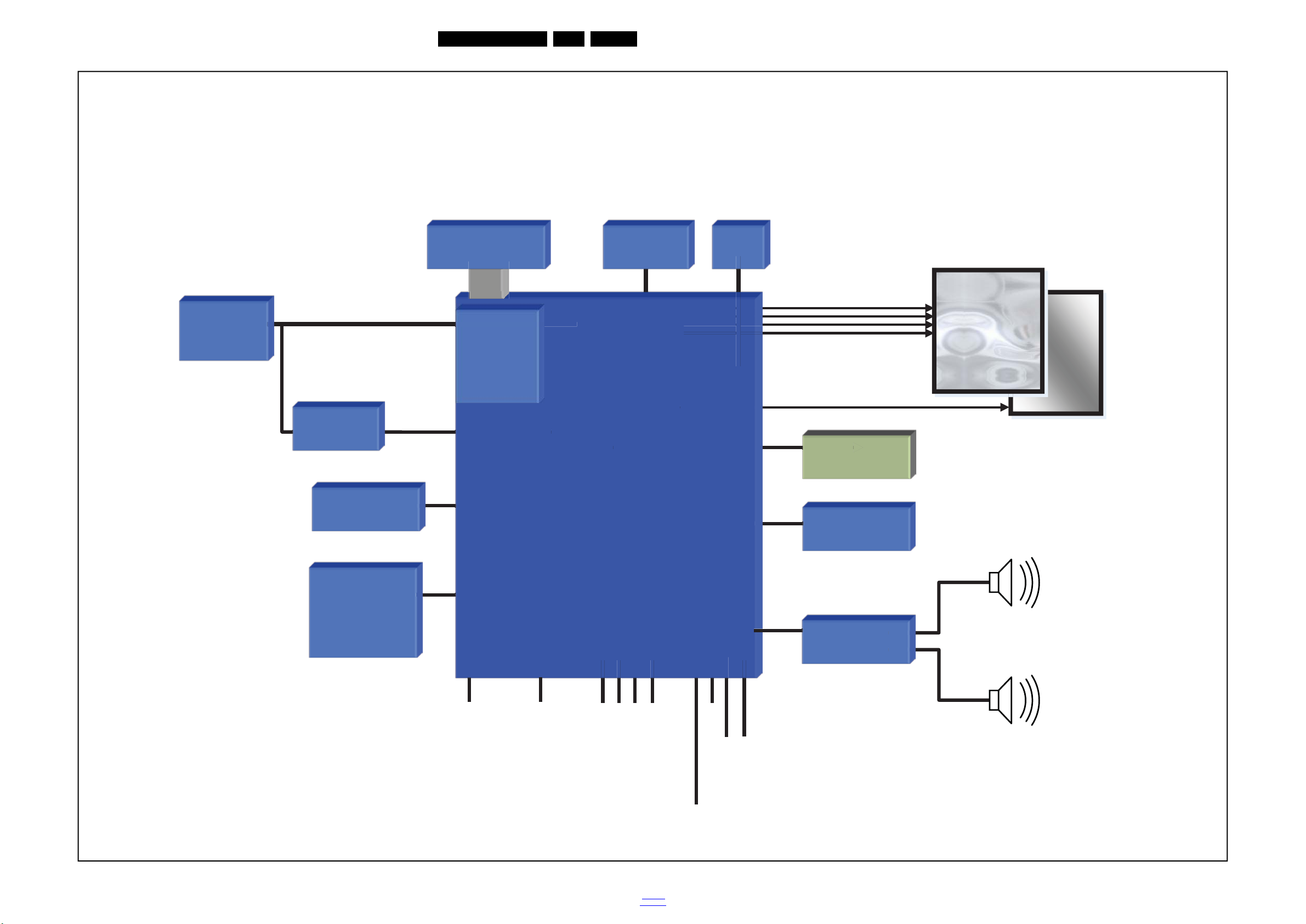

7.1 Introduction

The L12M3.1L LA chassis is a digital chassis using a Mediatek chipset. It covers screen sizes of 32" to 55".

Main key components are the Mediatek MT5396 integrated “System On Chip” (SoC) that supports multimedia video/audio input.

System SoC is based on MT5396:

• NAND Flash – 512 Mbyte, Hynix.

• DDR 1.33 GHz– 512 + 256 Mbyte, Hynix.

Tuner/Frontend configuration:

• Sony Silicon In Can Tuner (SUT-RA214Z).

• Sony Digital Demodulator (CXD2828).

• Analog demodulator embedded in MT5396.

Audio configuration:

• Texas Instruments Audio Class-D Amplifier (TAS5731PHP).

• Texas Instruments Headphone Amplifier (TPA6111A2DGN).

2013-Jun-21

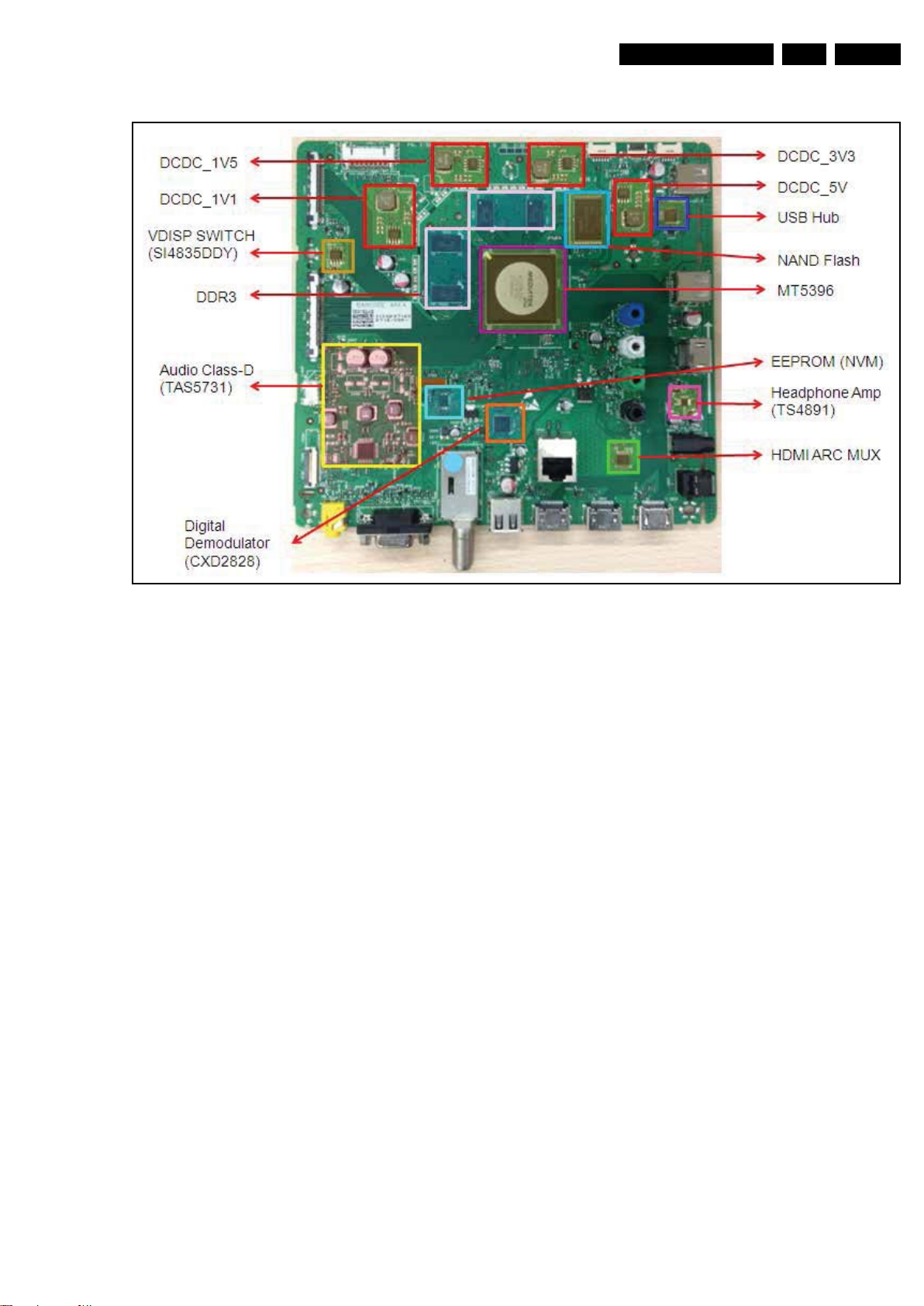

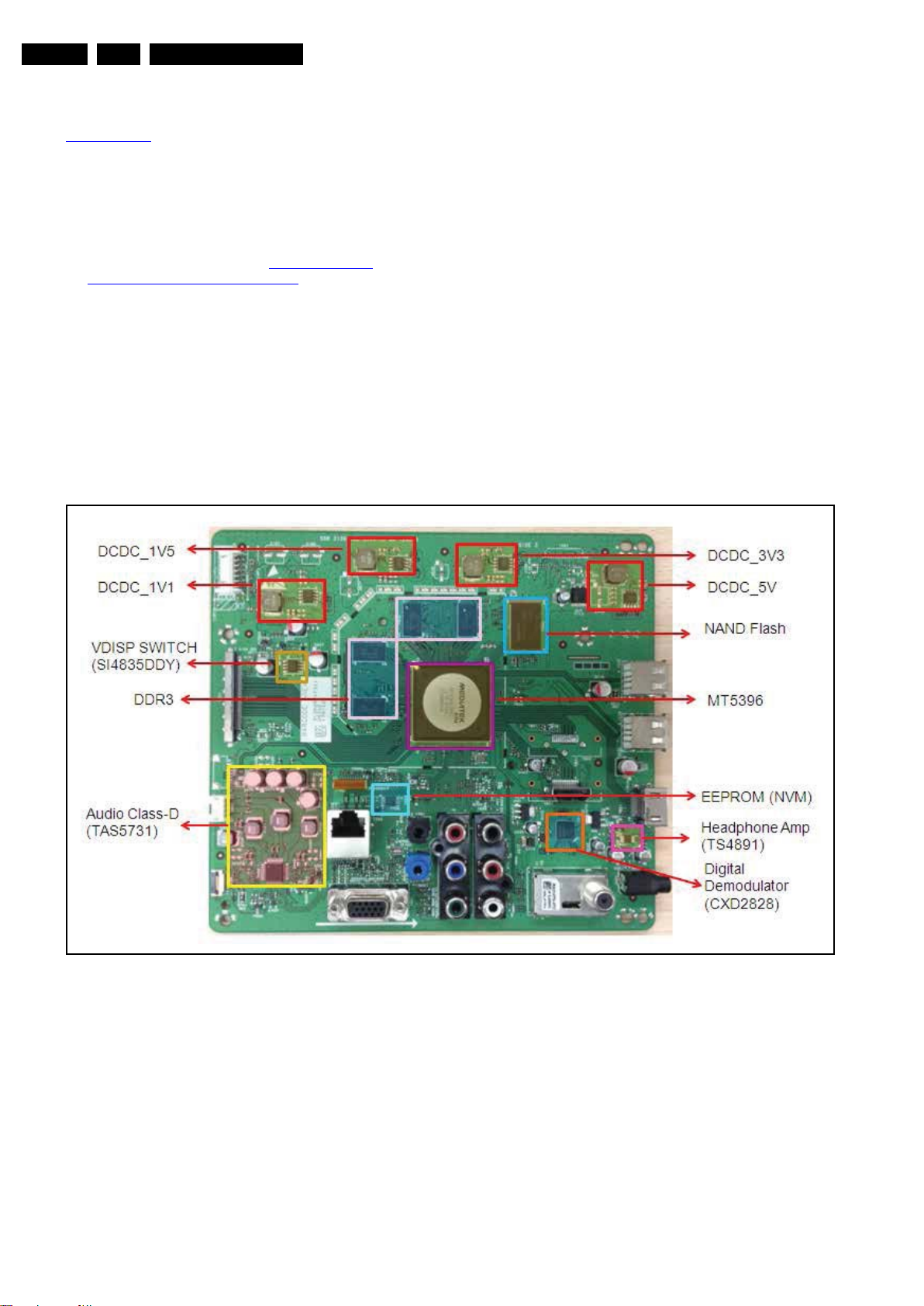

Figure 7-1 SSB key component overview 3500-, 4500-, 5000, 5500 series

Circuit Descriptions

19510_201_130424.eps

130424

EN 33L12M3.1L LA 7.

Figure 7-2 SSB key component overview 7000-, 8000 series

2013-Jun-21

EN 34 L12M3.1L LA8.

19300_043_120416.eps

120416

Block diagram

IQ Gen.


Rejection

PLL

AGC

Terr.

In

Balun

FIL

1KΩ

100Ω

1KΩ

10

11

7

8

9

2

3

100Ω

4

1

100Ω

I2C

100Ω

IQ Gen.


Rejection

PLL

3.3 V

AGC

Terr.

In

Balun

FIL

1KΩ

100Ω

1KΩ

10

Tuner I2C (SDA, SCL)

IFOUT2

IFOUT1

AGC2

AGC1

11

7

8

9

2

3

100Ω

4

1

100Ω

I2C

100Ω

IC Data Sheets

8. IC Data Sheets

This section shows the internal block diagrams and pin layouts of ICs that are drawn as "black boxes" in the electrical diagrams (with the exception of "memory" and "logic" ICs).

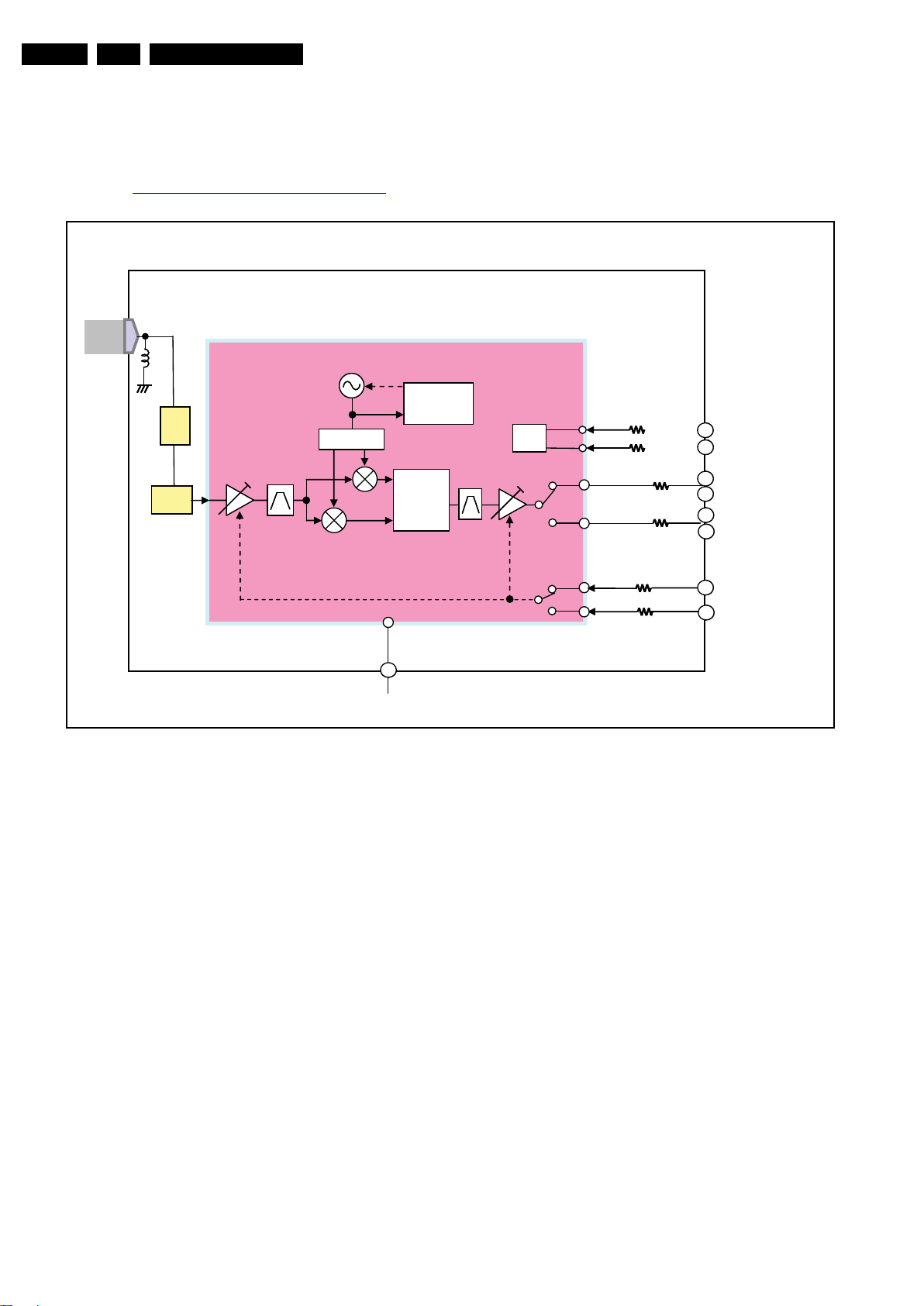

8.1 Diagram 10-6-2 B02A, Tuner & demodulator, Type SUT-RA214 (IC1201)

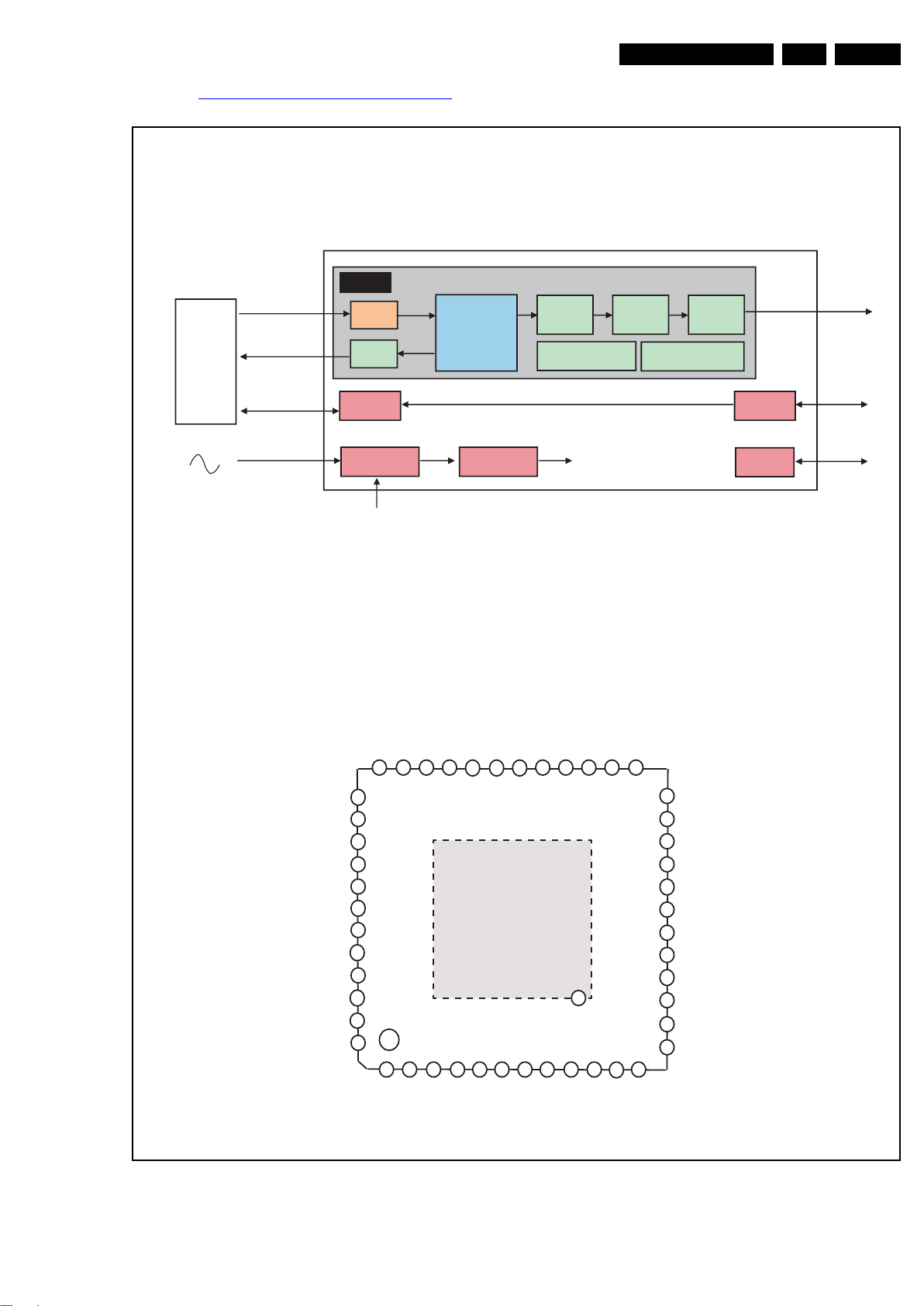

Figure 8-1 Internal block diagram and pin configuration

2013-Jun-21

8.2 Diagram 10-6-2 B02A, Tuner & demodulator, Type CXD2828 (IC7210)

19260_300_120320.eps

120323

Block diagram

Pinning information

3 4 5 6 7 8 9 11 12

XTALSEL

37

TTUSDA

38

TTUSCL

39

SLVADR1

40

CVDD

41

42

GPIO1

43

TIFAGC

44

45

46

47

2829

TSDATA4

TSDATA5

CXD2828ER-T4

OSCEN_X

RST_X

10

TSDATA3

3032333435

XTALI

31

XTALO

48

49

OSCMODE

25262736

XVSS

13

14

15

16

17

18

19

20

21

22

23

24

VSS

TSDATA7

DVDD

SCL

SDA

CVDD

TSDATA6

VSS

TESTMODE

SLVADR0

XVDD

PVDD

CVDD

VSS

PVSS

VSS

TAINM

TAINP

TAVDD

21

GPIO0

GPIO2

TSSYNC

TSVALID

TSCLK

VSS

DVDD

TSDATA0

TSDATA1

CVDD

TSDATA2

TAVSS

Oscillator

Host I2C

GPIO

TTUSDA

TTUSCL

Terrestrial

Tuner

TIFAGC

TAINP

TAINM

TSCLK TSSYNC TSVALID TSDATA[7:0]

ADC

OFDM

Demodulator

AGC

TMCC

Status

Monitor

ISDB-T

Viterbi

decoder

RS

decoder

TSIF

Tuner I2C

SDA SCL

41/20.5MHz

XTALI

XTALO

GPIO0 (EWS) GPIO1 (PWM) GPIO2 (TSERR)

OSCEN_X XTALSEL

PLL Logic

CXD2828ER

IC Data Sheets

EN 35L12M3.1L LA 8.

Figure 8-2 Internal block diagram and pin configuration

2013-Jun-21

EN 36 L12M3.1L LA8.

19300_040_120416.eps

120416

Block diagram

MT5396JDNJ

IC Data Sheets

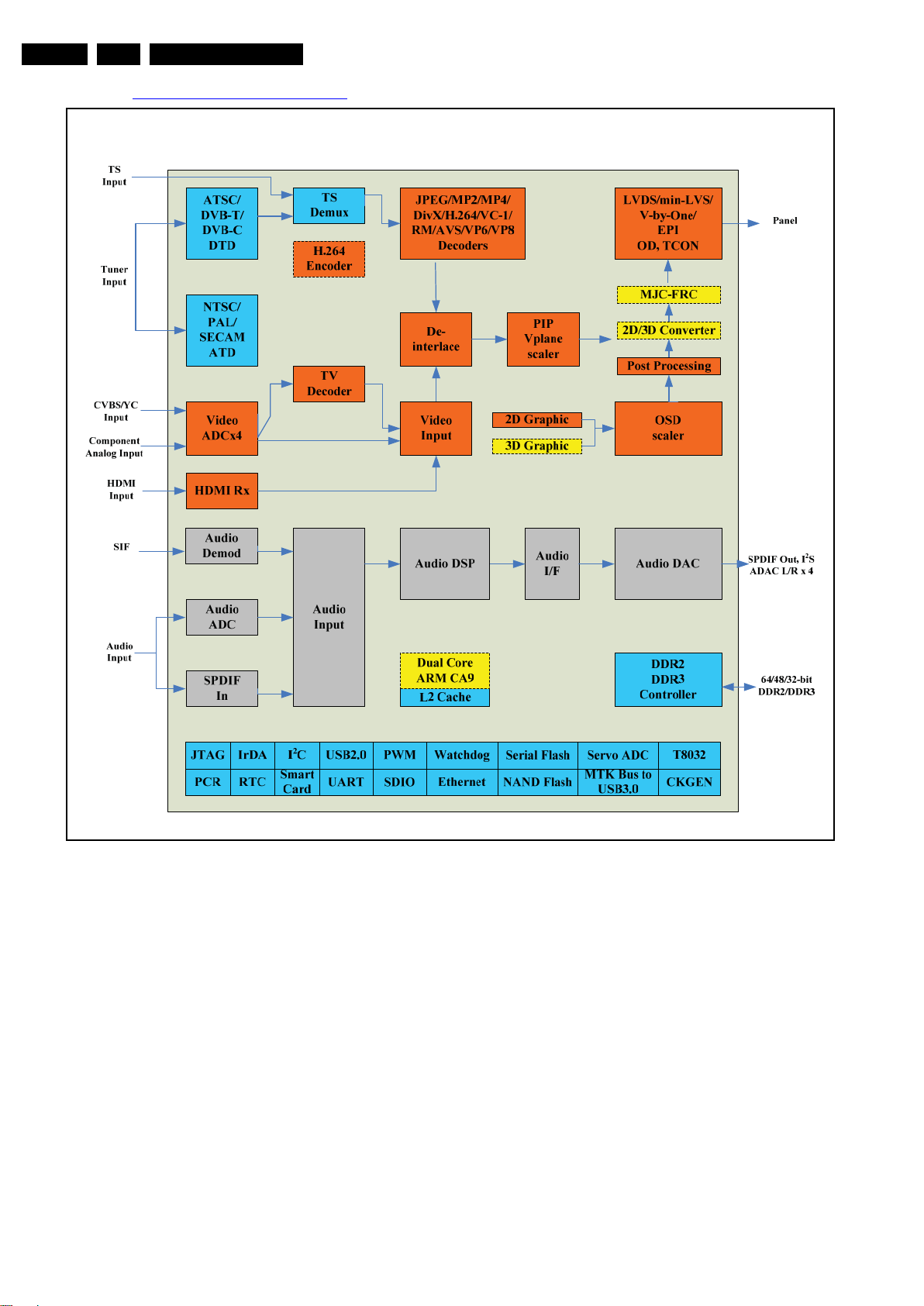

8.3 Diagram 10-6-4 B04A, MTK5396 power, Type MT5396 (IC7300)

Figure 8-3 Internal block diagram

2013-Jun-21

IC Data Sheets

19300_041_120416.eps

120416

Pinning information 1, MT5396JDNJ

825 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

A

BRDQ0 BRDQ6 DDRV DDRV ARDQ21

ARDQM2

ARDQS2 #

ARDQ22 ARBA0 ARA2 ARA13

ARDQ8 DVSS

B

BRDQ9 BRDQ2 DDRV DDRV ARDQ23

ARDQ30

ARDQS2 ARDQ31

ARDQ18 ARA3

ARRESE T

ARA7

ARDQ1 DVSS

C

BRDQ13 BRDQ4 DDRV DDRV ARDQ19 ARDQ24 ARDQ28 ARDQS3

ARCLK1 #

ARDQ29 ARDQ27 ARDQ16 ARDQ20 ARA11 ARA14 ARDQ5 ARDQ3 DVSS ARDQM0

D

BRDQM1 BRDQ15 BRDQ11 DDRV DDRV ARDQ17 ARDQ26

ARDQS3 #

ARCLK1 ARDQ25 DVSS DVSS ARA8 ARWE# ARDQ7 ARBA2 ARDQ10 DVSS ARDQ14

E

BRDQS0 #

BRDQS0 DDRV DDRV DVSS DVSS DVSS ARDQM3 DVSS DVSS ARA4 ARA6 ARA9 ARCS# ARCAS# ARODT DVSS

F

BRDQS1

BRDQS1# BRCLK0

#

BRCLK0 DVSS DDRV DDRV DVSS DVSS ARCKE ARA10 DVSS ARA12 ARA1 ARA0 ARA5 ARRAS# ARCSX# DVSS

G

BRDQM0 BRDQ12 BRDQ14 BRCSX# DDRV DDRV

MEMTN MEMTP ARBA1

RVREF_ B

DVSS DDRV DVSS DVSS DDRV DVSS

H

BRDQ10 BRRAS# BRCAS# BRODT DDRV DDRV

DDRV DVSS

DDRV

DVSS

J

BRDQ1 BRDQ3 BRDQ8 DVSS DVSS DVSS

DDRV

DDRV DVSS DVSS

K

BRDQ5 BRDQ7 BRCS# BRBA2 BRA5 BRA0 DVSS

L

BRA7 BRWE# BRA14 BRA8 DVSS DVSS

M

BRA2

BRRESE T

BRA9 BRA13 BRA11

DVSS

N

BRBA0 BRA3 BRA1 BRA6 BRA12 BRA4 DDRV

AVD D33 _ MEMPLL

AVSS33_ MEMPLL

P

BRDQ22 BRDQ18 BRDQ20 BRA10 BRBA1 BRCKE DDRV

RVREF_ C

VCCK VCCK VCCK VCCK VCCK VCCK

R

DVSS DVSS DVSS DVSS DVSS DVSS DVSS

VCCK DVSS DVSS DVSS DVSS DVSS

T

BRDQ27 BRDQ16 DDRV DDRV DVSS DVSS

VCCK DVSS DVSS DVSS DVSS DVSS

U

BRDQM3 BRDQ31 BRDQ29 BRDQ25 DDRV DDRV DVSS

VCCK DVSS DVSS DVSS DVSS DVSS

V

BRDQS2 #

BRDQS2

BRCLK1 #

BRCLK1 DDRV DDRV

RVREF_ D

VCCK DVSS DVSS DVSS DVSS DVSS

W

BRDQS3

BRDQS3 #

DVSS DVSS DVSS DVSS

VCCK DVSS DVSS DVSS DVSS DVSS

Y

BRDQM2 BRDQ30 BRDQ28 DVSS DVSS DVSS DVSS DVSS

VCCK DVSS DVSS DVSS DVSS DVSS

AA

BRDQ24 BRDQ26 DVSS

DVSS

VCCK DVSS DVSS DVSS DVSS DVSS

AB

BRDQ21 BRDQ23 BRDQ19 BRDQ17 DVSS DVSS

VCCK DVSS DVSS DVSS DVSS DVSS

AC

DDRV DDRV DDRV DDRV DDRV DDRV

VCCK VCCK VCCK VCCK VCCK VCCK

AD

BE4P BE4N

AVD D12 _ REC

REXT

AVDD33_ COM

AVD D33 _ LD

VCCK

AVD D12 _ RGB

AE

BE3P BE3N BECKP BECKN

AVSS33_ LVD SB

AVDD33_ LVDSB

AF

BE2P BE2N

AVSS12_ VPLL

AVDD12_ VPLL

AG

BE1P BE1N BE0P BE0N

AVSS12_ LVD S_1

AVDD12_ LVDS_1

REXT_V PLL

AH

BO4P BO4N

AVSS33_ LVDSA

AVDD33_ LVDSA

AJ

BO3P BO3N BOCKP BOCKN

AVSS12_ LVD S_2

AVDD12_ LVDS_2

AK

BO2P BO2N

VCC3IO_B VCC3IO_B VCC3IO_

B

AVSS33_ VGA_ST B

AVD D33 _ VGA_ST B

AL

BO1P BO1N BO0P BO0N

VCC3IO_ B

AVSS12_ REC

AVSS33_ COM

AVSS33_ LD

AM

AE4P AE4N

VCCK VCCK LDM_DO

AOSDAT A4

AOSDAT A3

AOMCLK

JTDI

PHYLED 0

OPCTRL7 OPCTRL

2

AN

AE3P AE3N

VCCK VCCK

AOSDAT A0

AOSDAT A1

AOSDAT A2

OSCL0

JTRST# OSCL1

PHYLED 1

OPCTRL9 OPCTRL

6

AP

AECKP AECKN AO4P AO3P AO2P AO1P VCCK VCCK GPIO52 LDM_DI AOLRCK OSDA0

AVDD33_ USB_P2 P3

JTCK OSDA1

U0RX

OPCTRL 5

AR

AE2P AE2N AO4N AO3N AO2N AO1N VCCK VCCK GPIO54

LDM_VS YNC

AOBCK OPWM0

AVSS33_ USB_P2

JTDO JTMS ASPDIF0 U0TX

OPCTRL 4

AT

AE1P AE0P

AOCKP

AO0P VCCK VCCK GPIO53

LDM_CS OPWM1

USB_DP _P2

USB_DP _P3

U1TX RXVP_1 TXVP_0

AU

AE1N AE0N

AOCKN

AO0N VCCK VCCK GPIO55

LDM_CL K

OPWM2

USB_DM _P2

USB_DM _P3

U1RX RXVN_1 TXVN_0

LB 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 RT

Figure 8-4 Pin configuration -1-

EN 37L12M3.1L LA 8.

2013-Jun-21

EN 38 L12M3.1L LA8.

19300_042_120416.eps

120416

Pinning information 2, MT5396JDNJ

ARCLK0

ARCLK0 #

ARDQ9

DDRV DVSS TCON5 TCON7 GPIO45

PDD3 PDD1

PACLE POWE# SD_D2 SD_D0

A

ARDQS1

ARDQS0 #

ARDQ11

DDRV DVSS TCON4 TCON6 TCON12

PDD4 PDD2

POCE1# SD_D3 SD_CMD SD_CLK

B

ARDQS1 #

ARDQS0 ARDQ15 ARDQ0 ARDQ6 DDRV DVSS

TCON8

EMMC_C LK

PDD6 GPIO47 PDD0 POOE# PAALE SD_D1

USB_DP _P0

USB_DM _P0

C

ARDQ12 ARDQM1 ARDQ13 ARDQ2 ARDQ4 DDRV DVSS

FSRC_W R

TCON9 PDD7 PDD5 GPIO46 PARB# POCE0#

AVSS33_ USB_P1

AVD D33 _ USB_P0 P1

USB_DP _P1

USB_DM _P1

D

DDRV DVSS DVSS DDRV DDRV DVSS

TCON1 TCON10 GPIO51 GPIO48 GPIO49 GPIO43 GPIO42

VCC3IO_ A

GPIO35 GPIO28 GPIO36

E

DDRV DVSS DVSS DDRV DDRV DVSS

TCON0 TCON11 TCON3 TCON2 GPIO50 GPIO44

VCC3IO_ A

GPIO27 GPIO34 GPIO2 GPIO1

F

DDRV

RVREF_ A

DVSS DDRV DDRV DVSS

VCC3IO_A VCC3IO_

A

GPIO24 GPIO6 GPIO5 GPIO4 GPIO3

G

DVSS

VCC3IO_A VCC3IO_

A

GPIO26 GPIO0 GPIO12 GPIO7 GPIO25

H

DVSS

VCC3IO_A VCC3IO_

A

GPIO15 GPIO23 GPIO16 GPIO22 GPIO20 GPIO21

J

GPIO11 GPIO10 GPIO17 GPIO18 GPIO14 GPIO19

K

GPIO9 GPIO41 GPIO8 GPIO13

L

GPIO40 GPIO33 GPIO38 GPIO31 GPIO39 GPIO32

M

DVSS

GPIO37 GPIO29

SPI_DAT A

SPI_CLE CI_INT

SPI_CLK 1

N

VCCK DVSS DVSS VCCK

GPIO30

PVR_TS DATA0

PVR_TS DATA1

SPI_CLK

P

DVSS DVSS DVSS DVSS VCCK

PVR_TS VAL

PVR_TS SYNC

PVR_TS CLK

CI_TSDA TA0

CI_TSVAL CI_TSSY

NC

R

DVSS DVSS DVSS DVSS VCCK

DEMOD_ TSDATA3

DEMOD_ TSVAL

DEMOD_ TSCLK

DEMOD_ TSDATA2

DEMOD_ RST

DEMOD_ TSSYNC

DEMOD_ TSDATA0

CI_TSCL K

T

DVSS DVSS DVSS DVSS

AVD D12 _ PCIE11

RF_AGC IF_AGC

DEMOD_ TSDATA1

U

DVSS DVSS DVSS VCCK

AVD D33 _ PCIE11

DEMOD_ TSDATA7

DEMOD_ TSDATA6

DEMOD_ TSDATA5

DEMOD_ TSDATA4

OSDA2 OSCL2

V

DVSS DVSS DVSS VCCK

AVD D12 _ HDMI_2_ RX

AVS S12 _ PCIE11

PCIE11_ TXN

PCIE11_ TXP

PCIE11_ REFCKN

PCIE11_ REFCKP

W

DVSS DVSS DVSS VCCK

AVD D12 _ HDMI_1_ RX

AVDD33_ HDMI_2_ RX

ASPDIF1 ALIN

PCIE11_ RXN

PCIE11_ RXP

Y

DVSS DVSS DVSS VCCK

AVD D12 _ HDMI_0_ RX

AVDD33_ HDMI_1_ RX

HDMI_C EC

HDMI_2_ RX_1B

HDMI_2_ RX_1

HDMI_2_ RX_2B

HDMI_2_ RX_2

AA

DVSS DVSS DVSS DVSS

AVD D12 _ HDMI_3_ RX

AVDD33_ HDMI_0_ RX

AVS S33 _ HDMI_R X

HDMI_2_ SDA

HDMI_2_ RX_0B

HDMI_2_ RX_0

AB

VCCK VCCK VCCK VCCK VCCK

AVDD33_ HDMI_3_ RX

HDMI_2_ PWR5V

HDMI_2_ HPD

HDMI_2_ SCL

HDMI_1_ RX_2B

HDMI_1_ RX_2

HDMI_2_ RX_CB

HDMI_2_ RX_C

AC

AVDD33_ VDAC_B G

AVDD33_ VDAC

AVDD33_ DEMOD

VCCK VCCK

AVS S33 _ HDMI_R X

HDMI_1_ SDA

HDMI_1_ RX_1B

HDMI_1_ RX_1

AD

AVS S33 _ DAC1

HDMI_1_ PWR5V

HDMI_1_ HPD

HDMI_1_ SCL

HDMI_1_ RX_CB

HDMI_1_ RX_C

HDMI_1_ RX_0B

HDMI_1_ RX_0

AE

AVDD33_ DAC1

AVS S33 _ HDMI_R X

HDMI_0_ SDA

HDMI_0_ RX_2B

HDMI_0_ RX_2

AF

AVDD33_ DAC

HDMI_0_ PWR5V

HDMI_0_ HPD

HDMI_0_ SCL

HDMI_0_ RX_0B

HDMI_0_ RX_0

HDMI_0_ RX_1B

HDMI_0_ RX_1

AG

AVSS33_ XTAL_ST B

HDMI_3_ PWR5V

HDMI_3_ SCL

HDMI_3_ SDA

HDMI_0_ RX_CB

HDMI_0_ RX_C

AH

AVDD10_ LDO

AVSS12_ RGB

AVSS33_ VDAC_B G

AVSS12_ DEMOD

VMID_AA DC

AVSS33_ AADC

HDMI_3_ HPD

HDMI_3_ RX_C

HDMI_3_ RX_1B

HDMI_3_ RX_1

HDMI_3_ RX_2B

HDMI_3_ RX_2

AJ

AVDD33_ PLLGP

AVD D33 _ CVBS_1

AVD D33 _ CVBS_2

AVDD33_ XTAL_ST B

AVSS33_ DAC

HDMI_3_ RX_CB

HDMI_3_ RX_0B

HDMI_3_ RX_0

AK

AVSS33_ VDAC

AVSS33_ CVBS_1

AVDD12_ DEMOD

AVDD33_ AADC

AL

OPWRS B

ORESET# ADIN7_S

RV

ADIN6_S RV

VSYNC

AVSS33_ CVBS_2

AVSS33_ PLLGP

AVSS33_ DEMOD

AR1_AD AC

AL2_ADAC AL1_ADAC AL3_ADAC AR3_AD

AC

AR2_AD AC

AM

OPCTRL1 OPCTRL3 LED_PW

M1

ADIN0_S RV

ADIN1_S RV

HSYNC

MPXP CVBS0P LOUTP

AL0_ADAC AR0_AD

AC

AN

OPCTRL8 LED_PW

M0

VGA_SCL ADIN2_S

RV

COM SOY1 PR1P Y0P SC0

VDACY_ OUT

CVBS_C OM

LOUTN

AIN4_L_ AADC

AIN2_L_ AADC

AIN6_L_ AADC

AIN5_L_ AADC

AP

OPCTRL0 STB_SDA VGA_SDA ADIN3_S

RV

GP RP PB1P SOY0 PR0P SY0 CVBS2P CVBS1P

AIN4_R_ AADC

AIN6_R_ AADC

AIN5_R_ AADC

AIN3_L_ AADC

AR

OPCTRL 10

STB_SC L

ADIN5_S RV

SOG

COM1

PB0P

CVBS3P

ADCINN_ DEMOD

XTALI

AIN1_R_ AADC

AIN3_R_ AADC

AIN1_L_ AADC

AT

OPCTRL 11

OIRI

ADIN4_S RV

BP

Y1P

COM0

VDACX_ OUT

ADCINP_ DEMOD

XTALO

AIN0_L_ AADC

AIN2_R_ AADC

AIN0_R_ AADC

AU

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 RB

IC Data Sheets

2013-Jun-21

Figure 8-5 Pin configuration -2-

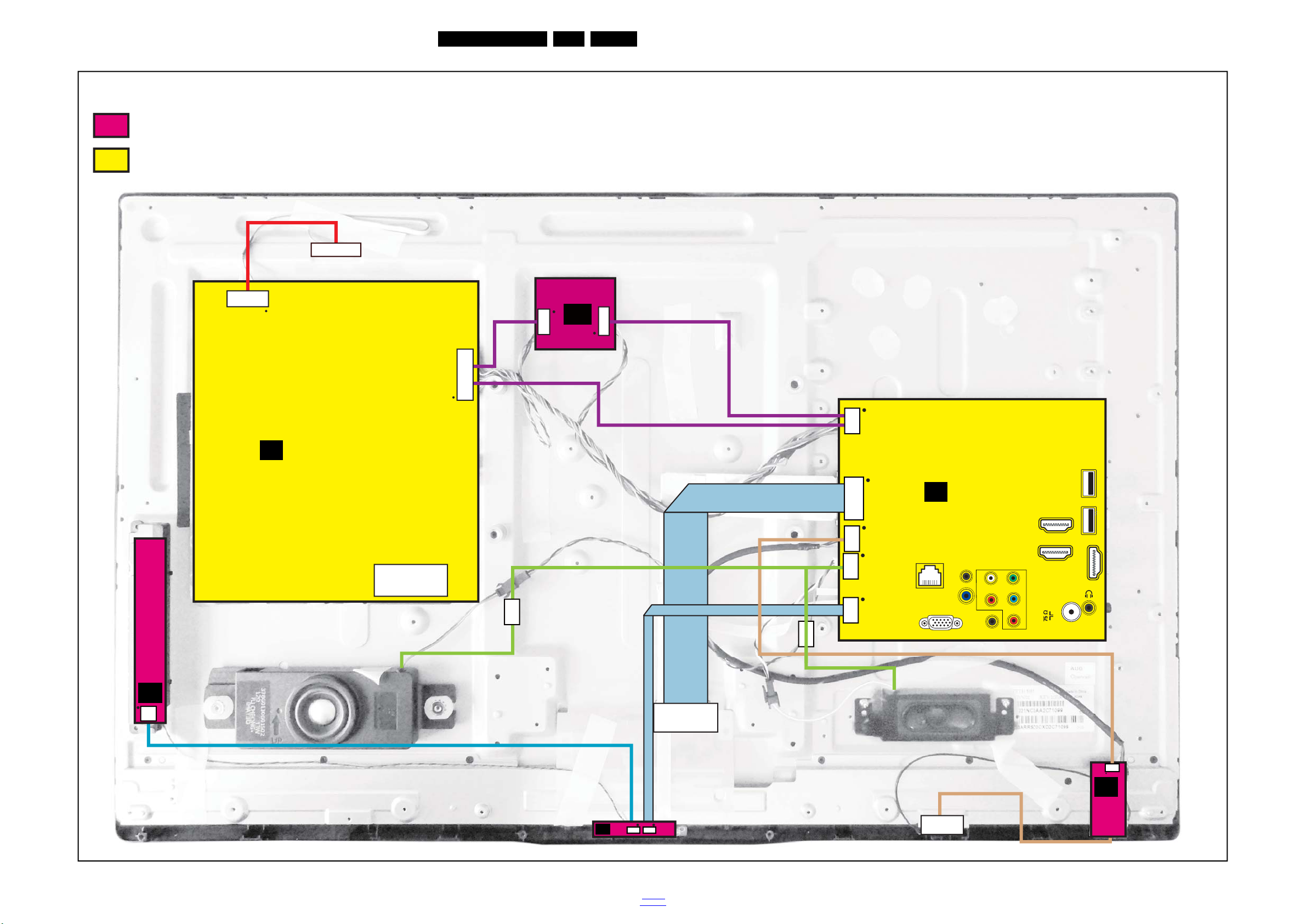

9. Block Diagrams

19511_017_130619.eps

130619

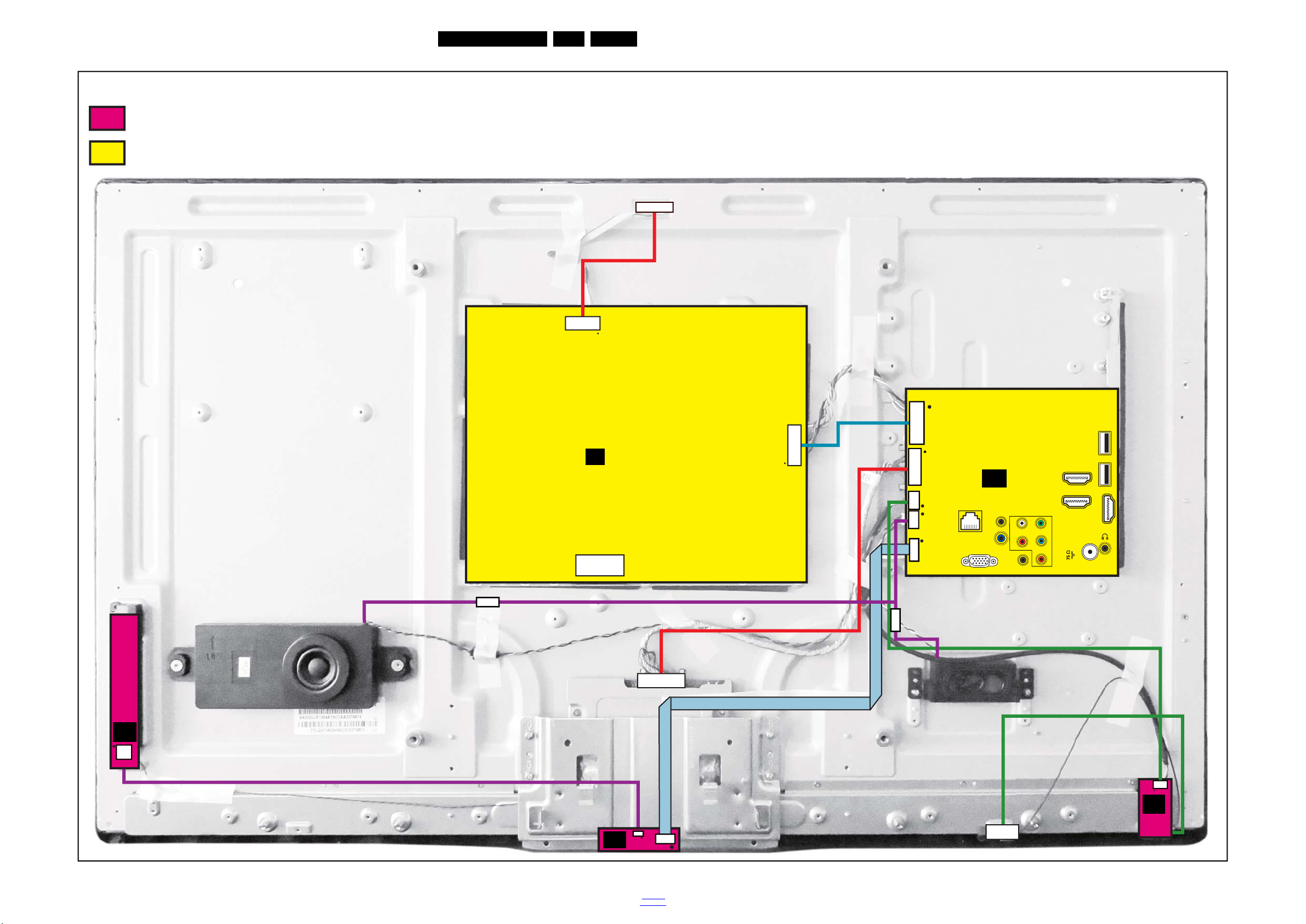

WIRING DIAGRAM 32"

(3500 series)

Board Level Repair

Component Level Repair Only for authorized workshops

See note in Chapter 6 about cable position numbers

KEYBOARD CONTROL

(1057)

E

LOUDSPEAKERLOUDSPEAKER

(1185)(1185)

LOUDSPEAKER

(1185)

LOUDSPEAKERLOUDSPEAKER

(1185)(1185)

LOUDSPEAKER

(1185)

SSB

(1053)

LN

CN9901

MAIN POWER SUPPLY

(1054)

A

USB 2

USB

1

NETWORK

TV ANTENNA

DIGITAL

AUDIO OUT

LR

CVBS/Y Pb

Pr

AUDIO IN

DVI

HDMI

HDM2

1

ARC

VGA

SERV.U

OPTION BOARD (1058)

O

TO PANEL

CN401

13P

38P

CN408

38P

CN408

12P

5P

J

IR/LED BOARD (1056)

CN2

3P

CN016

5P

38P

CN408

13P

CN9101

4P

CN8102

CN8103

TO PANEL

CN8501

11P

CN1

B

9-1 Wiring Diagram 32" (3500 series)

Block Diagrams

EN 39L12M3.1L LA 9.

2013-Jun-21

back to

div. table

9-2 Wiring Diagram 32" (4500 series)

19511_018_130619.eps

130619

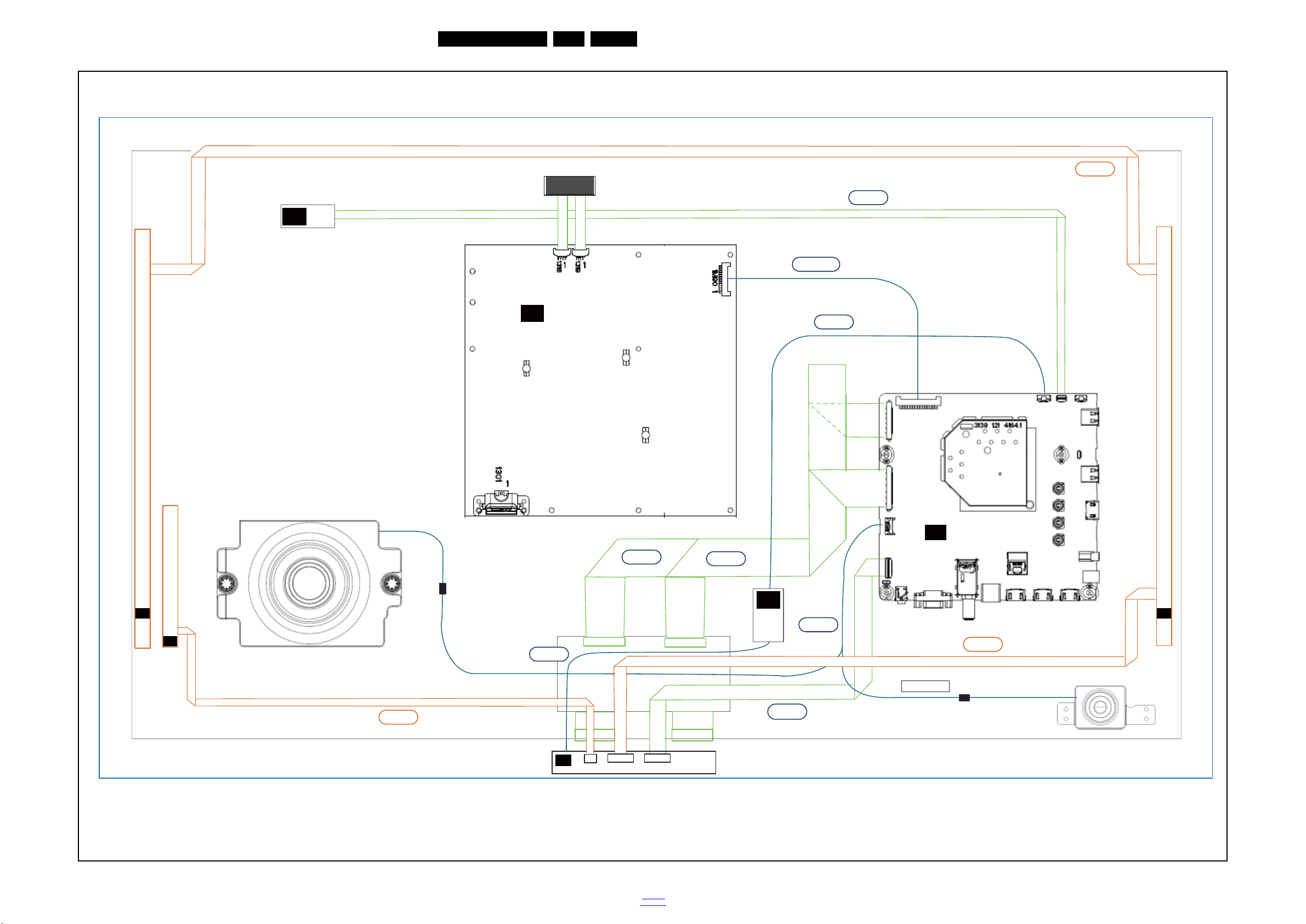

WIRING DIAGRAM 32" (4500 series)

KEYBOARD CONTROL

(1057)

E

LOUDSPEAKERLOUDSPEAKER

(1185)(1185)

IR/LED BOARD (1056)

J

LOUDSPEAKER

(1185)

LOUDSPEAKER

(1185)(1185)

LOUDSPEAKER

(1185)

SSB

(1053)

LN

CN9901

MAIN POWER SUPPLY

(1054)

A

B

USB 2

USB 1

NETWORK

TV ANTENNA

DIGITAL

AUDIO OUT

LR

CVBS/Y Pb

Pr

AUDIO IN

DVI

HDMI

HDM2

HDM

1

ARC

VGA

SERV.U

WIFI MODULE (WiFi01)

OPTION BOARD (1058)

O

TO PANEL

CN401

13P

38P

CN408

CN016

5P

CN1

11P

CN2

3P

38P

6P

12P

5P

13P

4P

WiFi

Antenna

CN8101

TO PANEL

CN9101

CN8102

CN8103

CN408

38P

CN408

38P

CN408

J3

Board Level Repair

Component Level Repair Only for authorized workshops

See note in Chapter 6 about cable position numbers

W

Block Diagrams

EN 40L12M3.1L LA 9.

2013-Jun-21

back to

div. table

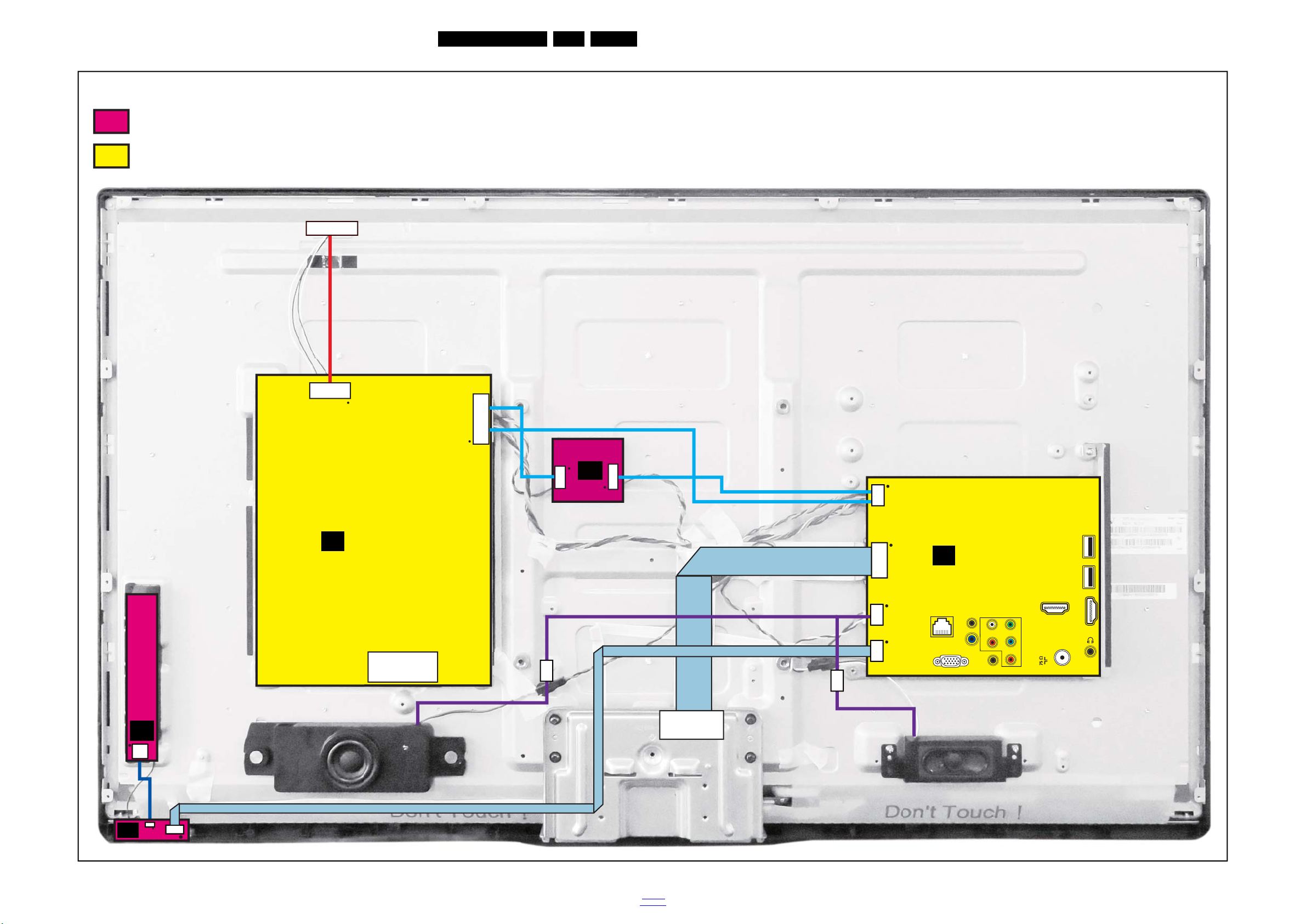

9-3 Wiring Diagram 39" (3500 series)

19511_019_130619.eps

130619

WIRING DIAGRAM 39" (3500 series)

Board Level Repair

Component Level Repair Only for authorized workshops

See note in Chapter 6 about cable position numbers

KEYBOARD CONTROL

(1057)

E

LOUDSPEAKERLOUDSPEAKER

(1185)(1185)

J

LOUDSPEAKER

(1185)

LOUDSPEAKERLOUDSPEAKER

(1185)(1185)

LOUDSPEAKER

(1185)

CN016

5P

IR/LED BOARD (1056)

11P

CN2

3P

CN1

SSB

(1053)

LN

CN9901

MAIN POWER SUPPLY

(1054)

A

USB 2

USB 1

NETWORK

TV ANTENNA

DIGITAL

AUDIO OUT

LR

CVBS/Y Pb

Pr

AUDIO IN

DVI

HDMI 1

ARC

VGA

SERV.U

OPTION BOARD (1058)

O

TO PANEL

CN401

13P

38P

CN408

38P

5P

13P

TO PANEL

12P

CN8501

4P

CN8102

CN8103

38P

CN9101

CN408

HDMI

B

Block Diagrams

EN 41L12M3.1L LA 9.

2013-Jun-21

back to

div. table

9-4 Wiring Diagram 39" (4500 series)

19510_402_130422.eps

130422

WIRING DIAGRAM 39"

(4500 series)

Board Level Repair

Component Level Repair Only for authorized workshops

KEYBOARD CONTROL

(1057)

E

IR/LED BOARD (1056)

SSB

(1053)

See note in Chapter 7 about cable position numbers

LN

CN9901

MAIN POWER SUPPLY

(1054)

A

B

USB 2

USB

1

NETWORK

TV ANTENNA

DIGITAL

AUDIO OUT

LR

CVBS/Y Pb

Pr

AUDIO IN

DVI

HDMI

HDM2

1

ARC

VGA

SERV.U

WIFI MODULE

OPTION BOARD (1058)

ALC

TO PANEL

WiFi

Antenna

1G51

51P

11P

1C20

CN016

5P

CN201

6P

4P

1D01

17P

1M89

5P

WIFI01

6P

1C31

TO PANEL

12P

CN8501

5P

CN8103

13P

CN9101

4P

CN8102

LOUDSPEAKERLOUDSPEAKER

(1185)(1185)

LOUDSPEAKER

(1185)

LOUDSPEAKERLOUDSPEAKER

(1185)(1185)

LOUDSPEAKER

(1185)

J

W

Block Diagrams

EN 42L12M3.1L LA 9.

2013-Jun-21

back to

div. table

9-5 Wiring Diagram 42" (3500 series)

19510_403_130422.eps

130422

WIRING DIAGRAM 42" (3500 series)

Board Level Repair

Component Level Repair Only for authorized workshops

See note in Chapter 6 about cable position numbers

KEYBOARD CONTROL

(1057)

E

LOUDSPEAKERLOUDSPEAKER

(1185)(1185)

J

LOUDSPEAKER

(1185)

LOUDSPEAKER

(1185)(1185)

LOUDSPEAKER

(1185)

SSB

(1053)

B

LN

CN901

MAIN POWER SUPPLY

(1054)

A

12P

CN016

5P

IR/LED BOARD (1056)

11P

CN2

3P

CN1

TO PANEL

CN8506

13P

CN902

TO PANEL

1M891G51

1D01

1C20

USB 2

USB 1

NETWORK

TV ANTENNA

DIGITAL

AUDIO OUT

LR

CVBS/Y Pb

Pr

AUDIO IN

DVI

HDMI

HDM2

1

ARC

VGA

SERV.U

51P

11P

4P

17P

Block Diagrams

EN 43L12M3.1L LA 9.

2013-Jun-21

back to

div. table

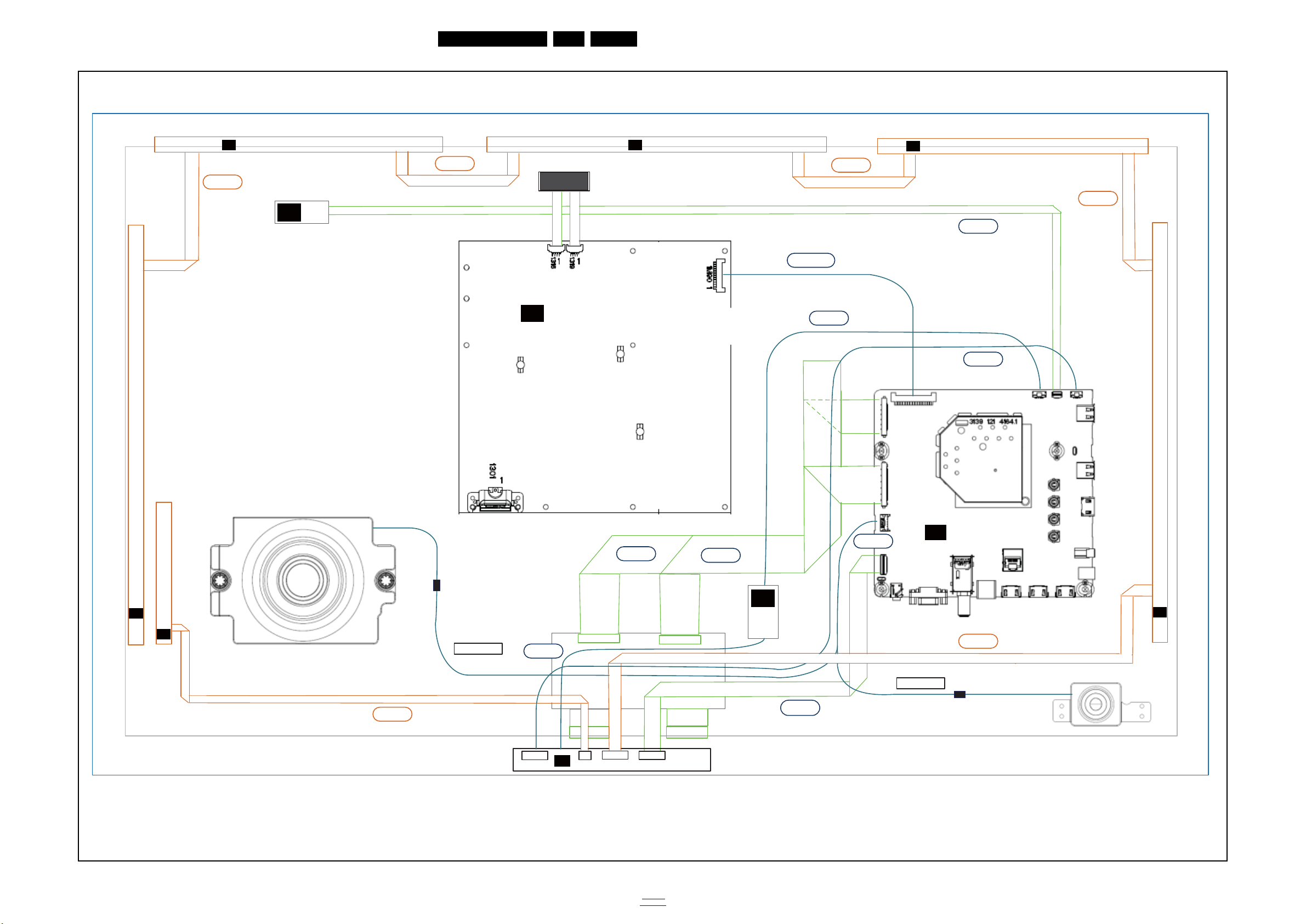

9-6 Wiring Diagram 42" (4500 series)

19511_020_130619.eps

130619

WIRING DIAGRAM 42" (4500 series)

See note in Chapter 6 about cable position numbers

Board Level Repair

Component Level Repair Only for authorized workshops

KEYBOARD CONTROL

(1057)

E

LOUDSPEAKERLOUDSPEAKER

(1185)(1185)

LOUDSPEAKER

(1185)

LOUDSPEAKER

(1185)(1185)

LOUDSPEAKER

(1185)

LN

CN901

MAIN POWER SUPPLY

(1054)

A

12P

13P

SSB

(1053)

B

USB 2

USB 1

NETWORK

TV ANTENNA

DIGITAL

AUDIO OUT

LR

CVBS/Y Pb

Pr

AUDIO IN

DVI

HDMI

HDM2

HDM3

1

ARC

VGA

SERV.U

J

IR/LED BOARD (1056)

CN2

3P

11P

CN1

1C20

11P

WiFi

Antenna

WIFI MODULE (WiFi01)

6P

W

17P

TO PANEL

CN8506

TO PANEL

1M89

51P

CN902

1M89

1C31

6P

J3

1D01

4P

5P

CN016

Block Diagrams

EN 44L12M3.1L LA 9.

2013-Jun-21

back to

div. table

9-7 Wiring Diagram 42"/46" (5000/5500 series)

19510_404_130422.eps

130422

WIRING DIAGRAM 42"/46" (5000/5500 series)

Board Level Repair

Component Level Repair Only for authorized workshops

See note in Chapter 7 about cable position numbers

KEYBOARD CONTROL

(1057)

E

LOUDSPEAKERLOUDSPEAKER

(1185)(1185)

J

LOUDSPEAKER

(1185)

LOUDSPEAKER

(1185)(1185)

LOUDSPEAKER

(1185)

SSB

(1053)

B

LN

CN901

MAIN POWER SUPPLY

(1054)

A

12P

CN016

5P

AmbiLight

(1162)

AL

26p

1A02

AmbiLight

(1161)

AL

1A02

26p

IR/LED BOARD (1056)

11P

CN2

3P

CN1

13P

TO PANEL

CN8506

CN902

WiFi

Antenna

TO PANEL

1M89

1C311D011C20

USB 2

USB

1

NETWORK

TV ANTENNA

DIGITAL

AUDIO OUT

LR

CVBS/Y Pb

Pr

AUDIO IN

DVI

HDMI

HDM2

1

ARC

VGA

SERV.U

WIFI MODULE

5P

WIFI01

W

51P

11P

4P

17P

1A04

26P

6P

1A04

26p

1A04

Block Diagrams

EN 45L12M3.1L LA 9.

2013-Jun-21

back to

div. table

9-8 Wiring Diagram 46" (4500 series)

19510_405_130422.eps

130422

WIRING DIAGRAM 46" (4500 series)

Board Level Repair

Component Level Repair Only for authorized workshops

See note in Chapter 7 about cable position numbers

KEYBOARD CONTROL

(1057)

E

LOUDSPEAKERLOUDSPEAKER

(1185)(1185)

LOUDSPEAKER

(1185)

LOUDSPEAKER

(1185)(1185)

LOUDSPEAKER

(1185)

LN

CN901

MAIN POWER SUPPLY

(1054)

A

12P

13P

SSB

(1053)

B

USB 2

USB 1

NETWORK

TV ANTENNA

DIGITAL

AUDIO OUT

LR

CVBS/Y Pb

Pr

AUDIO IN

DVI

HDMI

HDM2

1

ARC

VGA

SERV.U

1A04

26P

J

IR/LED BOARD (1056)

3P

11P

CN1

1C20

11P

WiFi

Antenna

WIFI MODULE

5P

WIFI01

W

1M89

17P

CN8506

CN902

TO PANEL

1C311D01

4P 6P

1M89

51P

CN016

5P

CN2

TO PANEL

Block Diagrams

EN 46L12M3.1L LA 9.

2013-Jun-21

back to

div. table

9-9 Wiring Diagram 47" (7000 series)

19511_013_130618.eps

130618

Note: Modules and cables shown in brown colour are mounted in the rear cover.

Wiring diagram 47"

(7000 series)

MAIN POWER SUPPLY

(1005)

A

SSB

(1150)

B

KEYBOARD CONTROL

(1117)

E

AL

RF4CE (1123)

J

SENSOR BOARD (1122)

J

AmbiLight

(1162)

AL

AmbiLight

(1161)

WIFI (1125)

W

Block Diagrams

EN 47L12M3.1L LA 9.

LED Power

8B20

8C27

8M89

8C31

8G50

8G51

8D01

41P

8B10

8C01

CN2 CN1

1A03

J2

1C26

51P

8C26

White wires

8A02

2013-Jun-21

back to

div. table

9-10 Wiring Diagram 47" (8000 series)

19511_014_130619.eps

130619

Note: Modules and cables shown in brown colour are mounted in the rear cover.

Wiring diagram 47"

(8000 series)

MAIN POWER SUPPLY

(1005)

A

SSB

(1150)

B

KEYBOARD CONTROL

(1117)

E

AL

RF4CE (1123)

J

AmbiLight

(1162)

AL

AmbiLight

(1164)

AL

AmbiLight

(1163)

AL

AmbiLight

(1161)

SENSOR BOARD (1122)

J

WIFI (1125)

W

Block Diagrams

EN 48L12M3.1L LA 9.

8B22

LED Power

8B21

8M89

8C31

8C27

8B20

8C30

8D01

8G50

RED Wires

8B10

41P

51P

8C01

CN2 CN1

1A03

1C31

J2

1C26

8G51

8C26

White wires

8A02

2013-Jun-21

back to

div. table

9-11 Wiring Diagram 55" (7000 series)

19511_015_130619.eps

130619

1C26J2

CN2 CN1

51p

41p

Red wires

8B10

8C26

8D01

8C31

8M89

8C27

8B20

LED power

8A02

8C01

8G50

8G51

1A03

Note: Modules and cables shown in brown colour are mounted in the rear cover.

Wiring diagram 55"

(7000 series)

MAIN POWER SUPPLY

(1005)

A

SSB

(1150)

B

KEYBOARD CONTROL

(1117)

E

AL

RF4CE (1123)

J

AmbiLight

(1162)

AL

AmbiLight

(1161)

SENSOR BOARD (1122)

J

WIFI (1125)

W

Block Diagrams

EN 49L12M3.1L LA 9.

2013-Jun-21

back to

div. table

9-12 Wiring Diagram 55" (8000 series)

19511_016_130619.eps

130619

Note: Modules and cables shown in brown colour are mounted in the rear cover.

Wiring diagram 55"

(8000 series)

MAIN POWER SUPPLY

(1005)

A

SSB

(1150)

B

KEYBOARD CONTROL

(1117)

E

AL

RF4CE (1123)

J

AmbiLight

(1162)

AL

AmbiLight

(1165)

AL

AmbiLight

(1164)

AL

AmbiLight

(1163)

AL

AmbiLight

(1161)

SENSOR BOARD (1122)

J

WIFI (1125)

W

Block Diagrams

EN 50L12M3.1L LA 9.

8B23

8B22

LED Power

8M89

8C31

8B21

8B20

8C27

8C30

8D01

8G50

RED Wires

8B10

41P

51P

8C01

CN2 CN1

1A03

1C31

J2

1C26

8G51

8C26

White wires

8A02

2013-Jun-21

back to

div. table

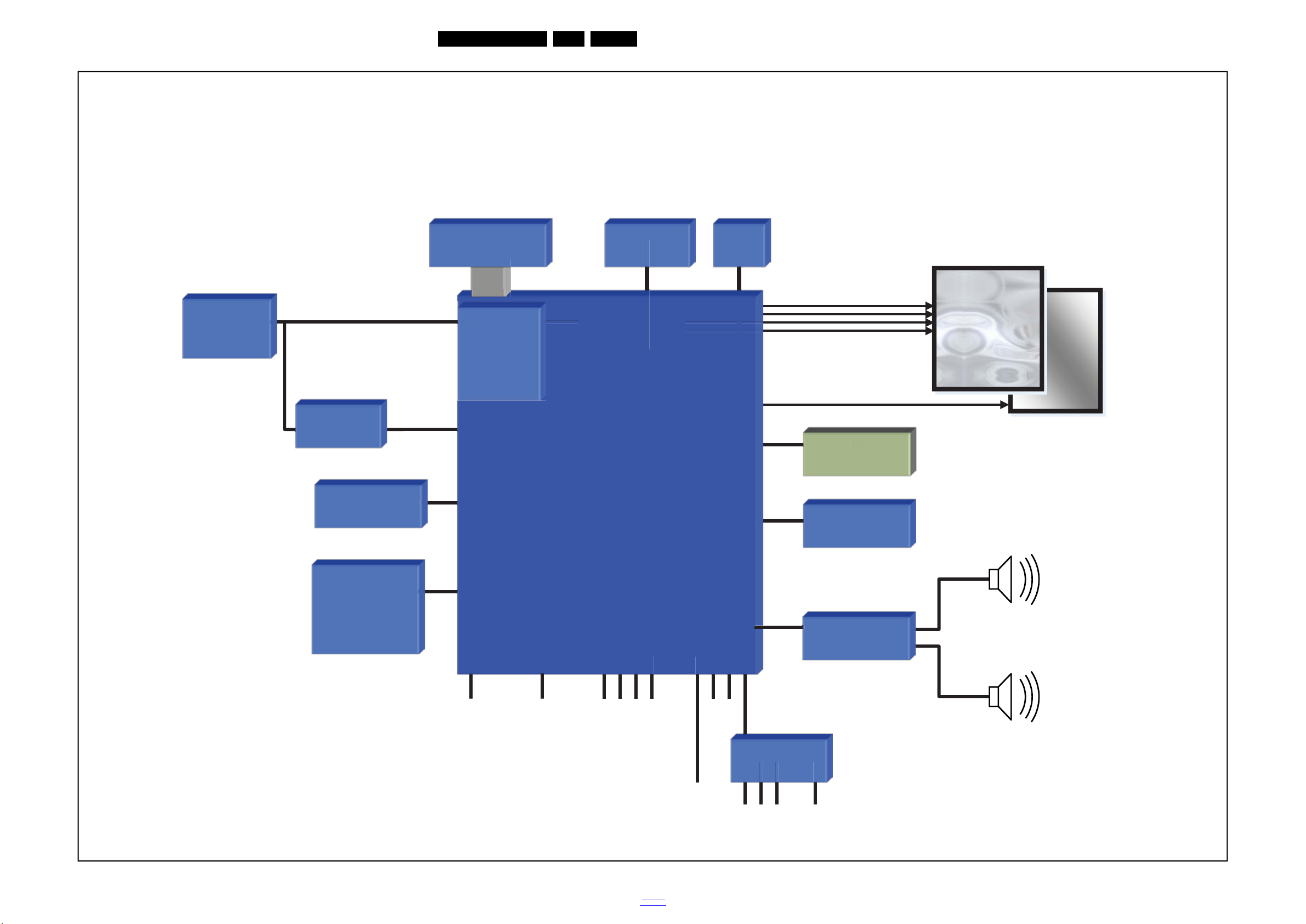

9-13 Block Diagram 3139 123 65451

19510_400_130417.eps

130417

MT5396 Block Diagram (3139 123 65451)

BLU

W-SL

Display FHD@60Hz FHD@50Hz

Hybrid

Tuner

ISDB-T

Low or Direct IF

FLASH

512MB

Dual LVDS

Headphone

MediaTek

MT5396

SOC

3D MJC Engine

2D/3D Conv

DVB-T/C

ATSC

Analogue

32+32

DDR3 1.33GHz

512MB+256MB

1 × YPbPr

1 × CVBS

1 × VGA

1 × VGA/DVI Audio-in

AVIO

NVM

64Kb

Audio

DAC

Serial TS

Service

UART

USB 4:1 HDMI 4:1

RJ45

Ethernet

LDM

Ambilight

PWM

Backlight Control

Sony

CXD2828ER

Sony

RA214TN

I2S

BTL

Class-D

2 × Hynix H5TQ2G63DFR

-H9C

2 × Hynix H5TQ1G63DFR-H9C

Hynix

H27U4G8F2DTR-BC

ST M24C64-WDW6P

TI TPA6111A2DGN

TI TAS5731PHP

1 × Side Facing

2 × Back Facing

Loudspeaker

Subwoofer

I

2

C, ADC, PWM

Light Sensor

Keyboard

LED/IR

2 × User

USB

Integrated

Wi-Fi

xx

I2S

Block Diagrams

EN 51L12M3.1L LA 9.

2013-Jun-21

back to

div. table

9-14 Block Diagram 3139 123 65441

19510_401_130417.eps

130417

BLU

W-SL

Display FHD@100Hz FHD@120Hz

Hybrid

Tuner

ISDB-T

Low or Direct IF

FLASH

512MB

Quad LVDS

Headphone

MediaTek

MT5396

SOC

3D MJC Engine

2D/3D Conv

DVB-T/C

ATSC

Analogue

32+32

DDR3 1.33GHz

512MB+256MB

AVIO

NVM

64Kb

Audio

DAC

Serial TS

Service

UART

USB 4:1 HDMI 4:1

RJ45

Ethernet

LDM

Ambilight

PWM

Backlight Control

Sony

CXD2828ER

Sony

RA214ZN

I2S

BTL

Class-D

2 × Hynix H5TQ2G63DFR-H9C 2 × Hynix H5TQ1G63DFR-H9C

Hynix

H27U4G8F2DTR-BC

ST M24C64-WDW6P

TI TPA6111A2DGN

TI TAS5731PHP

Loudspeaker

Subwoofer

I

2

C, ADC, PWM

Light Sensor

Keyboard

LED/IR

USB Hub

3 × User

USB

Integrated

Wi-Fi

x x

I

2

S

SMSC USX2064-AEZG

Integrated

Skype

MT5396 Block Diagram (3139 123 65441)

1 × YPbPr

1 × CVBS

1 × VGA

1 × VGA/DVI Audio-in

1 × Side Facing

3 × Back Facing

Block Diagrams

EN 52L12M3.1L LA 9.

2013-Jun-21

back to

div. table

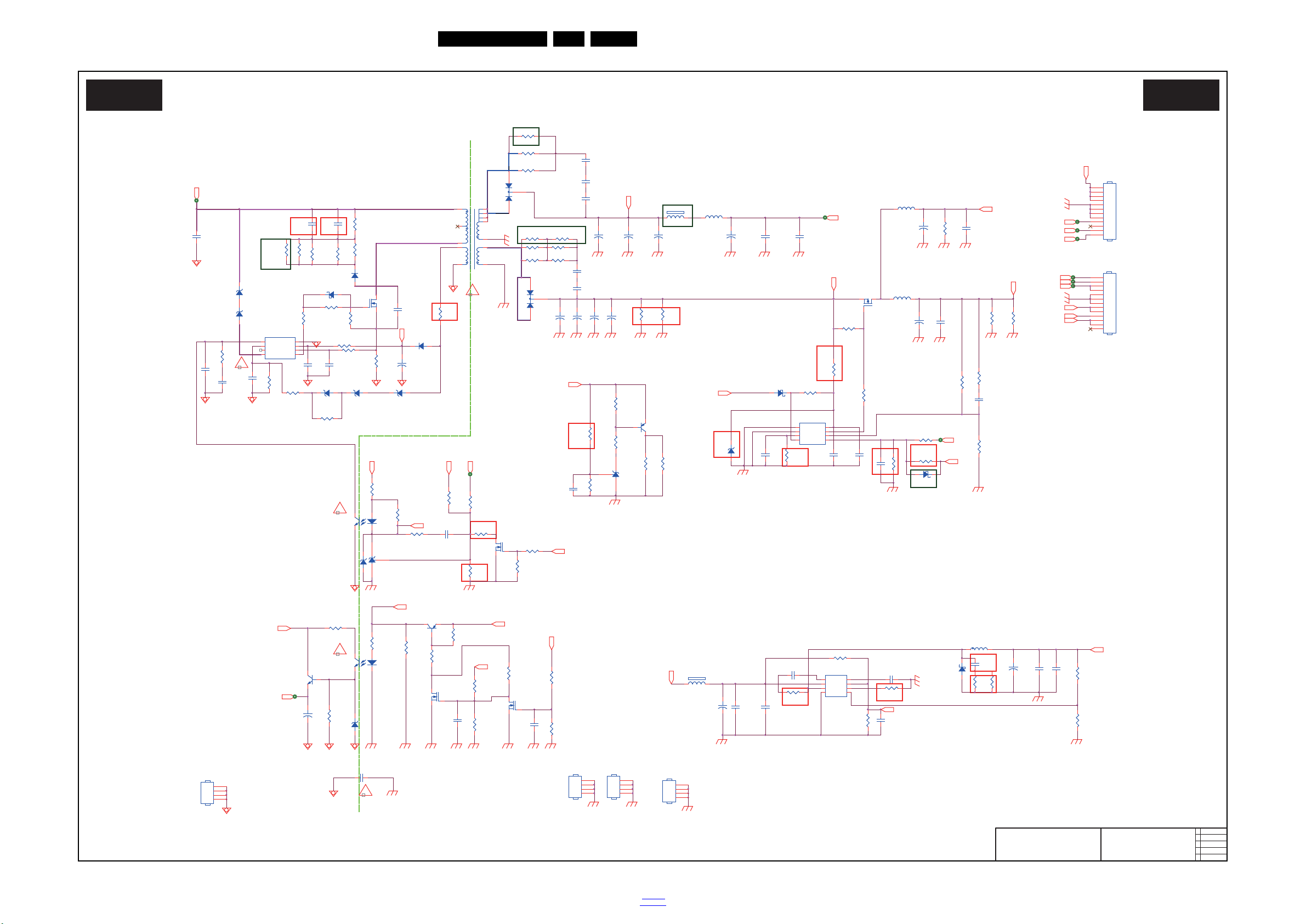

Circuit Diagrams and PWB Layouts

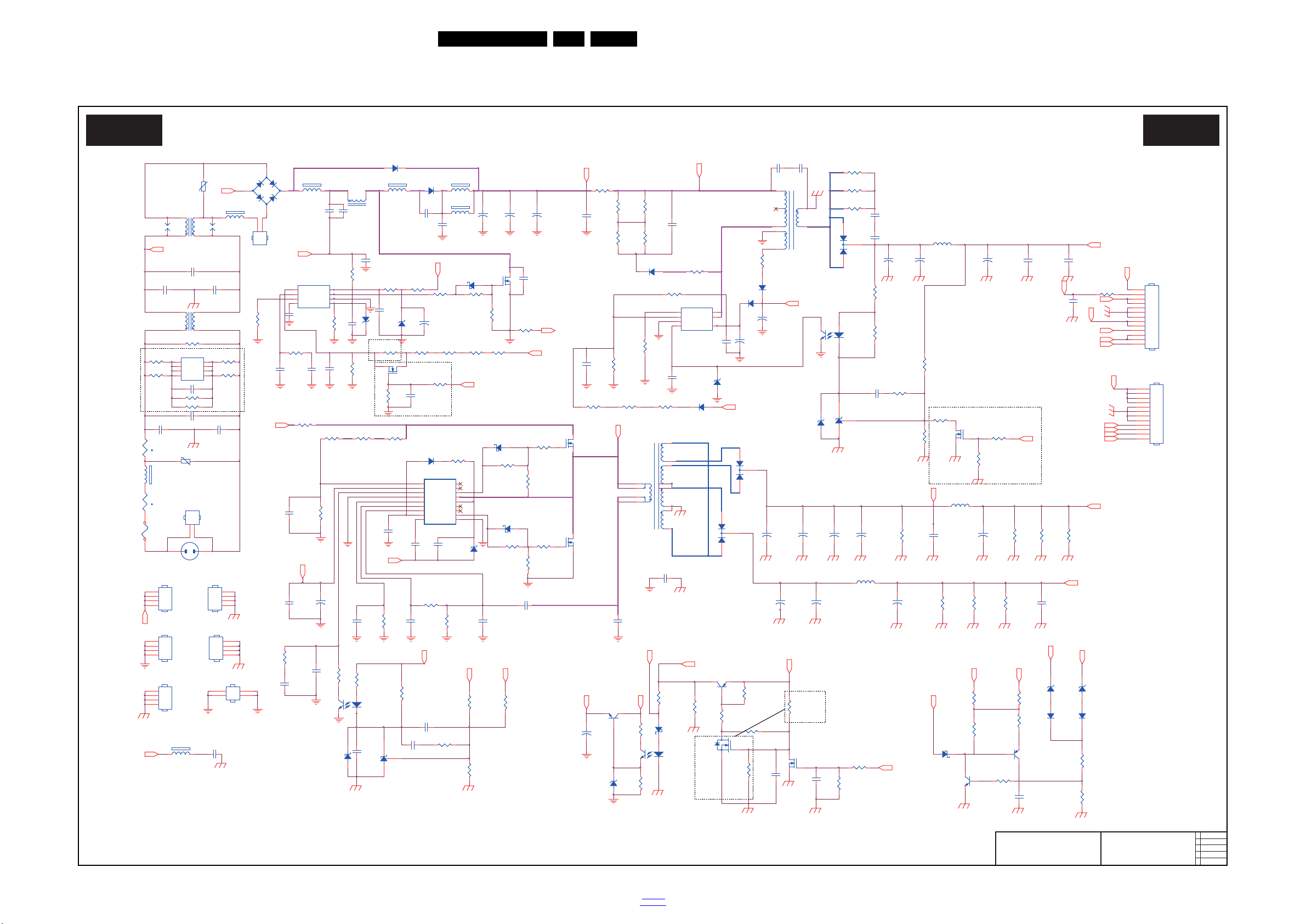

19430_500_130114.eps

130114

Power Circuit

A01 A01

2012-12-28

E

715G5778

Power Circuit

C9832 100N 50V

D9801

FMNS-1106S 093G 52905

P_Scan

HS9901 HEAT SINK

1

2

3

4

FB9302

BEAD

1 2

VCC1

D9305

FR107

093G 6026T52T

HS9101 HEAT SINK

1 2

3

4

C9911 470NF 275V

063G107M47410M

C9910 470NF 275V

R9311

0 OHM +-5% 1/8W

L9801 240UH

073G 174275 CP

6

1

ZD9106

BZT52-B3V6

12

IC9801

R2A20133ESP 356G0379008222

FB

1

COMP

2

RT

3

NC4CS

5

GND

6

OUT

7

VCC

8

ZD9107

BZT52-B22

1 2

C9955

220PF 250V

R9346

220 OHM 1/4W

12V

C9980

470PF 250V

+

C9147

22UF 50V

For Q9101,Q9102 NC

DIM

24VA

5.2V

C9826

3.3nF 50V

On/Off

PS-On

Q9301

2N7002K 057G 763 62

CN902

CONN

1

2

3

4

5

6

7

8

9

10

11

12

13

12V

For BD9901 NC

Q9304

2N7002

057G 763904

R9161 24K 1/8W 1%

R9163 2K 1/8W 1%

C9877

47pF 1KV

D9302

SS1060FL

12

C9912 470PF 250V

R9301

1.0R 1W

+

C9344 470UF 25V

R9180 27K 1/8W 1%

+

C9340 470UF 25V

+

C9341

470UF 25V

067G 5154714HT

B1+

R9171

5.1K 1/4W

C9906

150PF 250V

IC9101

SSC9522S

056G 379211

Vsen

1

Vcc

2

FB

3

GND

4

Css

5

OC

6

RC

7

Reg

8

RV9COM

10

VGL

11

NC

12

NC

13

VB

14

VS

15

VGH

16

NC

17

NC

18

D9116

MBRF1560CT 093G 60931

1

2

3

C9831

NC

PS-On

R9175

1.5K 1/4W

C9170 100N 50V

R9320

560K 1/8W 1%

P_Scan

R9340

10K 1/8W 1%

R9337

8K2 1/8W 1%

HS9301 HEAT SINK

1

2

3

4

C9395

3.3NF 50V

C9335

100N 50V

RV9907

680V

361G0046681KZW

R9901

1MOHM +-5% 1/2W

R9339

43.2KOHM +-1% 1/4W

D9307

FR107

R9804

NC

R9331

47 OHM 1/4W

12V

IC9303 EL817M(X)

056G 139 9

12

43

R9317

1.5M 1% 1/4W

24VA

C9151 1UF

C9153

1UF

D9113

SS1060FL

12

5.2V

ZD9105

GDZJ30B

1 2

C9333

0.47UF 50V

R9810

16K +-1% 1/8W

C9338

3.3NF 50V

+

C9802

47UF 450V

12V

R9806

56K 1/8W

Q9302 RK7002BM

057G 763532

R9801

0.07R 3W

C9824 22N 50V

C9144 100N 50V

R9151

10 OHM

R9141

0.1R

R9329

0.1R 1W

C9825 220N 50V

R9390

0R05

R9318

1.5M 1% 1/4W

RV9902

680V

361G0046681KZW

FB9804 BEAD

1 2

C9342 100N 50V

+

C9164 NC

C9829 100N 50V

C9159

330NF 50V

C9833

47pF

R9101

180R 1%

Q9103 PMBS3904

057G 417 4

L9906

3UH

C9171

1.5NF

R9140

1K 1/8W 1%

R9149

470 OHM 1/8W

L9903

12mH

073G 174270 X1

124

3

+

C9168 470UF 25V

+

C9163

NC

+

C9169 470UF 25V

D9306

1N4148

+

C9830 10UF 50V

R9172

5.1K 1/4W

R9153

10K 1/8W 1%

R9173

5.1K 1/4W

D9109 1N4148

R9174

5.1K 1/4W

R9303 20K OHM

R9156

10K 1/8W 1%

IC9301 A6069H

056G 379121

S/OCP

1

BR

2

GND

3

FB/OLP4VCC

5

D/ST

7

D/ST

8

R9158

5.6K

R9332 2R2 +-5% 1/4W

R9808

10R 1/8W 5%

C9828 100N 50V

R9176

1.5K 1/4W

ZD9104

GDZJ15B

1 2

+

C9804

47UF 450V

367G215X470PKZ001S

R9809

200 OHM 1/4W

R9177

1.5K 1/4W

Q9305 MMBT3906 PNP

057G 417907 T

R9335 3K3 1/8W 5%

R9160

10K 1/8W 1%

VCC1

R9399

47 OHM 1/4W

VCC

R9308 10K 1/8W 1%

R9816

680K OHM +-1% 1/4W

R9815

680K OHM +-1% 1/4W

C9345 100N 50V

R9302

100K 1/6W

ZD9101

GDZJ30B

1 2

DV5

C9331

1NF

R9310

100K 1/8W 1%

SB+

F9901

FUSE 5A

084G 41 7

R9813

10K 1/4W

T9301

POWER X'FMR

080GL52P 54 CP

1

2

3

4

5

7

9

24V

R9324

1K 1/8W 1%

R9304

100K 1/8W 1%

R9309

100K 1/8W 1%

R9330

47 OHM 1/4W

R9148 NC

ZD9102

GDZJ15B

1 2

24V

R9144

1M5 1/4W 1%

L9304

NC

CN905

CONN

1

2

C9343

220N 50V

R9146 2K43 1/8W 1%

C9150

0.47UF 50V

IC9106 EL817M(X)

056G 139 9

12

43

D9308 FMW-2156

093G1506 2

1

2

3

ZD9303 GDZJ15B

1 2

BOX

Q9801

STF24NM60N 057G 667A04

FB9801 BEAD

1 2

ZD9304

NC

1 2

FB9802

BEAD

1 2

R9333

2K 1/8W 1%

FB9810 BEAD

1 2

VBoot

IC9999

NC

1

D1

2

D1

3

NC4NC

5

D2

6

D2

7

NC

8

ZD9301

GDZJ18B

1 2

B1+

R9995 NC

R9996 NC

Q9106

MMBT3906 PNP

057G 417907 T

R9992

NC

R9993

NC

R9994

NC

B1+

R9991

NC

C9999 NC

R9888

0 OHM +-5% 1/8W

C9156

100PF1KV

R9336

1Kohm +-1% 1/4W

R9338

9K1 1/8W 1%

BOX

R9139 100R 1%

C9149

100N 50V

5.2V

C9155

1N 50V

12V

C9334 1N 50V

T9101 POWER X'FMR

380GL32P111YS0

7

6

1 2

11

10

15 14

8

9

13 12

Q9101

STF8NM50N 357G0667A06

D9804

IN5408G-04

093G 52918

R9334 220 OHM 1/4W

VBoot

t

NR9901

2.5R

361G0058259MYW006A

12

R9143

NC

SG9905

NC

SG9904

NC

D9803

SS1060FL

12

C9803 470PF1KV

R9178 5K1 1/8W

D9115 FMEN-2308

093G 60987

1

2

3

D9301

SS1060FL

393G060S50000T00HF

1 2

For Q9801,D9801

C9165 100N 50V

VCC1

C9820

105 450V

-

+

BD9901

TS10K80-02

393G0050460A06

2

1

3

4

VCCVCC1

5.2V

R9811

100 OHM 1/4W

R9307 10K 1% 1/8W

C9154 560P 50V

FB9996

NC

1 2

For D9308

C9301 100N 50V

R9152

47OHM +-5% 1/8W

D9110 1N4148

R-

CN904 CONN-NC

L

1

N

2

IC9107 AS431AZTR-E1

R9154

47OHM +-5% 1/8W

R9111

0 OHM +-5% 1/8W

C9907

150PF 250V

C9146

100N 50V

IC9302 EL817M(X)

056G 139 9

12

43

Q9802 NTD4906NT4G

057G 600954

CN901

SOCKET

087G 50147D DL

1 2

D9114 UF4007

093G 52908

R-

C9827

1NF 50V

C9158 NC

D9304

FR107

C9145

100N 50V

R-

R8550

10K 1% 1/4W

C9166 NC

R9306

2K 1/8W 1%

DV5

Main_ov

R9159

20K 1/4W

R9805 200K1/8w

Main_ov

C9981

470PF 250V

IC9304 AS431AZTR-E1

056G 158 10 T

D9112

SS1060FL

12

R-

C9148

4.7UF 10V

C9152

5PF 1KV

R9147

470 OHM

R9817

100K 1%

For D9115,D9116

R9818

1K 1/8W

C9875 NC

FB9999

BEAD

12

+

C9161 330UF 35V

+

C9174 330UF 35V

NC

C8550

1N 50V

R9138

1Kohm +-1% 1/4W

NC

R9325

100K

R9326 100K

R9341

100K 1/8W 1%

R9327

100K

R9328 100K

R9145

18K 1/8W 1%

C9908

150PF 250V

+

C9172 NC

HEAT SINK

HS9103

1 2

3

4

Q9102

STF8NM50N 357G0667A06

R9319

1.5M 1% 1/4W

+

C9801

47UF 450V

C9347

1UF

L9901

12mH 073G 174270 X1

124

3

+

C9160 330UF 35V

067G 5153316KT

L9905

3UH

373G0253247X00

t

NR9902

2.5R

361G0058259MYW006A

12

+

C9302 22UF 50V

R9142

1.5M 1% 1/4W

R9150

1.5M 1% 1/4W

Q9303

BTC4672M3

357G0761A0100T

24VA

HS9102 HEAT SINK

341

2

For D8120,Q8101

CN903

CONN

1

2

3

4

5

6

7

8

9

10

11

12

R9323

4.7M OHM +-5% 1/4W

C9909

150PF 250V

C9157

22nF 1KV

24V

NC

R9807

200 OHM 1/4W

R9814

1MOHM +-1% 1/4W

NC

R-

DV5

DIM

On/Off

HS9801 HEAT SINK

1 2

3

4

+

C9336

10UF 50V

24V

RJ901

4R7 1/4W 5%

R9819

10K 1/8W

R9102 10 OHM

R9103

10 OHM

+

C9337 47UF 50V

10. Circuit Diagrams and PWB Layouts

10.1 A 715G5778 PSU

10-1-1 A01, Power Circuit

EN 53L12M3.1L LA 10.

2013-Jun-21

back to

div. table

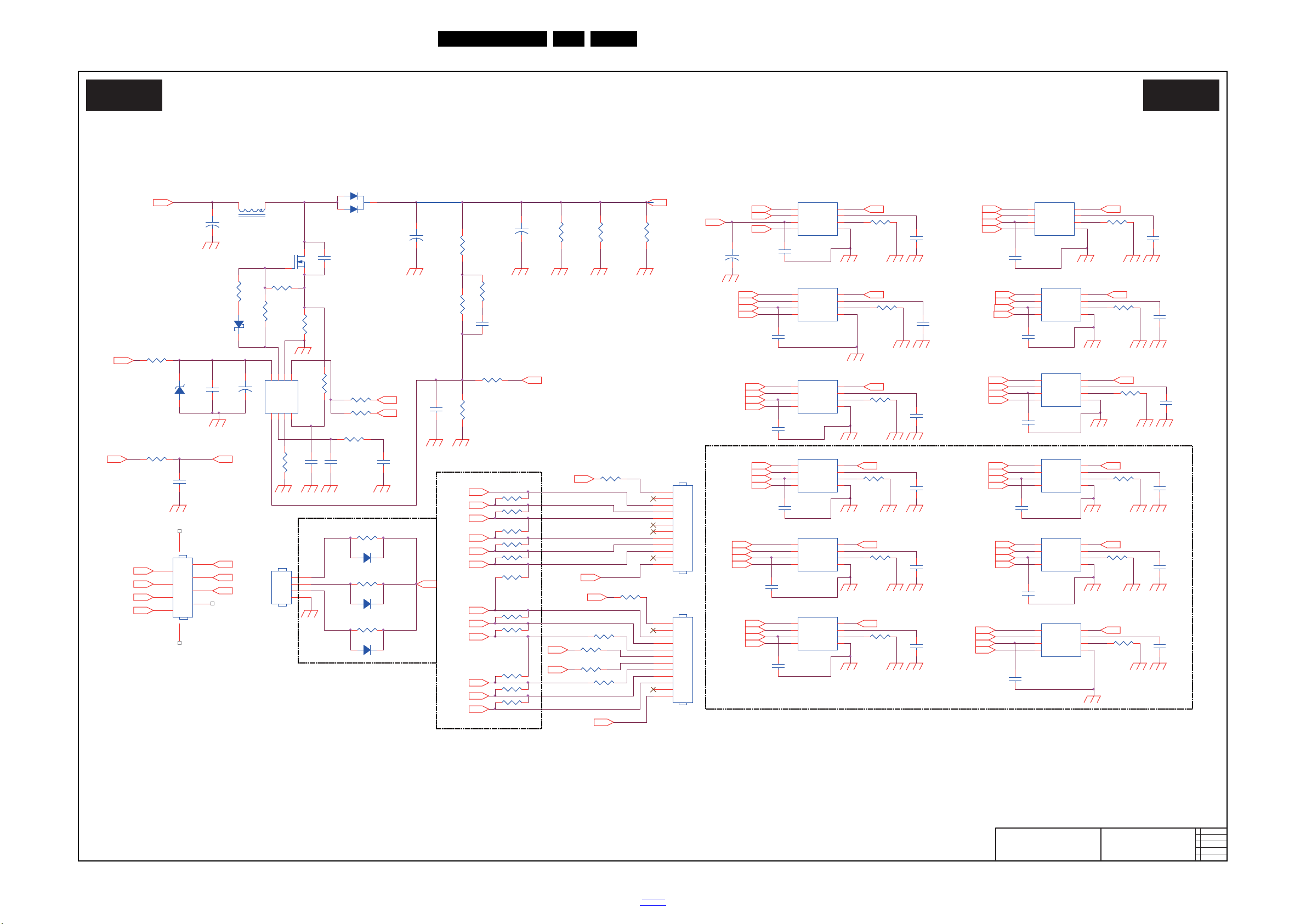

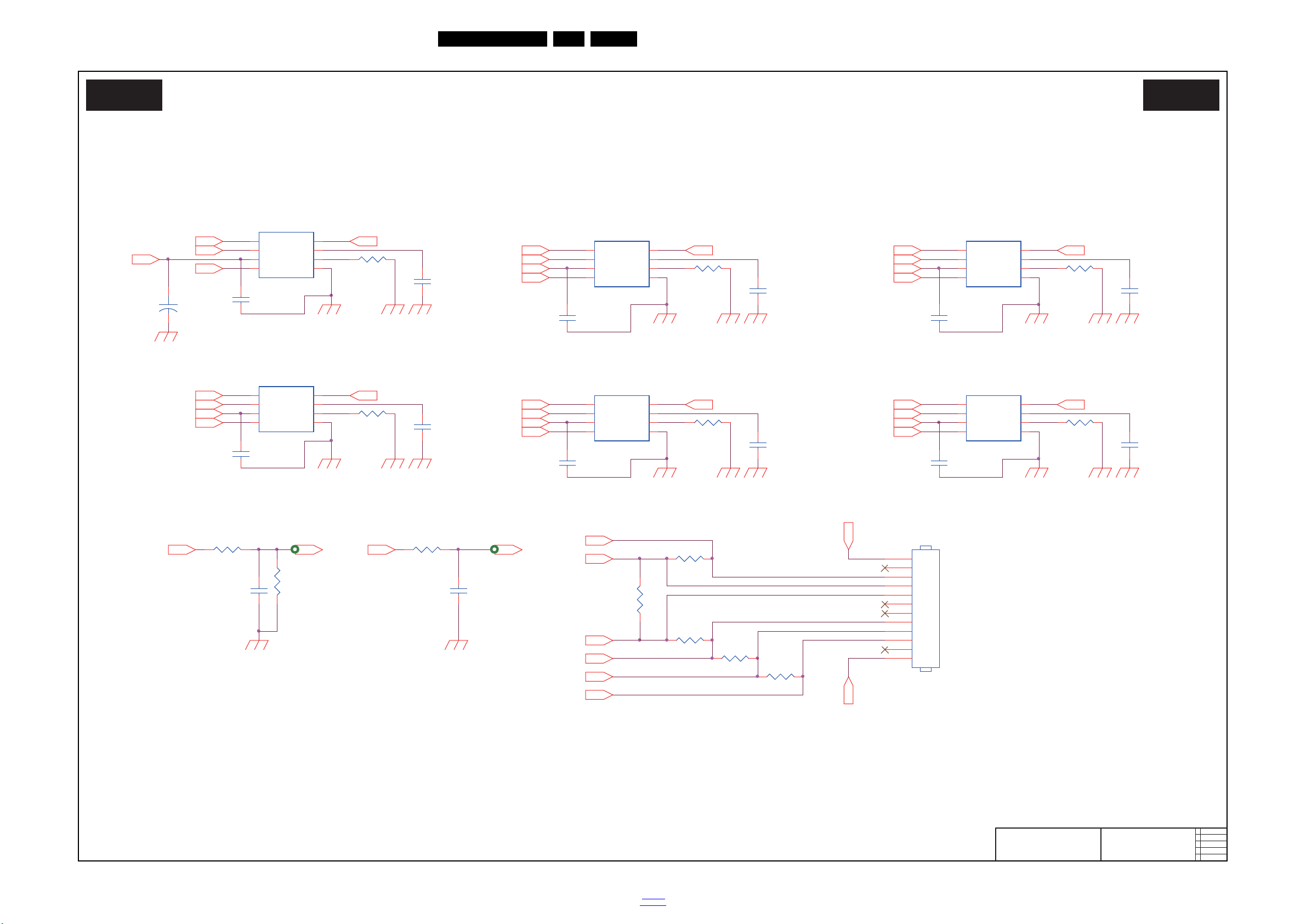

10-1-2 A02, Converter

19430_501_130114.eps

130114

Converter

A02 A02

2012-12-28

E

715G5778

Converter

IC8103 PF7900S

056G 700 23

FB1GM2RT3CS

4

DIM

5

GND

6

OUT7VCC

8

+

C8118

120UF 100V

+

C8109

120UF 100V

VLED

DIM

R8510

9.31K +-1% 1/8W

R8549

0R05 1/4W

R8548

0R05 1/4W

R8521 0R05

R8546 0R05

R8555 0R05

R8543 NC

R8542 NC

IC8503

PF7700A

356G0700008052

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

R8547 0R05

R8523 0R05

R8544 0R05

R8541 0R05

R8524 0R05

R8540 0R05

R8520 0R05

R8545 0R05

LED-COMP

R8522 0R05

D8555

1N4148W

D8557

1N4148W

D8556

1N4148W

R8515

0 OHM +-5% 1/8W

LED-12

LED-10LED-9

R8513

0 OHM +-5% 1/8W

R8514

0 OHM +-5% 1/8W

R8519 0R05

VLED

LED-12

CN8504 CONN

1

2

3

4

5

6

7

8

910

LED-10

VLED

LED-11

LED-12

12V

C8501

100N 50V

12V

C8502

100N 50V

12V12V

12V

LED-11

12V

C8503

100N 50V

12V

C8505

100N 50V

C8504

100N 50V

LED-2

LED-1

LED-7

LED-4

LED-8

LED-5

R8511

9.31K +-1% 1/8W

LED-3

LED-6

C8506

100N 50V

C8507

100N 50V

C8508

100N 50V

LED-8

LED-9

LED-7

LED-10

C8509

100N 50V

LED-9

C8510

100N 50V

C8511

100N 50V

C8512

100N 50V

DIM

LED-COMP

DIM

LED-COMP

EN

LED-COMP

DIM

EN

LED-COMP

EN

DIMLED-COMP

EN

LED-7

LED-COMP

CN8506 CONN

1

2

3

4

5

6

7

8

9

10

11

12

LED-8

PWM_C

EN

LED-1

LED-11

VLED

24V

LED-3

LED-COMP PWM_C

EN

LED-2

LED-5

LED-COMP

LED-4

LED-6

CN8501 NC

1

2

3

4

5

6

7

8

9

10

11

12

VLED

PWM_B

EN

LED-COMP

+

C8158

NC

R8512

9.31K +-1% 1/8W

EN

PWM_B

CN8503 CONN

1 2

3

4

LED-COMP

IC8504

PF7700A

356G0700008052

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

EN

PWM_A

DIM

C8523 100N 50V

C8157 100N 50V

C8529 100N 50V

C8530 100N 50V

C8518 100N 50V

C8524 100N 50V

C8525 100N 50V

C8519 100N 50V

C8532 100N 50V

C8531 100N 50V

C8520 100N 50V

C8526 100N 50V

LED-COMP

R9322

3.0KOHM +-1% 1/4W

PWM_A

EN

LED-11

LED-12

R8501

9.31K +-1% 1/8W

IC8505

PF7700A

356G0700008052

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

IC8506

PF7700A

356G0700008052

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

Q8101

AOTF4126

357G0600A01

R8177

NC

EN

R8153

0 OHM 1/8W

R8147

360K +-1% 1/8W

C8188

NC

R8188 NC

IC8507

PF7700A

356G0700008052

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

R8145

330K +-1% 1/4W

IC8508

PF7700A

356G0700008052

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

R8157

10K 1/8W 1%

EN

On/Off

IC8509

PF7700A

356G0700008052

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

IC8510

PF7700A

356G0700008052

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

R8141

82K +-1% 1/8W

C8177

NC

IC8511

PF7700A

356G0700008052

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

IC8512

PF7700A

356G0700008052

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

L8101

33uH 373G0253257CP0

3

1

C8119

1N 50V

R8502

9.31K +-1% 1/8W

NC

R9997

0.03R 3W

NC

IC8501

PF7700A

356G0700008052

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

R8503

9.31K +-1% 1/8W

R8144

75K 1%

R8504

9.31K +-1% 1/8W

ZD8103

NC

1 2

R8148

100K 1/8W 1%

R8505

9.31K +-1% 1/8W

R8162 1Kohm +-1% 1/4W

C9346

100N 50V

R8506

9.31K +-1% 1/8W

R8176

0 OHM 1/8W

R8163 200K 1%

R8507

9.31K +-1% 1/8W

C8113 1N 50V

D8118

NC

12

R8158

10R 1/8W 5%

R8161

NC

R8154 100K

R8155 100K

R8156 100K

NC

R8508

9.31K +-1% 1/8W

LED-COMP

NC

+

C8170

330UF 35V

+

C8121 22UF 50V

12V

NC

R8509

9.31K +-1% 1/8W

IC8502

PF7700A

356G0700008052

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

C8106

NC

C8111 100N 50V

D8120

MBRF10150CT

093G 60903

1

2

3

C8105 1N 50V

NC

Circuit Diagrams and PWB Layouts

EN 54L12M3.1L LA 10.

2013-Jun-21

back to

div. table

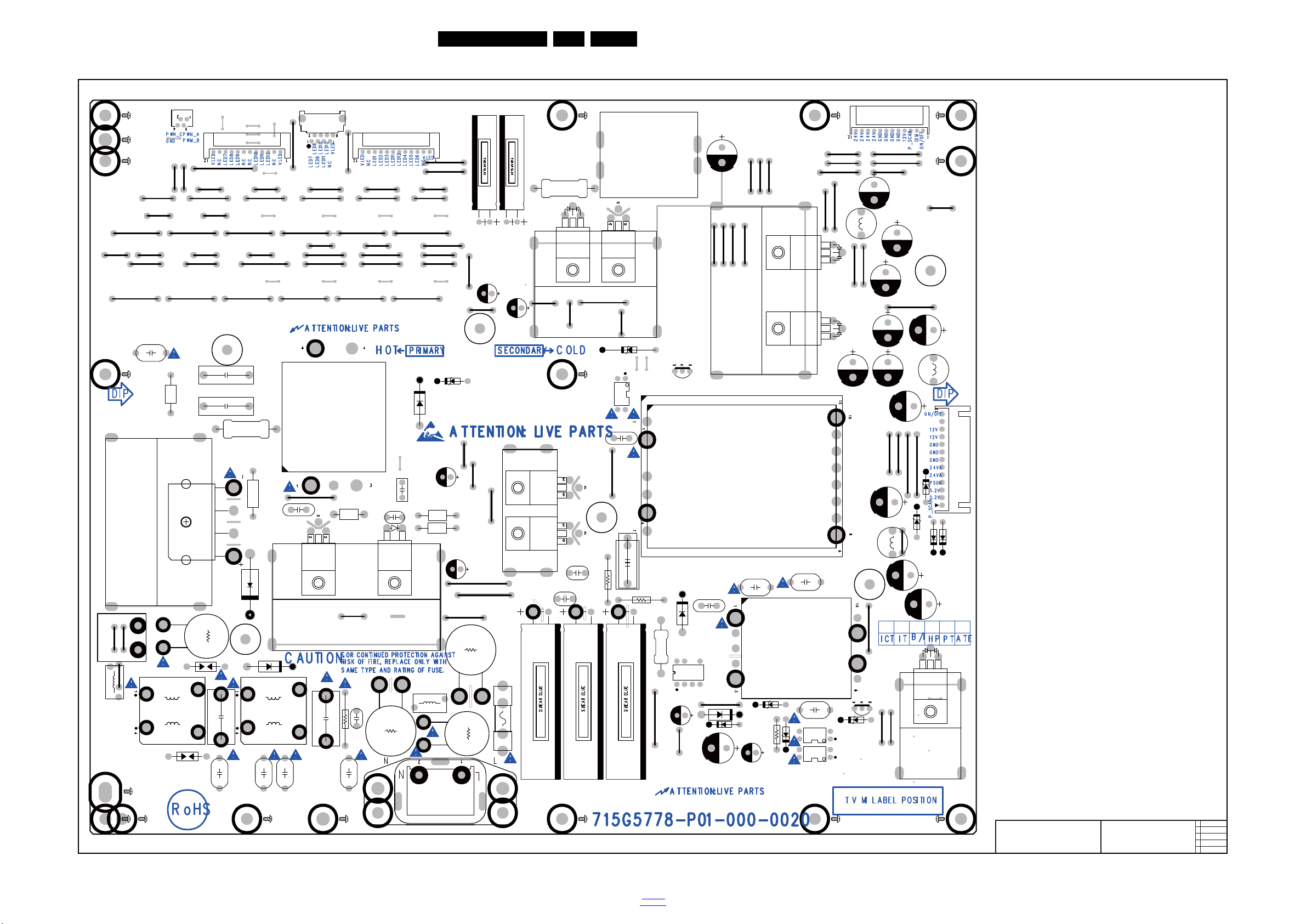

10-1-3 Power layout top

19430_502_130115.eps

130115

2012-12-28

E

715G5778

Power layout top

C8121

C8158

C9830

C9156

C9302

C9336

C9803

C9147

D9305

D9306

D9307

D9802

IC9106

IC9107

IC9302

IC9303

IC9304

R9301

H2

H1

D9109

D9110

J901

J909

J907

J906

J902

J903

J913

J952 J950

J916

J970 J968J966

J954 J955 J956 J957 J958

J972 J973 J974 J975 J976 J977

J937

J938

J940

J941

J910

J911

J914

J912

J915

J960

J961

J939

J959

J978

J926

J924

J921

J928

J929

J930

J927

J925

J923

J919

J917

J918

J922

J920

J931

J932

J933

J934

J981

J982

J953

J946 J944J986

J985

J987

J935

J942

J948

J988 J989 J990

J964

J965

J962

J963

J951 J949 J947 J945 J943

J971 J969 J967

H3

J991

J992

J983

J984

H4

H5

H6

J993

J905

J979

J936

J904

J908

J994

J996

J995

T9101A

T9301

T9101

J980

J1

J5

J6

J4

J2

J3

TEST3

TEST2

C9152

C9160 C9161

C9163

C9164

C9168

C9169

C9171

C9172

C8170

C9174

C9331

C9337

C9340

C9341

C9344

C9833

C9906C9907 C9908 C9909

C9912

C9955

C9980

C9981

CN8501

CN8504

CN8506

CN901

CN902

CN903

CN904

CN905

D8120

D9114

D9115

D9116

D9304

D9308

D9801

F9901

FB9302

FB9804

FB9810

HS9102

HS9301

HS9801

IC9301

L9105

L9106

L9304

Q8101

Q9101

Q9102

Q9801

R8175

R9329

R9801

SG9904

SG9905

ZD9104

MH13

MH15

MH14

MH2MH3 MH4 MH6 MH7 MH8

MH9

MH10MH11MH12

MH17

MH5

MH1

ZD9101

ZD9301

ZD9303

ZD9304

HS9101

HS9901

R9141

R9302

FB9801

FB9802

C9157

C9820

C9999

FB9999

ZD9102

ZD9105

C9875

CN8503

C8109C8118

C9877

FB9996

HS9103

BD9901

L9801

C9801 C9804 C9802

RV9902

MH16

L8101

RV9907

C9911

C9910

R9901

L9903 L9901

C9157A

NR9901

NR9902

Circuit Diagrams and PWB Layouts

EN 55L12M3.1L LA 10.

2013-Jun-21

back to

div. table

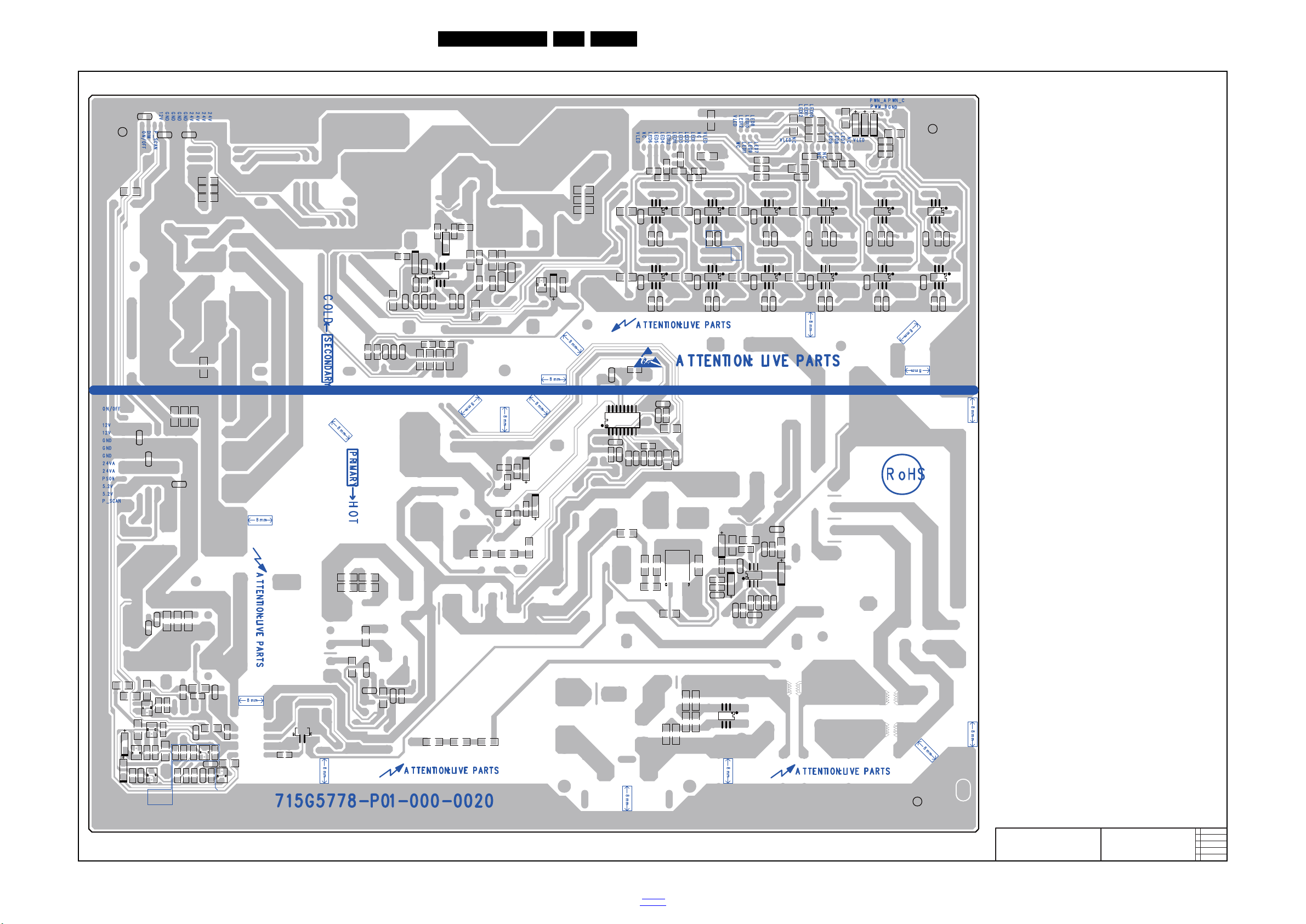

10-1-4 Power layout bottom

19430_503_130115.eps

130115

2012-12-28

E

715G5778

Power layout bottom

C8105

C8106

C8111

C8113 C8119

C8157

C8501

C8502

C8503

C8504

C8505C8506

C8507

C8508

C8509

C8510

C8511

C8512

C8518

C8519

C8520

C8523

C8524

C8525

C8526

C8529

C8530

C8531

C8532

C9144

C9145

C9146

C9148

C9149

C9150

C9151

C9153

C9154

C9155

C9158

C9159

C9165

C9166

C9170

C8550

C9301

C9333

C9334

C9335

C9342

C9343

C9346

C9824

C9825

C9826

C9827

C9828

C9829

C9831

C9832

Q9103

Q9106

Q9301

Q9302

Q9305

R8141

R8145

R8148

R8153

R8154

R8155

R8156

R8157

R8158

R8161

R8163

R8501

R8502

R8503

R8504

R8505R8506

R8507

R8508

R8509

R8510

R8511

R8512

R8519R8520R8521

R8522R8523

R8524

R9101

R9102

R9103

R9111

R9140

R9142

R9143

R9144

R9145

R9146

R9148

R9149

R9150

R9151

R9152

R9153

R9154

R9156

R9158

R9159

R9160

R9161

R9163

R9171

R9172

R9173

R9174

R9175

R9176

R9177

R9180

R9303

R9304

R9306

R9308

R9317 R9318 R9319

R9320

R9323

R9324

R9325

R9326R9327

R9328

R9330

R9331

R9332

R9333

R9335

R9337

R9338

R9340

R9341

R9346

R9390

R9804

R9805

R9806

R9807

R9808

R9809

R9810

R9811

R9813

R9814

R9815

R9816

R9817

R9818

R9819

RJ902

RJ901

RJ904

C9345

R9309

R9310

R9311

Q9304

RJ906

IC8103

IC9801

RJ909RJ908RJ907

RJ915RJ916RJ917

R9307

R9339

R8550

R8162

R8144

RJ905

R9322

R9138

R9178

R8147

R9147

R9991

R9992

IC9999

R9334

R9139

C9338

C9395

RJ903

R8176

R8177

R8514

R9336

RJ910

C8188

R8540 R8541

R8542

R8543

R8544 R8545

R8546

R8547

R8555

R9888

R8548

R8549

R9993

R9994

R9995

R9996

RJ921

R8515

RJ914

RJ913

RJ912

RJ911

R8513

RJ919

RJ920

SM5

SM6

SM7

R8190

R9399

Q8105

C8189

IC8507

IC8508IC8510

IC8509IC8511

IC8512IC8502

IC8501IC8503

IC8504IC8506

IC8505

R8188

C9347

C9348

C9349

PIN1

PIN2

PIN3

D8118

D9112

D9113

D9301

D9302

D9803

IC9101

Q9303

Q9802

ZD8103

ZD9106

ZD9107

D8557

D8556

D8555

ZD8109

Circuit Diagrams and PWB Layouts

EN 56L12M3.1L LA 10.

2013-Jun-21

back to

div. table

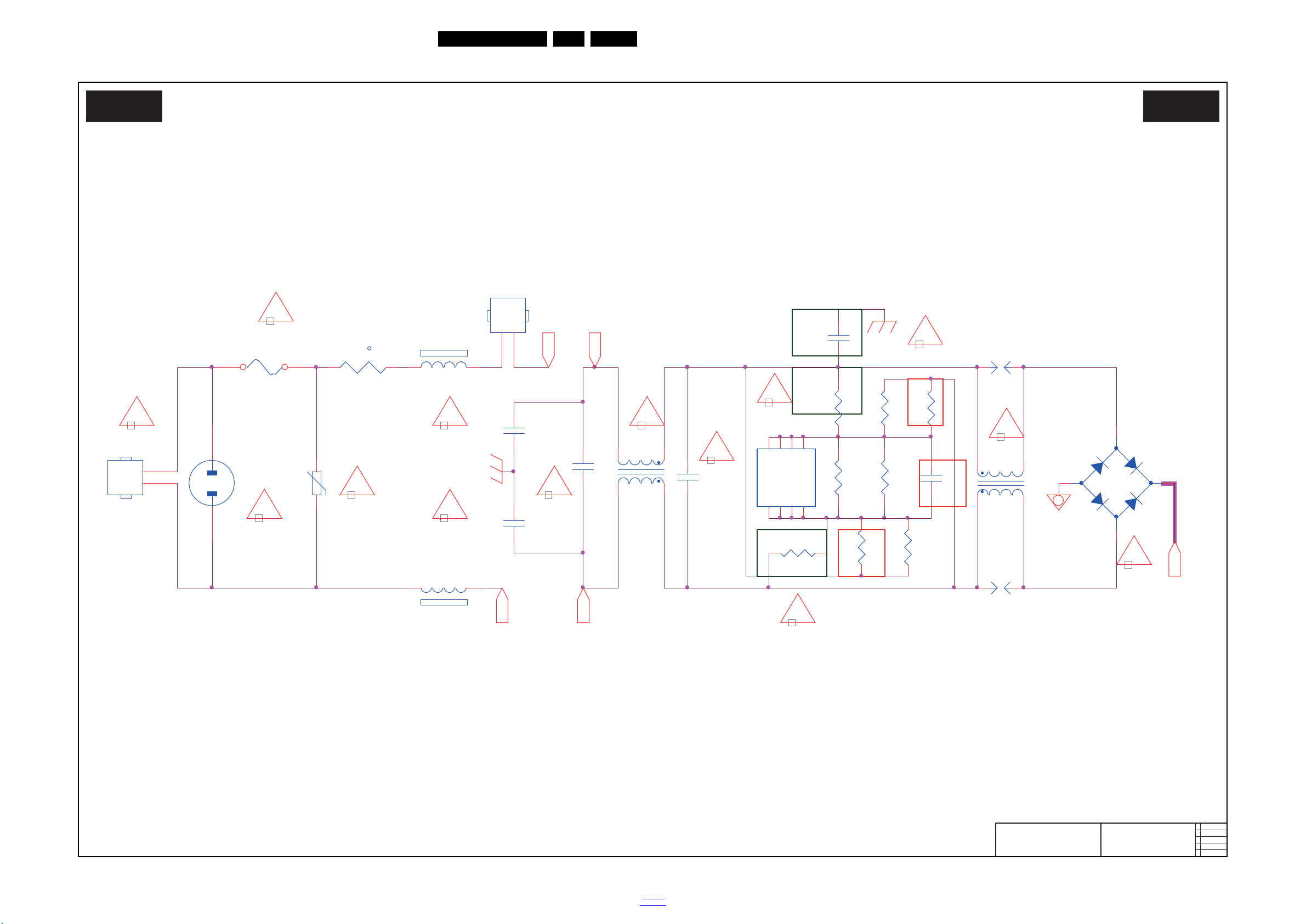

10.2 A 715G5792 PSU

19430_504_130114.eps

130114

AC input

A01 A01

2013-01-02

A

715G5792

AC input

!

F9901

FUSE

R9901

NC

IC9901

CAP004DG-TL

NC

1

D12D1

3

NC

4

NC

5D26D27NC8

R9904

NC

R9905

NC

!

+

BD9901

TS6B06G-05-X0

2

1

3

4

SG9901

DSPL-501N-A21F-NC

C9906

470NF 275V

L9901 12mH

1

2

4

3

SG9902

DSPL-501N-A21F-NC

!

L9902 12mH

1

2

4

3

VXA

R9908 510K

VXB

VXB VXA

!

CN9901

NC

1 2

!

C9910

470PF 250V

Vsin

t

NR9901

2.5R

1 2

!

C9905

470NF 275V

R9906

NC

CN9903 CONN-NC

1

2

C9901

47PF

FB9901BEAD

1 2

CN9902 SOCKET

12

C9903

100PF 250V

C9904

100PF 250V

FB9902 BEAD

12

!

R9907

510K

RV9901

TVR14561KFAOZF

R9902

NC

R9903 NC

10-2-1 A01, AC input

Circuit Diagrams and PWB Layouts

EN 57L12M3.1L LA 10.

2013-Jun-21

back to

div. table

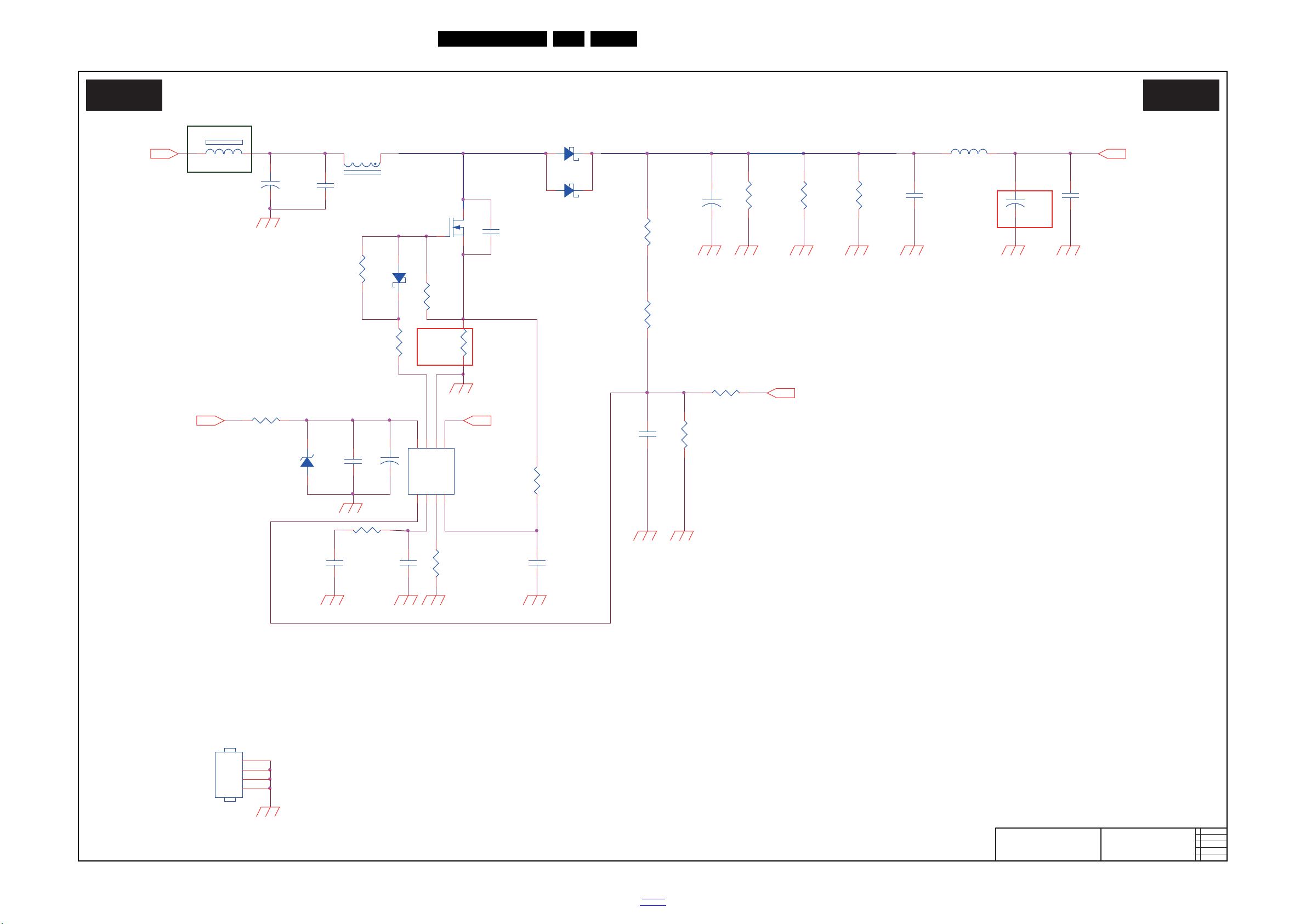

10-2-2 A02, PFC

19430_505_130114.eps

130114

PFC

A02 A02

2013-01-02

A

715G5792

PFC

C9804 47P 50V

R9814 2K 1/8W 5%

C9817

47PF

Vsin

R9806

10K OHM +-5% 1/8W

Q9803

NC

HV

R9811

0R05 1/4W

Q9802 NC

C9806

100N 50V

D9801 IN5408G-04

R9823

390K 1/8W 1%

C9812 NC

D9802 MUR460-28

R9819 NC

R9818

20K 1/8W 1%

C9811 680P 50V

IC9801

LD7591T

INV1COMP2RAMP3CS

4

ZCD

5

GND

6

OUT

7

VCC

8

+

C9814

47uF 450V

C9807

220P 50V

FB9802

BEAD

1 2

Q9801

TK15A60U

R9815

200K 1/8W 1%

VCC_ON

+

C9815 47uF 450V

FB9803

BEAD

1 2

!

C9818

47PF

L9801 300uH

5

43

1

R9817

NC

C9803 NC

VCC_ON

R9816

NC

R9802

10R 1/8W 5%

R9803

33R 1/8W 5%

R9813 10K OHM +-5% 1/8W

R9810

470 OHM 1/4W

R9805

20K 1/4W

R9812 24K 1/8W 1%

C9810

0.47UF 50V

C9808

NC

C9809 47N 50V

R9808

0.15R

R9820 NC

R9821 NC

R9822 NC

C9801 1UF 450V

D9803 RB160M

12

R9807

1MOHM +-1% 1/4W

R9809

750K 1%

R9804

1MOHM +-1% 1/4W

Circuit Diagrams and PWB Layouts

EN 58L12M3.1L LA 10.

2013-Jun-21

back to

div. table

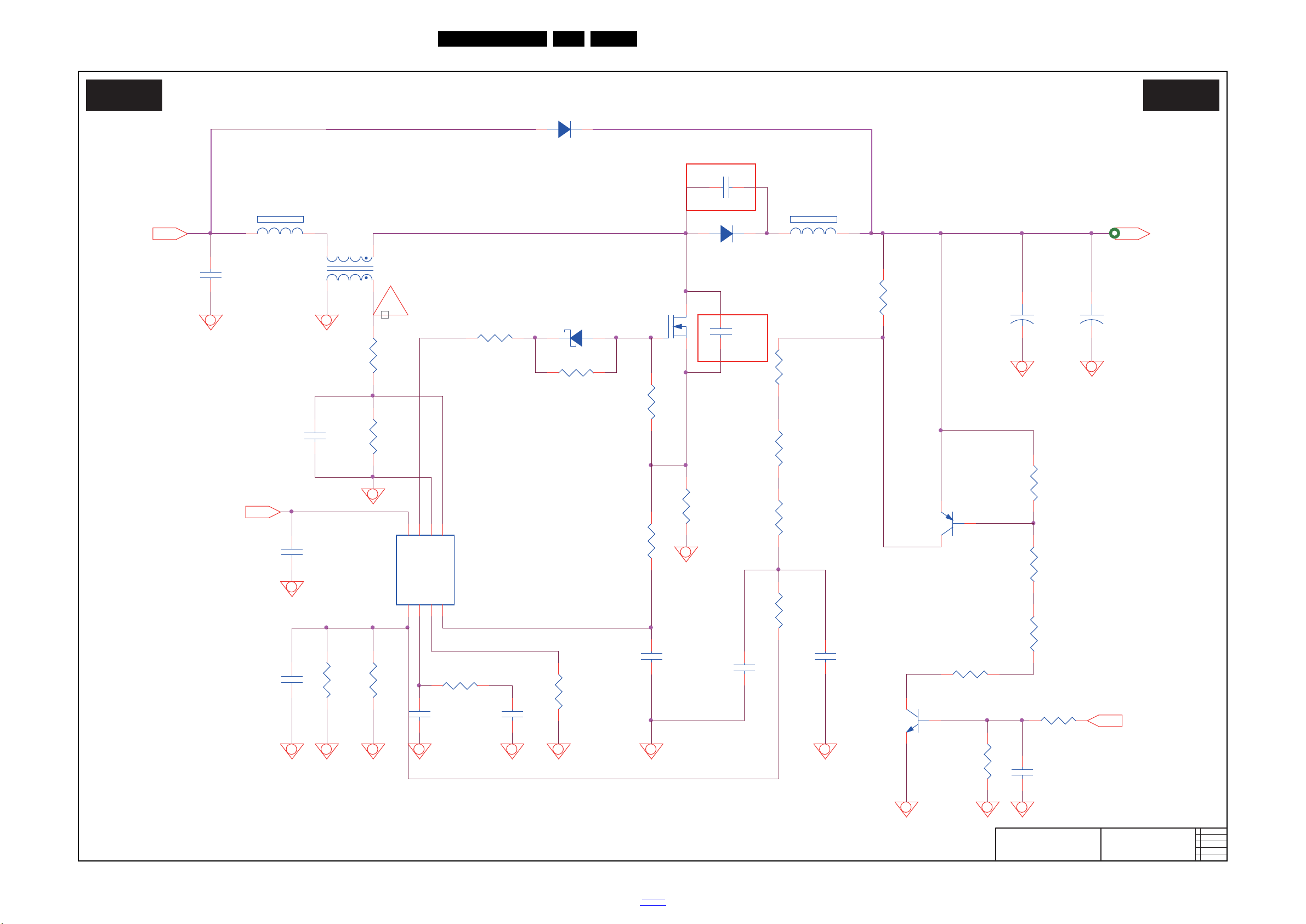

10-2-3 A03, Main Power

19430_506_130114.eps

130114

Main Power

A03 A03

2013-01-02

A

715G5792

Main Power

C9141

2N2 50V

R9153 270K

C9146

1uF

C9124 100N 50V

C9147

1uF

+

C9109

330UF 35V

+

C9110

330UF 35V

PS_ON

HS9103

HEAT SINK

1 2

3

4

R9122 150K 1/8W +/-1%

R9137 NC/620K

IC9104

NR111D

BS

1

VIN

2

SW

3

GND4FB

5

ISET

6

EN

7

SS

8

C9133

1uF 50V

+

C9122

330UF 35V

C9139 330P 50V-NC

R9149

100 OHM 1/4W

R9339

5.23K 1% 1/8W

!

R9105 10 OHM

D9104

SK84C

1 2

ZD9105

BZT52-B39

12

ZD9101

BZT52-B30

1 2

Q9402

NC/2N7002K

ZD9104

BZT52-B30

1 2

R9307 10K OHM

Q9301 2N7002K

DV5

IC9101SSC1S311

FB/OLP

1

BD

2

NC

3

ST4DRV

5

OCP

6

VCC

7

GND

8

+5.2V

+

C9136 470UF 25V

R9141

100K

R9341 100K 1/8W 1%

+

C9137 470UF 25V

12V

R9340

10K OHM +-5% 1/8W

IC9151

PF8200S

GND

1

GND

2

SS

3

FLAG4EN

5

ADJ

6

GATE

7

VCC

8

HOT COLD

R9109

1K

FB9102

BEAD

1 2

C9106

100N 50V

+

C9108

330UF 35V

C9103

330P 50V

ZD9102

BZT52-B39

12

C9403

100N 50V

R9408 330K 1% 1/8W

Q9403 2N7002K

ZD9106

BZT52-B16

1 2

PS_ON

R9407 10K OHM

R9406

0 OHM +-5% 1/8W

R9158

20R 1%

R9161

20R 1%

C9144 NC/1NF

R9119

NC/20K 1% 1/8W

C9125 1uF

R9120

NC/200KOHM 1/8W +/-5%

FB9101

127R

1 2

Q9305

MMBT3906 PNP

R9308 10K 1/8W 1%

DV5

!

R9108 47K

R9136 NC

L9104 3UH

12V

VCC

!

C9115

100N 50V

C9130 NC

ZD9107

BZT52-B16

12

R9154

NC

+

C9120

470UF 25V

R9134

10R 1/8W 5%

+5.2V

R9405

100K 1/8W 1%

!

R9138

11K 1/8W 1%

R9101

NC/100 OHM 1/4W

R9103

100 OHM 1/4W

+

C9140

470UF 25V

+

C9102

330UF 35V

R9102

100 OHM 1/4W

R9163

NC

R9148 100 OHM 1/4W

C9117 100N 50V

C9104

2.2NF

D9103 PR1007

T9101 POWER X'FMR

7

10

12

5

4

3

2

1

9

6

11

8

R9151

2K43 1/8W 1%

R9157

1K OHM

R9140

100 OHM 1/4W

D9102 RB160M

12

R9401

2Kohm 1/4W +/-5%

C9114 1NF

C9138

100N 50V

R9104 82KOHM +-5% 2WS

+

C9116

220UF 35V

R9150

27K 1/8W 1%

R9129 3K65 +-1% 1/8W

R9156

1K OHM

R9124

470R 1/8W 1%

D9101

SARS01-V1

HS9102

HEAT SINK

1 2

3

4

CN9102 CONN-NC

1

2

3

4

5

6

7

8

9

10

11

12

R9146

100 OHM 1/4W

C9112

100N 50V

IC9401

PS2561DL1-1

12

43

D9106 FME-220B

1

2

3

R9162

2K 1/8W 5%

R9117

10K OHM

R9113

100 OHM 1/4W

D9105 FMXA-2202S

1

2

3

R9114

100 OHM 1/4W

C9127

1NF 500V

L9102 3UH

C9123

100N 50V

R9403 NC

R9118

100 OHM 1/4W

IC9103 AS431AZTR-E1

CN9101 CONN

1

2

3

4

5

6

7

8

9

10

11

12

13

R9106

22 OHM 1/4W

C9119 100PF

R9404 NC

R9145

100 OHM 1/4W

+

C9135 470UF 25V

R9135 5.1 OHM 1/4W

R9128

200K 1/8W 1%

R9152

20K 1/4W

C9118 220N 50V

+

C9107 47UF 50V

R9112

10 OHM 1/4W

L9101 15uH

C9142

2N2 50V

R9130

100 OHM 1/4W

+

C9111

330UF 35V

L9103 3UH

IC9106

AS431AN-E1

HS9101

HEAT SINK

1 2

3

4

Q9107

P1604ETF

R9107 10KOHM

IC9102

PS2561DL1-1

12

43

C9911 1NF 250V

R9125

1.5KOHM +-1% 1/8W

R9126 1K 1/8W 1%

C9401

NC

C9126

1NF 500V

R9402 2Kohm 1/4W +/-5%

R9116

10K OHM

R9110

13K 1/8W 1%

C9131 1uF

R9111

0.15R

R9142

0 OHM +-5% 1/8W

C9113

10N 50V

R9127

9.1K 1%

Q9104 2SA1797

C9105

100N 50V

R9139

100 OHM 1/4W

R9115

10K OHM

+

C9402

10UF 50V

C9143

2N2 50V

HV

+5.2V

PS_ON

+12V

ON/OFF DIM

12V

24VA

DIM

+12V

+24LED

ON/OFF

12V +24VS

+24VS

+24LED

24VA

+12V

OVP

+24VS

VCC_ON

VCC

R9147

100 OHM 1/4W

R9123

2K 1/8W 1%

R9131

200KOHM 1/8W +/-5%

D9113

RB160M

1 2

HV

ZD9103 NC

1 2

R9159NCR9160

NC

R9132

100K

C9121

0.1uF 50V

C9128 47N 50V

R9133

NC/3K OHM 1%

C9129 1N 50V

R9143

91KOHM +-1% 1/8W

R9144

4K7 1/8W 1%

5.2V_On

R9178 10K 1/4W

5.2V_On

D9107 RB160M

1 2

Q9401

BTC4672M3

C9145

1uF

ZD9401

BZT52-B16

1 2

R9121 150OHM +-5% 1/8W

DV5

C9132 2N2 50V

HS9104

HEAT SINK-NC

1 2

3

4

Q9101

TK11A65D

C9134 1N 50V

Circuit Diagrams and PWB Layouts

EN 59L12M3.1L LA 10.

2013-Jun-21

back to

div. table

10-2-4 A04, LED Driver D2D

19430_507_130114.eps

130114

LED Driver D2D

A04 A04

2013-01-02

A

715G5792

LED Driver D2D

IC8103 PF7900S

FB1GM2RT3CS

4

DIM

5

GND

6

OUT

7

VCC

8

D8118

RB160M

12

VLED+24VS

C8112 NC

+

C8101

330UF 35V

L8102 3UH

+

C8118

47UF 100V

C8114

NC/1000pF 630V

FB8101

127R

1 2

C8115

NC/1000pF 630V

Q8101

AOTF4126

R8148

100K 1/8W 1%

R8162

1K 1/8W 1%

R8157

10K 1/8W 1%

C8102

100N 50V

R8145 820K 1%

L8101

33uH

8

1

DIM_IN

C8111

100N 50V

+

C8117

220UF 100V

HS8101

HEAT SINK

1 2

3

4

R8147 750K 1%

R8176

0R05 1/4W

ZD8103

NC/BZT52-B13

1 2

R8141 120KOHM +-1% 1/8W

R8144

100K 1/8W 1%

R8163

200K 1/8W 1%

R8158

22OHM +-5% 1/8W

C8113 1N 50V

R8154 100K

R8155 100K

R8156 100K

D8121 SR510-22-NC

1 2

LED-COMP

+

C8121

22UF 50V

+12V

C8119

100N 50V

C8106

NC

R8161

10 OHM

D8120 SR510-22

1 2

C8105 1N 50V

R8175

0.03R

Circuit Diagrams and PWB Layouts

EN 60L12M3.1L LA 10.

2013-Jun-21

back to

div. table

10-2-5 A05, LED Current Balance

19430_508_130114.eps

130114

LED Current Balance

A05 A05

2013-01-02

A

715G5792

LED Current Balance

C8504

0.47UF 50V C8505

0.47UF 50V

IC8502

PF7700A

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

IC8503

PF7700A

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

IC8504

PF7700A

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

IC8505

PF7700A

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

IC8506

PF7700A

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

R8523 NC

R8522 NC

R8521 NC

R8525

NC

R8524 NC

+12V

C8517

1N 50V

R8511

10K 1/8W 1%

R8512

NC

On/Off

CN8501

CONN

1 2

3

4 5 6 7

8

9 10 11 12

C8518

1N 50V

DIM_IN

DIM

EN

R8513

10K 1/8W 1%

DIM_IN

LED-COMP

DIM_IN LED-COMP

LED-COMP

DIM_IN

EN

LED-COMP

LED-1

LED-2

LED-1

IC8501

PF7700A

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

LED-5

LED-2

LED-6

LED-3

LED-4

LED-5

+12V

LED-COMP

EN

C8516 100N 50V

C8503

0.47UF 50V

R8506 10K 1/8W 1%

EN

C8506

0.47UF 50V

LED-6

C8513 100N 50V

LED-3

LED-COMP

DIM_IN

R8501 10K 1/8W 1%

R8503 10K 1/8W 1%

DIM_IN

+12V

R8502 10K 1/8W 1%

VLED

R8504 10K 1/8W 1%

R8505 10K 1/8W 1%

+

C8510

22UF 50V

C8501

0.47UF 50V

DIM_IN

EN

LED-4

+12V

C8502

0.47UF 50V

VLED

C8514 100N 50V

C8515 100N 50V

C8512 100N 50V

C8511 100N 50V

Circuit Diagrams and PWB Layouts

EN 61L12M3.1L LA 10.

2013-Jun-21

back to

div. table

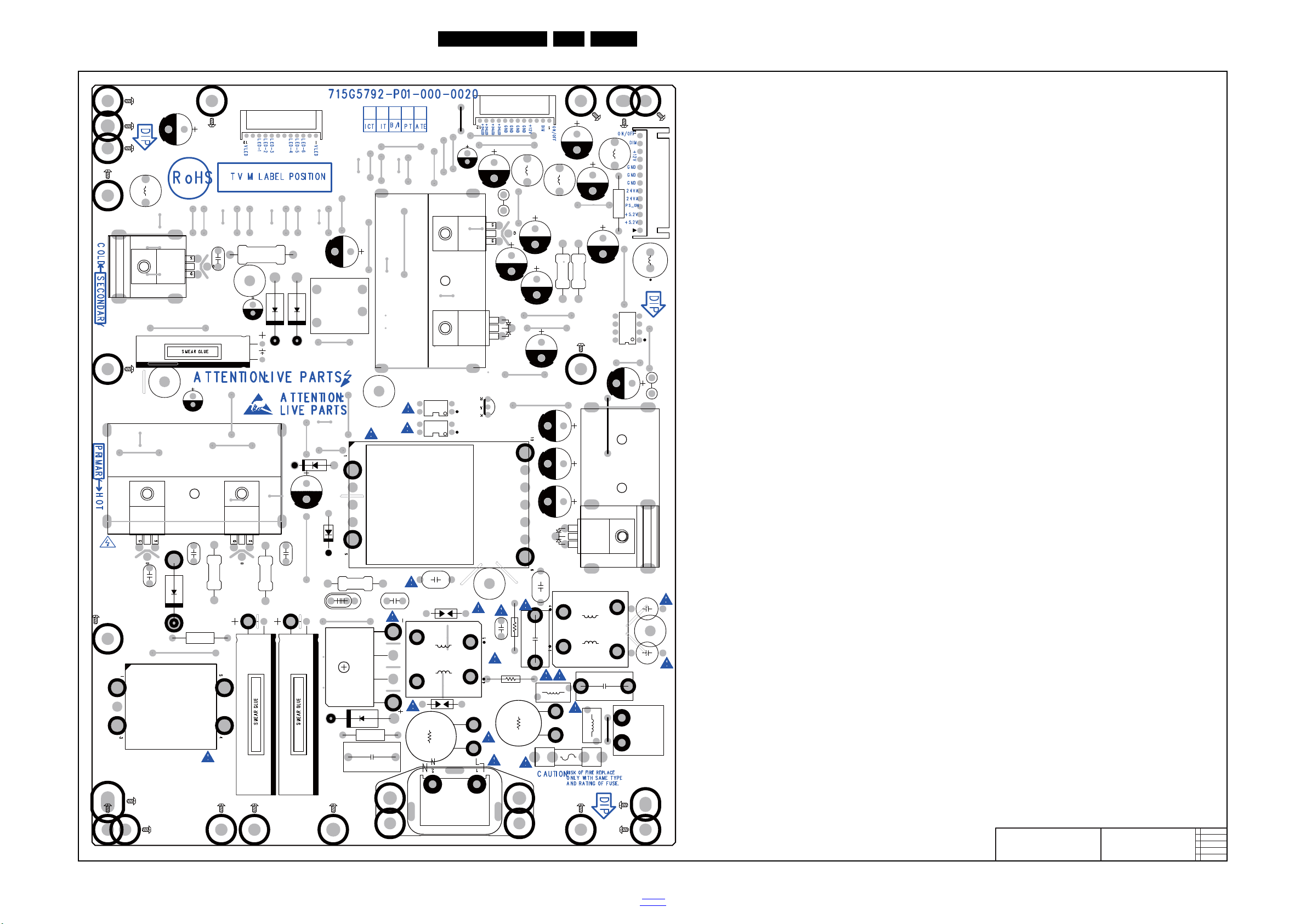

10-2-6 Power layout top

19430_509_130115.eps

130115

2013-01-02

A

715G5792

Power layout top

C8121

C8510

C9402

D9103

IC9102

IC9103

IC9401

J934

J929

J945

J920

J907

J914

J916

J918

J909

J939

J930

J944

J942

J943

J936

J935

MH13

MH21

J919

J917

J915

R9156R9157

J904

J933

J932

J911

J924

J921

J913

J926

J908

J923

MH34

MH35

J938

J937

T9101

D9801

J928

J925

J903

J910

J906

J905

C9901

D8120D8121

J927

J902

J901

J940

C9817

C9818

D9802

R9808

R9111

R9104

MH26

J931

MH45

MH43

MH44

ZD4

ZD3

ZD1

ZD2

ZD5

ZD6

C8101

C9104

C9107

C9108

C9109

C9110

C9111

C9114

C9116

C9120

C9122

C9135

C9136

C9137

C9140

C9801

CN9102

CN9901

CN9902

CN9903

D9105

D9106

F9901

FB9902

IC9104

Q8101

Q9101

Q9107

Q9801

R8175

MH1

MH2

MH3

MH4 MH5 MH6

MH7

MH8

MH9

MH10

MH11

MH12MH14

MH15

MH16

MH17

MH18

MH19

MH20

MH22

SG9901

SG9902

HS8101

C9102

HS9101

HS9103

HS9102

FB9901

CN8501

FB9802

C8112

HS9104

C9144

C9119

BD9901

C9814C9815

RV9901

L9902

L9901

L9801

C8118

L8102

C9903

C9904

C9911

NR9901

D9101

FB9101

C8117

L9102

L9103

L9104

L9101

FB9803

R9907

R9908

C9910

L8101

FB8101

FB9102

CN9101

C9905

C9906

Circuit Diagrams and PWB Layouts

EN 62L12M3.1L LA 10.

2013-Jun-21

back to

div. table

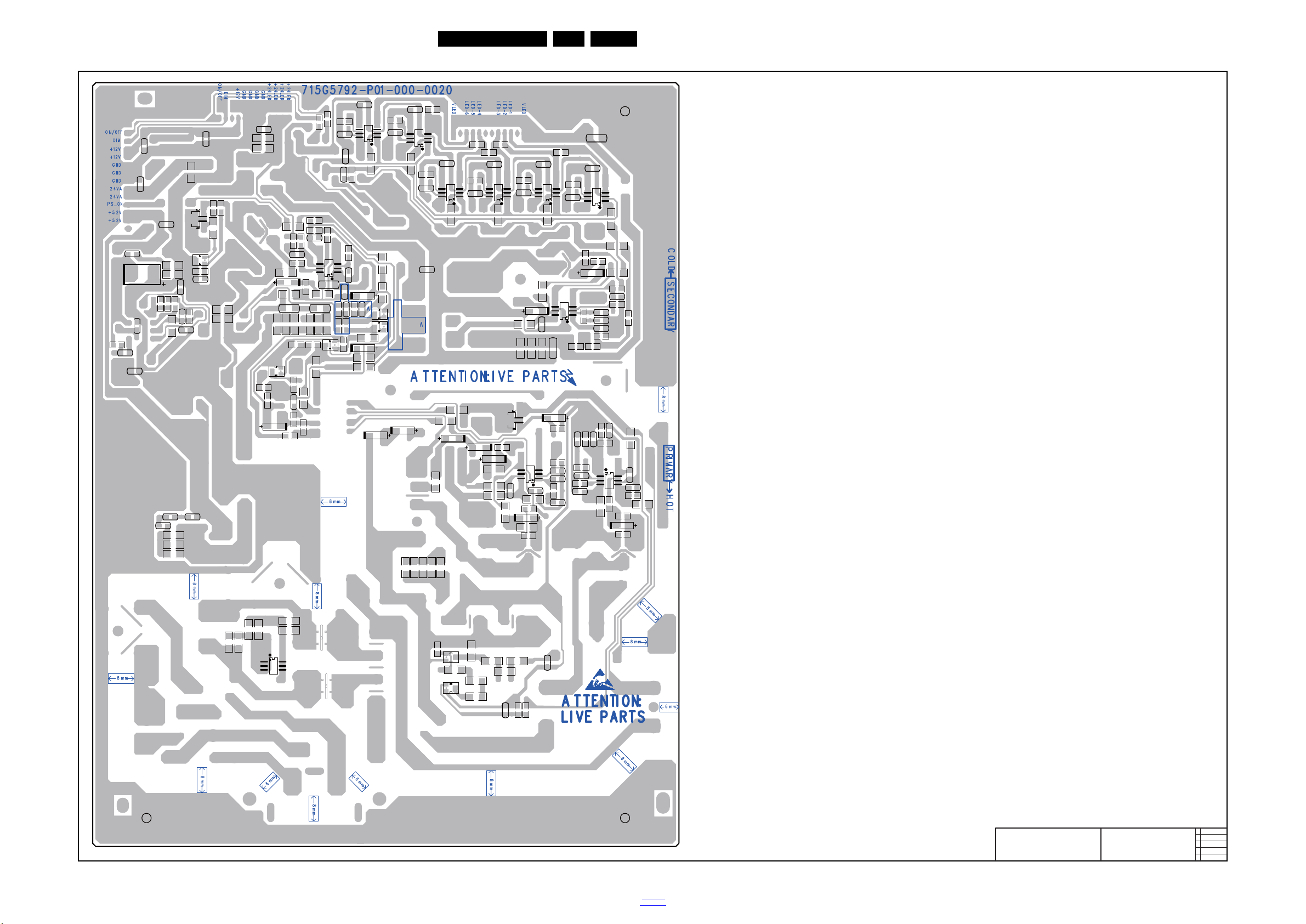

10-2-7 Power layout bottom

19430_510_130115.eps

130115

2013-01-02

A

715G5792

Power layout bottom

C8102

C8105

C8106

C8111

C8113

C8119

C8501

C8502

C8503

C8504

C8505

C8506

C8511

C8512C8513

C8514

C8515

C8516

C9103

C9105

C9106

C9112

C9113

C9115

C9117

C9118

C9121

C9123

C9124

C9125

C9126C9127

C9128

C9130

C9403

C9138

C9142 C9143

C8517

C9401

C9804

C9806

C9807

C9808

C9809

C9810

Q9402

R8141

R8144

R8148

R8154

R8155

R8156

R8157

R8158

R8162

R8163

R8176

R8501

R8502

R8503

R8504

R8505

R8506

R8523

R8522 R8521

R9107

R9108

R9109

R9110

R9112

R9113

R9114

R9115

R9116

R9117

R9118

R9119

R9120

R9121

R9122

R9123

R9124

R9125

R9126

R9128

R9129

R9130

R9131

R9134

R9135

R9136

R9138

R9139

R9140

R9143

R9144

R9145

R9146

R9408

R9158

R9161

R8511

R8512

R9401

R9403

R9404

R9802

R9803

R9804

R9805

R9806

R9807

R9809

R9810

R9812

R9813

R9814

R9901

R9902

R9903

R9405

RJ907

C8518

R8513

RJ904

RJ902

RJ906

RJ901

C9132

R9178

R9340R9341

Q9403

C9141

R9308

R9339

R9406

R9307

Q9305

Q9301

C9803

R9816

R9817

RJ905

RJ911

R8161

RJ903

C9131

RJ912

R9105

R9106

RJ913

RJ914

RJ909

RJ910

RJ908

R9402

C9129

R9133

R9150

R9151

R9162

R9152

IC9106

R9127

R9407

R9132

MH29

MH30

MH31

C9811

R9818

C9133

R9137

R9141

R9904

R9905

R9815

R9819

R9820

R9821

R9822

R9906

Q9802

Q9803

C9134

C9139

R9142

R9147

R9148

C9145

C9146

C9147

C9812

C8114

C8115

R8524R8525

R9823

R9149

R9811

IC8103

IC8501

IC8502IC8503IC8504

IC8505

IC8506

IC9101

IC9151

IC9801

IC9901

R9154

RJ915

R9153

R8147R8145

R9159

R9160

R9101

R9102

R9103

R9163

MH40

MH39

MH41

MH42

D8118

D9102

D9113

D9803

ZD8103

ZD9401

ZD9101

ZD9102

ZD9106

ZD9104

ZD9105

ZD9103

D9104

ZD9107

Q9104

Q9401

D9107

Circuit Diagrams and PWB Layouts

EN 63L12M3.1L LA 10.

2013-Jun-21

back to

div. table

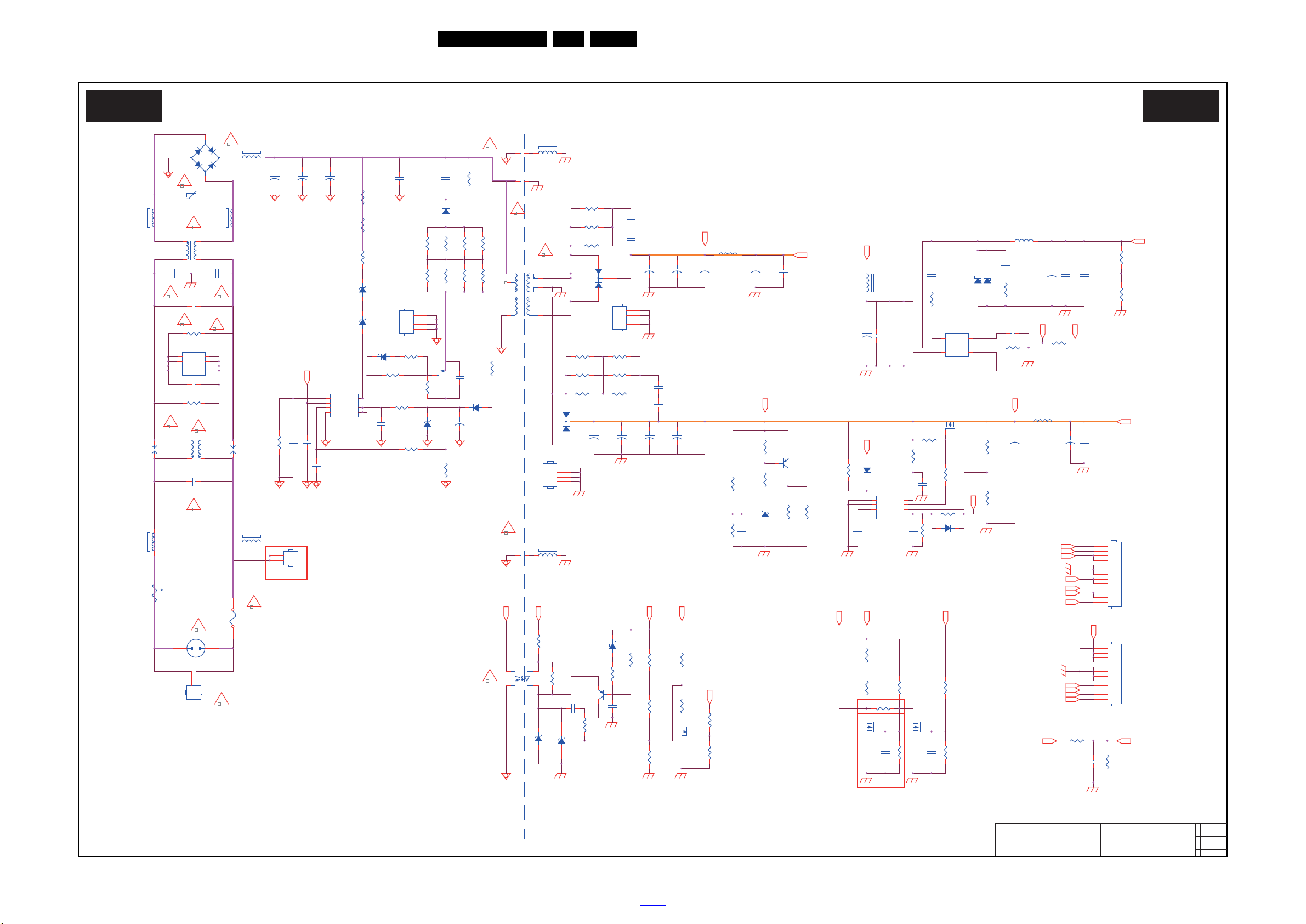

10.3 A 715G5793 PSU

19430_511_130114.eps

130114

Power

A01 A01

2012-12-07

C

715G5793

Power

+24V

C9161 220NF 50V

FB9901

127R

1 2

R9107 10K 1/4W

Q9107 AOD409

C9355

0.1uF 50V

+12V1

FB_1

R9165

82KOHM +-5% 2WS

!

R9164

82KOHM +-5% 2WS

-

+

BD901

TS6B06G-05-X0

2

1

3

4

R9356

33K OHM

!

C9104

2.2NF

R9115

56R

R9163

20K 1/8W 1%

R9118

56R

Q9372 2N7002K

R9375 NC

C9132 1uF 50V

C9352 1UF

C9158 100N 50V

HS9251 HEAT SINK

1 2

3

4

R9122

120 OHM

R9120

120 OHM

C9155 100N 50V

R9121

120 OHM

HS9101 HEAT SINK

1 2

3

4

P_Scan

+12V1

P_Scan

C9902 220NF 305V

R9339

6.8KOHM +-1% 1/8W

PS_ON

!

C9910

220PF 250V

C9110 NC

R9377 10K OHM +-5% 1/8W

Q9301 2N7002K

DV5

C9901 220NF 305V

C9159 1NF 500V

C9160 1NF 500V

IC9151 AS431AN-E1

RV9901

TVR14561KFAOZF

HOT COLD

R9901 390K

R9341 100KOHM +-5% 1/8W

R9111

0.24 oHM 2W

R9172 100R 1/8W 5%

R9340

0R05 1/4W

D9251 FME-210B

1

2

3

C9119 47PF

C9908

1NF 250V

!

T9101 400uH

1

2

3

4

5

8

9

10 11 12

7

IC9101 PF6200

PT

1

FB

2

CS

3

GND4OUT

5

VCC

6

HV

8

C9164 1NF 50V

IC9152

PF8200S

GND

1

GND

2

SS

3

FLAG4EN

5

ADJ

6

GATE

7

VCC

8

FB9906

BEAD

1 2

!

R9903390K

C9907

47pF

HS9151 HEAT SINK

1 2

3

4

IC9901

CAP004DG-TL

NC

1

D1

2

D1

3

NC4NC

5

D2

6

D2

7

NC

8

R9371 20K OHM

C9257 1NF 50V

EN

SG901 DSPL-501N-A21F

R9104 10 OHM

!

L9902 30MH

124

3

D9351 SK84C

1 2

IC9351 NR111D

BS

1

VIN

2

SW

3

GND4FB

5

ISET

6

EN

7

SS

8

C9256 1NF 50V

R9376 10K OHM +-5% 1/8W

C9372

22N 50V

C9359

0.1uF 50V

+

C9103

47UF 450V

R9113

5.1R 1/8W 5%

Q9371 2N7002K

R9374

100K 1/8W 1%

!

L9901 30MH

124

3

Q9104 2SA1797

R9373 100K 1/8W 1%

R9372

100K 1/8W 1%

!

SG902

DSPL-501N-A21F

IC9106

AS431AN-E1

R9251

10K 1/8W 1%

ZD9101 BZT52-B36

1 2

C9357 1UF

D9107

FMX-12SL

1

2

3

R9322 100KOHM +-5% 1/8W

R9258 220 OHM 1/4W

C9255 1uF

R9105 82KOHM +-5% 2WS

R9150

3K9 1/8W 1%

R9257 220 OHM 1/4W

R9168 270K +-1% 1/8W

C9105

2.2NF

+

C9251

470UF 25V

R9102 47K +-1% 1/4W

R9106 47OHM +-5% 1/8W

D9101 SARS01-V1

C9111

100N 50V

IC9102 EL817M(X)

1

23

4

R9101 47K +-1% 1/4W

R9112

0R05

R9145 470R 1/8W 1%

+

C9356

100UF 50V

D9102 SS0520_R1

12

R9169 360K +-1% 1/8W

R9103 47K +-1% 1/4W

t

NR9901

NTCR

1 2

C9131 47N 50V

R9167

0 OHM +-5% 1/8W

R9161

2.43K OHM 1%

R9160

30K 1/8W 1%

R9162

2K 1/8W 1%

+5.2V

C9354

2.2NF 630V

!

+12V1

D9352 NC

1 2

5V_EN

R9354 10R

R9358 11K 1/8W 1%

R9321 100 OHM 1/4W

CN9902 NC/CONN

1

2

FB_1

C9346

10N 50V

!

R9142

1K OHM 1%

R9147 2Kohm 1/4W +/-5%

C9162

100N 50V

+

C9252

470UF 25V

C9353 100N 50V

+

C9254

470UF 25V

L9201 3UH

R9357 100KOHM +-5% 1/8W

!

ON/OFF

D9112 RB160M

1 2

+12V1

PS_ON

R9151

200K 1/8W 1%

D9103 1N4007

CN9102 CONN

1

2

3

4

5

6

7

8

9

10

11

12

+24V1

C9371

100N 50V

+

C9157 330UF 35V

+

C9253

470UF 25V

FB9904

BEAD

1 2

F9901 FUSE

FB9905 BEAD

1 2

!

CN9101 CONN

1

2

3

4

5

6

7

8

9

10

11

12

13

FB9903

127R

1 2

FB9908

BEAD

12

L9301

15uH

!

5V_EN

D9503 1N4148W

FB9907

BEAD

1 2

R9127

56R

R9126

56R

C9358 1UF

+

C9107 22UF 50V

ZD9102 BZT52-B36

1 2

ZD9103 BZT52-B27

1 2

C9906

220PF 250V

C9905

220PF 250V

+5.2V

+12V

DIM

ON/OFF

+24V

DIM

+12V

ON/OFF

R9359 2K 1/8W 1%

!

R9141

100 OHM 1%

+24V1

+12V1

Q9108

PMBS3906

Q9101 STF10N65K3

R9123

120 OHM

R9125

120 OHM

R9124

120 OHM

R9166 100KOHM +-5% 1/8W

C9106 1uF 50V

ZD9152 BZT52-B15

1 2

CN9903 NC

1 2

+12V1

R9173 100KOHM +-5% 1/8W

C9909

220PF 250V

C9351

2.2UF 50V

+

C9350

330UF 25V

+24V2

!

CN9901 SOCKET

12

R9116

56R

R9117

56R

R9171

91KOHM +-1% 1/8W

R9170

4K7 1/8W 1%

+

C9151 330UF 35V

+

C9153 330UF 35V

+

C9152 330UF 35V

R9110

56R

+

C9154 330UF 35V

+

C9156 330UF 35V

D9502 1N4148W

R9108

56R

FB9902

BEAD

1 2

C9163 100N 50V

R9353 22R 1/6W 5%

R9109 220R 1/8W 5%

L9101 3UH

+12V

DV5

!

C9109 22N 50V

R9252

510 OHM +-1% 1/8W

+

C9101

47UF 450V

+

C9102

47UF 450V

!

R9146 1K5 +-1% 1/8W

C9108 220P 50V

R9114

100K 1/8W 1%

R9256 220 OHM 1/4W

10-3-1 A01, Power

Circuit Diagrams and PWB Layouts

EN 64L12M3.1L LA 10.

2013-Jun-21

back to

div. table

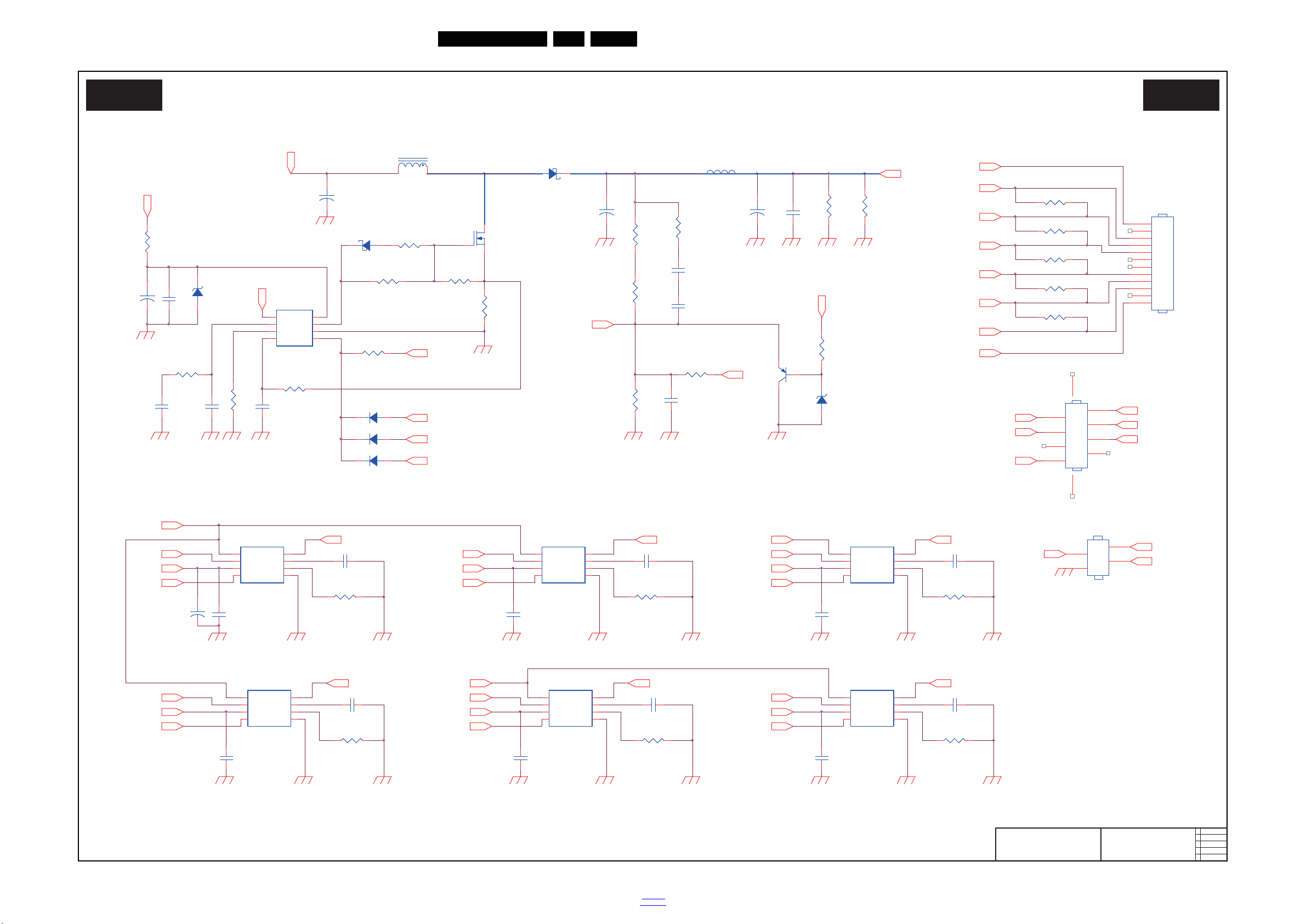

10-3-2 A02, LED Driver

19430_512_130114.eps

130114

LED Driver

A02 A02

2012-12-07

C

715G5793

LED Driver

R8123 10K OHM +-5% 1/8W

R8107 820K 1%

IC8103

PF7700A

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

+24V1

+

C8129

47UF25V

IC8106

PF7700A

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

D8102 SR510-22

1 2

L8101

33uH

8

1

R8117

0.05R

IC8104

PF7700A

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

VLED

R8118

100KOHM +-5% 1/8W

R8127

180K +-1% 1/8W

R8126 1K 1/8W 1%

C8120 1N 50V

IC8105

PF7700A

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

R8134

0 OHM +-5% 1/8W

+12V

COMP

R8119 10K 1/4W

IC8102

PF7700A

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

R8111

NC

C8117 NC

C8118 NC

R8102

12.7 KOHM +-1% 1/8W

R8106

12.7 KOHM +-1% 1/8W

R8101

12.7 KOHM +-1% 1/8W

R8105

12.7 KOHM +-1% 1/8W

FB_2

R8104

12.7 KOHM +-1% 1/8W

R8103

12.7 KOHM +-1% 1/8W

FB_2

C8124

100N 50V

R8120

NC

Q8102 NC

ZD8102 NC

1 2

R8108

750K 1%

IC8107 PF7900S

FB

1

GM

2

RT

3

CS4DIM

5

GND

6

OUT

7

VCC

8

DIM3

DIM2

DIM1

+

C8127

10UF 50V

R8122 100K

R8121 100K

C8122 NC

C8111 470NF 50V

L8102

3UH

+12V

CN8103

CONN

1

2

3

4

R8182 0 OHM +-5% 1/8W

R8184 0 OHM +-5% 1/8W

R8181 0 OHM +-5% 1/8W

LED5

LED3

LED1

LED2

LED4

R8183 0 OHM +-5% 1/8W

R8185 0 OHM +-5% 1/8W

ZD8101 NC

1 2

DIM1

C8126 1N 50V

DIM2

DIM3

DIM

R8110

120KOHM +-1% 1/8W

CN8101

CONN

1

2

3

4

5

6

7

8

9

10

11

12

+

C8132 220UF 100V

+

C8108 150UF 35V

+12V

+12V+12V

+12V

R8125

2R2 +-5% 1/8W

D8101

SS0520_R1

12

R8124 22 OHM 1/8W

C8123

100N 50V

VLED

CN8102 NC

1

2

3

4

5

6

7

8

910

C8128

2.2NF 630V

EN

VLED

C8101 470NF 50V

LED6

COMP

C8105 470NF 50V

COMP

C8115 470NF 50V

LED2

LED3

LED6

R8109

120KOHM +-1% 1/8W

LED5

LED3

C8112 470NF 50V

LED1

C8114 470NF 50V

EN

C8102 470NF 50V

LED4

COMP

+12V

LED1

LED4

C8104 470NF 50V

LED2

COMP

Q8101

AOD4126

EN

VLED

EN

C8103 470NF 50V

IC8101

PF7700A

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

COMP

EN

C8113 470NF 50V

LED5

EN

C8116 470NF 50V

C8106 470NF 50V

+

C8125 47UF 100V

D8111 1N4148

D8112

1N4148

D8113

1N4148

DIM3

DIM2

DIM1

Circuit Diagrams and PWB Layouts

EN 65L12M3.1L LA 10.

2013-Jun-21

back to

div. table

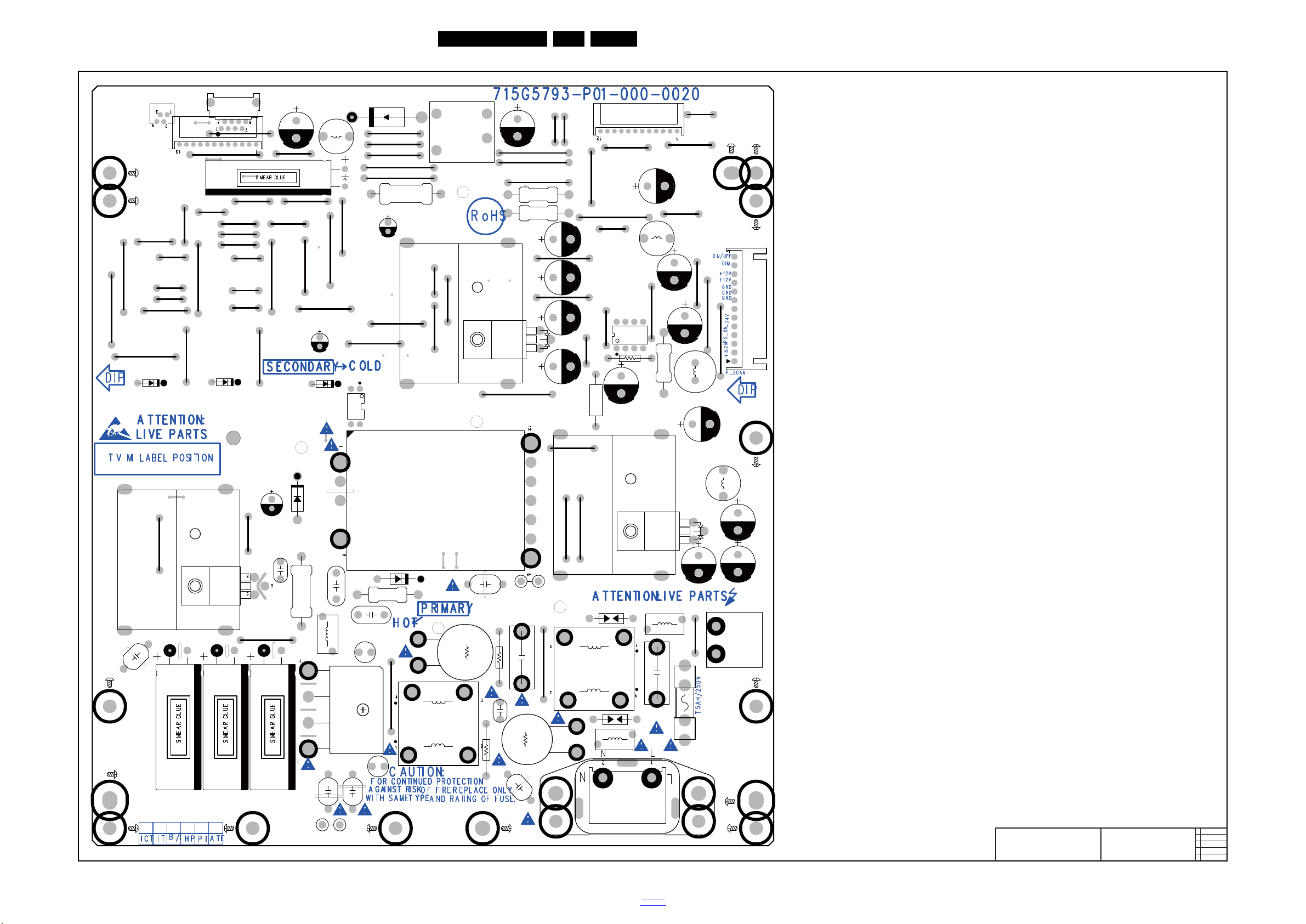

10-3-3 Power layout top

19430_513_130115.eps

130115

2012-12-07

C

715G5793

Power layout top

D8102

D9103

IC9102

R9105

R9164

R9165

J9165

C9101 C9102 C9103

J8147

J9162

J9151

J9164

J9160

J9161

J8135

J9117

J9104

J8140

J8142

J8143

J8121

J8118

J8126

J8127

J8119

J8123

J8136

J8137

J9135

J9148

J8113

J8138

J9149

J8133

J8129

J8125

J9130

J8110

J9116

J9120

J9145

J9144

J9158

J8131

J8132

J8155

J9157

FB4

J9154

J9163

J8156

J9134

J8101

D8112

D8111

D8113

J8114

J9159

J8102

J9153

C9119

C9107

J8122

J8141

J9106

J8134

J8130

J8109

J8152

R9354

J9146

J9124

J9103

J9139

J9150

J8106

J8139

J8104

J8105

J9112

J8111

J8115

J8128

J9102

T9101

M10

M11

M12

FB6

FB7

FB8

R1

R2

R3

FB9

M13

FB1

M14

M19

C8108

C8125

C8127

C8129

C9104

C9105

C9252

C9356

C9253

C9254

C9907

C9908

C9910

CN8101

CN8102

CN9102

CN9101

CN9902

FB9904

FB9905

IC9351

L8102

L9301

Q9101

R8117

R9111

SG901

SG902

R9901

R9903

C9157

C9251

C9151

C9152

C9153

C9154

C9156

D9251

C9350

FB9906

FB9902

M4

M1

M2 M3

M5

M6

M7

M8

M9

FB9901

CN9903

CN9901

C8132

FB9908

FB9907

C9905

C9906

C9909

L9101

L9201

FB9903

R9353

D9107

M17

FB2

FB3

M18

M15 M16

D9101

L8101

F9901

CN8103

BD901

L9902

L9901

RV9901

NR9901

HS9151

HS9101

HS9251

C9901

C9902

Circuit Diagrams and PWB Layouts

EN 66L12M3.1L LA 10.

2013-Jun-21

back to

div. table

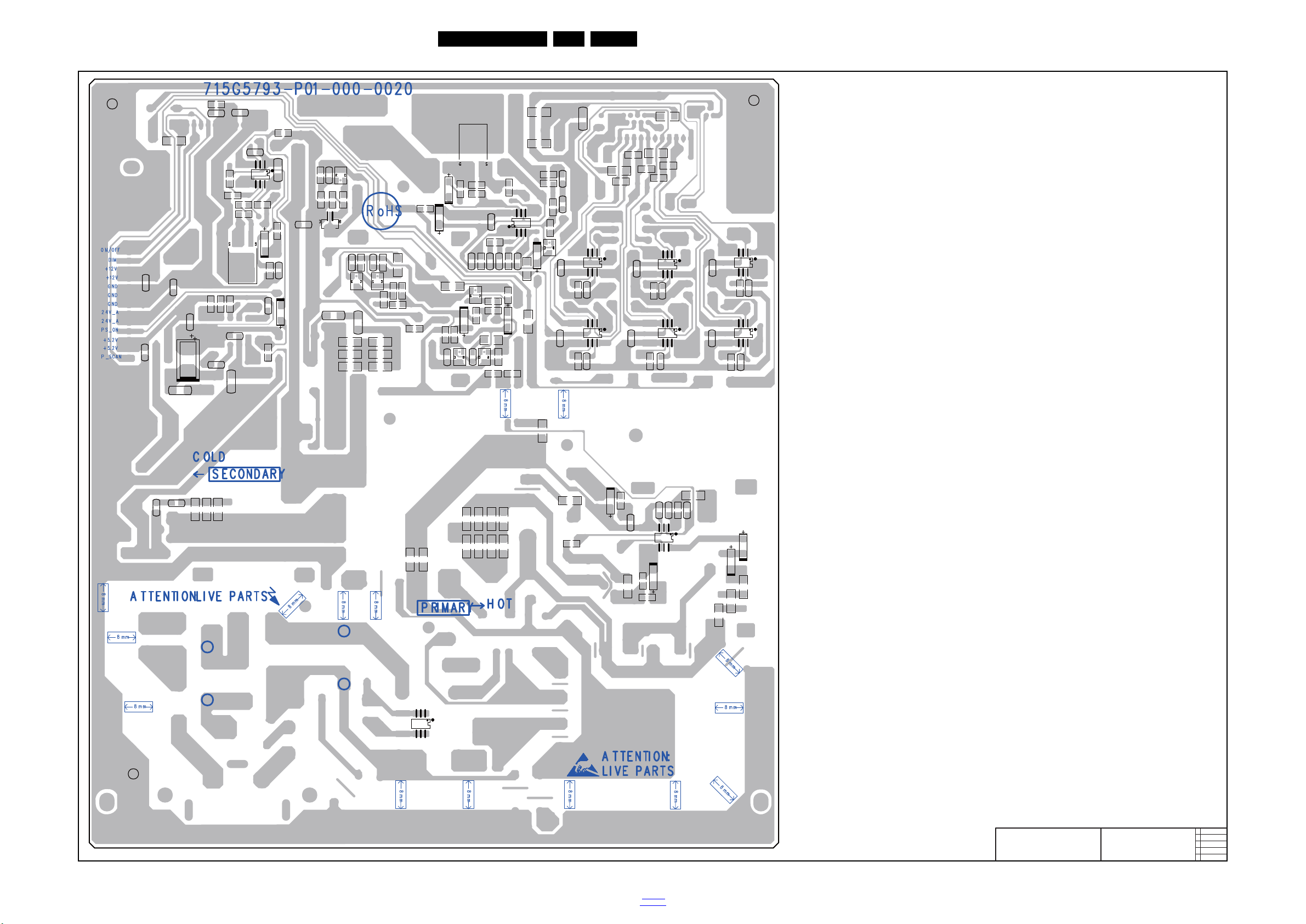

10-3-4 Power layout bottom

19430_514_130115.eps

130115

2012-12-07

C

715G5793

Power layout bottom

C8101

C8102

C8103

C8104

C8105

C8106

C8111

C8112

C8113

C8114

C8115

C8116

C8120

C8122

C8123

C8124

C8126

C9106

C9108

C9109

C9110

C9111

C9131

C9155

C9353

C9354

C9255

C9357

C9346

C9158

C9355

C9256

C9257

C9161

C9162

IC8107

IC9106

IC9151Q9108

R8101

R8102

R8103

R8104

R8105

R8106

R8107

R8108

R8109

R8110

R8118

R8121

R8122

R8123

R8124

R8125

R8127

R8134

R8181

R8182

R8183

R8184

R8185

R9101

R9102

R9103

R9104

R9106

R9109

R9112

R9120

R9121

R9122

R9141

R9142

R9145 R9146

R9147

R9160

R9161

R9162

R9163

R9167

R9168

R9169

R9170

R9171

R9356

R9358

R9359

R9322

R9150

R9251

R9256

R9257

R9258

JR9101

R9107

C9371

C9372

R9339

R9341

R9372

R9373

R9374

R9375

R9376

R9371

Q9301

Q9371Q9372

C9351

C9163

R9108

R9110

R9151

R9377

R9321

R8126

R9113

R8119

R9166

IC8106

IC8104

IC8101

IC8102 IC8103

IC8105

IC9901

IC9152

R9340

C9159

C9160

C9164

R9114

R9173

R9116

R9117

JR8102

C8128

JR8103

C9358

R9252

R9357

C9132

C8117C8118

C9352

R8111

R9172

R9115 R9118

Q8102

JR8104

R9125

R9124

R9123

JR9102

JR9103

JR9104

R9126R9127

R8120

D8101

D9102

D9112

D9502

IC9101

Q8101

Q9107

ZD8101

ZD9152

S5

S6

D9352

D9351

ZD9102

ZD9101

ZD8102

ZD9103

S7

Q9104

D9503

Circuit Diagrams and PWB Layouts

EN 67L12M3.1L LA 10.

2013-Jun-21

back to

div. table

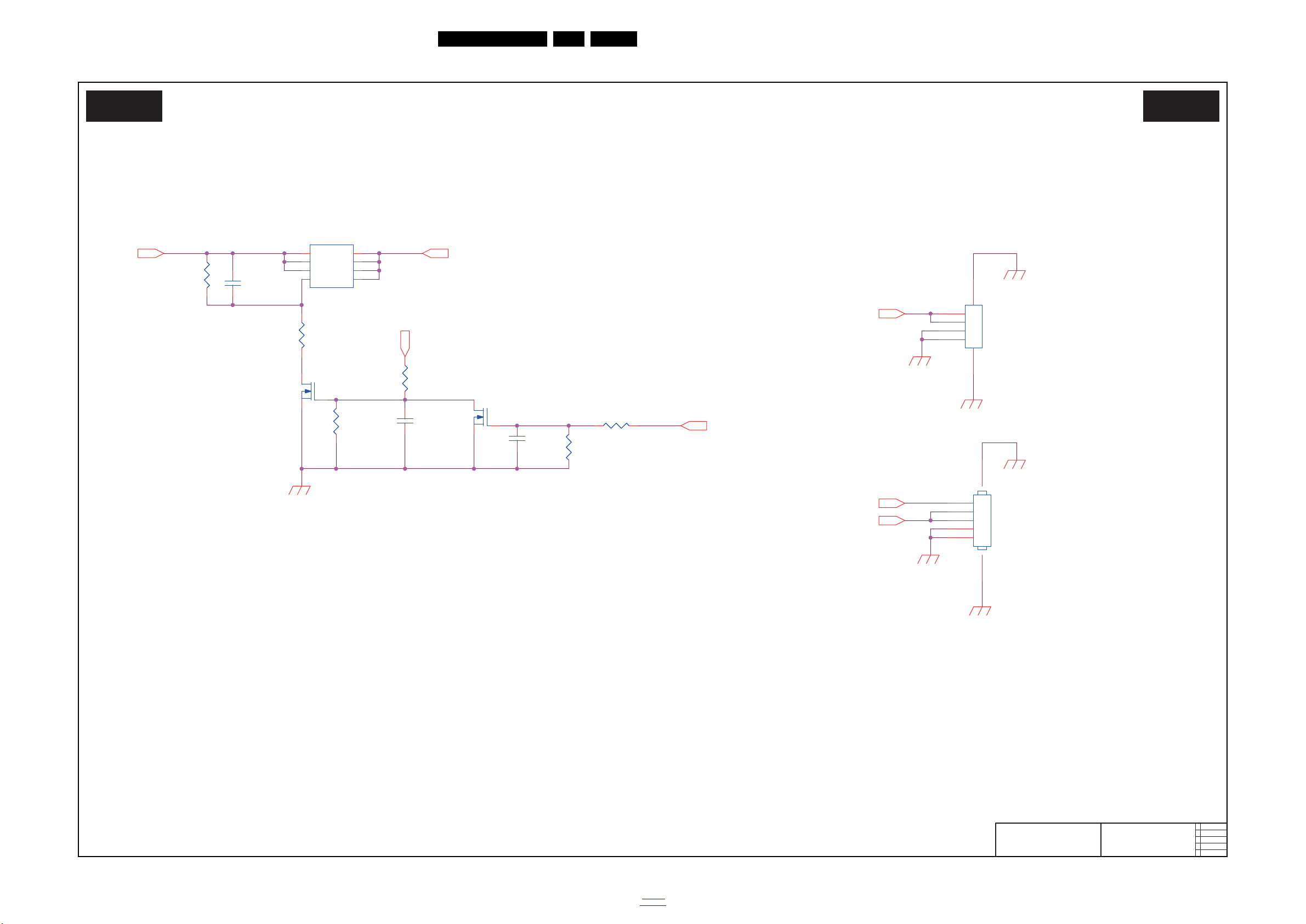

10.4 ALC 715G6001

19510_534_130424.eps

130424

Option Board

ALC ALC

2012-07-23

C

715G6001

Option Board

12V

12VO

PS-On

12V

PS-On

12VO

12V

RST Chips 0805

SMT R/A CONN

R8104 150K 1/8W +/-1%

R8102 10K 1/8W 1%

Q8102

2N7002K

Q8102

2N7002K

C8102 100N 50V

C8103 100N 50V

CN8103

CONN

CN8103

CONN

1

2

3

4

5

6 7

R8101

22K 1/8W 1%

R8101

22K 1/8W 1%

C8101 100N 50V

Q8103

2N7002K

Q8103

2N7002K

Q8101

AO4449 -7A/-30V

Q8101

AO4449 -7A/-30V

S

1

S

2

S

3

G

4

D

8

D

7

D

6

D

5

CN8102

CONN

CN8102

CONN

1

2

3

4

5 6

R8105

100K 1/8W 1%

R8105

100K 1/8W 1%

R8103

100K 1/8W 1%

R8103

100K 1/8W 1%

R8106 20K 1/8W 5%R8106 20K 1/8W 5%

10-4-1 Option Board

Circuit Diagrams and PWB Layouts

EN 68L12M3.1L LA 10.

2013-Jun-21

back to

div. table

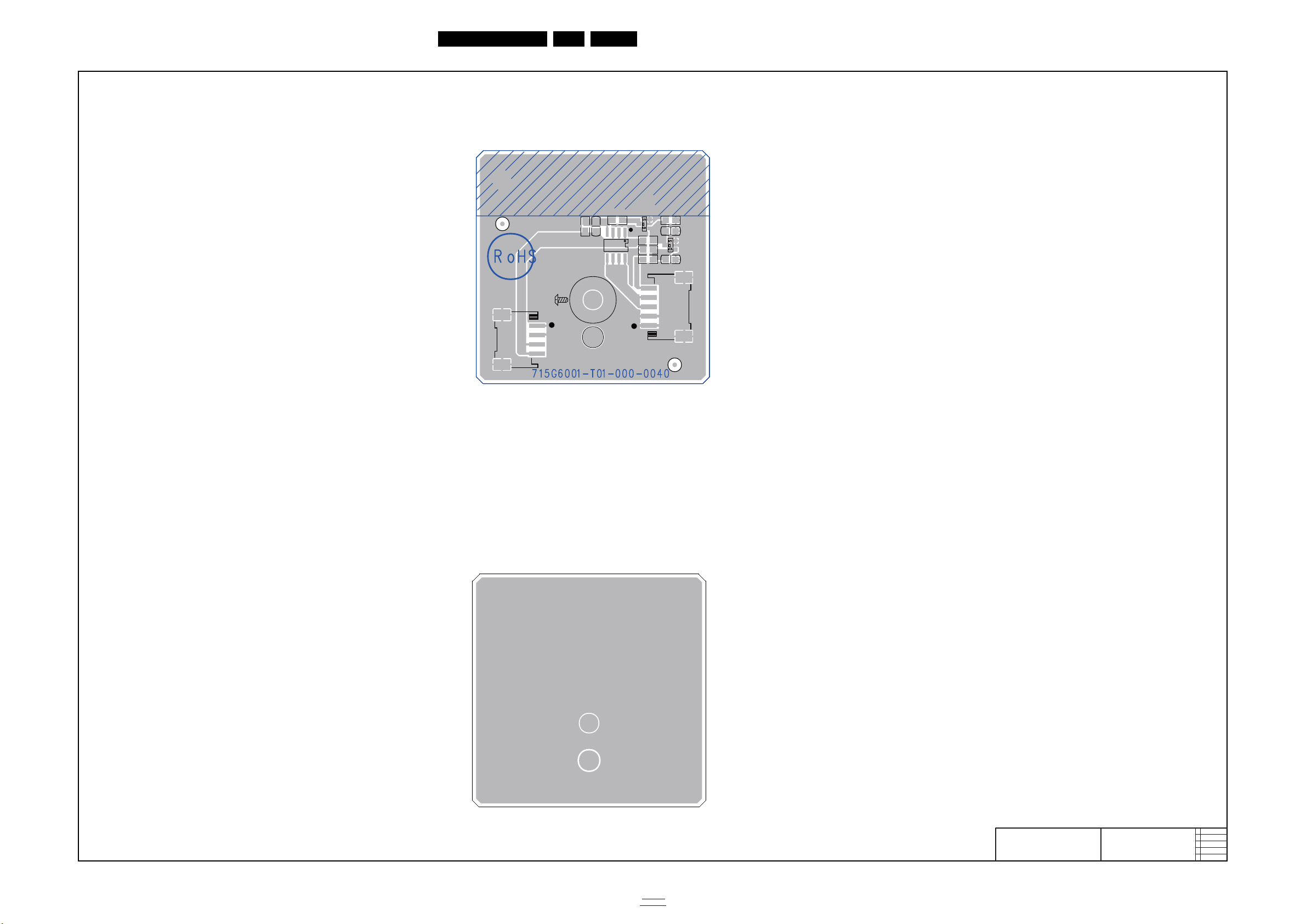

10-4-2 Option board layout

19510_535_130424.eps

130424

2012-07-23

C

715G6001

Option board

layout top/bottom

C8101

C8102

C8103

R8101

R8102 R8103

R8104

R8105

R8106

MH1

H1

Q8101

Q8102

Q8103

CN8102

CN8103

FD2

FD1

Layout Option Board (top side)

Layout Option Board (bottom side)

Circuit Diagrams and PWB Layouts

EN 69L12M3.1L LA 10.

2013-Jun-21

back to

div. table

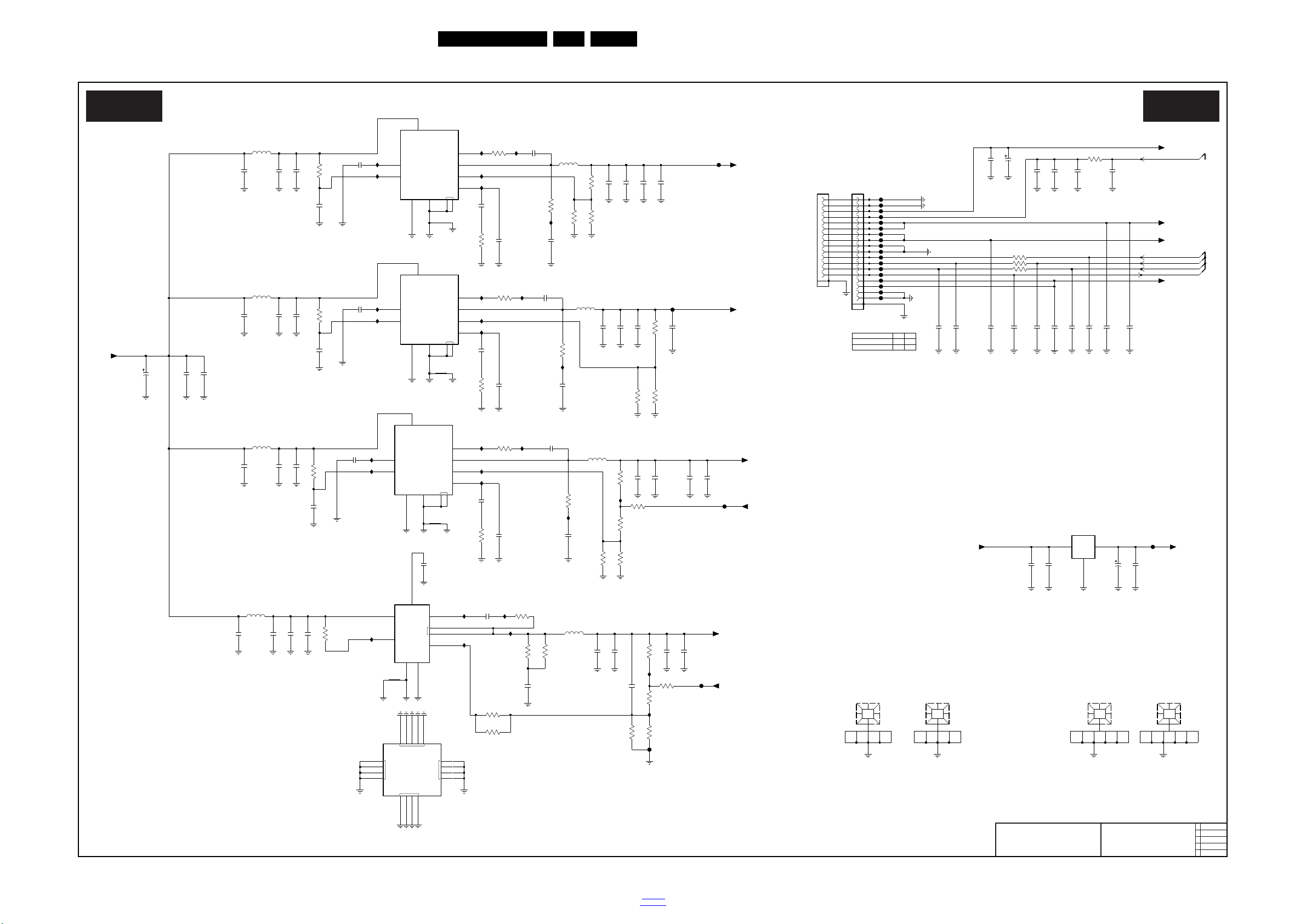

10.5 313912365441 SSB

19510_500_130411.eps

130411

DC-DC

B01A B01A

2013-01-11

1

3139 123 6544

PCB SB SSB

MT5396 R2 LATAM 2K13

FB

SS

EN

BOOT

VIA

VIN

SW

COMP

GNDGND_HS

SW

BOOT

EN

VIN

GND

GND HS

VCC

FB

SS

EN

BOOT

VIA

VIN

SW

COMP

GNDGND_HS

FB

SS

EN

BOOT

VIA

VIN

SW

COMP

GNDGND_HS

VIA

COM

OUTIN

12V/5V CONVERSION

*

0R

ROUND 4.02mm SCREW HOLE

No

SLOT SCREW HOLE 4.02X5.0

3V3/1V2 CONVERSION

*

12V/1V5 CONVERSION

*

Yes

0R

No

Yes

*

12V/3V3 CONVERSION

Non TM100 Panel TM100 Panel

12V/1V1 CONVERSION

3127

0R

2133

F113

I155

3104

100K

10u

2192

F131

+VSND

SS4_GND

SENSE_1V5_DDR

10R

3118

RES

1R0

3109

5

4

9

83

10

11

2

RT7297AHZSP

Φ

STEP DOWN

1

6

7

SS4_GND

7116

RES

2115

22u

2126

RES 2165

10n

5

6

8

9

2

3

7

1

7110-1

RT8288AZSP

4

RES 2188

100n

F133

22u

2105

1%

F127

3111

15K

1R0

3115

2

3

4 5 6 7

8

9

1516

1

10 11 12 13 14

1M88

SMAW200-H14SF

2166

100n

2112

10u 16V

F114

SS2_GND

2157

10n

100n

2122

2182

22u

SS2_GND

33K

3130

REF EMC HOLE

1X01

10u

2191

2183

22u

I138

100n

RES

2172

2175

SS1_GND

470p

SS2_GND

RES

2119

470p

22u

2114

SS3_GND

10u

REF EMC HOLE

1X05

2123

2u0

5107

I134

3119

10K

RES

2116

22u

1%

SS3_GND

10K

3112

RES 2121

10n

RES 2108

10n

100p

2127RES

RES

11

2

22u

2148

STEP DOWN

1

6

75

4

9

83

10

RT7297AHZSP

7118

Φ

2111

10u

RES

F106

100n

2143

8

9

1920

I152

16 17 18

2

3

4 5

6 7

1M89

1

10 11

12 13 14 15

10u

SMAW200-H18S2

2131

F132

I149

10u

2110

F102

330K

3121

1n0

2137

RES

+1V1_SW

I106

I150

+3V3STBY

+12VS

+3V3_SW

I157

SS2_GND

SS1_GND

I135

RES

2124

10u

12K

3107

F115

RES

I154

22u

2147

33R

5106

SS1_GND

10u

5100

1X04

REF EMC HOLE

I144

F121

I158

100n

GND_AMBI

2100

5105

33R

1%

4K7

3105

5104

3u6

+5V_SW

3n3

2120

2179

100n

2101

10u

2118

22u

RES

3116

100K

I132

5102

10u

GND

SS2_GND

SS1_GND

RES

1M0

3169

2174

100n

RES

2167

220n

2

2104

22u

6

75

4

9

83

10

11

RT7297AHZSP

7117

Φ

STEP DOWN

1

100n

I143

2113

I159

RES

10u

2196

RES

2146

10n

5103

33R

2155

22u

RES

3123

SS2_GND

10u

2177

68R

3129

2145

10R

3110

RES

1n0

I139

I140

I127

SS2_GND

100p

2134

SS3_GND

16V

10u

2102

3122

18K

1%

SS1_GND

F103

F126

I153

1%

1K5

3106

RES

100n

2187

1%

3114

2K2

F107

68R

F120

3126

100n

2154

+1V2_SW

2107

3n3

F128

I145

100n

2109

F123

RES

2170

22u

RES

2133

100p

2184

1n0

SS3_GND

22u

2171

RES

470p

RES

2106

2189

100u 16V

100K

3108

RES

15K

3120

10R

3137

REF EMC HOLE

1X02

SS3_GND

GND_AMBI

39K

3168

33R

5101

+12V_AMBI

F108

I151

2156

2176

10u

6.3V22u

RES

3167

22R

I156

22u

2168

100p

2132

I118

I119

2117

100K

3100

+1V5_SW

22u

F134

220n

2194

RES

1

3 2

3117

LD1117DT12

7113

8K2

F119

3113

12K

100K

3170

68R3127

3163

F130

18

2193

220n

23

242526

11 12 13

141516

17

7110-2

RT8288AZSP

10 19 20 21

22

SS1_GND

68R3128

RES

22R

3133

3103

3146

RES

10R

2197

220u 6.3V

RES

I147

3n3

2164

SENSE_1V1_MT5396

I146

100p

F122

RES 2128

SS3_GND

2K2

3131

1%

SS3_GND

F101

100n

2103

I122

1K0

3162

+3V3_SW

1%

F129

I120

2178

10u

2169

22u

1R0

3102

2180

1n0

RES

100n

2198

RES

2125

10u 16V

1n0

2136

F118

10n

2185

SS1_GND

+12VS

I136

POWER_OK

PWM-DIMMING

BL_ON_OFF

BACKLIGHT-BOOST-A

STANDBY

10-5-1 B01A, DC-DC

Circuit Diagrams and PWB Layouts

EN 70L12M3.1L LA 10.

2013-Jun-21

back to

div. table

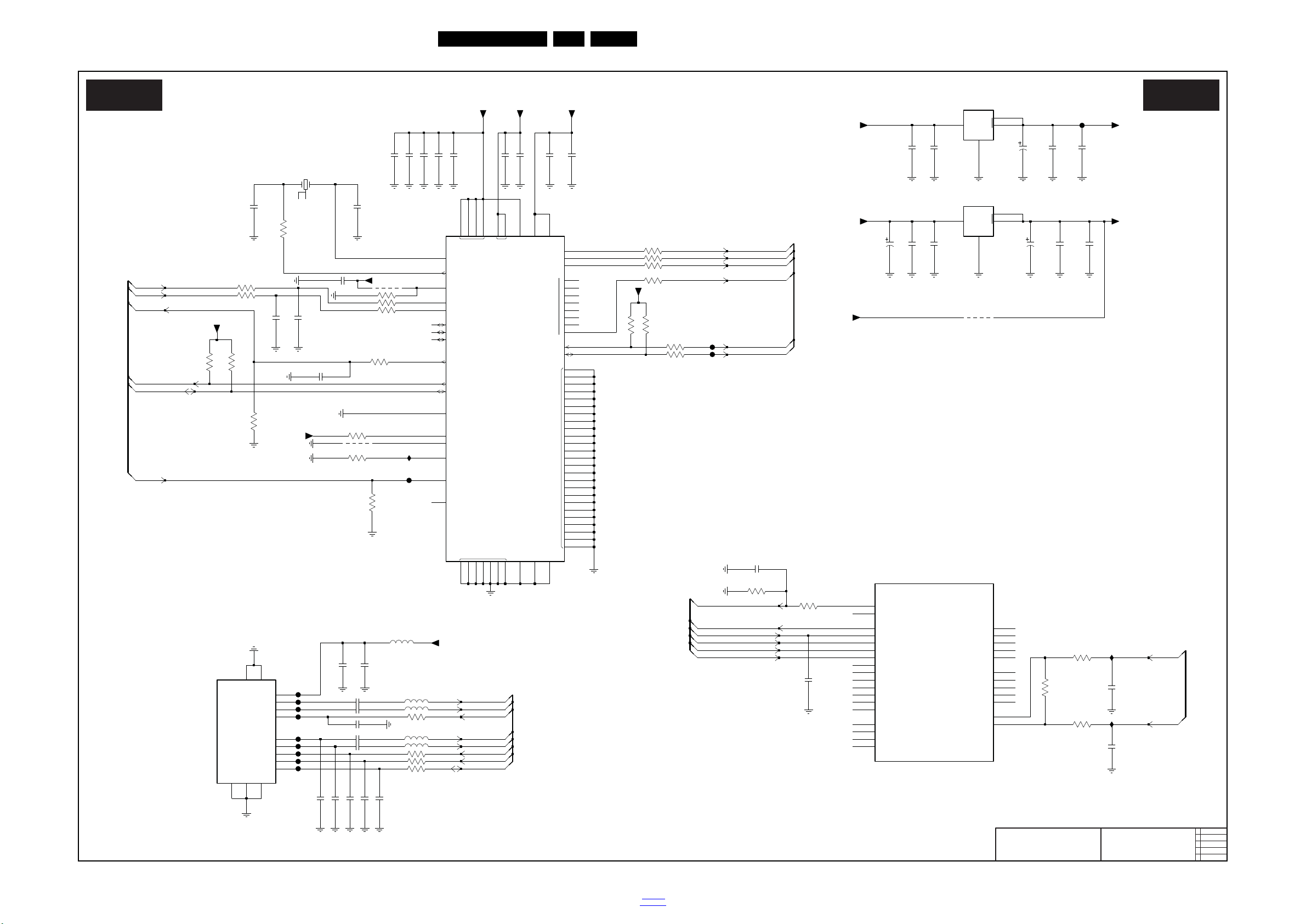

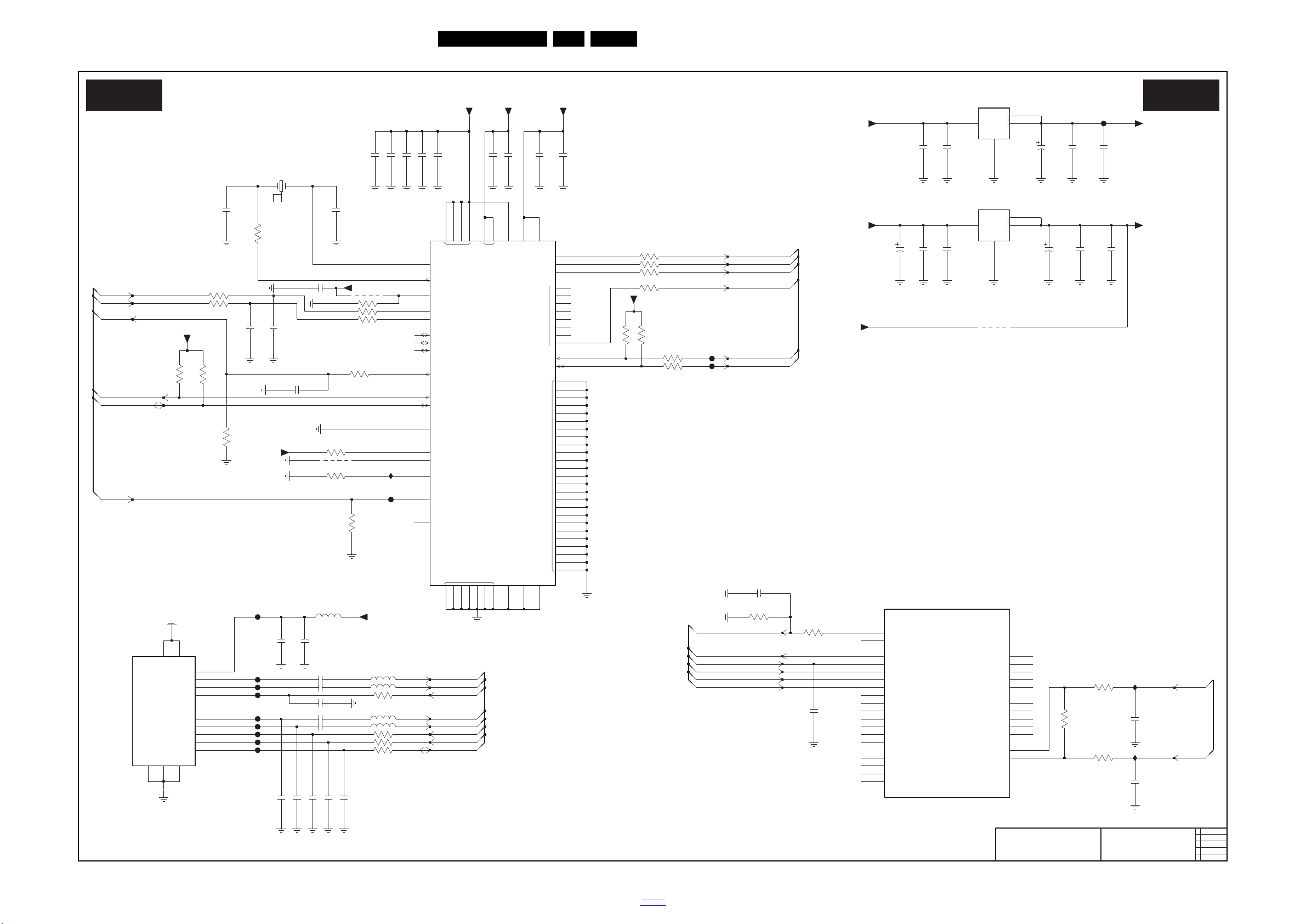

10-5-2 B02A, Tuner & demodulator

19510_501_130411.eps

130411

Tuner and demodulator

B02A B02A

2013-01-11

1

3139 123 6544

PCB SB SSB

MT5396 R2 LATAM 2K13

XTALSEL

XVSS

TAVSS

GND_HS

XVDD

TAVDD

PVDD

OSCMODE

4

3

XTALI

DVDDCVDD

VSS

5

TSDATA

SDA

VIA

TSCLK

TSVALID

TSSYNC

0 1 2

RST_X

OSCEN_X

SLVADR0

TESTMODE

TTUSDA

TTUSCL

TIFAGC

GPIO2

6 7

SCL

XTALO

TAINP TAINM

SLVADR1

GPIO0 GPIO1

COM

OUTIN

ADCINP_DEMOD

RF_AGC

DEMOD_RST DEMOD_TSCLK DEMOD_TSVAL DEMOD_TSSYNC DEMOD_TSDATA0 DEMOD_TSDATA1 DEMOD_TSDATA2 DEMOD_TSDATA3 DEMOD_TSDATA4 DEMOD_TSDATA5 DEMOD_TSDATA6 DEMOD_TSDATA7

CI_TSCLK CI_TSVAL CI_TSSYNC CI_TSDATA0

IF_AGC

PVR_TSCLK PVR_TSVAL

PVR_TSSYNC PVR_TSDATA0 PVR_TSDATA1

SPI_CLK

SPI_CLK1

SPI_CLE

SPI_DATA

CI_INT

ADCINN_DEMOD

COM

OUTIN

MT5396

0R

+3V3_TUN

47n

2246

47p

2245

+3V3_TUN

F207

2216 100n

1%

2K2

3213

4202RES

3214

F208

4K7

RES

223547p

A210

100n2210

82p

2205

3222

150R

35

34

42

33

36

55 56 57 58

6

11

182327

31

43

68

51

69 70 71 72 73 74

52 53 54

50

59 60 61 62 63 64 65 66 67

9 12 13 14 15 16 17

3

4

46 45

41

37

38

40

39

24

48

5

8

1 47 2

26

30

32

29

20 21

25

7210

10

22

28447

19

49

CXD2828ER

22u

2229

RES

RES4201

47R

3227

4u7

5200

+3V3_SW

LD1117S25

7220

1

3

2 4

F211

33R3210

10K

3223

100R3225

F202

2215

100n

1K03203RES

3224 100R

RES 2226

10u

5201 1K0

3204

3K3

100n2211

2204

82p

47p

2236

3212

RES

3228

2K2

1%

22K

22R3 6

3

2 4

3211-3

LD1117S33

7216

1

I206

47R

3201

100n

+5V_SW

2207

3229 4K7

+2V5_SW

1K05202

2221 22p

U35

R34

P33 P34

R33

R32

U34

N35

P35 N37

N34

T36 U36 T33 T30 V33 V32 V31 V30

T35

T31

AT32

AU32

N36

T37

R35

R37

R36

T34 T32

+3V3_SW

7300-7

DEMOD_IF

100n2206

F200

A209

47R3232

47u

2217

+5V_SW

+3V3_SW

3208

1u02239

2208 100n

3207 1K0RES

3

2218

100n

41M

1205

2

4

1

3217 15R

323147R

+3V3_SW

2233 10n

3226 47R

+2V5_SW

100n2209

47R

2248 100n

3202

2200

RES

8p0

6.3V22u

2230

F206

16

3205

3K3

11

3

IF1_N

2

IF1_P

IF2_N

8

7

IF2_P

12

13

14

15

1

A3.3V

4

AGC1

9

AGC2

I2C_SCL

10

I2C_SDA

TUNER

SUT-RA214ZN

1201

100n

2227

RES

15R3218

2240 1u0

1u02220

+3V3_SW

2224

RES

6.3V

330u

2249

1 8

100n

22R3211-1

2231

100n

RES

2228

100n

RES

1K0

3200

4203

2219 1u0

3211-2 2 7 22R

8p0

2201

+1V2_SW

3230

22K

10K

3206

A204

100n

2214

5203 1K0

2225

10u 16V

2213 100n

1K05204

2244

47p

F212

I208

F213

A205

RES 2247

10p

223410n

I207

2223

22u

RES

F203

22p2222

10u

2232

RES

+3V3_SW

3209

4K7

DEMOD_SDA

IF_AGC1

IF1_P

IF1_N

IF2_P

IF2_N

DEMOD_SCL

IF_AGC2

TUNER_SCL

TUNER_SDA

IF_AGC2

IF_AGC1

DEMOD_TSCLK

IF1_P

IF2_P

IF1_N

IF2_N

DEMOD_RST

TUNER_SDA

TUNER_SCL

DEMOD_TSDATA7

DEMOD_TSSYNC

DEMOD_TSVAL

DEMOD_TSCLK

DEMOD_TSSYNC

DEMOD_TSVAL

Circuit Diagrams and PWB Layouts

EN 71L12M3.1L LA 10.

2013-Jun-21

back to

div. table

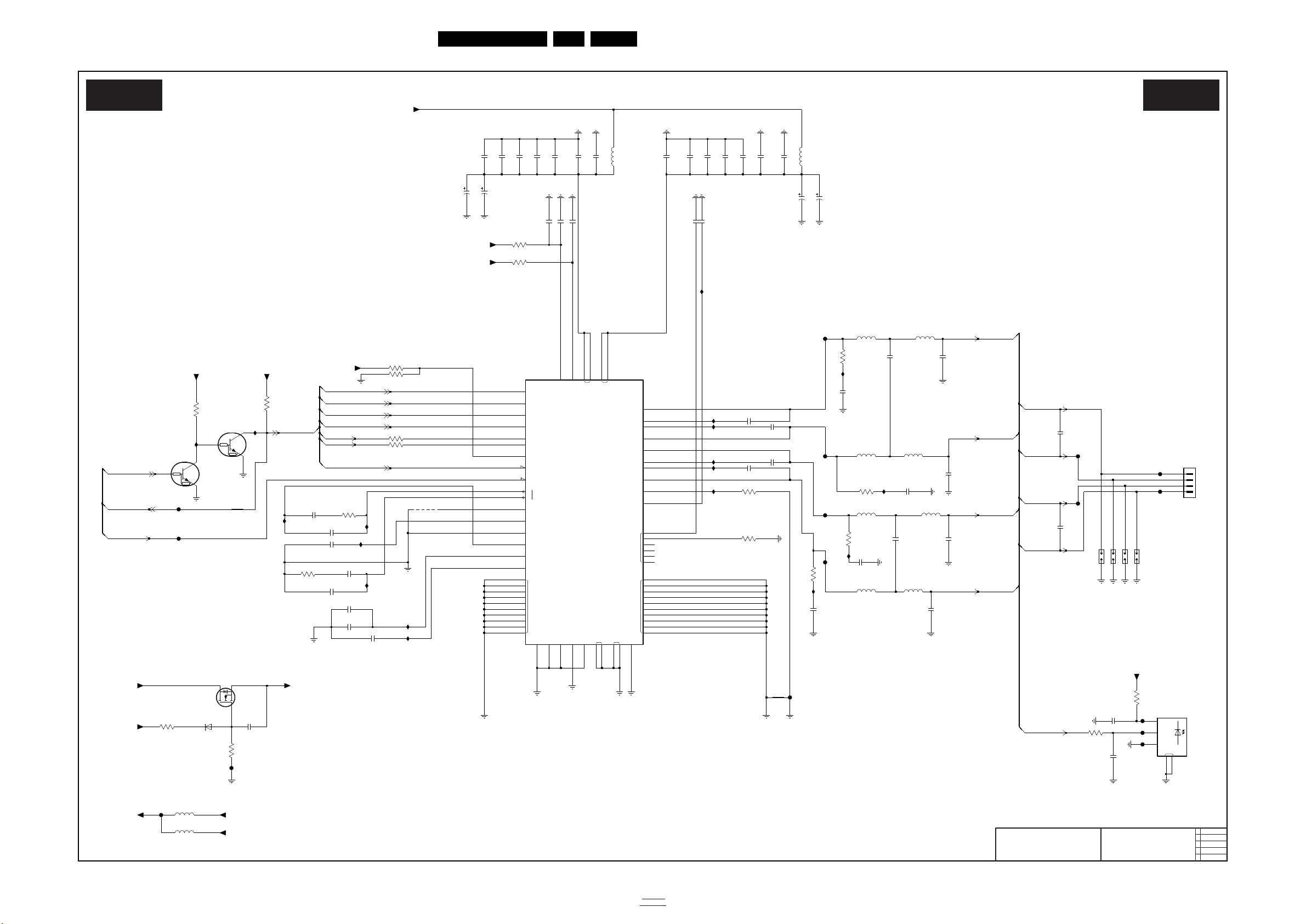

10-5-3 B03A, Class-D & muting

19510_502_130411.eps

130411

Class-D & muting

B03A B03A

2013-01-11

1

3139 123 6544

PCB SB SSB

MT5396 R2 LATAM 2K13

SCL

PLL_FLT

VIA

PVDD_AB

PVDD_CD

PGND_AB

PGND_CD

NC

VIA

DVDD

AVDD

OUT_A

BST_A BST_B

OUT_B

OUT_C

BST_C BST_D

OUT_D

OSC_RES

GVDD_OUT

AGND

AVSS

DVSS

DVSSO

GND

GND_HS

A_SEL

RESET

PDN

P M

PBTL

SSTIMER

STEST

VR_ANA

VR_DIG

VREG

LRCLK

SCLK

MCLK

SDIN

SDA

MT

Left+

*

Left-

**

Right-

Right+

*

**

*

SPDIF

10u

2435

220n

2436

RES

470R

3406

100n

2427

+3V3D

220n

2413

3409

18R

I425

F414

F418

2

6

1

1403

PUMH2

7401-1

2465 RES

10u

2462 33n

F404

3400

47K

F409

+3V3_SW

RES2434

10u

312

7402 SI2304

+3V3STBY

I424

3404

15K

100n

2460

30R

5404

18R

3410

GND_PLL

10u

2438

+3V3D

RES

2464 1u0RES

10u

5403

10u

5401

I409

30R

5414

2401

47n

30R

10u

2433

5408

RES

100n

2424

I420

F408

10u

2405

12

18

5406

30R

51

69

52 53 54 55 56 57 58

31

50

59

60 61 62 63 64 65 66 67 68

2

3

34

35

25

24

21

23

22

6

26

36

8

19

47

48

37

38

10

11

5

7 40 41 44 45

16

1

46

39

43

42

33

27

281729

49

32

20

15

30

13

9

14

4

+3V3D

7400

TAS5731PHP

2437

220n

100n

2417

3405

470R

RES

10u

2432

330p

2419

I421

I413

F417

I411

3401

10K

RES2466

10u

I404

+12VS

2418

100n

+VSND

I408

2416

10n

100n

2406

2463 10u

100n2428

5400

F405

10u

5402

10u

18R

3418

1K0

3426

2443

220n

4401

RES 5417

30R

2421

330p

F402

47R3403

I423

+3V3D

1402

I406

RES

I407

3420 22K

10K

3427

2439

10u

RES

I405

+3V3_AUDIO

F403

F407

220n

2442

330p

2420

3419 15KRES

RES

10u

2440

330p

I414

+3V3_AUDIO

2412

2411 1u0

10u

I410

RES2441

3402 47R

+3V3D

1404

2475

2474

100u 25V

25V100u

1R0

3412

25V

100u

2477

2476

100u 25V

I412

F410

F406

I415

F401

2407

100n

33n2410

18K23407

30R

5405

3

GND

45

VCC

2

VIN

1

3417

1R0

1D03

1D01

2041145-4

1 2

3

4

GND_PLL

2n22404

2429 100n

+3V3D

+3V3_SW

220n

2422

3411

1R0

3421

33R

1405

I422

33p

2461

33n2408

5

3

4

PDZ2.7B(COL)

6400

PUMH2

7401-2

3408

18R

2471

1n0

F413

30R

5415

30R

5416

2400 4n7

10n

2425

F419

47n

2402

F416

4n7

2403

2409 33n

SPEAKER_R-

SPEAKER_L-

AOLRCK

AOBCK

AOMCLK

AOSDATA0

D_RESET

MUTE

SPEAKER_R+

SPEAKER_L-

SPEAKER_L+

D_RESET

A_STBY

SPEAKER_L+

SPEAKER_R+

SPDIF_OUT

SPEAKER_R-

SDA SCL

POWER_DOWN

Circuit Diagrams and PWB Layouts

EN 72L12M3.1L LA 10.

2013-Jun-21

back to

div. table

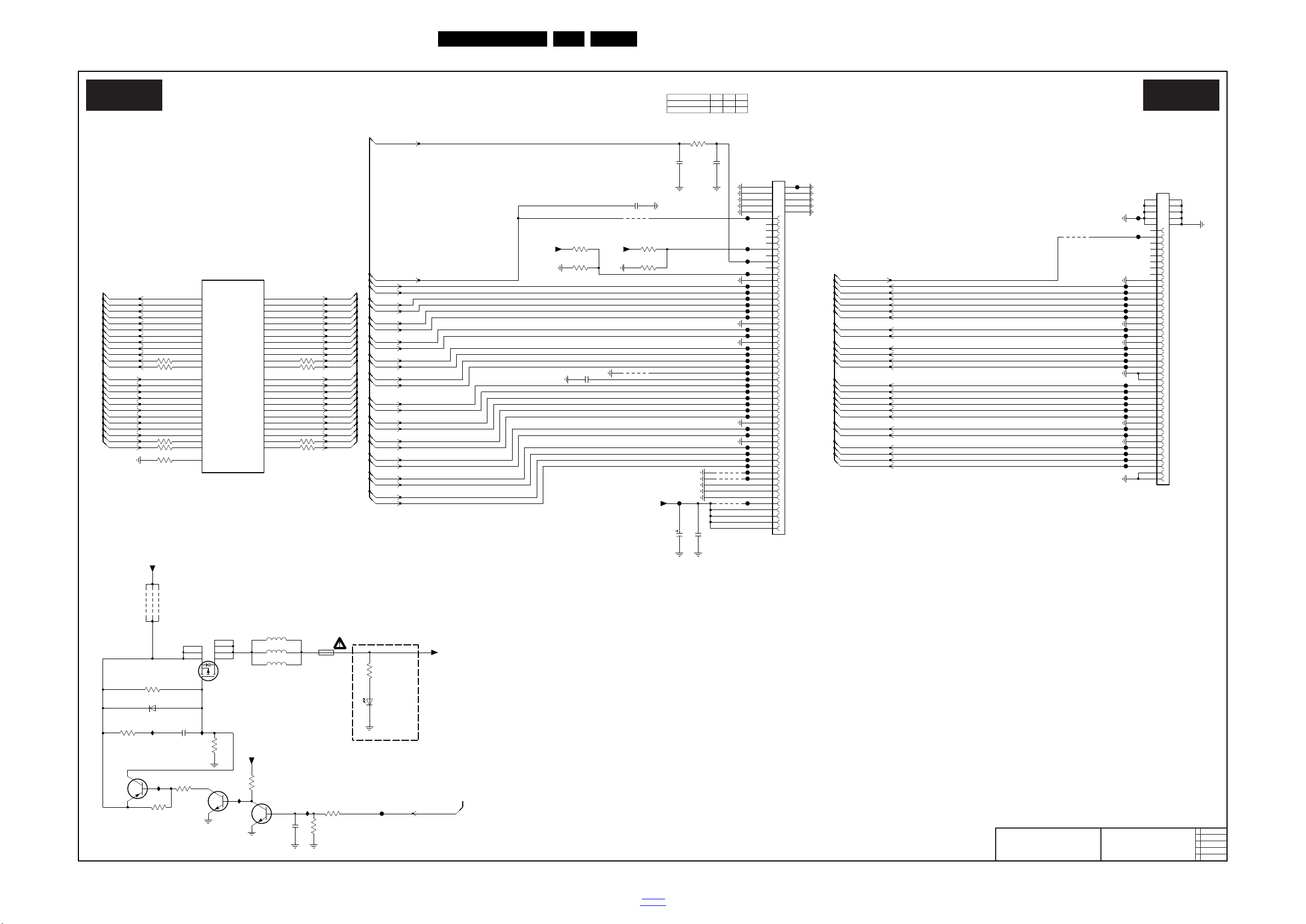

10-5-4 B04A, MTK5396 power

19510_503_130411.eps

130411

MTK5396 power

B04A B04A

2013-01-11

1

3139 123 6544

PCB SB SSB

MT5396 R2 LATAM 2K13

VCCK_24 VCCK_48

VCCK_40 VCCK_41

VCCK_42 VCCK_19 VCCK_20 VCCK_21 VCCK_22 VCCK_23

VCCK_1 VCCK_2 VCCK_3 VCCK_4

VCCK_43

VCCK_6 VCCK_7 VCCK_8 VCCK_9 VCCK_10 VCCK_11 VCCK_12 VCCK_13 VCCK_14 VCCK_15 VCCK_16 VCCK_17 VCCK_18

VCCK_44

VCCK_45

VCCK_46

VCCK_47

VCCK_25

VCCK_39

VCCK_26

VCCK_27

VCCK_28

VCCK_29

VCCK_30

VCCK_31

VCCK_32

VCCK_33

VCCK_34

VCCK_35

VCCK_36

VCCK_37

VCCK_38

VCCK_5

DDRV_42 DDRV_43 DDRV_44 DDRV_45 DDRV_46 DDRV_47 DDRV_48 DDRV_49

DDRV_26 DDRV_27 DDRV_28 DDRV_29 DDRV_30 DDRV_31 DDRV_32 DDRV_33 DDRV_34 DDRV_35 DDRV_36

DDRV_13 DDRV_14 DDRV_15 DDRV_16 DDRV_17 DDRV_18 DDRV_19 DDRV_20 DDRV_21 DDRV_22 DDRV_23 DDRV_24 DDRV_25

DDRV_1 DDRV_2 DDRV_3 DDRV_4 DDRV_5 DDRV_6 DDRV_7 DDRV_8 DDRV_9 DDRV_10 DDRV_11 DDRV_12 DDRV_37

DDRV_38 DDRV_39 DDRV_40 DDRV_41

TCON12

OPCTRL6 OPCTRL7 OPCTRL8 OPCTRL9 OPCTRL10

OPTCTRL_TCON

TCON3 TCON4 TCON5 TCON6 TCON7 TCON8

TCON9 TCON10 TCON11

TCON0

TCON1

TCON2

OPCTRL11

OPWRSB

HDMI_CEC HDMI_0_SDA HDMI_0_SCL HDMI_0_HPD

HDMI_0_PWR5V

HDMI_1_SDA HDMI_1_SCL HDMI_1_HPD

HDMI_1_PWR5V

HDMI_2_SDA HDMI_2_SCL HDMI_2_HPD

HDMI_2_PWR5V

HDMI_3_SDA HDMI_3_SCL HDMI_3_HPD

HDMI_3_PWR5V

VGA_SDA VGA_SCL

STB_SDA STB_SCL

LED_PWM0 LED_PWM1

OPCTRL0 OPCTRL1 OPCTRL2 OPCTRL3 OPCTRL4 OPCTRL5

DVSS_140

DVSS_4 DVSS_5

DVSS_45 DVSS_46 DVSS_47 DVSS_48 DVSS_49 DVSS_50 DVSS_51 DVSS_52 DVSS_53 DVSS_54 DVSS_55 DVSS_56 DVSS_57 DVSS_58 DVSS_59

DVSS_13 DVSS_14 DVSS_15 DVSS_16 DVSS_17 DVSS_18 DVSS_19 DVSS_20 DVSS_21 DVSS_22 DVSS_23 DVSS_24 DVSS_25

DVSS

_11

DVSS_12

DVSS_111 DVSS_112 DVSS_113 DVSS_114 DVSS_115 DVSS_116 DVSS_117 DVSS_118

DVSS_71 DVSS_72 DVSS_73 DVSS_74 DVSS_75 DVSS_76 DVSS_77

DVSS_26 DVSS_27 DVSS_28 DVSS_29 DVSS_30 DVSS_31 DVSS_32 DVSS_33 DVSS_34 DVSS_35 DVSS_36 DVSS

_37

DVSS_1 DVSS_2 DVSS_3

DVSS_43 DVSS_44

DVSS_132 DVSS_133 DVSS_134 DVSS_135 DVSS_136 DVSS_137 DVSS_138 DVSS_139

DVSS_87 DVSS_88 DVSS_89 DVSS_90 DVSS_91 DVSS_92 DVSS_93

DVSS_60 DVSS_61 DVSS_62 DVSS_63 DVSS_64 DVSS_65 DVSS_66 DVSS_67 DVSS_68 DVSS_69

DVSS_6 DVSS_7 DVSS_8 DVSS_9 DVSS_10

DVSS_107 DVSS_108 DVSS_109 DVSS_110

DVSS_119 DVSS_120 DVSS_121 DVSS_122 DVSS_123 DVSS_124 DVSS_125 DVSS_126 DVSS_127 DVSS_128 DVSS_129 DVSS_130 DVSS_131

DVSS_78 DVSS_79 DVSS_8

0 DVSS_81 DVSS_82 DVSS_83 DVSS_84 DVSS_85 DVSS_86

DVSS_70

DVSS_38 DVSS_39 DVSS_40 DVSS_41 DVSS_42

DVSS_94 DVSS_95 DVSS_96 DVSS_97 DVSS_98 DVSS_99

DVSS_100 DVSS_101 DVSS_102 DVSS_103 DVSS_104 DVSS_105 DVSS_106

AVDD33_CVBS_1 AVDD33_CVBS_2

AVDD33_LVDSB

VCC3IO_A_1 VCC3IO_A_2 VCC3IO_A_3 VCC3IO_A_4 VCC3IO_A_5 VCC3IO_A_6 VCC3IO_A_7

AVDD10_LDO

AVDD12_PCIE11 AVDD12_HDMI_0_RX AVDD12_HDMI_1_RX AVDD12_HDMI_2_RX AVDD12_HDMI_3_RX AVDD12_RGB AVDD12_DEMOD

AVSS33_VGA_STB

AVSS33_VDAC_BG

AVSS33_VDAC

AVSS33_PLLGP AVSS33_CVBS_1 AVSS33_CVBS_2

AVSS33_DEMOD

AVSS33_XTAL_STB

AVDD12_REC AVDD12_LVDS_1

AVDD33_HDMI_2_RX AVDD33_HDMI_3_RX AVDD33_VGA_STB AVDD33_VDAC_BG AVDD33

_VDAC

AVDD33_PLLGP

AVSS12_RGB

AVSS12_DEMOD

AVSS12_REC

VCC3IO_A_8 VCC3IO_B_1 VCC3IO_B_2 VCC3IO_B_3 VCC3IO_B_4

AVDD12_LVDS_2 AVDD12_VPLL

AVDD33_MEMPLL AVDD33_PCIE11 AVDD33_USB_P0P1 AVDD33_USB_P2P3 AVDD33_HDMI_0_RX AVDD33_HDMI_1_RX

AVSS12_LVDS_1 AVSS12_LVDS_2

AVSS12_VPLL

AVSS33_MEMPLL

AVSS33_USB_P1 AVSS33_USB_P2

AVSS33_HDMI_RX_1 AVSS33_HDMI_RX_2

AVDD33_DEMOD AVDD33_XTAL_STB AVDD33_AADC AVDD

33_DAC AVDD33_DAC1 AVDD33_LD AVDD33_COM AVDD33_LVDSA

AVSS33_HDMI_RX_3 AVSS33_HDMI_RX_4

AVSS33_AADC

AVSS33_DAC

AVSS33_DAC1

AVSS33_LD

AVSS33_COM AVSS33_LVDSA AVSS33_LVDSB

AVSS12_PCIE11

1

OPCTRL5(0)

0

MT5396

0 0

0

STRAPPING

MT5396

0

ROM Boot+27M

ASPIF(0)

1

MT5396

OPCTRL4(0)

ROM Boot+54M

0

ICE MODE+54M+Serial Boot

0tooB laireS+M72+EDOM ECI

AD23 AD24

P18 P19 R14 T14 U14

MT5396

1

T24 V23

W23

P17

Y23 AA23 AC20 AC21 AC22 AC23 AC24

AP8 AR7 AR8

P16

AT7

AT8

AU7 AU8

P20

P23

R24

AC17 AC18

P15

AC19 AD18 AM7 AM8 AN7

AN8 AP7

7300-3

P14

V14 W14 Y14 AA14 AB14 AC14 AC15 AC16

CORE_VCC

F509

2501 22u

2563

47u 6.3V

3524 100R

RES3543 100R

8

I502

1K0

3530-1

1

47R

3500

3534

10K

+3V3STBY

2u2

+3V3STBY

2504

+3V3STBY

100n2537

RES 100R3544

100n

2552

5505

30R

3513

1K0

5500

30R

10K3508

2502

2557 100n

1

3

2

2u2

27

7503

BC847BW

1K0

3530-2

3 6

1K0

3530-3

1K0

3511

2562 100n

10K3546

+3V3_SW

F507

RES

25AG 2u2

2u225AF

3507

10K

25AB

22u

3523 100R

G24

C3 C4 D4 D5 E5

B4

D25 E20 E23 E24 F20 F23 F24 G20 G23

B3

V6 AC1 AC2 AC3 AC4 AC5 AC6 A25 B25 C25

A4

H13 J8 J10 N7 P7 T5

T6

U5

U6

V5

E6 F6 F7 G6 G7 G15 G18 H7 H8 H10

DDR_POWER

7300-6

A3

I504

+3V3_SW

+12VS

10u

25A9

4K7

3506

3512

3509

4K7

3521 100R

2551 100n

2561

10u

+3V3STBY

AB19

A26 B26 C26 D26

10u

2571

AA16 AA17 AA18 AA19

AB5

E9

AB6 AB15 AB16 AB17 AB18

Y7

Y8 Y15 Y16 Y17

E8

Y18 Y19

AA5 AA7

AA15

W8 W15 W16 W17

E7

W18

W19

Y4

Y5

Y6

U18 U19 V15 V16

D18

V17 V18 V19 W5 W6 W7

T8 T15 T16 T17

D12

T18 T19 U7 U15 U16 U17

R5 R6 R7

D11

R15 R16 R17 R18 R19 T7

J11 J12 K7

C18

L7 L8 M7 R1 R2 R3 R4

F19 G14 G16

B18

G17 G19 H11 H19 J4 J5 J6

AA20 AA21 AA22 AB20 AB21 AB22

F8

AB23

F9 F12

U23 V20 V21 V22

W20 W21

F5

W22

Y20 Y21 Y22

R21 R22 R23 T20 T21 T22

E19

T23 U20 U21 U22

F25

G22 G25

H22

J22

E12

N22 P21 P22 R20

7300-4

CORE_VSS

A18

E11

E21 E22 E25 F21 F22

+3V3STBY

RES

3542

10K

353610K

B27 A27 B28 A28 C28 D28

AP22

AR22

AM20

AT21

AR21

F27 E27

E28 F28 B29

F30 F29

AN20

AT20 AU20

AM19 AN21 AR19 AP19 AN19 AM18 AP20 AN18

AC31

AC33

AB33

AJ32

AH31

AH32

AH33

AA32

AP21 AN22

AR20

7300-12

AG32

AG31

AG33

AF33

AE32

AE31

AE33

AD33

AC32

3547 100R

2568

10u

100n2559

7504

1

3

2

10u

2543

BC847BW

+3V3_SW

2570 100n

2538 100n

2558 1u0

I501

25AE 2u2

2u225AD

100n2569

3503

15K

+1V2_SW

I509

+1V5_SW

100n

2505

100R3520

1K0

3504

2566 100n

10n

2565

4K7

3514

OPWR0_5V

OPWR2_5V

I510

4K7

3510

3519 100R

BZX384-C3V3

6500

OPWR3_5V

RES

22u

25AA

5

3

4

7501-2

BC847BS(COL)

2536100n

F506

I518

I508

RES

+1V1_SW

BC847BW

1

3

2

3541 100R

OPWR1_5V

7500

2

6

1

BC847BS(COL)

7501-1

2564 100n

5

10K

3526

1K0

3530-4

4

550330R

25AC

330u 6.3V

3505

1K0

2503 2u2

+3V3_SW

2544

4u7

220n

25A8

1u0

2542

30R

5506

2u225AK

25AJ 2u2

2u2

25AH

3502

3K3

AK9 AK10 AK11 AL9

RES

10K

3535

AK17

AH26

E34 F33 G31 G32 H29 H30 J29 J30

AF31 AF32

AL16

AH5

AE5

N15

AM27

D34

AR13

AL24

AJ22

AJ21

AF5

AJ28

AL15

AL25

AM26

AK30 AE30

AM28

AB30 AD30

AP13

AD21

AD20

AK18

AK27

AJ26

AG5

AJ5

W30

AL14

AB29 AA29 Y29 AC29

AD17

AH7 AE6

N14 V24

AK23

D35

U24

AD14

AD19

AF6

AL31

AD16

AK24 AK25

AG30 AF30

AD22

7300-1

AJ20

AL27

AA24 Y24 W24 AB24

AG6 AJ6

AC_POWER

BZX384-C8V2

6501

SENSE_1V1_MT5396

F510

ENABLE_WOWLAN

RESET_RF4CE

IRQ_WOWLANn

STANDBY

MUTE

RESET_AUDIO

POWER_OK

LED2

IRQ_CRP

HDMI_CEC

VGA_SCL

VGA_SDA

POWER_DOWN

HDMI_1_SCL

HDMI_1_SDA

HDMI_2_HPD

HDMI_2_SCL

HDMI_2_SDA

HDMI_3_HPD

HDMI_3_SCL

HDMI_3_SDA

HDMI_0_HPD

HDMI_0_SCL

HDMI_0_SDA

HDMI_1_HPD

POWER_DOWN

Circuit Diagrams and PWB Layouts

EN 73L12M3.1L LA 10.

2013-Jun-21

back to

div. table

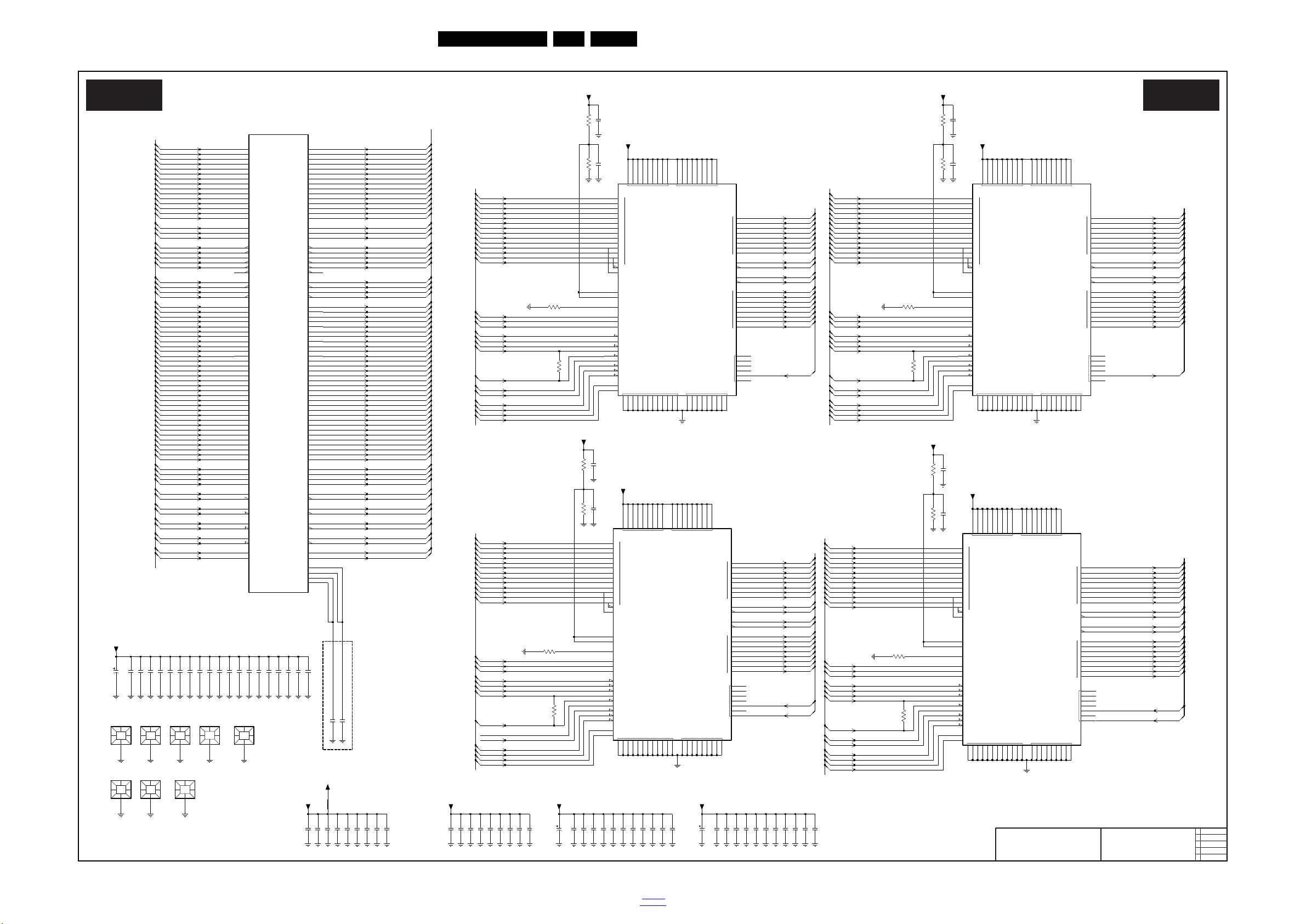

10-5-5 B04B, DDR3

19510_504_130411.eps

130411

DDR3

B04B B04B

2013-01-11

1

3139 123 6544

PCB SB SSB

MT5396 R2 LATAM 2K13

8

9 10 11 12

ODT

RAS

VREFDQ VREFCA

ZQ

BA0 BA1 BA2

DQU

0 1 2

3

4 5 6 7

DQL

A

CAS

DQSU

DQSL DQSL

2

1

0

DMU

DML

RESET

WE

CS

6

5

NC

4

3

CK CK CKE

7

BC AP

VSS

VSSQ

VDD VDDQ

0 1 2

3

4 5 6 7

DQSU

8

9 10 11 12

ODT

RAS

VREFDQ VREFCA

ZQ

BA0 BA1 BA2

DQU

0 1 2

3

4 5 6 7

DQL

A

CAS

DQSU

DQSL DQSL

2

1

0

DMU

DML

RESET

WE

CS

6

5

NC

4

3

CK CK CKE

7

BC AP

VSS

VSSQ

VDD VDDQ

0 1 2

3

4 5 6 7

DQSU

CK CKE

7

BC AP

VSS

VSSQ

VDD VDDQ

0 1 2

3

4

CAS

A

6

DQSU

DQU

0 1 2

3

4 5 6 7

DQL

DQSL

RAS

DQSL

ODT

2

1

0

DMU

DML

RESET

WE

CS

6

5

NC

4

3

CK

5

7

BA1

8

9 10 11 12 13

BA2

VREFDQ VREFCA

ZQ

BA0

DQSU

CK CKE

7

BC AP

VSS

VSSQ

VDD VDDQ

0 1 2

3

4

CAS

A

6

DQSU

DQU

0 1 2

3

4 5 6 7

DQL

DQSL

RAS

DQSL

ODT

2

1

0

DMU

DML

RESET

WE

CS

6

5

NC

4

3

CK

5

7

BA1

8

9 10 11 12 13

BA2

VREFDQ VREFCA

ZQ

BA0

DQSU

RVREF_D

BRA8

BRA9 BRA10 BRA11

BRODT

BRRESET

RVREF_A RVREF_B

BRDQS3

ARA1 ARA2 ARA3 ARA4 ARA5

ARA11 ARA12 ARA13 ARA14

ARBA0 ARBA1 ARBA2

ARCAS ARRAS

ARCLK1 ARCLK1

ARDQ0 ARDQ1 ARDQ2

ARCKE ARWE ARCS ARCSX

ARCLK0

ARDQ8 ARDQ9 ARDQ10 ARDQ11 ARDQ12 ARDQ13 ARDQ14 ARDQ15 ARDQ16 ARDQ17 ARDQ18 ARDQ19 ARDQ20 ARDQ21 ARDQ22 ARDQ23 ARDQ24 ARDQ25 ARDQ26 ARDQ27 ARDQ28

ARA0

BRDQ6 BRDQ7 BRDQ8 BRDQ9

BRDQ10

ARA6 ARA7 ARA8 ARA9 ARA10

BRA4

BRA5

BRA6

BRA7

ARDQ29 ARDQ30 ARDQ31

ARDQM0 ARDQM1 ARDQM2 ARDQM3

ARDQ

S0

ARDQS0

ARDQS1 ARDQS1

ARDQS2 ARDQS2

ARDQS3 ARDQS3

ARODT ARRESET

ARCLK0

BRDQS1 BRDQS1

BRDQS2 BRDQS2

BRDQS3

ARDQ3 ARDQ4 ARDQ5 ARDQ6 ARDQ7

BRA12 BRA13 BRA14

BRBA0 BRBA1 BRBA2

BRCAS BRRAS BRCKE

BRWE

BRCS

BRCSX

BRCLK0 BRCLK0 BRCLK1 BRCLK1

BRDQ0 BRDQ1 BRDQ2 BRDQ3 BRDQ4 BRDQ5

RVREF_C

BRDQ12 BRDQ13 BRDQ14 BRDQ15

BRDQ11

BRA0

BRA1

BRA2

BRA3

BRDQ16 BRDQ17 BRDQ18 BRDQ19 BRDQ20 BRDQ21 BRDQ22 BRDQ23 BRDQ24 BRDQ25 BRDQ26 BRDQ27 BRDQ2

8

BRDQ29 BRDQ30 BRDQ31

BRDQM0 BRDQM1 BRDQM2 BRDQM3

BRDQS0 BRDQS0

EMC

Near DRAM

MT5396 DE-CAP

DDR#1 Bypass Cap

NEAR MT5396

DDR3#2DDR3#1

Near DRAM

EMC

DDR3#4

DDR#4 Bypass Cap

Near DRAM

EMC

Main Chip Bottom Side

DDR3#3

Near DRAM

DDR#2 Bypass CapDDR#3 Bypass Cap

+1V5_SW

100n

2673

2672

100n

RES

100n

2656

2655

100n

RES

2652

100n

2651

100n

240R

3696

1K0

1%

3614

L3

L8

2614

100n

P1

B1

B9

D1

D8

E2

E8

F9

G1

G9

P9

T1

T9

B3

E1

G8

J2

J8

M1

M9

A8C1C9D2E9F1H2

H9

M8

H1

A9

B2D9G7

K2

K8

N1

N9

R1R9A1

A3

J1

J9 L1 L9 T7 M7 T3

K1

J3

T2

G3

C7 B7

D7 C3 C8 C2 A7 A2 B8

E7 D3

E3 F7 F2 F8 H3 H8 G2 H7

F3

R2 T8 R3

M2 N8 M3

K3 J7

K9

K7

L2

N3 P7

L7 R7 N7

P3 N2 P8 P2 R8

H5TQ1G63DFR-H9C

7603

2640

100n

2639

HOOK1

1601

2677

100n

3688

240R

1609

HOOK1

1605

HOOK1

1606

HOOK1

1604

100n

2676

2681

100n

2660

100n

RES

100n

2659

RES

100n

2658

2657

100n

1%

3613

1K0

2675

100n

3623

1%

1K0

3624

1%

1K0

2611

100n

2682

10u

100R

3650

10u

2646

+1V5_SW

2638

100n

+1V5_SW

HOOK1

1608

2635

47u 6.3V

RES

1u0

2684

4u7

2683

2678

100n

2642

100n

2641

100n

2644

100n

2643

3667

+1V5_SW

240R

100n

2674

+1V5_SW

2615

100n

2612

100n

100R

3666

2613

100n

2645

100n

D8

E2

E8

F9

G1

G9

L3

L8

B3

E1

G8

J2

J8

M1

M9

P1

B1

B9

D1

F1

H2

H9

M8

H1

A9

P9

T1

T9

K8

N1N9R1R9A1A8C1

C9

D2

E9

T7

M7

T3

K1

J3

T2

B2

D9

G7

K2

C3 C8 C2 A7 A2 B8 A3

J1 J9 L1 L9

F2

F8 H3 H8 G2 H7

F3 G3

C7 B7

D7

M3

K3 J7

K9

K7

L2

E7 D3

E3

F7

N7

P3 N2 P8 P2 R8 R2 T8 R3

M2 N8

7604

H5TQ1G63DFR-H9C

N3 P7

L7 R7

100n

2680

100n

2666

+1V5_SW

SENSE_1V5_DDR

F9

G1

G9

L3

L8

J8

M1

M9

P1

B1

B9

D1

D8

E2

E8

M8

H1

A9

P9

T1

T9

B3

E1

G8

J2

R1

R9

A1

A8

C1

C9D2E9F1H2

H9

K1

J3

T2

B2

D9G7K2

K8

N1

N9

C2 A7 A2 B8 A3

J1

J9 L1 L9 T7

M7

H3 H8

G2

H7

F3

G3

C7 B7

D7 C3 C8

J7

K9

K7

L2

E7 D3

E3 F7 F2 F8

N2 P8 P2 R8 R2 T8 R3

M2 N8 M3

K3

N3 P7

L7 R7 N7 T3

P3

H5TQ2G63DFR-H9CR

7601

1%

1K0

3635

1K0

3634

1%

3608

+1V5_SW

240R

1%

3627

1K0

2650

100n

2653

100n

L3

L8

2654

M9

P1

B1

B9

D1

D8

E2

E8

F9

G1

G9

A9

P9

T1

T9

B3

E1

G8

J2

J8

M1

A8C1C9D2E9

F1

H2

H9

M8

H1

B2D9G7K2K8

N1

N9

R1

R9

A1

B8 A3

J1 J9 L1 L9

T7

M7

K1

J3

T2

H7

F3 G3

C7 B7

D7 C3 C8 C2 A7 A2

L2

E7 D3

E3 F7 F2 F8 H3 H8 G2

R8 R2 T8 R3

M2 N8 M3

K3 J7

K9

K7

N3 P7

L7 R7 N7 T3

P3 N2 P8 P2

7602

H5TQ2G63DFR-H9CR

RES

2671

100u 6.3V

2669

100n

100R

3656

+1V5_SW

4u7

2661

+1V5_SW

1u02662

100n

2667

2686

100n

2679

100n

2668

100n

1%

3628

1K0

+1V5_SW

2617

100n

+1V5_SW

2693

10u

HOOK1

1603

HOOK1

1602

100n

2687

2602

100n

10u

2616

2601

100n

2618

100n

+1V5_SW

G13 P13

V7

2649

100n

F2

V2 V1

W3 W4

H6

H4

M2

L4

G21

A2 K2

J3

B1

G2 D1 Y1 U1

E4 E3

F1

U4

AA4

T3 Y3 U3

J2

Y2 U2

C2 K1

D2 T4

AB4

P2

AB3

B2

P3

AB1

P1 AB2 AA3

V3

G5

K3

A1

J1

H3

D3

G3

C1

G4

L3

L6

M3

N1

P5

K4

H5

P6

F4

F3

V4

N3

P4

M5

N5

M4

L5

M1

N2

N6

K5

N4

C20

B9 A9

C8 D8

E18

F17

B14

D14

K6

C24 D15 A17 A23

C19 D21 A7 E10

C21 B21

B20

C6 D10 D7 C11 C7 C10

C17

B7 B10

D24 C16

C22 C12 D6 B12 C5

D23

C13 A5 A12 B5

D9 C9

F18

E16

C23 B17

D17 B23 D20 D22 D19

E14 B15 D13 E15

A13 G11 D16

E17

F10

A20 A21

F14

F11 C14 F13 A15 C15

A14 B13 E13 F16

7300-5

MT5396JDNJ

DDR3

F15

100n

2696

100n

2690

4u7

2694

1u0

2695

2647

330u 6.3V

2697

100n

2691

100n

2664

2663

100n

2685

2689

100n

2665

2608

100n

3695

100R

100n

2692

2688

100n

2698

100n

2699

BRA(13)

BRDQ(28)

BRDQ(29)

BRDQ(30)

BRDQ(31)

BRDQ(4)

BRDQ(6)

BRDQ(9)

BRA(13)

BRDQ(3)

BRDQ(5)

BRDQ(7) BRDQ(8)

BRDQ(0)

BRDQ(13)

BRDQ(15)

BRDQ(2)

BRDQ(24) BRDQ(25)

BRDQ(26)

BRDQ(14)

BRDQ(16) BRDQ(17) BRDQ(18) BRDQ(19) BRDQ(20) BRDQ(21) BRDQ(22) BRDQ(23)

BRDQ(27)

BRDQ(1)

BRDQ(10) BRDQ(11) BRDQ(12)

B_RVREF8

BRA(14)

BRDQS3n

BRDQS3BRDQS1n

BRDQS1

BRDQ(22) BRDQ(23)

BRDQ(24) BRDQ(25) BRDQ(26) BRDQ(27) BRDQ(28) BRDQ(29) BRDQ(30) BRDQ(31)

BRDQS2

BRDQS2n

BRDQM2 BRDQM3

BRCLK1

BRCLK1n

BRCKE BRCSn

BRA(11)

BRBA(0) BRBA(1) BRBA(2)

BRRASn BRODT BRCASn

BRWEn BRRESET

BRDQ(16) BRDQ(17) BRDQ(18) BRDQ(19) BRDQ(20) BRDQ(21)

BRA(2) BRA(3)

BRA(10)

BRA(12)

BRA(4)

BRA(7)

BRA(9)

BRA(5) BRA(6)

BRA(8)

BRDQ(3) BRDQ(4) BRDQ(5) BRDQ(6) BRDQ(7)

BRDQ(8)

BRDQ(9) BRDQ(10) BRDQ(11) BRDQ(12) BRDQ(13) BRDQ(14) BRDQ(15)

BRDQS

0

BRDQS0n

BRDQM0 BRDQM1

BRCLK0

BRCLK0n

BRCKE BRCSn

BRA(0) BRA(1)

BRA(7)

BRA(9)

BRA(5) BRA(6)

BRA(8)

BRA(11)

BRBA(0) BRBA(1) BRBA(2)

BRRASn BRODT BRCASn

BRWEn BRRESET

BRDQ(0)

BRDQ(1)

BRDQ(2)

B_RVREF8

ARDQS1n

ARDQS1

ARDQS3n

ARDQS3

BRA(0) BRA(1) BRA(2) BRA(3)

BRA(10)

BRA(12)

BRA(4)

BRDQS1

BRDQS1n

BRDQS2

BRDQS2n

BRDQS3

BRDQS3n

BRODT

BRRASn

BRRESET

BRWEn

A_RVREF1

BRCLK0

BRCLK0n

BRCLK1

BRCLK1n

BRCSn

BRDQM0 BRDQM1 BRDQM2 BRDQM3

BRDQS0

BRDQS0n

BRA(5) BRA(6) BRA(7) BRA(8) BRA(9)

BRBA(0) BRBA(1) BRBA(2)

BRCASn

BRCKE

ARWEn

BRA(0) BRA(1)

BRA(10) BRA(11) BRA(12) BRA(13) BRA(14)

BRA(2) BRA(3) BRA(4)

ARDQS0 ARDQS0n

ARDQS1 ARDQS1n

ARDQS2 ARDQS2n

ARDQS3 ARDQS3n

ARODT

ARRASn

ARRESET

ARDQ(4) ARDQ(5) ARDQ(2) ARDQ(7) ARDQ(8) ARDQ(13)

ARDQM0 ARDQM1 ARDQM2 ARDQM3

ARDQ(22) ARDQ(21) ARDQ(26) ARDQ(25) ARDQ(24) ARDQ(27) ARDQ(28) ARDQ(29)

ARDQ(3)

ARDQ(30) ARDQ(31)

ARDQ(12) ARDQ(11) ARDQ(14) ARDQ(9) ARDQ(16) ARDQ(17) ARDQ(18) ARDQ(19)

ARDQ(6)

ARDQ(20) ARDQ(23)

ARCKE

ARCLK0 ARCLK0n ARCLK1 ARCLK1n

ARCSn

ARDQ(0) ARDQ(1)

ARDQ(10) ARDQ(15)

ARA(3) ARA(4) ARA(5) ARA(6) ARA(7) ARA(8) ARA(9)

ARBA(0) ARBA(1) ARBA(2)

ARCASn

ARA(0) ARA(1)

ARA(10) ARA(11) ARA(12) ARA(13) ARA(14)

ARA(2)

ARDQ(28) ARDQ(29) ARDQ(30) ARDQ(31)

ARDQS2

ARDQS2n

ARDQM2 ARDQM3

ARCLK1

ARCLK1n

ARCKE ARCSn

ARA(14)

ARBA(2)

ARRASn ARODT ARCASn

ARWEn ARRESET

ARDQ(16) ARDQ(17) ARDQ(18) ARDQ(19) ARDQ(20) ARDQ(21) ARDQ(22) ARDQ(23)

ARDQ(24) ARDQ(25) ARDQ(26) ARDQ(27)

ARA(12)

ARA(4)

ARA(7)

ARA(13)

ARA(9)

ARA(5) ARA(6)

ARA(8)

ARA(11)

ARBA(0) ARBA(1)

ARDQ(9) ARDQ(10) ARDQ(11) ARDQ(12) ARDQ(13) ARDQ(14) ARDQ(15)

ARDQM0 ARDQM1

ARA(0) ARA(1) ARA(2) ARA(3)

ARA(10)

ARDQ(0)

ARDQ(1)

ARDQ(2)

ARDQ(3)

ARDQ(4)

ARDQ(5)

ARDQ(6)

ARDQ(7)

ARDQS0 ARDQS0n

ARODT

ARRASn

ARRESET

A_RVREF1

ARWEn

ARDQ(8)

ARA(5) ARA(6) ARA(7) ARA(8) ARA(9)

ARBA(0) ARBA(1) ARBA(2)

ARCASn

ARCLK0

ARCKE

ARCLK0n

ARCSn

ARA(0) ARA(1)

ARA(10) ARA(11) ARA(12) ARA(13)

ARA(14)

ARA(2) ARA(3) ARA(4)

Circuit Diagrams and PWB Layouts

EN 74L12M3.1L LA 10.

2013-Jun-21

div. table

back to

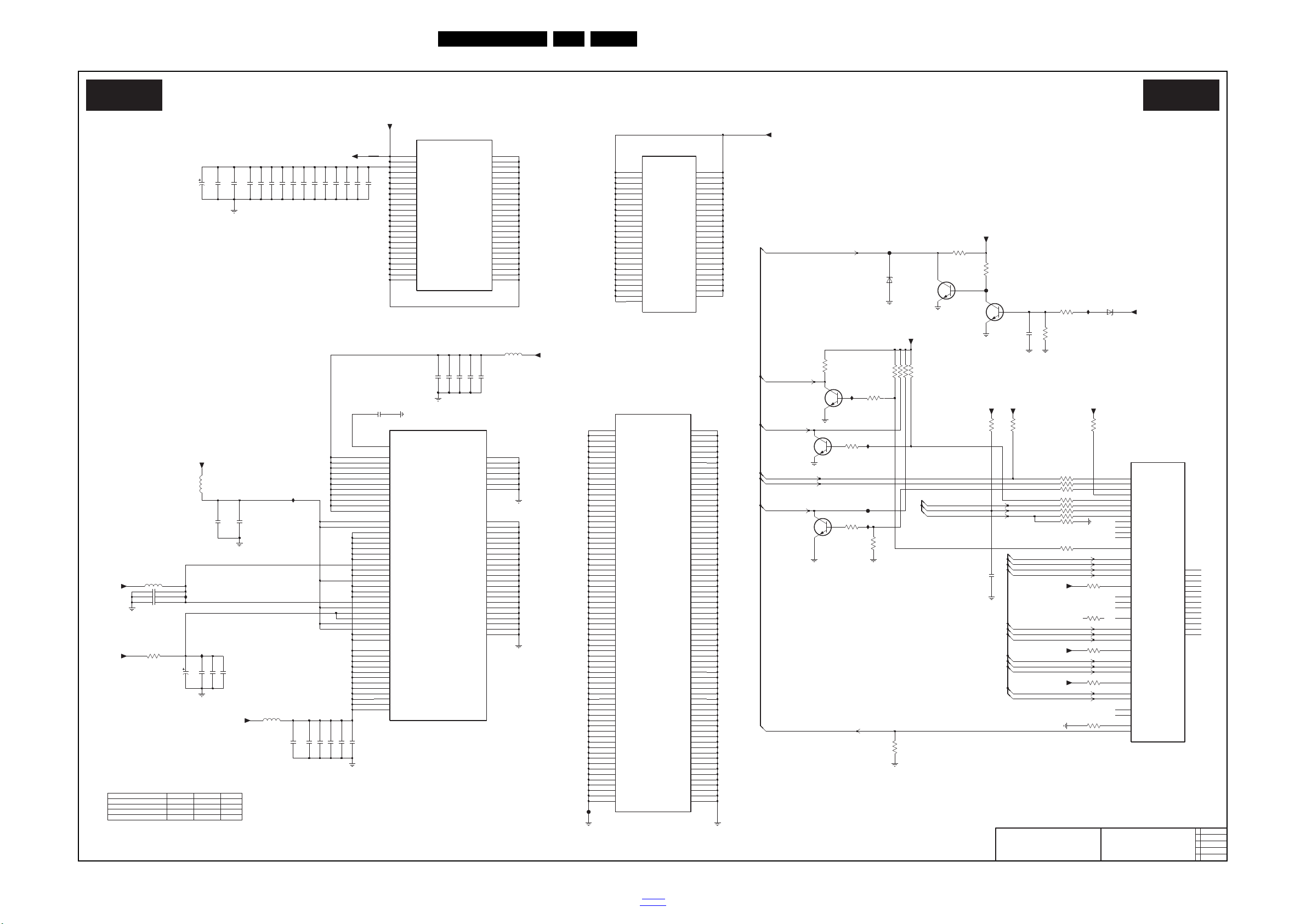

Circuit Diagrams and PWB Layouts

19510_505_130411.eps

130411

Flash, control, EJTAG & AmbiLight

B04C B04C

2013-01-11

1

3139 123 6544

PCB SB SSB

MT5396 R2 LATAM 2K13

SUBERGND

VOUT

VDD

SCL

ADR

0 1 2SDA

WC

ADIN7_SRV

GPIO12 GPIO13 GPIO14

GPIO16 GPIO17 GPIO18 GPIO19 GPIO20 GPIO21 GPIO22 GPIO23 GPIO24 GPIO25 GPIO26

GPIO38 GPIO39 GPIO40 GPIO41 GPIO42 GPIO43 GPIO44 GPIO45 GPIO46

GPIO0

ADIN2_SRV ADIN3_SRV ADIN4_SRV ADIN5_SRV ADIN6_SRV

USB_DP_P0 USB_DM_P0 USB_DP_P1 USB_DM_P1 USB_DP_P2 USB_DM_P2

GPIO1 GPIO2 GPIO3 GPIO4 GPIO5 GPIO6 GPIO7 GPIO8 GPIO9 GPIO10 GPIO11

USB_DP_P3 USB_DM_P3

ADIN0_SRV ADIN1_SRV

GPIO47 GPIO48 GPIO49 GPIO50 GPIO51 GPIO52 GPIO53 GPIO54 GPIO55

GPIO15

GPIO27 GPIO28 GPIO29 GPIO30 GPIO31 GPIO32 GPIO33 GPIO34 GPIO35 GPIO36 GPIO37

CLE

7

6

5

4

3

2

1

0

VCC

R

SE

WP

WE

RE

CE_

ALE

NC

IO

B

VSS

+T

LDM_VSYNC

SD_CMD SD_CLK SD_D0 SD_D1 SD_D2 SD_D3

LDM_CS LDM_DO LDM_DI LDM_CLK

PDD7 POCE0 POCE1

PARB

PAALE

PACLE

POWE

POOE

EMMC_CLK

PDD0

PDD1

PDD2

PDD3

PDD4

PDD5

PDD6

PCIE11_RXN

LOUTP LOUTN

PCIE11_REFCKP PCIE11_REFCKN

PCIE11_TXP PCIE11_TXN PCIE11_RXP

OSCL0

U0RX U0TX U1RX U1TX

XTALI

XTALO

OSDA0 OSCL1 OSDA1 OSCL2 OSDA2

OPWM0 OPWM1 OPWM2

OIRI

ORESET FSRC_WR MEMTN MEMTP

JTCK JTDO JTRST JTDI JTMS

NC

10K

SDM

NEAR TO MTK IC

---

3DDR

ONLY

37AB

---

FOR DEBUGGING

PANEL

4DDR

37AC

*

PWM DIMMING

MT5396

10K

Near To IC

MT5396

2720

27p

8

100R37AJ

37AQ-1 100R1

F755

3788

F754

45

4K7

3756-4 4K7

1u0

2719

RES

45

37AA

4K7

10K3772-4

1 2

3

6

5

84

7

M24C64-RDW

7705

EEPROM

Φ

(8K × 8)

3775 4K7

RES

3789

4K7

1

3

2

5

4

7701

RES

Φ

BD45292G

1K0

3794

+3V3_AMBI

F704

37354K7

3708

100R

3714

4K7

10p

2704

37AC

10K

3712

100R

3782

10K

L34 L32

C37

D37

AU13

AU14

C36

D36

AT13

AT14

E30 E31

G35

F31 E29 AP9 AT9 AR9 AU9

G34 H34

M36

G36

M32 L33 E33 E32 F32 A29 D31 C31

N33

G37

P32 M35 M37 M33 F35 E35 E37 N32 M34

K37

F36

J36 J37 J35 J33 G33 H35 H31 F34 E36

F37

K33 K32 H33 L35 K36 J32 J34 K34 K35

AN23 AN24 AP23 AR23 AU23 AT23 AM24 AM23

H32

+3V3_AMBI

GPIO_USB

7300-8

1K0

3753

RES

27p

2721

3795 820K

3706

100R

2708

RES

100n

3730 100R

F753

F752

+3V3_SW

100p

2730

10K

3781

3756-2

27

4701

+3V3_SW

4K7

3740 22R

8

9

26

27

21

22

23

24

25

3

4

5

6

7

11

12

13

14

15

16

17

18

19

2

20

1C25

FH52-25S-0.5SH

1

10

F723

2703 100n

2

7704 BC847BW

1

3

10K3732

3741 22R

+3V3STBY

3724

RES

F740

4K7

100p

2725

3787

4K7

100R37AH

4K737AV

MSJ-035-69A-B-RF-PBT-BRF

2

1

3

1701

RES

3792

1R0

10

1 2

3

4 5 6 7

8

9

FH52-8S-0.5SH

1C27

3726

F751

10K

5700

F750

30R

BAS316

6704

RES

+3V3_SW

3704 100R

3739

+3V3_SW

33R

F736

I726

37A9 47R

10u

+3V3_SW

2726

1751

2.0A 63VT

3752

680R

37AM 47R

40

5

6

7

8

9

41 42

31

32

33

34

35

36

37

38

39

4

21

22

23

24

25

26

27

28

29

3

30

11

12

13

14

15

16

17

18

19

2

20

FH52-40S-0.5SH

1C26

RES

1

10

37AB

10K

GND_AMBI

RES

37AQ-2

100R

27

10K

3738

100n

2718

4K7

RES

I741

3761

6702

BAS316

RES

I725

+3V3STBY

100R3733

3709

100R

4K73719

3778 100R

3751

100R

F705

2701 10u

RES

+3V3_SW

100R37AG

37AY 1K0

3758 10K

47R3759

F719

3 6

4K73756-3

37A3

18K

RES

37AU

10K

F716

F726

+3V3_SW

4K7

37AX

37AW

6701

BZX384-C6V8

F712

RES

2732 100n

2731 100p

+3V3_SW

4K7

37AE

F749

F713

37AQ-4 100R45

F725

100R3 6

37AF 4K7

37AQ-3

100n

2733

14 15

8

7

6

12

37

13

36

18 19

40 45 46 47 48

3

4

5 10 11

25 26 27 28

33

2

34 35 38 39

41 42 43 44

1

20 21 22 23 24

7700

H27U4G8F2D

17 9

16

29

30 31 32

60R

5701

F700

F737

4K737A6

RES

F706

3729 10K

4K7

3755

+3V3STBY

I744

373710K

RES

3723 4K7

373110K

37AK 100R

47R37AN

100R

3701

37AD

4K7

+3V3_SW

RES

F748

4K7 3790

RES

+3V3_SW

10p

2705

2

3

4

5

6

7

8

9

12

13

FH52-11S-0.5SH

1

10

11

RES

1C20

GND_AMBI

F747

1R0

3754

27

10K

3772-2

37AT 100R

37AS

A37 C35 A36 B35

100R

B31 D30 C30 D29 D33 B34

C33

A35

B37

B36

AT11

AP10

AM9

AR10

C34 A34

D32

C32 A32 B32 A31

7300-13

C29

AU11

SDIO_SPI

SERIAL_NAND

+3V3STBY

2735

100p

3785 1R0

BC847BW

7702

10K

3736

0R337A1

F724

100R

3710

3 6

F727

45

4703-3

4703-4

10K3727

100p2728

7703

3765

BC847BW

+3V3_SW

100R

3770

10K

3748

+3V3STBY

4K7

2707

3764

100R

100n

3728 10K

W34

W35

AP18 AR18 AU16 AT16

AT34

AU34

AN12

AN15

V35

AP12

AP15

V34

W36

W37

Y34

Y35

AR15

AN14

AP31

AN30

G9 G10

AU21

AR12

AT12

AU12

AM22 D27

AP14

AM14

AR14

RES

MISC

7300-11

2u2

2706

37AR 100R

4u7

2717

+3V3_SW

RES

4u7

2716

1R03786

2711

1703

3225

27M

24

1

3

1n0

F720

3713

100R

RES

27341u0

F721

F730

F728

BZX384-C6V8

6700

RES

37A7 100K

3772-3

10K

3 6

+3V3_SW

F735

F711

100R3779

3742

4K7

+5V_SW

63VT

RES

100K

3769

1750

1.0A

F722

1K0

3793

6703

BAS316

+3V3_SW

RES

100p

2714

1K0

3771

3791

10K

3772-1

10K

1 8

37AP 10K

3750 33R

F729

2710 1n0

F731

F732

F745

100R

3711

100n

2715

10K

3773

1711

4K73720

+12V_AMBI

4K7

3715

F702

F717

4K737A5

RES

100R

3705

1710

+3V3_SW

F739

2729 100p

+3V3STBY

10R37AL

F734

F746

4K7

3747

I732

10u2700

RES

33R

3774

3702

3780

10K

100R

1 8

+3V3_SW

3756-1

4K7

13

2727

100n

11

2

3

4 5 6 7

8

9

12

BM11B-SRSS-TBT

RES

1702

1

10

F701

3749 33R

4K73734

3767

6K8

5702

30R

F741

3D_LED

RC_IRQ_RF4CEn

RF4CE_RX RF4CE_TX

RC_IRQ_RF4CEn

RF4CE_TX

RF4CE_RX

RESET_RF4CE

AMBI_TEMP

KEYBOARD

NAND_POWE

NAND_PALE

NAND_PCLE

IRQ_CRP

KEYBOARD

AMBI_OUT_SPI_SCKO

AMBI_OUT_SPI_SDO

NAND_PDD(6)

NAND_PDD(5)

NAND_PDD(4)

NAND_PDD(3)

NAND_PDD(2)

NAND_PDD(1)

NAND_PDD(0)

NAND_POOE

NAND_PDD(7)

NAND_PDD(6)

NAND_PDD(5)

NAND_PDD(4)

NAND_PDD(3)

NAND_PDD(2)

NAND_PDD(1)

NAND_PDD(0)

NAND_PARB

NAND_POCE

LED2

JTCK

JTMS

JTDI

JTDO

NAND_POOE

NAND_PARB

NAND_POCE

NAND_POWE

NAND_PALE

NAND_PCLE

NAND_PDD(7)

JTDO

JTCK

JTRST

BACKLIGHT-BOOST-A

RC_IRQ_RF4CEn

UART_RX

UART_TX

SDA

SCL

SYS_EEPROM_WE

AMBI_TEMP

USB_DM

USB_DP

JTRST

SDA

SCL

UART_TX

UART_RX

JTMS

JTDI

AMBI_SPI_SCKO

PWM-DIMMING

3D_LED

RESET_USBn

CVBS_DETECT

SYS_EEPROM_WE

LCD_PWR_ON

YPBPR_DETECT

3D_2D_SELECT

SDA

SCL

AMBI_SPI_SDO

BL_ON_OFF

IR

DEMOD_SDA

DEMOD_SCL

AMBI_OUT_SPI_SCKO

AMBI_OUT_SPI_SDO

AMBI_SPI_SCKO

AMBI_SPI_SDO

VGA_DETECT

ARC_SEL1

ARC_SEL0

ORESET

BACKLIGHT_CONTROL

BOOST_CONTROL

USB_DP_WIFI USB_DM_WIFI

10-5-6 B04C, Flash, control, EJTAG & AmbiLight

EN 75L12M3.1L LA 10.

2013-Jun-21

back to

div. table

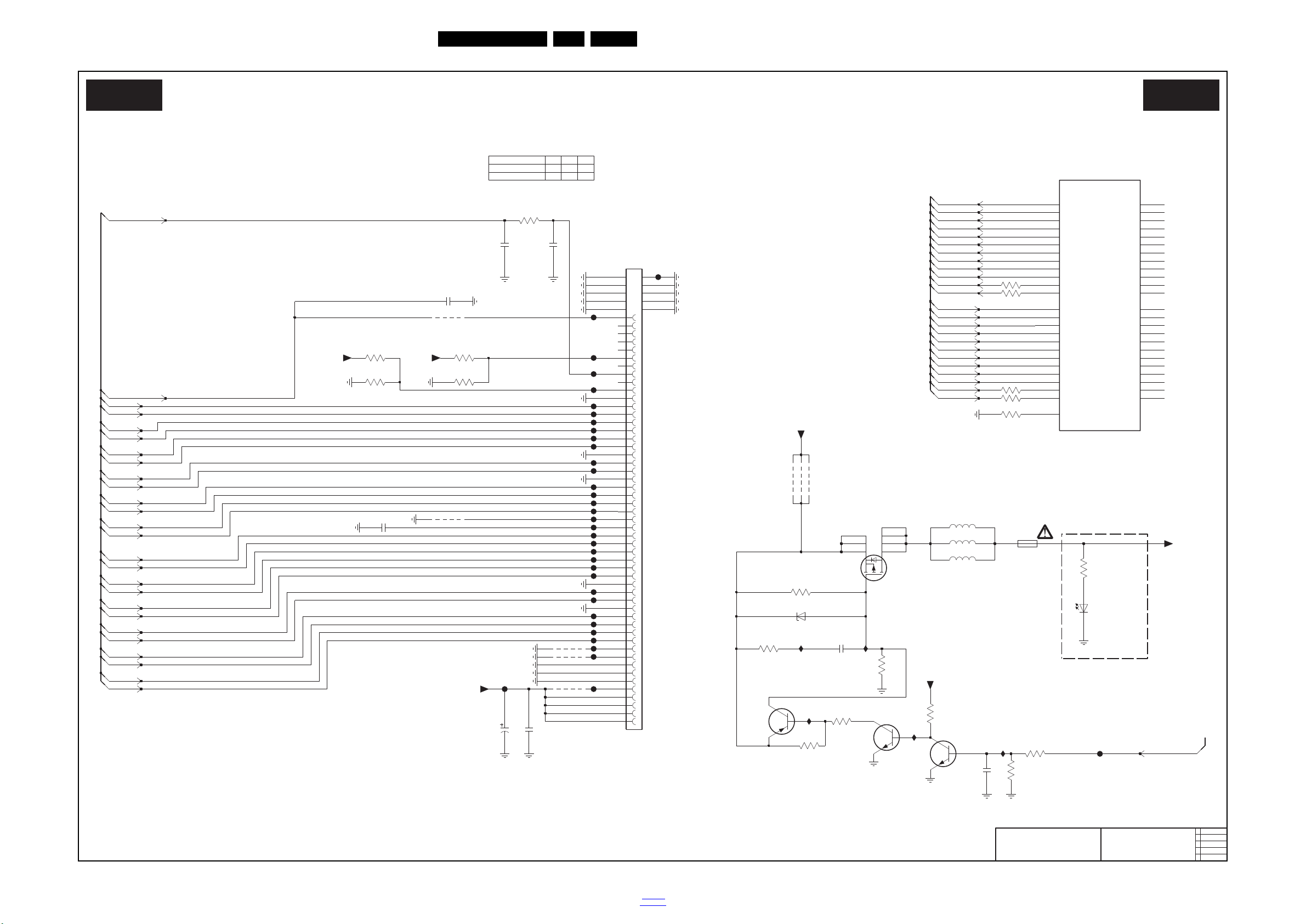

10-5-7 B04D, LVDS display

19510_506_130411.eps

130411

LVD S display

B04D B04D

2013-01-11

1

3139 123 6544

PCB SB SSB

MT5396 R2 LATAM 2K13

REXT_VPLL

AE4P

BE1N BE2P BE2N BE3P BE3N BE4P BE4N BECKP BECKN

BO0P BO0N BO1P

AO1N AO2P AO2N AO3P AO3N AO4P

AO4N AOCKP AOCKN

AE0P

AE0N

AE1P

AE1N

AE2P

AE2N

AE3P

AE3N

AE4N AECKP AECKN

AO0P

AO0N

AO1P

BO1N BO2P BO2N BO3P BO3N BO4P BO4N BOCKP BOCKN

BE0P BE0N BE1P

TO DISPLAY

3D23

0R

Yes0RYes

No

0R

*

FOR DEVELOPMENT USE

No

Yes

0R

2D20 Non TM100 Panel TM100 Panel

*

No

0R

(TOP side)

0R

2D21

0R

MT5396

0R

*

LVDS#2

LVDS#1

RES 4D27

FD53

FD14

FD66

FD72

FD71

FD68

FD67

220n

2D12

5D01

33R

3D15

4D06

FD24

3D13

FD70

FD69

FD73

6D00

BZX384-C6V8

FD12

33R

5D00

3D22

4K7

RES

FD01

4K7RES

2D21

100p

3D20

RES

3D18

+VDISP

F829

ID05

AJ2

AJ1

AH4

AH3

AJ4

AJ3

AG7

AD2

AD1

AE4

AE3

AL4

AL3

AL2

AL1

AK4

AK3

AP3

AU4

AT4

AG4

AG3

AG2

AG1

AF4

AF3

AE2

AE1

AP1

AU6

AT6

AR6

AP6

AR5

AP5

AR4

AP4

AR3

AT2

AU1

AT1

AR2

AR1

AN2

AN1

AM4

AM3

AP2

LVDS_EPI

7300-10

AU2

FD43

3D09

1K0

4D04

4D05

FD56

FD20

4D26RES

FD04

ID17

4D25

FD48

10K

3D05

FD51

68R

3D23

RES

100p

2D20

RES

3D12

2D14 10n

FD08

RES

FD07

RES

6D01

SML-310

4D29

RES

FD45

4D28

ID07

ID03

FD59

FD58

3D11

FD27

24K

3D00

+12VS

16V100u

2D16

10n2D17

+3V3_SW

FD74

FD17

1K0

3D10

3D07

15K

RES

49

50

FD49

8

9

425143

44 45

46 47

48

35

36

37

38

39

4

40

41

5

6

7

26

27

28

29

3

30

31

32

33

34

16

17

18

19

2

20

21

22

23

24

25

1

10

11

12

13

14

15

3D02

1G50

20519-041E

47R

FD52

FD36

3D17

FD55

FD05

1K0

3D08

FD13

5

6

7

8

4

1

2

3

SI4835DDY-GE3

7D00

1D11

3.0A 32VT

FD02

3

4

FD03

7D03-2

BC847BS(COL)

5

FD39

FD44

FD57

FD37

1u0

2D11

FD46

+3V3_SW

FD06

RES

FD16

4D30

FD09

BC857BW

7D02

FD15

FD50

3D14

FD25

33R

5D02

FD10

47K

3D01

FD62

3D16

FD61

FD21

FD40

47K

3D03

FD54

FD38

2D15

100n

FD19

FD23

RES

4K7

3D19

+VDISP

FD22

FD47

FD11

4K7

3D21RES

53

54 55

56 57

58 59

60

49

5

50

51

6

7

8

9

52

61

39

4

40

41

42

43

44

45

46

47

48

29

3

30

31

32

33

34

35

36

37

38

2

20

21

22

23

24

25

26

27

28

1

10

11

12

13

14

15

16

17

18

19

1G51

20519-051E

FD42

2

6

1

7D03-1

BC847BS(COL)

FD41

ID02

3D06

10K

+3V3STBY

FD18

3D_2D_SELECT

OPC_ENABLE

PWM-DIMMING

PX1CLK-

PX1A+

PX1A-

PX1B+

PX1B-

PX1C+

PX1C-

PX1D+

PX1D-

PX1E+

PX1E-

PX1CLK+

PX4APX4B+ PX4BPX4C+ PX4CPX4D+ PX4DPX4E+ PX4EPX4CLK+ PX4CLK-

PX2A-

PX2A+

PX2CLK+

PX2CLK-

PX3A+ PX3APX3B+ PX3BPX3C+ PX3CPX3D+ PX3DPX3E+ PX3EPX3CLK+ PX3CLK-

PX4A+

PX1A+

PX1A-

PX2E-

PX2E+

PX2D-

PX2D+

PX2C-

PX2C+

PX2B-

PX2B+

PX1CLK-

PX1C+

PX1C-

PX1B+

PX1B-

PX1E+

PX1E-

PX1D+

PX1D-

PX1CLK+

PX2D+

PX2EPX2E+

PX2C+

PX2CLKPX2CLK+

PX2D-

PX2A+

PX2BPX2B+

PX2C-

LCD_PWR_ON

3D_2D_SELECT

PX2A- PX4B+

PX3B+

PX3CLK+

PX4E-

PX4D+

PX4D-

PX4CLK+

PX4CLK-

PX3C-

PX4E+

PX3B-

PX3A+

PX3A-

PX3E-

PX3D+

PX3D-

PX3CLK-

PX3C+

PX4C-

PX4B-

PX4A+

PX4A-

PX3E+

PX4C+

Circuit Diagrams and PWB Layouts

EN 76L12M3.1L LA 10.

2013-Jun-21

back to

div. table

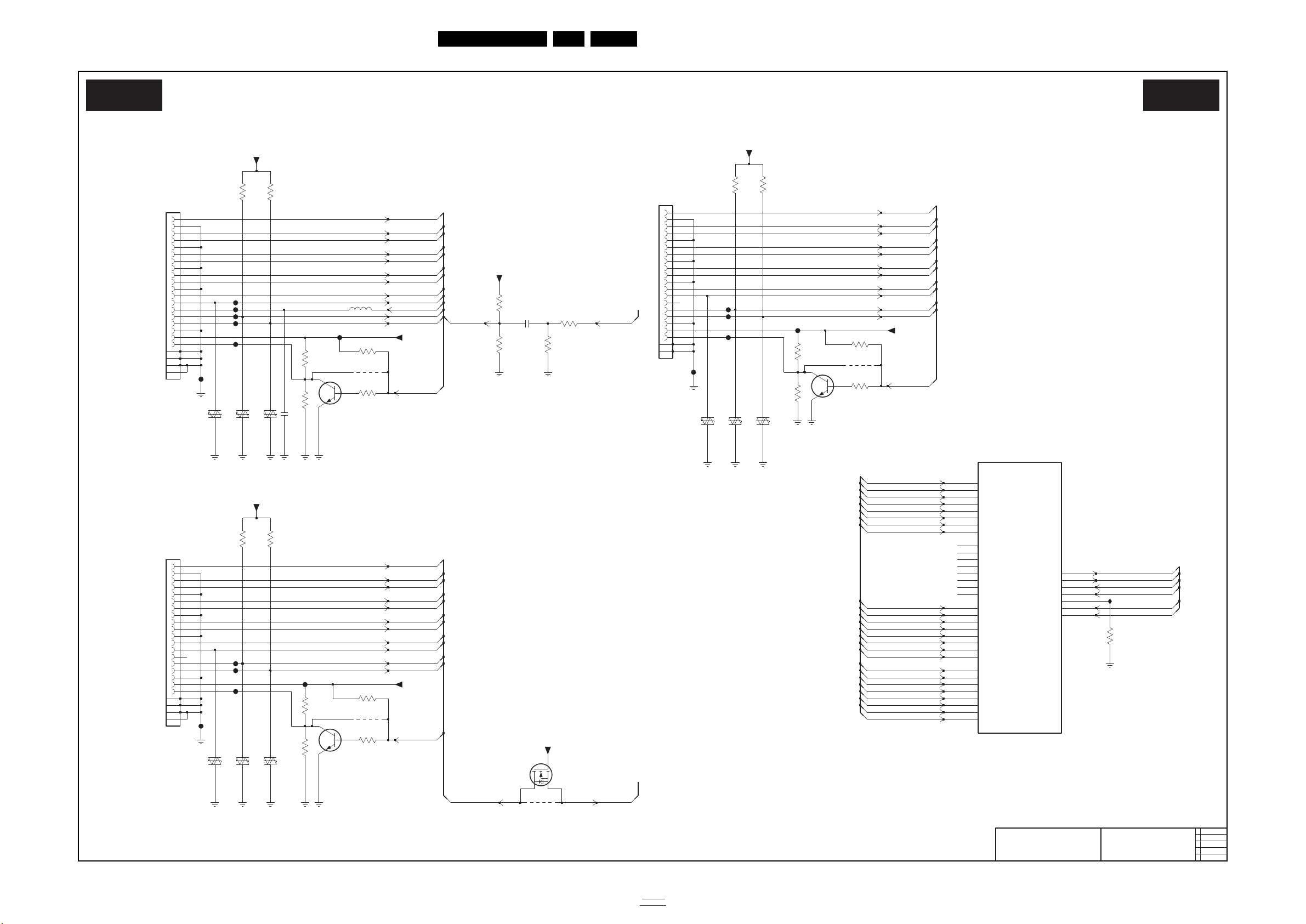

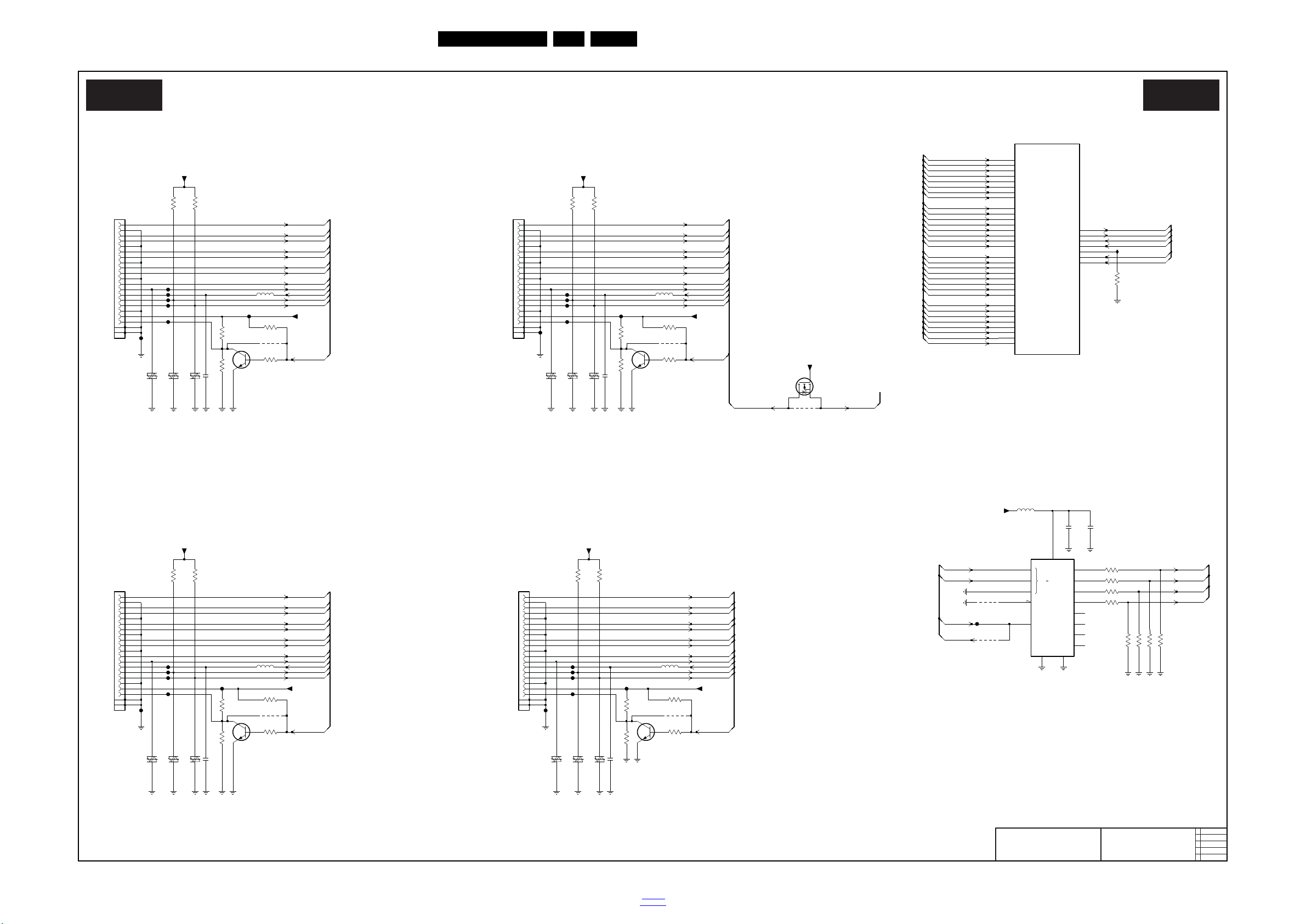

10-5-8 B05A, Digital I/O - HDMI

19510_507_130411.eps

130411

Digital I/O - HDMI

B05A B05A

2013-01-11

1

3139 123 6544

PCB SB SSB

MT5396 R2 LATAM 2K13

PHYLED1

HDMI_3_RX_C HDMI_3_RX_CB

TXVP_0 TXVN_0 RXVP_1 RXVN_1

REXT

HDMI_0_RX_0 HDMI_0_RX_0B HDMI_0_RX_1 HDMI_0_RX_1B HDMI_0_RX_2 HDMI_0_RX_2B HDMI_0_RX_C HDMI_0_RX_CB

HDMI_1_RX_0 HDMI_1_RX_0B HDMI_1_RX_1 HDMI_1_RX_1B HDMI_1_RX_2 HDMI_1_RX_2B HDMI_1_RX_C HDMI_1_RX_CB

HDMI_2_RX_0 HDMI_2_RX_0B HDMI_2_RX_1 HDMI_2_RX_1B HDMI_2_RX_2 HDMI_2_RX_2B HDMI_2_RX_C

PHYLED0

HDMI_2_RX_CB

HDMI_3_RX_0 HDMI_3_RX_0B HDMI_3_RX_1 HDMI_3_RX_1B HDMI_3_RX_2 HDMI_3_RX_2B

G8

7

8X

0

2

0

VCC

2

3

0

1

5

4

7

6

GNDVEE

MT5396

HDMI PORT 4 (SIDE)

HDMI PORT 3

HDMI PORT 1 HDMI PORT 2

FB25

3B23

1K0

FB09

FB04

47K

3B01

OPWR0_5V

6B01

V 6

.5SE

R

FB07

CDS2C05HDMI2

+3V3STBY

30R5B02

6B02 CDS2C05HDMI2 5.6VRES

FB17

1 8

180R

3B56-1

FB24

FB16

4K73B53

1%

24K

3B50

5 6 7

8

9

2021 2223

13 14 15 16 17 18 19

2

3

4

1B03

47266-9102

1

10 11 12

RES 4B01

7

8

9

2021 2223

16 17 18 19

2

3

4 5 6

1

10 11 12 13 14 15

105156-1108

1B04

FB19

6B13 CDS2C05HDMI2 5.6V

RES

BC847BW

7B11

FB08

3B56-4

180R

45

3B00

1K0

CDS2C05HDMI26B33 V6.5SER

5.6V

FB02

CDS2C05HDMI26B22RES

IB01

FB20

3B30

1K0

3B56-2

180R

27

180R

3B56-33 6

AK33

AM16 AN16

AD15

AU17

AT17

AU18

AT18

4B32

AA36 AC37 AC36

AK35 AK34 AJ35 AJ34 AJ37 AJ36 AJ33

AD35 AD34 AC35 AC34 AE35 AE34

AB35 AB34 AA35 AA34 AA37

AG35 AG34 AG37 AG36 AF35 AF34 AH35 AH34

AE

37

AE36

7300-9

HDMI_ETHERNET

10p

2B04

3B52 4K7

6B11 CDS2C05HDMI2 6B31V6.5SER5.6VRES CDS2C05HDMI2

3B04

100K

CDS2C05HDMI2

6B12

V6. 5

SE R

5B04

30R

+3V3_SW

FB01

RES 4B11

4B00

1K0

3B10

7B31

BC847BW

3B22

FB23

47K

OPWR0_5V

OPWR2_5V

30R5B03

FB18

3B21 47K

16

7

13

14

15

12

1

5

2

4

3

MDX

7B32

74HC4051PW

6

8

11

10

9

OPWR1_5V

10p

2B02

1K0

3B13

7B00

RES

BSH111

FB22

FB21

47K3B31

2B03

10p

2021 2223

17 18 19

2

3

4 5 6 7

8

9

1

10 11 12 13 14 15 16

47266-9102

1B02

BC847BW

7B21

21

2223

18 19

2

3

4 5 6 7

8

9

20

1

10 11 12 13 14 15 16 17

OPWR2_5V

1B01

47266-9102

FB05

CDS2C05HDMI26B03 V6.5SER

47K

4B21RES

3B11

5B05 30R

4B33 RES

100K

3B34

100K

3B14

30R5B01

OPWR3_5V

7B01

BC847BW

1K0

3B33

OPWR3_5V

2B05

1u0

FB15

3B32 47K

2B06

100n

2B07

10p

RES 6B32CDS2C05HDMI2 5.6V

4B31

120R3B57-1 1 8

RES

FB11

4K73B54

120R

3B57-3

3 6

OPWR1_5V

3B03

1K0

FB12

1K0

3B20

3B55 4K7

FB13

5.6VRES 6B21 CDS2C05HDMI2

FB28

5.6VRES 6B23 CDS2C05HDMI2

FB26

FB03

3B24

100K

47K3B02

47K

FB29

3B12

120R3B57-4 4 5

FB27

1CRA72

ARC2

ARC3

120R3B57-2

ARC2

HARC2

ARC3

HARC3

ARC

ARC0

ARC0ARC_SEL0

ARC_SEL1

HARC0

ARC1

HARC1

HDMI_0_SCL

HDMI_2_HPD

HDMI_0_HPDHDMI_3_HPD

RX_1_CB

HDMI_CEC_A

HDMI_1_SCL HDMI_1_SDA

RX_1_2B

RX_1_1

RX_1_1B

RX_1_0

RX_1_0B

RX_0_CB

HDMI_CEC_A

HDMI_0_SDA

RX_0_2B

RX_0_1

RX_0_1B

RX_0_0

RX_0_0B

RX_1_2

RX_1_C

HDMI_2_SDA

RX_2_2B

RX_2_1

RX_2_1B

RX_2_0

RX_2_0B

RX_0_2

RX_0_C

RX_3_2B

RX_3_1

RX_3_1B

RX_3_0

RX_3_0B

RX_2_2

RX_2_C

RX_2_CB

HDMI_CEC_A

HDMI_2_SCL

RXVP_1

TXVN_0

TXVP_0

RX_3_2

RX_3_C

RX_3_CB

HDMI_CEC_A

HDMI_3_SCL HDMI_3_SDA

HDMI_1_HPD

PHYLED0 PHYLED1

RXVN_1

RX_0_1B RX_0_2 RX_0_2B RX_0_C RX_0_CB

RX_1_0 RX_1_0B RX_1_1 RX_1_1B RX_1_2 RX_1_2B RX_1_C RX_1_CB

RX_2_0 RX_2_0B RX_2_1 RX_2_1B RX_2_2 RX_2_2B RX_2_C RX_2_CB

RX_3_0 RX_3_0B RX_3_1 RX_3_1B RX_3_2 RX_3_2B RX_3_C RX_3_CB

ARC0

HDMI_CEC

HDMI_CEC_A

RX_0_0 RX_0_0B RX_0_1

Circuit Diagrams and PWB Layouts

EN 77L12M3.1L LA 10.

2013-Jun-21

back to

div. table

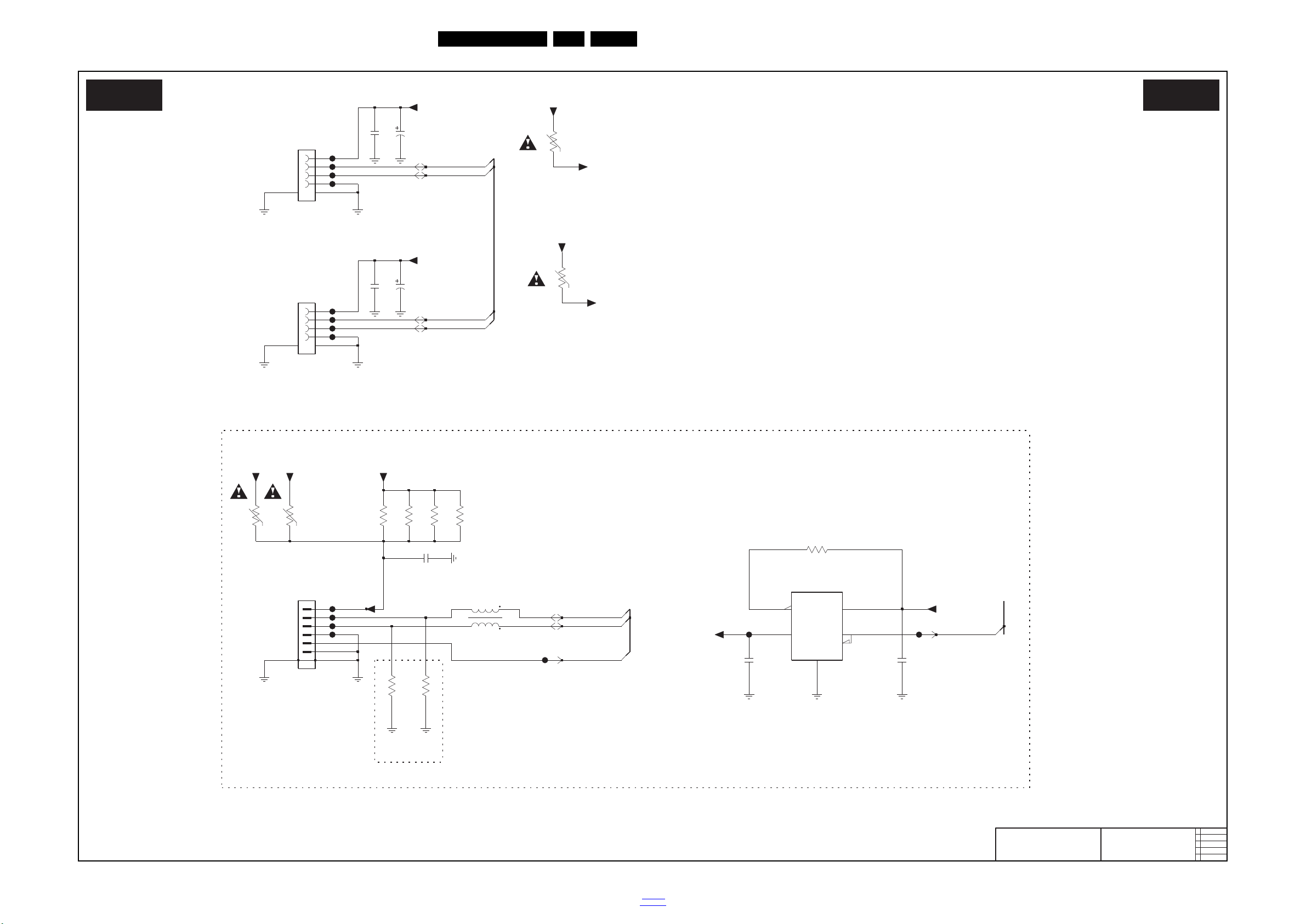

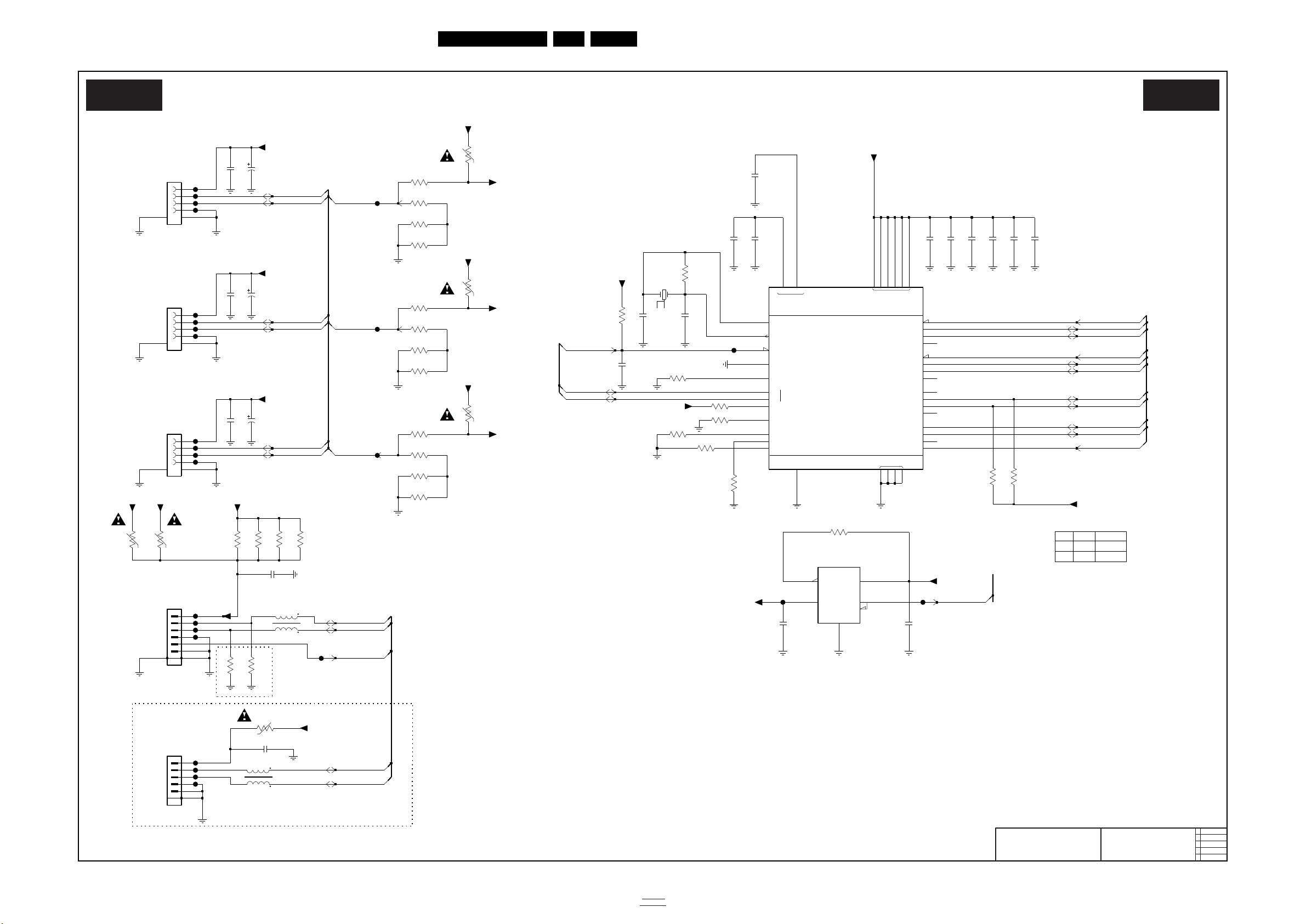

10-5-9 B05B, Digital I/O - USB

19510_508_130411.eps

130411

Digital I/O - USB

B05B B05B

2013-01-11

1

3139 123 6544

PCB SB SSB

MT5396 R2 LATAM 2K13

GND_HS

USBUP

OSC2

VIA

OSC1

VBUS_DET

RESET

DM

XTALOUT

DP

RBIAS

TEST

VDD_3V3

CR PLL

FILT

+T

VIN

VOUT

GND

EN

FLG

EN

+T +T

For internal Skype only

0R

3C42 10k

10k

USB PORT 2

(WIFI)

45R3

skype

USB PORT 3

0R

RES

SQ Test Only

45R3

0R

3C41

INTERNAL USB

USB PORT 1

0R

RES

non skype

FC59

FC60

3C22-3

10K

3 6

45

+5V_USB1

10K

3C12-4

100n

2C17

+3V3_SW

+5V_USB2

FC38

3

+5V_SW

2C13

10p

24M

1C45

2

4

1

8

1%

RES3C33

3C37-1

100K

1

3C36

1%12K

+5V_SW

2C12

100n

100K

3C39

3C01

1 8

0R3

32

10K

3C12-1

10

29

152336

38

39

40

41

33

XTALIN|CLKIN

30

2

USBDP_DN1|PRT_DIS_P1

4

USBDP_DN2|PRT_DIS_P2

7

USBDP_DN3|PRT_DIS_P3|NC5

USBDP_DN4|PRT_DIS_P4|NC1

9

31

27

5

SCL|SMBCLK|CFG_SEL0

22

SDA|SMBDATA|NON_REM1

28

SUSP_IND|LOCAL_PWR|NON_REM0

11

1

USBDM_DN1|PRT_DIS_M1

3

USBDM_DN2|PRT_DIS_M2

6

USBDM_DN3|PRT_DIS_M3|NC2

USBDM_DN4|PRT_DIS_M4|NC3

8

37

25

HS_IND|CFG_SEL1

21

OCS4_|NC4

13

17

OSC3_|NC7

19

34

35

26

24

12

BC_EN1|PRTPWR1

16

BC_EN2|PRTPWR2

18

BC_EN3|PRTPWR3|NC6

BC_EN4|PRTPWR4|NC8

20

14

RES

45

Φ

USB HUB

USX2064-AEZG

7C02

3C04-4

+3V3_SW

1M0

3C35

FC50

27

FC48

3C02-2

10K

FC45

RES3C04-2

27

1 8

2C07

1u0

+5V_SW

3C02-1

10K

14

23

+5V_SW

1C32

ACM2012

FC01

FC53

FC42

FC39

FC33

3C02-4

10K

45

FC32

1 8

3C22-1

10K

1 2

3

4 5

67

56

S1315

1C30

USB-01-PBT-B-30-CU2-BRF

1 2

3

4

+3V3_SW

1C01

2C01

100n

USB_PWR_P0

RES

2C02

10u

FC44

1%

RES3C32

0R3

3C40

100n

2C23

54

100K

3C37-4

+5V_USB3

23

RES

1u0

2C03

1C46

ACM2012

14

FC21

6.3V100u

2C20

10p

2C14

FC11

3C04-1

1 8

FC43

RES

FC36

RES

0R3

3C31

100K3C38

100n

2C09

+3V3_WOLAN

+3V3_SW

+3V3_WOLAN

1 2

3

4 5 6

7

8

1C31

S1315

100n

2C21

FC46

0R3

+5V_USB2

+5V_USB1

3

2

5

1

3C21

RT9715GGB

7C01

4

+5V_SW

+3V3_SW

RES

3C22-2

10K

27

3 6

FC52

10K

3C12-3

2C18

100u 6.3V

FC37

27

100K

3C37-2

+3V3STBY

3C06

0R3

3C05

100K

100n

2C05

RES

2C19

100n

3

4 56

USB-16-PBT-B-30-CU1-BRF

1 2

+5V_USB3

1C03

1u0

2C06

27

10K

3C12-2

6.3V100u

2C16

FC49

3C02-3

3 6

10K

0R3

3C11

5

2C08

100n

3C22-4

10K

4

1 2

3

4 56

1C02

USB-16-PBT-B-30-CU1-BRF

2C15

100n

FC62

FC61

FC57

FC54

RES3C04-3

3 6

2C04

100n

10K

3C42 RES

RES3C41

10K

FC51

FC58

3 6

3C37-3

100K

100n

2C11

100n

2C10

USB_P3_OC

USB_DM_CAM

USB_DP_CAM

USB_DM_WIFI

USB_DP_WIFI

USB_DP_CAM

USB_DM_CAM

USB_DP_P1

USB_DM_P1

USB_DP_P3

USB_DM_P3

ENABLE_WOWLAN

USB_P1_OC

USB_P2_OC

USB_DM_P1

USB_DM_P2

USB_DP_P1

USB_DP_P2

IRQ_WOWLANn

USB_DM

USB_DP

RESET_USBn

USB_P3_OC

USB_P1_OC

USB_DM_P2

USB_DP_P3

USB_DM_P3

USB_P2_OC

USB_DP_P2

Circuit Diagrams and PWB Layouts

EN 78L12M3.1L LA 10.

2013-Jun-21

back to

div. table

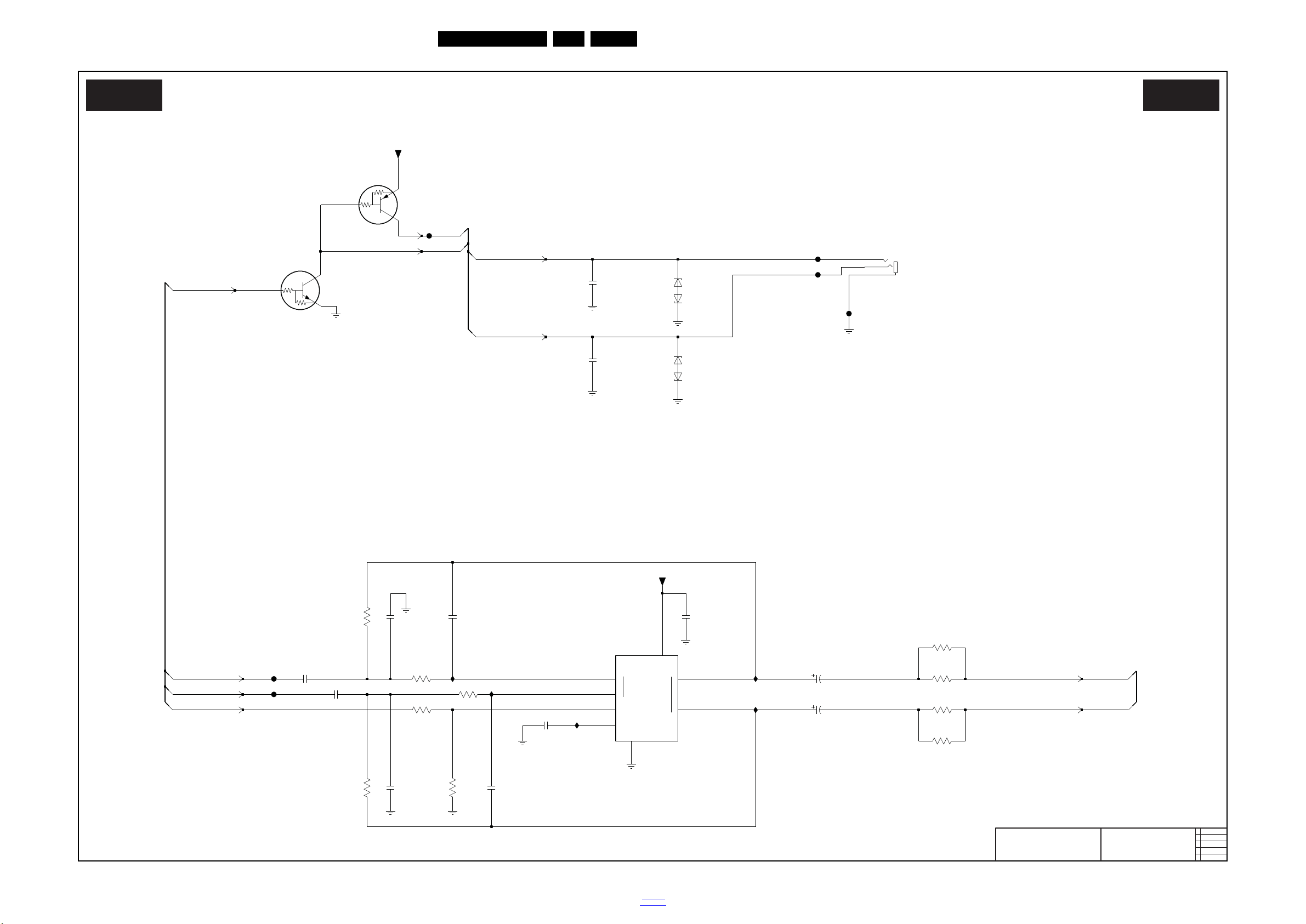

10-5-10 B06A, Analogue I/O - Headphone

19510_509_130411.eps

130411

Analogue I/O - Headphone

B06A B06A

2013-01-11

1

3139 123 6544

PCB SB SSB

MT5396 R2 LATAM 2K13

GND

2

1

SHUTDOWN

BYPASS

2

IN-

VDD

1

VO

RIGHT

HEADPHONE

LEFT

F811

F807 3811

10K

1u0

2808

1

7

3

4

2

6

5

8

7800

TS489IST

AMPLIFIER

Φ

3805

F804

22K

6

1

2813

1n0

PUMD12

7801-1

2

47p

2804

I808

3 6

RES

PESD5V0S1BA

6801

3807-3

33R

2803

47p

1

3

2801

1n0

1401

MSJ-035-12D-B-AG-PBT-BRF

2

I812

I809

7801-2 PUMD12

5

3

4

3807-2

33R

27

2807

100u

4V

33R

1 8

100u

2806

3807-1

4V

F810

+3V3_SW

3812

10K

6800

PESD5V0S1BA

RES

I811

+3V3STBY

I810

F809

2805

1u0

2802

1n0

2810

1u0

3806

22K

F808

33R

45

1n0

2812

3807-4

2809

1u0

3813

10K

3814

HP_LOUT

HP_ROUT

22K

RESET_AUDIO

A_STBY

A_PLOP

HPOUT_L

HPOUT_R

HP_LOUT

HP_ROUTA_PLOP

Circuit Diagrams and PWB Layouts

EN 79L12M3.1L LA 10.

2013-Jun-21

back to

div. table

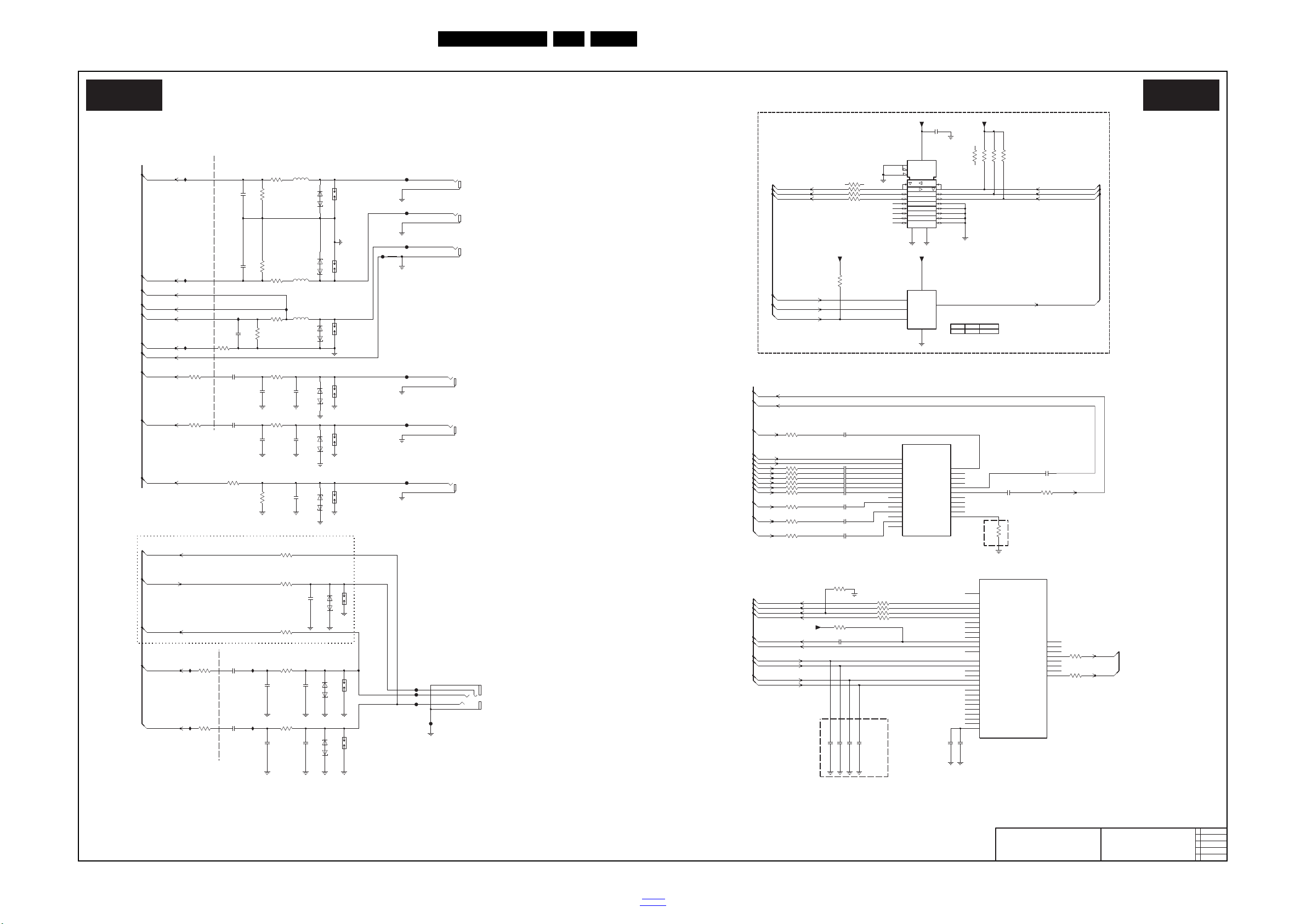

Circuit Diagrams and PWB Layouts

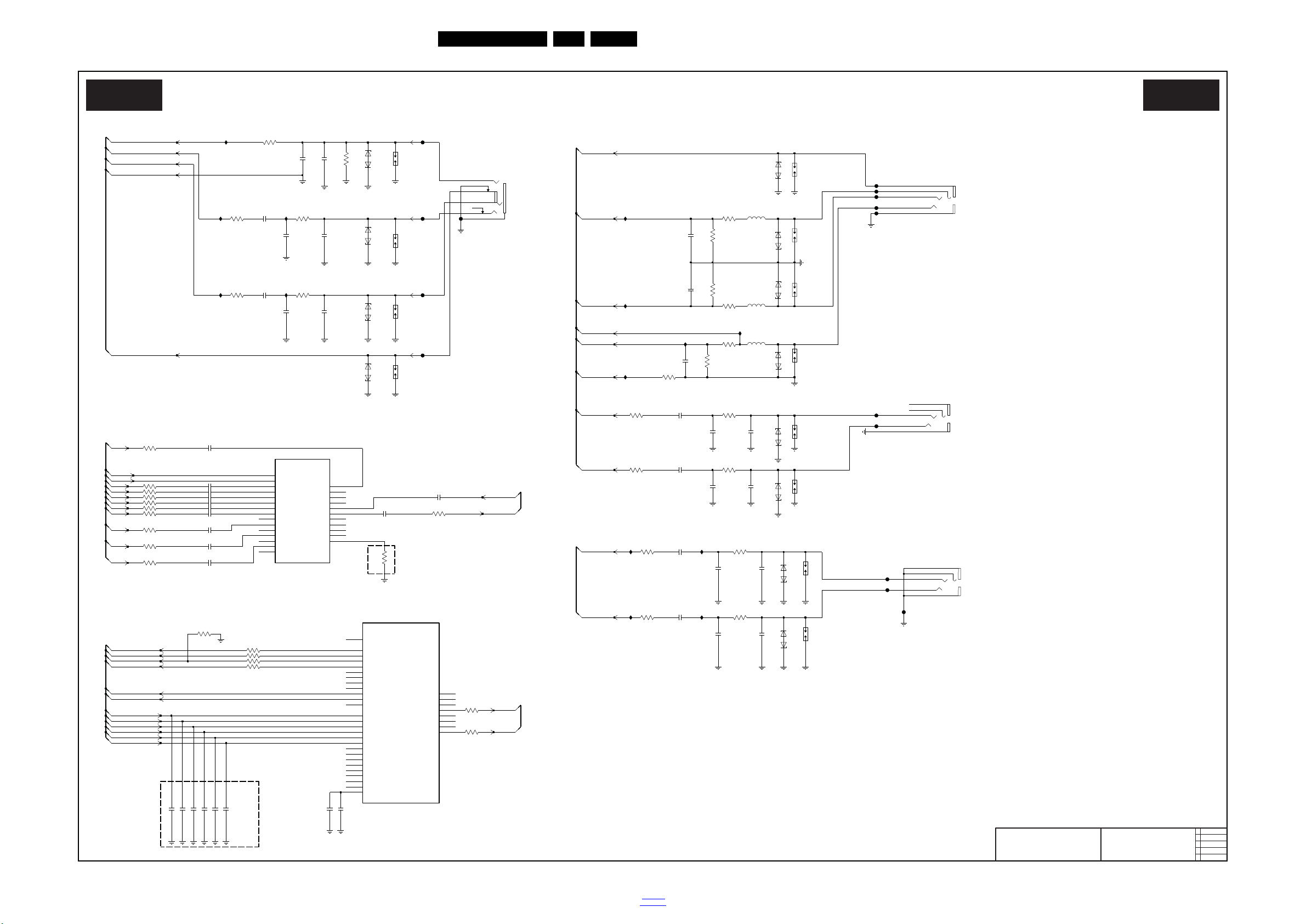

19510_510_130411.eps

130411

Analogue I/O - Component & Composite

B06B B06B

2013-01-11

1

3139 123 6544

PCB SB SSB

MT5396 R2 LATAM 2K13

MPXP

AOBCK AOLRCK AOMCLK AOSDATA0 AOSDATA1 AOSDATA2

AL0_ADAC AL1_ADAC AL2_ADAC

AL3_ADAC AR0_ADAC AR1_ADAC AR2_ADAC

AOSDATA3 AOSDATA4 ASPDIF0 ASPDIF1 ALIN

AIN0_L_AADC AIN0_R_AADC AIN1_L_AADC AIN1_R_AADC AIN2_L_AADC AIN2_R_AADC AIN3_L_AADC AIN3_R_AADC AIN4_L_AADC AIN4_R_AADC AIN5_L_AADC

AR3_ADAC

AIN5_R_AADC AIN6_L_AADC AIN6_R_AADC VMID_AADC

VDACY_OUT

VDACX_OUT

PR1P Y0P Y1P COM0 COM1

HSYNC VSYNC BP SOG GP RP COM PB0P PB1P PR0P

SOY0 SOY1

SY0

SC0

CVBS_COM

CVBS0P CVBS1P CVBS2P CVBS3P

YPbPr AUDIO

YPbPr

PC_AUDIO

DEB

RES

CVBS SIDE

MT5396

CVBS

56R

3906

10R3961-33 6

5

15p

2925

RES

10R3961-44

3965

20K

5900

1915

60R

RES

2986

1n0

2983

100p

2906

10p

RES

F902

RES

2904

1n0

1927

RES

1n0

2902

2949

1n0

2988

10n

RES

3940 100R

1928

1n0

RES

2989

1R0

3923

3903

56R

F905

6900

PESD5V0S1BA

RES

I910

I952

1925

3951 100R

RES

PESD5V0S1BA

6913

2901

1n0

100p

2982

I950

RES

3922

1R0

18R

3904

F903

I904

2924

47p

1916

4

5

RES

PESD5V0S1BA

6920

MSJ-035-75C-G-RF-PBT-BRF

1VA2

1

2

3

2951 10n

10n2958

10n2954

AM10

AN35 AM32 AM37 AM36

AR16 Y32

AN28

AJ27

AM33 AM35

Y33

AR11 AP11 AM12 AN9 AN10 AN11 AM11

AU36 AR37 AT36 AP32 AR33 AP37 AR36 AP36 AR35

AN34 AM34

AU35 AU37 AT37 AT35 AP34

AUDIO_DAC_ADC

7300-2

1n52945

1905

F931

AP29

AM25

AP27 AU26

AR26 AR28 AP26

82PA52RA

AT24

AR27 AP25 AR29

AU30

AP24

AU28 AT26

AN29 AR31 AR30

AT30

AP30

AR24

AN25

AT28

7300-14

VIDEO_IO

AU24

3925

18R

20K

3966

1921

1R0

3907

1R0

I948

3971

PESD5V0S1BA

1R0

6902

3901

100R3950

30K

3953

F901

PESD5V0S1BA

RES

6914

F930

F927

1n0

2927

RES

100p

2966RES

F921

RES

6919

PESD5V0S1BA

3941

6904

PESD5V0S1BA

100R

100R3944

2907

10p

3973

10u

1R0

2929

2955 10n

56R

3902

2948 10n

3900

1R0

I903

1%

3921

PESD5V0S1BA

6901

75R

RES

5901

60R

RES 2963

100p

1922

2926

10u

I911

RES

2961

1n0

I949

F929

10p

2908

2987

10u

I953

F919

3958

30K

RES

3960

75R

PESD5V0S1BA

6903

100R

3949

30K

3959

I902

10u

2903

RES

PESD5V0S1BA

6915

39361R0

1R03937

1929

30K

3970

3961-2 10R27

RES 2965

100p

3924

1920

1R0

F925

2985

1n0

F924

RES

47n2957

100p

2964

I951

RES

I912

F904

8

1914

MSJ-035-96C-Y-RF-PBT-BRF

1VA4

2

3

4

5

6

7

2946

1u02978

10n

60R

I945

5902

F900

10n2977

3905

18R

RES

10K

3974

I946

2900

10u

3952

30K

100R3939

RES

1n0

2905

1923

MSJ-035-75C-B-RF-PBT-BRF

1

2

3

4

5

2930

1VA3

4n7

100R

3938 100R

3946

810R3961-11

6921

PESD5V0S1BA

RES

3972

30K

F928

1u0

2962

1

2

3

4

5

MSJ-035-75C-BL-RF-PBT-BRF

1A02

2944 1n5

RES

6917

PESD5V0S1BA

10u

2984

4n7

2928

10n2947

CVBS_DETECT

HSYNC

CVBS_GND_1

RP

GP

SY0N

SY0P

SPR0P

SPB0P

VSYNC

AIN0_R

CVBS_GND

CVBS_AV3

SOY0

BP SOG

GN

AOMCLK

PB0P

SOY0

SY0P

SY0N

Y0P

AIN2_L AIN2_R

PR0P

YPBPR_DETECT

HPOUT_L

HPOUT_R

AIN2_L

AIN2_R

AIN0_L AIN0_R AIN1_L AIN1_R

SPDIF_OUT ARC

AOBCK AOLRCK

AOSDATA0

CVBS_AV3

CVBS_GND

SPR0P

SPB0P

AIN0_L

AIN1_L

AIN1_R

10-5-11 B06B, Analogue I/O - Component & Composite

EN 80L12M3.1L LA 10.

2013-Jun-21

div. table

back to

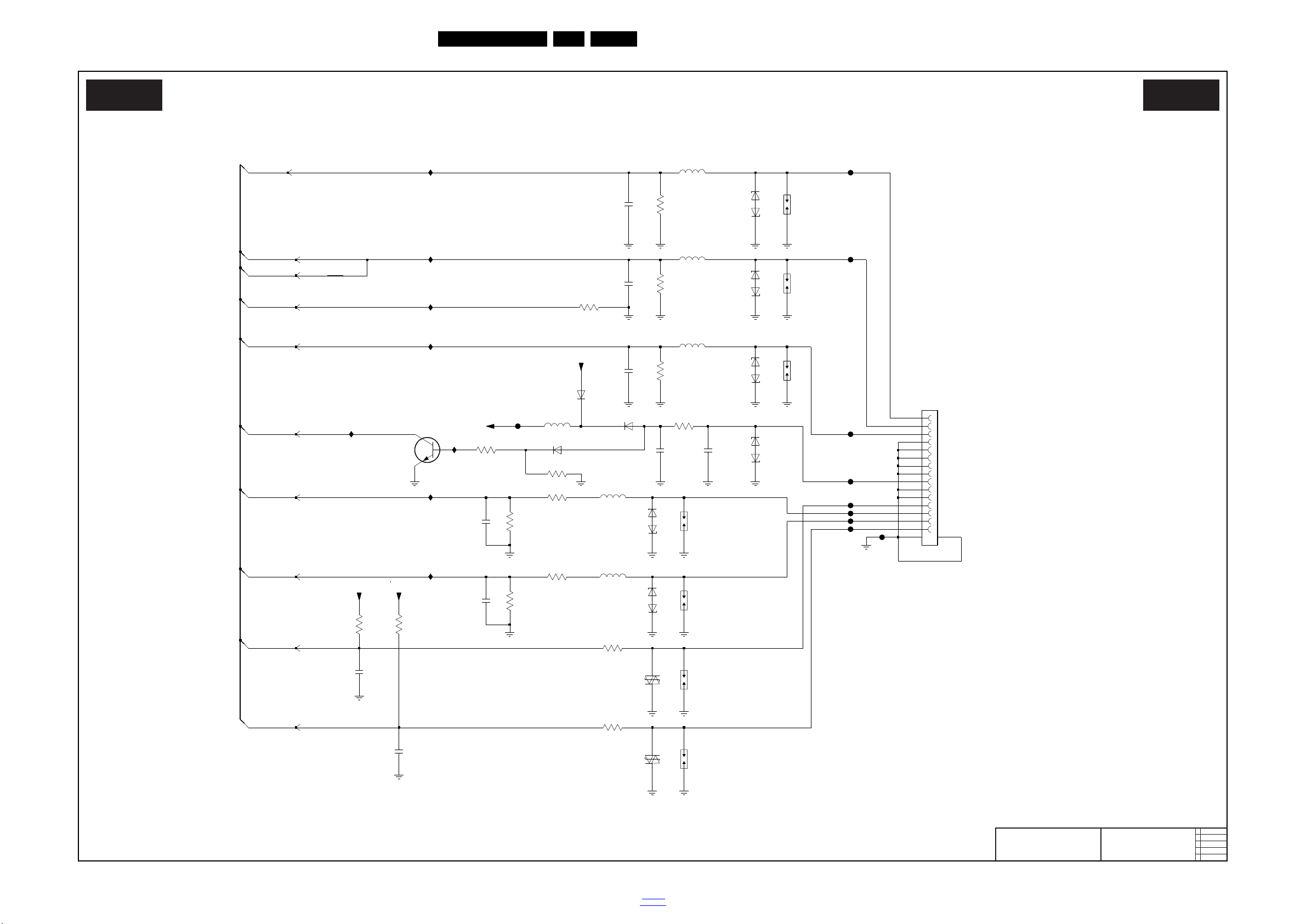

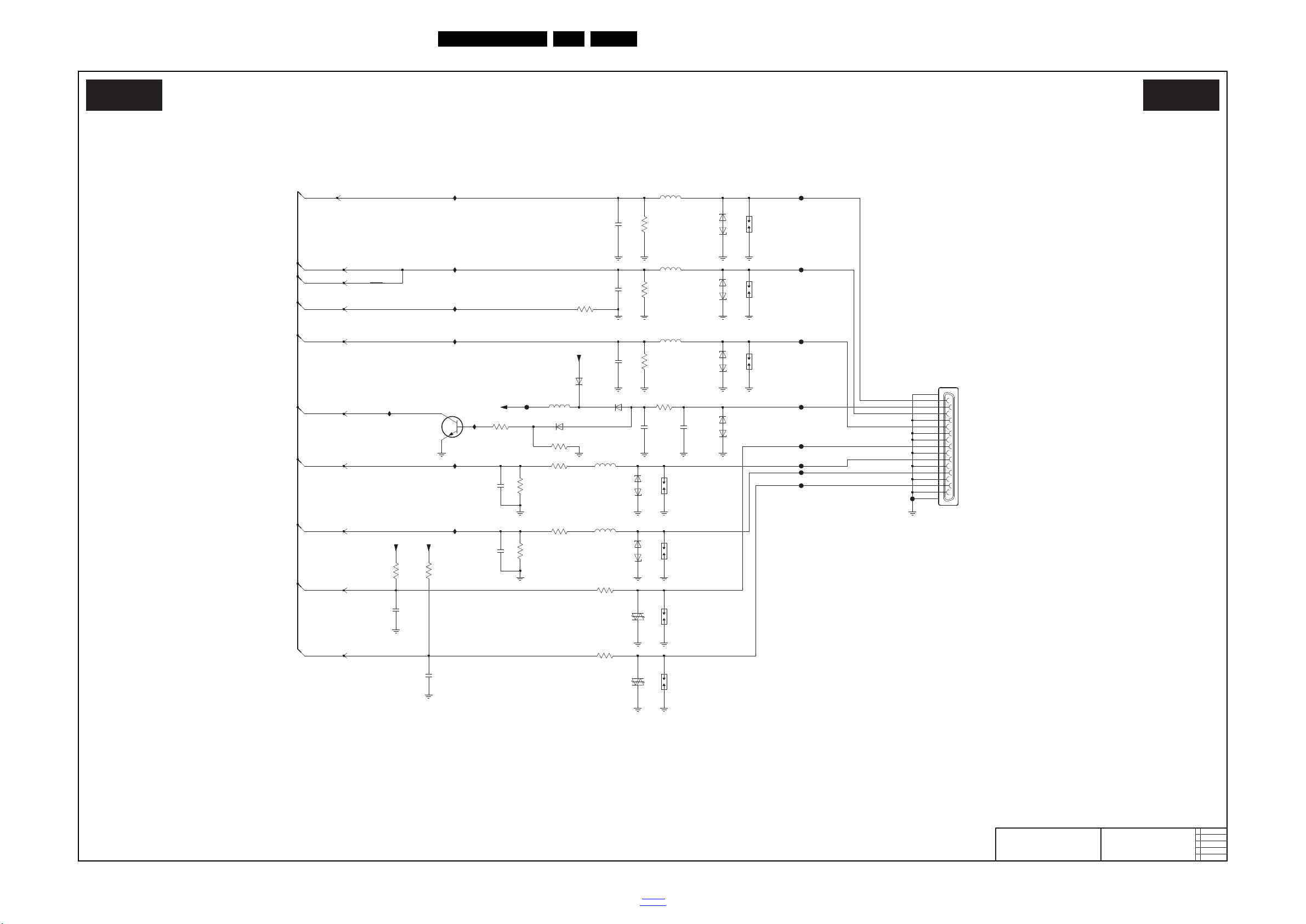

10-5-12 B06C, Analogue I/O - VGA

19510_511_130411.eps

130411

Analogue I/O - VGA

B06C B06C

2013-01-11

1

3139 123 6544

PCB SB SSB

MT5396 R2 LATAM 2K13

H_SYNC

Y_SYNC

2A07

10p

FA14

3A17

RES

PESD5V0S1BA

6A01

RES

2K2

5A06

60R

5p6

2A12

3A10

1R0

5A02

60R

4 5 6 7

8

9

16

17

1

10 11 12 13 14 15

2

3

1A01

MDS-15P-V-11-B-8.2-U4-ZN-PBT-BRF

IA09

IA01

6A07

BAS316

3A16

75R

1A10

1A00

30R

5A05

PESD5V0S1BA

6A02

IA08

RES

FA04

10K

3A21

1A08

FA06

0001

3A23

BAS316

6A08

10K

FA02

FA07

1A09

CDS2C05HDMI2

6A09

RES

3A14

75R

2K2

RES

3A18

RES

2A17

100p

2A16

5A00

60R

3A26

100R

1A07

2A13

6A03

5p6

IA07

RES

PESD5V0S1BA

FA08

100R

3A25

3A24

100R

IA02

IA03

RES

6A10

CDS2C05HDMI2

75R

3A15

10p

2A08

FA03

BAS316

6A06

RES

PESD5V0S1BA

6A00

10K

3A22

7A01

BC847BW

1

3

2

6A04

RES

PESD5V0S1BA

FA13

2A14

2u2

1n0

2A09

10p

2A15

FA05

1A03

6A05

PESD5V0S1BA

RES

30R

5A04

0001

1A20

5A01

60R

3A19

120R

3A27

100R

FA01

IA05

10K

IA04

3A20

VGA_SDA

VGA_SCL

+5V_DC

+5V_DC +5V_DC

+5V_SW

VGA_DETECT

GP

SOG

HSYNC

BP

RP

GN

VSYNC

Circuit Diagrams and PWB Layouts

EN 81L12M3.1L LA 10.

2013-Jun-21

back to

div. table

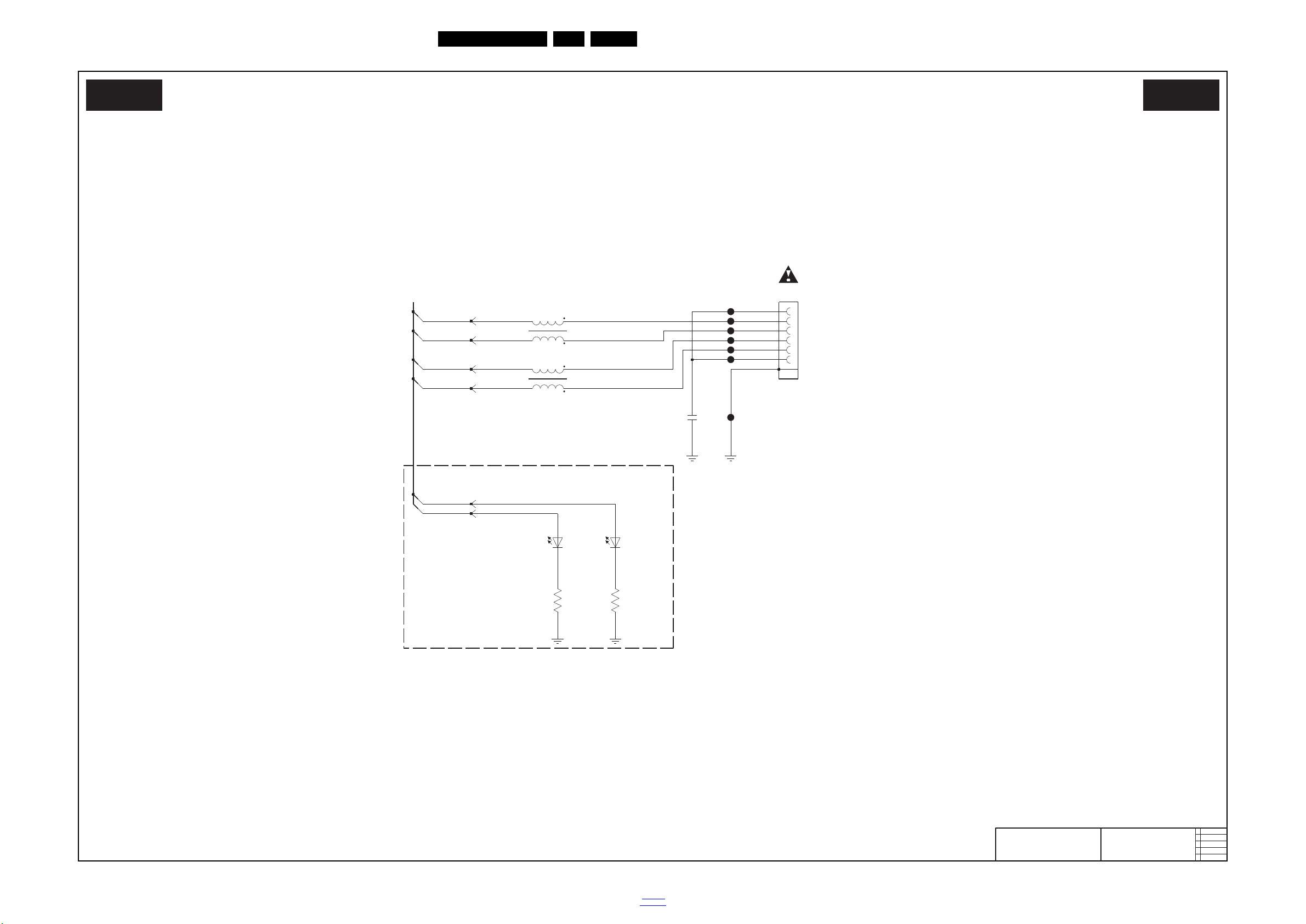

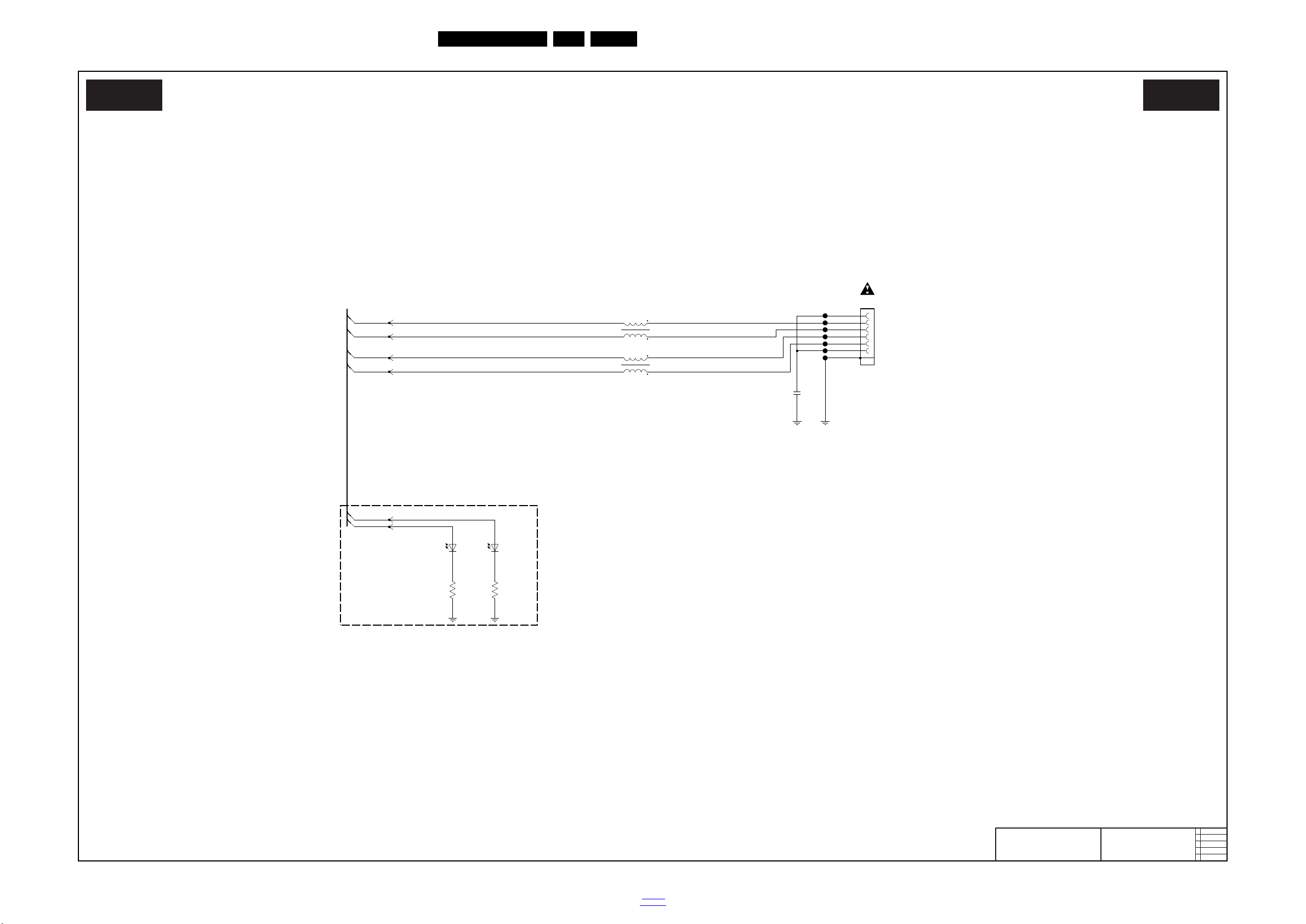

10-5-13 B07A, Ethernet

19510_512_130411.eps

130411

Ethernet

B07A B07A

2013-01-11

1

3139 123 6544

PCB SB SSB

MT5396 R2 LATAM 2K13

Reserved for debug only

FF09

FF08

6F02

SML-310

RES

5 6 7 8

5450-327-194-H3

1 2

3

4

FF06

1F01

22n

2F24

14

23

1F04

ACM2012

RES

FF11

3F08

330R

14

23

1F03

ACM2012

FF07

RES

330R

3F07

FF12

RES

FF10

SML-310

6F01

PHYLED1

PHYLED0

RXVP_1

RXVN_1

TXVN_0

TXVP_0

Circuit Diagrams and PWB Layouts

EN 82L12M3.1L LA 10.

2013-Jun-21

back to

div. table

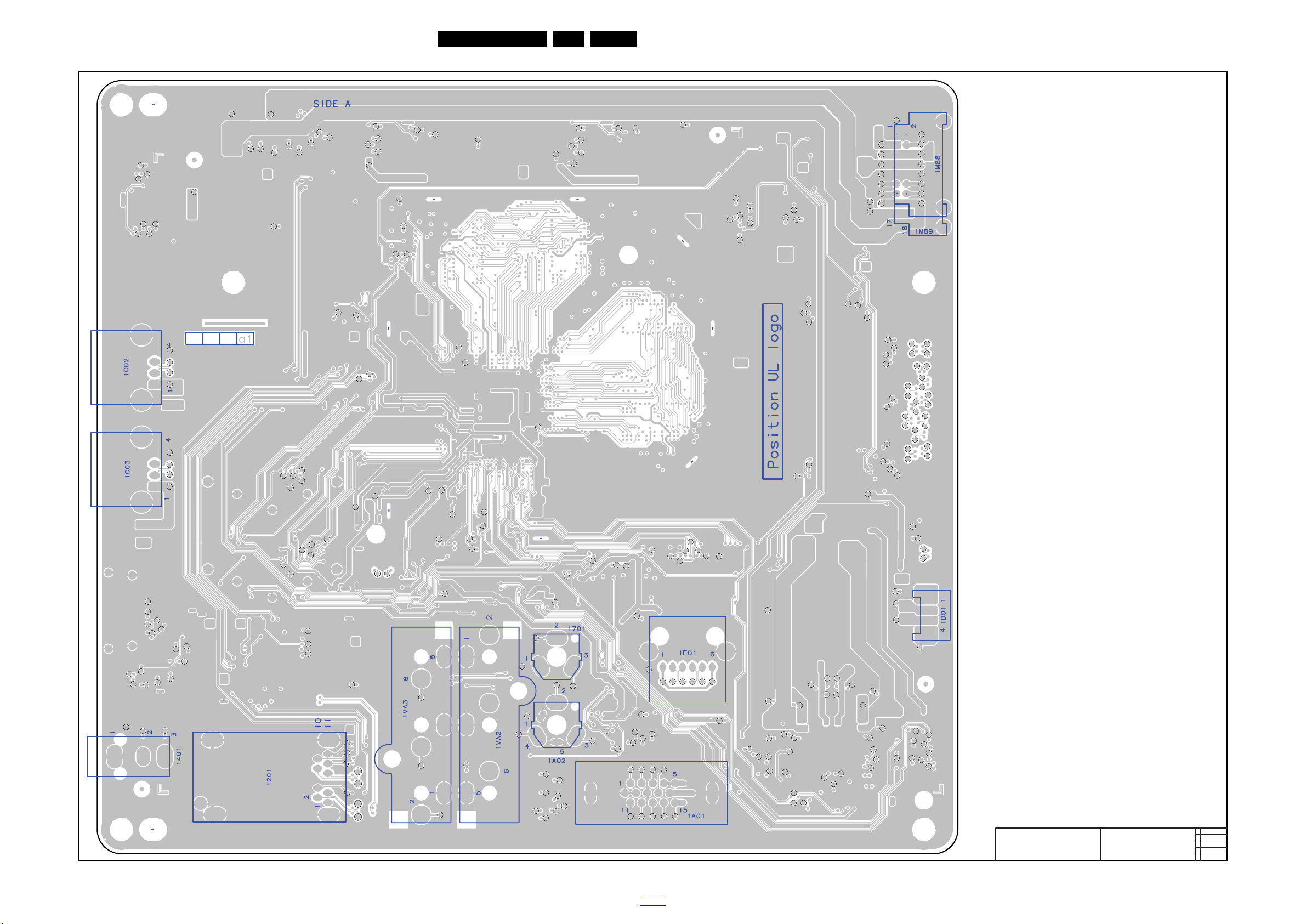

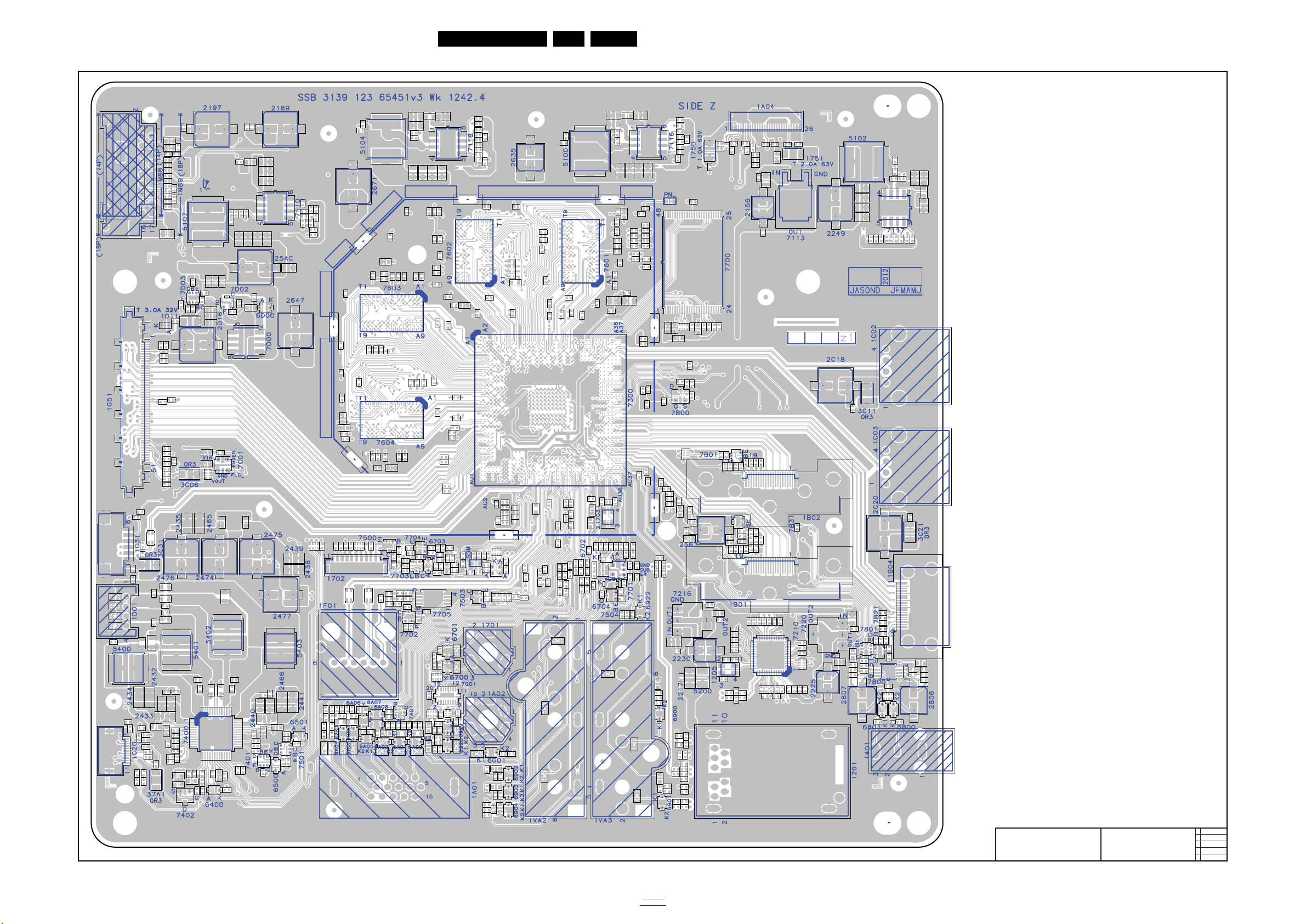

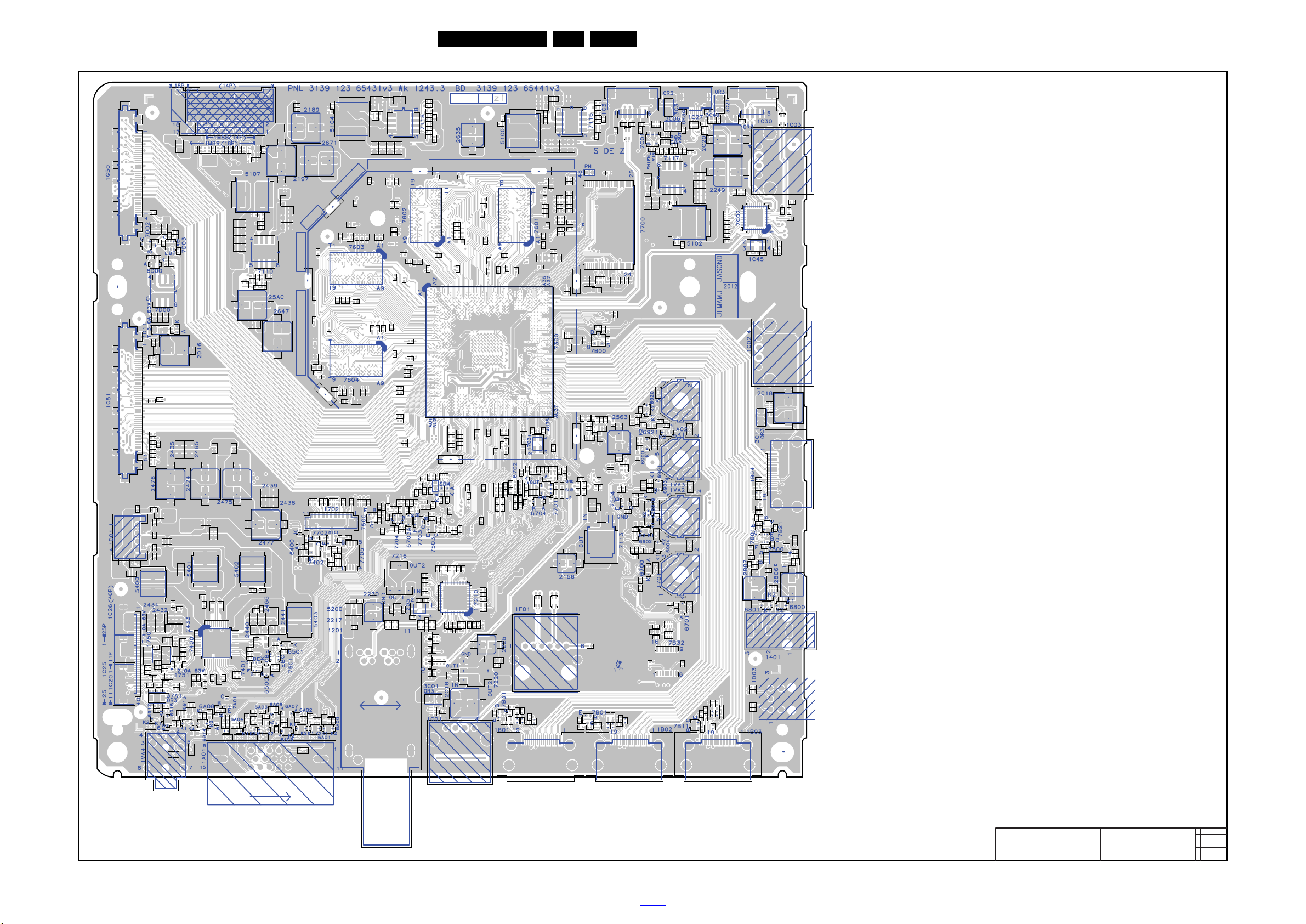

19510_513_130411.eps

130411

2013-01-11

1

3139 123 6544

SSB Layout top

1201

1205

1401

1402

1403

1404

1405

1601 1602

1603

1604

1605

1606

1608

1609

1701

1702

1703

1710

1711

1750

1751

1905

1914

1915

1916

1920

1921

1922 1923

1925

1927

1928

1929

1A00

1A01

1A02

1A03

1A07 1A081A09 1A10 1A20

1B01 1B02 1B03

1B04

1C01

1C02 1C03

1C20

1C25 1C26

1C27

1C30

1C31

1C32

1C45

1C46

1D01

1D03

1D11

1F01

1F03

1F04

1G501G51

1M88

1M89

1VA2

1VA3

1VA4

2100

2101

2102

2103

2104

2105

2106

2107

2108

2109

2110

2111

2112

2113

2114

2115

2116

2117

2118

2119

2120

2121

2122

2123

2124

2125

2126

2127

2128

2131

2132

2133

2134

2136

2137

2143

2145

2146

2147

2148

2154

2155

2156

2157

2164 2165

2166

2167

2168

2169

2170

2171

2172

2174

2175

2176

2177

2178

2179

2180

2182

2183

2184

2185

2187

2188

2189

2191

2192

2193

2194

2196

2197

2198

2200

2201

2204

2205

2206

2207

2208

2209

2210

2211

2213

2214

2215

2216

2217

2218

2219

2220

2221 2222

2223

2224

2225

2226

2227

2228

2229

2230

2231

2232

2233

2234

2235

2236

2239

2240

2244

2245

2246

2247

2248

2249

2400

2401

2402

2403

2404

2405

2406

2407

2408

2409

2410

2411

2412

2413

2416

2417

2418

2419

2420

2421

2422

2424

24252427

2428

2429

2432

2433

2434

2435

2436

2437

2438

2439

2440 2441

2442

2443

2460

2461

2462

2463

2464

2465

2466

2471

2474

2475

2476

2477

2501

2502

2503

2504

2505

2536

2537

2538

2542

2543

2544

2551

2552

2557

2558

2559

2561

2562

2563

2564

2565

2566

2568

2569

2570

2571

25A8

25A9

25AA

25AB

25AC

25AD

25AE

25AF

25AG

25AH

25AJ

25AK

2601

2602

2608

2611

2612

2613

2614

2615

2616

2617

2618

2635

2638

2639

2640

2641

2642

2643

2644

2645

2646

2647

2649

2650

2651

2652

2653

2654

2655

2656 2657

2658

2659

2660

2661

2662

2663

2664

2665

2666

2667

2668

2669

2671

2672

2673

2674

2675

2676

2677

2678

2679

2680

2681

2682

2683

2684

2685

2686

2687

2688

2689

2690

2691

2692

2693

2694

2695

2696

2697

2698

2699

2700

2701

2703

2704 2705

2706

2707

2708

2710

2711

2714

2715

2716 2717

2718

2719

2720

2721

2725

2726

2727

2728

2729

2730

2731

2732

2733

2734

2735

2801

2802

2803

2804

2805

2806

2807

2808

2809

2810

2812

2813

2900

2901

2902

2903

2904

2905

2906

2907

2908

2924

2925

2926

2927

2928

2929

2930

2944

2945

2946

2947

2948

2949

2951

2954

2955

2957

2958

2961

2962

2963

2964

2965

2966

2977

2978

2982

2983

2984

2985

2986

2987

2988

2989

2A07

2A08

2A09

2A12

2A13

2A14

2A15

2A16

2A17

2B02

2B03

2B04

2B05

2B06

2B07

2C01

2C02

2C03

2C04

2C05

2C06

2C07

2C08

2C09

2C10

2C11

2C12

2C132C14

2C15

2C16

2C17

2C18

2C19

2C20

2C21

2C23

2D11

2D12

2D14

2D15

2D16

2D17

2D20

2D21

2F24

3100

3102

3103

3104

3105

3106

3107

3108

3109

3110

3111

3112

3113

3114

3115

3116

3117

3118

3119

3120

3121

3122

3123

3126

3127

3128

3129

3130 3131

3133

3137

3146

3162

3163

3167

3168

3169

3170

3200

3201

3202

3203

3204

3205

3206

3207

3208

3209

3210

3211

3212

3213

3214

3217

3218

3222

3223

3224

3225

3226

3227

3228

3229

3230

3231

3232

3400

3401

3402

3403

3404

3405

3406

3407

3408

3409

3410

3411

3412

3417

3418

3419

3420

3421

3426

3427

3500

3502

3503

3504

3505

35063507

3508

3509

3510

3511

3512

3513

3514

3519

3520

3521

3523

3524

3526

3530

3534

3535

3536

3541

3542

3543

3544

3546

3547

3608

3613

3614

3623

3624

3627

3628

3634

3635

3650 3656

3666

3667

3688

3695

3696

3701

3702

3704

3705

3706

3708

3709

3710

3711

3712

3713

3714

3715

3719

3720

3723

3724

37263727

3728

3729

3730

3731

3732

3733

3734

3735

37363737

3738

3739

3740

3741

3742

3747

3748

3749

3750

3751

3752

3753

3754

3755

3756

3758

3759

3761

3764

3765

3767

3769

3770

3771

3772

3773

3774

3775

3778

3779

3780

3781

3782

3785

3786

3787

3788

3789

3790

3791

3792

3793

3794

3795

37A1

37A3

37A5

37A6

37A7

37A9

37AA

37AB

37AC

37AD

37AE

37AF

37AG

37AH

37AJ

37AK

37AL

37AM

37AN

37AP

37AQ

37AR

37AS

37AT

37AU

37AV

37AW

37AX

37AY

3805

3806

3807

3811

3812

3813

3814

3900

3901

3902

3903

3904

3905

3906

3907

3921

3922

3923

3924

3925

3936

3937

3938

3939

3940

3941

3944

3946

3949

3950

3951

3952

3953

3958

3959

3960

3961

3965

3966

3970

3971

3972

3973

3974

3A103A14

3A15

3A16

3A17

3A18

3A19

3A20

3A21

3A22

3A23

3A24

3A25

3A26

3A27

3B00

3B01

3B02

3B03

3B04

3B10

3B11

3B12

3B13

3B14

3B20

3B21

3B22

3B23

3B24

3B30

3B31

3B32

3B33

3B34

3B50

3B52

3B53

3B54

3B55

3B56

3B57

3C01

3C02

3C04

3C05

3C06

3C11

3C12

3C21

3C22

3C31

3C323C33

3C35

3C36

3C37

3C38

3C39

3C40

3C41

3C42

3D00

3D01

3D02

3D03

3D05

3D06

3D07

3D08

3D09

3D10

3D11

3D12

3D13

3D14

3D15

3D16

3D17

3D18

3D19

3D20

3D21

3D22

3D23

3F07

3F08

4201

4202

4203

4401

4701

4703

4B00

4B01

4B11

4B21

4B31

4B32

4B33

4D04

4D05

4D06

4D25

4D26

4D27

4D28

4D29

4D30

5100

5101

5102

5103

5104

5105

5106

5107

5200

5201

5202

5203

5204

5400

5401

5402

5403

5404

5405

5406

5408

5414

5415

5416

5417

5500

5503

5505

5506

5700

5701

5702

5900

5901

5902

5A00

5A01

5A02

5A04

5A05

5A06

5B01

5B02

5B03

5B04

5B05

5D00

5D01

5D02

6400

6500

6501

6700

6701

6702

6703

6704

6800

6801

6900

6901

6902

6903

6904

6913 6914

6915

6917

6919

6920

6921

6A00

6A01

6A02

6A036A04

6A05

6A06

6A07

6A08

6A09 6A10

6B01

6B02

6B03

6B11

6B12

6B13

6B21

6B22

6B23

6B31

6B32

6B33

6D00

6D01

6F01

6F02

7110

7113

7116

7117

7118

7210

7216

7220

7300

7400

7401

7402

7500

7501

7503

7504

7601

7602

7603

7604

7700

7701

7702

7703

7704

7705

7800

7801

7A01

7B00

7B01

7B11

7B21

7B31

7B32

7C01

7C02

7D00

7D02

7D03

10-5-14 Layout top

Circuit Diagrams and PWB Layouts

EN 83L12M3.1L LA 10.

2013-Jun-21

back to

div. table

10-5-15 Layout bottom

19510_514_130411.eps

130411

2013-01-11

1

3139 123 6544

SSB Layout bottom

A204

A205

A209 A210

F101

F102

F103

F106

F107

F108

F113

F114

F115

F118

F119

F120

F121

F122

F123

F126

F127

F128

F129

F130

F131

F132

F133F134

F200

F202

F203

F206

F207

F208

F211

F212

F213

F401

F402

F403

F404

F405

F406

F407

F408

F409

F410

F413

F414

F416

F417

F418

F419

F506

F507

F509

F510

F700

F701

F702

F704

F705

F706

F711

F712

F713

F716

F717

F719

F720

F721

F722

F723

F724

F725

F726

F727

F728

F729

F730

F731

F732

F734

F735

F736

F737

F739

F740

F741

F745

F746

F747

F748

F749 F750 F751

F752

F753

F754

F755

F804

F807

F808

F809

F810 F811

F829

F900

F901

F902

F903

F904

F905

F919

F921

F924

F925

F927

F928

F929

F930

F931

FA01

FA02

FA03

FA04

FA05

FA06

FA07

FA08

FA13FA14

FB01

FB02

FB03 FB04

FB05

FB07

FB08

FB09

FB11 FB12

FB13

FB15

FB16

FB17

FB18

FB19

FB20

FB21

FB22

FB23

FB24

FB25

FB26

FB27FB28

FB29

FC01

FC11

FC21

FC32

FC33

FC36

FC37

FC38

FC39

FC42

FC43

FC44

FC45

FC46

FC48

FC49

FC50

FC51

FC52

FC53

FC54

FC57

FC58FC59

FC60

FC61

FC62

FD01

FD02

FD03

FD04

FD05

FD06

FD07

FD08

FD09

FD10

FD11

FD12

FD13

FD14

FD15

FD16 FD17

FD18

FD19

FD20

FD21

FD22

FD23

FD24

FD25

FD27

FD36FD37

FD38

FD39

FD40

FD41

FD42

FD43

FD44

FD45

FD46

FD47

FD48

FD49

FD50

FD51

FD52

FD53

FD54FD55

FD56

FD57

FD58

FD59

FD61

FD62

FD66

FD67

FD68

FD69

FD70

FD71

FD72

FD73

FD74

FF06FF07FF08

FF09

FF10FF11FF12

I106

I118

I119

I120

I122

I127

I132

I134

I135

I136

I138

I139

I140

I143

I144

I145

I146

I147

I149

I150

I151

I152

I153

I154

I155

I156

I157

I158

I159

I206

I207 I208

I404

I405

I406

I407

I408

I409

I410

I411I412

I413

I414

I415

I420

I421

I422

I423

I424

I425

I501

I502I504

I508

I509

I510

I518

I725

I726

I732

I741

I744

I808

I809

I810

I811

I812

I902

I903

I904

I910

I911

I912

I945

I946

I948

I949

I950

I951

I952

I953

IA01

IA02

IA03

IA04

IA05

IA07

IA08

IA09

IB01

ID02

ID03

ID05

ID07

ID17

Circuit Diagrams and PWB Layouts

EN 84L12M3.1L LA 10.

2013-Jun-21

back to

div. table

10.6 313912365451 SSB

19510_515_130412.eps

130412

DC-DC

B01A B01A

2013-01-11

1

3139 123 6545

PCB SB SSB

MT5396 R3 LATAM 2K13

FB

SS

EN

BOOT

VIA

VIN

SW

COMP

GNDGND_HS

FB

SS

EN

BOOT

VIA

VIN

SW

COMP

GND

GND_HS

COM

OUTIN

SW

BOOT

EN

VIN

GND

GND HS

VCC

FB

SS

EN

BOOT

VIA

VIN

SW

COMP

GNDGND_HS

VIA

31272133

0R

3V3/1V2 CONVERSION

12V/1V1 CONVERSION

0R

SLOT SCREW HOLE 4.02X5.0

No

∗

12V/5V CONVERSION

∗

No

ROUND 4.02mm SCREW HOLE

Yes

Non TM100 Panel

0R

∗

12V/1V5 CONVERSION

Yes

TM100 Panel

12V/3V3 CONVERSION

1X10

REF EMC HOLE

1X09

REF EMC HOLE

I140

100p

2134

16V10u

2102

REF EMC HOLE

5105

33R

1X07

7

8

9

15

16

1%

4K7

3105

11 12 13 14

2

3

4 5 6

SMAW200-H14SF

1M88

RES

1

10

3170

RES

100K

F118

2180

1n0

I132

+3V3_SW

SS2_GND

SS1_GND

3113

12K

F120

F119

RES

2170

22u

+3V3STBY

3114

2K2

F107

1%

+12VS

I136

68R

3127

F127

F108

1R0

3115

RES

1M0

3169

SS3_GND

2133

100p

10u

5100

1X04

REF EMC HOLE

10u

2192

SENSE_1V1_MT5396

3n3

2164

+1V5_SW

SS2_GND

I127

I106

I154

22u

9

83

10

11

2

2104

RT7297AHZSP

7117

Φ

STEP DOWN

1

6

75

4

2117

22u

RES 2128

100p

I138

2183

22u

1%

SS3_GND

2K2

3131

22u

2105

2193

220n

SS3_GND

REF EMC HOLE

1X01

RES 2176

10u

I135

REF EMC HOLE

1X05

3167

22R

RES

3162

RES

1%1K0

100p

2127

3117

I155

8K2

3104

100K

3126

68R

SS3_GND

SS1_GND

RES

2111

10u

3111

15K 1%

6.3V22u

2156

I147

SS1_GND

SS3_GND

SENSE_1V5_DDR

100n

2103

I122

F121

I149

10

11

2

1R0

3109

Φ

STEP DOWN

1

6

7

5

4

9

8

3

SS4_GND

7116 RT7297AHZSP

2169

22u

1R0

3102

33K

3130

2115

I146

15K

3120

10R

3137

RES

2194

RES

3 2

220n

LD1117DT12

7113

1

+12VS

+3V3_SW

RES

2119

470p

22u

2114

SS2_GND

100n

2122

2145

SS2_GND

I150

1n0

RES

2124

10u

2123

10u

RES 2108

10n

F113

RES

SS2_GND

22u

2126

RES 2165

10n

10K

3112

1%

RES 2121

10n

100u 16V

RES 2189

2182

22u

SS2_GND

2

3

7

1

I159

RT8288AZSP

4

5

6

8

9

7110-1

10R

3118

RES

F132

I145

2118

22u

RES

10u

2110

F114

2178

10u

2157

10n

SS3_GND

2116

22u

100p

2132

I120

2113

100n

10u

2191

1%

1K5

3106

100n

2187

+VSND

RES

F133

RES 2188

100n

+5V_SW

3n3

2120

2179

100n

2101

10u

F128

100n

2109

F123

1n0

2136

100K

3116

2166

100n

2112

10u 16V

330K

3121

F102

1n0

2137

RES

2174

100n

+1V1_SW

RES

2167

220n

6.3V

RES

100K

3108

2197

220u

2184

1n0

RES

68R

3128

REF EMC HOLE

1X02

2175

100n

470p

RES

2172

SS1_GND

5103

33R

2155

22u

RES

3123

10u

2177

SS2_GND

33R

5101

3163

I139

2u0

5107

F115

I134

RES

GND_AMBI

22u

2147

3122

18K

1%

22u

2168

F126

F129

100K

3100

I158

I144

RES

F130

2146

10n

5104

3u6

+1V2_SW

100n

2154

2107

3n3

100n

2198

RES

2125

10u 16V

I156

5102

10u

GND

GND_AMBI

F131

I151

2171

RES

22u

31032106

470p

RES

SS4_GND

RES

10R

100n

2143

I152

I143

10u

8

9

1920

2131

15 16 17 18

2

3

4 5

6 7

SMAW200-H18S2

1

10 11

12 13 14

I157

1M89

F101

22R

3133RES

+12V_AMBI

SS1_GND

3146

12K

3107

10n

2185

10u

2196

RES

33R

5106

SS3_GND

39K

3168

F134

F122

F106

SS1_GND

68R

3129

10R

3110

RES

3119

10K

RES

18

232425

26

11 12 13

141516

17

7110-2

RT8288AZSP

10 19 20 21

22

SS1_GND

F103

I118

I153

I119

RES

8

3

10

11

2

22u

2148

7118

Φ

STEP DOWN

1

6

75

4

9

RT7297AHZSP

2100

100n

POWER_OK

PWM-DIMMING

BL_ON_OFF

BACKLIGHT-BOOST-A

STANDBY

10-6-1 B01A, DC-DC

Circuit Diagrams and PWB Layouts

EN 85L12M3.1L LA 10.

2013-Jun-21

back to

div. table

10-6-2 B02A, Tuner & demodulator

19510_516_130412.eps

130412

Tuner & demodulator

B02A B02A

2013-01-11

1

3139 123 6545

PCB SB SSB

MT5396 R3 LATAM 2K13

COM

OUTIN

COM

OUTIN

XTALSEL

XVSS

TAVSS

GND_HS

XVDD

TAVDD

PVDD

OSCMODE

4

3

XTALI

DVDD

CVDD

VSS

5

TSDATA

SDA

VIA

TSCLK TSVALID TSSYNC

0 1 2

RST_X

OSCEN_X

SLVADR0

TESTMODE

TTUSDA

TTUSCL

TIFAGC

GPIO2

6 7

SCL

XTALO

TAINP TAINM

SLVADR1

GPIO0 GPIO1

ADCINP_DEMOD

RF_AGC

DEMOD_RST DEMOD_TSCLK DEMOD_TSVAL DEMOD_TSSYNC DEMOD_TSDATA0 DEMOD_TSDATA1 DEMOD_TSDATA2 DEMOD_TSDATA3 DEMOD_TSDATA4 DEMOD_TSDATA5 DEMOD_TSDATA6 DEMOD_TSDATA7

CI_TSCLK CI_TSVAL CI_TSSYNC CI_TSDATA0

IF_AGC

PVR_TSCLK

PVR_TSVAL

PVR_TSSYNC PVR_TSDATA0 PVR_TSDATA1

SPI_CLK

SPI_CLK1

SPI_CLE

SPI_DATA

CI_INT

ADCINN_DEMOD

0R

MT5396

RES 1K0

RES

3207

10u

2226

F207

100n

2218

A205

6.3V

F206

2230

22u

3201

47R

3K3

3205

47R

3226

2209 100n

RES

5204 1K0

2227

100n

1u0

2240

A204

5202 1K0

1K05201

3200

1K0

RES

4203

22u

2223RES

2214 100n

F208

10n2233

47R

3202

3208

1

3

2 4

7220

LD1117S25

F202

1K0

100n

2215

RES3203

F203

100R

3224

1K05203

2220 1u0

100n2248

RES

F211

100n2213

3211-2 22R

27

F213

+2V5_SW

+5V_SW

47p

2244

F212

1u0

2219

P33 P34

R33

R32

U34

N35

P35

N37

N34

T33 T30 V33 V32 V31 V30

T35

T31

U35

R34

AT32

AU32

N36

T37

R35

R37

R36

T34 T32

T36 U36

DEMOD_IF

7300-7

16V10u

2225

I206

8p0

+1V2_SW

2200

I207

31

43

35

34

42

33

36

53 54 55 56 57 58

6

111823

27

66 67 68

51

69 70 71 72 73 74

5246

45

50

59 60 61 62 63 64 65

8

9 12 13 14 15 16 17

3

4

25 41

37

38

40

39

24

48

5

19

49

1 47 2

26

30

32

29

20 21

7210

CXD2828ER

102228447

LD1117S33

1

3

2 4

7216

3210 33R

3223

10K

4201 RES

2217

47u

2211 100n

+3V3_SW

47R

3231

1u0

100n2208

2239

3232 47R

2246

47n

+3V3_TUN

22R

3211-33 6

15R3217

A210

2207 100n

47p2235

RES

2236 47p

3218 15R

22K

3230

100n

2231

100n

2228

RES

2247RES

10n2234

10p

3206

10K

3212

1%

2K2

3228

22K

I208

3204

3K3

2249

330u 6.3V

RES

+3V3_SW

2232

10u

RES

100n2210

+5V_SW

+3V3_SW

3227

47R

+2V5_SW

22p2221

3214 4K7

RES 4202

2201

8p0

+3V3_TUN

A209

2245

47p

4K7

3209

+3V3_SW

3213

100n2216

2K2

1%

4K73229

8

IF2_N

IF2_P

7

12

13 14

15

16

SUT-RA214TN

1

A3.3V

AGC1

4

AGC2

9

10

I2C_SCL

11

I2C_SDA

IF1_N

3

IF1_P

2

TUNER

1201

2205

82p

2222 22p

1 3

1205

41M

2

4

100n

F200

2206

8

2224

100n

22R

1

3211-1

+3V3_SW

82p

2204

5200

4u7

+3V3_SW

RES 2229

22u

3225 100R

150R

3222

IF2_N IF2_P

TUNER_SDA

TUNER_SCL

IF_AGC2

IF1_P

IF1_N

DEMOD_SCL

DEMOD_SDA

IF_AGC2

IF_AGC1

IF1_P

IF2_P

IF1_N

IF2_N

DEMOD_RST

TUNER_SDA

TUNER_SCL

DEMOD_TSDATA7

IF_AGC1

DEMOD_TSCLK

DEMOD_TSSYNC

DEMOD_TSVAL

DEMOD_TSCLK

DEMOD_TSSYNC

DEMOD_TSVAL

Circuit Diagrams and PWB Layouts

EN 86L12M3.1L LA 10.

2013-Jun-21

back to

div. table

10-6-3 B03A, Class-D & muting

19510_517_130412.eps

130412

Class-D & muting

B03A B03A

2013-01-11

1

3139 123 6545

PCB SB SSB

MT5396 R3 LATAM 2K13

SCL

PLL_FLT

VIA

PVDD_AB

PVDD_CD

PGND_AB

PGND_CD

NC

VIA

DVDD

AVDD

OUT_A

BST_A BST_B

OUT_B

OUT_C

BST_C BST_D

OUT_D

OSC_RES

GVDD_OUT

AGND

AVSS

DVSS

DVSSO

GND

GND_HS

A_SEL

RESET

PDN

P M

PBTL

SSTIMER

STEST

VR_ANA

VR_DIG

VREG

LRCLK

SCLK

MCLK

SDIN

SDA

*

Right+

Left+

*

Left-

*

Right-

33n

2408

100n

2427

5

3

4

PUMH2

7401-2

3400

47K

18R

3418

1K0

3426

1

2

3

4

F410

2041145-4

1D01

220n

2413

2462 33n

10u

2433

F404

RES

RES2434

10u

100n

2424

3419 15K

RES

10u

5400

10u

I412

5402

2463 10u

RES

10u

2465

F409

+3V3D

I420

330p

I421

2412

2401

47n

F403

5404

100n

2417

30R

RES2439

10u

F408

3405

470R

10u

2432

10u

2405

RES

100n2428

3404

15K

2n2

2404

33n

2409

F419

I411

2422

3411

1R0

220n

1R0

3412

+3V3D

2407

100n

2437

220n

2466

10u

2442

RES

220n

330p

2420

RES

10u

2438

I414

1403

47n

2402

PDZ2.7B(COL)

6400

I424

I406

2471

1n0

30R

5415

GND_PLL

+3V3D

10K

3427

3402 47R

F402

3401

10K

47R3403

30R

3407

5408

18K2

I407

30R

5405

+12VS

2443

220n

100n

2406

2416

10n

220n

2436

10u

2435

470R

3406

RES

3410

I409

18R

GND_PLL

330p

2419

+3V3_AUDIO

30R

5416

2411 1u0

3408

18R

25V100u

2475

2474

100u 25V

+3V3STBY

I413

10n

+3V3_SW

2425

1405

I422

2441

10u

I404

4401

RES

F417

RES

10u

2440

F416

1402

+3V3D

F401

5403

I415

2410

10u

33n

F407

4n7

2403

F418

1404

2

6

1

+3V3D

PUMH2

7401-1

5406

30R

I408

+VSND

30R

5414

I410

2477

100u 25V

2476

25V100u

2400 4n7

3

1

2

F405

7402 SI2304

10u

5401

I405

I423

+3V3_AUDIO

2429 100n

3409

18R

3420 22KRES

52 53 54 55 56 57 58

31

12

18

60 61 62 63 64 65 66 67 68

51

69

34

35

25

24

21

23

22

6

26

50

59

19

474837

38

10

11

2

3

7 40 41 44 45

16

1

46

39

36

8

33

27

281729

49

32

20

15

5

30

13

9

14

4 43

42

7400

TAS5731PHP

2418

100n

RES

+3V3D

5417

30R

RES

2421

330p

2464 1u0

SPEAKER_R-

SPEAKER_L-

SPEAKER_R-

AOLRCK

AOBCK

AOMCLK

AOSDATA0

D_RESET

MUTE

SPEAKER_R+

SPEAKER_L-

SPEAKER_L+

D_RESET

A_STBY

SPEAKER_L+

SPEAKER_R+

SDA SCL

POWER_DOWN

Circuit Diagrams and PWB Layouts

EN 87L12M3.1L LA 10.

2013-Jun-21

back to

div. table

10-6-4 B04A, MTK5396 power

19510_518_130412.eps

130412

MTK5396 power

B04A B04A

2013-01-11

1

3139 123 6545

PCB SB SSB

MT5396 R3 LATAM 2K13

DDRV_42 DDRV_43 DDRV_44 DDRV_45 DDRV_46 DDRV_47 DDRV_48 DDRV_49

DDRV_26 DDRV_27 DDRV_28 DDRV_29 DDRV_30 DDRV_31 DDRV_32 DDRV_33 DDRV_34 DDRV_35 DDRV_36

DDRV_13 DDRV_14 DDRV_15 DDRV_16 DDRV_17 DDRV_18 DDRV_19 DDRV_20 DDRV_21 DDRV_22 DDRV_23 DDRV_24 DDRV_25

DDRV_1 DDRV_2 DDRV_3 DDRV_4 DDRV_5 DDRV_6 DDRV_7 DDRV_8 DDRV_9 DDRV_10 DDRV_11 DDRV_12 DDRV_37

DDRV_38 DDRV_39 DDRV_40 DDRV_41

TCON12

OPCTRL6 OPCTRL7 OPCTRL8 OPCTRL9 OPCTRL10

OPTCTRL_TCON

TCON3 TCON4 TCON5 TCON6 TCON7 TCON8

TCON9 TCON10 TCON11

TCON0

TCON1

TCON2

OPCTRL11

OPWRSB

HDMI_CEC HDMI_0_SDA HDMI_0_SCL HDMI_0_HPD

HDMI_0_PWR5V

HDMI_1_SDA HDMI_1_SCL HDMI_1_HPD

HDMI_1_PWR5V

HDMI_2_SDA HDMI_2_SCL HDMI_2_HPD

HDMI_2_PWR5V

HDMI_3_SDA HDMI_3_SCL HDMI_3_HPD

HDMI_3_PWR5V

VGA_SDA VGA_SCL

STB_SDA STB_SCL

LED_PWM0 LED_PWM1

OPCTRL0 OPCTRL1 OPCTRL2 OPCTRL3 OPCTRL4 OPCTRL5

AVDD33_CVBS_1 AVDD33_CVBS_2

AVDD33_LVDSB

VCC3IO_A_1 VCC3IO_A_2 VCC3IO_A_3 VCC3IO_A_4 VCC3IO_A_5 VCC3IO_A_6 VCC3IO_A_7

AVDD10_LDO

AVDD12_PCIE11 AVDD12_HDMI_0_RX AVDD12_HDMI_1_RX AVDD12_HDMI_2_RX AVDD12_HDMI_3_RX AVDD12_RGB AVDD12_DEMOD

AVSS33_VGA_STB AVSS33_VDAC_BG

AVSS33_VDAC

AVSS33_PLLGP AVSS33_CVBS_1 AVSS33_CVBS_2

AVSS33_DEMOD

AVSS33_XTAL_STB

AVDD12_REC AVDD12_LVDS_1

AVDD33_HDMI_2_RX AVDD33_HDMI_3_RX AVDD33_VGA_STB AVDD33_VDAC_BG AVDD33

_VDAC

AVDD33_PLLGP

AVSS12_RGB

AVSS12_DEMOD

AVSS12_REC

VCC3IO_A_8 VCC3IO_B_1 VCC3IO_B_2 VCC3IO_B_3 VCC3IO_B_4

AVDD12_LVDS_2 AVDD12_VPLL

AVDD33_MEMPLL AVDD33_PCIE11 AVDD33_USB_P0P1 AVDD33_USB_P2P3 AVDD33_HDMI_0_RX AVDD33_HDMI_1_RX

AVSS12_LVDS_1 AVSS12_LVDS_2

AVSS12_VPLL

AVSS33_MEMPLL

AVSS33_USB_P1 AVSS33_USB_P2

AVSS33_HDMI_RX_1 AVSS33_HDMI_RX_2

AVDD33_DEMOD AVDD33_XTAL_STB AVDD33_AADC AVDD

33_DAC AVDD33_DAC1 AVDD33_LD AVDD33_COM AVDD33_LVDSA

AVSS33_HDMI_RX_3 AVSS33_HDMI_RX_4

AVSS33_AADC

AVSS33_DAC

AVSS33_DAC1

AVSS33_LD

AVSS33_COM

AVSS33_LVDSA

AVSS33_LVDSB

AVSS12_PCIE11

DVSS_140

DVSS_4 DVSS_5

DVSS_45 DVSS_46 DVSS_47 DVSS_48 DVSS_49 DVSS_50 DVSS_51 DVSS_52 DVSS_53 DVSS_54 DVSS_55 DVSS_56 DVSS_57 DVSS_58 DVSS_59

DVSS_13 DVSS_14 DVSS_15 DVSS_16 DVSS_17 DVSS_18 DVSS_19 DVSS_20 DVSS_21 DVSS_22 DVSS_23 DVSS_24 DVSS_25

DVSS

_11

DVSS_12

DVSS_111 DVSS_112 DVSS_113 DVSS_114 DVSS_115 DVSS_116 DVSS_117 DVSS_118

DVSS_71 DVSS_72 DVSS_73 DVSS_74 DVSS_75 DVSS_76 DVSS_77

DVSS_26 DVSS_27 DVSS_28 DVSS_29 DVSS_30 DVSS_31 DVSS_32 DVSS_33 DVSS_34 DVSS_35 DVSS_36 DVSS

_37

DVSS_1 DVSS_2 DVSS_3

DVSS_43 DVSS_44

DVSS_132 DVSS_133 DVSS_134 DVSS_135 DVSS_136 DVSS_137 DVSS_138 DVSS_139

DVSS_87 DVSS_88 DVSS_89 DVSS_90 DVSS_91 DVSS_92 DVSS_93

DVSS_60 DVSS_61 DVSS_62 DVSS_63 DVSS_64 DVSS_65 DVSS_66 DVSS_67 DVSS_68 DVSS_69

DVSS_6 DVSS_7 DVSS_8 DVSS_9 DVSS_10

DVSS_107 DVSS_108 DVSS_109 DVSS_110

DVSS_119 DVSS_120 DVSS_121 DVSS_122 DVSS_123 DVSS_124 DVSS_125 DVSS_126 DVSS_127 DVSS_128 DVSS_129 DVSS_130 DVSS_131

DVSS_78 DVSS_79 DVSS_8

0 DVSS_81 DVSS_82 DVSS_83 DVSS_84 DVSS_85 DVSS_86

DVSS_70

DVSS_38 DVSS_39 DVSS_40 DVSS_41 DVSS_42

DVSS_94 DVSS_95 DVSS_96 DVSS_97 DVSS_98 DVSS_99

DVSS_100 DVSS_101 DVSS_102 DVSS_103 DVSS_104 DVSS_105 DVSS_106

VCCK_24 VCCK_48

VCCK_40 VCCK_41

VCCK_42 VCCK_19 VCCK_20 VCCK_21 VCCK_22 VCCK_23

VCCK_1 VCCK_2 VCCK_3 VCCK_4

VCCK_43

VCCK_6 VCCK_7 VCCK_8 VCCK_9 VCCK_10 VCCK_11 VCCK_12 VCCK_13 VCCK_14 VCCK_15 VCCK_16 VCCK_17 VCCK_18

VCCK_44

VCCK_45

VCCK_46

VCCK_47

VCCK_25

VCCK_39

VCCK_26

VCCK_27

VCCK_28

VCCK_29

VCCK_30

VCCK_31

VCCK_32

VCCK_33

VCCK_34

VCCK_35

VCCK_36

VCCK_37

VCCK_38

VCCK_5

0

ICE MODE+54M+Serial Boot

ASPIF(0)

MT5396

1

0

OPCTRL5(0)

0

01ROM Boot+54M

0

tooB laireS

+M7

2+EDOM ECI0

0

MT5396

ROM Boot+27M

1

MT5396

OPCTRL4(0)

0

STRAPPING

10K

RES

3542

25A8

220n

+1V5_SW

550330R

10K

3535

2

6

1

RES

BC847BS(COL)

7501-1

25AG 2u2

100R3520

1K0

3504

F24 G20 G23 G24

C3 C4 D4 D5 E5

A25 B25 C25

B4

D25 E20 E23 E24

F20

F23

U5 U6 V5

B3

V6 AC1 AC2 AC3 AC4 AC5 AC6

H7 H8 H10

A4

H13 J8 J10 N7 P7 T5

T6

A3

E6 F6 F7 G6 G7 G15 G18

DDR_POWER

7300-6

2504 2u2

F507

+3V3_SW

+3V3STBY

2u225AD

25AE 2u2

+1V1_SW

3541 100R

BC847BW

1

3

2

RES

3507

10K

7500

25AB

22u

6501

SENSE_1V1_MT5396

BZX384-C8V2

2u225AF

25AC

330u 6.3V

3505

1K0

F506

I508

45

I518

1K0

3530-4

+3V3STBY

2537

2538 100n

100n

1u0

2558

B27 A27 B28 A28 C28 D28

AP22

AR22

AM20

AT21

AR21

F27 E27

E28 F28 B29

F30 F29

AN20

AT20 AU20

AM19 AN21 AR19 AP19 AN19 AM18 AP20 AN18

AC31

AC33

AB33

AJ32

AH31

AH32

AH33

AA32

AP21 AN22

AR20

7300-12

AG32

AG31

AG33

AF33

AE32

AE31

AE33

AD33

AC32

+3V3_SW

100n2557

3 6

1 8

1K0

3530-3

1K0

3530-1

RES 10K

100R

3544 3546

AK10 AK11 AL9

RES

AK17

AH26

E34 F33 G31 G32 H29 H30 J29 J30 AK9

AF31 AF32

AL16

AH5 AE5

N15

AM27

D34

AR13

AL24

AJ22

AF5

AJ28

AL15

AL25

AM26

AK30 AE30

AM28

AB30

AD30

AP13

AD21

AD20

AK18

AK27

AJ26

AG5 AJ5

W30

AL14

AJ21

AB29 AA29 Y29 AC29

AD17

AH7 AE6

N14 V24

AK23

D35

AD14

AD19

AF6

AL31

AD16

AK24 AK25

AG30 AF30

AD22

7300-1

AJ20

AL27

AA24 Y24 W24 AB24

AG6 AJ6

U24

AC_POWER

5500

30R

10K3508

F510

2503 2u2

2544

4u7

100n2566

10n

2565

4K7

3510

OPWR0_5V

4K7

3514

2564 100n

10K

3526

10u

2543

+3V3_SW

2570 100n

100n2569

I502

10u

25A9

4K7

3506

3512 4K7

3509

4K7

+12VS

+3V3STBY

2536 100n

+3V3_SW

30R

100n2552

5505

3513

1K0

BZX384-C3V3

6500

+3V3STBY

RES

2u22502

7503

BC847BW

1

3

2

1K0

3530-2

27

100n2559

7504

1

3

2

I501

BC847BW

3543 100RRES

3523 100R

1K0

3511

2562 100n

I504

3534

10K

2542

30R

5506

1u0

I510

100n2505

353610K

3519 100R

AB18 AB19

A26 B26 C26 D26

10u2571

AA16 AA17 AA18 AA19

AB5

E9

AB6 AB15 AB16 AB17

Y7

Y8 Y15 Y16 Y17

E8

Y18 Y19 AA5 AA7

AA15

W7 W8 W15 W16 W17

E7

W18

W19

Y4

Y5

Y6

U18 U19 V15 V16

D18

V17 V18 V19 W5 W6

T8 T15 T16 T17

D12

T18 T19 U7 U15 U16 U17

R4 R5 R6 R7

D11

R15 R16 R17 R18 R19 T7

J11 J12 K7

C18

L7 L8 M7 R1 R2 R3

F19 G14 G16

B18

G17 G19 H11 H19 J4 J5 J6

Y22

AA20 AA21 AA22 AB20 AB21 AB22

F8

AB23

F9 F12

U23 V20 V21 V22

W20 W21

F5

W22

Y20 Y21

R21 R22 R23 T20 T21 T22

E19

T23 U20 U21 U22

F22 F25 G22 G25 H22 J22

E12

N22 P21 P22 R20

7300-4

CORE_VSS

A18

E11

E21 E22 E25 F21

7501-2

BC847BS(COL)

5

3

4

3503

15K

I509

AD24

P18 P19 R14 T14 U14

+1V2_SW

W23

P17

Y23

AA23 AC20 AC21 AC22 AC23 AC24 AD23

AR8

P16

AT7 AT8 AU7 AU8 P20 P23 R24

T24

V23

P15

AC19 AD18 AM7 AM8 AN7

AN8 AP7 AP8 AR7

P14

V14 W14 Y14 AA14 AB14 AC14 AC15 AC16 AC17 AC18

CORE_VCC

7300-3

22u

25AA

OPWR3_5V

RES

F509

2501 22u

2563

47u 6.3V

3524 100R

2551 100n

+3V3STBY

2561

10u

OPWR2_5V

3521 100R

2568

10u

47R

3500

25AJ 2u2

2u225AH

3502

3K3

2u225AK

ENABLE_WOWLAN

IRQ_WOWLANn

RESET_AUDIO

POWER_OK

IRQ_CRP

STANDBY

MUTE

VGA_SDA

POWER_DOWN

LED2

HDMI_2_SCL

HDMI_2_SDA

HDMI_3_HPD

HDMI_3_SCL

HDMI_3_SDA

HDMI_CEC

VGA_SCL

HDMI_0_HPD

HDMI_0_SCL

HDMI_0_SDA

HDMI_2_HPD

POWER_DOWN

Circuit Diagrams and PWB Layouts

EN 88L12M3.1L LA 10.

2013-Jun-21

back to

div. table

10-6-5 B04B, DDR3

19510_519_130412.eps

130412

DDR3

B04B B04B

2013-01-11

1

3139 123 6545

PCB SB SSB

MT5396 R3 LATAM 2K13

8

9 10 11 12

ODT

RAS

VREFDQ VREFCA

ZQ

BA0 BA1 BA2

DQU

0 1 2

3

4 5 6 7

DQL

A

CAS

DQSU

DQSL DQSL

2

1

0

DMU

DML

RESET

WE

CS

6

5

NC

4

3

CK CK CKE

7

BC AP

VSS

VSSQ

VDD VDDQ

0 1 2

3

4 5 6 7

DQSU

8

9 10 11 12

ODT

RAS

VREFDQ VREFCA

ZQ

BA0 BA1 BA2

DQU

0 1 2

3

4 5 6 7

DQL

A

CAS

DQSU

DQSL DQSL

2

1

0

DMU

DML

RESET

WE

CS

6

5

NC

4

3

CK CK CKE

7

BC AP

VSS

VSSQ

VDD VDDQ

0 1 2

3

4 5 6 7

DQSU

CK CKE

7

BC AP

VSS

VSSQ

VDD VDDQ

0 1 2

3

4

CAS

A

6

DQSU

DQU

0 1 2

3

4 5 6 7

DQL

DQSL

RAS

DQSL

ODT

2

1

0

DMU

DML

RESET

WE

CS

6

5

NC

4

3

CK

5

7

BA1

8

9 10 11 12 13

BA2

VREFDQ VREFCA

ZQ

BA0

DQSU

CK CKE

7

BC AP

VSS

VSSQ

VDD VDDQ

0 1 2

3

4

CAS

A

6

DQSU

DQU

0 1 2

3

4 5 6 7

DQL

DQSL

RAS

DQSL

ODT

2

1

0

DMU

DML

RESET

WE

CS

6

5

NC

4

3

CK

5

7

BA1

8

9 10 11 12 13

BA2

VREFDQ VREFCA

ZQ

BA0

DQSU

RVREF_D

BRA8

BRA9 BRA10 BRA11

BRODT

BRRESET

RVREF_A RVREF_B

BRDQS3

ARA1 ARA2 ARA3 ARA4 ARA5

ARA11 ARA12 ARA13 ARA14

ARBA0 ARBA1 ARBA2

ARCAS ARRAS

ARCLK1 ARCLK1

ARDQ0 ARDQ1 ARDQ2

ARCKE ARWE ARCS ARCSX

ARCLK0

ARDQ8 ARDQ9 ARDQ10 ARDQ11 ARDQ12 ARDQ13 ARDQ14 ARDQ15 ARDQ16 ARDQ17 ARDQ18 ARDQ19 ARDQ20 ARDQ21 ARDQ22 ARDQ23 ARDQ24 ARDQ25 ARDQ26 ARDQ27 ARDQ28

ARA0

BRDQ6 BRDQ7 BRDQ8 BRDQ9

BRDQ10

ARA6 ARA7 ARA8 ARA9 ARA10

BRA4

BRA5

BRA6

BRA7

ARDQ29 ARDQ30 ARDQ31

ARDQM0 ARDQM1 ARDQM2 ARDQM3

ARDQS0 ARDQS0

ARDQS1 ARDQS1

ARDQS2 ARDQS2

ARDQS3 ARDQS3

ARODT ARRESET

ARCLK0

BRDQS1 BRDQS1

BRDQS2 BRDQS2

BRDQS3

ARDQ3 ARDQ4 ARDQ5 ARDQ6 ARDQ7

BRA12 BRA13 BRA14

BRBA0 BRBA1 BRBA2

BRCAS BRRAS BRCKE

BRWE

BRCS

BRCSX

BRCLK0 BRCLK0 BRCLK1 BRCLK1

BRDQ0 BRDQ1 BRDQ2 BRDQ3 BRDQ4 BRDQ5

RVREF_C

BRDQ12 BRDQ13 BRDQ14 BRDQ15

BRDQ11

BRA0

BRA1

BRA2

BRA3

BRDQ16 BRDQ17 BRDQ18 BRDQ19 BRDQ20 BRDQ21 BRDQ22 BRDQ23 BRDQ24 BRDQ25 BRDQ26 BRDQ27 BRDQ28 BRDQ29 BRDQ

30

BRDQ31

BRDQM0 BRDQM1 BRDQM2 BRDQM3

BRDQS0 BRDQS0

Near DRAM

DDR3#1

Near DRAM

DDR#1 Bypass Cap

DDR3#2

MT5396 DE-CAP

DDR#2 Bypass Cap

DDR#3 Bypass Cap

Near DRAM

EMC

Main Chip Bottom Side

DDR3#3

EMC

DDR#4 Bypass Cap

DDR3#4

2652

100n

2651

3696

240R

3688

240R

100n

2675

1609

HOOK1

1605

HOOK1

100n

2656

2655

100n

RES

+1V5_SW

2677

100n

1%

3614

1K0

2640

100n

2639

100n

2673

RES

2672

100n

HOOK1

1601

L3

L8

2614

100n

M9

P1

B1

B9

D1

D8

E2

E8

F9

G1

G9

P9

T1

T9

B3

E1

G8

J2

J8

M1

A8C1C9D2E9F1H2

H9

M8

H1

A9

B2D9G7K2K8N1N9R1R9

A1

A3

J1 J9 L1 L9 T7

M7

T3

K1

J3

T2

F3

G3

C7 B7

D7 C3 C8 C2 A7 A2 B8

E7 D3

E3

F7 F2

F8 H3 H8 G2 H7

R2 T8 R3

M2 N8 M3

K3 J7

K9

K7

L2

N3 P7

L7 R7 N7

P3 N2 P8 P2 R8

H5TQ1G63DFR-H9C

7603

100n

2676

100n

2681

100n

2638

HOOK1

1606

HOOK1

1604

RES

2660

100n

RES

100n

2659

100n

2658

2657

100n

1%

3613

1K0

2642

100n

2641

1K0

3623

1%

1K0

3624

1%

100n

2611

2682

10u

100R

3650

10u

2646

+1V5_SW

2615

1608

100n

+1V5_SW

HOOK1

2635

47u 6.3V

RES

1u02684

4u7

2683

2678

100n

2645

100n

2644

100n

2643

240R

3667

+1V5_SW

100n

2674

+1V5_SW

2612

100n

3666

100R

2613

100n

G9

L3

L8

M9

P1

B1

B9

D1

D8

E2

E8

F9

G1

A9

P9

T1

T9

B3

E1

G8

J2

J8

M1

A8C1C9D2E9F1H2

H9

M8

H1

T2

B2D9G7K2K8N1N9R1R9

A1

B8 A3

J1

J9 L1 L9 T7

M7

T3

K1

J3

F3 G3

C7 B7

D7 C3 C8 C2 A7 A2

L2

E7 D3

E3 F7 F2 F8 H3 H8 G2 H7

R8 R2 T8 R3

M2 N8 M3

K3 J7

K9

K7

N3 P7

L7 R7 N7

P3 N2 P8 P2

7604

H5TQ1G63DFR-H9C

100n

2680

2666

100n

+1V5_SW

SENSE_1V5_DDR

G9

L3

L8

M1

M9

P1

B1

B9

D1

D8

E2

E8

F9

G1

A9

P9

T1

T9

B3

E1

G8

J2

J8

A1A8C1C9D2E9F1H2H9

M8

H1

T2

B2D9G7K2K8N1N9R1R9

A2 B8 A3

J1 J9 L1 L9 T7

M7

K1

J3

G2 H7

F3

G3

C7 B7

D7 C3 C8 C2 A7

K9

K7

L2

E7 D3

E3

F7 F2

F8 H3 H8

P2 R8 R2 T8 R3

M2 N8 M3

K3 J7

N3 P7

L7 R7 N7 T3

P3 N2 P8

H5TQ2G63DFR-H9CR

7601

1K0

3635

1K0

3634

1%

100n

F9

G1

G9

L3

L8

2654

J2

J8

M1

M9

P1

B1

B9

D1

D8

E2

E8

M8

H1

A9

P9

T1

T9

B3

E1

G8

R1R9A1A8C1C9D2E9F1H2H9

M7

K1

J3

T2

B2D9G7K2K8N1N9

C2 A7 A2 B8 A3

J1 J9 L1 L9 T7

H3 H8

G2

H7

F3

G3

C7 B7

D7 C3 C8

J7

K9

K7

L2

E7 D3

E3 F7 F2 F8

N2 P8 P2 R8 R2 T8 R3

M2 N8 M3

K3

N3 P7

L7 R7 N7 T3

P3

7602

H5TQ2G63DFR-H9CR

+1V5_SW

240R

3608

100n

1%

3627

1K0

2650

2653

100n

4u7

2661

+1V5_SW

1u02662

6.3V

RES

2671

100u

2669

100n

100R

3656

+1V5_SW

100n

2667

100n

2686

10u

2616

2679

100n

2668

100n

1%

3628

1K0

+1V5_SW

100n

2690

2617

100n

+1V5_SW

2693

10u

1602

HOOK1

1603

HOOK1

100n

2687

100n

2602

2685

100n

2689

100n

2601

100n

2618

100n

+1V5_SW

M2

L4

G21 G13 P13

V7

2649

U1

E4 E3

F1 F2

V2 V1

W3 W4

H6

H4

U2

C2

K1 A2 K2 J3 B1

G2 D1

Y1

AB1

P1 AB2 AA3

U4

AA4

T3

Y3

U3

J2

Y2

G3 C1 G4 D2

T4 AB4

P2 AB3

B2

P3

P6

F4

F3

V4

V3

G5

K3

A1

J1

H3 D3

N6

K5

N4

L3

L6

M3

N1

P5

K4

H5

B14

D14

K6

N3

P4

M5 N5 M4

L5

M1 N2

E10

C21 B21

B20 C20

B9 A9

C8 D8

E18

F17

B10

D24 C16 C24 D15 A17 A23

C19 D21 A7

A5 A12 B5 C6 D10 D7 C11 C7 C10

C17

B7

B23 D20 D22 D19 C22 C12 D6 B12 C5

D23

C13

F10

A20 A21 D9 C9

F18

E16

C23 B17

D17

B13 E13 F16 E14 B15 D13 E15

A13 G11 D16

E17

F15 F14

F11 C14 F13 A15 C15

A14

7300-5

MT5396JDNJ

DDR3

2696

100n

4u7

2694

1u02695

2647

330u 6.3V

2697

100n

2691

100n

2664

2663

100n

2698

100n

2699

100n

2665

2608

100n

3695

100R

100n

2692

2688

BRA(13)

100n

BRDQ(28)

BRDQ(29)

BRDQ(30)

BRDQ(31)

BRDQ(4)

BRDQ(6)

BRDQ(9)

BRDQ(3)

BRDQ(5)

BRDQ(7) BRDQ(8)

BRDQ(0)

BRDQ(13)

BRDQ(15)

BRDQ(2)

BRDQ(24) BRDQ(25)

BRDQ(26)

BRDQ(12)

BRDQ(14)

BRDQ(16) BRDQ(17) BRDQ(18) BRDQ(19) BRDQ(20) BRDQ(21) BRDQ(22) BRDQ(23)

BRDQ(27)

BRDQ(1)

BRDQ(10) BRDQ(11)

B_RVREF8

BRA(14)

BRDQS3n

BRDQS3

BRDQS1n

BRDQS1

BRDQ(21) BRDQ(22) BRDQ(23)

BRDQ(24) BRDQ(25) BRDQ(26) BRDQ(27) BRDQ(28) BRDQ(29) BRDQ(30) BRDQ(31)

BRDQS2

BRDQS2n

BRDQM2 BRDQM3

BRCLK1

BRCLK1n

BRCKE BRCSn

BRA(11)

BRBA(0) BRBA(1) BRBA(2)

BRRASn BRODT BRCASn

BRWEn BRRESET

BRDQ(16) BRDQ(17) BRDQ(18) BRDQ(19) BRDQ(20)

BRA(2) BRA(3)

BRA(10)

BRA(12)

BRA(4)

BRA(7)

BRA(9)

BRA(5) BRA(6)

BRA(8)

BRDQ(0) BRDQ(1) BRDQ(2) BRDQ(3) BRDQ(4) BRDQ(5) BRDQ(6) BRDQ(7)

BRDQ(8)

BRDQ(9) BRDQ(10) BRDQ(11) BRDQ(12) BRDQ(13) BRDQ(14) BRDQ(15)

BRDQ

S0

BRDQS0n

BRDQM0 BRDQM1

BRCLK0

BRCLK0n

BRCKE BRCSn

BRA(0) BRA(1)

BRA(7)

BRA(13)

BRA(9)

BRA(5) BRA(6)

BRA(8)

BRA(11)

BRBA(0) BRBA(1) BRBA(2)

BRRASn BRODT BRCASn

BRWEn BRRESET

B_RVREF8

ARDQS1n

ARDQS1

ARDQS3n

ARDQS3

BRA(0) BRA(1) BRA(2) BRA(3)

BRA(10)

BRA(12)

BRA(4)

BRDQS1

BRDQS1n

BRDQS2

BRDQS2n

BRDQS3

BRDQS3n

BRODT

BRRASn

BRRESET

BRWEn

A_RVREF1

BRCLK0

BRCLK0n

BRCLK1

BRCLK1n

BRCSn

BRDQM0 BRDQM1 BRDQM2 BRDQM3

BRDQS0

BRDQS0n

BRA(5) BRA(6) BRA(7) BRA(8) BRA(9)

BRBA(0) BRBA(1) BRBA(2)

BRCASn

BRCKE

ARWEn

BRA(0) BRA(1)

BRA(10) BRA(11) BRA(12) BRA(13) BRA(14)

BRA(2) BRA(3) BRA(4)

ARDQS0 ARDQS0n

ARDQS1 ARDQS1n

ARDQS2 ARDQS2n

ARDQS3 ARDQS3n

ARODT

ARRASn

ARRESET

ARDQ(4) ARDQ(5) ARDQ(2) ARDQ(7) ARDQ(8) ARDQ(13)

ARDQM0 ARDQM1 ARDQM2 ARDQM3

ARDQ(22) ARDQ(21) ARDQ(26) ARDQ(25) ARDQ(24) ARDQ(27) ARDQ(28) ARDQ(29)

ARDQ(3)

ARDQ(30) ARDQ(31)

ARDQ(12) ARDQ(11) ARDQ(14) ARDQ(9) ARDQ(16) ARDQ(17) ARDQ(18) ARDQ(19)

ARDQ(6)

ARDQ(20) ARDQ(23)

ARCKE

ARCLK0 ARCLK0n ARCLK1 ARCLK1n

ARCSn

ARDQ(0) ARDQ(1)

ARDQ(10) ARDQ(15)

ARA(3) ARA(4) ARA(5) ARA(6) ARA(7) ARA(8) ARA(9)

ARBA(0) ARBA(1) ARBA(2)

ARCASn

ARA(0) ARA(1)

ARA(10) ARA(11) ARA(12) ARA(13) ARA(14)

ARA(2)

ARDQ(28) ARDQ(29) ARDQ(30) ARDQ(31)

ARDQS2

ARDQS2n

ARDQM2 ARDQM3

ARCLK1

ARCLK1n

ARCKE ARCSn

ARA(14)

ARBA(2)

ARRASn ARODT ARCASn

ARWEn ARRESET

ARDQ(16) ARDQ(17) ARDQ(18) ARDQ(19) ARDQ(20) ARDQ(21) ARDQ(22) ARDQ(23)

ARDQ(24) ARDQ(25) ARDQ(26) ARDQ(27)

ARA(12)

ARA(4)

ARA(7)

ARA(13)

ARA(9)

ARA(5) ARA(6)

ARA(8)

ARA(11)

ARBA(0) ARBA(1)

ARDQ(9) ARDQ(10) ARDQ(11) ARDQ(12) ARDQ(13) ARDQ(14) ARDQ(15)

ARDQM0 ARDQM1

ARA(0) ARA(1) ARA(2) ARA(3)

ARA(10)

ARDQ(0)

ARDQ(1)

ARDQ(2)

ARDQ(3)

ARDQ(4)

ARDQ(5)

ARDQ(6)

ARDQ(7)

ARDQS0 ARDQS0n

ARODT

ARRASn

ARRESET

A_RVREF1

ARWEn

ARDQ(8)

ARA(5) ARA(6) ARA(7) ARA(8) ARA(9)

ARBA(0) ARBA(1) ARBA(2)

ARCASn

ARCLK0

ARCKE

ARCLK0n

ARCSn

ARA(0) ARA(1)

ARA(10) ARA(11) ARA(12) ARA(13)

ARA(14)

ARA(2) ARA(3) ARA(4)

Circuit Diagrams and PWB Layouts

EN 89L12M3.1L LA 10.

2013-Jun-21

back to

div. table

Circuit Diagrams and PWB Layouts

19510_520_130412.eps

130412

Flash, control, EJTAG & AmbiLight

B04C B04C

2013-01-11

1

3139 123 6545

PCB SB SSB

MT5396 R3 LATAM 2K13

PCIE11_RXN

LOUTP

LOUTN

PCIE11_REFCKP PCIE11_REFCKN

PCIE11_TXP PCIE11_TXN PCIE11_RXP

OSCL0

U0RX U0TX U1RX U1TX

XTALI

XTALO

OSDA0

OSCL1

OSDA1

OSCL2

OSDA2

OPWM0 OPWM1 OPWM2

OIRI

ORESET FSRC_WR MEMTN MEMTP

JTCK JTDO JTRST JTDI JTMS

NC

ADIN7_SRV

GPIO12 GPIO13 GPIO14

GPIO16 GPIO17 GPIO18 GPIO19 GPIO20 GPIO21 GPIO22 GPIO23 GPIO24 GPIO25 GPIO26

GPIO38 GPIO39 GPIO40 GPIO41 GPIO42 GPIO43 GPIO44 GPIO45 GPIO46

GPIO0

ADIN2_SRV ADIN3_SRV ADIN4_SRV ADIN5_SRV ADIN6_SRV

USB_DP_P0 USB_DM_P0 USB_DP_P1 USB_DM_P1 USB_DP_P2 USB_DM_P2

GPIO1 GPIO2 GPIO3 GPIO4 GPIO5 GPIO6 GPIO7 GPIO8 GPIO9 GPIO10 GPIO11

USB_DP_P3 USB_DM_P3

ADIN0_SRV ADIN1_SRV

GPIO47 GPIO48 GPIO49 GPIO50 GPIO51 GPIO52 GPIO53 GPIO54 GPIO55

GPIO15

GPIO27 GPIO28 GPIO29 GPIO30 GPIO31 GPIO32 GPIO33 GPIO34 GPIO35 GPIO36 GPIO37

CLE

7

6

5

4

3

2

1

0

VCC

R

SE

WP

WE

RE

CE_

ALE

NC

IO

B

VSS

SUB

ER

GND

VOUT

VDD

SCL

ADR

0 1 2

SDA

WC

+T

LDM_VSYNC

SD_CMD SD_CLK SD_D0 SD_D1 SD_D2 SD_D3

LDM_CS LDM_DO LDM_DI LDM_CLK

PDD7 POCE0 POCE1

PARB PAALE PACLE

POWE POOE

EMMC_CLK

PDD0

PDD1

PDD2

PDD3

PDD4

PDD5

PDD6

NEAR TO MTK IC

4DDR

37AB

MT5396

Ambilight

4710

Non HTVHTV

SDM

*

YES

No

---10K

3DDR

Near To IC

---

PANEL

ONLY

*

10K

PWM DIMMING

37AC

MT5396

FOR DEBUGGING

MT5396

4K7

1 8

3756-1

RES

+3V3_SW

RES

37B1 10K

10K

37AZ

3720 10K

3719 10K

2

1

3

1701

MSJ-035-69A-B-RF-PBT-BRF

4704

10p

2704

F748

5

33R

3739

3772-4

4

2720

27p

10K

37AU

10K

RES

3780

10K

+3V3_SW

100R37AJ

F747

F706

F705

F719

2726

10u

2.0A 63V

T

1751

47R

37AN

37AM 47R

F720

2731 100p

2730 100p

+3V3_AMBI

2732100n

3

+3V3STBY

1703

3225

27M

24

1

7702

3736

BC847BW

RES

10K

2701 10u

RES

4708

4707

AT34

AU34

I726

V34

W36

W37

Y34

Y35

W34

W35

AP18 AR18 AU16 AT16

AU21

AR12

AT12

AU12

21NA22MA

AN15

V35

AP12

AP15

D27

AP14

AM14

AR14

AR15

AN14

AP31

AN30

G9 G10

MISC

7300-11

4706

4709

GND_AMBI

RES

3770

10K

4K7

3748

37344K7

F726

37AA

4K7

F739

D37

AU13

AU14

C36

D36

AT13

AT14

+3V3_AMBI

E29 AP9 AT9 AR9 AU9

G34 H34 L34 L32

C37

L33 E33 E32 F32 A29 D31 C31 E30 E31

G35

F31

M35 M37 M33 F35 E35 E37 N32 M34 M36

G36

M32

J35 J33 G33 H35 H31 F34 E36 N33

G37

P32

H33 L35 K36 J32 J34 K34 K35 K37

F36

J36 J37

AN24

AP23 AR23 AU23

AT23 AM24 AM23

H32 F37

K33 K32

7300-8

AN23

+3V3_SW

GPIO_USB

3749 33R

3738

10K

RES

37AB

10K

I725

3723 4K7

RES

F704

+3V3_SW

3709

100R

F711

27

4701

6

10K

3772-2

3772-3

10K

3

I744

37AT 100R

3740 22R

37AF 4K7

F702

4K7

3788

3756-4 4K7

45

27 28

RES 4705

24 25 26

3

4 5 6 7

8

9

14 15 16 17 18 19

2

20 21 22 23

FH34SRJ-26S-0.5SH(50)

1

10 11 12 13

1A04

F752

F750

F751

F749

GND_AMBI

10K37AP

3712

100R

F737

F713

5700

37AK 100R

30R

RES

4u7

2717

4u7

2716

RES

100K

3769

RES

3702

100R

4K7

3715

RES

1K0

3793

10K3758

2714

100p

F730

F728

6700

RES

BZX384-C6V8

7704 BC847BW

1

3

2

RES

22R

10K

3732

3741

3729 10K

4K73756-3

3 6

37A3

18K

2708

RES

100n

37354K7

GND_AMBI

+12V_AMBI

4K7

37AE

100n

2727

10R37AL

100p

100p2728

2729

F741

+3V3_SW

BAS316

3753

RES

1K0

RES

6703

10K

3773

4K7

3747

3782

10K

10K3731

1R0

3754

2703 100n

BC847BW

7703

6

12

37

13

36

18 19

47 48

3

4

5 10 11 14 15

8

7

28

33

2

34 35 38 39

40 45 46

1

20 21 22 23 24 25 26 27

17 9

16

29

30 31 32

41 42 43 44

7700

H27U4G8F2D

27341u0

100n

2733

4

5

6

7

8

9

12

13

1

10

11

2

3

1C20

FH52-11S-0.5SH

100n

2707

3767

6K8

F724

3778 100R

2725

100p

4K737A6

RES

6704

RES

1710

BAS316

3708

100R

RES

6701

BZX384-C6V8

F701

+3V3STBY

4

7

1 2

3

6

5

8

4K7

M24C64-RDW

7705

EEPROM

Φ

(8K × 8)

3789

4K7

3775

4

RES

Φ

BD45292G

1

3

2

5

7701

RES

+5V_SW

+3V3STBY

3765 100R

100n

2715

F734

F746

F722

4710

0R337A1

10K

3786

3791

RES

1R0 1R0

3785

10K

3781

1n0

+3V3_SW

2711

2710 1n0

F732

1711

F700

100R3733

47R3759

37A9 47R

27p

2721

100R

3710

F727

3728 10K

3730 100R

4K7

3755

3764

100R

F725

680R

+3V3_SW

3752

3792

1R0

BAS316

RES

6 7

8

9

12

13

6702

1702

1

10 11

2

3

4 5

BM11B-SRSS-TBT

RES

3750 33R

F745

F721

10K3726

100R

3751

1K0

3771

1K0

3794

3742

4K7

+3V3_SW

F729

37AD

4K7

F731

RES

100n

2718

F735

100R3779

2719

1u0

F723

+3V3STBY

F717

1 8

100R

3705

3772-1

10K

2u2

2706

RES

5702

30R

I732

10u2700

RES

33R

3774

A37 C35 A36 B35

4K7 3790

RES

B31 D30 C30 D29 D33 B34

C33

A35

B37

B36

AT11

AP10

AM9

AR10

C34 A34

D32

C32 A32 B32 A31

7300-13

C29

AU11

SDIO_SPI

SERIAL_NAND

3714

4K7

+3V3_SW

1K037AY

F716

37AC

10K

37A7

+3V3_SW

100K

10K3727

60R

5701

3756-2

27

+3V3_SW

4K7

+3V3_SW

3787

4K7

RES

3761

4K7

10p

2705

10K

F712

3737

I741

RES

3713

100R

3701

RES

4K737A5

3795 820K

1750

1.0A63VT

F740

+3V3STBY

45

4703-3

3 6

AMBI_OUT_SPI_SDO

AMBI_TEMP

4703-4

AMBI_OUT_SPI_SCKO

SCL

3D_LED

RC_IRQ_RF4CEn

KEYBOARD

LED2

IRQ_CRP

SDA

IR_SW

CVBS_DETECT

YPBPR_DETECT

KEYBOARD

IR_SW

USB_DP_WIFI

USB_DM_WIFI

RC_IRQ_RF4CEn

NAND_PDD(5)

NAND_PDD(4)

NAND_PDD(3)

NAND_PDD(2)

NAND_PDD(1)

NAND_PDD(0)

NAND_PARB

NAND_POCE

NAND_POWE

NAND_PALE

NAND_PCLE

NAND_POCE

NAND_POWE

NAND_PALE NAND_PCLE

NAND_PDD(7)

NAND_PDD(6)

NAND_PDD(5)

NAND_PDD(4)

NAND_PDD(3)

NAND_PDD(2)

NAND_PDD(1)

NAND_PDD(0)

NAND_POOE

NAND_PDD(7)

NAND_PDD(6)

UART_RX

UART_TX

SDA

SCL

SYS_EEPROM_WE

JTCK

JTMS

JTDI

JTDO

NAND_POOE

NAND_PARB

JTRST

SDA

SCL

UART_TX

UART_RX

JTMS

JTDI

JTDO

JTCK

JTRST

BACKLIGHT-BOOST-A

PWM-DIMMING

3D_LED

SYS_EEPROM_WE

LCD_PWR_ON

AMBI_TEMP

USB_DM1

USB_DP1

3D_2D_SELECT

AMBI_SPI_SDO

BL_ON_OFF

IR

DEMOD_SDA

DEMOD_SCL

AMBI_SPI_SCKO

AMBI_OUT_SPI_SCKO

AMBI_OUT_SPI_SDO

AMBI_SPI_SCKO

AMBI_SPI_SDO

VGA_DETECT

ORESET

USB_DP2

USB_DM2

BACKLIGHT_CONTROL

BOOST_CONTROL

10-6-6 B04C, Flash, control, EJTAG & AmbiLight

EN 90L12M3.1L LA 10.

2013-Jun-21

div. table

back to

10-6-7 B04D, LVDS display

19510_521_130412.eps

130412

LVD S display

B04D B04D

2013-01-11

1

3139 123 6545

PCB SB SSB

MT5396 R3 LATAM 2K13

REXT_VPLL

AE4P

BE1N BE2P BE2N BE3P BE3N BE4P BE4N BECKP BECKN

BO0P BO0N BO1P

AO1N

AO2P

AO2N

AO3P

AO3N

AO4P

AO4N

AOCKP

AOCKN

AE0P AE0N AE1P AE1N AE2P AE2N AE3P AE3N

AE4N

AECKP AECKN

AO0P

AO0N

AO1P

BO1N BO2P BO2N BO3P BO3N BO4P BO4N BOCKP BOCKN

BE0P BE0N BE1P

Yes

Non TM100 Panel TM100 Panel

∗

TO DISPLAY

Yes

0R

MT5396

2D20

∗

No

(TOP side)

0R

3D23

No

FOR DEVELOPMENT USE

Yes

2D21

LVDS#1

No

6D01

SML-310

RES

FD56

220n

2D12

3D07

15K

FD49

ID17

FD51

FD53

FD66

FD55

FD52

ID03

5D01

33R

AL2

AL1

AK4

AK3

AJ2

AJ1

AH4

AH3

AJ4

AJ3

AG7

AF4

AF3

AE2

AE1

AD2

AD1

AE4

AE3

AL4

AL3

AP5

AR4

AP4

AR3

AP3

AU4

AT4

AG4

AG3

AG2

AG1

AN2

AN1

AM4

AM3

AP2

AP1

AU6

AT6

AR6

AP6

AR5

AU2

AT2

AU1

AT1

AR2

AR1

FD59

LVDS_EPI

7300-10

3D09

1K0

FD58

4D29

3D02

RES

47R

4D04

3D13

RES

+12VS

4D25

FD39

7D03-2

BC847BS(COL)

5

3

4

24K

3D00

1u0

2D11

68R

3D23

RES

FD13

53

54 55

56 57

58 59

60

48

49

5

50

51

6

7

8

9

52

61

39

4

40

41

42

43

44

45

46

47

29

3

30

31

32

33

34

35

36

37

38

2

20

21

22

23

24

25

26

27

28

1

10

11

12

13

14

15

16

17

18

19

1G51

20519-051E

3D01

FD42

47K

FD44

FD37

5D02

FD47

33R

4K7

3D19

FD43

RES

2D21

100p

4D06

ID05

+VDISP

F829

1

4D05

7D03-1

BC847BS(COL)

2

6

FD41

3D06

10K

+3V3STBY

RES

1K0

3D10

FD48

3D05

10K

FD57

4D28RES

100p

2D20

RES

3D12

+3V3_SW

4K7

1K0

3D08

FD50

3D21

RES

1

2

3

FD36

7D00

5

6

7

8

4

3.0A 32VT

SI4835DDY-GE3

1D11

ID02

FD62

3D11

RES

2D14 10n

FD46

10n

2D17

F738

3D14

+VDISP

6D00

BZX384-C6V8

FD45

BC857BW

7D02

RES

FD40

4D26

FD61

FD54

+3V3_SW

ID07

3D03

47K

33R

5D00

3D22

4K7

RES

FD38

2D15

100n

2D16

16V100u

3D20 4K7RES

4D27RES

FD71

FD72

FD70

FD69

FD67

FD68

3D_2D_SELECT

OPC_ENABLE

PWM-DIMMING

PX4A+ PX4APX4B+ PX4BPX4C+ PX4CPX4D+ PX4DPX4E+ PX4EPX4CLK+ PX4CLK-

PX3A+ PX3APX3B+ PX3BPX3C+ PX3C- PX3D+ PX3D- PX3E+ PX3EPX3CLK+ PX3CLK-

PX3A+

PX3A-

PX3CLK+

PX3CLK-

PX3C+

PX3C-

PX3B+

PX3B-

PX3E+

PX3E-

PX3D+

PX3

D-

PX4DPX4D+

PX4EPX4E+

PX4CPX4C+

PX4CLKPX4CLK+

PX4APX4A+

PX4BPX4B+

LCD_PWR_ON

Circuit Diagrams and PWB Layouts

EN 91L12M3.1L LA 10.

2013-Jun-21

back to

div. table

10-6-8 B05A, Digital I/O - HDMI

19510_522_130412.eps

130412

Digital I/O - HDMI

B05A B05A

2013-01-11

1

3139 123 6545

PCB SB SSB

MT5396 R3 LATAM 2K13

PHYLED1

HDMI_3_RX_C HDMI_3_RX_CB

TXVP_0 TXVN_0 RXVP_1 RXVN_1

REXT

HDMI_0_RX_0 HDMI_0_RX_0B HDMI_0_RX_1 HDMI_0_RX_1B HDMI_0_RX_2 HDMI_0_RX_2B HDMI_0_RX_C HDMI_0_RX_CB

HDMI_1_RX_0 HDMI_1_RX_0B HDMI_1_RX_1 HDMI_1_RX_1B HDMI_1_RX_2 HDMI_1_RX_2B HDMI_1_RX_C HDMI_1_RX_CB

HDMI_2_RX_0 HDMI_2_RX_0B HDMI_2_RX_1 HDMI_2_RX_1B HDMI_2_RX_2 HDMI_2_RX_2B HDMI_2_RX_C

PHYLED0

HDMI_2_RX_CB

HDMI_3_RX_0 HDMI_3_RX_0B HDMI_3_RX_1 HDMI_3_RX_1B HDMI_3_RX_2 HDMI_3_RX_2B

HDMI PORT 2

HDMI PORT 1

HDMI PORT 4 (SIDE)

MT5396

3B24

100K

47K3B02

1%

24K

3B50

RES 4B21

3B21 47K

7B01

BC847BW

1K0

3B333B03

1K0

2B07

10p

5.6VRES 6B32CDS2C05HDMI2

OPWR2_5V

BC847BW

7B21

5.6V

FB05

CDS2C05HDMI26B03RES

3B00

1K0

CDS2C05HDMI26B33 V6.5SER

FB11

FB17

4K73B54

3B01 47K

CDS2C05HDMI26B01 V6.5SER

FB16

+3V3STBY

FB24

OPWR3_5V

47K

RES 4B31

OPWR0_5V

3B31

47K3B22

FB02

OPWR0_5V

5.6VRES 6B02 CDS2C05HDMI2

3B32 47K

FB19

OPWR3_5V

82R

3B08

5 6 7

8

9

20

21

22

23

12 13 14 15 16 17 18 19

2

3

4

1B04

1

10 11

FB12

105156-1108

FB18

RES 4B01

5.6VRES 6B23 CDS2C05HDMI2

3B55 4K7

3B23

1K0

FB04

FB13

100K

3B34

BSH111

7B00

RES

CDS2C05HDMI26B31V6.5SER

V6.5SER

30R5B01

CDS2C05HDMI26B22

3B04

100K

+3V3_SW

100K

3B07

1K2

3B05

RES

5.6VRES 6B21 CDS2C05HDMI2

FB03

3B09

180R

IB01

4B00

24

25 26

FB15

4 5 6 7

8

9

20

21

2223

11 12 13 14 15 16 17 18 19

2

3

1B01

DC1R019WBER220

1

10

OPWR2_5V

FB22

FB01

4K7

FB23

3B52

3B30

1K0

22

23

2425

26

2

3

4 5 6 7

8

9

2021

1

10 11 12 13 14 15 16 17 18 19

DC1R019WBER220

1B02

AJ37 AJ36 AJ33 AK33

AM16

AN16

AD15

AU17

AT17

AU18

AT1

8

AA35 AA34 AA37 AA36 AC37 AC36

AK35 AK34 AJ35 AJ34

AH34

AE37 AE36 AD35 AD34 AC35 AC34 AE35 AE34

AB35 AB34

7300-9

HDMI_ETHERNET

AG35 AG34 AG37 AG36 AF35 AF34 AH35

1u0

2B01

7B31

BC847BW

FB21

1K0

3B20

HARC0

HDMI_0_SCL

HDMI_ARC ARC

RX_0_0B

HDMI_2_HPD

HDMI_0_HPD

HDMI_3_HPD

RX_2_0

RX_2_0B

RX_0_2

RX_0_C

RX_0_CB

HDMI_CEC_A

HDMI_0_SDA

RX_0_2B

RX_0_1

RX_0_1B

RX_0_0

RX_2_C

RX_2_CB

HDMI_CEC_A

HDMI_2_SCL

HDMI_2_SDA

RX_2_2B

RX_2_1

RX_2_1B

RX_3_CB

HDMI_CEC_A

HDMI_3_SCL

HDMI_3_SDA

RX_3_2B

RX_3_1

RX_3_1B

RX_3_0

RX_3_0B

RX_2_2

PHYLED0 PHYLED1

RXVN_1

RXVP_1

TXVN_0

TXVP_0

RX_3_2

RX_3_C

RX_0_C RX_0_CB

RX_2_0 RX_2_0B RX_2_1 RX_2_1B RX_2_2 RX_2_2B RX_2_C RX_2_CB

RX_3_0 RX_3_0B RX_3_1 RX_3

_1B RX_3_2 RX_3_2B RX_3_C RX_3_CB

HDMI_ARC

HDMI_CEC

HDMI_CEC_A

RX_0_0 RX_0_0B RX_0_1 RX_0_1B RX_0_2 RX_0_2B

Circuit Diagrams and PWB Layouts

EN 92L12M3.1L LA 10.

2013-Jun-21

back to

div. table

10-6-9 B05B, Digital I/O - USB

19510_523_130412.eps

130412

Digital I/O - USB

B05B B05B

2013-01-11

1

3139 123 6545

PCB SB SSB

MT5396 R3 LATAM 2K13

+T

VIN

VOUT

GND

EN

FLG

EN

+T

USB PORT 1

For integrated WiFi

SQ Test Only

0R

(WiFi)

45R3

INTERNAL USB

0R

45R3

USB PORT 2

+5V_USB2

0R

FC62

FC37

FC61

1

FC11

4

3

2

5

FC42

RES

RT9715GGB

7C01

FC21

+3V3_SW

FC39

3C06

0R3

100K

+3V3STBY

5

RES

3C05

3C04-4RES

4

3C04-1

1 8

RES

FC36

FC43

4 56

2C19

100n

USB-16-PBT-B-30-CU1-BRF

1 2

3

FC38

1C03

3C21

0R3

3C04-2

27

RES

0R3

3C31

2C01

100n

RES

FC32

+5V_SW

RES3C04-3

3 6

RES

2C02

10u

FC46

FC51

1 2

3

4 5

6

+5V_USB2

+5V_USB3

1C02

USB-16-PBT-B-30-CU1-BRF

RES

1%

3C33

1u0

2C03

0R3

3C11

RES

3

100n

2C17

1C32

ACM2012

14

2

+5V_SW

FC45

FC44

USB_PWR_P0

2C18

100u 6.3V

3

4 5 6

7 8

+3V3_WOLAN

1C31

S1315

1 2

+5V_SW

+5V_USB3

3C32RES

+3V3_WOLAN

1%

USB_DP_WIFI

6.3V100u

2C20

IRQ_WOWLANn

USB_DM_WIFI

ENABLE_WOWLAN

USB_DP2

USB_DM2

USB_DP1

USB_DM1

Circuit Diagrams and PWB Layouts

EN 93L12M3.1L LA 10.

2013-Jun-21

back to

div. table

10-6-10 B06A, Analogue I/O - Headphone

19510_524_130412.eps

130412

Analogue I/O - Headphone

B06A B06A

2013-01-11

1

3139 123 6545

PCB SB SSB

MT5396 R3 LATAM 2K13

GND

2

1

SHUTDOWN

BYPASS

2

IN-

VDD

1

VO

RIGHT

HEADPHONE

LEFT

1u0

2810

2

6

1

+3V3_SW

7801-1 PUMD12

F807

10K

3811

2808

1u0

6

5

8

1

7

Φ

AMPLIFIER

TS489IST

7800

3

4

2

F804

33R

3807-2

3807-1

12

33R

2806

100u 4V

1n0

2813

3813

10K

3814

22K

F810

10K

3812

2803

47p

PESD5V0S1BA

6800

RES

I811

+3V3STBY

I810

F809

1u0

2805

1n0

2802

22K

3806

I808

2812

1n0

1u0

2809

6801

PESD5V0S1BA

RES

33R

3807-3

4V

100u

2807

1n0

2801

MSJ-035-12D-B-AG-PBT-BRF

1401

I812

I809

3805

22K

F811

2804

47p

33R

3807-4

F808

PUMD12

7801-2

5

3

4

HPOUT_R

HP_LOUT

HP_ROUT

RESET_AUDIO

A_STBY

A_PLOP

HPOUT_L

HP_LOUT

HP_ROUTA_PLOP

Circuit Diagrams and PWB Layouts

EN 94L12M3.1L LA 10.

2013-Jun-21

back to

div. table

Circuit Diagrams and PWB Layouts

19510_525_130412.eps

130412

Analogue I/O - Component & Composite

B06B B06B

2013-01-11

1

3139 123 6545

PCB SB SSB

MT5396 R3 LATAM 2K13

S

Z

Y0

Y1

VCC

GND

VCC

GND_HS

G3

1

2

3EN2 3EN1

MPXP

AOBCK AOLRCK AOMCLK AOSDATA0 AOSDATA1 AOSDATA2

AL0_ADAC AL1_ADAC AL2_ADAC

AL3_ADAC AR0_ADAC AR1_ADAC AR2_ADAC

AOSDATA3 AOSDATA4 ASPDIF0 ASPDIF1 ALIN

AIN0_L_AADC AIN0_R_AADC AIN1_L_AADC AIN1_R_AADC AIN2_L_AADC AIN2_R_AADC AIN3_L_AADC AIN3_R_AADC AIN4_L_AADC AIN4_R_AADC AIN5_L_AADC

AR3_ADAC

AIN5_R_AADC AIN6_L_AADC AIN6_R_AADC VMID_AADC

VDACY_OUT

VDACX_OUT

PR1P Y0P Y1P COM0 COM1

HSYNC VSYNC BP SOG GP RP COM PB0P PB1P PR0P

SOY0 SOY1

SY0 SC0

CVBS_COM

CVBS0P CVBS1P CVBS2P CVBS3P

Near To SOC

DEB

MT5396

YPbPr

RES

MT5396

YPbPr AUDIO

PC_AUDIO

For HTV

Near To ConnectorNear To SOC

Near To Connector

For HTV

4G01

YES

No

Non HTVHTV

1R0

3G00

RES

I902

10u

2903

2900

10u

30K

3970

RES

10K

3974

30K

3953

3940 100R

PESD5V0S1BA

1R0

6902

RES

1 8

3901

10K3G04-1

3952

30K

6

5

3

1

4

10p

2908

NX3L1G3157GM

7G02

RES

2

100R

3941

I904

100R

3939

I903

RES

1n0

2905

I949

3946 100R

+3V3STBY

56R

3906

PESD5V0S1BA

6901

2963

100p

RES

1922

RES

1G01

15 14 13 12 11

1

10

21

19

20

3

4 5 6 7

8

9

18 17 16

74LVC245ABQ

7G01

RES

2

10K3G04-2

RES

27

2987

10u

3903

56R

2901

1n0

RES

1929

1920

F901

2955 10n

3950 100R

10n2947

3951

3925

18R

100R

1921

I948

4

F931

1VA2-2

BLUE

MSP-8033SH-02-NI-FE-RF-PBT-BRF

3

3961-4

45

1923

10R

100R3944

10n

2954

AN11 AM11 AM10

AN35 AM32 AM37 AM36

AR16 Y32

AN28

AJ27

AN34 AM34 AM33 AM35

Y33

AR11 AP11 AM12 AN9 AN10

AT35 AP34 AU36 AR37 AT36 AP32 AR33 AP37 AR36 AP36 AR35

AU35 AU37 AT37

AUDIO_DAC_ADC

7300-2

5901

60R

1R0

3907

5

MSJ-035-75C-BL-RF-PBT-BRF

1A02

1

2

3

4

3971

1R0

PESD5V0S1BA

6922RES

1930

MSP-8033SH-07-NI-FE-RF-PBT-BRF

1VA3-1 WHITE

1

2

1VA3-2

RED

MSP-8033SH-07-NI-FE-RF-PBT-BRF

3

4

BLACK

5

6

RED

MSP-8033SH-02-NI-FE-RF-PBT-BRF

1

2

MSP-8033SH-07-NI-FE-RF-PBT-BRF

1VA3-3

1VA2-1

3938 100R

I953

10u

2984

1u02978

F932

I952

F905

1n0

F906

RES

2989

3973

1R0

3936

1R0

RES

2904

1n0

5900

60R

1905

1n5

2945

100p

2982RES

3961-3

3 6

10n

2958

10R

6904

PESD5V0S1BA

3972

30K

F900

10n2977

20K

3966

7

I951

3961-2 10R

2

+3V3_SW

3977

4K7

2990 100n

3976

100R

RES

1n0

2902

10n2949

1n0

2988

2951 10n

RES

3975

240R

F904

2946 10n

RES

3960

75R

PESD5V0S1BA

6903

RES

2986

1n0

RES 2983

100p

60R

5902

RES

2985

1n0

RES

100p

2964

3965

20K

2907

10p

F930

1R0

3937

56R

3902

2906

10p

F902

3905

18R

33p

2991

1928

10R

3961-1

1 8

3900

1R0

GREEN

5

6

MSP-8033SH-02-NI-FE-RF-PBT-BRF

1VA2-3

AT24

AR27 AP25 AR29

AU30 AP29

AM25

AP27 AU26

AT30

AP30

AR24

AN25

AT28 AR26 AR28 AP26

82PA5

2R

A

VIDEO_IO

AU24

AP24

AU28 AT26

AN29 AR31 AR30

7300-14

RES

PESD5V0S1BA

6920

F903

F929

10K

3G05

RES

+3V3STBY

2944

1n5

10K3G04-4

RES

45

10K

3G04-3

RES

3 6

6G01

PESD5V0S1BA

RES

1n0

2G02

RES

18R

3904

2948 10n

3G02

1R0

RES

1R0

3G01

RES

1u0

2962

I950

+3V3STBY

6921

PESD5V0S1BA

RES

2G01

RES

+3V3STBY

100n

PESD5V0S1BA

RES 6900

100R

3949

47n

2957

3G03-4

RES 45

RES36

33R

RES 27

33R3G03-3

8

33R

3G03-2

33R

3G03-1

RES 1

RC_IRQ_RF4CEn

RC_FROM_HTV

DET_IR_CON

IR_SW

CVBS_GND

CVBS

DET_IR_CON

RC_TO_SWITCH

RC_IRQ_RF4CEn

RC_SWITCH

RC_TO_SWITCH

RC_TO_HTV

RC_SWITCH

CVBS

CVBS_GND_1

SOY0

PB0P

SPDIF_OUT

RC_TO_HTV

RC_FROM_HTV

SY0N

SY0P

SPR0P

SPB0P

VSYNC

HSYNC

AIN0_R

SOY0

BP SOG

GN

RP

GP

PR0P

AOMCLK

SY0P

SY0N

Y0P

AIN2_L

AIN2_R

AIN2_L AIN2_R

ARC

AOBCK AOLRCK

AOSDATA0

HPOUT_L

HPOUT_R

SPR0P

SPB0P

AIN0_L

AIN0_L AIN0_R

SPDIF_OUT

10-6-11 B06B, Analogue I/O - Component & Composite

EN 95L12M3.1L LA 10.

2013-Jun-21

back to

div. table

10-6-12 B06C, Analogue I/O - VGA

19510_526_130412.eps

130412

Analogue I/O - VGA

B06C B06C

2013-01-11

1

3139 123 6545

PCB SB SSB

MT5396 R3 LATAM 2K13

H_SYNC

Y_SYNC

RES

CDS2C05HDMI2

6A10

PESD5V0S1BA

6A05

RES

75R

3A14

1A03

IA05

IA04

10K

3A20

6A08

BAS316

3A23

10K

1A10

3A18

RES

2K2

FA03

60R

5A00

60R

5A01

3A19

120R

RES

100R

3A27

6A04

PESD5V0S1BA

2A13

5p6

6A03

PESD5V0S1BA

RES

8

9

16

17

13

14

15

2

3

4

5

6

7

MDS-15P-H-06-B

1A01

1

10

11

12

IA09

1A07

60R

5A06

2A12

5p6

1R0

3A10

RES

100p

2A17

RES

2A16

100p

6A02

PESD5V0S1BA

RES

30R

5A04

RES

1A20

0001

6A00

PESD5V0S1BA

3A22

10K

1

3

2

FA04

BC847BW

7A01

3A21

10K

1A08

0001

2A08

10p

3A15

75R

IA03

IA02

6A06

BAS316

75R

3A16

1n0

2A15

FA05

10p

2A09

FA06

60R

5A02

FA02

3A26

100R

10p

2A07

FA14

1A00

30R

FA13

5A05

2u2

2A14

FA07

1A09

RES

6A09

CDS2C05HDMI2

IA08

6A01

PESD5V0S1BA

RES

3A17

2K2

RES

FA01

IA07

FA08

3A25

100R

3A24

IA01

BAS316

6A07

VGA_SDA

VGA_SCL

+5V_DC

+5V_DC +5V_DC

+5V_SW

VGA_DETECT

GP

SOG

HSYNC

BP

RP

GN

VSYNC

Circuit Diagrams and PWB Layouts

EN 96L12M3.1L LA 10.

2013-Jun-21

back to

div. table

10-6-13 B07A, Ethernet

19510_527_130412.eps

130412

Ethernet

B07A B07A

2013-01-11

1

3139 123 6545

PCB SB SSB

MT5396 R3 LATAM 2K13

Reserved

Tekcon with int. mag.

for debug only

RES

3F07

330R

FF12

6F01

SML-310

FF10

FF08

RES

FF09

4 5 6 7 8

RES

SML-310

6F02

5450-327-194-H3

1F01 1 2

3

FF06

2F24

22n

14

23

14

23

ACM2012

1F04

ACM2012

1F03

FF11

RES

330R

3F08

FF07

RXVN_1

TXVP_0

TXVN_0

PHYLED1

PHYLED0

RXVP_1

Circuit Diagrams and PWB Layouts

EN 97L12M3.1L LA 10.

2013-Jun-21

back to

div. table

10-6-14 Layout top

19510_528_130412.eps

130412

2013-01-11

1

3139 123 6545

SSB Layout top

1201

1205

1401

1402

1403

1404

1405

1601 1602

1603 1604

1605

1606

1608

1609

1701

1702

1703

1710

1711

1750

1751

1905

1920

1921

1922

1923

1928

1929

1930

1A00

1A01

1A02

1A03

1A04

1A07

1A08

1A09

1A10

1A20

1B01

1B02

1B04

1C021C03

1C20

1C31

1C32

1D01

1D11

1F01

1F03

1F04

1G01

1G51

1M88

1M89

1VA2

1VA3

2100

2101

2102

2103

2104

2105

2106

2107

2108

2109

2110

2111

2112

2113

2114

2115

2116

2117

2118

2119

2120

2121

2122

2123

2124

2125

2126

2127

2128

2131

21322133

2134

2136

2137

2143

2145

2146

2147

2148

2154

2155

2156

2157

2164 2165

2166

2167

2168

2169

2170

2171

2172

2174

2175

2176

2177

2178

2179

2180

2182

2183

2184

2185

2187

2188

2189

2191 2192

2193

2194

2196

2197

2198

2200

2201

2204

2205

2206

2207

2208

2209

2210

2211

2213

2214

2215

2216

2217

2218

2219

2220

2221

2222

2223

2224

2225

2226

2227

2228

2229

2230

2231

2232

2233

2234

2235

2236

2239

2240

2244

2245

2246

2247

2248

2249

2400

2401

2402

2403

2404

2405

2406

2407

2408

2409

2410

2411

2412

2413

2416

2417

2418

2419

2420

2421

2422

2424

2425

2427

2428

2429

2432

2433

2434

2435

2436

2437

2438

2439

2440

2441

2442

2443

2462

2463

2464

2465

2466

2471

2474

2475

2476

2477

2501

2502

2503

2504

2505

2536

2537

2538

2542

2543

2544

2551

2552

2557

2558

2559

2561

2562

2563

2564

2565

2566

2568

2569

2570

2571

25A8

25A9

25AA

25AB

25AC

25AD

25AE

25AF

25AG

25AH

25AJ

25AK

2601

2602

2608

2611

2612

2613

2614

2615

2616

2617

2618

2635

2638

2639

2640

2641

2642

2643

2644

2645

2646

2647

2649

2650

2651

2652

2653

2654

2655

2656 2657

2658

2659

2660

2661

2662

2663

2664

2665

2666

2667

2668

2669

2671

2672

2673

2674

2675

2676

2677

2678

2679

2680

2681

2682

2683

2684

2685

2686

2687

2688

2689

2690

2691

2692

2693

2694

2695

2696

2697

2698

2699

2700

2701

2703

2704

2705

2706

2707

2708

2710

2711

2714

2715

2716 2717

2718

2719

2720

2721

2725

2726

2727

2728

2729

2730

2731

2732

2733

2734

28012802

2803

2804

2805

2806

2807

2808

2809

2810 2812

2813

2900

2901

2902

2903

2904

2905

2906

2907

2908

2944

2945

2946

2947

2948

2949

2951

2954

2955

2957

2958

2962

2963

2964

2977 2978

2982

2983

2984

2985

2986

2987

2988

2989

2990

2991

2A07

2A08

2A09

2A12

2A13

2A14

2A15

2A16

2A17

2B012B07

2C01

2C02

2C03

2C17

2C18

2C19

2C20

2D11

2D12

2D14

2D15

2D16

2D17

2D20

2D21

2F24

2G01

2G02

3100

3102

3103

3104

3105

3106

3107

3108

3109

3110

3111

3112

3113

3114

3115

3116

3117

3118

3119

3120

3121

3122

3123

3126

3127

3128

3129

3130

3131

3133

3137

3146

3162

3163

3167

3168

3169

3170

3200

3201

3202

3203

3204

3205

3206

3207

3208

3209

3210

3211

3212

3213

3214

3217

3218

3222

3223

3224

3225

3226

3227

3228

3229

3230

3231

3232

3400

3401

3402

3403

3404

3405

3406

3407

3408

3409

3410

3411

3412

3418

3419

3420

3426

3427

3500

3502

3503

3504

3505

3506

3507

3508

3509

3510

3511

3512

3513

3514

3519

3520

3521

3523

3524

3526

3530

3534

3535

3536

3541

3542

3543

3544

3546

3608

3613

3614

3623

3624

3627

3628

3634

3635

3650 3656

3666

3667

3688

3695

3696

3701

3702

3705

3708

3709

3710

3712

3713

3714

3715

3719

3720

3723

37263727

3728

3729

3730

3731

3732

3733

3734

3735

3736

3737

3738 3739

3740

3741

3742

37473748

3749

3750

3751

3752

3753

3754

3755

3756

3758

3759

3761

3764

3765

3767

3769

3770

3771

3772

3773

3774

3775

3778

3779

3780

3781

3782

3785

3786

3787

3788

3789

3790

3791

3792

3793

3794

3795

37A1

37A3

37A5

37A6

37A7

37A9

37AA

37AB

37AC

37AD

37AE

37AF

37AJ

37AK

37AL

37AM

37AN

37AP

37AT

37AU

37AY

37AZ

37B1

3805

3806

3807

3811

3812

3813

3814

3900

3901

3902

3903

3904

3905

3906

3907

3925

3936

3937

3938

3939

3940

3941

3944

3946

3949

3950

3951

3952

3953

3960

3961

3965

3966

3970

3971

3972

3973

3974

3975

3976

3977

3A10

3A14

3A15

3A16

3A17

3A18

3A19

3A20

3A21

3A22

3A23

3A243A25

3A26

3A27

3B00

3B01

3B02

3B03

3B04

3B05

3B07

3B08

3B09

3B20

3B21

3B22

3B23

3B24

3B30

3B31

3B32

3B33

3B34

3B50

3B52

3B54

3B55

3C04

3C05

3C06

3C11

3C21

3C31

3C32

3C33

3D00

3D01

3D02

3D03

3D05

3D06

3D07

3D08

3D09

3D10

3D11

3D12

3D13

3D14

3D19

3D20

3D21

3D22

3D23

3F07

3F08

3G00

3G01

3G02

3G03

3G04

3G05

4201

4202

4203

4401

4701

4703

4704

4705

4706 4707 4708 4709

4710

4B00

4B01

4B21

4B31

4D04

4D05

4D06

4D25

4D26

4D27

4D28

4D29

5100

5101

5102

5103

5104

5105

5106

5107

5200

5201

5202

5203

5204

5400

5401

5402

5403

5404

5405

5406

5408

5414

5415

5416

5417

5500

5503

5505

5506

5700

5701

5702

5900

5901

5902

5A005A015A02

5A045A05

5A06

5B01

5D00

5D01

5D02

6400

6500

6501

6700

6701

6702

6703

6704

6800

6801

6900

6901

6902

69036904

6920 6921

6922

6A006A016A02

6A03

6A04

6A05

6A06

6A07

6A08

6A09

6A10

6B01

6B02

6B03

6B21

6B22

6B23

6B31

6B32

6B33

6D00

6D01

6F01

6F02

6G01

7110

7113

7116

7117

7118

7210

7216

7220

7300

7400

7401

7402

7500

7501

7503

7504

7601

7602

7603

7604

7700

7701

7702

7703

7704

7705

7800

7801

7A01

7B00

7B01

7B21

7B31

7C01

7D00

7D02

7D03

7G01

7G02

Circuit Diagrams and PWB Layouts

EN 98L12M3.1L LA 10.

2013-Jun-21

back to

div. table

10-6-15 Layout bottom

19510_529_130412.eps

130412

2013-01-11

1

3139 123 6545

SSB Layout bottom

A204

A205

A209

A210

F101

F102

F103

F106

F107

F108

F113

F114

F115

F118

F119

F120

F121

F122

F123

F126

F127

F128

F129

F130

F131

F132

F133

F134

F200

F202

F203

F206

F207

F208

F211

F212

F213

F401

F402

F403

F404

F405

F407

F408

F409

F410

F416

F417

F418

F419

F506

F507

F509

F510

F700

F701

F702

F704

F705

F706

F711

F712

F713

F716

F717

F719

F720

F721

F722

F723

F724

F725

F726

F727

F728

F729

F730

F731

F732

F734

F735

F737

F738

F739

F740

F741

F745

F746

F747

F748

F749

F750

F751

F752

F804

F807

F808

F809

F810

F811

F829

F900

F901

F902

F903

F904

F905

F906

F929

F930

F931

F932

FA01 FA02 FA03 FA04

FA05 FA06FA07

FA08

FA13 FA14

FB01

FB02

FB03

FB04

FB05

FB11 FB12

FB13

FB15

FB16

FB17

FB18

FB19

FB21

FB22

FB23

FB24

FC11

FC21

FC32

FC36

FC37

FC38

FC39

FC42

FC43

FC44

FC45

FC46

FC51

FC61

FC62

FD13

FD36

FD37

FD38

FD39

FD40

FD41

FD42

FD43

FD44

FD45

FD46

FD47

FD48

FD49

FD50

FD51

FD52

FD53

FD54

FD55

FD56

FD57

FD58

FD59

FD61

FD62

FD66

FD67

FD68

FD69

FD70

FD71

FD72

FF06 FF07FF08

FF09

FF10FF11 FF12

I106

I118

I119

I120 I122

I127

I132

I134

I135

I136

I138

I139

I140

I143

I144

I145

I146

I147

I149I150

I151

I152

I153

I154

I155

I156

I157

I158

I159

I206

I207 I208

I404

I405

I406

I407

I408

I409

I410

I411I412

I413

I414

I415

I420

I421

I422I423

I424

I501

I502

I504

I508

I509

I510

I518

I725

I726

I732

I741

I744

I808

I809

I810

I811

I812

I902

I903

I904

I948

I949

I950

I951

I952

I953

IA01

IA02

IA03

IA04

IA05

IA07

IA08

IA09

IB01

ID02

ID03

ID05

ID07

ID17

Circuit Diagrams and PWB Layouts

EN 99L12M3.1L LA 10.

2013-Jun-21

div. table

back to

Circuit Diagrams and PWB Layouts

19370_044_130131.eps

130417

Keyboard Control Module

E E

2012-09-27

0.5

2722 171 90763 2722 171 90764 2722 171 90766

Keyboard Control Module

R3

680 Ω (5.6 kΩ)

V

SS

V

SS

V

SS

V

SS

V

SS

V

SS

V

SS

V

SS

C1

0.01 μF

R5

3.9 kΩ

(18 kΩ)

R2

330 Ω (3.9 kΩ)

R1

150 Ω

(

1.5 kΩ)

R4

1.5 kΩ

(8.2 kΩ)

CH+

ZD1

5.6 V

CH- SOURCE VOL- VOL+ POWER

R6

6.8 kΩ (1 kΩ)

J2

CON8

6

7

8

4

5

3

1

2

10.7 272217190763, 272217190764, 272217190766 Keyboard Control Module

10-7-1 E, Keyboard Control Module

EN 100L12M3.1L LA 10.

2013-Jun-21

back to

div. table
