Contents

1 Important 4

Safety 4 Notice 4

2 Your car audio system 6

Introduction 6 What’s in the box 6 Overview of the main unit 7 Overview of the remote control 8

3 Get started 10

Install the car audio 10 Attach the front panel 10 Place the DAB antenna 10 Install remote control battery 11 Turn on 11 Set clock 11

4 Listen to radio 12

Tune to a radio station 12 Store radio stations in memory 12 Tune to a preset station 12 Play with RDS 13

5 Listen to Digital Audio Broadcasts

(DAB) 15

Tune to DAB radio station manually 15 Scan for new DAB stations 15 Store DAB stations automatically 15 Program DAB radio stations manually 15 Tune to a preset station 16 Display DAB information 16 Weak DAB signal 16 DAB Dynamic Range Control 17 DAB Antenna 17 DAB sorting 17

6 Play audio ﬁles 18

Play a disc 18 Play from USB 18 Search for an MP3/WMA track 19 View play information 19 Repeat play 19 Shufﬂe play 19 Intro play 19 Play from iPod/iPhone 20 Connect iPod/iPhone 20 Control music playback on iPod/iPhone 20 Search for a track on iPod/iPhone 21 Connect external sound source

7 Adjust sound 21

Adjust volume 21 Mute 21 Turn DBB and subwoofer on/off 21 Select preset equalizer 22 Turn on/off max sound 22 Other sound settings 22

8 Adjust system settings 23

Turn beep sound on/off 23 Select blackout setting 23 Turn demo mode on/off 23 LCD Color 23 Dimmer 24 Reset 24

9 Additional information 24

Detach the front panel 24 Replace fuse 24 Remove the unit 25

10 Product information 25

11 Troubleshooting 26

12 Glossary 27

Page 3

The apparatus shall not be exposed to • dripping or splashing. Do not place any sources of danger on • the apparatus (e.g. liquid ﬁlled objects, lighted candles).

Notice

The making of unauthorized copies of copy-protected material, including computer programs, ﬁles, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offence. This equipment should not be used for such purposes.

Windows Media and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other countries.

“Made for iPod” and “Made for iPhone” mean that an electronic accessory has been designed to connect speciﬁcally to iPod, or iPhone respectively, and has been certiﬁed by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, or iPhone may affect wireless performance. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. iPod and iPhone are trademarks of Apple Inc., registered in the U.S. and other countries.

1 Important

Safety

Read and understand all instructions • before you use your apparatus. If damage is caused by failure to follow instructions, the warranty does not apply. This apparatus is designed for negative • ground (earth) 12 V DC operation only. To ensure safe driving, adjust the volume • to a safe and comfortable level. Improper fuses can cause damage or • ﬁre. When you need to change the fuse, consult a professional. Use only the supplied mounting hardware • for a safe and secure installation. To avoid shor t circuit, do not expose the • apparatus, remote control or remote control batteries to rain or water. Never insert objects into the ventilation • slots or other openings on the apparatus. Clean the apparatus and frame with a • soft, damp cloth. Never use substances such as alcohol, chemicals or household cleaners on the apparatus. Never place any objects other than discs • into the apparatus. Never use solvents such as benzene, • thinner, cleaners available commercially, or anti-static sprays intended for discs. Visible and invisible laser radiation when • open. Avoid exposure to beam. Risk of damage to the apparatus screen! • Never touch, push, rub or strike the screen with any object.

Caution

Use of controls or adjustments or performance • of procedures other than herein may result in hazardous radiation exposure or other unsafe operation.

Page 4

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.) Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment. Any changes or modiﬁcations made to this device that are not expressly approved by Philips Consumer Lifestyle may void the user’s authority to operate the equipment. 2010 © Koninklijke Philips Electronics N.V. All rights reserved. Speciﬁcations are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners. Philips reserves the right to change products at any time without being obliged to adjust earlier supplies accordingly.

This apparatus includes this label:

Recycling

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. When you see the crossed-out wheel bin symbol attached to a product, it means the product is covered by the European Directive 2002/96/EC:

Never dispose of your product with other household waste. Please inform yourself about the local rules on the separate collection of electrical and electronic products. The correct disposal of your old product helps prevent potentially negative consequences on the environment and human health. Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed of with normal household waste. Please inform yourself about the local rules on separate collection of batteries. The correct disposal of batteries helps prevent potentially negative consequences on the environment and human health.

This product complies with the radio interference requirements of the European Community.

English

Page 5

i ISO male connectors j Disassembly tools x 2 pcs k User manual l Quick start guide m DAB Antenna

dec

lki

2 Your car audio

system

Congratulations on your purchase, and welcome to Philips! To fully beneﬁt from the support that Philips offers, register your product at www.philips.com/welcome.

Introduction

With the in-car audio system, you can enjoy your drive while listening to:

FM or AM (MW) radio• DAB radio• Audio from CD or MP3 disc• Audio from USB devices• Audio from iPod/iPhone• Audio from other external devices•

The unit supports the following media format:

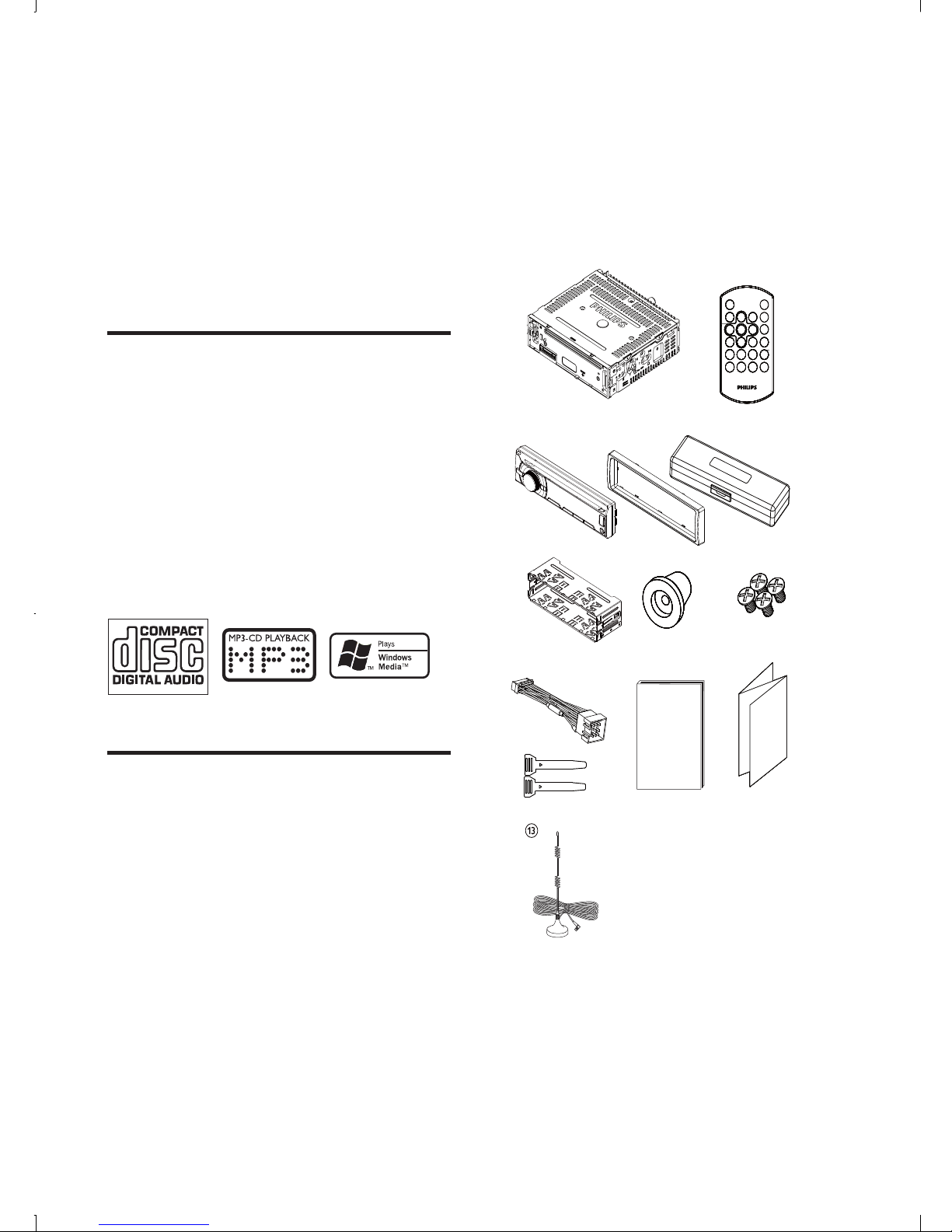

What’s in the box

Check and identify the contents of your package:

a Main unit b Remote control c Front panel d Trim p late e Carrying case for front panel f Sleeve g Rubber cushion h Screws x 4 pcs

Page 6

c BAND/

Select tuner band.• Return to previous menu.•

Turn the unit on or off.• Conﬁrm selection.• Mute or unmute sound.• Rotate to adjust settings.•

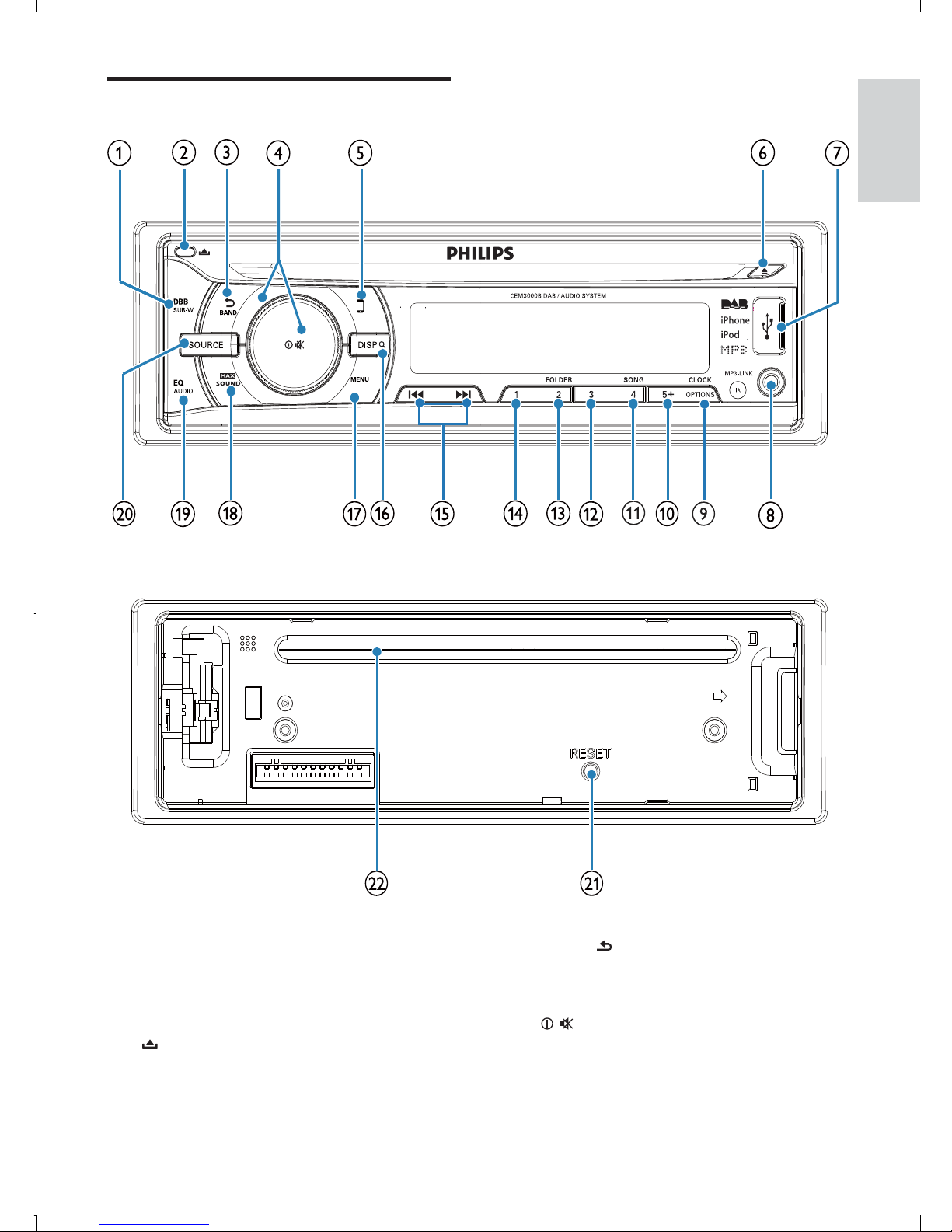

Overview of the main unit

a DBB/SUB-W

Switch on or off Dynamic Bass Boost • (DBB) sound. Switch on or off subwoofer.•

Unlock the panel.•

English

Page 7

q MENU

Access system menu.•

 6281'

Select MAX Sound audio setting.•

s EQ AUDIO

Select equalizer (EQ) setting.• Access audio setting menu.•

t SOURCE

Select audio source.•

u RESET

Restore default settings.•

v Disc slot

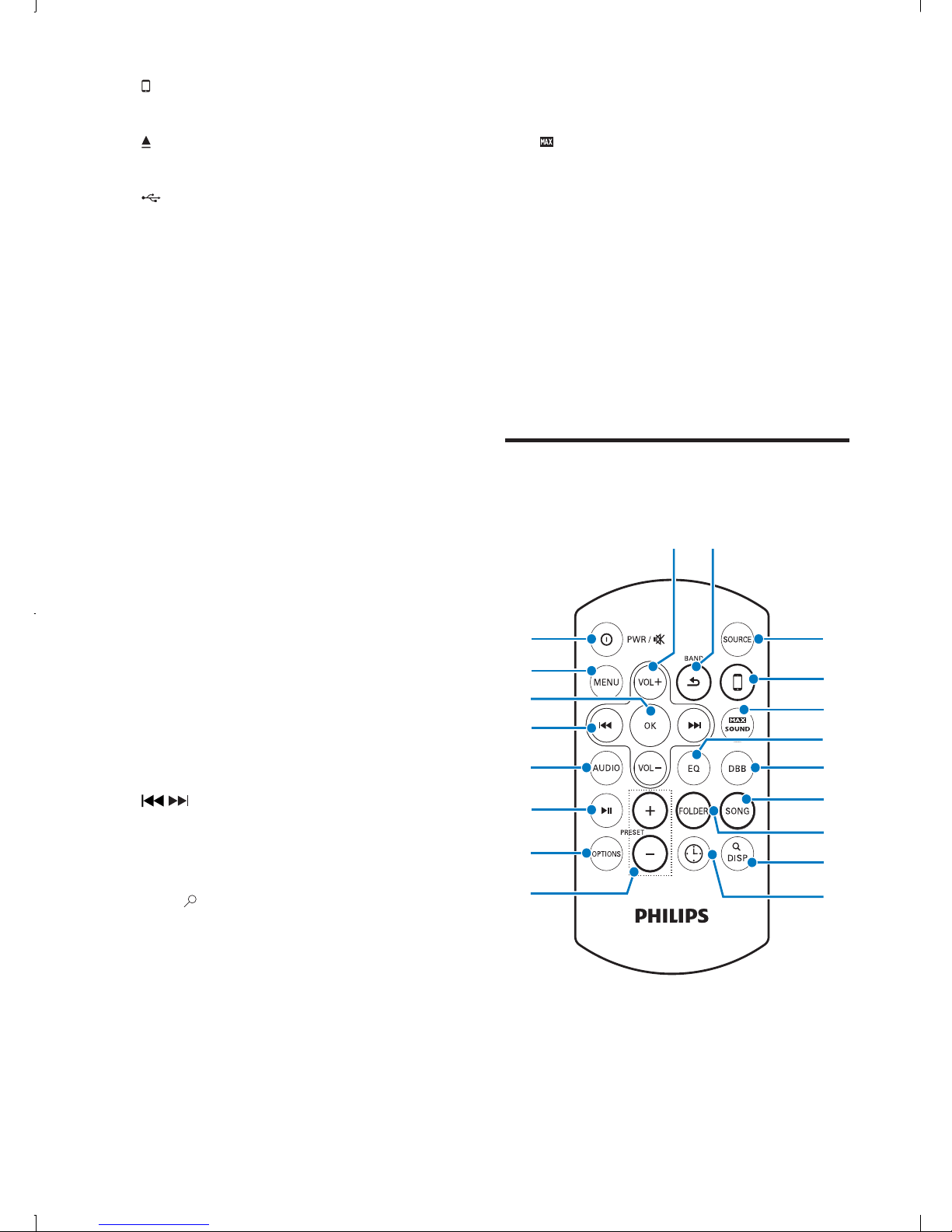

Overview of the remote control

a PRESET +/-

Select preset radio station.• Access manual store.•

b OPTIONS

Access option menu.•

h g

o p

q r

Enter iPod/iPhone control mode.•

Eject disc.•

Connector for USB and iPod/iPhone.•

h MP3 LINK

Connect external audio device.•

i OPTIONS/CLOCK

Access option menu.• Display the DAB related information.• View clock.•

j 5+

Select or store preset radio stations • 1 to 10. Select or store preset DAB radio • stations 1 to 20.

k SONG/4

Search for track.• Select or store preset station 4.•

l 3

Select or store preset station 3.•

m FOLDER/2

Search for folder.• Select or store preset station 2.•

n 1

Select or store preset station 1.•

Tune to radio/DAB stations.• Skip/search for tracks.• Fast forward/backward play.•

p DISP/

In FM/DAB/USB mode, press and • hold to select LCD color In DAB mode , press brieﬂy to • display DAB radio station list In tuner or iPod/iPhone mode, press • brieﬂy to display station info or iPod/ iPhone info In iPod/iPhone mode, press and hold • to access music search mode

Page 8

r DISP/

s CLOCK

View clock.•

Star t play.• Pause or resume play.•

d AUDIO

Access audio setting menu.•

Tune to radio/DAB station.• Skip track.• Fast backward/forward play.•

f OK

Conﬁrm selection.•

g MENU

Access system menu. •

/PWR/

Turn the unit on or off.• Mute or restore volume.•

i VOL+/-

Adjust volume.•

j BAND/

Select tuner band.• Return to previous/top menu. •

k SOURCE

Select audio source.•

Enter iPod/iPhone control mode.•

 6281'

Select MAX Sound audio setting.•

n EQ

Select equalizer (EQ) setting.•

o DBB

Turn on or off Dynamic Bass Boost • (DBB) sound.

p SONG

Search for tracks.•

q FOLDER

Search for folders.•

English

Page 9

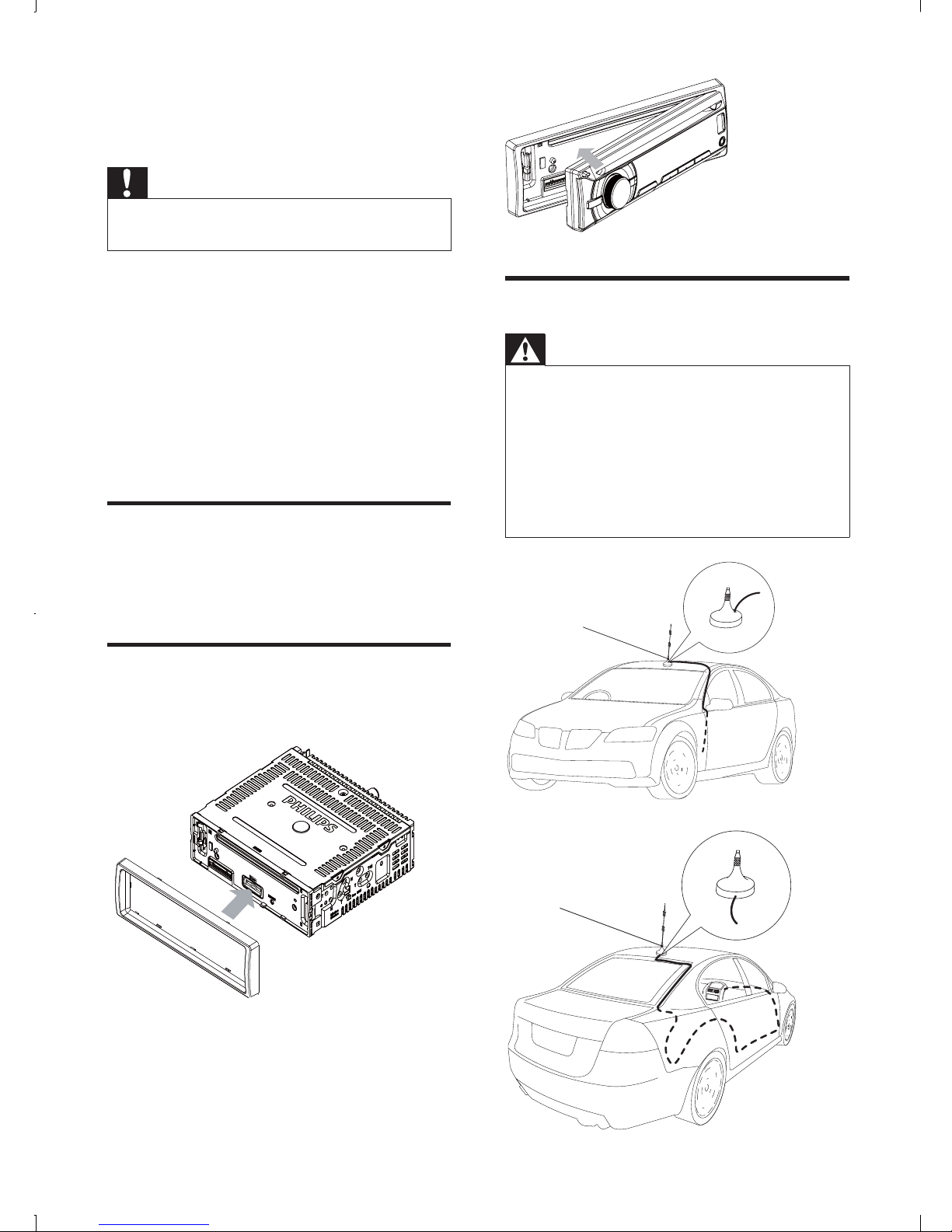

Place the DAB antenna

Warning

Make sure the antenna cable does not interfere • with the safe operation of driving wheel, air bags and seatbelts or other equipment. Before entering low overhangs, car washes, or

•

other places with obstacles which may catch on or touch the antenna, remove the antenna to avoid potential damage. Damage caused by not following the installation

•

instructions is not covered by warranty.

DAB / DAB+Antenna

3 Get started

Caution

Use the controls only as stated in this user • manual.

Always follow the instructions in this chapter in sequence. If you contact Philips, you will be asked for the model and serial number of your apparatus. The model number and serial number are on the bottom of your apparatus. Write the numbers here: Model No. __________________________ Serial No. ___________________________

Install the car audio

Please refer to the “Installation guide” in quick start guide.

Attach the front panel

Attach the trim plate.

2 Insert the right side of the panel in the

chassis until it is correctly engaged.

3 Press the left side of the panel until the

mechanism locks it into place.

Page 10

1 Remove the protective tab to activate the

remote control battery.

To replace the remote control battery:

1 Open the battery compartment. 2 Insert one CR2025 battery with correct

polarity (+/-) as indicated.

3 Close the battery compartment.

Turn on

Press to turn on the unit.

To turn off the unit, press and hold • for a few seconds.

Set clock

Press MENU.

2 Press / repeatedly until [CLK SET]

displays.

3 Rotate to set hour. 4 Press to conﬁrm. 5 Rotate set minute. 6 Press to conﬁrm.

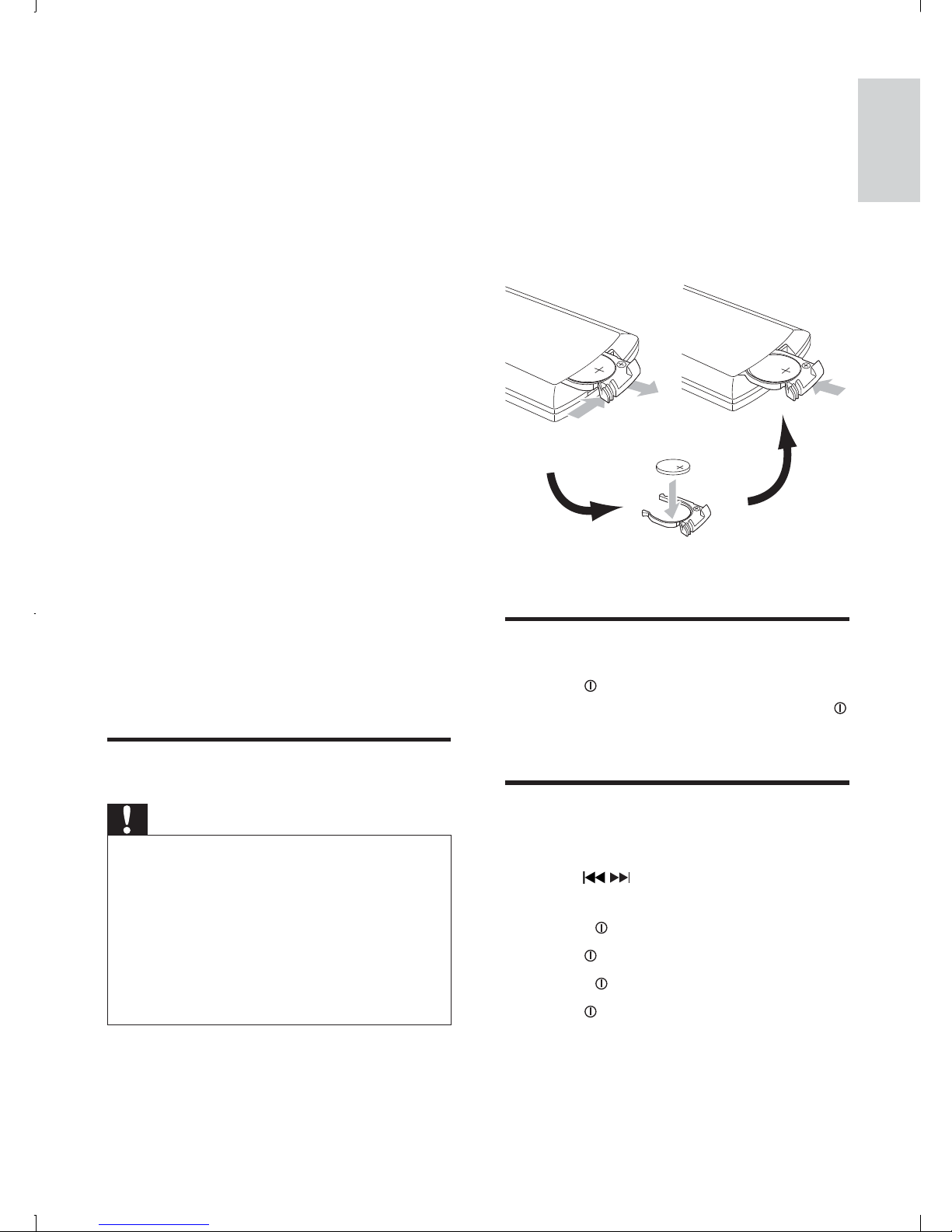

1 Find a location as ﬂat as possible on the

outside of your car. For example, the roof near the windshield, or rear window. Note: The magnetic base of the antenna will remain secure at normal vehicle speeds in non-windy conditions. Antennae installed on curved surfaces may become detached in windy conditions.

2 Make sure the selected surface is

clean and free of dir t, water, or other substances which could inhibit attachment to the surface.

3 Gently place the magnetic steel base of

the DAB/DAB+ antenna on the surface you selected. The magnetic steel base will stick to any metallic surface. Note: Damage may be caused to the paintwork of the car if the antenna slides or rotates on the car surface.

4 Route the cable: Tuck the cable under

weather strip of the door and run the cable through the passenger doorway or tailgate. Reserve enough slack in your cable to ﬁt open doors or deck lids. Secure cables to avoid cable being pinched between hinges and the door.

Install remote control battery

Caution

Risk of explosion! Keep batteries away from heat, • sunshine or ﬁre. Never discard batteries in ﬁre. Risk of decreased battery life! Never mix

•

different brands or types of batteries. Risk of product damage! When the remote

•

control is not used for long periods, remove the batteries. Perchlorate Material - special handling may

•

apply. See www.dtsc.ca.gov/hazardouswaste/ perchlorate.

For ﬁrst-time use:

English

Page 11

4 Listen to radio

Tune to a radio station

Press SOURCE repeatedly to select radio

mode.

2 Press BAND/ to select band: [FM1],

[FM2], [FM3], [AW1] or [AW2].

3 Press or to tune to a radio station

manually.

The radio station is broadcast. » To search for a radio station »

automatically, press and hold

for a few seconds.

Select tuner region

You can select suitable country/region of the radio.

1 Press SOURCE to select Radio mode. 2 Press MENU. 3 Press / repeatedly until [AREA] is

displayed.

4 Rotate to select:

• [USA]

• [LATIN]

• [Europe]

• [ASIA]

• [M-EAST]

• [RUSSIA]

Select tuner sensitivity

To receive more radio stations or only stations with strong signal, you can adjust the tuner sensitivity.

1 Press OPTIONS repeatedly to select

[LOCAL SEEK].

2 Rotate to select a setting:

• [LOCAL SEEK ON]: Only stations with strong signal can be broadcast.

View clock

1 Press and hold CLOCK until the clock is

displayed.

Page 12

Play with RDS

The RDS (Radio Data System) function operates only in areas with FM stations broadcasting RDS signals. If you tune to an RDS station, an RDS icon and information about the presenter, station or program is displayed.

Turn on RDS

Note

The default setting for RDS is on. •

1 Press MENU. 2 Press / repeatedly until [RDS] is

displayed.

3 Rotate to select option:

• [RDS ON]: The RDS function is on.

• [RDS OFF]: The RDS function is off.

Select program type

Before tuning to RDS stations, you can select program type and let the unit search only for programs of the selected category.

1 Press OPTIONS until [PTY] displays. 2 Press to conﬁrm. 3 Rotate to select a type, then press

to conﬁrm.

• [LOCAL SEEK OFF]: Stations with strong and weak signals can be broadcast.

Store radio stations in memory

You can store up to 10 stations in each band.

Store stations automatically

1 Press OPTIONS repeatedly until

[AUTO-STORE] displays.

2 Press to conﬁrm.

The 10 strongest stations of the » selected band are saved in preset channel automatically.

Store stations manually

1 Tune to a station that you want to store. 2

For preset 1 to preset 4, press and • hold button 1 to 4 to store the corresponding station. For preset 5 to 10, press and hold • button 5+ and rotate

to select a

number (1-10) for the preset.

3 Press to conﬁrm.

The station is saved in the selected » channel.

The preset number lights up on the »

LCD screen.

Tune to a preset station

Press BAND/ to select band.

2 Press 5+ and rotate to select the preset

number.

3 Press to conﬁrm the selection.

English

Page 13

Select alternate frequencies

If the radio signal is poor, turn on AF (Alternate Frequency) to search for another station with stronger signal.

1 Press OPTIONS. 2 Press / repeatedly until [AF] displays. 3 Rotate to select a setting:

• [AF ON]: Turn on the AF mode.

• [AF OFF]: Turn off the AF mode.

Set region for AF tuning

You can deﬁne AF tuning region:

[REG ON] Only stations in current region

can be tuned to automatically.

[REG OFF] All stations can be tuned to

automatically.

1 Press MENU. 2 Press / repeatedly until [REG]

displays.

3 Rotate to select a setting.

Receive trafﬁc announcement

If you do not want to miss trafﬁc announcement when enjoying music, turn on the TA (Trafﬁc Announcement) function.

1 Press OPTIONS. 2 Press / repeatedly until [TA]

displays.

3 Rotate to select a setting:

• [TA ON]: When there is trafﬁc announcement, the unit switches to the tuner mode (regardless of the current mode) and begins to broadcast the trafﬁc conditions. When the trafﬁc announcement is over, it returns to the previous mode.

• [TA OFF]: Trafﬁc announcement does not cut in.

Item Program type Description

1 NEWS News services 2 AFFAIRS Politics and current

affairs

3 INFO Special information

programs 4 SPORT Sports 5 EDUCATE Education and

advanced training 6 DRAMA Radio plays and

literature 7 CULTURE Culture, religion and

society 8 SCIENCE Science 9 VARIED Entertainment

programs 10 POP M Pop music 11 ROCK M Rock music 12 EASY M Light music 13 LIGHT M Light classical music 14 CLASSICS Classical music 15 OTHER M Special music

programs 16 WEATHER Weather 17 FINANCE Finance 18 CHILDREN Children’s programs 19 SOCIAL Social Affairs 20 RELIGION Religion 21 PHONE IN Phone In 22 TRAVEL Travel 23 LEISURE Leisure 24 JAZZ Jazz Music 25 COUNTRY Country Music 26 NATION M National Music 27 OLDIES Oldies Music 28 FOLK M Folk Music 29 DOCUMENT Documentary 30 TEST Alarm Test 31 ALARM Alarm

Page 14

5 Listen to

Digital Audio Broadcasts (DAB)

Digital Audio Broadcasting (DAB), is a way of broadcasting radio digitally through a network of transmitters. It provides you with more choice, better sound quality, and more information. For the ﬁrst time when DAB mode is switched on.

1 Press SOURCE on the main unit

repeatedly to select DAB/DAB+.

The system performs auto scan. » All the available DAB stations are »

stored. The radio tunes to the ﬁrst available »

station

Tip

The display shows a rectangle. The position • of the rectangle indicates the degree of signal strength. (The further towards the right, the greater the signal strength.) If there is no DAB coverage currently available,

•

or DAB signal is too weak in your area, no DAB station will be found, and message like “No Station Found, Scan Again” displays.

Tune to DAB radio station manually

Under DAB mode, press and hold /

to enter manual seek mode.

“MANUAL” blinks on LCD screen. »

2 Press / repeatedly until the the

desired channel/frequency appears.

Set RDS clock

You can use time signal that is broadcast together with the RDS signal to set the clock of the unit automatically.

1 Press MENU. 2 Press / repeatedly until [CT]

displays.

3 Rotate to select a setting:

• [CT ON]: Turn on the RDS clock. Time shown on the unit synchronizes with that on the RDS station.

• [CT OFF]: Turn off the RDS clock.

Tip

The accuracy of the transmitted time depends • on the RDS station that transmits the time signal.

English

Page 15

3 Press to conﬁrm.

The station is saved in the selected » channel.

The preset number is displayed on the » LCD screen.

Note

If a DAB station is already stored under a • preset location, new DAB station assigned to this location will overwrite the old DAB station. DAB station presets will not overwrite FM

•

presets.

Tune to a preset station

Press 5+ and rotate to select the preset

number.

2 Press to conﬁrm the selection.

Note

If the Scanned/Preset DAB station signal is • not available at particular time/region, [No] is displayed.

Display DAB information

On the display of DAB broadcasting, the ﬁrst line shows station name, and the second line shows the service information for the current station. 6 types of service information are available.

1 Tune to a DAB station. 2 Press OPTIONS/CLOCK repeatedly to

scroll through the display information (if available).

Scan for new DAB stations

Under DAB mode, press MENU

repeatedly until [DAB SCAN] is displayed.

2 Press to conﬁrm.

The system scans for all available DAB » radio stations and broadcasts the ﬁrst station.

Tip

New stations and services will be added in the • DAB broadcast. To make new DAB stations and services available on your car audio, scan on a regular base.

Store DAB stations automatically

In DAB mode, press MENU to enter the

menu options.

2 Press / repeatedly until [DAB

STORE] displays.

3 Press to conﬁrm.

The 20 strongest stations of the » selected band are saved in preset channel automatically.

Program DAB radio stations manually

You can program a maximum of 20 preset DAB radio stations.

1 Tune to a DAB station. 2

For preset 1 to preset 4, press and • hold button 1 to 4 to store the corresponding station. For preset 5 to 10, press and hold • button 5+ and rotate

to select a

number (1-20) for the preset.

Page 16

signal is strong, then the audio will fade in to the original volume level.

• [WEAK TO FM]: When the DAB signal is weak, switch to the last listened FM station. Switch back to DAB when signal is strong.

DAB Dynamic Range Control

DRC adds or removes a degree of compensation for the differences in the dynamic range between radio stations.

1 In DAB mode, press MENU to enter the

menu options.

2 Press / repeatedly until [DAB DRC]

is displayed.

3 Rotate to select an option.

• [DRC Off]: No compensation applied. (the default)

• [DRC Low]: Medium compensation applied.

• [DRC High]: Maximum compensation applied.

Note

The best way to determine which of these DRC • value settings suits you best is to experiment with them on various source material.

DAB Antenna

In DAB mode, press MENU to enter the

menu options.

2 Press / repeatedly until DAB antenna

option is displayed.

3 Rotate to select an option.

Multiplex name: Displays the name • of the DAB multiplex in which the current station is broadcast. Multiplex info: Displays the channel • and frequency of the current DAB multiplex. Program type: Describes the content • of the current DAB station. Scrolling text: Information broadcast • by most DAB stations (may include song titles, news, etc) Signal Strength: Displays a meter • illustrating the strength of the DAB signal 0-100. Signal Quality: Display DAB signal • quality, from 0 to 100.

Tip

If any information above is selected, when • you tune to another DAB station, you can press OPTIONS/CLOCK once to display the selected information, no need to scroll through the list.

Weak DAB signal

Select the switch over option when DAB signal is weak.

1 In the DAB mode, press MENU to enter

the menu options.

2 Press / repeatedly until [WEAK

DAB] is displayed.

3 Rotate to select an option.

• [WEAK MUTE]: When the DAB signal is weak, fade out the DAB audio and mute it until the DAB

English

Page 17

6 Play audio files

Note

Ensure that the disc or device contains playable • ﬁles.

Play a disc

Note

You cannot play CDs encoded with copyright • protection technologies.

You can play commercially available audio CDs and these discs:

CD-Recordables (CD-R)• CD-Rewritables (CD-RW)• MP3 CDs• WMA CDs•

Note

Ensure that the disc contains playable content. •

1 Insert a CD with the printed side facing up.

Play starts automatically. »

To pause CD play, press •

To resume CD play, press •

again.

To skip to the previous/next track, press •

or . To search backward/forward rapidly in • the current track, press and hold

for a few seconds.

Remove the CD

To take out the CD, press

on the front panel.

Tip

If the disc is blocked in the disc compar tment, • press and hold until the disc comes out.

• [ANTENNA OFF]: Select when using the DAB aerial without the booster.

• [ANTENNA 12V]: Select when using the DAB aerial with the booster (12V).

DAB sorting

With this option, you can select the way that the station list is arranged.

1 In DAB mode, press MENU to enter the

menu options.

2 Press / repeatedly until [DAB

SORTING] is displayed.

3 Rotate to select an option.

• [SORT ACTIVE]: Lists active stations ﬁrst on the station list.

• [SORT A-Z]: Lists all stations in alphanumeric order (0-9, A-Z). [SORT MULTIPLEX]• : Lists stations in groups according to their multiplex (a group of stations broadcast by the same operator).

You can tune to a DAB station through the sorted DAB station list.

1 Under DAB mode, press DISP once to

display the DAB station list.

2 Rotate to scroll through the DAB

station list in the order set above.

3 Press to switch to the selected DAB

station.

Page 18

Search for an MP3/WMA

track

Search within the current folder

1 Press SONG.

The name of the current track is » displayed.

2 Rotate to select another track in

current folder

3 Press to conﬁrm.

Search in other folder

1 Press FOLDER.

The name of the current folder is » displayed.

2 Rotate to navigate through all folders. 3 Press to access the selected folder. 4 Rotate to select a track in the folder. 5 Press to start play.

Tip

To go back to upper level of a folder, press • .

View play information

During playing, press DISP repeatedly to

view:

Track number and elapsed play time• Artist • Album • Title • Folder • File •

Repeat play

During play, press OPTIONS repeatedly

until [REPEAT] is displayed.

2 Rotate to select a setting.

Play from USB

Note

Ensure that the USB device contains playable • music.

Insert the USB device

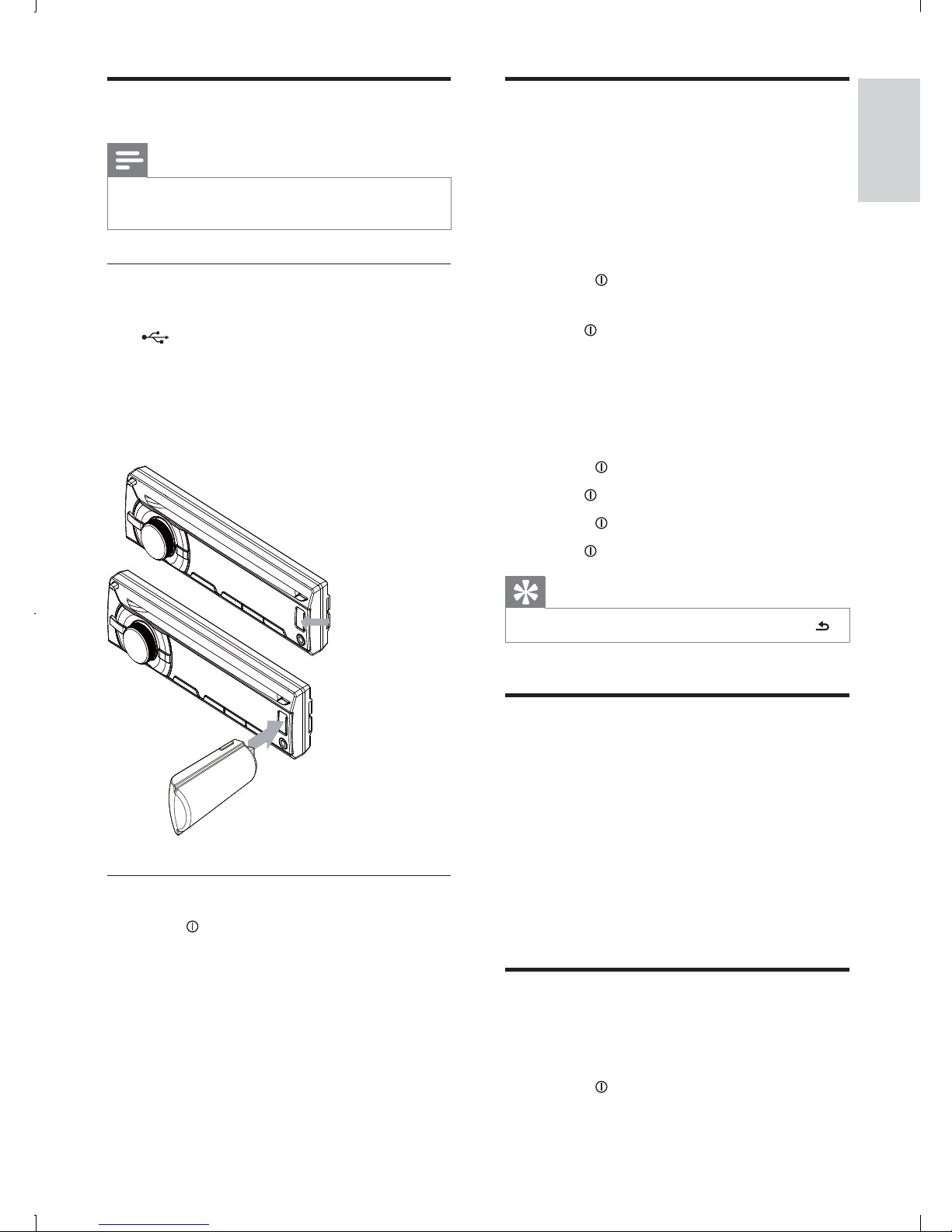

1 Slide the USB connector cover marked

to the left.

2 Insert the USB storage device into the

USB connector.

The unit starts playing from the USB » storage device automatically.

Remove the USB device

1 Press to turn off the unit. 2 Remove the USB storage device.

English

Page 19

Made for.

iPod nano (2nd generation)• iPod nano (3rd generation, 4GB only)• iPod nano (3rd generation, 8GB only)• iPod nano (4th generation)• iPod nano (5th generation)• iPod classic (1st generation)• iPod classic (2nd generation)• iPod touch (1st generation)• iPod touch (2nd generation)• iPod touch (3rd generation)• iPod video (30GB, 80GB only)• iPhone • iPhone 3G• iPhone 3GS• iPhone 4•

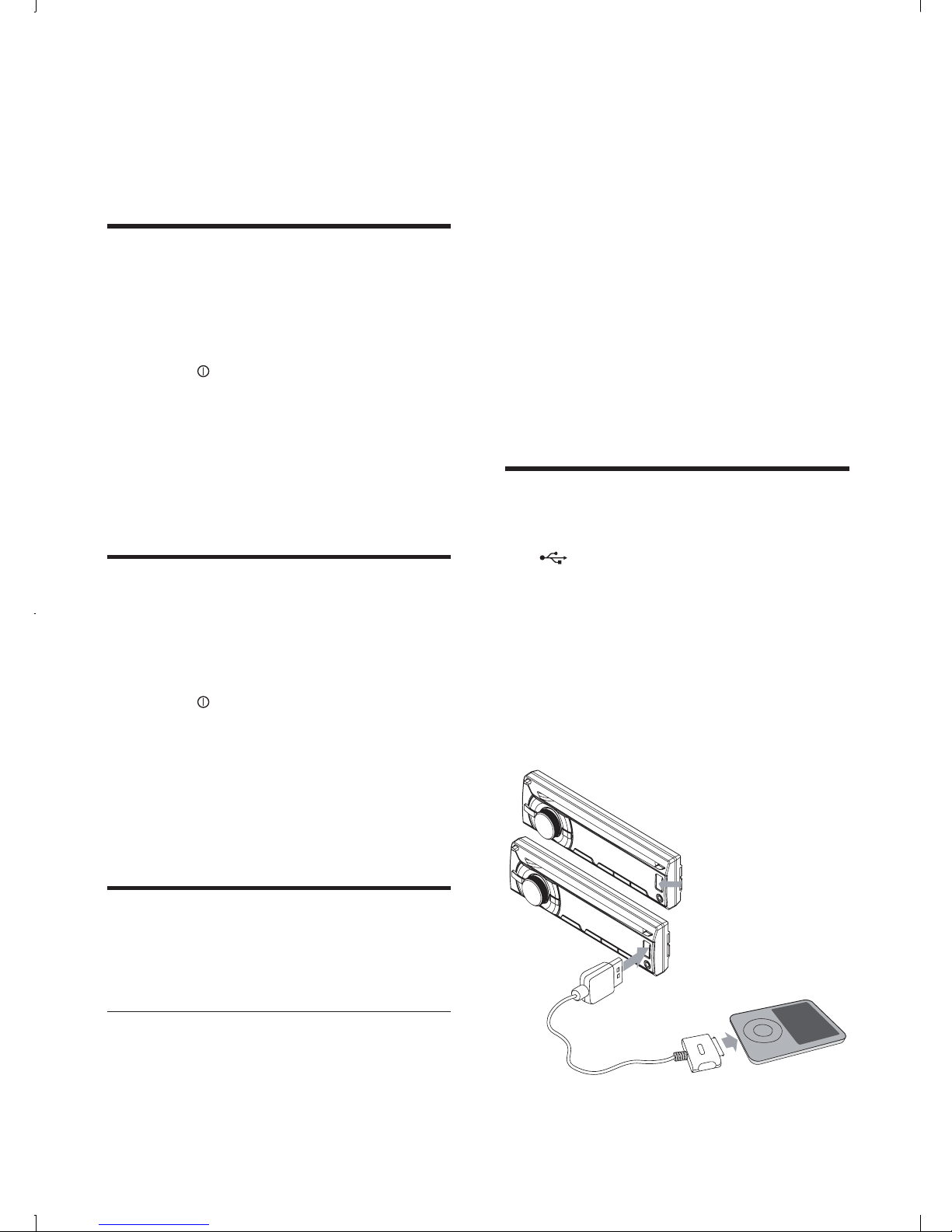

Connect iPod/iPhone

1 Slide the USB connector cover marked

to the left.

2 Insert USB adaptor on one end of iPod/

iPhone cable to the USB connector on the main unit.

3 Insert the other end of the iPod/iPhone

cable to the iPod/iPhone connector.

The unit starts playing from the USB » storage device automatically.

• [REPEAT ALL]: Play all tracks repeatedly.

• [REPEAT TRK]: Play current track repeatedly.

• [REPEAT FLD]: Play all tracks in the current folder repeatedly.

Shufﬂe play

You can play the tracks in random order:

1 During play, press OPTIONS repeatedly

until [RANDOM] displays.

2 Rotate to select a setting:

• [RANDOM OFF]: Turn off random

play.

• [RANDOM FLD]: start random play

for all tracks in the current folder.

• [RANDOM ALL]: start random play

for all tracks.

Intro play

You can play the ﬁrst 10 seconds of each track.

1 During play, press OPTIONS repeatedly

until [INTRO] displays.

2 Rotate to select a setting:

• [INTRO OFF]: Cancel intro play and

start normal play.

• [INTRO FLD]: Start introl play in the

current folder.

• [INTRO ALL]: Play the ﬁrst

10 seconds of each track.

Play from iPod/iPhone

You can enjoy audio from iPod/iPhone through

this unit.

Compatible iPod/iPhone

Apple iPod and iPhone models with a 30-pin dock connector:

Page 20

Connect external sound source

Connect the external sound source to

MP3 LINK connector with a 3.5 mm cable.

2 Press SOURCE repeatedly until [MP3

LINK] is displayed.

3 Operate the external component

(See the instructions supplied with the external component).

Control music playback on iPod/

iPhone

1 Make sure that the iPod/iPhone is

connected correctly.

2 Press SOURCE to select iPod USB mode. 3 Press repeatedly to toggle between the

two control modes:

• iPod control mode: Use the buttons/

touch screen on iPod/iPhone to control the music.

• Audio control mode: Use the

control buttons on car audio to control the music.

To control playback under audio control mode:

To pause/resume play, press •

To skip to a track, press •

/ . To search during play, press and • hold

/ , then release to resume normal play. To navigate the menu, press •

rotate

to select, then press to

conﬁrm.

Search for a track on iPod/iPhone

1 Press SOURCE repeatedly to select iPod

mode.

2 Press BAND/ to browse iPod/iPhone

menu.

3 Rotate to select the artist search

mode, and press

to conﬁrm.

4 Press DISP/ to search alphabetically. 5 Rotate to select artist, then press to

conﬁrm.

6 Rotate to select song in current album. 7 Press to start play.

Note

You cannot control the music via iPod/iPhone • under audio control mode.

English

Page 21

• [POP] (pop)

• [USER] (user)

• [TECHNO] (techno)

• [ROCK] (rock)

• [CLASSIC] (classic)

• [JAZZ] (jazz)

Turn on/off max sound

Press

 6281'

The current setting is displayed. »

» [MAX ON]: The maximum sound

(max sound) function is on.

» [MAX OFF]: The maximum sound

function is off.

Other sound settings

You can also change the preset EQ/Audio settings.

1 Press EQ/Audio for 3 seconds. 2 Press / repeatedly to select the item

to be adjusted:

• [BASS LEVEL] range: -7 to +7

• [BASS CFQ] (bass center frequency) range: 60, 80, 100, 200.

• [MIDDLE LEVEL] range:-7 to +7

• [MIDDLE CFQ] (middle center frequency) range: 0.5k, 1.0k, 1.5k, 2.5k.

• [TREBLE LEVEL] range: -7 to +7

• [TREBLE CFQ] (treble center frequency) range: 10.0k, 12.5k, 15.0k,

17.5k.

• [BALANCE] range: 12L to 12R. (L= left speaker, R = right speaker)

• [FADER] range: 12R to 12F. (R = rear speaker, F = front speaker)

• [SUBWOOFER] range: 0 to 12.

• [RESUME]: Resume the audo setting value to factory default value.

3 Rotate to select a value/option.

7 Adjust sound

Adjust volume

Rotate clockwise/anticlockwise to

increase/decrease volume.

Mute

You can turn off the sound of your audio.

1 During play, press .

To resume sound, press •

again.

Turn DBB and subwoofer

on/off

Press DBB, then the current setting is

displayed:

» [DBB ON] : The Dynamic Bass Boost

(DBB) function is on.

» [DBB OFF] : The DBB function is off.

2 Press DBB again to change the DBB

setting.

3 Press and hold DBB to access subwoofer

settings:

» [SUBWOOFER ON]: The subwoofer

function is on.

» [SUBWOOFER OFF]: The subwoofer

function is off.

Select preset equalizer

Press EQ/Audio.

Current Equalizer setting is displayed. »

2 Press EQ/Audio again to select a preset

EQ setting:

• [OPTIMAL] (optimal)

• [FLAT] (ﬂat)

Page 22

3 Rotate to select a setting:

• [DEMO ON]: Turn on the demo mode. When the unit is idle for more than 10 seconds, all functions are displayed.

• [DEMO OFF]: Turn off the demo mode.

LCD Color

You can change LCD background color.

1 Press MENU. 2 Press / repeatedly until [LCD

COLOR] displays.

3 Rotate to select a setting:

• [DEFAULT] (default set ting)

• [COLOR SCAN] (color scan)

• [WHITE] (white)

• [GREEN 1] (green 1)

• [GREEN 2] (green 2)

• [GREEN 3] (green 3)

• [AMBER] (amber)

• [PINK 1] (pink 1)

• [PINK 2] (pink 2)

• [PURPLE 1] (purple 1)

• [PURPLE 2] (purple 2)

• [BLUE 1] (blue 1)

• [BLUE 2] (blue 2)

• [USER COLOR] (user color)

Set user color

1 Press MENU. 2 Press / repeatedly until [LCD

COLOR] displays.

3 Press . 4 Rotate to select [USER COLOR]. 5 Press to conﬁrm. 6 Rotate to adjust color of the LCD.

R(red)/G(green)/B(blue)

7 Press to exit user color setting mode.

8 Adjust system

settings

Turn beep sound on/off

Each time you press a button, the unit beeps. You can turn on or off this beep sound.

1 Press MENU. 2 Press / repeatedly until [BEEP] is

displayed.

3 Rotate to select a setting:

• [BEEP ON]: Turn on the beep sound.

• [BEEP OFF]: Turn off the beep sound.

Select blackout setting

You can set the screen to turn off automatically after the unit is idle for 10 or 20 seconds.

1 Press MENU. 2 Press / repeatedly until [BLKOUT]

is displayed.

3 Rotate to select a setting:

• [BKO 10 S]: Turn off the screen automatically 10 seconds after last operation.

• [BKO 20 S]: Turn off the screen automatically 20 seconds after last operation.

• [BKO OFF]: Never turn off the screen.

Turn demo mode on/off

Press MENU.

2 Press / repeatedly until [DEMO] is

displayed.

English

Page 23

9 Additional

information

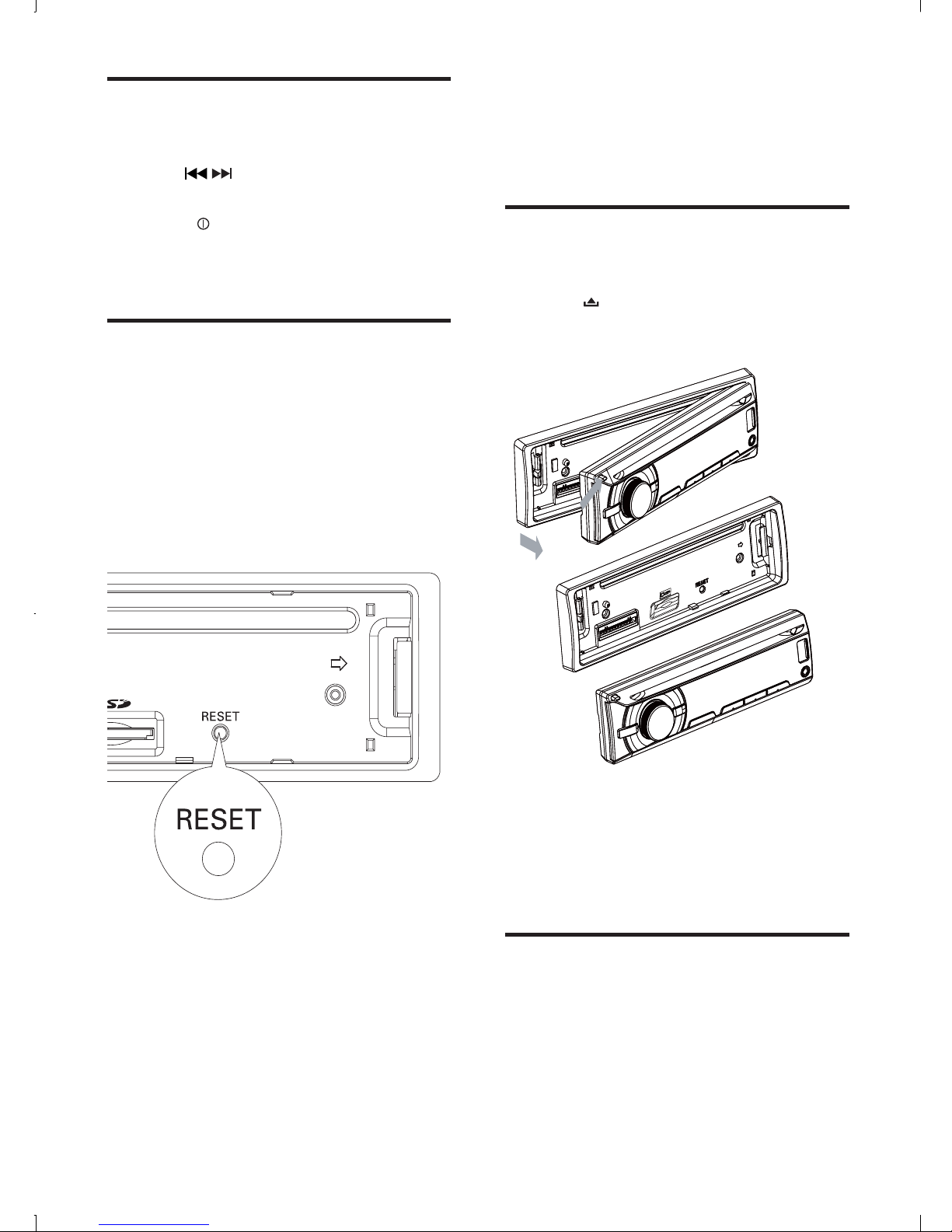

Detach the front panel

You can detach the front panel to deter theft.

1 Press to release the panel. 2 Push the left side of the panel rightward.

3 Pull the panel towards you to disengage it

from the chassis.

4 Store the panel in the supplied carry case

to protect it from dirt or damage.

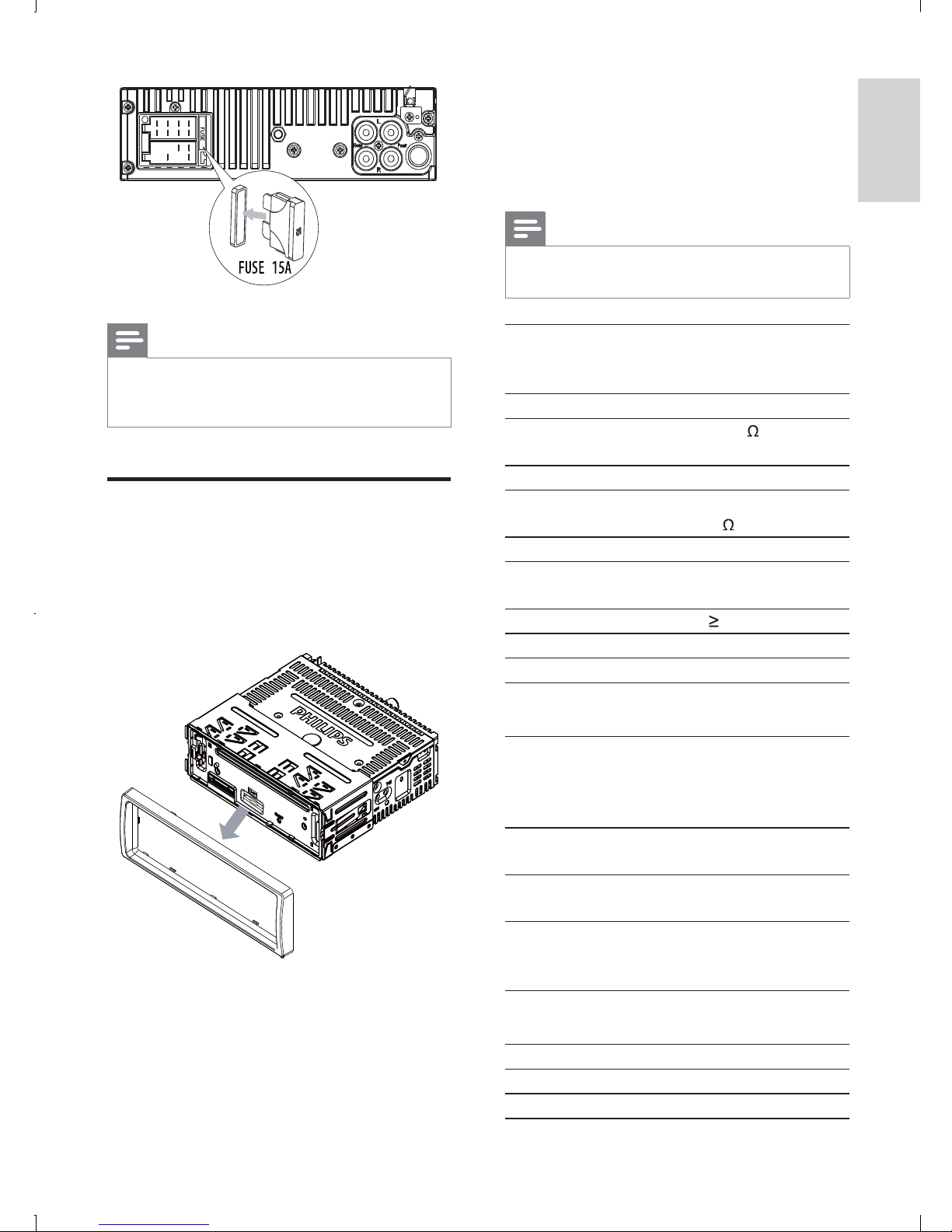

Replace fuse

If the fuse is damaged,

1 Check the electric connection. 2 Buy a fuse that matches the voltage of the

damaged fuse.

3 Replace the fuse.

Dimmer

Press MENU

2 Press / repeatedly until [DIMMER] is

displayed.

3 Rotate to toggle between the settings

• [DIMMER Hi]

• [DIMMER Lo]

Reset

You can reset the unit to its default setting.

1 Detach the front panel. 2 Press the reset button by using a ball-

point pen or a similar tool.

Preset adjustments such as preset » channels and sound adjustments are erased.

Page 24

10 Product

information

Note

Product information is subject to change • without prior notice.

Power supply 12 V DC (11 V -

16 V), negative

ground Fuse 15 A Suitable speaker

impedance

4 - 8

Maximum power output 50 W x 4 channels Continuous power

output

24 W x 4 RMS

10% T.H.D.) Pre-Amp output voltage 2.5 V Subwoofer output

voltage

2.0 V

Aux-in level

500 mV Dimensions (W x H x D) 188 x 58 x 201 mm Weight 1.47 kg

Radio

Frequency range - FM87.5 - 108.0 MHz

(100kHz per step in auto search and 50kHz per step in manual search)

Frequency range AM(MW)

522 - 1620 KHz (9 kHz) 530 - 1710 kHz (10 kHz)

Usable sensitivity - FM8 μV

Usable sensitivity AM(MW) (S/N = 20 dB)

30 μV

DAB Tuner

Frequency range - FM 174 - 240 MHz Sensitivity -100dBm(Band III) Selectivity 40dB

Note

If the new fuse gets damaged again, there may • be an internal malfunction. Consult your Philips dealer.

Remove the unit

You can remove the unit from the dashboard.

1 Detach the front panel. 2 Pull out the unit by using the disassembly

tools.

English

Page 25

11 Troubleshooting

Caution

Never remove the casing of this apparatus. •

To keep the warranty valid, never try to repair the system yourself. If you encounter problems when using this apparatus, check the following points before requesting service.

No power or no sound.

Car engine is not on. Switch on the car • engine. Cable is not correctly connected. Check • connections. Fuse is burnt. Replace fuse. • Volume is too low. Adjust volume. • If the above solutions cannot help, press • the RESET button. Make sure that the track played is of a • compatible format.

Noise in broadcasts.

Signals are too weak. Select other • stations with stronger signals. Check the connection of the car antenna. • Change broadcast from Stereo to mono. •

Cannot play disc

make sure that the disc label is inserted • with the printed side facing up. Wipe the disc with ﬁber cleaning cloth • from the center to the edge in a straight line. This disc may be defective. Play another • disc. Make sure that the CD is a ﬁnalized • CD/CD-R/CD-RW. Make sure that the CD is not encoded • with copyright protection technologies.

The CD skips tracks

Make sure that the CD is not damaged • or dirty. Make sure that random mode is • deactivated.

Compatible USB storage devices:

USB ﬂash memory: USB 1.1 host with • interface reading all speed support (1.1, 2.0) USB ﬂash players: USB 1.1 host with • interface reading all speed support (1.1, 2.0)

Supported formats:

USB or memory ﬁle format: FAT16, FAT32• MP3 bitrate (data rate): 32-320 Kbps and • variable bitrate WMA V4, V7, V8, V9 (L1, L2)• ISO9660, Joliet• Maximum title number: 512 (depending • on ﬁle name length) Maximum album number: 255• Supported sampling frequencies: 2 kHz, •

44.1 kHz, 48 kHz Supported bitrates: 2~256 (kbps), • variable bitrates Directory nesting up to a maximum of • 8 levels Number of albums/ folders: CD • maximum 99, USB maximum 199 Number of tracks/titles: maximum 999• ID3 tag v2.0 to v2.4• File name in Unicode UTF8 (maximum • length 64 bytes)

Unsupported formats:

Empty albums: an empty album is an • album that does not contain MP3/WMA ﬁles, and is not be shown in the display. Unsupported ﬁle formats are skipped. For • example, Word documents (.doc) or MP3 ﬁles with extension .dlf are ignored and not played. AAC, WAV, PCM audio ﬁles• DRM protected WMA ﬁles (.wav, .m4a, • .m4p, .mp4, .aac) WMA ﬁles in Lossless format•

Page 26

12 Glossary

MP3

A ﬁle format with a sound data compression system. MP3 is the abbreviation of Motion Picture Experts Group 1 (or MPEG-1) Audio Layer 3. With the MP3 format, one CD-R or CD-RW can contain about 10 times more data than a regular CD.

WMA (Windows Media Audio)

An audio format owned by Microsoft, is a part of Microsoft Windows Media technology. Includes Microsoft Digital Rights Management tools, Windows Media Video encoding technology, and Windows Media Audio encoding technology.

Disc cannot be ejected

Press and hold •

Preset stations lost.

Battery cable is not correctly connected. • Connect the battery cable to the terminal that is always live.

Display show ERR-12

USB data error. Check the USB storage • device.

English

Page 27

CEM3000B_05_UM_V3.1
