Car Entertainment System
CEM220
EN User manual 3
CEM220-55-IFU-ENG_1.0.indd 1CEM220-55-IFU-ENG_1.0.indd 1 2008-10-28 10:31:272008-10-28 10:31:27
Page 2
Contents
1 Important 4
Safety 4
Notice 4
2 Your Car Audio System 6
Introduction 6
What’s in the box 6
Overview of the main unit 7
Overview of the remote control 8
3 Get started 10
Install the car audio 10
Install remote control battery 15
Turn on 15
Set clock 15
4 Listen to radio 16
Tune to a radio station 16
Store radio stations in memory 16
Tune to a preset station 16
5 Play audio fi les 17
Play a disc 17
Play from USB/SD/MMC device 17
Control play 18
Search for an MP3/WMA track 18
View play information 18
Intro play 18
Shuffl e play 19
Repeat play 19
Connect external sound source 19
7 Adjust system settings 21
Select blackout setting 21
Turn demo mode on/off 21
Change button backlight color 21
Select start volume 21
Turn beep sound on/off 22
Turn display scroll on/off 22
Select shock-protect setting 22
Reset 22
8 Additional information 23
Detach the front panel 23
Replace fuse 23
Remove the unit 23
9 Product information 24
10 Troubleshooting 26
11 Glossary 27
English
6 Adjust sound 20
Adjust volume 20
Mute 20
Turn Dynamic Bass Boost (DBB) on/off 20
Select preset equalizer 20
Other sound settings 20
EN
3
CEM220-55-IFU-ENG_1.0.indd 3CEM220-55-IFU-ENG_1.0.indd 3 2008-10-28 10:31:332008-10-28 10:31:33
Page 3
1 Important
English
Safety
•
Read and understand all instructions
before you use your unit. If damage is
caused by failure to follow instructions, the
warranty does not apply.
•
This unit is designed for negative ground
(earth) 12 V DC operation only.
•
To ensure safe driving, adjust the volume to
a safe and comfortable level.
•
Improper fuses can cause damage or
fi re. When you need to change the fuse,
consult a professional.
•
Use only the supplied mounting hardware
for a safe and secure installation.
•
To avoid short circuit, do not expose the
unit, remote control or remote control
batteries to rain or water.
•
Never insert objects into the ventilation
slots or other openings on the unit.
•
Clean the unit and frame with a soft,
damp cloth. Never use substances such as
alcohol, chemicals or household cleaners
on the unit.
•
Never place any objects other than discs
into the unit.
•
Never use solvents such as benzene,
thinner, cleaners available commercially, or
anti-static sprays intended for discs.
•
Visible and invisible laser radiation when
open. Avoid exposure to beam.
Risk of damage to the unit screen! Never
•
touch, push, rub or strike the screen with
any object.
Caution
Use of controls or adjustments or performance of
•
procedures other than herein may result in hazardous
radiation exposure or other unsafe operation.
Notice
The making of unauthorized copies of copyprotected material, including computer
programs, fi les, broadcasts and sound
recordings, may be an infringement of
copyrights and constitute a criminal offence.
This equipment should not be used for such
purposes.
This unit includes these labels:
Class II equipment symbol
This symbol indicates that the unit has a double
insulation system.
Recycling
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When you see the crossed-out wheel bin
symbol attached to a product, it means the
product is covered by the European Directive
2002/96/EC:
4 EN
CEM220-55-IFU-ENG_1.0.indd 4CEM220-55-IFU-ENG_1.0.indd 4 2008-10-28 10:31:342008-10-28 10:31:34
Page 4
Never dispose of your product with other
household waste. Please inform yourself about
the local rules on the separate collection of
electrical and electronic products. The correct
disposal of your old product helps prevent
potentially negative consequences on the
environment and human health.
Your product contains batteries covered by the
European Directive 2006/66/EC, which cannot
be disposed of with normal household waste.
Please inform yourself about the local rules on
separate collection of batteries. The correct
disposal of batteries helps prevent potentially
negative consequences on the environment and
human health.
This product complies with the radio
interference requirements of the European
Community.
This product complies with the requirements
of the following directives and guidelines:
2004/108/EC + 2006/95/EC.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and old
equipment.
Any changes or modifi cations made to this
device that are not expressly approved by
Philips Consumer Lifestyle may void the user’s
authority to operate the equipment.
2008 © Koninklijke Philips Electronics N.V. All
rights reserved.
Specifi cations are subject to change without
notice. Trademarks are the proper ty of
Koninklijke Philips Electronics N.V. or their
respective owners. Philips reserves the right
to change products at any time without being
obliged to adjust earlier supplies accordingly.
English
EN 5
CEM220-55-IFU-ENG_1.0.indd 5CEM220-55-IFU-ENG_1.0.indd 5 2008-10-28 10:31:352008-10-28 10:31:35
Page 5
2 Your Car Audio
English
System
Congratulations on your purchase, and
welcome to Philips! To fully benefi t from the
support that Philips offers, register your product
at www.Philips.com/welcome.
Introduction
With the in-car audio system, you can enjoy
your drive while you listen to:
•
FM or AM (MW) radio
•
Audio from CD or MP3 disc
•
Audio from a USB drive
•
Audio from a SD/MMC card
•
Audio from external devices
What’s in the box
Check and identify the contents of your
package:
a In-car audio system
b Remote control
c Rubber cushion
d Screw (4 pieces)
e Disassembly tool ( 2 pieces)
f Front panel
g Trim plate (2 pieces)
h Carrying case for front panel
i User manual
j Quick Start Guide
k ISO connector
b
a
a
dce
dce
fh
fh
ij
ij
g
g
b
k
k
6 EN
CEM220-55-IFU-ENG_1.0.indd 6CEM220-55-IFU-ENG_1.0.indd 6 2008-10-28 10:31:352008-10-28 10:31:35
Page 6
Overview of the main unit
a
a
x
x
b
b
s
s
w
w
d
d
v
v
ecf
ecf
r q po nml kj
r q po nml kj
u
u
g
g
t
t
h
h
i
i
English
•
a
•
Select tuner band.
•
Select MP3/WMA folder.
•
Scroll up or down menu.
b DBB
Turn on or off Dynamic Bass Boost
•
(DBB) sound.
c SOURCE
Select audio source.
•
d
/ MUTE
•
Turn the unit on or off.
•
Adjust volume.
•
Confi rm selection.
CEM220-55-IFU-ENG_1.0.indd 7CEM220-55-IFU-ENG_1.0.indd 7 2008-10-28 10:31:372008-10-28 10:31:37
e MENU / DISP
f
g Display panel
Enter characters for search.
•
Mute or unmute the volume.
•
Display radio frequency, clock and
radio program type (if available).
•
Display track, elapsed time, artist,
album, title, folder, fi le and clock.
•
Access system menu.
•
Return to previous menu.
•
Stop search.
•
Disable screen blackout.
EN 7
Page 7
h
•
English
i USB socket
j External equipment socket
k 6
l 5
m SHUF, 4
n 3, REP
o INTRO, 2
p 1 ,
q
r EQ/Audio
s SEARCH
t Panel power connection
u Disc slot
v
w RESET
x SD/MMC card slot
Unlock the panel
Select preset station no. 6
•
Select preset station no. 5
•
Activate or deactivate shuffl e mode.
•
Select preset station no. 4
•
Set repeat play mode.
•
Select preset station no. 3
•
Turn intro play on or off.
•
Select preset station no. 2
•
•
Start play
•
Pause or resume play.
•
Select preset station no. 1
/
•
Tune for radio station
•
Skip/search for a track.
•
Select equalizer (EQ) setting.
•
Access audio setting menu.
•
Store radio stations automatically.
•
Search a track or folder.
•
Take disc out.
Restore default settings
•
Overview of the remote
control
q
q
p
p
o
o
n
n
m
m
l
l
k
k
j
j
a SOURCE
•
Select audio source.
b VOLUME +/-
•
Adjust volume.
c EQ
•
Select EQ setting.
d DBB
•
Turn on or off Dynamic Bass Boost
(DBB) sound.
e 3, REP
•
Select repeat play mode.
•
Select preset station no. 3.
f SEARCH
•
Store radio stations automatically.
•
Search a track or folder.
g DISP
•
Display radio frequency and clock.
a
a
b
b
c
c
d
d
e
e
f
f
g
g
h
h
i
i
8 EN
CEM220-55-IFU-ENG_1.0.indd 8CEM220-55-IFU-ENG_1.0.indd 8 2008-10-28 10:31:392008-10-28 10:31:39
Page 8
•
Display track, elapsed time, artist,
album, title, folder, fi le and clock.
h 6
Select preset station no. 6.
•
i 5
Select preset station no. 5.
•
j SHUF, 4
Activate or deactivate shuffl e mode .
•
Select preset station no. 4.
•
k 1 ,
•
Start play.
•
Pause or resume play.
•
Select preset station no. 1.
l INTRO, 2
•
Turn intro play on or off.
•
Select preset station no. 2.
m AUDIO
•
Access audio setting menu.
n Navigation buttons
•
-
/
Tune for radio station
Skip/search for MP3/WMA track.
•
-
/
Select tuner band.
Select MP3/WMA folder.
•
- SEL
Confi rm selection.
o MENU
Access system menu.
•
p
PWR ,
•
Turn the unit on or off.
•
Mute or unmute volume.
q
•
Return to previous menu.
•
Disable screen blackout.
English
EN 9
CEM220-55-IFU-ENG_1.0.indd 9CEM220-55-IFU-ENG_1.0.indd 9 2008-10-28 10:31:402008-10-28 10:31:40
Page 9
3 Get started
English
Caution
Use the controls only as stated in this user manual.•
Always follow the instructions in this chapter in
sequence.
If you contact Philips, you will be asked for
the model and serial number of your unit. The
model number and serial number are on the
bottom of your unit. Write the numbers here:
Model No. __________________________
Serial No. ___________________________

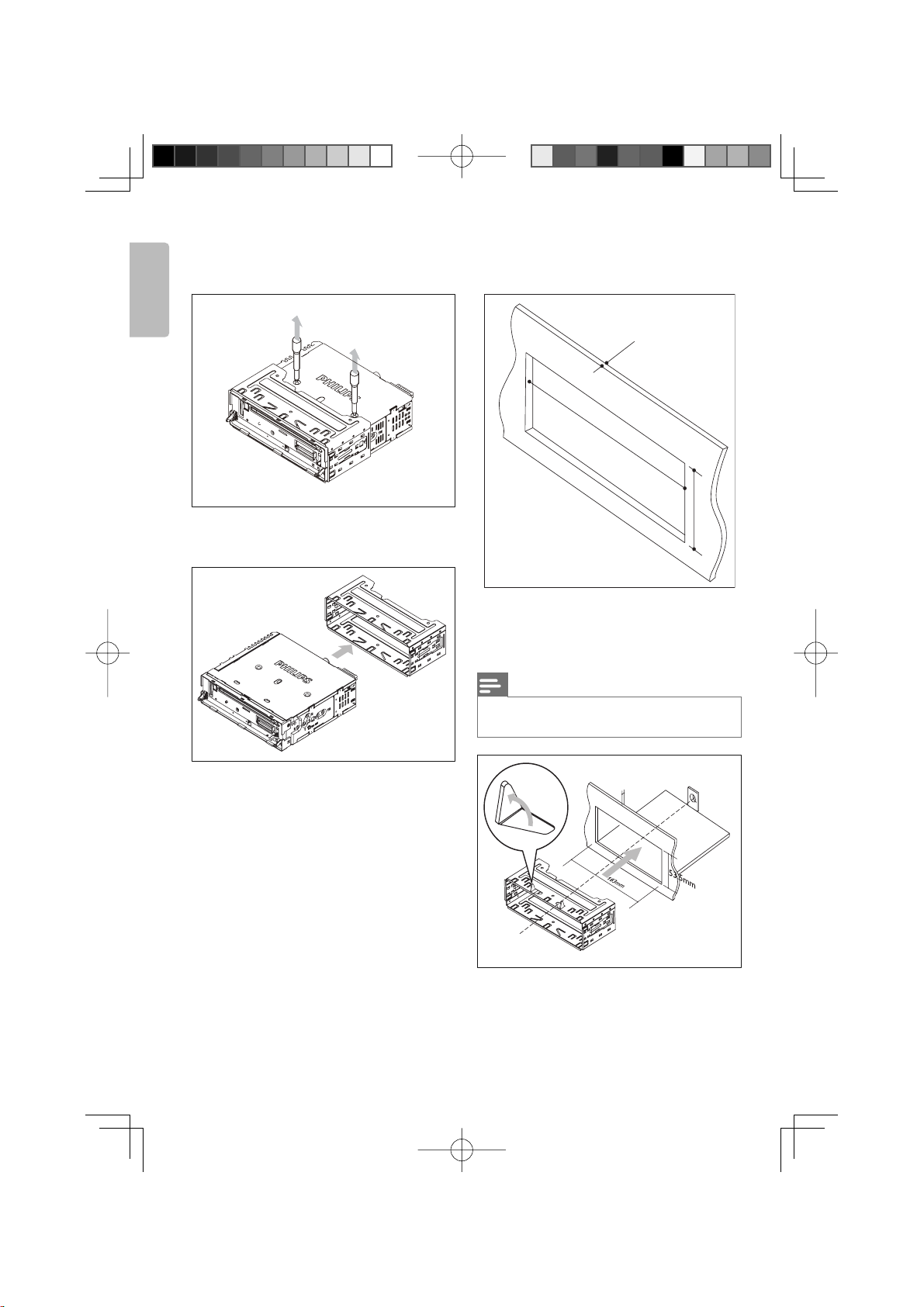

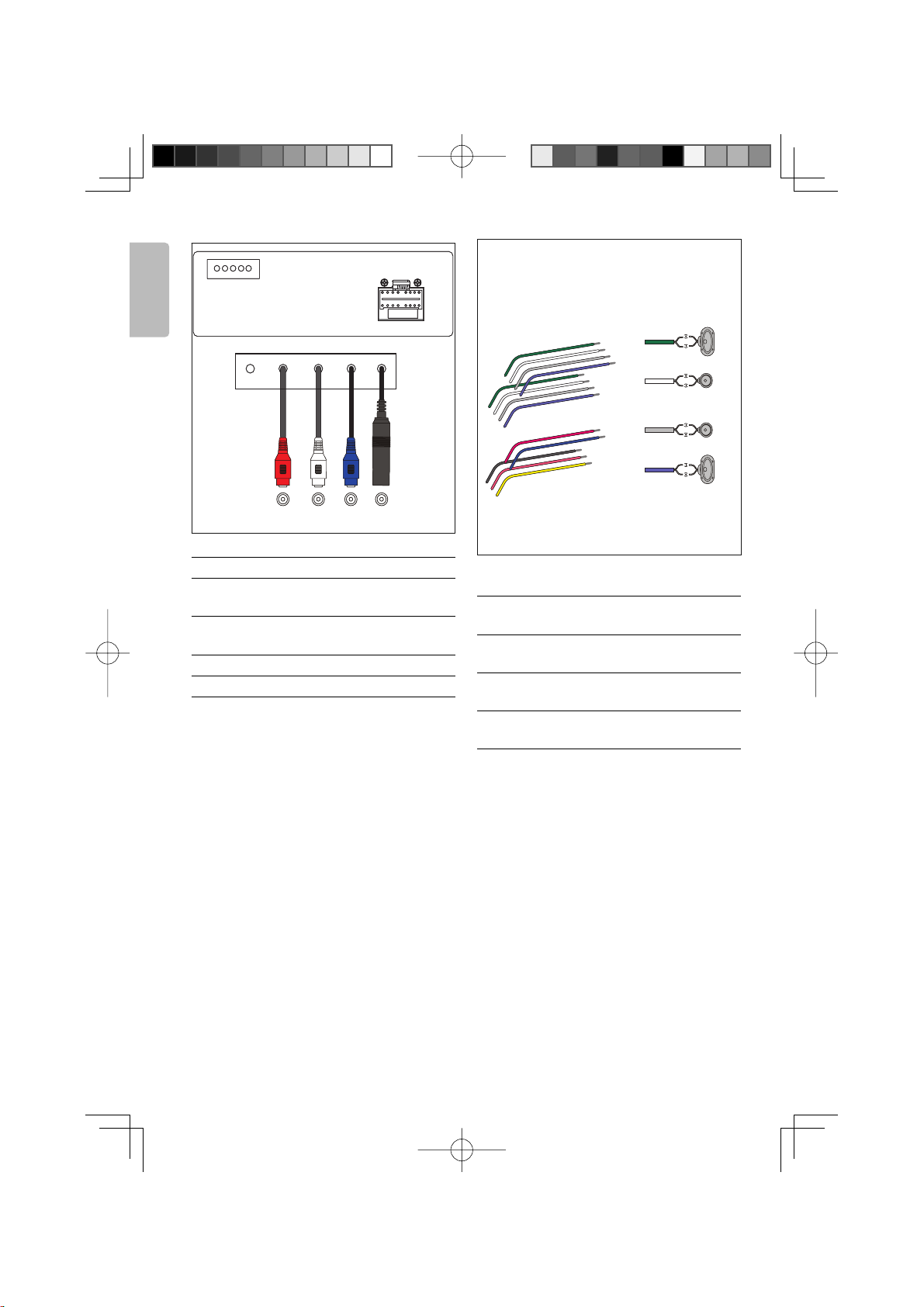

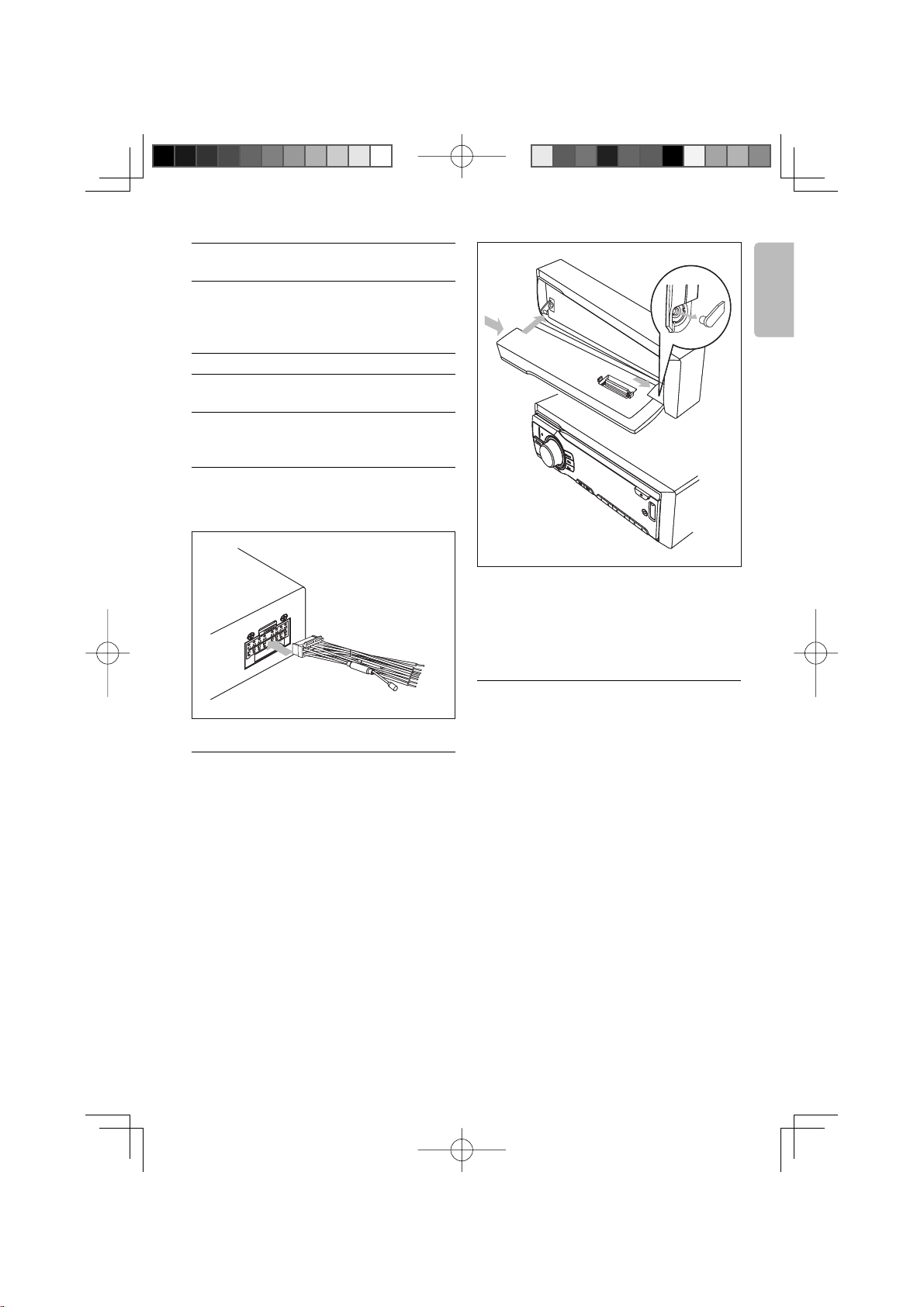

Install the car audio
These instructions are for a typical installation.
However, if your car has different requirements,
make the corresponding adjustment. If you have
any questions regarding installation kits, consult
your Philips car audio dealer.
•
When you connect other devices to this
unit, ensure that the rating of the car circuit
is higher than the total fuse value of all the
connected devices.
Notes on speaker connection
Never connect speaker wires to the metal
•
body or chassis of the car.
•
Never connect speaker wires with stripes
to one another.
Overview of parts
These are the supplied parts needed to
connect and install this unit.
a In-car audio system
b Sleeve
c Front panel
d Trim plate
e Rubber cushion
f Disassembly tools
g Screws 4 pieces
ISO connector
h
Caution
This unit is designed for negative ground (earth) 12 V DC
•
operation only.
•
Always install this unit in the car dashboard. Other
locations can be dangerous as the rear of the unit heats
up during use.
•
To avoid short-circuit: before you connect, ensure that
the ignition is off.
•
Ensure that you connect the yellow and red power
supply leads after all other leads are connected.
•
Ensure that all loose leads are insulated with electrical
tape.
•
Ensure that the leads do not get caught under screws
orin parts that will move (e.g. seat rail).
•
Ensure that all ground (earth) leads are run to a common
ground (earth) point.
•
Use only the supplied mounting hardware for a safe and
secure installation.
•
Improper fuses can cause damage or fi re. When you
need to change the fuse, consult a professional.
Note on the power supply lead (yellow)
10 EN
CEM220-55-IFU-ENG_1.0.indd 10CEM220-55-IFU-ENG_1.0.indd 10 2008-10-28 10:31:412008-10-28 10:31:41
ab
ab
c
c
efgh
efgh
d
d
Page 10

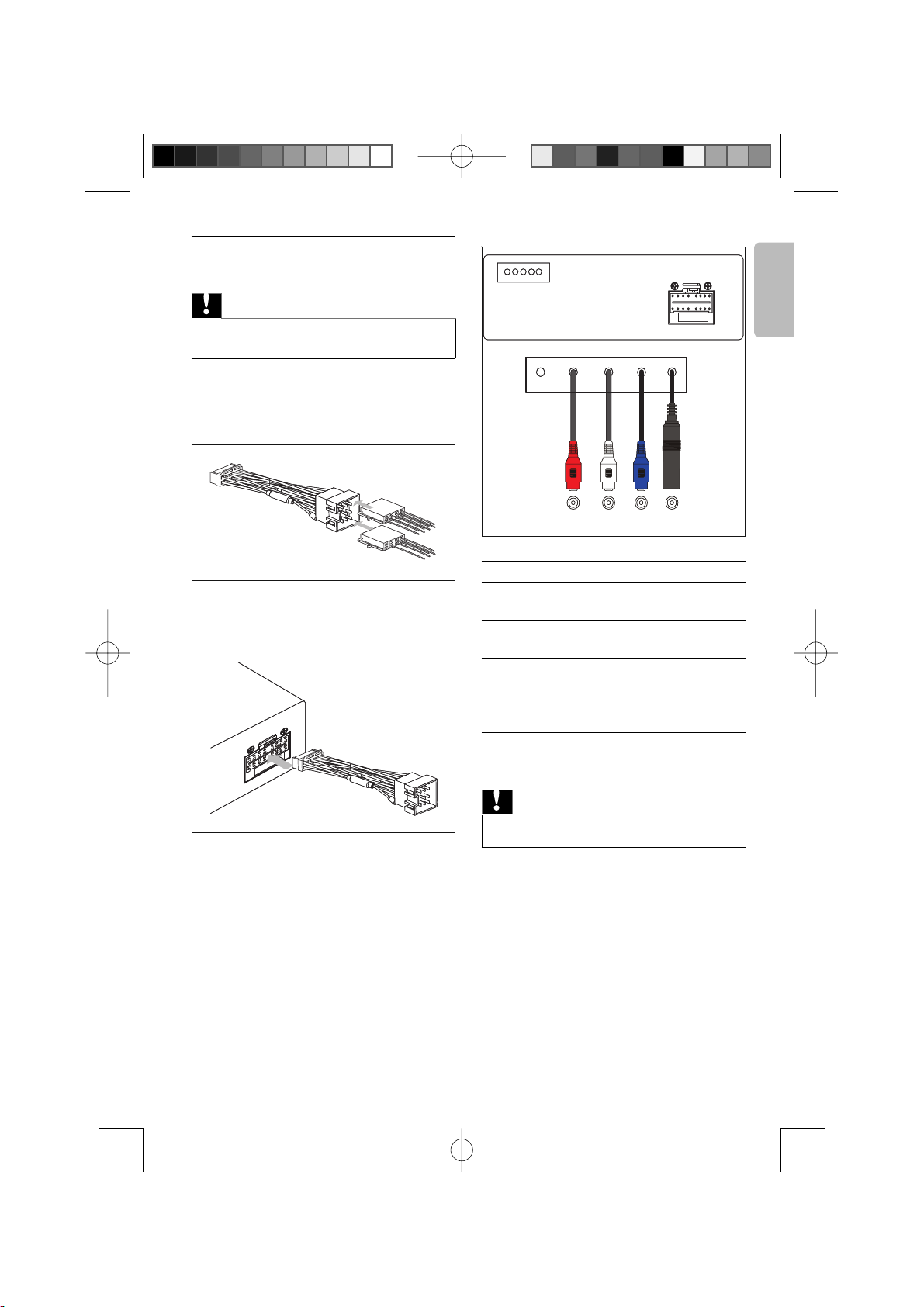

Connect wires: for cars with ISO
connectors
Caution
Ensure that all loose leads are insulated with electrical
•
tape.
1 Pull out the ISO connectors from car
dashboard and connect them to the bigger
end of the supplied standard connector.
A
A
A
A
abcd
abcd
B
B
A1 A2 A3 A4 A5 A6A7 A8
A1 A2 A3 A4 A5 A6A7 A8
B1 B2 B3 B4 B5 B6 B7 B8
B1 B2 B3 B4 B5 B6 B7 B8
English
2 Connect the other end of the supplied
standard connector to the unit.
3 Connect the antenna and amplifi er as
illustrated, if applicable.
Connector Connect to
1 REAR LINE
OUT R
2 REAR LINE
OUT L
3 SUB OUT Subwoofer
4 ANTENNA Antenna
Connect wires: for cars without ISO
connectors
Caution
Be sure to connect the black ground (earth) lead fi rst.•
1 Connect the antenna and amplifi er as
illustrated, if applicable.
Rear right
speaker
Rear left speaker
EN 11
CEM220-55-IFU-ENG_1.0.indd 11CEM220-55-IFU-ENG_1.0.indd 11 2008-10-28 10:31:442008-10-28 10:31:44
Page 11
English
A
A
A
A
abcd
1 REAR LINE
2 REAR LINE
3 SUB OUT Subwoofer
4 ANTENNA Antenna
abcd
Connector Connect to
OUT R
OUT L
2 Cut off the bigger end of the supplied
standard connector.
3 Check the car’s wiring carefully and
connect them to the supplied standard
connector.
A1 A2 A3 A4 A5 A6A7 A8
A1 A2 A3 A4 A5 A6A7 A8
B
B
B1 B2 B3 B4 B5 B6 B7 B8
B1 B2 B3 B4 B5 B6 B7 B8
Rear right
speaker
Rear left speaker
B
B
aa
aa
b
b
c
c
d
d
a
a
b
b
b
b
c
c
d
d
e
e
c
c
f
f
g
g
h
h
i
i
d
d
1 Green/black strip Left speaker
(Rear)
2 White/black strip Left speaker
(Front)
3 Gray/black strip Right speaker
(Front)
4 Purple/black strip Right speaker
(Rear)
a
a
b
b
c
c
d
d
12 EN
CEM220-55-IFU-ENG_1.0.indd 12CEM220-55-IFU-ENG_1.0.indd 12 2008-10-28 10:31:462008-10-28 10:31:46
Page 12
e RED Ignition key +12V DC
when ON/ACC
f BLUE Motor/electric antenna
relay control lead/
Amplifi er relay control
lead
g BLACK Ground
h Orange/
white
i YELLOW To the +12V car battery
4 Connect the supplied standard connector
to the unit.
Illumination switch
which is energized at all
times
Attach the front panel
1 Insert the right side of the panel in the
chassis until it is correctly engaged.
2 Press the left side of the panel and point
the left hole at the left pillar.
3 Release the panel to engage the left side.
4 Attach the trim plate.
Mount in the dashboard
1 If the car does not have an on-board drive
or navigation computer, disconnect the
negative terminal of the car battery.
•
If you disconnect the car battery in
a car that has an on-board drive or
navigation computer, the computer
may lose its memory.
If the car battery is not disconnected,
•
to avoid short-circuit, ensure that bare
wires do not touch each other.
English
EN 13
CEM220-55-IFU-ENG_1.0.indd 13CEM220-55-IFU-ENG_1.0.indd 13 2008-10-28 10:31:472008-10-28 10:31:47
Page 13
2 Remove the two screws on the top of the
English
unit.
Ensure that car dashboard opening is
4
within these measurements:.
5mm
183 mm
3 Remove the mounting sleeve with the
supplied disassembly tools.
53mm
5 Install the sleeve into the dashboard and
bend the tabs outward to fi x the sleeve.
Note
Skip this step if the unit is not fi xed by sleeve but
•
supplied screws.
5mm
14 EN
CEM220-55-IFU-ENG_1.0.indd 14CEM220-55-IFU-ENG_1.0.indd 14 2008-10-28 10:31:482008-10-28 10:31:48
Page 14

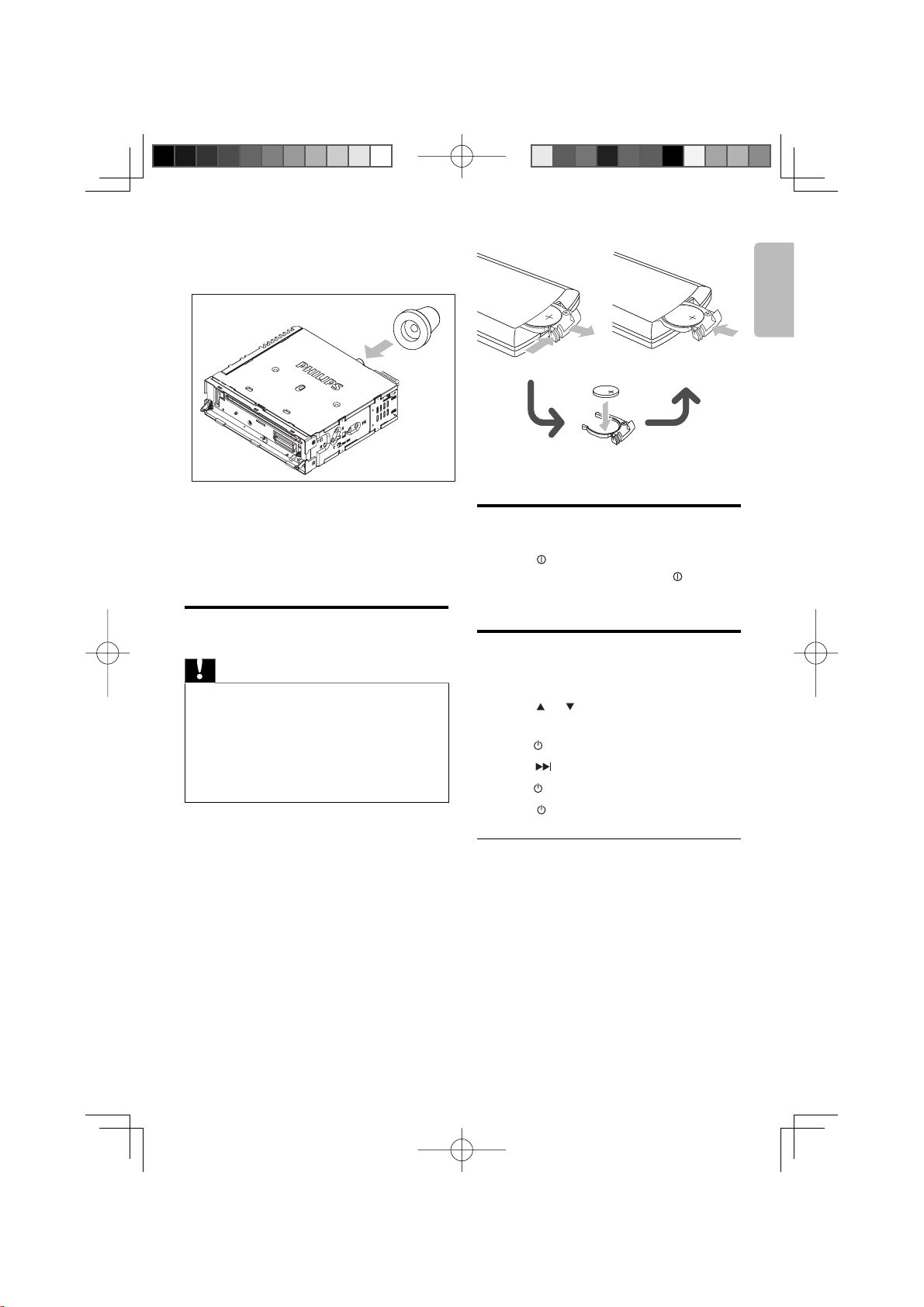

6 Place the supplied rubber cushion over the
end of the mounting bolt.
English
7 Slide the unit into the dashboard until you
hear a click sound.
8 Reconnect the negative terminal of the car
battery.
Install remote control battery
Caution
Risk of explosion! Keep batteries away from heat,
•
sunshine or fi re. Never discard batteries in fi re.
•
Risk of decreased battery life! Never mix different brands
or types of batteries.
•
Risk of product damage! When the remote control is not
used for long periods, remove the batteries.
•
Perchlorate Material - special handling may apply. See
www.dtsc.ca.gov/hazardouswaste/perchlorate.
For fi rst-time use:
1 Remove the protective tab to activate the
remote control battery.
To replace the remote control battery:
1 Open the battery compartment.
2 Insert 1 CR2025 batteries with correct
polarity (+/-) as indicated.
Close the battery compar tment.
Turn on
1
Press to turn on the unit.
To turn off the unit, press
•
seconds.
Set clock
1
Press MENU / DISP for 3 seconds.
2 Press or repeatedly to until the
currently time is displayed.
3 Tu r n clockwise to set hour.
4 Press to confi rm.
5 Tu r n anti-clockwise to set minute.
6 Press to confi rm.
View clock
1 Press MENU / DISP repeatedly until the
clock is displayed.
for 3
EN 15
CEM220-55-IFU-ENG_1.0.indd 15CEM220-55-IFU-ENG_1.0.indd 15 2008-10-28 10:31:492008-10-28 10:31:49
Page 15
4 Listen to radio
English
Store radio stations in
memory
Tune to a radio station
1
Press SOURCE repeatedly to select Tuner.
2 Press or to select band: [FM1] , [FM2] ,
[FM3] , [AM1] , or [AM2] .
3 Press or to tune to a radio station
manually.
The radio station is broadcast.
»
To search for a radio station
»
automatically, press SEARCH for 3
seconds .
Select tuner sensitivity
You can adjust the tuner sensitivity if you want
to receive more radio stations or only stations
with strong signal.
1 Press MENU / DISP for over 2 seconds.
2 Press or repeatedly until [LOCAL ] or
[ DX ] is displayed.
3 Rotate to select a setting:
[ LOCAL ] (local): Only stations with
•
strong signal can be broadcast.
[ DX ] (distance): Stations with strong
•
and weak signals can be broadcast.
4 Press to confi rm the selection.
You can store up to 6 stations in each band.
Store staions automatically
1 Press SEARCH for 3 seconds.
»
The six strongest stations of the
selected band are saved in preset
channels 1-6 automatically.
Store staions manually
1 Tune to a station that you want to store.
(see ‘Tune to a radio station’ on page 16 )
2 Press one of the numbered buttons 1 to 6
for 3 seconds.
The station is saved in the selected
»
channel.
Tune to a preset station
1
Press or to select band.
2 Press the number button 1 to 6 to select
the preset station.
Select stereo/mono broadcasting
For stations with weak signals: to improve the
reception, change to monoaural sound.
1 Press MENU / DISP for 3 seconds.
2 Press or repeatedly until [STEREO]
or [MONO] is displayed.
3 Tu r n to select a setting:
[STEREO] : stereo broadcast.
•
[MONO] : mono broadcast.
•
4 Press to confi rm the selection.
16 EN
CEM220-55-IFU-ENG_1.0.indd 16CEM220-55-IFU-ENG_1.0.indd 16 2008-10-28 10:31:512008-10-28 10:31:51
Page 16
5 Play audio files
Note
Ensure that the disc or device contains playable fi les.•
Play from USB/SD/MMC
device
Note
Ensure that the USB or SD/MMC device contains
•
playable music.
English
Play a disc
Note
You cannot play CDs encoded with copyright protection
•
technologies.
You can play commercially available audio CDs
and these discs:
CD-Recordables (CD-R)
•
CD-Re-writables (CD-RW)
•
MP3 CDs
•
WMA CDs
•
1 Press on the front panel to release the
panel.
2 Insert a CD with the printed side facing up.
3 Close the panel.
4 Press 1, to start play.
•
To pause CD play, press 1
•
To resume CD play, press 1
Remove the CD
To take out the CD,
1 Press .
2 Press beside the disc slot.
.
again.

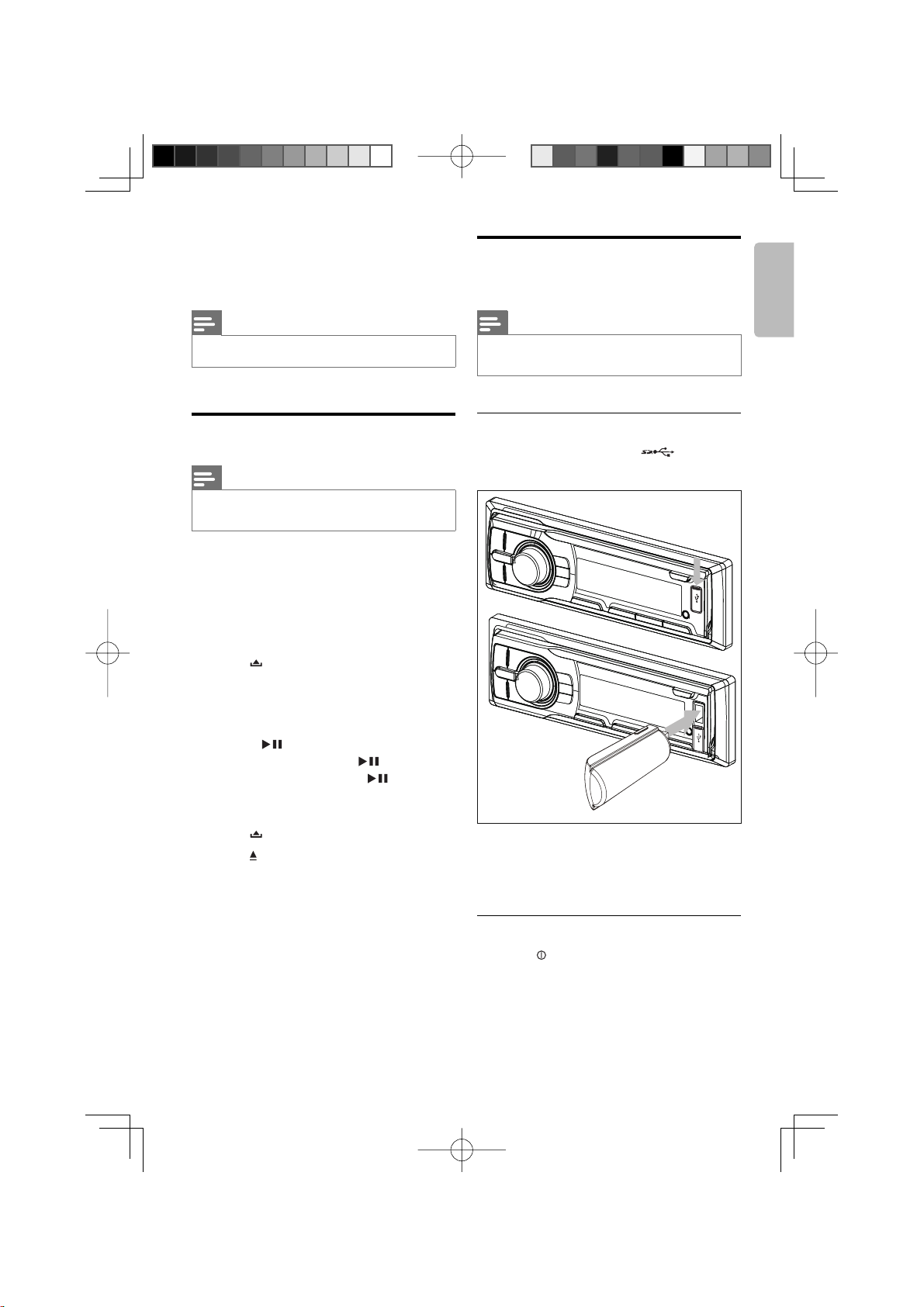

Insert the USB device
1 Open the cover marked on the
front panel.
2 Insert the USB device into the USB socket.
The unit starts playing from the USB
»
device automatically.
Remove the USB device
1 Press to turn off the unit.
2 Remove the USB device.
EN 17
CEM220-55-IFU-ENG_1.0.indd 17CEM220-55-IFU-ENG_1.0.indd 17 2008-10-28 10:31:522008-10-28 10:31:52
Page 17

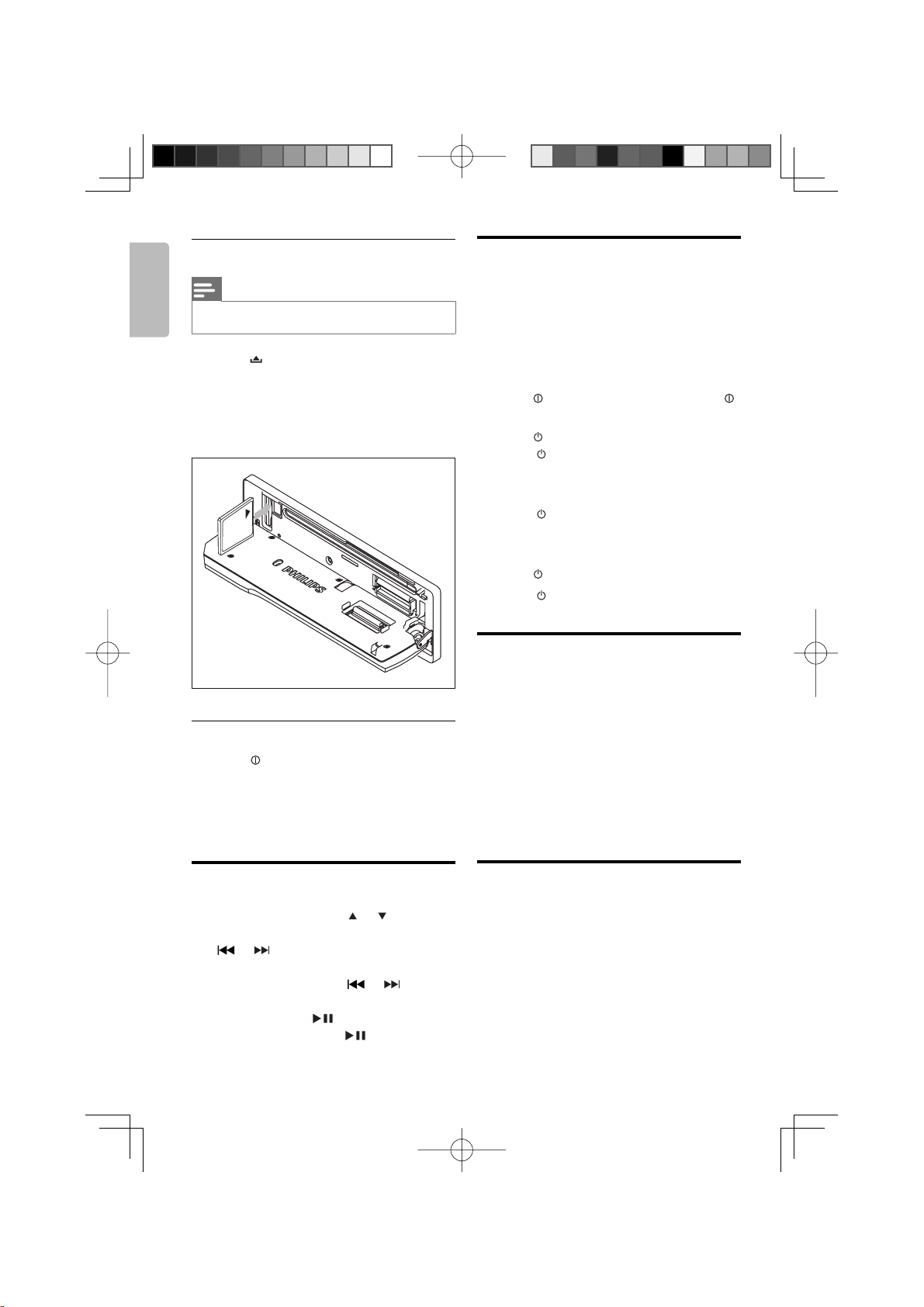

Insert SD/MMC card
English
Note
The system supports SDHC cards. •
1 Press to release the panel.
2 Insert the SD or MMC card into the card
slot.
The unit starts playing from the SD/
»
MMC card automatically.
Search for an MP3/WMA
track
1
Press SEARCH for 3 seconds.
»
Search menu is displayed.
»
[FILE] : search by track name.
»
[FOLDER] : search by folder sequence.
2 Tu r n to select [FILE] and then press
to confi rm.
3 Tu r n to enter a character and then
press
.
4 Repeat steps 3 until the search term is
complete.
5 Press for 3 seconds to start search.
»
When search is fi nished, a list of
matching tracks are displayed.
6 Tu r n to skip over the list.
7 Press to select a track.
View play information
Remove the SD/MMC card
1 Press to turn off the unit.
2 Press the card until you hear a click sound.
The card is now disengaged.
»
3 Remove the SD or MMC card.
Control play
•
To select a folder, press or .
•
To skip to the previous/next track, press
or .
•
To search backward/forward rapidly within
the current track, press
seconds.
•
To pause, press 1 ,
•
To resume play, press 1 ,
18 EN
or for 3
.
again.
During play USB/SD/MMC device, press
1
MENU / DISP repeatedly to view:
•
Track number and elapsed play time
•
Artist
•
Album
•
Title
•
Folder
•
File
•
Clock
Intro play
You can play the fi rst 10 seconds of each track.
1 During play, press INTRO, 2 to select:
•
[INT ON] : After the fi rst 10 seconds
of each track have been played, play
stops.
•
[INT OFF] : Cancel intro play and
start normal play.
CEM220-55-IFU-ENG_1.0.indd 18CEM220-55-IFU-ENG_1.0.indd 18 2008-10-28 10:31:542008-10-28 10:31:54
Page 18
Shuffl e play
You can play the tracks in random order.
1 During play, press SHUF, 4 to select:
[SHUF ON] : start shuffl e play for all
•
tracks.
•
[SHUF OFF] : cancel shuffl e play.
Repeat play
During play, press 3, REP repeatedly to select:
[REP 1] (repeat one track): play the
•
current track repeatedly.
[REP FOLD] (repeat one folder): play all
•
tracks in the current folder repeatedly.
[REP ALL] (repeat all tracks): play all tracks
•
repeatedly.
Connect external sound
source
Connect the external sound source to
1
MP3 LINK socket by using a 3.5 mm cable.
2 Press SOURCE repeatedly until [MP3
LINK] is displayed.
3 Operate the external component (refer to
the instructions supplied with the external
component).
English
EN 19
CEM220-55-IFU-ENG_1.0.indd 19CEM220-55-IFU-ENG_1.0.indd 19 2008-10-28 10:31:562008-10-28 10:31:56
Page 19
6 Adjust sound
English
[OPTIMAL] (optimal)
•
Adjust volume
1
Tur n clockwise/anticlockwise to
increase/decrease volume.
Mute
You can turn off the sound of your audio.
1 During play, press MUTE .
•
To turn the sound back on, press
MUTE
again.
Turn Dynamic Bass Boost
(DBB) on/off
1
Press DBB for 3 seconds, the current
setting is displayed:
»
[DBB ON] : The Dynamic Bass Boost
(DBB) function is on.
»
[DBB OFF] : The DBB function is off.
2 Press DBB again for 3 seconds to change
the DBB setting.
Other sound settings
You can also edit user preset EQ.
1 Press EQ/Audio for 3 seconds.
2 Press or repeatedly to select the item
to be adjusted:
[BAS] (bass) range: -7 to +7.
•
[MID] (bass) range: -7 to +7.
•
[TRE] (treble) range: -7 to +7.
•
[BAL] (balance) range: 12L to 12R. (L
•
= left speaker, R = right speaker)
[FAD] (fader) range: 12R to 12F. (R =
•
rear speaker, F = front speaker)
[LPF] (low pass fi lter) range: 60, 80,
•
100, 200.
[MPF] (mid pass fi lter) range: 500, 1K,
•
1.5K, 2.5K.
[HPF] (high pass fi lter) range:10K,
•
12.5K, 15K, 17.5K.
[SW ON]/[SW OFF] (subwoofer
•
volume on or off)
[SW VOL] (subwoofer volume) range:
•
0 to 20.
3 Tu r n to select a value.
4 Press to confi rm.
Select preset equalizer
1
Press EQ/Audio .
»
The current Equalizer setting is
displayed.
2 Press EQ/Audio again repeatedly to select
a preset EQ:
•
[USER] (user)
•
[FLAT] (fl at)
•
[POP] (pop)
•
[TECHNO] (techno)
•
[ROCK] (rock)
•
[CLASSIC] (classic)
[JAZZ] (jazz)
•
20 EN
CEM220-55-IFU-ENG_1.0.indd 20CEM220-55-IFU-ENG_1.0.indd 20 2008-10-28 10:31:572008-10-28 10:31:57
Page 20
7 Adjust system
settings
Select blackout setting
You can set the screen to turn off automatically
after the unit is idle for 10 or 20 seconds.
1 Press MENU / DISP for 3 seconds.
2 Tu r n to select a setting:
[BKO 10 S] : Turn off the screen
•
automatically 10 seconds after last
operation.
[BKO 20 S] : Turn off the screen
•
automatically 20 seconds after last
operation.
[BKO OFF] : Never turn off the
•
screen.
3 Press to confi rm.
Turn demo mode on/off
When demo mode is on, when the unit is
idle for more than 2 minutes, all functions are
displayed.
1 Press MENU / DISP for 3 seconds.
2 Press or repeatedly to until [DEMO]
is displayed.
The screen shows current Demo
»
mode setting.
3 Tu r n to select a setting:
[DEMO ON] : Turn on the demo
•
mode.
[DEMO OFF] : Turn off the demo
•
mode.
4 Press to confi rm.
Change button backlight
color
You can change button backlight color from
blue to red or vice versa.
1 Press MENU / DISP for 3 seconds.
2 Press or repeatedly to until [KEY
BLUE] or [KEY RED] is displayed.
3 Tu r n to select a setting:
•
[KEY BLUE] : Backlight turns blue.
•
[KEY RED] : Backlight turns red.
Select start volume
Each time you turn on the unit, it can play at the
last listened volume or at the preset volume.
1 Press MENU / DISP for 3 seconds.
2 Press or repeatedly to until [V -
LAST] or [V - ADJ] is displayed.
3 Tu r n to select a setting:
[V - LAST] : Each time you turn on
•
the unit, the volume remains from its
previous use.
[V - ADJ] : Each time you turn on the
•
unit, the volume is at the preset level.
4 Press to confi rm.
Store preset volume
You can turn on the unit at a preset volume.
1 Select [V - ADJ] as the start volume (see
‘Select start volume’ on page 21 ) .
2 Press MENU / DISP for 3 seconds.
3 Press or repeatedly to until [A-VOL]
is displayed.
4 Tu r n to select a value: 0 - 47.
5 Press to confi rm.
English
EN 21
CEM220-55-IFU-ENG_1.0.indd 21CEM220-55-IFU-ENG_1.0.indd 21 2008-10-28 10:31:582008-10-28 10:31:58
Page 21
Turn beep sound on/off
English
Each time you press a button, the unit beeps.
You can turn off/on this beep sound.
1 Press MENU / DISP for3 seconds.
2 Press or repeatedly to until [BEEP
ON] or [BEEP OFF] is displayed.
3 Rotate to select a setting:
[BEEP ON] : Turn on the beep sound.
•
[BEEP OFF] : Turn off the beep sound.
•
4 Press to confi rm.
Turn display scroll on/off
For track information that is longer than the
display panel: you can select to cut off the
remainder of the text, or scroll to display the
full text.
Note
If any special characters are present in the MP3 track
•
name or album name, it may not display correctly on the
screen because these characters are not suppor ted.
•
Some WMA is protected by Digital Rights Management
(DRM), it cannot be played on the unit.
•
Folders/fi les exceed the supported limit of the unit are
not displayed or played.
Select shock-protect setting
You can select the shock protection setting,
depending on the stability of your car and the
condition of the road.
1 Press MENU / DISP for 3 seconds.
2 Press or repeatedly until [ESP] is
displayed.
3 Tu r n to select a setting:
[ESP 12] : select this when the road is
•
smooth and there are few bumps.
[ESP 45] select this when the road is
•
bumpy and unstable.
4 Press to confi rm the selection.

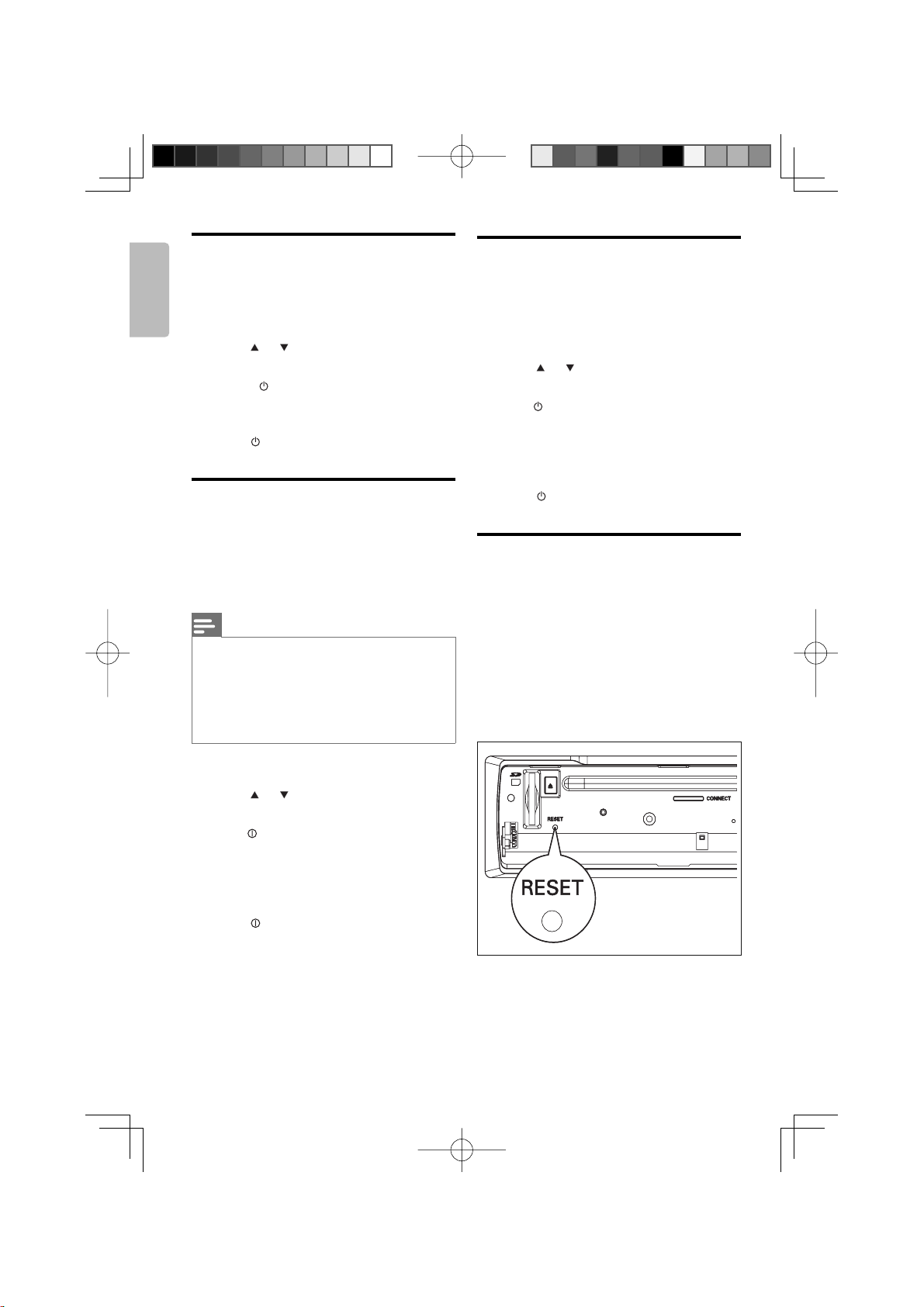

Reset
You can reset the unit to its default setting.
1 Detach the front panel (see ‘Detach the
front panel’ on page 23 ) .
2 Press the reset button by using a ball-point
pen or a similar tool.
Preset adjustments such as preset
»
channels and sound adjustments are
erased.
1 Press MENU / DISP for 3 seconds.
2 Press or repeatedly to until [ROLL
ON] or [ROLL OFF] is displayed.
3 Tu r n to select a setting:
[ROLL ON] (scroll on): Auto scroll
•
during play.
[ROLL OFF] (scroll off): No auto
•
scroll display.
4 Press to confi rm.
22 EN
CEM220-55-IFU-ENG_1.0.indd 22CEM220-55-IFU-ENG_1.0.indd 22 2008-10-28 10:31:592008-10-28 10:31:59
Page 22
8 Additional
information
Detach the front panel
You can detach the front panel to deter theft.
1 Press to release the panel.
2 Press the left side of the panel rightward.
A1 A2 A3 A4 A5 A6A7 A8
A1 A2 A3 A4 A5 A6A7 A8
B1 B2 B3 B4 B5 B6 B7 B8
B1 B2 B3 B4 B5 B6 B7 B8
FUSE 15A
FUSE 15A
Note
If the new fuse gets damaged again, there may be an
•
internal malfunction. Consult your Philips dealer.
Remove the unit
You can remove the unit from the dashboard.
1 Detach the front panel.
2 Pull out the unit by using the removal keys.
English
3 Pull the panel towards you to detach it
from the chassis.
4 Store the panel in the supplied carry case
to protect it from dirt or damage.
Replace fuse
If the fuse is damaged,
1 Check the electric connection .
2 Buy a fuse that matches the voltage of the
damaged fuse.
3 Replace the fuse.
CEM220-55-IFU-ENG_1.0.indd 23CEM220-55-IFU-ENG_1.0.indd 23 2008-10-28 10:32:002008-10-28 10:32:00
EN 23
Page 23
9 Product
English
information
Note
Product information is subject to change without prior
•
notice.
Power supply 12 V DC (11 V - 16 V),
negative ground
Fuse 15 A
Suitable speaker
impedance
Maximum power
output
Continuous power
output
Pre-Amp output
voltage
Subwoofer output
voltage
Aux-in level
Dimensions (W x H
x D)
Weight 1.0 kg
Radio
4 - 8
50 W x 4 channels
24 W x 4 channels (4
10% T.H.D.)
2.0 V ( USB play mode;
1 kHz, 0 dB, 10 k
load)
2.0 V (USB play mode:
61 Hz, 0 dB, 10 k
load)
300 mV
188 x 58 x 190 MM
Frequency range
- FM
Frequency range
- AM(MW)
Usable sensitivity
- FM
Usable sensitivity
- AM(MW) (S/N =
20 dB)
Frequency response 30 Hz - 15 KHz
Stereo separation 30 db (1 kHz)
Signal/noise ratio >55 dB
Compatible USB devices:
•
•
•
Supported formats:
•
•
•
•
•
•
•
•
Unsupported formats:
•
•
•
87.5 - 108.0 MHz
(Europe)
87.5 - 107.9 MHz
(American)
522 - 1620 KHz (Europe)
530 - 1710 HKz
(American)
8 uV
30 uV
USB fl ash memory (USB 2.0 or
USB1.1)
USB fl ash players (USB 2.0 or USB1.1)
memory cards
USB or memory fi le format FAT12,
FAT16, FAT32 (sector size: 512 bytes)
MP3 bit rate (data rate): 32-320 Kbps
and variable bit rate
WMA v9 or earlier
Directory nesting up to a maximum
of 8 levels
Number of albums/ folders: maximum
99
Number of tracks/titles: maximum 999
ID3 tag v2.0 or later
File name in Unicode UTF8
(maximum length: 128 bytes)
Empty albums: an empty album is an
album that does not contain MP3/
WMA fi les, and is not be shown in the
display.
Unsupported fi le formats are skipped.
For example, Word documents (.doc)
or MP3 fi les with extension .dlf are
ignored and not played.
AAC, WAV, PCM audio fi les
24 EN
CEM220-55-IFU-ENG_1.0.indd 24CEM220-55-IFU-ENG_1.0.indd 24 2008-10-28 10:32:012008-10-28 10:32:01
Page 24
•
DRM protected WMA fi les (.wav,
.m4a, .m4p, .mp4, .aac)
•
WMA fi les in Lossless format
•
ISO9660, Joliet
•
Maximum title number: 512 (depending on
fi le name length)
•
Maximum album number: 255
•
Supported sampling frequencies: 32 kHz,
44.1kHz, 48 kHz
•
Supported Bit-rates: 32~256 (kbps),
variable bit rates
English
EN 25
CEM220-55-IFU-ENG_1.0.indd 25CEM220-55-IFU-ENG_1.0.indd 25 2008-10-28 10:32:022008-10-28 10:32:02
Page 25
10 Troubleshooting
English
Caution
Never remove the casing of this unit. •
To keep the warranty valid, never try to repair
the system yourself.
If you encounter problems when using this unit,
check the following points before requesting
service. If the problem remains unsolved, go to
the Philips web site (www.Philips.com/support).
When you contact Philips, ensure that your
unit is nearby and the model number and serial
number are available (see ‘Get star ted’ on page
10 ) .
No power or no sound.
•
Car engine is not on. Turn the car engine
on.
•
Cable is not correctly connected. Check
connections .
•
Fuse is burnt. Replace fuse .
•
Volume is too low. Adjust volume (see
‘Adjust volume’ on page 20 ) .
•
If the above solutions cannot help, press
the RESET button.
•
Ensure that the track played is of a
compatible format.
Noise in broadcasts.
•
Signals are too weak. Select other stations
with stronger signals.
•
Check the connection of the car antenna.
•
Change broadcast from Stereo to mono .
Cannot play disc
•
Ensure that the disc label is inserted with
the printed side facing up.
•
Wipe the disc with fi bre cleaning cloth
from the centre to the edge in a straight
line.
•
This disc may be defective. Play another
disc.
•
Ensure that the CD is a fi nalised CD/CD-
R/CD-RW.
•
Ensure that the CD is not encoded with
copyright protection technologies.
The CD skips tracks
•
Ensure that the CD is not damaged or
dirty.
•
Ensure that random mode is deactivated.
Preset stations lost.
•
Battery cable is not correctly connected.
Connect the battery cable to the terminal
that is always live.
26 EN
CEM220-55-IFU-ENG_1.0.indd 26CEM220-55-IFU-ENG_1.0.indd 26 2008-10-28 10:32:032008-10-28 10:32:03
Page 26
11 Glossary
M
MMC
MultimediaCard. A type of memory card with a
fl ash memory.
MP3
A fi le format with a sound data compression
system. MP3 is the abbreviation of Motion
Picture Experts Group 1 (or MPEG-1) Audio
Layer 3. With the MP3 format, one CD-R or
CD-RW can contain about 10 times more data
than a regular CD.
S
SD
Secure Digital. A type of memory card with a
fl ash memory.
SDHC
Secure Digital High Capacity (SDHC) is a type
of fl ash memory card based on the SDA 2.00
specifi cation. The SDA 2.00 specifi cation enables
SD cards to reach higher capacities from 4GB
to 32GB, and growing.
English
W
WMA (Windows Media Audio)
An audio format owned by Microsoft, is a
part of Microsoft Windows Media technology.
Includes Microsoft Digital Rights Management
tools, Windows Media Video encoding
technology, and Windows Media Audio
encoding technology.
EN 27
CEM220-55-IFU-ENG_1.0.indd 27CEM220-55-IFU-ENG_1.0.indd 27 2008-10-28 10:32:032008-10-28 10:32:03
Page 27
© 2008 Koninklijke Philips Electronics N.V.
All rights reserved.
Document order number:
CEM220-55-IFU-ENG_1.0.indd 28CEM220-55-IFU-ENG_1.0.indd 28 2008-10-28 10:32:042008-10-28 10:32:04
12NC
Loading...
