1 Safety
Read and understand all instructions before you
use the device. If damage is caused by failure to
follow instructions, the warranty does not apply.
• Use of controls or adjustments or
performance of procedures other than
herein may result in hazardous radiation
exposure or other unsafe operation.
• The device is designed for negative ground
(earth) 12 V DC operation only.
• To reduce the risk of trafc accidents, do
not watch video when driving.
• To ensure safe driving, adjust the volume to
a safe and comfortable level.
• Improper fuses can cause damage or
re. When you need to change the fuse,
consult a professional.
• Use only the supplied mounting hardware
for a safe and secure installation.
• To avoid short circuits, do not expose the
device, remote control or remote control
batteries to rain or water.
• The device shall not be exposed to
dripping or splashing.
• Do not place any sources of danger on
the device (e.g. liquid lled objects, lighted
candles).
• Never insert objects into the ventilation
slots or other openings on the device.
• Never place any objects other than discs
into the disc tray/slot.
• To avoid exposure to laser radiation, do
not disassemble the device.
• Risk of damage to the screen! Never touch,
push, rub or strike the screen with any
object.
• Never use solvents such as benzene,
thinner, cleaners available commercially, or
anti-static sprays intended for discs.
• Clean the device with soft, damp cloth.
Never use substances such as alcohol,
chemicals or household cleaners on the
device.
• Risk of swallowing batteries! A coin
type battery is bundled, which can be
swallowed. Keep the battery out of reach
of children at all times!
3EN
2 Your car
cd
entertainment
system
Congratulations on your purchase, and
welcome to Philips! To fully benet from the
support that Philips offers, register your product
at www.philips.com/welcome.
Introduction
With the car entertainment system, you can
• listen to music,
• watch videos,
• view pictures,
• listen to FM (RDS included) and AM/MW
radio,
• make phone calls via Bluetooth, and
• navigate your road trip.
a
ef g
h i
b

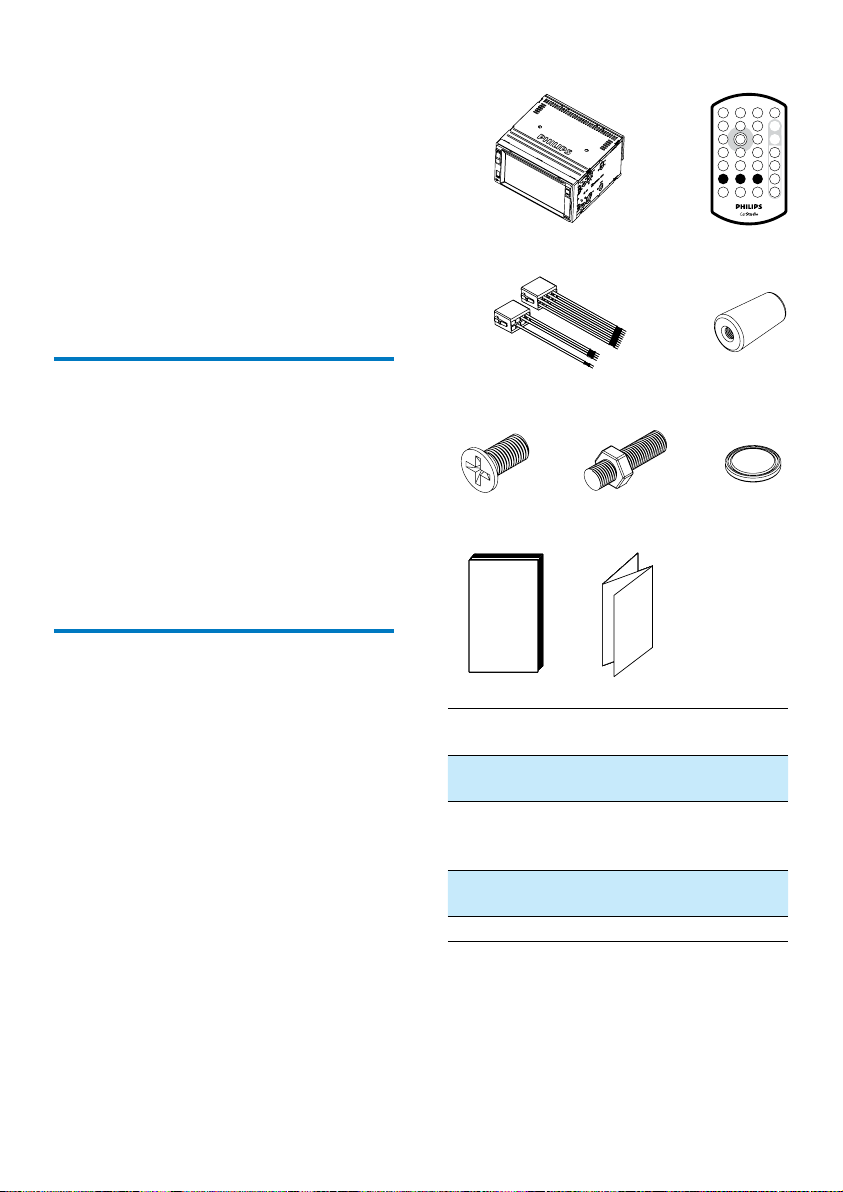

What's in the box
Check and identify the contents of the package:
4 EN
1 Main unit 2 Remote
control
3 ISO male connector
X 2
5 Screw X 4 (M5x8mm) 6 Hexagon
7 Remote control
battery
9 Quick start guide
4 Rubber
cushion
head
screw
8 User
manual

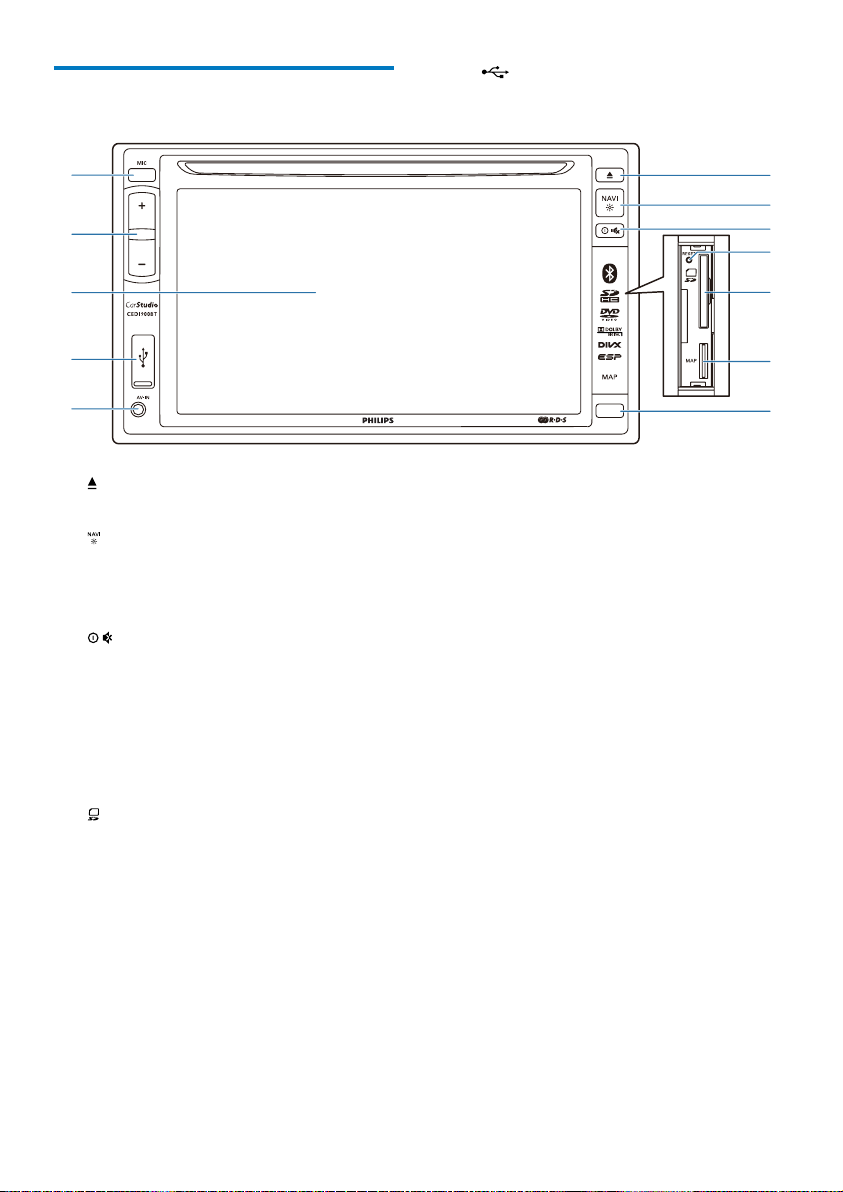

Overview of the main unit
i
• Connect to a USB storage device or
iPod/iPhone.
l
k
j
i
h
a
• Press to eject the disc.
b
• Press to access the navigation system.
• Press and hold to adjust the brightness
of LCD screen.
c
• Press to turn on the unit.
• Press and hold to turn off the unit.
• Press to mute the speakers or release
them from mute status.
d RESET
• Press to reset the system.
e

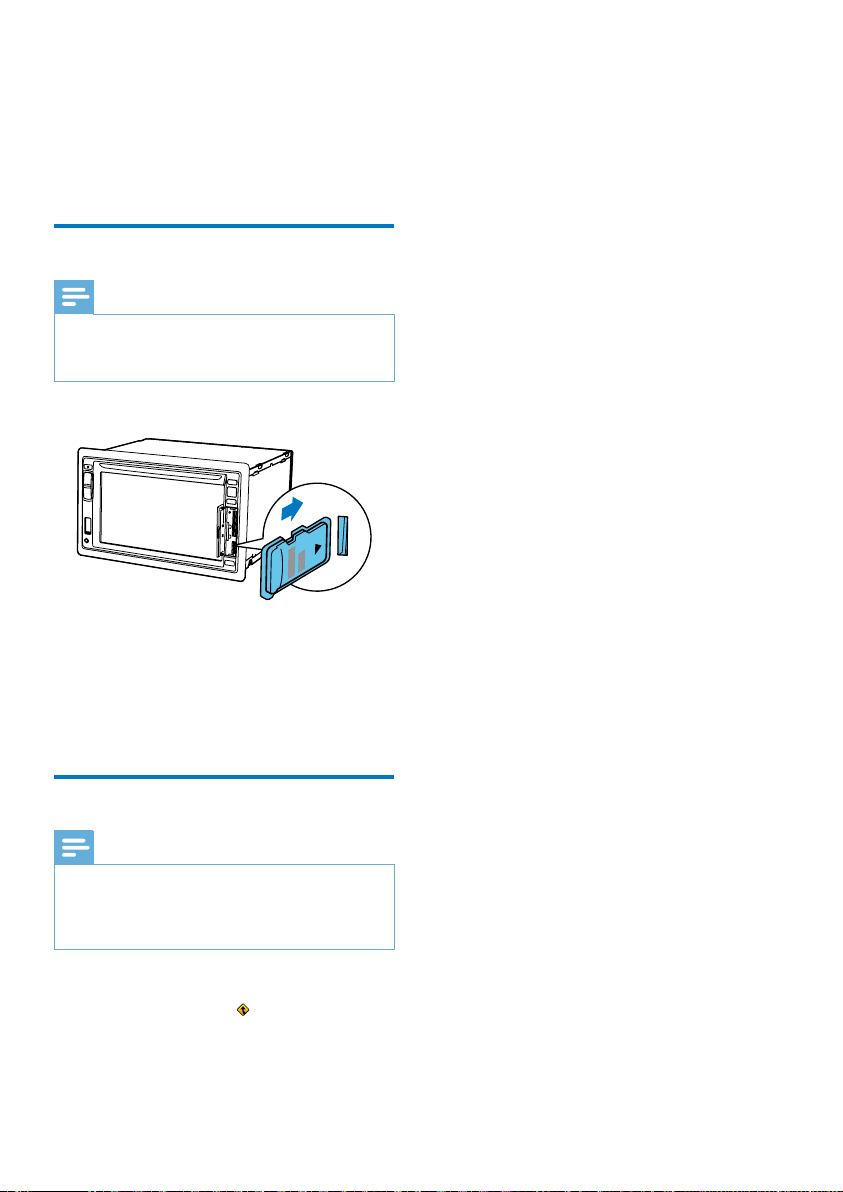

• Insert an SD/SDHC card.
f MAP
• Insert a microSD card that stores the
digital map data.
g iR sensor
• The sensor that receives infra-red
signals from the remote control.
h AV-IN
• Connect to the audio and video
output sockets of an external player by
a composite AV cable.
a
b
c
d
e
f
g
j LCD screen
k +/-
• Press to increase or decrease the
volume.
l MIC
• The built-in microphone for phone
calls.
5EN

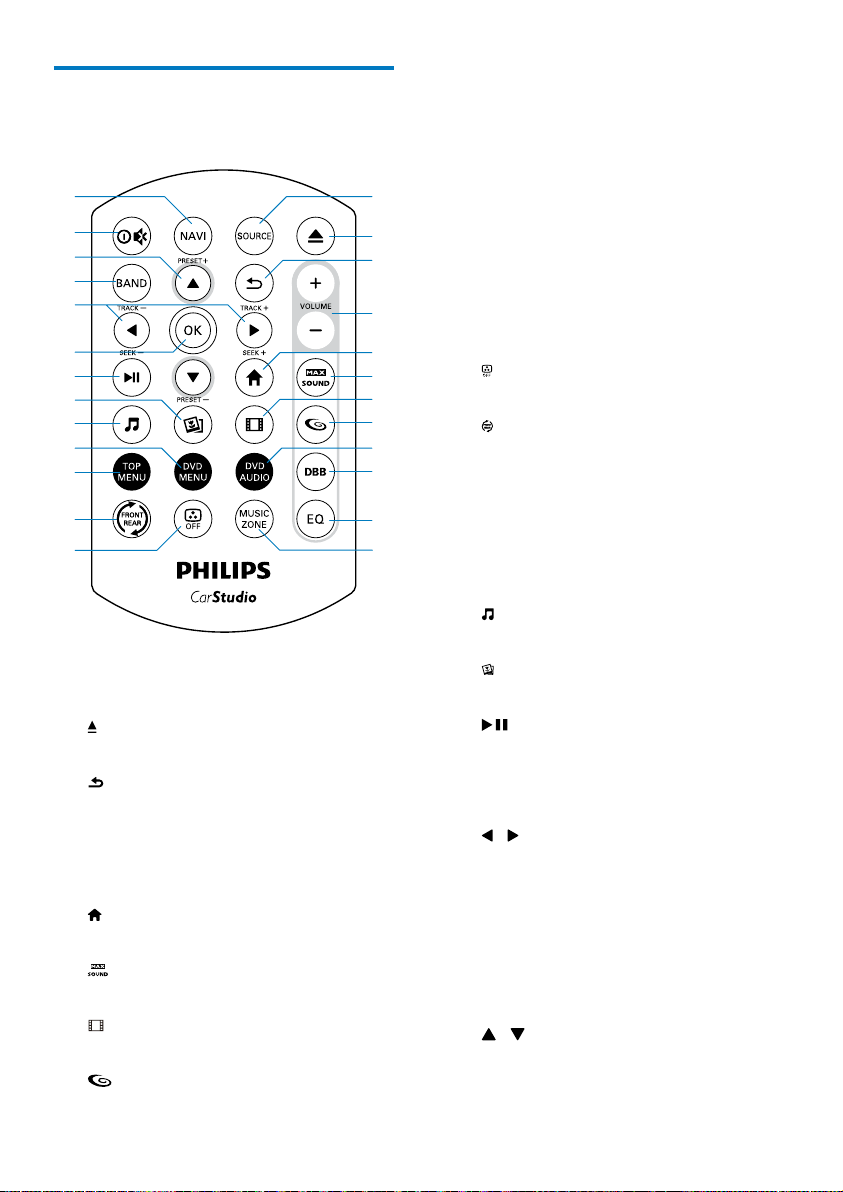

Overview of the remote control
y
x
w
v
u
t
s
r
q
p
o
n
m
a SOURCE
• Press repeatedly to select a source.
b
• Press to eject the disc.
c
• Return to the previous menu or mode.
d VOLUME + / -
• Press to increase or decrease the
volume.
e
• Access the home menu.
f
• Enable or disable the maximum sound.
g
• Switch to video playback mode.
h
a
b
c
d
e
f
g
h
i
j
k
l
• Enable or disable the FullSound effect.
i DVD AUDIO
• Select an audio language or audio
channel.
j DBB
• Enable or disable the DBB (Dynamic
Bass Boost) sound effect.
k EQ
• Select a preset sound equalizer.
l MUSIC ZONE
• Select a music listening zone.
m
• Turn on or off the screen.
n
• Switch to the control interface for
front source or rear source.
o TOP MENU
• Return to top menu.
p DVD MENU
• Access the DVD menu.
q
• Switch to music playback mode.
r
• Switch to picture slideshow mode.
s
• Start, pause, or resume the play.
t OK
• Conrm an option.
u
/ /TRACK -/TRACK +
• Skip to the previous or next track,
chapter, or le.
• For DVD, press and hold to select a
speed for fast backward or forward
search.
v BAND
• Select a tuner band.
w
/ /PRESET +/PRESET -
• Tune to the previous or next preset
radio station.
6 EN
• Skip to the previous or next folder.
x
• Press to turn on the system.
• Press and hold to turn off the system.
• Press to mute the speakers or release
them from mute status.
y NAVI
• Press to access the navigation system.
7EN
3 Install the car
Connect wires
entertainment
system
Always follow the instructions in this chapter in
sequence.
These instructions are for a typical installation.
However, if your car has different requirements,
make the adjustment accordingly. If you have
any question regarding installation kits, consult
your local retailer.
Note
This system is designed for negative ground (earth) 12V
•
DC operation only.
• Always install this system in the car dashboard. Other
locations can be dangerous as the rear of the system
heats up during use.
• To avoid short-circuit: before you connect, make sure
that the ignition is off.
• Make sure that you connect the yellow and red power
supply leads after all other leads are connected.
• Make sure that all loose leads are insulated with
electrical tape.
• Make sure that the leads do not get caught under
screws iron parts that will move (e.g. seat rail).
• Make sure that all ground (earth) leads are run to a
common ground (earth) point.
• Use only the supplied mounting hardware for a safe
and secure installation.
• Improper fuses can cause damage or re. When you
need to change the fuse, consult a professional.
• When you connect other devices to this system, make
sure that the rating of the car circuit is higher than the
total fuse value of all the connected devices.
• Never connect speaker wires to the metal body or
chassis of the car.
• Never connect speaker wires with stripes to one
another.
Note
Make sure that all loose leads are insulated with
•
electrical tape.
• Consult a professional to connect wires as instructed
below.
• Before connection, check the car's wiring carefully.

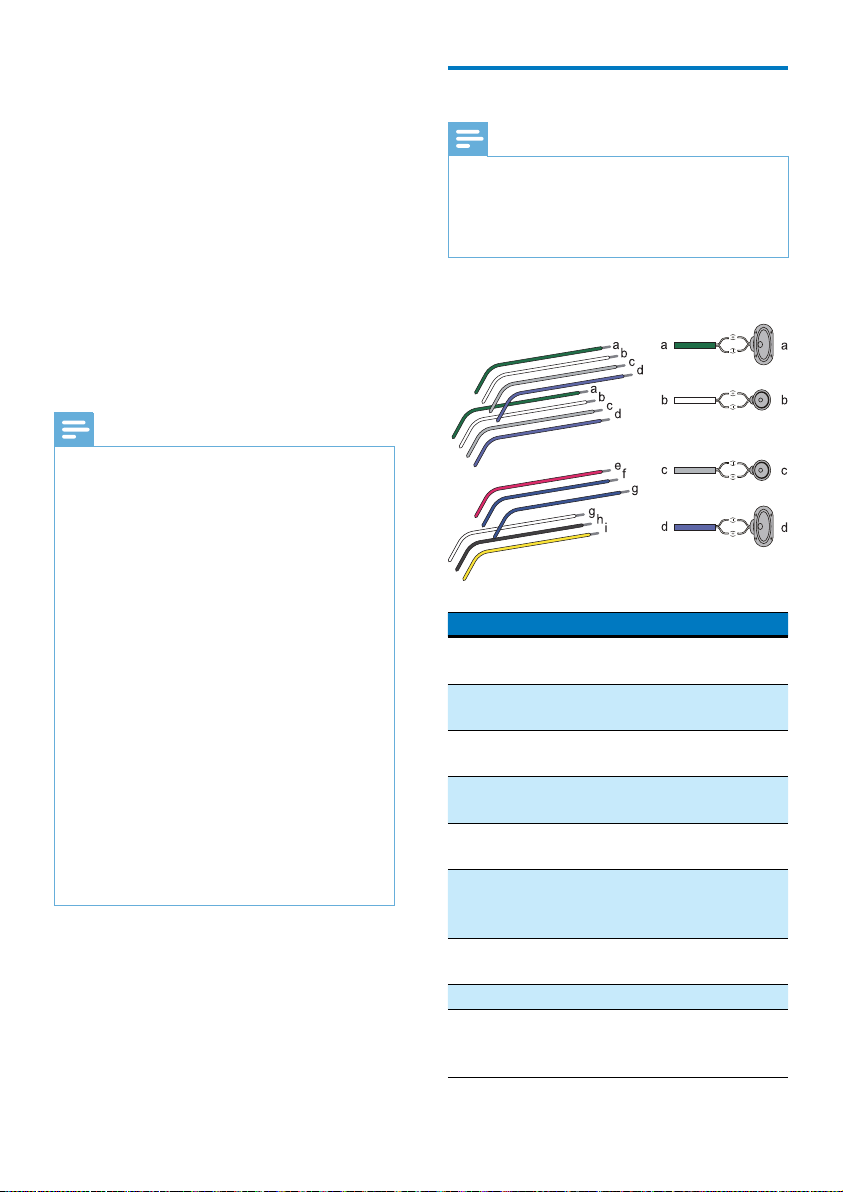

1 Connect the ISO male connectors.
ISO male connectors Connect to
1 Green strip, black-
edged green strip
2 White strip, black-
edged white strip
3 Gray strip, black-
edged gray strip
4 Purple strip, black-
edged purple strip
e Red strip Ignition key +12V
f Blue strip Motor/electric
g Blue strip, white strip Amplier relay
h Black strip Ground
i Yellow strip The +12V car
Rear left speaker
Front left speaker
Front right speaker
Rear right speaker
DC when ON/ACC
antenna relay
control lead
control lead
battery which is
energized at all times
8 EN
2 Connect other wires if necessary.
Caution
To avoid an accident, the driver must not watch video
•
while driving. By design, this system disallows watching
video during drive. Park your car in a safe place and
engage the parking brake before watching video.
Note

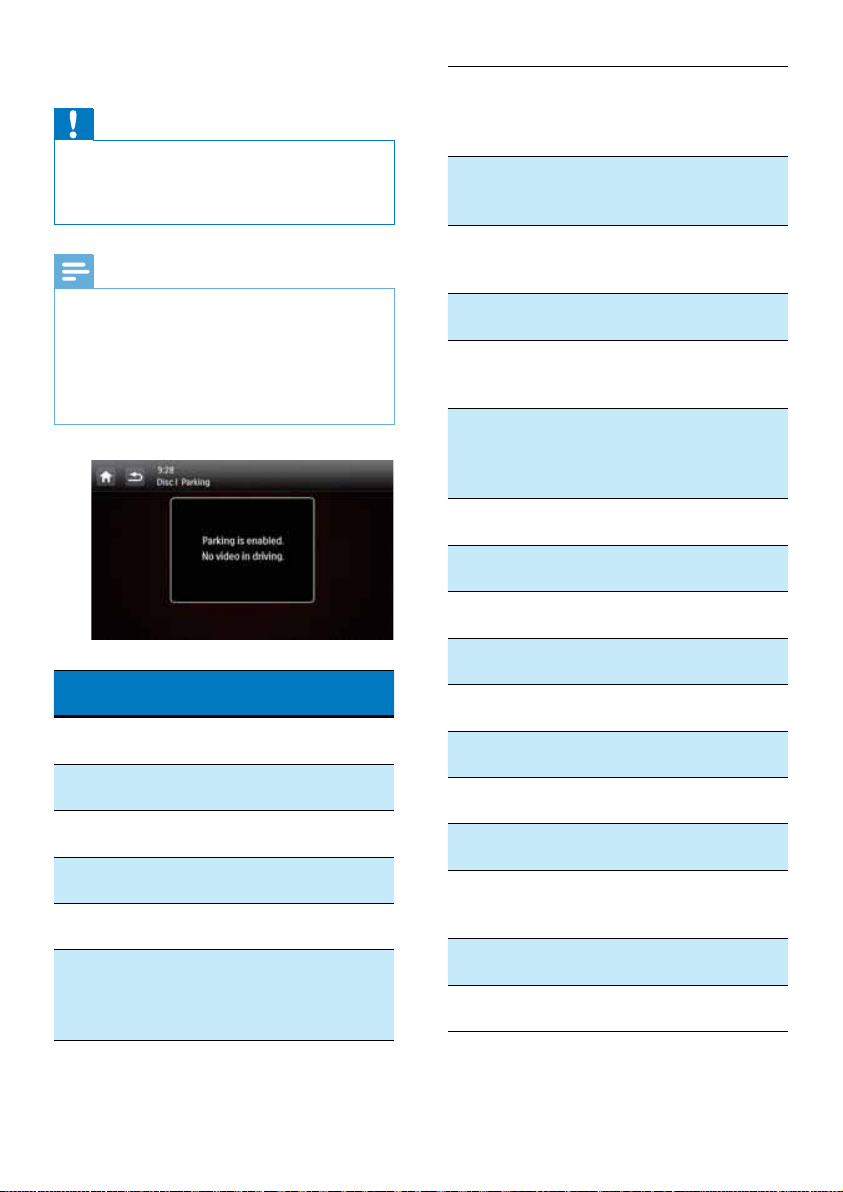

When the parking brake of your vehicle is not engaged,
•
the video blocking system is activated. It blocks the
display of front video source only.
• If the system is not properly connected with the
parking brake control module of your vehicle, video
signals will be blocked by the system, with the below
message displayed on the TFT.

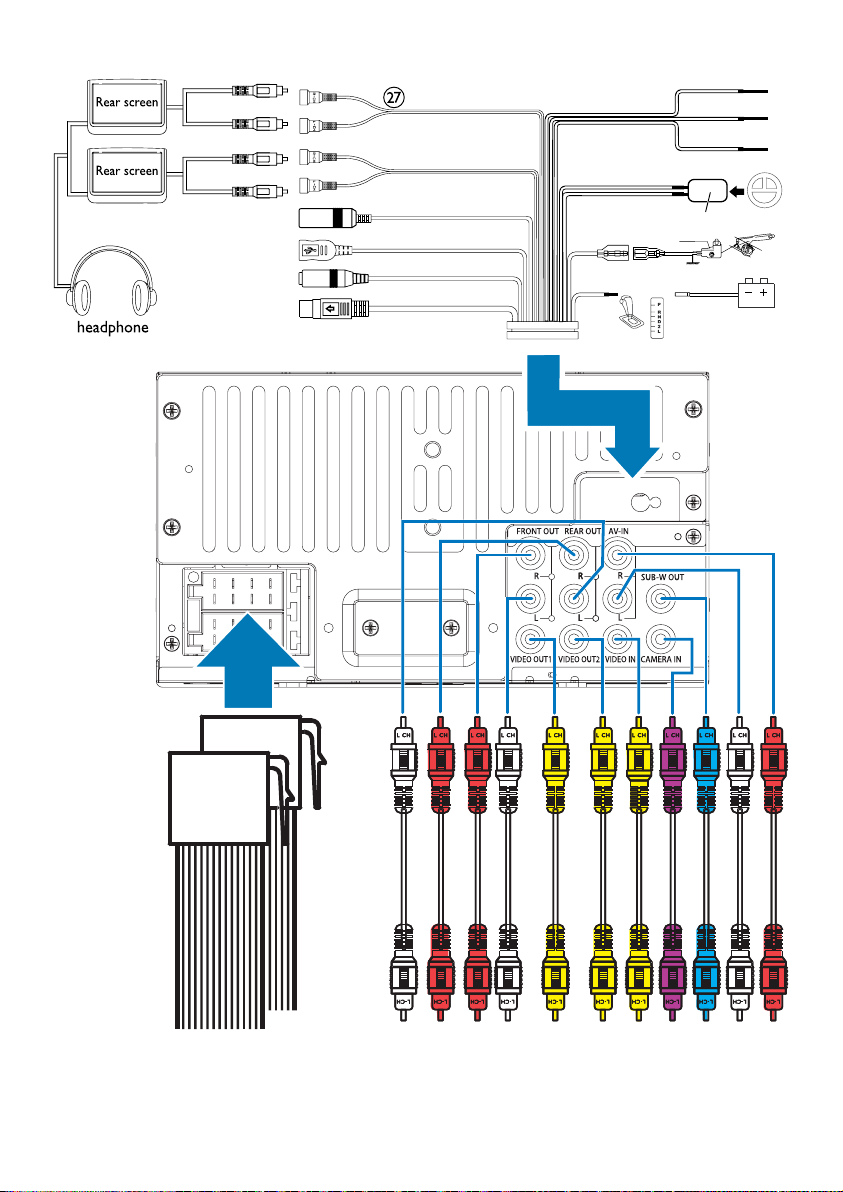

Connectors and
sockets on rear panel
1 For ISO male
connectors
2 REAR OUT L (White
socket)
3 REAR OUT R (Red
socket)
4 FRONT OUT R (Red
socket)
5 FRONT OUT L
(White socket)
6 VIDEO OUT 1
(Yellow socket)
External sockets or
connectors
As indicated
above
Rear left speaker
Rear right speaker
Front right
speaker
Front left speaker
Video input
socket of an
external display
device
7 VIDEO OUT 2
(Yellow socket)
8 VIDEO IN (Yellow
socket)
9 CAMERA IN (Purple
socket)
10 SUB-W OUT (Blue
socket)
11 AV-IN L (White
socket)
12 AV-IN R (Red socket) Right audio
13 REVERSE CAMERA
(Purple wire)
14 PARKING BRAKE
(Pink wire)
15 OE SWC IR REMOTE
IN (Brown wire)
16 OE SWC IR REMOTE
IN (Black wire)
17 OE SWC AD LEARN
(White wire)
18 OE SWC AD LEARN
(White wire)
19 OE SWC AD LEARN
(Black wire)
20 External Mic (Black
connector)
21 EXTERNAL BOX
CONNECTOR (Black
connector)
22 GPS AERIAL (Black
connector)
23 RADIO ANTENNA
(Black connector)
Video input
socket of an
external display
device
Video output
socket of an
external player
Video output
socket of an
external camera
Sub-woofer
Left audio channel
output socket of
an external player
channel output
socket of an
external player
Reverse camera
(B+)
Parking brake (-)
OE SWC remote
in
Ground
OE SWC AD
Learn line 1
OE SWC AD
Learn line 2
Ground
External
microphone
External
navigation box
GPS smart
antenna
Radio antenna
9EN
Connectors and
sockets on rear panel
24 Rear Monitor
Audio Out 1 (White
connector)
25 Rear Monitor
Audio Out 1 (Red
connector)
External sockets or
connectors
Left audio channel
input socket of
one rear monitor
Right audio
channel input
socket of one rear
monitor
26 Rear Monitor
Audio Out 2 (White
connector)
Left audio channel
input socket of
another rear
monitor
27 Rear Monitor
Audio Out 2 (Red
connector)
Right audio
channel input
socket of another
rear monitor
Tip
The pin arrangement for the ISO connectors depends
•
on the type of your vehicle. To avoid damage to the
system, connect properly.
10 EN
kl
z
y
x
w
v
u
t
p
o
n
m
s
r
q
(Not Supplied)
a
bcde fgh ij
11EN

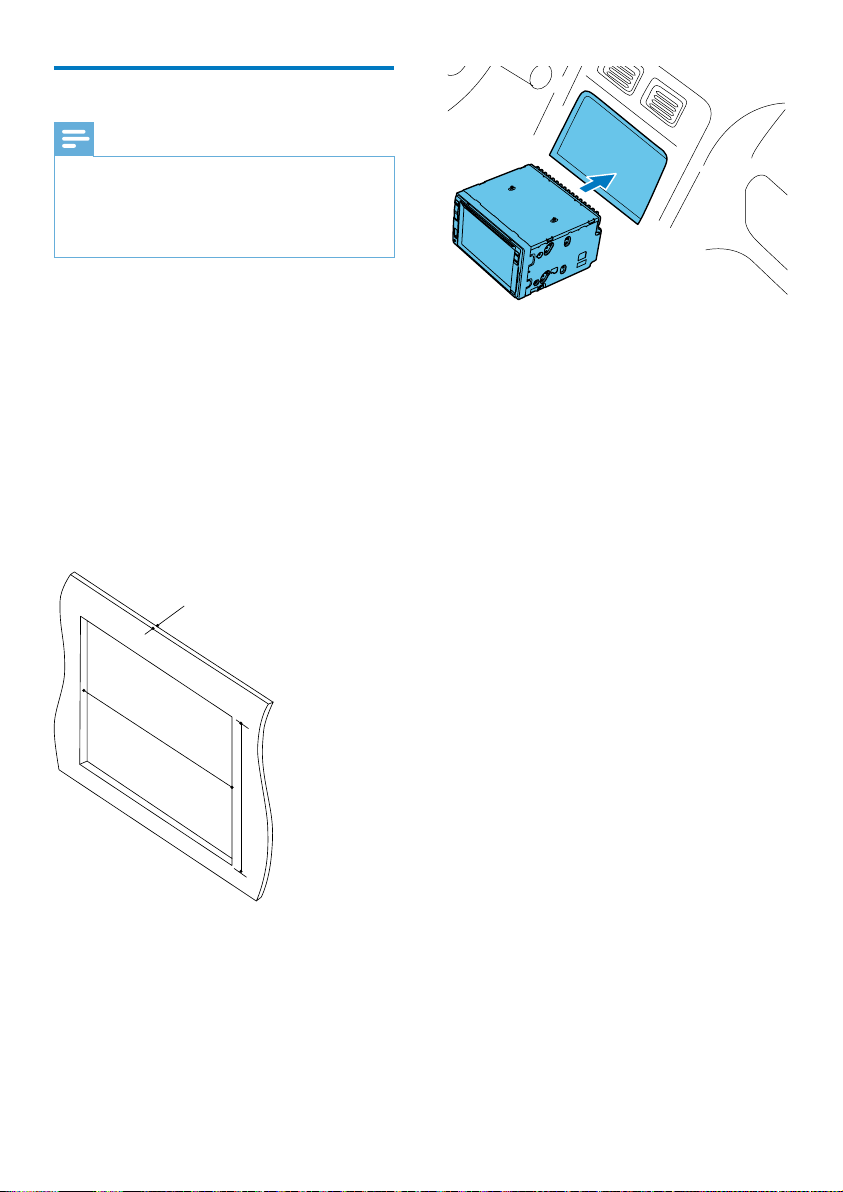

Mount into the dashboard
Note
Make sure that wires are correctly connected before
•
you mount the main unit into a car.
• If preset radio stations are lost when the ignition key
is turned OFF and then back ON, reconnect the red
leads crosswise to the yellow ones.
1 If the car does not have an on-board drive
or navigation computer, disconnect the
negative terminal of the car battery.
• If you disconnect the car battery in
a car that has an on-board drive or
navigation computer, the computer
may lost its memory.
• If the car battery is not disconnected,
to avoid short-circuit, ensure that bare
wires do not touch each other.
2 Make sure that the car dashboard opening
is within these measurements:
5 mm
182 mm
112 mm
4 Reconnect the negative terminal of the car
battery.
• Since the unit cannot be used if the
dashboard opening's slant angle is
above 20 degrees, make sure that the
horizontal slant of the car dashboard
opening is between 0 and 20 degrees.
3 Slide the unit into the dashboard until a
click sound is heard.
12 EN
4 Get started
Caution
Risk of car accidents! Never watch video or operate
•
this system while driving.
Prepare the remote control

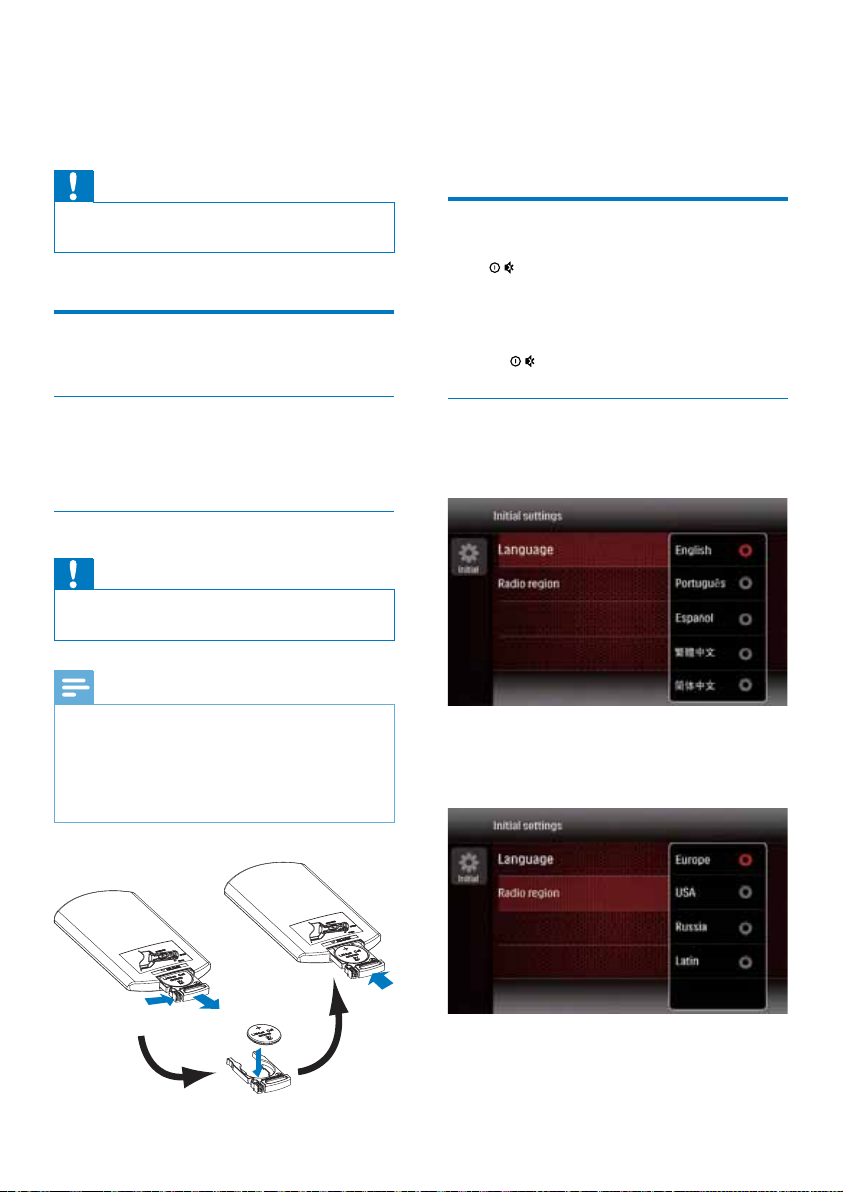

1 Pull out the battery tray.
2 Insert one CR2025 battery with correct
polarity (+/-) as indicated.
3 Insert the battery tray.
Turn on
Press .
» PHILIPS logo and a progress bar are
displayed while boot-up.
• To turn off the system, press and hold
for 3 seconds.
For the rst time use
Pull the protective sheet out.
» The remote control is ready for use.
Replace the battery
Caution
Risk of explosion! Keep batteries away from heat,
•
sunshine or re. Never discard batteries in re.
Note
Remove the battery if it is exhausted or if the remote
•
control is not to be used for a long time.
• Batteries contain chemical substances, they should be
disposed of properly.
• Perchlorate Material - special handling may apply. See
www.dtsc.ca.gov/hazardouswaste/perchlorate.
For the st time use
After successful boot-up, the following interface
is displayed.
1 Tap to select a language for on-screen
display.
» The following interface is displayed.
2 Tap to select a radio region that matches
your location.
» The following interface is displayed.
13EN
3 Tap [FINISH] to complete the initial setup.
» The device switches to radio mode
automatically.

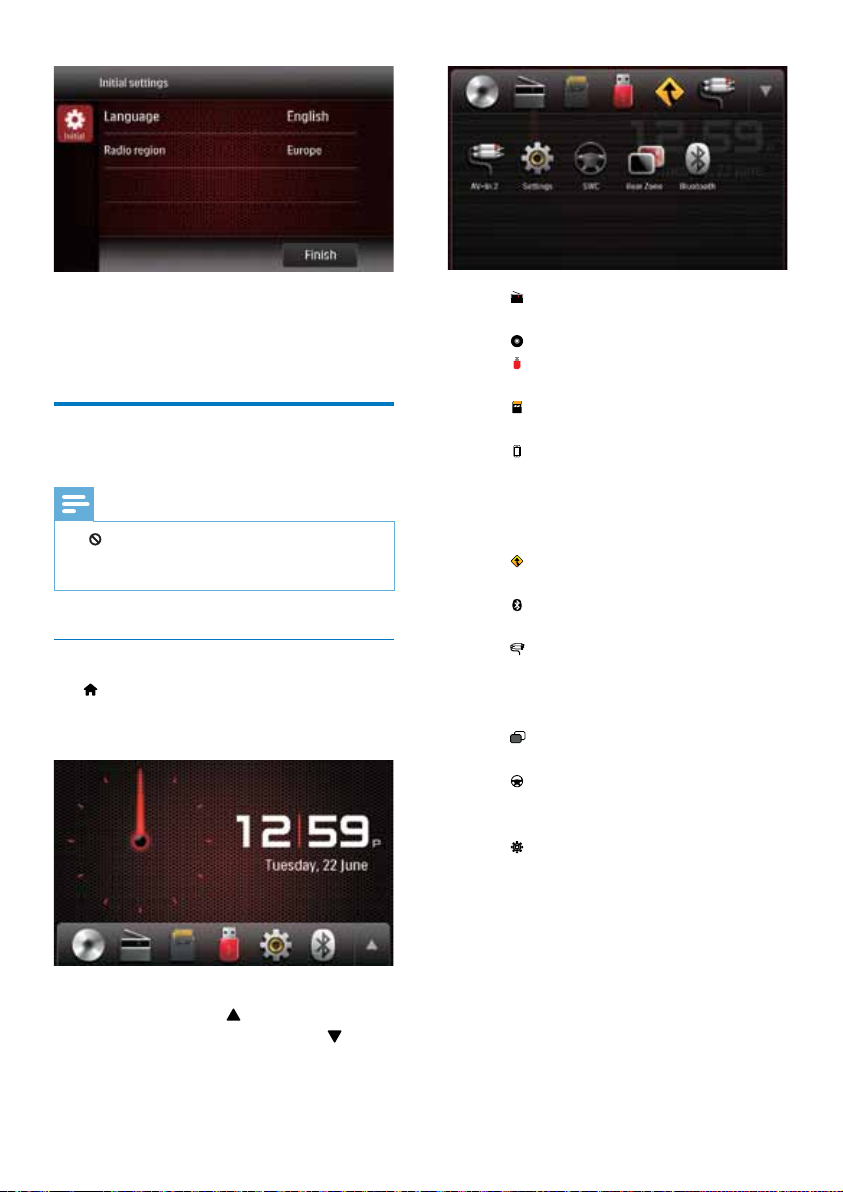

Use the home menu
Note
• If is displayed when you touch an icon, it indicates
that the selected media or feature is unavailable at the
current time.
Access the home menu
Tap to access the home menu.
» The clock, date, and the bar for
popular icons are displayed.
• [Radio]: Switch the source to FM/
AM radio.
•
[Disc]: Switch the source to disc.
•
[USB]: Switch the source to USB
storage device.
•
[SDHC]: Switch the source to SD/
SDHC card.
•
: Once your iPod/iPhone is
connected and recognized, this icon is
displayed in the bar of favorite icons.
Tap it to switch the source back to
iPod/iPhone.
•
[Navigation]: Access the navigation
system.
•
[Bluetooth]: Use the Bluetooth
feature.
•
[AV-In 1]/[AV-In 2]: Switch the
source to the audio and video input
that is transferred from an external
video player.
R
•
[Rear zone]: Access the settings for
rear monitors.
•
[SWC]: Access the interface to
assign functions to buttons on the
steering wheel.
•
[Settings]: Access the system menu.
• To access the full menu with all feature
icons displayed, tap
• To return to the home menu, tap
14 EN
.
.
Customize the home menu
• [12hr]: 12-hour time format
4 Tap [Date] to display the interface for
setting the date.
1 Tap and hold an icon until it is movable.
2 Drag it to the target place, and then
release your nger.
• When you move an icon from the bar
for popular icons to the lower area,
release your nger when the icon's
name is displayed.
• When you move an icon from the
lower area to the bar for popular icons,
release your nger when the icon's
name disappears.
3 Tap to return to the home menu.
» The bar for popular icons is refreshed.

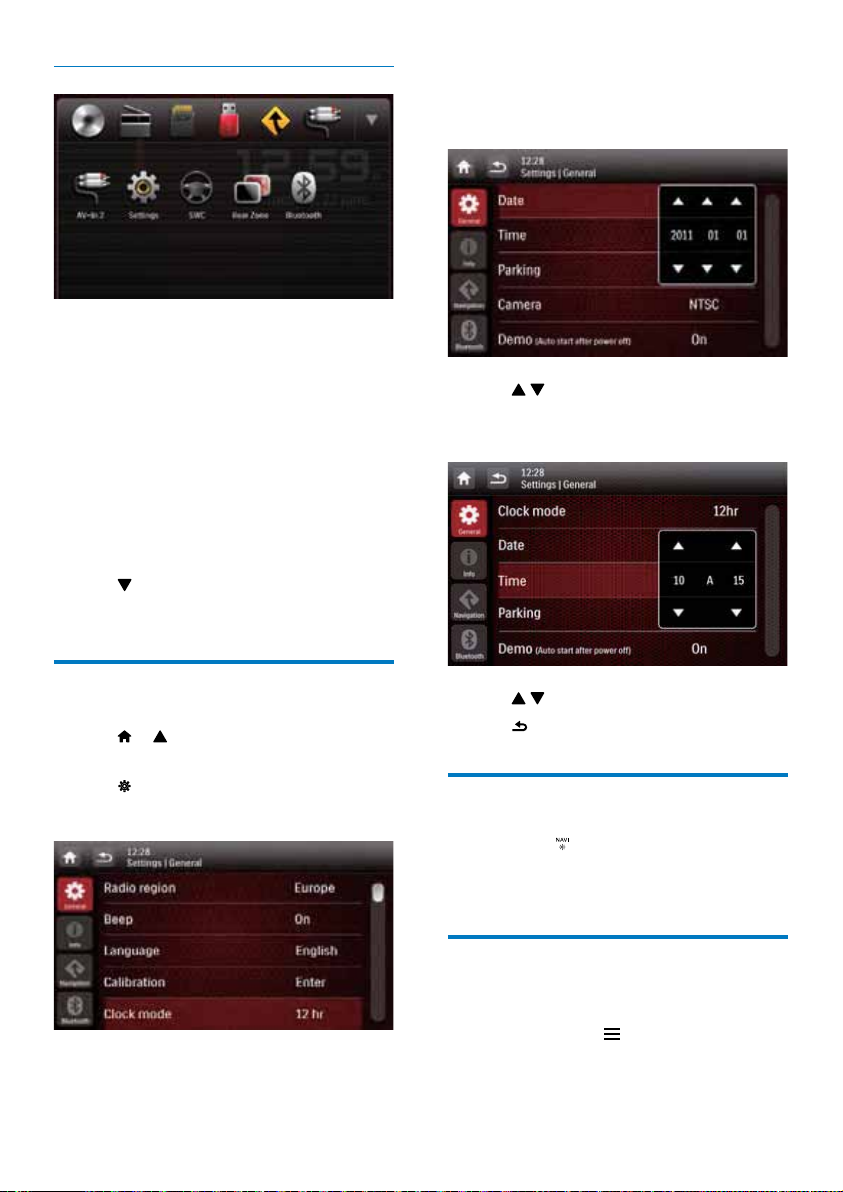

Set the date and time
1

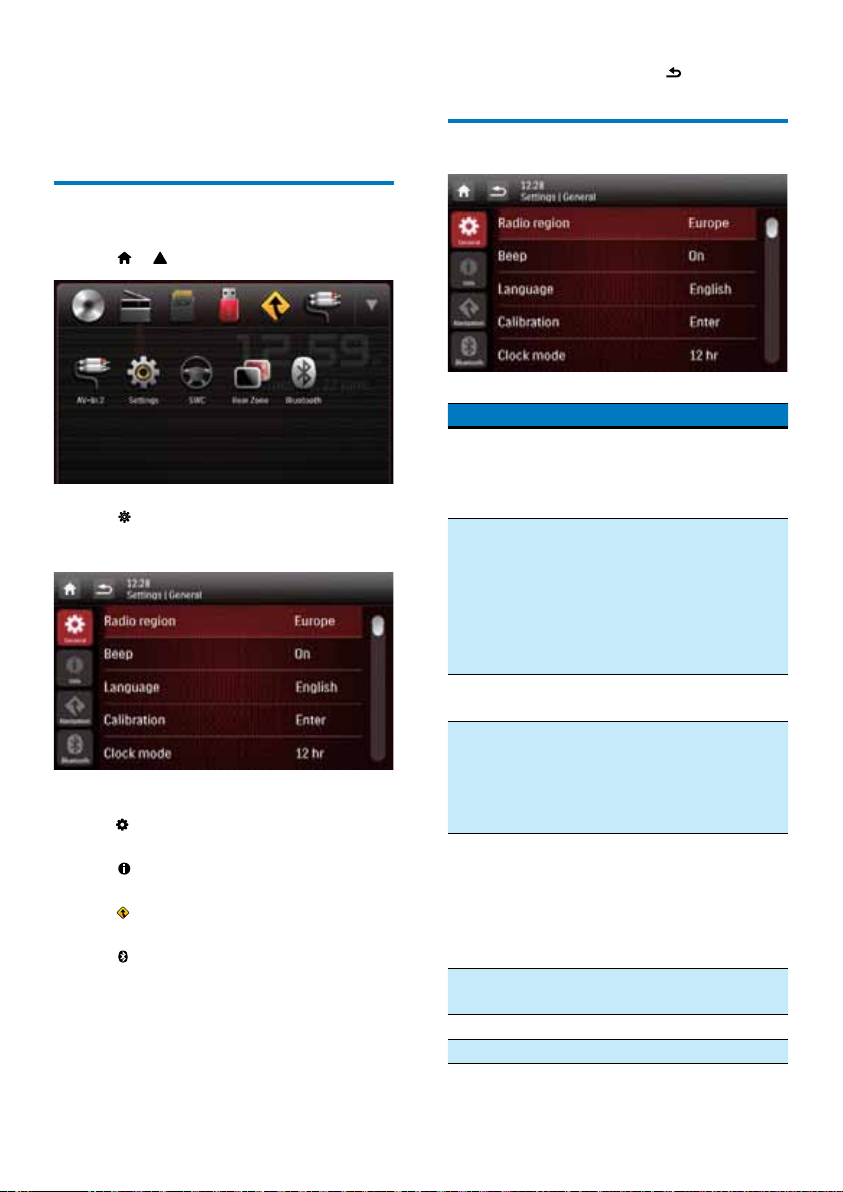

Tap > to access the full menu with all
feature icons displayed.
2 Tap [Settings].
» The [General] menu is displayed.
5 Tap to set the year, month, and date.
6 Tap [Time] to display the interface for
setting the time.
7 Tap to set the hour and minute.
8 Tap to return to the home menu.
Adjust the screen brightness
Press and hold on the front panel to select a
brightness level of the screen.
• [LEVEL 1], [LEVEL 2], or [LEVEL 3]
3 Tap [Clock mode] to select a time format.
• [24hr]: 24-hour time format
Switch display designs
Select a preset display design.
1 In any mode, tap , and then [Display
Design].
15EN

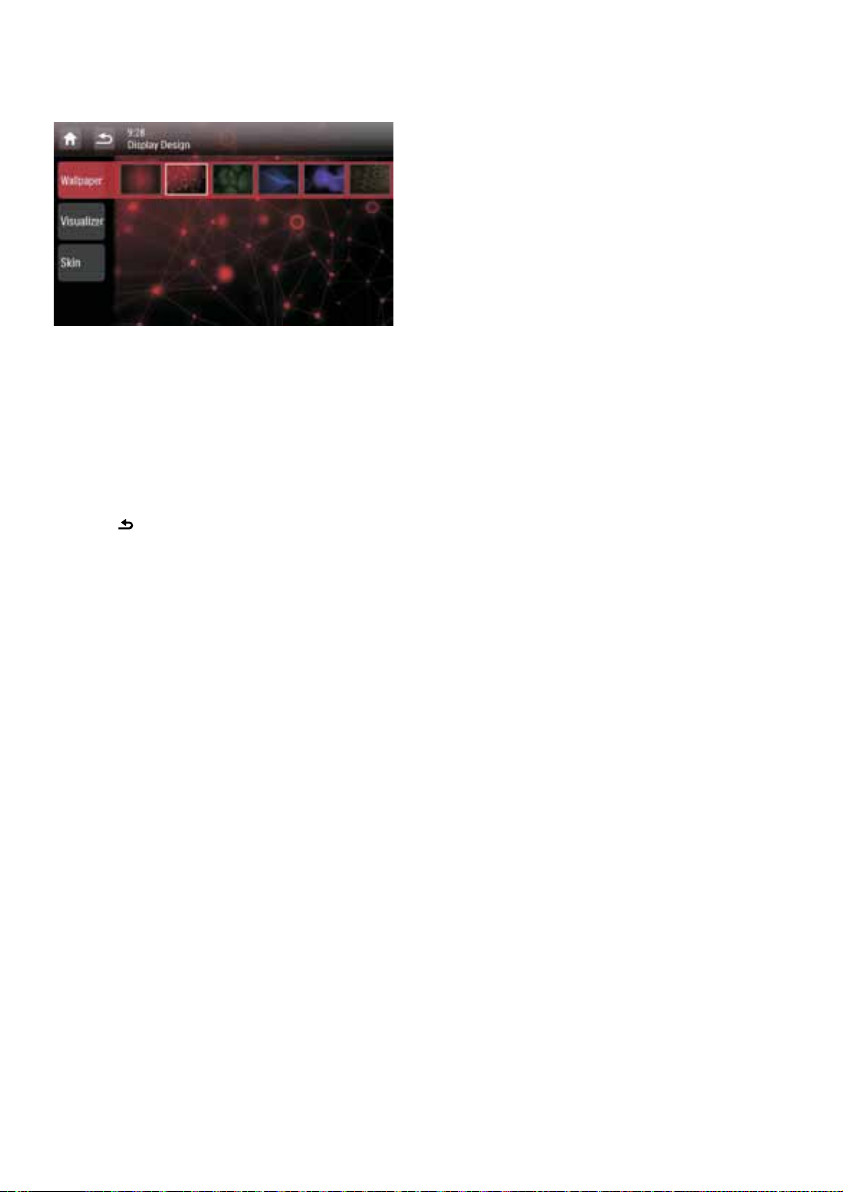

» The [Display Design] interface is
displayed.
2 Tap a setting to display the options.
• [Wallpaper]: Select a wallpaper.
• [Visualizer]: Select a motional
visualization effect.
• [Skin]: Select a background color for
on-screen icons.
3 Tap an option to select it.
4 Tap to return to the previous mode.
16 EN
5 Play from hard
This system can play DVD discs marked with
the following region code.
media
You can use this system to listen to audios,
watch videos, and view photos that are stored
on a disc, USB storage device, or SD/SDHC
card.
Note
Before use, check for compatible media.
•
Load a disc
Caution
Never insert any object other than a disc of 12-cm
•
diameter into the disc slot.
DVD region
code
Countries and regions
Asia Pacic, Taiwan, Korea
Connect a USB storage device
Note
Make sure that the USB storage device contains
•
compatible les.
• NTFS (New Technology File System) le system is not
supported.
1 Push the USB socket cover upwards to
open it.
2 Connect the USB storage device to the
USB socket.
» Play starts automatically.

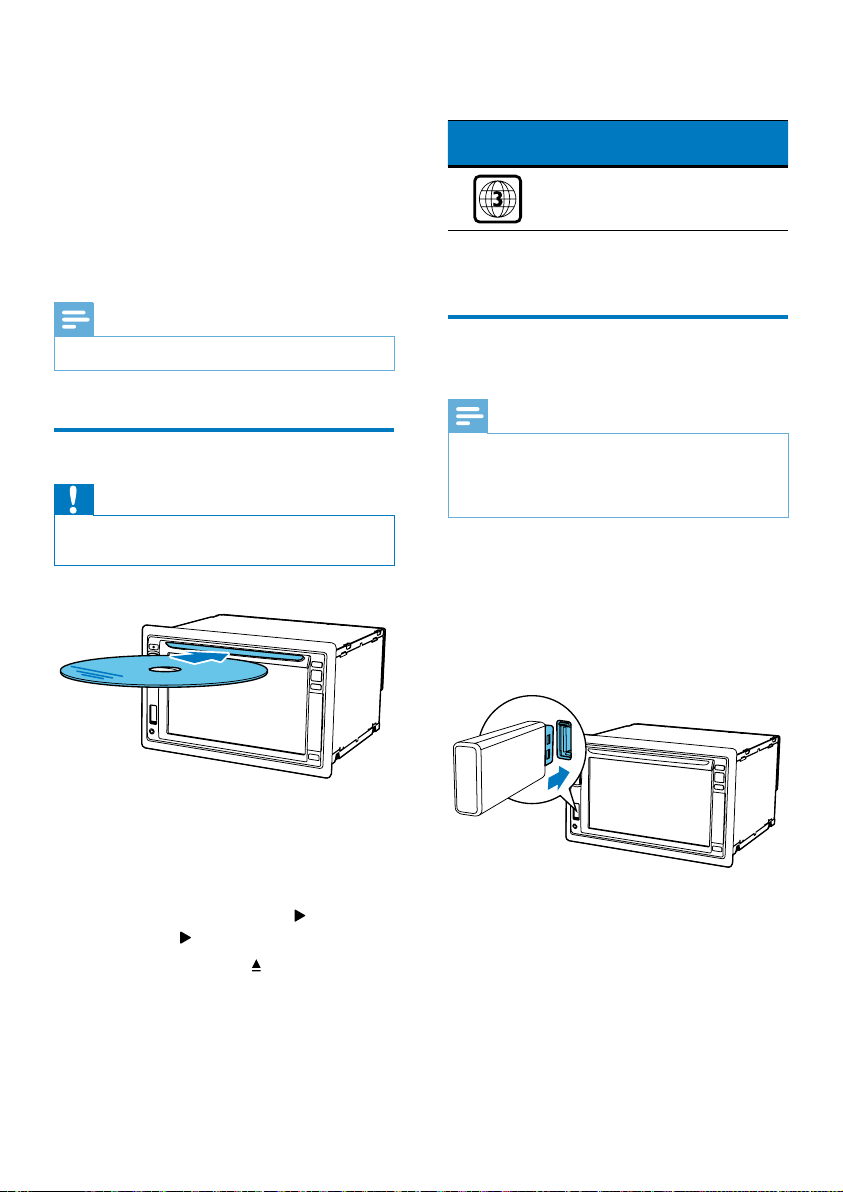

1 Insert the disc into the disc slot with the
label side facing up.
» Play starts automatically.
• If play does not start automatically, tap
the screen to display the
then tap
2 To eject the disc, press .
» When the disc is ejected, the system
switches to the previous source or
radio mode.
Region code
to start play.
icon, and
• To remove the USB storage device,
switch the system to another source
rst.
17EN
Insert an SD/SDHC card
Note
Make sure that the SD/SDHC card contains compatible
•
les.
• NTFS (New Technology File System) le system is not
supported.
1 Flip up the protective cover.
2 Insert the SD/SDHC card into the slot
until you hear a "click".
» Play starts automatically.
Remove the SD/SDHC card
1 Switch system to another source.
2 Press the card inwards until you hear a
"click".
» The card is disengaged.
3 Pull out the SD/SDHC card.

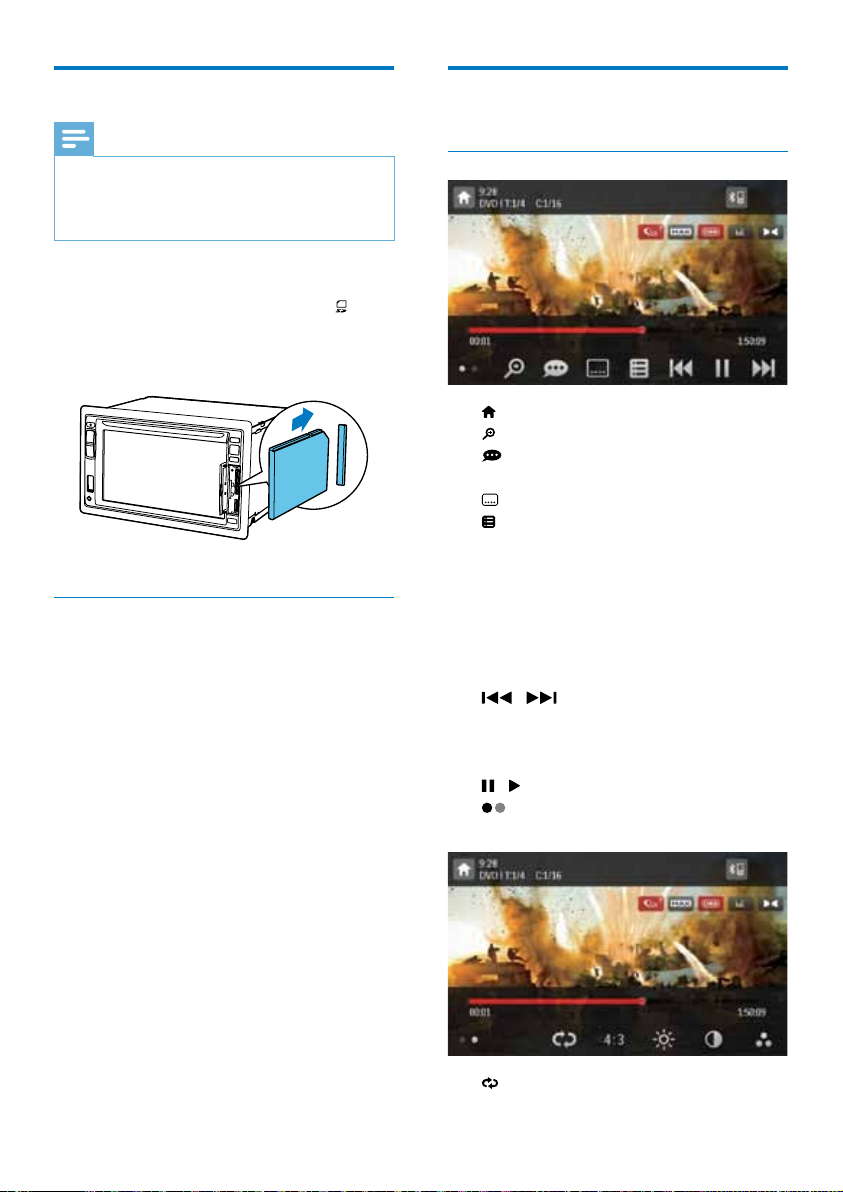

Control play
Videos
• : Return to the home menu.
•
: Zoom in or out of the image.
•
: Select an available audio channel or
audio language.
•
: Select an available subtitle.
•
• For DVD, return to the disc menu or
root menu.
• For recorded les, return to the list of
les or folders (see 'Browse recorded
les' on page 20).
• PBC: For VCD/SVCD only, enable or
disable the PBC (Playback Control) feature.
•
•
•
/ : Skip to the previous or next
title, chapter, track, or le.
• To search forward fast or rewind the
track, tap on the progress bar.
/ : Start, pause, or resume play.
: Display control icons on the second
page.
18 EN
• : Select a repeat mode.
• DVD: [Repeat chapter] (repeat the
current chapter), [Repeat title] (repeat
the current title), [Repeat all] (repeat
all chapters and titles), or [Repeat off]
(cancel repeat play).
• VCD/SVCD: [Repeat one] (repeat the
current track) or [Repeat all] (repeat
all tracks).
• Recorded les: [Repeat one] (repeat
the current video le), [Repeat folder]
(repeat all video les in the current
folder), or [Repeat all] (repeat all video
les).
• [16:9]/[4:3]: Select an aspect ratio.
•
: Tap to display the brightness bar, and
then tap on the bar to adjust the screen
brightness.
•
: Tap to display the contrast bar, and
then tap on the bar to adjust the image
contrast.
•
: Tap to display the saturation bar, and
then tap on the bar to adjust the image
saturation.
•
: Display control icons on the rst page.

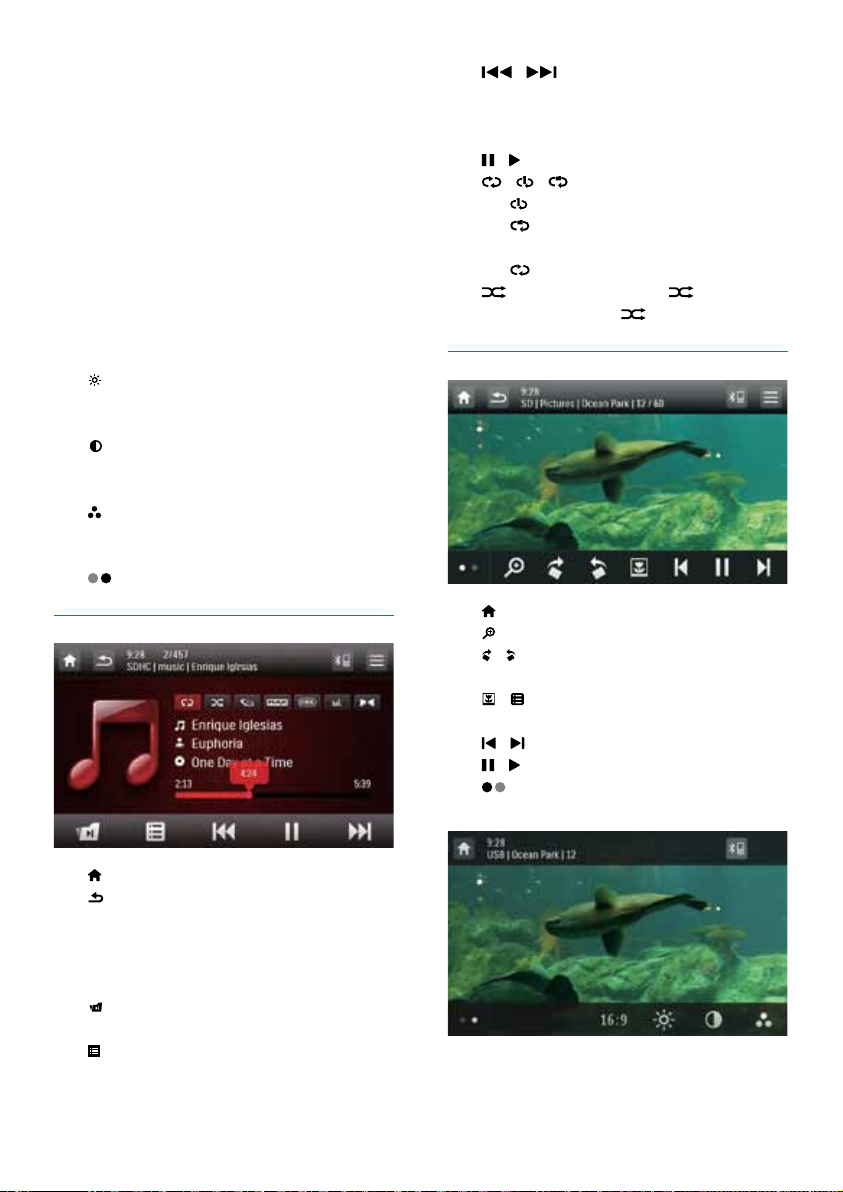

Audios
• : Return to the home menu.
•
• Press once to access the track list.
• Press twice to access the folder list.
• Press repeatedly to return to the
playback interface.
•
: For recorded les only, skip to the next
audio folder.
•
: Return to the list of tracks or folders
(see 'Browse recorded les' on page 20).
• / : Skip to the previous or next
track.
• To search forward fast or rewind the
track, tap on the progress bar.
•
/ : Start, pause, or resume play.
•
/ / : Select a repeat mode.
•
: Repeat the current track.
•
: For recorded les, repeat all tracks
in the current folder.
•
(highlighted): Repeat all tracks.
•
: Select random play ( highlighted)
or sequential play (
Pictures
in gray).
• : Return to the home menu.
•
: Zoom in or out of the picture.
•
/ : Rotate the picture clockwise or anti-
clockwise by 90 degrees.
•
/ : Return to the list of les or folders
(see 'Browse recorded les' on page 20).
•
/ : Select the previous or next picture.
•
/ : Pause or resume the slideshow.
•
: Display control icons on the second
page.
• [16:9]/[4:3]: Select an aspect ratio.
19EN
• : Tap to display the brightness bar, and
then tap on the bar to adjust the screen
brightness.
•
: Tap to display the contrast bar, and
then tap on the bar to adjust the image
contrast.
•
: Tap to display the saturation bar,
and tap on the bar to adjust the image
saturation.
•
: Display control icons on the rst page.

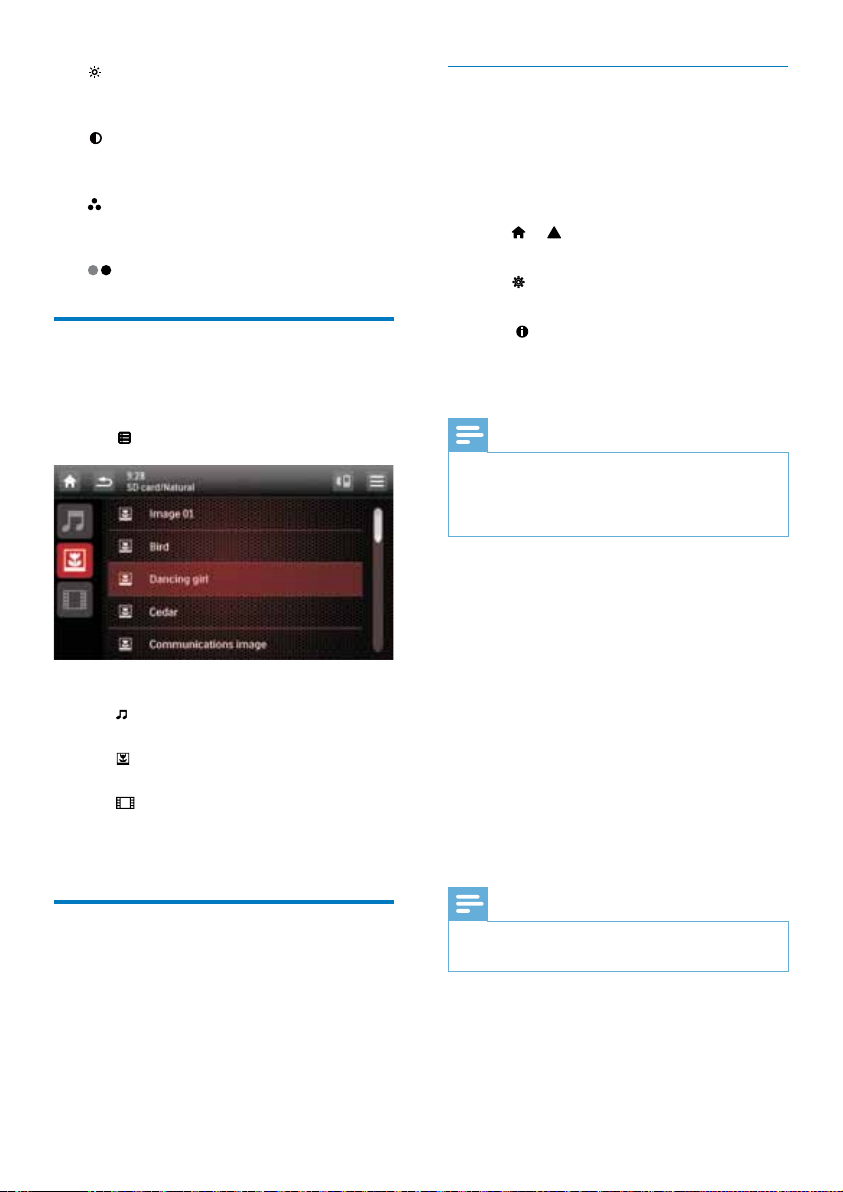

Browse recorded les
During playing recorded les, you can access
the le list and select les from the list.
1 Tap to access the list of les or folders.
2 Tap an icon to select a le category.
•
: Display the list of audio tracks or
folders.
•
: Display the list of picture les or
folders.
•
: Display the list of video les or
folders.
3 Tap the name of a le to start play.
Play DivX VOD videos
To play DivX® VOD videos on this product,
you need the DivX® VOD code on this
product, the DivX Player installed on your
computer, and a free DivX Account.
Find the DivX® VOD code on your product.
1 Tap > to access the full menu with all
feature icons displayed.
2 Tap [Settings] to access the system
setup menus.
3 Tap [Info] to access the [Info] menu.
4 Tap [DivX(R) VOD] to display the
registration code.
Note
If no DivX Player is installed on your computer,
•
download it from www.divx.com for free.
• If you have no DivX Account, create one for free
through DivX Player that is installed on your computer.
On your computer through DivX Player
1 With the DivX® VOD code, register this
product under your DivX Account.
• After the registration, previous videos
that you rented or purchased with the
same DivX Account can be played on
this product.
2 Rent or purchase DivX® VOD videos with
your DivX Account.
3 Transfer the DivX® VOD videos to a
supported recordable disc.
On your product
Play the DivX® VOD videos from the disc.
About DivX® videos
DivX® video is a digital media format
that retains high quality despite of a high
compression rate. You can play DivX® VOD
(Video-on-Demand) videos that are rented or
purchased from online stores. You can also play
non-VOD DivX videos.
20 EN
Note
Go to www.divx.com to learn more about
•
downloading and playing DivX videos.
Play non-VOD DivX videos
1 Transfer the videos and subtitle les onto
a supported recordable disc, USB storage
device, or SD/SDHC card.
2 Play the video les from the disc, USB
storage device, or SD/SDHC card.
Note
To play a DivX DRM protected le, transfer it to a
•
compatible disc rst.
• The subtitle lename has to be the same as the
lename of the DivX video (the le extension
excluded).
• The DivX video le and its subtitle le must be saved
under the same directory.
• This product supports subtitle les in the following
formats: .srt and .sub.
21EN
6 Listen to radio
Switch to radio mode
After the boot-up at the rst time, the system
switches to radio mode automatically.
To switch the source back to radio afterwards,
tap
[Radio] on the home menu.
» The interface for radio is displayed.

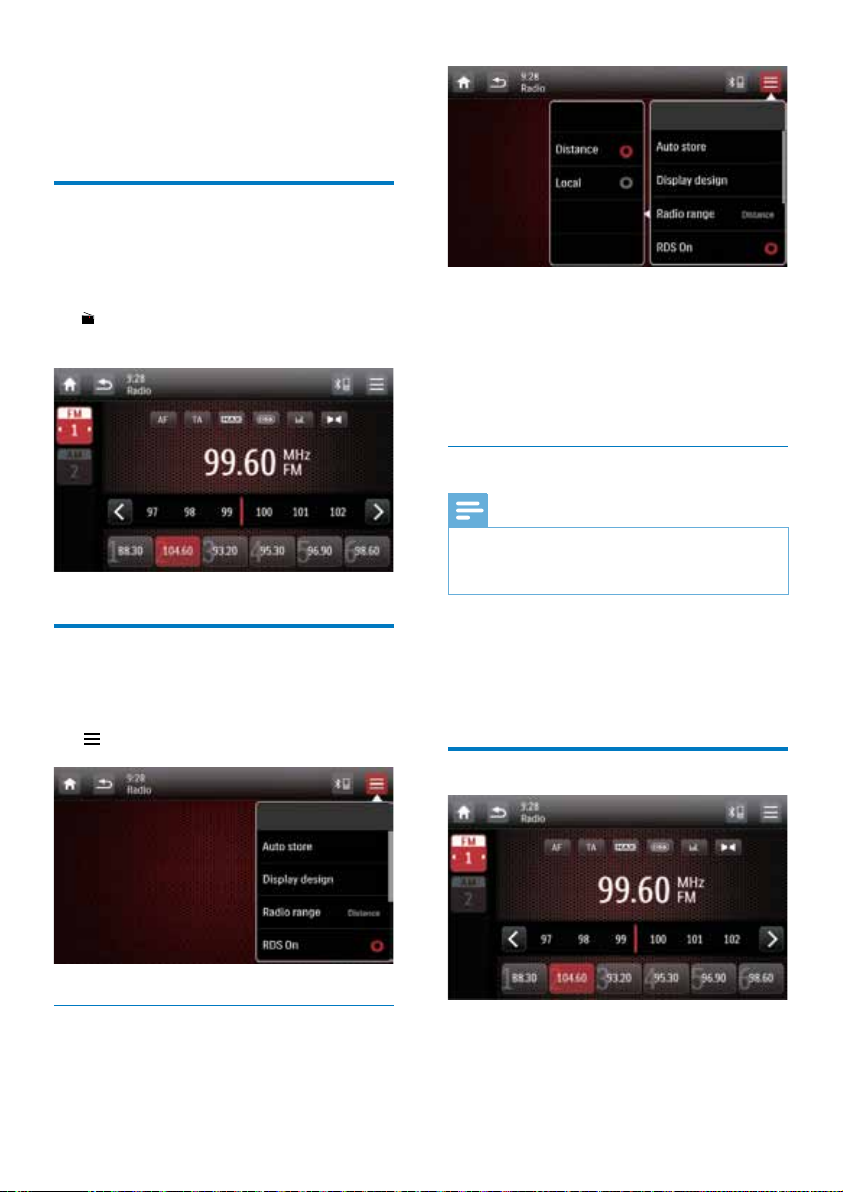

Set up
Before you search for radio stations, make prior
setup.
Tap
to display the setup menus.
2 Tap [Distance] or [Local] to select a tuner
sensitivity.
• [Distance]: Stations with strong and
weak signals can be tuned to.
• [Local]: Only stations with strong
signals can be tuned to.
Enable the RDS feature
Note
RDS feature is enabled by default.
•
• Only after the RDS feature is enabled, the option of
[PTY list] is displayed.
Tap [RDS Off] to enable the RDS feature.
» The option of [PTY list] is displayed.
• To disable the RDS feature, tap [RDS
On].
Tune to a radio station
Select a radio range
1 Tap [Radio Range].
22 EN
1 Tap FM or AM to select a band.
• FM bands: FM1, FM2, FM3
• AM bands: AM1, AM2
2 Tap or repeatedly until the frequency
of target radio station is displayed.
• To tune to a radio station automatically,
tap and hold
frequency digits start change.
Tip
You can also press BAND on the remote control
•
repeatedly to select a band.
Store radio stations in memory
or until the
2 Tap one of the preset channels (1 to 6) to
select a preset radio station.
Use RDS related features
You can store up to 6 stations in each band.
Store radio stations manually
1 Select a band.
2 Tune to the target radio station.
3 Tap and hold one of the channels (1 to 6)
over two seconds.
» The radio station is saved under the
selected channel.
Store radio stations automatically
You can search for a radio station with intro
search, which broadcasts a 10-second preview
of each detected radio station.
1 Select a band.
2 Tap .
3 Tap [Auto Store].
» Auto search starts. The six strongest
stations of the selected band are saved
in preset channels automatically.
Tune to a preset radio station
1
Select a band.
Note
Only after RDS feature is enabled, you can use RDS
•
related features.

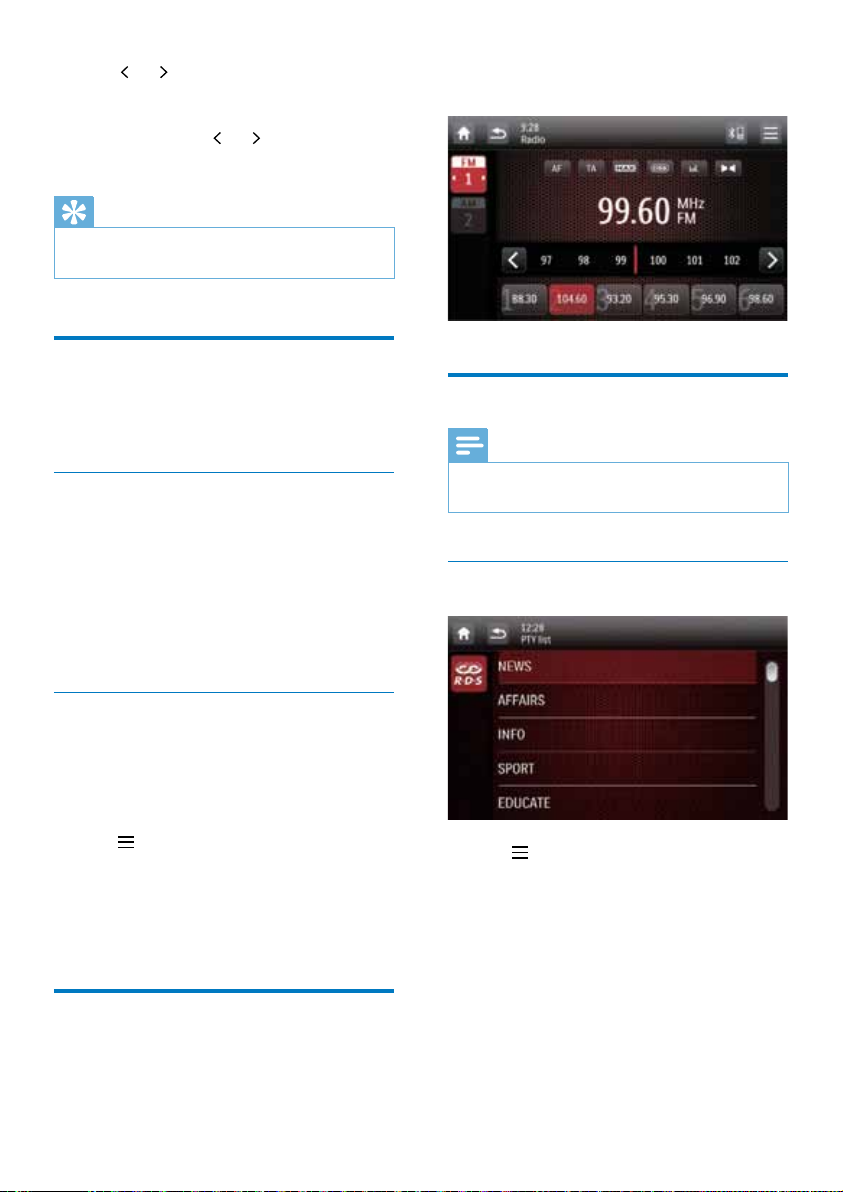

Search for RDS programs of a specic
type
1 Tap > [PTY list] to display the list of
program types.
2 Tap the name of a program type to start
search.
» Once an RDS station that transmits
programs of the selected type is
found, the RDS station is broadcast
automatically.
• To save the RDS station, tap and hold
one of the preset channels.
23EN
• To search for another RDS station,
repeat steps 1 and 2.
RDS program types
Item Program
type
1 NEWS News services
2 AFFAIRS Politics and current
3 INFO Special information
4 SPORT Spor ts
5 EDUCATE Education and advanced
6 DRAMA Radio plays and
7 CULTURE Culture, religion and
8 SCIENCE Science
9 VARIED Entertainment programs
10 POP M Pop music
11 ROCK M Rock music
12 MOR M Light music
13 LIGHT M Light classical music
14 CLASSICS Classical music
15 OTHER M Special music programs
16 WEATHER Weather
17 FINANCE Finance
18 CHILDREN Children’s programs
19 SOCIAL Social Affairs
20 RELIGION Religion
21 PHONE IN Phone In
22 TRAVEL Tr avel
23 LEISURE Leisure
24 JAZZ Jazz Music
25 COUNTRY Country Music
26 NATION M National Music
27 OLDIES Oldies Music
28 FOLK M Folk Music
29 DOCUMENT Documentary
30 TEST Alar m Test
31 ALARM Alarm
Description
affairs
programs
training
literature
society
Use alternate frequencies
If the signal of an RDS station is poor, enable
the AF (Alternate Frequency) function. The
system searches for a strong station that
broadcasts the same program.
Tap AF to enable or disable the AF function.
• AF (highlighted): The function is enabled.
• AF (in gray): The function is disabled.
Receive trafc announcement
If you want to receive trafc announcement,
enable the TA (Trafc Announcement) function.
Tap TA to enable or disable the TA function.
• TA (highlighted): The function is enabled.
When a trafc announcement is on air,
the system automatically switches to
radio mode and begins to broadcast the
trafc announcement. When the trafc
announcement is over, the system returns
to the previous mode.
• TA (in gray): The function is disabled.
24 EN
7 Use the
navigation
system
Insert the map data card
Note
The map data card is not included in the packaging.
•
• Before using the map data card, update the map data
if necessary.
1 Flip up the protective cover.
2 Insert the map data card into the MAP slot
until you hear a "click".
3 Close the protective cover.
2 Follow the user manual of the navigation
map to set navigation specications.
Navigate your road trip
Note
Risk of trafc accident! Never operate the navigation
•
system during drive. Complete the setting of your
destination and other navigation specications before
you drive.
1 Press NAVI.
• You can also tap
to access the navigation system.
» The navigation interface is displayed in
a few seconds.
on the home menu
25EN
8 Use Bluetooth
devices
With this system, you can listen to audio from a
player and make a call through Bluetooth.
Activate the Bluetooth function
• On the home menu, tap .
• In any other mode, tap
screen.
Pair a device
on top of the

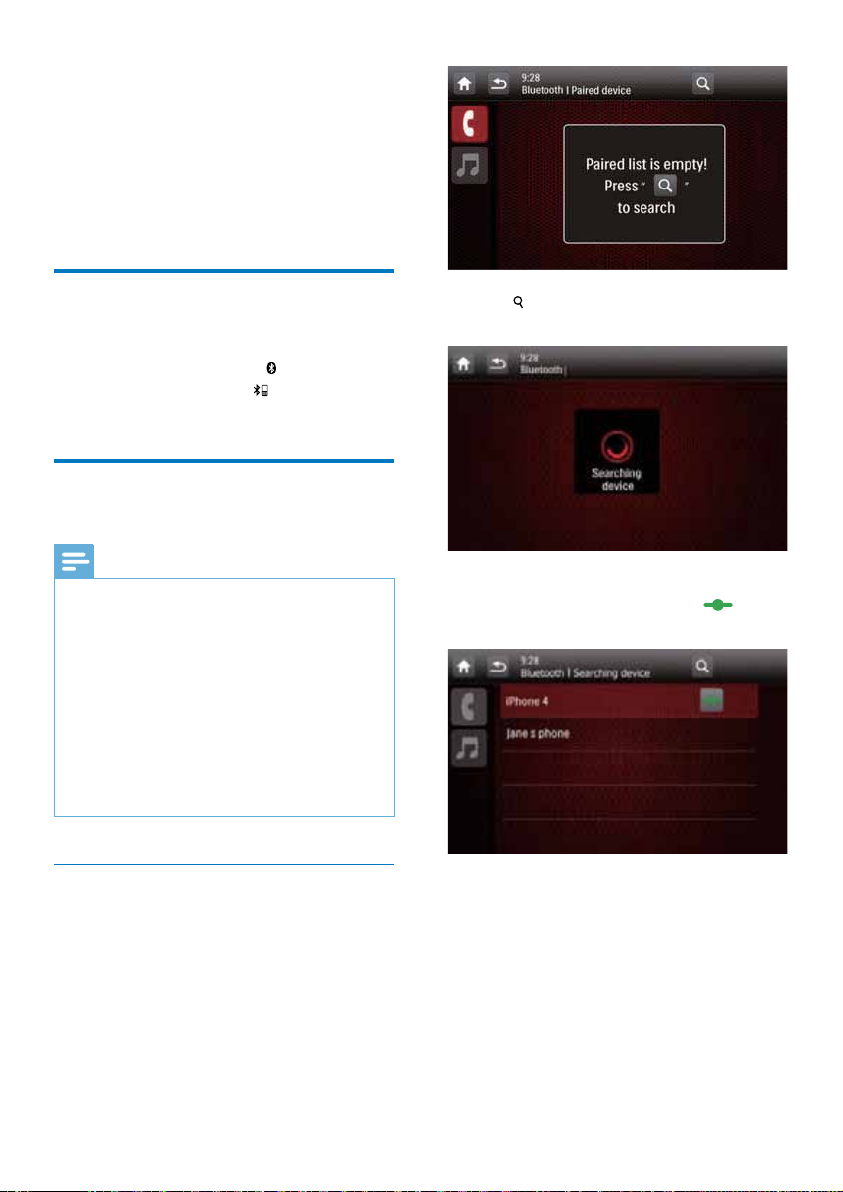

2 Tap on this system to search for other
Bluetooth devices.
Note
Philips does not guarantee the compatibility with all
•
Bluetooth devices.
• Before pairing a device with this system, read its user
manual for Bluetooth compatibility.
• Make sure that Bluetooth function is enabled on your
device, and your device is set as visible to all other
Bluetooth devices.
• The operational range between this system and a
Bluetooth device is approximately 8 meters (24 feet).
• Any obstacle between this system and a Bluetooth
device can reduce the operational range.
• Keep away from any other electronic device that may
cause interference.
Pair the rst device
1 Activate the Bluetooth function on this
system.
» The following interface is displayed.
3 In the device list, tap the name of your
Bluetooth device, and then tap
the name.
behind
» The paring star ts, and then a pairing
request from CED1900 is displayed on
your device.
4 On your device, accept the pairing request
from CED1900, enter the default password
'0000', and then conrm the password
entry.
» [Paired OK!] ashes, and then
[Connecting] is displayed on this
system.
26 EN
5 On your device, enable or permit the
connection with CED1900.
• If a player is connected, the music
playback interface is displayed on this
system.

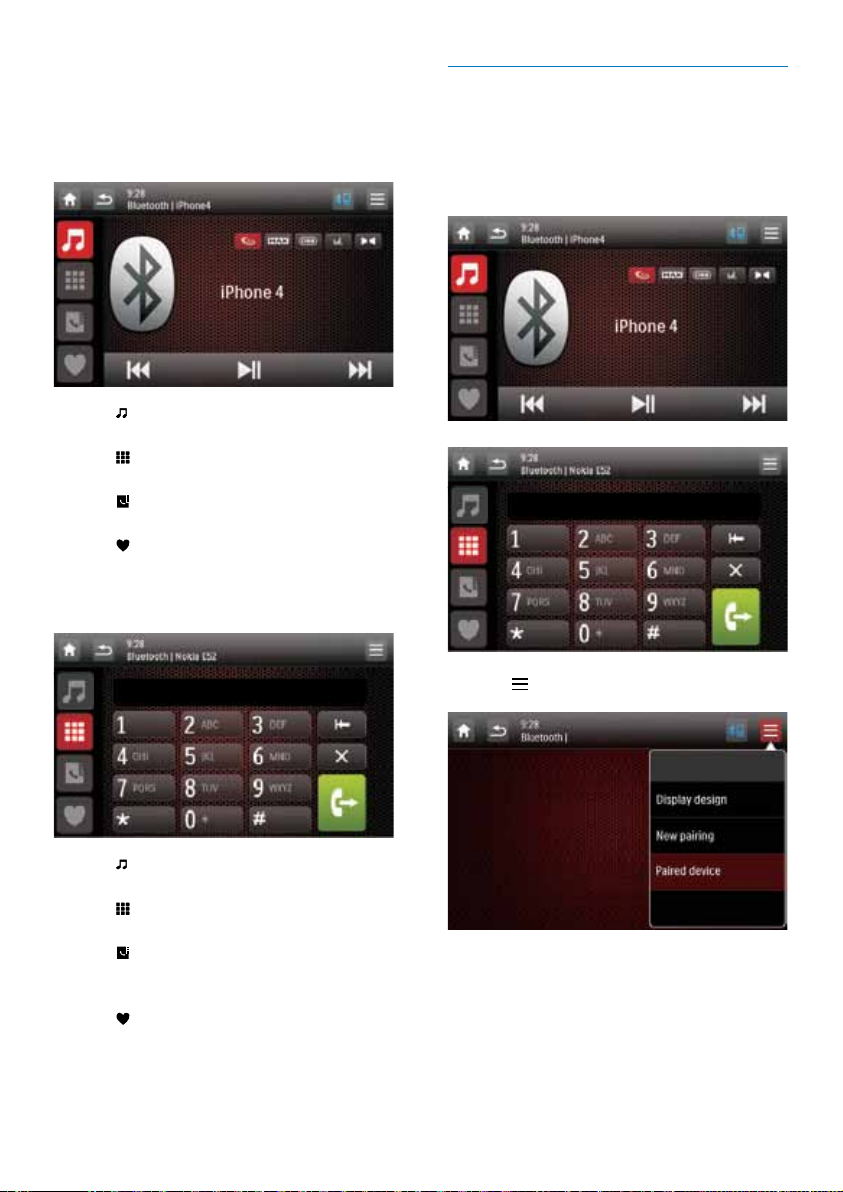

: Tap it to return to the music
playback interface.
: Tap it to display the list of paired
mobile phones.
: Tap it to display the list of paired
mobile phones.
: Tap it to display the list of paired
mobile phones.
• If a mobile phone is connected, the
keypad is displayed on this system.
Pair more devices
1 Activate the Bluetooth function on this
system.
» One of the following interfaces is
displayed.
players.
keypad for phone calls.
that is synchronized with your mobile
phone and keypad.
contacts.
: Tap it to display the list of paired
: Tap it to display the on-screen
: Tap it to display the phone book
: Tap it to display the list of favorite
2 Tap on the top right corner.
3 Tap [New pairing] to star t searching for
Bluetooth devices.
4 Repeat steps 3 to 5 that are indicated in
the above section "Pair the rst device"
(see 'Pair the rst device' on page 26) to
complete the connection.
27EN
Note
You can connect a music player and a mobile phone
•
simultaneously.

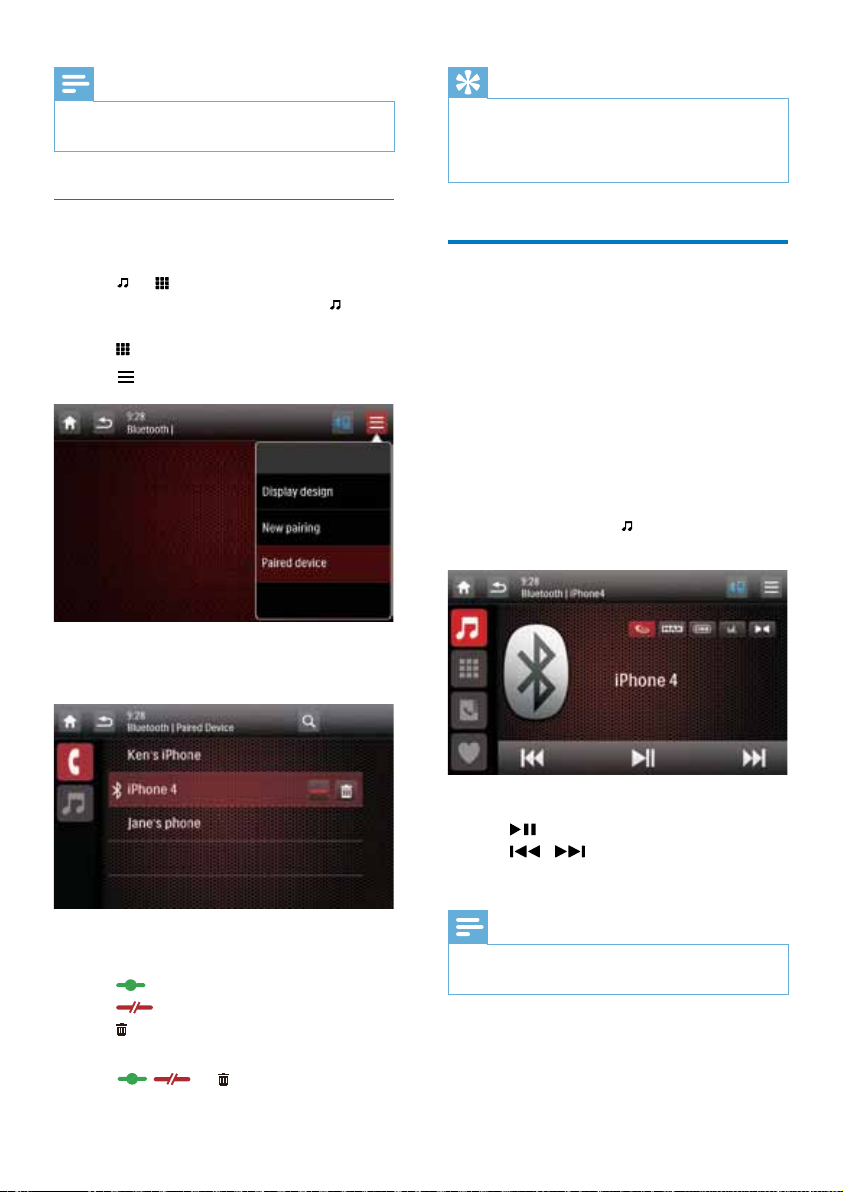

Manage paired devices
Tip
If you want to manually reconnect a device after the
•
connection is interrupted, disable the function of
automatic connection (see 'Adjust Bluetooth settings'
on page 39).
1 Activate the Bluetooth function.
2 Tap or .
• To manage paired players, tap
• To manage paired mobile phones, tap
.
3 Tap on the top right corner.
.
4 Tap [Paired Device].
» The list of paired devices is displayed.
5 Tap the name of the paired device that you
want to reconnect, disconnect, or delete.
•
: Tap to reconnect the device.
•
•
6 Tap , , or .
: Tap to disconnect the device.
: Tap to delete the device from the
list of paired devices.
Play audio from a connected device
If the connected Bluetooth device supports
Advanced Audio Distribution Prole (A2DP),
you can listen to tracks that are stored on the
device through the system. If the device also
supports Audio Video Remote Control Prole
(AVRCP) prole, you can control play on the
system or with its remote control.
1 Play a track on the connected device.
2 On this system, tap to display the music
playback interface.
3 Tap icons on the interface to control play.
•
: Pause or resume play.
•
/ : Select the previous or
next track.
Note
If the connected device does not support the AVRCP
•
prole, control play on the connected device.
28 EN
Make a call
Note
Keep the Bluetooth connection active between the
•
system and your mobile phone.
Locate the external microphone
You can connect an external microphone for
better communication quality.
Note
The external microphone is not included in the
•
packaging of this system.
1 Make sure that the microphone is
connected to this system (see 'Connect
wires' on page 8).
2 Place the microphone at a proper location,
such as, stick it onto the dashboard, or clip
it on the sun-shield.
Call a number
You can make phone calls with the system.

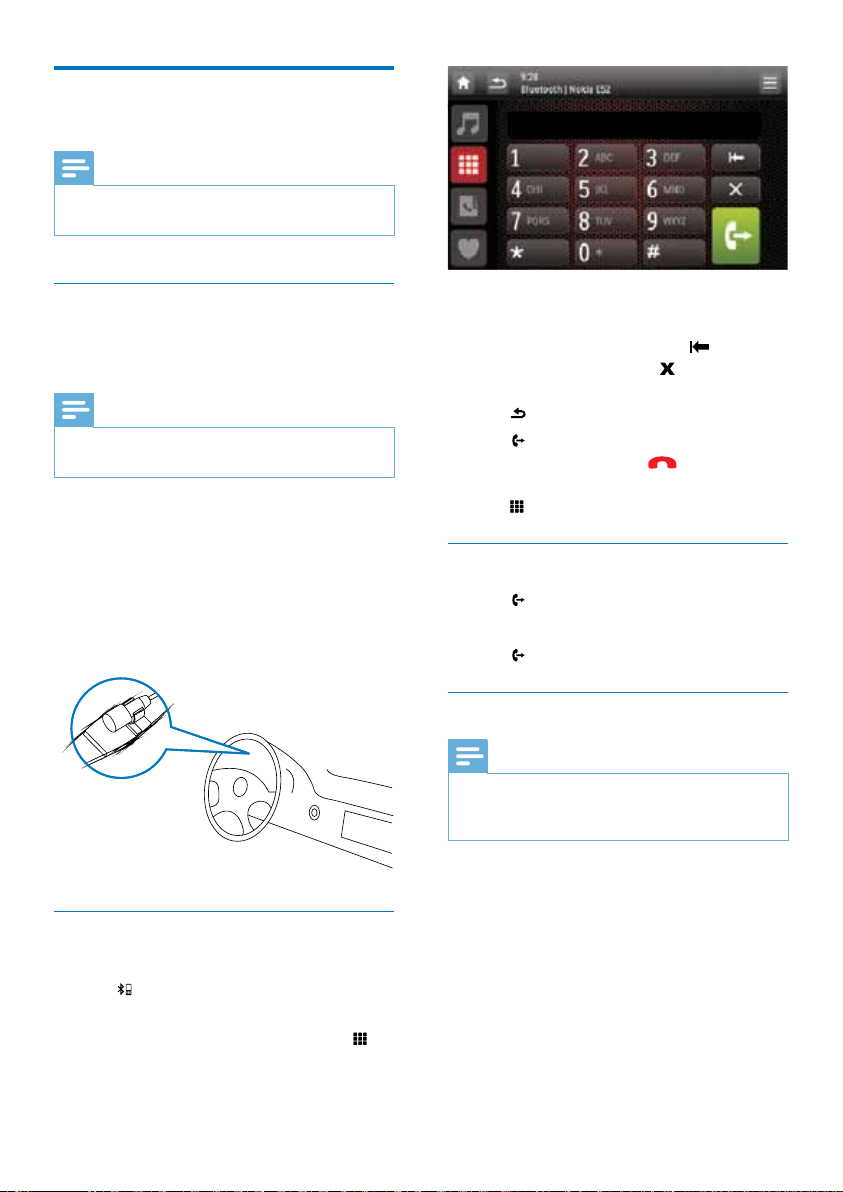

1 Tap on top of the screen.
» The keypad is displayed.
• If the keypad is not displayed, tap
.
2 Tap number icons to enter the phone
number.
• To clear the last digit, tap
• To clear all digits, tap
• To return to the previous screen, tap
.
3 Tap to send the call.
• To end the call, tap
• To enter numbers during the call, tap
to display the keypad rst.
Redial the last called number
1 Tap .
» The last called number is displayed.
2 Tap again to send the call.
Answer a call
Note
By default, all incoming calls are picked up automatically.
•
You can disable the function of automatic answer (see
'Adjust Bluetooth settings' on page 39).

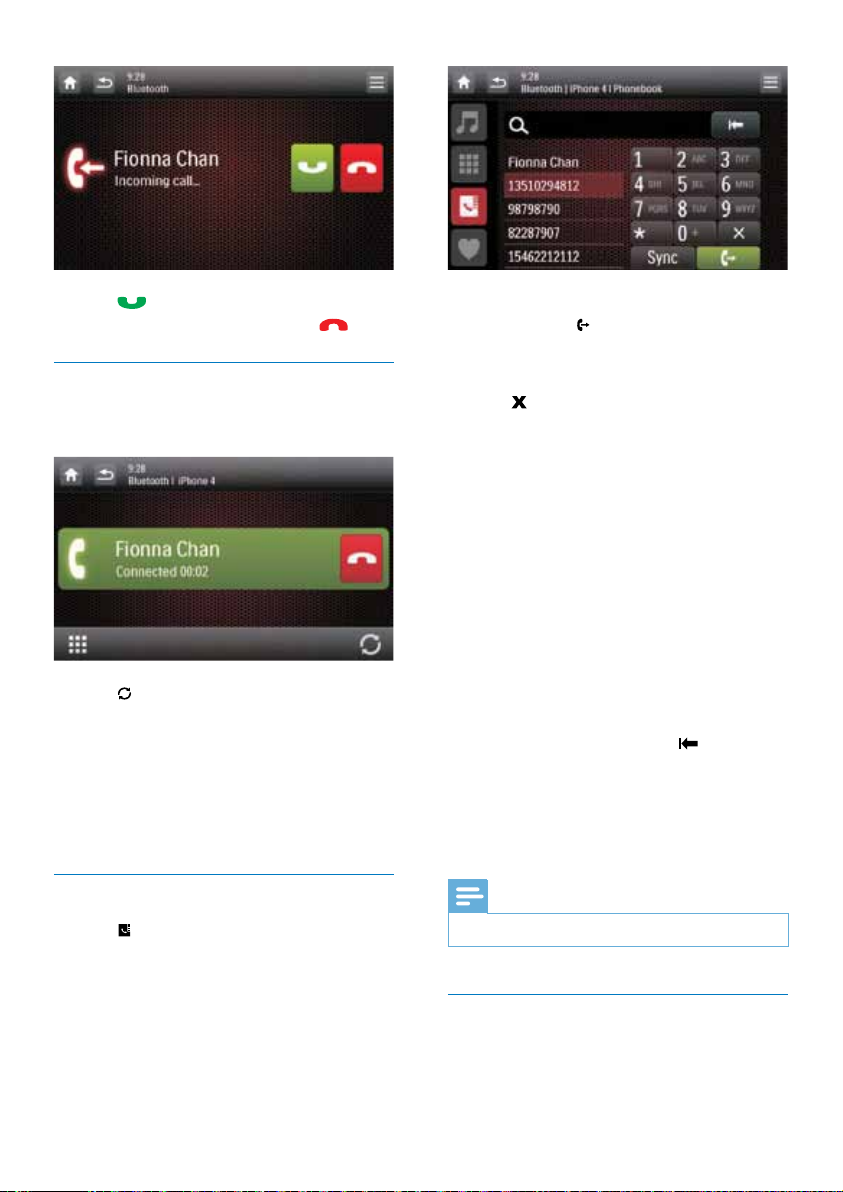

1 When there is an incoming call, [Incoming
call…] is displayed on the screen.
.
.
.
29EN
2 Tap to answer the call.
• To reject or end the call, tap
Transfer a phone call to mobile phone
By default, the voice comes from the
loudspeakers during a call.
.
1 Tap to transfer the phone call to your
mobile phone.
» The loudspeakers are muted, and the
voice comes from the mobile phone
only.
2 Take up your mobile phone for the
conversation.
3 Tap the name of a contact from the list,
and then tap
Manage the phone book
1 Tap the name of a contact from the list.
2 Tap .
» The following options are displayed.
• [Delete one]: Delete the selected
contact.
• [Delete all]: Delete all contacts.
• [Cancel]: Return to the phone book
interface.
3 Tap one of the options and conrm.
Search for a contact
Tap the alphanumeric icons to enter the
keyword.
• To enter the rst letter displayed on the
icon, tap it once.
• To switch between letters and the digit, tap
an icon briey and repeatedly.
• To delete the last input, tap
» The system searches for contacts
whose name include the keyword.
» If no contact is found, [No match] is
displayed.
to send a call.
.
Use the on-screen phone book
1 Tap to display the phone book interface.
2 Tap [Sync] to star t synchronizing the
phone book with your mobile phone.
» [Synchronizing...] is displayed.
» After the synchronization is complete,
the contact list is displayed.
30 EN
Note
Up to 5 characters can be entered as the keyword.
•
Edit the favorite call list
Save the number of a contact into the favorite
call list, and then you can send a call quickly.
1 Tap to display the favorite call list.
2 Tap behind a sequence number.
3 Enter the number and then tap OK to
conrm.
» The number is saved.
• To send a call, tap the number from
the list.
31EN
9 Play from an
iPod/iPhone
Note
During play, no audio signals are transferred through
•
the headphone socket of your iPod/iPhone.
Compatible iPod/iPhone models
This system supports the following iPod and
iPhone models.
• iPhone 4, iPhone 3GS, iPhone 3G, and
iPhone
• iPod touch (1st, 2nd, 3rd, and 4th
generations)
• iPod nano (1st, 2nd, 3rd, 4th, 5th, and 6th
generations)
• iPod classic
» The system starts playing tracks that
are stored on your iPod/iPhone.
• Once your iPod/iPhone is connected and
recognized,
popular icons on the home menu. You
can tap it to switch back to this playback
interface.
Note
Before you disconnect your iPod/iPhone, switch the
•
system to another source.
Control play
is displayed in the bar of

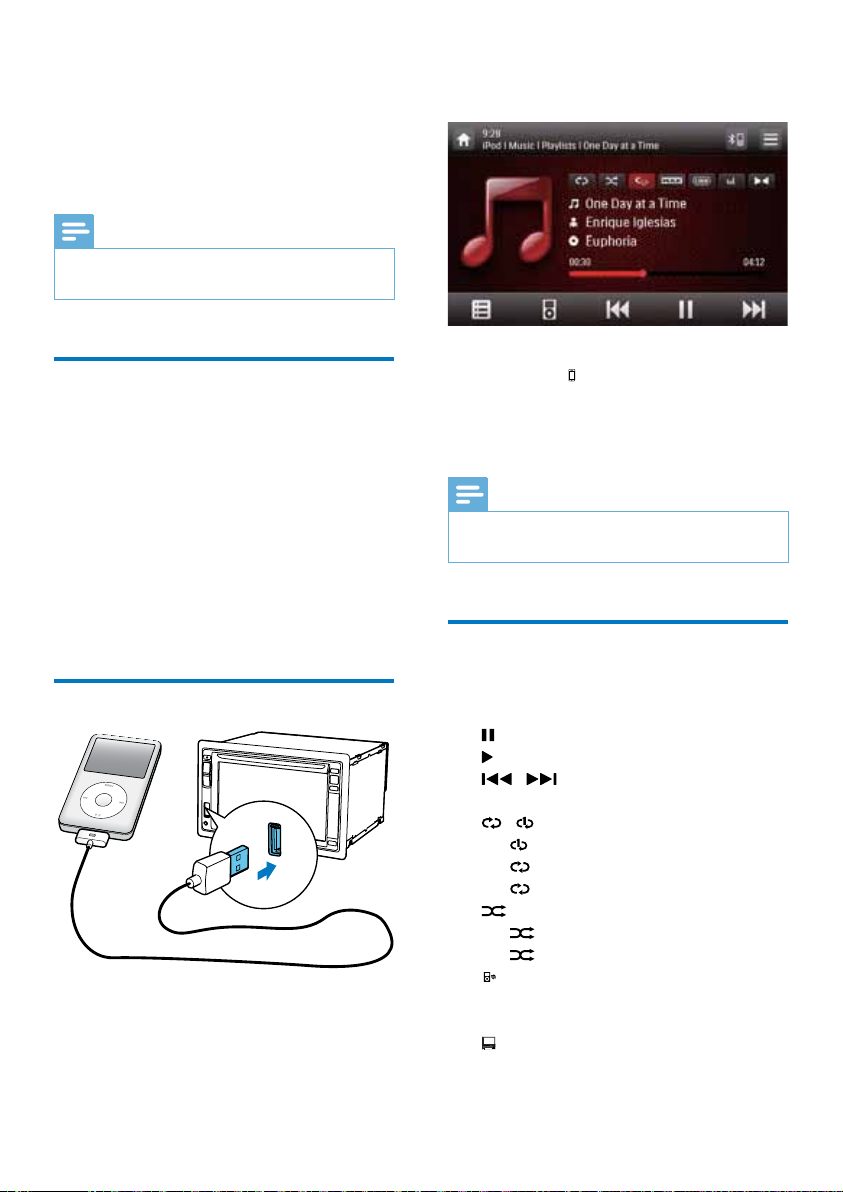

Connect your iPod/iPhone
Connect an Apple 30-pin USB cable to:
• the USB socket on the front panel of this
system, and
• your iPod/iPhone.
32 EN
By default, use the on-screen playback interface
of this system to control play.
•
: Tap to pause play.
•
: Tap to resume play.
•
•
•
•
•
/ : Tap to play the previous or
next track.
/ : Tap to select a repeat mode.
•
: Repeat the current track.
•
(highlighted): Repeat all tracks.
•
(in gray): Cancel repeat play.
: Tap to select a play mode.
•
(highlighted): Play tracks randomly.
•
(in gray): Play tracks in sequence.
: Tap to switch to the iPod control
mode, and then you can control play on
your iPod/iPhone.
: Tap to switch back to the on-screen
control mode, and then you can control
play on this system.
• : Tap to access the music menu.
Search for a track
You can select a track quickly through the music
menu.
1 Tap to access the music menu.
2 Tap to select a categor y.
» Tracks under the selected category are
listed.
3 Tap a track name to start play.
• If one or more sub-categories are
under the selected category, select a
category rst.
Charge your iPod/iPhone
Once the iPod/iPhone is connected and
recognized, the iPod/iPhone begins to charge.
33EN
10 Adjust sound
Enable the FullSound effect
When you listen to radio, enjoy music, or watch
video, follow the instructions below to adjust
sound.
Adjust the volume level
Press +/- repeatedly on the front panel.
• +: Increase the volume level.
• -: Decrease the volume level.
Mute sound
Press on the front panel.
• To release the speakers from mute status,
press
again.
Enable the maximum sound
Tap on the playback interface.
•
•
(highlighted): The maximum sound
is enabled.
(in gray): The maximum sound is
disabled.
Enable the DBB sound effect
Note
This feature is unavailable when you listen to radio.
•
Philips FullSound restores the audio details that
are lost due to compression. It enriches the
music signals so that what you hear is the full
sound with every nuance of emotion and every
detail of musical genius.
Philips FullSound can:
• bring out CD sound quality from an MP3
track,
• achieve richer bass with greater depth and
impact,
• restore the sense of spaciousness that lacks
in a compressed audio, and
• enhance sound precision and details.
Tap
on the playback interface.
•
(highlighted): The FullSound effect is
enabled.
•
(in gray): The FullSound effect is
disabled.
Select a preset sound equalizer
1
Tap on the playback interface.
» The current equalizer settings are
displayed.
When DBB (Dynamic Bass Boost) is enabled,
low tones will be enhanced electronically.
Tap
on the playback interface.
•
(highlighted): DBB sound effect is
enabled.
•
(in gray): DBB sound effect is disabled.
34 EN

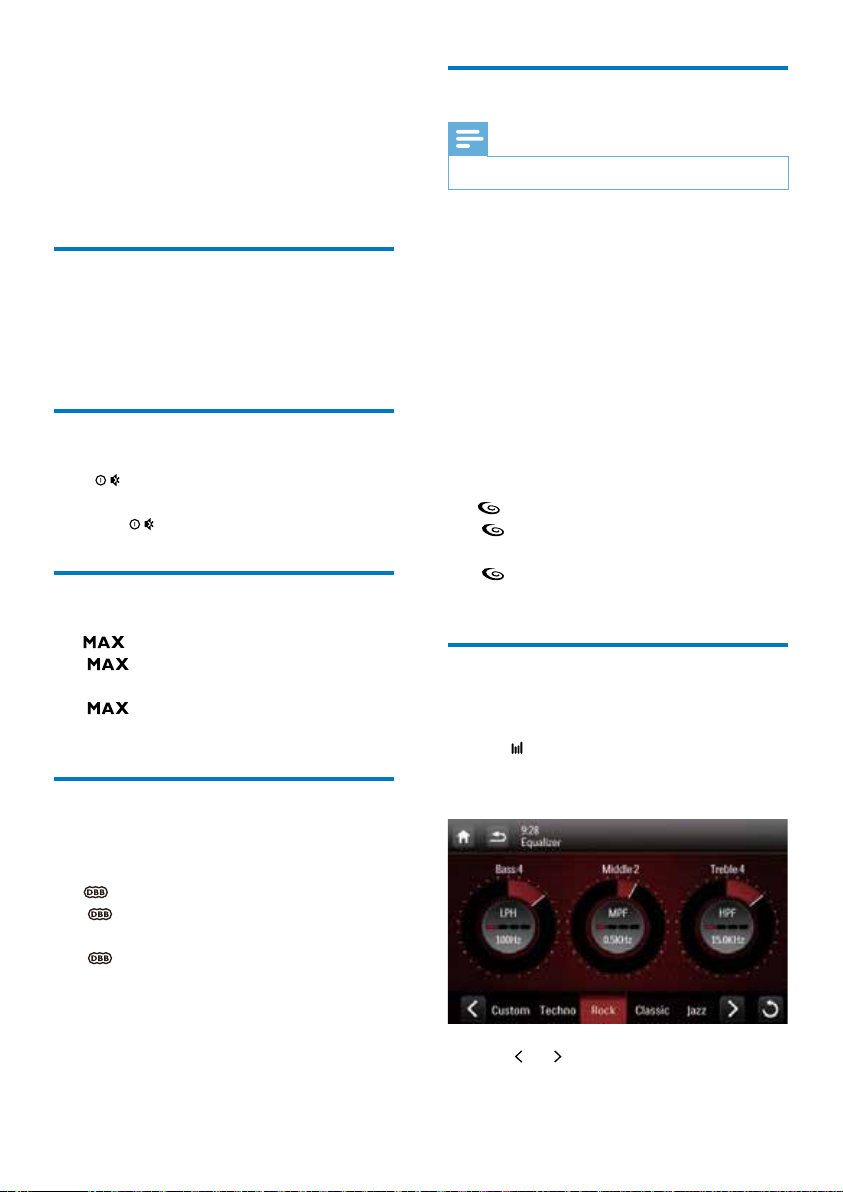

2 Tap or to select a preset sound
equalizer.
• [Custom], [Techno], [Rock], [Classic],
[Jazz], [Optimal], [Flat], or [Pop]
» The selected sound equalizer is
highlighted.
3 Tap on the circle or bar to adjust the
settings.
• [Bass]: bass range (-14 to +14)
• [Middle]: middle range (-14 to +14)
• [Treble]: treble range (-14 to +14)
• [LPF]: low pass lter range (60 Hz, 80
Hz, 100 Hz, or 160 Hz)
• [MPF]: middle pass lter range (0.5
KHz, 1.0 KHz, 1.5 KHz, or 2 5 KHz)
• [HPF]: high pass lter range (10.0 KHz,
12.5 KHz, 15.0 KHz, or 17.5KHz)
•
: Tap and hold to restore the settings.
4 Tap to exit.
Others
Tap on the playback interface.
» The setup interface is displayed.
• : Tap to display the [Music zone]
interface for selecting a listening zone.
•
: Tap to display the [Fader/
Balance] interface for adjusting the
fader and balance.
•
: Tap to display the [SubWoofer]
interface for setting the sub-woofer.

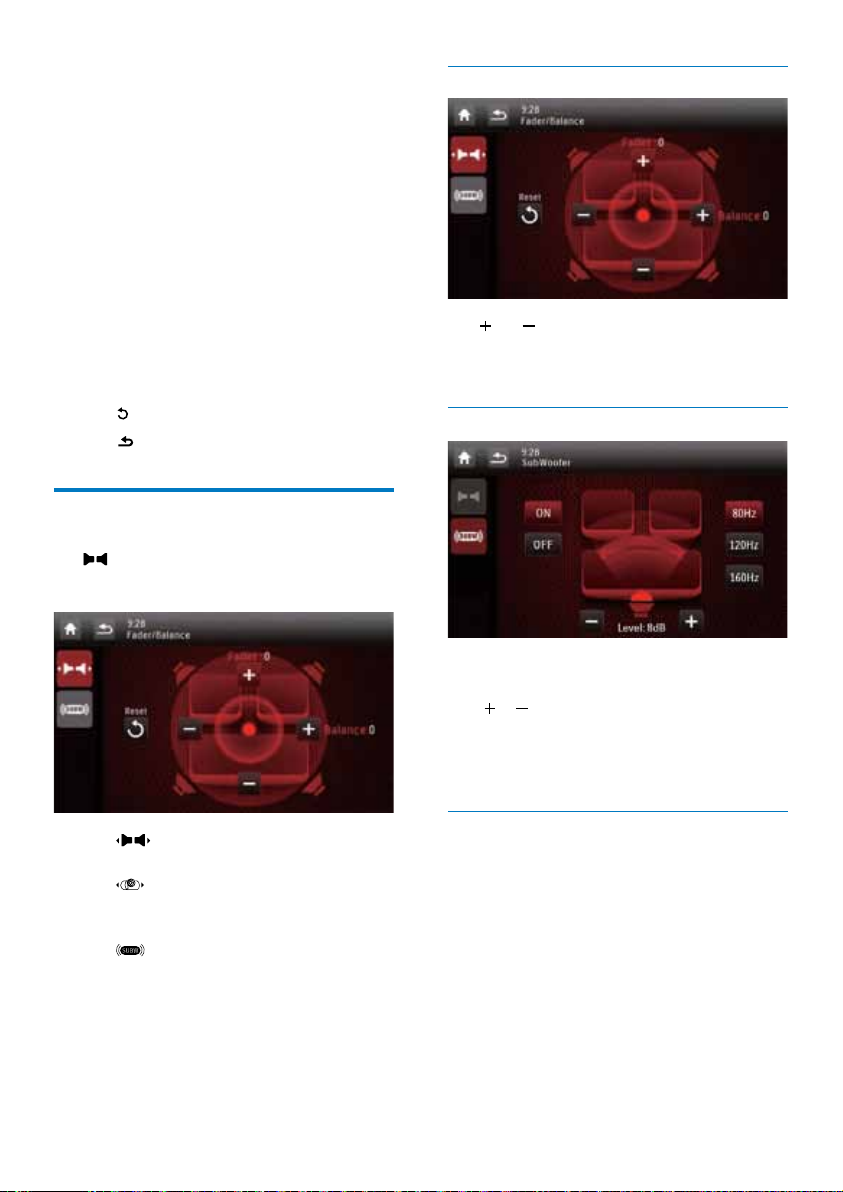

Adjust the fader and balance
Tap or to adjust fader or balance value.
• [Fader]: fader range (+16 to -16).
• [Balance]: balance range (-16 to +16).
Set the sub-woofer
• [On]/[Off]: Tap to turn on or off the sub-
woofer.
•
/ : Tap to set the volume of sub-
woofer (0 dB to 14 dB).
• [80 Hz]/[120 Hz]/[160 Hz]: Tap to select a
low pass lter range for the sub-woofer.

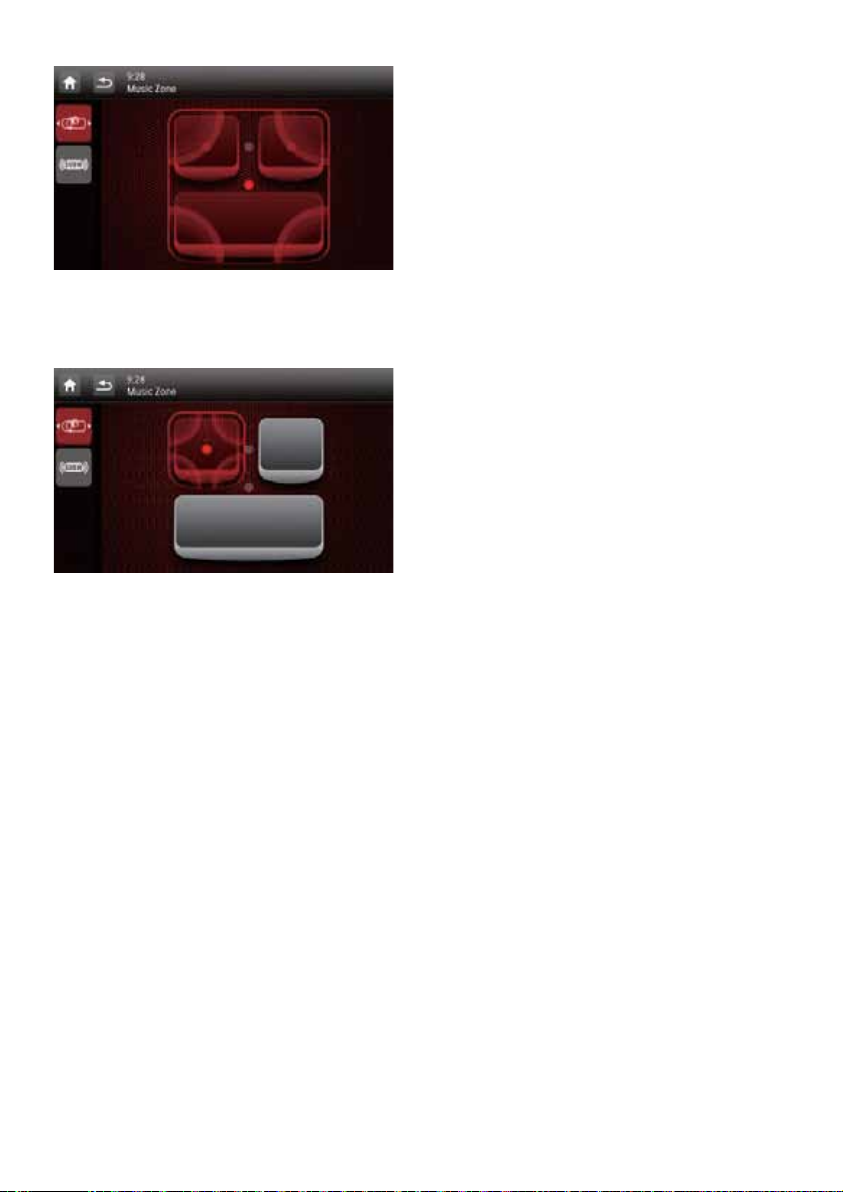

Select a listening zone
Philips’ innovative Zone technology enables the
driver or passengers to enjoy music with the
best speakers balance and experience more
vivid spacial effect as the artist is intended to
create. You can switch the music listening zone
from the driver to passengers for the best
speaker sound settings in car.
35EN
Tap a gray point to switch the listening zone.
» The highlighted area indicates the
current listening zone.
36 EN
11 Adjust settings
Access system setup menus
1
Tap > to display all feature icons.
2 Tap [Settings].
» The [General] menu is displayed.
3 Tap an icon on the left.
•
: Access the [General] menu to
adjust general settings.
•
: Access the [Info] menu to view
system information.
•
: Access the [Navigation] menu to
adjust navigation settings.
•
: Access the [Bluetooth] menu to
adjust Bluetooth settings.
4 Swipe your nger up or down to view
more settings.
5 Tap an option to view details or change
the setting.
• To exit the menu, tap .
Adjust general settings
Settings Options Description
[Radio
Region]
[Beep] [On] Turn the
[Off] Turn off the
[Language] Select an
[Calibration] Follow the
[Clock
mode]
[Date] Set the date.
[Time] Set the time.
[12Hr]/[24Hr] Select a time
Select a
radio region
that matches
your location.
beep sound
on. Each time
you press a
button or tap
an icon, the
unit beeps.
beep sound.
OSD (on
screen
display)
language.
on-screen
instructions
to calibrate
the touch
screen.
format.
37EN
Settings Options Description
[Parking] [On]/[Off] Enable or
disable
the video
blocking
system.
[Demo]
(Auto start
after power
off)

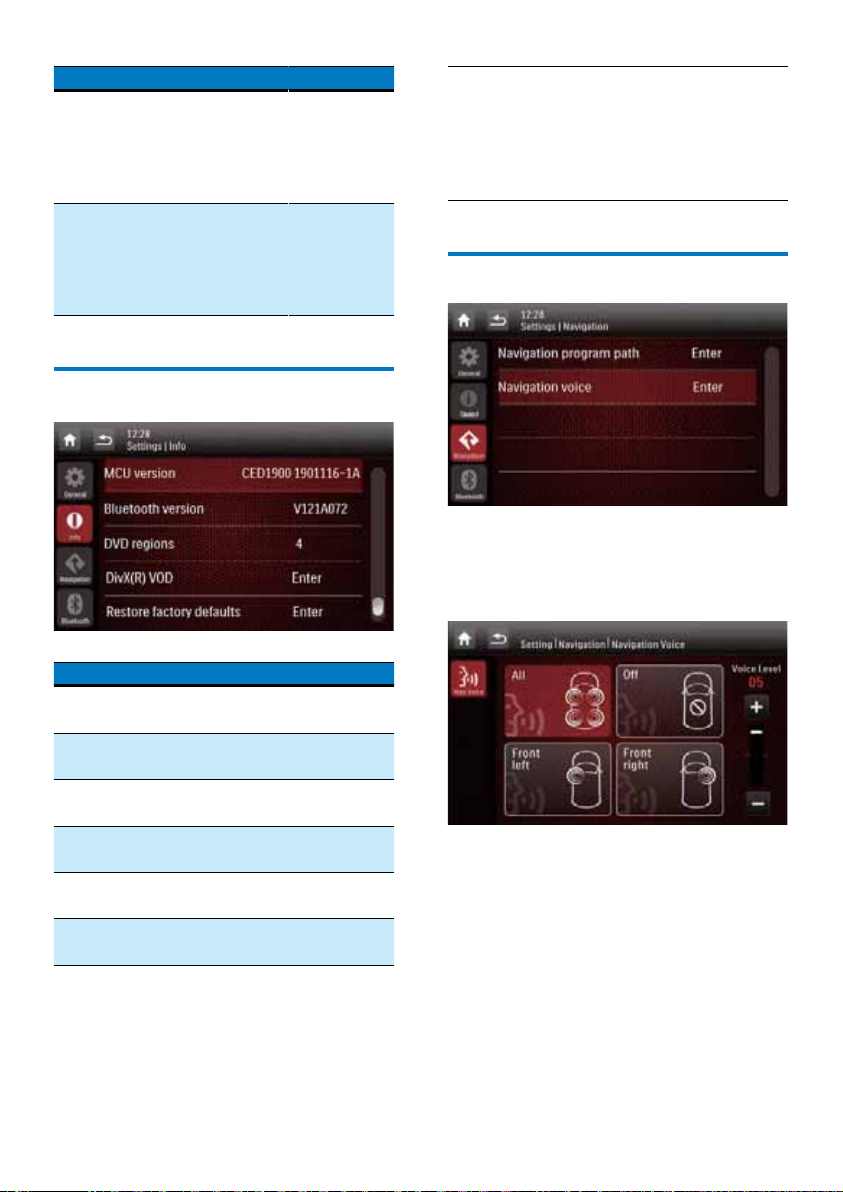

View system information
[On]/[Off] Enable it to
demonstrate
features after
the system is
power off.
[Restore
factory
defaults]
Adjust Navigation settings
Tap to display the dialog box
for restoring the system.
• Tap [Yes] to restore the sys-
tem to factory default status.
• Tap [No] to return to the
previous menu.
• [Navigation Program Path]: Tap [Enter] to
access the Navigation Program Path mode.
• [Navigation Voice]: Tap [Enter] to display
the [Navigation Voice] interface.
Settings Options
[ARM
version]
[Servo
version]
[MCU
version]
[Bluetooth
version]
[DVD
regions]
[DivX(R)
VOD]
38 EN
View rmware versions.
View the version of Bluetooth.
View the DVD region code that
the system supports.
View the DivX registration
code.
• [All]/[Front left]/[Front right]: Select a
zone for navigation voice.
• [Off]: Mute the navigation voice.
• [Voice Level]: Tap +/- to adjust the
volume of navigation voice.
Adjust Bluetooth settings
Bluetooth
settings
[New
Pairing]
[Auto
Connect]
[Auto
Answer]
[Pin Code] Set the password
[External
microphone]
Options Description
Search for new
devices.
[On] When a paired
device is within
effective range, the
system reconnects
with the device
automatically.
[Off] Reconnect manually.
[On] Answer phone calls
automatically when
the paired mobile
phone receives an
incoming call.
[Off] Answer phone calls
manually.
for pairing the car
entertainment
system with
another Bluetooth
device. The default
password is 0000.
[On] Turn on the external
microphone.
[Off] Use the integrated
microphone.
39EN
12 Others

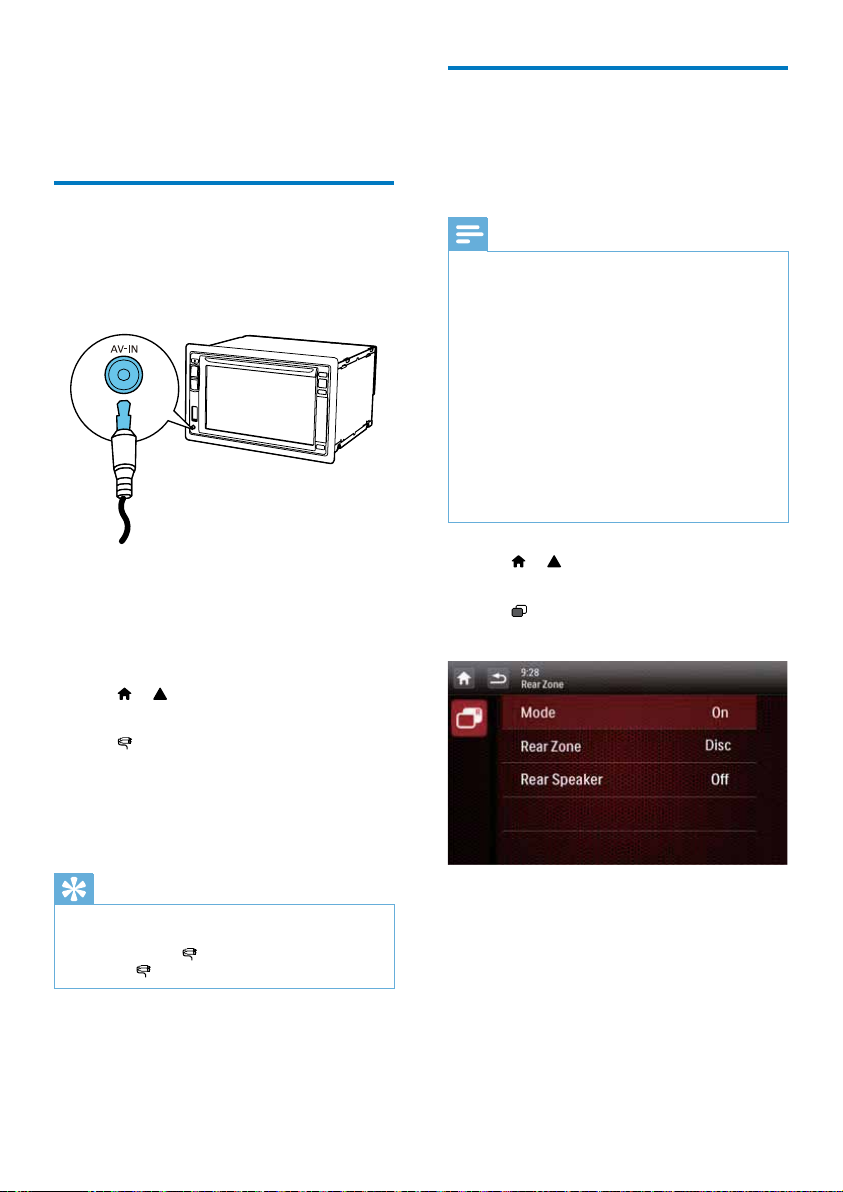

Play external audio/video input
You can connect an external audio/video player
to this system.
1 Connect a composite AV cable to
• the AV-IN socket on the front panel,
and
• the audio and video output sockets of
the external player.
2 Tap > to access the full menu with all
feature icons displayed.
3 Tap [AV-IN1] to display the playback
interface.
4 Operate on the external player to start
play (see the user manual of the external
device).
Tip
If you connect this system to an external player through
•
the VIDEO IN, AV-IN L, and AV-IN R sockets on
the rear panel, tap
instead of
[AV-IN2] to switch the source
[AV-IN1].
Use rear monitors
If one or two monitors are connected for
backseat passengers, you can select different
sources for front and backseat passengers.
Note
Make sure that rear monitors are correctly connected
•
to this system.
• Only when the multi-zone display mode is activated,
rear monitors can receive signals from the system.
• By default, the same signals are transferred to the front
and rear monitors.
• When a disc, USB storage device, SD/SDHC card, or
iPod/iPhone connected through the USB socket is
selected as the source for front zone, you cannot select
another source for rear zone.
• Only when the system is in radio mode, navigation
mode, or Bluetooth mode, you can select a source
for rear zone from disc, SD/SDHC card, USB storage
device, or iPod/iPhone connected through the USB
socket.
1 Tap > to access the full menu with all
feature icons displayed.
2 Tap
R
.
» The [Rear Zone] menu is displayed.
3 Tap [Mode] to enable or disable the signal
transferring to rear monitors.
• [On]: Enable the signal transferring to
rear monitors.
• [Off]: Disable the signal transferring to
rear monitors.
» When it is enabled, the following
interface is displayed.
40 EN

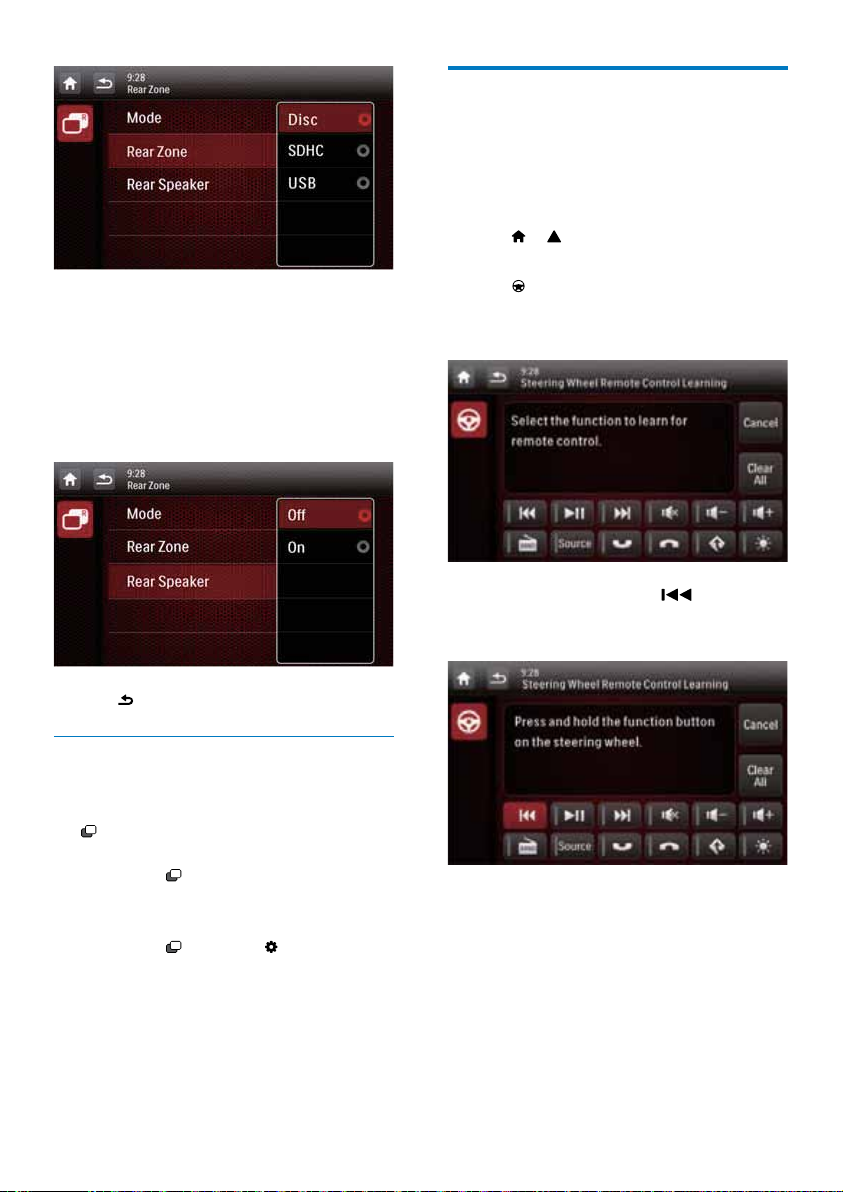

R
R
R
4 Tap to select an available source to start
play.
5 Tap [Rear Speaker] to enable or disable
the audio output to rear speakers.
• [On]: Enable the audio output to rear
speakers.
• [Off]: Mute rear speakers.
Use buttons on the steering wheel
You can assign a function to a button on the
steering wheel, and then control the system
with that button.
1 Tap > to access the full menu with all
feature icons displayed.
2 Tap .
» The [Steering Wheel Remote Control
Learning] interface is displayed.
3 Tap an icon, for example, , of which
you want to assign the function to a button
on the steering wheel.
6 Tap to return to the previous mode.
Switch the control interfaces
When different sources are selected for front
passengers and backseat passengers, you can
tap
to switch the control interface for front
source or rear source.
» When
current control interface is for the
front source.
» When
zone] displayed, the current control
interface is for the rear source.
is solidly displayed, the
blinks with and [Rear
• To cancel the assignment, tap [Cancel].
4 Press and hold the button on the steering
wheel for one second.
» The following interface is displayed.
41EN

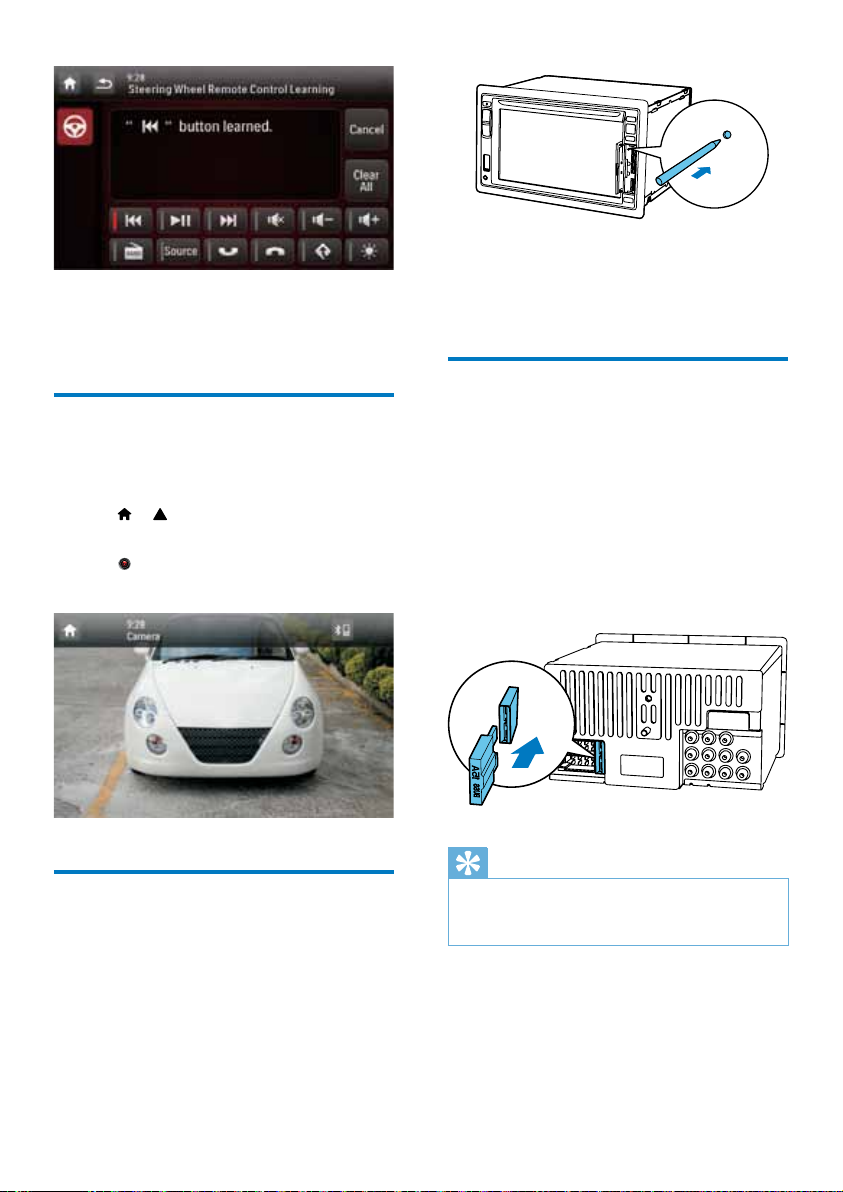

5 Repeat steps 3 and 4 to assign more
functions to buttons on the steering wheel.
• To clear the assignment, tap [Clear All].
Set the rear view camera
If a rear view camera is connected, you can
view on the screen what the camera takes.
1 Tap > to access the full menu with all
feature icons displayed.
2 Tap .
» Picture from rear camera is displayed.
1 Flip up the protective cover.
2 Press RESET with the tip of a ball-point
pen or toothpick.
Replace the fuse
If there is no power, check the fuse and replace
it if it is damaged.
1 Detach the main unit from dashboard.
2 Check the electric connection.
3 Remove the damaged fuse from the rear
panel.
4 Insert a new fuse with the same
specications (15A).
Reset the system
If the system hangs up, reset it.
42 EN
Tip
If the fuse gets damaged immediately after it is
•
replaced, an internal malfunction may occur. In this case,
consult your Philips retailer.
Upgrade the rmware
Note
Power supply must not be interrupted during the
•
upgrade.
• When the rmware upgrade succeeds, all settings are
restored to the factory default status.
Register your product
1 Go to www.philips.com/welcome.
2 Click the link of "Register my product"
(the exact wording of this link name may
vary in different languages).
3 Login with your account on the prompt
Web page.
• If you have no account for Club Philips,
create one rst on this Web page.
4 Search your product with
"CED1900BT/98" as the keyword.
5 Click the link of search result to access the
Web page for registering your product.
6 Fill in necessary information about this
product to complete the registration.
» With the registration, you can get
information about software update and
product support at this website or via
your mailbox that is registered as the
account for Club Philips.
4 Click the link of "Firmware Upgrade
Readme File" (the exact wording of this
link name may vary in different languages).
5 Read and understand the instructions on
rmware upgrade.
6 Follow the instructions to download the
upgrade packet and complete the upgrade.
• If the upgrade fails, reboot this system,
and then perform the upgrade again.
Perform the upgrade
1 Check the current rmware version of this
system (see 'View system information' on
page 38).
2 Go to www.philips.com/suppor t.
3 Login with your account for Club Philips.
» Suppor t information about your
registered product is displayed.
43EN
13 Product
information
Note
Product information is subject to change without prior
•
notice.
Radio
Frequency range - FM 87 5 - 108.0 MHz
(50kHz per step)
Frequency range AM(MW)
Usable sensitivity - FM 2 uV
Usable sensitivity - AM
(MW)
522 - 1620 KHz
(9kHz per step)
25 uV
General
Power supply 12 V DC (11 V - 16 V),
negative ground
Fuse 15 A
Suitable speaker
impedance
Maximum power
output
Continuous power
output
Pre-Amp output
voltage
Sub-woofer output
voltage
Aux-in level
Dimensions (W x
H x D)
Weight (main unit) 3.1 kg
4 - 8
45 W x 4 channels
24 W x 4 channels (4
10% T.H.D.)
4.0 V ( CD play mode; 1
kHz, 0 dB, 10 k
4.0 V (CD play mode, 61
Hz, 0 dB, 10 k
800 mV
178 x 101 5 x 160 mm
load)
load)
Disc player
System DVD / CD audio /
MP3 system
Disc diameter 12 cm
Frequency response 20 Hz - 20 kHz
Signal/noise ratio > 75dB
Total harmonic distortion Less than 0.3%
Channel separation > 55dB
Video signal format NTSC/PAL
Video output 1 +/- 0.2 V p-p
LCD
Screen size 6 2 inches
Display resolution 800 x 480 dots
Contrast ratio 500
Brightness 450 cd/m2
Bluetooth
Communication
system
Output Bluetooth Standard Power
Maximum
communication
range
Frequency band 2.4 GHz band (2.4000 GHz
Compatible
Bluetooth
proles
Supported
codecs
Receive
Transmit
Bluetooth Standard version
2.0
Class 2
Line of sight approx. 8m
- 2.4835 GHz)
Hands-Free Prole (HFP)
Handset Prole (HSP)
Advanced Audio Distribution
Prole (A2DP)
Audio Video Remote
Control Prole (AVRCP)
SBC (Sub Band Codec)
SBC (Sub Band Codec)
USB playability information
Compatible USB devices:
• USB ash memory (USB 2.0 or
USB1.1)
44 EN
• USB ash players (USB 2.0 or USB1.1)
• Memory cards (SD / MMC / SDHC)
Supported USB formats:
• USB or memory le format: FAT16,
FAT32
• MP3 bit rate (data rate): 32-320 Kbps
and variable bit rate
• WMA v9 or earlier
• Directory nesting up to a maximum of
8 levels
• Number of albums/folders: maximum
99
• Number of tracks/titles: maximum 999
• ID3 tag v2.0 or later
• File name in Unicode UTF8 (maximum
length: 128 bytes)
Supported MP3 disc format:
• ISO9660, Joliet
• Maximum title number: 512 (depending on
le name length)
• Maximum album number: 255
• Supported sampling frequencies: 32 kHz,
44.1kHz, 48 kHz
• Supported Bit-rates: 32-320 Kbps and
variable bit rate
Supported video formats:
• DVD
• Divx
Note
To ensure a better playback, it is recommended that le
•
image size is no higher than 640 x 480, frame rate is 20
fps, data rate is no higher than 500 kbps.
45EN
14 Troubleshooting
Warning
•
Never remove the casing of this product.
To keep the warranty valid, never try to repair
the product yourself.
If you encounter problems when using this
product, check the following points before
requesting service. If the problem remains
unsolved, go to the Philips Web page (www.
philips.com/support). When you contact Philips,
make sure that the product is nearby and the
model number and serial number are available.
General
No power
• Car engine has not been started. Start the
car engine.
• Connections are incorrect.
• The fuse has been damaged. Replace the
fuse.
No sound
• Volume is too low. Adjust the volume.
• Speaker connections are incorrect.
No response to the remote control
• Make sure that the path between the
remote control and the unit is clear from
obstacles.
• Move the remote control close to the unit,
and point it at the iR sensor.
• Press
• The function is not applicable to the
• Replace the remote control battery.
The disc does not play.
• The disc is upside down. Make sure that
• The disc is dirty. Clean the disc with a
to switch to the control interface
for front source or rear source.
current media.
the printed side is upwards.
clean, soft, lint-free cloth. Wipe the disc
outwards from the center.
• The disc is defective. Try another disc.
• The disc is incompatible. Tr y another disc.
• The recordable disc is not nalized.
• The region code of DVD disc is not
supported. Use a disc with proper region
code.
Can’t play DivX le from an SD/SDHC card
or USB storage device
• DivX DRM protected les cannot be
played if they are saved on an SD/SDHC
card or USB storage device. Transfer it to a
compatible disc instead.
No image
• Parking wire connection is incorrect. Check
the wiring.
No image on rear monitor
• Enable the signal transferring to rear
monitors (see 'Use rear monitors' on page
40).
• A DivX video can be played for front
passengers only.
Image ashes or is distorted.
• Video connection is improper. Check the
connections.
Noise in broadcasts
• Signals are too weak. Select another station
with stronger signals.
• Check the connection of the car antenna.
Preset stations are lost.
• Battery cable is not correctly connected.
Connect the battery cable to the terminal
that is always live.
The fuse is broken.
• The fuse type is incorrect. Replace it with
a 15A fuse.
• Speaker wire or power wire is grounded.
Check the connections.
About the Bluetooth device
Music playback is unavailable on the system
even after successful Bluetooth connection.
• The device cannot be used with the
system to play music.
The audio quality is poor after connection
with a Bluetooth-enabled device.
46 EN
• The Bluetooth reception is poor. Move
the device closer to the system or remove
any obstacle between the device and the
system.
Cannot connect with the system.
• The device does not support the proles
required for the system.
• The Bluetooth function of the device is
not enabled. Refer to the user manual of
the device to nd out how to enable the
function.
• The system is not in the pairing mode.
• The system is already connected with
another Bluetooth-enabled device.
Disconnect that device or all other
connected devices and then try again.
The paired mobile phone connects and
disconnects constantly.
• The Bluetooth reception is poor. Move
the mobile phone closer to the system or
remove any obstacle between the mobile
phone and the system.
• Some mobile phones may connect and
disconnect constantly when you make
or end calls. This does not indicate any
malfunction of the system.
• For some mobile phones, the Bluetooth
connection may be deactivated
automatically as a power-saving feature.
This does not indicate any malfunction of
the system.
47EN
15 Notice
Any changes or modications made to this
device that are not expressly approved by
Philips Consumer Lifestyle may void the user’s
authority to operate the equipment.
Compliance
This apparatus includes this label:
Please visit wwwrecycle.philips.com for
additional information on a recycling center in
your area.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and old
equipment.
Care of the environment
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
Never dispose of your product with other
household waste. Please inform yourself about
the local rules on the separate collection of
electrical and electronic products and batteries.
The correct disposal of these products helps
prevent potentially negative consequences on
the environment and human health.
Your product contains batteries, which cannot
be disposed of with normal household waste.
Please inform yourself about the local rules on
separate collection of batteries. The correct
disposal of batteries helps prevent potentially
negative consequences on the environment and
human health.
Trademark notice
The Bluetooth® word mark and logos are
registered trademarks owned by Bluetooth
SIG, Inc. and any use of such marks by Philips is
under license.
Windows Media and the Windows logo
are trademarks, or registered trademarks of
Microsoft Corporation in the United States
and/or other countries.
“Made for iPod” and “Made for iPhone”
mean that an electronic accessory has been
designed to connect specically to iPod or
iPhone respectively, and has been certied by
the developer to meet Apple performance
standards. Apple is not responsible for the
operation of this device or its compliance with
safety and regulatory standards. Please note that
the use of this accessory with iPod or iPhone
may affect wireless performance.
48 EN
iPod and iPhone are trademarks of Apple Inc.,
registered in the U.S. and other countries.
DivX®, DivX Certied® and associated logos
are trademarks of Rovi Corporation or its
subsidiaries and are used under license.
ABOUT DIVX VIDEO: DivX® is a digital video
format created by DivX, LLC, a subsidiary
of Rovi Corporation. This is an ofcial DivX
Certied® device that plays DivX video. Visit
divx.com for more information and software
tools to convert your les into DivX videos.
ABOUT DIVX VIDEO-ON-DEMAND: This
DivX Certied® device must be registered
in order to play purchased DivX Video-onDemand (VOD) movies. To obtain your
registration code, locate the DivX VOD section
in your device setup menu. Go to vod.divx.com
for more information on how to complete your
registration.
Manufactured under license from Dolby
Laboratories. Dolby and the double-D symbol
are trademarks of Dolby Laboratories.
recordings, may be an infringement of
copyrights and constitute a criminal offence.
This equipment should not be used for such
purposes.
2012 © Koninklijke Philips Electronics N.V.
Specications are subject to change without
notice. Trademarks are the property of
Koninklijke Philips Electronics N.V or their
respective owners. Philips reserves the right
to change products at any time without being
obliged to adjust earlier supplies accordingly.
'DVD Video' is a trademark of DVD Format/
Logo Licensing Corporation.
Other trademarks and trade names are those
of their respective owners.
Copyright
The making of unauthorized copies of copyprotected material, including computer
programs, les, broadcasts and sound
49EN
Specifications are subject to change without notice
© 2012 Koninklijke Philips Electronics N.V.
All rights reserved.
Document order number: 000000000000
Loading...
