CED1900

User manual 3

Руководство пользователя 41

Contents

1 Safety 4

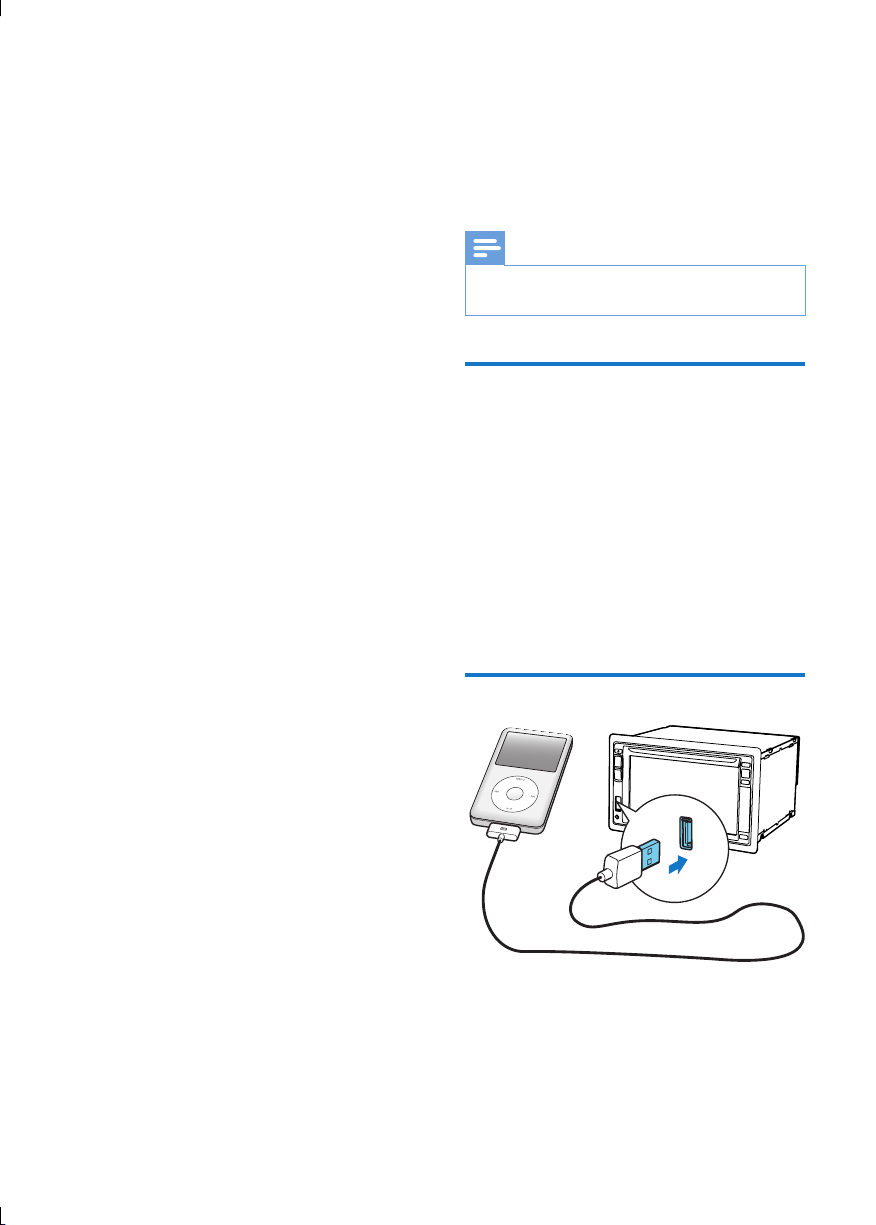

8 Play from an iPod/iPhone 26

Compatible iPod/iPhone models 26 Connect your iPod/iPhone 26 Control play 27 Charge your iPod/iPhone 27

English

2 Your car entertainment system 5

Introduction 5 What's in the box 5 Overview of the main unit 6 Overview of the remote control 7

3 Install the car entertainment system 8

Connect wires 9 About the GPS antenna 12 Mount into the dashboard 12

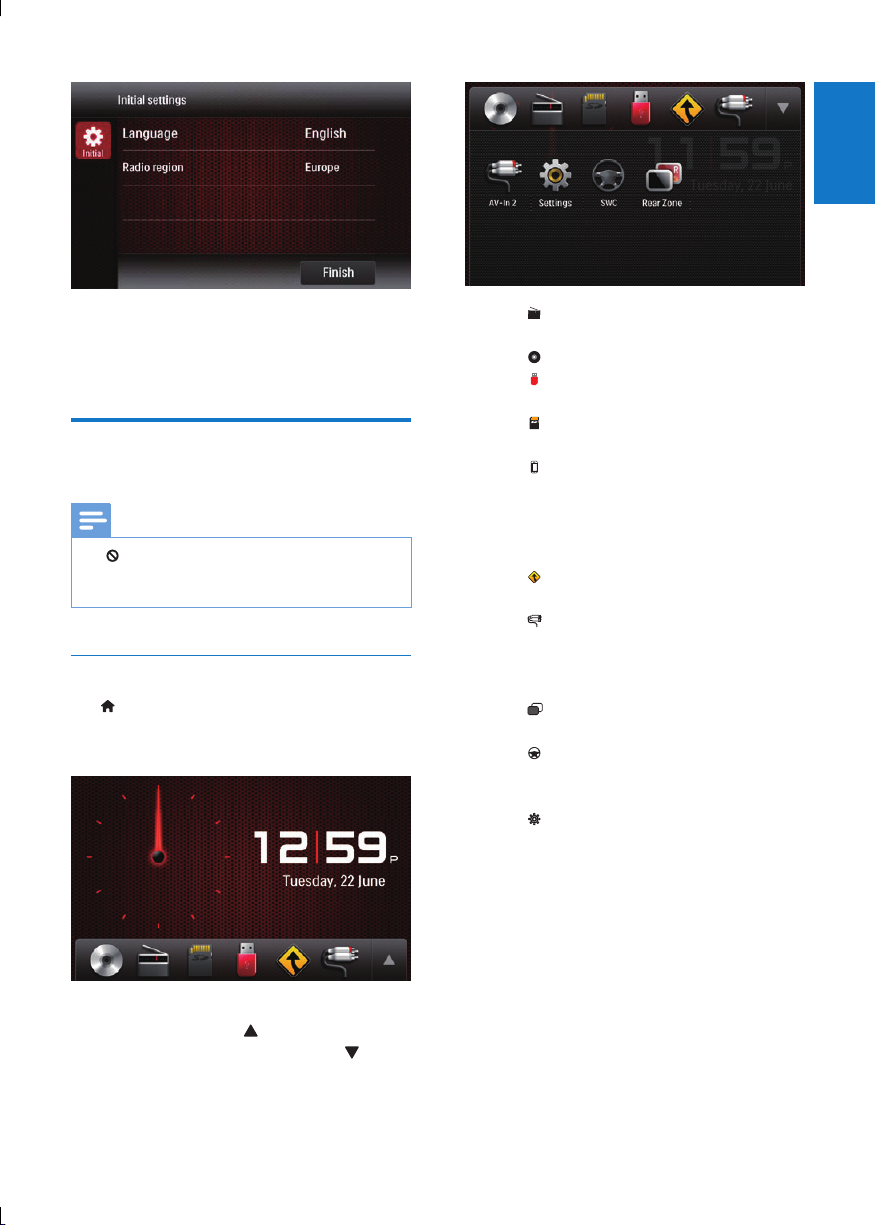

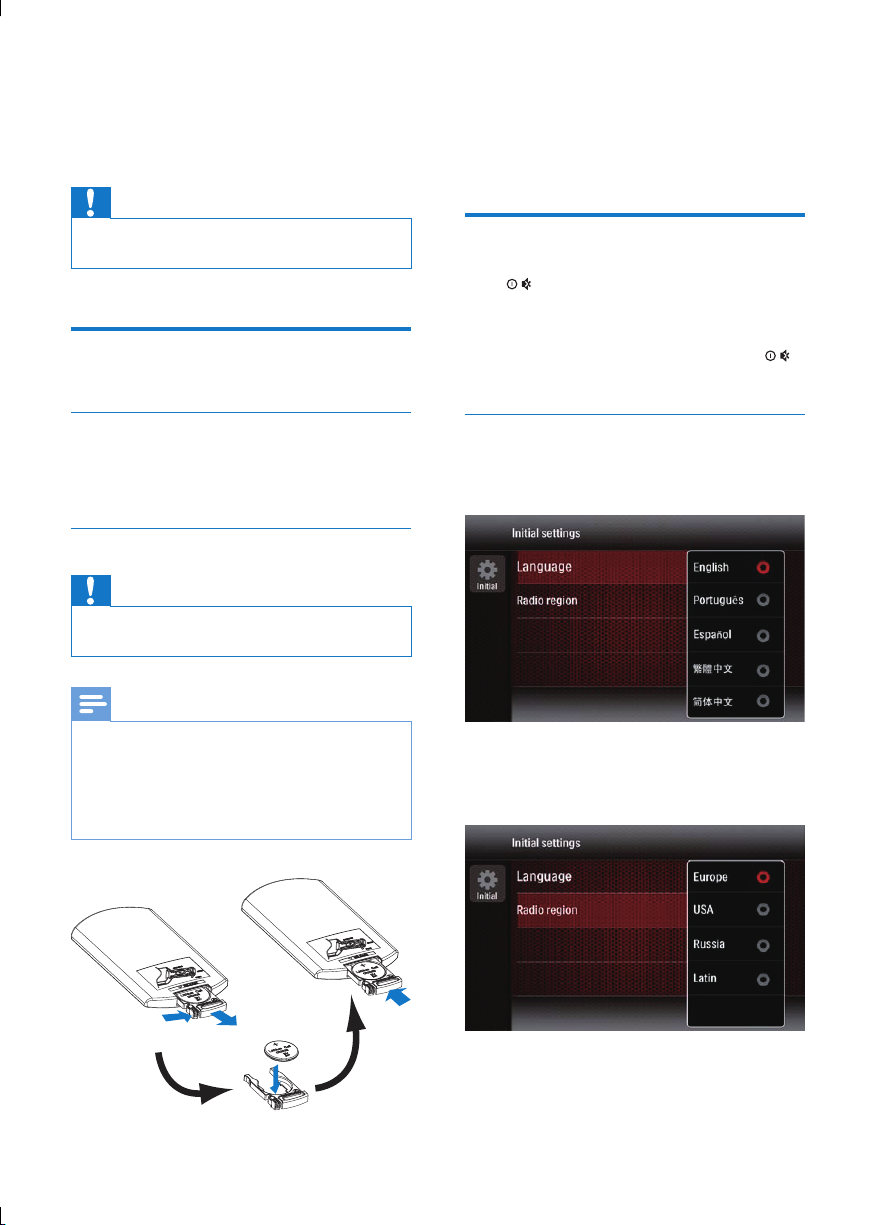

4 Get started 14

Prepare the remote control 14 Turn on 14 Use the home menu 15 Set the date and time 16 Adjust the screen brightness 16 Switch display designs 16

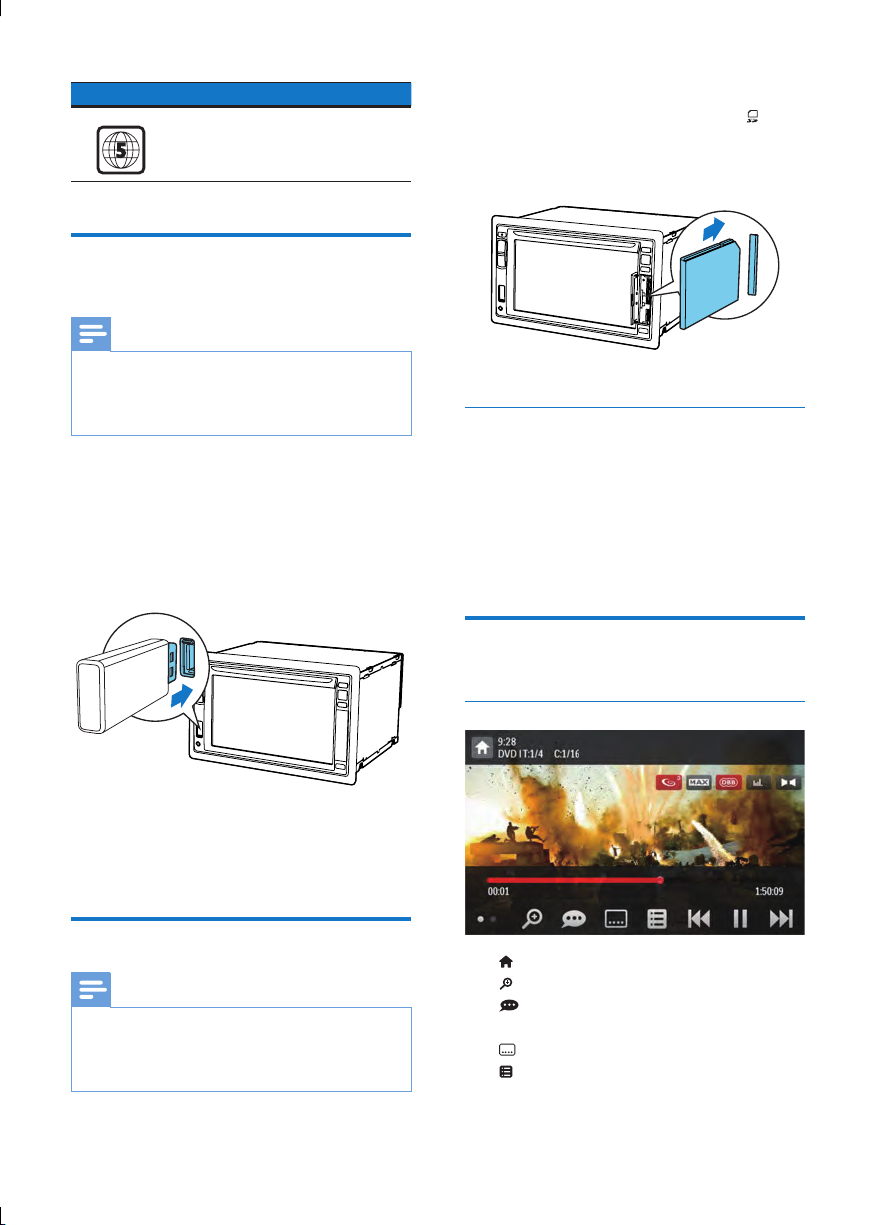

5 Play from hard media 17

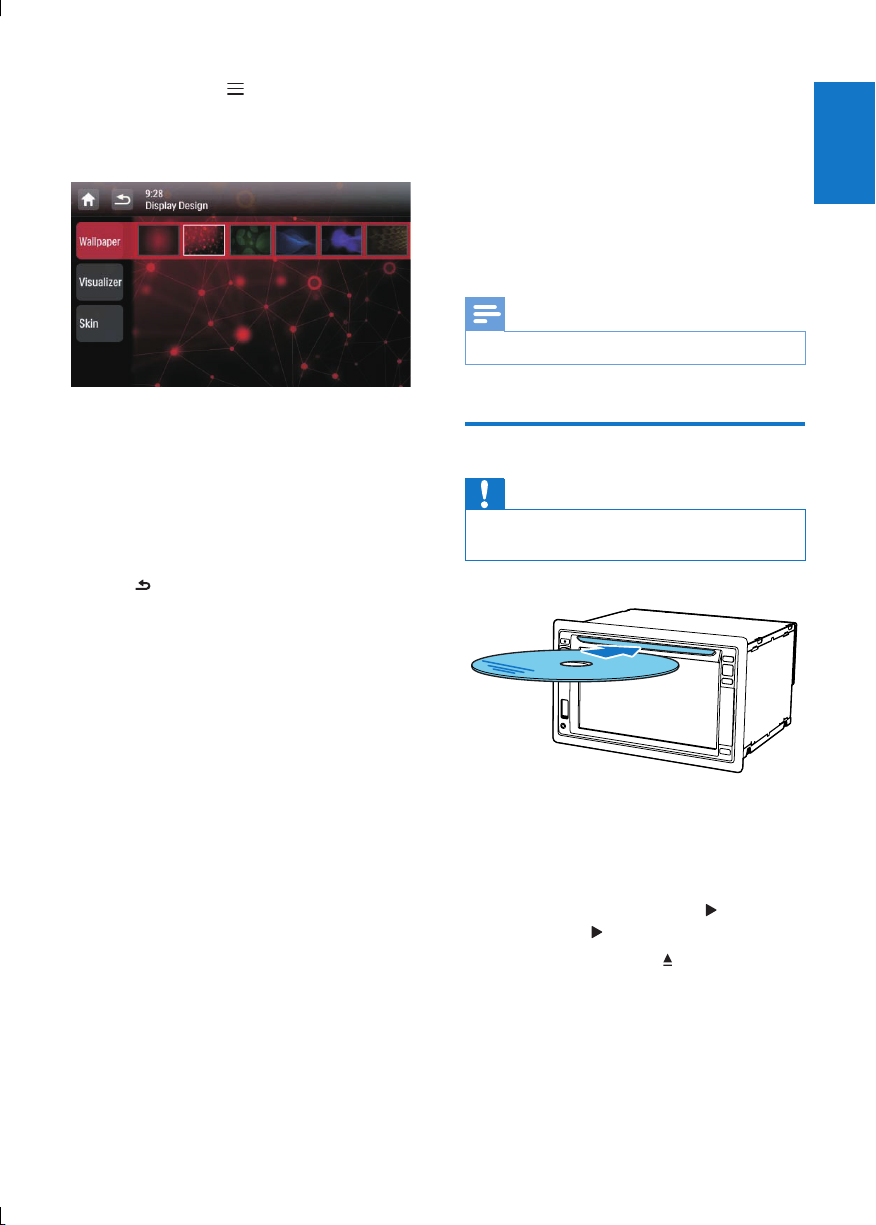

Load a disc 17 Connect a USB storage device 18 Insert an SD/SDHC card 18 Control play 18

Browse recorded les 20

About DivX

videos 20

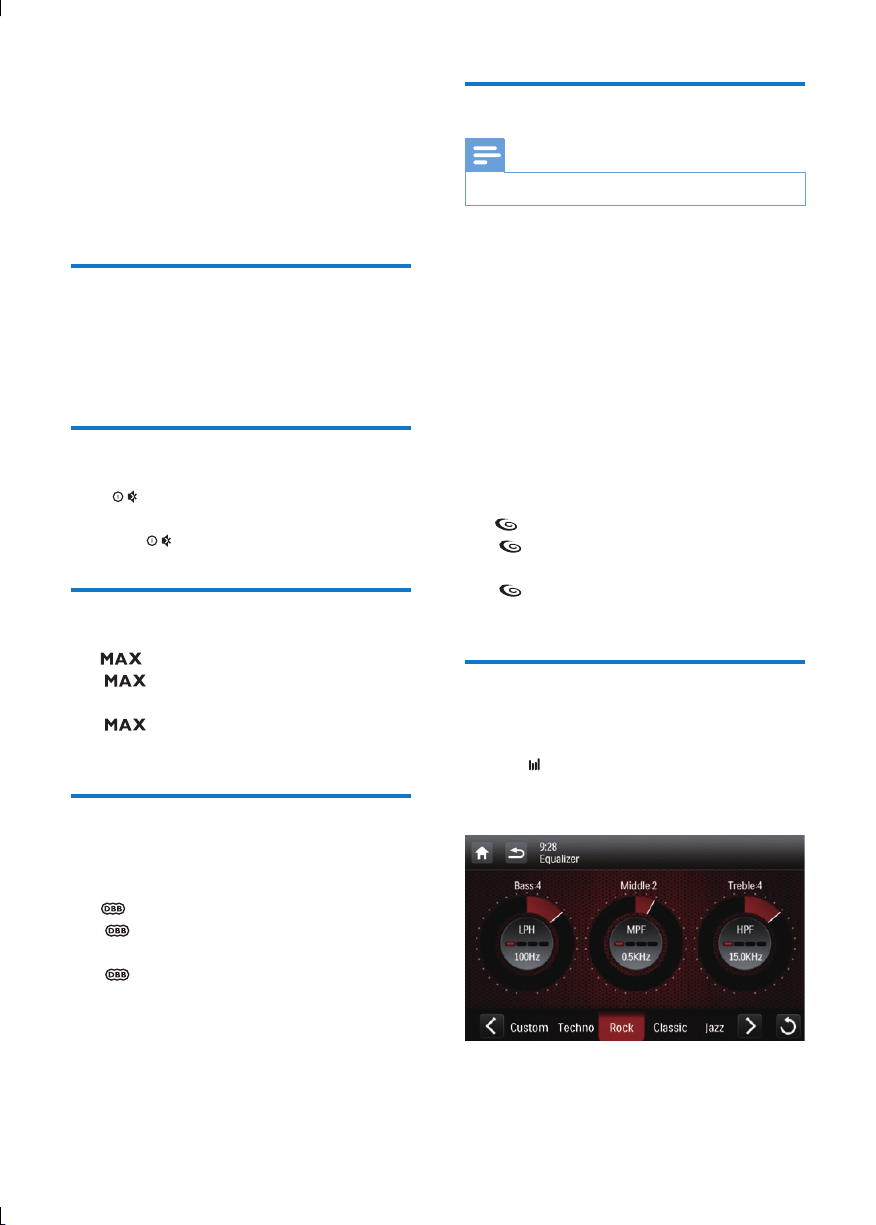

9 Adjust sound 28

Adjust the volume level 28 Mute sound 28 Enable the maximum sound 28 Enable the DBB sound effect 28 Enable the FullSound effect 28 Select a preset sound equalizer 28 Others 29

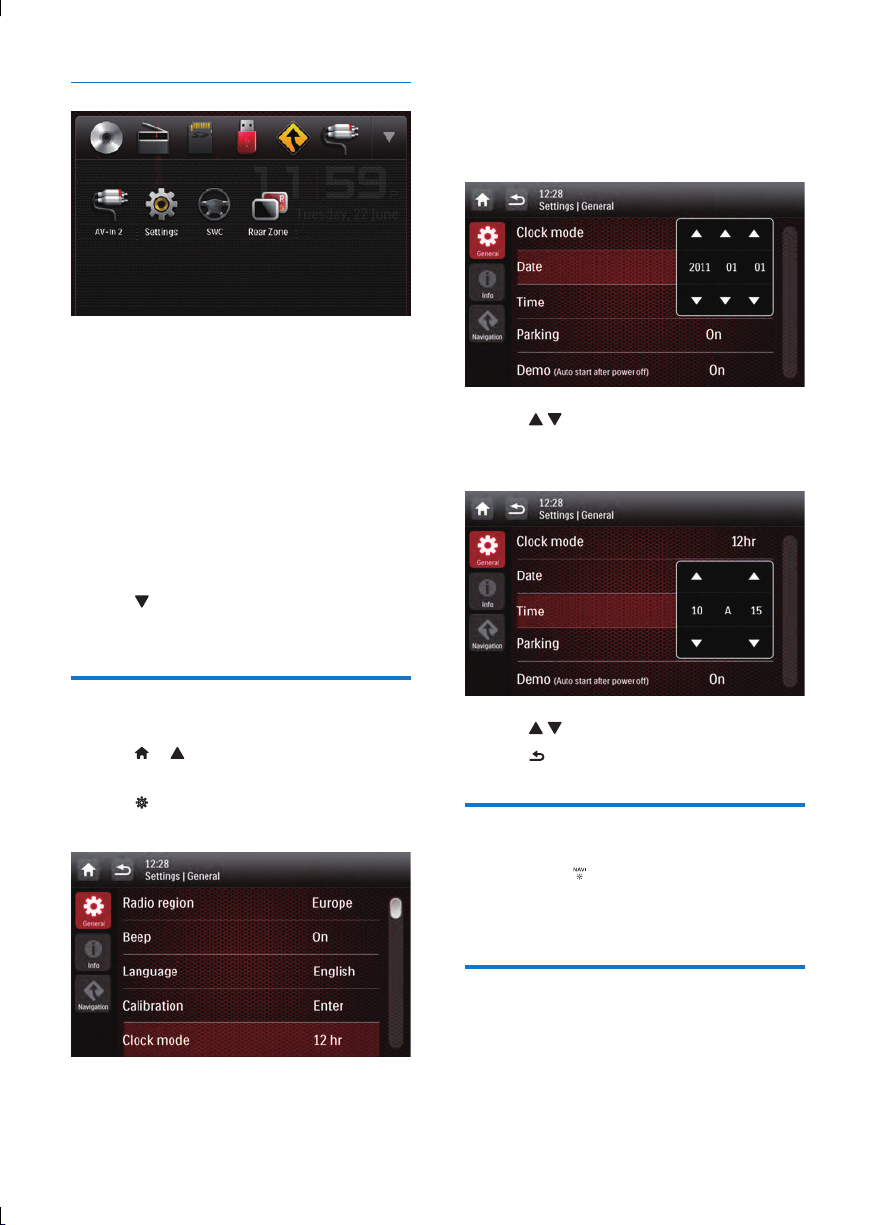

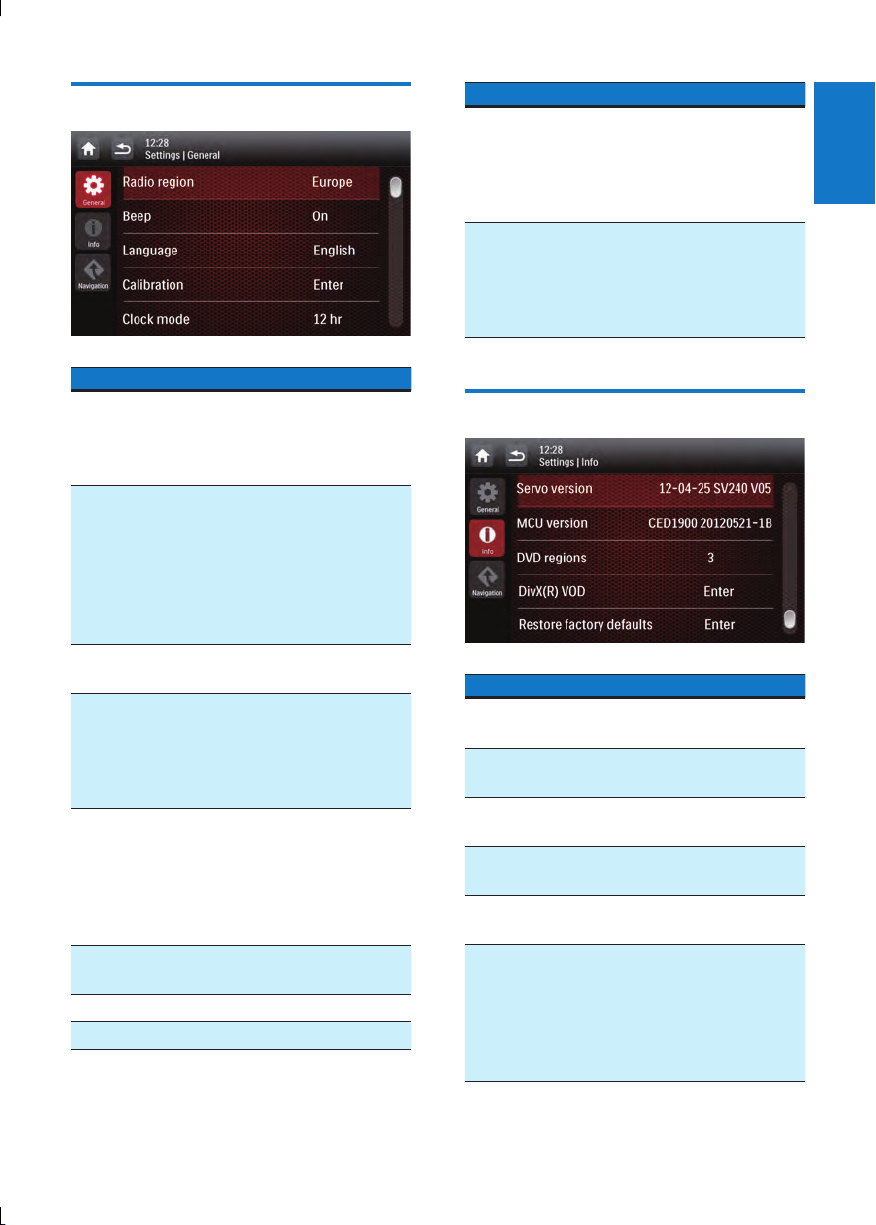

10 Adjust settings 30

Access system setup menus 30 Adjust general settings 31 View system information 31 Adjust Navigation settings 32

11 Others 32

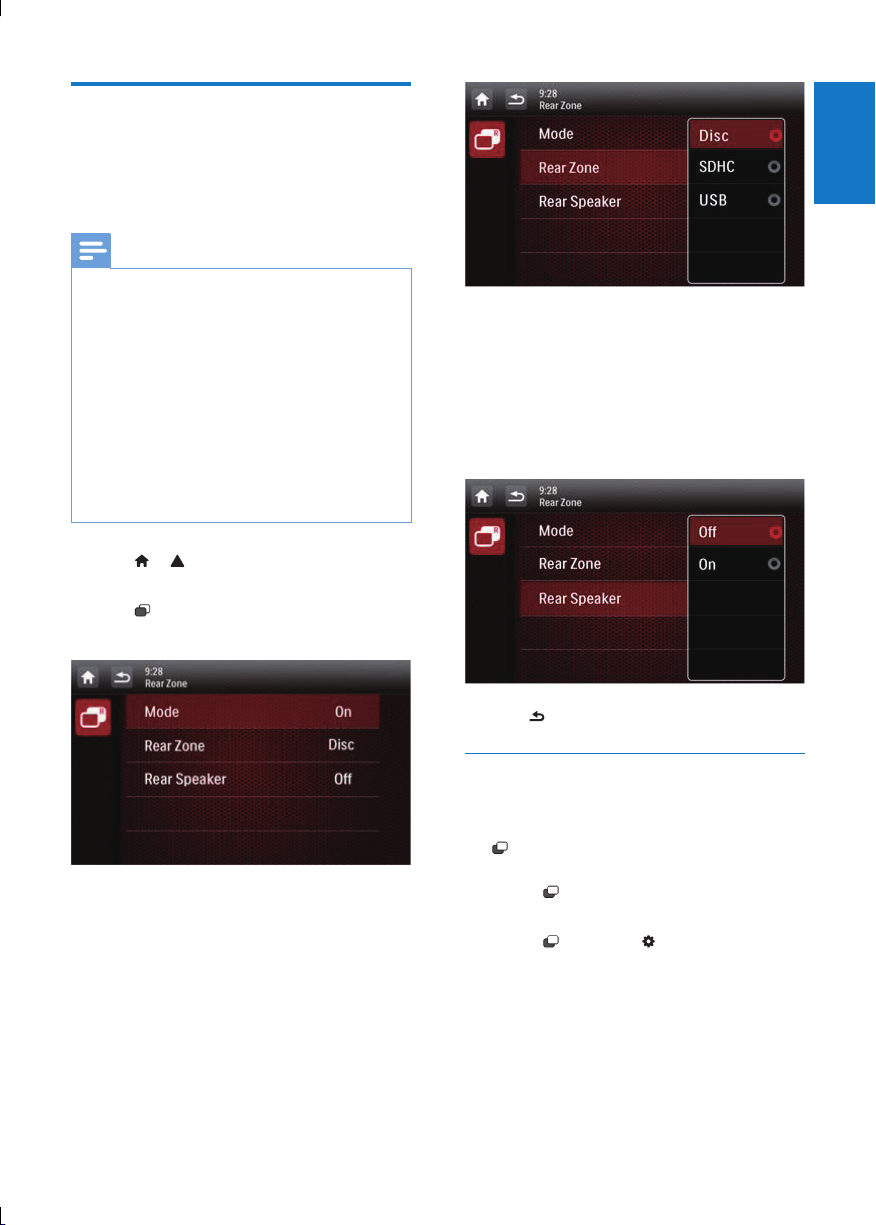

Play external audio/video input 32 Use rear monitors 33 Use buttons on the steering wheel 34 Set the rear view camera 34 Reset the system 35 Replace the fuse 35

Upgrade the rmware 35

12 Product information 36

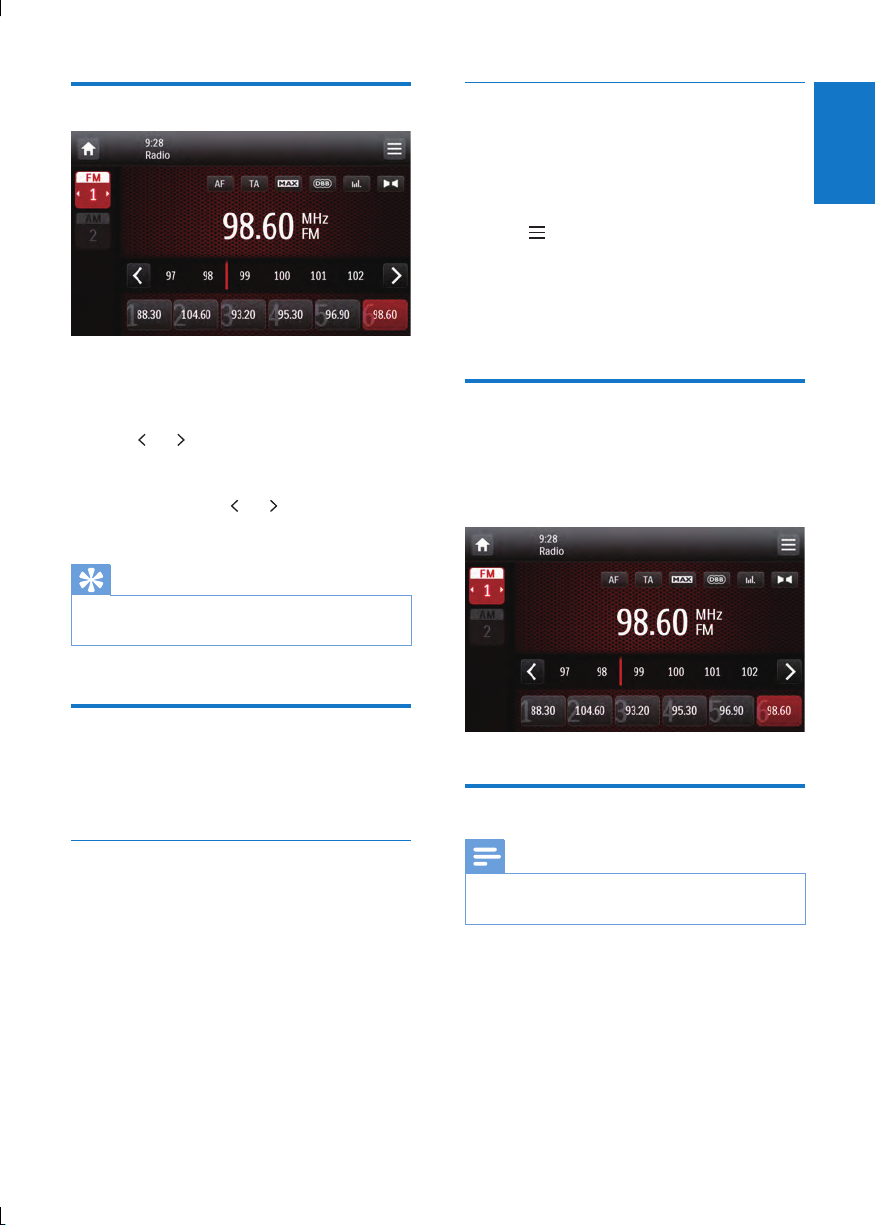

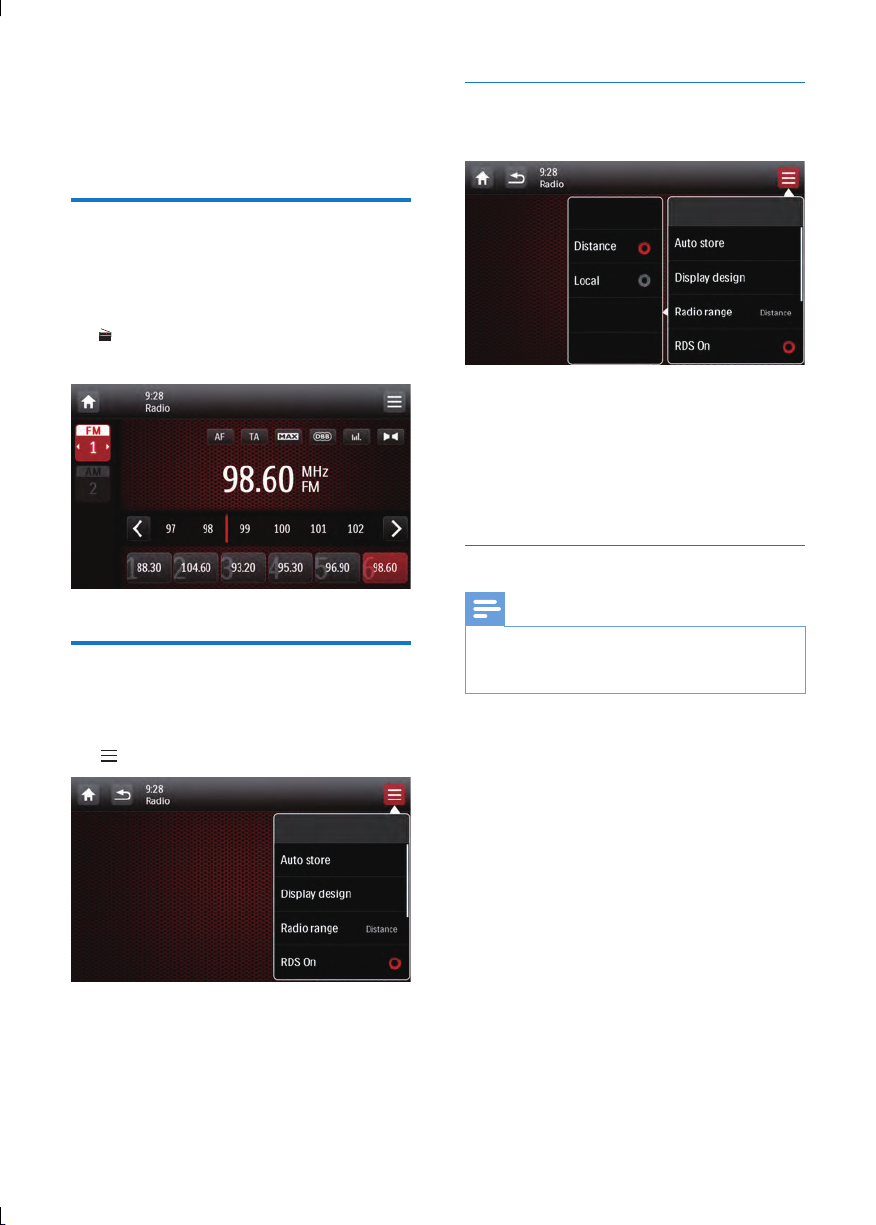

6 Listen to radio 22

Switch to radio mode 22 Set up 22 Tune to a radio station 23 Store radio stations in memory 23 Tune to a preset radio station 23 Use RDS related features 23

7 Use the navigation system 25

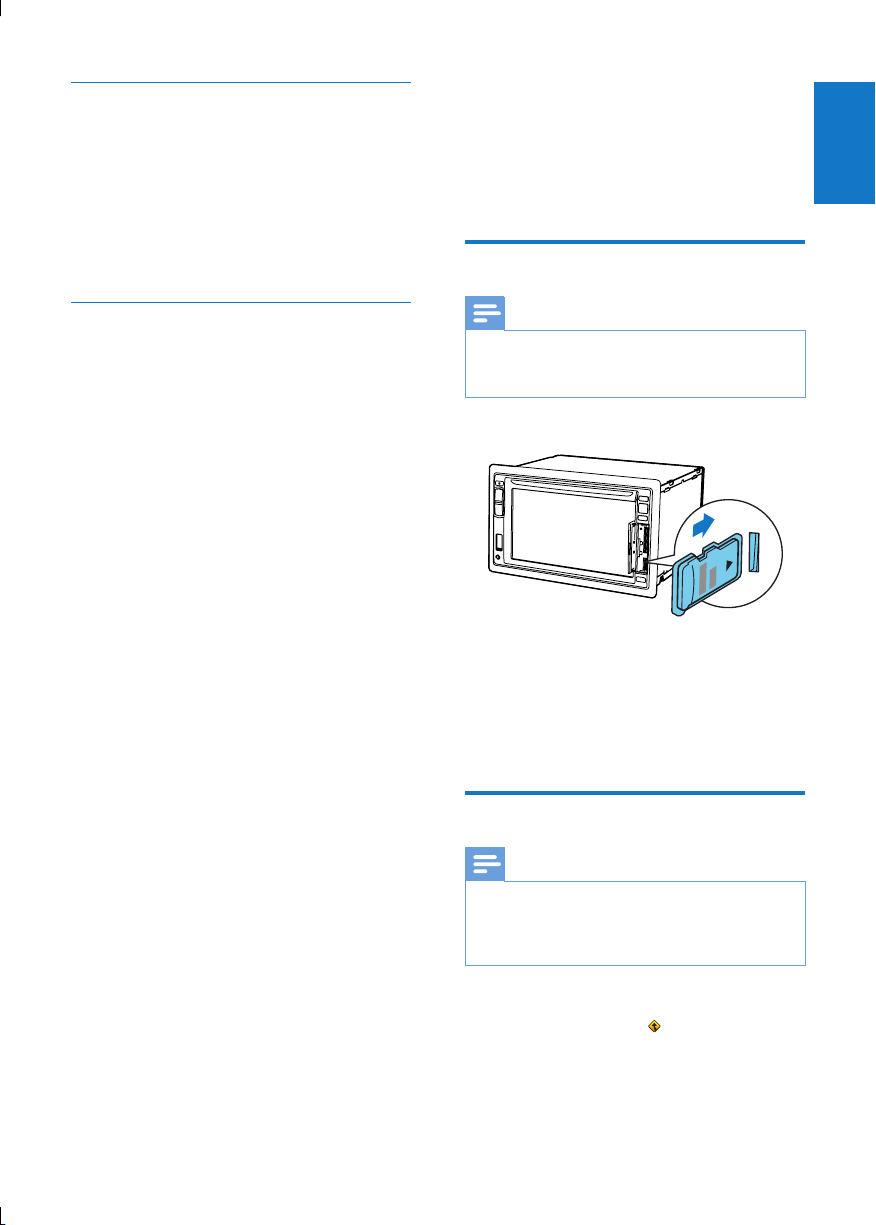

Insert the map data card 25 Navigate your road trip 25

13 Troubleshooting 38

General 38

14 Notice 39

Compliance 39 Care of the environment 39 Trademark notice 39 Copyright 40

1 Safety

Read and understand all instructions before you use the device. If damage is caused by failure to follow instructions, the warranty does not apply.

• Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation.

• The device is designed for negative ground (earth) 12 V DC operation only.

• To reduce the risk of trafc accidents, do

not watch video when driving.

• To ensure safe driving, adjust the volume to a safe and comfortable level.

• Improper fuses can cause damage or re. When you need to change the fuse,

consult a professional.

• Use only the supplied mounting hardware for a safe and secure installation.

• To avoid short circuits, do not expose the device, remote control or remote control batteries to rain or water.

• The device shall not be exposed to dripping or splashing.

• Do not place any sources of danger on the device (e.g. liquid lled objects, lighted

candles).

• Never insert objects into the ventilation slots or other openings on the device.

• Never place any objects other than discs into the disc tray/slot.

• To avoid exposure to laser radiation, do not disassemble the device.

• Risk of damage to the screen! Never push, rub or strike the screen with any object.

• Never use solvents such as benzene, thinner, cleaners available commercially, or anti-static sprays intended for discs.

• Clean the device with soft, damp cloth. Never use substances such as alcohol, chemicals or household cleaners on the device.

• Risk of swallowing batteries! A coin type battery is bundled, which can be swallowed. Keep the battery out of reach of children at all times!

4 EN

2 Your car

What's in the box

entertainment system

Congratulations on your purchase, and

welcome to Philips! To fully benet from the

support that Philips offers, register your product at www.philips.com/welcome.

Introduction

With the car entertainment system, you can

• listen to music,

• watch videos,

• view pictures,

• listen to FM (RDS included) and AM/MW

radio, and

• navigate your road trip.

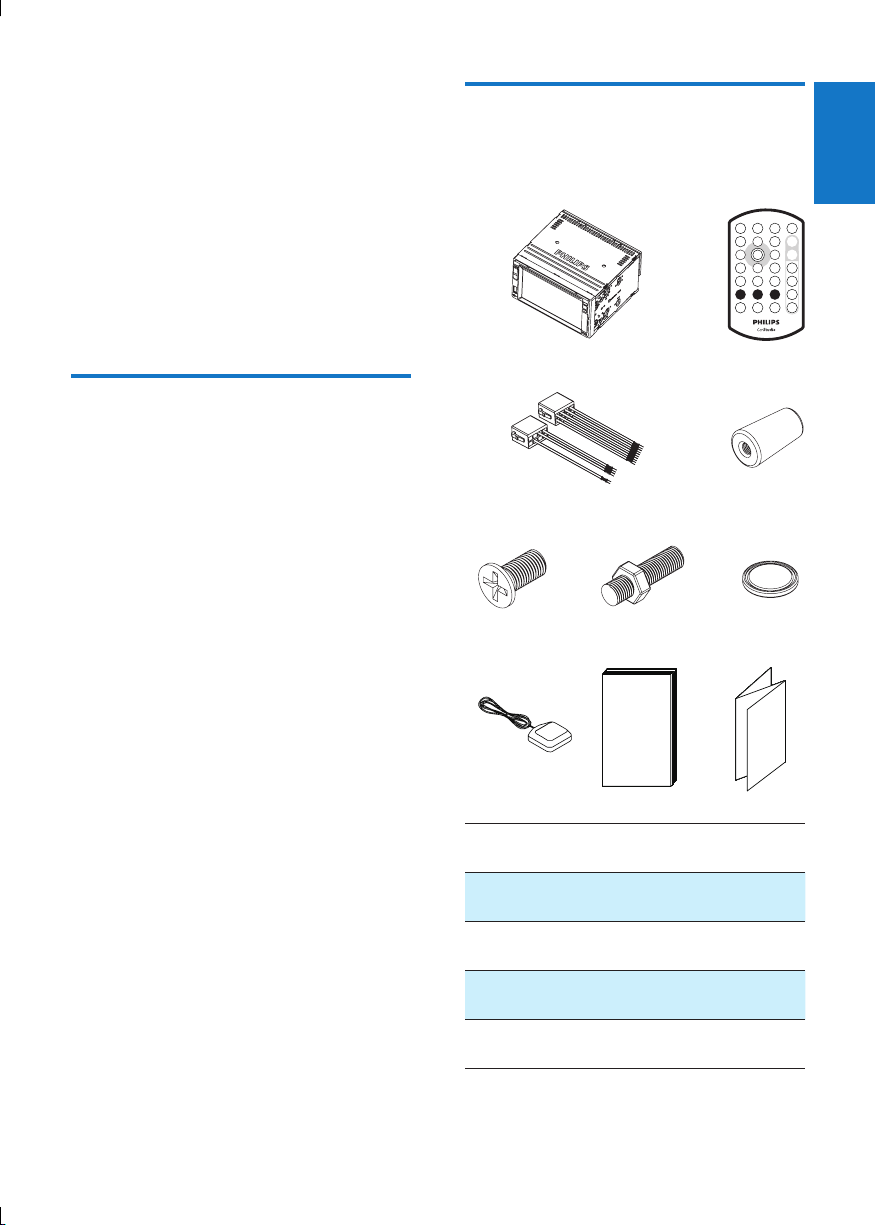

Check and identify the contents of the package:

ef g

h i

English

1 Main unit 2 Remote

control

3 ISO male connector

X 2

5 Screw X 4 (M5x8mm) 6 Hexagon

7 Remote control

battery

9 User manual 10 Quick start

4 Rubber

cushion

head screw

8 GPS antenna

guide

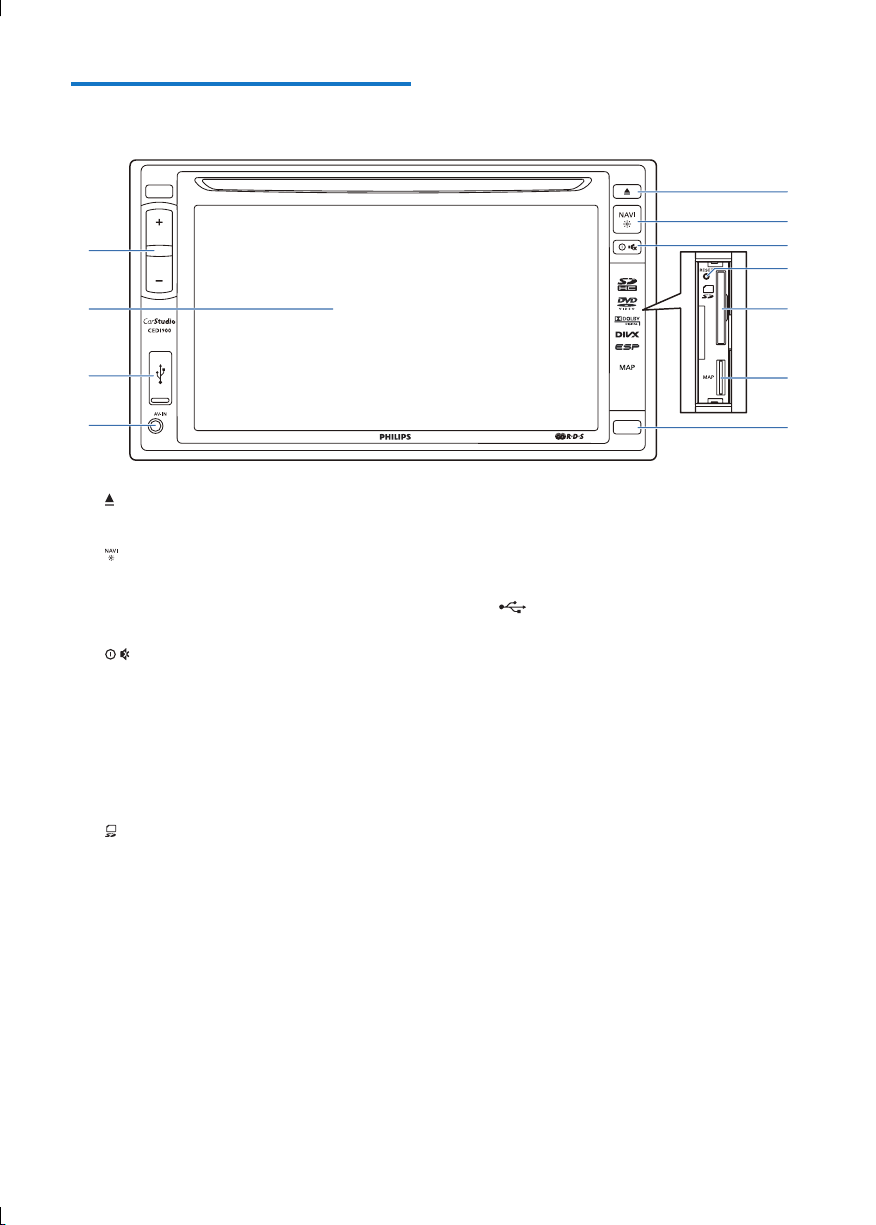

Overview of the main unit

b c d

• Press to eject the disc.

• Press to access the navigation system.

• Press and hold to adjust the brightness

of LCD screen.

• Press to turn on the unit.

• Press and hold to turn off the unit.

• Press to mute the speakers or release

them from mute status.

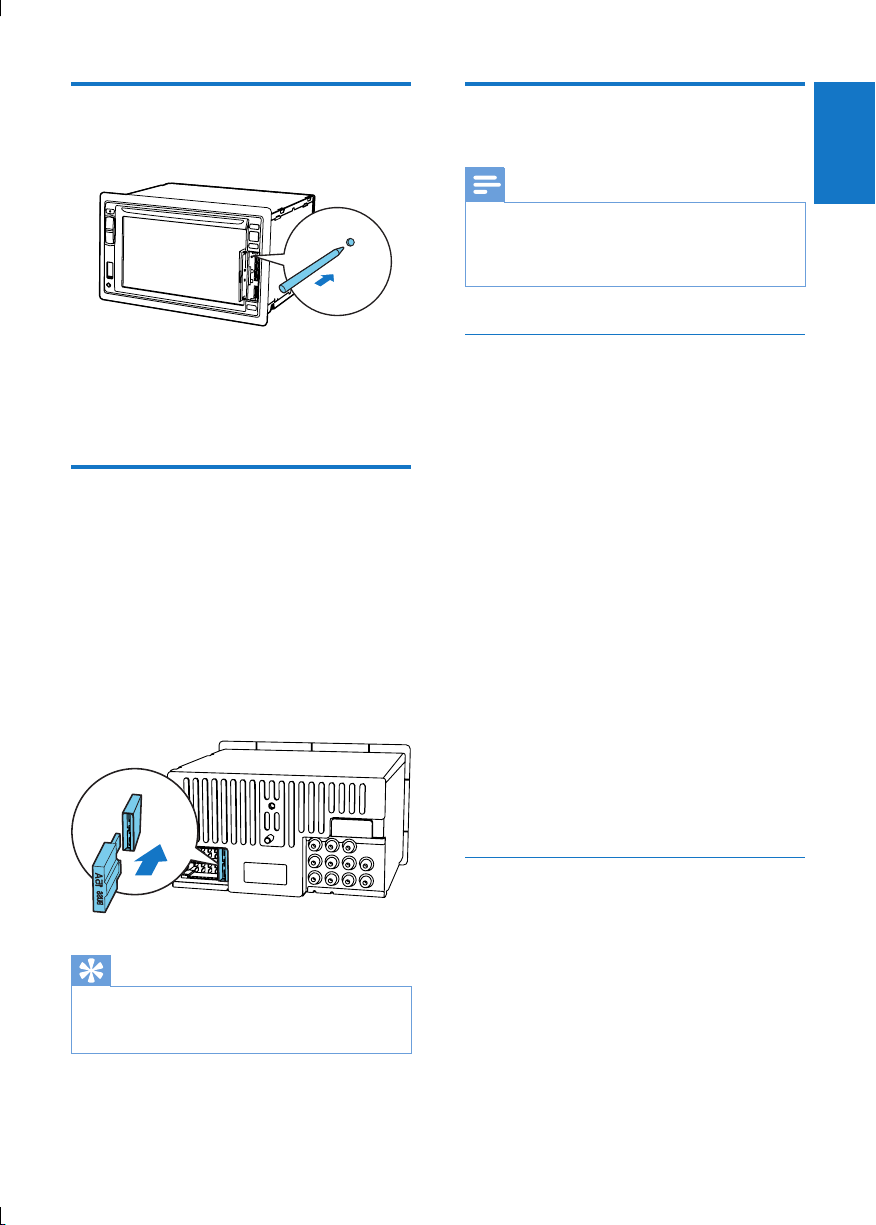

d RESET

• Press to reset the system.

• Insert an SD/SDHC card.

f MAP

• Insert a microSD card that stores the digital map data.

g iR sensor

• The sensor that receives infra-red signals from the remote control.

h AV-IN

• Connect to the audio and video output sockets of an external player by a composite AV cable.

• Connect to a USB storage device or iPod/iPhone.

j LCD screen k +/-

• Press to increase or decrease the volume.

6 EN

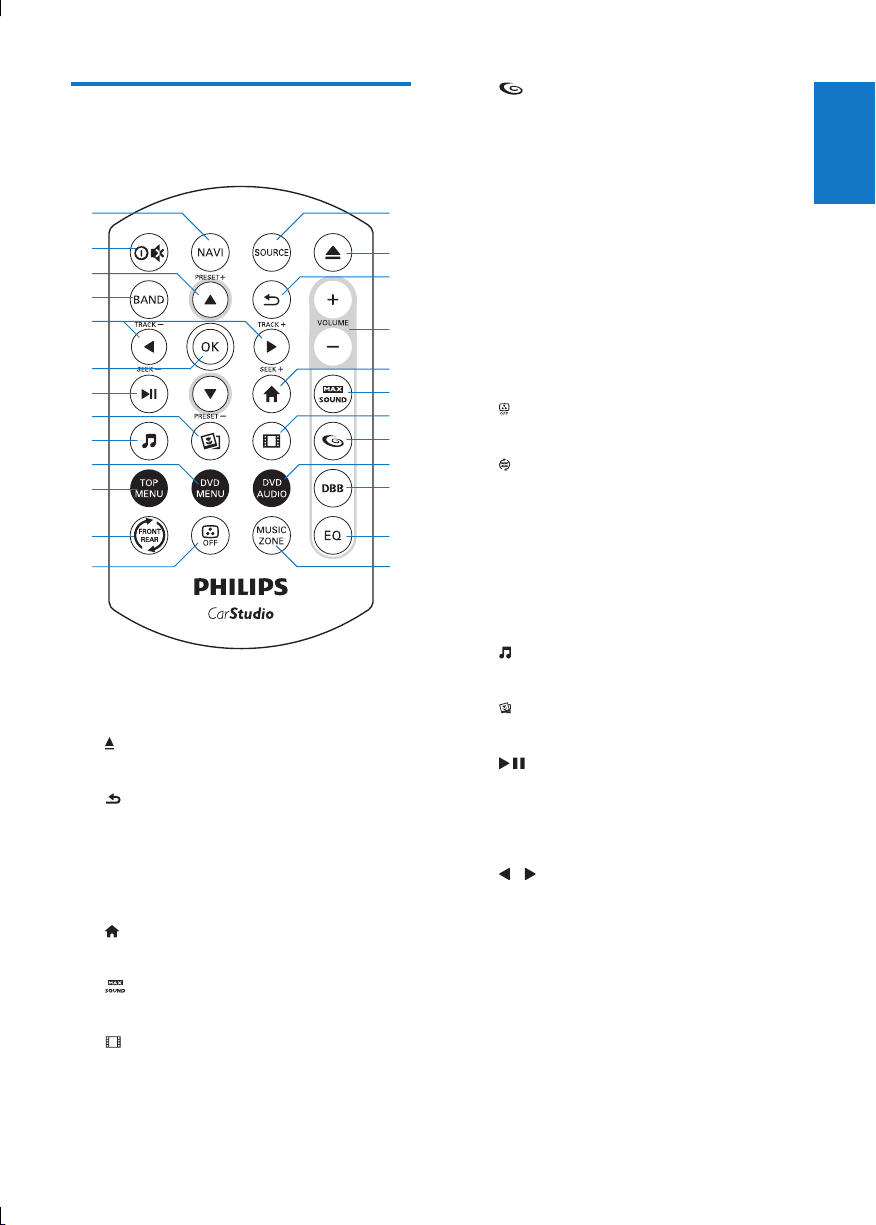

Overview of the remote

control

x w v u

t s r q p o

n m

a SOURCE

• Press repeatedly to select a source.

• Press to eject the disc.

• Return to the previous menu or mode.

d VOLUME + / -

• Press to increase or decrease the volume.

• Access the home menu.

• Enable or disable the maximum sound.

• Switch to video playback mode.

b c

e f g h i j

k l

• Enable or disable the FullSound effect.

i DVD AUDIO

• Select an audio language or audio channel.

j DBB

• Enable or disable the DBB (Dynamic Bass Boost) sound effect.

k EQ

• Select a preset sound equalizer.

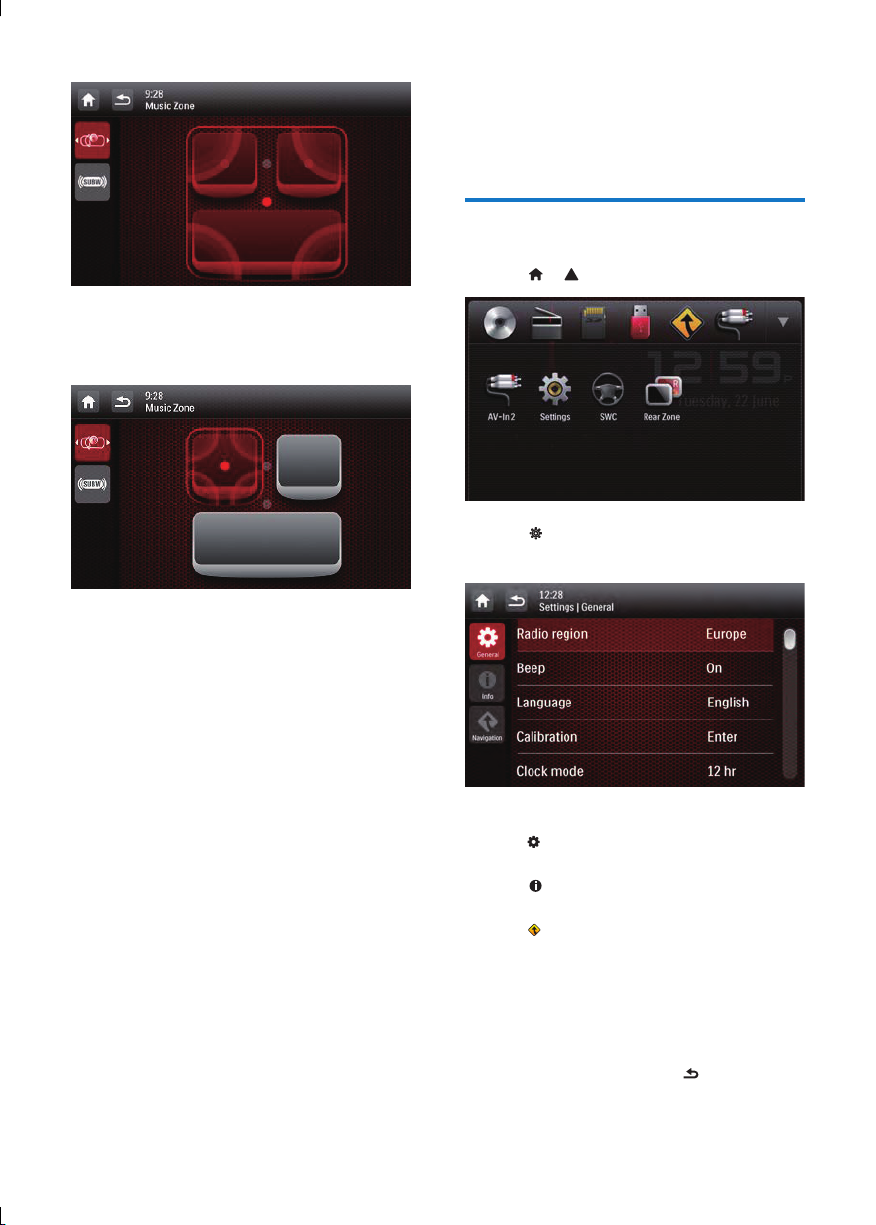

l MUSIC ZONE

• Select a music listening zone.

• Turn on or off the screen.

• Switch to the control interface for front source or rear source.

o TOP MENU

• Return to top menu.

p DVD MENU

• Access the DVD menu.

• Switch to music playback mode.

• Switch to picture slideshow mode.

• Start, pause, or resume the play.

t OK

• Conrm an option.

/ /TRACK -/TRACK +

• Skip to the previous or next track, chapter, or le.

• For DVD, press and hold to select a

speed for fast backward or forward search.

v BAND

• Select a tuner band.

English

w / /PRESET +/PRESET -

• Tune to the previous or next preset radio station.

• Skip to the previous or next folder.

• Press to turn on the system.

• Press and hold to turn off the system.

• Press to mute the speakers or release

them from mute status.

y NAVI

• Press to access the navigation system.

3 Install the car

entertainment system

Always follow the instructions in this chapter in sequence. These instructions are for a typical installation. However, if your car has different requirements, make the adjustment accordingly. If you have any question regarding installation kits, consult your local retailer.

Note

This system is designed for negative ground (earth) 12V

•

DC operation only.

• Always install this system in the car dashboard. Other

locations can be dangerous as the rear of the system heats up during use.

• To avoid short-circuit: before you connect, make sure

that the ignition is off.

• Make sure that you connect the yellow and red power

supply leads after all other leads are connected.

• Make sure that all loose leads are insulated with

electrical tape.

• Make sure that the leads do not get caught under

screws iron parts that will move (e.g. seat rail).

• Make sure that all ground (earth) leads are run to a

common ground (earth) point.

• Use only the supplied mounting hardware for a safe

and secure installation.

• Improper fuses can cause damage or re. When you

need to change the fuse, consult a professional.

• When you connect other devices to this system, make

sure that the rating of the car circuit is higher than the total fuse value of all the connected devices.

• Never connect speaker wires to the metal body or

chassis of the car.

• Never connect speaker wires with stripes to one

another.

8 EN

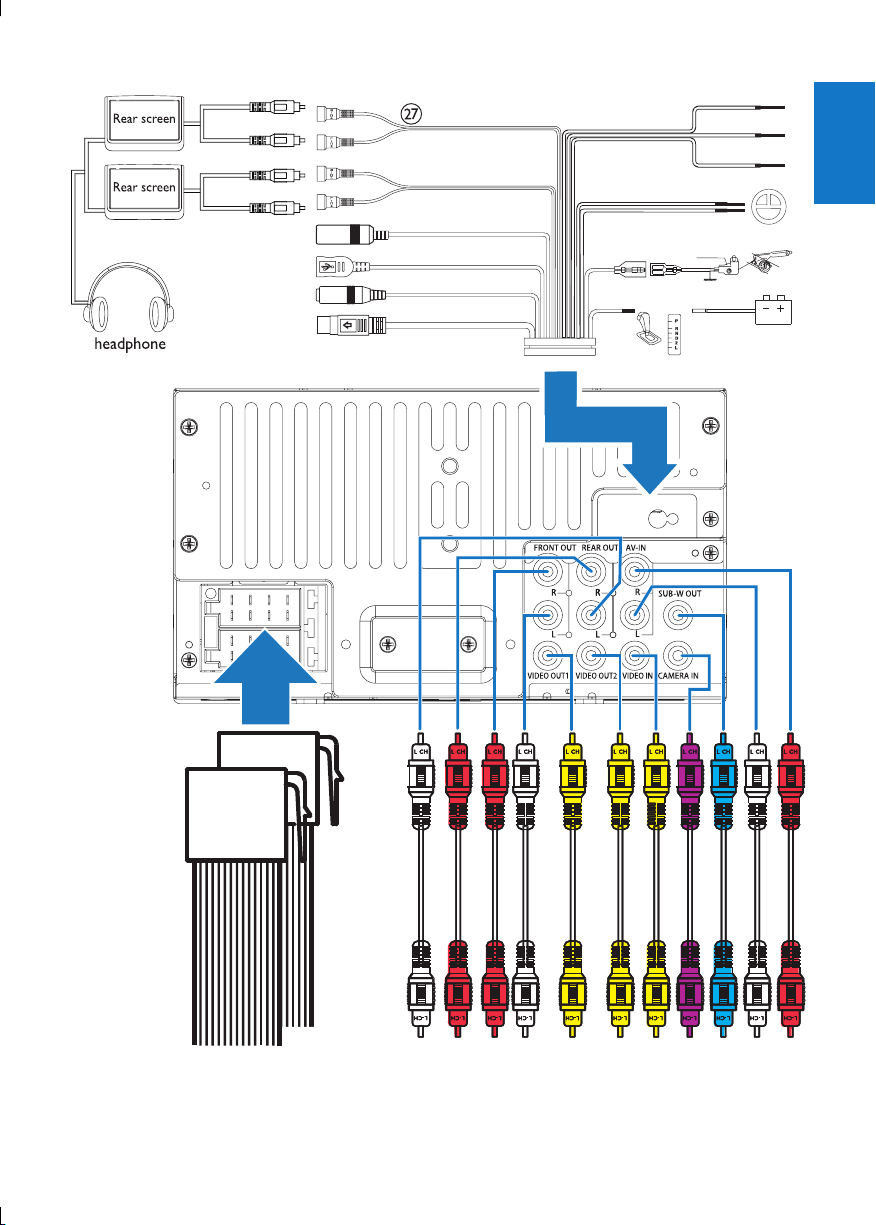

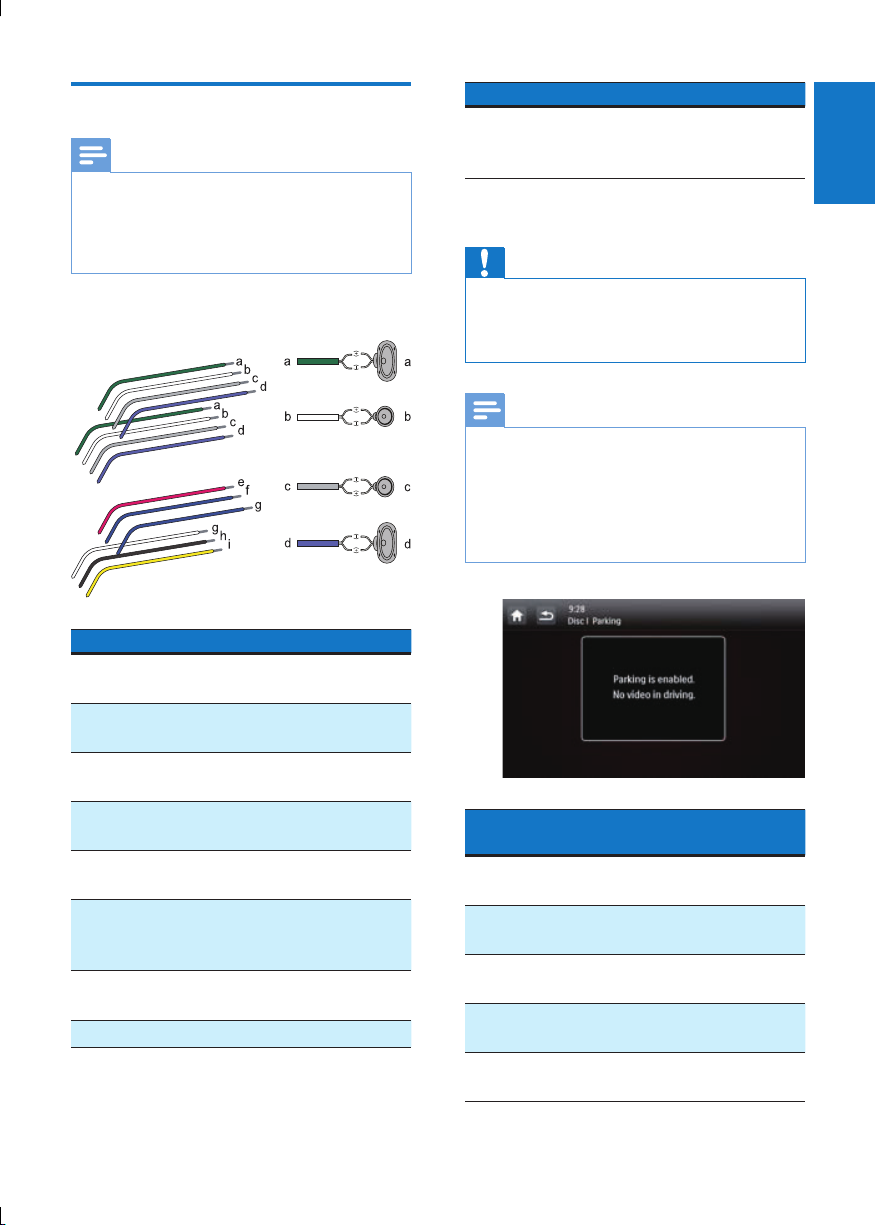

Connect wires

Note

Make sure that all loose leads are insulated with

•

electrical tape.

• Consult a professional to connect wires as instructed

below.

• Before connection, check the car's wiring carefully.

1 Connect the ISO male connectors.

ISO male connectors Connect to

1 Green strip, black-

edged green strip

2 White strip, black-

edged white strip

3 Gray strip, black-

edged gray strip

4 Purple strip, black-

edged purple strip

e Red strip Ignition key +12V

f Blue strip Motor/electric

g Blue strip, white strip Amplier relay

h Black strip Ground

Rear left speaker

Front left speaker

Front right speaker

Rear right speaker

DC when ON/ACC

antenna relay control lead

control lead

ISO male connectors Connect to

i Yellow strip The +12V car

battery which is energized at all times

2 Connect other wires if necessary.

Caution

To avoid an accident, the driver must not watch video

•

while driving. By design, this system disallows watching video during drive. Park your car in a safe place and engage the parking brake before watching video.

Note

When the parking brake of your vehicle is not engaged,

•

the video blocking system is activated. It blocks the display of front video source only.

• If the system is not properly connected with the

parking brake control module of your vehicle, video signals will be blocked by the system, with the below message displayed on the TFT.

Connectors and

sockets on rear panel

1 For ISO male

connectors

2 REAR OUT L (White

socket)

3 REAR OUT R (Red

socket)

4 FRONT OUT R (Red

socket)

5 FRONT OUT L

(White socket)

External sockets or connectors

As indicated above

Rear left speaker

Rear right speaker

Front right speaker

Front left speaker

English

Connectors and

sockets on rear panel

6 VIDEO OUT 1

(Yellow socket)

External sockets or connectors

Video input socket of an external display device

7 VIDEO OUT 2

(Yellow socket)

Video input socket of an external display device

8 VIDEO IN (Yellow

socket)

Video output socket of an external player

9 CAMERA IN (Purple

socket)

Video output socket of an external camera

10 SUB-W OUT (Blue

Sub-woofer

socket)

11 AV-IN L (White

socket)

Left audio channel output socket of an external player

12 AV-IN R (Red socket) Right audio

channel output socket of an external player

13 REVERSE CAMERA

(Purple wire)

14 PARKING BRAKE

Reverse camera (B+)

Parking brake (-)

(Pink wire)

15 OE SWC IR

REMOTE IN (Brown

OE SWC remote in

wire)

16 OE SWC IR

Ground REMOTE IN (Black wire)

17 OE SWC AD LEARN

(White wire)

18 OE SWC AD LEARN

(White wire)

19 OE SWC AD LEARN

OE SWC AD

Learn line 1

OE SWC AD

Learn line 2

Ground (Black wire)

Connectors and

sockets on rear panel

20 EXTERNAL BOX

CONNECTOR (Black

External sockets or connectors

External navigation box

connector)

21 GPS AERIAL (Black

connector)

22 RADIO ANTENNA

GPS smart antenna

Radio antenna

(Black connector)

23 Rear Monitor

Audio Out 1 (White connector)

24 Rear Monitor

Audio Out 1 (Red connector)

Left audio channel input socket of one rear monitor

Right audio channel input socket of one rear monitor

25 Rear Monitor

Audio Out 2 (White connector)

Left audio channel input socket of another rear monitor

26 Rear Monitor

Audio Out 2 (Red connector)

Right audio channel input socket of another rear monitor

Tip

The pin arrangement for the ISO connectors depends

•

on the type of your vehicle. To avoid damage to the system, connect properly.

10 EN

z y x

v u

s r q

English

bcde fgh ij

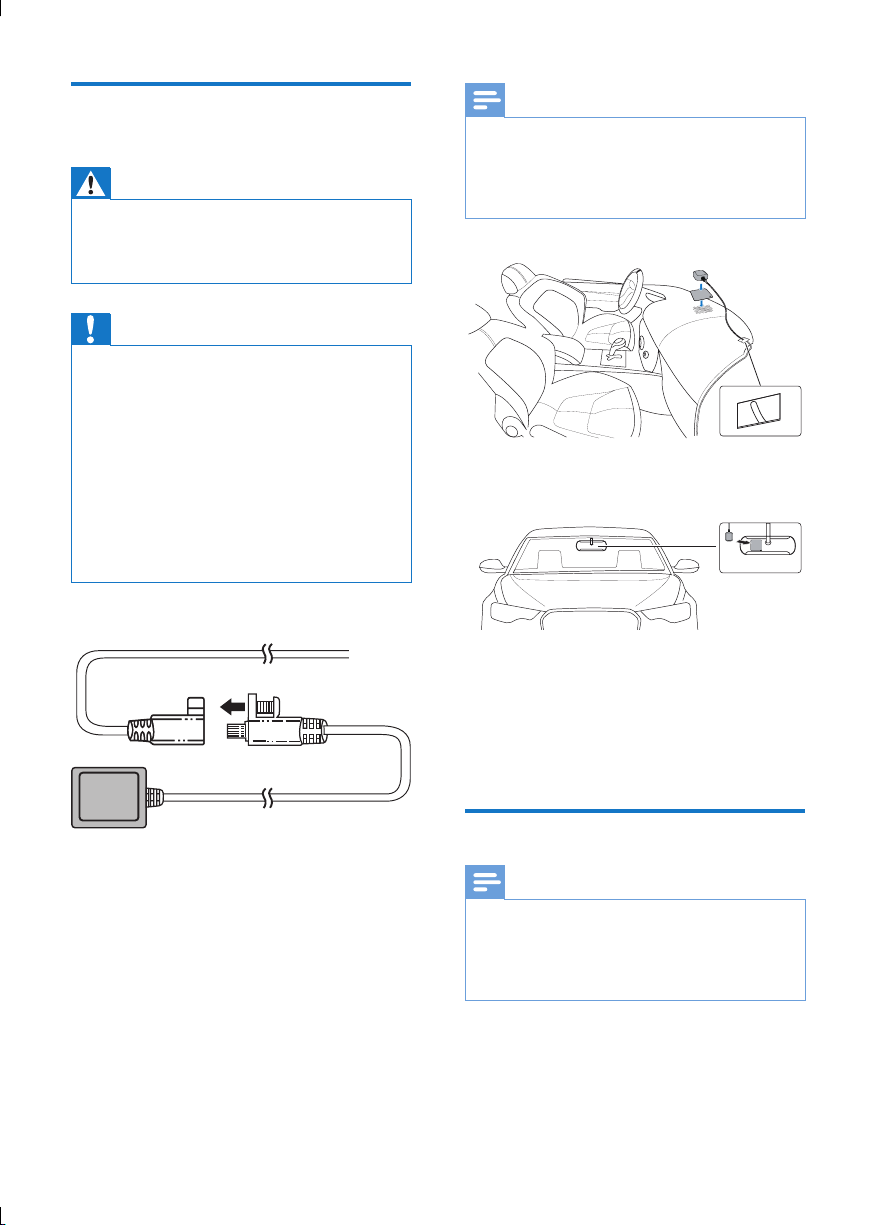

About the GPS antenna

Warning

•

Risk of injury: Never install the antenna and its accessories on the airbag cover.

• Risk of swallowing parts: Keep the antenna and

accessories out of the reach of children.

Caution

Risk of electromagnetic interference: Do not install the

•

GPS antenna over any sensors or vents.

• Risk of short circuit, malfunction, or damage to your car

navigation system: Do not alter the GPS antenna cable or dismantle the antenna box.

• Risk of poor reception: Use the supplied metal sheet

only, and never cut or distort it; do not paint the GPS antenna.

• Risk of damage to the GPS antenna cable: Never pull

the antenna cable when you remove the antenna.

• Risk of scratching your car: The GPS antenna box has

a magnet. When you install or remove it, do not drag it on any metal surface.

Note

Make sure that the contact surface that contacts with

•

the metal sheet is free of moisture, dust, grime, oil, and any other dirt.

• If you remove the metal sheet, some adhesive may be

left on the contact surface.

Connect the GPS antenna

a b

GPS AERIAL

1 Connect the GPS antenna to your car

navigation system.

2 Use the supplied screw to fasten the

connectors.

Install the GPS antenna

You can install the signal receptor of GPS antenna:

• On the dashboard cover

• On the back panel of rear-view mirror

12 EN

1 Remove the protective cover of the metal

sheet, and then afx it.

2 Afx the antenna box onto the metal

sheet.

3 Use clamps to secure the antenna cable.

Mount into the dashboard

Note

Make sure that wires are correctly connected before

•

you mount the main unit into a car.

• If preset radio stations are lost when the ignition key

is turned OFF and then back ON, reconnect the red leads crosswise to the yellow ones.

1 If the car does not have an on-board drive

or navigation computer, disconnect the negative terminal of the car battery.

• If you disconnect the car battery in a car that has an on-board drive or navigation computer, the computer may lose its memory.

• If the car battery is not disconnected, to avoid short-circuit, make sure that bare wires do not touch each other.

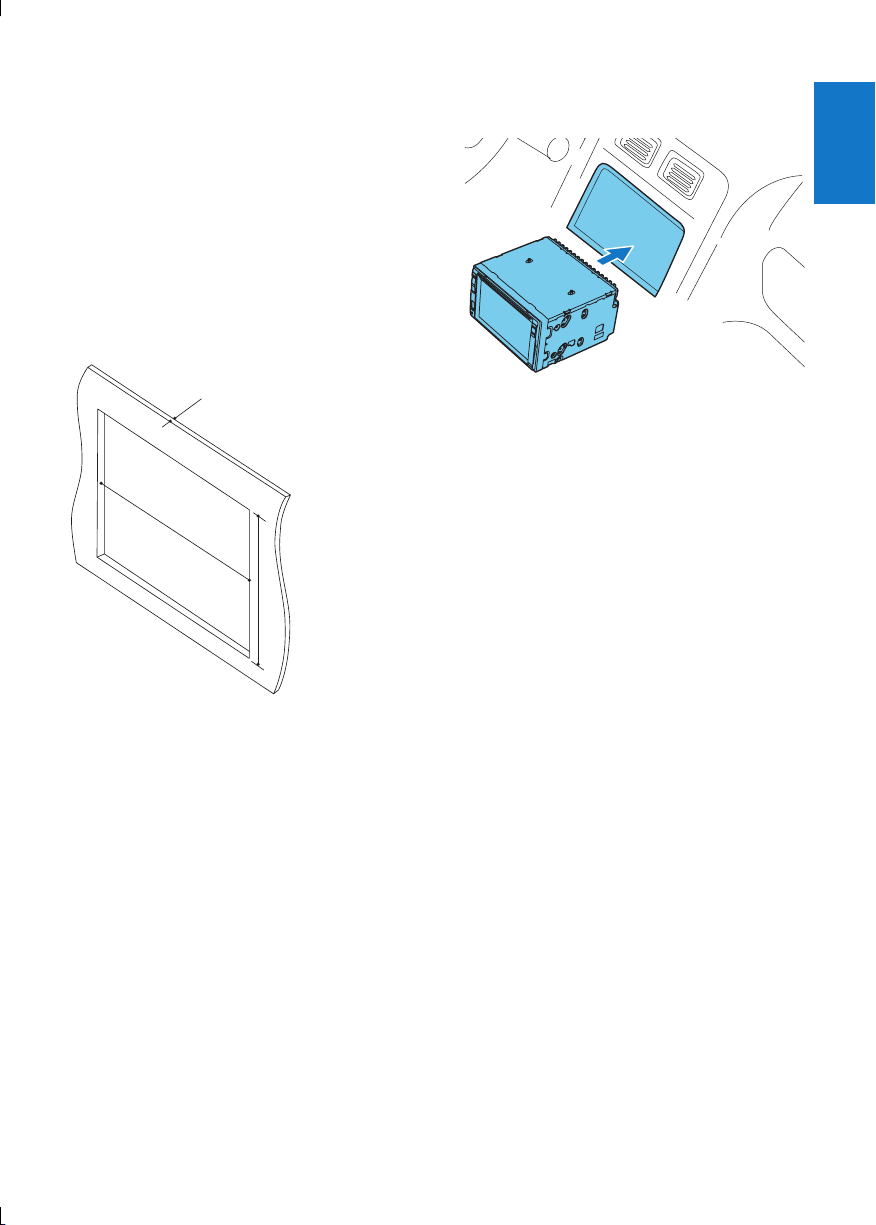

2 Make sure that the car dashboard opening

is within these measurements:

3 Slide the unit into the dashboard until a

click sound is heard.

English

5 mm

182 mm

112 mm

• Since the unit cannot be used if the dashboard opening's slant angle is above 20 degrees, make sure that the horizontal slant of the car dashboard opening is between 0 and 20 degrees.

4 Reconnect the negative terminal of the car

battery.

4 Get started

Caution

Risk of car accidents! Never watch video or operate

•

this system while driving.

Prepare the remote control

1 Pull out the battery tray.

2 Insert one CR2025 battery with correct

polarity (+/-) as indicated.

3 Insert the battery tray.

Turn on

Press .

» PHILIPS logo and a progress bar are

displayed while boot-up.

• To turn off the system, press and hold for 3 seconds.

For the rst time use

Pull the protective sheet out.

» The remote control is ready for use.

Replace the battery

Caution

Risk of explosion! Keep batteries away from heat,

•

sunshine or re. Never discard batteries in re.

Note

Remove the battery if it is exhausted or if the remote

•

control is not to be used for a long time.

• Batteries contain chemical substances, they should be

disposed of properly.

• Perchlorate Material - special handling may apply. See

www.dtsc.ca.gov/hazardouswaste/perchlorate.

For the st time use

After successful boot-up, the following interface is displayed.

1 Tap to select a language for on-screen

display.

» The following interface is displayed.

14 EN

2 Tap to select a radio region that matches

your location.

» The following interface is displayed.

English

3 Tap [FINISH] to complete the initial setup.

» The device switches to radio mode

automatically.

Use the home menu

Note

If is displayed when you touch an icon, it indicates

•

that the selected media or feature is unavailable at the current time.

Access the home menu

Tap to access the home menu.

» The clock, date, and the bar for popular

icons are displayed.

• [Radio]: Switch the source to FM/ AM radio.

•

[Disc]: Switch the source to disc.

•

[USB]: Switch the source to USB

storage device.

•

[SDHC]: Switch the source to SD/

SDHC card.

•

: Once your iPod/iPhone is connected and recognized, this icon is displayed in the bar of favorite icons. Tap it to switch the source back to iPod/iPhone.

•

[Navigation]: Access the navigation system.

•

[AV-In 1]/[AV-In 2]: Switch the source to the audio and video input that is transferred from an external video player.

•

[Rear zone]: Access the settings for

rear monitors.

•

[SWC]: Access the interface to assign functions to buttons on the steering wheel.

•

[Settings]: Access the system menu.

• To access the full menu with all feature icons displayed, tap

• To return to the home menu, tap

Customize the home menu

1 Tap and hold an icon until it is movable.

2 Drag it to the target place, and then

release your nger.

• When you move an icon from the bar

for popular icons to the lower area,

release your nger when the icon's

name is displayed.

• When you move an icon from the

lower area to the bar for popular icons,

release your nger when the icon's

name disappears.

3 Tap to return to the home menu.

» The bar for popular icons is refreshed.

• [24hr]: 24-hour time format

• [12hr]: 12-hour time format

4 Tap [Date] to display the interface for

setting the date.

5 Tap to set the year, month, and date. 6 Tap [Time] to display the interface for

setting the time.

Set the date and time

Tap > to access the full menu with all feature icons displayed.

2 Tap [Settings].

» The [General] menu is displayed.

3 Tap [Clock mode] to select a time format.

16 EN

7 Tap to set the hour and minute. 8 Tap to return to the home menu.

Adjust the screen brightness

Press and hold on the front panel to select a brightness level of the screen.

• [LEVEL 1], [LEVEL 2], or [LEVEL 3]

Switch display designs

Select a preset display design.

1 In any mode, tap , and then [Display

Design].

» The [Display Design] interface is

displayed.

2 Tap a setting to display the options.

• [Wallpaper]: Select a wallpaper.

• [Visualizer]: Select a motional

visualization effect.

• [Skin]: Select a background color for

on-screen icons.

3 Tap an option to select it.

4 Tap to return to the previous mode.

5 Play from hard

media

You can use this system to listen to audio, watch videos, and view photos that are stored on a disc, USB storage device, or SD/SDHC card.

Note

Before use, check for compatible media.

•

Load a disc

Caution

Never insert any object other than a disc of 12-cm

•

diameter into the disc slot.

English

1 Insert the disc into the disc slot with the

label side facing up.

» Play starts automatically.

• If play does not start automatically, tap the screen to display the then tap

2 To eject the disc, press .

» When the disc is ejected, the system

switches to the previous source or radio mode.

Region code

This system can play DVD discs marked with the following region code.

to start play.

icon, and

DVD region code Countries

Russia

Connect a USB storage

device

Note

Make sure that the USB storage device contains

•

compatible les.

• NTFS (New Technology File System) le system is not

supported.

1 Flip up the protective cover.

2 Insert the SD/SDHC card into the slot

until you hear a "click".

» Play starts automatically.

Remove the SD/SDHC card

1 Push the USB socket cover upwards to

open it.

2 Connect the USB storage device to the

USB socket.

» Play starts automatically.

• To remove the USB storage device, switch the system to another source

rst.

Insert an SD/SDHC card

Note

Make sure that the SD/SDHC card contains compatible

•

les.

• NTFS (New Technology File System) le system is not

supported.

1 Switch system to another source.

2 Press the card inwards until you hear a

"click".

» The card is disengaged.

3 Pull out the SD/SDHC card.

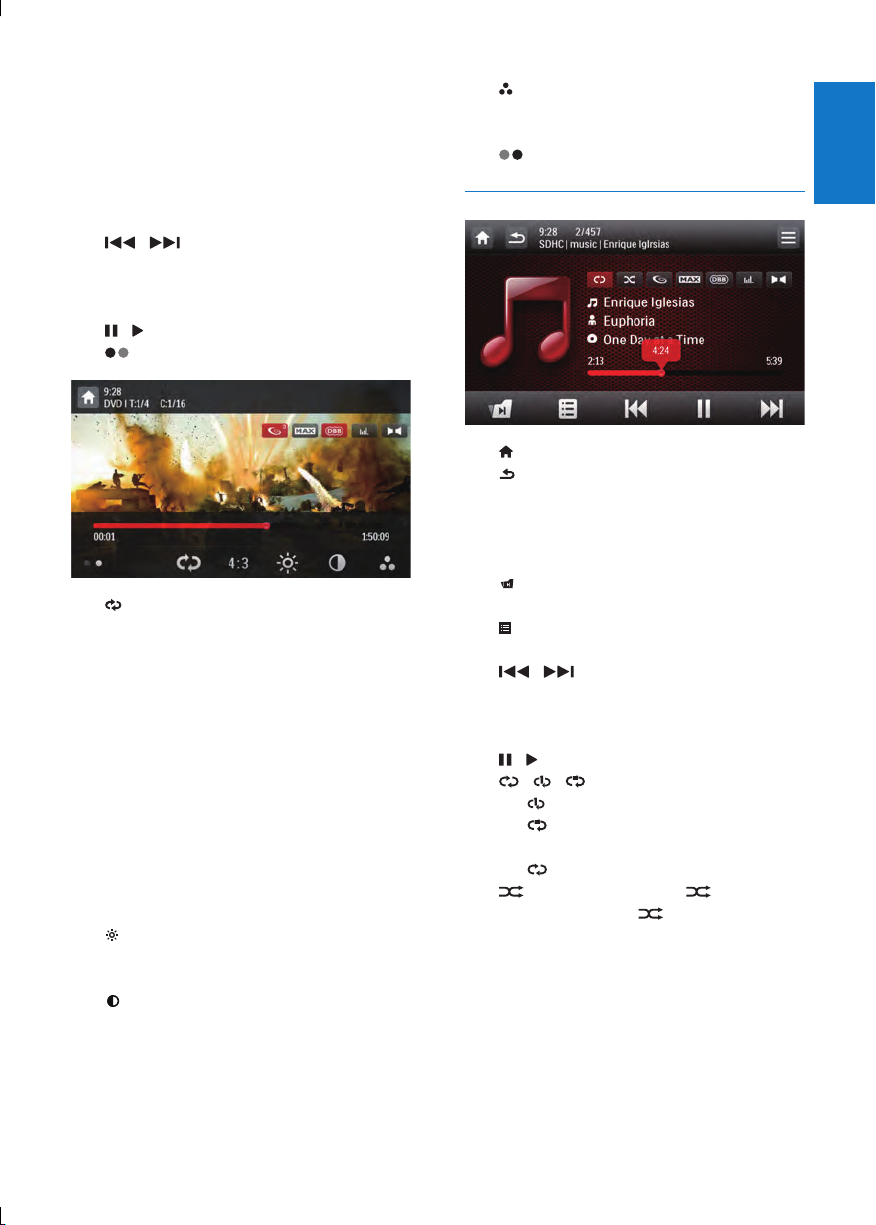

Control play

Videos

• : Return to the home menu.

•

: Zoom in or out of the image.

•

: Select an available audio channel or

audio language.

•

: Select an available subtitle.

•

18 EN

• For DVD, return to the disc menu or root menu.

• For recorded les, return to the list of les or folders (see 'Browse recorded les' on page 19).

• PBC: For VCD/SVCD only, enable or

disable the PBC (Playback Control) feature.

•

/ : Skip to the previous or next

title, chapter, track, or le.

• To search forward fast or rewind the

track, tap on the progress bar.

/ : Start, pause, or resume play.

: Display control icons on the second .

• : Select a repeat mode.

• DVD: [Repeat chapter] (repeat the

current chapter), [Repeat title] (repeat the current title), [Repeat all] (repeat all chapters and titles), or [Repeat off] (cancel repeat play).

• VCD/SVCD: [Repeat one] (repeat the current track) or [Repeat all] (repeat all tracks).

• Recorded les: [Repeat one] (repeat the current video le), [Repeat folder] (repeat all video les in the current

folder), or [Repeat all] (repeat all video

les).

• [16:9]/[4:3]: Select an aspect ratio.

•

: Tap to display the brightness bar, and then tap on the bar to adjust the screen brightness.

•

: Tap to display the contrast bar, and then tap on the bar to adjust the image contrast.

• : Tap to display the saturation bar, and then tap on the bar to adjust the image saturation.

•

: Display control icons on the rst page.

Audios

• : Return to the home menu.

•

• Press once to access the track list.

• Press twice to access the folder list.

• Press repeatedly to return to the

playback interface.

•

: For recorded les only, skip to the next

audio folder.

•

: Return to the list of tracks or folders

(see 'Browse recorded les' on page 19).

•

/ : Skip to the previous or next

track.

• To search forward fast or rewind the

track, tap on the progress bar.

/ : Start, pause, or resume play.

/ / : Select a repeat mode.

•

: Repeat the current track.

•

: For recorded les, repeat all tracks

in the current folder.

•

(highlighted): Repeat all tracks.

: Select random play ( highlighted)

or sequential play (

in gray).

English

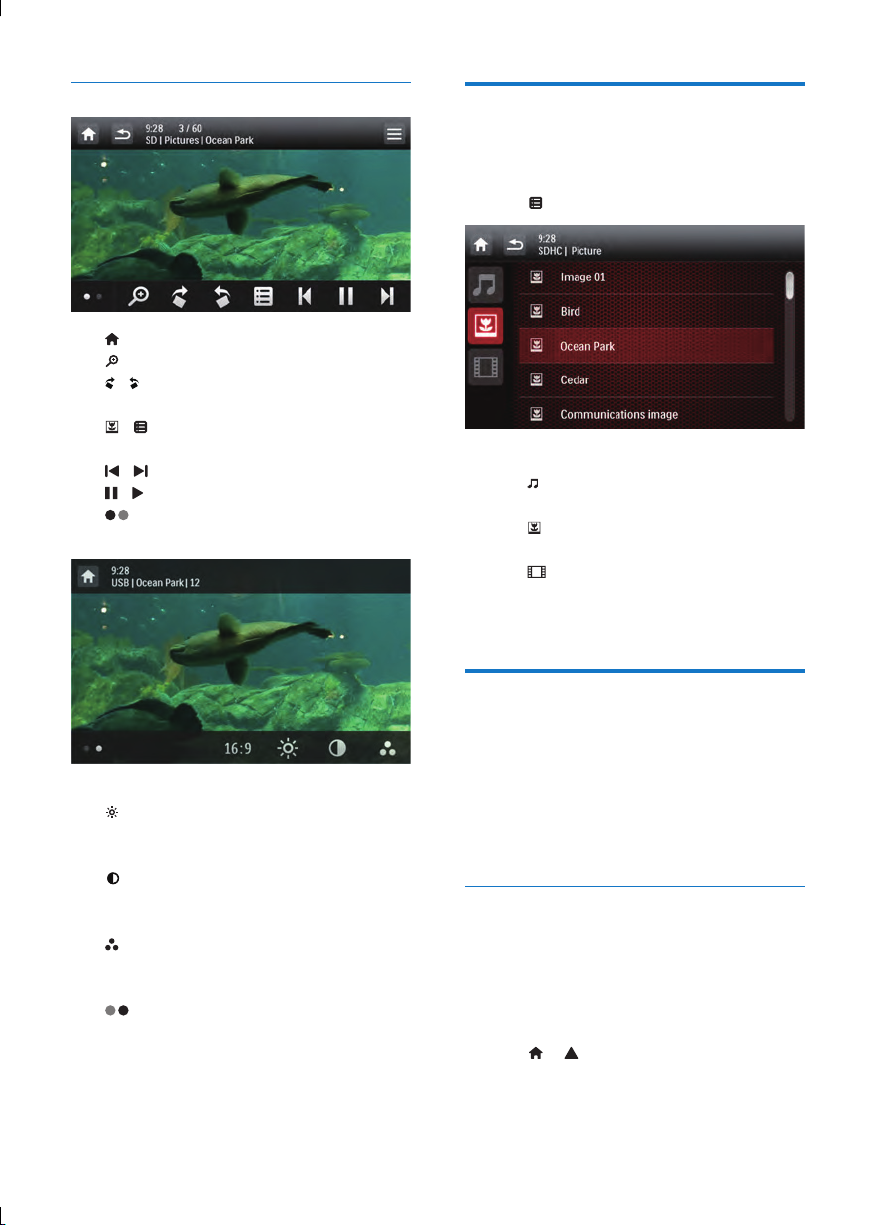

Pictures

• : Return to the home menu.

•

: Zoom in or out of the picture.

•

/ : Rotate the picture clockwise or anti-

clockwise by 90 degrees.

•

/ : Return to the list of les or folders

(see 'Browse recorded les' on page 19).

•

/ : Select the previous or next picture.

•

/ : Pause or resume the slideshow.

•

: Display control icons on the second

page.

Browse recorded les

During playing recorded les, you can access the le list and select les from the list.

1 Tap to access the list of les or folders.

2 Tap an icon to select a le category.

•

: Display the list of audio tracks or

folders.

•

: Display the list of picture les or

folders.

•

: Display the list of video les or

folders.

3 Tap the name of a le to start play.

• [16:9]/[4:3]: Select an aspect ratio.

•

: Tap to display the brightness bar, and then tap on the bar to adjust the screen brightness.

•

: Tap to display the contrast bar, and then tap on the bar to adjust the image contrast.

•

: Tap to display the saturation bar, and tap on the bar to adjust the image saturation.

•

: Display control icons on the rst page.

20 EN

About DivX® videos

DivX® video is a digital media format that retains high quality despite of a high compression rate. You can play DivX (Video-on-Demand) videos that are rented or purchased from online stores. You can also play non-VOD DivX videos.

Play DivX VOD videos

To play DivX® VOD videos on this product, you need the DivX DivX Player installed on your computer, and a free DivX Account.

Find the DivX

1 Tap > to access the full menu with all

feature icons displayed.

VOD code on this product, the

VOD code on your product.

VOD

2 Tap [Settings] to access the system

setup menus.

3 Tap [Info] to access the [Info] menu. 4 Tap [DivX(R) VOD] to display the

registration code.

Note

If no DivX Player is installed on your computer,

•

download it from www.divx.com for free.

• If you have no DivX Account, create one for free

through DivX Player that is installed on your computer.

On your computer through DivX Player

1 With the DivX

product under your DivX Account.

• After the registration, previous videos

that you rented or purchased with the same DivX Account can be played on this product.

2 Rent or purchase DivX

your DivX Account.

3 Transfer the DivX

supported recordable disc.

On your product

Play the DivX

VOD code, register this

VOD videos with

VOD videos to a

VOD videos from the disc.

Note

To play a DivX DRM protected le, transfer it to a

•

compatible disc rst.

• The subtitle lename has to be the same as the

lename of the DivX video (the le extension

excluded).

• The DivX video le and its subtitle le must be saved

under the same directory.

• This product supports subtitle les in the following

formats: .srt and .sub.

English

Note

Go to www.divx.com to learn more about

•

downloading and playing DivX videos.

Play non-VOD DivX videos

1 Transfer the videos and subtitle les onto

a supported recordable disc, USB storage device, or SD/SDHC card.

2 Play the video les from the disc, USB

storage device, or SD/SDHC card.

6 Listen to radio

Switch to radio mode

After the boot-up at the rst time, the system

switches to radio mode automatically. To switch the source back to radio afterwards, tap

[Radio] on the home menu.

» The interface for radio is displayed.

Set up

Select a radio range

1 Tap [Radio Range].

2 Tap [Distance] or [Local] to select a tuner

sensitivity.

• [Distance]: Stations with strong and weak signals can be tuned to.

• [Local]: Only stations with strong signals can be tuned to.

Enable the RDS feature

Note

RDS feature is enabled by default.

•

• Only after the RDS feature is enabled, the option of

[PTY list] is displayed.

Before you search for radio stations, make prior setup. Tap

to display the setup menus.

22 EN

Tap [RDS Off] to enable the RDS feature.

» The option of [PTY list] is displayed.

• To disable the RDS feature, tap [RDS On].

Tune to a radio station

1 Tap FM or AM to select a band.

• FM bands: FM1, FM2, FM3

• AM bands: AM1, AM2

2 Tap or repeatedly until the frequency

of target radio station is displayed.

• To tune to a radio station automatically, tap and hold frequency digits start change.

Tip

You can also press BAND on the remote control

•

repeatedly to select a band.

or until the

Store radio stations automatically

You can search for a radio station with intro search, which broadcasts a 10-second preview of each detected radio station.

1 Select a band.

2 Tap . 3 Tap [Auto Store].

» Auto search starts. The six strongest

stations of the selected band are saved in preset channels automatically.

Tune to a preset radio station

Select a band.

2 Tap one of the preset channels (1 to 6) to

select a preset radio station.

English

Store radio stations in

memory

You can store up to 6 stations in each band.

Store radio stations manually

1 Select a band.

2 Tune to the target radio station. 3 Tap and hold one of the channels (1 to 6)

over two seconds.

» The radio station is saved under the

selected channel.

Use RDS related features

Note

Only after RDS feature is enabled, you can use RDS

•

related features.

Search for RDS programs of a specic

type

1 Tap > [PTY list] to display the list of

program types.

2 Tap the name of a program type to start

search.

» Once an RDS station that transmits

programs of the selected type is found, the RDS station is broadcast automatically.

• To save the RDS station, tap and hold one of the preset channels.

• To search for another RDS station, repeat steps 1 and 2.

RDS program types

Item Program

type

1 NEWS News services

2 AFFAIRS Politics and current

Description

affairs

3 INFO Special information

programs

4 SPORT Spor ts

5 EDUCATE Education and advanced

training

6 DRAMA Radio plays and

literature

7 CULTURE Culture, religion and

society

8 SCIENCE Science

9 VARIED Entertainment programs

10 POP M Pop music

11 ROCK M Rock music

12 MOR M Light music

13 LIGHT M Light classical music

14 CLASSICS Classical music

15 OTHER M Special music programs

16 WEATHER Weather

17 FINANCE Finance

18 CHILDREN Children’s programs

19 SOCIAL Social Affairs

20 RELIGION Religion

21 PHONE IN Phone In

22 TRAVEL Tr ave l

23 LEISURE Leisure

24 JAZZ Jazz Music

25 COUNTRY Country Music

26 NATION M National Music

27 OLDIES Oldies Music

28 FOLK M Folk Music

29 DOCUMENT Documentary

30 TEST Alarm Test

31 ALARM Alarm

24 EN

Use alternate frequencies

If the signal of an RDS station is poor, enable the AF (Alternate Frequency) function. The system searches for a strong station that broadcasts the same program. Tap AF to enable or disable the AF function.

• AF (highlighted): The function is enabled.

• AF (in gray): The function is disabled.

7 Use the

navigation system

Insert the map data card

English

Receive trafc announcement

If you want to receive trafc announcement, enable the TA (Trafc Announcement) function.

Tap TA to enable or disable the TA function.

• TA (highlighted): The function is enabled. When a trafc announcement is on air,

the system automatically switches to radio mode and begins to broadcast the

trafc announcement. When the trafc

announcement is over, the system returns to the previous mode.

• TA (in gray): The function is disabled.

Note

The map data card is not included in the packaging.

•

• Before using the map data card, update the map data

if necessary.

1 Flip up the protective cover.

2 Insert the map data card into the MAP slot

until you hear a "click".

3 Close the protective cover.

Navigate your road trip

Note

Risk of trafc accident! Never operate the navigation

•

system during drive. Complete the setting of your

destination and other navigation specications before

you drive.

1 Press NAVI.

• You can also tap to access the navigation system.

» The navigation interface is displayed in

a few seconds.

on the home menu

2 Follow the user manual of the navigation

map to set navigation specications.

8 Play from an

iPod/iPhone

Note

During play, no audio signals are transferred through

•

the headphone socket of your iPod/iPhone.

Compatible iPod/iPhone

models

This system supports the following iPod and iPhone models.

• iPhone 4, iPhone 3GS, iPhone 3G, and iPhone

• iPod touch (1st, 2nd, 3rd, and 4th generations)

• iPod nano (1st, 2nd, 3rd, 4th, 5th, and 6th generations)

• iPod classic

26 EN

Connect your iPod/iPhone

Connect an Apple 30-pin USB cable to:

• the USB socket on the front panel of this system, and

• your iPod/iPhone.

» The system starts playing tracks that

are stored on your iPod/iPhone.

• Once your iPod/iPhone is connected and recognized, popular icons on the home menu. You can tap it to switch back to this playback interface.

is displayed in the bar of

Search for a track

You can select a track quickly through the music menu.

1 Tap to access the music menu.

English

Note

Before you disconnect your iPod/iPhone, switch the

•

system to another source.

Control play

By default, use the on-screen playback interface of this system to control play.

•

: Tap to pause play.

•

: Tap to resume play.

•

/ : Tap to play the previous or

next track.

/ : Tap to select a repeat mode.

•

: Repeat the current track.

•

(highlighted): Repeat all tracks.

•

(in gray): Cancel repeat play.

: Tap to select a play mode.

•

(highlighted): Play tracks randomly.

•

(in gray): Play tracks in sequence.

: Tap to switch to the iPod control mode, and then you can control play on your iPod/iPhone.

: Tap to switch back to the on-screen control mode, and then you can control play on this system.

: Tap to access the music menu.

2 Tap to select a categor y.

» Tracks under the selected category are

listed.

3 Tap a track name to start play.

• If one or more subcategories are under the selected category, select a

category rst.

Charge your iPod/iPhone

Once the iPod/iPhone is connected and recognized, the iPod/iPhone begins to charge.

9 Adjust sound

Enable the FullSound effect

When you listen to radio, enjoy music, or watch video, follow the instructions below to adjust sound.

Adjust the volume level

Press +/- repeatedly on the front panel.

• +: Increase the volume level.

• -: Decrease the volume level.

Mute sound

Press on the front panel.

• To release the speakers from mute status, press

again.

Enable the maximum sound

Tap on the playback interface.

•

(highlighted): The maximum sound

is enabled.

(in gray): The maximum sound is

disabled.

Enable the DBB sound effect

Note

This feature is unavailable when you listen to radio.

•

Philips FullSound restores the audio details that are lost due to compression. It enriches the music signals so that what you hear is the full sound with every nuance of emotion and every detail of musical genius. Philips FullSound can:

• bring out CD sound quality from an MP3 track,

• achieve richer bass with greater depth and impact,

• restore the sense of spaciousness that lacks in a compressed audio, and

• enhance sound precision and details.

Tap

on the playback interface.

•

(highlighted): The FullSound effect is

enabled.

•

(in gray): The FullSound effect is

disabled.

Select a preset sound equalizer

Tap on the playback interface.

» The current equalizer settings are

displayed.

When DBB (Dynamic Bass Boost) is enabled, low tones are enhanced electronically. Tap

on the playback interface.

•

(highlighted): DBB sound effect is

enabled.

•

(in gray): DBB sound effect is disabled.

28 EN

2 Tap or to select a preset sound

equalizer.

• [Custom], [Techno], [Rock], [Classic], [Jazz], [Optimal], [Flat], or [Pop]

» The selected sound equalizer is

highlighted.

3 Tap on the circle or bar to adjust the

settings.

• [Bass]: bass range (-14 to +14)

• [Middle]: middle range (-14 to +14)

• [Treble]: treble range (-14 to +14)

• [LPF]: low pass lter range (60 Hz, 80

Hz, 100 Hz, or 160 Hz)

• [MPF]: middle pass lter range (0.5

kHz, 1.0 kHz, 1.5 kHz, or 2.5 kHz)

• [HPF]: high pass lter range (10.0 kHz,

12.5 kHz, 15.0 kHz, or 17.5 kHz)

•

: Tap and hold to restore the settings.

4 Tap to exit.

Others

Tap on the playback interface.

» The setup interface is displayed.

Adjust the fader and balance

Tap or to adjust fader or balance value.

• [Fader]: fader range (+16 to -16).

• [Balance]: balance range (-16 to +16).

Set the sub-woofer

• [On]/[Off]: Tap to turn on or off the sub- woofer.

•

/ : Tap to set the volume of sub-

woofer (0 dB to 14 dB).

• [80 Hz]/[120 Hz]/[160 Hz]: Tap to select a low pass lter range for the sub-woofer.

English

• : Tap to display the [Music zone] interface for selecting a listening zone.

•

: Tap to display the [Fader/ Balance] interface for adjusting the fader and balance.

•

: Tap to display the [SubWoofer] interface for setting the sub-woofer.

Select a listening zone

Philips’ innovative Zone technology enables the driver or passengers to enjoy music with the best speakers balance and experience more vivid spacial effect as the artist is intended to create. You can switch the music listening zone from the driver to passengers for the best speaker sound settings in car.

Tap a gray point to switch the listening zone.

» The highlighted area indicates the

current listening zone.

10 Adjust settings

Access system setup menus

Tap > to display all feature icons.

2 Tap [Settings].

» The [General] menu is displayed.

30 EN

3 Tap an icon on the left.

•

: Access the [General] menu to

adjust general settings.

•

: Access the [Info] menu to view

system information.

•

: Access the [Navigation] menu to

adjust navigation settings.

4 Swipe your nger up or down to view

more settings.

5 Tap an option to view details or change

the setting.

• To exit the menu, tap

Adjust general settings

Settings Options Description

[Radio

Region]

[Beep] [On] Turn the

[Off] Turn off the

[Language] Select

[Calibration] Follow the

[Clock

mode]

[Date] Set the date.

[Time] Set the time.

[12Hr]/[24Hr] Select a time

Select a radio region that matches your location.

beep sound on. Each time you press a button or tap an icon, the unit beeps.

beep sound.

an OSD (on-screen display) language.

on-screen instructions to calibrate the touch screen.

format.

Settings Options Description

[Parking] [On]/[Off] Enable or

disable the video blocking system.

[Demo]

(Auto start

after power off)

[On]/[Off] Enable it to

demonstrate features after the system is power off.

View system information

Settings Options

[ARM

version]

[Servo version]

[MCU

version]

[DVD

regions]

[DivX(R)

VOD]

[Restore

factory defaults]

View rmware versions.

View the DVD region code that the system supports.

View the DivX registration code.

Tap to display the dialog box for restoring the system.

• Tap [Yes] to restore the sys- tem to factory default status.

• Tap [No] to return to the previous menu.

English

Adjust Navigation settings

• [Navigation Program Path]: Tap [Enter] to access the Navigation Program Path mode.

• [Navigation Voice]: Tap [Enter] to display the [Navigation Voice] interface.

• [All]/[Front left]/[Front right]: Select a

zone for navigation voice.

• [Off]: Mute the navigation voice.

• [Voice Level]: Tap +/- to adjust the

volume of navigation voice.

11 Others

Play external audio/video

input

You can connect an external audio/video player to this system.

1 Connect a composite AV cable to

• the AV-IN socket on the front panel, and

• the audio and video output sockets of the external player.

2 Tap > to access the full menu with all

feature icons displayed.

3 Tap [AV-IN1] to display the playback

interface.

4 Operate on the external player to start

play (see the user manual of the external device).

32 EN

Tip

If you connect this system to an external player through

•

the VIDEO IN, AV-IN L, and AV-IN R sockets on the rear panel, tap instead of

[AV-IN2] to switch the source

[AV-IN1].

Use rear monitors

If one or two monitors are connected for backseat passengers, you can select different sources for front and backseat passengers.

Note

Make sure that rear monitors are correctly connected

•

to this system.

• Only when the multi-zone display mode is activated,

rear monitors can receive signals from the system.

• By default, the same signals are transferred to the front

and rear monitors.

• When a disc, USB storage device, SD/SDHC card, or

iPod/iPhone connected through the USB socket is selected as the source for front zone, you cannot select another source for rear zone.

• Only when the system is in radio mode or navigation

mode, you can select a source for rear zone from disc, SD/SDHC card, USB storage device, or iPod/iPhone connected through the USB socket.

1 Tap > to access the full menu with all

feature icons displayed.

2 Tap

» The [Rear Zone] menu is displayed.

English

4 Tap to select an available source to start

play.

5 Tap [Rear Speaker] to enable or disable

the audio output to rear speakers.

• [On]: Enable the audio output to rear speakers.

• [Off]: Mute rear speakers.

6 Tap to return to the previous mode.

Switch the control interfaces

When different sources are selected for front passengers and backseat passengers, you can tap

3 Tap [Mode] to enable or disable the signal

transferring to rear monitors.

• [On]: Enable the signal transferring to rear monitors.

• [Off]: Disable the signal transferring to rear monitors.

» When it is enabled, the following

interface is displayed.

to switch the control interface for front

source or rear source.

» When

control interface is for the front source.

» When

displayed, the current control interface is for the rear source.

is solidly displayed, the current

blinks with and [Rear zone]

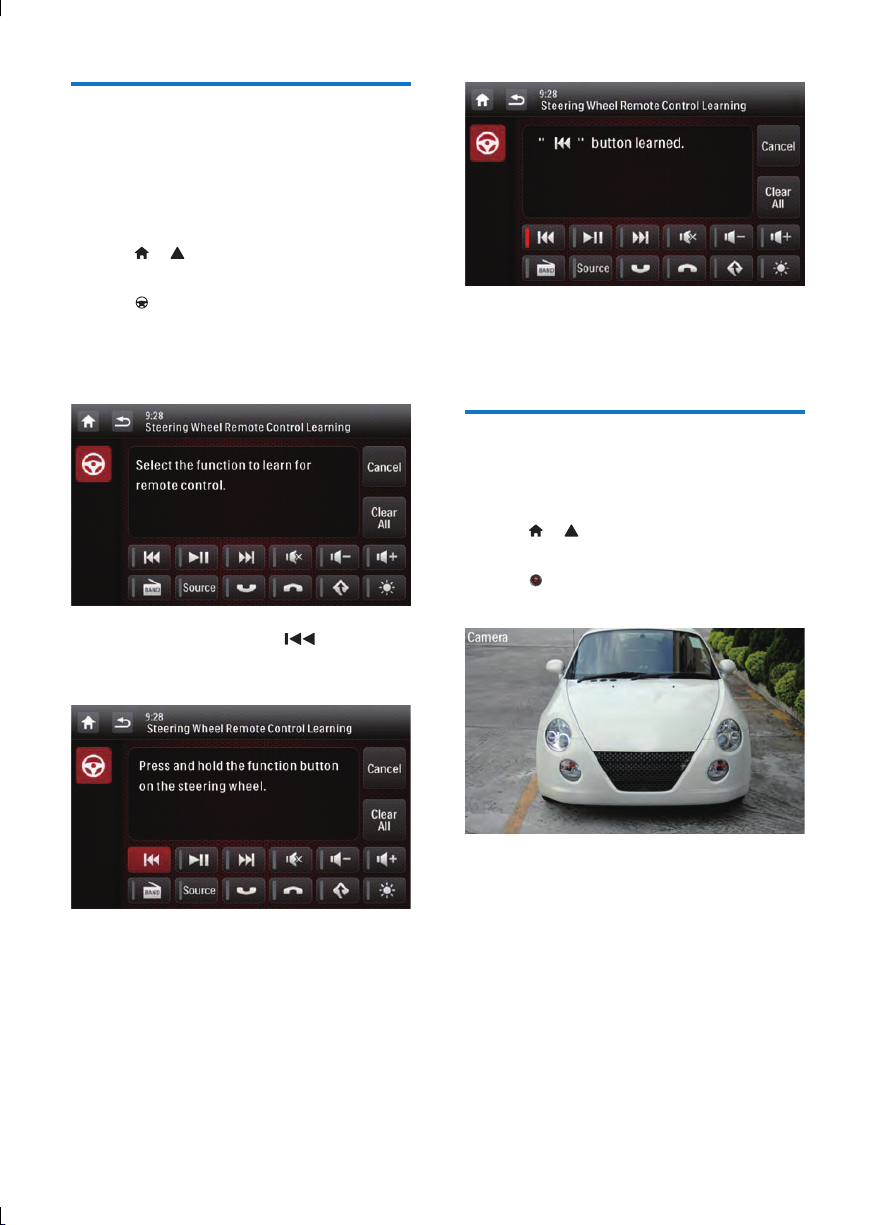

Use buttons on the steering

wheel

You can assign a function to a button on the steering wheel, and then control the system with that button.

1 Tap > to access the full menu with all

feature icons displayed.

2 Tap (This icon is displayed only when a 3 compatible camera is correctly connected).

» The [Steering Wheel Remote Control

Learning] interface is displayed.

4 Tap an icon, for example, , of which

you want to assign the function to a button on the steering wheel.

6 Repeat steps 3 and 4 to assign more

functions to buttons on the steering wheel.

• To clear the assignment, tap [Clear All].

Set the rear view camera

If a rear view camera is connected, you can view on the screen what the camera takes.

1 Tap > to access the full menu with all

feature icons displayed.

2 Tap .

» Picture from rear camera is displayed.

• To cancel the assignment, tap [Cancel].

5 Press and hold the button on the steering

wheel for one second.

» The following interface is displayed.

34 EN

Reset the system

Upgrade the rmware

If the system hangs up, reset it.

1 Flip up the protective cover. 2 Press RESET with the tip of a ball-point

pen or toothpick.

Replace the fuse

If there is no power, check the fuse and replace it if it is damaged.

1 Detach the main unit from dashboard.

2 Check the electric connection. 3 Remove the damaged fuse from the rear

panel.

4 Insert a new fuse with the same

specications (15 A).

Note

Power supply must not be interrupted during the

•

upgrade.

• When the rmware upgrade succeeds, all settings are

restored to the factory default status.

1 Go to www.philips.com/welcome.

2 Click the link of "Register my product"

(the exact wording of this link name may vary in different languages).

3 Log in with your account on the prompt

Web page.

• If you have no account for Club Philips, create one rst on this Web page.

4 Search your product with "CED1900/51"

as the keyword.

5 Click the link of search result to access the

Web page for registering your product.

6 Fill in necessary information about this

product to complete the registration.

» With the registration, you can get

information about software update and product support at this Web page or via your mailbox that is registered as the account for Club Philips.

English

Tip

If the fuse gets damaged immediately after it is

•

replaced, an internal malfunction may occur. In this case, consult your Philips retailer.

Perform the upgrade

1 Check the current rmware version of this

system (see 'View system information' on page 30).

2 Go to www.philips.com/suppor t. 3 Login with your account for Club Philips.

» Suppor t information about your

registered product is displayed.

4 Click the link of "Firmware Upgrade

Readme File" (the exact wording of this

link name may vary in different languages).

5 Read and understand the instructions on

rmware upgrade.

6 Follow the instructions to download the

upgrade packet and complete the upgrade.

• If the upgrade fails, reboot this system, and then perform the upgrade again.

12 Product

information

Note

Product information is subject to change without prior

•

notice.

General

Power supply 12 V DC (11 V - 16 V),

negative ground

Fuse 15 A

Suitable speaker impedance

Maximum power output

Continuous power output

Pre-Amp output voltage

Sub-woofer output voltage

Aux-in level

Dimensions (W x H x D)

Weight (main unit) 3.1 kg

4 - 8

45 W x 4 channels

24 W x 4 channels (4 10% T.H.D.)

4.0 V (CD play mode; 1 kHz, 0 dB, 10 k

4.0 V (CD play mode, 61 Hz, 0 dB, 10 k

800 mV

178 x 101.5 x 160 mm

load)

36 EN

Disc player

System DVD / CD audio / MP3

system

Disc diameter 12 cm

Frequency response 20 Hz - 20 kHz

Signal/noise ratio > 75 dB

Total harmonic distortion

Channel separation > 55 dB

Video signal format NTSC/PAL

Video output 1 +/- 0.2 V p-p

Less than 0.3%

Radio

Frequency range

- FM

Frequency range

- AM(MW)

Usable sensitivity

- FM

Usable sensitivity

- AM (MW)

65.0 - 108.0 MHz (50 kHz per step)

522 - 1,620 kHz (9 kHz per step)

2 uV

25 uV

LCD

Screen size 6.2 inches

Display resolution 800 x 480 dots

Contrast ratio 500

Brightness 450 cd/m²

GPS antenna

• Maximum capacity: 32 G

Supported USB formats:

• USB or memory le format: FAT16, FAT32

• MP3 bit rate (data rate): 32-320 Kbps and

variable bit rate

• WMA v9 or earlier

• Directory nesting up to a maximum of 8

levels

• Number of albums/folders: maximum 99

• Number of tracks/titles: maximum 999

• ID3 tag v2.0 or later

• File name in Unicode UTF8 (maximum

length: 128 bytes)

Supported MP3 disc format:

• ISO9660, Joliet

• Maximum title number: 512 (depending on le name length)

• Maximum album number: 255

• Supported sampling frequencies: 32 kHz,

44.1kHz, 48 kHz

• Supported Bit-rates: 32-320 Kbps and variable bit rate

English

Antenna Build-in ceramic

patch antenna

Supplying voltage 5 ± 0.2 V

Operating temperature -20 ~ +70°C

Cold start 28 s (typical), < 50 s

Hot start 1 s (typical), < 3 s

Acquisition sensitivity -141 dBm (typical)

Navigation sensitivity -158 dBm (typical)

Tracking sensitivity -158 dBm (typical)

Antenna cable length 3.0 m

Dimensions of antenna box (W x H x D)

50 x 40 x 16 mm

USB playability information

Compatible USB devices:

• USB ash memory (USB 2.0 or USB1.1)

• USB ash players (USB 2.0 or USB1.1)

• Memory cards (SD/SDHC)

Supported video formats:

• DVD

• Divx

Note

To ensure a better playback, it is recommended that le

•

image size is no higher than 640 x 480, frame rate is 20 fps, data rate is no higher than 500 kbps.

13 Troubleshooting

Warning

•

Never remove the casing of this product.

To keep the warranty valid, never try to repair the product yourself. If you encounter problems when using this product, check the following points before requesting service. If the problem remains unsolved, go to the Philips Web page (www. philips.com/support). When you contact Philips, make sure that the product is nearby and the model number and serial number are available.

General

No power

• Car engine has not been started. Start the car engine.

• Connections are incorrect.

• The fuse has been damaged. Replace the fuse.

No sound

• Volume is too low. adjust the volume.

• Speaker connections are incorrect.

No response to the remote control

• Make sure that the path between the remote control and the unit is clear from obstacles.

• Move the remote control close to the unit, and point it at the iR sensor.

• Press

• The function is not applicable to the

• Replace the remote control battery.

The disc does not play.

• The disc is upside down. Make sure that

to switch to the control interface

for front source or rear source.

current media.

the printed side is upwards.

• The disc is dirty. Clean the disc with a clean, soft, lint-free cloth. Wipe the disc outwards from the center.

• The disc is defective. Try another disc.

• The disc is incompatible. Try another disc.

• The recordable disc is not nalized.

• The region code of DVD disc is not supported. Use a disc with proper region code.

Cannot play DivX le from an SD/SDHC card or USB storage device

• DivX DRM protected les cannot be played if they are saved on an SD/SDHC card or USB storage device. Transfer it to a compatible disc instead.

No image

• Parking wire connection is incorrect. Check the wiring.

No image on rear monitor

• Enable the signal transferring to rear monitors (see 'Use rear monitors' on page

31).

• A DivX video can be played for front passengers only.

Image ashes or is distorted.

• Video connection is improper. Check the connections.

Noise in broadcasts

• Signals are too weak. Select another station with stronger signals.

• Check the connection of the car antenna.

Preset stations are lost.

• Battery cable is not correctly connected. Connect the battery cable to the terminal that is always live.

The fuse is broken.

• The fuse type is incorrect. Replace it with a 15 A fuse.

• Speaker wire or power wire is grounded. Check the connections.

38 EN

14 Notice

Any changes or modications made to this

device that are not expressly approved by Philips Consumer Lifestyle may void the user’s authority to operate the equipment.

Please inform yourself about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

English

Compliance

This product complies with the radio interference requirements of the European Community.

This apparatus includes this label:

Care of the environment

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed with normal household waste.Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environmental and human health.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.) Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Trademark notice

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/ EC.

Windows Media and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other countries.

“Made for iPod” and “Made for iPhone” mean that an electronic accessory has been

designed to connect specically to iPod or iPhone respectively, and has been certied by

the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance. iPod and iPhone are trademarks of Apple Inc., registered in the U.S. and other countries.

DivX®, DivX Certied® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license. ABOUT DIVX VIDEO: DivX format created by DivX, LLC, a subsidiary

of Rovi Corporation. This is an ofcial DivX Certied

divx.com for more information and software

tools to convert your les into DivX videos.

ABOUT DIVX VIDEO-ON-DEMAND: This

DivX Certied

in order to play purchased DivX Video-onDemand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.

device that plays DivX video. Visit

device must be registered

is a digital video

Other trademarks and trade names are those of their respective owners.

Specications are subject to change without

notice. Trademarks are the property of Koninklijke Philips Electronics N.V or their respective owners. Philips reserves the right to change products at any time without being obliged to adjust earlier supplies accordingly.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

'DVD Video' is a trademark of DVD Format/ Logo Licensing Corporation.

40 EN

CED1900_51_UM_V1.0

Philips CED1900/51 User guide

Specifications and Main Features

Frequently Asked Questions

User Manual
