Philips CED1600 User Manual [ru]

Always there to help you

Register your product and get support at
www.philips.com/welcome

Question?

Question?

Contact

Contact

Philips

Philips

CED1600

User manual 1

使用手冊

用户手册 59

31

Contents

1 Safety 2

2 Your car entertainment system 3

Introduction 3
Playable media 3
What's in the box 3
Overview of the main unit 4
Overview of the remote control 5

3 Install the car entertainment system 6

Connect wires 7

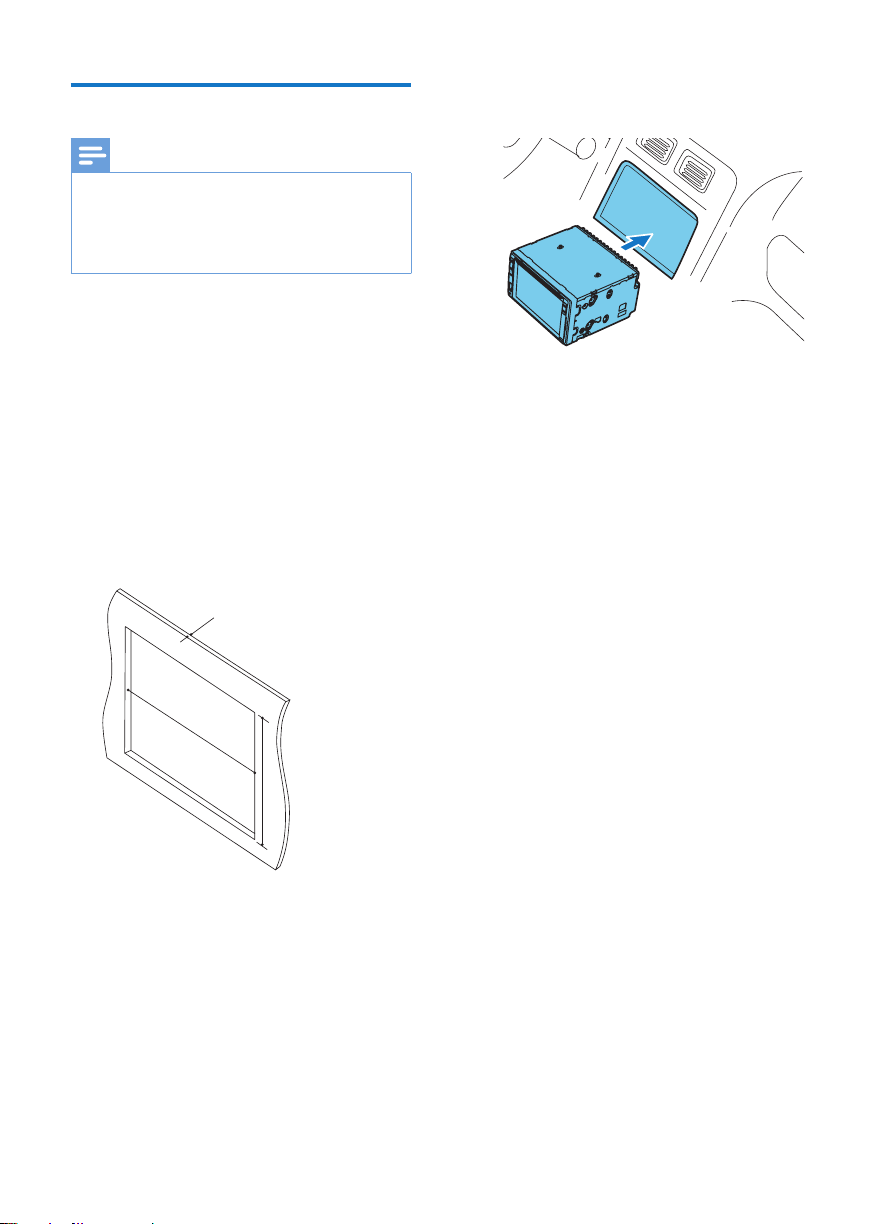

Mount into the dashboard 10

4 Get started 11

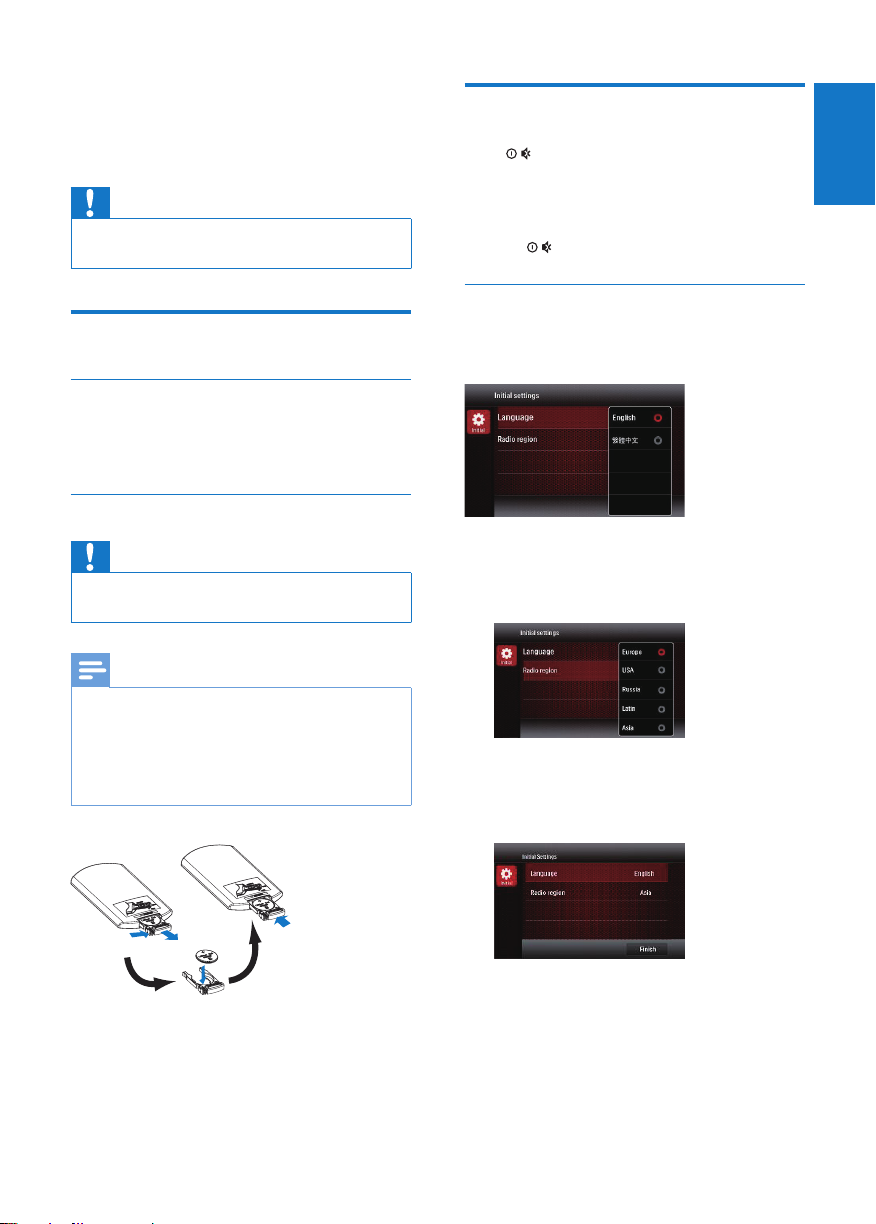

Prepare the remote control 11
Turn on 11

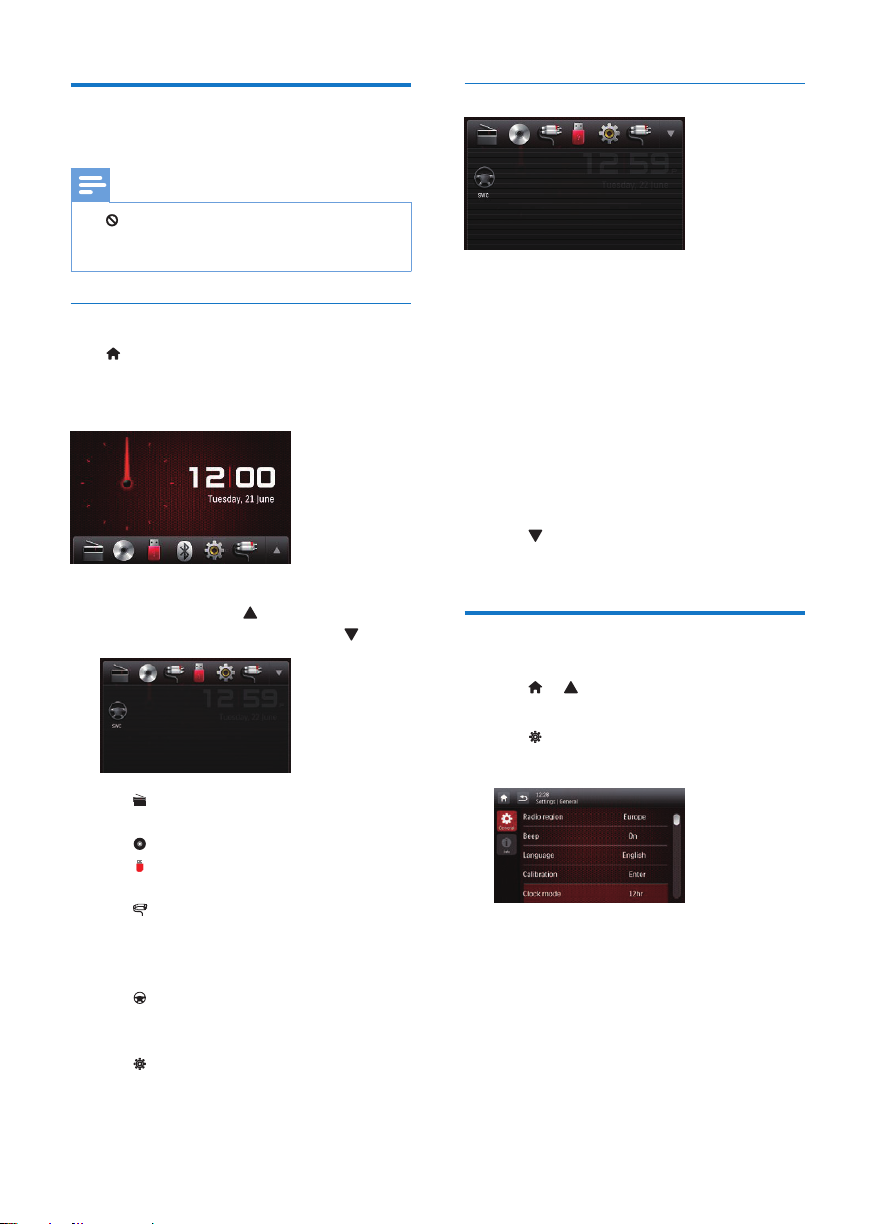

Use the home menu 12

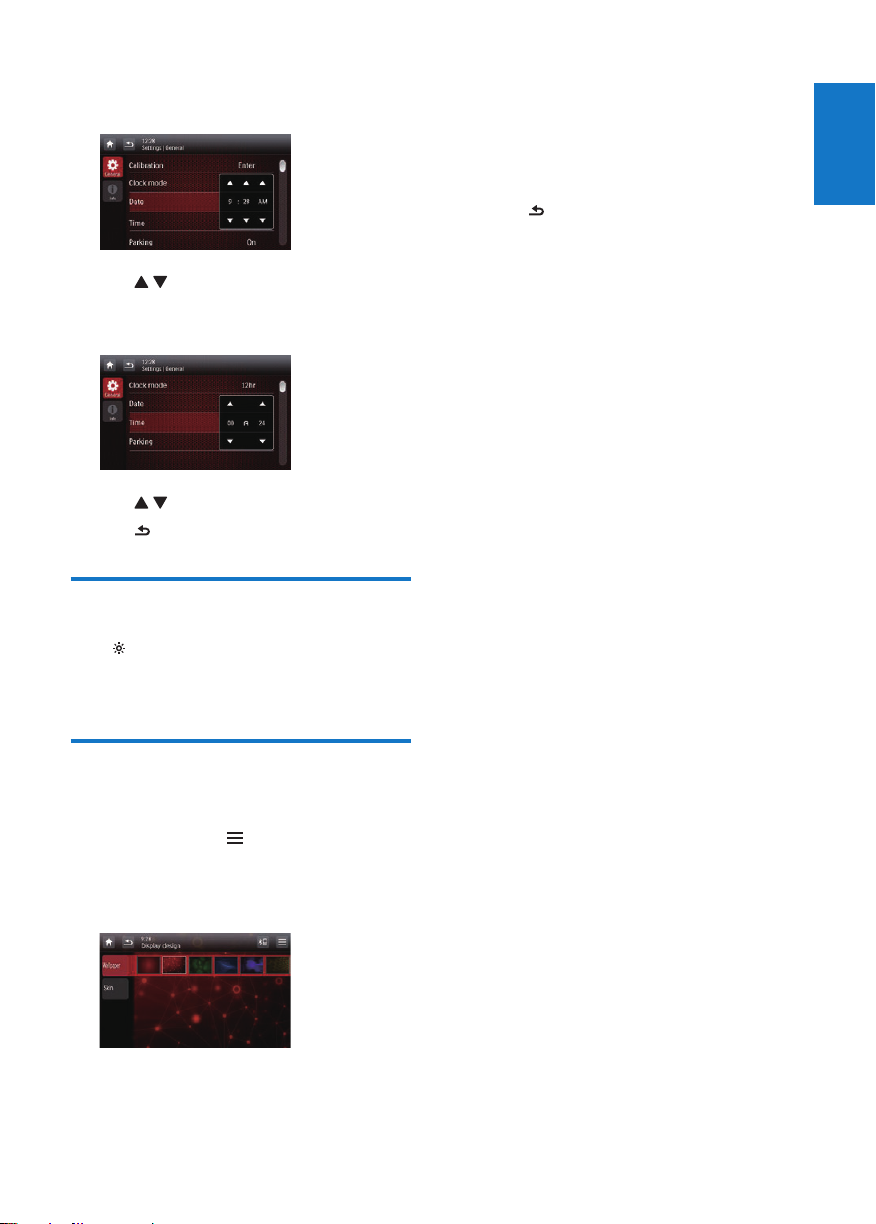

Set the date and time 12
Adjust the screen brightness 13
Switch display designs 13

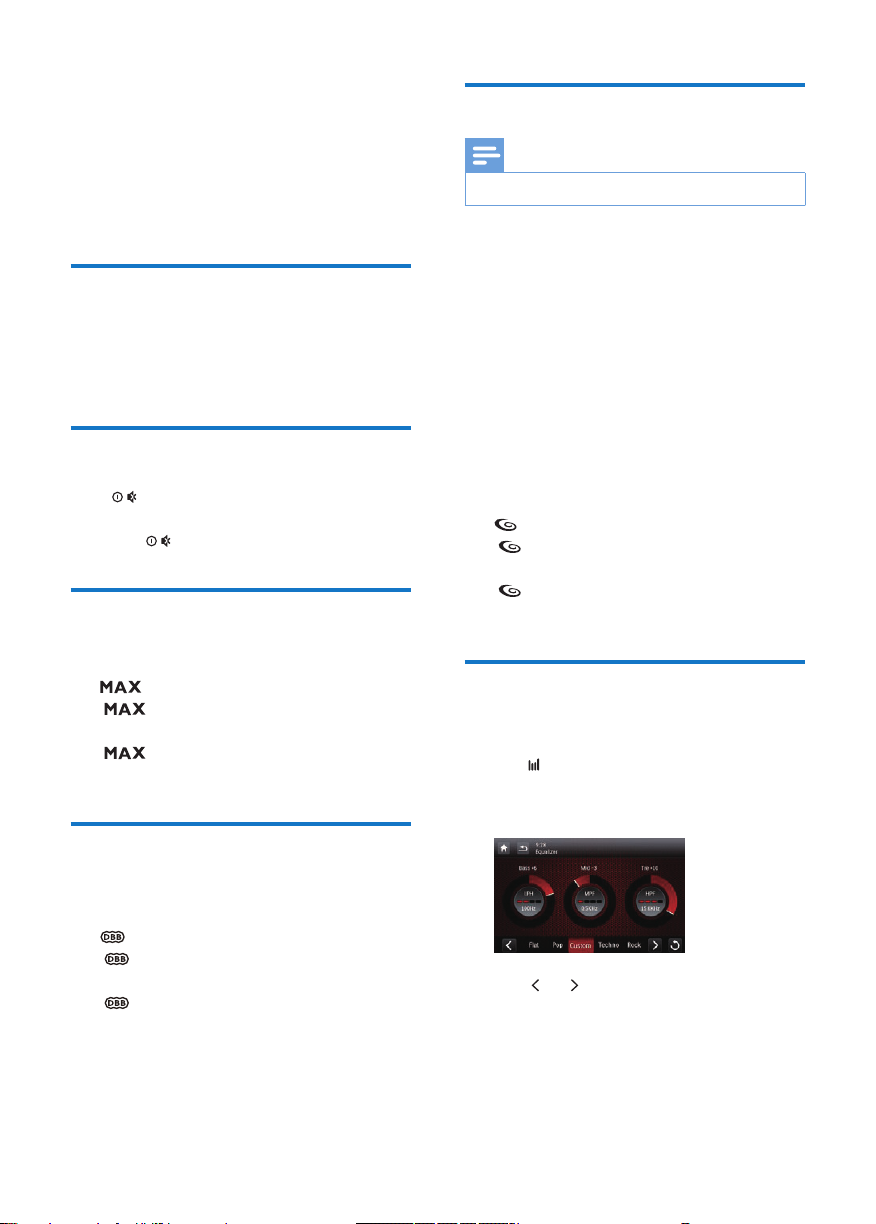

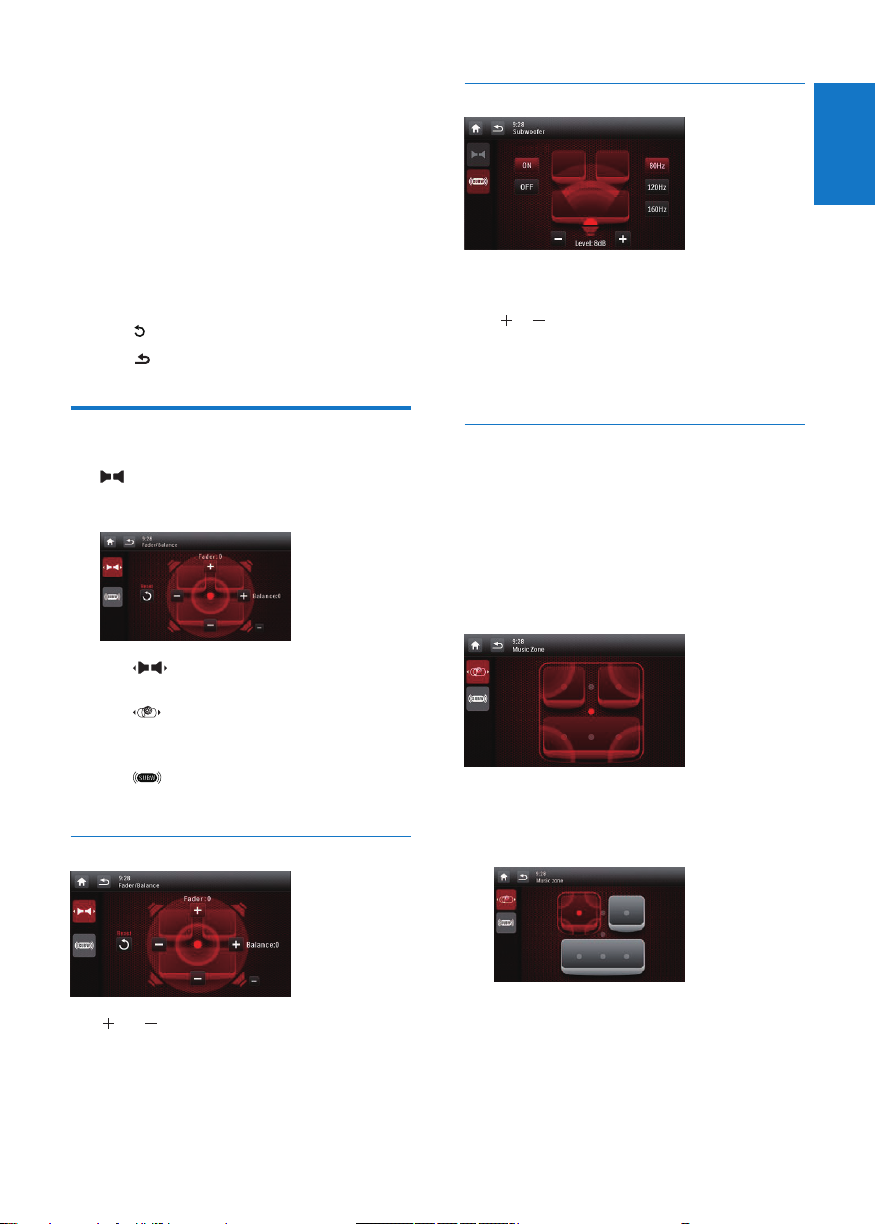

7 Adjust sound 20

Adjust the volume level 20
Mute sound 20
Enable the MAX Sound feature 20
Enable the DBB sound effect 20
Enable the FullSound effect 20
Select a preset sound equalizer 20
Others 21

8 Adjust settings 22

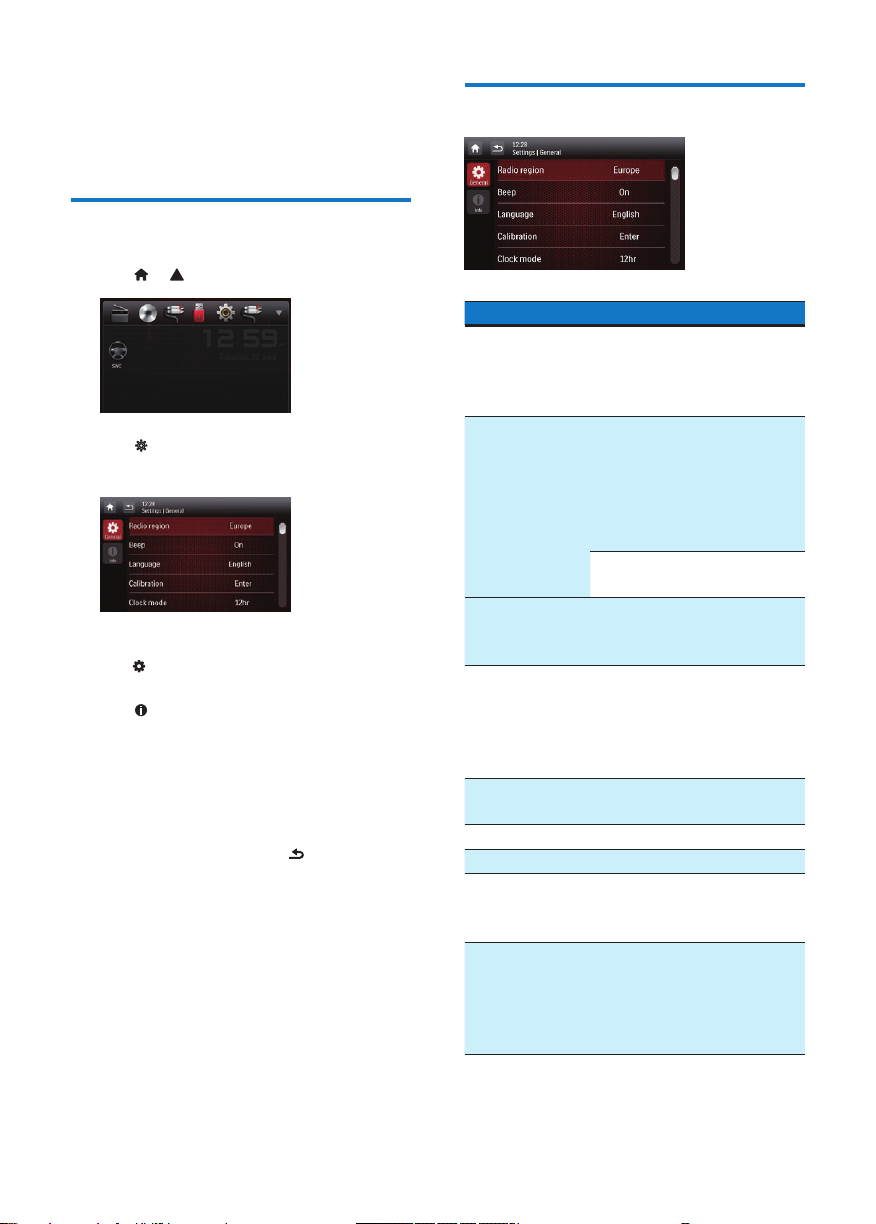

Access system setup menus 22
Adjust general settings 22

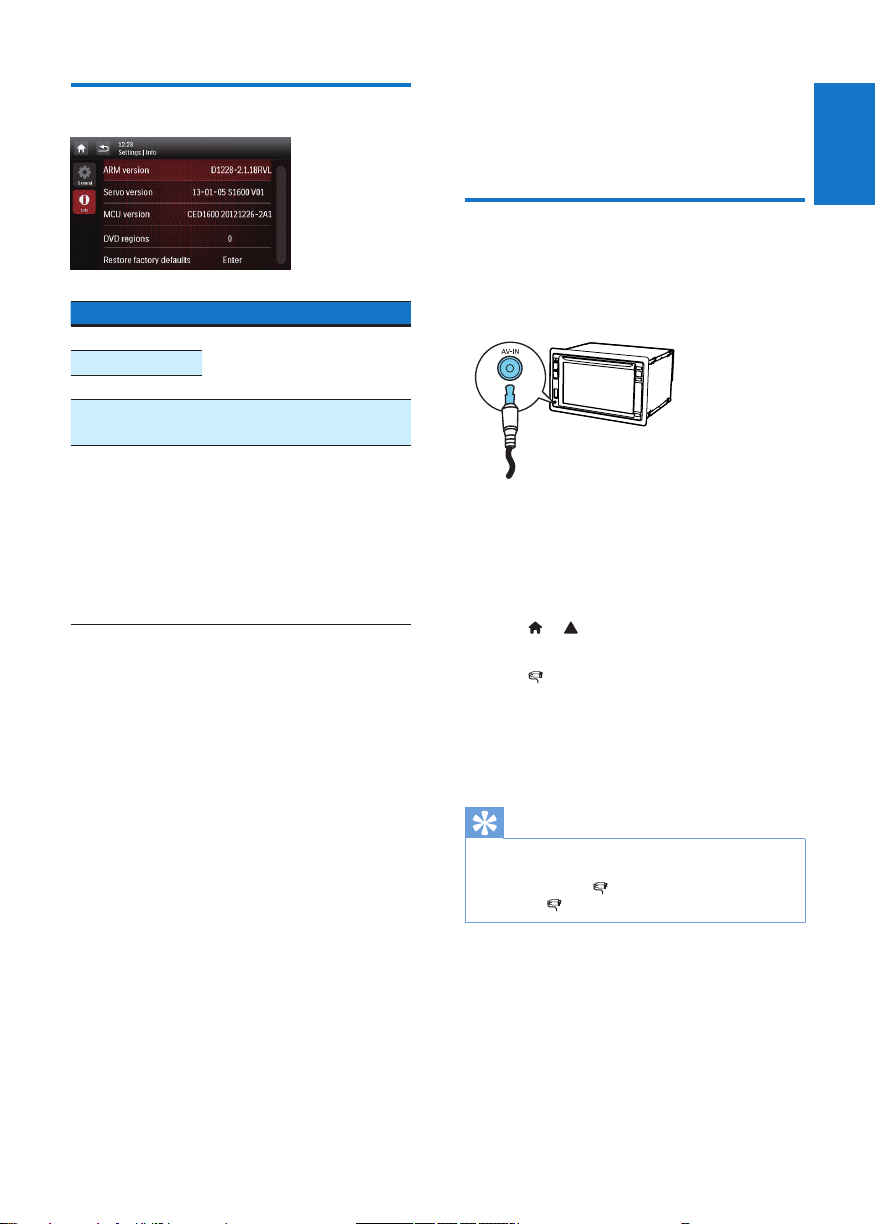

View system information 23

9 Others 23

Play external audio/video input 23

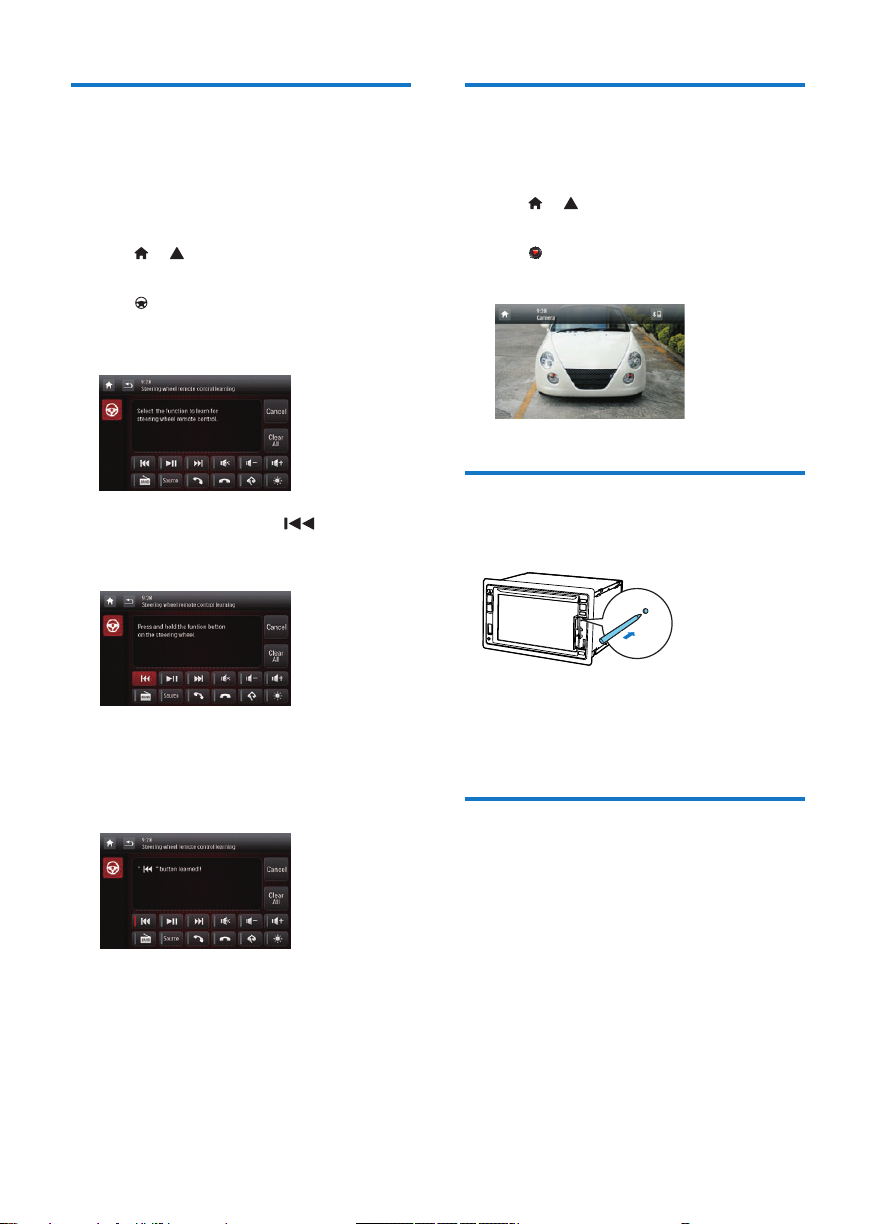

Use buttons on the steering wheel 24
Set the rear view camera 24
Reset the system 24

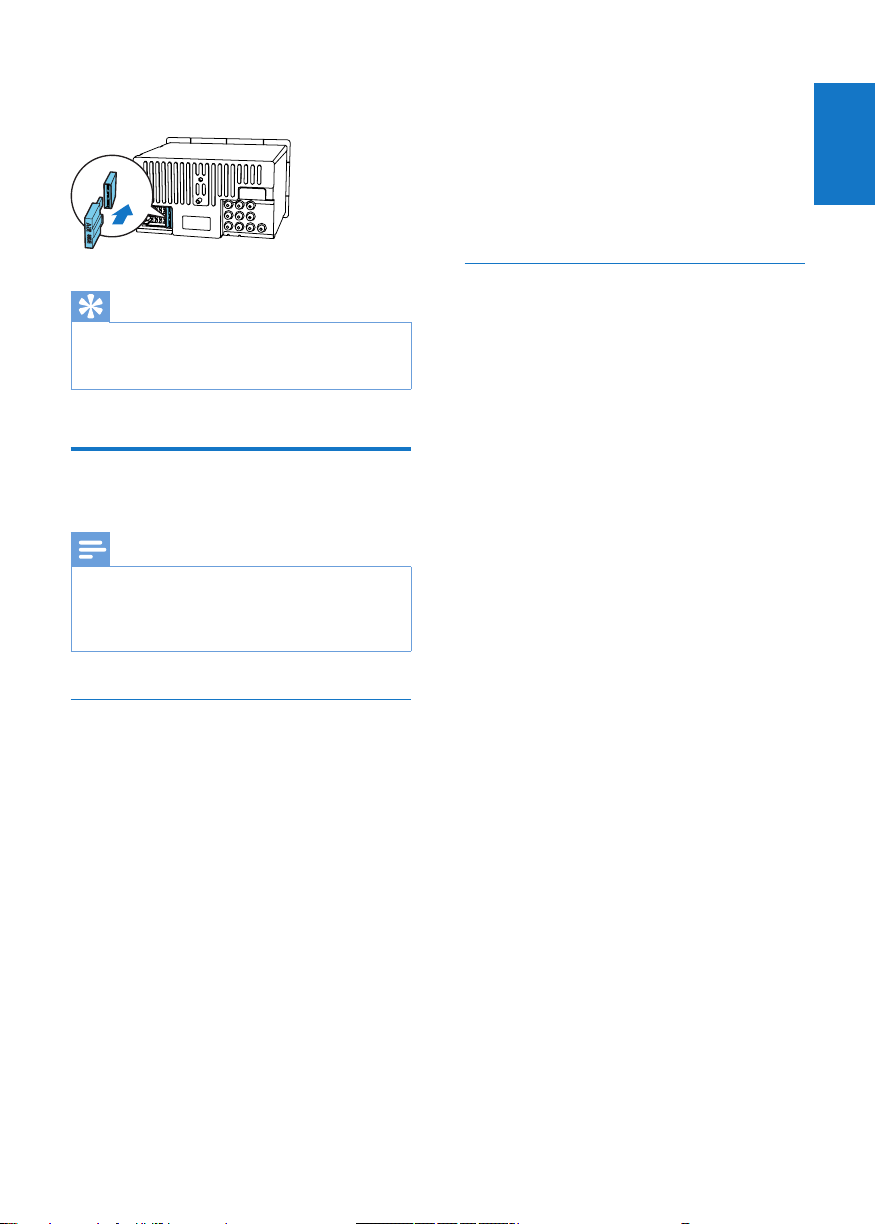

Replace the fuse 24

Upgrade the rmware 25

10 Product information 26

English

5 Play from hard media 14

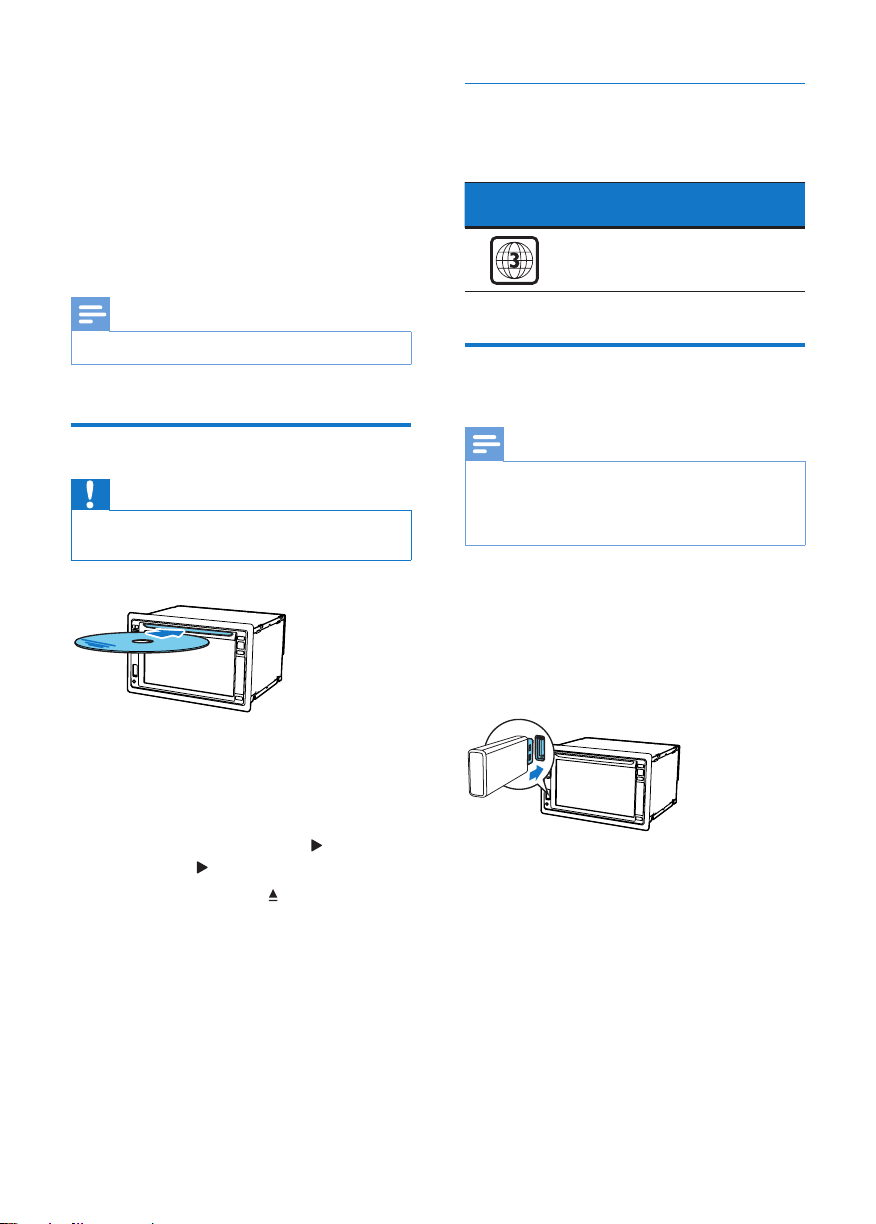

Load a disc 14
Connect a USB storage device 14

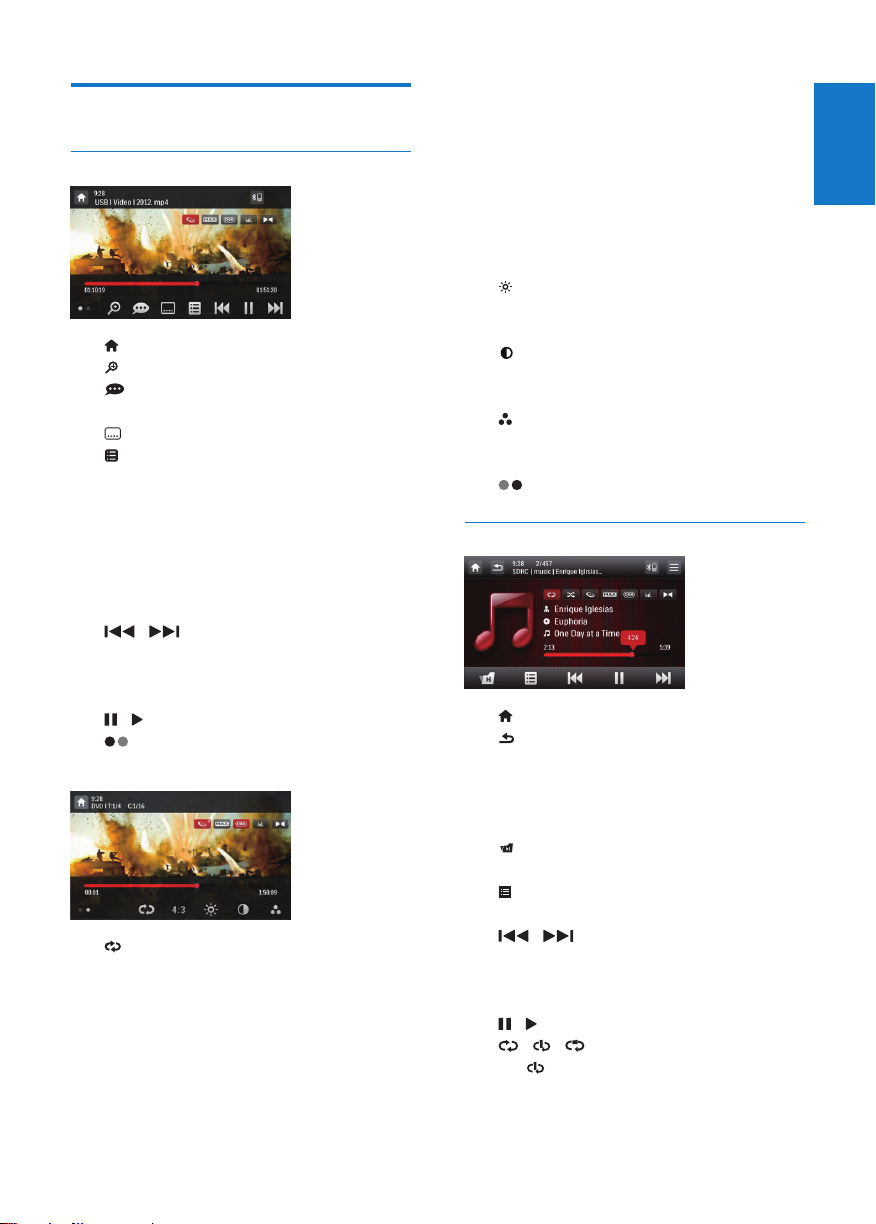

Control play 15

Browse recorded les 16

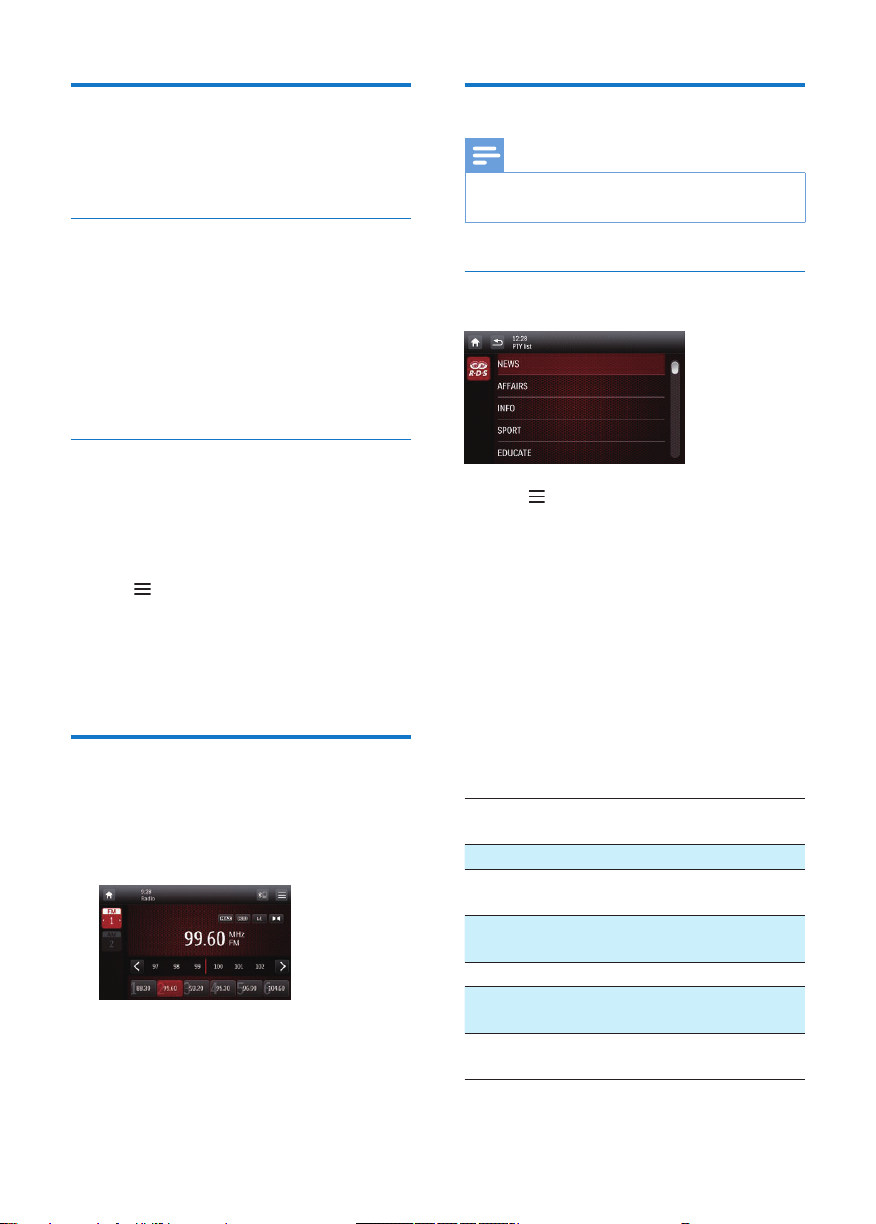

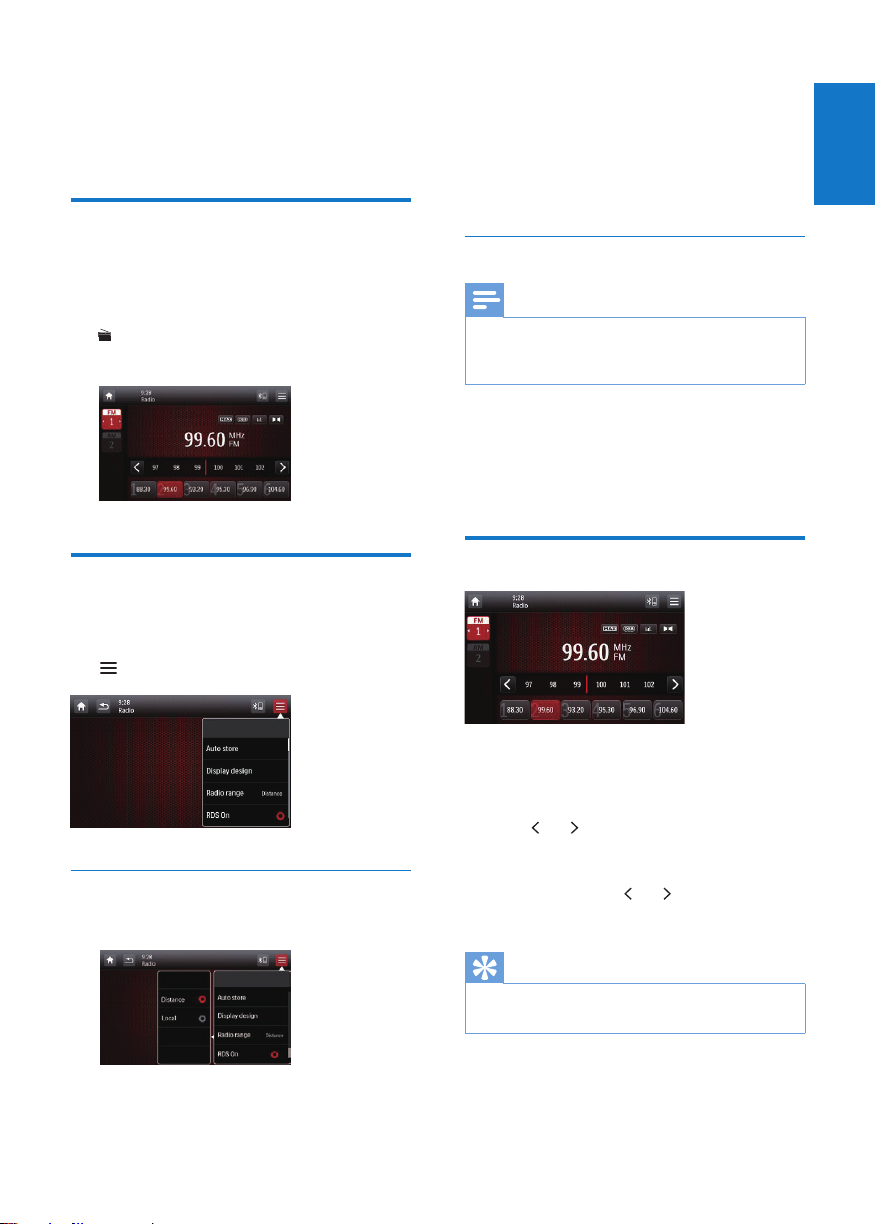

6 Listen to radio 17

Switch to radio mode 17
Set up 17
Tune to a radio station 17
Store radio stations in memory 18
Tune to a preset radio station 18
Use RDS related features 18

11 Troubleshooting 27

General 27

12 Notice 28

Compliance 28
Care of the environment 28
Trademark notice 28
Copyright 29

EN

1

1 Safety

Read and understand all instructions before you
use the device. If damage is caused by failure to
follow instructions, the warranty does not apply.

• Use of controls or adjustments or
performance of procedures other than
herein may result in hazardous radiation
exposure or other unsafe operation.

• The device is designed for negative ground
(earth) 12 V DC operation only.

• To reduce the risk of trafc accidents, do

not watch video when driving.

• To ensure safe driving, adjust the volume to
a safe and comfortable level.

• Improper fuses can cause damage or
re. When you need to change the fuse,

consult a professional.

• Use only the supplied mounting hardware
for a safe and secure installation.

• To avoid short circuits, do not expose the
device, remote control or remote control
batteries to rain or water.

• The device shall not be exposed to
dripping or splashing.

• Do not place any sources of danger on
the device (e.g. liquid lled objects, lighted

candles).

• Never insert objects into the ventilation
slots or other openings on the device.

• Never place any objects other than discs
into the disc tray/slot.

• To avoid exposure to laser radiation, do
not disassemble the device.

• Risk of damage to the screen! Never push,
rub, or strike the screen with any object.

• Never use solvents such as benzene,
thinner, cleaners available commercially, or
anti-static sprays intended for discs.

• Clean the device with soft, damp cloth.
Never use substances such as alcohol,
chemicals or household cleaners on the
device.

• Risk of swallowing coin battery!

• The product/remote control may

contain a coin/button type battery,
which can be swallowed. Keep the
battery out of reach of children at all
times! If swallowed, the battery can
cause serious injury or death. Severe
internal burns can occur within two
hours of ingestion.

• If you suspect that a battery has been
swallowed or placed inside any part
of the body, seek immediate medical
attention.

• When you change the batteries, always
keep all new and used batteries out
of reach of children. Ensure that the
battery compar tment is completely
secure after you replace the battery.

• If the battery compar tment cannot be
completely secured, discontinue use
of the product. Keep out of reach of
children and contact the manufacturer.

2 EN

2 Your car

abc

def

entertainment
system

Congratulations on your purchase, and

welcome to Philips! To fully benet from the

support that Philips offers, register your product
at www.philips.com/welcome.

• .wma les

Versions: V4, V7, V8, V9 (L1 and L2)
Sampling frequencies: 44.1 kHz, 48 kHz
Bitrates: 64-192 kbps and variable
bitrates

• ID3 tag V2.0 or later

• Unsupported les:
AAC, WAV, and PCM les
DRM protected WMA les (.wav, .m4a,

.m4p, .mp4, and .aac)

WMA les in lossless format

English

Introduction

With the car entertainment system, you can

• listen to music,

• watch videos,

• view pictures, and

• listen to FM (RDS included) and AM/MW

radio.

Playable media

• Disc

• DVD, Video CD, SVCD, Audio CD,

JPEG Picture CD, MP3-CD, WMA-CD

• DVD-R, DVD-RW, DVD+R, DVD+RW,
CD-R, CD-RW

• USB storage device

• Compatibility: USB 2.0, USB 1.1

• Class support: MSC (Mass Storage

Class)

• Maximum capacity: 32 GB

• Files

• File system: FAT16, FAT32

• Maximum number of folders: 99

• Maximum number of tracks/les: 999

• Maximum level of directory: 8

• Video formats: MPEG1, MPEG2

• Picture format: .jpeg

• .mp3 les

Sampling frequencies: 32 kHz, 44.1 kHz,
48 kHz
Bitrates: 8-320 kbps and variable bitrates

What's in the box

Check and identify the contents of the package:

g h

i

1 Main unit 2 Remote control
3 ISO male connector

X 2

5 Screw X 4

(M5x8mm)

7 Remote control

battery

9 Quick start guide

4 Rubber cushion

6 Hexagon head

screw

8 User manual

EN

3

Overview of the main unit

k

j

i

h

g

a

• Press to eject the disc.

b

• Press to adjust the brightness of LCD
screen.

c

• Press to turn on the unit.

• Press and hold to turn off the unit.

• Press to mute the speakers or release

them from mute status.

d RESET

• Press to reset the system.

e SD card slot

• Insert a micro SD card that contains an
upgrade packet for rmware upgrading.

f iR sensor

• The sensor that receives infra-red
signals from the remote control.

g AV-IN

• Connect to the audio and video
output sockets of an external player by
a composite AV cable.

h

• Connect to a USB storage device.

a

b
c
d

e

f

i LCD screen
j +/-

• Press to increase or decrease the
volume.

k Disc slot

4 EN

Overview of the remote
control

y

x
w
v
u

t
s
r
q
p
o

n
m

a SOURCE

• Press repeatedly to select a source.

b

• Press to eject the disc.

c

• Return to the previous menu or mode.

d VOLUME + / -

• Press to increase or decrease the
volume.

e

• Access the home menu.

f

• Enable or disable the MAX Sound
feature.

g

• Switch to video playback mode.

a

b
c

d

e
f
g
h
i
j

k
l

h

• Enable or disable the FullSound effect.

i DVD AUDIO

• Select an audio language or audio
channel.

j DBB

• Enable or disable the DBB (Dynamic
Bass Boost) sound effect.

k EQ

• Select a preset sound equalizer.

l MUSIC ZONE

• Select a music listening zone.

m

• Turn on or off the screen.

n

• Select an available subtitle.

o TOP MENU

• Access the top menu.

p DVD MENU

• Access the DVD menu.

q

• Switch to music playback mode.

r

• Switch to picture slideshow mode.

s

• Start, pause, or resume the play.

t OK

• Conrm an option.

u

/ /TRACK -/TRACK +

• Skip to the previous or next track,
chapter, or le.

• For DVD, press and hold to select a

speed for fast backward or forward
search.

v BAND

• Select a tuner band.

English

EN

5

w / /PRESET +/PRESET -

• Tune to the previous or next preset
radio station.

• Skip to the previous or next folder.

x

• Press to power on the system.

• Press and hold to power off the

system.

• Press to mute the speakers or release
them from mute status.

y

• Press to adjust the brightness of the
LCD screen.

3 Install the car

entertainment
system

Always follow the instructions in this chapter in
sequence.
These instructions are for a typical installation.
However, if your car has different requirements,
make the adjustment accordingly. If you have
any question regarding installation kits, consult
your local retailer.

Note

This system is designed for negative ground (earth) 12V

•

DC operation only.

• Always install this system in the car dashboard. Other

locations can be dangerous as the rear of the system
heats up during use.

• To avoid short-circuit: before you connect, make sure

that the ignition is off.

• Make sure that you connect the yellow and red power

supply leads after all other leads are connected.

• Make sure that all loose leads are insulated with

electrical tape.

• Make sure that the leads do not get caught under

screws or in parts that will move (e.g. seat rail).

• Make sure that all ground (ear th) leads are run to a

common ground (earth) point.

• Use only the supplied mounting hardware for a safe

and secure installation.

• Improper fuses can cause damage or re. When you

need to change the fuse, consult a professional.

• When you connect other devices to this system, make

sure that the rating of the car circuit is higher than the
total fuse value of all the connected devices.

• Never connect speaker wires to the metal body or

chassis of the car.

• Never connect speaker wires with stripes to one

another.

6 EN

Connect wires

Note

Make sure that all loose leads are insulated with

•

electrical tape.

• Consult a professional to connect wires as instructed

below.

• Before connection, check the car's wiring carefully.

1 Connect the ISO male connectors.

2 Connect other wires if necessary.

Caution

To avoid an accident, the driver must not watch video

•

while driving. By design, this system disallows watching
video during drive. Park your car in a safe place and
engage the parking brake before watching video.

Note

When the parking brake of your vehicle is not engaged,

•

the video blocking system is activated. It blocks the
display of front video source only.

• If the system is not proper ly connected with the

parking brake control module of your vehicle, video
signals will be blocked by the system, with the below
message displayed on the TFT.

English

ISO male

connectors

a Green strip, black-

edged green strip

b White strip, black-

edged white strip

c Gray strip, black-

edged gray strip

d Purple strip, black-

edged purple strip

e Red strip Ignition key +12V

f Blue strip Motor/electric

g White-edged blue

strip
h Black strip Ground
i Yellow strip The +12V car

Connect to

Rear left speaker

Front left speaker

Front right speaker

Rear right speaker

DC when ON/ACC

antenna relay control
lead

Amplier relay

control lead

battery which is
energized at all times

Connectors and

sockets on rear panel

1 For ISO male

connectors

2 REAR OUT R

(Red socket)

3 AV-IN R (Red socket) Right audio

4 AV-IN L (White

socket)

5 REAR OUT L (White

socket)

6 VIDEO IN (Yellow

socket)

External sockets or
connectors

As indicated
above

Rear right speaker

channel output
socket of an
external player

Left audio channel
output socket of
an external player

Rear left speaker

Video output
socket of an
external player

EN

7

Connectors and

sockets on rear panel

7 VIDEO OUT 1

(Yellow socket)

8 VIDEO OUT 2

(Yellow socket)

9 RADIO ANTENNA

(Black connector)

10 CAMERA IN (Purple

socket)

11 SUB-W OUT (Blue

socket)

12 REVERSE CAMERA

(Purple wire)

13 PARKING BRAKE

(Pink wire)

14 OE SWC IR REMOTE

IN (Brown wire)

15 OE SWC IR REMOTE

IN (Black wire)

16 OE SWC AD LEARN

(White wire)

17 OE SWC AD LEARN

(White wire)

18 OE SWC AD

LEARN (Black wire)

External sockets or
connectors

Video input
socket of an
external display
device

Video input
socket of an
external display
device

Radio antenna

Video output
socket of an
external camera

Sub-woofer

Reverse camera
(B+)

Parking brake (-)

OE SWC remote
in

Ground

OE SWC AD
Learn line 1

OE SWC AD
Learn line 2

Ground

Tip

The pin arrangement for the ISO connectors depends

•

on the type of your vehicle. To avoid damage to the
system, connect properly.

8 EN

a

r
q
p

o

n

m

l

English

bcde fghijk

EN

9

Mount into the dashboard

Note

Make sure that wires are correctly connected before

•

you mount the main unit into a car.

• If preset radio stations are lost when the ignition key

is turned OFF and then back ON, reconnect the red
leads crosswise to the yellow ones.

1 If the car does not have an on-board drive

or navigation computer, disconnect the
negative terminal of the car battery.

• If you disconnect the car battery in
a car that has an on-board drive or
navigation computer, the computer
may lose its memory.

• If the car battery is not disconnected,
to avoid short-circuit, make sure that
bare wires do not touch each other.

2 Make sure that the car dashboard opening

is within these measurements:

5 mm

3 Slide the unit into the dashboard until a

click sound is heard.

4 Reconnect the negative terminal of the car

battery.

182 mm

112 mm

• Since the unit cannot be used if the
dashboard opening's slant angle is
above 20 degrees, make sure that the
horizontal slant of the car dashboard
opening is between 0 and 20 degrees.

10 EN

4 Get started

Turn on

Caution

Risk of car accidents! Never watch video or operate

•

this system while driving.

Prepare the remote control

For the rst time use

Pull the protective sheet out.

» The remote control is ready for use.

Replace the battery

Caution

Risk of explosion! Keep batteries away from heat,

•

sunshine or re. Never discard batteries in re.

Note

Remove the battery if it is exhausted or if the remote

•

control is not to be used for a long time.

• Batteries contain chemical substances, they should be

disposed of properly.

• Perchlorate Material - special handling may apply. See

www.dtsc.ca.gov/hazardouswaste/perchlorate.

Press .

» PHILIPS logo and a progress bar are

displayed while boot-up.

• To turn off the system, press and hold
for 3 seconds.

For the st time use

After successful boot-up, the following interface
is displayed.

1 Tap to select a language for on-screen

display.

» The following interface is displayed.

2 Tap to select a radio region that matches

your location.

» The following interface is displayed.

English

1 Pull out the battery tray.
2 Insert one CR2025 battery with correct

polarity (+/-) as indicated.

3 Insert the battery tray.

3 Tap [Finish] to complete the initial setup.

» The device switches to radio mode

automatically.

EN

11

Use the home menu

Note

• If is displayed when you touch an icon, it indicates

that the selected media or feature is unavailable at the
current time.

Access the home menu

rTap to access the home menu.

» The clock, date, and the bar for

popular icons are displayed.

• To access the full menu with all feature
icons displayed, tap

• To return to the home menu, tap

.

.

Customize the home menu

1 Tap and hold an icon until it is movable.
2 Drag it to the target place, and then

release your nger.

• When you move an icon from the bar

for popular icons to the lower area,

release your nger when the icon's

name is displayed.

• When you move an icon from the
lower area to the bar for popular icons,

release your nger when the icon's

name disappears.

3 Tap to return to the home menu.

» The bar for popular icons is refreshed.

Set the date and time

• [Radio]: Switch the source to FM/
AM radio.

•

[Disc]: Switch the source to disc.

•

[USB]: Switch the source to USB

storage device.

•

[AV-In 1]/[AV-In 2]: Switch the
source to the audio and video input
that is transferred from an external
video player.

•

[SWC]: Access the interface to
assign functions to buttons on the
steering wheel.

•

[Settings]: Access the system menu.

12 EN

1

Tap > to access the full menu with all
feature icons displayed.

2 Tap [Settings].

» The [General] menu is displayed.

3 Tap [Clock mode] to select a time format.

• [24hr]: 24-hour time format

• [12hr]: 12-hour time format

4 Tap [Date] to display the interface for

setting the date.

5 Tap to set the year, month, and date.
6 Tap [Time] to display the interface for

setting the time.

7 Tap to set the hour and minute.
8 Tap to return to the home menu.

Adjust the screen brightness

Press on the front panel to select a
brightness level of the screen.

• [LEVEL 1], [LEVEL 2], or [LEVEL 3]

2 Tap a setting to display the options.

• [Wallpaper]: Select a wallpaper.

• [Skin]: Select a background color for

on-screen icons.

3 Tap an option to select it.
4 Tap to return to the previous mode.

English

Switch display designs

Select a preset display design.

1 In any mode, tap , and then [Display

Design].

» The [Display Design] interface is

displayed.

EN

13

5 Play from hard

media

Region code

This system can play DVD discs marked with
the following region code.

You can use this system to listen to audio, watch
videos, and view photos that are stored on a
disc or USB storage device.

Note

Before use, check for compatible media.

•

Load a disc

Caution

Never insert any object other than a disc of 12-cm

•

diameter into the disc slot.

1 Insert the disc into the disc slot with the

label side facing up.

» Play starts automatically.

• If play does not start automatically, tap
the screen to display the
then tap

to start play.

2 To eject the disc, press .

» When the disc is ejected, the system

switches to the previous source or
radio mode.

icon, and

DVD region
code

Countries and regions

Asia Pacic, Taiwan, Korea

Connect a USB storage
device

Note

Make sure that the USB storage device contains

•

compatible les.

• NTFS (New Technology File System) le system is not

supported.

1 Push the USB socket cover upwards to

open it.

2 Connect the USB storage device to the

USB socket.

» Play starts automatically.

• To remove the USB storage device,
switch the system to another source

rst.

14 EN

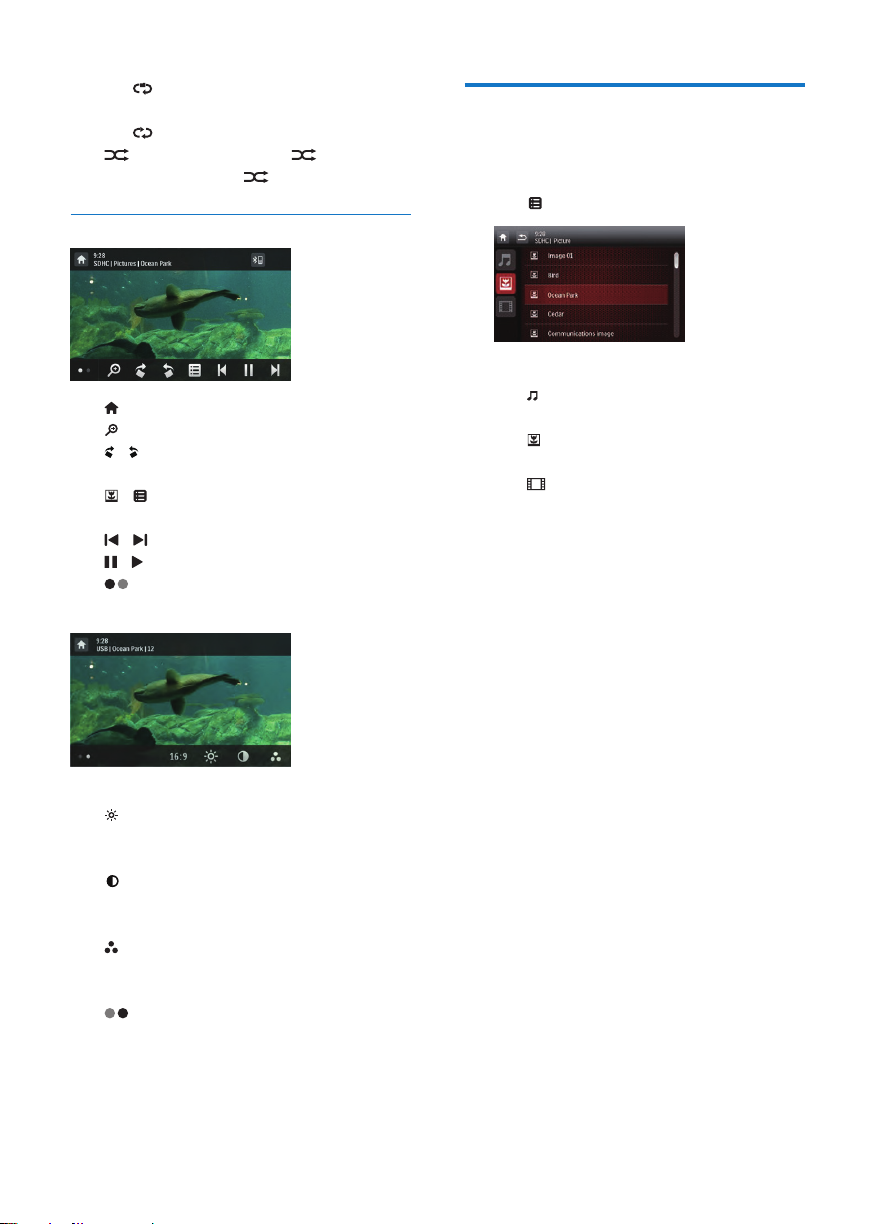

Control play

Videos

• : Return to the home menu.

•

: Zoom in or out of the image.

•

: Select an available audio channel or

audio language.

•

: Select an available subtitle.

•

• For DVD, return to the disc menu or

root menu.

• For recorded les, return to the list of
les or folders (see 'Browse recorded
les' on page 16).

• PBC: For VCD/SVCD only, enable or

disable the PBC (Playback Control) feature.

•

•

•

• : Select a repeat mode.

/ : Skip to the previous or next

title, chapter, track, or le.

• To search forward fast or rewind the

track, tap on the progress bar.

/ : Start, pause, or resume play.

: Display control icons on the second

page.

• DVD: [Repeat chapter] (repeat the
current chapter), [Repeat title] (repeat
the current title), [Repeat all] (repeat
all chapters and titles), or [Repeat off]
(cancel repeat play).

• VCD/SVCD: [Repeat one] (repeat the
current track) or [Repeat all] (repeat
all tracks).

• Recorded les: [Repeat one] (repeat
the current video le), [Repeat folder]
(repeat all video les in the current

folder), or [Repeat all] (repeat all video

les).

• [16:9]/[4:3]: Select an aspect ratio.

•

: Tap to display the brightness bar, and
then tap on the bar to adjust the screen
brightness.

•

: Tap to display the contrast bar, and
then tap on the bar to adjust the image
contrast.

•

: Tap to display the saturation bar, and
then tap on the bar to adjust the image
saturation.

•

: Display control icons on the rst page.

Audios

• : Return to the home menu.

•

• Press once to access the track list.

• Press twice to access the folder list.

• Press repeatedly to return to the

playback interface.

•

: For recorded les only, skip to the next

audio folder.

•

: Return to the list of tracks or folders

(see 'Browse recorded les' on page 16).

•

•

•

/ : Skip to the previous or next

track.

• To search forward fast or rewind the

track, tap on the progress bar.

/ : Start, pause, or resume play.

/ / : Select a repeat mode.

•

: Repeat the current track.

English

EN

15

• : For recorded les, repeat all tracks

in the current folder.

•

(highlighted): Repeat all tracks.

•

: Select random play ( highlighted)

or sequential play (

Pictures

in gray).

Browse recorded les

During playing recorded les, you can access
the le list and select les from the list.

1 Tap to access the list of les or folders.

• : Return to the home menu.

•

: Zoom in or out of the picture.

•

/ : Rotate the picture clockwise or anti-

clockwise by 90 degrees.

•

/ : Return to the list of les or folders

(see 'Browse recorded les' on page 16).

•

/ : Select the previous or next picture.

•

/ : Pause or resume the slideshow.

•

: Display control icons on the second

page.

• [16:9]/[4:3]: Select an aspect ratio.

•

: Tap to display the brightness bar, and
then tap on the bar to adjust the screen
brightness.

•

: Tap to display the contrast bar, and
then tap on the bar to adjust the image
contrast.

•

: Tap to display the saturation bar,
and tap on the bar to adjust the image
saturation.

•

: Display control icons on the rst page.

2 Tap an icon to select a le category.

•

: Display the list of audio tracks or

folders.

•

: Display the list of picture les or

folders.

•

: Display the list of video les or

folders.

3 Tap the name of a le to start play.

16 EN

6 Listen to radio

Switch to radio mode

After the boot-up at the rst time, the system

switches to radio mode automatically.
To switch the source back to radio afterwards,
tap

[Radio] on the home menu.

» The interface for radio is displayed.

2 Tap [Distance] or [Local] to select a tuner

sensitivity.

• [Distance]: Stations with strong and
weak signals can be tuned to.

• [Local]: Only stations with strong
signals can be tuned to.

Enable the RDS feature

Note

RDS feature is enabled by default.

•

• Only after the RDS feature is enabled, the option of

[PTY list] is displayed.

Tap [RDS Off] to enable the RDS feature.

» The option of [PTY list] is displayed.

• To disable the RDS feature, tap [RDS
On].

English

Set up

Before you search for radio stations, make prior
setup.
Tap

to display the setup menus.

Select a radio range

1 Tap [Radio Range].

Tune to a radio station

1 Tap FM or AM to select a band.

• FM bands: FM1, FM2, FM3

• AM bands: AM1, AM2

2 Tap or repeatedly until the frequency

of target radio station is displayed.

• To tune to a radio station automatically,
tap and hold
frequency digits start change.

Tip

You can also press BAND on the remote control

•

repeatedly to select a band.

or until the

EN

17

Store radio stations in
memory

You can store up to 6 stations in each band.

Store radio stations manually

Use RDS related features

Note

Only after RDS feature is enabled, you can use RDS

•

related features.

1 Select a band.
2 Tune to the target radio station.
3 Tap and hold one of the channels (1 to 6)

over two seconds.

» The radio station is saved under the

selected channel.

Store radio stations automatically

You can search for a radio station with intro
search, which broadcasts a 10-second preview
of each detected radio station.

1 Select a band.
2 Tap .
3 Tap [Auto Store].

» Auto search starts. The six strongest

stations of the selected band are saved
in preset channels automatically.

Tune to a preset radio station

1

Select a band.

2 Tap one of the preset channels (1 to 6) to

select a preset radio station.

Search for RDS programs of a specic

type

1 Tap > [PTY list] to display the list of

program types.

2 Tap the name of a program type to start

search.

» Once an RDS station that transmits

programs of the selected type is
found, the RDS station is broadcast
automatically.

• To save the RDS station, tap and hold
one of the preset channels.

• To search for another RDS station,
repeat steps 1 and 2.

RDS program types

Item Program

type

1 NEWS News services
2 AFFAIRS Politics and current

3 INFO Special information

4 SPORT Sports
5 EDUCATE Education and advanced

6 DRAMA Radio plays and

Description

affairs

programs

training

literature

18 EN

7 CULTURE Culture, religion and

society
8 SCIENCE Science
9 VARIED Entertainment programs
10 POP M Pop music
11 ROCK M Rock music
12 MOR M Light music
13 LIGHT M Light classical music
14 CLASSICS Classical music
15 OTHER M Special music programs
16 WEATHER Weather
17 FINANCE Finance
18 CHILDREN Children’s programs
19 SOCIAL Social Affairs
20 RELIGION Religion
21 PHONE IN Phone In
22 TRAVEL Tr avel
23 LEISURE Leisure
24 JAZZ Jazz Music
25 COUNTRY Country Music
26 NATION M National Music
27 OLDIES Oldies Music
28 FOLK M Folk Music
29 DOCUMENT Documentary
30 TEST Alar m Test
31 ALARM Alarm

Receive trafc announcement

If you want to receive trafc announcement,
enable the TA (Trafc Announcement) function.

Tap TA to enable or disable the TA function.

• TA (highlighted): The function is enabled.
When a trafc announcement is on air,

the system automatically switches to
radio mode and begins to broadcast the

trafc announcement. When the trafc

announcement is over, the system returns
to the previous mode.

• TA (in gray): The function is disabled.

English

Use alternate frequencies

If the signal of an RDS station is poor, enable
the AF (Alternate Frequency) function. The
system searches for a strong station that
broadcasts the same program.
Tap AF to enable or disable the AF function.

• AF (highlighted): The function is enabled.

• AF (in gray): The function is disabled.

EN

19

7 Adjust sound

Enable the FullSound effect

When you listen to radio, enjoy music, or watch
video, follow the instructions below to adjust
sound.

Adjust the volume level

Press +/- repeatedly on the front panel.

• +: Increase the volume level.

• -: Decrease the volume level.

Mute sound

Press on the front panel.

• To release the speakers from mute status,
press

again.

Enable the MAX Sound
feature

Tap on the playback interface.

•

•

(highlighted): The MAX Sound

feature is enabled.

(in gray): The MAX Sound feature is

disabled.

Note

This feature is unavailable when you listen to radio.

•

Philips FullSound restores the audio details that
are lost due to compression. It enriches the
music signals so that what you hear is the full
sound with every nuance of emotion and every
detail of musical genius.
Philips FullSound can:

• bring out CD sound quality from an MP3
track,

• achieve richer bass with greater depth and
impact,

• restore the sense of spaciousness that lacks
in a compressed audio, and

• enhance sound precision and details.

Tap

on the playback interface.

•

(highlighted): The FullSound effect is

enabled.

•

(in gray): The FullSound effect is

disabled.

Select a preset sound
equalizer

1

Tap on the playback interface.

» The current equalizer settings are

displayed.

Enable the DBB sound effect

When DBB (Dynamic Bass Boost) is enabled,
low tones are enhanced electronically.
Tap

on the playback interface.

•

(highlighted): DBB sound effect is

enabled.

•

(in gray): DBB sound effect is disabled.

20 EN

2 Tap or to select a preset sound

equalizer.

• [Custom], [Techno], [Rock], [Classic],

[Jazz], [Optimal], [Flat], or [Pop]

» The selected sound equalizer is

highlighted.

3 Tap on the circle or bar to adjust the

settings.

• [Bass]: bass range (-14 to +14)

• [Middle]: middle range (-14 to +14)

• [Treble]: treble range (-14 to +14)

• [LPF]: low pass lter range (60 Hz, 80

Hz, 100 Hz, or 160 Hz)

• [MPF]: middle pass lter range (0.5

kHz, 1.0 kHz, 1.5 kHz, or 2.5 kHz)

• [HPF]: high pass lter range (10.0 kHz,

12.5 kHz, 15.0 kHz, or 17.5 kHz)

•

: Tap and hold to restore the settings.

4 Tap to exit.

Set the sub-woofer

• [On]/[Off]: Tap to turn on or off the sub-
woofer.

•

/ : Tap to set the volume of sub-

woofer (0 dB to 14 dB).

• [80 Hz]/[120 Hz]/[160 Hz]: Tap to select a
low pass lter range for the sub-woofer.

English

Others

Tap on the playback interface.

» The setup interface is displayed.

• : Tap to display the [Music zone]
interface for selecting a listening zone.

•

: Tap to display the [Fader/

Balance] interface for adjusting the

fader and balance.

•

: Tap to display the [SubWoofer]

interface for setting the sub-woofer.

Adjust the fader and balance

Tap or to adjust fader or balance value.

• [Fader]: fader range (+16 to -16).

• [Balance]: balance range (-16 to +16).

Select a listening zone

Philips’ innovative Zone technology enables the
driver or passengers to enjoy music with the
best speakers balance and experience more
vivid spacial effect as the artist is intended to
create. You can switch the music listening zone
from the driver to passengers for the best
speaker sound settings in car.

Tap a gray point to switch the listening zone.

» The highlighted area indicates the

current listening zone.

EN

21

8 Adjust settings

Access system setup menus

Adjust general settings

1

Tap > to display all feature icons.

2 Tap [Settings].

» The [General] menu is displayed.

3 Tap an icon on the left.

•

: Access the [General] menu to

adjust general settings.

•

: Access the [Info] menu to view

system information.

4 Swipe your nger up or down to view

more settings.

5 Tap an option to view details or change

the setting.

• To exit the menu, tap

.

Settings Options Description

[Radio Region] Select a radio

region that
matches your
location.

[Beep] [On] Turn the beep

sound on. Each
time you press
a button or tap
an icon, the unit
beeps.

[Off] Turn off the

beep sound.

[Language] Select an OSD

(on-screen
display) language.

[Calibration] Follow the

on-screen
instructions to
calibrate the
touch screen.

[Clock mode] [12Hr]/

[24Hr]
[Date] Set the date.
[Time] Set the time.
[Parking] [On]/

[Off]

[Demo] (Auto
start after
power off)

[On]/

[Off]

Select a time
format.

Enable or
disable the video
blocking system.

Enable it to
demonstrate
features after the
system is power
off.

22 EN

View system information

Settings Options

[ARM version] View rmware versions.
[Servo version]
[MCU version]
[DVD regions] View the DVD region code

that the system supports.

[Restore factory
defaults]

Tap to display the dialog
box for restoring the
system.

• Tap [Yes] to restore the
system to factory default
status.

• Tap [No] to return to
the previous menu.

9 Others

English

Play external audio/video
input

You can connect an external audio/video player
to this system.

1 Connect a composite AV cable to

• the AV-IN socket on the front panel,
and

• the audio and video output sockets of
the external player.

2 Tap > to access the full menu with all

feature icons displayed.

3 Tap [AV-IN1] to display the playback

interface.

4 Operate on the external player to start

play (see the user manual of the external
device).

Tip

If you connect this system to an external player through

•

the VIDEO IN, AV-IN L, and AV-IN R sockets on
the rear panel, tap
instead of

[AV-IN2] to switch the source

[AV-IN1].

EN

23

Use buttons on the steering
wheel

You can assign a function to a button on the
steering wheel, and then control the system
with that button.

1 Tap > to access the full menu with all

feature icons displayed.

2 Tap .

» The [Steering Wheel Remote Control

Learning] interface is displayed.

Set the rear view camera

If a rear view camera is connected, you can
view on the screen what the camera takes.

1 Tap > to access the full menu with all

feature icons displayed.

2 Tap .

» Picture from rear camera is displayed.

3 Tap an icon, for example, , of which

you want to assign the function to a button
on the steering wheel.

• To cancel the assignment, tap [Cancel].

4 Press and hold the button on the steering

wheel for one second.

» The following interface is displayed.

5 Repeat steps 3 and 4 to assign more

functions to buttons on the steering wheel.

• To clear the assignment, tap [Clear All].

Reset the system

If the system hangs up, reset it.

1 Flip up the protective cover.
2 Press RESET with the tip of a ball-point

pen or toothpick.

Replace the fuse

If there is no power, check the fuse and replace
it if it is damaged.

1 Detach the main unit from dashboard.
2 Check the electric connection.
3 Remove the damaged fuse from the rear

panel.

24 EN

4 Insert a new fuse with the same

specications (15 A).

Tip

If the fuse gets damaged immediately after it is

•

replaced, an internal malfunction may occur. In this case,
consult your Philips retailer.

Upgrade the rmware

Note

Power supply must not be interrupted during the

•

upgrade.

• When the rmware upgrade succeeds, all settings are

restored to the factory default status.

Register your product

6 Fill in necessary information about this

product to complete the registration.

» With the registration, you can get

information about software update and
product support at this Web page or
via your mailbox that is registered as
the account for Club Philips.

Perform the upgrade

1 Check the current rmware version of this

system (see 'View system information' on
page 23).

2 Go to www.philips.com/suppor t.
3 Login with your account for Club Philips.

» Suppor t information about your

registered product is displayed.

4 Click the link of "Firmware Upgrade

Readme File" (the exact wording of this

link name may vary in different languages).

5 Read and understand the instructions on

rmware upgrade.

6 Follow the instructions to download the

upgrade packet and complete the upgrade.

• If the upgrade fails, reboot this system,
and then perform the upgrade again.

English

1 Go to www.philips.com/welcome.
2 Click the link of "Register my product"

(the exact wording of this link name may
vary in different languages).

3 Log in with your account on the prompt

Web page.

• If you have no account for Club Philips,
create one rst on this Web page.

4 Search your product with "CED1600/98"

as the keyword.

5 Click the link of search result to access the

Web page for registering your product.

EN

25

10 Product

information

Note

Product information is subject to change without prior

•

notice.

Radio

Frequency range

- FM
Frequency range -

AM(MW)
Usable sensitivity

- FM
Usable sensitivity -

AM (MW)

87.5 - 108.0 MHz
(50 kHz per step)

522 - 1620 kHz
(9 kHz per step)

2 uV

25 uV

General

Power supply 12 V DC (11 V - 16 V),

negative ground
Fuse 15 A
Suitable speaker

impedance
Maximum power

output
Continuous power

output
Pre-Amp output

voltage
Sub-woofer output

voltage
Aux-in level
Dimensions

(W x H x D)
Weight (main unit) 3.1 kg

4 - 8

50 W x 4 channels

20

W x 4 channels (4

10% T.H.D.)

4.0 V (CD play mode; 1

kHz, 0 dB, 10 k

4.0 V (CD play mode, 61

Hz, 0 dB, 10 k

800 mV

178 x 101.5 x 160 mm

load)

load)

Disc player

System DVD / CD audio / MP3

system
Disc diameter 12 cm
Frequency response 20 Hz - 20 kHz
Signal/noise ratio > 75 dB
Total harmonic

distortion
Channel separation > 55 dB
Video signal format NTSC/PAL
Video output 1 +/- 0.2 V p-p

Less than 0.3%

LCD

Screen size 6.2 inches
Display resolution 800 x 480 dots
Contrast ratio 500
Brightness 450 cd/m²

26 EN

11 Troubleshooting

Warning

•

Never remove the casing of this product.

To keep the warranty valid, never try to repair
the product yourself.
If you encounter problems when using this
product, check the following points before
requesting service. If the problem remains
unsolved, go to the Philips Web page (www.
philips.com/support). When you contact Philips,
make sure that the product is nearby and the
model number and serial number are available.

General

No power

• Car engine has not been star ted. Start the
car engine.

• Connections are incorrect.

• The fuse has been damaged. Replace the
fuse.

No sound

• Volume is too low. adjust the volume.

• Speaker connections are incorrect.

No response to the remote control

• Make sure that the path between the
remote control and the unit is clear from
obstacles.

• Move the remote control close to the unit,
and point it at the iR sensor.

• The function is not applicable to the
current media.

• Replace the remote control batter y.

The disc does not play.

• The disc is upside down. Make sure that
the printed side is upwards.

• The disc is dir ty. Clean the disc with a
clean, soft, lint-free cloth. Wipe the disc
outwards from the center.

• The disc is defective. Try another disc.

• The disc is incompatible. Try another disc.

• The recordable disc is not nalized.

• The region code of DVD disc is not
supported. Use a disc with proper region
code.

No image

• Parking wire connection is incorrect. Check
the wiring.

Image ashes or is distorted.

• Video connection is improper. Check the
connections.

Noise in broadcasts

• Signals are too weak. Select another station
with stronger signals.

• Check the connection of the car antenna.

Preset stations are lost.

• Batter y cable is not correctly connected.
Connect the battery cable to the terminal
that is always live.

The fuse is broken.

• The fuse type is incorrect. Replace it with
a 15 A fuse.

• Speaker wire or power wire is grounded.
Check the connections.

English

EN

27

12 Notice

Any changes or modications made to this

device that are not expressly approved by
Philips Consumer Lifestyle may void the user’s
authority to operate the equipment.

Compliance

This apparatus includes this label:

Please visit www.recycle.philips.com for
additional information on a recycling center in
your area.

Environmental information

All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and old
equipment.

Care of the environment

Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
Never dispose of your product with other
household waste. Please inform yourself about
the local rules on the separate collection of
electrical and electronic products and batteries.
The correct disposal of these products helps
prevent potentially negative consequences on
the environment and human health.
Your product contains batteries, which cannot
be disposed of with normal household waste.
Please inform yourself about the local rules on
separate collection of batteries. The correct
disposal of batteries helps prevent potentially
negative consequences on the environment and
human health.

Trademark notice

Windows Media and the Windows logo
are trademarks, or registered trademarks of
Microsoft Corporation in the United States
and/or other countries.

Manufactured under license from Dolby
Laboratories. Dolby and the double-D symbol
are trademarks of Dolby Laboratories.

'DVD Video' is a trademark of DVD Format/
Logo Licensing Corporation.
Other trademarks and trade names are those
of their respective owners.

28 EN

Copyright

This item incorporates copy protection
technology that is protected by U.S. patents
and other intellectual property rights of
Rovi Corporation. Reverse engineering and
disassembly are prohibited.

2013 © Koninklijke Philips Electronics N.V.

Specications are subject to change without

notice. Trademarks are the property of
Koninklijke Philips Electronics N.V or their
respective owners. Philips reserves the right
to change products at any time without being
obliged to adjust earlier supplies accordingly.

English

EN

29

Specifications are subject to change without notice
© 2013 Koninklijke Philips Electronics N.V.
All rights reserved.

CED1600_98_UM_V1.1
