IN

OUT

L

R

CDR/TAPE

AMPLIFIER/
RECEIVER

OUT

DIGITAL

DIGITAL COAXIAL SOURCE

(CD player, DVD, DAT)

IN

L

R

ANALOG

CD RECORDER

OUT

L

R

PHONO

RECORD PLAYER

OUT

L

R

ANALOG

OPTICAL

IN

OUT

DIGITAL

IN

OUT

L

R

ANALOG

IN

L

R

PHONO

IN

OUT

ReWritable

xp QRC CDR 820/00 eng. 22-08-2001 14:26 Pagina 1

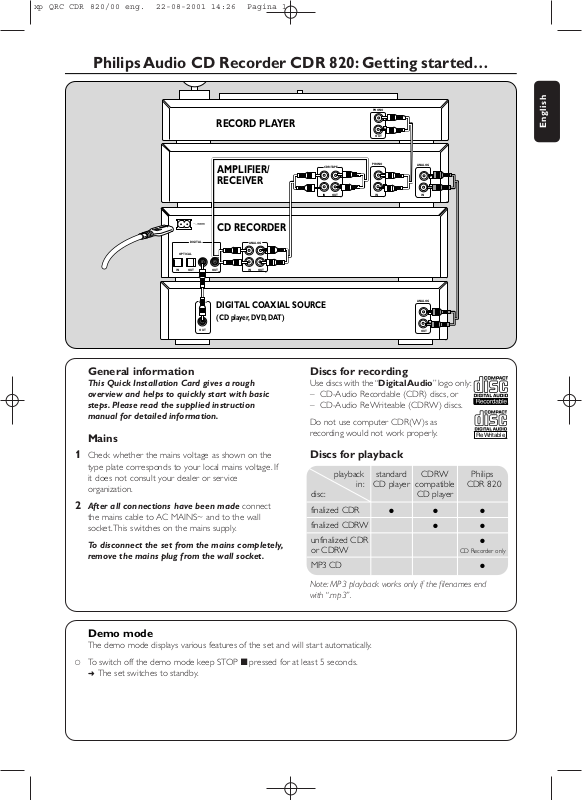

Philips Audio CD Recorder CDR 820: Getting started…

English

General information

This Quick Installation Card gives a rough
overview and helps to quickly start with basic
steps. Please read the supplied instruction
manual for detailed information.

Mains

1 Check whether the mains voltage as shown on the

type plate corresponds to your local mains voltage. If
it does not consult your dealer or service
organization.

2 After all connections have been made connect

the mains cable to AC MAINS~ and to the wall
socket.This switches on the mains supply.

To disconnect the set from the mains completely,
remove the mains plug from the wall socket.

Discs for recording

Use discs with the “Digital Audio” logo only:
– CD-Audio Recordable (CDR) discs, or
– CD-Audio ReWriteable (CDRW) discs.

Do not use computer CDR(W)s as
recording would not work properly.

Discs for playback

playback standard CDRW Philips

disc: CD player
finalized CDR
finalized CDRW ●●
unfinalized CDR ●

or CDRW
MP3 CD ●

Note: MP3 playback works only if the filenames end
with “.mp3”.

Demo mode

The demo mode displays various features of the set and will start automatically.

0 To switch off the demo mode keep STOP

➜ The set switches to standby.

9

pressed for at least 5 seconds.

in: CD player compatible CDR 820

●● ●

CD Recorder only

CD 3

CD 2

CD 1

OPEN

CLOSE

PLAY/PAUSE

2/ ;

C

D

R

E

C

O

R

D

E

R

CD 3

CD 2

CD 1

OPEN

CLOSE

OPEN

CLOSE

SPEED

YES

ENTER

COPY CD

C

D

R

E

C

O

R

D

E

R

RECORD

OPEN

CLOSE

CD 3

CD 2

CD 1

OPEN

CLOSE

5

6

¡™

0

E

A

S

Y

J

O

G

YES

ENTER

SPEED

C

D

R

E

C

O

R

D

E

R

FINALIZE CD

OPEN

CLOSE

YES

ENTER

xp QRC CDR 820/00 eng. 22-08-2001 14:26 Pagina 2

Philips Audio CD Recorder CDR 820: Getting started…

Playing a CD in the CD changer

English

1 Press OPEN·CLOSE and insert a CD

into a tray. Close the drawer by pressing
OPEN·CLOSE again.

Recording an entire CD

1 Press OPEN·CLOSE and

insert a blank Audio CDR(W)
into the CD recorder tray.

Recording a single track

2 Select the tray

by pressing CD1,
CD2 or CD3.

2 Insert the CD to be

copied into the
CD changer and
select the CD tray.

3 Press PLAY/PAUSE 2/;

to start playback.

3 Select the

required
recording
speed.

4 Press

COPY CD.

5 Press YES to start

CD recording.
The CD will be
finalized
automatically.

1 Insert an Audio

CDR(W) into the
CD recorder tray.

2 Insert a CD into the

CD changer and
select the CD tray.

3 Select a track by

rotating ¡
EASY JOG ™.

4 Select the

required
recording

5 Press

RECORD.

6 Press YES to

start recording.

speed.

Finalizing manually

1 Insert the CDR(W)

to be finalized into
the CD recorder.

3103 306 1801 1 Printed in Hungary Cmm/RR/0134

2 Press

FINALIZE CD

3 Press YES to start

.

the finalization.
