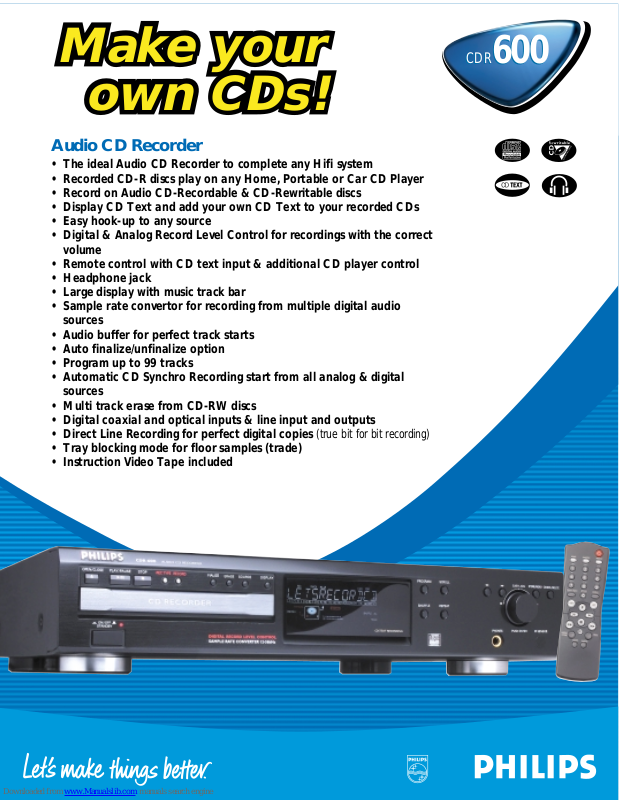

Page 1
Make your
Make your
own CDs!
own CDs!
Audio CD Recorder
• The ideal Audio CD Recorder to complete any Hifi system
• Recorded CD-R discs play on any Home, Portable or Car CD Player
• Record on Audio CD-Recordable & CD-Rewritable discs
• Display CD Text and add your own CD Text to your recorded CDs
• Easy hook-up to any source
• Digital & Analog Record Level Control for recordings with the correct
volume
• Remote control with CD text input & additional CD player control
• Headphone jack
• Large display with music track bar
• Sample rate convertor for recording from multiple digital audio
sources
• Audio buffer for perfect track starts
• Auto finalize/unfinalize option
• Program up to 99 tracks
• Automatic CD Synchro Recording start from all analog & digital
sources
• Multi track erase from CD-RW discs
• Digital coaxial and optical inputs & line input and outputs
• Direct Line Recording for perfect digital copies (true bit for bit recording)
• Tray blocking mode for floor samples (trade)
• Instruction Video Tape included
CDR600
CDR600
Page 2
Audio CD Recorder
standard product information
CDR600
CDR600
Sound Enhancement
Direct Line Recording
Direct Line Recording ensures perfect, digital copies
of your CDs by switching off the internal sample rate
converter (true bit for bit recording). This means
also the information on HDCDs and DTS-encoded
CDs is preserved.
Record Level Adjustment
The volume level from different external sources is
not always the same. You can adjust the record level
digitally to ensure optimal recordings, no matter
what the source.
Convenience
CD-Text
No more need to look-up the track you want to play
or record in the CD inlay booklet, simply select the
track by name from the display, direct from the disc.
The display can show both artist and title for the entire
album as well as individual tracks. With the CDR, you
can also create your own CD Text information for e.g.
your own compilations.
Continuous laser power calibration (running
OPC)
The recorder recognises small scratches or dust
particules on the disc in time and continuously
adjusts the laser power to keep the maximum
quality of writing.
Sample Rate Converter (12-56 kHz)
Same digital equipment will give audio signals with
different sampling rates than the CD standard (44.1
kHz). The built-in Sample Rate Converter
automatically converts anything from 12-56 kHz into
44.1 kHz, so you can record it on CD.
General
• System :Audio CD Recorder
• Applicable supply :117V - 60Hz
• Power consumption : 15W (<=6W in standby)
• Operating temperature : 5-35°C
Audio
• Digital frequency range : 2 Hz - 22.05 kHz
• Playback S/N : 100 dB (A-weighted)
• Playback dynamic range : 95 dB
• Playback total harmonic : 91 dB
distortion + noise
• Recording S/N : 98 dB (Analogue)
• Recording S/N (Digital) : Recording = Source
• Recording dynamic range: 92 dB
• Recording total harmonic: 85 dB (0.0056%)
distortion + noise
Audio Output
• 1 x Analogue line output:
2Vrms +/- 2 dB / 0.2 kOhm
• 1 x Digital coaxial output:
0.5 V (pp) / 75 Ohm
• 1 x Headphone output:
3 Vrms / 8-2000 Ohm
Audio Input (level adjustment)
• Direct line recording (bypass SRC) for:
44.1 kHz +/- 100 ppm
• 1 x Digital coaxial input (SRC):
12 - 56 kHz / 0.5 Vrms / 75 Ohm
• 1 x Digital optical input (SRC):
12 - 56 kHz
• 1 x Analogue input:
500 mVrms / 50 kOhm = 0 dB
Playback functions
General
• CD text display during play
• Introscan - Pause - Stop
• Direct track selection with Jog
• Search forward / reverse
• Program play (99 tracks)
• Time display switching
• Plays all Audio CDs (120mm + 80mm discs)
Accessories
• Remote control + batteries
• Audio cable (x2)
• Digital coaxial cable (x1)
• AC mains cord
• Instruction Video
Recording functions
• Records on all Digital Audio CD-R &
CD-RW discs
• Synchro start recording per disc/track
• Add your own CD Text to your
recorded CDs
• Manual digital recording level control
• Records from all home stereo analogue
and digital sources
• Erase disc or (multiple) tracks (CD-RW
disc)
• Auto finalize/unfinalize disc (CD-RW)
• Manual/Auto track increment
• Soft mute insert function
• Double speed finalizing (makes recorded
disc compatible for CD-players)
• Records HD-CD & DTS encoded discs
UPC Code: 0 3784990 9348
Product Dimensions:
17.1" W x 3.5" H x 12.2" D
Package Dimensions:
20.4" W x 7.4" H x 15.7" D
Product weight: 9 lbs.
Carton contains: CDR600 recorder, Remote Control, Batteries,
Operating instructions, Warranty information, Cables, Instruction Video
Printed in Singapore
Date printed : Aug 2000
©2000 Royal Philips Electronics N.V .
All rights reserved
A Division of Philips Electronics North America Corp.
Specifications subject to change without notice.
