Philips CDR570BK99 User Manual

Audio CD Recorder

CDR570

•

Instructions for use

•

Mode d'emploi

•

Instrucciones de manejo

•

Bedienungsanleitung

•

Gebruiksaanwijzing

•

Istruzioni per l'uso

•

Brugsanvisning

•

Bruksanvisning

•

Käyttöohje

•

Manual de utilização

•

O‰ËÁ›Â˜ ¯Ú‹Ûˆ˜O‰ËÁ›Â˜ ¯Ú‹Ûˆ˜

•

Instructions for use

•

Mode d'emploi

•

Instrucciones de manejo

•

Bedienungsanleitung

•

Gebruiksaanwijzing

•

Istruzioni per l'uso

•

Brugsanvisning

•

Bruksanvisning

•

Käyttöohje

•

Manual de utilização

•

Instrukcja obs¬ugi

•

CDR

MINI CD RECORDER

OPEN/CLOSE

EASY JOG

ENTER

REWIND

RECORD

REC TYPE

MENU

ERASE

SOURCE

CANCEL

PLAY/PAUSE

STOP

FFWD

ERASE

FINALIZE

SCROLL

DISPLAY

ON/OFF

Recordable

DIGITAL
OPTICAL

ANALOG

I
I

CD

SYNC

PROGRAM

SHUFFLE

REPEAT

SCAN

ALL

MANUAL

TRACK

RW

REM

TRACKREC TIME

REMTOTAL

TIME STEPTRACK

123456789

10

11

00/COVER 12T 09-08-1999 12:54 Pagina 1

English

8

1 ON/OFF........................turns the CD recorder ON and OFF

2 Disc tray

3 SCROLL........................activates scrolling of text over the

display (once)

4 DISPLAY......................selects display information/text

5 ERASE..........................selects erasing mode

6 FINALIZE ....................selects finalize mode

7 Standby indicator

8 Display..........................information screen

9 CANCEL/DELETE ......- deletes tracks from a program

- deletes text in Menu mode

- returns to a higher level in the
menu

0 SOURCE ......................selects input source

! STORE/MENU ............- enters Menu mode

- stores Menu settings

@ REC(ord) TYPE ............selects recording modes

# RECORD ......................starts recording, finalizing, erasing

$ Q (Rewind)..............- searches backward

- cursor control in Menu/Prog.
review mode

% PLAY/PAUSE 2; ......starts play/interrupts play or

recording

^ STOP 9........................stops/clears a program

& R (FFwd)..................- searches forward

- cursor control in Menu/Prog.
review mode

* ¡ EASY JOG ™ ........- previous/next track (Play and

(rotate) Program mode)

- recording level control (recording)

- selects settings (menu on)

ENTER (push) ..............- plays selected tracks

- selects settings in Menu mode

- programs track numbers

( OPEN/CLOSE /..........opens/closes disc tray

Note: Unless stated otherwise, all controls are on the front of

the CD recorder. When provided on the remote control,
you can also use the corresponding buttons, after
selecting the CD recorder or separate CD player by
pressing CDR or CD.

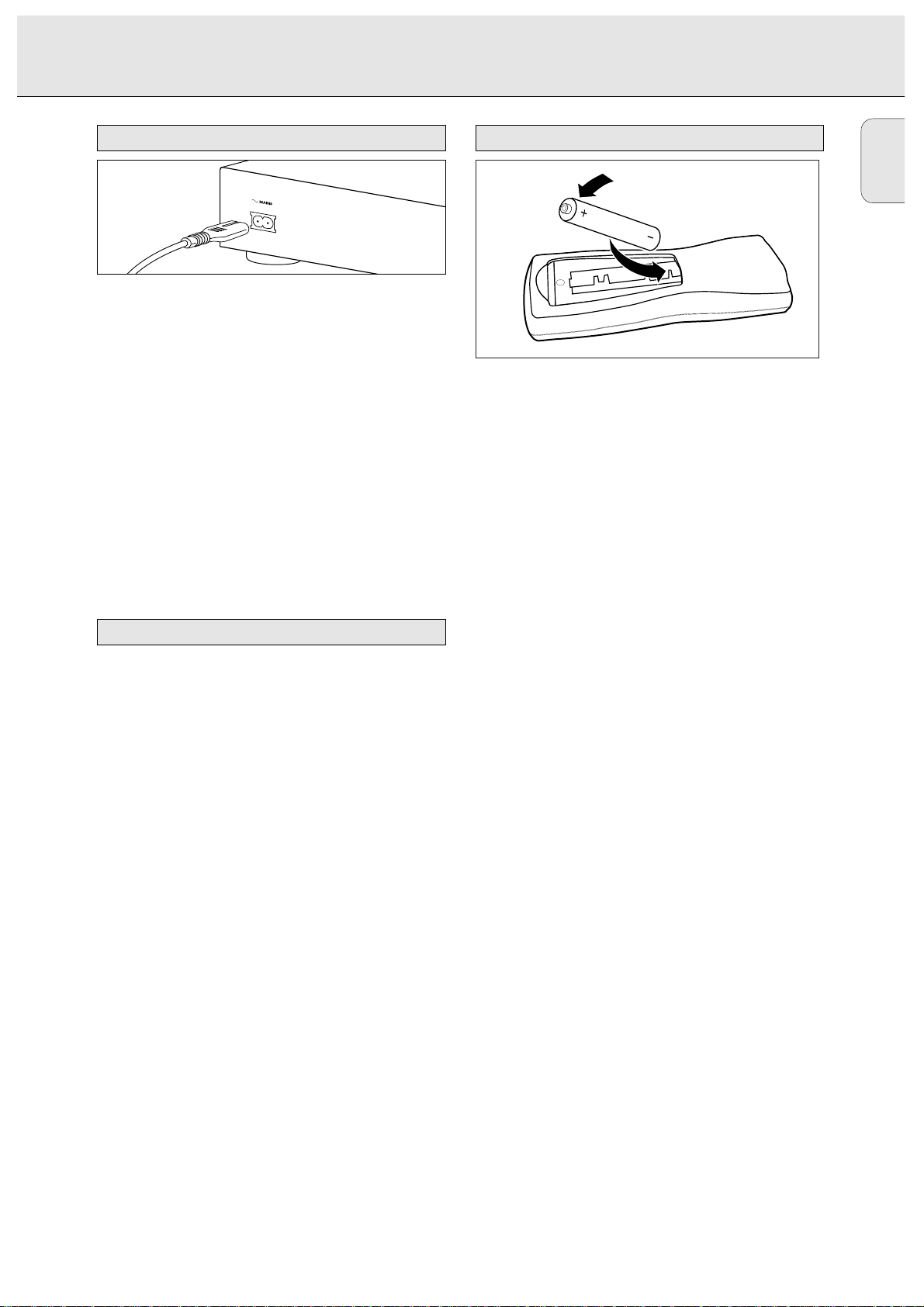

1 Connection to mains

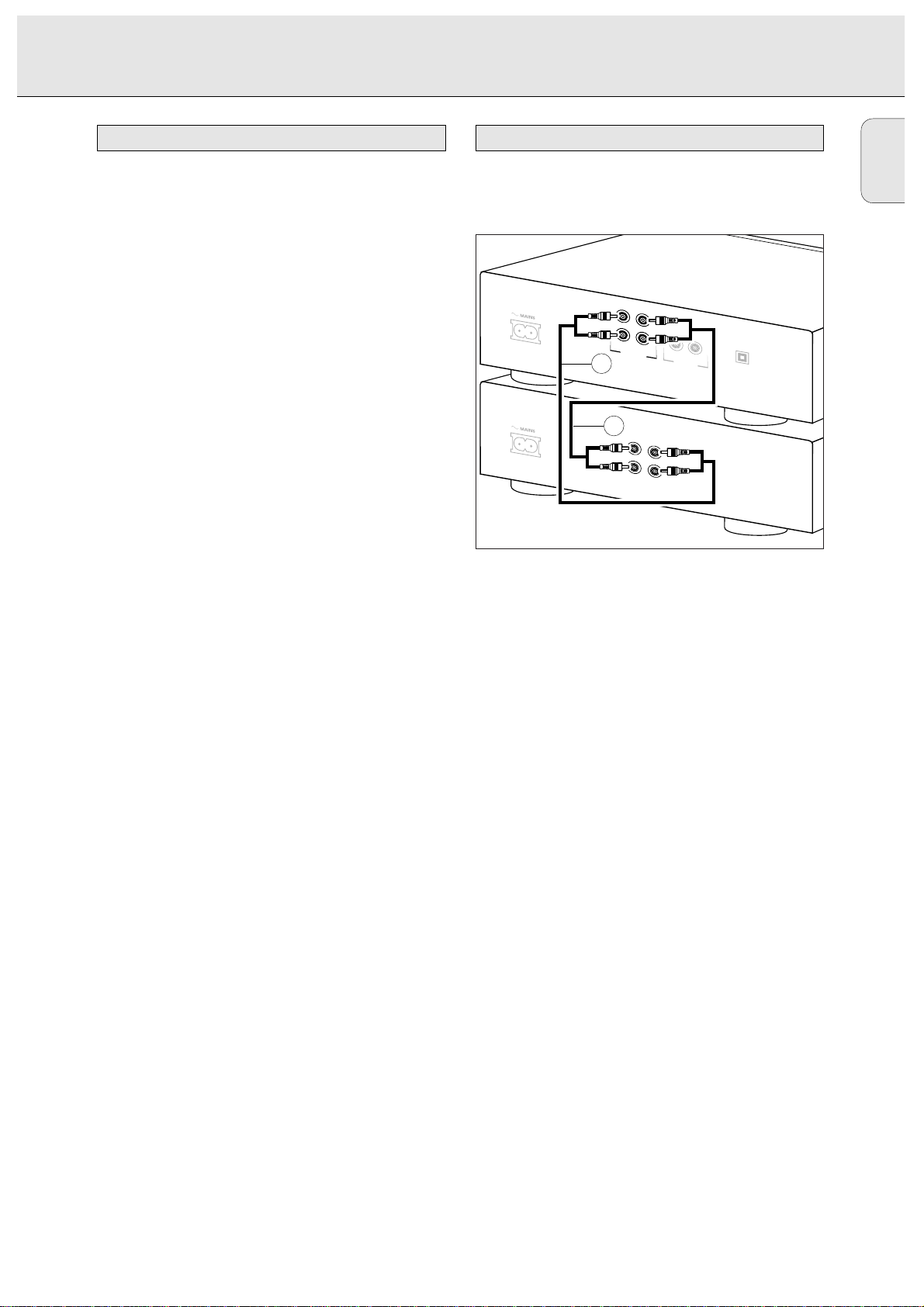

2 ANALOG IN ................connects to the line output of an

amplifier (left and right)

3 ANALOG OUT CDR ....connects to the line input of an

amplifier (left and right)

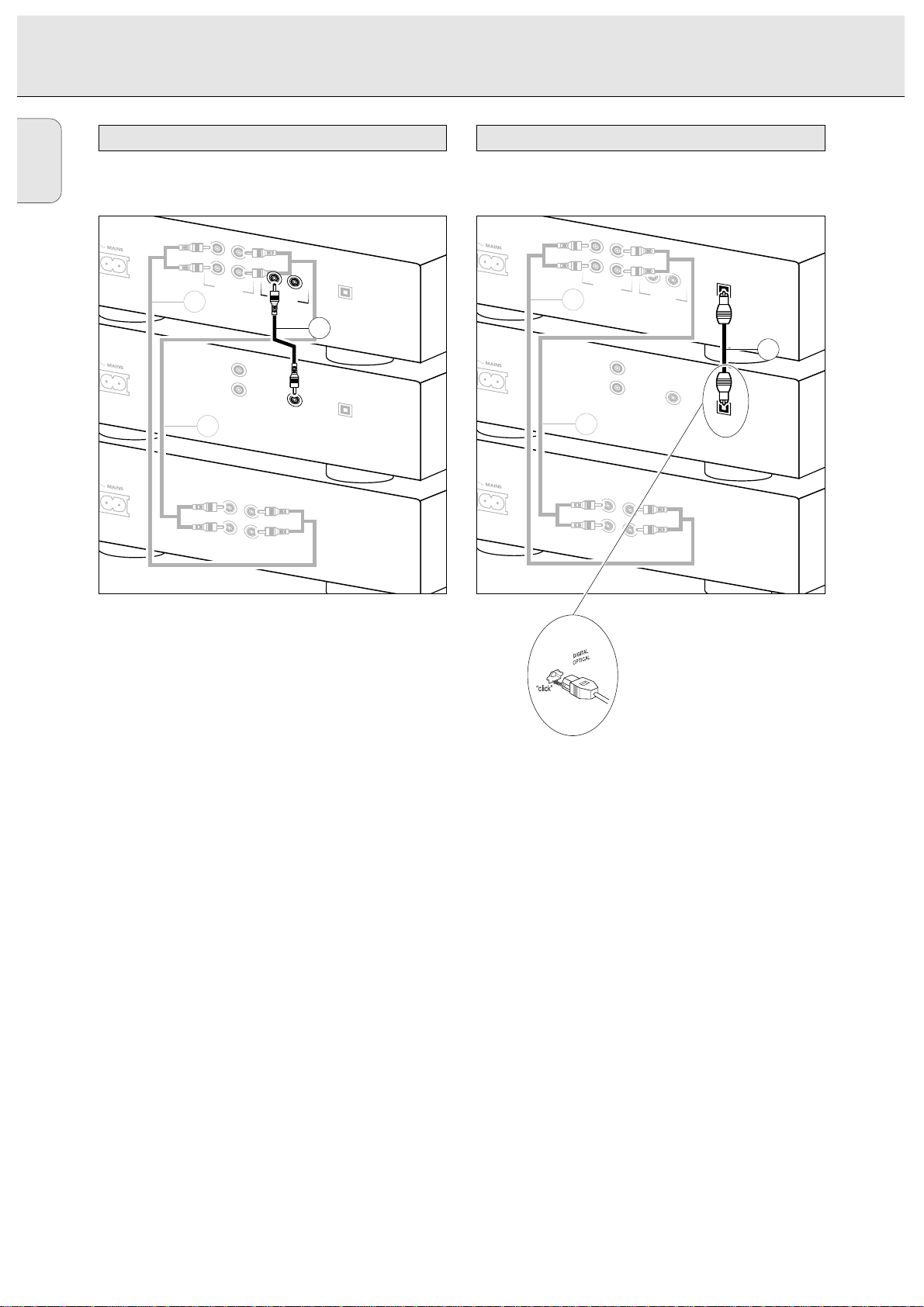

4 DIGITAL IN..................connects to the digital coaxial

output of an external CD player

5 DIGITAL OUT CDR ....connects to the digital coaxial

input of e.g. amplifier or recording
device

6 OPTICAL IN ................connects to the digital optical

output of an external CD player

Connections at the back

Controls on the front

CONTROLS AND CONNECTIONS

CDR

MINI AUDIO
CD RECORDER

OPEN/CLOSE

EASY JOG

REWIND

RECORD

REC TYPE

MENU/STORE

CANCEL

SOURCE

PLAY/PAUSE STOP

FFWD

ERASE

FINALIZE

SCROLL

DISPLAY

ON/OFF

Recordable

SYNC

PROGRAM

SHUFFLE

REPEAT

SCAN

ALL

MANUAL

TRACK

123456789

REM

TRACKREC TIME

DIGITAL
OPTICAL
ANALOG

I
I

CD

RW

REMTOTAL

TIME STEPTRACK

10

11

12

13

14

15

16

17

18

19

20

+

ENTER

MAINS

DIGITALANALOG

RR

LL

IN

OUT

IN

OUT

OPTICAL

IN

1

1

65

4

32

3

5

4

9 10 11 126 7 8

2

13 14 15 16 17 1819
