Philips CDR570BK, CDR570/19, CDR570/05S, CDR570/01S, CDR570/00S User Manual

Audio CD Recorder

CDR570

•

Instructions for use

•

Mode d'emploi

•

Instrucciones de manejo

•

Bedienungsanleitung

•

Gebruiksaanwijzing

•

Istruzioni per l'uso

•

Brugsanvisning

•

Bruksanvisning

•

Käyttöohje

•

Manual de utilização

•

O‰ËÁ›Â˜ ¯Ú‹Ûˆ˜O‰ËÁ›Â˜ ¯Ú‹Ûˆ˜

•

Instructions for use

•

Mode d'emploi

•

Instrucciones de manejo

•

Bedienungsanleitung

•

Gebruiksaanwijzing

•

Istruzioni per l'uso

•

Brugsanvisning

•

Bruksanvisning

•

Käyttöohje

•

Manual de utilização

•

Instrukcja obs¬ugi

•

CDR

MINI CD RECORDER

OPEN/CLOSE

EASY JOG

ENTER

REWIND

RECORD

REC TYPE

MENU

ERASE

SOURCE

CANCEL

PLAY/PAUSE

STOP

FFWD

ERASE

FINALIZE

SCROLL

DISPLAY

ON/OFF

Recordable

DIGITAL
OPTICAL

ANALOG

I
I

CD

SYNC

PROGRAM

SHUFFLE

REPEAT

SCAN

ALL

MANUAL

TRACK

RW

REM

TRACKREC TIME

REMTOTAL

TIME STEPTRACK

123456789

10

11

00/COVER 12T 09-08-1999 12:54 Pagina 1

GENERAL INFORMATION

Read carefully the information located at the back plate of
your CD recorder/player and enter below the Serial N°.
Retain this information for future reference.

Model N°. ..............CDR570.................................................

Serial N°...............................................................................

For Customer Use:

Advarsel:

Usynlig laserudstråling ved åbning når sikkerhedsafbrydere er
ude af funktion. Undgå udsættelse for stråling.

Varning!

Om apparaten används på annat sätt än i denna bruks­anvisning specificerats, kann användaren utsättas för osynlig
laserstrålning, som överskrider gränsen för läserklass 1.

Varoitus!

Laitteen käyttäminen muulla kuin tässä käyttöohjeessa
mainitulla tavalla saattaa altistaa käyttäjän turvallisuusluokan
1 ylittävälle näkymättömälle lasersäteilille.

This unit employs a laser. Only a qualified service person
should remove the cover or attempt to service this device, due
to possible eye injury.

USE OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS
RADIATION EXPOSURE OR OTHER UNSAFE OPERATION.

LASER SAFETY

SF

S

DK

CAUTION INVISIBLE LASER RADIATION WHEN OPEN AVOID

EXPOSURE TO BEAM

VARO! AVATTAESSA OLET ALTIINANÄKYMÄTTÖMÄLLE LASER

SÄTTEILYLLE ÄLÄ KATSO SÄTEESEN

VARNING OSYNLIG LASERSTRÅLNING NÄR DENNADELÄR ÖPPNAD

BETRAKTAEJ STRÅLEN

ADVERSEL USYNLIG LASERSTRÅLING VED ÅBNING. UNDGÅ

UNSAETTELSE FOR STRÅLING

DANGER INVISIBLE LASER RADIATION WHEN OPEN AVOID DIRECT

EXPOSURE TO BEAM

VORSICHT UNSICHTBARE LASERSTRAHLUNG WENN ABDECKUNG

GEÖFFNET NICHT DEM STRAHL AUSSETSEN

LASER

Type Semiconductor laser GaAlAs
Wave lenght 775~795 nm (at 25° C)
Output Power 2,5 mW (Read)

35 mW (Write)

Beam divergence 60 degree.

NEVER MAKE OR CHANGE CONNECTIONS WITH THE
POWER SWITCHED ON.

The CDR570 is in conformity with the EMC
directive and low-voltage directive.

CLASS 1

LASER PRODUCT

LUOKAN I

LASERLAITE

KLASS 1

LASERAPPARAT

NOTE: THIS WARNING IS LOCATED INSIDE THE ENCLOSURE

00/COVER 12T 09-08-1999 12:54 Pagina 2

CONTENTS

3

English ....................................................5

Français.................................................27

Español .................................................49

Deutsch.................................................71

Nederlands ...........................................93

Italiano................................................115

Svenska...............................................137

Dansk..................................................159

Suomi..................................................181

Português............................................203

ŒППЛУИО¿ .........................................225

EnglishFrançaisEnspañolDeutsch

Nederlands

ItalianoSvenskaDanskSuomiPortuguês

∂ППЛУИО¿

Polski...................................................247

Polski

00/COVER 12T 09-08-1999 12:54 Pagina 3

NOTES

English

4

00/COVER 12T 09-08-1999 12:54 Pagina 4

TABLE OF CONTENTS

English

5

Table of contents

GENERAL INFORMATION AND DISCS

Welcome......................................................................6

About this manual........................................................6

Technical data ..............................................................6

Discs for recording.......................................................7

Discs for playback........................................................7

Maintenance................................................................7

Accessories .................................................................7

CONTROLS AND CONNECTIONS

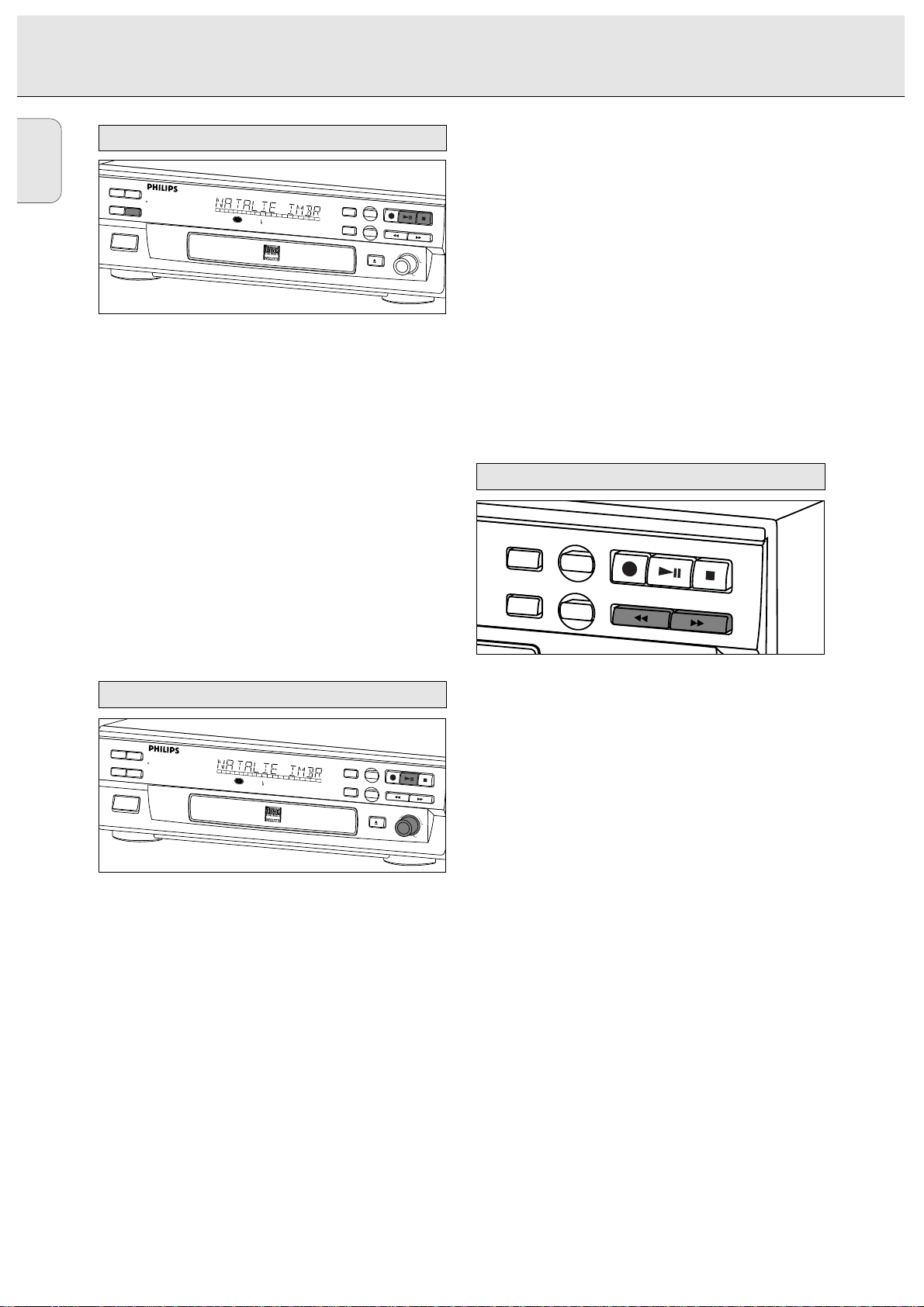

Controls on the front....................................................8

Connections at the back ..............................................8

DISPLAY

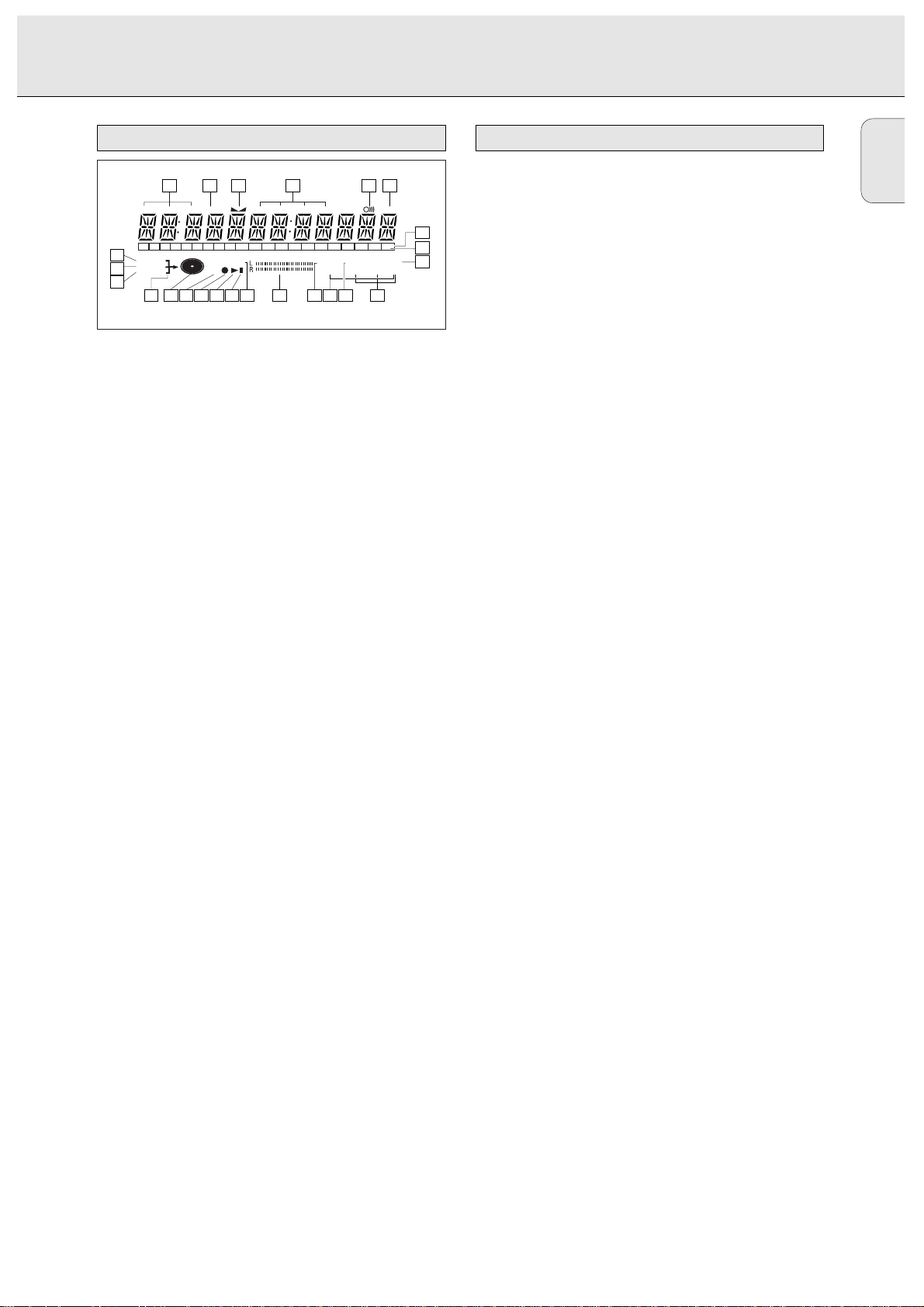

DISPLAY indications.....................................................9

DISPLAY messages......................................................9

MENU messages........................................................10

INSTALLATION

Connections general ..................................................11

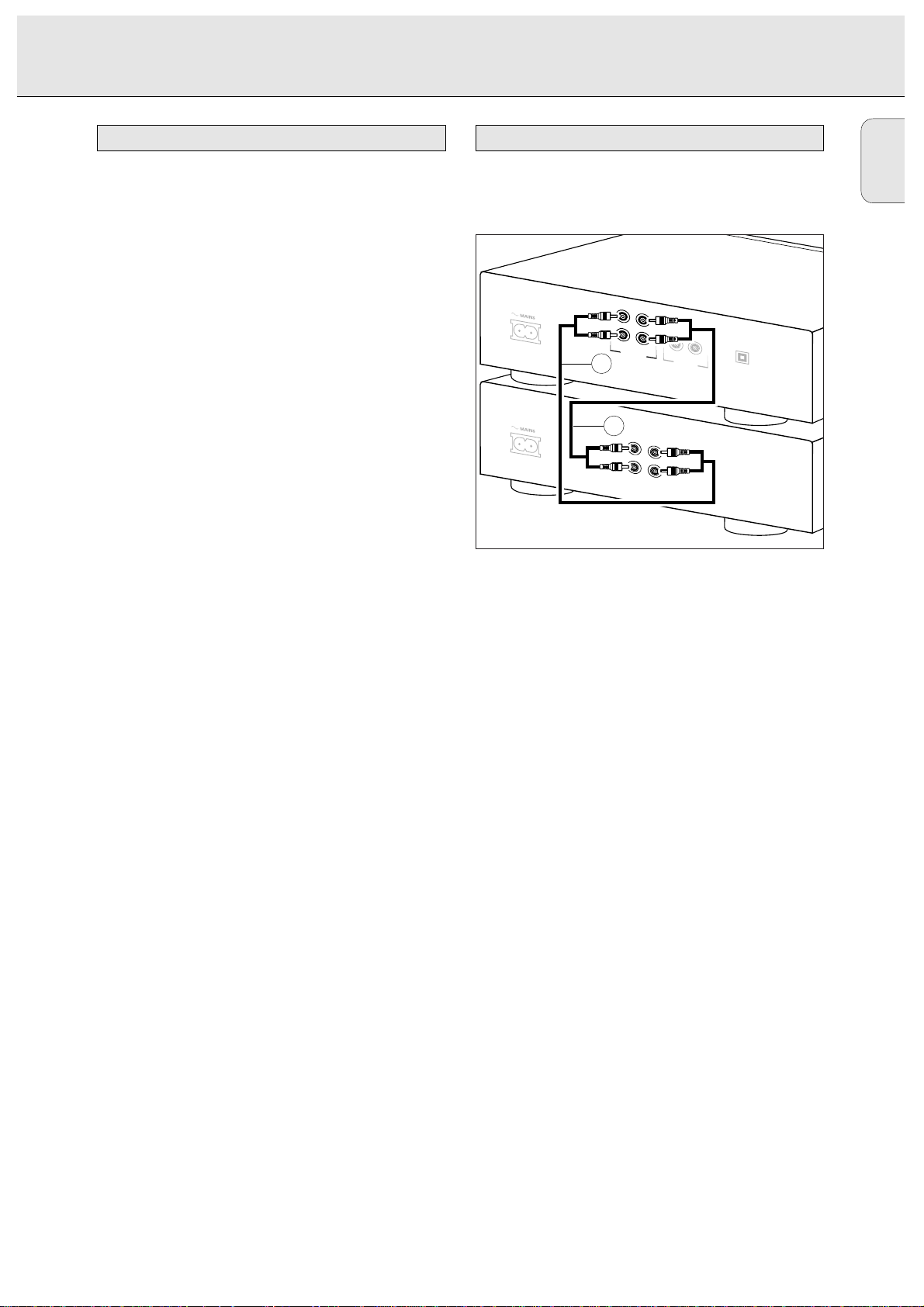

Analog connections ..................................................11

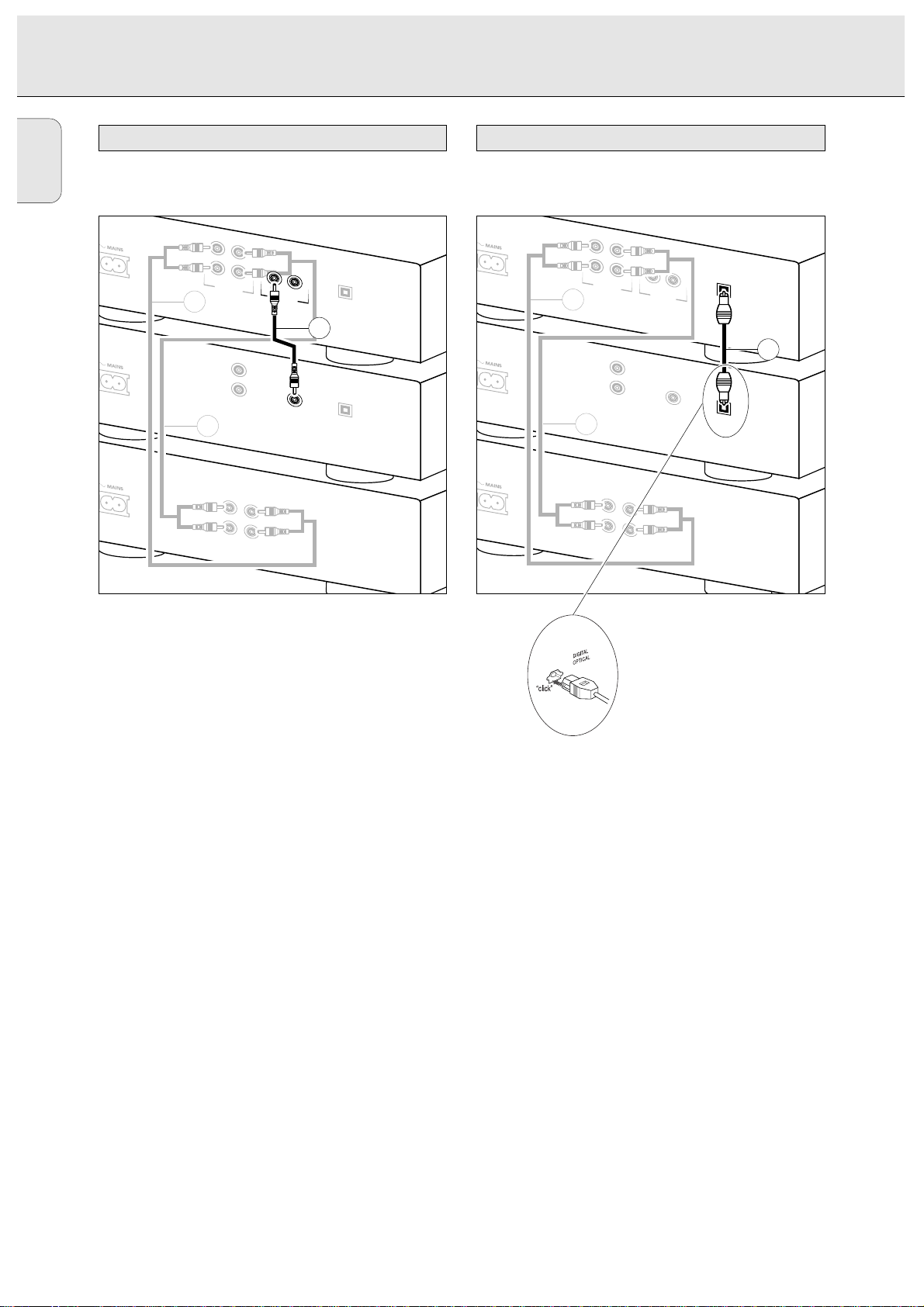

Digital coaxial connections .......................................12

Digital optical connections .......................................12

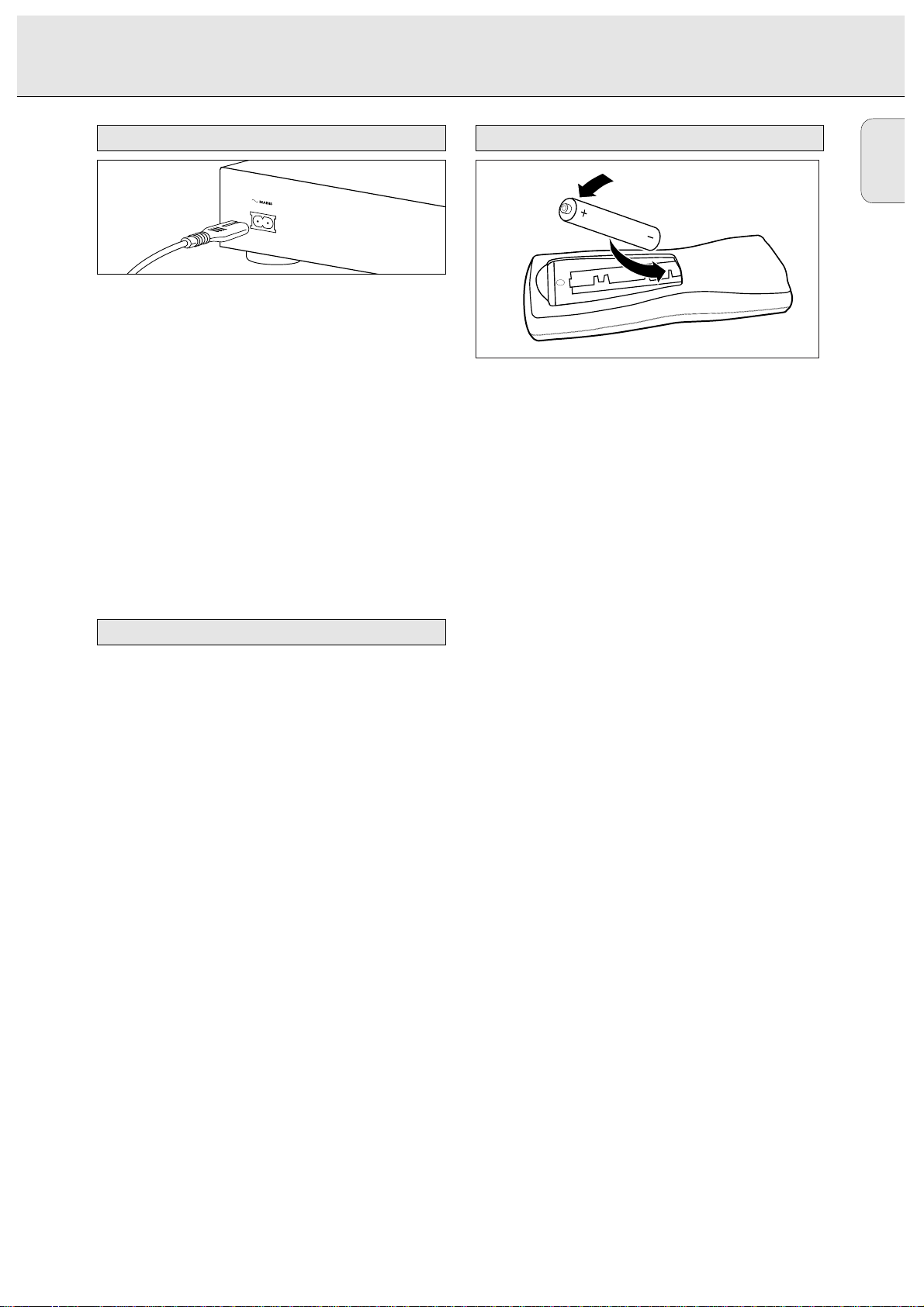

Power supply..............................................................13

Setup recommendations............................................13

Inserting batteries in the remote control ..................13

REMOTE CONTROL

Remote control commands........................................14

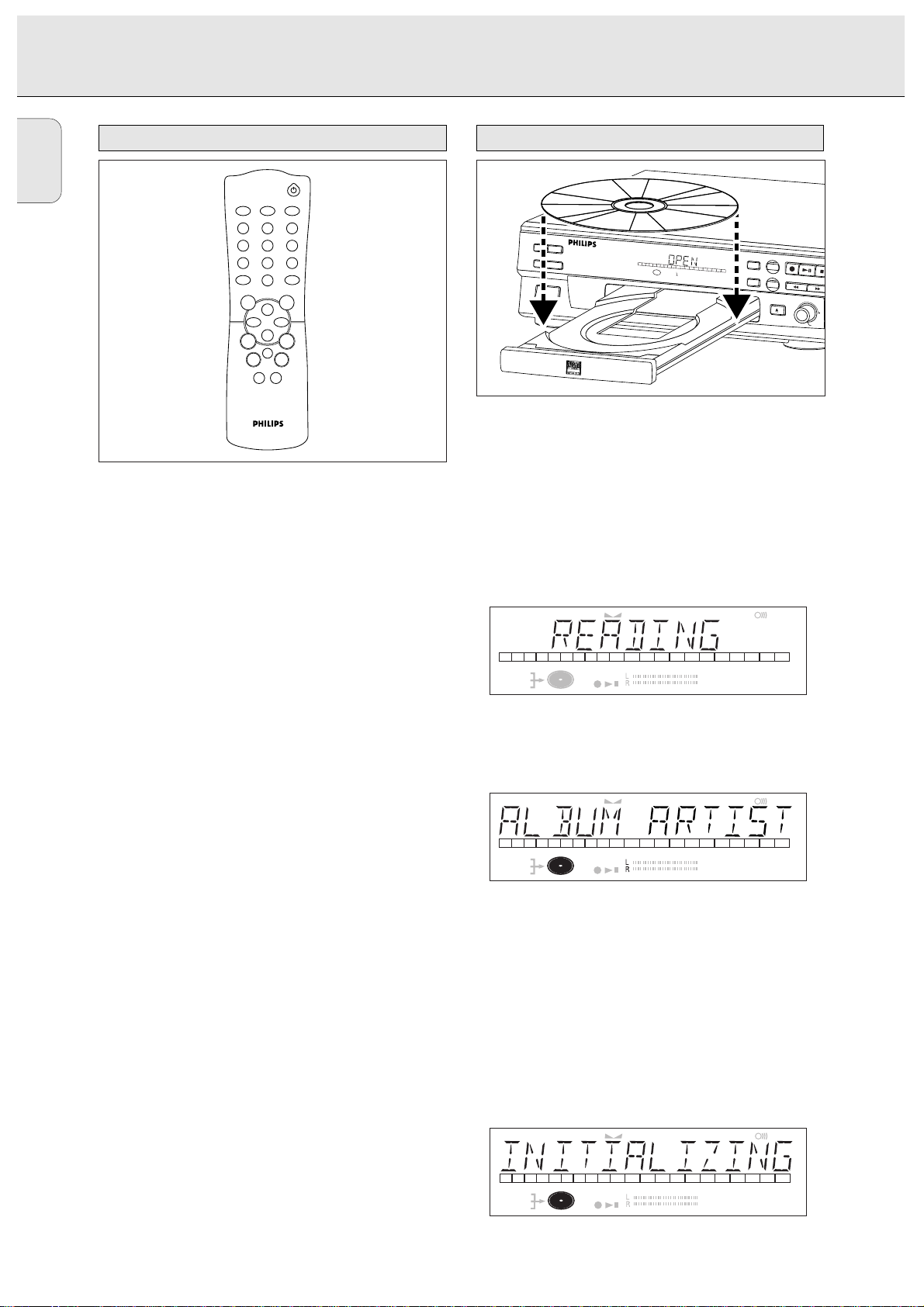

Inserting discs............................................................14

RECORDING

Remarks about recording...........................................15

Recording modes........................................................15

Autostart recording....................................................16

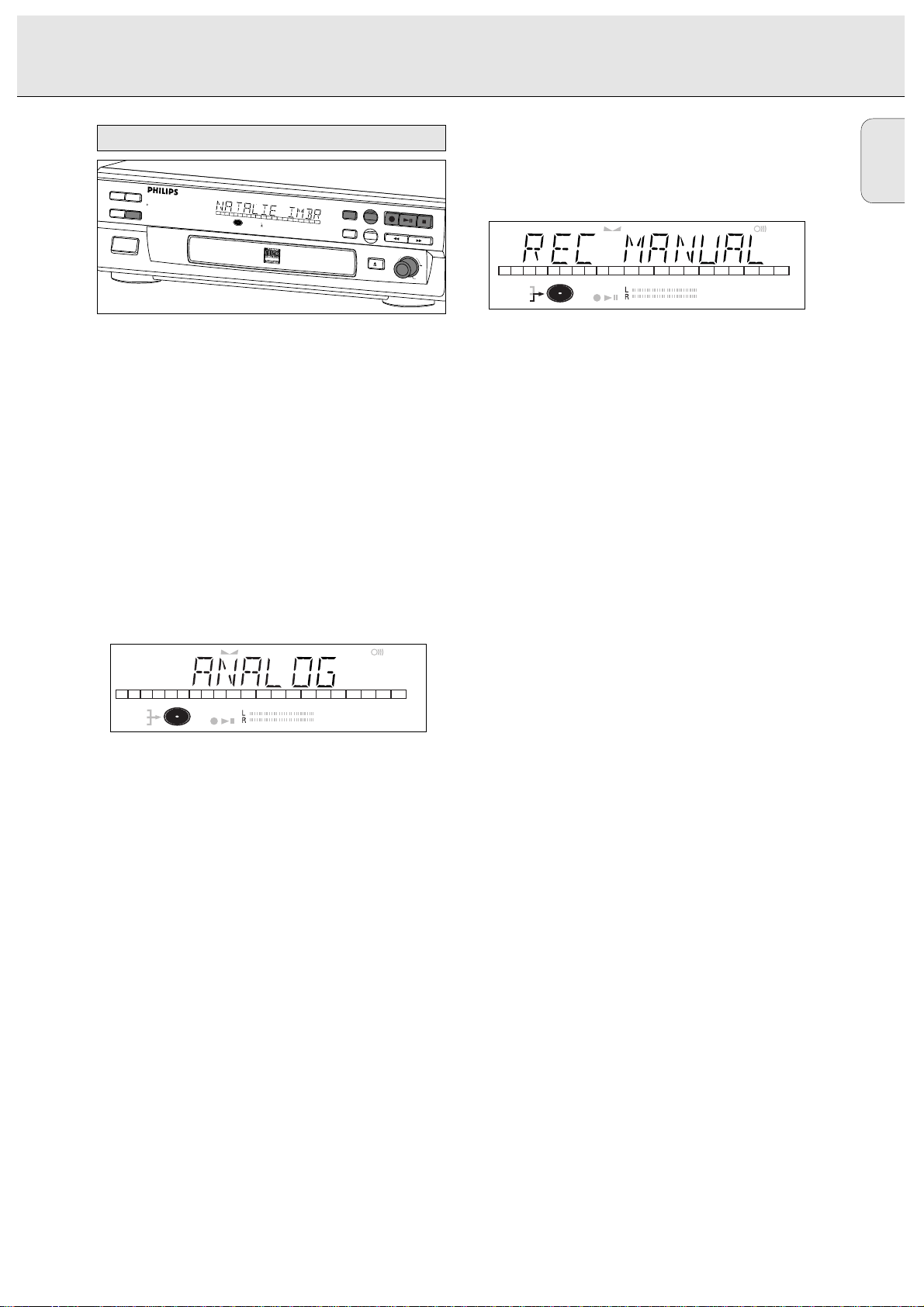

Manual recording.......................................................17

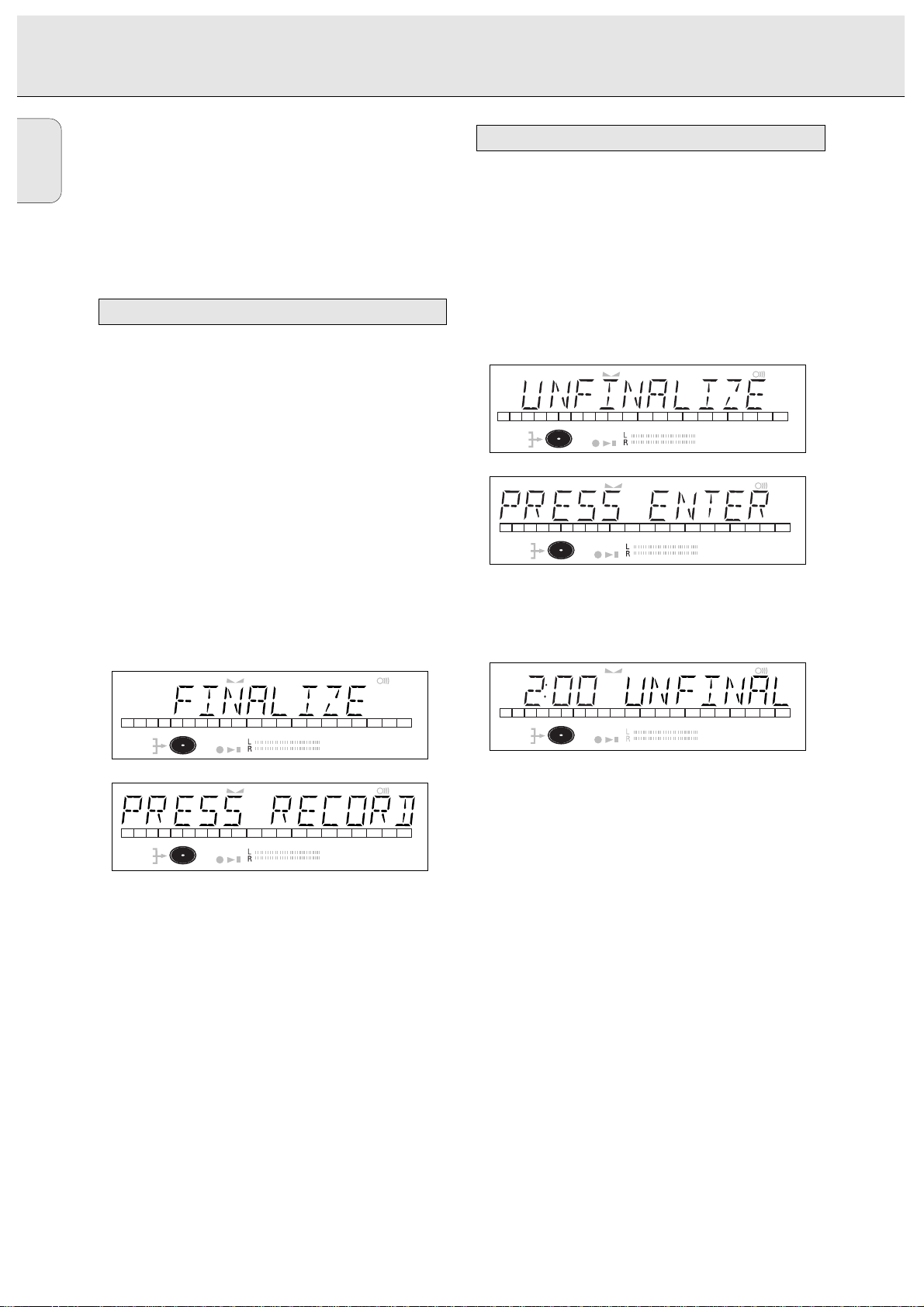

Finalizing CDR & CDRW discs ...................................18

Unfinalizing CDRW discs...........................................18

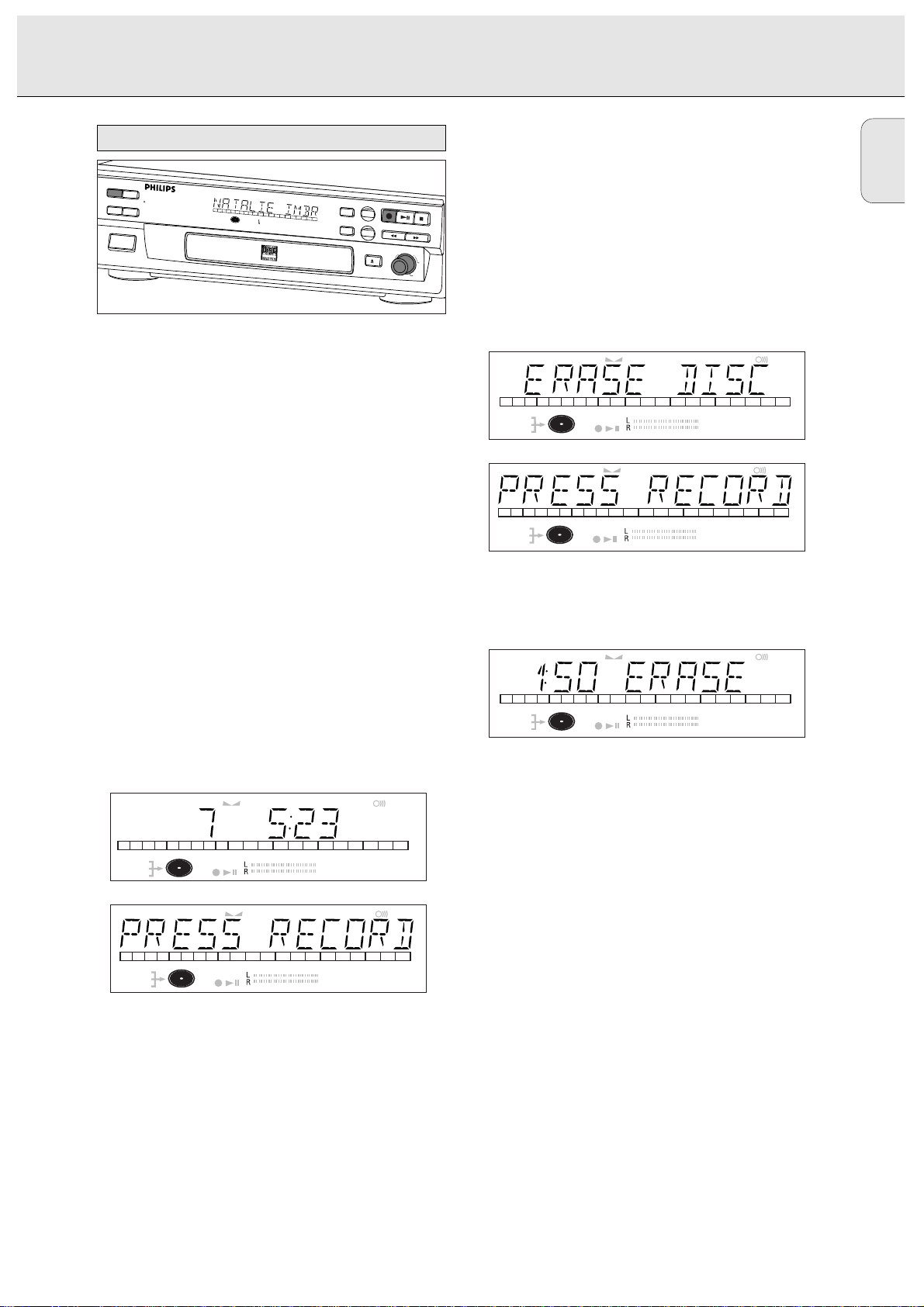

Erasing CDRW discs ..................................................19

PLAYING

Playing a CD...............................................................20

Selecting a track ........................................................20

Search ........................................................................20

Shuffle (random order) play.......................................21

Repeat CD, track or program .....................................21

PROGRAMMING

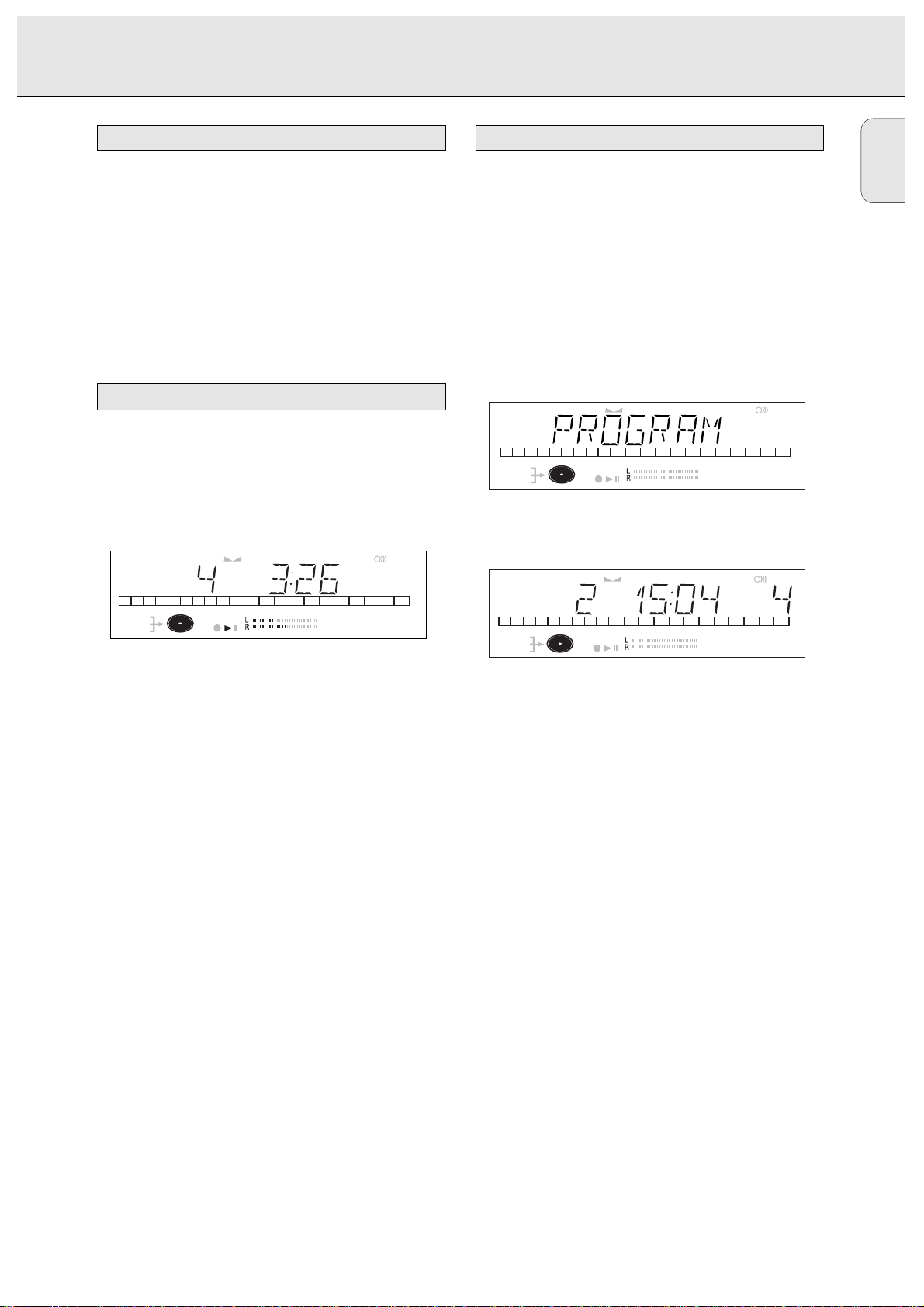

Remarks about programming.....................................21

MENU MODE

Remarks about Menu mode.......................................22

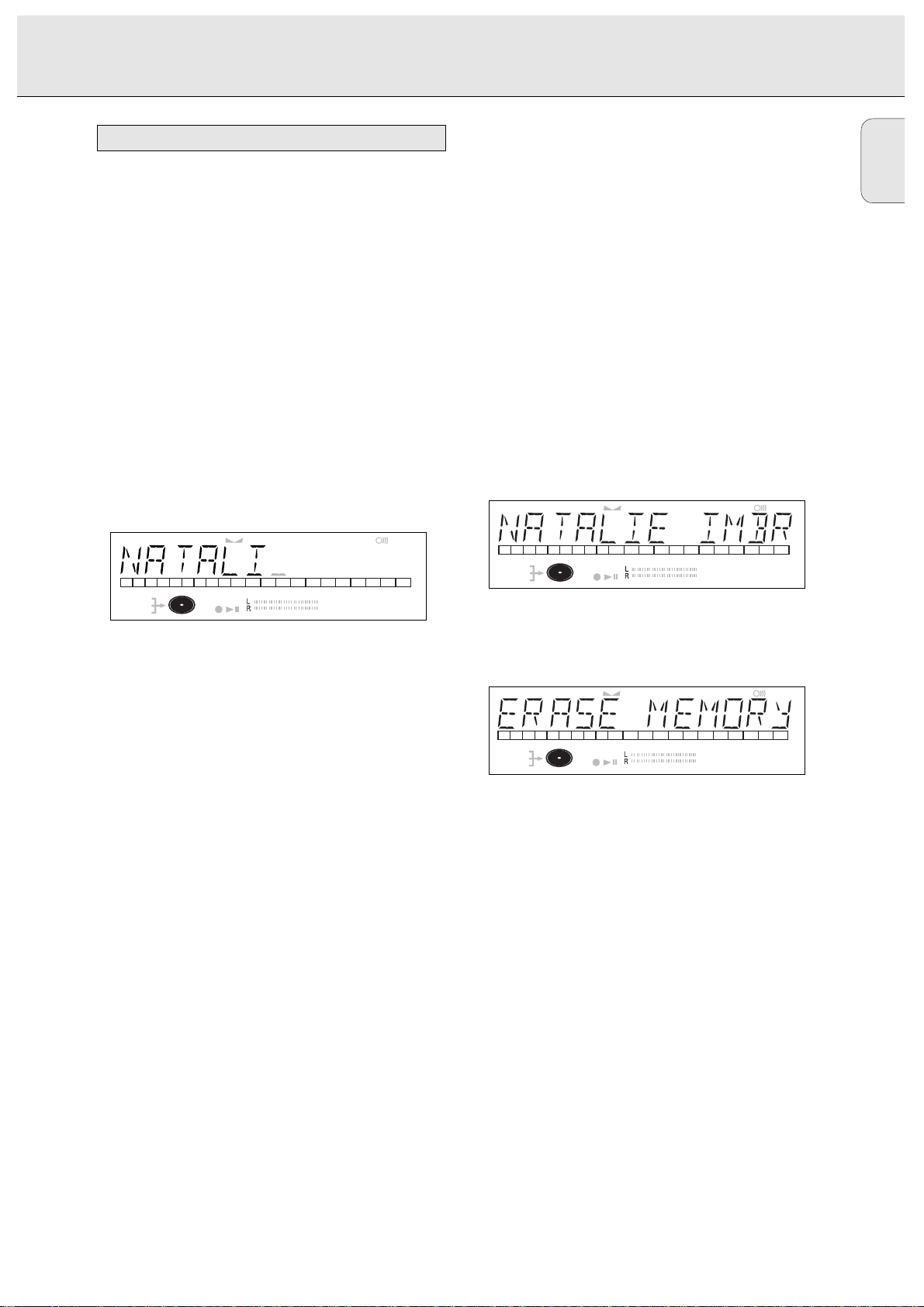

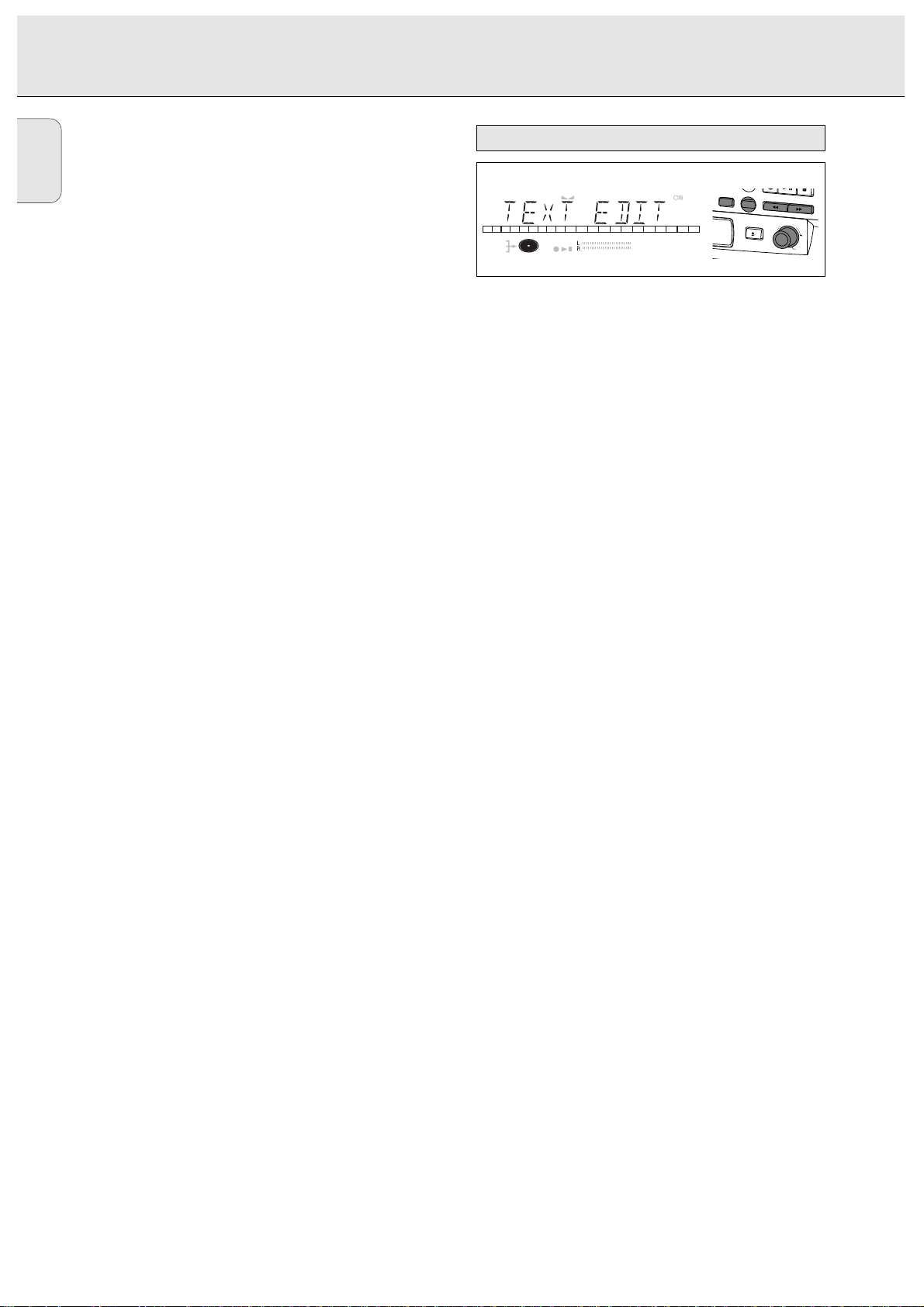

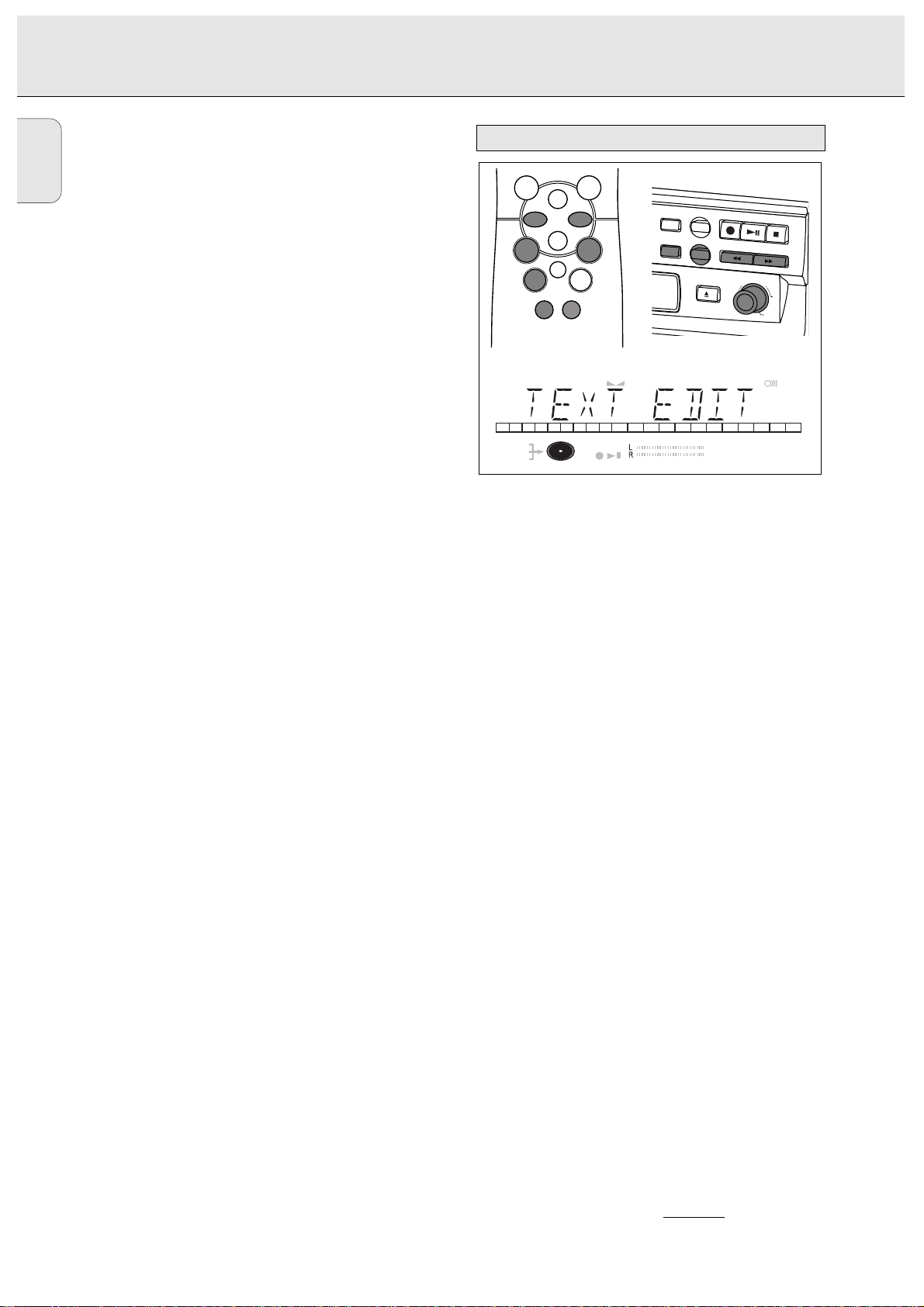

Text settings...............................................................23

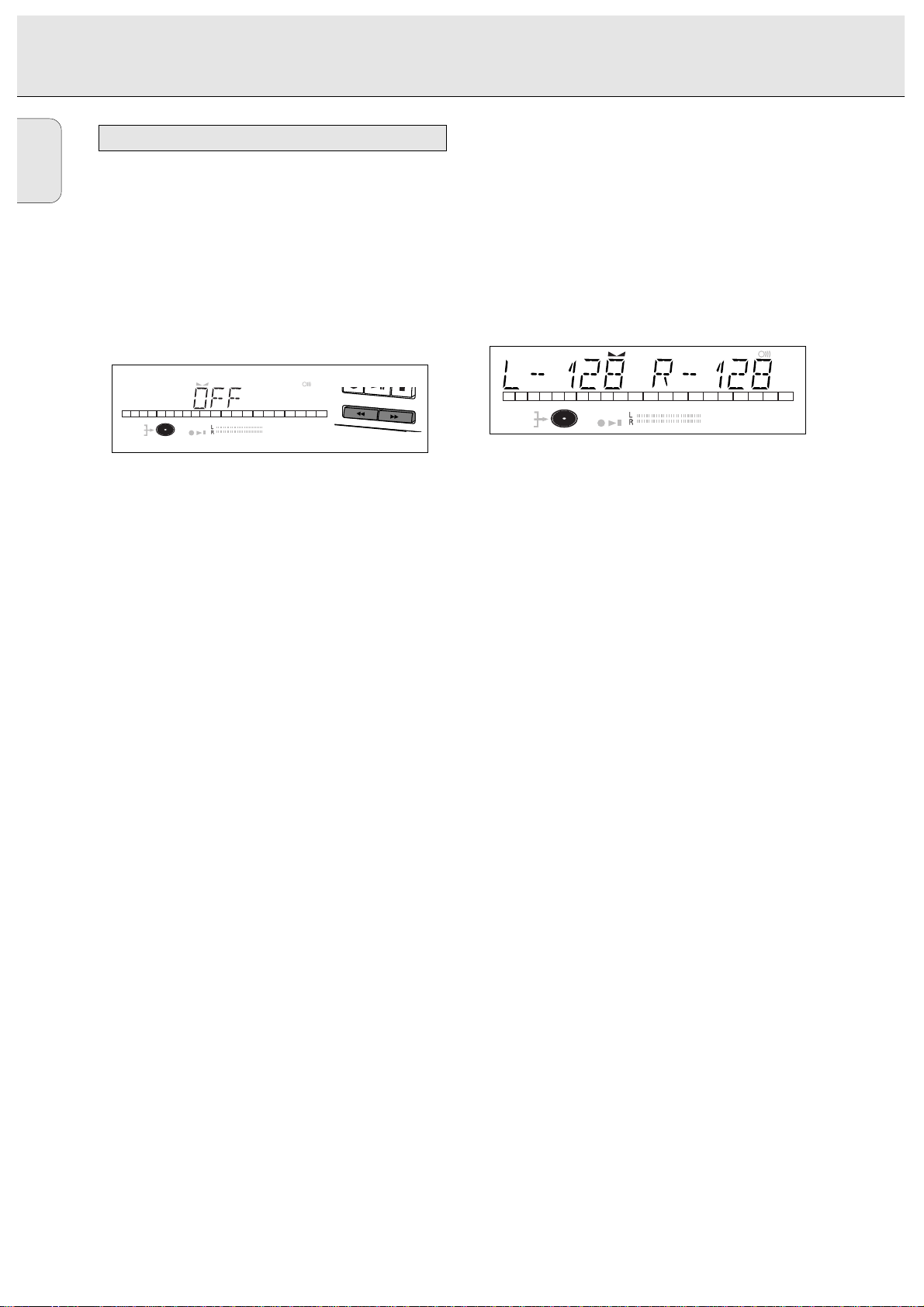

Recording settings .....................................................24

FIXING PROBLEMS

Troubleshooting..........................................................25

English

6

Welcome !

Thank you for buying this Philips Compact Disc Recorder.

In the eighties Philips invented a new audio system - the CD.
The CD (compact disc) revealed to you the new dimensions of
digital sounds and added to the pleasures of audio.
Compact disc technology permits a high contrast in loud as
well as in quiet passages, with perfect channel separation.
Philips has now further developed compact disc technology
and the result is the CD recorder.

With your Philips CD Recordable/ReWritable Recorder, you
can record, play and erase your own high-quality audio CDs,
subject to legal restrictions on copying. Naturally, you will
also be able to play all pre-recorded audio CDs.

Note: In the United Kingdom and certain commonwealth

countries use of the Philips CD Recordable/Rewritable
recorder as shown or suggested in this user manual
may require the authorization of copyright holders.

This manual gives instructions for operating this CD recorder
where:

- the figures (1) throughout the text indicate a sequence of
actions necessary to perform a certain operation;

- the arrows (➜) indicate the reaction from the recorder;

- the dots (•) indicate remarks, advice or special options
within a sequence of actions. The dot-marked instructions
are not necessary for the required operation.

Subject to modification without notice.

General

Power consumption ..........................................................15 W

Power consumption in Standby ..........................................6 W

Operating temperature ..................................................5-35° C

Weight..................................................................................4 kg

Dimensions ..................................................264 x 305 x 86 mm

Audio

Frequency response ............................................2Hz-22.050 Hz

Playback S/N (A-weighted) ............................................100 dB

Playback S/N.................................................................. 100 dB

Playback dynamic range CDR............................................95 dB

Playback total harmonic distortion CDR........91 dB = 0.0033 %

Channel separation ........................................................100 dB

Recording S/N (A-weighted) ............................................98 dB

Recording S/N digital without SRC ..................equal to source

Recording dynamic range..................................................92 dB

Recording total harmonic distortion + noise ..85 dB (0.0056%)

Technical data

About this manual

GENERAL INFORMATION

English

7

For recording use, special audio discs must be used (for music
only). These Discs bear the logos as shown below. The text
‘DIGITAL AUDIO’ is present!

Your recorder uses two types of discs for recording purposes:

- CD-Audio Recordable (CDR) discs:
fully recorded and finalized, these discs play
on all CD players and recorders.

- CD-Audio ReWritable (CDRW) discs:
can be recorded, erased and re-recorded
hunderds of times. When finalized, they play
on CDRW compatible CD players and
recorders. In the course of 1999 most Philips CD players and
recorders will be CDRW compatible.

To ensure proper working of the set we recommend the use of
Philips audio CDR and audio CDRW discs only.

Your CD recorder is able to play:

- All pre-recorded audio CDs.

- All Audio CDR and Audio CDRW.

Note: CDR(W) discs recorded with a computer can only be

used when they are correctly treated according the
audio standard (IEC958: Consumer part).
Single session only!

For recording it is very important to use dust and scratch free
discs.

To clean a CD, wipe it in a straight
line from the center toward the edge
using a soft, lint-free cloth. A
cleaning agent may damage the disc!
Write only on the printed side of a
CDR or CDRW, and only with a soft
felt-tipped pen.

Clean the CD recorder with
a soft, slightly dampened lint-free
cloth. Do not use any cleaning
agents as they may have a corrosive
effect.

Do not expose the CD recorder,
batteries or CDs to humidity, rain,
sand or excessive heat (caused by
heating equipment or direct sunlight).

If the CD recorder cannot read CDs correctly use a commonly
available cleaning CD to clean the lens before taking the CD
player to be repaired. Other cleaning methods may destroy
the lens. Always keep the tray closed to avoid dust on the
lens.

The lenses may cloud over when the CD recorder is suddenly
moved from cold to warm surroundings. It is not possible to
play a CD then. Leave the CD recorder in a warm environment
until the moisture evaporates.

- 2 Analog audio cables (with red and white plugs)

- 1 Digital coaxial cable (with black plugs)

- Power cord

- 2 Batteries

- Remote control

- Guarantee

Accessories

CDR 560

M
IN

I C
D

R
E
C

O
R
D

ER

O
P
E
N

/C
L
O

S
E

R
E
C
O

R
D
L
E

V
E
L

M
IN

M
A
X

P
R
E
V

S
T
O
P

C
D
S
Y
N

C
R
O

R
E
C
O
R

D

E
R
A
S

E

F
IN
A
L

IZ
E

P
L
A
Y

P
A
U
S

E

N
E

X
T

IN
P
U

T
D
IS

P
L
A
Y

A
U
T

O
/ M
A
N

U
A
L

P
O
W

E
R
O
N

/O
F
F

Maintenance

Discs for playback

ReWritable

Recordable

Discs for recording

GENERAL INFORMATION AND DISCS

English

8

1 ON/OFF........................turns the CD recorder ON and OFF

2 Disc tray

3 SCROLL........................activates scrolling of text over the

display (once)

4 DISPLAY......................selects display information/text

5 ERASE..........................selects erasing mode

6 FINALIZE ....................selects finalize mode

7 Standby indicator

8 Display..........................information screen

9 CANCEL/DELETE ......- deletes tracks from a program

- deletes text in Menu mode

- returns to a higher level in the
menu

0 SOURCE ......................selects input source

! STORE/MENU ............- enters Menu mode

- stores Menu settings

@ REC(ord) TYPE ............selects recording modes

# RECORD ......................starts recording, finalizing, erasing

$ Q (Rewind)..............- searches backward

- cursor control in Menu/Prog.
review mode

% PLAY/PAUSE 2; ......starts play/interrupts play or

recording

^ STOP 9........................stops/clears a program

& R (FFwd)..................- searches forward

- cursor control in Menu/Prog.
review mode

* ¡ EASY JOG ™ ........- previous/next track (Play and

(rotate) Program mode)

- recording level control (recording)

- selects settings (menu on)

ENTER (push) ..............- plays selected tracks

- selects settings in Menu mode

- programs track numbers

( OPEN/CLOSE /..........opens/closes disc tray

Note: Unless stated otherwise, all controls are on the front of

the CD recorder. When provided on the remote control,
you can also use the corresponding buttons, after
selecting the CD recorder or separate CD player by
pressing CDR or CD.

1 Connection to mains

2 ANALOG IN ................connects to the line output of an

amplifier (left and right)

3 ANALOG OUT CDR ....connects to the line input of an

amplifier (left and right)

4 DIGITAL IN..................connects to the digital coaxial

output of an external CD player

5 DIGITAL OUT CDR ....connects to the digital coaxial

input of e.g. amplifier or recording
device

6 OPTICAL IN ................connects to the digital optical

output of an external CD player

Connections at the back

Controls on the front

CONTROLS AND CONNECTIONS

CDR

MINI AUDIO
CD RECORDER

OPEN/CLOSE

EASY JOG

REWIND

RECORD

REC TYPE

MENU/STORE

CANCEL

SOURCE

PLAY/PAUSE STOP

FFWD

ERASE

FINALIZE

SCROLL

DISPLAY

ON/OFF

Recordable

SYNC

PROGRAM

SHUFFLE

REPEAT

SCAN

ALL

MANUAL

TRACK

123456789

REM

TRACKREC TIME

DIGITAL
OPTICAL
ANALOG

I
I

CD

RW

REMTOTAL

TIME STEPTRACK

10

11

12

13

14

15

16

17

18

19

20

+

ENTER

MAINS

DIGITALANALOG

RR

LL

IN

OUT

IN

OUT

OPTICAL

IN

1

1

65

4

32

3

5

4

9 10 11 126 7 8

2

13 14 15 16 17 1819
