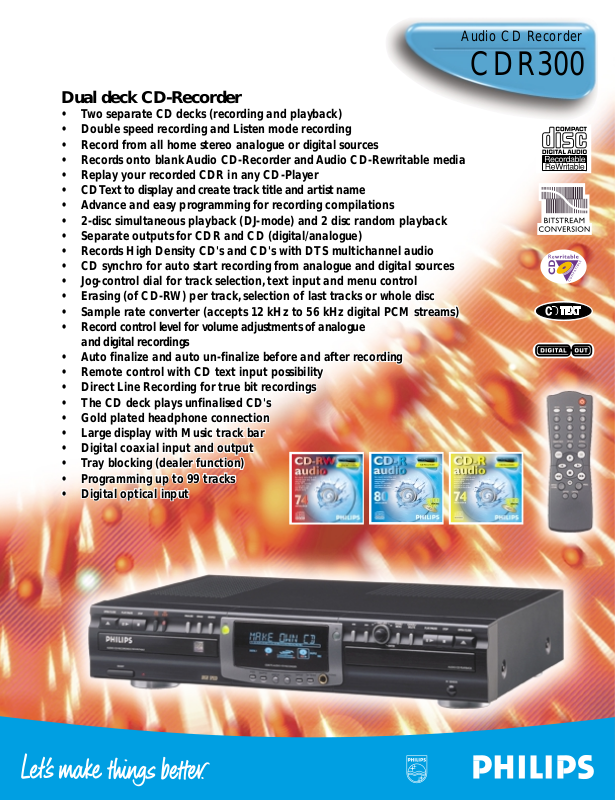

Dual deck CD-Recorder

Dual deck CD-Recorder

• Two separate CD decks (recording and playback)

• Two separate CD decks (recording and playback)

• Double speed recording and Listen mode recording

• Double speed recording and Listen mode recording

• Record from all home sterom all home stereo analogue or digital sources

• Record from all home stereo analogue or digital sources

• Records onto blank Audio CD-Recorder and Audio CD-Rewritable media

• Records onto blank Audio CD-Recorder and Audio CD-Rewritable media

• Replay your recorded CDR in any CD-Player

• Replay your recorded CDR in any CD-Player

• CD Text to display and create track title and artist name tist name

• CD Text to display and create track title and artist name

• Advance and easy programming for ramming for recording compilationsding compilations

• Advance and easy programming for recording compilations

• 2-disc simultaneous playback (DJ-mode) and 2 disc rultaneous playback (DJ-mode) and 2 disc random playback

• 2-disc simultaneous playback (DJ-mode) and 2 disc random playback

• Separate outputs for CDR and CD (digital/analogue)

• Separate outputs for CDR and CD (digital/analogue)

• Records High Density CD's and CD's with DTS mds High Density CD's and CD's with DTS multichannel audio

• Records High Density CD's and CD's with DTS multichannel audio

• CD synchro for auto start recording from analogue and digital sources

• CD synchro for auto start recording from analogue and digital sources

• Jog-control dial for track selection, text input and menu control

• Jog-control dial for track selection, text input and menu control

• Erasing (of CD-RW) per trW) per track, selection of last tracks or whole disc

• Erasing (of CD-RW) per track, selection of last tracks or whole disc

• Sample rSample rate converter (accepts 12 kHz to 56 kHz digital PCM strter (accepts 12 kHz to 56 kHz digital PCM streams)

• Sample rate converter (accepts 12 kHz to 56 kHz digital PCM streams)

• Record control level for volume adjustments of analogue

• Record control level for volume adjustments of analo gue

and digital recordings

and digital recordings

• Auto finalize and auto un-finalize before and after recording

• Auto finalize and auto un-finalize before and after recording

• Remote contrRemote control with CD text input possibility

• Remote control with CD text input possibility

• Direct Line Recording for true bit recordings

• Direct Line Recording for true bit recordings

• The CD deck plays unfinalised CD's

• The CD deck plays unfinalised CD's

• Gold plated headphone connection

• Gold plated headphone connection

• Large display with Music trLarge display with Music track bar

• Large display with Music track bar

• Digital coaxial input and output

• Digital coaxial input and output

• Tray blocking (dealer function)

• Tray blocking (dealer function)

• Programming up to 99 tramming up to 99 tracks

• Programming up to 99 tracks

• Digital optical input

• Digital optical input

Audio CD Recorder

CDR300

Audio CD Recorder

CDR300

Sound Enhancement

Direct Line Recording

For making Bit for Bit Recordings.

Record Level Adjustment

The volume levels of disc could differ between disc.
With the Jog, it is possible to adjust the Digital Recording
Level.

Convenience

CD-Text

No more need to look-up the track you want to play or
record in the CD inlay booklet, simply select the track by
name from the display, directly from the disc. The display
can show both artist and title for the entire album as
well as individual tracks. With the CDR, you can also
create your own CD Text information for e.g. your own
compilations.

Double Speed Recording from CD

Make your own CD in half the time.

Shuffle One/All Discs

Plays all selections on a particular disc or multiple discs in
multi-disc players in random order, ignoring the
sequential order in which they were originally recorded.

Sample Rate Converter

Some digital equipment will give audio signals with
different sampling rates (CD uses 44.1 kHz). The Sample
Rate Converter in the recorder is able to convert from
11-56 kHz into 44.1 kHz.

New User Interface

For easy operation of the recorder (e.g. Easy Jog, large
display, messages on what to do next).

Technical Specifications CDR300
General

• System : Compact disc digital Audio
(Dual deck CD-recorder + CD-player)

• Number of channels : 2 (stereo)

• Applicable supply : 117V

• Power consumption : 19W (<=6W in standby)

• Operating temperature : 5-35°C

• Weight : 11 lbs

• Dimensions : 17.1" W x 12.2" D x 3.46" H

Audio

• Digital frequency range : 2 Hz - 22.05 kHz

• Playback S/N (CDR & CD) : 100 dB (A - weighted)

• Playback dynamic range (CDR & CD) : 95 dB 90 dB

• Playback total harmonic distortion : 91 dB (0.0033%) & 85 dB (0.0056%)

+ noise (CDR & CD)

• Recording S/N (Analogue) : 98 dB (A - weighted)

• Recording S/N (Digital) : Recording quality equal to Source

• Recording dynamic range : 92 dB

• Recording total harmonic distortion + noise : 85 dB (0.0079%)

• Headphones : 3Vrms / 8 - 2000W

Output

• 1 x Analogue line output CDR (+ CD) : 2 Vrms +/- 2 dB / 0.2 kOhm

• 1 x Analogue line output CD : 2 Vrms +/- 2 dB / 0.2 kOhm

• 1 x Digital coaxial output CDR (+CD) : 0.5 V (pp) / 75 Ohm

• 1 x Digital coaxial output CD : 0.5 V (pp) / 75 Ohm

Input (level adjustment)

• Direct line recording (bypass SRC) for : 44.1 kHz +/- 100 ppm

• 1 x Digital coaxial input (SRC) : 12 - 56 kHz / 0.5 Vrms / 75 Ohm

• 1 x Digital optical input (SRC) : 12 - 56 kHz

• 1 x Analogue input : 500 mVrms / 50 kOhm = 0 dB

Recording functions

• Recording on CD-R & CD-RW disc

• Records from all home stereo analogue and digital soures

• Recording from internal & external source

• Single & double speed recording (disc, track)

• Auto start recording

• Soft mute insert function

• Multi track erase (CD-RW disc)

• Erase disc (CD-RW disc)

• Auto finalise / unfinalise disc (CD-RW disc)

• Manual/Auto track increment

• Remaining recording time display

• Double speed finalising (make disc compatible to CD-player)

• SCMS (Serial Copy Management System)

• Auto switch over to analogue recording in case of copy protected track or disc

• RID code (Recorder Unique identifier)

Playback functions Accessories

• Plays all Audio CD's • Remote control + batteries

(120mm + 80 mm discs) • Audio cable (x2)

• Simultaneously playback • Digital coaxial cable (x1)

(recorder + player) • AC mains cord

• Introscan - Pause - Stop

• Random playback from 2 discs

• Direct track selection

• Track selection with easy jog

• Search forward / reverse

• Repeat (all / per track)

• Program play (99 tracks)

• Time display switching

• Permanent text option

UPC Code: 0 37849 89365 4

Product Dimensions:

17.1" W x 3.5" H x 12.2" D
Package Dimensions:

20.4" W x 7.4" H x 15.7" D
Product weight: 11 lbs.
Carton contains: CDR 300 recorder, Remote Control, Batteries, Operating
instructions, Warranty information

Printed in Singapore
Date printed : Oct 1999
©1999 Royal Philips Electronics N.V .
All rights reserved
A Division of Philips Electronics North America Corp.
Specifications subject to change without notice.
