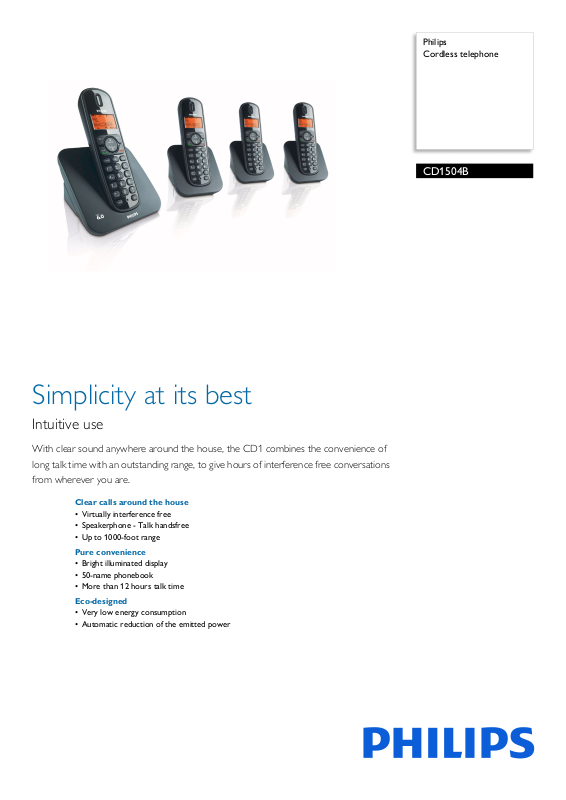

Philips CD1504B-37 User Manual

Philips Cordless telephone

CD1504B

Simplicity at its best

Intuitive use

With clear sound anywhere around the house, the CD1 combines the convenience of long talk time with an outstanding range, to give hours of interference free conversations from wherever you are.

Clear calls around the house

• Virtually interference free

• Speakerphone - Talk handsfree

• Up to 1000-foot range

Pure convenience

• Bright illuminated display

• 50-name phonebook

• More than 12 hours talk time

Eco-designed

• Very low energy consumption

• Automatic reduction of the emitted power

Cordless telephone

CD1504B/37

Specifications

Picture/Display

•Backlight

• Backlight color: Amber

• Display colors: Black & White

• Main Display Resolution: n.a. pixel

• Main Display Technology: TN

• Main Display Type: Dot Matrix

Sound

• Handset ringers: Instrumental, Polyphonic

• Volume Control: Volume Control up/down

Convenience

• Alarms: Alarm Clock

• Base Station keys: Paging key

• Battery charging indication

• Call Management: Call Wai Conference Call, Explicit Call Transfer, Microphone mute

• Ease of Use: Full Duplex Handsfree, Keypad Lock,

Control

• Multi base capability: 1

• Multi handset capability: Up to 4 handsets

• Signal strength indication

• Speakerphone-Talk handsfree

ting, Caller ID,

Network Features

• Antenna: Integrated on base, Integrated on handset

• Dialing: Tone, Pulse

Memory Capacity

• Call log entries: 10

• Phonebook: 50 names and numbers

• Redial List Capacity: 5

Connectivity

• Headset: Via Jack Connector (Handset)

Dimensions

• Base dimensions: 120 x 114 x 82.5mm

• Handset dimensions: 162 x 48.3 x 28.7mm

Power

• Battery capacity: 550 mAh

• Battery type: AAA NiMH

• Kind of Battery: Rechargeable

• Mains power: AC 120V - 60Hz

• Number of batteries: 2 per handset

• Standby time: Up to 150 hours

• Talk time: Up to 12 hours

Accessories

• Detachable belt-clip

•

Highlights

Virtually interference free

Thanks to an advanced digital technology, calls are undisturbed by interferences from other devices.

Speakerphone - Talk handsfree

Handsfree mode uses a built-in loud speaker to amplify the voice of the caller, allowing you to speak and listen during a call without holding the phone to your ear. This is especially useful if you want to share the call with others or take notes during a call.

Up to 1000-foot range

Move freely in and around the house witin a range of maximum 150-foot indoor and up to 1000-foot outdoor (in ideal open-air conditions).

Issue date 2014-03-14

Version: 2.0.1

12 NC: 8670 000 42281 UPC: 6 09585 16027 9

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.

www.philips.com
