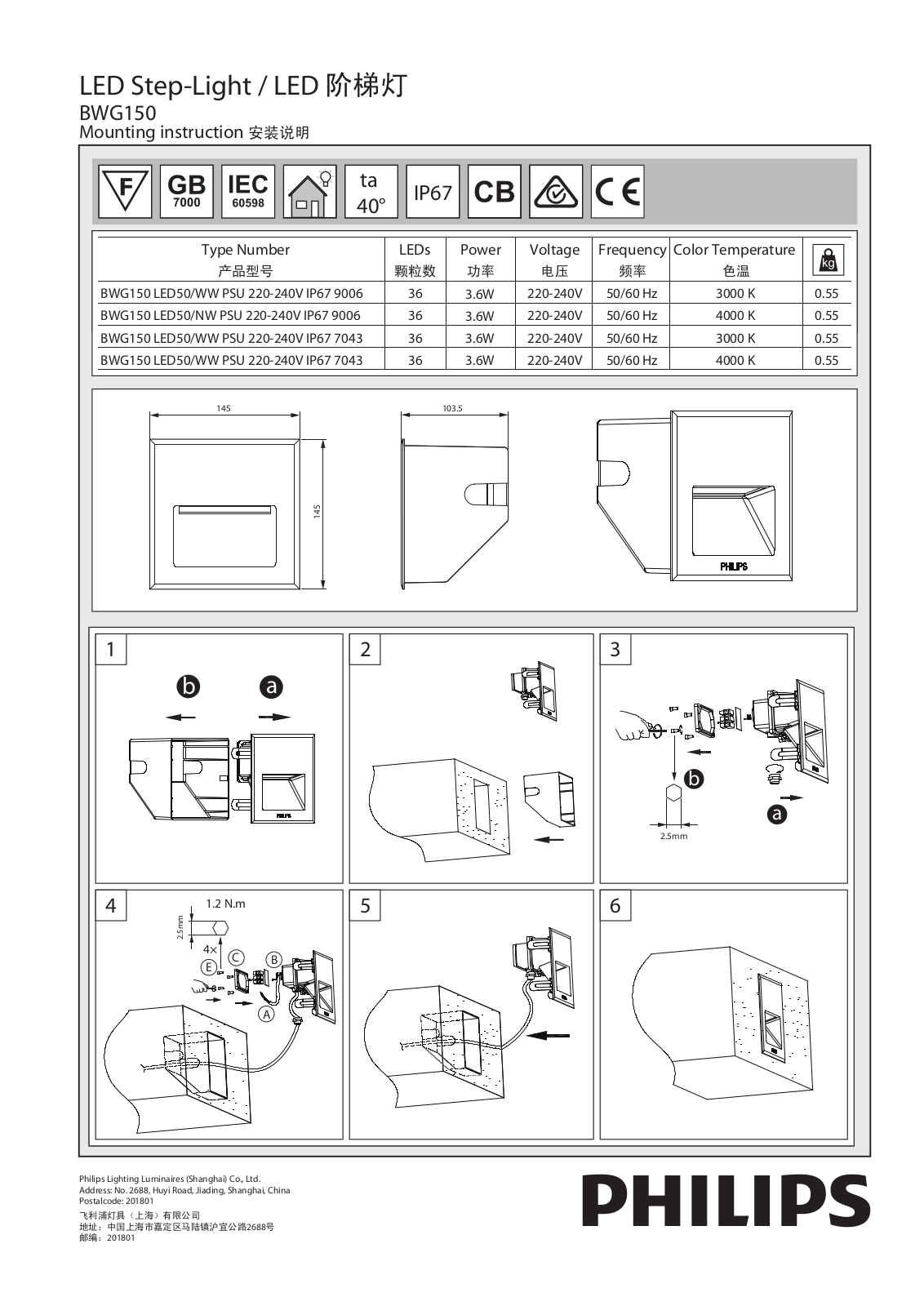

Philips BWG150 installation Guide
LED Step-Light / LED 阶梯灯
BWG150
Mounting instruction 安装说明
Type Number
产品型号
BWG150 LED50/WW PSU 220-240V IP67 9006
BWG150 LED50/NW PSU 220-240V IP67 9006
BWG150 LED50/WW PSU 220-240V IP67 7043
BWG150 LED50/WW PSU 220-240V IP67 7043
145
ta
40°
IP67
LEDs
颗粒数
36
36
36
36
103.5145
Power
功率
3.6W
3.6W
3.6W
3.6W
Voltage电压Frequency
频率
220-240V
220-240V
220-240V
220-240V
50/60 Hz
50/60 Hz
50/60 Hz
50/60 Hz
Color Temperature
色温
3000 K
4000 K
3000 K
4000 K
0.55
0.55
0.55
0.55
1 2 3
b
4 5 6
1.2 N.m
2.5mm
4×
E
a
C
B
A
b
a
2.5mm
Philips Lighting Luminaires (Shanghai) Co., Ltd.
Address: No. 2688, Huyi Road, Jiading, Shanghai, China
Postalcode: 201801
飞利浦灯具（上海）有限公司
地址：中国上海市嘉定区马陆镇沪宜公路2688号
邮编：201801

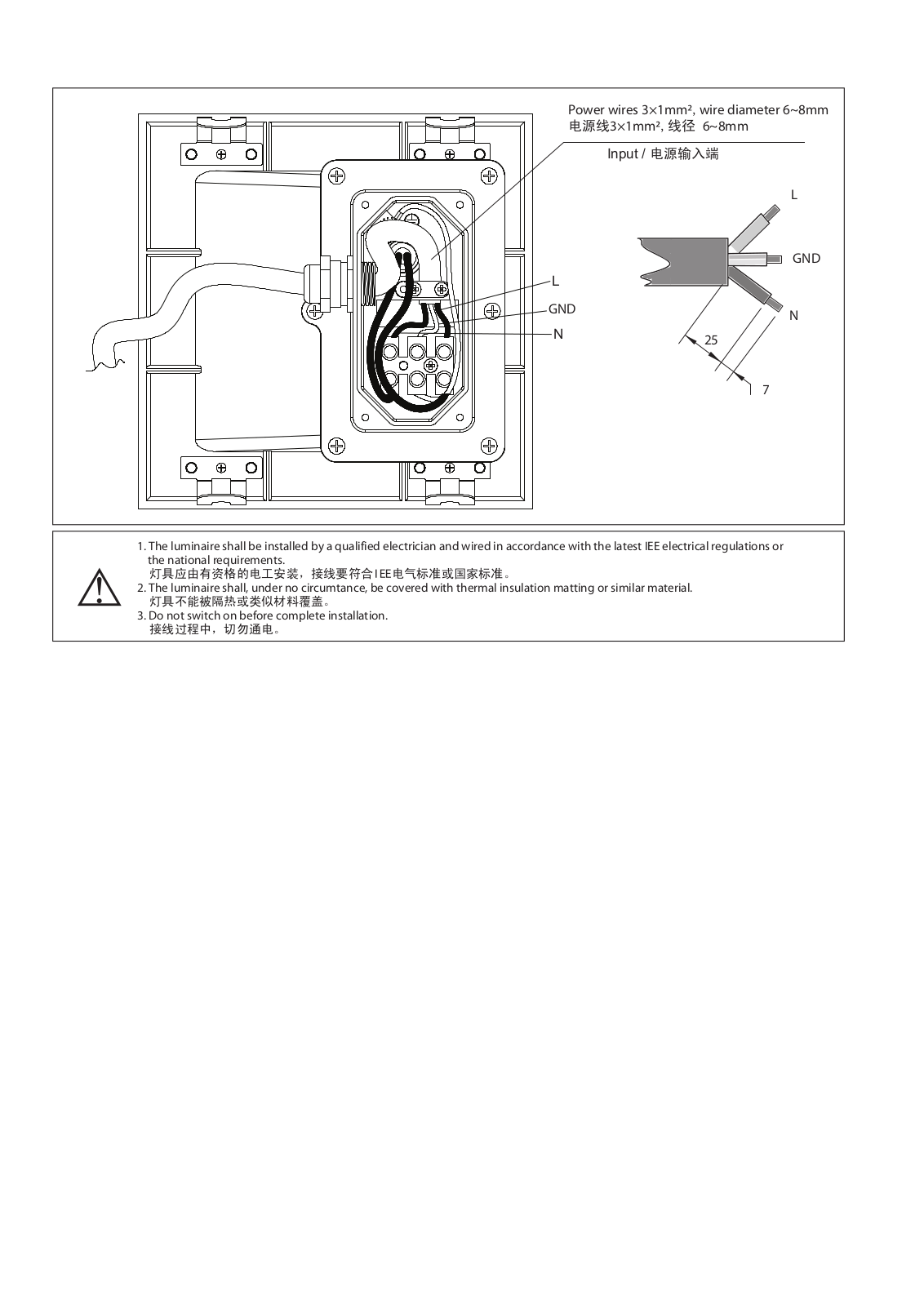

Power wires 3×1mm²,wire diameter 6~8mm
电源线3×1mm²,线径 6~8mm
Input / 电源输入端
L
L
GND
GND
N
25
7
1. The luminaire shall be installed by a qualified electrician and wired in accordance with the latest IEE electrical regulations or
the national requirements.
灯具应由有资格的电工安装，接线要符合IEE电气标准或国家标准。
2. The luminaire shall, under no circumtance, be covered with thermal insulation matting or similar material.
灯具不能被隔热或类似材料覆盖。
3. Do not switch on before complete installation.
接线过程中，切勿通电。
N
