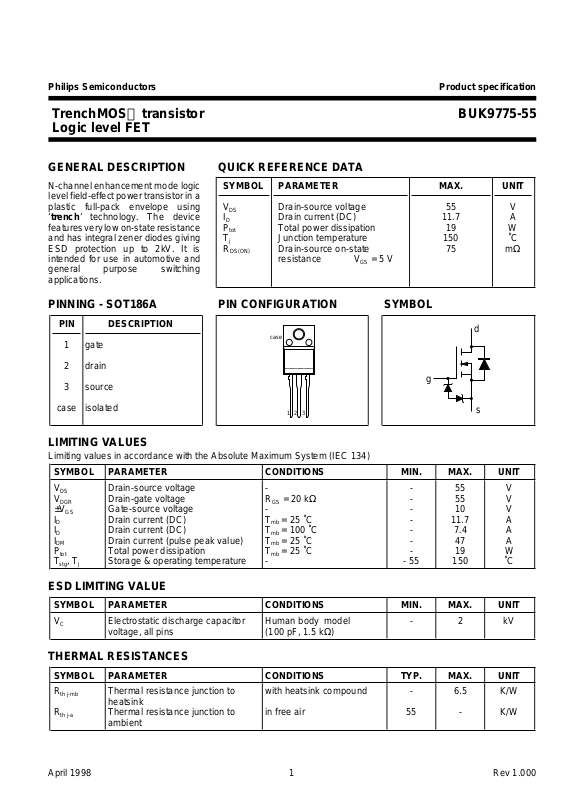

Philips Semiconductors Product specification

TrenchMOS transistor BUK9775-55
Logic level FET

GENERAL DESCRIPTION QUICK REFERENCE DATA

N-channel enhancement mode logic SYMBOL PARAMETER MAX. UNIT
level field-effectpowertransistorina
plastic full-pack envelope using V
’trench’ technology. The device I
featuresverylow on-stateresistance P
and has integral zener diodes giving T
ESD protection up to 2kV. It is R

DS

D

tot
j

DS(ON)

intended for use in automotive and resistance VGS = 5 V
general purpose switching
applications.

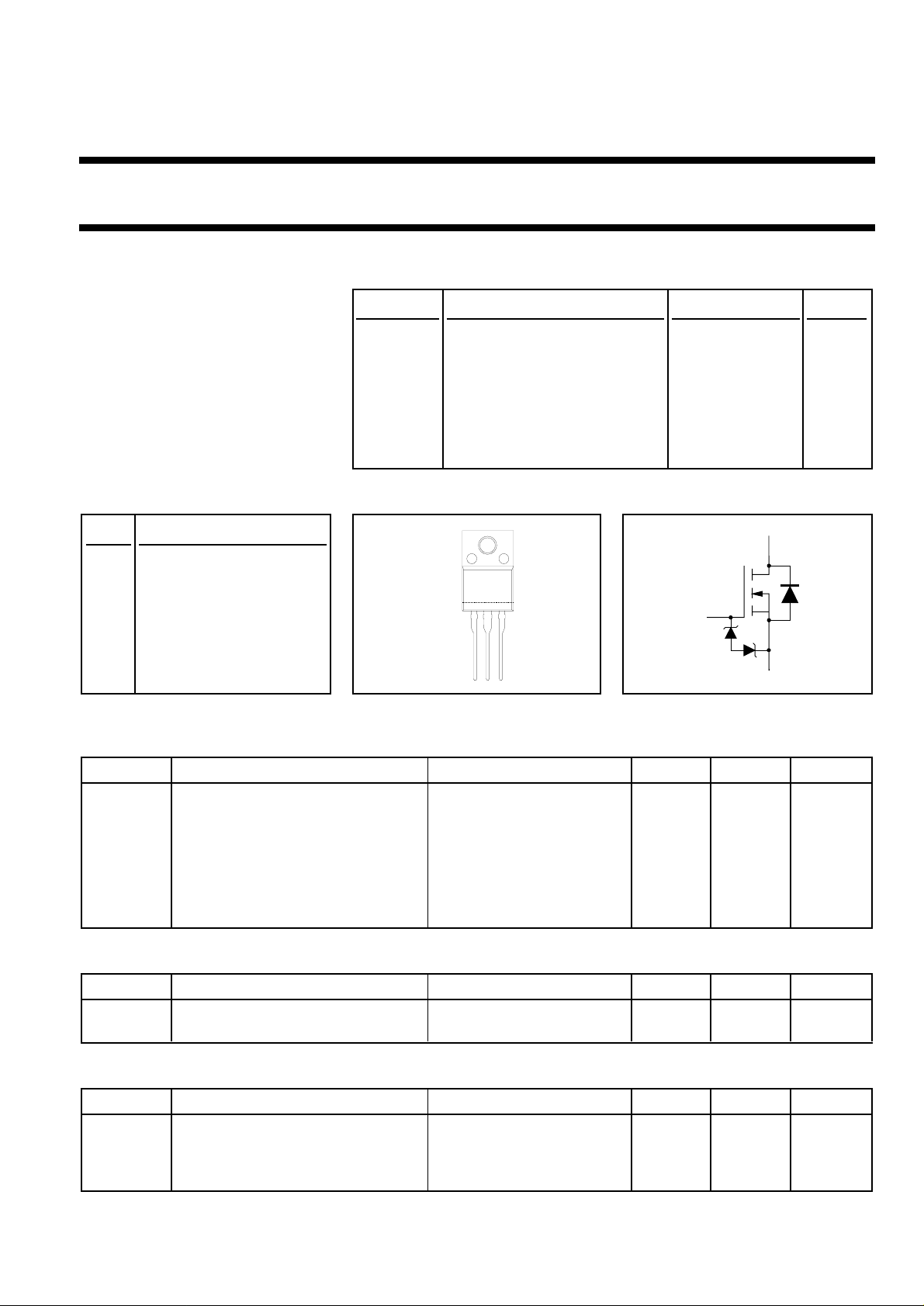

PINNING - SOT186A PIN CONFIGURATION SYMBOL

Drain-source voltage 55 V
Drain current (DC) 11.7 A
Total power dissipation 19 W
Junction temperature 150 ˚C
Drain-source on-state 75 mΩ

PIN DESCRIPTION

case

d

1 gate
2 drain
3 source

case isolated

123

g

s

LIMITING VALUES

Limiting values in accordance with the Absolute Maximum System (IEC 134)

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT

V
V
±V
I

D

I

D

I

DM

P
T

DS
DGR

tot
stg

GS

, T

j

Drain-source voltage - - 55 V
Drain-gate voltage RGS = 20 kΩ -55V
Gate-source voltage - - 10 V
Drain current (DC) Tmb = 25 ˚C - 11.7 A
Drain current (DC) Tmb = 100 ˚C - 7.4 A
Drain current (pulse peak value) Tmb = 25 ˚C - 47 A
Total power dissipation Tmb = 25 ˚C - 19 W
Storage & operating temperature - - 55 150 ˚C

ESD LIMITING VALUE

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT

V

C

Electrostatic discharge capacitor Human body model - 2 kV
voltage, all pins (100 pF, 1.5 kΩ)

THERMAL RESISTANCES

SYMBOL PARAMETER CONDITIONS TYP. MAX. UNIT

R

th j-mb

R

th j-a

April 1998 1 Rev 1.000

Thermal resistance junction to with heatsink compound - 6.5 K/W
heatsink
Thermal resistance junction to in free air 55 - K/W
ambient

Philips Semiconductors Product specification

TrenchMOS transistor BUK9775-55

Logic level FET

STATIC CHARACTERISTICS

Tj= 25˚C unless otherwise specified

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

V

(BR)DSS

V

GS(TO)

I

DSS

I

GSS

±V
R

DS(ON)

(BR)GSS

Drain-source breakdown VGS = 0 V; ID = 0.25 mA; 55 - - V
voltage Tj = -55˚C 50 - - V
Gate threshold voltage VDS = VGS; ID = 1 mA 1 1.5 2 V

Tj = 150˚C 0.6 - - V

Tj = -55˚C - - 2.3 V

Zero gate voltage drain current VDS = 55 V; VGS = 0 V; - 0.05 10 µA

Tj = 150˚C - - 100 µA

Gate source leakage current VGS = ±5 V; VDS = 0 V - 0.02 1 µA

Tj = 150˚C - 5 µA
Gate-source breakdown IG = ±1 mA; 10 - - V
voltage
Drain-source on-state VGS = 5 V; ID = 7 A - 58 75 mΩ
resistance Tj = 150˚C - - 139 mΩ

DYNAMIC CHARACTERISTICS

Tmb = 25˚C unless otherwise specified

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

g
C

C
C

t
t
t
t

L

fs

iss
oss
rss

d on
r
d off
f

d

Forward transconductance VDS = 25 V; ID = 10 A 5 10 - S
Input capacitance VGS = 0 V; VDS = 25 V; f = 1 MHz - 500 650 pF

Output capacitance - 110 135 pF
Feedback capacitance - 60 85 pF

Turn-on delay time VDD = 30 V; ID = 10 A; - 10 15 ns
Turn-on rise time VGS = 5 V; RG = 10 Ω - 4770ns
Turn-off delay time Resistive load - 28 40 ns
Turn-off fall time - 33 45 ns

Internal drain inductance Measured from drain lead 6 mm - 4.5 - nH

from package to centre of die

L

s

Internal source inductance Measured from source lead 6 mm - 7.5 - nH

from package to source bond pad

ISOLATION LIMITING VALUE AND CHARACTERISTICS

Tj = 25˚C unless otherwise specified

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

V

ISOL

C

ISOL

R.M.S isolation voltage from all f = 50-60Hz; sinusoidal waveform; - - 2500 V
three terminals to external R.H.≤65% clean & dustfree
heatsink

Capacitance from T2 to f = 1 MHZ - 10 - pF
external heatsink

April 1998 2 Rev 1.000

Philips Semiconductors Product specification

TrenchMOS transistor BUK9775-55

Logic level FET

REVERSE DIODE LIMITING VALUES AND CHARACTERISTICS

Tj = 25˚C unless otherwise specified

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

I

DR

I

DRM

V

SD

t

rr

Q

rr

AVALANCHE LIMITING VALUE

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

W

DSS

Continuous reverse drain - - 11.7 A
current
Pulsed reverse drain current - - 47 A
Diode forward voltage IF = 11.7 A; VGS = 0 V - 0.95 1.2 V

Reverse recovery time IF = 11.7 A; -dIF/dt = 100 A/µs; - 32 - ns
Reverse recovery charge VGS = -10 V; VR = 30 V - 0.12 - µC

Drain-source non-repetitive ID = 10 A; VDD ≤ 25 V; - - 30 mJ
unclamped inductive turn-off VGS = 5 V; RGS = 50 Ω; Tmb = 25 ˚C
energy

April 1998 3 Rev 1.000

Philips Semiconductors Product specification

TrenchMOS transistor BUK9775-55
Logic level FET

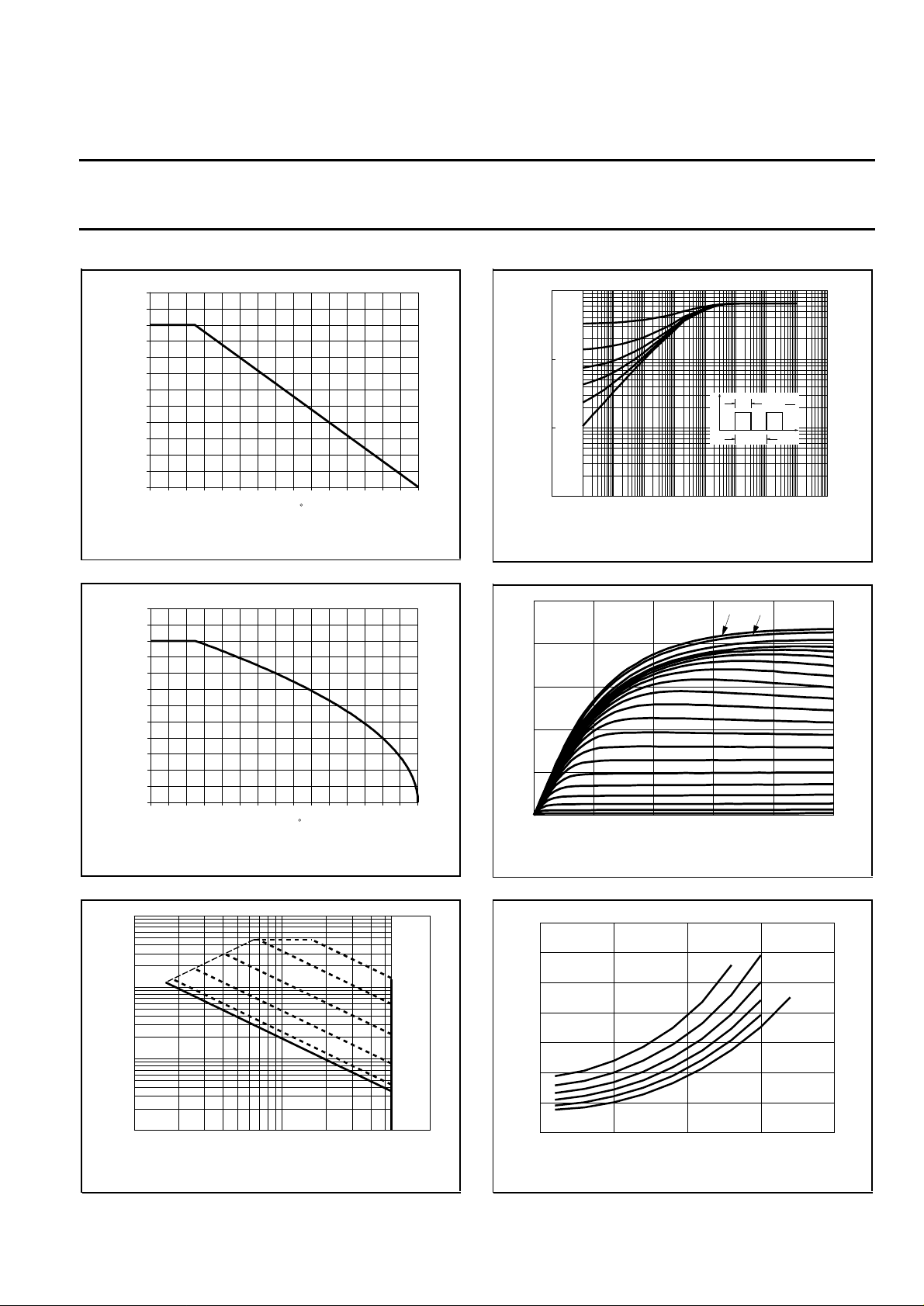

PD%

120
110
100

90
80
70
60
50
40
30
20
10

0

0 20 40 60 80 100 120 140

Normalised Power Derating

Tmb / C

Fig.1. Normalised power dissipation.

PD% = 100⋅PD/P

ID%

120
110
100

90
80
70
60
50
40
30
20
10

0

0 20 40 60 80 100 120 140

Tmb / C

= f(Tmb)

D 25 ˚C

Normalised Current Derating

Fig.2. Normalised continuous drain current.

ID% = 100⋅ID/I

= f(Tmb); conditions: VGS ≥ 5 V

D 25 ˚C

Zth/ (K/W)

10

0.5

0.2

1

0.1

0.05

p

0.02

0

0.1

0.01

1.0E-06 0.0001 0.01 1 100
t/s

t

P

D

t

p

D =

T

t

T

Fig.4. Transient thermal impedance.

Z

= f(t); parameter D = tp/T

th j-mb

50

ID/A

40

30

20

10

0

0246810

VDS/V

10.0 8.0

VGS/V =

Fig.5. Typical output characteristics, Tj = 25 ˚C

ID = f(VDS); parameter V

GS

6.0

5.4

5.0

4.8

4.6

4.4

4.2

4.0

3.8

3.6

3.4

3.2

3.0

2.8

2.6

2.4

2.2

2.0

.

100

ID/A

RDS(ON) = VDS/ID

10

1

0.1
1 10 100

DC

VDS/V

Fig.3. Safe operating area. Tmb = 25 ˚C

ID & IDM = f(VDS); IDM single pulse; parameter t

tp =

1 uS

10 uS

100uS

1 mS
10 mS

100 mS

p

RDS(ON)/mOhm

90

VGS/V =

85

80

75

70

65

60

55

5 10152025

ID/A

Fig.6. Typical on-state resistance, Tj = 25 ˚C

R

= f(ID); parameter V

DS(ON)

4.2

4

4.4
5

4.6

4.8

.

GS

April 1998 4 Rev 1.000

Philips Semiconductors Product specification

TrenchMOS transistor BUK9775-55
Logic level FET

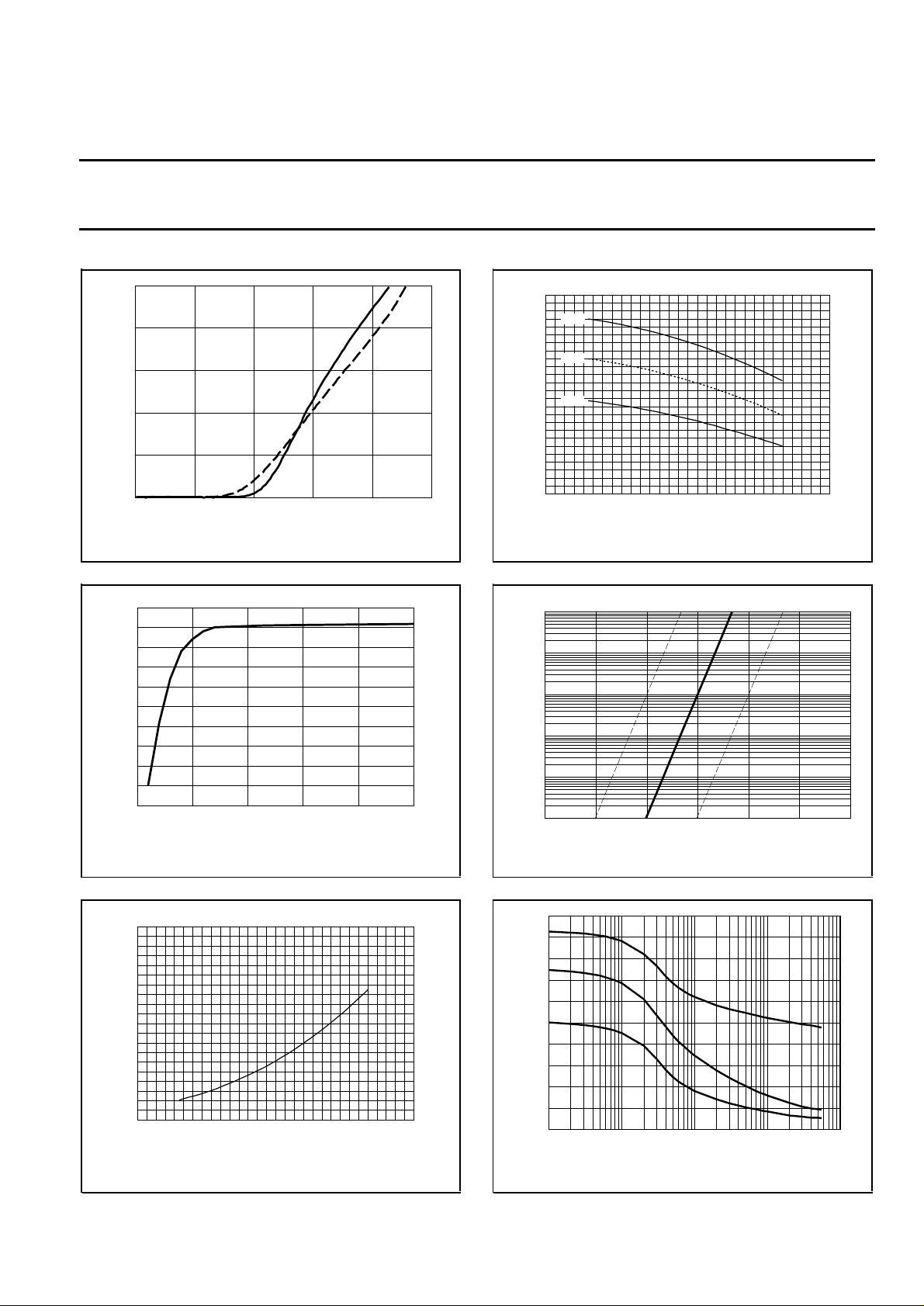

25

ID/A

20

15

10

5

Tj/C = 150 25

0

012345

VGS/V

Fig.7. Typical transfer characteristics.

ID = f(VGS) ; conditions: VDS = 25 V; parameter T

Transconductance, gfs (S)

15
14
13
12
11
10

9
8
7
6
5

0 5 10 15 20 25

Fig.8. Typical transconductance, Tj = 25 ˚C

Drain current, ID (A)

.

gfs = f(ID); conditions: VDS = 25 V

VGS(TO) / V

2.5
max.

2

typ.

1.5

min.

1

0.5

0

-100 -50 0 50 100 150 200
Tj / C

BUK98xx-55

Fig.10. Gate threshold voltage.

V

j

1E-01

1E-02

1E-03

1E-04

1E-05

1E-05

= f(Tj); conditions: ID = 1 mA; VDS = V

GS(TO)

Sub-Threshold Conduction

2% typ

0 0.5 1 1.5 2 2.5 3

98%

GS

Fig.11. Sub-threshold drain current.

ID = f(V

; conditions: Tj = 25 ˚C; VDS = V

GS)

GS

a

2.5

2

1.5

1

0.5

-100 -50 0 50 100 150 200

BUK98XX-55

Rds(on) normalised to 25degC

Tmb / degC

Fig.9. Normalised drain-source on-state resistance.

a = R

DS(ON)/RDS(ON)25 ˚C

= f(Tj); ID = 10 A; VGS = 5 V

1
.9
.8
.7
.6
.5

Thousands pF

.4
.3
.2
.1

0

0.01 0.1 1 10 100

Fig.12. Typical capacitances, C

VDS/V

, C

iss

C = f(VDS); conditions: VGS = 0 V; f = 1 MHz

oss

, C

rss

.

Ciss

Coss
Crss

April 1998 5 Rev 1.000

Philips Semiconductors Product specification

TrenchMOS transistor BUK9775-55
Logic level FET

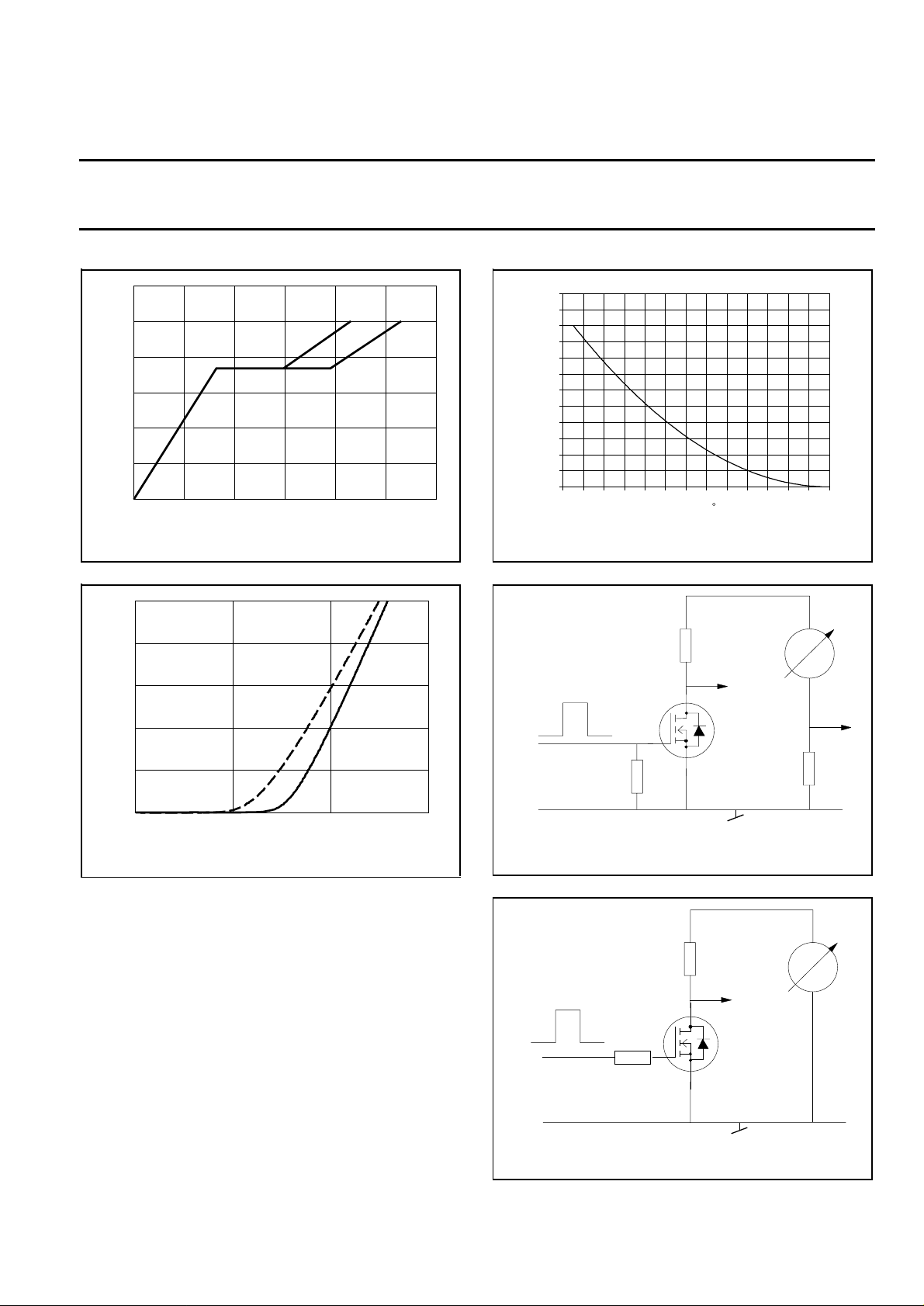

6

VGS/V

5

VDS = 14V

4

3

2

1

0

024681012

QG/nC

VDS = 44V

Fig.13. Typical turn-on gate-charge characteristics.

V

= f(QG); conditions: ID = 20 A; parameter V

GS

100

IF/A

80

60

Tj/C = 150 25

40

DS

WDSS%

120
110
100

90
80
70
60
50
40
30
20
10

0

20 40 60 80 100 120 140

Tmb / C

Fig.15. Normalised avalanche energy rating.

W

% = f(Tmb); conditions: ID = 17 A

DSS

+

L

VDS

VGS

0

T.U.T.

-

VDD

-ID/100

20

0

0 0.5 1 1.5

VSDS/V

Fig.14. Typical reverse diode current.

IF = f(V

); conditions: V

SDS

= 0 V; parameter T

GS

RGS

R 01

shunt

Fig.16. Avalanche energy test circuit.

RG

2

D

⋅BV

DSS

/(BV

RD

DSS−VDD

VDS

T.U.T.

)

VDD

+

-

W

= 0.5 ⋅LI

j

VGS

0

DSS

Fig.17. Switching test circuit.

April 1998 6 Rev 1.000

Philips Semiconductors Product specification

TrenchMOS transistor BUK9775-55

Logic level FET

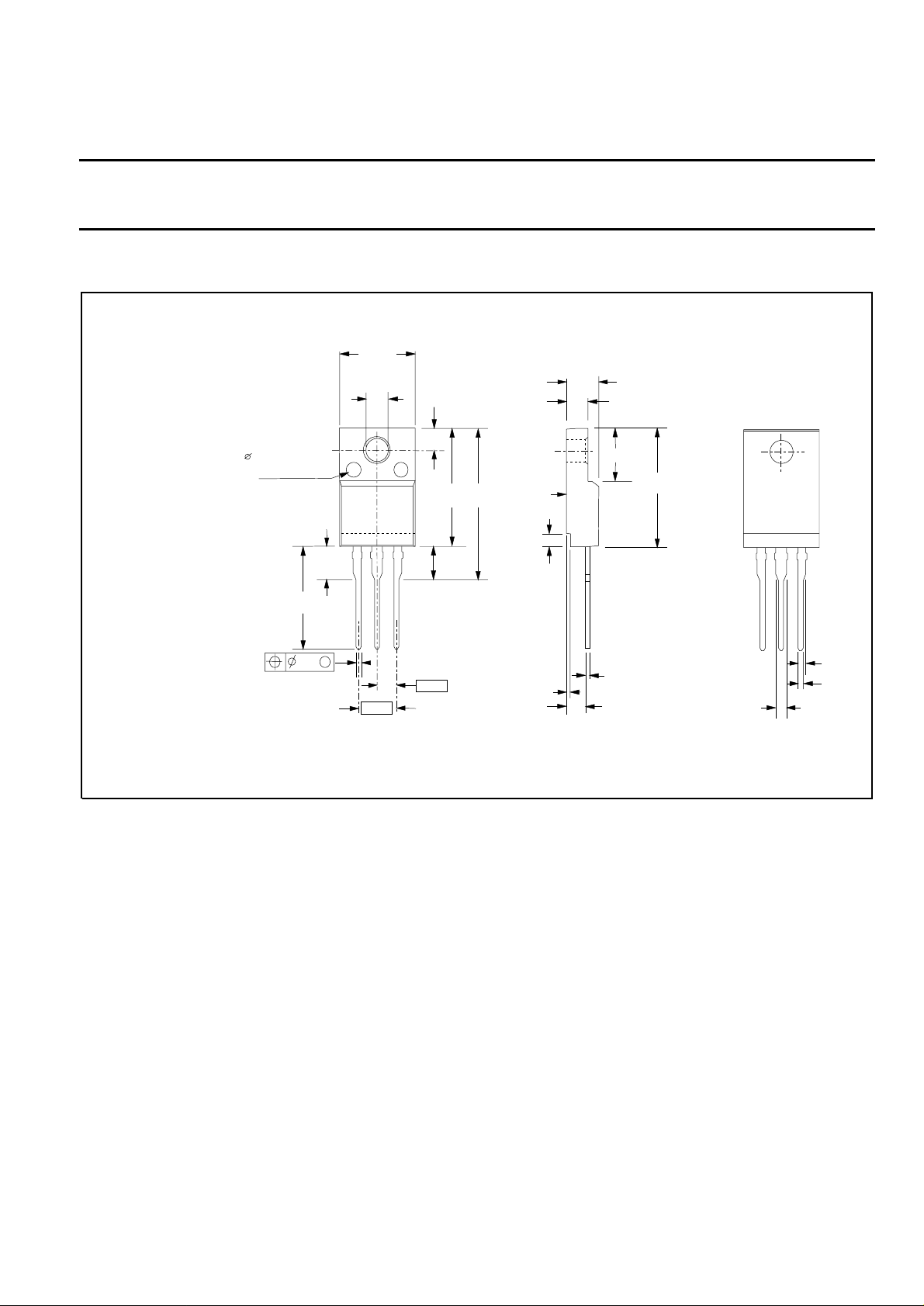

MECHANICAL DATA

Dimensions in mm
Net Mass: 2 g

10.3

Recesses (2x)

2.5

0.8 max. depth

3 max.

not tinned

13.5
min.

0.4

M

max

3.2

3.0

123

5.08

2.8

2.54

15.8
max.

3

19

max.

seating

plane

0.5

2.5

4.6

max

2.9 max

6.4

0.6

2.5

15.8
max

Fig.18. SOT186A; The seating plane is electrically isolated from all terminals.

1.3

1.0 (2x)

0.9

0.7

Notes

1. Observe the general handling precautions for electrostatic-discharge sensitive devices (ESDs) to prevent
damage to MOS gate oxide.

2. Refer to mounting instructions for F-pack envelopes.

3. Epoxy meets UL94 V0 at 1/8".

April 1998 7 Rev 1.000

Philips Semiconductors Product specification

TrenchMOS transistor BUK9775-55

Logic level FET
