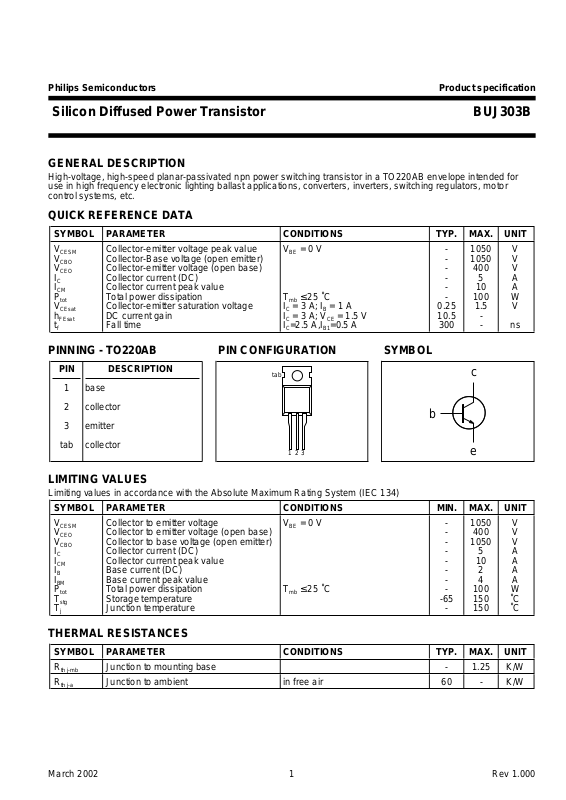

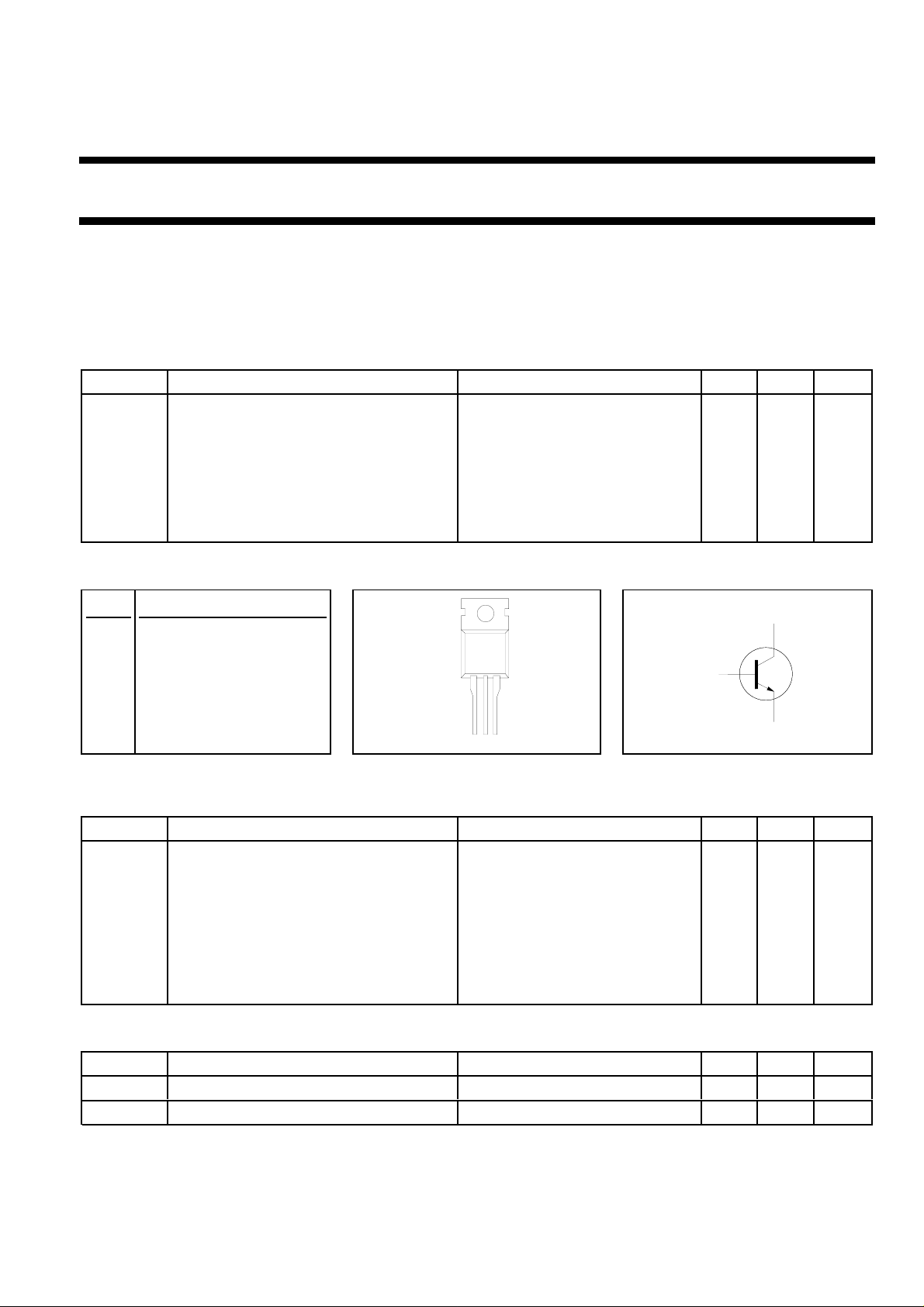

Philips Semiconductors Product specification

Silicon Diffused Power Transistor BUJ303B

GENERAL DESCRIPTION

High-voltage, high-speed planar-passivated npn power switching transistor in a TO220AB envelope intended for
use in high frequency electronic lighting ballast applications, converters, inverters, switching regulators, motor
control systems, etc.

QUICK REFERENCE DATA

SYMBOL PARAMETER CONDITIONS TYP. MAX. UNIT

V

CESM

V

CBO

V

CEO

I

C

I

CM

P

tot

V

CEsat

h

FEsat

t

f

PINNING - TO220AB PIN CONFIGURATION SYMBOL

Collector-emitter voltage peak value VBE = 0 V - 1050 V
Collector-Base voltage (open emitter) - 1050 V
Collector-emitter voltage (open base) - 400 V
Collector current (DC) - 5 A
Collector current peak value - 10 A
Total power dissipation Tmb ≤ 25 ˚C - 100 W
Collector-emitter saturation voltage IC = 3 A; IB = 1 A 0.25 1.5 V
DC current gain IC = 3 A; VCE = 1.5 V 10.5 ­Fall time IC=2.5 A,IB1=0.5 A 300 - ns

PIN DESCRIPTION

tab

c

1 base
2 collector

b

3 emitter

tab collector

123

LIMITING VALUES

Limiting values in accordance with the Absolute Maximum Rating System (IEC 134)

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT

V
V
V
I

C

I

CM

I

B

I

BM

P
T
T

CESM
CEO
CBO

tot
stg
j

Collector to emitter voltage VBE = 0 V - 1050 V
Collector to emitter voltage (open base) - 400 V
Collector to base voltage (open emitter) - 1050 V
Collector current (DC) - 5 A
Collector current peak value - 10 A
Base current (DC) - 2 A
Base current peak value - 4 A
Total power dissipation Tmb ≤ 25 ˚C - 100 W
Storage temperature -65 150 ˚C
Junction temperature - 150 ˚C

THERMAL RESISTANCES

e

SYMBOL PARAMETER CONDITIONS TYP. MAX. UNIT

R
R

th j-mb

th j-a

Junction to mounting base - 1.25 K/W
Junction to ambient in free air 60 - K/W

March 2002 1 Rev 1.000

Philips Semiconductors Product specification

Silicon Diffused Power Transistor BUJ303B

STATIC CHARACTERISTICS

Tmb = 25 ˚C unless otherwise specified

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

I

CES,ICBO

I

CES

I

CEO

Collector cut-off current

Collector cut-off current

1

1

VBE = 0 V; VCE = V
VBE = 0 V; VCE = V
T

= 125 ˚C

j

V

CEO

= V

(400V) - - 0.1 mA

CEOMmax

CESMmax

; - - 2.0 mA

CESMmax

- - 1.0 mA

I

EBO

V

CEOsust

V

CEsat

V

BEsat

h

FE

Emitter cut-off current VEB = 9 V; IC = 0 A - - 0.1 mA
Collector-emitter sustaining voltage IC = 300 mA; L = 25 mH 400 - - V
Collector-emitter saturation voltage IC = 3 A; IB = 1 A - 0.25 1.5 V

IC = 1 A; IB = 0.2 A - - 0.5 V

Base-emitter saturation voltage IC = 3 A; IB = 1 A - 1.0 1.5 V
DC current gain IC = 10 mA; VCE = 5 V 10 - -

IC = 800 mA; VCE = 3 V 23 31 40

h

FEsat

DC current gain IC = 3 A; VCE = 1.5 V - 10.5 -

DYNAMIC CHARACTERISTICS

Tmb = 25 ˚C unless otherwise specified

SYMBOL PARAMETER CONDITIONS TYP. MAX. UNIT

Switching times (resistive load) I

t

on

t

s

t

f

Turn-on time 1 - µs
Turn-off storage time 2.5 - µs
Turn-off fall time 0.3 - µs

Switching times (inductive load) I

t

s

t

f

Turn-off storage time 2 - µs
Turn-off fall time 200 - ns

Switching times (inductive load) I

t

s

t

f

Turn-off storage time 3 - µs
Turn-off fall time 300 - ns

= 2.5 A; I

Con

VCC = 250 V;

= 2.5 A; I

Con

= 0.5 A I

Bon

= 0.5 A; -VBB = 5 V;

Bon

= -1 A;

Boff

LC = 300 µH; LB = 1 µH; VCC = 350 V

= 2.5 A; I

Con

= 0.5 A; -VBB = 5 V;

Bon

LC = 300 µH; LB = 1 µH; VCC = 350 V;
Tj = 100 ˚C

1 Measured with half sine-wave voltage (curve tracer).

March 2002 2 Rev 1.000

Philips Semiconductors Product specification

Silicon Diffused Power Transistor BUJ303B

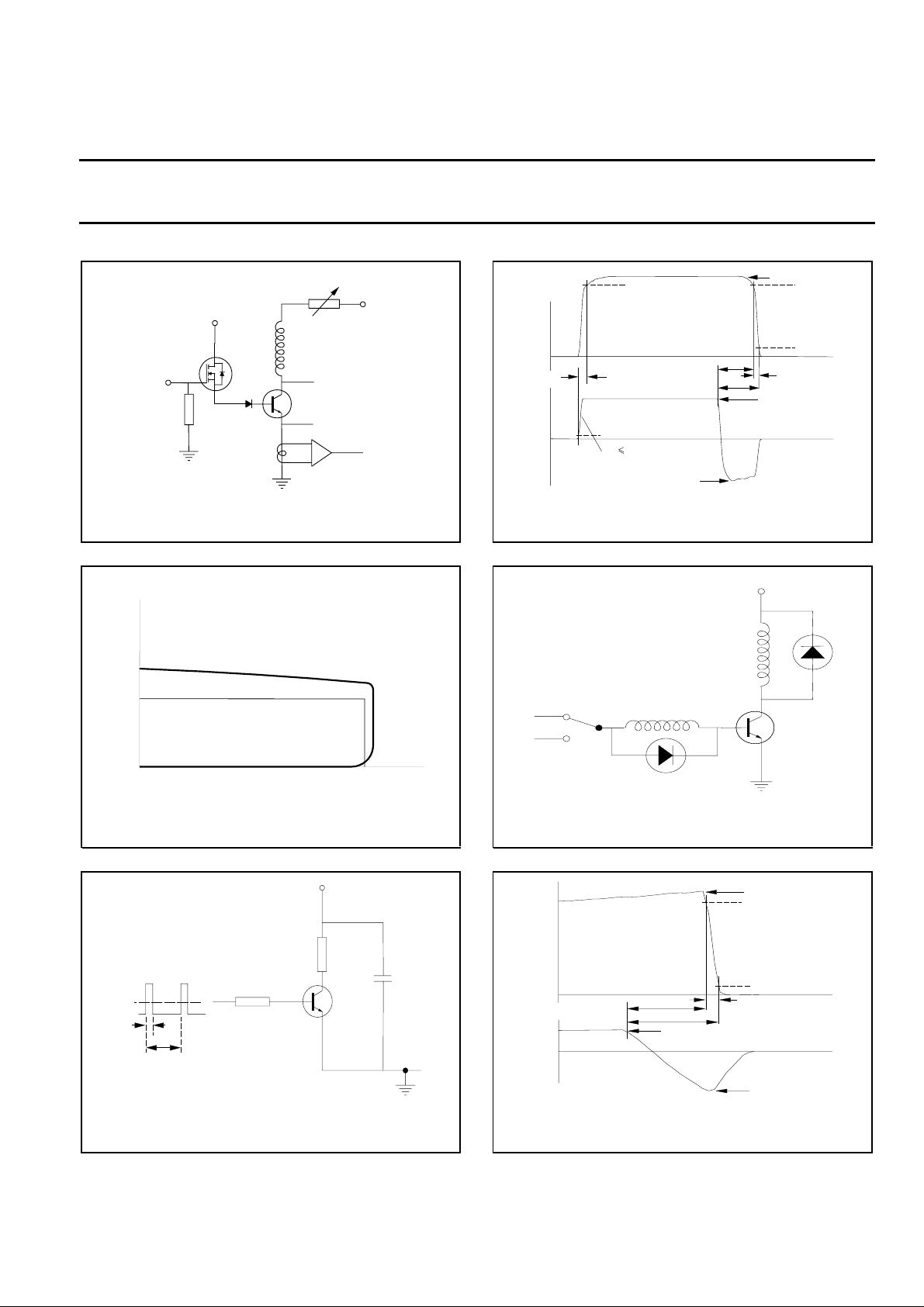

100-200R

+ V

B

25 mH

Pulse in

50R

Oscilloscope

C.T.

Fig.1. Test circuit for V

IC / mA

400

300

0

VCE / V

Fig.2. Oscilloscope display for V

Horizontal

CEOsust

VCEOsust

+ 50v

Oscilloscope

Vertical

.

min

.

CEOsust

ICon

90 %

IC

ton

IB

10 %

tr 30ns

-IBoff

ts
toff

90 %

10 %

tf

IBon

Fig.4. Switching times waveforms with resistive load.

VCC

LC

IBon

-VBB

LB

T.U.T.

Fig.5. Test circuit inductive load.

VCC = 350 V; -VBE = 5 V; LC = 300 uH; LB = 1 uH

VCC

R

L

VIM
0

R

B

T.U.T.

tp

T

Fig.3. Test circuit resistive load. VIM = -6 to +8 V

IC

ts
toff

IB

IBon

Fig.6. Switching times waveforms with inductive load.

ICon

90 %

10 %

tf

-IBoff

t

t

VCC = 250 V; tp = 20 µs; δ = tp / T = 0.01.

RB and RL calculated from I

Con

and I

requirements.

Bon

March 2002 3 Rev 1.000

Philips Semiconductors Product specification

VBEsat (V)

Silicon Diffused Power Transistor BUJ303B

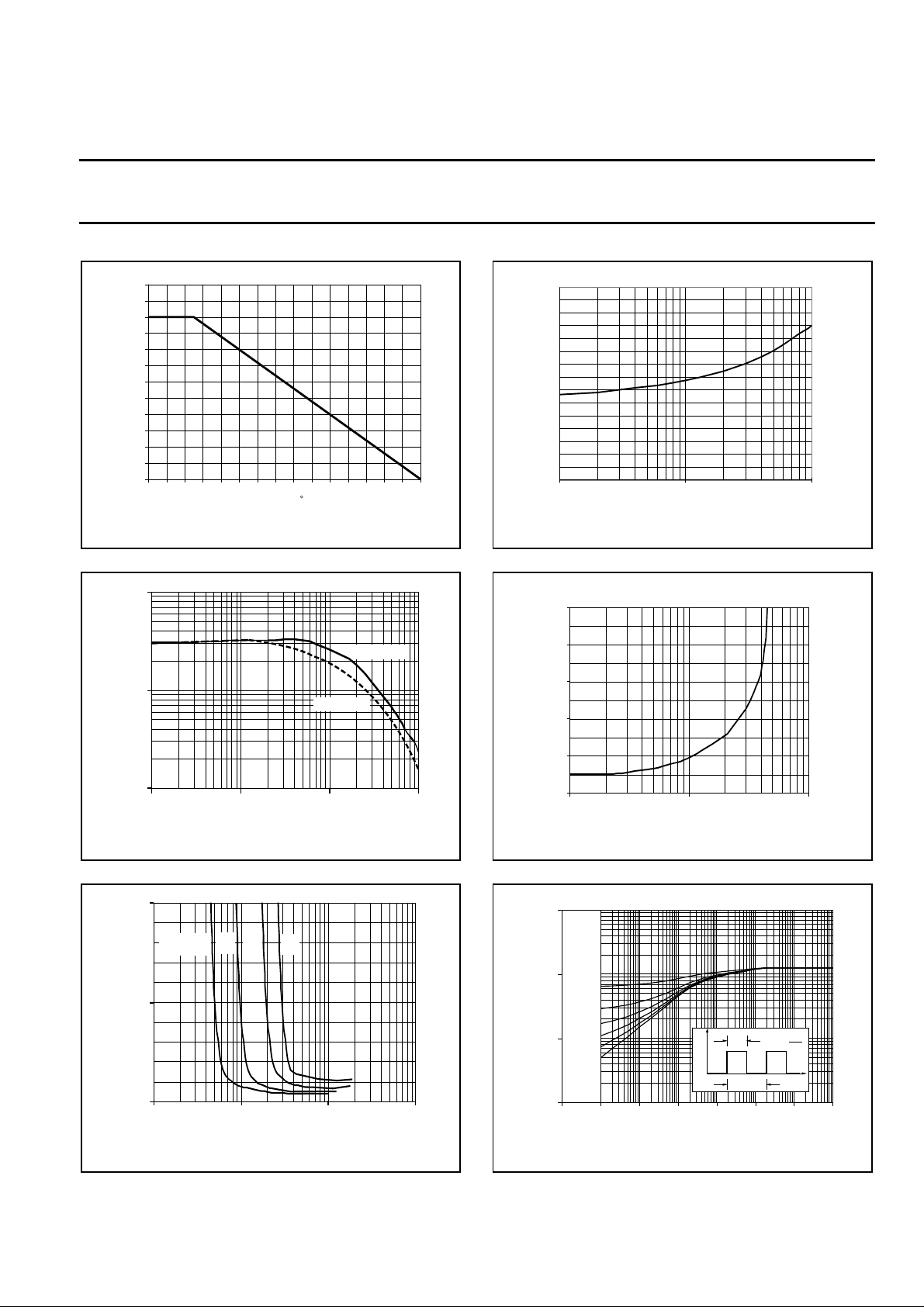

PD%

120
110
100

90
80
70
60
50
40
30
20
10

0

0 20 40 60 80 100 120 140

Normalised Power Derating

Tmb / C

Fig.7. Normalised power dissipation.

PD% = 100⋅PD/PD

100

h

FE

10

= f (Tmb)

25˚C

VCE = 1 V

V

CE =

5 V

1.4

1.2

1.0

0.8

0.6

0.4

0.2

0

0.1 1.0 10.0

Fig.10. Base-Emitter saturation voltage.

Solid lines = typ values, V

0.5

V

CEsat

(V)

0.4

0.3

0.2

= f(IC); at IC/IB =4.

BEsat

IC (A)

1

0.01

0.1

1

IC (A)

Fig.8. Typical DC current gain. hFE = f(IC)

parameter V

2

V

CEsat

(V)

IC = 1 A

1

0

0.01 0.1

2 A

3 A

4 A

CE

1

IB (A)

Fig.9. Collector-Emitter saturation voltage.

Solid lines = typ values, V

= f(IB); Tj = 25˚C.

CEsat

10

10

0.1

0

0.1

1.0

IC (A)

Fig.11. Collector-Emitter saturation voltage.

Solid lines = typ values, V

Zth / (K/W)

10

1

0.5

D=

0.2

0.1

0.05

0.1

0.02
0

0.01
1E-06 1E-04 1E-02 1E+00

= f(IC); at IC/IB =4.

CEsat

t

p

t / s

P

D

D =

T

t

T

Fig.12. Transient thermal impedance.

Z

= f(t); parameter D = tp/T

th j-mb

10.0

p

t

March 2002 4 Rev 1.000

Philips Semiconductors Product specification

Silicon Diffused Power Transistor BUJ303B

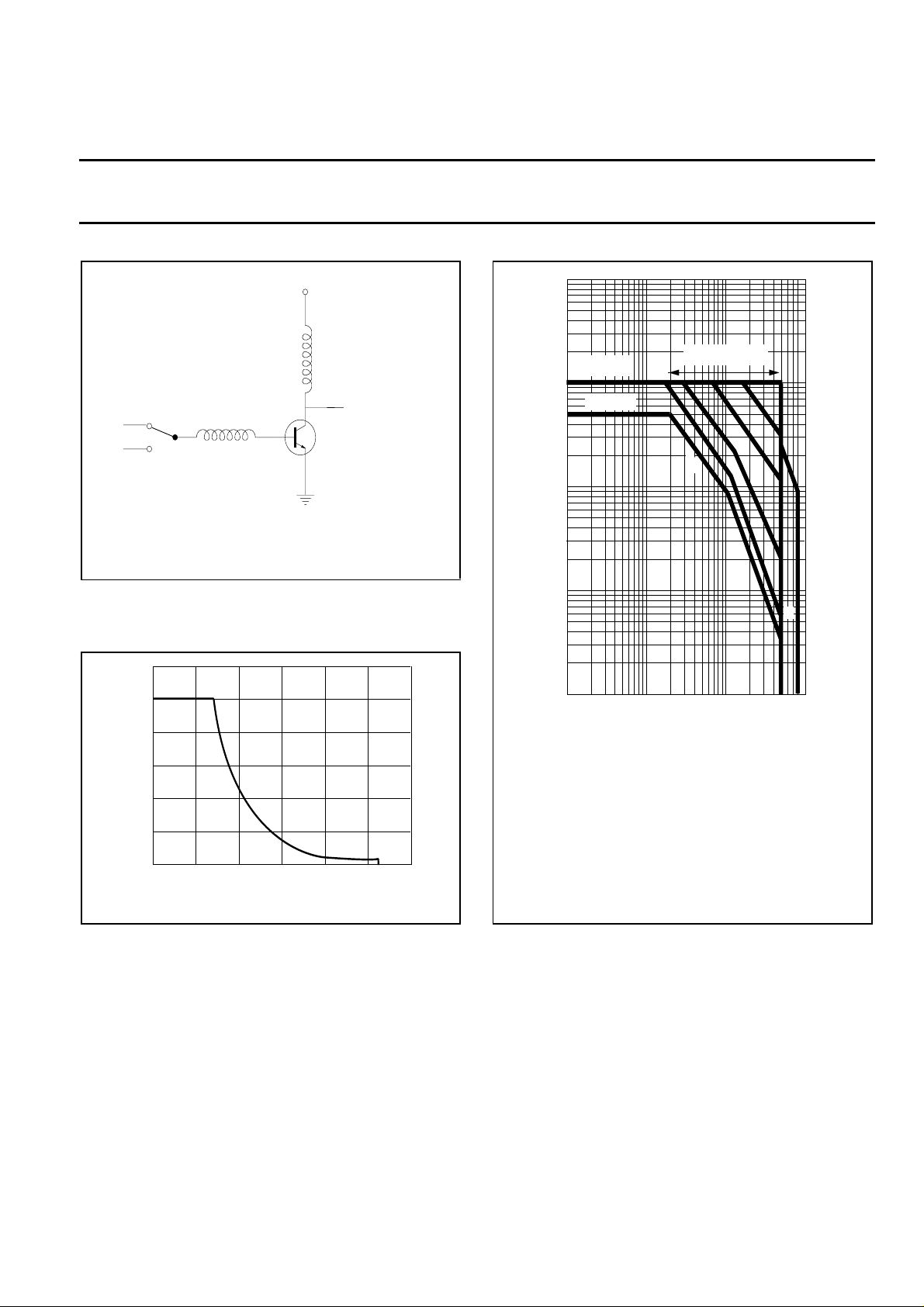

2

I

C

(A)

10

VCC

LC

VCL(RBSOAR)

IBon

-VBB

LB

PROBE POINT

T.U.T.

Fig.13. Test Circuit for reverse bias safe operating

area.

Vcl ≤ 1000V; Vcc = 150V; VBB = -5V; LB = 1µH; Lc =

200µH

12

I

C

10

(A)

8

6

4

2

0

0

200

Fig.14. Reverse bias safe operating area Tj ≤ T

400

600

800

1000

V

CLAMP

1200

(V)

jmax

ICM

10

1

max

I

C max

Duty cycle = 0.01

II

(1)

(2)

tp=

10us

100us

1ms

I

-1

10

10ms

III

DC

-2

10

1

10

2

10

3

10

VCE (V)

Fig.15. Forward bias safe operating area. Ths ≤ 25 ˚C

(1) P
(2) Second breakdown limits.

max and P

tot

peak max lines.

tot

I Region of permissible DC operation.
II Extension for repetitive pulse operation.
III Extension during turn-on in single

transistor converters provided that
RBE ≤ 100 Ω and tp ≤ 0.6 µs.

NB: Mounted with heatsink compound and

30 ± 5 newton force on the centre of the
envelope.

March 2002 5 Rev 1.000

Philips Semiconductors Product specification

Silicon Diffused Power Transistor BUJ303B

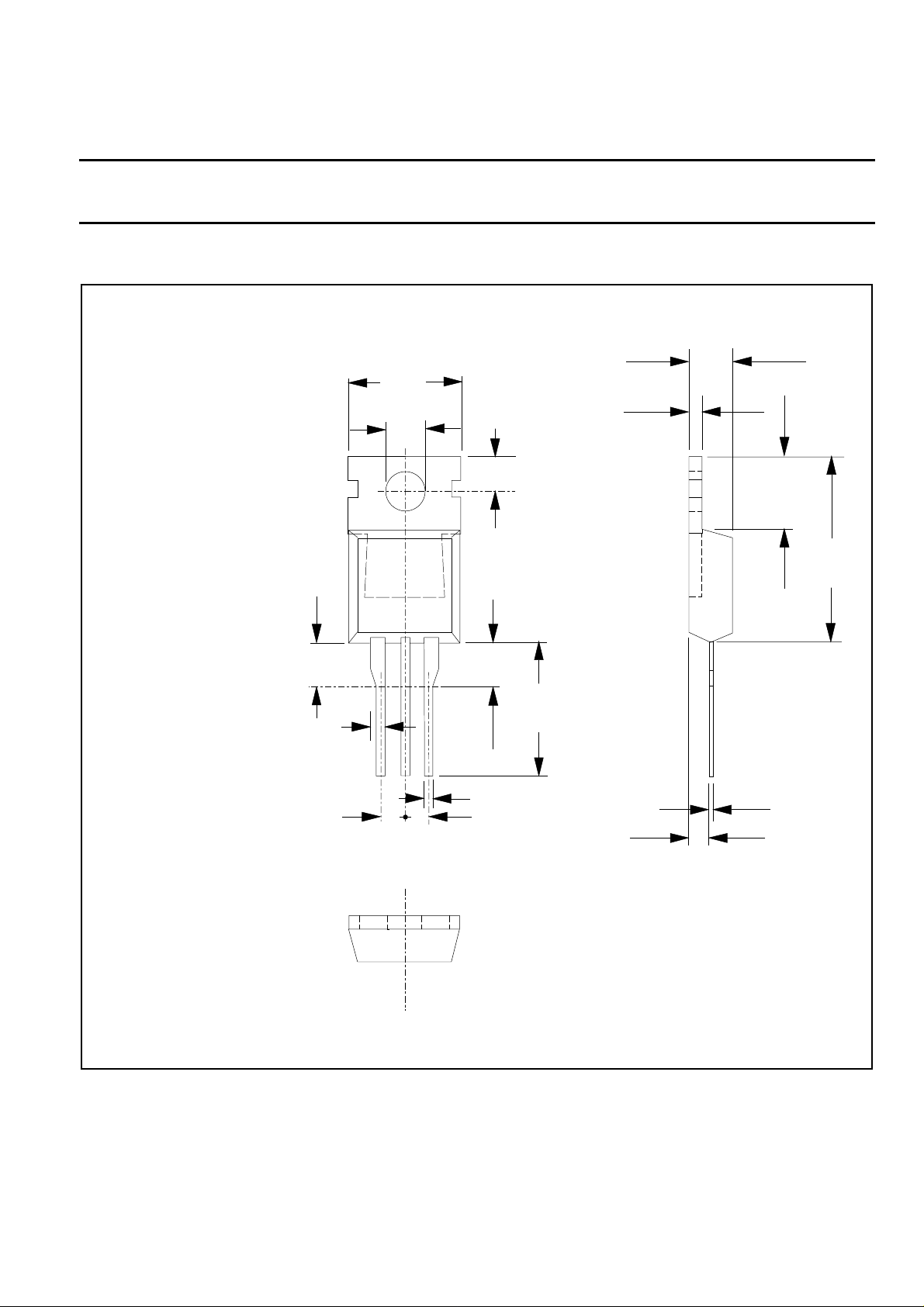

MECHANICAL DATA

Dimensions in mm
Net Mass: 2 g

10,3
max

1,3

3,7

4,5
max

3,0 max

not tinned

1,3
max
(2x)

123

2,54 2,54

2,8

3,0

13,5

min

0,9 max (3x)

5,9

min

15,8

max

0,6

2,4

Fig.16. TO220AB; pin 2 connected to mounting base.

Notes

1. Refer to mounting instructions for TO220 envelopes.

2. Epoxy meets UL94 V0 at 1/8".

March 2002 6 Rev 1.000
