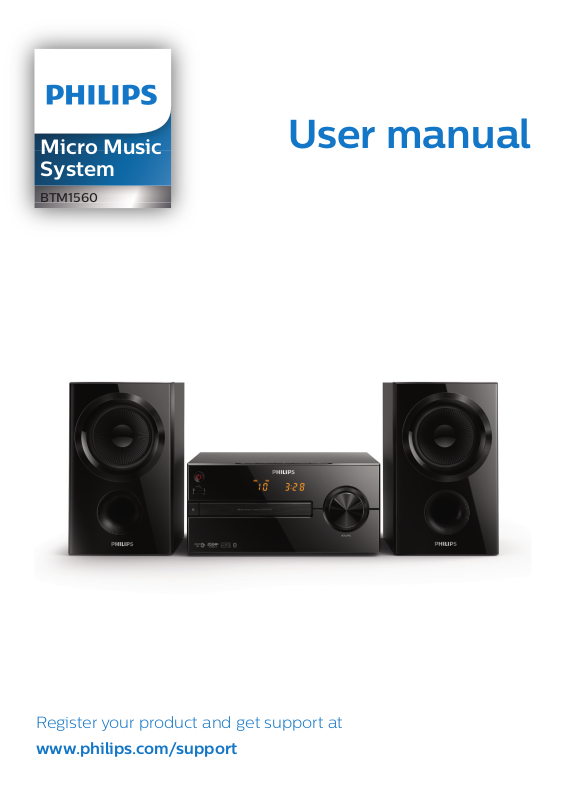

Page 1

Micro Music System

BTM1560

User manual

www.philips.com/support

Page 2

Contents

1 Important 2

Safety 2 Notice 3

2 Your Micro Music System 4

Introduction 4 What's in the box 4 Overview of the main unit 5 Overview of the remote control 6

3 Get started 8

Connect speakers 8 Connect power 8 Prepare the remote control 9 Power on 9 Set the clock 9

4 Play 10

Play from disc 10 Play from USB 10 Control play 10 Skip tracks 10 Program tracks 11 Play from Bluetooth-enabled

devices 11

7 Other features 14

Set the alarm timer 14 Set the sleep timer 14 Listen to an external device 14 Charge your devices 15

8 Product information 16

Specications 16 USB playability information 16 Supported MP3 disc formats 17

9 Trouble shooting 17

5 Listen to FM radio 12

Tune to a radio station 12 Store radio stations automatically 12 Store radio stations manually 13 Select a preset radio station 13

6 Adjust sound 13

Select a preset sound eect 13 Adjust volume level 13 Mute sound 13

1EN

Page 3

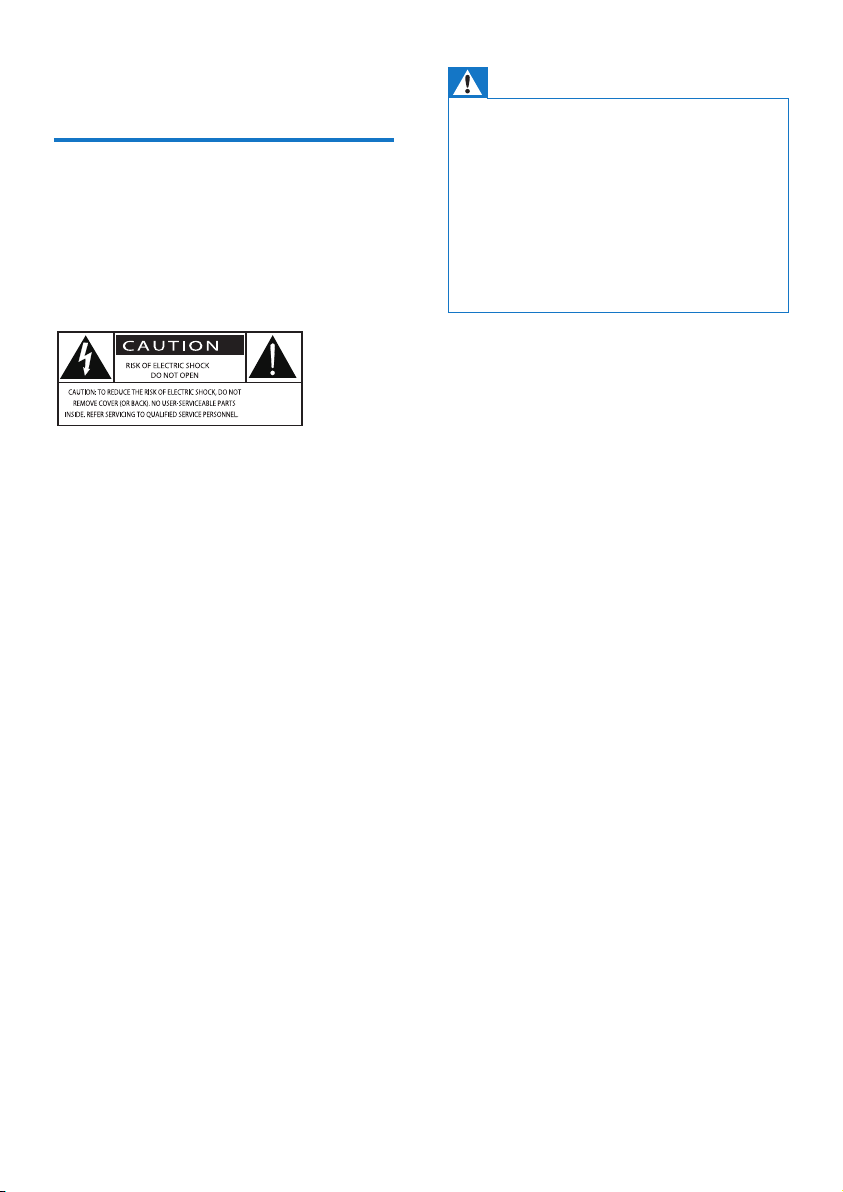

1 Important

Safety

Read and understand all instructions before you use this micro music system. If damage is caused by failure to follow the instructions, the warranty does not apply.

This 'bolt of lightning' indicates uninsulated material within the device may cause an electrical shock. For the safety of everyone in your household, please do not remove the covering. The 'exclamation mark' calls attention to features for which you should read the enclosed literature closely to prevent operating and maintenance problems. WARNING: To reduce the risk of re or electric shock, the device should not be exposed to rain or moisture and objects lled with liquids, such as vases, should not be placed on the device. CAUTION: To prevent electric shock, fully insert the plug. (For regions with polarized plugs: To prevent electric shock, match wide blade to wide slot.)

Warning

Never remove the casing of this apparatus.

•

• Never lubricate any part of this apparatus.

• Never look into the laser beam inside this

apparatus.

• Never place this apparatus on other

electrical equipment.

• Keep this apparatus away from direct

sunlight, naked ames or heat.

• Ensure that you always have easy access

to the power cord, plug or adaptor to disconnect the apparatus from the power.

• Make sure that there is enough free space around the product for ventilation.

• Only use attachments/accessories specied by the manufacturer.

• Battery usage CAUTION – To prevent battery leakage which may result in bodily injury, property damage, or damage to the product:

• Install the battery correctly, +

and - as marked on the product.

• The battery (packed or installed)

shall not be exposed to excessive heat such as sunshine, re or the like.

• Remove the battery when the

product is not used for a long time.

• The product shall not exposed to dripping or splashing.

• Do no place any source of danger on the product (e.g. liquid lled objects. lit candles).

• Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

2 EN

Page 4

Notice

Any changes or modications made to this device that are not expressly approved by Gibson Innovations may void the user’s authority to operate the equipment.

Compliance

Hereby, Gibson Innovations declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. You can nd the Declaration of Conformity on www. philips.com/support.

Care of the environment

Disposal of your old product and battery

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

This symbol on a product means that the product is covered by European Directive 2012/19/EU.

This symbol means that the product contains batteries covered by European Directive 2013/56/EU which cannot be disposed of with normal household waste.

Inform yourself about the local separate collection system for electrical and electronic products and batteries. Follow local rules and never dispose of the product and batteries with normal household waste. Correct disposal of old products and batteries helps prevent negative consequences for the environment and human health.

Removing the disposable batteries

To remove the disposable batteries, see battery installation section.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buer) and polyethylene (bags, protective foam sheet.) Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Gibson Innovations is under license.

The making of unauthorized copies of copy-protected material, including computer programs, les, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal oence. This equipment should not be used for such purposes.

3EN

Page 5

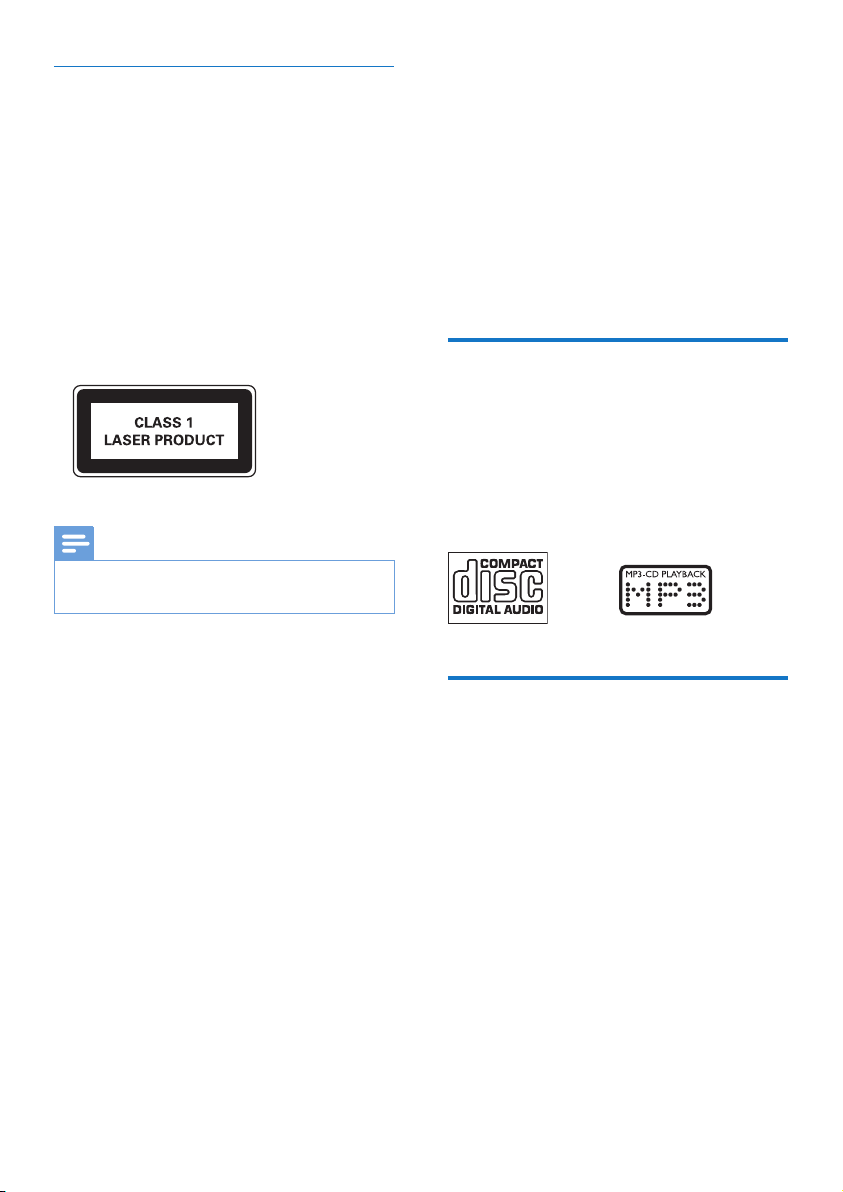

Care for your product

• Do not insert any objects other than

discs into the disc compartment.

• Do not insert warped or cracked discs into the disc compartment.

• Remove the discs from the disc compartment if you are not using the product for an extended period of time.

• Only use microber cloth to clean the product.

This apparatus includes this label:

Note

The type plate is located on the back of the

•

product.

2 Your Micro

Music System

Congratulations on your purchase, and welcome to Philips! To fully benet from the support that Philips oers, register your product at www.philips.com/ support.

Introduction

With this unit, you can:

• enjoy audio from discs, USB devices, Bluetooth devices, and other external devices;

• listen to FM radio stations.

The unit supports these media formats:

4 EN

What's in the box

Check and identify the contents of your package:

• Main unit

• Remote control (with one AAA

battery)

• Speaker boxes (×2)

• Printed materials

Page 6

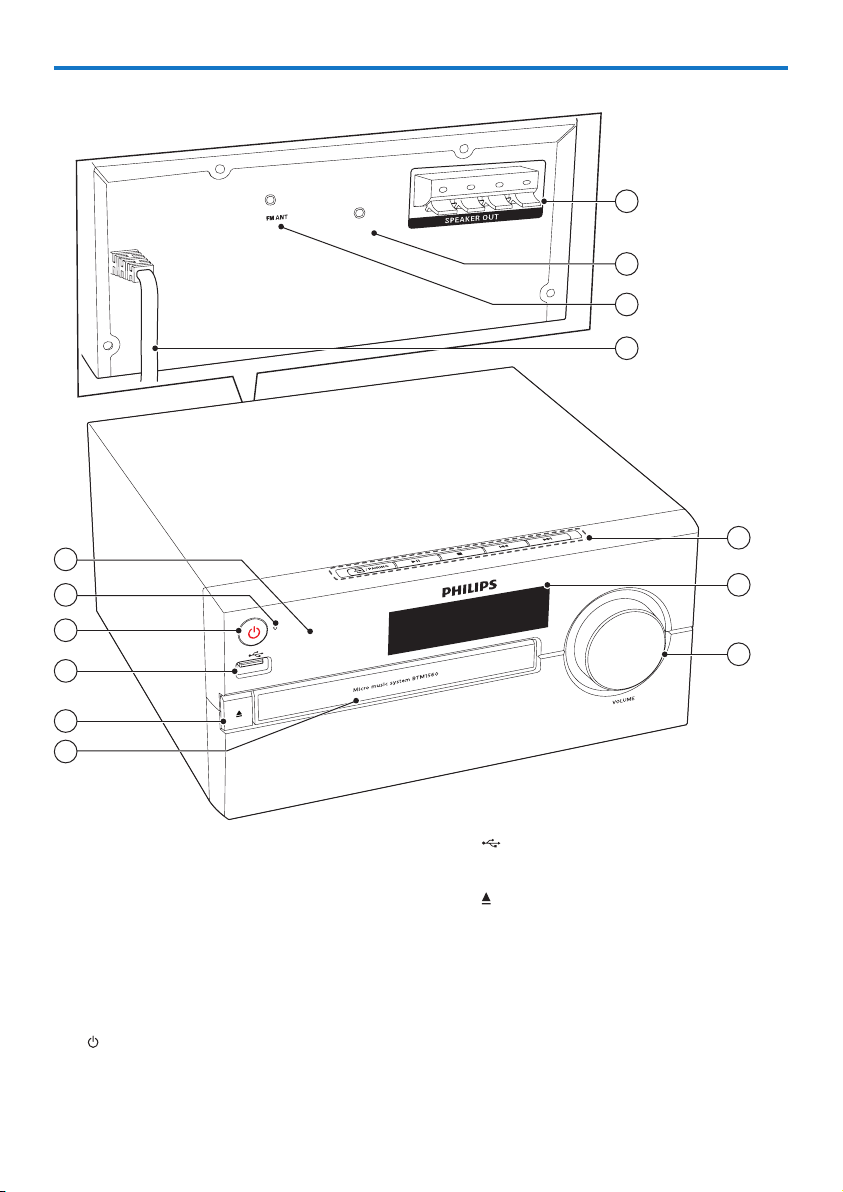

Overview of the main unit

AUDIO IN

a IR sensor b LED indicator

• Standby indicator: turns red when this product is switched to standby.

• Bluetooth indicator: turns blue to indicate the Bluetooth connection status.

• Switch this product on or to standby.

• Connect USB storage devices.

• Open or close the disc compartment.

f Disc compartment g Volume knob

• Adjust volume.

h Display panel

• Show current status.

5EN

Page 7

• Press to select a source: DISC, USB, TUNER, AUDIO IN, BT.

• In Bluetooth mode, press and hold for more than 2 seconds to disconnect the currently connected device and enter pairing mode.

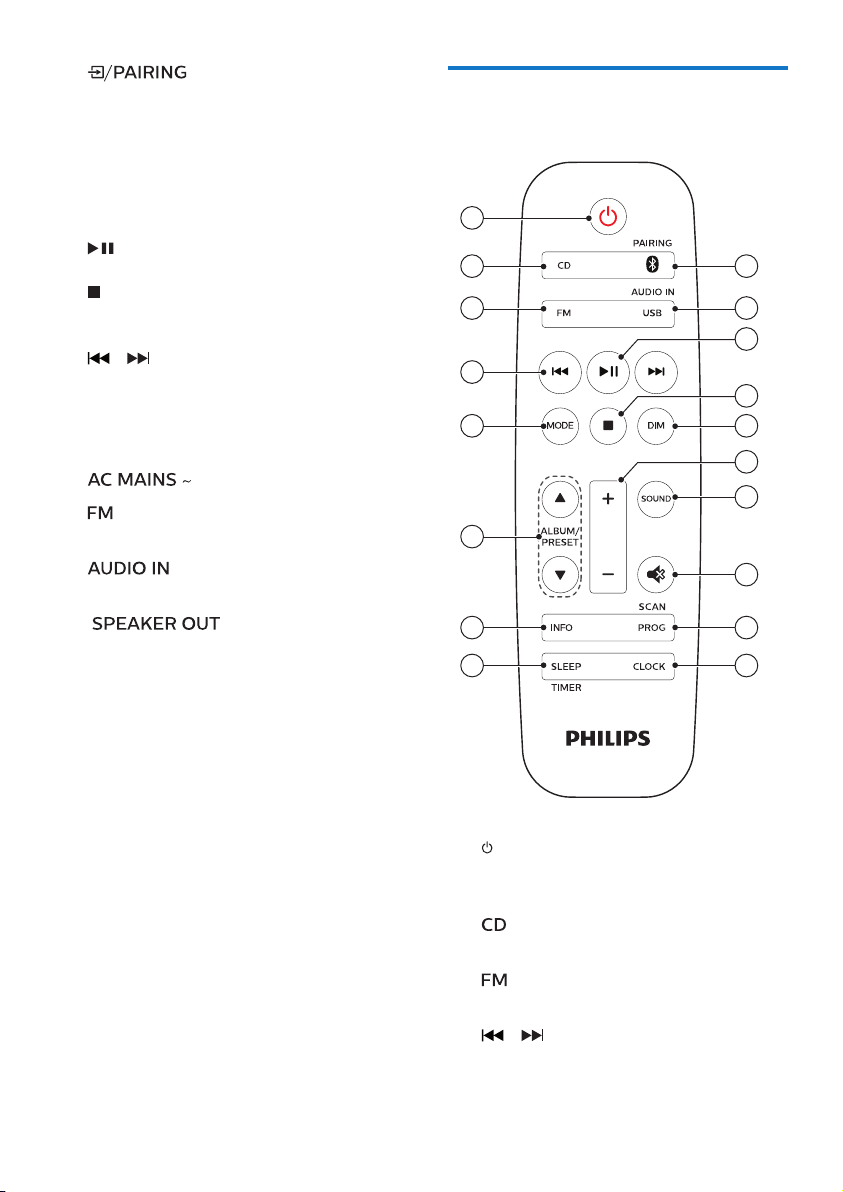

Overview of the remote control

• Start or pause play.

• Stop play.

• Erase a program.

• Skip to previous/next track.

• Search within a track/disc.

• Tune to a radio station.

• Adjust time.

j k antenna

• Improve FM radio reception.

• Connect external audio devices.

• Connect with the speakers.

socket

6 EN

• Switch this product on or to standby.

• Select CD source.

• Select FM source.

• Skip to the previous/next track.

• Search within a track/disc/USB.

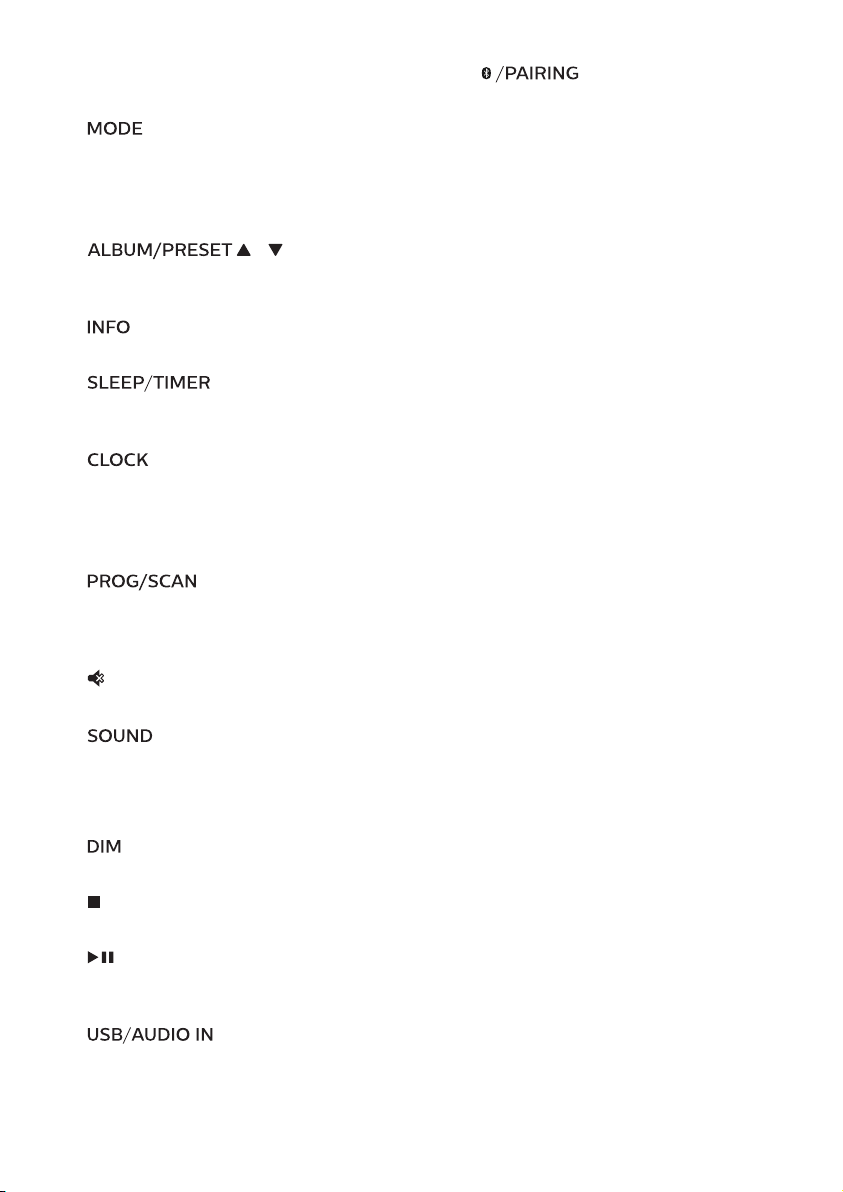

Page 8

• Tune to a FM station.

• Adjust time.

• Select shue mode to play tracks randomly.

• Select repeat mode to play a track or all tracks repeatedly.

• Select a preset radio station.

• Skip to previous/next album.

• Display playback information.

• Set sleep timer.

• Set alarm timer.

• Set the clock.

• View clock information.

• In standby, press and hold to

toggle clock display on or o.

• Program tracks.

• Program radio stations.

• Auto store radio stations.

• Mute or restore volume.

• Select a preset sound eect.

m +/- (volume)

• Adjust volume.

• Adjust display brightness.

• Stop play or erase a program.

• Press to start, pause, or resume play.

• Select USB source.

• Select AUDIO IN source.

• Select Bluetooth source

• In Bluetooth mode, press and

hold for more than 2 seconds to disconnect the currently connected device and enter pairing mode.

7EN

Page 9

3 Get started

Caution

Use of controls or adjustments or

•

performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation.

FM ANT

AUDIO IN

Always follow the instructions in this chapter in sequence.

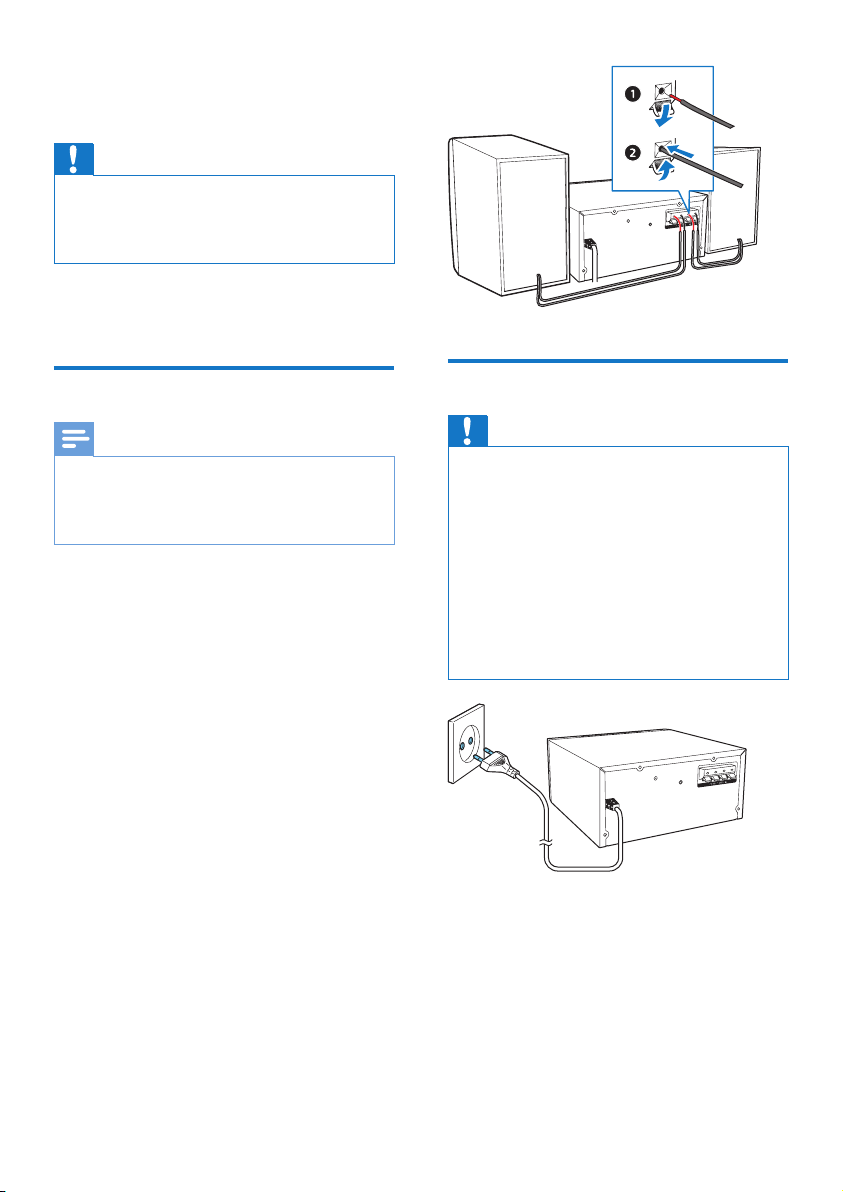

Connect speakers

Note

Insert the stripped portion of each speaker

•

wire into the socket completely.

• For better sound quality, use the supplied

speakers only.

1 For the right speaker, nd the

sockets on the back of the main unit marked "R".

2 Insert the red wire into the red (+)

socket, and the black wire into the black (-) socket.

3 For the left speaker, nd the sockets

on the main unit marked "L".

4 Repeat step 2 to insert the left

speaker wire.

To insert each speaker wire:

1 Hold down the socket ap. 2 Insert the speaker wire fully. 3 Release the socket ap.

Connect power

Caution

Risk of product damage! Ensure that the

•

power supply voltage corresponds to the voltage printed on the back or the underside of the unit.

• Risk of electric shock! Before you plug the

AC power cord, make sure that the plug is xed securely. When you unplug the AC power cord, always pull the plug, never pull the cord.

• Before you connect the AC power cord,

make sure that you have completed all the other connections.

FM ANT

AUDIO IN

Connect the power cable to the wall socket.

8 EN

Page 10

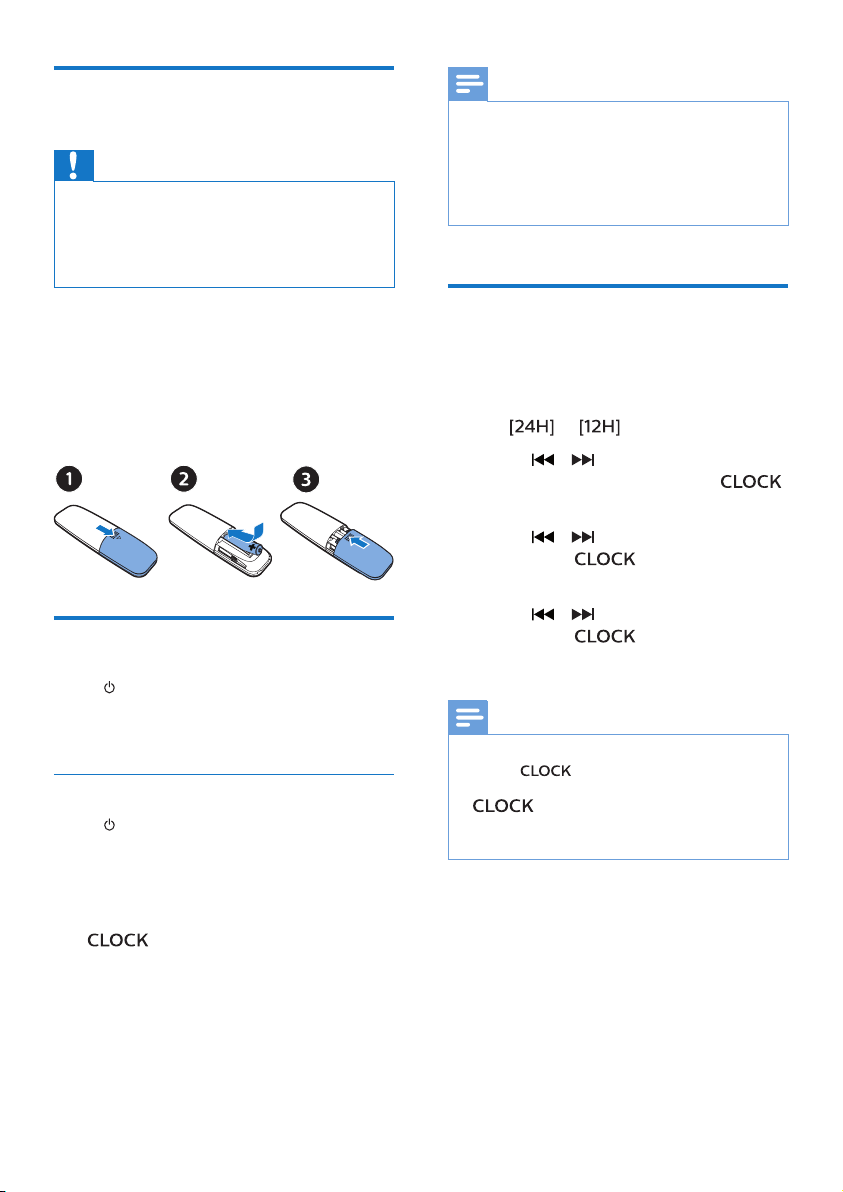

Prepare the remote control

Caution

Risk of product damage! When the remote

•

control is not used for long periods, remove the batteries.

• Batteries contain chemical substances, so

they should be disposed of properly.

Note

The product switches to standby mode

•

after 15 minutes inactive.

• To achieve the ecient energy saving

performance, unplug any external electronic device from the USB port when the device is not in use.

To insert the remote control battery:

1 Open the battery compartment. 2 Insert the supplied AAA battery with

correct polarity (+/-) as indicated.

3 Close the battery compartment.

Power on

Press .

» The product switches to the last

selected source.

Switch to standby mode

Press again to switch the product to standby with no clock display, or to standby with clock display.

» The red standby indicator lights up.

• In standby, you may press and hold to toggle clock display on

or o.

Set the clock

In power on mode, press and hold CLOCK for more than 2 seconds to enter the clock setting mode.

or is displayed.

2 Press / to select 24H or 12H

hour format, and then press

» The hour digits begin to blink.

3 Press / to set the hour, and

then press

» The minute digits begin to blink.

4 Press / to set the minute, and

then press

» The clock is set.

Note

To view clock in power on mode, press

•

briey .

• In standby, you may press and hold

• If clock display is turned on in standby,

power consumption increases.

to toggle clock display on or o.

9EN

Page 11

4 Play

BTM1560

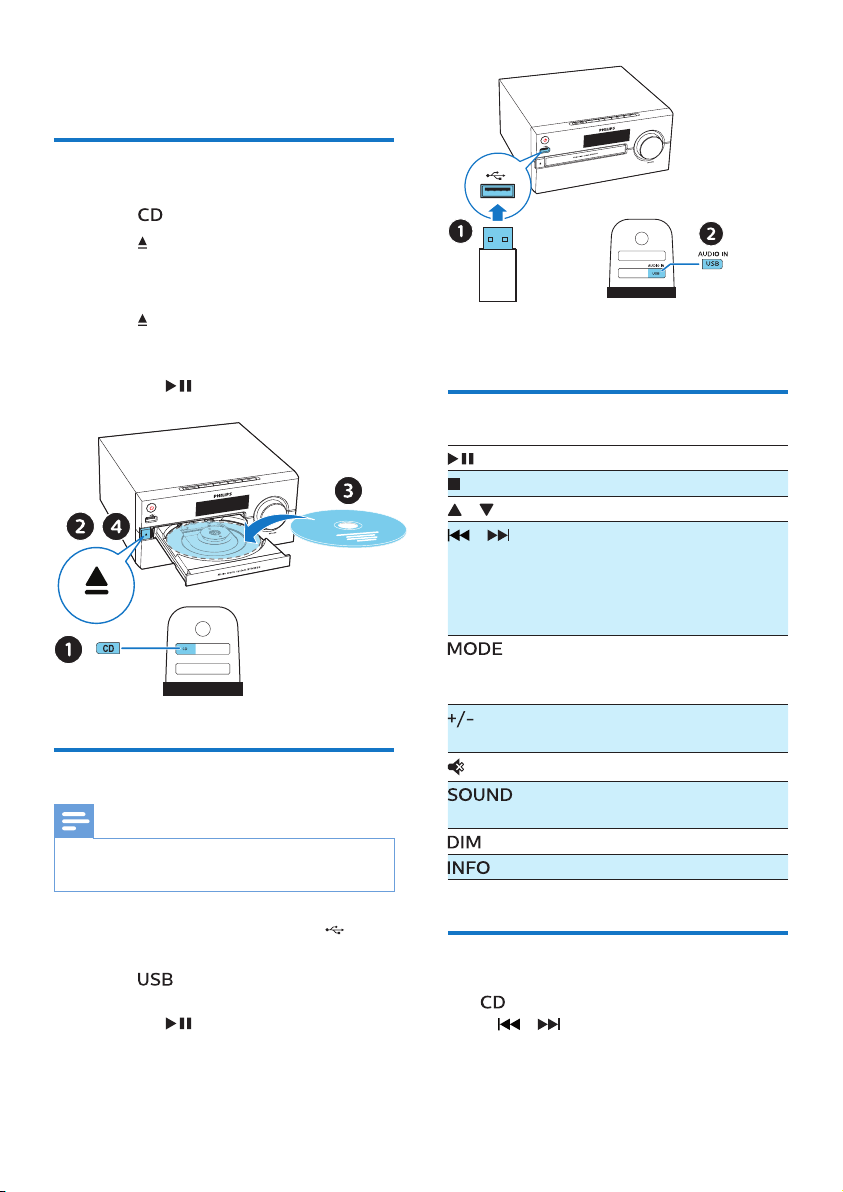

Play from disc

Press to select CD source.

2 Press to open the disc

compartment.

3 Insert a disc with the label side up. 4 Press to close the disc

compartment.

» Play starts automatically. If not,

press

Play from USB

Note

Make sure that the USB device contains

•

playable audio content.

BTM1560

Control play

Start, pause, or resume play. Stop play.

/ Select an album or a folder.

/ Press to skip to the previous

or next track. Press and hold to search backward/forward within a track.

Play a track or all tracks repeatedly. Play tracks randomly.

Increase or decrease the volume.

Mute or unmute sound.

Select a preset sound equalizer.

Adjust display brightness. Show playback information.

1 Insert a USB device into the

socket.

2 Press to select the USB source.

» Play starts automatically. If not,

press

10 EN

Skip tracks

For :

Press

/ to select tracks.

Page 12

For MP3 disc and USB:

1 Press / to select an album or a

folder.

2 Press / to select a track or a

le.

Program tracks

This function allows you to program 20 tracks in the desired sequence.

1 In stop mode, press to

activate the program mode.

is displayed.

2 For MP3 tracks, press / to select

an album.

3 Press / to select a track, and

then press

to conrm.

4 Repeat steps 2 to 3 to program

more tracks.

5 Press to play the programmed

tracks.

To erase the program

Press

twice.

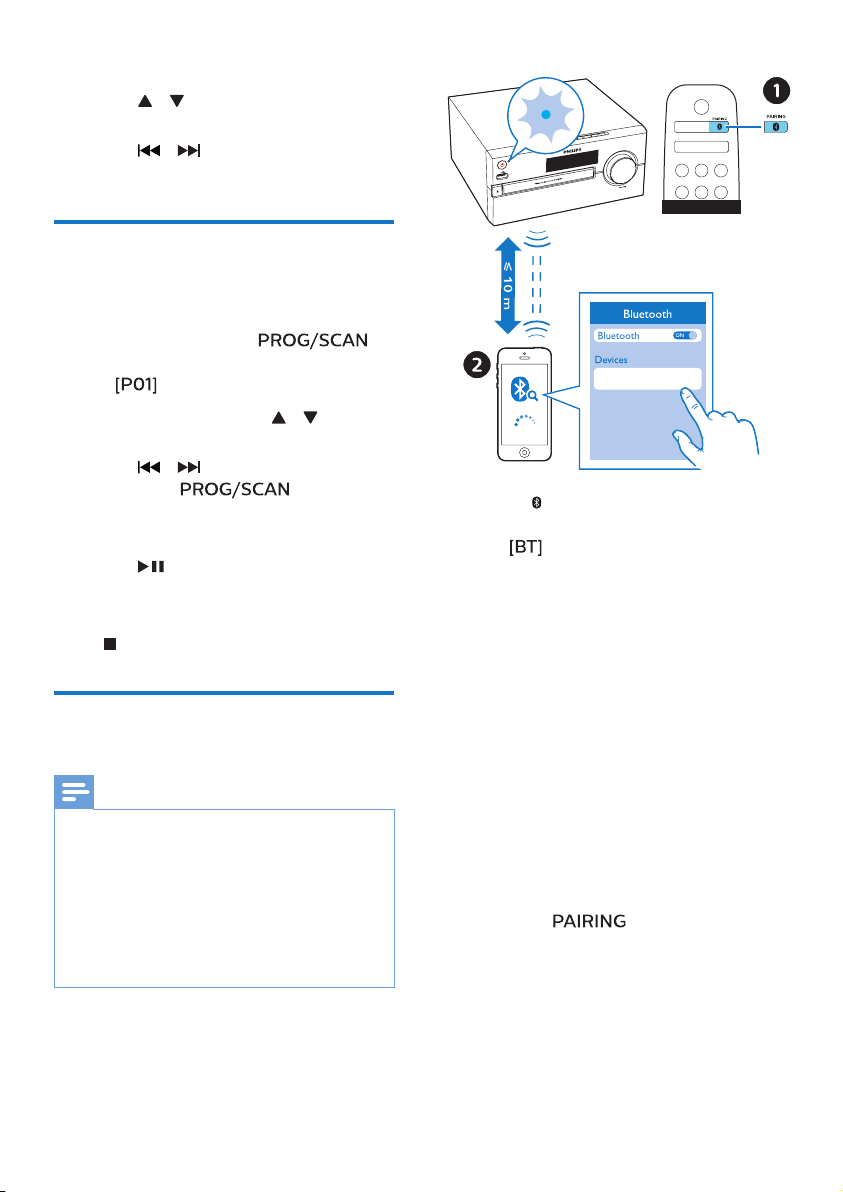

Play from Bluetoothenabled devices

Note

Compatibility with all Bluetooth devices is

•

not guaranteed.

• Any obstacle between the unit and the

device can reduce the operational range.

• The eective operation range between this

unit and your Bluetooth enabled device is approximately 10 meters (30 feet).

• The unit can memorize up to 8 previously

connected Bluetooth devices.

BTM1560

Philips BTM1560

1 Press to select the Bluetooth

source.

(Bluetooth) is displayed.

» The Bluetooth indicator ashes

blue.

2 On your device that supports

Advanced Audio Distribution Prole (A2DP), enable Bluetooth and search for Bluetooth devices that can be paired (refer to the user manual of the device).

3 Select “Philips BTM1560” on your

Bluetooth enabled device and if necessary input '0000' as the paring password.

• If you fail to search for “Philips BTM1560” or cannot pair with this product, press and hold seconds to enter pairing mode.

» After successful pairing and

connection, the Bluetooth indicator turns solid blue, and the unit beeps twice.

for more than 2

11EN

Page 13

4 Play audio on the connected

device.

» Audio streams from your

Bluetooth enabled device to this product.

To disconnect the Bluetooth-enabled device:

• Deactivate Bluetooth on your device.

• Press and hold 2 seconds to enter pairing mode.

for

5 Listen to FM

radio

Tune to a radio station

Tip

Position the antenna as far as possible

•

from TV, or other radiation source.

• For optimal reception, fully extend and

adjust the position of the antenna.

1 Press to select FM source. 2 Press and hold / for more

than 2 seconds.

» The radio tunes to a station with

strong reception automatically.

3 Repeat step 2 to tune to more

stations.

To tune to a weak station:

Press optimal reception.

/ repeatedly until you nd

12 EN

Store radio stations automatically

Note

You can store a maximum of 20 FM radio

•

stations.

1 Press to select FM source. 2 Press and hold for

more than 2 seconds.

» All available stations are

programmed in the order of waveband reception strength.

» The rst programmed

radio station is broadcast automatically.

Page 14

Store radio stations manually

6 Adjust sound

Tune to an FM radio station.

2 Press to activate

program mode.

] is displayed.

3 Press / to allocate a number

from 1–20 to this radio station, and then press

to conrm.

4 Repeat steps 1-3 to program more

stations.

Note

To overwrite a programmed station, store

•

another station in its place.

Select a preset radio station

In FM mode, press / to select a preset number.

The following operations are applicable to all supported media.

Select a preset sound eect

• Press repeatedly to select a

preset sound eect.

Adjust volume level

• On the remote control, press

(volume) repeatedly.

• On the main unit, rotate the volume knob.

Mute sound

• Press to mute or unmute the

sound.

13EN

Page 15

7 Other

features

Set the alarm timer

This product can be used as an alarm clock. You can select the disc, radio, or .mp3 les on a USB storage device as alarm source.

Activate/deactivate alarm timer

In standby mode, press repeatedly to activate or deactivate timer.

» If timer is activated,

• In standby, you may press and hold

to toggle clock display on

or o.

is displayed.

Set the sleep timer

Note

Alarm timer is not available in AUDIO IN

•

mode.

• If CD/USB source is selected, but no disc is

placed or no USB device is connected, the radio source is selected automatically.

1 Make sure that you have set the

clock.

2 In standby, press and hold

for more than 2

seconds.

» The hour digits blink.

3 Press / repeatedly to set the

hour, and then press to conrm.

» The minute digits blink.

4 Press / to set the minute,

and then press conrm.

» The last selected alarm source

blinks.

5 Press / to select an alarm

source (disc, USB or FM radio), and then press conrm.

» XX blinks (XX indicates the

volume level of alarm).

6 Press / to set the alarm

volume, and then press

to conrm.

This music system can switch to standby automatically after a set period of time.

• When the music system is turned on, press to select a set period of time (in minutes).

» When sleep timer is activated,

is displayed.

To deactivate sleep timer

• Press until

» When sleep timer is deactivated,

(sleep o) is displayed.

disappears.

repeatedly

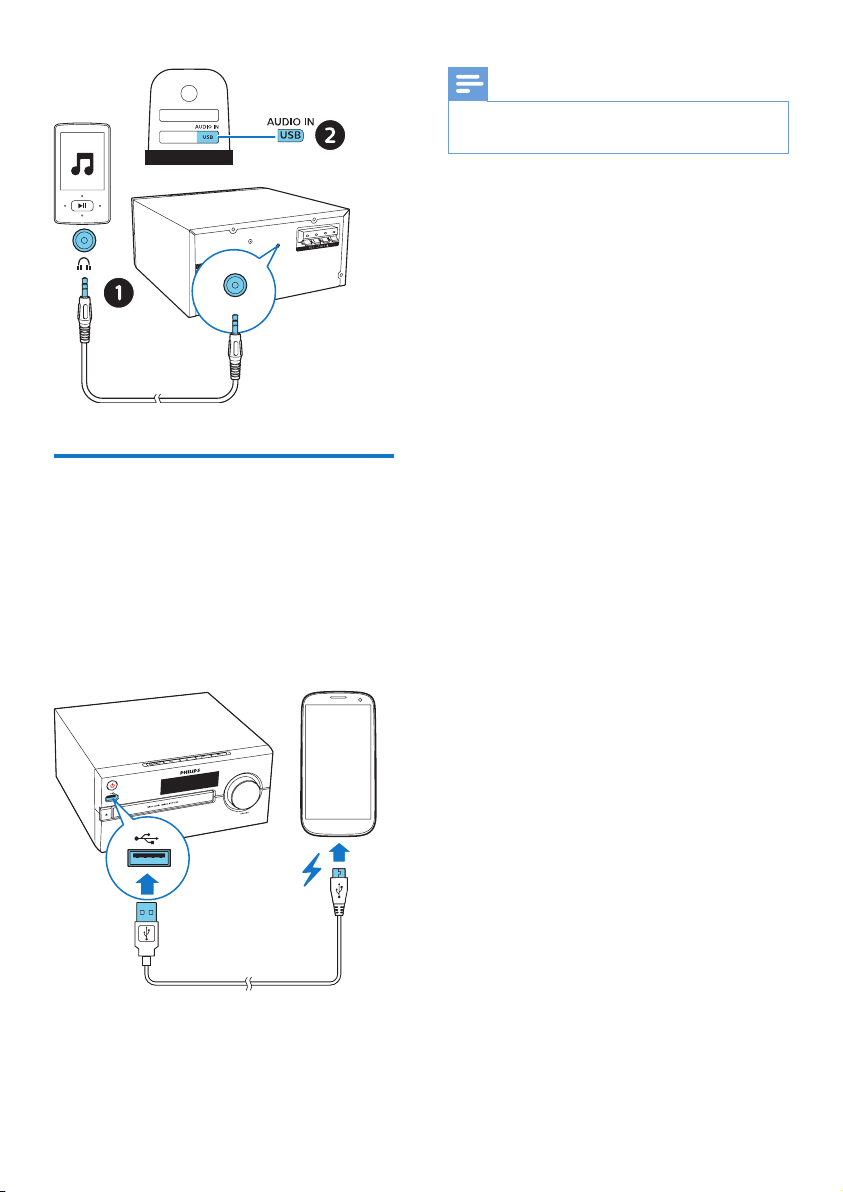

Listen to an external device

You can listen to an external device through this unit with an MP3 link cable.

1 Connect an MP3 link cable (not

supplied) between:

•

product,

• and the headphone jack on an

external device.

jack (3.5 mm) on the

2 Press repeatedly to select

AUDIO IN source.

3 Start to play the device (see the

device user manual).

14 EN

Page 16

BTM1560

FM ANT

AUDIO IN

Charge your devices

With this micro music system, you can charge your external devices, such as your cell phone, MP3 player or other mobile devices.

1 Use a USB cable to connect the

USB socket of this product with the USB socket of your devices.

Note

Compatibility of this product with all

•

devices is not guaranteed.

2 Connect the product to power.

» Once the device is recognized,

the charging starts.

15EN

Page 17

8 Product

information

Note

Product information is subject to change

•

without prior notice.

• Operation power consumption:

25W

• Bluetooth standby power consumption: < 2W

• Standby power consumption:

< 0.5W (clock display o)

• Dimensions (W x H x D):

220 x 104 x 242 mm (Main unit); 120 x 197 x 144 mm (Speaker box)

• Weight: 1.4 kg (Main unit); 2 x 0.8 kg (Speaker box)

Specications

• Rated output power (Amplier):

Total 30W (max.)

• Acoustic frequency response:

70Hz - 20KHz

• Speaker driver: 2 x 3.5” full range, 4 Ω

• Bass enhancement: 2 x bass port

• Support disc type: CD-DA, CD-R,

CDRW, MP3-CD (8/12 cm)

• Bluetooth version: V2.1 + EDR

• Bluetooth supported proles:

A2DP V1.2, AVRCP V1.0

• Bluetooth frequency band / Output power: 2.402GHz ~ 2.480GHz ISM

Band / ≤ 4dBm (Class 2)

• USB playback:

• Type A, USB Direct 2.0, 5V / 1A ,

MSC le format, FAT 16/32,

• Support USB up to 32G

• USB charging:

2A max (Standby); 500mA max (USB source); 1A max (BT/Radio/ CD/Audio in source)

* Actual charging current depends

on the mobile devices.

• Tuner frequency range:

FM 87.5-108MHz

• Preset stations: 20

• AUDIO IN input level:

600mV ±100mV RMS

• Power: 100 - 240V~, 50/60 Hz (AC Input)

USB playability information

Compatible USB devices:

• USB ash memory (USB2.0 or USB1.1)

• USB ash players (USB2.0 or USB1.1)

• memory cards (requires an

additional card reader to work with this unit)

Supported USB formats:

• USB or memory le format: FAT12, FAT16, FAT32 (sector size: 512 bytes)

• MP3 bit rate (data rate): 32320 Kbps and variable bit rate

• Directory nesting up to a maximum of 8 levels

• Number of albums/ folders: maximum 99

• Number of tracks/titles: maximum 999

• File name in Unicode UTF8 (maximum length: 32 bytes)

Unsupported USB formats:

• Empty albums: an empty album is an album that does not contain MP3/WMA les, and will not be shown in the display.

16 EN

Page 18

• Unsupported le formats are skipped. For example, word documents (.doc) or MP3 les with extension .dlf are ignored and not played.

• WMA, AAC, WAV, PCM audio les

• DRM protected WMA les (.wav,

.m4a, .m4p, .mp4, .aac)

• WMA les in Lossless format

Supported MP3 disc formats

• ISO9660, Joliet

• Maximum title number: 128

(depending on le name length)

• Maximum album number: 99

• Supported sampling frequencies:

32 kHz, 44.1 kHz, 48 kHz

• Supported Bit-rates: 32~256 (kbps), variable bit rates

9 Trouble-

shooting

Warning

Never remove the casing of this device.

•

To keep the warranty valid, never try to repair the system yourself. If you encounter problems when using this device, check the following points before requesting service. If the problem remains unsolved, go to the Philips Web page (www.philips.com/support). When you contact Philips, make sure that the device is nearby and the model number and serial number are available.

No power

• Make sure that the AC power cord

of the device is connected properly.

• Make sure that there is power at the

AC outlet.

• As a power-saving feature, the

system switches o automatically 15 minutes after track play reaches the end and no control is operated.

No sound or poor sound

• Adjust the volume.

• Check that the speakers are

connected correctly.

• Check if the stripped speaker wires

are clamped.

No response from the unit

• Disconnect and reconnect the AC

power plug, then turn on the unit again.

• As a power-saving feature, the

system switches o automatically 15 minutes after track play reaches the end and no control is operated.

17EN

Page 19

Remote control does not work

• Before you press any function

button, rst select the correct source with the remote control instead of the main unit.

• Reduce the distance between the

remote control and the unit.

• Insert the battery with its polarities

(+/– signs) aligned as indicated.

• Replace the battery.

• Aim the remote control directly at

the sensor on the front of the unit.

No disc detected

• Insert a disc.

• Check if the disc is inserted upside

down.

• Wait until the moisture

condensation at the lens has cleared.

• Replace or clean the disc.

• Use a nalized CD or correct format

disc.

Cannot display some les in USB device

• The number of folders or les in the

USB device has exceeded a certain limit. This phenomenon is not a malfunction.

• The formats of these les are not

supported.

USB device not supported

• The USB device is incompatible

with the unit. Try another one.

Poor radio reception

• Increase the distance between the

unit and your TV or other radiation sources.

• Fully extend the radio antenna.

Music playback is unavailable on this unit even after successful Bluetooth connection.

• The device cannot be used to play

music through this unit wirelessly.

The audio quality is poor after connection with a Bluetooth-enabled device.

• The Bluetooth reception is poor.

Move the device closer to this unit or remove any obstacle between them.

Bluetooth cannot be connected with this unit.

• The device does not support the

proles required for this unit.

• The Bluetooth function of the

device is not enabled. Refer to the user manual of the device to nd out how to enable the function.

• This unit is not in pairing mode.

• This unit is already connected with

another Bluetooth-enabled device. Disconnect that device and then try again.

The paired mobile device connects and disconnects constantly.

• The Bluetooth reception is poor.

Move the device closer to this unit or remove any obstacle between them.

• Some mobile phones may connect

and disconnect constantly when you make or end calls. This does not indicate any malfunction of this unit.

• For some devices, the Bluetooth

connection may be deactivated automatically as a power-saving feature. This does not indicate any malfunction of this unit.

Timer does not work

• Set the clock correctly.

• Switch on the timer.

Clock/timer setting erased

• Power has been interrupted or the

power cord has been disconnected.

• Reset the clock/timer.

18 EN

Page 20

How to keep clock display on or o in standby?

• In standby, press and hold

to toggle clock display on or o.

19EN

Page 21

Copyright © 2017 Gibson Innovations Limited. This product has been manufactured by, and is sold under the responsibility of Gibson Innovations Ltd., and Gibson Innovations Ltd. is the warrantor in relation to this product. The Philips trademark and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. used under license.

BTM1560_12_UM_V1.0
