Operating Instructions
Network Camera
Model No.
BL-C10
Please read this manual before using and save this manual for future reference.
Operating Instructions
Main Features
V arious remote monitoring features
• Pyroelectric infrared sensor*1 detects temperature differences caused by a
human body or animals.
• Detection can let camera transfer images by E-mail or FTP*2.
• Color night view m ode (auto-adjusted) enables the cam er a to dis pl ay images
even in 1 lx illuminance*3.
Monitoring from PC or mobile phone
• The camera images can be monitored over the Internet.
• Pan/tilt operation can move the lens horizontally from -50 ° to +50 ° and
vertically from -40 ° to +10 °.
Privacy mode
• Privacy mode hides the lens into the unit to protect privacy.
• Pressing the privacy button on the front of the camera switches privacy mode
on or off with a single touch.
Privacy Monitoring Purpose
Privacy mode On Disabled Protecting privacy
Monitoring Off Enabled Remote monitoring
*1
The sensor uses pyroelectric effect. Due to the effects of environment temperature, direct
sunlight or air conditioner, it may detect the temperature differences by mistake, or the
detection range may be shortened.
*2
It may take some time to transfer images depending on the network condition.
*3
1 lx is the brightness about 2.5 m (8.2 feet) away from auxiliary fluorescent light. Color night
view mode slows down the frame rate, and images may blur when viewing a moving object or
using the pan/tilt operation.
2
Operating Instructions
Easy installation using UPnPTM (Universal Plug and Play)
When connecting the camera with a UPnPTM enabled router, the camera
automatically configures its network settings.
* Some UPnP
TM
enabled routers cannot configure the camera automatically. In
this case, the router needs to be configured manually. Ask the router
manufacturer how to configure it. See Panasonic Network Camera support
website at
http://panasonic.co.jp/pcc/products/en/netwkcam/ for more information.
Supporting Viewnetcam.com service
Viewnetcam.com service allows you to access the camera over the Internet with
your favorite domain name (e.g. bob.viewnetcam.com) instead of a global IP
address.
* Viewnetcam.com service is the service for Panasonic Network Camera. See
Viewnetcam.com website (http://www.viewnetcam.com) for more
information.
Multi-Language Display
Top page, Single Camera and Multi-Camera page can be displayed in English,
French, German, Ita lian, Spanish, Rus sian, Simplifie d Chinese or J apanese. If y ou
select English or Japanese, all pages can be changed. But if you select other
language, the Setup, Maintenance and Support pages are displayed only in
English.
3
Operating Instructions
System Requirements for your PC
Your PC (Personal Computer) and network must meet the following technical
specifications for the camera to work properly.
Item Description
®
Operating
System
Microsoft
Microsoft
CPU Pentium
Windows® XP, Microsoft® Windows® 2000
®
Windows® Me, Microsoft® Windows® 98SE
®
III (500 MHz or greater is recommended.)
Protocol TCP/IP protocol (HTTP, TCP, UDP, IP, DNS, ARP, ICMP)
Interface 10/100 Mbps network interface installed
Web Browser Internet Explorer 6.0 or later (Not includ ed on the Setu p CD-
ROM)
Note
See Panasonic Network Camera support website at
http://panasonic.co.jp/pcc/products/en/netwkcam/ for the latest
information about web browser.
Trademarks
• Adobe and Acrobat are either registered trademarks or trademarks of Adobe
Systems Incorporated in the United States and/or other countries.
• Ethernet is either a registe red tradem ark or a tradem ark of Xero x Corporati on
in the United States and/or other countries.
• Microsoft, Windows, Hotmail and ActiveX are either registered trademarks or
trademarks of Microsoft Corporation in the United States and/or other
countries.
• Pentium is a trademark or registered trademark of Intel Corporation or its
subsidiaries in the United States and other countries.
• Screen shots reprinted with permission from Microsoft Corporation.
• All other trademarks identified herein are the property of their respective
owners.
Abbreviations
• UPnP is the abbreviation for Universal Plug and Play.
• "Network Camera" is called "Camera" in this Operating Instructions.
4
Operating Instructions
IMPORTANT SAFETY INSTRUCTIONS
When using this unit , basic saf ety precautions sh ould alwa ys be f ollowed t o reduce
the risk of fire, electric shock, or personal injury.
1. Read and understand all instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. After taking away the dust on the lens, wipe the lens with a cotton bud.
6. Do not install near an y hea t source s suc h as ra diators , he at regis ters , sto v es ,
or other devices (including amplifiers) that produce heat.
7. Protect the power cord and AC cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point where they exit
from the unit.
8. The AC cord is used as the main disconnect device, ensure that the socket-
outlet is located/installed near the equipment and is easily accessible.
9. Do not touch the unit or the power cord and AC cord during lightning storms.
10.Unplug the unit when unused for long periods of time.
11.Refer all servicing to qualified service personnel. Servicing is required when
the unit has been damaged in any way, such as the power cord, AC cord or
plug is damaged, the unit does not operate normally, or has been dropped.
12.The camera is intended for indoor use only. Prolonged exposure to direct
sunlight or halogen light may damage CMOS sensor.
User Name and Password Protection
The use of a unique User Name and secret P asswor d is an important tool that
will help limit unauthorized individuals from accessing the camera. If you
choose to disable this tool, and choose not to limit access by use of a User
Name and Password, this may result in access to the camera by
unauthorized individuals. (see page 42)
SAVE THESE INSTRUCTIONS
5
Operating Instructions
Table of Contents
1 Camera Monitoring .......................................................8
1.1 Accessing the Camera................................................................... 8
1.2 Viewing Single Camera page.......................................................10
1.2.1 Image Auto Centering (Click to Center)...................................................13
1.2.2 Capturing a Still Image............................................................................14
1.2.3 Using Operation Bar..................... ...........................................................15
1.2.4 Setting Home Position/Sensor Position/Preset Button.............................17
1.3 Viewing Multi-Camera page......................................................... 21
1.4 Viewing Buffered Image page......................................................23
1.4.1 Deleting Buffered Images ........................................................................24
1.5 Viewing Still Images on Your Mobile Phone.................................25
2 Various Camera Features...........................................27
2.1 Using Camera Features............................................................... 27
2.2 Connecting the Camera to Your Network..................................... 29
2.3 Using UPnP™ (Universal Plug and Play) .................................... 33
2.4 Registering with the Viewnetcam.com service ............................ 34
2.5 Setting Date and Time .................................................................36
2.6 Changing Camera Settings.......................................................... 38
2.7 Changing Authentication Setting and Administrator User Name and
Password..................................................................................... 42
2.8 Logging in to the Camera.............................................................45
2.9 Creating, Modifying or Deleting General Users ...........................46
2.10 Changing Initial Settings on the Single Camera page or the Multi-
Camera page ............................................................................... 48
2.11 Configuring Multiple Cameras......................................................51
2.12 Buffering or Transferring Images by Timer................................... 53
2.13 Buffering or Transferring Images by Sensor................................. 60
2.14 Specifying Operation Time ..... ....... ...... ....... ...... ....... ...... ....... ...... .. 70
2.15 Changing Indicator Display.......................................................... 72
2.16 Enabling Privacy Mode ................................................................73
6
Operating Instructions
3 Camera Maintenance ..................................................74

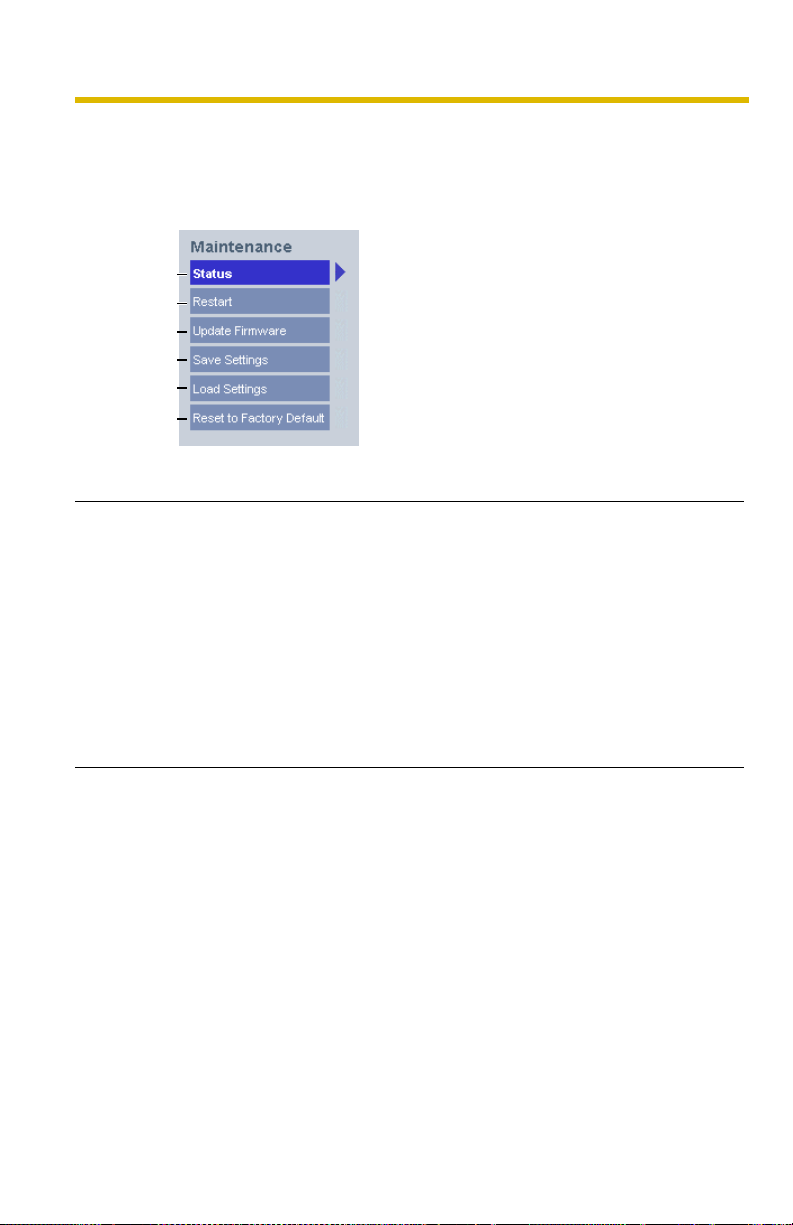

3.1 Maintenance page .......................................................................74
3.1.1 Confirming the Status.............................................................................. 75
3.1.2 Restarting the Camera............................................................................ 75
3.1.3 Updating the Camera Firmware..............................................................76
3.1.4 Creating Configuration File......................................................................79
3.1.5 Loading Settings from a Configuration File ............................................. 80
3.1.6 Resetting the Camera to Factory Default................................................ 81
3.2 Suppor t pag e ............................................ ....... ...... ....... ...... ....... .. 82
3.2.1 Seeing Help page................................................. ..... .............................. 82
3.2.2 Seeing Product Information.....................................................................82
3.2.3 Seeing Support Information................................................... ..... ...... ...... .83
3.3 FACTORY DEFAULT RESET Button............................................84
3.4 Default Setting List.......................................................................85
3.5 Cleaning.......................................................................................93
3.5.1 Cleaning the Main Unit............................................................................ 93
3.5.2 Cleaning the Lens.................................................................................... 93
3.6 Setting an IP Address on Your PC ...............................................94

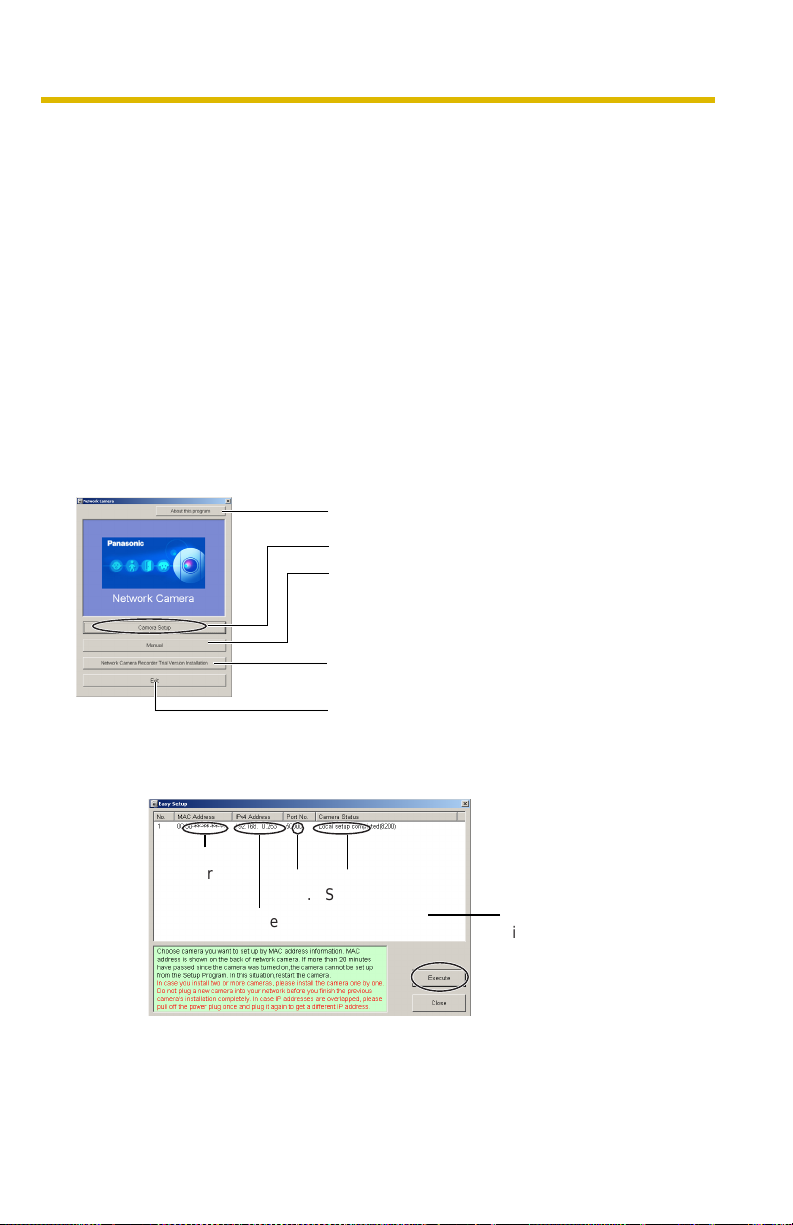

3.7 Using Setup Program.......................... ...... ....... ............................95
3.8 Setting Your PC............................................................................98
3.8.1 Setting the Proxy Server Settings on Web Browser ............................... 98
3.8.2 Setting UPnP™ to Display Camera Shortcut in My Network Places..... 101
3.8.3 Setting the Internet Temporary File Setting on Web Browser................101
3.9 ASCII Character T a ble ...............................................................102
3.10 File Size and Number of Buffered Images .................................103
3.11 Specifications.............................................................................104
Index
7
Operating Instructions
1 Camera Monitoring
1.1 Accessing the Camera
1. Start up the web browser on your PC.
2. Enter "http://IP Address (or URL):Port Number" on the address bar, and
press [Enter] on the keyboard.
E.g. http://192.168.0.253
(or http://XXXXX.viewnetcam.com)
• When port number is 80 (default), you do not need to enter port number.
See page 31 fo r details abo ut port number , and page 12 in the Installation /
Troubleshooting.
• If the Internet access to the camera is desired, the port number will be
changed in the order of 80 and from 50000 to 50050. It is changed
because some ISPs block port 80.
Note
When [Prohibiting unregistered users] is set on the Security: Administrator
page, authentic ation window w ill be displa yed. Ente r the administr ator's or the
general user's user name and password, and the Top page is displayed.
8
Operating Instructions
3. Click the following tabs to display each page.
A B C D E F
A To Single Camera page (page 10) B To Multi-Camera page (page 21)
C To Buffered Image page (page 23) D To Setup page (page 27)
E To Maintenance page (page 74) F To Support page (page 82)

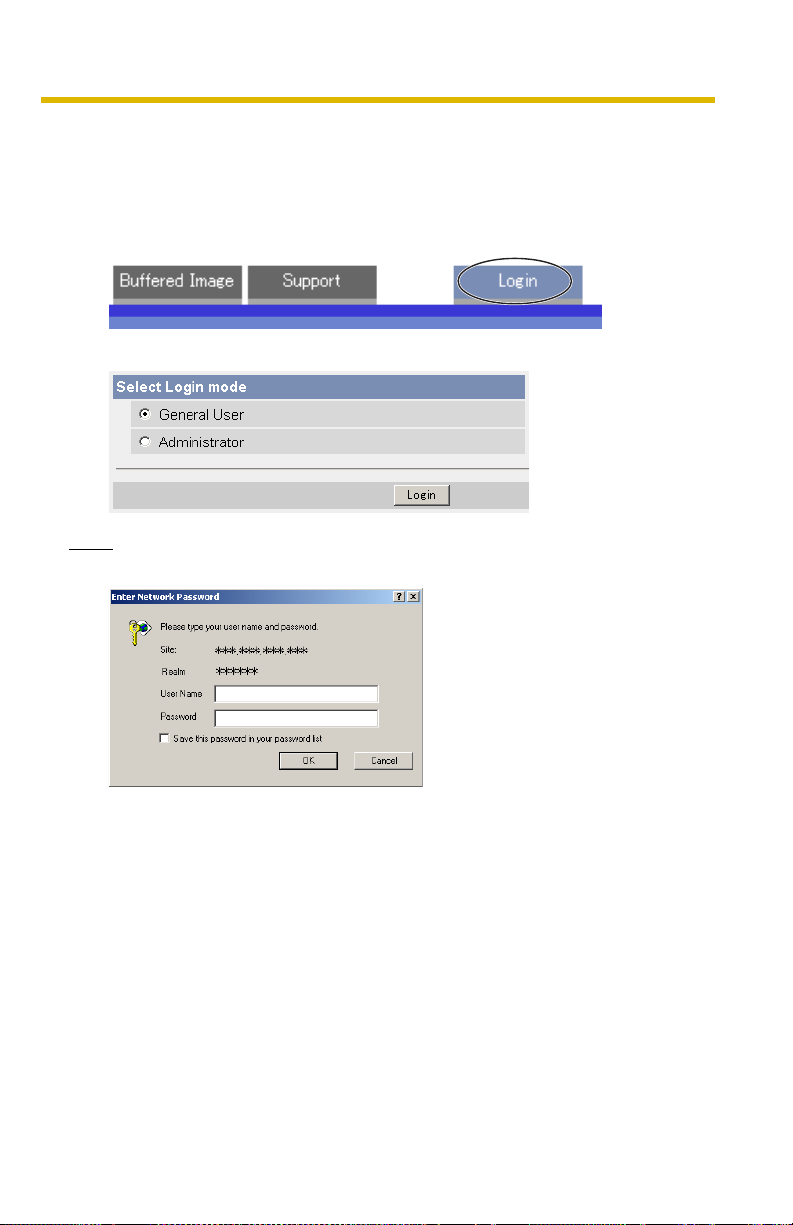

GTo log in to the camera (page 45)
Note
When users other than an administrator are accessing the camera, [Setup]
and [Maintenance] tab will not be di spla yed. A dditionally, When [Do not permit
access from guest users] is set on the Security: Administrat or page, [Login] tab
will not be displayed.
G
Select a language
to display.
9
Operating Instructions
1.2 Viewing Single Camera page
1. Access the camera (see page 8).
• The Top page is displayed.
2. Click the [Single] tab at the top of the page.
• When Security Warning window is displayed, see page 11.
Capture Image
Button
(see page 14)
Click to Center
(see page 13)
Operation Bar
(see page 15)
Refresh Interval
(see page 15)
Camera Image
The banner is
displayed.
(see page 12)
3. Close the web browser.
Notes
• While viewing images under florescent lighting, the image may appear
noisy or experi ence flic k er if th e i ncorrect A C pow er se tting w a s sel ected .
Select the frequency that is used in your area. (see page 38).
• Refresh interval is [Motion ] b y def ault. You can change it on the oper ation
bar (see page 15).
• Refresh interval may change depending on the network condition, PC
performance and what object you view.
• When displaying video (Motion JPEG), the camera allows up to 20
simultaneous accesses. When trying more than 20 accesses, the 21st
user will see a gray screen. (Maximum 20 accesses for a Buffered Image
page too.)
• If the video (Motion JPEG) displ ay is limited (see page 48), th e vi deo will
be changed to refreshing still images.
10
Operating Instructions
• To reduce the data traffic, the video can be automatically changed to
refreshing still images (see page 48).
• To display the Single Camera page dire ctly, add it to the [Favorites] on the
web browser.
• Refresh interval may slow down depending on the network condition or
the number of accessing users.
• When viewing a dark imag e, C olor Ni ght View mode automatical ly sta rts.
The image will be brighter, but the refresh interval may slow down and
image quality may decrease.
Security Warning window
To view a video (Motion JPEG), ActiveX® Controls must be installed. When trying
to display a video for the first time, Security Warning window will be displayed.
When using Windows XP or W i ndows 2000, log in as an administrator to install it.
If you cannot install ActiveX Controls or you cannot see the video in the
Internet Explorer
• Click [Tools] [Internet Options] [Security] tab and click [Custom level] on
the web browser.
(1) Check "Prompt" in "Download signed ActiveX Controls".
(2) Check "Enable" in "Run ActiveX Controls and plug-ins".
• ActiveX Controls can be installed from the file on the Setup CD-ROM.
(1) Restart the PC.
(2) Confirm that Internet Explorer is closed.
(3) Double-clic k "ocx \Ac tiveXInst.exe" on the Setup CD-ROM.
11
Operating Instructions
Notes
• Video may not be displayed quickly. Wait for a while.
• If you use a proxy server, set the web browser not to access the proxy server
(see page 98).
• In some corporate net work environments a firewall may be used for security
purposes. It is possible that this may prevent motion video from being
displayed. In this situation we suggest:
• Contact your network admini str ator.
• Try using regularly refreshed images.
The Banner
When the camera accesses the Internet, the banner displays product information
about cameras or an nounc ement s abo ut the lates t firmw are , etc . fr om Panasonic.
Whether or not to display the banner can be set at Banner Display (see page 48).
Notes
• The banner is displayed when [Yes] is checked for Allow Access from the
Internet on the Automatic Setup page, or when [Enable] is checked for Auto
Port Forwarding on the UPnP page for the Connection Mode of Static or
DHCP.
• Even if [Yes] is checked for Allow Access from the Internet on the Automatic
Setup page, or [Enable] is ch ecked for Auto Port Forwarding on t he UPnP
page for the Connection Mode of Static or DHCP, when the camera is not
connected to the Internet, is displayed.
12
Operating Instructions
1.2.1 Image Auto Centering (Click to Center)
When you click a certain point on the camera image, the point is centered on the
image.
1. Move the cursor to the desired point.
Cursor
2. Click it.
• The clicked point is centered.
• See page 16 for the pan/tilt operation.
Notes
• When End Displa y appears on the oper ation bar , Cli ck to Center does not
work beyond the pan/tilt end (see page 15).
• The clicked position may slightly miss the center depending on the lens
direction.
• If a user is restricted to level 1 or 2 on the General User page (see page
46), Click to Center does not work.
13
Operating Instructions
1.2.2 Capturing a Still Image
A still image can be saved on your PC.
1. Operate pan/tilt and select a resolution to display an image.
2. Click the capture image button.
Capture Image Button
• The camera image opens in another window.
3. Right-click the image, and select [Save Picture As...].
14
• Save as dialog box is display e d.
4. Specify the location, and click [Save].
• Camera image is saved at that location.
5. Click [Close].
1.2.3 Using Operation Bar
Operating Instructions
End Display
and Preset
Display:
Pan/Tilt
Scan:
Pan/Tilt/
Home
Position:
Preset
Button:
Sensor
Position:
Brightness: Changes brightness in nine steps including
Refresh
Interval:
When the pan/tilt has reached the end (Left
End, Right End, Up End and Down End), End
Display app ears. When clic king a preset bu tton,
the preset name appears.
Moves the lens throughout the horizontal ( )
or vertical ( ) range, and returns to the original
position.
Controls lens direction.
Pan ( : Left, : Right), Tilt ( : Up,
: Down) and Home Position ( : Center)
Applies the camera direction to a preset
position. You can preset 8 positions (see page
17—page 20).
When the sensor detects a temperature
difference, the camera can be set up to turn to
this position. On ly an adminis trator ca n operate
it (see page 17).
[STD] (Standard). Clic king [-] or [ +] changes the
image bri ghtness.
Sets a refresh interval. (Motion—60-second
interval)
Resolution: Selects [640 x 480] or [320 x 240] (default)
pixels.
Quality:
Selects the image quality.
• [Fa vor Clarity] op timizes the image for good
clarity.
• [Standard] keeps the standard quality.
(default)
• [Favor Motion] optimizes the image for
motion display.
Note
When the camera image is not displayed correctly, click [Refresh] at the tool
bar on the web browser. The image will be refreshed.
15
Operating Instructions
Pan/Tilt Operation
Pan/tilt scan buttons automatically move the
lens horizontally from -50 ° to +50 ° and
vertically from -40 ° to +10 ° and return the
lens to the original position. Each pan/tilt
arrow moves the lens Up, Down, Right or
Left, and the home pos ition button move s it to
the home position.
Pan/Tilt Range
Pan: -50
Tilt: -40
˚ to +50 ˚
˚ to +10 ˚
Note
Do not apply pressure to the pan/tilt portion of the camera. Any forced
movement can damage the internal mechanism.
Pan/Tilt
Scan
Pan/Tilt
16
Operating Instructions
1.2.4 Setting Home Position/Sensor Position/Preset Button
The home position, sen sor position and 8 preset bu ttons can be regis tered. Preset
buttons (1—4) are registered 1: Upper Left, 2: Upper Right, 3: Lower Left and 4:
Lower Right. These buttons can be changed (see page 20).
• Registered buttons are shown in blue.
• Unregistered buttons are shown in white.
When clicking e ach button, the image switc hes to the home/sens or/preset position.
When restarted, the camera takes a home position. If the Lens Position When
T riggere d setting is s et (see page 61 ), the camer a takes a sensor posi tion after the
pyroelectric infrared sensor detects temperature differences.
Registering Home Position/Sensor Position
1.
Click [Program].
• [Program] swi tches to [Cancel].
Click [Cancel] to quit witho ut sav ing
changes.
2. Pan and tilt the camera to a desired
position.
3. Click the home position button or the
sensor position button.
4. Click [Save].
• When finished, "Success!" is
displayed.
• Clicking [Back] takes you back to
the previous p age wit hout chan ging
the settings.
5. Click [Back].
• The bar switches to the operation
bar.
Home
Position
Pan/Tilt
Program
Sensor
Position
17
Operating Instructions
Registering a Preset Button
1.
Click [Program].
• [Program] switches to [Cancel].
Click [Cance l] to quit without s avin g
changes.
2. Pan and tilt the camera to a desired
position.
3. Click a preset button (1—8) to register.
E.g.:
Setting "Middle" for the preset 5.
4. Enter the preset name.
• Maximum 15 characters.
• Enter ASCII characters (see page
102) or characters in each
language. But [ Space], ["], ['], [&], [<]
and [>] are not available.
5. Click [Save].
• When finished, "Success!" is
displayed.
• Clicking [Back] takes you back to
the previou s page wi thout cha nging
the settings.
6. Click [Back].
• The bar switches to the operation
bar.
Pan/Tilt
Preset
Preset
number
Setting
a name
18
Notes
• When registering preset buttons,
the camera also saves brightness
and white balance settings.
• Only an administrator can register
preset buttons.
The button
turns blue.
Viewing the Image
1.
Click the home position, sensor
position or registered preset button.
• The camera takes each position,
and the image is displayed.
Home
Position
Pan/Tilt
Operating Instructions
Putting the
cursor displays
the preset
name.
Sensor
Position
UpperLeft
19
Operating Instructions
Changing or Deleting the Settings
1.
Click [Program].
• [Program] switches to [Cancel].
Click [Cance l] to quit without s avin g
changes.
2. Pan and tilt the camera to a desired
position.
3. Click the home positio n, sensor posi tion
or a preset button (1—8).
4. Click [Save] after setting the preset
name or click [Delete].
• "Success!" is displayed.
• Clicking [Back] takes you back to
the previous page.
5. Click [Back].
• The bar switches to the operation
bar.
Note
The home positio n or the sensor pos ition
cannot be deleted, and these position
names cannot be changed either.
Home
Position
Pan/Tilt
Preset
Sensor
Position
Preset
number
Changing
the name
20
The deleted
button turns
white.
Operating Instructions
1.3 Viewing Multi-Camera page
To view multiple cameras on the Multi-Camera page, you need to configure each
camera on the Multi-Camera Setup page (see page 51).
1. Access the camera (see page 8).
• The Top page is displayed.
2. Click the [Multi] tab at the top of the page.
• Multi-Camera page can display up to 12 camera images.
Capture Image Button (see page 14)
Switches cameras to
display.
Selects [320 x 240]
(default) or [160 x 120]
pixels resolution.
Selects a refresh interval
(Motion—60-second
interval). If y ou selec t [All]
at the View Type, video
(Motion JPEG) cannot be
displayed.
When clicking the camera
name, the Single Camer a
page is displayed on
another window.
3. Close the web browser.
Notes
• When selecting [All] at the View Type, all images are displayed in 160 x
120 pixels reso lu tion .
• 640 x 480 pixels image cannot be displayed on the Multi-Camera page.
21
Operating Instructions
• When viewing video (Motion JPEG), we recommend using an Ethernet®
switching hu b inste ad of th e repea ter h ub to prevent degradation in video
display.
• Due to the network congestion or the number of accesses, the refresh
interval may slow down.
• When the refresh interval is slow, restrict the bandwidth on the Network
page (see page 32). The refresh interval may be improved.
• If the video (Motion JPEG) displ ay is limited (see page 48), th e vi deo will
be changed to refreshing still images.
• To reduce the data traffic, the video (Motion JPEG) can be automatically
changed to refreshing still images (see page 48).
• When viewing 4 cameras on the Multi-Camera page, you may need 3 to
4 Mbps bandwidth. If the bandwidt h is not enough, the refresh interval ma y
slow down.
When the image is not displayed on the Multi-Camera p age
• Confirm that the Internet IP add ress is specified f or each cam era and that each
camera is connected to the Internet. For Internet access, local IP addresses
(192.168.xxx.xxx) cannot be used.
• Confirm the settings on the Multi-Came ra Setup page (see page 51).
• Confirm that the web browser is not ac cessin g the pro xy s erver (see p age 98).
How to save a still image to your PC
On the Single Camera or Multi-Camera page
• A still image can be saved using the capture image button (see page 14).
On the Buffered Image page
• A still image can be saved on the Buffered Image page , if you are not playin g
images on it. Put t he cu rsor on th e ima ge , and right-clic k it. T hen s elect [Sa v e
Picture As...].
When setting [Do not permit access from guest users] on the
Security: Administrator page
• An authentication window is displayed in camera access. Enter the
administrator's or the general user's user name and password.
• When you view the images on the Multi-Camera page, all authentication
windows of the configured cameras are displayed. Enter the administrator's or
the general user's user name and password registered for each camera.
22
Operating Instructions
1.4 Viewing Buffered Image page
To buffer the images on the internal memory, you need to set up image transfer
settings (see page 53 or page 60). You can view buffered images on this Bu ffered
Image page.
1. Access the camera (see page 8).
• The Top page is displayed.
2. Click the [Buffered Image] tab at the top of the page.
3. Click the tr igger numbe r.
The trigger number is displayed (see page 53 or page 60).
The trigger is displayed
(see page 53 or page 60).
23
Operating Instructions
4. Display images clicking buttons below.
Date and time of the day when the
images were buffered are displayed.
Date, time and frame number are
displayed.
[Play]:
The buffered images are displayed
continuously.
[<Prev] or [Next>]:
The previous or next image is
displayed.
[<10] or [10>]:
The 10th image before or after the
current image is displayed.
[<100] or [100>]:
The 100th image before or after the
current image is displayed.
Notes
• Date, Time and frame number are not displayed in play mode.
• Maximum numb er of buff ered ima ges change de pending on res olution, imag e
quality and what o bje ct the camera buffers. At the 320 x 2 40 pixels resolu tio n
and the standard quali ty , the camera b uffers about 250 frames (see page 103).
(If 3 trigger settings are enab le d, the in ternal mem ory capacit y is divi ded into
3 sections. In this case, each trigger can buffer about 80 frames.)
1.4.1 Deleting Buffered Images
If you intend to delete images for each transfer condition, click [Delete Buffered
Images] on the Image Buffer/Transfer page (see page 53 or page 60).
Notes
• When you change settings (except for Enable/Disable settings) on the Image
Buffer/Transfer page, the buffered images only for that trigger will be deleted.
• The following operations also delete all buffered images.
• Tur ning off the camera.
• Saving the Date and Time page.
• Restarting, updating firmware or resetting the camera to factory default.
• Changing the Enable/Di sable set tings of Image Buff er/Transfer (see page
53 or page 60).
24
Operating Instructions
1.5 Viewing Still Images on Your Mobile Phone
You can view still images over the Internet from a compatible mobile phone.
Enter "http://IP address (or URL):Port Number/mobile" on a mobile ph one and
press [OK].
• When the port number is set to 80 (default), it is not required.
E.g. http://XXX.XXX.XXX.XXX:50000/mobile
(or XXXXX.viewnetcam.com:50000/mobile)
• When an authentication window is displayed, enter the administrator's or the
general user's user name and password.
• A still image is displayed. (Video [Motion JPEG] cannot be displayed.)
Pressing 2, 4, 6 or 8 on the mobile phones allows
you to pan or tilt the camera in four directions:
Left, Up, Down or Right.
Pressing 5 will refresh the image.
160 x 120 reso lution is di splayed at the first
access. Pressi ng 0 switches th e resolution to 320
x 240.
Executing [Home Position] moves the lens to the
home position.
Pressing 1, 3, 7 or 9 o n t he k e ypa d allo w s yo u t o
use the firs t four registered preset butto ns.
Registered presets 5—8 are available by
activating the link on the mobile phone page.
If you e xecute [Privacy M ode] here, the camera switc hes to priv acy mode. To
disable it, a ccess the camer a again and e xe cute [Disabl e Privacy Mo de] (see
page 73).
25
Operating Instructions
Notes
• If the image is not displayed properly, try the following 2 URLs.
1. http:// IP address(or URL):Port Number/mobileh
(or XXXXX.viewnetcam.com:50000/mobileh)
2. http:// IP address(or URL):Port Number/mobilex
(or XXXXX.viewnetcam.com:50000/mobilex)
• Only an administrator ca n control privacy mode.
• In privacy mode, sensor and timer image buffer/transfer features also are
stopped.
• When ex ecuting [Priv acy Mode] while s etting [Allowi ng unregistered us ers] on
the Security: Administrator page (see page 42), an authentication window is
displayed. Log in to the camera as an administrator.
• If the users are restricted to level 1 or 2 on the General User page (see page
46), the users do not see some kinds of buttons.
• When pan/tilt reaches the end, the keypad number and character disappear.
E.g.: The pan reaches the left end.
"(4)L" disappears.
• Some mobile phones are not compatible with Panasonic Network Cameras.
Some phones may allow viewing only on port 80, and some may not support
password authentication.
• Some mobile phones display images not at the specified resolution but at a
decreased size.
• Compatible mobile phones must be able to display JPEG images and HTML
or XHTML web pages. Additional fee based mobile phone services may be
required to access web pages.
for HTML .
for XHTML.
Stopping E-mail Transfer by the Mobile Phone Operation
Executing privacy mode on a mobile phone operation can stop E-mail transfer.
1. Access the camera from a mobile phone (see page 25) and log in to the
camera as an administ ra tor.
2. Execute [Privacy Mode] (see page 25).
• The camera switches to privacy mode and stops E-mail transfer (Image
Buffer/Transfer).
26
2 Various Camera Features
2.1 Using Camera Features
1. Access the camera (see page 8).
Notes
• When [Permit access from guest users] is set on the Security:
Administrator page, click [login] tab and log in as an administrator.
• When users other than an administrator are accessing the camera, the
[Setup] and [Maintenance] tabs are not displayed.
• The Top page is displayed.
2. Click [Setup] tab at the top of the page.
(1)
(2)
(3)
(4)
(5)
(6)
(7)
Operating Instructions
(8)
(9)
(10)
(11)
(12)
(13)
27
Operating Instructions
Basic
(1) Network Configures the netw ork sett ing s su ch as co nne cti on m ode
to connect the camera to the network (see page 29).
(2) UPnP Enables automatic port forwarding or shortcut to the
camera (see page 33).
(3) Viewnetcam.
Registers with the Vi e wnetcam .com service (se e page 3 4).
com
(4) Date and Time Sets the date and time, automatic time adjustment and
adjust clock for daylight saving time settings (see page 36).
(5) Camera Sets camera name, white balance, AC power source
frequency and pan/tilt range (see page 38).
Account
*1
(6) Administrator
Sets authentication se tting and adminis trator security (user
name and password) (see page 42).
*1
(7) General User
Sets general user secu rity (use r nam e and password) and
general user's feature restriction (see page 46).
Advanced
(8) Image Display Sets resolution, image quality and refresh interval of Single
Camera and Multi-Camera page, limit continuous motion
*1
JPEG
, and language (see page 48).
*1
(9) Multi-Camera
Sets the camera IP address or host name, camera name on
the Multi-Camera page (maximum 12 came ra s) (s ee pa ge
51).
(10) Buffer/Transfer Sets image buffer or transf e r by timer or sen sor. (see page
53 or page 60).
(11) Operation Time Sets time period to display camera images (see page 70).
(12) Indicator
Sets indicator display (see page 72).
Control
(13) Privacy Mode Enables privacy mode (see page 73).
*1
If you change [Administrator], [General User], [Limit Continuous Motion JPEG] or [MultiCamera Setup page] settings, changes will not be applied to the video (Motion JPEG)
viewers. Restart the camera to make changes applied to all video viewers.
28
Operating Instructions
2.2 Connecting the Camera to Your Network
The Network page offers three options to configure the camera.
• [Automatic Se tup] automa tically assigns an unused IP ad dress to the came ra,
and uses UP nPTM to configure your router.
• [Static] allows the user to use a specific IP address.
• [DHCP] is offered for ISPs who require this option.
1. Click [Network] on the Setup page.
2. Select a connection mode .
Normally sets Automatic Setup.
Uses a static IP address.
Uses ISP DHCP server function.
• Each page is displayed (see page 29—page 30).
3. Enter each parameter in the proper data field.
Automatic Setup
The camera auto ma tic al ly obt ains the network settings (s ub net mask, default
gateway and DNS server address) utilizing a DHCP feature on the router. The
camera also automatic all y se arc hes the un us ed IP addres s on your network.
If you select [Yes] at the Allow Access from the Internet, the camera
automatically enables port forwarding by using UPnPTM. In this case, the
camera automat ically searches t he unused port numbe r on your netw ork in the
order of 80 and from 50000 to 50050.
• Clicking [Cancel] takes you back to the previous page without saving
changes.
29
Operating Instructions
Static Setup DHCP Setup
• Clicking [Cancel] takes you back to the previous page without
saving chang es.
4. Click [Save] when finished.
• New settings are saved.
• When finished, the following page is displayed.
30
Note
The current network settings are shown on the Status page in the Maintenance
section (see page 75).
5. Click [Restart].
• The camera restarts, and the Top page is displayed.
Note
When you do not kno w the camer a IP address while se tting [Au tomatic Setup]
or [DHCP Setup], you can search the camera IP address by using the Setup
Program (see page 95).
Loading...
