BFS17W
NPN 1 GHz wideband transistor
Product specification
Supersedes data of November 1992
1995 Sep 04

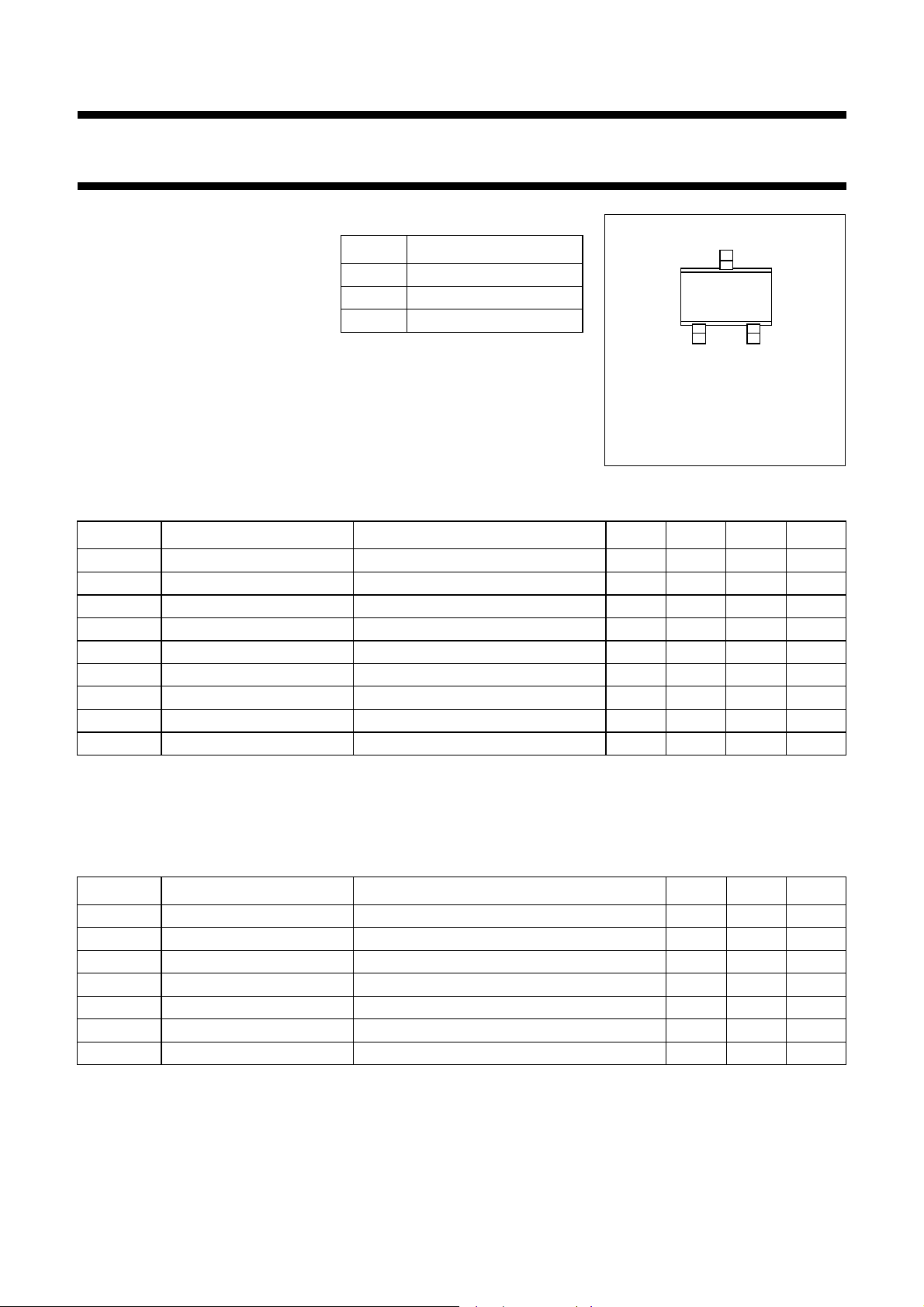

Page 2
NXP Semiconductors Product specification
Fig.1 SOT323
handbook, 2 columns
3
12
MBC870
Top view
Marking code: E1
NPN 1 GHz wideband transistor BFS17W
APPLICATIONS
Primarily intended as a mixer,
oscillator and IF amplifier in UHF and
VHF tuners.
PINNING
PIN DESCRIPTION
1base
2emitter
DESCRIPTION
3 collector
Silicon NPN transistor in a plastic
SOT323 (S-mini) package. The
BFS17W uses the same crystal as
the SOT23 version, BFS17.
QUICK REFERENCE DATA
SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT
V
V
I
P
h
f
C
C
T
CBO
CEO
C
tot
FE
T
c
re
j
collector-base voltage 25 V
collector-emitter voltage 15 V
DC collector current 50 mA
total power dissipation up to Ts=118C; note 1 300 mW
DC current gain IC=2mA; VCE=1V 25 90
transition frequency IC=25mA; VCE=5V 1.6 GHz
collector capacitance IE=0; VCB=10V; f=1MHz 0.8 1.5 pF
feedback capacitance IC=1mA; VCE=5V; f=1MHz 0.75 pF
junction temperature 175 C
Note
1. T
LIMITING VALUES
In accordance with the Absolu te Maximum Rating System (IEC 134).
Note
1. T
1995 Sep 04 2
is the temperature at the soldering point of the collector pin.
s
SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
V
CBO
V
CEO
V
EBO
I
C
P
tot
T
stg
T
j
is the temperature at the soldering point of the collector pin.
s
collector-base voltage open emitter 25 V
collector-emitter voltage open base 15 V
emitter-base voltage open collector 2.5 V
collector current (DC) 50 mA
total power dissipation Ts=118C; note 1 300 mW
storage temperature 65 +150 C
junction temperature 175 C

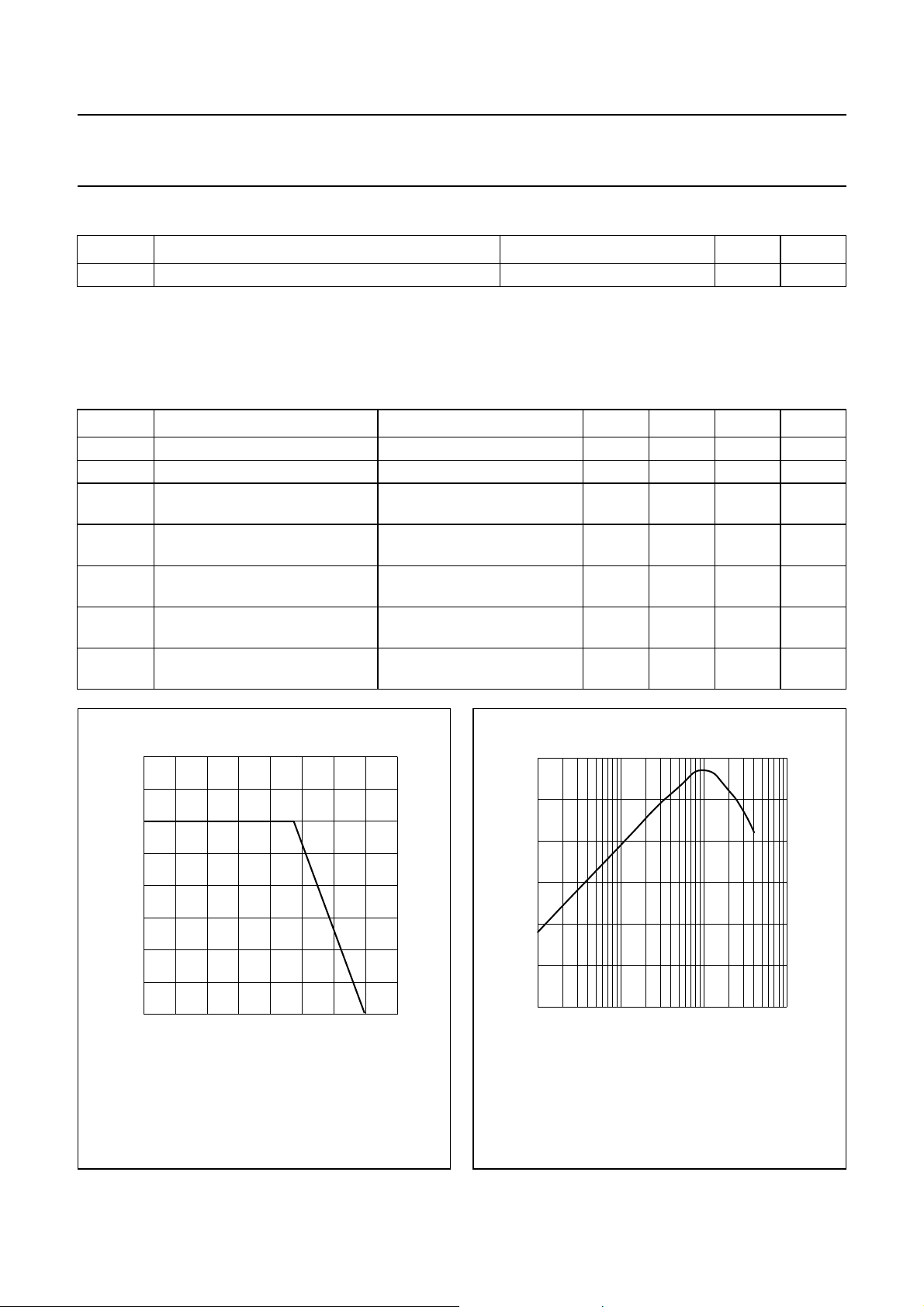

Page 3
NXP Semiconductors Product specification
Fig.2 Power derating curve.
handbook, halfpage
0 50 100 200
200
0
MLB587
150
T ( C)
o
s
P
tot
(mW)
300
400
100
Fig.3 DC current gain as a function of collector
current; typical values.
VCE=1V.
handbook, halfpage
60
20
40
MBG237
0
110
h
FE
IC (mA)
10
−1
10
2
NPN 1 GHz wideband transistor BFS17W
THERMAL CHARACTERISTICS
SYMBOL PARAMETER CONDITIONS VALUE UNIT
R
th j-s
Note
1. T
s
CHARACTERISTICS
=25C (unless otherwise specified).
T
j
SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT
I
CBO
h
FE
f
T
C
c
C
e
C
re
F noise figure I
thermal resistance from junction to soldering point up to Ts=118C; note 1 190 K/W
is the temperature at the soldering point of the collector pin.
collector cut-off current IE=0; VCB=10V 10 nA
DC current gain IC=2mA; VCE=1V 25 90
transition frequency IC=25mA; VCE=5V;
1.6 GHz
f=500MHz
collector capacitance IE=ie=0; VCB=10V;
0.8 1.5 pF
f=1MHz
emitter capacitance IC=ic=0; VEB=0.5V;
2 pF
f=1MHz
feedback capacitance IB=ib=0; VCE=5V;
f=1MHz; T
=2mA; VCE=5V;
C
f=500MHz;
amb
=25C
=
S
opt
0.75 pF
4.5 dB
1995 Sep 04 3
