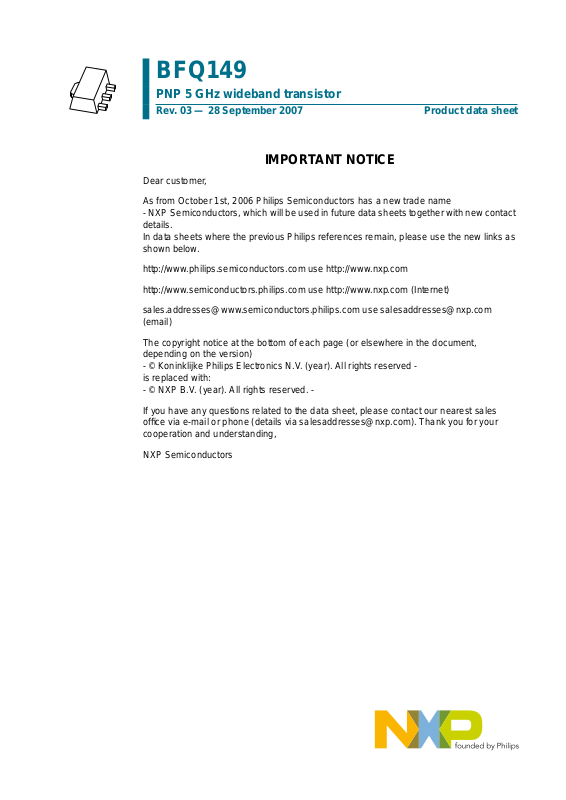

Dear customer, As from October 1st, 2006 Philips Semiconductors has a new trade name

- NXP Semiconductors, which will be used in future data sheets together with new contact details. In data sheets where the previous Philips references remain, please use the new links as shown below.

http://www.philips.semiconductors.com use http://www.nxp.com http://www.semiconductors.philips.com use http://www.nxp.com (Internet) [email protected] use [email protected]

(email) The copyright notice at the bottom of each page (or elsewhere in the document,

depending on the version)

ofﬁce via e-mail or phone (details via [email protected]). Thank you for your cooperation and understanding,

NXP Semiconductors

Page 2

NXP Semiconductors Product speciﬁcation

Rev. 03 - 28 September 2007

2 of 7

PNP 5 GHz wideband transistor BFQ149

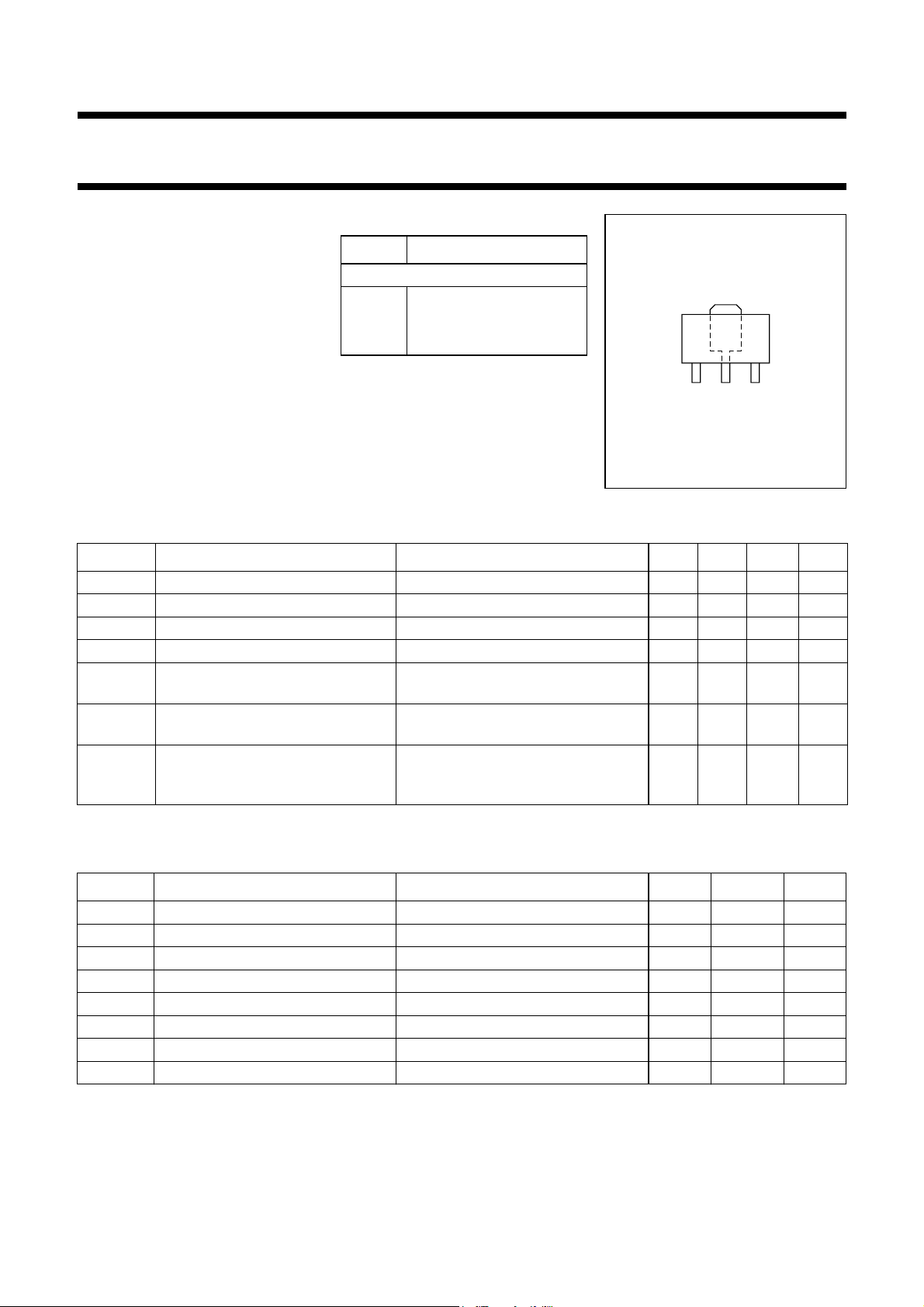

DESCRIPTION

PNP transistor in aSOT89envelope. It is intended for use in UHF applications such as broadband aerial amplifiers (30 to 860 MHz) and inmicrowaveamplifierssuchasradar systems, spectrum analysers, etc.,

PINNING

PIN DESCRIPTION

Code: FG 1 emitter 2 collector 3 base

using SMD technology.

321

Fig.1 SOT89.

QUICK REFERENCE DATA

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

V I P h f

CEO

tot

collector-emitter voltage open base −−−15 V DC collector current −−−100 mA total power dissipation up to Ts = 135 °C (note 1) −−1W DC current gain IC = −70 mA; VCE = −10 V; Tj = 25 °C20 50 − transition frequency IC = −75 mA; VCE = −10 V;

45− GHz

f = 500 MHz; Tj = 25 °C

F noise ﬁgure I

maximum unilateral power gain IC = −50 mA; VCE = −10 V;

f = 500 MHz; T

= −50 mA; VCE = −10 V;

amb

= 25 °C

− 12 − dB

− 3.75 − dB

Rs=60Ω; f = 500 MHz; T

= 25 °C

amb

LIMITING VALUES

In accordance with the Absolute Maximum System (IEC 134).

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT

V V V I I P T T

CBO CEO

EBO C CM

tot

stg j

collector-base voltage open emitter −−20 V collector-emitter voltage open base −−15 V emitter-base voltage open collector −−3V DC collector current −−100 mA peak collector current f > 1 MHz −−150 mA total power dissipation up to Ts= 135 °C (note 1) − 1W storage temperature −65 150 °C junction temperature − 150 °C

Note

1. Tsis the temperature at the soldering point of the collector tab.

Page 3

NXP Semiconductors Product speciﬁcation

Rev. 03 - 28 September 2007

3 of 7

PNP 5 GHz wideband transistor BFQ149

THERMAL RESISTANCE

SYMBOL PARAMETER CONDITIONS THERMAL RESISTANCE

th j-s

thermal resistance from junction to soldering point

Note

is the temperature at the soldering point of the collector tab.

1. T

CHARACTERISTICS

= 25 °C unless otherwise speciﬁed.

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

CBO

h f

C C C G

collector cut-off current IE = 0; VCB = −10 V; −−100 nA DC current gain IC= −70 mA; VCE = −10 V 20 50 − transition frequency IC = −70 mA; VCE = −10 V;

collector capacitance IE= 0; VCB= −10 V; f = 1 MHz − 2 − pF emitter capacitance IC= 0; VEB= −0.5 V; f = 1 MHz − 4 − pF feedback capacitance IC = 0; VCE = −10 V; f = 1 MHz − 1.7 − pF maximum unilateral power gain

(note 1)

F noise ﬁgure I

up to Ts = 135 °C (note 1) 40 K/W

45− GHz

f = 500 MHz; T

IC = −50 mA; VCE = −10 V; f = 500 MHz; T

= −50 mA; VCE = −10 V;

amb

= 25 °C

− 12 − dB

= 25 °C

− 3.75 − dB Rs= 60 Ω; f = 500 MHz; T

= 25 °C

amb

Note

1. G G

is the maximum unilateral power gain, assuming S12 is zero and

--------------------------------------------------------------



–





–



dB.log=

Page 4

NXP Semiconductors Product speciﬁcation

Rev. 03 - 28 September 2007

4 of 7

PNP 5 GHz wideband transistor BFQ149

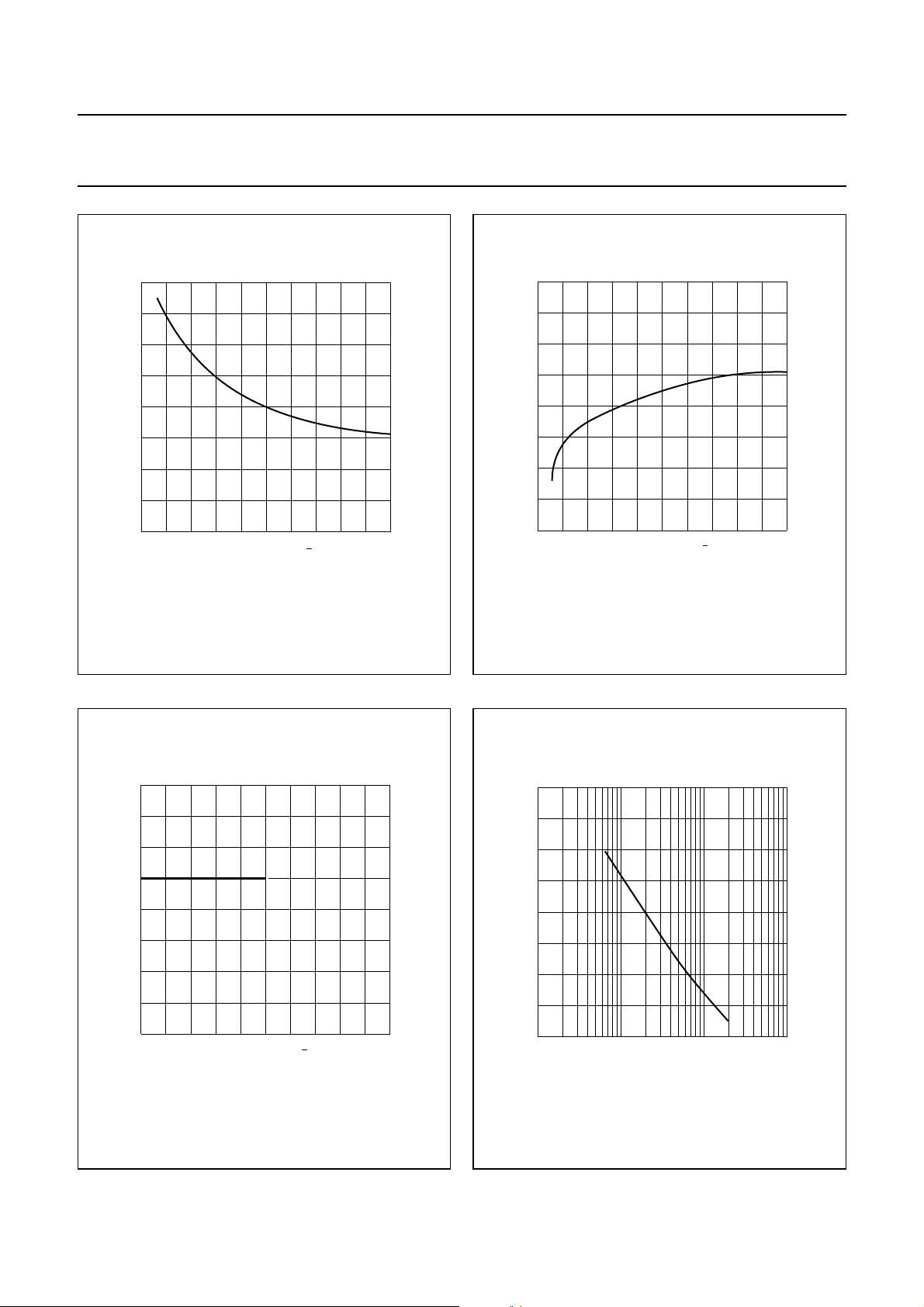

handbook, halfpage

(pF)

020

IE= 0; f = 1 MHz; Tj=25°C.

(V)

Fig.2 Collector capacitance as a function of

collector-base voltage.

MEA328

handbook, halfpage

(GHz)

0 50 100

VCE= −10 V; f = 500 MHz; T

amb

=25°C.

I (mA)

Fig.3 Transition frequency as a function of

collector current.

MBB347

I (mA)

MBB345

handbook, halfpage

VCE= −10 V; Tj=25°C.

100 200

Fig.4 DC current gain as a function of collector

current.

handbook, halfpage

(dB)

Ic= −50 mA; VCE= −10 V; T

=25°C.

amb

f (MHz)

Fig.5 Maximum unilateral power gain as a

function of frequency.

MEA329

Page 5

NXP Semiconductors Product speciﬁcation

Rev. 03 - 28 September 2007

5 of 7

PNP 5 GHz wideband transistor BFQ149

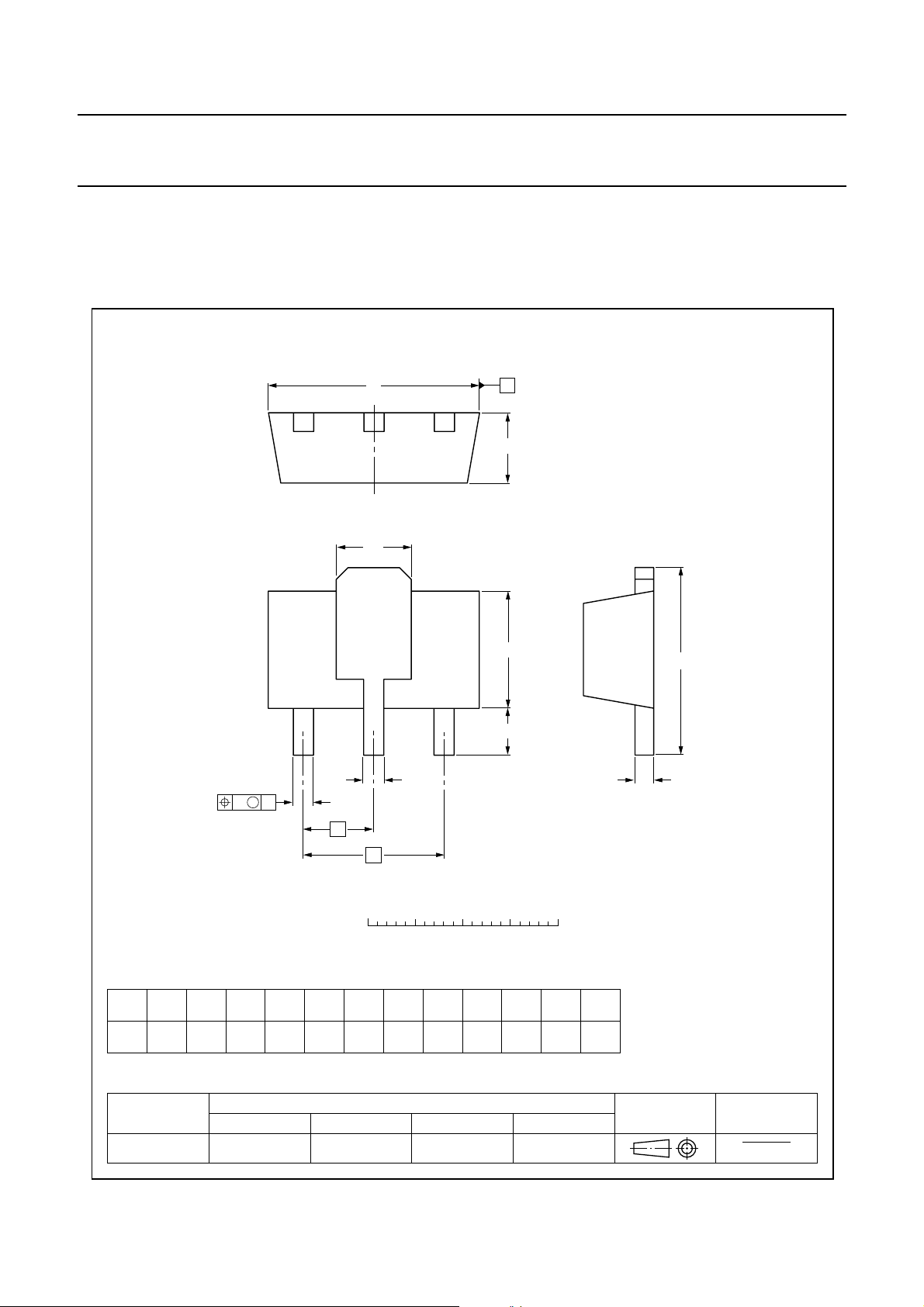

PACKAGE OUTLINE

Plastic surface-mounted package; collector pad for good heat transfer; 3 leads SOT89

w M

123

DIMENSIONS (mm are the original dimensions)

UNIT

OUTLINE VERSION

SOT89 TO-243 SC-62

1.6

1.4

0 2 4 mm

scale

0.48

0.35

0.53

0.40

IEC JEDEC JEITA

2.6

2.4

3.0

0.44

0.23

4.6

4.4

REFERENCES

1.8

1.4

1.5

1.2

0.8

0.13

EUROPEAN

PROJECTION

ISSUE DATE

06-03-16 06-08-29

4.25

3.75

Page 6

NXP Semiconductors

Rev. 03 - 28 September 2007

6 of 7

Legal information

Data sheet status

BFQ149

PNP 5 GHz wideband transistor

Document status

Objective [short] data sheet Development This document contains data from the objective speciﬁcation for product development. Preliminary [short] data sheet Qualiﬁcation This document contains data from the preliminary speciﬁcation. Product [short] data sheet Production This document contains the product speciﬁcation.

[1] Please consult the most recently issued document before initiating or completing a design. [2] The term ‘short data sheet’ is explained in section “Deﬁnitions”. [3] Theproductstatus of device(s) described in this document mayhave changed since this document was published and may differin case of multiple devices. The latest product status

information is available on the Internet at URL

[1][2]

Product status

Deﬁnitions

Draft — The document is a draft version only. The content is still under

internal review and subject to formal approval, which may result in modiﬁcations or additions. NXP Semiconductors does not give any representations or warranties as to the accuracy or completeness of information included herein and shall have no liability for the consequences of use of such information.

Short data sheet — A short data sheet is an extract from a full data sheet with the same product type number(s) and title.A short data sheet is intended for quick reference only and should not be relied upon to contain detailed and full information. For detailed and full information see the relevant full data sheet, which is available on request via the local NXP Semiconductors sales ofﬁce. In case of any inconsistency or conﬂict with the short data sheet, the full data sheet shall prevail.
