BF820W
NPN high-voltage transistor
Product data sheet
Supersedes data of 1997 Sep 03
2003 Sep 09

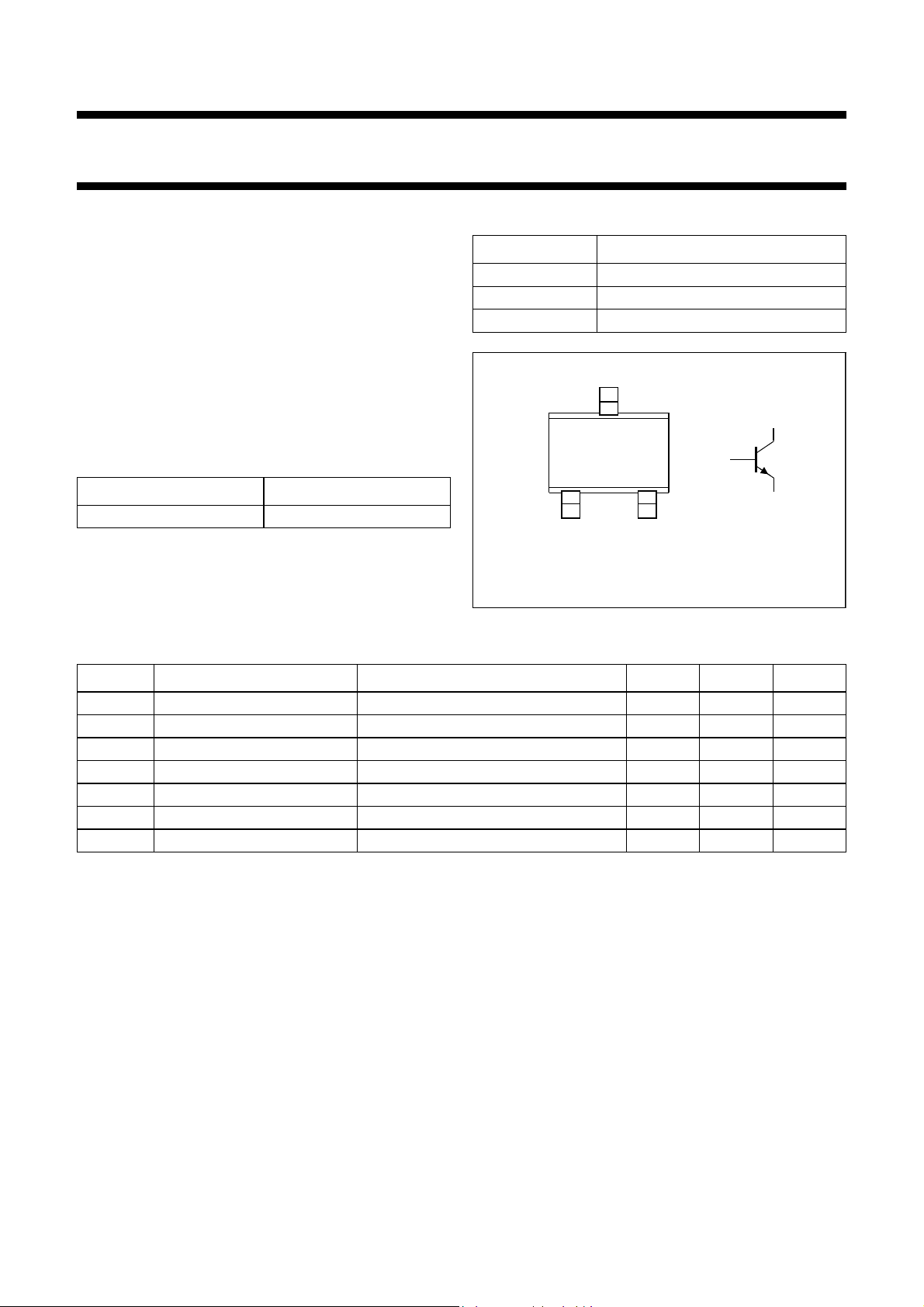

Page 2
NXP Semiconductors Product data sheet
NPN high-voltage transistor BF820W
FEATURES
• Low current (max. 50 mA)
• High voltage (max. 300 V).
APPLICATIONS
• Telephony and professional communication equipment.
DESCRIPTION
NPN high-voltage transistor in a SO T323 plastic package.
MARKING
T YPE NUMBER MARKING CODE
(1)
BF820W 1V*
Notes
1. * = p : made in Hong Kong.
* = t : made in Malaysia.
* = W : made in China.
QUICK REFERENCE DATA
PINNING
PIN DESCRIPTION
1 base
2 emitter
3 collector
handbook, halfpage
Top view
3
1
1
2
MAM062
Fig.1 Simplified outline (SOT323) and symbol.
3
2
SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
V
V
I
P
h
C
f
CBO
CEO
CM
tot
FE
re
T
collector-base voltage open emitter − 300 V
collector-emitter voltage open base − 300 V
peak collector current − 100 mA
total power dissipation T
≤ 25 °C − 200 mW
amb
DC current gain IC = 25 mA; VCE = 20 V 50 −
feedback capacitance IC = ic = 0; VCB = 30 V; f = 1 MHz − 1.6 pF
transition frequency IC = 10 mA; VCE = 10 V; f = 100 MHz 60 − MHz
2003 Sep 09 2
Page 3
NXP Semiconductors Product data sheet
NPN high-voltage transistor BF820W
LIMITING VALUES
In accordance with the Absolu te Maximum Rating System (IEC 60134).
SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
V
CBO
V
CEO
V
EBO
I
C
I
CM
I
BM
P
tot
T
stg
T
j
T
amb
Note
1. Transistor mounted on an FR4 printed-circuit board.
collector-base voltage open emitter − 300 V
collector-emitter voltage open base − 300 V
emitter-base voltage open collector − 5 V
collector current (DC) − 50 mA
peak collector current − 100 mA
peak base current − 50 mA
total power dissipation T
≤ 25 °C; note 1 − 200 mW
amb
storage temperature −65 +150 °C
junction temperature − 150 °C
operating ambient temperature −65 +150 °C
THERMAL CHARACTERISTICS
SYMBOL PARAMETER CONDITIONS VALUE UNIT
R
th j-a
thermal resistance from junction to ambient note 1 625 K/W
Note
1. Transistor mounted on an FR4 printed-circuit board.
CHARACTERISTICS
Tj = 25 °C unless otherwise specified.
SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
I
CBO
collector cut-off current IE = 0; VCB = 200 V − 10 nA
IE = 0; VCB = 200 V; Tj = 150 °C − 10 µA
I
EBO
h
V
C
f
T
FE
CEsat
re
emitter cut-off current IC = 0; VEB = 5 V − 50 nA
DC current gain IC = 25 mA; VCE = 20 V 50 −
collector-emitter saturation voltage IC = 30 mA; IB = 5 mA; note 1 − 600 mV
feedback capacitance IC = ic = 0; VCB = 30 V; f = 1 MHz − 1.6 pF
transition frequency IC = 10 mA; VCE = 10 V; f = 100 MHz 60 − MHz
Note
1. Pulse test: tp ≤ 300 µs; δ ≤ 0.02.
2003 Sep 09 3
Page 4
NXP Semiconductors Product data sheet
3
NPN high-voltage transistor BF820W

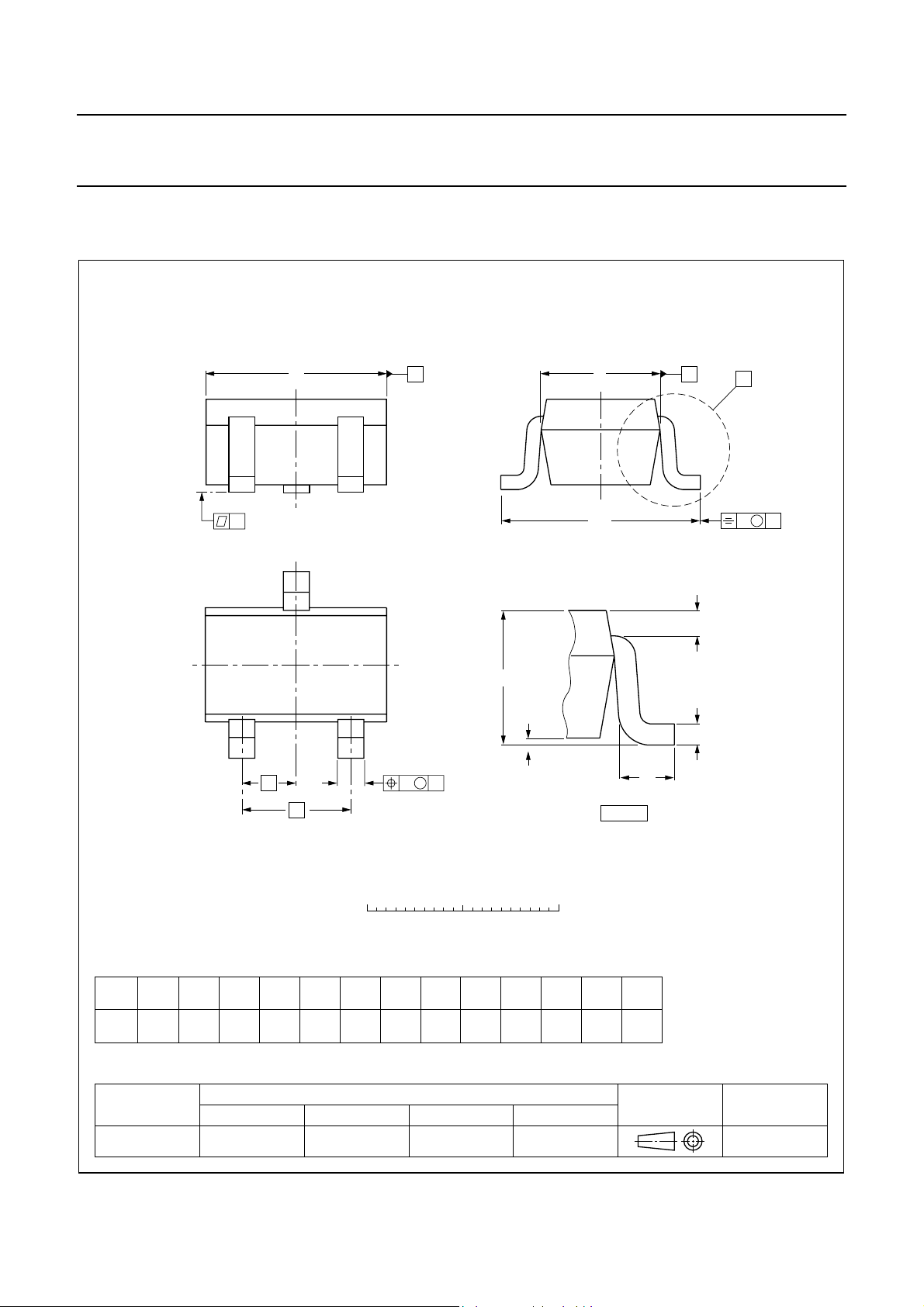

PACKAGE OUTLINE
