BF421; BF423
PNP high voltage transistors
Product specification
Supersedes data of 1996 Dec 09
2004 Nov 10

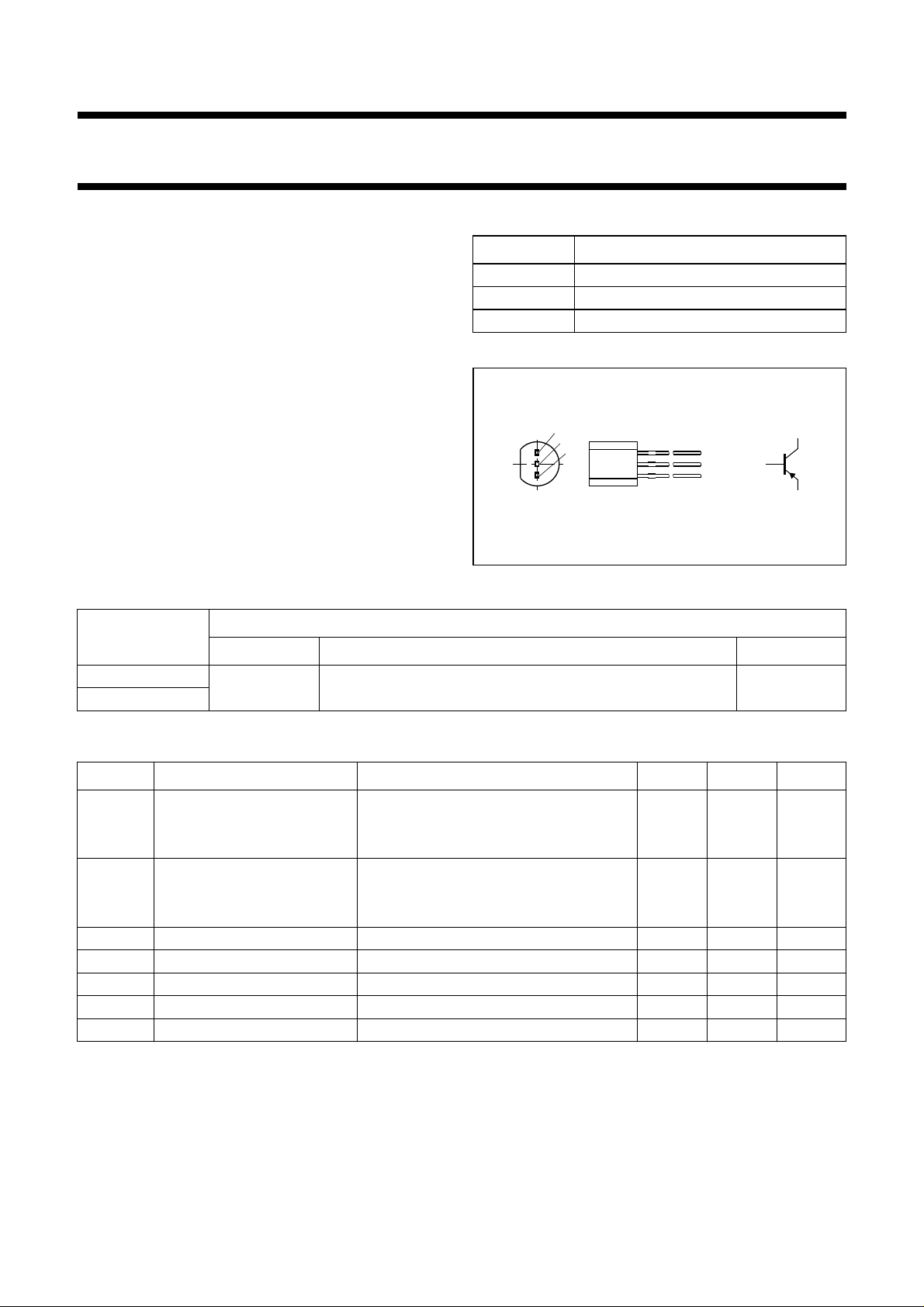

Page 2
Philips Semiconductors Product specification
PNP high voltage transistors BF421; BF423
FEATURES
• Low feedback capacitance.
PINNING
PIN DESCRIPTION
1 base
APPLICATIONS
• Class-B video output stages in colour television and
2 collector
3 emitter
professional monitor equipment.
DESCRIPTION
PNP transistors in a TO-92 plastic package.
NPN complements: BF420 and BF422.
handbook, halfpage
1
2
3
1
MAM285
Fig.1 Simplified outline (TO-92) and symbol.
ORDERING INFORMATION
PACKAGE
TYPE NUMBER
NAME DESCRIPTION VERSION
BF421 SC-43A plastic single-ended leaded (through hole) package; 3 leads SOT54
BF423
2
3
QUICK REFERENCE DATA
SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
V
CBO
collector-base voltage open emitter
BF421 −−300 V
BF423 −−250 V
V
CEO
collector-emitter voltage open base
BF421 −−300 V
BF423 −−250 V
I
P
h
C
f
CM
tot
FE
re
T
peak collector current −−100 mA
total power dissipation T
≤ 25 °C − 830 mW
amb
DC current gain VCE= −20 V; IC= −25 mA 50 −
feedback capacitance VCE= −30 V; IC=ic= 0 A; f = 1 MHz − 1.6 pF
transition frequency VCE= −10 V; IC= −10 mA; f = 100 MHz 60 − MHz
2004 Nov 10 2
Page 3
Philips Semiconductors Product specification
PNP high voltage transistors BF421; BF423
LIMITING VALUES
In accordance with the Absolute Maximum Rating System (IEC 60134).
SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
V
V
V
I
I
I
P
T
T
T
CBO
CEO
EBO
C
CM
BM
tot
stg
j
amb
collector-base voltage open emitter
BF421 −−300 V
BF423 −−250 V
collector-emitter voltage open base
BF421 −−300 V
BF423 −−250 V
emitter-base voltage open collector −−5V
collector current (DC) −−50 mA
peak collector current −−100 mA
peak base current −−50 mA
total power dissipation T
≤ 25 °C; note 1 − 830 mW
amb
storage temperature −65 +150 °C
junction temperature − 150 °C
ambient temperature −65 +150 °C
Note
1. Transistor mounted on a printed-circuit board.
THERMAL CHARACTERISTICS
SYMBOL PARAMETER CONDITIONS VALUE UNIT
R
th(j-a)
thermal resistance from junction to ambient note 1 150 K/W
Note
1. Transistor mounted on a printed-circuit board.
CHARACTERISTICS
T
=25°C unless otherwise specified.
amb
SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
I
CBO
collector-base cut-off current VCB= −200 V; IE=0 A −−10 nA
VCB= −200 V; IE= 0 A; Tj= 150 °C −−10 µA
I
EBO
h
V
C
f
T
FE
CEsat
re
emitter-base cut-off current VEB= −5 V; IC=0 A −−50 nA
DC current gain VCE= −20 V; IC= −25 mA 50 −
collector-emitter saturation voltage IC= −30 mA; IB= −5mA −−0.6 V
feedback capacitance VCE= −30 V; IC=ic= 0 A; f = 1 MHz − 1.6 pF
transition frequency VCE= −10 V; IC= −10 mA; f = 100 MHz 60 − MHz
2004 Nov 10 3
Page 4
Philips Semiconductors Product specification
PNP high voltage transistors BF421; BF423

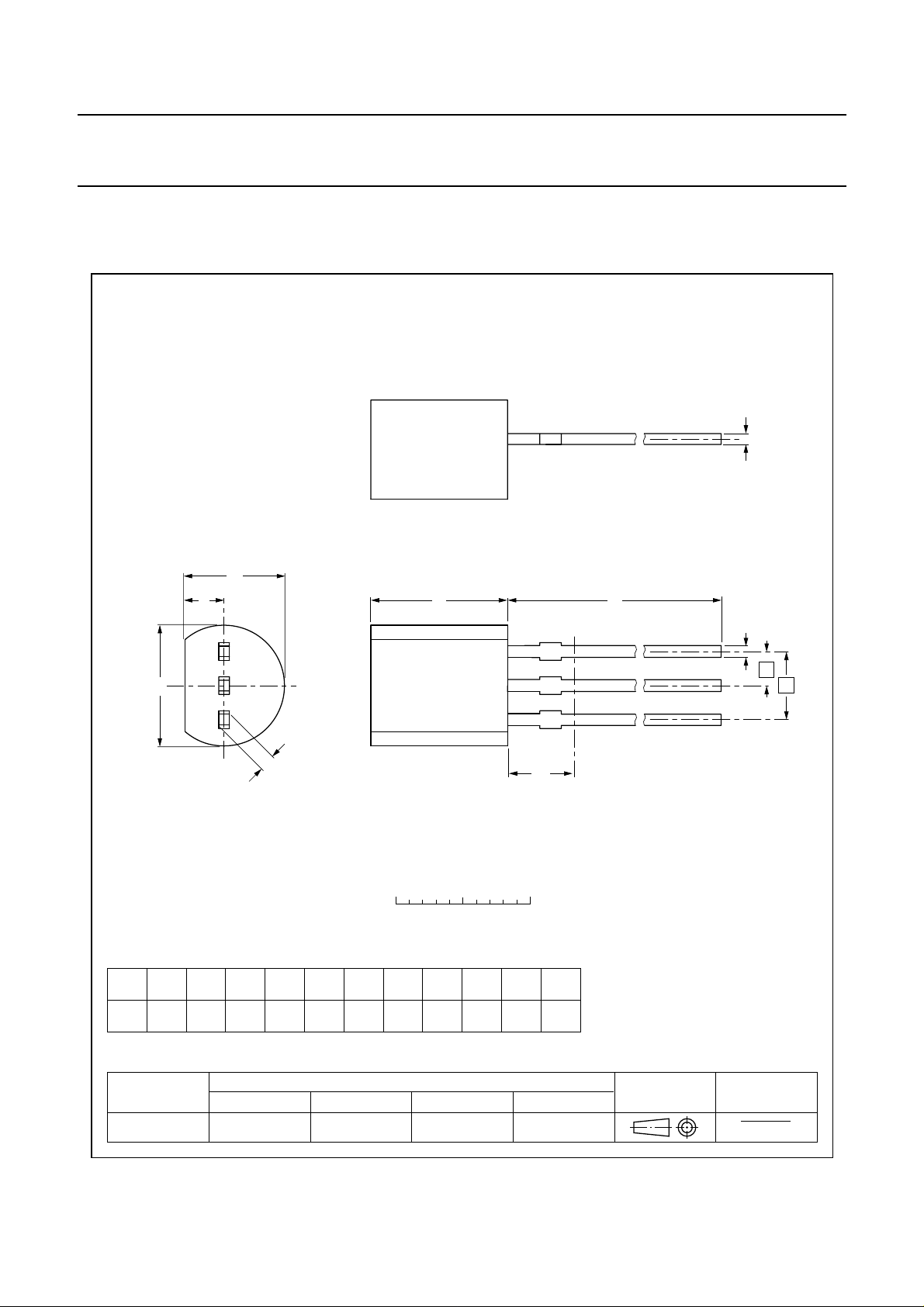

PACKAGE OUTLINE
Plastic single-ended leaded (through hole) package; 3 leads SOT54
c
E
d
A L
1
D
2
3
b
1
0 2.5 5 mm
scale
DIMENSIONS (mm are the original dimensions)
UNIT
A
5.2
mm
5.0
Note
1. Terminal dimensions within this zone are uncontrolled to allow for flow of plastic and terminal irregularities.
OUTLINE
VERSION
SOT54 TO-92 SC-43A
b
0.48
0.40
b
c
D
d
1
0.66
0.45
0.38
4.8
4.4
0.55
IEC JEDEC JEITA
E
1.7
4.2
1.4
3.6
REFERENCES
2.54
e
e
1
1.27
L
14.5
12.7
L
1
(1)
L
1
max.
2.5
EUROPEAN
PROJECTION
b
e
1
e
ISSUE DATE
97-02-28
04-06-28
2004 Nov 10 4
Page 5
Philips Semiconductors Product specification
PNP high voltage transistors BF421; BF423
DATA SHEET STATUS
LEVEL
DATA SHEET
STATUS
(1)
PRODUCT
STATUS
(2)(3)
DEFINITION
I Objective data Development This data sheet contains data from the objective specification for product
development. Philips Semiconductors reserves the right to change the
specification in any manner without notice.
II Preliminary data Qualification This data sheet contains data from the preliminary specification.
Supplementary data will be published at a later date. Philips
Semiconductors reserves the right to change the specification without
notice, in order to improve the design and supply the best possible
product.
III Product data Production This data sheet contains data from the product specification. Philips
Semiconductors reserves the right to make changes at any time in order
to improve the design, manufacturing and supply. Relevant changes will
be communicated via a Customer Product/Process Change Notification
(CPCN).
Notes
1. Please consult the most recently issued data sheet before initiating or completing a design.
2. The product status of the device(s) described in this data sheet may have changed since this data sheet was
published. The latest information is available on the Internet at URL http://www.semiconductors.philips.com.
3. For datasheets describing multiple type numbers, the highest-level product status determines the data sheet status.
DEFINITIONS
DISCLAIMERS
Short-form specification The data in a short-form
specification is extracted from a full data sheet with the
same type number and title. For detailed information see
the relevant data sheet or data handbook.
Limiting values definition Limiting values given are in
accordance with the Absolute Maximum Rating System
(IEC 60134). Stress above one or more of the limiting
values may cause permanent damage to the device.
These are stress ratings only and operation of the device
attheseoratanyotherconditionsabovethosegiveninthe
Characteristics sections of the specification is not implied.
Exposure to limiting values for extended periods may
affect device reliability.
Application information Applications that are
described herein for any of these products are for
illustrative purposes only. Philips Semiconductors make
norepresentationorwarrantythatsuchapplicationswill be
suitable for the specified use without further testing or
modification.
Life support applications These products are not
designed for use in life support appliances, devices, or
systems where malfunction of these products can
reasonably be expected to result in personal injury. Philips
Semiconductorscustomers using or sellingtheseproducts
for use in such applications do so at their own risk and
agree to fully indemnify Philips Semiconductors for any
damages resulting from such application.
Right to make changes Philips Semiconductors
reserves the right to make changes in the products including circuits, standard cells, and/or software described or contained herein in order to improve design
and/or performance. When the product is in full production
(status ‘Production’), relevant changes will be
communicated via a Customer Product/Process Change
Notification (CPCN). Philips Semiconductors assumes no
responsibility or liability for the use of any of these
products, conveys no license or title under any patent,
copyright, or mask work right to these products, and
makes no representations or warranties that these
products are free from patent, copyright, or mask work
right infringement, unless otherwise specified.
2004 Nov 10 5
