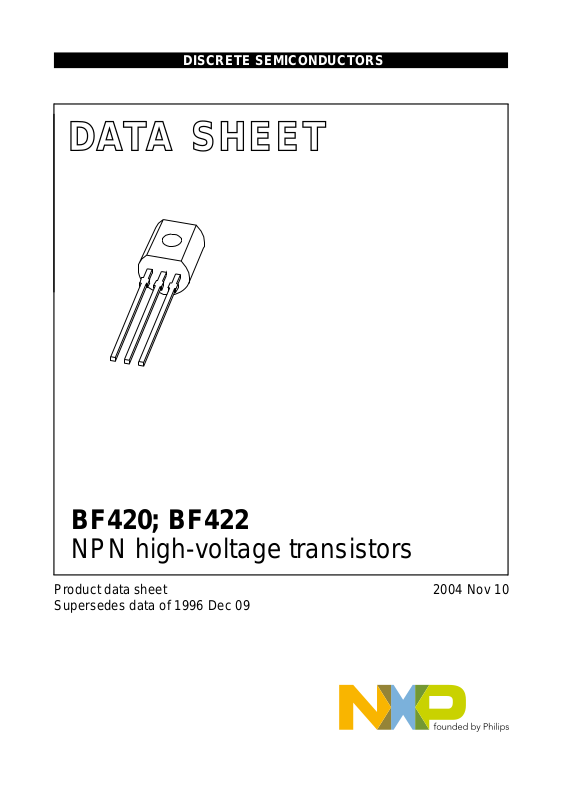

Page 1
DATA SH EET
ook, halfpage
DISCRETE SEMICONDUCTORS
M3D186
BF420; BF422
NPN high-voltage transistors
Product data sheet
Supersedes data of 1996 Dec 09
2004 Nov 10

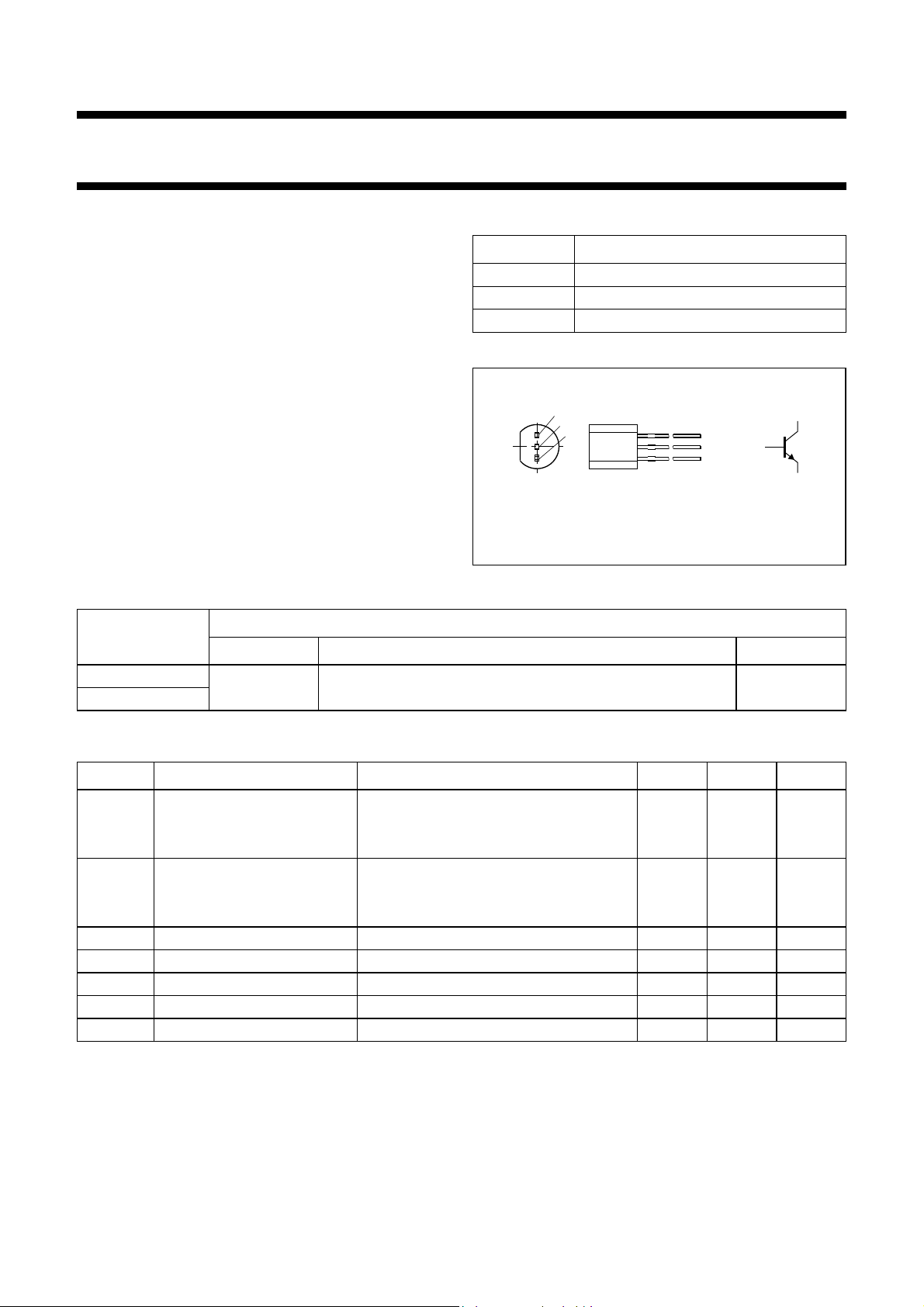

Page 2
NXP Semiconductors Product data sheet
NPN high-voltage transistors BF420; BF422
FEATURES
• Low feedback capacitance.
PINNING
PIN DESCRIPTION
1 base
APPLICATIONS
• Class-B video output stages in colour television and
2 collector
3 emitter
professional monitor equipment.
DESCRIPTION
NPN transistors in a TO-92 plastic package.
PNP complements: BF421 and BF423.
handbook, halfpage
1
2
3
1
MAM259
Fig.1 Simplified outline (TO-92) and symbol.
ORDERING INFORMATION
PACKAGE
T YPE NUMBER
NAME DESCRIPTION VERSION
BF420 SC-43A plastic single-ended leaded (throug h hole) package; 3 leads SOT54
BF422
2
3
QUICK REFERENCE DATA
SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
V
CBO
collector-base voltage open emitter
BF420 − 300 V
BF422 − 250 V
V
CEO
collector-emitter voltage open base
BF420 − 300 V
BF422 − 250 V
I
P
h
C
f
CM
tot
FE
re
T
peak collector current − 100 mA
total power dissipation T
≤ 25 °C − 830 mW
amb
DC current gain VCE = 20 V; IC = 25 mA 50 −
feedback capacitance VCE = 30 V; IC = ic = 0 A; f = 1 MHz − 1.6 pF
transition frequency VCE = 10 V; IC = 10 mA; f = 100 MHz 60 − MHz
2004 Nov 10 2
Page 3
NXP Semiconductors Product data sheet
NPN high-voltage transistors BF420; BF422
LIMITING VALUES
In accordance with the Absolu te Maximum Rating System (IEC 60134).
SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
V
V
V
I
I
I
P
T
T
T
CBO
CEO
EBO
C
CM
BM
tot
stg
j
amb
collector-base voltage open emitter
BF420 − 300 V
BF422 − 250 V
collector-emitter voltage open base
BF420 − 300 V
BF422 − 250 V
emitter-base voltage open collector − 5 V
collector current (DC) − 50 mA
peak collector current − 100 mA
peak base current − 50 mA
total power dissipation T
≤ 25 °C; note 1 − 830 mW
amb
storage temperature −65 +150 °C
junction temperature − 150 °C
ambient temperature −65 +150 °C
Note
1. Transistor mounted on a printed-circuit board.
THERMAL CHARACTERISTICS
SYMBOL PARAMETER CONDITIONS VALUE UNIT
R
th(j-a)
thermal resistance from junction to ambient note 1 150 K/W
Note
1. Transistor mounted on a printed-circuit board.
CHARACTERISTICS
T
= 25 °C unless otherwise specified.
amb
SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
I
CBO
collector-base cut-off curren t VCB = 200 V; IE = 0 A − 10 nA
VCB = 200 V; IE = 0 A; Tj = 150 °C − 10 µA
I
EBO
h
V
C
f
T
FE
CEsat
re
emitter-base cut-off current VEB = 5 V; IC = 0 A − 50 nA
DC current gain VCE = 20 V; IC = 25 mA 50 −
collector-emitter saturation voltage IC = 30 mA; IB = 5 mA − 0.6 V
feedback capacitance VCE = 30 V; IC = ic = 0 A; f = 1 MHz − 1.6 pF
transition frequency VCE = 10 V; IC = 10 mA; f = 100 MHz 60 − MHz
2004 Nov 10 3
Page 4
NXP Semiconductors Product data sheet
4
NPN high-voltage transistors BF420; BF422

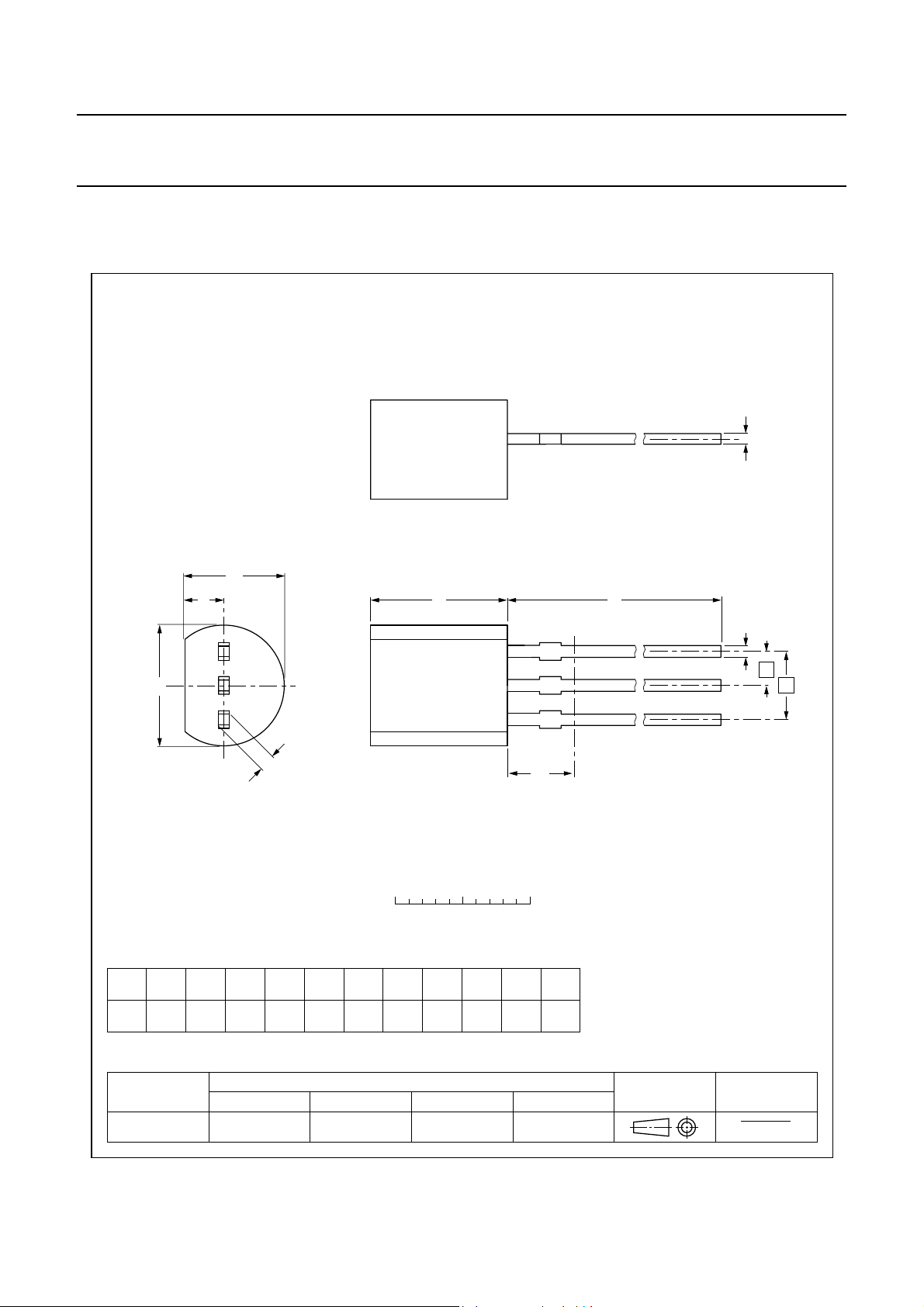

PACKAGE OUTLINE
Plastic single-ended leaded (through hole) package; 3 leads SOT5
c
E
d
A L
1
D
2
3
b
1
0 2.5 5 mm
scale
DIMENSIONS (mm are the original dimensions)
UNIT
A
5.2
mm
5.0
Note
1. Terminal dimensions within this zone are uncontrolled to allow for flow of plastic and terminal irregularities.
OUTLINE
VERSION
SOT54 TO-92 SC-43A
b
0.48
0.40
b
c
D
d
1
0.66
0.45
0.38
4.8
4.4
0.55
IEC JEDEC JEITA
E
1.7
4.2
1.4
3.6
REFERENCES
2.54
e
e
1
1.27
L
14.5
12.7
L
1
(1)
L
1
max.
2.5
EUROPEAN
PROJECTION
b
e
1
e
ISSUE DATE
04-06-28
04-11-16
2004 Nov 10 4
Page 5
NXP Semiconductors Product data sheet
NPN high-voltage transistors BF420; BF422
DATA SHEET STATUS
DOCUMENT
STATUS
Objective data sheet Development This doc ument contains data from the objective specification for product
Preliminary data sheet Qualification This document contains data from the preliminary specification.
Product data sheet Production This document contains the product specification.
Notes
1. Please consult the most recently issued document before initiating or comple ting a design.
2. The product status of device(s) desc ribed in this document may have changed since this document was published
and may differ in case of multiple devices. The latest product status information is available on the Internet at
http://www.nxp.com.
URL
DISCLAIMERS
General ⎯ Information in this document is believed to be
accurate and reliable. However, NXP Semiconductors
does not give any representations or warranties,
expressed or implied, as to the accuracy or completeness
of such information and shall have no liability for the
consequences of use of such information.
Right to make changes ⎯ NXP Semiconductors
reserves the right to make changes to information
published in this document, including without limitation
specifications and product descriptions, at any time and
without notice. This document supersedes and replaces all
information supplied prior to the publication hereof.
Suitability for use ⎯ NXP Semiconductors products are
not designed, authorized or warranted to be su itable for
use in medical, military, aircraft, space or life support
equipment, nor in applications where failure or malfunction
of an NXP Semiconductors product can reasonably be
expected to result in personal injury, death or severe
property or environmental damage. NXP Semiconductors
accepts no liability for inclusion and/or use of NXP
Semiconductors products in such equipment or
applications and therefore such inclusion and/or use is at
the customer’s own risk.
(1)
PRODUCT
STATUS
(2)
DEFINITION
development.
the device. Limiting values are stress ratings only and
operation of the device at these or any other conditions
above those given in the Characteristics sections of this
document is not implied. Exposure to limiting values for
extended periods may affect device reliability.
Terms and conditions of sale ⎯ NXP Semiconductors
products are sold subject to the general terms and
conditions of commercial sale, as published at
http://www.nxp.com/profile/terms, including those
pertaining to warranty, intellectual property rights
infringement and limitation of liability, unless explicitly
otherwise agreed to in writing by NXP Semiconductors. In
case of any inconsistency or conflict between information
in this document and such terms and conditions, the latter
will prevail.
No offer to sell or license ⎯ Nothing in this document
may be interpreted or construed as an offer to sell products
that is open for acceptance or the grant, conveya nce or
implication of any license under any copyrights, patents or
other industrial or intellectual property rights.
Export control ⎯ This document as well as the item(s)
described herein may be subject to export control
regulations. Export might require a prior authorization from
national authorities.
Applications ⎯ Applications that are described herein for
any of these products are for illustrative purposes only.
NXP Semiconductors makes no representation or
warranty that such applications will be suitable for the
specified use without further testing or modificati on .
Limiting values ⎯ Stress above one or more limiting
values (as defined in the Absolute Maximum Ratings
System of IEC
2004 Nov 10 5
60134) may cause permanent damage to
Quick reference data ⎯ The Quick reference data is an
extract of the product data given in the Limiting values and
Characteristics sections of this document, and as such is
not complete, exhaustive or legally binding.
Page 6
NXP Semiconductors
Customer notification
This data sheet was changed to reflect the new company name NXP Semiconductors, including new legal
definitions and disclaimers. No changes were made to the technical content, except for package outline
drawings which were updated to the latest version.
