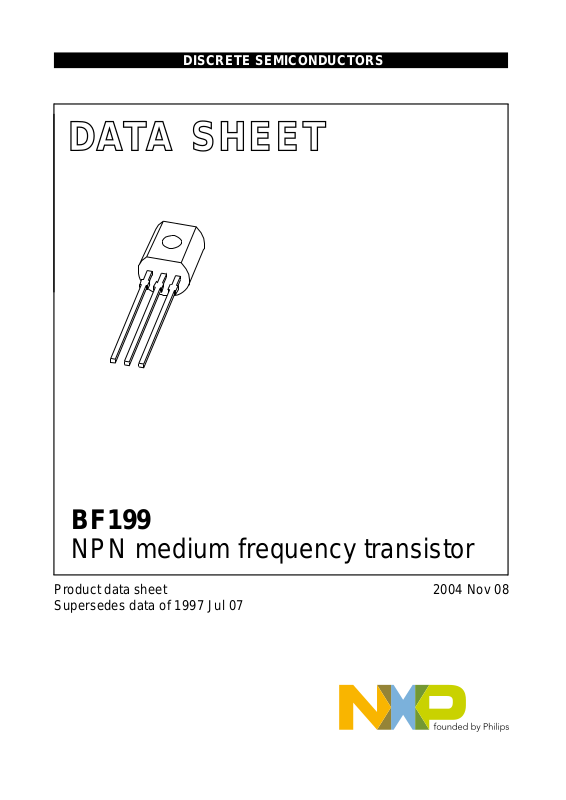

DATA SH EET
ook, halfpage
DISCRETE SEMICONDUCTORS
M3D186
BF199
NPN medium frequency transistor
Product data sheet
Supersedes data of 1997 Jul 07
2004 Nov 08
Page 2

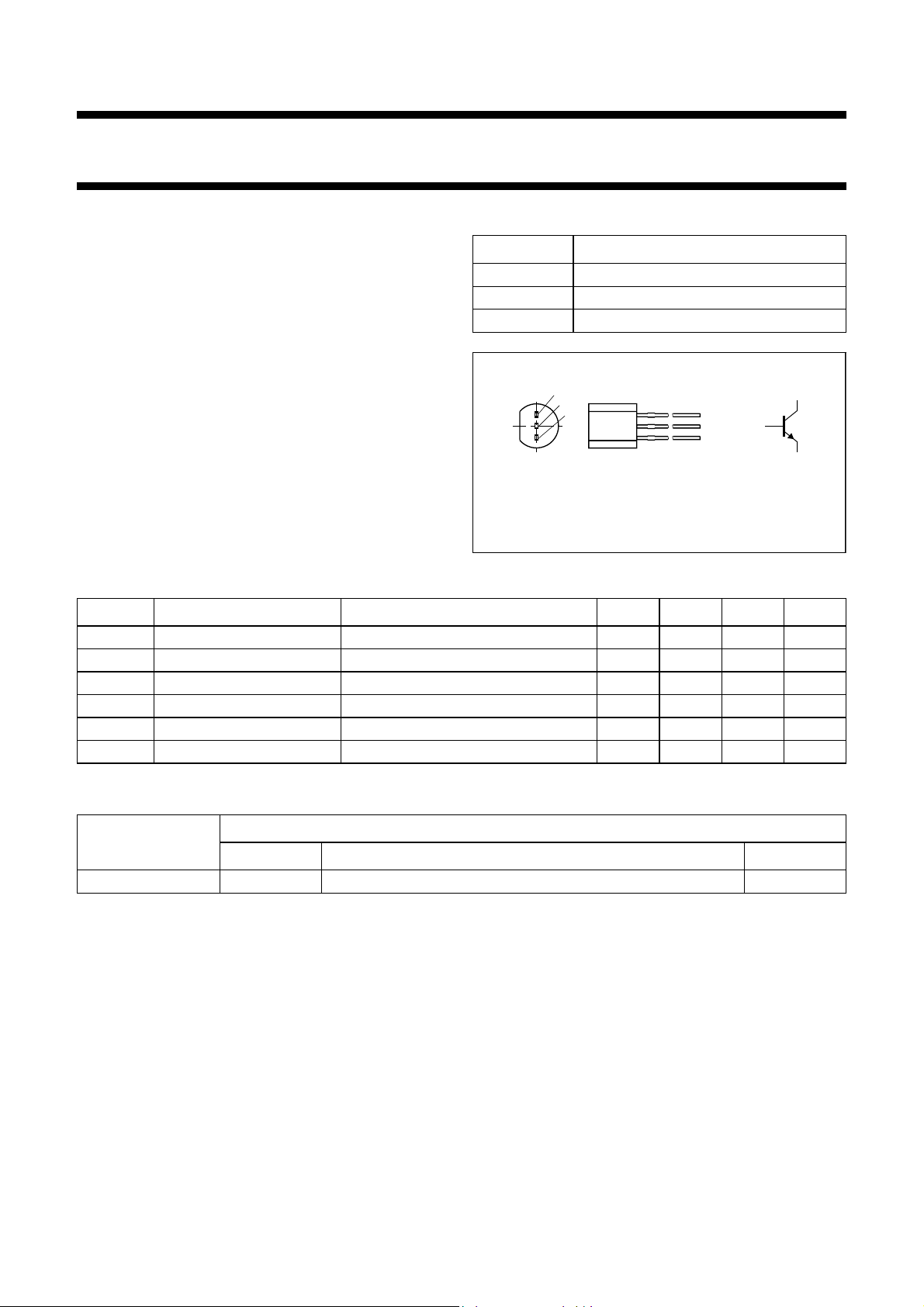

NXP Semiconductors Product data sheet
NPN medium frequency transistor BF199
FEATURES
• Low current (max. 25 mA)
• Low voltage (max. 25 V).
PINNING
PIN DESCRIPTION
1 base
2 emitter
APPLICATIONS
3 collector
• Output stage of a vision IF amplifier.
DESCRIPTION
NPN medium frequency transistor in a TO-92; SOT54
plastic package.
handbook, halfpage
1
2
3
MAM258
3
1
2
Fig.1 Simplified outline (TO-92; SOT54)
and symbol.
QUICK REFERENCE DATA
SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT
V
V
I
P
h
f
CBO
CEO
CM
tot
FE
T
collector-base voltage open emitter − − 40 V
collector-emitter voltage open base − − 25 V
peak collector current − − 25 mA
total power dissipation T
≤ 25 °C − − 500 mW
amb
DC current gain VCE = 10 V; IC = 7 mA 38 − −
transition frequency VCE = 10 V; IC = 5 mA; f = 100 MHz − 550 − MHz
ORDERING INFORMATION
PACKAGE
T YPE NUMBER
NAME DESCRIPTION VERSION
BF199 SC-43A plastic single-ended leaded (through hole) package; 3 leads SOT54
2004 Nov 08 2
Page 3
NXP Semiconductors Product data sheet
NPN medium frequency transistor BF199
LIMITING VALUES
In accordance with the Absolu te Maximum Rating System (IEC 60134).
SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
V
CBO
V
CEO
V
EBO
I
C
I
CM
P
tot
T
stg
T
j
T
amb
Note
1. Transistor mounted on an FR4 printed-circuit board.
collector-base voltage open emitter − 40 V
collector-emitter voltage open base − 25 V
emitter-base voltage open collector − 4 V
collector current (DC) − 25 mA
peak collector current − 25 mA
total power dissipation T
≤ 25 °C; note 1 − 500 mW
amb
storage temperature −65 +150 °C
junction temperature − 150 °C
ambient temperature −65 +150 °C
THERMAL CHARACTERISTICS
SYMBOL PARAMETER CONDITIONS VALUE UNIT
R
th(j-a)
thermal resistance from junction to ambient note 1 250 K/W
Note
1. Transistor mounted on an FR4 printed-circuit board.
CHARACTERISTICS
T
= 25 °C unless otherwise specified.
amb
SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT
I
CBO
I
EBO
h
V
C
f
T
FE
BE
re
collector-base cut-off curren t VCB = 40 V; IE = 0 A − − 100 nA
emitter-base cut-off current VEB = 4 V; IC = 0 A − − 100 nA
DC current gain VCE = 10 V; IC = 7 mA 38 − −
base-emitter voltage VCE = 10 V; IC = 7 mA − 775 925 mV
feedback capacitance VCB = 10 V; IC = 0 A; f = 1 MHz − − 0.5 pF
transition frequency VCE = 10 V; IC = 5 mA; f = 100 MHz − 550 − MHz
2004 Nov 08 3
Page 4
NXP Semiconductors Product data sheet
4
NPN medium frequency transistor BF199

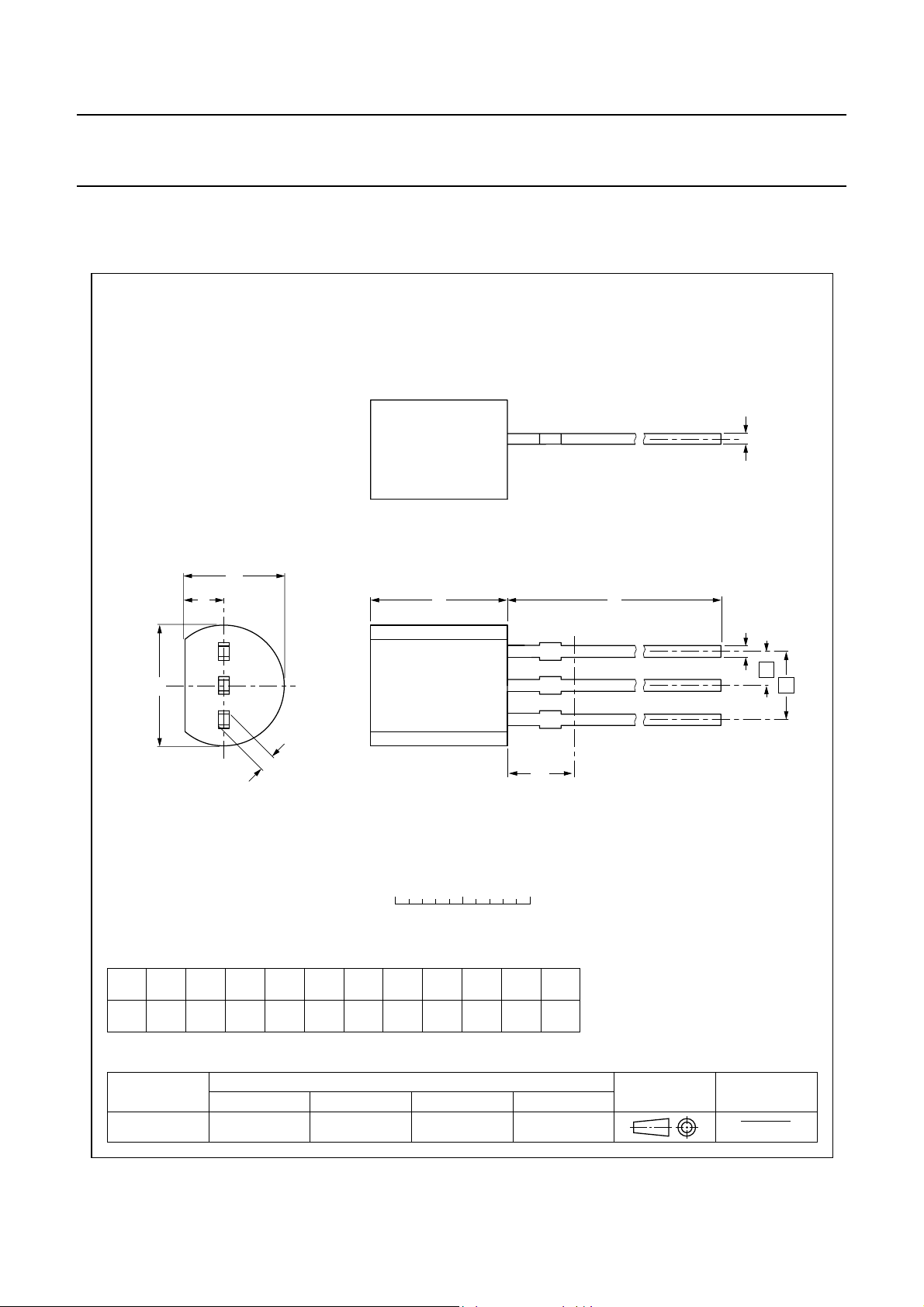

PACKAGE OUTLINE
Plastic single-ended leaded (through hole) package; 3 leads SOT5
c
E
d
A L
1
D
2
3
b
1
0 2.5 5 mm
scale
DIMENSIONS (mm are the original dimensions)
UNIT
A
5.2
mm
5.0
Note
1. Terminal dimensions within this zone are uncontrolled to allow for flow of plastic and terminal irregularities.
OUTLINE
VERSION
SOT54 TO-92 SC-43A
b
0.48
0.40
b
c
D
d
1
0.66
0.45
0.38
4.8
4.4
0.55
IEC JEDEC JEITA
E
1.7
4.2
1.4
3.6
REFERENCES
2.54
e
e
1
1.27
L
14.5
12.7
L
1
(1)
L
1
max.
2.5
EUROPEAN
PROJECTION
b
e
1
e
ISSUE DATE
04-06-28
04-11-16
2004 Nov 08 4
Page 5
NXP Semiconductors Product data sheet
NPN medium frequency transistor BF199
DATA SHEET STATUS
DOCUMENT
STATUS
Objective data sheet Development This document contains data from the objective specification for product
Preliminary data sheet Qualification This document contains data from the preliminary specification.
Product data sheet Production T his doc ument contains the product specification.
Notes
1. Please consult the most recently issued document before initiating or completing a design.
2. The product status of device(s) described in this document may have changed since this document was published
and may differ in case of multiple devices. The latest product status information is available on the Internet at
http://www.nxp.com.
