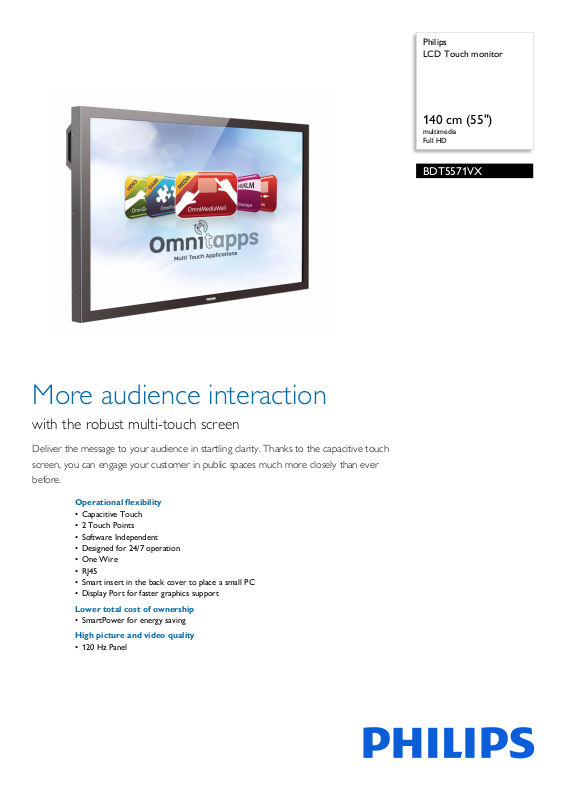

Page 1
Philips
LCD Touch monitor
140 cm (55")
multimedia
Full HD
BDT5571VX
More audience interaction
with the robust multi-touch screen
Deliver the message to your audience in startling clarity. Thanks to the capacitive touch
screen, you can engage your customer in public spaces much more closely than ever
before.
Operational flexibility
• Capacitive Touch
•2 Touch Points
• Software Independent
• Designed for 24/7 operation
•One Wire
•RJ45
• Smart insert in the back cover to place a small PC
• Display Port for faster graphics support
Lower total cost of ownership
• SmartPower for energy saving
High picture and video quality
• 120 Hz Panel
Page 2
BDT5571VX/02
LCD Touch monitor
140 cm (55") multimedia, Full HD
Highlights
120 Hz Panel
Enjoy stunningly clear video images thanks to
th
e 120 Hz panel. Even fast moving action
scene
s can be seen without being blurred,
which will enhance your viewing experience.
2 Touch Points
Enjoy the interactivity of multi-touch
funct
ionality. It has the advantages of a more
robust touch screen combined with the multitouch gestures for using more versatile touch
software.
Capacitive Touch
This capacitive touch has 5-mm tempered
gl
ass. Therefore it is perfectly practical for
public use and easy to clean.
One Wire
Take full control of your display by running all
o
perational commands, as well as your video
signal, through just one single HDMI cable. This
unique feature makes it so much easier and
more convenient to ensure the smooth
running and maintenance of your display.
Consumer Electronics Control (CEC)
commands make finding out vital information
about your display absolute child's play.
RJ45
Simple management of your display is available
th
anks to the introduction of a LAN (RJ45)
port. You can configure each display or find
out the status of each device quickly and
conveniently via an RJ45 connection.
Smart insert
Professional PCs are part of most multi-user
Touch Screen
add additional depth to the public display and a
lot of cable clutter. This Multi-user Touch
installations. Quite often they
Screen contains a Smart insert in the back
cover that will fit many professional compact
PCs. In addition, it offers provisions for
efficient cable management.
SmartPower
The backlight intensity can be controlled and
p
re-set by the system to reduce the power
consumption by up to 50%, which saves
substantially on energy costs.
Software Independent
Our touch screens are software independent
an
d work with most touch-screen software
commercially available, including Windows XP/
7 and Mac OS, Omnitapps – BMT1909/00.
Connect via USB to a PC or laptop.
Page 3
BDT5571VX/02
LCD Touch monitor
140 cm (55") multimedia, Full HD
Specifications
Accessories
• Included accessories: Remote Control, Batteries
for remote control, AC Power Cord, VGA cable,
User manual on CD-ROM, Owner's Manual,
Touch Screen Driver
• Optional accessories: Fixed wall mount, Flexible
unt,
wall mo
BMT1851/00, Multi User Touch SW, Software
Omnitapps BMT1909/00
Ceiling mount, Electric Stand
Connectivity
• AV input: HDMI x 1, Component (YPbPr) x 1,
Composite (RCA) x 1, Composite (BNC) x 1, Svideo x 1,
• AV output: Optional DVI Out
• Other connections: AC-out, Dis
loudspeaker connector
• PC: VGA-in D-Sub 15HD, VGA-out D-Sub 15HD,
DVI-
3.5 mm PC audio input x 1
• Touch Screen: USB
Audio (L/R) x 2
p
lay Port, External
D x 1, RS232 D-Sub9, RS232 D-sub9 output,
Convenience
• Ease of installation: AC Out, Carrying Handles,
Smart Insert
• Energy-saving functions: Ambient light sensor,
Smart Powe
• Keyboard control: Hidden, Lockable
• Network controllable: RJ45, RS232
• Picture in picture: PBP, PIP, POP
• Picture performance: Advanced colour control
• Placement: Portrait, Landscape
• Remote control signal: Lockable
• Safety control functions: Heat Control,
Tem
• Screen-saving functions: Pixel s
r
erature Sensor
p
hift, Low brightness
Dimensions
• Bezel thickness: 36.6 mm horizontal, 36.3 mm
vertical
• Product weight: 62 kg
• Set dimensions (W x H x D): 1293 x 759 x
2.8
mm
14
• Smart Insert mount: 300 x 320 x 64 mm
• VESA Mount: 400 x 400 mm (Set). 100 x 100 mm
(Smart insert)
Miscellaneous
• Bezel: black, RAL 9005F13
• On-Screen Display Languages: English, French,
rman, Italian, Polish, Turkish, Russian, Simplified
Ge
Chinese
• Regulatory approvals: CCC, CE, FCC, Class B,
HS, U
L/cUL
Ro
• Warranty: Europe 3 years
Operating conditions
• MTBF: 60.000 hour(s)
• Relative humidity: 10-90 %
• Temperature range (operation): 0 - 40 °C
Packaging Data
• Net weight: 35
• Number of products included: 1
• Packaging dimensions (W x H x D):: 1339 x 940 x
305 mm
Tare weight: 8.5 kg
•
Picture/Display
• Aspect ratio: 16:9
• Brightness: 700 cd/m²
• Contrast ratio (typical): 1300:1
• Diagonal screen size: 55 inch / 140 cm
• Display colours: 1.06 Billion colours
• Display technology: 120 Hz Panel
• Optimum resolution: 1920 x 1080 @ 60 Hz
• Panel resolution: 1920 x 1080p
• Response time (typical): 10 ms
• Viewing angle: 178º (H)/178º (V)
Power
•Consumption (On mode): Typical 214 W
• Mains power: 90-264 VAC, 50/60 Hz
• Standby power consumption: <1 W (Easylink and
RS232 ac
tive)
Sound
• Built-in speakers: 2 x 12 W (8 Ohm)
Supported Display Resolution
• Computer formats
Resolution Refresh rate
640 x 480 60, 67, 72, 75 Hz
800 x 600 56, 60, 72, 75 Hz
1024 x 768 60 Hz
1280 x 768 60 Hz
1280 x 800 60 Hz
1280 x 1024 60 Hz
1360 x 768 60 Hz
1366 x 768 60
1440 x 900 60 Hz
1600 x 1200 60 Hz
1920 x 1080 60 Hz
1920 x 1200 60 Hz
deo formats
• Vi
Re
solution Refresh rate
480i 60 Hz
480p 60 Hz
576i 50 Hz
576p 50 Hz
720p 50, 60 Hz
1080i 50, 60 Hz
1080p 50, 60 Hz
Hz
Interactivity
• Multi-touch technology: 2 Touch Points
simultaneously, Capacitive touch, USB connection,
5-mm safety glass
•
Issue date 2019-05-16
Version: 1.0.1
12 NC: 8670 000 93371
EAN: 87 12581 65496 2
© 2019 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
