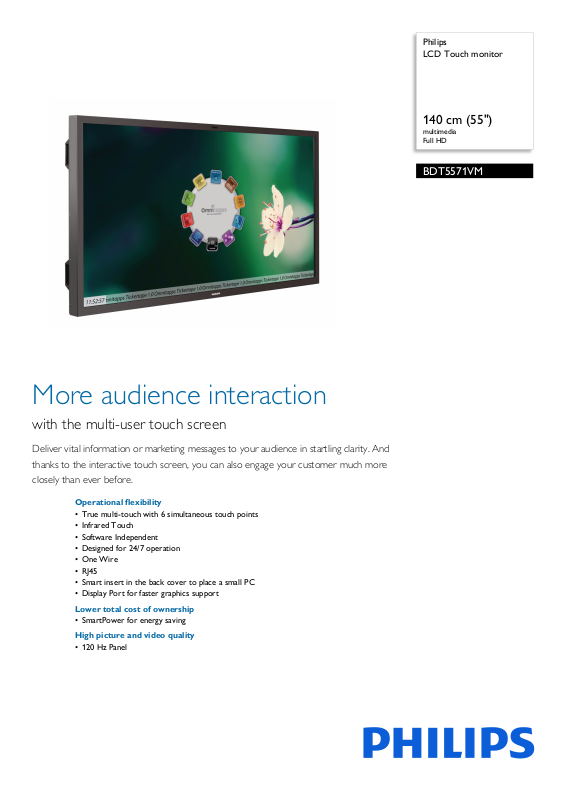

Philips BDT5571VM/06 leaflet

Philips
LCD Touch monitor

140 cm (55")

multimedia
Full HD

BDT5571VM

More audience interaction

with the multi-user touch screen

Deliver vital information or marketing messages to your audience in startling clarity. And
thanks to the interactive touch screen, you can also engage your customer much more
closely than ever before.

Operational flexibility

• True multi-touch with 6 simultaneous touch points

• Infrared Touch

• Software Independent

• Designed for 24/7 operation

•One Wire

•RJ45

• Smart insert in the back cover to place a small PC

• Display Port for faster graphics support

Lower total cost of ownership

• SmartPower for energy saving

High picture and video quality

• 120 Hz Panel

BDT5571VM/06

LCD Touch monitor

140 cm (55") multimedia, Full HD

Highlights

120 Hz Panel

Enjoy stunningly clear video images thanks to
th

e 120 Hz panel. Even fast moving action

scene

s can be seen without being blurred,

which will enhance your viewing experience.

6 simultaneous touch points

Enjoy a more interactive experience with up to
6

touch points at the same time. Ideal for when
you have more than one user interacting with
your application simultaneously, the 6 touch
points offer an extremely cost-effective
solution.

Infrared Touch

With an invisible infrared grid on the top of the
s

creen, you can enjoy amazing accuracy and
fast response times, even when the screen is
touched by a finger, glove or stylus. And no
"ghost points".

One Wire

Take full control of your display by running all
o

perational commands, as well as your video
signal, through just one single HDMI cable. This
unique feature makes it so much easier and
more convenient to ensure the smooth
running and maintenance of your display.
Consumer Electronics Control (CEC)
commands make finding out vital information
about your display absolute child's play.

RJ45

Simple management of your display is available
th

anks to the introduction of a LAN (RJ45)
port. You can configure each display or find
out the status of each device quickly and
conveniently via an RJ45 connection.

Smart insert

Professional PCs are part of most multi-user
Touch Screen

installations. Quite often they

add additional depth to the public display and a
lot of cable clutter. This Multi-user Touch
Screen contains a Smart insert in the back
cover that will fit many professional compact
PCs. In addition, it offers provisions for
efficient cable management.

Software Independent

Our touch screens are software independent
an

d work with most touch-screen software
commercially available, including Windows XP/
7 and Mac OS, Omnitapps – BMT1909/00.
Connect via USB to a PC or laptop.

SmartPower

The backlight intensity can be controlled and
p

re-set by the system to reduce the power
consumption by up to 50%, which saves
substantially on energy costs.

BDT5571VM/06

LCD Touch monitor

140 cm (55") multimedia, Full HD

Specifications

Picture/Display

• Diagonal screen size: 55 inch / 140 cm

• Panel resolution: 1920 x 1080p

• Optimum resolution: 1920 x 1080 @ 60 Hz

• Brightness: 700 cd/m²

• Contrast ratio (typical): 1300:1

• Response time (typical): 10 ms

• Aspect ratio: 16:9

• Viewing angle: 178º (H)/178º (V)

• Display colours: 1.06 Billion colours

• Display technology: 120 Hz Panel

Supported Display Resolution

• Computer formats
Resolution Refresh rate
640 x 480 60, 67, 72, 75 Hz
800 x 600 56, 60, 72, 75 Hz
1024 x 768 60 Hz
1280 x 768 60 Hz
1280 x 800 60 Hz
1360 x 768 60 Hz
1366 x 768 60

40 x 900 60 Hz

14
1600 x 1200 60 Hz
1920 x 1080 60 Hz
1920 x 1200 60 Hz

deo formats

• Vi
Res

olution Refresh rate
480i 60 Hz
480p 60 Hz
576i 50 Hz
576p 50 Hz
720p 50, 60 Hz
1080i 50, 60 Hz
1080p 50, 60 Hz

Hz

Connectivity

• PC: VGA-in D-Sub 15HD, VGA-out D-Sub 15HD,
DVI-D x 1, RS232 D-Sub9, RS232 D-sub9 output,

3.5 mm PC audio input x 1, RJ45

• AV input: HDMI x 1, Composite (RCA) x 1,

mp

osite (BNC) x 1, S-video x 1, Audio (L/R) x 2

Co

• AV output: Optional DVI Out

• Touch Screen: USB

• Other connections: AC-out, Dis
loudspeaker connector

p

lay Port, External

ature Sensor

Temper

• Picture performance: Advanced colour control

• Network controllable: RJ45, RS232

Dimensions

• Set dimensions (W x H x D): 1293 x 759 x

142.8 mm

• Bezel thickness: 36.6 mm horizontal, 36.3 mm
ical

vert

• Product weight: 62 kg

• Smart Insert mount: 300 x 320 x 64 mm

• VESA Mount: 400 x 400 mm (Set). 100 x 100 mm

(Smart insert)

Operating conditions

• Temperature range (operation): 0 - 40 °C

• Relative humidity: 10-90 %

• MTBF: 60.000 hour(s)

Power

• Mains power: 90-264 VAC, 50/60 Hz

•Consumption (On mode): T

• Standby power consumption: < 1 W (Easylink and

RS232 ac

tive)

ypical: 214 W

Sound

• Built-in speakers: 2 x 12 W (8 Ohm)

Accessories

• Included accessories: Remote Control, Batteries

for remote control, AC Power Cord, VGA cable,
User manual on CD-ROM, Owner's Manual,
Touch Screen Driver, Smart insert

• Optional accessories: Fixed wall mount, Flexible

unt, C

wall mo
BMT1851/00, Multi User Touch SW, Software
Omnitapps BMT1909/00

eiling mount, Electric Stand

Miscellaneous

• Bezel: black, RAL 9005F13

• Warranty: Europe 3 years

• On-Screen Display Languages: English, French,

erman, Italian, Polish, Turkish, Russian, Simplified

G
Chinese

• Regulatory approvals: CCC, CE, FCC, Class B,

HS, U

L/cUL

Ro

Convenience

• Placement: Portrait, Landscape

• Picture in picture: PBP, PIP, POP

• Screen-saving functions: Pixel s

• Keyboard control: Hidden, Lockable

• Remote control signal: Lockable

• Ease of installation: AC Out, Carrying Handles,
Smart Insert

• Energy-saving functions: Ambient light sensor,
Smart Pow

• Safety control functions: Heat Control,

e

r

hift, Low brightness

Issue date 2019-05-09

Version: 1.0.1

12 NC: 8670 000 86548
EAN: 87 12581 63244 1

Packaging Data

• Packaging dimensions (W x H x D):: 1339 x 940 x
305 mm

• Tare weight: 8.5 kg

• Number of products included: 1

• Net weight: 35

Interactivity

• Multi-touch technology: 6 Touch points
simultaneously, Infrared touch, USB connection, 5­mm safety glass

•
