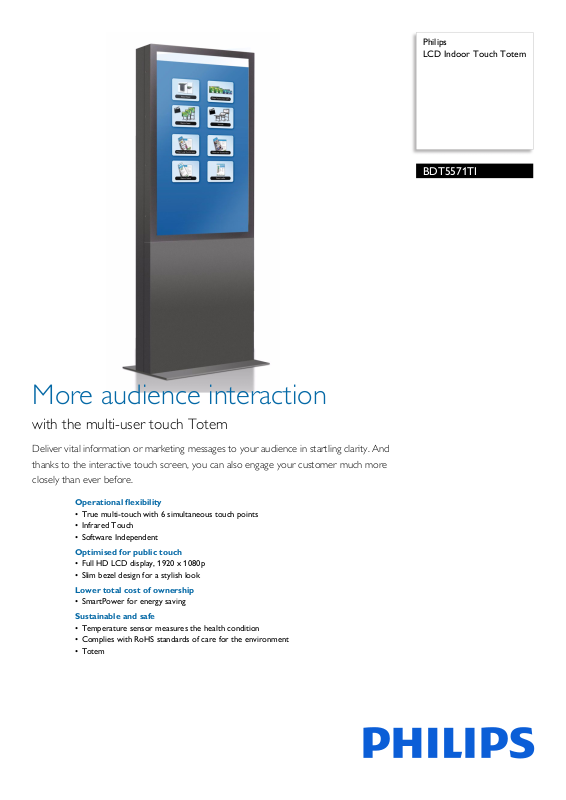

Philips LCD Indoor Touch Totem

BDT5571TI

More audience interaction

with the multi-user touch Totem

Deliver vital information or marketing messages to your audience in startling clarity. And thanks to the interactive touch screen, you can also engage your customer much more closely than ever before.

Operational flexibility

• True multi-touch with 6 simultaneous touch points

• Infrared Touch

• Software Independent

Optimised for public touch

• Full HD LCD display, 1920 x 1080p

• Slim bezel design for a stylish look

Lower total cost of ownership

• SmartPower for energy saving

Sustainable and safe

• Temperature sensor measures the health condition

• Complies with RoHS standards of care for the environment

•Totem

Page 2

BDT5571TI/06

LCD Indoor Touch Totem

Highlights

6 simultaneous touch points

Enjoy a more interactive experience with up to 6

touch points at the same time. Ideal for when you have more than one user interacting with your application simultaneously, the 6 touch points offer an extremely cost-effective solution.

Compliant with RoHS standards

Philips designs and produces display products in

compliance with strict Restriction of Hazardous Substances (RoHS) standards that restrict lead and other toxic substances that can harm the environment.

Full HD LCD display

Full HD LCD display, 1920 x 1080p

Infrared Touch

With an invisible infrared grid on the top of the s

creen, you can enjoy amazing accuracy and fast response times, even when the screen is touched by a finger, glove or stylus. And no "ghost points".

Slim bezel

A slim bezel design adds a stylish look to a Touch Screen environments.

SmartPower

The backlight intensity can be controlled and pre-se

t by the system to reduce the power consumption by up to 50%, which saves substantially on energy costs.

to nicely blend in most

Software Independent

Our touch screens are software independent an

d work with most touch-screen software commercially available, including Windows XP/ 7 and Mac OS, Omnitapps – BMT1909/00. Connect via USB to a PC or laptop.

Temperature sensor

This multi-user Touch Screen contains a t

emperature sensor to monitor the internal health condition. If the internal temperature surpasses the pre-set threshold, two internal fans will be automatically activated to cool down the display to normal conditions.

Totem

The totem is developed for indoor use. It has a

robust housing and it is lockable to protect

the inside components.

Page 3

BDT5571TI/06

LCD Indoor Touch Totem

Specifications

Picture/Display

• Diagonal screen size: 55 inch / 140 cm

• Panel resolution: 1920 x 1080p

• Optimum resolution: 1920 x 1080 @ 50/60 Hz

• Brightness: 700 cd/m²

• Contrast ratio (typical): 1300:1

• Response time (typical): 10 ms

• Aspect ratio: 16:9

• Viewing angle: 178º (H)/178º (V)

• Display colours: 1.06 Billion colours

• Display technology: 120 Hz Panel

Supported Display Resolution

• Computer formats Resolution Refresh rate 640 x 480 60, 67, 72, 75 Hz 800 x 600 56, 60, 72, 75 Hz 1024 x 768 60 Hz 1280 x 768 60 Hz 1280 x 800 60 Hz 1280 x 1024 60 Hz 1360 x 768 60 Hz 1366 x 768 60 Hz 1440 x 900 60 1600 x 1200 60 Hz 1920 x 1080 60 Hz 1920 x 1200 60 Hz

deo formats

• Vi Res

olution Refresh rate 480i 60 Hz 480p 60 Hz 576i 50 Hz 576p 50 Hz 720p 50, 60 Hz 1080i 50, 60 Hz 1080p 50, 60 Hz

Connectivity

• PC: VGA-in D-Sub 15HD, DVI-D x 1, RS232 DSub9, RS232 D-sub9 output, 3.5 mm PC audio input x 1

• AV input: HDMI x 1, Component (YPbPr) x 1,

osite (RCA) x 1, S-video x 1, Audio (L/R) x 2

• AV output: Composite (BNC) x 1, Audio (L/R) x 1

• Touch Screen: USB

• Other connections: AC-out, External loudspeaker

ector

Convenience

• Placement: Portrait

• Picture in picture: PBP, PIP, POP

• Screen-saving functions: Pixel s

• Keyboard control: Hidden, Lockable

• Remote control signal: Lockable

hift, Low brightness

• Ease of installation: AC Out

• Energy-saving functions: Ambient light sensor, Smart Pow

• Safety control functions: Heat Control, Temper

• Picture performance: Advanced colour control

• Network controllable: RS232

ature Sensor

Dimensions

• Set dimensions (W x H x D): Totem: 759 x 2152 x 154 mm Plate: 759 x 8 x 450.6 mm

• Product weight: 145 kg

Operating conditions

• Temperature range (operation): 0 - 40 °C

• Relative humidity: 5 - 90 %

• MTBF: 50,000 hour(s)

Power

• Mains power: 90-264 VAC, 50/60 Hz

•Consumption (On mode)

• Standby power consumption: < 1 W

: Typical 133 W

Sound

• Built-in speakers: 2 x 5 W (8 Ohm)

Accessories

• Included accessories: Remote Control, Batteries for remote control, AC Power Cord, VGA cable, User manual on CD-ROM, Owner's Manual, Touch Driver on USB

• Optional accessories: Multi User Touch SW,

ware Omnitapps BMT1909/00

Sof

Miscellaneous

• Warranty: Europe 2 years

• On-Screen Display Languages: English, French,

erman, Italian, Polish, Turkish, Russian, Simplified

G Chinese

• Regulatory approvals: CCC, CE, FCC, Class B,

HS, U

L/cUL

• Totem: black, RAL 9005F13

Packaging Data

• Packaging dimensions (W x H x D):: 1 x Euro pallet, 1200 x 2341 x 800 mm

• Tare weight: 80 kg

• Number of products included: 1

Interactivity

• Multi-touch technology: 6 Touch points simultaneously, Infrared touch, USB connection, 4mm safety glass

•

Issue date 2019-05-09

Version: 1.0.1

12 NC: 8670 000 86545 EAN: 87 12581 63241 0

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.
