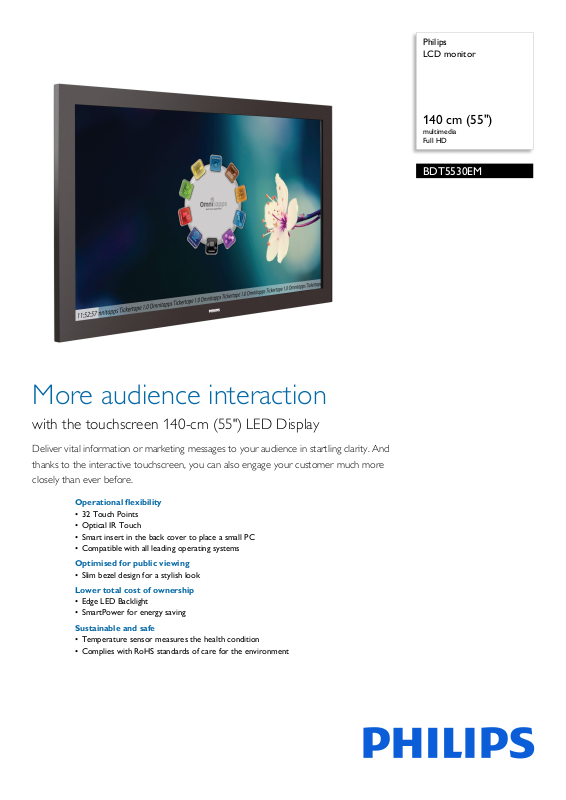

Page 1

Philips LCD monitor

140 cm (55")

multimedia Full HD

BDT5530EM

More audience interaction

with the touchscreen 140-cm (55") LED Display

Deliver vital information or marketing messages to your audience in startling clarity. And thanks to the interactive touchscreen, you can also engage your customer much more closely than ever before.

Operational flexibility

• 32 Touch Points

• Optical IR Touch

• Smart insert in the back cover to place a small PC

• Compatible with all leading operating systems

Optimised for public viewing

• Slim bezel design for a stylish look

Lower total cost of ownership

• Edge LED Backlight

• SmartPower for energy saving

Sustainable and safe

• Temperature sensor measures the health condition

• Complies with RoHS standards of care for the environment

Page 2

BDT5530EM/06

LCD monitor

140 cm (55") multimedia, Full HD

Highlights

Edge LED Backlight

Experience an even dispersion of light with c

utting edge LED technology. White LED's (light emitting diodes) are positioned around the rim of the panel to give a more even spread of light. This results in even lower power consumption, less heat to dissipate and a true, uniform colour range.

SmartPower

The backlight intensity can be controlled and pre-se

t by the system to reduce the power consumption by up to 50%, which saves substantially on energy costs.

Smart Insert

Professional PCs are part of most public s

ignage installations. Quite often they increase the overall depth of the display and cause a lot of cable clutter. So we have designed this display with Smart insert in the back cover,

which is ideal for the integration of a professional small form factor PC. On top of that, the cable management system offers a great solution to keep your cables neat and professional-looking.

Compliant with RoHS standards

Philips designs and produces display products i

n compliance with strict Restriction of Hazardous Substances (RoHS) standards that restrict lead and other toxic substances that can harm the environment.

Temperature sensor

This public display contains a temperature s

ensor to monitor the internal health condition. If the internal temperature exceeds the pre-set threshold, two internal fans will be automatically activated to cool down the display to normal conditions.

32 Touch Points

Enjoy amazing functionality with 32 touch p

oints on this touch screen. More flexibility and optimum performance combine with excellent operability opportunities to give you the ultimate in user interaction.

Optical IR Touch

With an invisible infrared grid on the top of the screen,

you can enjoy amazing accuracy and fast response times, even when touched by a finger, glove or stylus. And no "ghost points".

Slim bezel

A slim bezel design adds a stylish look to a p

ublic display to blend in nicely in just about any environment. Furthermore, this design makes the display ideal for tiled matrix video walls.

Page 3

BDT5530EM/06

LCD monitor

140 cm (55") multimedia, Full HD

Specifications

Picture/Display

• Diagonal screen size: 54.6 inch / 138.6 cm

• Panel resolution: 1920 x 1080p

• Optimum resolution: 1920 x 1080 @ 60 Hz

• Brightness: 450 cd/m²

• Contrast ratio (typical): 4000:1

• Response time (ty

• Aspect ratio: 16:9

• Viewing Angle (H / V): 178 / 178 degree

• Pixel pitch: 0.21 x 0.63 mm

• Display colours: 1.07 Billion

• Picture enhancement: 3/2 - 2/2 motion pull down, mbfi

3D Co Progressive scan, 3D MA deinterlacing, Dynamic contrast enhancement

ical): 6.5 ms

lter, Motion compens. deinterlacing,

Supported Display Resolution

• Computer formats

Resolution Refresh rate 640 x 480 60, 67, 72, 75 Hz 800 x 600 56, 60, 72, 75 Hz 1024 x 768 60 Hz 1280 x 768 60 Hz 1280 x 800 60 Hz 1360 x 768 60 1366 x 768 60 Hz 1440 x 900 60 Hz 1600 x 1200 60 Hz 1920 x 1080 60 Hz 1920 x 1200 60 Hz

deo formats

• Vi

olution Refresh rate

Res 480i 60 Hz 480p 60 Hz 576p 50 Hz 576i 50 Hz 720p 50, 60 Hz 1080i 50, 60 Hz 1080p 50, 60 Hz

Connectivity

• PC: VGA-in D-Sub 15HD, VGA-out D-Sub 15HD,

DVI-D x 1, RS232 D-Sub9, RS232 D-sub9 output,

3.5 mm PC audio input x 1

• AV input: HDMI x 1, Audio (L/R) x 2, Composite

) x

(BNC

• Other connections: Component RCA x1

1, S-video x 1

• Signal Loop Through: RS232, VGA

• Keyboard control: Hidden, Lockable

• Remote control signal: Lockable

• Ease of installation: AC Out, Carrying Handles, Smart Insert

• Energy-saving functions: Ambient light sensor, Smart Pow

• Safety control functions: Heat Control, Temper

• Packaging: Reusable box

• Network controllable: RS232

ature Sensor

Dimensions

• Bezel thickness: 24.6 mm/0.95"

• Set dimensions (W x H x D): 1350 x 815 x 59 mm

• Product weight: 37 kg

• VESA Mount: 400 x 400 mm

Operating conditions

• Temperature range (operation): 0 - 40 °C

• Relative humidity: 5 - 90 %

• MTBF: 60,000 hour(s)

Power

• Mains power: 90-264 V/AC, 50/60 Hz

• Standby power consumption: <1 W

Sound

• Built-in speakers: 2 x 12 W RMS

Accessories

• Included accessories: Remote Control, Batteries for remote control, AC Power Cord, VGA cable, User manual on CD-ROM, Quick start guide

Miscellaneous

• Bezel: Metallic Anthracite

• Warranty: Europe/North America: 3 years

• On-Screen Display Languages: English, French,

erman, Italian, Polish, Turkish, Russian, Simplified

G Chinese

• Regulatory approvals: CE, FCC, Class B, CCC,

HS, U

L/cUL

Technical specifications

• Touchpoints: 32 Simultaneous Touch points, IR Touch Screen s

Convenience

• Placement: Portrait, Landscape

• Tiled Matrix: Up to 5 x 5

• Picture in picture: PIP

• Screen-saving functions: Pixel Shift, Low Brightness

Issue date 2020-10-05

Version: 1.0.1

12 NC: 8670 000 86549 EAN: 87 12581 63245 8

Packaging dimensions

• EAN: 87 12581 63245 8

• Number of products included: 1

• Packaging type: Carton

•

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.
