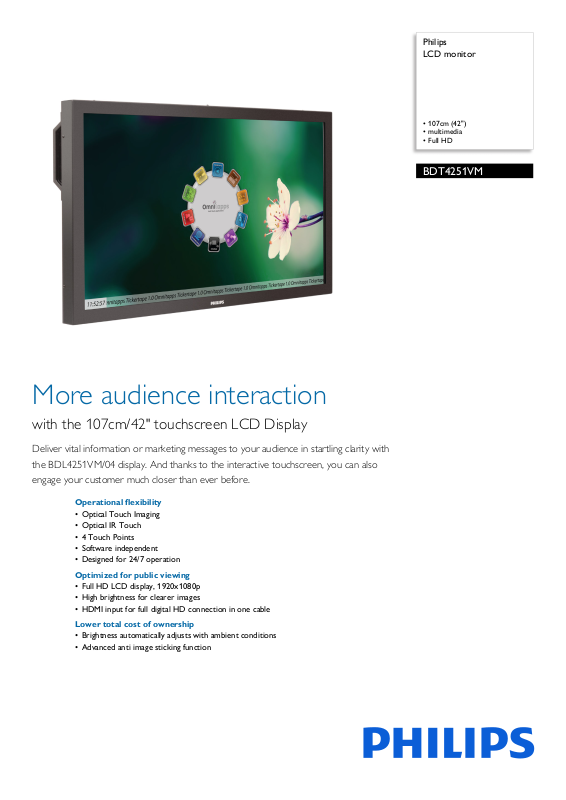

Page 1

Philips LCD monitor

• 107cm (42")

•multimedia

• Full HD

BDT4251VM

More audience interaction

with the 107cm/42" touchscreen LCD Display

Deliver vital information or marketing messages to your audience in startling clarity with the BDL4251VM/04 display. And thanks to the interactive touchscreen, you can also engage your customer much closer than ever before.

Operational flexibility

• Optical Touch Imaging

• Optical IR Touch

•4 Touch Points

• Software independent

• Designed for 24/7 operation

Optimized for public viewing

• Full HD LCD display, 1920x1080p

• High brightness for clearer images

• HDMI input for full digital HD connection in one cable

Lower total cost of ownership

• Brightness automatically adjusts with ambient conditions

• Advanced anti image sticking function

Page 2

LCD monitor

Slim Bezel

107cm (42") multimedia, Full HD

Highlights

BDT4251VM/06

Full HD LCD display 1920x1080p

This display has a resolution that is referred to as

Full HD. The state-of-the-art LCD screen technology has the full high-definition widescreen resolution of 1080 progressive lines, each with 1920 pixels. This allows the best possible picture quality for HD input signals with up to 1080 lines. It produces brilliant flicker-free progressive scan pictures with optimum brightness and superb colors. This vibrant and sharp image will provide you with an enhanced viewing experience.

HDMI input

HDMI makes an uncompressed digital RGB connection eliminating conversion to an analog signal, it delivers an unblemished image. The nondegraded signal reduces flicker and leads to a clearer picture. HDMI intelligently communicates the highest output resolution with the source device. The HDMI input is fully backward compatible with DVI sources but

from the source to the screen. By

includes digital audio. HDMI uses HDCP copy protection.

Automatic brightness control

The adjustment of display settings to corre

spond with ambient light without user

intervention.

Advanced anti image sticking

Static images left on-screen for extended pe

riods of time may leave a "ghost image" or image sticking effect on LCD displays. Although image sticking in LCD displays is not permanent, you want to prevent this to happen, especially in locations where content is shown 24/7.

Designed for 24/7 operation

Because business never sleeps, our signage disp

lays are designed for 24/7 use. Taking advantage of superior components to ensure a higher level of quality, you can count on this

range of models for complete around-theclock reliability.

4 Touch Points

Enjoy a more interactive e touch points. Ideal for when you have more than one user needing to use your application simultaneously, the 4 Touch Points offer an extremely cost-effective solution.

Optical IR Touch

With an invisible infrared grid on the top of the screen,

you can enjoy amazing accuracy and fast response times, even when touched by a finger, glove or stylus. And no "ghost points".

Software independent

Our multi-touch displays are software i

ndependent and work with most multi-touch software commercially available, including Windows XP, 7, 8 and Mac OS. Connect the display via USB to a PC or laptop. No calibration required.

xperience with 4

Page 3

LCD monitor

107cm (42") multimedia, Full HD

Specifications

BDT4251VM/06

Picture/Display

• Diagonal screen size: 42 inch / 107 cm

• Panel resolution: 1920x1080p

• Optimum resolution: 1920 x 1080 @ 60Hz

• Brightness: 700 cd/m²

• Contrast ratio (typical): 1100:1

• Response time (typical): 9 ms

• Aspect ratio: 16:9

• Viewing angle (H / V): 178 / 178 degree

• Pixel pitch: 0.485 x 0.485

• Display colors: 1.06 Billion colors

Supported Display Resolution

• Computer formats Resolution Refresh rate 640 x 480 60, 67, 72, 75Hz 800 x 600 56, 60, 72, 75Hz 1024 x 768 60Hz 1280 x 768 60Hz 1280 x 800 60Hz 1360 x 768 60Hz 1366 x 768 60Hz 1440 x 900 60Hz 1600 x 1200 60Hz 1920 x 1080 60Hz 1920 x 1200 60Hz

deo formats

• Vi

olution Refresh rate

Res 480i 60Hz 480p 60Hz 576p 50Hz 576i 50Hz 720p 50, 60Hz 1080i 50, 60Hz 1080p 50, 60Hz

Connectivity

• PC: VGA-in D-Sub 15HD, VGA-out D-Sub 15HD, DVI-D x1, 3.5 mm PC audio input x1

• AV input: HDMI x1, Component (BNC) x1, S-

deo x1, Audio (L/R) x1, Composite RCA/BNC x2

• AV output: Audio (L/R) x2

• Other connections: AC-out, External loudspeaker

ector

Dimensions

• Bezel thickness: 1.6 cm / 0.63 inch

• Smart Insert mount: 160 x 300 x 55 mm

•Set dimensions (W x H x D): x 598 x 130 mm

1008

• Product weight: 30 kg

• VESA Mount: 400x200mm

Operating conditions

• Temperature range (operation): 0 - 40 °C

• Relative humidity: 10 - 90 %

• MTBF: 50.000 hour(s)

Power

• Mains power: 90-264 VAC, 50/60 Hz

• Consumption (On mode): Typ. 133W

Standby power consumption: < 1W

•

Sound

• Built-in speakers: 2 x 5 W (8 ohm)

Accessories

• Included accessories: Remote Control, Batteries

for remote control, AC Power Cord, VGA cable, User manual on CD-ROM, Quick start guide

• Optional accessories: Fixed wall mount, Flexible

• Stand: BM05211

wall mo

unt, C

eiling mount

Miscellaneous

• Bezel: metallic anthracite

• Warranty: Europe: 3 years

• On-Screen Display Languages: English, French,

erman, Italian, Polish, Turkish, Russian, Simplified

G Chinese

• Regulatory approvals: CE, FCC, Class B, UL/cUL,

C, R

oHS

Technical specifications

• Recognition: Accuracy: 1- 3.7mm, ESD, Finger,

Glove, Reporting Rate, Stylus (4mm and over)

• Touchpoints: 4 Cameras, 4 Simultaneous Touch

s, 4mm Safety Glass, Compatibility, Optical

Point Sensing Touch, Resolution: 24 million points s

Convenience

• Placement: Portrait, Landscape

• Picture in picture: PBP, PIP, POP

• Screen saving functions: Pixel shift, Low bright

• Signal Loop Through: RS232, VGA

• Keyboard control: Hidden, Lockable, On-screen uc

h keyboard

• Remote control signal: Lockable

• Ease of installation: AC Out, Carrying Handles,

Smart Insert

• Energy saving functions: Ambient light sensor,

Smart Pow

• Safety control functions: Heat Control,

Temp

• Picture performance: Advanced color control

• Packaging: Reusable box

• Network controllable: RS232

erature Sensor

Issue date 2013-06-14

Version: 1.0.1

12 NC: 8670 000 86532 EAN: 87 12581 63229 8

Product dimensions

• Product dimensions (W x H x D):

96.76 x 55.96 x 12.31 cm

•Weight: 22 kg

• Product dimensions with stand (H

60.56 x 40.5 cm

• Weight (with stand): 23.8 kg

D):

Packaging dimensions

• Packaging dimensions (W x H x D):

117.5 x 71 x 28 cm

• Nett weight: 22 kg

•Gross weight: 31 kg

• Tare weight: 9 kg

• EAN: 87 12581 63229 8

• Number of products included: 1

• Packaging type: Carton

•

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.
