Philips BDT4251VM/04 Brochure

Download

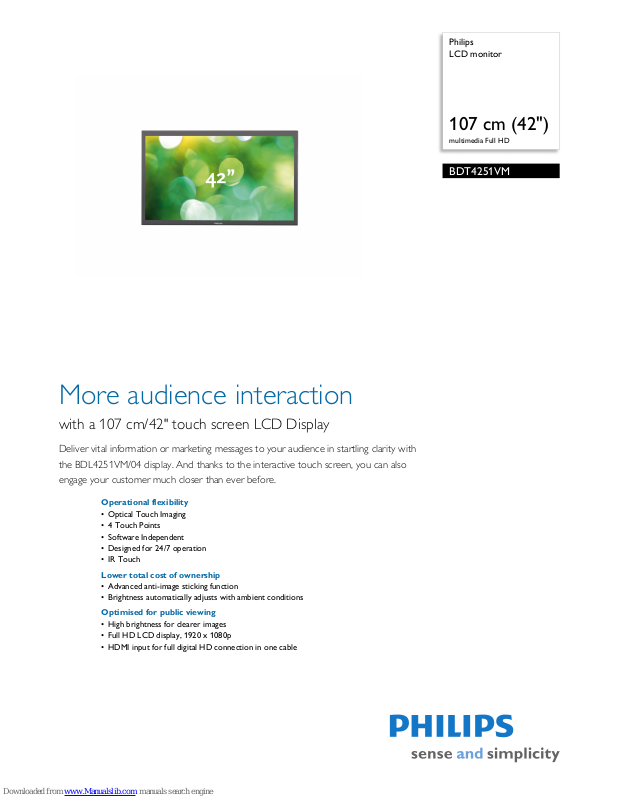

Page 1

Philips LCD monitor

107 cm (42")

multimedia Full HD

BDT4251VM

More audience interaction

with a 107 cm/42" touch screen LCD Display

Deliver vital information or marketing messages to your audience in startling clarity with the BDL4251VM/04 display. And thanks to the interactive touch screen, you can also engage your customer much closer than ever before.

Operational flexibility

• Optical Touch Imaging

•4 Touch Points

• Software Independent

• Designed for 24/7 operation

• IR Touch

Lower total cost of ownership

• Advanced anti-image sticking function

• Brightness automatically adjusts with ambient conditions

Optimised for public viewing

• High brightness for clearer images

• Full HD LCD display, 1920 x 1080p

• HDMI input for full digital HD connection in one cable

Page 2

BDT4251VM/04

Highlights

LCD monitor

107 cm (42") multimedia Full HD

4 Touch Points

Enjoy a more interactive experience with 4 to

uch points. Ideal for when more than one user needs to use your application simultaneously — the 4 Touch Points offer an extremely cost-effective solution.

Software Independent

Our touch screens are software independent a

nd work with most touch screen software commercially available, including Windows XP/ 7 and Mac OS. Connect via USB to a PC or laptop. No calibration required.

Designed for 24/7 operation

Public signage displays are used in the most dem

anding applications. The displays are therefore specifically designed and tested for heavy duty operation, even when 24/7 is required.

Full HD LCD display 1920 x 1080p

This display has a resolution that is referred to as

Full HD. The state-of-the-art LCD screen technology has the full high definition widescreen resolution of 1080 progressive lines, each with 1920 pixels. This allows the best possible picture quality for HD input signals with up to 1080 lines. It produces brilliant flicker-free progressive scan pictures with optimum brightness and superb colours. This vibrant and sharp image will provide you with an enhanced viewing experience.

Automatic brightness control

The adjustment of display settings to corre

spond with ambient light without user

intervention.

HDMI input

HDMI makes an uncompressed digital RGB conne

ction from the source to the screen. By eliminating conversion to an analogue signal, it delivers an unblemished image. The non-

degraded signal reduces flicker and leads to a clearer picture. HDMI intelligently communicates the highest output resolution with the source device. The HDMI input is fully backwards-compatible with DVI sources but includes digital audio. HDMI uses HDCP copy protection.

Advanced anti-image sticking

Static images left on-screen for extended p

eriods of time may leave a "ghost image" or image sticking effect on LCD displays. Although image sticking on LCD displays is not permanent, you want to prevent this happening, especially in locations where content is shown 24/7.

IR Touch

With an invisible infrared grid on the top of the screen,

you can enjoy amazing accuracy and fast response times, even when touched by a finger, glove or stylus. And no "ghost points".

VIDIWALL

P O R T R A I T

Page 3

Issue date 2011-08-25

Version: 1.1.1

12 NC: 8670 000 81278 EAN: 87 12581 61858 2

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

www.philips.com

BDT4251VM/04

Specifications

LCD monitor

107 cm (42") multimedia Full HD

Picture/Display

• Diagonal screen size: 42 inch / 107 cm

• Panel resolution: 1920 x 1080p

• Optimum resolution: 1920 x 1080 @ 60 Hz

• Brightness: 700 cd/m²

• Contrast ratio (typical): 1100:1

• Response time (typical): 9 ms

• Aspect ratio: 16:9

• Viewing Angle (H / V): 178 / 178 degree

• Pixel pitch: 0.485 x 0.485

• Display colours: 1.06 Billion colours

Supported Display Resolution

• Computer formats Resolution Refresh rate 640 x 480 60, 67, 72, 75 Hz 800 x 600 56, 60, 72, 75 Hz 1024 x 768 60 Hz 1280 x 768 60 Hz 1280 x 800 60 Hz 1360 x 768 60 Hz 1366 x 768 60 Hz 1440 x 900 60 Hz 1600 x 1200 60 Hz 1920 x 1080 60 Hz 1920 x 1200 60 Hz

• Vi

deo formats

Res

olution Refresh rate 480i 60 Hz 480p 60 Hz 576p 50 Hz 576i 50 Hz 720p 50, 60 Hz 1080i 50, 60 Hz 1080p 50, 60 Hz

Connectivity

• PC: 3.5 mm PC audio input x 1, DVI-D x 1, VGAin D-Sub 15HD, VGA-out D-Sub 15HD

• AV input: Audio (L/R) x 1, Component (BNC) x

Composite RCA/BNC x 2, HDMI x 1, S-video x 1

• Other connections: External loudspeaker conn

ector, AC-out

• AV output: Audio (L/R) x 2

Convenience

• Placement: Portrait, Landscape

• Picture in picture:: PBP, PIP, POP

• Screen-saving functions: Pixel shift, Low bright

• Signal Loop Through:: RS232, VGA

• Keyboard control:: Hidden, Lockable, On-screen to

h keyboard

• Remote control signal:: Lockable

• Ease of installation: AC Out, Carrying Handles, Smart Insert

• Energy-saving functions:: Ambient light sensor, Smart Pow

• Safety control functions:: Heat Control, Temp

erature Sensor

• Picture performance: Advanced colour control

• Packaging:: Reusable box

• Network controllable: RS232

Dimensions

• Bezel thickness: 1.6 cm/0.63 inch

• Smart insert (WxHxD): 160 x 300 x 55 mm

•Set dimensions (W x H x D): 1008

x 598 x 130 mm

• Product weight: 30 kg

• VESA Mount: 400 x 200 mm

Operating conditions

• Temperature range (operation): 0 - 40 °C

• Relative humidity: 10-90 %

• MTBF: 50,000 hour(s)

Power

• Mains power: 90-264 VAC, 50/60 Hz

• Consumption (On mode): Typ. 133 W

• Standby power consumption: < 1 W

Sound

• Built-in speakers: 2 x 5 W (8 ohm)

Accessories

• Included accessories: Remote Control, Batteries for remote control, AC Power Cord, VGA cable, User manual on CD-ROM, Quick start guide

• Optional accessories: Fixed wall mount, Flexible wall mo

unt, C

eiling mount

• Stand: BM05211

Miscellaneous

• Bezel: metallic anthracite

• Guaranteed: Europe: 3 years

• On-Screen Display Languages: English, French, G

erman, Italian, Polish, Turkish, Russian, Simplified

Chinese

• Regulatory approvals: CE, FCC, Class B, CCC, Ro

HS, U

L/cUL

Packaging dimensions

• Packaging dimensions (W x H x D):

117.5 x 71 x

28 cm

• Net weight: 22 kg

•Gross weight: 31 kg

• Tare weight: 9 kg

• EAN: 87 12581 61858 2

• Number of products included: 1

• Packaging type: Carton

Product dimensions

• Product dimensions (W x H x D):

96.76 x 55.96 x 12.31 cm

•Weight: 22 kg

• Product dimensions with stand (H x D): 60

6 x 40.5 cm

• Weight (with stand): 23.8 kg

Technical specifications

• Recognition: Accuracy: 1-3.7 mm, ESD, Finger, Glove, Reporting Rate, Stylus (4 mm and over)

• Touchpoints: 4 Cameras, 4 Simultaneous Touch Point

s, 4 mm Safety Glass, Compatibility, Optical

Sensing Touch, Resolution: 24 million points s

•
