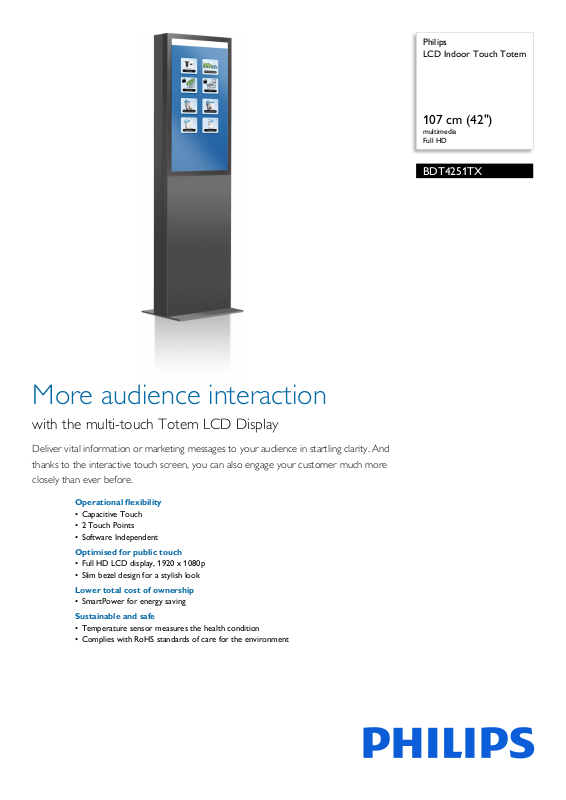

Page 1
Philips
LCD Indoor Touch Totem
107 cm (42")
multimedia
Full HD
BDT4251TX
More audience interaction
with the multi-touch Totem LCD Display
Deliver vital information or marketing messages to your audience in startling clarity. And
thanks to the interactive touch screen, you can also engage your customer much more
closely than ever before.
Operational flexibility
• Capacitive Touch
•2 Touch Points
• Software Independent
Optimised for public touch
• Full HD LCD display, 1920 x 1080p
• Slim bezel design for a stylish look
Lower total cost of ownership
• SmartPower for energy saving
Sustainable and safe
• Temperature sensor measures the health condition
• Complies with RoHS standards of care for the environment
Page 2
BDT4251TX/02
LCD Indoor Touch Totem
107 cm (42") multimedia, Full HD
Specifications
Picture/Display
• Diagonal screen size: 42 inch / 107 cm
• Panel resolution: 1920 x 1080p
• Optimum resolution: 1920 x 1080 @ 60 Hz
• Brightness: 700 cd/m²
• Contrast ratio (typical): 1100:1
• Response time (typical): 9 ms
• Aspect ratio: 16:9
• Viewing angle: 178º (H)/178º (V)
• Pixel pitch: 0.485 x 0.485
• Display colours: 1.06 Billion
• Picture enhancement: 3/2 - 2/2 motion pull down,
mbfilter, Motion compens. deinterlacing,
3D Co
Progressive scan, 3D MA deinterlacing, Dynamic
contrast enhancement
Supported Display Resolution
• Computer formats
Resolution Refresh rate
640 x 480 60, 67, 72, 75 Hz
800 x 600 56, 60, 72, 75 Hz
1024 x 768 60 Hz
1280 x 768 60 Hz
1280 x 800 60 Hz
1280 x 1024 60 Hz
1360 x 768 60 Hz
1366 x 768 60 Hz
1440 x 900 60 Hz
1600 x 1200 60 Hz
1920 x 1080 60 Hz
1920 x 1200 60 Hz
deo formats
• Vi
Resolution Refresh rate
480i 60 Hz
480p 60 Hz
576i 50 Hz
576p 50 Hz
720p 50, 60 Hz
1080i 50, 60 Hz
1080p 50, 60 Hz
Connectivity
• PC: VGA-in D-Sub 15HD, VGA-out D-Sub 15HD,
DVI-D x 1, RS232 D-Sub9, RS232 D-sub9 output,
3.5 mm PC audio input x 1
• AV input: HDMI x 1, Component (YPbPr) x 1,
mposite (RCA) x 1, Composite (BNC) x 1, S-
Co
video x 1
• AV output: Composite (BNC) x 1, Audio (L/R) x 1
• Touch Screen: USB
• Other connections: AC-out, External loudspeaker
co
Convenience
• Placement: Portrait
, Audio (L/R) x 1
nnector
• Picture in picture: PBP, PIP, POP
• Screen-saving functions: Pixel shift, Low bright
• Keyboard control: Hidden, Lockable
• Remote control signal: Lockable
• Ease of installation: AC Out
• Energy-saving functions: Ambient light sensor,
Smart Pow
• Safety control functions: Heat Control,
Te
• Picture performance: Advanced colour control
• Network controllable: RS232
er
mperature Sensor
Dimensions
• Totem: 598 x 201 x 154 mm
• Plate: 598 x 8 x 450.6 mm
• Packaging dimensions (WxHxD): 1 x Euro pallet:
00 x 2200 x 800 mm
12
Operating conditions
• Temperature range (operation): 0 - 40 °C
• Relative humidity: 5 - 90 %
• MTBF: 50,000 hour(s)
Power
• Mains power: 90-264 VAC, 50/60 Hz
• Consumption (On mode): Typ. 133 W
• Standby power consumption: < 1 W
Accessories
• Included accessories: Remote Control, Batteries
for remote control, AC Power Cord, VGA cable,
User manual on CD-ROM, Owner's Manual,
Touch Driver on USB
• Optional accessories: Software Omnitapps
909/00
BMT1
Miscellaneous
• Warranty: Europe 2 years
• On-Screen Display Languages: En
German, Italian, Polish, Russian, Simplified Chinese,
Turkish
• Regulatory approvals: CCC, CE, FCC, Class B,
HS, UL/cUL
Ro
• Totem: black, RAL 9005F13
glish, French,
Packaging Data
• Tare weight: 80 kg
• Number of products included: 1
Interactivity
• Multi-touch technology: 2 Touch Points
simultaneously, USB connection, 5-mm safety glass,
Capacitive touch
•
Highlights
Capacitive Touch
This capacitive touch has 5-mm tempered glass.
Therefore it is perfectly practical for public use and
easy to clean.
2 Touch Points
Enjoy the interactivity of multi-touch functionality. It
has the advantages of a more robust touch screen
combined with the multi-touch gestures for using
more versatile touch software.
Full HD LCD display
Full HD LCD display, 1920 x 1080p
Slim bezel
A slim bezel design adds a stylish look to a Touch
Screen to nicely blend in most environments.
SmartPower
The backlight intensity can be controlled and pre-set
by the system to reduce the power consumption by
up to 50%, which saves substantially on energy costs.
Software Independent
Our touch screens are software independent and
work with most touch-screen software
commercially available, including Windows XP/7 and
Mac OS, Omnitapps – BMT1909/00. Connect via
USB to a PC or laptop.
Temperature sensor
This multi-user Touch Screen contains a
temperature sensor to monitor the internal health
condition. If the internal temperature surpasses the
pre-set threshold, two internal fans will be
automatically activated to cool down the display to
normal conditions.
Compliant with RoHS standards
Philips designs and produces display products in
compliance with strict Restriction of Hazardous
Substances (RoHS) standards that restrict lead and
other toxic substances that can harm the
environment.
Issue date 2019-05-09
Version: 1.0.1
12 NC: 8670 000 87687
EAN: 87 12581 63764 4
© 2019 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
