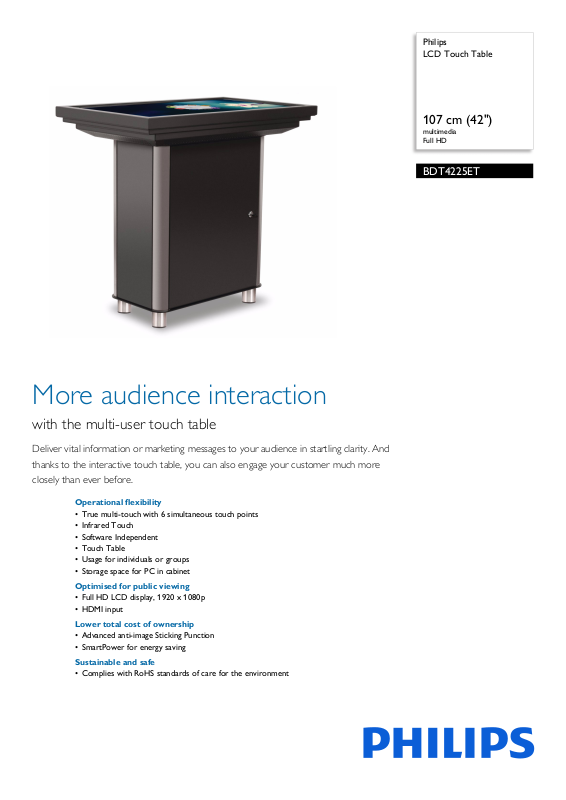

Philips BDT4225ET/06 leaflet

Philips
LCD Touch Table

107 cm (42")

multimedia
Full HD

BDT4225ET

More audience interaction

with the multi-user touch table

Deliver vital information or marketing messages to your audience in startling clarity. And
thanks to the interactive touch table, you can also engage your customer much more
closely than ever before.

Operational flexibility

• True multi-touch with 6 simultaneous touch points

• Infrared Touch

• Software Independent

• Touch Table

• Usage for individuals or groups

• Storage space for PC in cabinet

Optimised for public viewing

• Full HD LCD display, 1920 x 1080p

• HDMI input

Lower total cost of ownership

• Advanced anti-image Sticking Punction

• SmartPower for energy saving

Sustainable and safe

• Complies with RoHS standards of care for the environment

BDT4225ET/06

LCD Touch Table

107 cm (42") multimedia, Full HD

Highlights

6 simultaneous touch points

Enjoy a more interactive experience with up to
6

touch points at the same time. Ideal for when
you have more than one user interacting with
your application simultaneously, the 6 touch
points offer an extremely cost-effective
solution.

Advanced anti-image sticking

Advanced anti-image Sticking Punction

HDMI input

HDMI makes an uncompressed digital RGB
connection
eliminating conversion to an analogue signal, it
delivers an unblemished image. The non­degraded signal reduces flicker and leads to a

from the source to the screen. By

clearer picture. HDMI intelligently
communicates the highest output resolution
with the source device. The HDMI input is fully
backwards-compatible with DVI sources but
includes digital audio. HDMI uses HDCP copy
protection.

Infrared Touch

With an invisible infrared grid on the top of the
s

creen, you can enjoy amazing accuracy and
fast response times, even when the screen is
touched by a finger, glove or stylus. And no
"ghost points".

SmartPower

The backlight intensity can be controlled and
pre-se

t by the system to reduce the power

consumption by up to 50%, which saves
substantially on energy costs.

Software Independent

Our touch screens are software independent
an

d work with most touch-screen software
commercially available, including Windows XP/
7 and Mac OS, Omnitapps – BMT1909/00.
Connect via USB to a PC or laptop.

Touch Table

This Multi-user Touch Screen can
horizontal position. It is delivered with four 8­cm high stainless steel feet, which can be
screwed in at the back corners of the monitor.
With this feature you can turn this monitor
into a Touch Table.

be used in a

BDT4225ET/06

LCD Touch Table

107 cm (42") multimedia, Full HD

Specifications

Accessories

• Included accessories: Remote Control, Batteries
for remote control, AC Power Cord, VGA cable,
User manual on CD-ROM, Owner's Manual,
Touch Driver on USB, Air fan, Cabinet on 4 steel
feet, Network and power connections

• Optional accessories: Multi User Touch SW,

t

ware Omnitapps BMT1909/00, 4 small wheels

Sof
for mobility

Connectivity

• AV input: HDMI x 1, Component (BNC) x 1,
Composite (RCA) x 1, Composite (BNC) x 1, S­video x 1,

• AV output: Composite (BNC) x 1, Audio (L/R) x 1

• PC: VGA-in D-Sub 15HD, VGA-out D-Sub 15HD,
DVI

3.5 mm PC audio input x 1

• Touch Screen: USB

Audio (L/R) x 2

-

D x 1, RS232 D-Sub9, RS232 D-sub9 output,

Convenience

• Energy-saving functions: Smart Power

• Keyboard control: Hidden, Lockable

• Picture in picture: PBP, PIP, POP

• Picture performance: Advanced colour control

• Placement: Horizontal (table)

• Remote control signal: Lockable

• Screen-saving functions: Pixel shift, Low Brightness

Dimensions

• Bezel thickness: short length 44.5 mm, long length
46 mm

• Product weight: 72 kg

• Set dimensions (W x H x D): 1024 x 936 x 617 mm

Miscellaneous

• Bezel: black, RAL 9005F13

• On-Screen Display Languages: English, French,

rman, Italian, Polish, Turkish, Russian, Simplified

Ge
Chinese

• Regulatory approvals: CCC, CE, FCC, Class B,

HS, U

L/cUL

Ro

• Warranty: Europe 2 years

Operating conditions

• MTBF: 50,000 hour(s)

• Relative humidity: 5 - 90 %

• Temperature range (operation): 0 - 40 °C

Packaging Data

• Number of products included: 1

• Packaging dimensions (W x H x D):: 1 x Euro

1200 x 1115 x 800 mm

pallet,

• Tare weight: 20 kg

Picture/Display

• Aspect ratio: 16:9

• Brightness: 500 cd/m²

• Contrast ratio (typical): 1400:1

• Diagonal screen size: 42 inch / 107 cm

• Display colours: 1.06 Billion colours

• Optimum resolution: 1920 x 1080 @ 60 Hz

• Panel resolution: 1920 x 1080p

• Picture enhancement: 3/2 - 2/2 motion pull down,
3D Co
Progressive scan, 3D MA deinterlacing, Dynamic
contrast enhancement

• Pixel pitch: 0.485 x 0.485

• Response time (typical): 5 ms

• Viewing angle: 178º (H)/178º (V)

lter, Motion compens. deinterlacing,

mbfi

Power

•Consumption (On mode): Typical 135 W

• Mains power: 90-264 VAC, 50/60 Hz

• Standby power consumption: < 1 W

Sound

• Built-in speakers: 2 x 7 W (8 Ohm)

Supported Display Resolution

• Computer formats
Resolution Refresh rate
640 x 480 60, 67, 72, 75 Hz
800 x 600 56, 60, 72, 75 Hz
1024 x 768 60 Hz
1280 x 768 60 Hz
1280 x 800 60 Hz
1280 x 1024 60 Hz
1360 x 768 60 Hz
1440 x 900 60 Hz
1600 x 1200 60
1920 x 1080
1920 x 1200 60 Hz

deo formats

• Vi
Re

solution Refresh rate
480i 60 Hz
480p 60 Hz
576i 50 Hz
576p 50 Hz
720p 50, 60 Hz
1080i 50, 60 Hz
1080p 50, 60 Hz

60

Hz

Hz

Interactivity

• Multi-touch technology: 6 Touch points
simultaneously, Infrared touch, USB connection, 4­mm safety glass

•

Issue date 2019-05-09

Version: 1.0.1

12 NC: 8670 000 87684
EAN: 87 12581 63761 3
